electronic equipment –

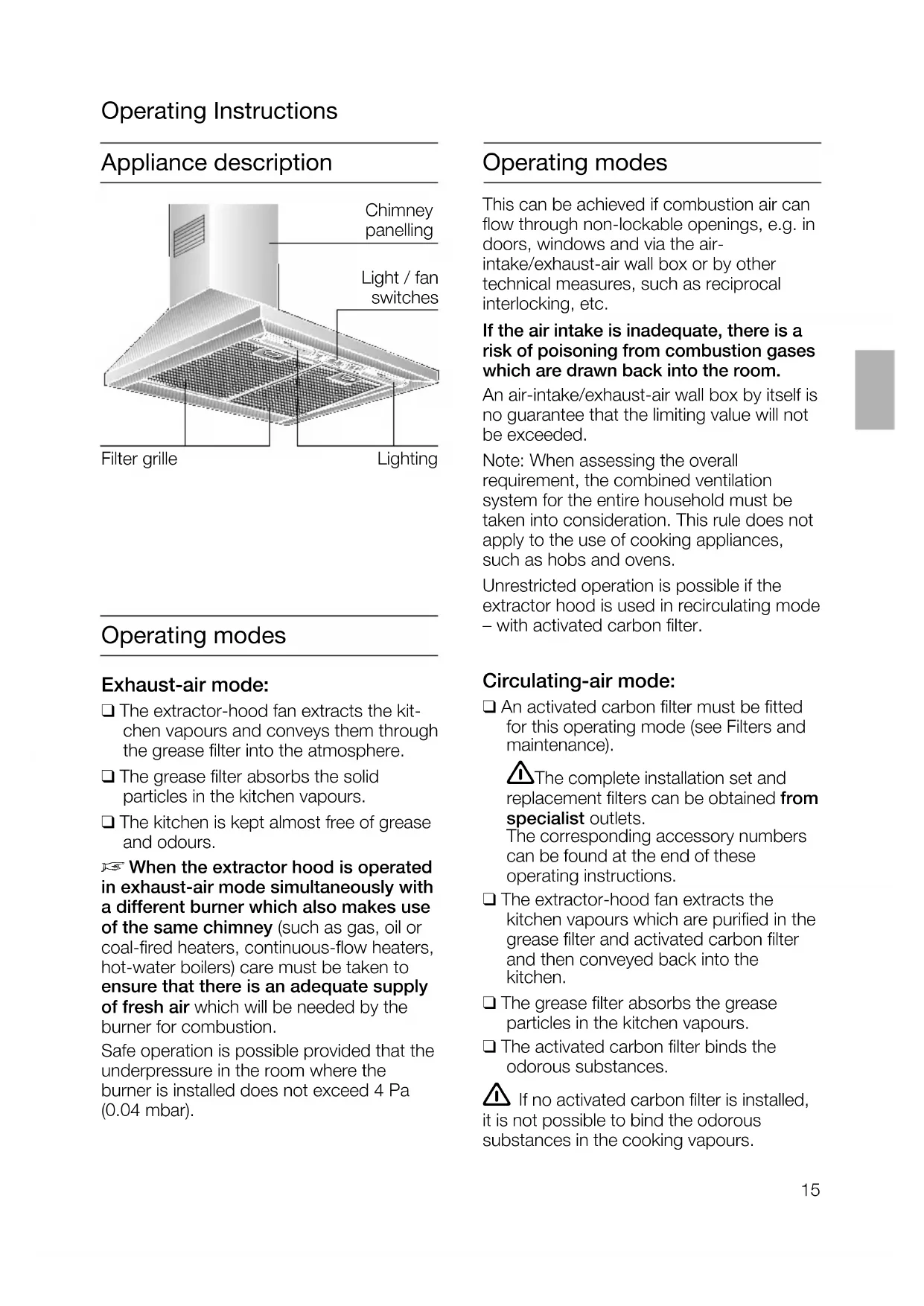

Operating Instructions

❑ The extractor-hood fan extracts the kit-

chen vapours and conveys them through

the grease filter into the atmosphere.

❑ The grease filter absorbs the solid

particles in the kitchen vapours.

❑ The kitchen is kept almost free of grease

D When the extractor hood is operated

in exhaust-air mode simultaneously with

a different burner which also makes use

of the same chimney (such as gas, oil or

coal-fired heaters, continuous-flow heaters,

hot-water boilers) care must be taken to

ensure that there is an adequate supply

of fresh air which will be needed by the

burner for combustion.

Safe operation is possible provided that the

underpressure in the room where the

burner is installed does not exceed 4 Pa

This can be achieved if combustion air can

flow through non-lockable openings, e.g. in

doors, windows and via the air-

intake/exhaust-air wall box or by other

technical measures, such as reciprocal

If the air intake is inadequate, there is a

risk of poisoning from combustion gases

which are drawn back into the room.

An air-intake/exhaust-air wall box by itself is

no guarantee that the limiting value will not

Note: When assessing the overall

requirement, the combined ventilation

system for the entire household must be

taken into consideration. This rule does not

apply to the use of cooking appliances,

such as hobs and ovens.

Unrestricted operation is possible if the

extractor hood is used in recirculating mode

– with activated carbon filter.

Circulating-air mode:

❑ An activated carbon filter must be fitted

for this operating mode (see Filters and

The complete installation set and

replacement filters can be obtained from

The corresponding accessory numbers

can be found at the end of these

operating instructions.

❑ The extractor-hood fan extracts the

kitchen vapours which are purified in the

grease filter and activated carbon filter

and then conveyed back into the

❑ The grease filter absorbs the grease

particles in the kitchen vapours.

❑ The activated carbon filter binds the

 If no activated carbon filter is installed,

it is not possible to bind the odorous

substances in the cooking vapours.

Before using for the first time If you encounter a problem

If you have any questions or if a fault

occurs, please call Customer Service.

(See list of Customer Service

When you call, please quote the following:

E-Nr. FD Enter the relevant numbers into the box

above. The E-Nr. (product no.) and FD

(production date) are shown on the

nameplate which can be seen inside the

extractor hood after the filter frame has

The manufacturer of the extractor

hoods accepts no liability for complaints

which can be attributed to the design

and layout of the pipework.

❑ The Instructions for Use apply to several

versions of this appliance. Accordingly,

you may find descriptions of individual

features that do not apply to your

❑ This extractor hood complies with all

relevant safety regulations.

Repairs should be carried out by

qualified technicians only.

Improper repairs may put the user at

❑ Before using your appliance for the first

time, please read these Instructions for

Use carefully. They contain important

information concerning your personal

safety as well as on use and care of the

❑ Please retain the operating and

installation instructions for a subsequent

❑ This appliance is labelled

2002/96/EG concerning

electronic appliances

(waste electrical and

electronic equipment –

WEEE). The guideline

determines the framework for the return

and recycling of used appliances as

applicable throughout the EU.17

 Do not use the appliance if damaged.

 The appliance may be connected to the

mains by a qualified technician only.

 The appliance is not intended for use by

young children or infirmed persons

without supervision.

Young children should be supervised to

ensure they do not play with the appliance.

If the connecting cable for this

appliance is damaged, the cable must be

replaced by the manufacturer or his customer

service or a similarly qualified person in order

to prevent serious injury to the user.

 Dispose of packaging materials

properly (see Installation instructions).

 This extractor hood is designed for

 Light bulbs must always be fitted when

the extractor hood is in use.

 Defective bulbs should be replaced

immediately to prevent the remaining bulbs

 Never operate the extractor hood

without a grease filter.

 Overheated fat or oil can easily catch fire.

If you are cooking with fat or oil, e.g. chips,

etc., never leave the cooker unattended.

 Never allow children to play with the

Do not let adults or children operate the

appliance unsupervised:

– if they are mentally or physically unable to

use the appliance safely and correctly,

– if they don’t have the knowledge and

experience to use the appliance safely

Do not flambé food directly under the

Risk of grease filter catching fire due

 The hotplates must always be covered

 Restrictions apply to the use of the

extractor hood over a solid-fuel burner

(coal, wood, etc.). (See Installation

Gas hobs / Gas cookers

 Do not use all the gas hotplates

simultaneously for a prolonged period

(max. 15 minutes) at maximum thermal

load, otherwise there is a risk of burns if the

housing surfaces are touched or a risk of

damage to the extractor hood. If the

extractor hood is situated over a gas hob,

operate the hood at maximum setting if

three or more gas hotplates are operated

Filters and maintenance

Metal filters are used to trap the greasy

element of the vapours that develop

The filter mats are made from non-

As the filter becomes more and more

saturated with grease, not only does the

risk of it catching fire increase but the

efficiency of the extractor hood can also be

By cleaning the metal grease filters at

appropriate intervals, the possibility of them

catching fire as a result of a build-up of heat

such as occurs when deep-fat frying or

roasting is taking place, is reduced.

Cleaning the metal grease filters:

❑ In normal operation (1 to 2 hours daily),

the metal grease filter must be cleaned

❑ The filters can be cleaned in a dish-

washer. It is however possible that they

will become slightly discoloured.

❑ The filter must be placed loosely, and

NOT wedged, in the dishwasher.

Metal filters that are saturated with

grease should not be washed together

with other dishes etc.

❑ When cleaning the filters by hand, soak

them in hot soapy water first of all.

Do not use aggressive, acidic or caustic

Then brush the filters clean, rinse them

thoroughly and leave the water to drain off.

 The most effective method of removing

vapours produced during cooking is to:

❑ Switch the ventilator ON

as soon as you begin cooking.

❑ Switch the ventilator OFF

a few minutes after you have finished

❑ The light can be switched on at any

time, even though the fan is switched off.

Ventilator settings19

3. Insert the grease filters (see removal and

installation of the metal-mesh grease

The filters are removed in reverse

Replacing the activated carbon filters:

❑ During normal operation (1 to 2 hours

per day) the activated carbon filters

should be replaced approximately 1 x

❑ The activated carbon filters are available

from specialist outlets (see Optional

❑ Use only original filters.

The appliance is then guaranteed to

Disposal of old activated carbon filters:

❑ Activated carbon filters do NOT contain

any harmful substances. They can

therefore be disposed of as household

Inserting the filter:

1. Remove the metal filters (see "Removing

and inserting the metal grease filters").

2. Insert an activated carbon filter on the

right and left of the fan motor and rotate

the filters until they lock into position.

Filters and maintenance

2. Clean the filters.

3. Insert the clean filters back into the

Activated carbon filter:

As the filter becomes more and more

saturated with grease, there is an increased

risk of fire and the function of the extractor

hood may be impaired.

Change the activated carbon filter promptly

to prevent the risk of fire from the

accumulation of heat when deep-fat frying

Removing and inserting the metal grease

1. Press the catch on the grease filters

inwards and fold the filters down.

At the same time take hold of the under-

side of the grease filters with your other

Replacing the light bulbs

1. Switch off the extractor hood and pull

out the mains plug or switch off the

electricity supply at the fuse box.

2. Remove the grease filters (see Filters and

3. Press down the bulb cover and

disconnect from the light strip.

4. Replace the bulb (standard filament bulb,

max 40 W, E14 bulb holder).

5. Attach the lamp cover again.

6. Re-insert the grease filters.

7. Plug the appliance into the mains or

switch it on at the fuse box.

Isolate the extractor hood by pulling out

the mains plug or switching off the fuse.

 Do not clean the extractor hood with

abrasive sponges or with cleaning agents

which contain sand, soda, acid or chlorine!

❑ Clean the extractor hood with a hot soap

solution or a mild window cleaner.

❑ Do not scrape off dried-on dirt but wipe

off with a damp cloth.

❑ When cleaning the grease filters, remove

grease deposits from accessible parts of

the housing. This prevents the risk of fire

and ensures that the extractor hood

continues operating at maximum

 Clean the switch with a soft, damp cloth

(mild detergent solution) only.

Do not use stainless steel polish on the

Stainless steel surfaces:

❑ Use a mild non-abrasive stainless steel

❑ Clean the surface in the same direction

as it has been ground and polished.

❑ We recommend our stainless steel

See enclosed service booklet for order

Aluminium, coated and plastic surfaces:

❑ Do not use dry cloths.

❑ Use a mild window cleaning agent.

❑ Do not use aggressive, acidic or caustic

Observe the warranty regulations in the

enclosed service booklet.21

Important information

Installation Instructions:

Additional information concerning gas

When installing gas hotplates, comply

with the relevant national statutory

regulations (e.g. in Germany: Technische

Regeln Gasinstallation TRGI).

Always comply with the currently valid

regulations and installation instructions

supplied by the gas appliance

Only one side of the extractor hood

may be installed next to a high-sided unit

or high wall. Gap at least 50 mm.

Minimum distance on gas hotplates

between the upper edge of the trivet

and lower edge of the extractor

hood: 650 mm, Fig. 1.

Old appliances are not worthless

rubbish. Valuable raw materials can be

reclaimed by recycling old appliances.

Before disposing of your old appliance,

You received your new appliance in a

protective shipping carton. All packaging

materials are environmentally friendly and

recyclable. Please contribute to a better

environment by disposing of packaging

materials in an environmentally-friendly

Please ask your dealer or inquire at your

local authority about current means of

The extractor hood can be used in

exhaust air or circulating air mode.

Always mount the extractor hood over

the centre of the hob.

Minimum distance between electric

hob and bottom edge of extractor hood:

The extractor hood must not be

installed over a solid fuel cooker – a

potential fire hazard (e.g. flying sparks) –

unless the cooker features a closed,

non-removable cover and all national

regulations are observed.

The smaller the gap between the

extractor hood and hotplates, the greater

the likelihood that droplets will form on the

underside of the extractor hood.

Prior to installation

❑ The wall must be flat and perpendicular.

❑ Make sure that the wall can bear the

❑ The provided screws and wall plugs are

suitable for solid masonry. On all other

wall types (e.g. plasterboard, porous

concrete, Poroton bricks) use the appro-

❑ Ensure that the wall is capable of provi-

ding a firm hold for mounting screws and

We reserve the right to construction changes within the

context of technical development.

Exhaust air Recirculating air

Prior to installation

The exhaust air is discharged upwards

through a ventilation shaft or directly

through the outside wall into the open.

D Exhaust air should neither be directed

into a smoke or exhaust flue that is

currently used for other purposes, nor into

a shaft that is used for ventilating rooms in

which stoves or fireplaces are also located.

Exhaust air may be discharged in

accordance with official and statutory

regulations only (e.g. national building

Local authority regulations must be

observed when discharging air into smoke

or exhaust flues that are not otherwise in

D When the extractor hood is operated

in exhaust-air mode simultaneously with

a different burner which also makes use

of the same chimney (such as gas, oil or

coal-fired heaters, continuous-flow heaters,

hot-water boilers) care must be taken to

ensure that there is an adequate supply

of fresh air which will be needed by the

burner for combustion.

Safe operation is possible provided that the

underpressure in the room where the

burner is installed does not exceed 4 Pa

This can be achieved if combustion air can

flow through non-lockable openings, e.g. in

doors, windows and via the air-

intake/exhaust-air wall box or by other

technical measures, such as reciprocal

If the air intake is inadequate, there is a

risk of poisoning from combustion gases

which are drawn back into the room.

An air-intake/exhaust-air wall box by itself

is no guarantee that the limiting value will

Note: When assessing the overall

requirement, the combined ventilation

system for the entire household must be

taken into consideration. This rule does not

apply to the use of cooking appliances,

such as hobs and ovens.

Unrestricted operation is possible if the

extractor hood is used in recirculating

mode – with activated carbon filter.

If the exhaust air is going to be

discharged into the open, a telescopic

wall box should be fitted into the outside

Prior to installation

❑ Flat ducts must have an internal cross-

section that equates to that of round

There should be no sharp bends.

For operating in exhaust-air mode, a

one-way flap should be mounted inside the

extractor hood unless there is already one

fitted in the outlet duct or wall ventilation

If no one-way flap was enclosed with the

hood, it can be obtained from a specialist

Installing the one-way flap:

For optimum extractor hood efficiency:

❑ Short, smooth air exhaust pipe.

❑ As few bends in the pipe as possible.

❑ Diameter of pipe to be as large as

possible and no tight bends in pipe.

If long, rough exhaust-air pipes,

many pipe bends or smaller pipe

diameters are used, the air extraction

rate will no longer be at an optimum

level and there will be an increase in

The manufacturer of the extractor

hoods accepts no liability for complaints

which can be attributed to the design

and layout of the pipework.

❑ If pipes have different diameters:

Insert sealing strip.

❑ For exhaust-air mode, ensure that

there is an adequate supply of fresh air.

flap into the air pipe.

Prior to installation

Circulating-air mode

❑ With activated carbon filter if exhaust-air

mode is not possible.

The complete installation set can be

obtained from specialist outlets.

The corresponding accessory numbers can

be found at the end of these operating

Electrical connection

This is what you have to do:

1.Connect the green and yellow (Earth)

wire to the terminal in the plug marked

‘E’ or with the symbol ( ), or

coloured green or green and yellow.

2.Connect the blue (Neutral) wire to the

terminal in the plug marked ‘N’ or

3.Connect the brown (Live) wire to the

terminal marked ‘L’, or coloured red.

The extractor hood should only be

connected to an earthed socket that has

been installed according to relevant

If possible, site the earthed socket directly

behind the chimney panelling.

The earthed socket should be

connected via its own circuit.

If the earthed socket is no longer

accessible following installation of the

extractor hood, ensure that there is a

permanently installed disconnector.

If it is necessary to wire the extractor

hood directly into the mains:

The extractor hood should only be

connected to the electricity supply by a

properly qualified electrician.

A separator must be installed in the

household circuit. A suitable separator is a

switch that has a contact gap of more than

3 mm and interrupts all poles. Such

devices include circuit breakers and

If the connecting cable for this

appliance is damaged, the cable must be

replaced by the manufacturer or his

customer service or a similarly qualified

person in order to prevent serious injury to

Are to be found on the name plate inside

the appliance after removal of the filter

Before undertaking any repairs,

always disconnect the extractor hood from

the electricity supply.

Length of the connecting cable: 1.30 m.

This extractor hood corresponds to EC

regulations concerning RF interference

Electrical connection

WARNING: THIS APPLIANCE MUST BE EARTHED IMPORTANT: Fitting a Different Plug:

The wires in the mains lead are coloured in

accordance with the following code:

Green and Yellow – Earth

If you fit your own plug, the colours of

these wires may not correspond with the

identifying marks on the plug terminals.25

This extractor hood is intended to be

mounted onto the kitchen wall.

1. Remove the grease filter (refer to

Operating Instructions).

2. Draw a line on the wall from the ceiling

to the lower edge of the hood at the

centre of the location where the hood is

going to be mounted.

3. Using the template, mark positions on

the wall for the screws.

Ensure that the minimum distance bet-

ween the hob and the extractor hood is

maintained – 550 mm for an electric hob

and 650 mm for a gas hob. The bottom

edge of the template equates to the lower

edge of the extractor hood.

4. Drill 5 holes (dia. 8 mm) for the

extractor hood and 4 holes (dia. 8 mm)

for the brackets for fixing the flue ducts

and insert wall plugs flush with the wall.

Note: Take into account any special

accessories that are going to be fitted.

5. Screw on the 2 brackets for fixing the

upper and lower flue ducts.

6. In order to help fix the hood onto the

wall, screw in the middle screw (without

a washer) until it protrudes by approx.

7. Hook the extractor hood over the screw

08. Insert the other 4 screws with washers.

Before the 4 screws are tightened

down, align the extractor hood properly.

09. Connect up the air outlet pipe.

10. Connect the hood to the electricity

11. Stainless steel model:

❑ Remove the protective film from the

 Avoid damage to the sensitive

Warning: The interior walls of the flue

panelling can have sharp edges – Risk of

We recommend that you wear gloves when

13. Position the lower flue duct on the

extractor hood and screw the extractor

hood to the flue duct from below with

 To prevent scratching the upper

duct when pushing on the lower duct,

cover the edge of the lower duct with

the installation template or other

protective material.

Then screw the flue duct to the sides of

the fixing bracket with 2 short screws.

 Before tightening the 2 screws,

14. Re-insert the grease filter

(see operating instructions).

of the fixing bracket with 2 short

and electronic equipment–

electronic equipment –

De complete montageset is

electronic equipment –

electrical and electronic

equipment – WEEE). A

directiva estabelece o quadro para a

Printed in Germany 1108 Es.
