USER MANUAL ST600 SAMSUNG

Quick Start Manual ST600 This Quick Start Manual has been specially designed to guide you through the basic functions and features of your device. Please read the Quick Start Manual and User Manual carefully to ensure safe and correct use. For more information, refer to the User Manual included on the supplied CD-ROM. ENG / FRE / T.CHI / IND / ARA / THA / PER ST600_QSM_ASIA.indb 3 2010-07-19 오후 8:06:392 Health and safety informationContents Warnings Do not use your camera near flammable or explosive gases and liquids Do not use your camera near fuels, combustibles, or flammable chemicals. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the camera or its accessories. Keep your camera away from small children and pets Keep your camera and all accessories out of the reach of small children and animals. Small parts may cause choking or serious injury if swallowed. Moving parts and accessories may present physical dangers as well. Prevent damage to subjects’ eyesight Do not use the flash in close proximity (closer than 1 m/3 ft) to people or animals. Using the flash too close to your subject’s eyes can cause temporary or permanent damage. Health and safety information 2 Camera layout ……………… 4 Setting up your camera …… 5 Unpacking ……………………… 5 Inserting the battery and memory card …………………… 6 Charging the battery ……………6 Turning on your camera ………… 7 Using the touch screen ………… 7 Capturing photos or videos 8 Selecting a shooting mode using motion recognition … … 9 Playing files ………………… 9 Transferring files to a PC (Windows) ……………………10 Specifications ……………… 11

ST600_QSM_ASIA.indb 2 2010-07-19 오후 8:06:393 English Exercise caution when connecting cables or adapters • and installing batteries and memory cards. Forcing the connectors, improperly connecting cables, or improperly installing batteries and memory cards can damage ports, connectors, and accessories. Do not insert foreign objects into any of your camera’s • compartments, slots, or access points. This type of damage may not be covered by your warranty. Protect batteries, chargers, and memory cards from damage Avoid exposing batteries or memory cards to very • cold or very hot temperatures (below 0° C/32° F or above 40° C/104° F). Extreme temperatures can reduce the charging capacity of your batteries and can cause memory cards to malfunction. Prevent memory cards from making contact with • liquids, dirt, or foreign substances. If dirty, wipe the memory card clean with a soft cloth before inserting in your camera. Handle and dispose of batteries and chargers with care Use only Samsung-approved batteries and chargers. • Incompatible batteries and chargers can cause serious injuries or damage to your camera. Never place batteries or cameras on or in heating • devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated. Cautions Handle and store your camera carefully and sensibly Do not allow your camera to get wet—liquids can • cause serious damage. Do not handle your camera with wet hands. Water damage to your camera can void your manufacturer’s warranty. Avoid using or storing your camera in dusty, dirty, • humid, or poorly-ventilated areas to prevent damage to moving parts and internal components. ST600_QSM_ASIA.indb 3 2010-07-19 오후 8:06:404

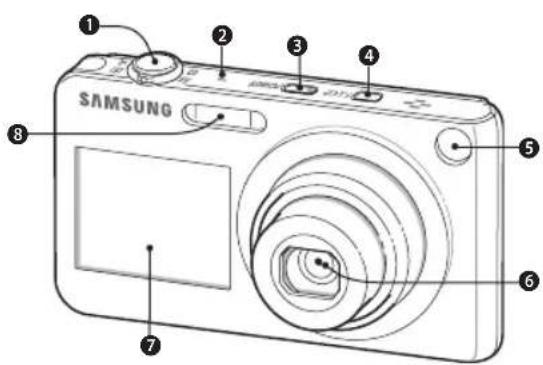

Battery chamber cover

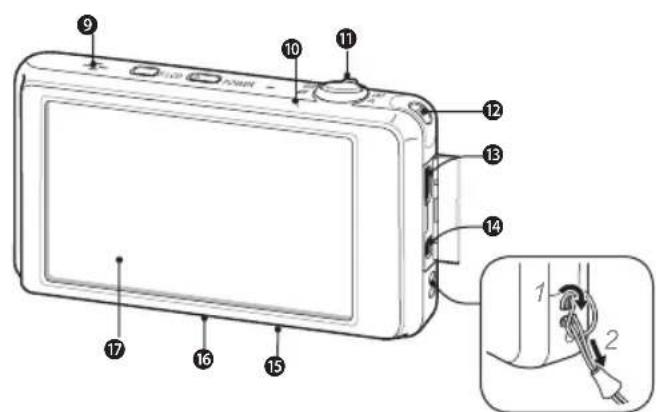

Main display (Referred to "Touch screen" in this manual)

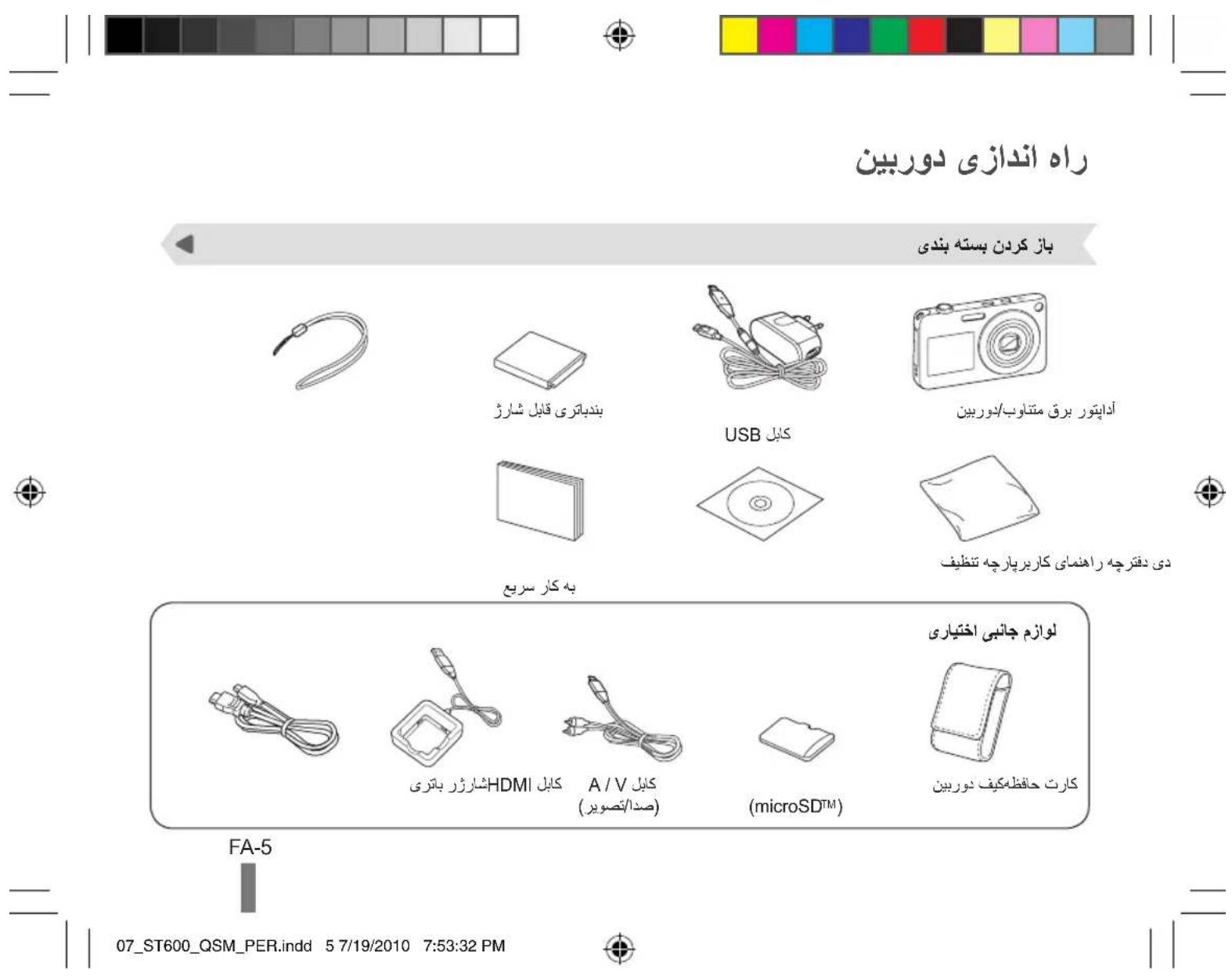

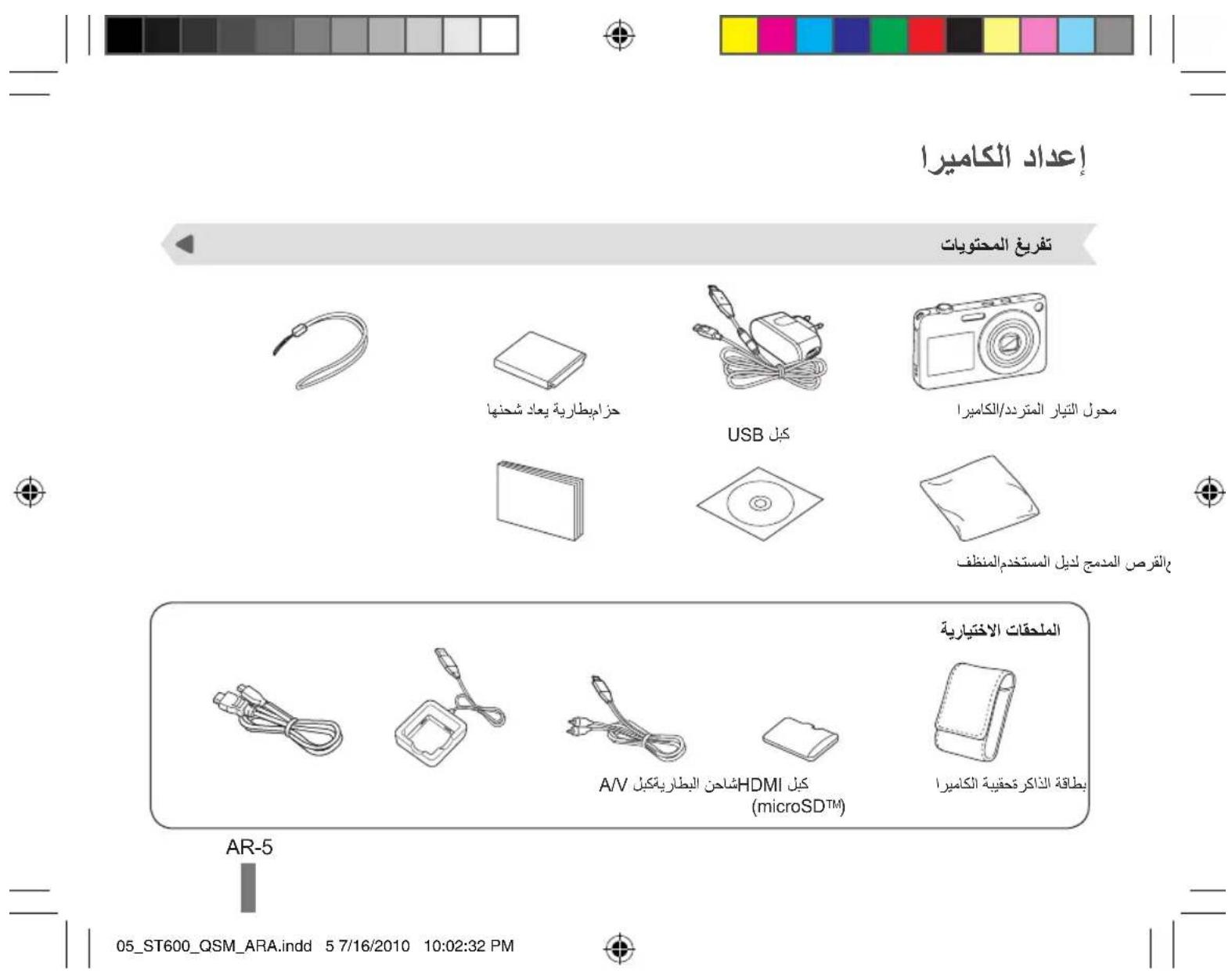

ST600_QSM_ASIA.indb 4 2010-07-19 오후 8:06:405 English Setting up your camera Camera AC adapter/USB cable Rechargeable battery StrapCleaner User Manual CD-ROM Quick Start Manual Unpacking Optional accessories Camera case Memory card (microSD

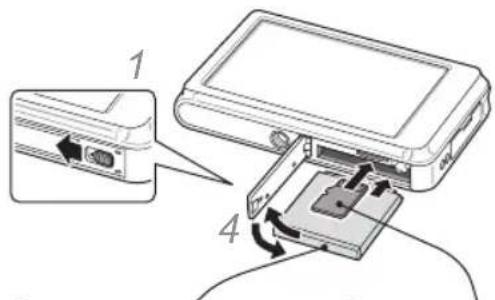

A/V cable Battery charger HDMI cable ST600_QSM_ASIA.indb 5 2010-07-19 오후 8:06:416 Setting up your camera Inserting the battery and memory card Charging the battery

Removing the battery

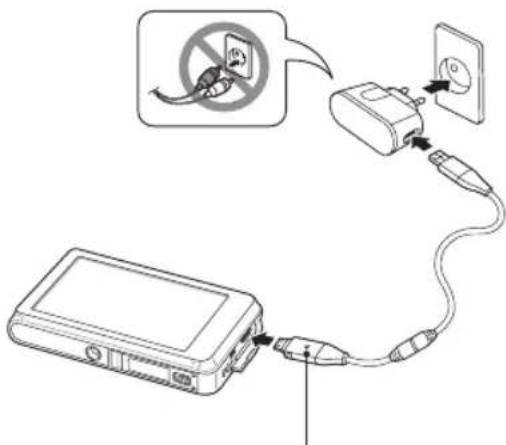

Removing the memory card Push gently the card until the card disengages from the camera, and then pull it out of the slot. Before using the camera for the first time, you must charge the battery. Indicator lightRed ▪ : ChargingGreen ▪ : Fully charged Insert the memory

card with the gold- colored contacts facing up. Insert the battery with

the Samsung logo facing up.

POWER]. The initial setup screen appears when you turn ▪ on your camera for the first time. Select a language and a time zone, set the

date and time, and select a date type. Use your finger to touch or drag on the touch screen. Caution Do not use other sharp objects, such as pens or pencils, to touch the screen. Doing so may damage the screen. Touching Touch an icon to open a menu or set an option. -2 -1 0+2-2 -

Dragging Drag left or right to scroll horizontally. Turning on your camera Using the touch screen ST600_QSM_ASIA.indb 7 2010-07-19 오후 8:06:438 Recording a video Select

a → v. Align your subject in the frame.

Shutter] again to stop recording. Note Number of photos by resolution (for 1 GB microSD

Resolution Super fine Fine Normal4320 X 3240 122 240 3534320 X 2880 137 267 3914000 X 3000 142 278 4094320 X 2432 163 320 4713264 X 2448 211 409 5942560 X 1920 335 637 9082048 X 1536 510 936 1,3141920 X 1080 762 1,373 1,9311024 X 768 1,626 2,575 3,090These figures are measured under Samsung’s standard conditions and may vary depending on shooting conditions and camera settings. Taking a photo Make sure that the camera is in the

a mode (Auto mode). Align your subject in the frame.

Shutter] halfway down to focus automatically. A green frame means the subject in focus. ▪ Press [

Shutter] all the way down to take the photo. Capturing photos or videos ST600_QSM_ASIA.indb 8 2010-07-19 오후 8:06:449 English Selecting a shooting mode using motion recognition In Shooting mode, tilt the camera while touching and holding

Note Motion recognition may not work well if you hold the camera parallel to the ground.Access the Program modeAccess the Movie modeAccess the Smart Auto mode Playing files Viewing photos Press [

You can also view files by tilting your camera. ▪You can select and hold ▪ < or > to view photos. Viewing videos Press [

Playback] and select . Use the following icons to control playback.

Scan backward. The camera scans backward in 2X, 4X, and 8X increments when you select and hold

Pause or resume playbackStop playbackScan forward. The camera scans forward in 2X, 4X, and 8X increments when you select and hold Adjust volume or mute sound ST600_QSM_ASIA.indb 9 2010-07-19 오후 8:06:4510 Connect the camera to the PC with the USB

cable. Note Make sure that the PC Software option is set to On in the settings menu. Turn on the camera.

The computer recognizes the camera automatically. ▪ For Windows Vista and Windows 7, select ▪ Run iStudio.exe from the AutoPlay window. Select a folder on your computer to save new

files. If your camera has no new files, the pop-up window ▪ for saving new files will not appear. Select

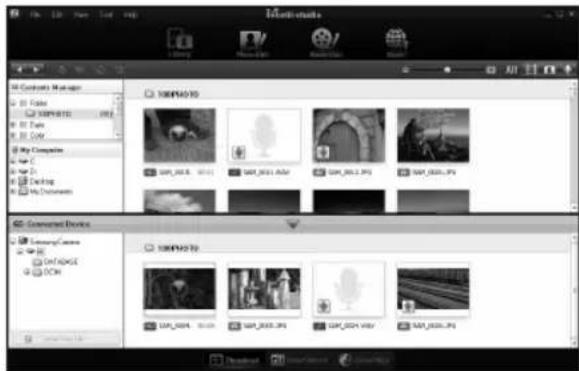

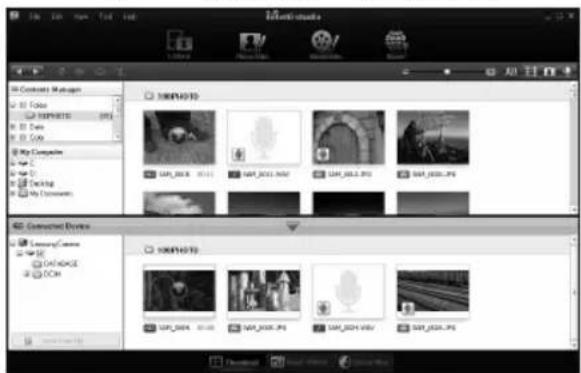

Yes. New files will be transferred to your computer. ▪ You can now use the Intelli-studio program. Note About Intelli-studioIntelli-studio is a built-in program that allows you to play back and edit files. You can upload files to websites, such as Flickr or YouTube. Also, you can download short animations for use in Children mode. Transferring files to a PC (Windows) ST600_QSM_ASIA.indb 10 2010-07-19 오후 8:06:4511 English Image sensor Type: 1/2.3" (Approx. 7.76 mm) CCD• Effective pixels: approx. 14.2 mega-pixels• Total pixels: approx. 14.48 mega-pixels • Lens Focal length: Schneider-KREUZNACH lens • f = 4.9 - 24.5 mm (35 mm film equivalent: 27 - 135 mm) F-stop range: F3.5 (W) - F5.9 (T)• Display Main Display: 3.5" (8.9 cm) Wide 1,152 K/Full Touch Screen Panel• Front Display: 1.8" (4.6 cm) 116 K/ TFT LCD• Focusing TTL auto focus (Multi AF, Center AF, Smart Face Recognition AF, Face Detection AF, Smart Touch AF, One Touch Shooting) Shutter speed Auto• : 1/8 - 1/2,000 sec. Program• : 1 - 1/2,000 sec. Night• : 8 - 1/2,000 sec. Fireworks• : 2 sec. Storage Internal memory: approx. 30 MB• External memory (Optional): microSD•

card (up to 2 GB guaranteed), microSDHC

card (up to 8GB guaranteed) Internal memory capacity may not match these specifications. DC power input connector 20 pin Rechargeable battery Lithium-ion battery (SLB-07, 760mAh) Dimensions (W x H x D)

103.5 X 59.9 X 19.9 mm

147.23 g (without battery and memory card)

Operating temperature

Intelli-studio Intelli-studio YouTubeFlickr 07_ST600_QSM_PER.indd 10 7/19/2010 7:53:48 PMAD68-05403A (1.0) *AD68-05403A* Please refer to the warranty that came with your product or visit our website http://www.samsungimaging.com/ or http://www.samsung.com/ for after-sales service or inquiries. 00_ST600_QSM_ASIA(ST).indd 2 2010-07-19 오후 8:51:30
