USER MANUAL 35033 HAMILTON BEACH

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides – as well as delicious recipes, tips, and to register your product online!

Questions? Please call us – our friendly associates are ready to help. USA: 1.800.851.8900

Exterior view of a modern kitchen air fryer with a black stand mixer and open lid (no text or symbols visible)

English 2

Français....15

Español 29

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against risk of electric shock, do not immerse cord, plugs, or removable control panel with heating element in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Be sure handle is properly assembled to basket and locked into place. See detailed assembly instructions.
6. Unplug from wall outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning the appliance.
7. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Call our toll-free customer service number for information on examination, repair, or adjustment.
8. The use of accessory attachments not recommended or sold by the appliance manufacturer for use with this model may cause injuries.
9. Do not use outdoors.

10. Do not let cord hang over edge of table or counter or touch hot surfaces.

11. Do not place on or near a hot gas or electric burner, or in a heated oven.

12. Never move deep fryer containing hot oil.
13. Always attach plug to appliance first; then plug cord in the wall outlet. To disconnect, turn any control to MIN and remove plug from wall outlet.
14. Do not use appliance for other than intended purpose.
15. To reduce the risk of injury, NEVER fill oil above MAX fill mark.
16. Always ensure removable pot is filled to at least MIN level when using oil.
17. Never leave appliance unattended while in use.
18. Always dry foods and remove ice before frying.
19. Always dry deep fryer components thoroughly after cleaning and before frying.
20. Always fry with lid in place.
21. Do not use refrigerated oil.
22. Never block vent on lid. Be aware of steam emitting from vent.
23. Escaping steam may cause burns to hands or fingers. Open the lid carefully.
24. Always raise basket and allow food to drain before removing lid or food basket.

SAVE THESE INSTRUCTIONS!

Other Consumer Safety Information

This product is intended for household use only.

This product is only intended for the preparation, cooking, and serving of foods. This product is not intended for use with any nonfood materials or products.

WARNING! Shock Hazard: This appliance has a polarized plug (one wide blade) that reduces the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

WARNING! Burn Hazards.

- Serious hot-oil burns may result from a deep-fat fryer being pulled off a countertop. Do not allow the cord to hang over the edge of the counter where it may be grabbed by children or become entangled with the user. Do not use with an extension cord.

- Hot liquid will splash if you miss the drain bracket and accidentally drop the frying basket into the hot liquid. Do not lean over the deep fryer when the lid is off.

3

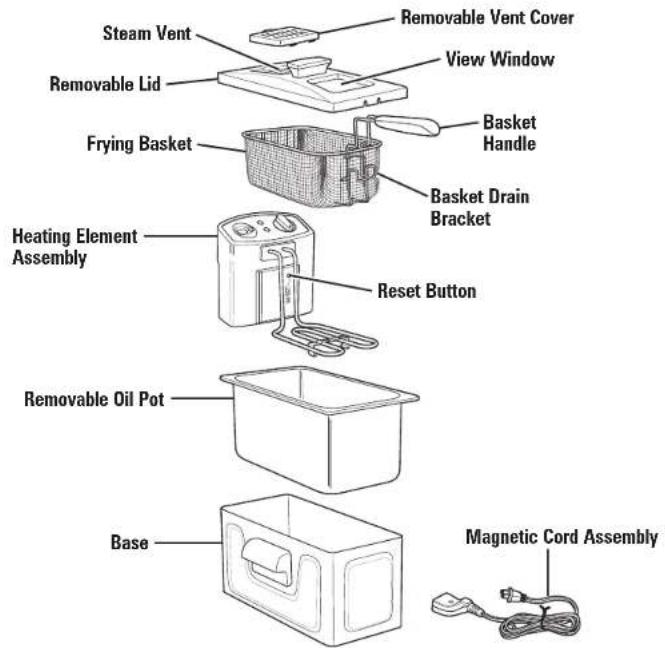

Parts and Features

Steam Vent Removable Vent Cover View Window Removable Lid Frying Basket Basket Handle Basket Drain Bracket Heating Element Assembly Reset Button Removable Oil Pot Base Magnetic Cord Assembly

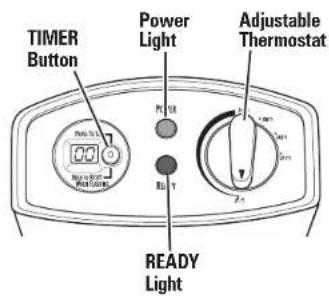

TIMER Button Power Light Adjustable Thermostat Ready Light

How to Assemble the Fryer

Simple line drawing of a box with an arrow pointing downward (no text or symbols)

Place base on a stable, flat surface. Insert oil pot into base.

Line drawing of a kitchen appliance with a grater and a tray, showing downward force arrows (no text or symbols)

Align grooves of heating element assembly with grooves on base. Push down on heating element assembly to connect it to the base.

Diagram of a bicycle being lifted by a lever, showing force application and component placement (no text or symbols)

To assemble handle, squeeze tines of handle together. Align tines with round holes on metal bracket of basket.

Line drawing of a wire mesh basket with an open lid and directional arrows indicating flow (no text or symbols)

Release tines to allow them to spread and then pull handle back to lock into metal bracket.

Line drawing of a wire mesh basket with an open lid and directional arrows indicating motion (no text or symbols)

NOTE: Heater cannot be turned on unless correctly installed on base.
For storage: Squeeze tines together and then rotate handle into basket.

Line drawing of a kitchen appliance with a control panel and downward arrow indicating a drop (no text or symbols)

Align vent cover and vent of lid toward heating element assembly. Lid snaps into place.

How the Timer Works

The timer counts down. It can be set for any time between 1 and 99 minutes.

PRESS TO SET 00 HOW DO ROOT WHEN PUSHING POWER 1

To set timer, press TIMER button once for display to show "00." Continue pressing button to advance timer by 1 minute per press. To advance timer faster, press and hold TIMER button down.

45 How to be a power When is a power READY 2

Timer will start counting down selected time shortly after you stop pressing TIMER button. During countdown time, display will flash.

Press to Set Hold to Reset When Running POWER 3

Timer can be reset to "00" while it counts down. When the display is flashing, hold the TIMER button until display shows "00."

NOTE: Timer will shut itself off after 45 seconds of inactivity.

Press No Set PRESS NO RESET WHEN PLANNING "BEEP" POWER READY

Timer will beep when it reaches zero and will beep again after approximately 30 seconds. Timer will turn off automatically.

NOTE: Timer DOES NOT turn off fryer.

Frying

WARNING Burn Hazard.

• Never fill oil above MAX fill mark.
• Never move fryer when it is in operation or when fryer contains hot oil.
• Never leave fryer unattended while in use.

• Remove as much moisture from food as possible. Do not add water or ice to oil.

• Escaping steam may cause burns to hands or fingers. Open lid carefully.

• Failure to follow these instructions may result in serious burns since hot oil may spill from fryer.

BEFORE FIRST USE: Thoroughly clean and dry fryer. See "Cleaning Your Fryer" section.

NOTE: Never operate unit without oil in tank or unit will exceed temperature limit and will require resetting. See "How to Reset" section for details.

Diagram of a kitchen appliance with a lid and control panel, showing internal components (no text or symbols)

Place assembled fryer on a stable, level, heat-resistant surface out of reach of children. Lift lid to open.

Diagram of a microwave oven with an upward arrow indicating airflow or heat transfer (no text or symbols present)

Remove basket from fryer. Fill fryer

Line drawing of a hand pouring liquid into a rectangular container with control panel (no text or symbols)

with at least 10 but no more than 12 cups of oil to top indicator mark on removable oil pot.
NOTICE: Never operate unit without oil in pot or unit will exceed temperature limit and will require resetting. (See "How to Reset" on page 12.)

Diagram of a computer monitor with an inserted slot and cable, showing no text or symbols

Make sure fryer is turned to MIN. Attach magnetic end of cord assembly to fryer socket. Magnetic end of cord will only go in one way. Be careful not to disturb magnetic connection when plugging cord into electrical outlet.
NOTE: The low magnetic force allows the cord to "break away" which prevents unit from accidentally being pulled off a countertop.

Frying (cont.)

FRYING TIP: READY light may go out after frying a batch of food. When oil has reached selected temperature, READY light will come back on. Unit is now ready to fry next batch of food.

Diagram of a washing machine with a downward arrow indicating process (no text or symbols present)

Replace lid. Plug in unit. Set thermostat to desired setting. Preheat fryer until READY light comes on (10 to 15 minutes). For more information on temperature selection, check food package or Frying Chart. READY light will come on when oil has reached preset temperature.

Line drawing of a hand placing food into a basket (no text or symbols)

To fry food, place food in basket. TO FRY UNBATTERED FOOD: Place food in basket and proceed with Step 7.

TO FRY BATTERED FOOD (such as tempura batter): Lower basket into oil; then carefully drop food directly into oil.

NOTE: Do not exceed maximum amount of food to be fried in one batch. See Frying Chart for more information.

Line drawing of a grating machine with a hand holding a tray, showing internal meshing and a downward arrow (no text or symbols)

Line drawing of a toaster oven with steam rising, showing a downward arrow and label '8' (no text or symbols on the main diagram)

Line drawing of a steaming basket and bowl with food items, no text or symbols present

Carefully place basket in fryer. Replace lid.

WARNING! Never operate unit without oil in pot or unit will exceed temperature limit and will require resetting.

When frying is done, remove lid, raise basket, and hook over removable oil pot to drain.

NOTE: Do not allow condensation to drain into oil pot while removing lid or while unit is off.

Carefully empty food from basket and place in a bowl or colander lined with paper towel. Fill and repeat as needed. Set thermostat to MIN and unplug appliance after use.

Frying Chart

FOOD	QUANTITY	FRYING TEMPERATURE	COOKING TIME	INTERNAL TEMP/ DONENESS
Frozen French Fries	8 cups*	375°F (190°C)	12 to 14 minutes	Brown and crisp
Fresh-Cut French Fries	8 cups*	375°F (190°C)	15 to 18 minutes	Brown and crisp
Frozen Onion Rings	8 cups*	375°F (190°C)	3 to 5 minutes	Brown and crisp
Frozen Fish Sticks	8 cups*	350°F (180°C)	3 to 5 minutes	145°F (63°C)
Frozen Jumbo Butterflied Shrimp	8 cups*	350°F (180°C)	2 to 4 minutes	145°F (63°C)
Frozen Chicken Tenders	8 cups*	375°F (190°C)	5 to 7 minutes	165°F (73°C)
Fresh Whole Chicken Wings	6	375°F (190°C)	13 to 15 minutes	165°F (73°C)

*3/4 full basket

NOTES:

• Length of cooking time and temperature may vary based on batch size and weight.
• For best results, fry a single layer of food for each batch.
• Frozen, uncooked chicken should be thawed, excess water removed, and patted dry with paper towel prior to cooking.

• See "Frying Tips" for more information to obtain best results.
  • Always follow package directions.

• When cooking meat, poultry, or fish, use cooking thermometer to determine internal temperatures.

• Visit foodsafety.gov for more information on safe internal cooking temperatures.

IF YOU LIVE IN A HIGH-ALTITUDE AREA:

The Extension service will have detailed information about cooking for your area. To locate the Cooperative Extension service in your county, please visit: http://www.csrees.usda.gov/Extension/.

9

Cleaning Your Fryer

Diagram showing a power outlet connected to an electrical plug, with no text or symbols present.

Unplug from wall outlet. Wait until oil has cooled. This can take several hours.

Diagram showing two containers with arrows indicating process steps, no text or symbols present

Remove lid and remove basket from fryer.

WARNING

Burn Hazard.

To avoid eruptions and/or spatter of hot oil, dry all fryer components thoroughly before using.

Diagram showing a water heater system with an upward arrow indicating flow or movement, labeled with number 3.

Lift heating element assembly from base and allow oil to drain into oil pot.

Do not immerse heating element assembly in water.

NOTE: To avoid damaging fryer, use care when cleaning heating element assembly. Gently wipe with soft cloth dampened with hot, soapy water.

Simple line drawing of a container with liquid flowing out (no text or symbols)

Lift oil pot from base and pour out oil. Wipe all excess oil or oil film from oil pot.

Base Lid Vent Cover

Clean base, lid, and vent cover with hot, soapy water. Dry thoroughly. Position lid vertically to drain and allow to dry thoroughly.

Line drawing of a two-tiered square kitchen grater with a handle and mesh basket (no text or symbols)

DO NOT use the "SANI" setting when washing in the dishwasher. "SANI" cycle temperatures could damage your product.

Frying Tips

SELECTING AND CHANGING THE FRYING OIL:

• Use a good quality vegetable or peanut oil.
• Frying foods in butter, margarine, olive oil, or animal fat is NOT recommended because of low temperature smoke point.
  • DO NOT mix two types of oil.
• Change oil regularly to maintain optimum frying and flavor quality.
• Oil used for french fries can be used 10 to 12 times before changing if oil is filtered after each use. Oil used for food that is high in protein (such as meat or fish) should be changed more frequently.
• To filter oil, allow oil to cool completely. Cheesecloth or paper towel may be used as a filter to strain oil.
  • Always follow food package directions.
  • DO NOT add fresh oil to used oil.
  • Always change the oil when it has a strong smell or taste, or when it turns dark and/or syrupy.

BEFORE FRYING:

- Remove any excess water from fresh food by blotting with a paper towel. Excess water or ice particles can cause hot oil to splatter or foam.

GENERAL TIPS:

• DO NOT use plastic utensils in hot oil.
- Season food AFTER frying.
- If food is not as crisp as desired, reduce batch size.

DISPOSING OF OIL:

- Pour cool oil into its original (resealable) empty plastic bottle.

BASKET USAGE WITH FRESHLY BATTERED FOODS:

- Freshly battered foods should be carefully placed directly into oil. First, lower basket completely and then carefully place each piece of battered food into hot oil. Use basket to remove fried battered foods.

STORAGE:

• Basket handle can be disengaged and rotated into basket. Place oil pot in base and then place basket and power cord in oil pot.
• It is best to store all oils in the refrigerator or a cool, dark, dry place for up to six months.

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides – as well as delicious recipes, tips, and to register your product online!

Troubleshooting

HOW TO RESET:

If your unit is not heating or will not turn on, your unit may need to be reset.

1. Make sure fryer and oil are cold.
2. Turn temperature control to MIN.
3. Unplug magnetic cord from the wall outlet.
4. Remove removable control panel and heater element.
5. Use a thin pointed object such as a wooden skewer or thin screwdriver to push in RESET button.

PROBLEM

Fried food does not have a golden-brown color and/or is not crispy.	Selected temperature is too low or food has not been fried long enough. Check food package or Frying Chart for correct temperature or preparation time.There is too much food in basket. Never fry too much food at one time. See food package, Frying Chart, or recipe for correct frying amount. Food pieces may be too thick to fry adequately.Volume of oil is too low.
Fryer gives off a strong, unpleasant odor.	Oil isn't fresh. Change oil. Filter oil regularly to keep it fresh longer.When frying food with a high moisture content (such as chicken or fries), change oil frequently.Type of oil is not suitable for deep-frying food. Use good quality frying oil. Do not mix two different types of oil or fat.
Unit does not heat.	Ensure magnetic cord assembly is properly attached to fryer socket.Ensure electrical cord assembly is plugged into electrical outlet.Heating element assembly not correctly assembled. Make sure heating element assembly is properly installed on base. See “How to Assemble the Fryer” section.Press RESET button on heating element assembly by inserting a small pointed item (such as a wooden skewer) into the opening labeled RESET. Make sure fryer has recommended amount of oil in oil pot.

RESET

12

Troubleshooting (cont.)

PROBLEM	PROBABLE CAUSE
During frying, the oil spills over the edge of the fryer.	There is too much oil in fryer. Make sure that oil does not exceed maximum level mark.Basket/food immersed too quickly. Carefully raise basket out of oil.Food contains too much liquid. Dry food thoroughly before placing it in fryer. Follow instructions in “Frying” section.When frying food with a high moisture content (such as chicken or fries), change oil frequently.There is too much food in frying basket. Do not fry more food at one time than quantities indicated on food package or Frying Chart.
Condensation forms on viewing window.	Water vapor from food collects on window. When unit is cold, wipe a small amount of oil on inside of viewing window to prevent condensation buildup.
Oil film buildup on oil pot.	Use plastic scouring pad to clean.To clean oil residue from oil pot, use a household degreaser.
Oil foams too much during frying.	Food contains too much liquid. Dry food thoroughly before placing it in fryer.When frying food with a high moisture content (such as chicken or fries), change oil frequently.Type of oil is not suitable for deep-frying food. Use good quality frying oil. Do not mix two different types of oil or fat.Basket/food immersed too quickly. Carefully raise basket into air.The use of refrigerated oil may cause excessive splattering. Use room-temperature oil.Oil pot has not been cleaned properly. See instructions in the “Cleaning Your Fryer” section.

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V \~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.

PRÉCAUTIONS IMPORTANES

Simple line drawing of a box with an arrow pointing downward (no text or symbols)

Line drawing of a kitchen appliance with a grater and a tray, showing downward force arrows (no text or symbols)

Diagram of a bicycle steering wheel with lever and handle, showing no text or symbols

Line drawing of a woven basket with handle and side arm, no text or symbols present

Line drawing of a wire mesh basket with an open lid and directional arrows indicating motion (no text or symbols)

Line drawing of a kitchen appliance with a control panel and downward arrow indicating a drop (no text or symbols)

PRESS TO SET 00 HOW DO ROOT WHEN PUSHING POWER 1

45 How to eat? When making POWER READY 2

Press to Set Hold to Reset When Running POWER 3

Diagram showing a kitchen appliance with a lid and internal filter, no text or symbols present

Diagram of a grating machine with an upward arrow indicating process (no text or symbols present)

Line drawing of a hand pouring liquid into a rectangular container with a control panel (no text or symbols)

Diagram of a device with a switch and a close-up of its internal components (no text or symbols)

Line drawing of a kitchen appliance with a downward arrow indicating a drop or removal (no text or symbols present)

Line drawing of a toaster oven with a hand holding the tray (no text or symbols)

Illustration of a toaster oven with steam rising and a downward arrow indicating cooling (no text or symbols)

Line drawing of a hand placing food into a woven basket (no text or symbols)

Line drawing of a woven basket and steaming bowl (no text or symbols)

Diagram showing a plug inserted into an electrical outlet with a magnified inset (no text or symbols)

Diagram of a refrigerator interior showing internal compartments and storage (no text or symbols)

Diagram of a water heater system with an upward arrow indicating flow direction (no text or symbols present)

Simple line drawing of a container with a curved handle (no text or symbols)

Simple line drawing of a box with an arrow pointing downward (no text or symbols)

Line drawing of a kitchen appliance with a grater and a tray, showing downward force arrows (no text or symbols)

Diagram of a bicycle steering wheel with lever and handle, showing no text or symbols

Line drawing of a woven basket with handle and side arm, no text or symbols present

Illustration of a wire mesh basket with an open handle and black arrows indicating rotation (no text or symbols)

Line drawing of a kitchen appliance with a downward arrow indicating a drop or change (no text or symbols present)

PRESS TO SET 00 HOW DO ROOT WHEN PUSHING POWER 1

45 How to eat? When making POWER READY 2

Press to Set Hold to Roast When Flushing POWER 3

Press to Set HOLD TO RESET WHEN PLAYING "BIP" POWER READY

Line drawing of a kitchen appliance with an open lid and internal tray, showing a handle and control panel (no text or symbols)

Line drawing of a microwave oven with an upward arrow indicating airflow or heat transfer (no text or symbols)

Saque la canasta de la freidora.

Line drawing of a hand pouring liquid into a rectangular container with control panel (no text or symbols)

Diagram of a device with a button and cable inserted, showing no text or symbols

Diagram of a kitchen appliance with a downward arrow indicating a drop or removal (no text or symbols present)

Line drawing of a hand placing food into a basket (no text or symbols)

Line drawing of a grating machine with a hand holding a tool, showing internal components and a downward arrow (no text or symbols)

Line drawing of a toaster oven with smoke and a downward arrow indicating cooling (no text or symbols)

Line drawing of a steaming bowl with food items, no text or symbols present

Simple line drawing of an electrical outlet connected to a power plug (no text or symbols)

Diagram showing two open food containers with arrows indicating process steps (no text or symbols)

Diagram of a water heater system with an upward arrow indicating flow direction (no text or symbols present)

Simple line drawing of a pouring liquid into a container (no text or symbols)

Mixcoac MEXICO 03910 D.F.

Tel: [phone] • Fax: [phone]

Nuevo Leon
