USER MANUAL HNCP 1876 I HOOVER
| COMBINATO NO FROST CON DISPLAY E COMBINATO NO FROST MECCANICO
- INVERSIONE DEL SENSO DI APERTURA DELLE PORTE. | da pag. 2 a pag. 4 | IT |
| FROST FREE FRIDGE FREEZER WITH DIGITAL DISPLAY & FROST FREE FRIDGE FREEZER
MECHANICAL - REVERSING THE OPENING OF THE DOORS. | page 5 to page 7 | EN |
| RéFRIGÉRATEUR CONGÉLATEUR NO FROST AVEC AFFICHEUR NUMÉRIQUE ET RÉFRIGÉRATEUR CONGÉLATEUR
NO FROST SANS DISPLAY ELECTRONIQUE- INVERSER LE SENS Douverture DES PORTES. | page 8 à page 10 | FR |
| FROSTFREIER KÜHLSCHRANK/GEFRIERSCHRANK MIT DIGITALANZEIGE & FROSTFREIER
KUHLSCHRANK/GEFRIERSCHRANK MECHANISCH - WECHSEL DES TURANSCHLAGES .......Seite 11 bis 13 | DE | |
| NO FROST VRIEZER MET DIGITALE DISPLAY & NO FROST KOELKAST/VRIEZER -
MECHANISCH - OMKEREN VAN DE OPENINGSRICHTING VAN DE DEUREN van pagina 14 tot pagina 16 | NL | |
| FRIGORIFICIO COMBINADO TOTAL NO FROST CON DISPLAY Y COMBINADO TOTAL
NO FROST MECANICO - INVERTIR EL SENTIDO DE APERTURA DE LAS PUERTAS. | ES | |
| FRIGORIFICIO/CONGELADOR NO FROST COM VISOR DIGITAL E FRIGORIFICIO/CONGELADOR
MECHANICO NO FROST - INVERTER A ABERTURA DAS PORTAS. | PT | |
| ΨΥΤΕΚΑΤΑΨΥΚΤΗ ΑΝΟΥΞΗ ΜΕ ΦΗΦΙΑΚΗ ΕΟθONH & ΨΥΤΕΚΑΤΑΨΥΚΤΗ ΑγΤΟΜΑΤΗ
ΑΝΟΥΞΗ ΜΕ ΜΗXANIKH ΠΥΟΜΙΗ - ANΤΙΤΡΟΦΗ Θ ΦΟΡΑΣ ΠΟΥ ΑΝΟΙΟΥΝΟ Π ΠΟΡΕΣ. . . . αΤΟ σελ. 23 εωλ. 25 | EL | |
| FROSTFRIT ΚΑLEFRYSESKAB MED DIGITALT DISPLAY & FROSTFRIT ΚΑLEFRYSESKAB
MED FJERNBETJENING - SADAN VENDES DØRENES ÅBNERETNING. | DA | |
| FROSTFRI KJΩLESKAPSFRYSER MED DIGITALT DISPLAY OG FROSTFRI
MEKANISK KJΩLESKAPSFRYSER - SNUING AV DØRAPNINGEN. | NO | |
| FROSTFRI KYL/FRYS MED DIGITAL DISPLAY OCH MEKANISK FROSTFRI
KYL/FRYS - OMHÄNGNING AV DÖRRAR. | sv | |
| JAÄTYMÄTÔN JÄÄKAAPPI-PAKASTIN DIGITAALISELLA NÄYTÖLLÄ & JÄÄTYMÄTÔN
MEKAANINEN JÄÄKAAPPI-PAKASTIN - OVIEN KATISYYDEN VAIHTAMINEN. | FI | |
| KOMBINOVANÀ CHLADNIČKA S MRAŽAKEM FROST FREE S DIGITÁLNÍM DISPLEJÉM & CHLADNIČKA
S MRAŽAKEM FROST FREE S MECHANICKYM OVLADÁNIM - ZMENA SMERU OTEVIRÁNI DVERI. . . . str. 38 až str. 40 | CZ | |
| BEZSZRONOWA LODOWKA-ZAMRAZARKA Z WYSIWETLACZEM CYFROWYM I BEZSZRONOWA LODOWKA
-ZAMRAZARKA MECHANICZNA - ODWRACANIE KIERUNKU OTWIERANIA DRZWI. | PL | |

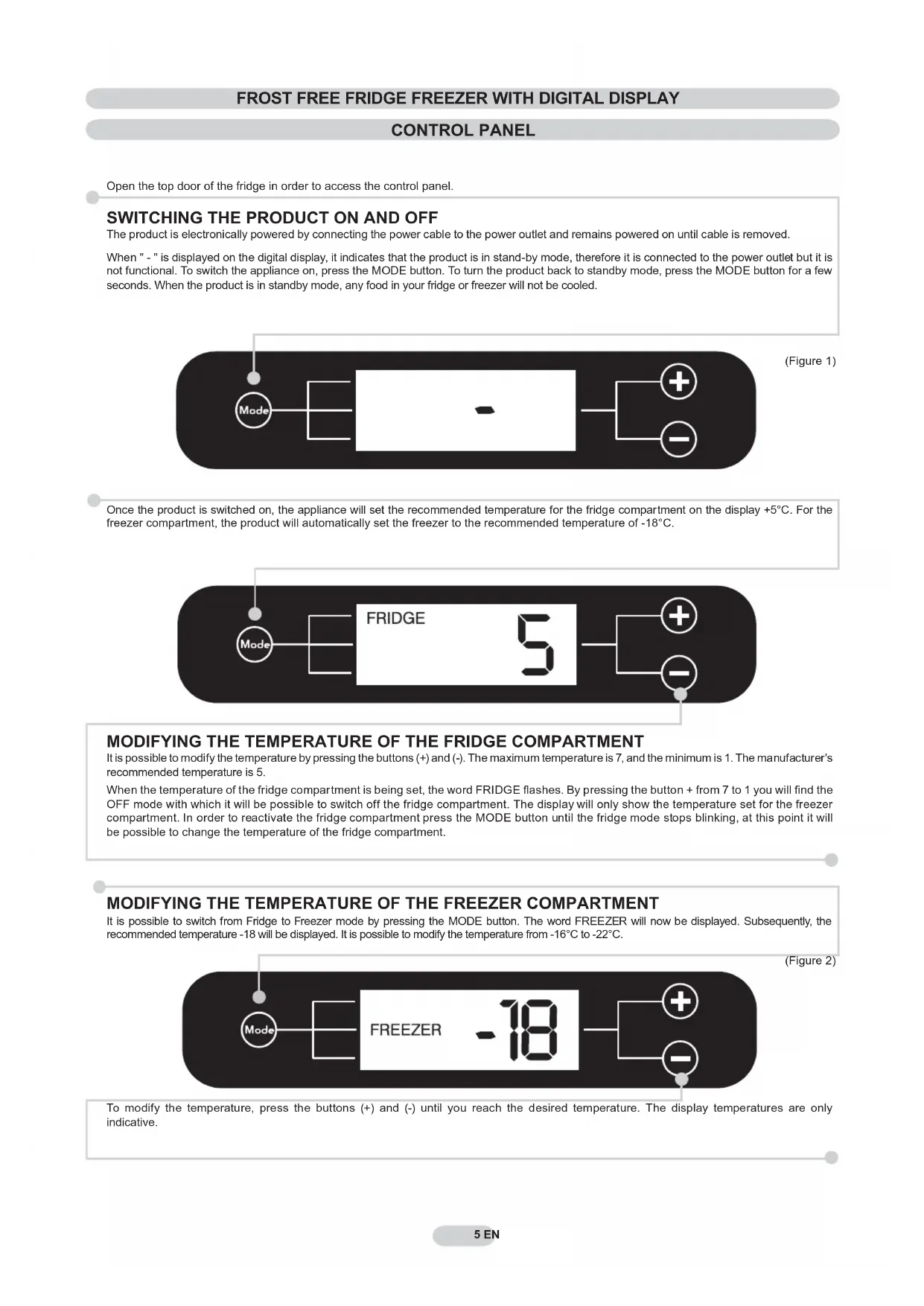

QUADRO COMANDI
Open the top door of the fridge in order to access the control panel.
SWITCHING THE PRODUCT ON AND OFF
The product is electronically powered by connecting the power cable to the power outlet and remains powered on until cable is removed.

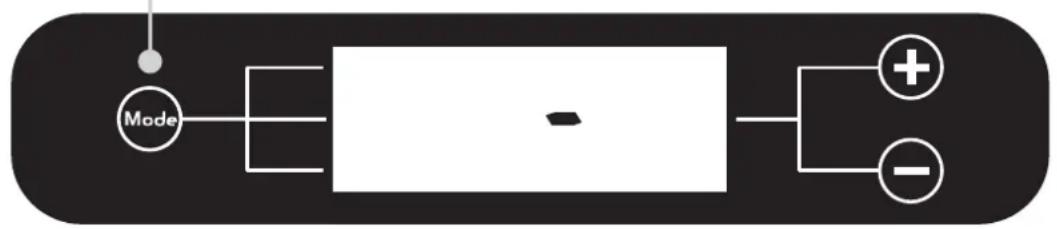

When " - " is displayed on the digital display, it indicates that the product is in stand-by mode, therefore it is connected to the power outlet but it is not functional. To switch the appliance on, press the MODE button. To turn the product back to standby mode, press the MODE button for a few seconds. When the product is in standby mode, any food in your fridge or freezer will not be cooled.
(Figure 1)

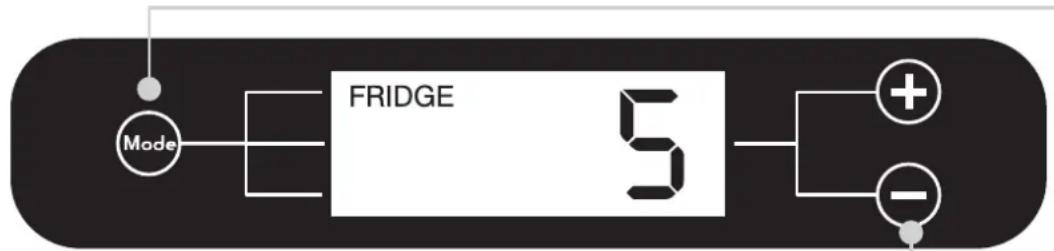

Once the product is switched on, the appliance will set the recommended temperature for the fridge compartment on the display +5^ . For the freezer compartment, the product will automatically set the freezer to the recommended temperature of -18^ .
MODIFYING THE TEMPERATURE OF THE FRIDGE COMPARTMENT
It is possible to modify the temperature by pressing the buttons (+) and (-). The maximum temperature is 7, and the minimum is 1. The manufacturer's recommended temperature is 5.
When the temperature of the fridge compartment is being set, the word FRIDGE flashes. By pressing the button + from 7 to 1 you will find the OFF mode with which it will be possible to switch off the fridge compartment. The display will only show the temperature set for the freezer compartment. In order to reactivate the fridge compartment press the MODE button until the fridge mode stops blinking, at this point it will be possible to change the temperature of the fridge compartment.
MODIFYING THE TEMPERATURE OF THE FREEZER COMPARTMENT

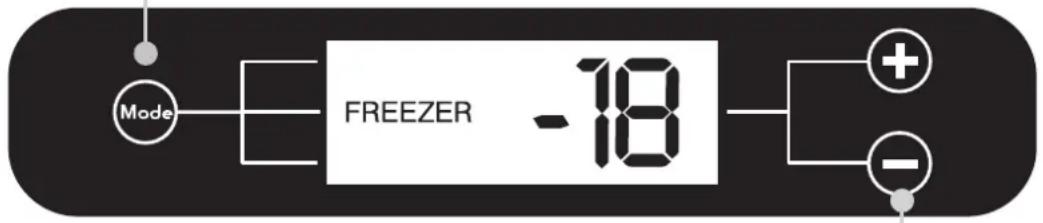

It is possible to switch from Fridge to Freezer mode by pressing the MODE button. The word FREEZER will now be displayed. Subsequently, the recommended temperature -18 will be displayed. It is possible to modify the temperature from -16^ to -22^ .
(Figure 2)
To modify the temperature, press the buttons (+) and (-) until you reach the desired temperature. The display temperatures are only indicative.
The SUPER option can be selected for fast freezing food items. Ideal to use when a large amount of food has been added to your freezer.
Off On
(figure 3)

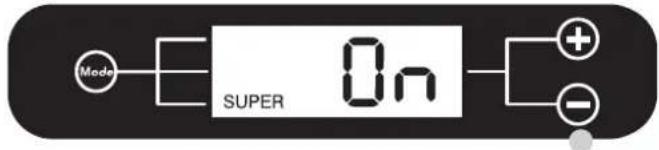

Press the (+) button in order to activate the SUPER function. After 36 hours the product will automatically leave the SUPER function, if you wish to interrupt the SUPER function at anytime press the (-) button. For optimum usage the manufacturer recommends that the super freeze function is activated a few hours before putting the selected food items in the freezer. The rating plate states the maximum quantity of foods that can be frozen, (see figure 6).
FAULTS AND ERRORS

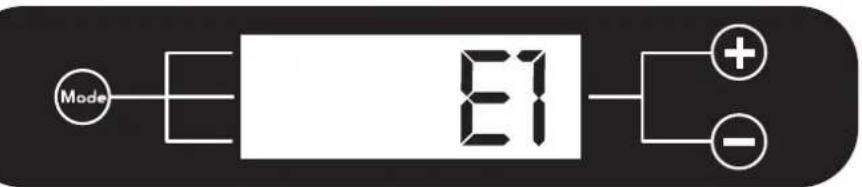

Every error or fault that occurs will be automatically shown on the display which will indicate a number followed by the letter "E" (Error). If this occurs switch the product off and back on again, if the error persists, please contact our service department for assistance.
(figure 4)

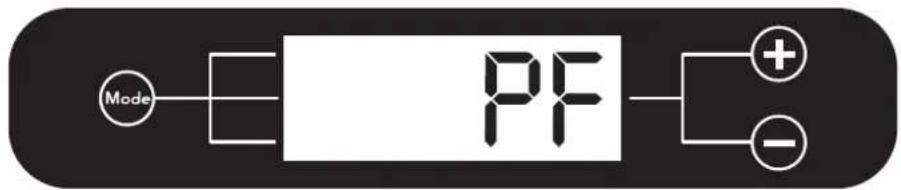

In the event of a power failure the message "PF" (Power Fail) will be shown on the display once power is returned to the machine. In case of a power cut lasting 10-12 hours, check that the food items have remained unchanged. Any food that has been fully or partially defrosted needs to be consumed within 24 hours and NOT refrozen.
(figure 5)
FROST FREE FRIDGE FREEZER MECHANICAL

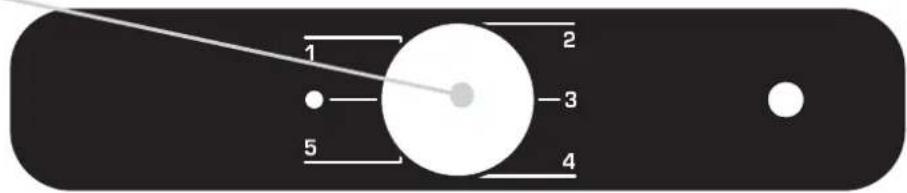

CONTROL PANEL
Open the top door of the fridge in order to access the control panel.
Turn on the thermostat dial to switch on the appliance and set the temperature of the freezer compartment and fridge. The recommended settings are 2-3. Turn the thermostat dial to "0" to turn off the appliance.
FREEZING

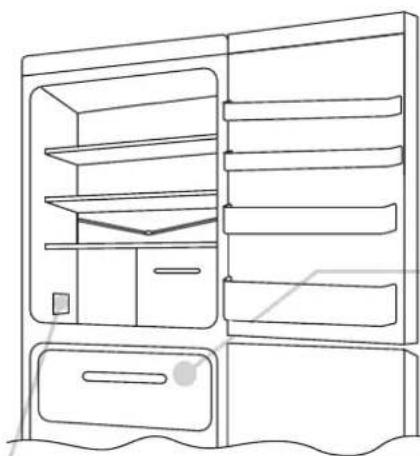

(figure 6)
Place the foods inside the freezer and for a normal functioning turn the thermostat to the recommended settings.
The product does not require defrosting because this product is equipped with an automatic system that prevents the formation of ice.
N.B. This is the rating plate. If you need to contact our Service Department in the event of faults, remember to give them the information on the plate.
REVERSING THE OPENING OF THE DOORS
In order to reverse the opening of the doors, follow the indications in relation to the insert and hinge type your product is made up of.
Place the appliance on the floor or at a 45^ angle, as it is necessary to work on the bottom of the appliance.
Remove the bottom right hinge by unscrewing the screws, pin and washers, then remove the bottom door
Remove the screws from the central hinge and remove the top door.
Take off the bottom right-hand hinge by removing the screws, pin and washers, then remove the lower door.
Remove the caps (A) and (B), loosen the screws and partially remove the panel making sure not to damage the rear electric part
Unscrew the right hinge.
Mark and break the left-hand slot on the panel, in the insert area.
Flip the top left-hand hinge found in the accessories kit.
Fit the panel, and secure with the screws and caps.
Remount the hinges and doors working from bottom to top, 1 2 3
To reverse the handles: remove the outer caps from the right-hand side of the doors.
Unscrew the handles from the left-hand side and move them to the right-hand side, then position the outer caps on the left-hand side of the doors.
Put the appliance in an upright position and wait two hours before turning it on.
PANNEAU DE COMMANDE
MEKANISK FROSTFRI KYL/FRYS
KONTROLLPANEL
NASTAVENI TEPLOTY PROSTORU CHLADNICKY
NASTAVENI TEPLOTY PROSTORU MRAZNICKY
