| Product Type | FM Transmitter for Car |
| Brand | ebode |
| Model | FMSP |
| Use | Audio streaming from device (smartphone, MP3) to car radio |
| FM Frequency | 87.5 - 108.0 MHz (adjustable in 0.1 MHz steps) |
| Power Supply | Rechargeable battery via USB (cable included) |
| Battery Life | Approximately 4 hours (estimated) |
| Charging Time | Approximately 1 hour |
| Connectivity | 3.5 mm jack input |
| Auto Power Off | After 60 seconds of inactivity |
| Low Battery Indicator | Yes, flashing on LCD screen |
| Mounting | Velcro included |
| Accessories Included | USB cable, Velcro, user guide |
| Compatibility | Any device with 3.5 mm headphone jack |
| Dimensions (estimated) | 60 x 35 x 15 mm |
| Weight (estimated) | 20 g |
| Material | ABS plastic |
| Warranty | Manufacturer (according to conditions) |
| Standards | CE compliant, Directive 1999/5/EC |
| Maintenance | Clean with a soft, dry cloth |
| Safety | Use indoors, avoid moisture, do not open |
Frequently Asked Questions - FMSP EBODE
User questions about FMSP EBODE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hi-fi system in PDF format for free! Find your manual FMSP - EBODE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. FMSP by EBODE.
USER MANUAL FMSP EBODE

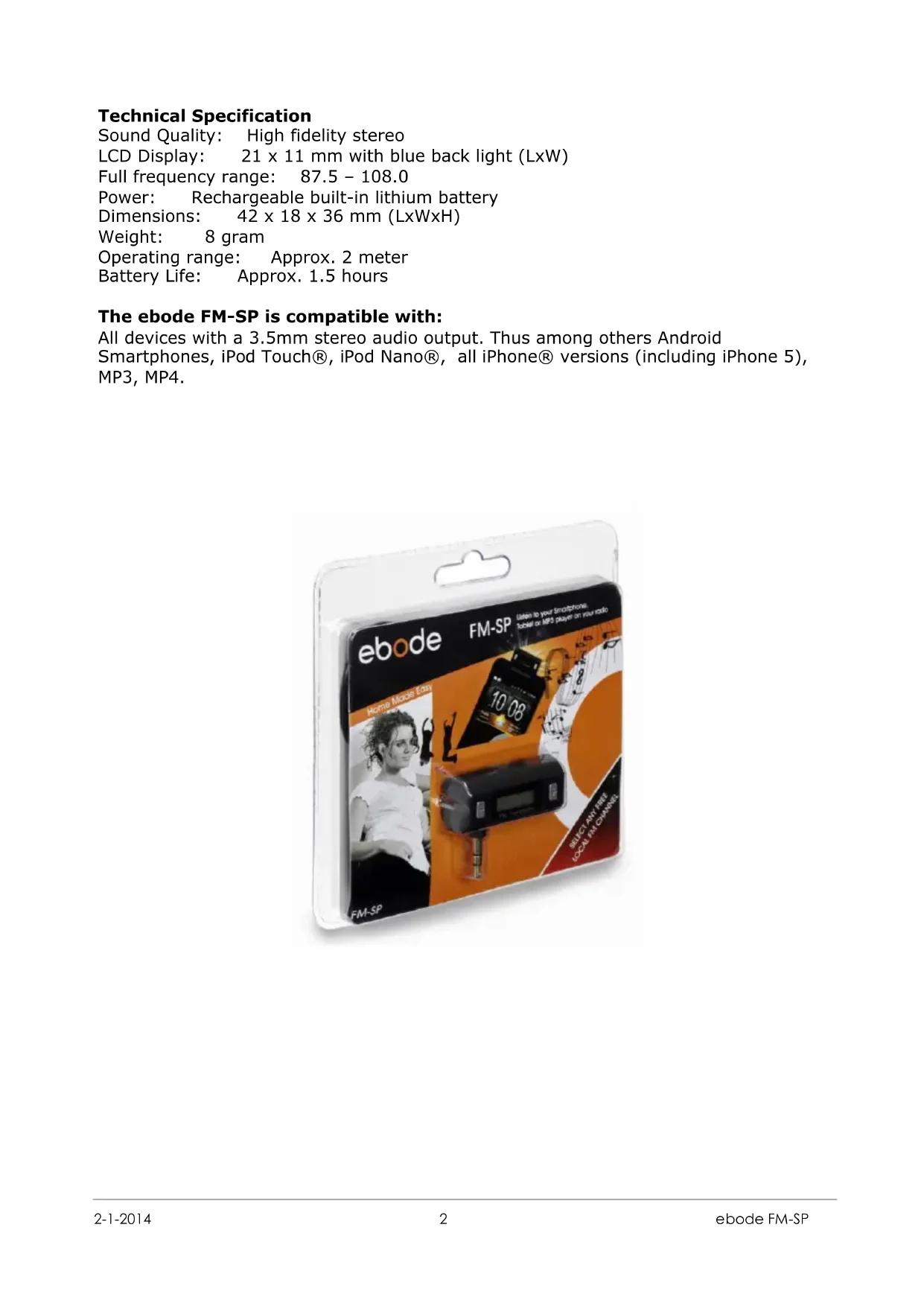

Technical Specification
Sound Quality: High fidelity stereo
LCD Display: 21 × 11 ~mm with blue back light (LxW)
Full frequency range: 87.5 - 108.0
Power: Rechargeable built-in lithium battery
Dimensions: 42 × 18 × 36 mm (LxWxH)
Weight: 8 gram
Operating range: Approx. 2 meter
Battery Life: Approx. 1.5 hours
The ebode FM-SP is compatible with:
All devices with a 3.5mm stereo audio output. Thus among others Android
Smartphones, iPod Touch®, iPod Nano®, all iPhone® versions (including iPhone 5), MP3, MP4.
1. Conformity of Use
For carefree and safe use of this product, please read this manual and safety information carefully and follow the instructions. The unit is registered as a device that does not cause or suffer from radio-frequency interference. It is CE approved and it conforms with the Low Voltage Directory. The safety and installation instructions must be observed. Technical manipulation of the product or any changes to the product are forbidden, due to security and approval issues. Please take care to set up the device correctly - consult your user guide. Young children should use the device only under adult supervision. No guarantee or liability will be accepted for any damage caused due to incorrect use of the equipment supplied, other than indicated in this owner's manual.
SAFETYWARNINGS
- To prevent short circuits, this product (except if specified for outdoor usage) should only be used inside and only in dry spaces. Do not expose the components to rain or humidity.
- Avoid strong mechanical tear and wear, extreme ambient temperatures, strong vibrations and atmospheric humidity.
- Do not disassemble any part of the product: no user-serviceable parts are inside. The product should only be repaired or serviced by qualified and authorized service personnel. Defected pieces must be replaced by original (spare) parts.
- Batteries: keep batteries out of the reach of children. Dispose of batteries as chemical waste. Never use old and new batteries or different types of batteries together. Remove the batteries when you are not using the system for a longer period of time. When inserting batteries be sure the polarity is respected. Make sure that the batteries are not short circuited and are not disposed in fire (danger of explosion).
In case of improper usage or if you have opened, altered and repaired the product yourself, all guarantees expire. The supplier does not accept responsibility in the case of improper usage of the product or when the product is used for purposes other than specified. The supplier does not accept responsibility for additional damage other than covered by the legal product responsibility.
2. Introduction
Thank you for purchasing the ebode FM-SP. Listen to your music player on your (car) radio.
3. Set Contents
1x Audio FM Transmitter
- 1x USB Charging Cable
- 1x Velcro
1x User Manual
4. Charging
The FM-SP can be charged via USB. A low battery indicator will flash on the upper left of the LCD screen when charging is required. Charging time is approx. 1 hour.
How it works
- Turn your FM-SP on by simply pressing the
+button once. - Plug the FM-SP in your device's 3.5mm port.
- Set the volume of your device (Smartphone, MP3 etc.) very loud for the best result.
- The LCD screen will show the frequency. Adjust the frequency to a suitable number which is not occupied by any local FM Channel or until it has no distortion. Click the +/- button to change the digital frequency. The frequency range is 87.5 - 108.0.
- Turn the frequency of your (car) radio to match the same frequency as the FM-SP.
- Adjust the volume of your (car) radio to the desired listening level.
- The FM-SP will turn off automatically in 60 seconds.
6. Troubleshooting
I don't hear the sound while the music is playing?
- Please make sure that your (car) radio is tuned to the same frequency as the transmitter.
- If you are passing through a strong frequency area, such as above ground high voltage power lines or passing through a tunnel, this may cause interference.
- Make sure your audio files are of good quality.
- Check that your FM frequency channel is a clear channel without interference.
- Make sure your device connected to the FM-SP plays audio at a high volume When you use the FM-SP to make sure the FM-SP catch the signal, if the sound is too low the FM-SP will shut down.

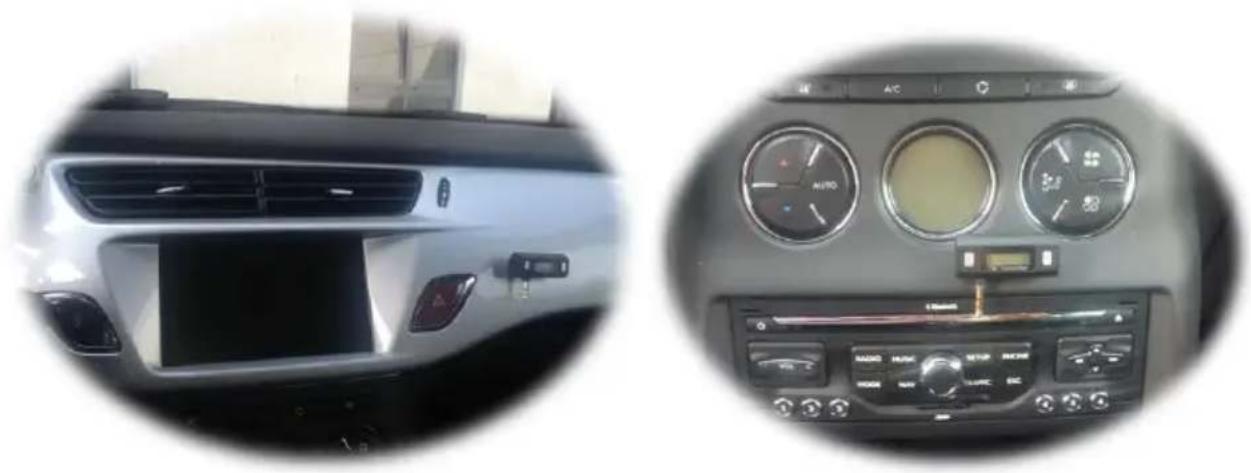

7. Velcro
Use the attached Velcro to store the FM-SP on your dashboard and make sure you do not lose the device, to use next time.
Please visit our website www.ebodeelectronics.eu for FAQ and our contact details.
DECLARATION OF CONFORMITY
Hereby, ebode electronics, declares that this ebode FM-SP is in compliance with the essential requirements and other relevant provisions of the following Directives:
Directive 2004/108/EC of the European Parliament and of the Council of 15 December 2004 on the approximation of the laws of the Member States relating to electromagnetic compatibility
Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonization of the laws of Member States relating to electrical equipment designed for use within certain voltage limits
Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003 on the restriction of the use of certain hazardous substances in electrical and electronic equipment
Directive 2005/32/EC of the European Parliament and of the Council of 6 July 2005 establishing a framework for the setting of eco design requirements for energy-using
Technical data and copies of the original Declaration of Conformity are available and can be obtained from ebode electronics: PB 25, NL-4264ZG, the Netherlands.
CE
User Information for Consumer Products Covered by EU Directive 2002/96/EC on Waste Electric and Electronic Equipment (WEEE)
This document contains important information for users with regards to the proper disposal and recycling of ebode products. Consumers are required to comply with this notice for all electronic products bearing the following symbol:
Environmental Information for Customers in the European Union
European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health.
For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.
DECLARATION OF CONFORMITY TO R&TTE DIRECTIVE 1999/5/EC for the European Community, Switzerland, Norway, Iceland and Liechtenstein
Product category: general consumer (category 3).
English: This equipment is in compliance with the essential requirements and other relevant provisions of the European R&TTE Directive 1999/5/EC
Also available from ebode:
Home Automation
The next generation of innovative and smart products to control lighting, household appliances, shutters, blinds, awnings, home cinema screens and more.
Affordable and easy automation of your home. ebode, home made smart.

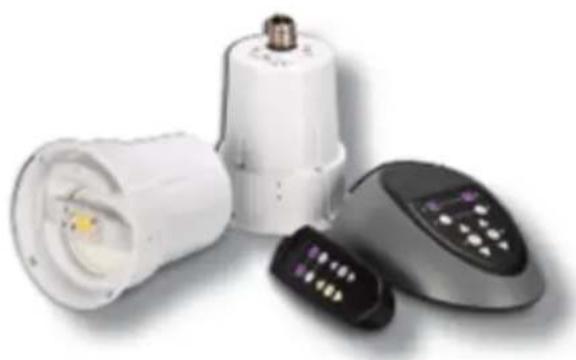

Unique LightSpeaker™ System
Is it a LED light bulb? Is it a speaker? It is LightSpeaker from ebode! This multi-room systems lets you enjoy music from two sources like your stereo, TV, tablet or Smartphone. You easily screw in the speaker like a light bulb. You can have light and sound in up to 4 zones.
ebode is focusing on wireless audio and video products, that are affordable, innovative and plug & play. The products provide you with comfort in your home, help you to avoid wires, and make sure you can stream your personal audio and video to where ever you want to look or listen to it. For more ebode products and information, please visit www.ebodeelectronics.eu.
Also available from ebode:

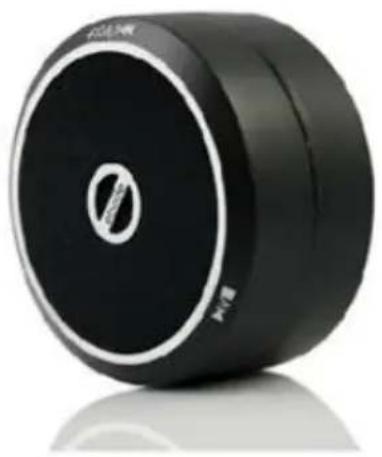

Bluetooth Speaker BTS30
Use the BT Sound to share the music on your smartphone, tablet or laptop wirelessly with your friends. As the BT Sound is small in size you can enjoy your favourite songs any place, any time, any where! Ideal for parties, festivals or while travelling.
Bluetooth Receiver BTR30
Transmit the music from you smartphone, tablet or laptop wireless to your BT Sound Receiver. You easily hook this up to your amplifier, stereo set or your car audio system. Enjoy your favourite songs with all your friends at home, and on the go!
ebode is focusing on wireless audio and video products, that are affordable, innovative and plug & play. The products provide you with comfort in your home, help you to avoid wires, and make sure you can stream your personal audio and video to where ever you want to look or listen to it. For more ebode products and information, please visit www.ebodeelectronics.eu.
Also available from ebode:

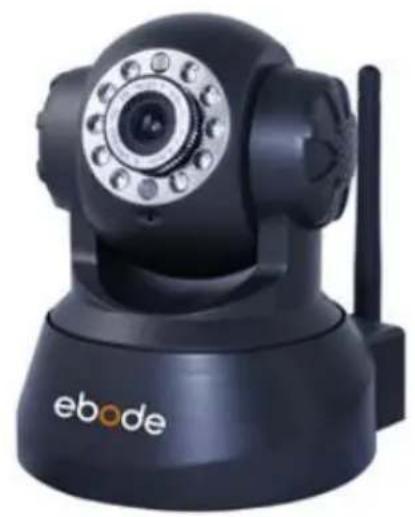

WideEye IP Camera IPV38WE
The indoor camera comes with a standard 6.0mm lens or you can choose the 3.6mm WIDEEye lens. They are both pan and tilt and can be set as a motion detector which records videos, photos and sound. They have a build-in microphone and speaker.

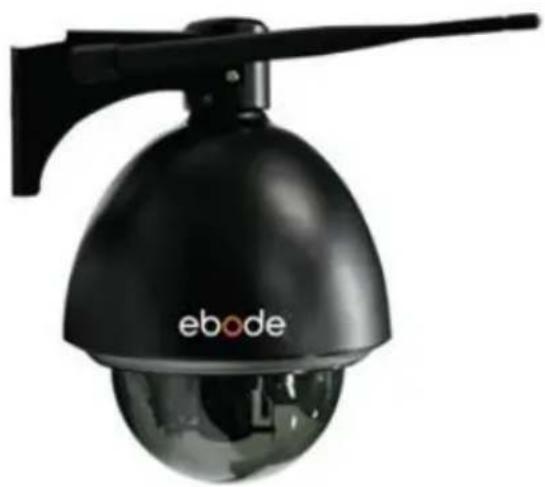

Dome IP Camera IPV68
