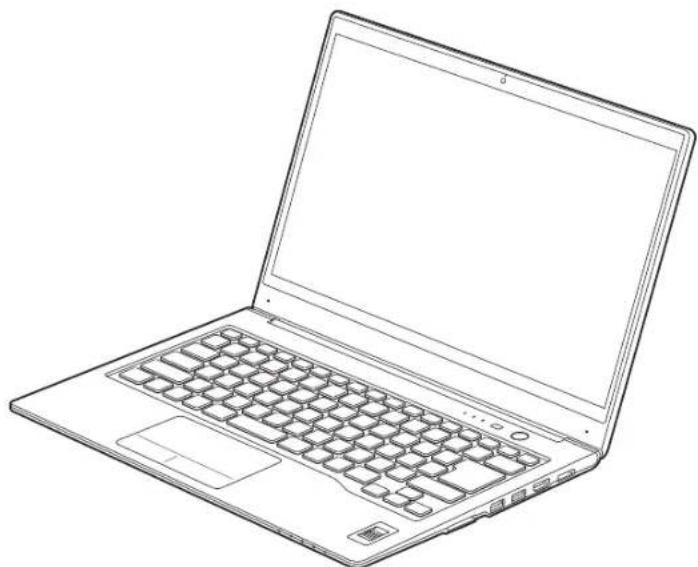

Line drawing of a laptop computer with visible keyboard and mode (no text or symbols)

FUJITSU

Copyright and Trademark Information

Fujitsu America has made every effort to ensure the accuracy and completeness of this document; however, as ongoing development efforts are continually improving the capabilities of our products, we cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes.

Fujitsu, the Fujitsu logo, and LIFEBOOK are registered trademarks of Fujitsu Limited.

Intel is a registered trademark and Core and Ultrabook are trademarks of Intel Corporation or its subsidiaries in the United States and other countries.

Windows is a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

CyberLink and YouCam are trademarks of CyberLink Corp.

Adobe and Adobe Reader are registered trademarks or trademarks of Adobe Systems, Incorporated in the United States and/or other countries.

Roxio is a trademark of Roxio, a division of Sonic Solutions.

Google is a registered trademark of Google Incorporated.

OmniPass is a trademark of Softex, Inc.

Energy Star and the Energy Star mark are registered U.S. marks.

Norton and Norton Internet Security are trademarks or registered trademarks of Symantec Corp. in the United States and other countries.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corp. and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corp., and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corp. Reverse engineering or disassembly is prohibited. All other trademarks mentioned herein are the property of their respective owners.

Boost

Manufactured under license from DTS Licensing Limited. DTS, the Symbol, and DTS and the Symbol together are registered trademarks, and DTS Boost is a trademark of DTS (BVI) Limited (in Hong Kong and China) and DTS, Inc. (outside of Hong Kong and China). ^® DTS, Inc. All Rights Reserved.

All other trademarks mentioned herein are the property of their respective owners.

© Copyright 2012 Fujitsu America, Inc. All rights reserved.

No part of this publication may be copied, reproduced, or translated, without prior written consent of Fujitsu. No part of this publication may be stored or transmitted in any electronic form without the written consent of Fujitsu. B5FK-0831-01ENZ0-00

WARNING

HANDLING THE CORD ON THIS PRODUCT WILL EXPOSE YOU TO LEAD, A CHEMICAL KNOWN TO THE STATE OF CALIFORNIA TO CAUSE BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM.

WASH HANDS AFTER HANDLING.

DECLARATION OF CONFORMITY

according to FCC Part 15

Responsible Party Name: Fujitsu America, Incorporated

Address: 1250 E. Arques Avenue

Sunnyvale, CA 94085

Telephone: [phone]

Declares that product: Base Model Configuration: LIFEBOOK U772 Ultrabook

Complies with Part 15 of the FCC Rules.

This device complies with Part 15 of the FCC rules. Operations are subject to the following two conditions: (1) This device may not cause harmful interference, (2) This device must accept any interference received, including interference that may cause undesired operation.

IMPORTANT SAFETY INSTRUCTIONS

This product requires an AC adapter to operate. Use only a UL Listed I.T.E. AC Adapter with an output rating of 19V DC, with a current of 3.16 A (60 W) minimum..

AC adapter output polarity:

When using your LIFEBOOK, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

• Do not use this product near water for example, near a bathtub, washbowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.
• Use only the power cord indicated in this manual.

SAVE THESE INSTRUCTIONS

For Authorized Repair Technicians Only

RISK OF EXPLOSION IF BATTERY IS REPLACED WITH AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE MANUFACTURER'S INSTRUCTIONS.

FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH THE SAME TYPE AND RATING FUSE.

Contents

About This Guide 7

Conventions Used in the Guide 7

Fujitsu Contact Information 8

Chapter 1 Getting to Know Your LIFEBOOK

Overview 10

Locating the Controls and Connectors.... 11

Top and Front Components 12

Left-Side Panel Components 14

Right-Side Panel Components 16

Bottom Components.... 17

Status Indicator Panels 19

Power Indicator 20

Battery Charging 20

Battery Level Indicator 21

Hard Drive Access Indicator 21

Wireless Device Indicator 21

NumLk Indicator 21

CapsLock Indicator 21

ScrLk Indicator....22

ECO Button/Indicator 22

Keyboard.... 23

Using the Keyboard.... 23

Touchpad Pointing Device.... 27

Clicking 28

Double-Clicking....29

Dragging 29

Navigating Using Gestures 30

Touchpad Control Adjustment 31

Volume Control.... 32

Controlling the Volume.... 32

Chapter 2 Getting Started with Your LIFEBOOK

Power Sources 33

Connecting the Power Adapters 34

Display Panel 35

Opening the Display Panel 35

Adjusting Display Panel Brightness 35

Using the Keyboard.... 36

Using the Power Options 36

Using the Windows Mobility Center 36

Closing the Display Panel 36

Using Multiple Displays Simultaneously 37

Starting Your LIFEBOOK Ultrabook 38

Power On 38

Boot Sequence 39

Hard Disk Drive Passwords 40

BIOS Setup Utility 40

Booting the System.... 41

Starting Windows the First Time.... 41

Power Management 43

Power and Suspend/Resume Button 43

Sleep Mode 43

Faster Startup 44

Hibernation Feature 45

Windows Power Management 45

Restarting the System. 45

Power Off.... 45

System Reset 46

About the Lithium-Polymer Battery 48

Recharging the Battery. 48

Device Ports 50

HDMI Port 50

Headphone Jack 50

Universal Serial Bus (USB) Ports. 51

Anytime USB Charge Utility 51

Internal LAN Jack....52

Chapter 3 User-Installable Features

Secure Digital Card Slot.... 53

Inserting/Removing SD Cards 53

Port Replicator 55

Port Replicator Components 56

Attaching the Port Replicator 57

Detaching Port Replicator.... 58

Chapter 4 Troubleshooting Your LIFEBOOK

Troubleshooting.... 59

Identifying the Problem 59

Specific Problems 61

Power On Self Test Messages 68

Restoring Your System Image and Software (Windows 7) ..... 69

Saving and Recovering Your Factory and System Images 69

Backing Up a System Image.... 71

Recovery and Utility tabs 75

Using Windows 7 Recovery DVD on Windows 8 64-bit system..... 76

Recovering your Factory Image using Recovery and Utility. 76

Downloading Driver Updates 78

Restoring Your System Image and Software (Windows 8) ..... 79

Saving and Recovering Your Factory and System Images 79

Backing Up a System Image.... 81

Recovery and Utility tools 85

Recovering your Factory Image using Recovery and Utility 87

Changing BIOS settings between Windows 8 32-bit and 64-bit ..... 88

Downloading Driver Updates 89

Chapter 5 Care and Maintenance

Caring for your LIFEBOOK Ultrabook 90

Cleaning your LIFEBOOK Ultrabook 91

Cleaning guidelines using recommended off-the-shelf cleaners ..... 91

Storing your LIFEBOOK Ultrabook. 92

Traveling with your LIFEBOOK Ultrabook 93

Secure Digital Cards 94

Chapter 6 System Specifications

Specifications....95

Microprocessor 95

Memory 96

Video 96

Mass Storage Devices 97

Features....97

Device Ports. 97

Keyboard 98

Power....99

Dimensions 99

Environmental Requirements.... 99

Popular Accessories.... 100

Pre-Installed Software 100

Learning About Your Software 100

Glossary/Regulatory

Glaosary 102

Regulatory Information 113

Appendix A: WLAN User's Guide

Before Using the Wireless LAN.... 117

Wireless LAN Modes Using this Device. 118

How to Handle This Device.... 120

Deactivating the WLAN Device.... 120

Activating the WLAN Device 120

Configuring the WLAN 121

Connecting to a Network 121

Troubleshooting the WLAN. 122

Troubleshooting Table 122

Using the Bluetooth Device 125

Appendix B: Fingerprint Sensor Device

Introducing the Optional Fingerprint Sensor Device 127

Getting Started 128

Installing OmniPass 128

User Enrollment 131

Using OmniPass 134

Configuring OmniPass 138

OmniPass Control Center 140

Troubleshooting 142

Index 144

Preface

About This Guide

Ultrabook™ is a new category of ultra responsive, ultra sleek, and ultra stylish devices that are less than an inch thick and wake up in a flash. It's the ideal computer for people on the go. The LIFEBOOK® U772 Ultrabook™ from Fujitsu America provides desktop performance with the Intel® Core™ Processor family. The 14" HD high-definition screen displays vibrant colors with pinpoint sharpness.

The LIFEBOOK U772 Ultrabook comes with Microsoft® Windows 8 Pro or Windows 7 Professional pre-installed.

This manual explains how to operate your LIFEBOOK Ultrabook's hardware and built-in system software.

Conventions Used in the Guide

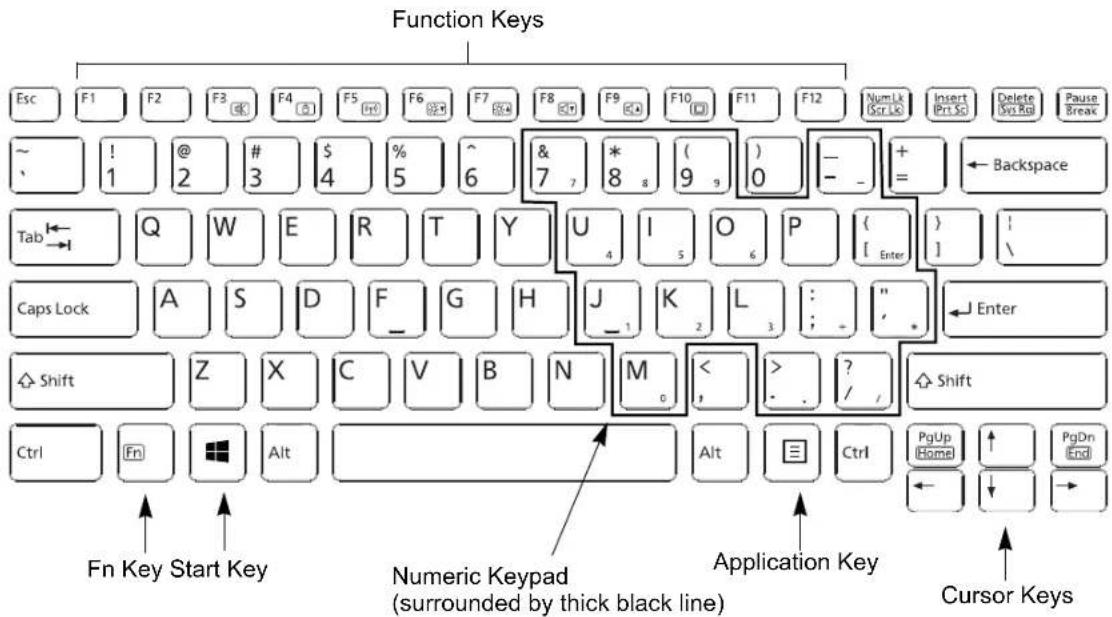

Keyboard and on-screen keys appear in brackets. Example: [Fn], [F1], [ESC], [ENTER] and [CTRL].

Pages with additional information about a specific topic are cross-referenced within the text. For example: ("See Installation Procedure on page 43".)

On screen menu items appear in bold. Example: "Click Fujitsu Menu, and select your choice".

THE INFORMATION ICON HIGHLIGHTS INFORMATION THAT WILL ENHANCE YOUR UNDERSTANDING OF THE SUBJECT MATERIAL.

THE CAUTION ICON HIGHLIGHTS INFORMATION THAT IS IMPORTANT TO THE SAFE OPERATION OF YOUR COMPUTER, OR TO THE INTEGRITY OF YOUR FILES. PLEASE READ ALL CAUTION INFORMATION CAREFULLY.

THE WARNING ICON HIGHLIGHTS INFORMATION THAT CAN BE HAZARDOUS TO EITHER YOU, YOUR LIFEBOOK ULTRABOOK, OR YOUR FILES. PLEASE READ ALL WARNING INFORMATION CAREFULLY.

Fujitsu Contact Information

Service and Support

You can contact Fujitsu Service and Support in the following ways:

• Toll free: 1-800-8Fujitsu (1-800-838-5487)
- Website: http://solutions.us.fujitsu.com/www/content/support/contact/index.php

Before you place the call, you should have the following information ready so that the customer support representative can provide you with the fastest possible solution:

• Product name
  • Product configuration number
  • Product serial number
• Purchase date
• Conditions under which the problem occurred
• Any error messages that have occurred
• Type of device connected, if any

Fujitsu Shopping Online

You can go directly to the online by going to the website at: www.shopfujitsu.com.

YOU MUST HAVE AN ACTIVE INTERNET CONNECTION TO USE THE ONLINE URL LINKS.

Maintaining Latest Configuration

To ensure that you always have the most current driver updates related to your system, you should occasionally access the Fujitsu Software Download Manager (FSDM) utility. The FSDM utility is available from the Fujitsu Support site. FSDM will allow you to view a list of the most current drivers, utilities, and applications to determine whether you have the latest versions. If you have a Windows 8 or Windows 7 operating system, you will need to go to the Support Site to download the FSDM Utility: http://support.fujitsupc.com/CS/Portal/support.do?srch=DOWNLOADS.

Limited Warranty

Your LIFEBOOK Ultrabook is backed by a Fujitsu International Limited Warranty. Check the service kit that came with your Ultrabook for the Limited Warranty period and terms and conditions.

Chapter 1

Getting to Know Your LIFEBOOK

Overview

This section describes the components of your Fujitsu LIFEBOOK U772 Ultrabook. We strongly recommend that you read it before using your Ultrabook – even if you are already familiar with notebook computers.

Line drawing of a laptop with a circular logo on the front panel (no text or symbols)

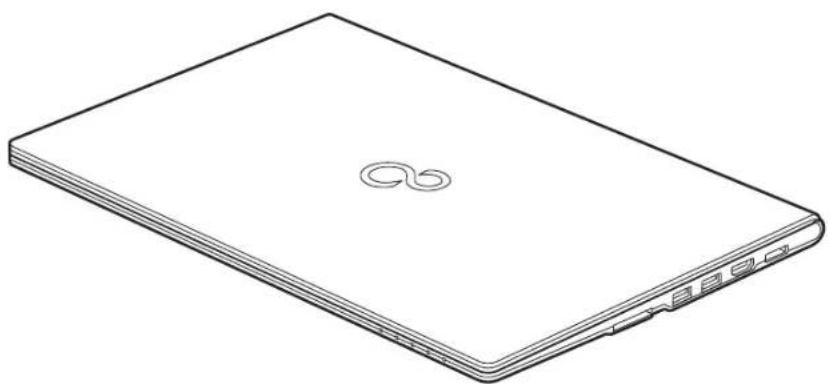

Figure 1. Fujitsu LIFEBOOK U772 Ultrabook

Locating the Controls and Connectors

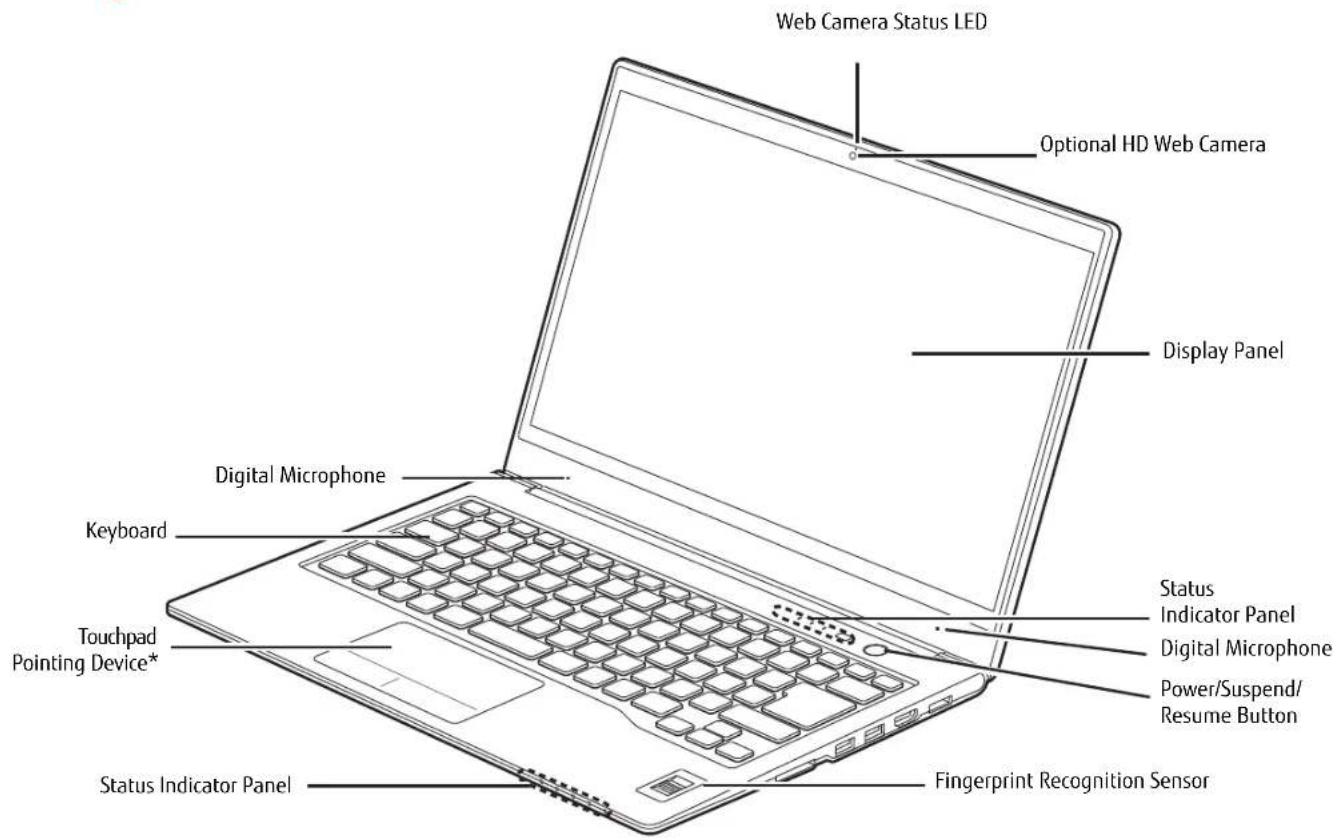

Web Camera Status LED Optional HD Web Camera Display Panel Digital Microphone Keyboard Touchpad Pointing Device* Status Indicator Panel Fingerprint Recognition Sensor Status Indicator Panel Digital Microphone Power/Suspend/ Resume Button

* Note that the lines have been added on the touchpad drawing to indicate the relative locations of the left and right buttons.

Figure 2. LIFEBOOK U772 Ultrabook with display open

11 - Locating the Controls and Connectors

Top and Front Components

The following is a brief description of your LIFEBOOK Ultrabook's top and front components.

HD Web Camera

The optional high definition web camera (1200x768 pixel) allows you to take pictures of yourself to send over the internet. For information on using the web camera, see the documentation associated with the CyberLink YouCam application.

Web Camera Status LED

The web camera status LED glows when the camera is on.

Digital Microphones

The noise-cancelling digital microphones are used in conjunction with the web cam. For information on using the microphones, see the documentation associated with the CyberLink YouCam application.

Display Panel

The display panel is a color LCD panel with back lighting for the display of text and graphics.

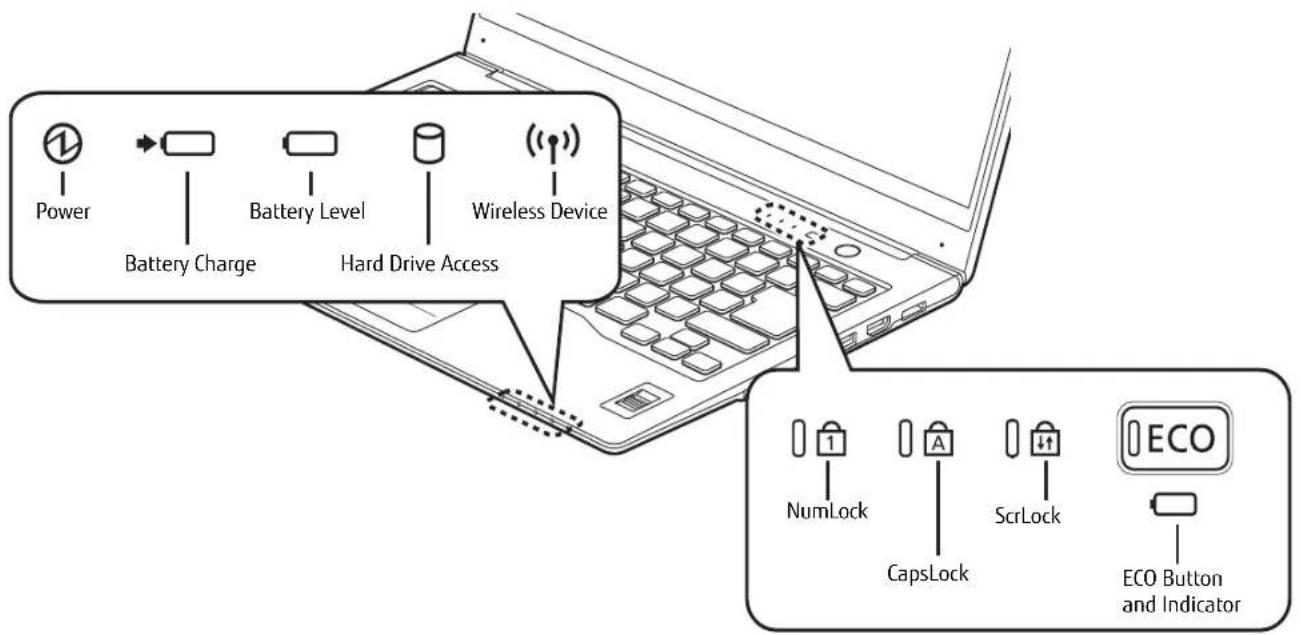

Status Indicator Panels

The Status Indicator Panels display symbols that correspond with a specific component of your LIFEBOOK Ultrabook. See “Status Indicator Panels” on page 19

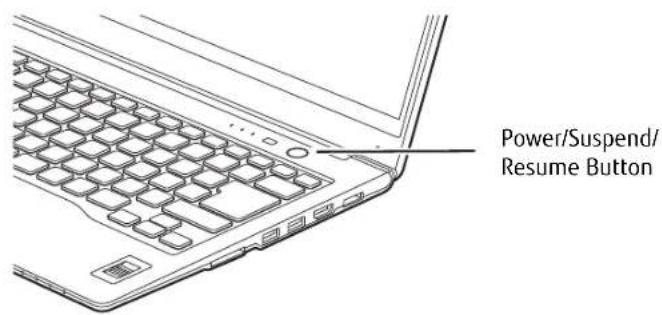

Power/Suspend/Resume Button

The Power/Suspend/Resume button allows you to suspend LIFEBOOK activity without powering off, resume your LIFEBOOK from Sleep mode, and power on your LIFEBOOK Ultrabook when it has been shut down. See "Power On" on page 38

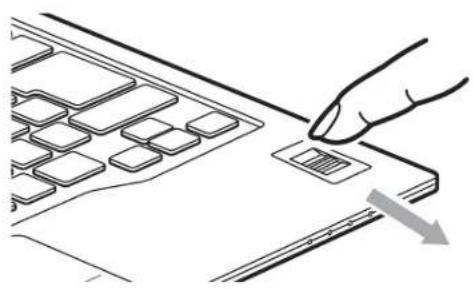

Fingerprint Recognition Sensor

The fingerprint recognition sensor allows you to log onto your system and password-protected websites and applications by swiping your finger over the sensor. The fingerprint sensor can also be used as a scroll sensor that allows you to scroll up and down a page, similar to a scroll wheel on a mouse. See "Appendix B: Fingerprint Sensor Device" on page 127

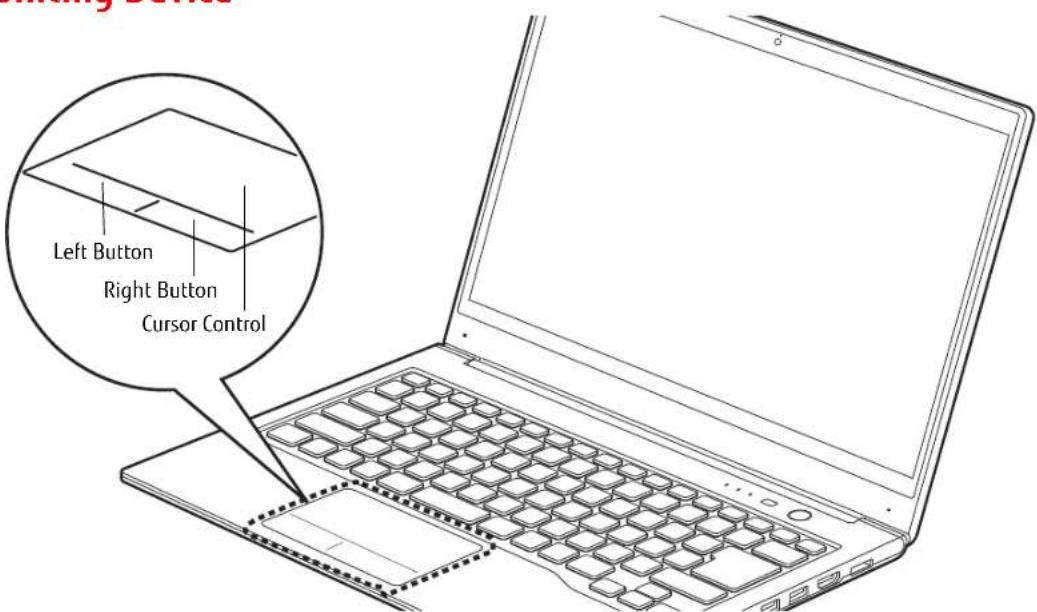

Touchpad Pointing Device

The gesture-enabled pointing device is a Touchpad that allows you simple cursor control. See "Touchpad Pointing Device" on page 27

Keyboard

An 86-key keyboard with dedicated Windows keys. See "Using the Keyboard" on page 23

DC Power Jack Anti-theft Lock Slot Headphone Jack Air Vents USB 2.0 Port

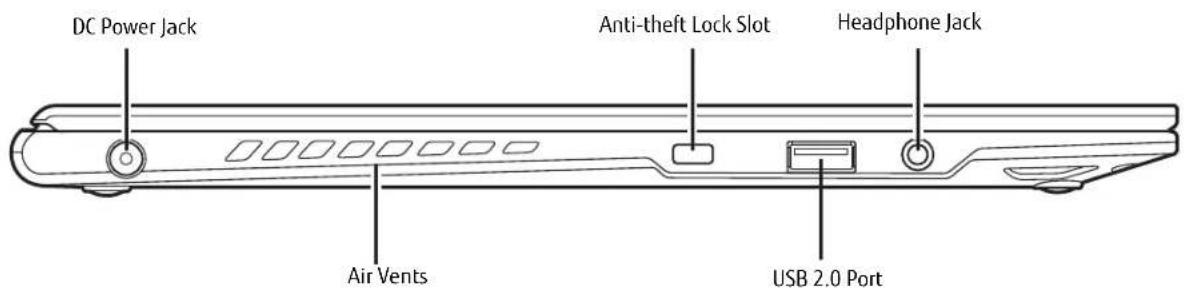

Figure 3. LIFEBOOK U772 Ultrabook left-side panel

Left-Side Panel Components

Following is a brief description of your LIFEBOOK Ultrabook's left-side components.

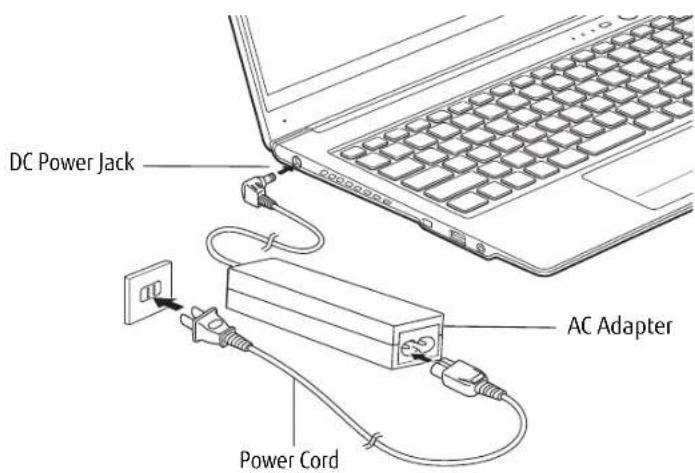

DC Power Jack

The DC power jack allows you to plug in the AC adapter to power your LIFEBOOK Ultrabook and charge the internal Lithium-Polymer battery.

Anti-theft Lock Slot

The anti-theft lock slot allows you to attach an optional physical lock down device.

Headphone Jack

The headphone audio jack allows you to connect headphones and powered external speakers. See "Headphone Jack" on page 50

USB 2.0 Port

The three USB ports (two USB 3.0 on the right side, and one USB 2.0 port on the left) allow you to connect Universal Serial Bus (USB) devices. See “Universal Serial Bus (USB) Ports” on page 51 Note that the USB port on the right side that is closest to the front of the system has Anytime Charge capability, meaning you can charge an external device from this port, even when the system is powered down.

Air Flow Vents

The air flow vents assist in proper cooling of the system.

TO PROTECT YOUR ULTRABOOK FROM DAMAGE AND TO OPTIMIZE SYSTEM PERFORMANCE, BE SURE TO KEEP ALL AIR VENTS UNOBSTRUCTED, CLEAN, AND CLEAR OF DEBRIS. THIS MAY REQUIRE PERIODIC CLEANING, DEPENDING UPON THE ENVIRONMENT IN WHICH THE SYSTEM IS USED.

DO NOT OPERATE THE ULTRABOOK IN AREAS WHERE THE AIR VENTS CAN BE OBSTRUCTED, SUCH AS IN TIGHT ENCLOSURES OR ON SOFT SURFACES LIKE A BED OR CUSHION.

SD Card Slot USB 3.0 Port Mini LAN Port* USB 3.0 Port with Anytime Charge HDMI Port

* Requires use of included LAN Adapter (See "Internal LAN Jack" on page 52)

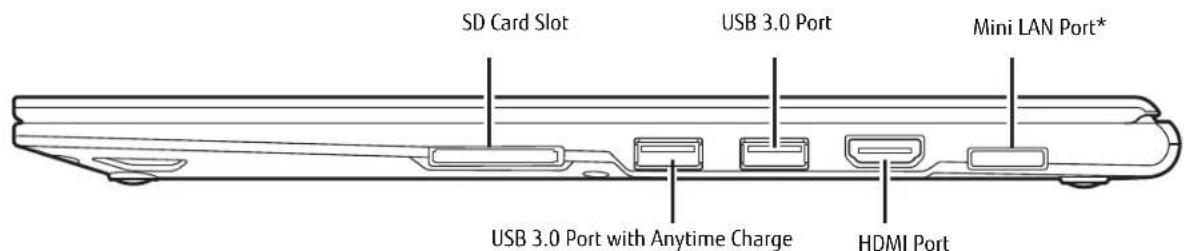

Figure 4. LIFEBOOK U772 Ultrabook right-side panel

Right-Side Panel Components

The following is a brief description of your LIFEBOOK Ultrabook's right-side components.

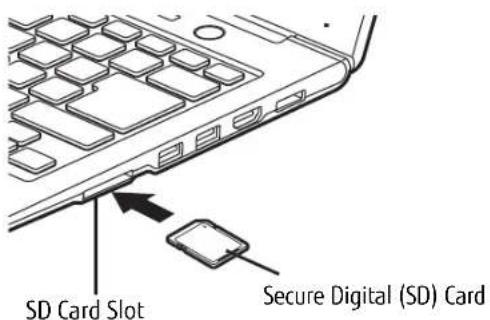

Secure Digital (SD) Card Slot

The Secure Digital card slot allows you to insert a flash memory card for data storage. This architecture allows you to transfer data between a variety of different digital devices. See "Inserting/Removing SD Cards" on page 53.

USB 3.0 Ports

The three USB ports (two USB 3.0 on the right side, and one USB 2.0 port on the left) allow you to connect Universal Serial Bus (USB) devices. See “Universal Serial Bus (USB) Ports” on page 51 Note that the USB port on the right side that is closest to the front of the system has Anytime Charge capability, meaning you can charge an external device from this port, even when the system is powered down.

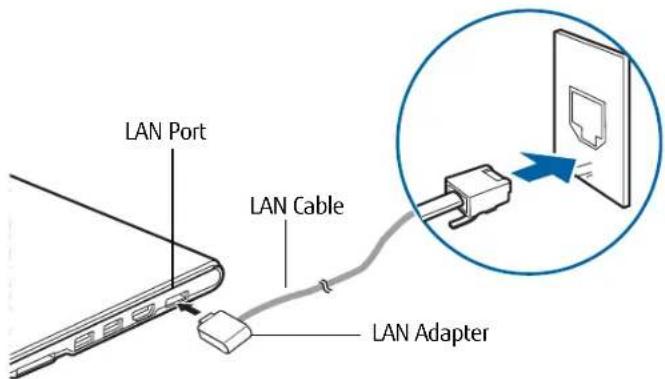

Mini LAN Port

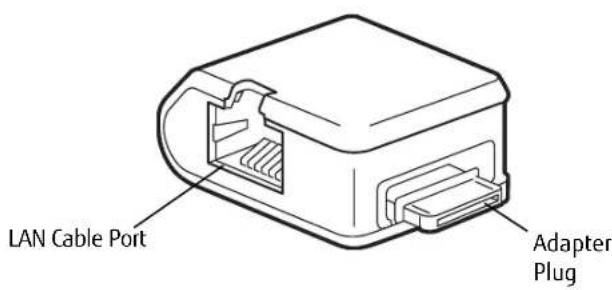

The Mini LAN port is designed to accept a Local Area Network (LAN) RJ-45 jack when used in conjunction with the LAN Adapter included with your system. See "Internal LAN Jack" on page 52

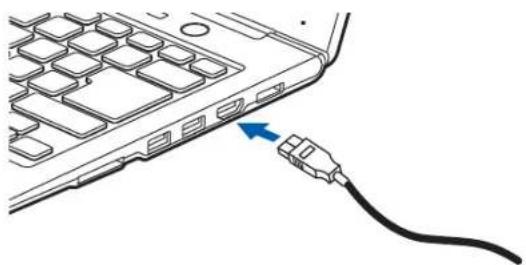

HDMI Port

The HDMI port is used to connect compatible digital devices with your computer (such as a high-definition television or AV receiver). See "HDMI Port" on page 50.

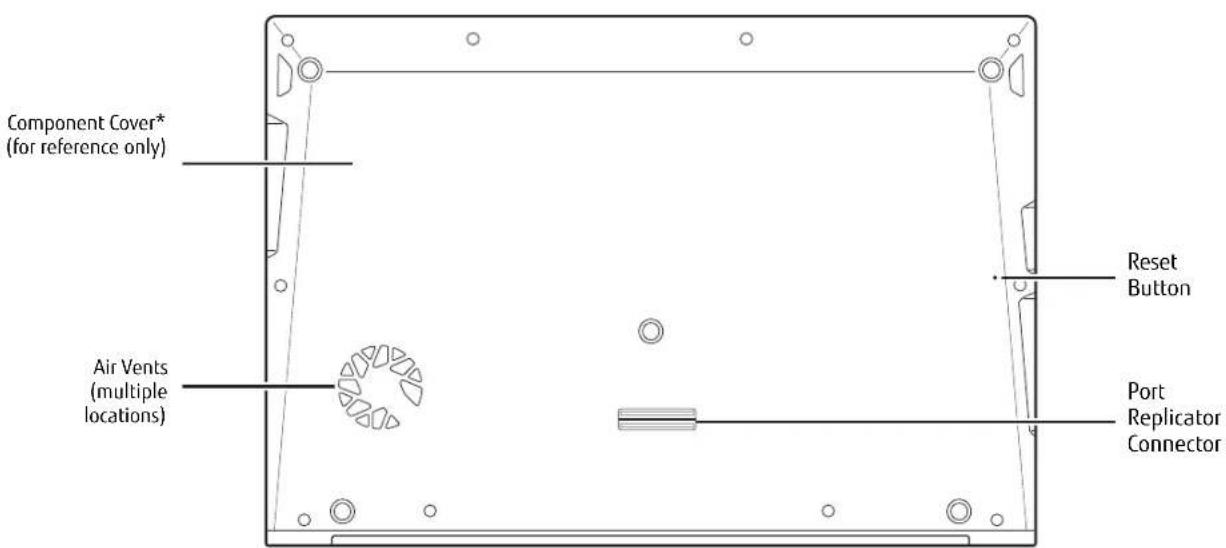

Component Cover* (for reference only) Air Vents (multiple locations) Reset Button Port Replicator Connector

* Removal of the component cover by an unauthorized party will void the system warranty.

Figure 5. LIFEBOOK Ultrabook bottom panel

Bottom Components

The following is a brief description of your LIFEBOOK Ultrabook's bottom panel components.

Component Cover

The component cover is illustrated above for reference only. Never remove this cover; only authorized technicians should remove it. Removal of this cover by unauthorized parties could result in damage to the components. In such an event, the system warranty will be voided.

Air Flow Vents

The air flow vents assist in proper cooling of the system.

TO PROTECT YOUR LIFEBOOK FROM DAMAGE AND TO OPTIMIZE SYSTEM PERFORMANCE, BE SURE TO KEEP ALL AIR VENTS UNOBSTRUCTED, CLEAN, AND CLEAR OF DEBRIS. THIS MAY REQUIRE PERIODIC CLEANING, DEPENDING UPON THE ENVIRONMENT IN WHICH THE SYSTEM IS USED.

DO NOT OPERATE THE LIFEBOOK IN AREAS WHERE THE AIR VENTS CAN BE OBSTRUCTED, SUCH AS IN TIGHT ENCLOSURES OR ON SOFT SURFACES LIKE A BED OR CUSHION.

Reset Button

The Reset button is a recessed button that can be used in the event that the Ultrabook will not power down using the Power/Suspend/Resume button. This button should not be used to power down the system under normal circumstances. "System Reset" on page 46.

Port Replicator Connector

The port replicator connector is used to connect the system to the optional port replicator. See "Port Replicator" on page 55

Power Battery Charge Battery Level Hard Drive Access Wireless Device NumLock CapsLock ScrLock ECO ECO Button and Indicator

Figure 6. Status Indicator Panels

Status Indicator Panels

Your LIFEBOOK has two Status Indicator panels as shown in Figure 6. The first is located at the top of the keyboard, to the left of the power/suspend/resume button. The second is located on the right front edge of the system. Within this panel are symbols that correspond to specific components of your LIFEBOOK. These symbols give you the status of each of the components.

Power Indicator

The Power indicator displays whether the system is on, sleeping, or off.

LED Condition Power Status

Blue, solid System is on and running.

Blue, blinking System is in Sleep state.

Off System is in Hibernation or Off.

Battery Charging

This indicator shows how much charge is available within the internal battery.

Charging Status of Battery	System State/LED Condition
	S0* S3** S4/S5***
Charging, with AC Adapter connected	Orange, solid	Orange, solid	Orange, solid
Fully charged, with AC Adapter connected	Blue, solid	Blue, solid	Blue, solid
Battery mode, without AC Adapter connected	LED off	LED off	LED off
Battery Low (less than 12%) without AC Adapter	LED off	LED off	LED off
No AC Adapter	LED off	LED off	LED off

* "S0" = System on and running
** "S3" = System in Sleep state
*** "S4/S5" = System in Hibernate state or Off State

Battery Level Indicator

The Battery Level indicator displays the charge level of the internal battery pack, as follows:

• Blue, solid: Battery is between 50% and 100% charged.
  • Orange, solid: Battery is between 13% and 49% charged.
  • Red, solid: Battery is 12% or less charged.
• Red, blinking: There is a problem with the battery.
• Off: There is no battery installed.

Hard Drive Access Indicator

The Hard Drive Access indicator is solid blue when the internal hard drive is being accessed.

Wireless Device Indicator

The Wireless device indicator is solid blue when your wireless device (WLAN/Bluetooth) device is active. When the wireless device is not active, the LED is off.

NumLk Indicator

The NumLk indicator is solid blue when the integral keyboard is set in ten-key numeric keypad mode. To set the Num Lock, press the [Num Lock] key; to de-select it, press the key again.

CapsLock Indicator

The CapsLock indicator is solid blue when your keyboard is set to type in all capital letters. To set the Caps Lock, press the [Caps Lock] key; to de-select it, press the key again.

ScrLk Indicator

The ScrLk indicator shows that your scroll lock is active.

ECO

ECO Button/Indicator

Pressing the ECO button opens up the Power Saving Utility. ECO mode is designed to minimize LIFEBOOK power consumption by reducing the LCD brightness and enabling the hard disk drive's auto power off mode.

Keyboard

Function Keys Esc F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12 Num Lk Insert Delete Pause ~ ! @ # $ % ^ & * ( ) + ← Backspace Tab Q W E R T Y U I O P ( ) Caps Lock A S D F G H J K L : " Enter ← Enter Shift Z X C V B N M < > ? Shift Ctrl Fn Alt Alt Ctrl PgUp ↑ PgDn ↑ Fn Key Start Key Numeric Keypad Application Key Cursor Keys (surrounded by thick black line)

Figure 7. Keyboard

Using the Keyboard

Your Fujitsu LIFEBOOK Ultrabook has an integrated 84-key keyboard. The keys perform all the standard functions of a keyboard, including the Windows keys and other special function keys. This section describes the following keys.

- Numeric keypad: Your LIFEBOOK has an integrated numeric keypad (shared with alphabetic keys) which allows you to perform numeric/mathematical and navigational functions. The ability to toggle between the numeric and alphabetic functions of the keys is controlled with the NumLock key.

• Cursor keys: Your keyboard contains four arrow keys for moving the cursor or insertion point to the right, left, up, or down within windows, applications and documents.
• Function keys: The keys labeled [F1] through [F12] are used in conjunction with the [Fn] key to produce special actions that vary depending on what program is running. (See "Function Keys" on page 25.)
• Windows keys: These keys work with your Windows operating system. These keys switch between desktop and Modern Start screen modes and open the Application bar on the bottom of the screen.

Numeric Keypad

The section of the keyboard surrounded by the thick black line in Figure7 serves as a numeric keypad. To activate the keypad functions, press the [NumLk] button. Using the keypad keys, you can enter numerals 0 through 9, perform addition (+), subtraction (-), multiplication (*), or division (/), and enter decimal points (.) using the keys designated as numeric function key keys. When [NumLk] is not active, you can use the numeric keypad for standard alphabetic functions.

Windows Keys

Your LIFEBOOK Ultrabook has two Windows keys, consisting of a Windows key and an Application key. The Windows key switches between the Modern Start screen and the desktop. The Application key opens the Application bar located at the bottom of the screen. (Please refer to your Windows documentation for additional information regarding the Windows keys.)

Cursor Keys

The cursor keys are the four arrow keys on the keyboard that allow you to move the cursor up, down, left and right in applications. In programs such as Windows File/Explorer, it moves the "focus" (selects next item up, down, left, or right).

Function Keys

Your LIFEBOOK Ultrabook has 12 function keys, F1 through F12. The functions assigned to these keys differ for each application. You should refer to your software documentation to find out how these keys are used.

Icon Keys	Description
	[Fn+F3]	Pressing [F3] while holding [Fn] will toggle the Audio Mute on and off.
[6+05]	[Fn+F4]	Pressing [F4] while holding [Fn] will toggle the touchpad on and off. (This function key combination only works if the BIOS setting for Advanced > Keyboard/Mouse Features > Internal Pointing Device is set to Manual Setting.)
	[Fn+F5]	Pressing [F5] while holding [Fn] will toggle the wireless connection on and off.
	[Fn+F6]	Pressing [F6] repeatedly while holding [Fn] will lower the brightness of your display.
[TO2S]	[Fn+F7]	Pressing [F7] repeatedly while holding [Fn] will increase the brightness of the display.
	[Fn+F8]	Pressing [F8] repeatedly while holding [Fn] will lower the volume of your system.
	[Fn+F9]	Pressing [F9] repeatedly while holding [Fn] will increase the volume of your system.
[syzw]	[Fn+F10]	Pressing the [Fn] + [F10] keys allows you to change your selection of where to send your display video.Note:DisplayPort and DVI are mutually exclusive. DisplayPort has priority over DVI. If you have monitors connected to DisplayPort and DVI at same time, Fn+F10 will not enable DVI monitor.If you have external display connected to all ports (on system and port replicator, the following will happen upon pressing [Fn]+[F10]: LCD -> VGA -> LCD+VGA (dual clone) -> DisplayPort (or DVI) -> LCD+DisplayPort (or DVI) (dual clone) -> HDMI -> LCD+HDMI (dual clone) -> Repeat the loop ->If you only have an external CRT connected, the order is internal -> external CRT -> simultaneous display >internal display.If you only have an HDMI device connected, the order is: internal display -> HDMI display -> simultaneous display -> internal display.

Touchpad Pointing Device

Left Button Right Button Cursor Control

Figure 8. Touchpad pointing device

The Touchpad pointing device comes built into your Fujitsu LIFEBOOK Ultrabook. It is used to control the movement of the pointer to select items on your display panel. The Touchpad is composed of a cursor control, a left "button" and a right "button". The cursor control works the same way a mouse does, and moves the cursor around the display; the entire surface of the touchpad can be used to control the cursor, even the areas above the left and right buttons. It only requires light pressure with the tip of your finger.

Note that the "buttons" are not separate from the cursor control; pressing the indicated area of the touchpad will cause that section to act as a left or right button. The left and right buttons function the same as mouse buttons. The actual functionality of the buttons may vary depending on the application that is being used.

- NOTE THAT THE FOLLOWING ILLUSTRATIONS INDICATE LEFT AND RIGHT BUTTONS THAT ARE SEPARATE FROM THE CURSOR CONTROL. ACTUALLY, THEY ARE PART OF THE SAME PIECE; THE AREAS INDICATED AS BUTTONS ARE RELATIVE AREAS OF THE TOUCHPAD THAT ACT AS LEFT AND RIGHT BUTTONS.

- AN EXTERNAL MOUSE CAN BE CONNECTED TO THE USB PORTS ON YOUR LIFEBOOK ULTRABOOK AND USED SIMULTANEOUSLY WITH THE TOUCHPAD. HOWEVER, IF YOU BOOT THE SYSTEM WITH AN EXTERNAL MOUSE CONNECTED THE TOUCHPAD WILL BE DISABLED OR ENABLED DEPENDING ON THE SPECIFICATIONS IN YOUR BIOS SETTINGS.

Clicking

Clicking means pushing and releasing a button. To left-click, move the cursor to the item you wish to select, press the left button once, and then immediately release it. To right-click, move the mouse cursor to the item you wish to select, press the right button once, and then immediately release it. You also have the option to perform the clicking operation by tapping lightly on the Touchpad once.

Two hand-drawn diagrams showing a pointing arrow on a card and a separate card with a diagonal line (no text or symbols)

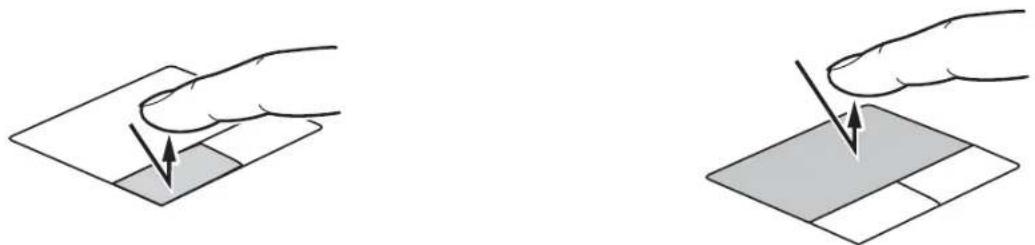

Figure 9. Clicking with button Figure 10. Clicking with touchpad

Double-Clicking

Double-clicking means pushing and releasing the left button twice in rapid succession. This procedure does not function with the right button. To double-click, move the cursor to the item you wish to select, press the left button twice, and release it. You can also perform the double-click operation by double-tapping on the Touchpad.

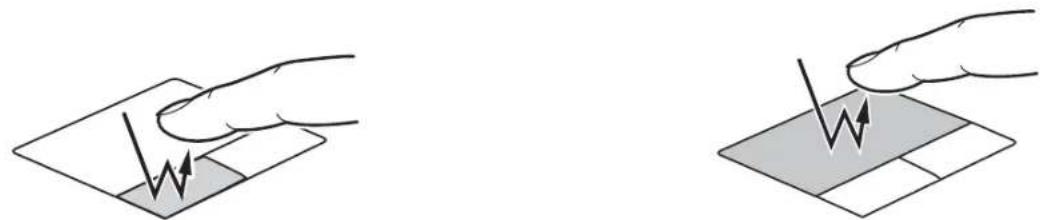

Figure 11. Double-clicking with button Figure 12. Double-clicking with Touchpad

Dragging

Dragging means pressing and holding the left button, while moving the cursor. To drag, move the cursor to the item you wish to move. Press and hold the left button while moving the item to its new location and then release it. Dragging can also be done using the Touchpad. First, tap the Touchpad twice over the item you wish to move making sure to leave your finger on the pad after the final tap. Next, move the object to its new location by moving your finger across the Touchpad, and then release your finger.

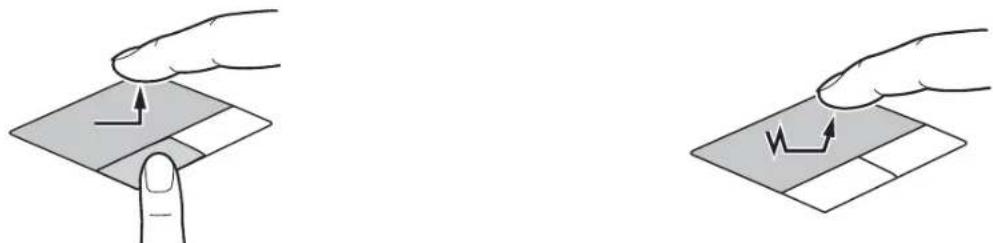

Figure 13. Dragging with button Figure 14. Dragging with Touchpad
29 - Touchpad Pointing Device

Navigating Using Gestures

The touchpad allows you to use gestures to zoom in or out on a page, scroll quickly through large documents, toggle the charms, toggle the application commands bar, and switch to last application.

Scrolling Up/Down:

To scroll up or down, slide two fingers up or down (Figure 15).

Scrolling Right/Left:

To scroll right or left, slide two fingers right or left (Figure 15).

Zooming In/Out:

To zoom in or out on a page using the touchpad, place two fingers in a pinch position and open the pinch to zoom in, or close to zoom out (Figure 16).

Toggling the charms

To toggle the charm swipe one finger from the right edge of touch pad (Figure 17).

Toggling the application commands bar

To toggle the application commands bar swipe one finger down from the top edge of the touchpad (Figure 18).

Switching to last application

To switch to last application swipe in one finger from the left edge. place two fingers in a pinch position and open the pinch to zoom in, close to zoom out (Figure 19).

Illustration of a hand holding a square with arrows indicating movement or force direction (no text or symbols)

Figure 15. Scroll

Hand holding a rectangular object with a pointing arrow, no text or symbols present

Figure 16. Zoom

Hand holding a square object with a finger pointing at it, no text or symbols present

Figure 17. Toggle charms

Hand pointing at a square button with a downward arrow (no text or symbols)

Figure 18. Toggle apps

Hand pointing at a rectangular object with an arrow, no text or symbols present

Figure 19. Last app

Touchpad Control Adjustment

The Windows Control Panel allows you to customize your Touchpad with selections made from within the Mouse Properties dialog box.

Volume Control

Your Fujitsu LIFEBOOK Ultrabook has multiple volume controls which interact with each other.

ANY SOFTWARE THAT CONTAINS AUDIO FILES WILL ALSO CONTAIN A VOLUME CONTROL OF ITS OWN. IF YOU INSTALL AN EXTERNAL AUDIO DEVICE THAT HAS AN INDEPENDENT VOLUME CONTROL, THE HARDWARE VOLUME CONTROL AND THE SOFTWARE VOLUME CONTROL WILL INTERACT WITH EACH OTHER. IT SHOULD BE NOTED THAT IF YOU SET YOUR SOFTWARE VOLUME TO OFF, YOU WILL OVERRIDE THE EXTERNAL VOLUME CONTROL SETTING.

Controlling the Volume

The volume can be controlled in several ways:

• Volume can be set from within the Volume Control in the system tray.
• Volume can be controlled by going to the Control Panel > Hardware and Sound > Sound > Adjust system volume.
• Volume can be controlled by many volume controls that are set within individual applications.
• Volume can be controlled using the [Fn]+[F8] and [Fn]+[F9] key combinations.
- Certain external audio devices you might connect to your system may have hardware volume controls.
Each source discussed above puts an upper limit on the volume level that must then be followed by the other sources.
We recommend that you experiment with the various volume controls to discover the optimal sound level.

Chapter 2

Getting Started with Your LIFEBOOK

DC Power Jack AC Adapter Power Cord

Figure 20. Connecting the AC Adapter

Power Sources

Your Fujitsu LIFEBOOK Ultrabook has three possible power sources: a Lithium-Polymer battery, an AC adapter, or an optional Auto/Airline adapter.

Connecting the Power Adapters

The AC adapter or optional Auto/Airline adapter provides power for operating your LIFEBOOK and charging the batteries.

Connecting the AC Adapter

1 Plug the DC output cable into the DC power jack of your LIFEBOOK Ultrabook.
2 Plug the AC adapter into an AC electrical outlet.

Connecting the Optional Auto/Airline Adapter

1 Plug the DC output cable into the DC power jack on your LIFEBOOK.
2 Plug the Auto/Airline adapter into the cigarette lighter of an automobile with the ignition key in the On or Access, OR,
3 Plug the Auto/Airline adapter into the DC power jack on an airplane seat.

Switching from AC Adapter Power or the Auto/Airline Adapter to Battery Power

1 Be sure that your battery is charged.
2 Remove the AC adapter or the Auto/Airline adapter.

• When you run the LIFEBOOK on battery power, by default, the CPU will slow down in order to optimize battery life. This feature can be enabled or disabled in the BIOS. Use an AC Adapter whenever possible.
• The Lithium-Polymer battery is not charged upon purchase. Initially, you will need to connect the AC adapter to use your LIFEBOOK Ultrabook.

Line drawing of a laptop with a blue arrow pointing upward on the screen (no text or symbols)

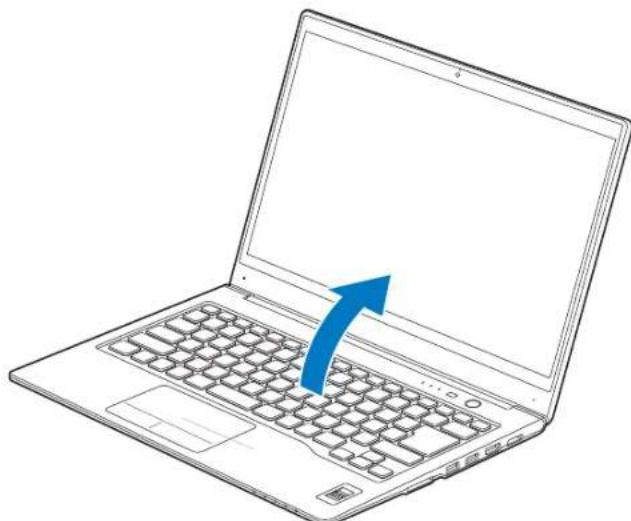

Figure 21. Opening the Display Panel

Display Panel

Your Fujitsu LIFEBOOK Ultrabook contains a display panel that is backlit for easier viewing in bright environments and maintains top resolution through the use of active-matrix technology.

Opening the Display Panel

1 While holding the base of the system with one hand, lift the display backwards without touching the screen.

2 Position the display at a comfortable viewing angle.

Adjusting Display Panel Brightness

Once you have turned on your LIFEBOOK Ultrabook, you may want to adjust the brightness level of the screen to a more comfortable viewing level. There are three ways to adjust the brightness, by using the keyboard, the Power Options, or the Windows Mobility Center.

Using the Keyboard

Adjusting the brightness using the keyboard changes the setting only temporarily.

• [Fn+F6]: Pressing repeatedly will lower the brightness of your display.
• [Fn+F7]: Pressing repeatedly will increase the brightness of the display.

Using the Power Options

To change the brightness using the Power Options utility, open the Control Panel and select either Large icons or Small icons in the View by: Double-click Power Options. At the bottom of the window, drag the brightness bar to the desired level. Note that the settings you make via this utility become permanent until you decide to change them again.

Using the Windows Mobility Center

To change the brightness using the Windows Mobility Center, open the Control Panel and select either Large icons or Small icons in the View by: Double-click Windows Mobility Center. In the Display Brightness area, drag the brightness bar to the desired level.

• ALWAYS POWER OFF THE COMPUTER BEFORE TRANSPORTING OR PACKAGING IT. AFTER SHUTTING THE SYSTEM DOWN, WAIT UNTIL NO LIGHTS ARE ILLUMINATED IN THE STATUS INDICATOR PANEL.
• IT IS POSSIBLE THAT THE UNIT MAY NOT AUTOMATICALLY GO TO POWER OFF OR HIBERNATE MODE WHEN YOU CLOSE THE LID. THIS SITUATION MAY OCCUR DUE TO PRE-OS BOOT PASSWORD SECURITY SETTINGS OR SOME OTHER APPLICATION RUNNING ON THE COMPUTER.
• ATTEMPTING TO TRANSPORT THE COMPUTER WHILE POWER IS ON MAY DAMAGE THE LIFEBOOK DUE TO SHOCK OR OVERHEATING SINCE THE AIR VENTS MAY BE BLOCKED OR RESTRICTED.

- WHEN USING AC POWER YOUR BRIGHTNESS SETTING IS SET TO ITS HIGHEST LEVEL BY DEFAULT. WHEN USING BATTERY POWER YOUR BRIGHTNESS SETTING IS SET TO APPROXIMATELY MID-LEVEL BY DEFAULT.

- THE HIGHER THE BRIGHTNESS, THE MORE POWER THE LIFEBOOK WILL CONSUME AND THE FASTER THE BATTERY WILL DISCHARGE. FOR MAXIMUM BATTERY LIFE, BE SURE THE BRIGHTNESS IS SET AS LOW AS POSSIBLE.

Closing the Display Panel

Holding the edge of your display panel, pull it forward until it is flush with the body of your LIFEBOOK Ultrabook.

Using Multiple Displays Simultaneously

With your system, it is possible to use three different displays at the same time (in conjunction with the optional port replicator). The port types supported by the three-display feature for this system include:

• Integrated LCD Display (on the system)
  • HDMI port (on the system)
• DisplayPort (on the port replicator)
  • VGA port (on the port replicator)
  • DVI port (on the port replicator)

The available 3-display combinations for this system are shown the chart below:

	System Display/Ports Port Replicator Ports
	Integrated LCD Display	HDMI Display	Port DVI		VGA
1	X X X
2	X X X
3	X	X			X
4	X		X		X
5	X			X	X

Once you have connected two external displays to your system/port replicator, the Active Display menu will appear in Graphics property from which you can select three displays.

Starting Your LIFEBOOK Ultrabook

Power On

Power/Suspend/Resume Button

The Power and Suspend/Resume button is used to power on your LIFEBOOK Ultrabook, to resume from Sleep or Save-to-Disk mode or to place your Ultrabook in Sleep or Save-to-Disk mode. (You can also use the button to power down the system by holding it down for approximately five seconds. This can be useful if the system is "hung up". This shouldn't be used as the normal means of shutdown, however.) You can also turn off your system by using the following method: from Modern Start screen, open Charms ([Windows]+C or mouse over [-] in the bottom right corner of the screen), then click [Settings]->[Power] Select Shutdown from the list.

WHEN YOU TURN ON YOUR LIFEBOOK ULTRABOOK, BE SURE YOU HAVE A POWER SOURCE. THIS MEANS THAT THE BATTERY IS CHARGED, OR THAT THE AC OR AUTO/AIRLINE ADAPTER IS CONNECTED AND HAS POWER.

Once you have connected your AC adapter or charged the internal Lithium-Polymer battery, you can press this button to power up your LIFEBOOK. (Figure 22)

Power/Suspend/ Resume Button

Figure 22. Powering Up the System

DO NOT CARRY THE LIFEBOOK AROUND WITH POWER ON OR SUBJECT IT TO VIBRATION OR SHOCKS; DOING SO COULD DAMAGE THE LIFEBOOK.

When you Power On your LIFEBOOK, it will perform a Power On Self Test (POST) to check the internal parts and configuration for correct functionality. If a fault is found, your LIFEBOOK will emit an audio warning and/or an error message will be displayed. Depending on the nature of the problem, you may be able to continue by starting the operating system or by entering the BIOS setup utility and revising the settings. After satisfactory completion of the POST, your LIFEBOOK will load your operating system.

NEVER TURN OFF YOUR LIFEBOOK DURING THE POWER ON SELF TEST (POST) OR IT WILL CAUSE AN ERROR MESSAGE TO BE DISPLAYED WHEN YOU TURN YOUR LIFEBOOK ON THE NEXT TIME.

Boot Sequence

The procedure for starting-up your Ultrabook is termed the Bootup sequence and involves your Ultrabook's BIOS. When your Ultrabook is first turned on, the main system memory is empty, and it needs to find instructions to start up your Ultrabook. This information is in the BIOS program. Each time you power up or restart your Ultrabook, it goes through a boot sequence which displays a Fujitsu logo until the operating system is found. During booting, your Ultrabook is performing a standard boot sequence including a Power On Self Test (POST). When the boot sequence is completed without a failure and without a request for the BIOS Setup Utility, the system displays the operating system's opening screen.

The boot sequence is executed when:

• You turn on the power to your LIFEBOOK Ultrabook.
• You restart your LIFEBOOK Ultrabook from [Settings]->[Power] menu.
• The software initiates a system restart; for example, when you install a new application.

Hard Disk Drive Passwords

To provide additional security for your data, you can assign passwords to your hard disk drive(s). This feature is managed in the system BIOS Setup Utility. See BIOS Setup Utility below for information about accessing the utility.

REMEMBER YOUR PASSWORDS. IF YOU SET AND FORGET YOUR USER AND MASTER HARD DISK PASSWORDS, FUJITSU AMERICA WILL NOT BE ABLE TO RESET IT. YOU MAY LOSE DATA AND HAVE TO REPLACE YOUR SYSTEM BOARD OR HARD DISK DRIVE.

BIOS Setup Utility

The BIOS Setup Utility sets up the operating environment for your Ultrabook. Your BIOS is set at the factory for normal operating conditions, therefore there is no need to set or change the BIOS' environment to operate your Ultrabook.

The BIOS Setup Utility also allows you to configure such features as the System Data Security feature parameters, such as passwords.

Entering the BIOS Setup Utility

To enter the BIOS Setup Utility do the following:

1 Turn on or restart your LIFEBOOK Ultrabook.
2 To enter the BIOS Setup Utility, press the [F2] key once the Fujitsu logo appears on the screen. This will open the main menu of the BIOS Setup Utility with the current settings displayed.

Press the right or left arrow keys key to scroll through the other setup menus to review or alter the current settings.

BIOS Guide

A guide to your LIFEBOOK's BIOS is available online at our service and support Website at: http://solutions.us.fujitsu.com/www/content/support/contact/index.php. Once there, select User's Guides under Online Support. Select your Product, Series, and Model, then click [Go].

IF YOUR DATA SECURITY SETTINGS REQUIRE IT, YOU MAY BE ASKED FOR A PASSWORD BEFORE THE BIOS MAIN MENU WILL APPEAR.

Booting the System

We strongly recommend that you not attach any external devices until you have gone through the initial power on sequence.

When you turn on your LIFEBOOK Ultrabook for the first time, it will display a Fujitsu logo on the screen. If you do nothing the system will load the operating system, and then the Windows Welcome will begin.

Starting Windows the First Time

After you boot up the system the first time and follow the instructions on the screen, you will eventually come to the Welcome window. After sign-in, it takes less then a minute for the computer to boot to Windows; during that time the progress bar and interactive messages are displayed on the screen.

During the course of the first start up, you will need to read and accept the End User License Agreements (EULAs) for Microsoft and Fujitsu.

" You cannot use YOUR LIFEBOOK UNTIL YOU HAVE ACCEPTED THE LICENSE AGREEMENT. IF YOU STOP THE PROCESS YOUR LIFEBOOK WILL RETURN TO THE BEGINNING OF THE WINDOWS WELCOME PROCESS, EVEN IF YOU SHUT YOUR LIFEBOOK DOWN AND START IT UP AGAIN.

Several additional windows will appear, prompting you to enter a name and description for your computer, an Administrator password, and a domain name. Read the instructions on the screens carefully and fill in the information as directed.

Following first boot, you will arrive at the Modern start screen. Some useful shortcuts for your reference: Press the Windows + D keys to go to traditional Windows desktop or press Windows + M keys to load the traditional Windows desktop and minimize all applications.

Installing Bonus Apps

After you have started your system the first time, you will see a Bonus Apps icon on your desktop. Click on the icon to see which additional applications are available for you to install. You can also access Bonus Apps

by opening the Charms panel from the Modern Start screen and searching for "Fujitsu BonusApps". Applications that are already installed appear in grey; those that are available for installation appear in blue.

Select the applications you wish to install by selecting the checkbox adjacent to your selection, or click [Select All] if you would like to install all available applications. Once you have made your selections, click [Install].

Note that in some cases (depending upon which application was selected for installation) after installation completes, the system will prompt you to reboot. There are also cases in which if multiple applications are selected to install but one of them needs a reboot, the system will reboot and continue installing the rest of the selected applications.

Registering your LIFEBOOK with Fujitsu

You can register your LIFEBOOK by going to our website at: https://store.shopfujitsu.com/fpc/Ecommerce/Service.jsp. You will need to be set up with an Internet Service Provider (ISP) to register online.

Power Management

Your LIFEBOOK Ultrabook has many options and features for conserving battery power. Some of these features are automatic and need no user intervention. However, others depend on the parameters you set to best suit your operating conditions, such as those for the display brightness. Internal power management for your LIFEBOOK Ultrabook may be controlled from settings made in your operating system.

Besides the options available for conserving battery power, there are also some things that you can do to prevent your battery from running down as quickly. For example, you can create an appropriate power saving profile, put your LIFEBOOK into Sleep mode when it is not performing an operation, and you can limit the use of high power devices. As with all mobile, battery powered computers, there is a trade-off between performance and power savings.

Power and Suspend/Resume Button

When your LIFEBOOK is active, the Power and Suspend/Resume button can be used to manually put it into Sleep mode. Push the Power and Suspend/Resume button when your LIFEBOOK is active, but not actively accessing anything, and immediately release the button. Your system will enter Sleep mode.

If your LIFEBOOK is suspended, pushing the Power and Suspend/Resume button will return your system to active operation. You can tell whether or not your system is in Sleep mode by looking at the Power indicator which is part of the Suspend/Resume button. If the indicator is visible and not flashing, your LIFEBOOK Ultrabook is fully operational. If the indicator is both visible and flashing, your LIFEBOOK is in Sleep mode. If the indicator is not visible at all, the power is off or your LIFEBOOK is in Hibernate Hibernation mode.

Sleep Mode

Sleep mode saves your Ultrabook's system memory contents during periods of inactivity by maintaining power to critical parts. This mode will turn off the CPU, the display, the hard drive, and all of the other internal components except those necessary to maintain system memory and allow for restarting.

Your LIFEBOOK Ultrabook can be put in Sleep mode by:

• Pressing the Power/Suspend/Resume button when your system is turned on.
• Clicking the power icon on the lock menu.
• Selecting Sleep from the [Settings]->[Power] menu.
• Timing out from lack of activity.

- Allowing the battery to reach the Dead Battery Warning condition.

Your Ultrabook's system memory typically stores the files on which you are working, open application information, and any other data required to support the operations in progress. When you resume operation from Sleep mode, your Ultrabook will return to the point where it left off. You must use the Power and Suspend/Resume button to resume operation, and there must be an adequate power source available, or your Ultrabook will not resume.

• IF YOU ARE POWERING YOUR LIFEBOOK ON BATTERY POWER, BE AWARE THAT THE BATTERY CONTINUES TO DISCHARGE WHILE YOUR SYSTEM IS IN SLEEP MODE, THOUGH NOT AS FAST AS WHEN FULLY OPERATIONAL.
• DISABLING THE SUSPEND/RESUME BUTTON PREVENTS IT FROM BEING USED TO PUT YOUR LIFEBOOK ULTRABOOK IN SLEEP OR HIBERNATE MODE. THE RESUME FUNCTION OF THE BUTTON CANNOT BE DISABLED.
• WHEN EXTERNAL DEVICES ARE IN USE, HIBERNATE MODE CANNOT RETURN TO THE EXACT STATE PRIOR TO SUSPENSION BECAUSE ALL OF THE PERIPHERAL DEVICES WILL BE RE-INITIALIZED WHEN THE SYSTEM RE-STARTS.
• IF YOUR LIFEBOOK IS ACCESSING INFORMATION WHEN YOU ENTER SLEEP OR HIBERNATION MODE, CHANGES TO OPEN FILES ARE NOT LOST. THE FILES ARE LEFT OPEN AND MEMORY IS KEPT ACTIVE DURING SLEEP MODE, OR THE MEMORY IS TRANSFERRED TO THE INTERNAL HARD DRIVE DURING HIBERNATION MODE.
• THE MAIN ADVANTAGE OF USING THE HIBERNATION FUNCTION IS THAT POWER IS NOT REQUIRED TO MAINTAIN YOUR DATA. THIS IS PARTICULARLY IMPORTANT IF YOU WILL BE LEAVING YOUR LIFEBOOK IN A SUSPENDED STATE FOR A PROLONGED PERIOD OF TIME. THE DRAWBACK OF USING HIBERNATION MODE IS THAT IT LENGTHENS THE POWER DOWN AND POWER UP SEQUENCES AND RESETS PERIPHERAL DEVICES.
• YOUR SYSTEM IS SET TO USE A POWER SAVER SCHEME WHEN RUNNING ON BATTERY POWER. IF YOU CHANGE THE POWER SCHEME TO A DIFFERENT PROFILE, YOUR BATTERY LIFE MAY VARY.

Faster Startup

Certain configurations of the LIFEBOOK U772 Ultrabook use a combination of Intel® Rapid Start Technology and Condusiv™ ExpressCache® to allow your system to wake quickly and return to the files and applications you use the most. This faster wakeup results in saving you time.

This technology also saves you power. When the system is running and you press the power button, the system enters Sleep Mode (S3) during which RAM is still powered. After a period of time (which is set in the Intel Rapid Start Technology Manager), your system automatically goes into Hibernation Mode (S4) at which point all of your main memory is stored to disk and the system is powered off, thereby saving power. When the button is pressed again to wake the system, it wakes directly from S4, which requires less time than resuming from the traditional Hibernation Mode.

Hibernation Feature

he Hibernation feature saves the contents of your Ultrabook's system memory to the hard drive as a part of the Suspend/Resume mode. You can enable or disable this feature.

Enable or Disable the Hibernation Feature

To enable or disable the Hibernation feature follow these steps:

1 From the Modern Start screen, press [Windows]+[X]. Select Control Panel, then select Power Options.
2 Select "Choose what the power button does" or "Choose what closing the lid does", then make your selections (Do Nothing, Sleep, Hibernate, or Shut Down).

Windows Power Management

The Power Options icon located in the Windows Control Panel allows you to configure some of the power management settings. For example, you can use the Power Options to set the timeout values for turning off the display and hard disks whether you are running the LIFEBOOK on battery power or one of the adapters.

Restarting the System

If your system is on and you need to restart it, be sure that you use the following procedure.

1 From the Modern Start screen, open Charms ([Windows]+C) or mouse over [-] in the bottom right corner of the screen), then click [Settings]->[Power].

2 Select Restart from the list.

TURNING OFF YOUR LIFEBOOK ULTRABOOK WITHOUT EXITING WINDOWS OR TURNING ON YOUR SYSTEM WITHIN 10 SECONDS OF THE SYSTEM BEING SHUT OFF MAY CAUSE AN ERROR WHEN YOU START THE NEXT TIME.

Power Off

Before turning off the power, check that the hard drive access indicator is off. If you turn off the power while accessing a disk there is a risk of data loss. To ensure that your LIFEBOOK shuts down without error, use the Windows shut down procedure.

• ALWAYS POWER OFF THE COMPUTER BEFORE TRANSPORTING AND/OR PACKAGING IT. AFTER SHUTTING DOWN THE SYSTEM, WAIT UNTIL THE STATUS LED PANEL INDICATES POWER OFF CONDITION (I.E., NO LIGHTS ARE ILLUMINATED).
• IT IS POSSIBLE THAT THE UNIT MAY NOT AUTOMATICALLY GO TO POWER OFF OR HIBERNATE MODE WHEN YOU CLOSE THE LID. THIS SITUATION MAY OCCUR DUE TO PRE-OS BOOT PASSWORD SECURITY SETTINGS OR SOME OTHER APPLICATION RUNNING ON THE COMPUTER.
• ATTEMPTING TO TRANSPORT THE COMPUTER WHILE POWER IS ON MAY DAMAGE THE LIFEBOOK DUE TO SHOCK OR OVERHEATING SINCE THE AIR VENTS MAY BE BLOCKED OR RESTRICTED.

BE SURE TO CLOSE ALL FILES, EXIT ALL APPLICATIONS, AND SHUT DOWN YOUR OPERATING SYSTEM PRIOR TO TURNING OFF THE POWER. IF FILES ARE OPEN WHEN YOU TURN THE POWER OFF, YOU WILL LOSE ANY CHANGES THAT HAVE NOT BEEN SAVED, AND MAY CAUSE DISK ERRORS.

Using the correct procedure to shut down from Windows allows your Ultrabook to complete its operations and turn off power in the proper sequence to avoid errors. The proper sequence is:

From the Modern Start screen, open Charms ([Windows]+C) or mouse over [-] in the bottom right corner of the screen), then click [Settings]->[Power]. Select Shut down from the list.

If you are going to store your Ultrabook for a month or more see the Care and Maintenance Section.

System Reset

Ordinarily, you power down your system by clicking on the small arrow at the bottom right of the Windows Start menu then clicking Shut Down. You can also use the Power/Suspend/Resume button to power down the system by holding it down for approximately five seconds. This can be useful if the system is "hung up", but it shouldn't be used as the normal means of shutdown, however.

If you cannot power down your systems by either of these methods, you can use the RESET button on the bottom of your Ultrabook (See Figure 5 for location). This method should only be used as a last resort when traditional methods do not work. To shut down your system with the RESET button, first disconnect any AC adapter that may be connected. Insert a small tool such as the tip of a paper clip into the opening and press the button for a couple of seconds. If you power down your system with the RESET button, be sure to plug in an AC adapter before turning it back on.

ENERGY STAR® Compliance

Your Fujitsu system is an ENERGY STAR® qualified mobile PC. By choosing a computer with the latest energy-saving technology, you're helping to preserve our environment for future generations.

ENERGY STAR is a joint program of the U.S. Environmental Protection Agency, U.S. Department of Energy, Natural Resources Canada, and other governments around the world helping us save money

while protecting the environment through energy efficient products and practices. With energy costs and global warming top-of-mind for consumers, Fujitsu is committed to offering solutions that help consumers conserve energy and improve the quality of our environment.

Sleep Mode:

You will notice that your computer is initially set so that the display turns off after 15 minutes of user inactivity, and the computer goes into Sleep mode after 20 minutes of user inactivity. When going into Sleep mode, the computer also reduces the speed of any active Ethernet network links. To "wake" the computer from Sleep mode, press the Suspend/Resume Button.

Energy saving benefits:

Fujitsu ENERGY STAR qualified mobile PCs use about half as much electricity as standard equipment – saving half in utility costs. But more than that, ENERGY STAR also makes a difference for the environment. Did you know that the average house can be responsible for twice the greenhouse gas emissions as the average car? That's because every time you flip on a light switch, run your dishwasher, or turn on your PC, you use energy, which means more greenhouse gas emissions from power plants. So the more energy we can save through energy efficiency, the more we help to reduce greenhouse gases and the risks of global warming.

To learn more about the important ENERGY STAR program, visit: www.energystar.gov.

To read about how Fujitsu is supporting Sustainable Management along with several other environmental activities, visit the Fujitsu Corporate Citizenship page at: http://www.computers.us.fujitsu.com/www/content/aboutus/environmental/environment.php

About the Lithium-Polymer Battery

Your LIFEBOOK has an internal Lithium-Polymer battery that provides power for operating your system when no external power source is available. The rechargeable battery is durable and long lasting, but should not be exposed to extreme temperatures, high voltages, chemicals, or other hazards. For information on maximizing your battery life, refer to the section entitled "Power Management" on page 43.

The Lithium-Polymer battery operating time may become shorter if it is used under the following conditions:

• Your system is set to use Power Saver power scheme when running on battery power. If you change the power scheme to a different profile, your battery life may vary.
• When used at temperatures that exceed a low of 5°C (40°F) or a high of 35°C (95°F). Extreme temperatures not only reduce charging efficiency, but can also cause battery deterioration. The charging icon on the Status Indicator panel will flash when you try to charge a battery that is outside its operating temperature range. See “Power Indicator” on page 20.

THE INTERNAL LITHIUM-POLYMER BATTERY CAN ONLY BE REPLACED BY AN AUTHORIZED FUJITSU TECHNICIAN. ANY ATTEMPT BY THE END-USER TO ACCESS AND REPLACE THE BATTERY MAY RESULT IN DAMAGE TO THE SYSTEM. REMOVAL OF THE COMPONENT COVER BY THE END-USER WILL VOID THE SYSTEM WARRANTY. FOR ASSISTANCE, GO TO http://solutions.us.fujitsu.com/www/content/support/contact/index.php

ACTUAL BATTERY LIFE WILL VARY BASED ON SCREEN BRIGHTNESS, APPLICATIONS, POWER MANAGEMENT SETTINGS, BATTERY CONDITION AND OTHER CUSTOMER PREFERENCES. EXTERNAL OPTICAL DRIVE OR HARD DRIVE USAGE MAY ALSO HAVE A SIGNIFICANT IMPACT ON BATTERY LIFE. THE BATTERY CHARGING CAPACITY IS REDUCED AS THE BATTERY AGES. IF YOUR BATTERY IS RUNNING LOW QUICKLY, YOU SHOULD CONTACT YOUR FUJITSU SUPPORT REPRESENTATIVE TO HAVE IT REPLACED.

Recharging the Battery

If you want to know the condition of the Lithium-Polymer battery, check the Battery Level indicator located on the Status Indicator panel. The indicator changes as the battery level changes.

The Lithium-Polymer battery is recharged internally using the AC adapter or Auto/Airline adapter. To recharge the battery, simply connect the AC or Auto/Airline adapter.

MAKE SURE THAT THE BATTERY CHARGING INDICATOR AND THE PERCENTAGE CHARGE IS DISPLAYED BY THE BATTERY LEVEL INDICATOR ON THE STATUS INDICATOR PANEL.

There is no memory effect on the Lithium-Polymer battery, therefore you do not need to discharge the battery completely before recharging. The charge times will be significantly longer if your LIFEBOOK is in use while the battery is charging. If you want to charge the battery more quickly, put your LIFEBOOK into Standby mode, or turn it off while the adapter is charging the battery.

Low Battery State

When the battery is running low, a low battery notification message will appear. If you do not respond to the low battery message, the battery will continue to discharge until too low to operate. When this happens, your LIFEBOOK will go into Sleep mode. There is no guarantee that your data will not be lost once the LIFEBOOK reaches this point. Note that you can change the state in which the battery goes into Sleep mode in the Control Panel "Power" properties.

• ONCE THE LOW BATTERY NOTIFICATION MESSAGE APPEARS, YOU NEED TO SAVE ALL YOUR ACTIVE DATA AND PUT YOUR LIFEBOOK INTO STANDBY MODE UNTIL YOU CAN PROVIDE A NEW POWER SOURCE. ATTACH AN AC POWER ADAPTER OR AUTO/AIRLINE ADAPTER AS SOON AS POSSIBLE.
• WHEN YOU ARE IN STANDBY MODE THERE MUST ALWAYS BE AT LEAST ONE POWER SOURCE ACTIVE. IF YOU REMOVE ALL POWER SOURCES WHILE YOUR LIFEBOOK ULTRABOOK IS IN STANDBY MODE, ANY DATA THAT HAS NOT BEEN SAVED TO THE HARD DRIVE WILL BE LOST.

Dead Battery Suspend mode shows on the Status indicator just like the normal Sleep mode. Once your LIFEBOOK goes into Dead Battery Suspend mode you will be unable to resume operation until you provide a source of power from an AC adapter. Once you have provided power, you will need to press the Suspend/Resume button to resume operation. In the Dead Battery Suspend mode, your data can be maintained for some time, but if a power source is not provided promptly, the Power indicator will stop flashing and go out, meaning that you have lost the data that was not stored.

Once you provide power, you can continue to use your LIFEBOOK Ultrabook while the adapter is charging the battery.

Shorted Batteries

The Status Indicator panel displays the battery status via the Battery Status indicator to show the charge level available in that battery. If the display is flashing red, it means that the battery is damaged and must be replaced by Fujitsu technicians.

Device Ports

Your LIFEBOOK Ultrabook comes equipped with multiple ports to which you can connect an external device including disk drives, keyboards, modems, printers, etc.

HDMI Port

The High-Definition Multimedia Interface (HDMI) port is a digital audio/video interface over which uncompressed streams can be transmitted. HDMI is used to connect compatible digital devices with your computer (such as a big-screen TV).

To connect an HDMI device:

1 Align the connector with the port opening.

2 Push the connector into the port until it is seated.

Diagram of a laptop keyboard with an attached USB cable showing connection (no text or symbols)

Figure 23. HDMI Interface

Headphone Jack

The headphone jack allows you to connect headphones or powered external speakers to your LIFEBOOK Ultrabook. Your headphones or speakers must be equipped with a 1/8" (3.5 mm) stereo mini-plug. To connect headphones or speakers, simply align the connector with the port opening, then push the connector into the port until it is seated.

IF YOU PLUG HEADPHONES INTO THE HEADPHONE JACK, YOU WILL DISABLE THE BUILT-IN STEREO SPEAKERS.

Universal Serial Bus (USB) Ports

Universal Serial Bus (USB) ports allow you to connect USB devices such as pointing devices, keyboards and speakers. There are three USB ports (two USB 3.0 ports on the right side and one USB 2.0 port on the left side). Note that the USB 3.0 port on the right side closest to the front of the system has Anytime USB Charge* capability, meaning you can charge an external device from this port, even when the system is powered down. (See additional information below).

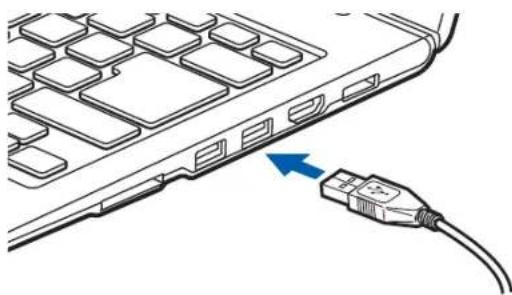

Diagram of a computer keyboard with an attached USB cable, showing no text or symbols

Figure 24. Connecting a USB Device

Anytime USB Charge Utility

The Anytime USB Charge feature can be disabled and enabled from the BIOS Setup Utility; the feature is enabled by default. The settings for the Anytime USB Charge feature can be changed by performing the following steps. Windows 7:Start > All Programs > Anytime USB Charge Utility and clicking on Settings. Windows 8:Go to Modern Start screen and right-click. Select All Apps and select Anytime USB charge utility.

There are three possible settings for this feature: "Disable Anytime USB Charge function", "Only enable Anytime USB Charge function with AC Adapter", and "Enable Anytime USB Charge function with AC Adapter or battery". Note that if the setting is selected, the function will eventually drain the battery if the AC Adapter is not plugged in.

Certain USB devices may require that a driver be installed in order for this feature to work. Please check the documentation for your USB device to ensure proper charging with the Anytime USB Charge utility.

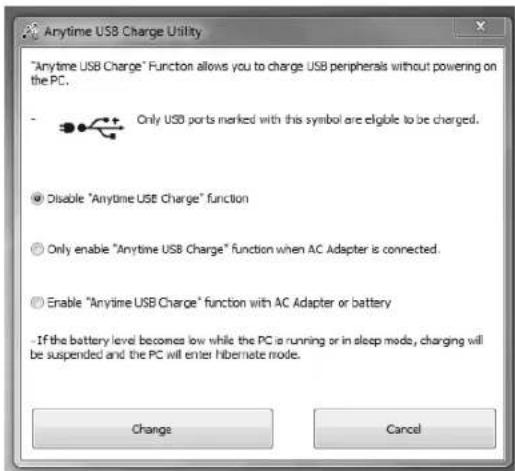

"Anytime USB Charge" Function allows you to charge USB peripherals without powering on the PC. - Only USB ports marked with this symbol are eligible to be charged. - Disable "Anytime USB Charge" function - Only enable "Anytime USB Charge" function when AC Adapter is connected. - Enable "Anytime USB Charge" function with AC Adapter or battery - If the battery level becomes low while the PC is running or in sleep mode, charging will be suspended and the PC will enter hibernate mode. Change Cancel

Internal LAN Jack

The internal LAN (RJ-45) jack is used for a 10/100/1000 Gigabit Ethernet LAN connection. You may need to configure your Ultrabook to work with your particular network. (Please refer to your network administrator for information on your network configuration.) To connect the LAN cable follow these easy steps:

1 Locate the LAN Adapter that is included with your system (Figure 25).

2 Align the LAN cable plug with the LAN cable port on the side of the adapter, then push the connector into the port until it is seated.

3 Align the adapter plug with the LAN port on the right side of the system (see Figure 4 for location), then push the adapter plug into the LAN port until it is seated.

4 Plug the other end of the LAN cable into a LAN outlet.

LAN Cable Port Adapter Plug

Figure 25. LAN Adapter (side view)

LAN Port LAN Cable LAN Adapter

Figure 26. Connecting a LAN

Chapter 3

User-Installable Features

Secure Digital Card Slot

Your LIFEBOOK Ultrabook supports Secure Digital (SD) memory cards, on which you can store and transfer data to and from a variety of digital devices. These cards use flash memory architecture, which means they don't need a power source to retain data.

Secure Digital (SD) Cards allow portable storage among a variety of devices, such as cell phones, GPS systems, digital cameras, and PDAs. SD Cards transfer data quickly, with low battery consumption.

Simple line drawing of a rectangular frame with no text or symbols

Figure 27. Secure Digital Cards

Inserting/Removing SD Cards

SD Cards are inserted in the SD Card slot (Figure 28). To insert an SD Card, follow these steps:

• INSERTING OR REMOVING AN SD CARD DURING YOUR LIFEBOOK'S SHUTDOWN OR BOOTUP PROCESS MAY DAMAGE THE CARD AND/OR YOUR SYSTEM.
• DO NOT INSERT A CARD INTO A SLOT IF THERE IS WATER OR ANY OTHER SUBSTANCE ON THE CARD AS YOU MAY PERMANENTLY DAMAGE THE CARD, YOUR LIFEBOOK, OR BOTH.

1 See your SD Card manual for instructions on the insertion of your card.
2 Make sure there is no card currently in the slot.
3 Insert the card in an adapter, if required.
4 Insert your card into the slot with the product label facing up, then push the card firmly into the slot until it is seated in the connector.
5 To remove an SD Card, push it in slightly until it unlatches and pops out, then pull it from the slot.

SD Card Slot Secure Digital (SD) Card

Figure 28. Installing a Secure Digital Card

Port Replicator

The optional port replicator extends the functionality of your LIFEBOOK Ultrabook by providing ports to connect an external VGA monitor, a LAN (RJ-45) cable, four USB 3.0 devices, a DVI device, a DisplayPort device, and DC power. The port replicator connects to the bottom of your LIFEBOOK Ultrabook.

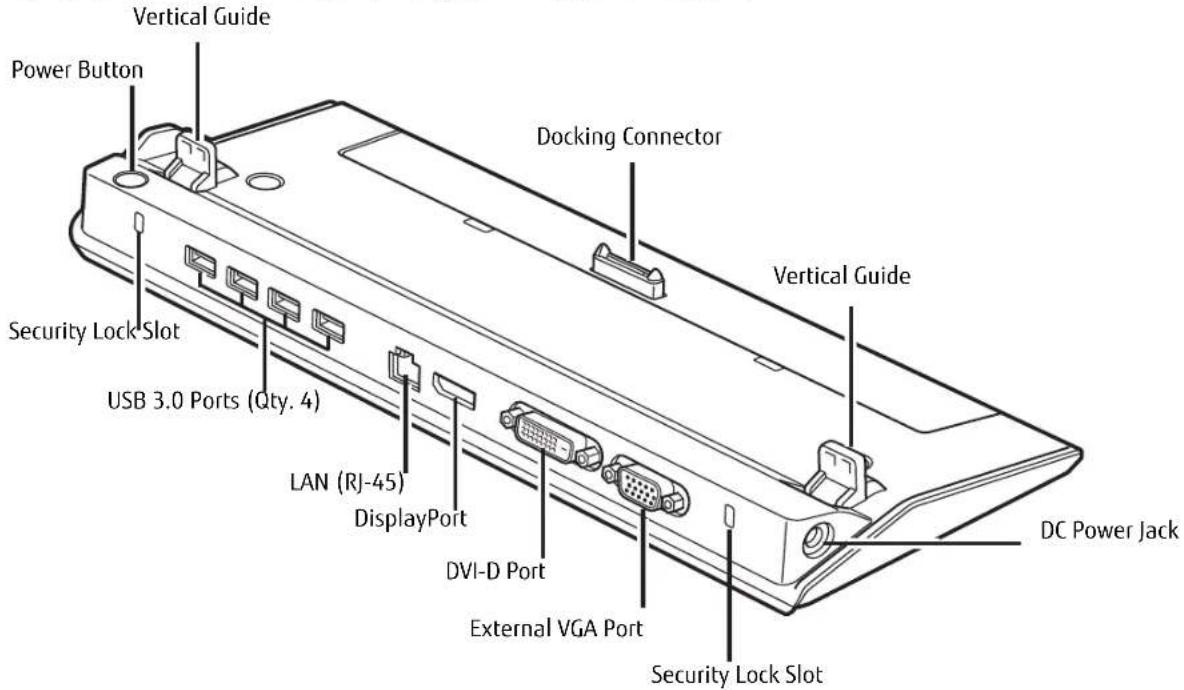

Vertical Guide Power Button Docking Connector Vertical Guide Security Lock Slot USB 3.0 Ports (Qty. 4) LAN (RJ-45) DisplayPort DVI-D Port External VGA Port Security Lock Slot DC Power Jack

Figure 29. Port Replicator - Rear

Port Replicator Components

The following is a brief description of the port replicator's back panel components. (Figure 29)

Power Button

The power button allows you to power the port replicator on and off.

Docking Connector

The docking connector allows you to connect the Port Replicator to your LIFEBOOK Ultrabook.

THE SYSTEM CONTAINS COMPONENTS THAT CAN BE SEVERELY DAMAGED BY ELECTROSTATIC DISCHARGE (ESD). TO MINIMIZE RISK TO THE COMPONENTS, OBSERVE THE FOLLOWING PRECAUTIONS:

• BEFORE DOCKING OR UNDOCKING YOUR LIFEBOOK WHEN USING A PORT REPLICATOR, YOU SHOULD TOUCH A GROUNDED METAL OBJECT TO DISCHARGE STATIC ELECTRICITY BUILT UP IN YOUR BODY.
• BE SURE TO POWER DOWN YOUR SYSTEM BEFORE ADDING OR REMOVING SYSTEM COMPONENTS. EVEN IF THE SYSTEM IS IN HIBERNATE OR SLEEP STATES, DATA COULD BE LOST OR MEMORY COULD BE DAMAGED IF POWER IS STILL AVAILABLE TO THE SYSTEM.

DVI-D Port

The DVI-D port lets you to connect digital display devices such flat panel displays and digital projectors using a DVI-D cable. DVI-D is primarily used to connect a computer with a home theater system.

DisplayPort

The DisplayPort lets you to connect DisplayPort-compatible digital display devices such flat panel displays and digital projectors using a DisplayPort cable.

• ALTHOUGH DISPLAYPORT AND DVI-D DEVICES ARE SUPPORTED BY THE PORT REPLICATOR, ONLY ONE CAN BE USED AT ANY TIME. AN INTERNAL SWITCH RECOGNIZES WHICH TYPE OF DEVICE IS CONNECTED. IF BOTH ARE CONNECTED AT THE SAME TIME, DISPLAYPORT HAS THE HIGHER PRIORITY.
• A DISPLAYPORT OR DVI-D DEVICE CAN BE USED CONCURRENTLY WITH AN EXTERNAL VIDEO DEVICE THAT IS CONNECTED TO THE ANALOG EXTERNAL VGA PORT.
  • HOT PLUG IS NOT SUPPORTED BY THE DISPLAYPORT OR DVI-D PORTS.
• IF A DISPLAYPORT-TO-HDMI CONVERTER IS CONNECTED TO THE DISPLAYPORT, SOUND WILL NOT BE OUTPUT FROM THE HDMI DEVICE. TO USE AN HDMI DEVICE, PLUG IT INTO THE HDMI PORT ON THE SYSTEM'S LEFT SIDE.

USB 3.0 Ports (Qty. 4)

Universal Serial Bus (USB) 3.0 ports allow you to connect USB devices. USB 3.0 ports are backward-compatible with USB 2.0 and 1.1 devices.

External VGA Port

The external VGA port lets you connect an external monitor or projector. Note that if a Port Replicator is attached, you must use the external VGA port on the Port Replicator, not the one on your system.

LAN (RJ-45) Jack

The LAN jack allows you to connect a LAN to the Port Replicator. Note that when the system is attached to the Port Replicator, the LAN Jack on the Port Replicator should be used, not the one on the system.

Security Lock Slots

The security lock slots allow you to attach an optional physical lock down device.

DC Power Jack

The DC power jack allows you to plug in the AC adapter to power your Ultrabook and charge the internal battery.

Attaching the Port Replicator

To attach the Port Replicator, set the Ultrabook flush against the vertical guides and align the Port Replicator connector on the bottom of your Ultrabook with the connector on the Port Replicator and push the corners down simultaneously. (Figure 30)

When your system is connected to the port replicator, it is possible to use up to three displays simultaneously. For related information, go to "Using Multiple Displays Simultaneously" on page 37.

Docking Connector

Figure 30. Attaching the Port Replicator

Detaching Port Replicator

To detach the Port Replicator:

1 Pull the Port Replicator's release latch away from the Port Replicator to release it from your Ultrabook. (Figure 31)
2 Lift the Ultrabook away from the Port Replicator to detach it. (Figure 32)

Release Latch

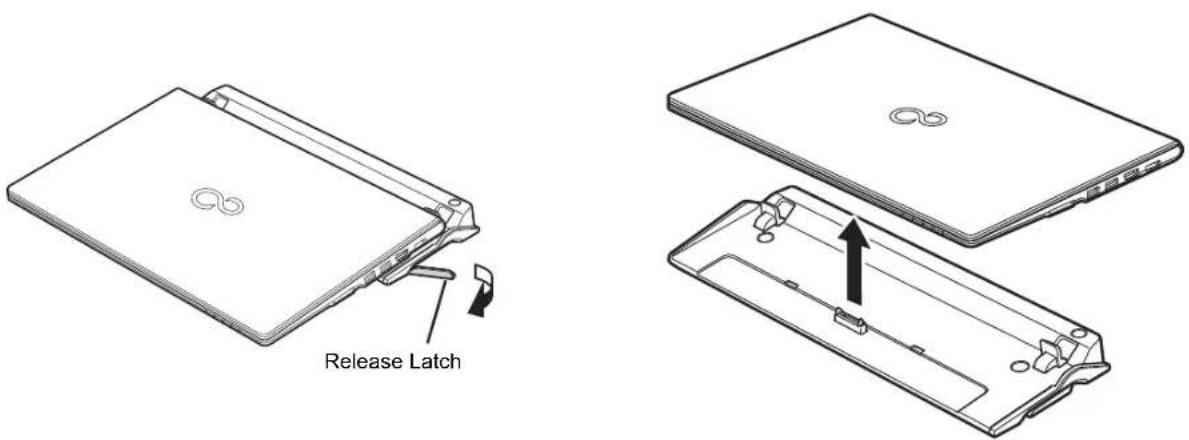

Figure 31. Unlatching the Port Replicator Figure 32. Removing the System

Chapter 4

Troubleshooting Your LIFEBOOK

Troubleshooting

There may be occasions when you encounter setup or operating problems that you can solve on the spot, or problems with peripheral devices that can be solved by replacing the device. The information in this section helps you isolate and resolve some straightforward issues and identify failures that require service.

Identifying the Problem

If you encounter a problem, go through the following procedure before pursuing complex troubleshooting:

1 Turn off your LIFEBOOK Ultrabook.
2 Make sure the AC adapter is plugged into your LIFEBOOK and to an active AC power source.
3 Make sure that any devices connected to the external connectors are plugged in properly. You can also disconnect such devices, thus eliminating them as possible causes of failure.
4 Turn on your LIFEBOOK. Make sure it has been off at least 10 seconds before you turn it back on.
5 Go through the boot sequence.
6 If the problem has not been resolved, refer to the Troubleshooting Table, that follows, for more detailed troubleshooting information.

IF YOU KEEP NOTES ABOUT WHAT YOU HAVE TRIED, YOUR SUPPORT REPRESENTATIVE MAY BE ABLE TO HELP YOU MORE QUICKLY BY GIVING ADDITIONAL SUGGESTIONS OVER THE PHONE.

7 If you have tried the solutions suggested in the Troubleshooting Table without success, contact your support representative:

Toll free: 1-800-8Fujitsu (1-800-838-5487)

E-mail: [e-mail]

Web site: http://solutions.us.fujitsu.com/www/content/support/contact/index.php.

Before you place the call, you should have the following information ready so that the customer support representative can provide you with the fastest possible solution:

• Product name
  • Product configuration number
  • Product serial number
• Purchase date
• Conditions under which the problem occurred
• Any error messages that have occurred
• Type of device connected, if any
  See the Configuration Label on the bottom of your LIFEBOOK for configuration and serial numbers.

DO NOT RETURN A FAILED LIFEBOOK ULTRABOOK TO FUJITSU UNTIL YOU HAVE RECEIVED A RETURN MATERIAL AUTHORIZATION (RMA) NUMBER FROM A SUPPORT REPRESENTATIVE.

Specific Problems

Using the Troubleshooting Table

When you have problems with your LIFEBOOK Ultrabook, try to find the symptoms under the Problem column of the troubleshooting table for the feature giving you difficulty. You will find a description of common causes for that symptom under the column Possible Cause and what, if anything, you can do to correct the condition under Possible Solutions. All possible causes or solutions may not apply to your LIFEBOOK.

Troubleshooting Table

Problem Page	Problem Page
Audio Problems...... page 62	Power Failures...... page 63
Hard Drive Problems...... page 62	Shutdown and Startup Problems .... page 65
Keyboard or Mouse Problems...... page 62	Video Problems...... page 65
USB Device Problems...... page 63	Miscellaneous Problems...... page 67

Problem Possible Cause Possible Solutions
Audio Problems
There is no sound coming from the built-in speakers.	The volume is turned too low. Use the [Fn+F9] key combination on your keyboard. Pressing [F9] repeatedly while holding [Fn] will increase the volume of your LIFEBOOK.
	The software volume control is set too low.	Manually adjusting the volume using the keyboard hot keys should dynamically adjust the volume (see above). If that doesn't work, adjust the sound volume control settings in your software or application.
	Headphones are plugged into your LIFEBOOK.	Plugging in headphones disables the built-in speakers. Remove the headphones.
	The speakers have been muted using the Volume icon in the system tray.	Click on the Volume icon in the tool tray on the bottom right of the screen. (It looks like a speaker). If the Mute box is checked, click on it to uncheck it. Pressing the [F3] key while holding the [Fn] key will also toggle the audio on and off.
Hard Drive Problems
You cannot access your hard drive.	Wrong drive designator was used when a bootable disc was used to start the system.	Verify drive designator used by application is in use by the operating system. When the operating system is booted from a CD, drive designations are automatically adjusted.
	Security is set so your OS cannot start without a password.	Verify your password and security settings.
Keyboard or Mouse Problems
The built-in keyboard does not seem to work.	The LIFEBOOK has gone into Standby mode.	Push the Power/Suspend/Resume button.
	NumLock key is set. Press the NumLock key to reset it.
You have installed an external keyboard or mouse, and it does not seem to work.	Your external device is not properly installed.	Re-install your device. See "Device Ports" on page 50.
	Your operating system software is not set up with correct software driver for that device.	Check your device and operating system documentation and activate the proper driver.
You have connected an external keyboard or a mouse and it seems to be locking up the system.	Your operating system software is not setup with correct driver.	Check your device and operating system documentation and activate the proper driver.
You have connected an external keyboard or a mouse and it seems to be locking up the system. (continued)	Your system has crashed.	Try to restart your LIFEBOOK Ultrabook. If that fails, turn off the power using the power/suspend/resume button, wait at least 10 seconds, and then power on. If turning off power with the power/suspend/resume button fails, the button has likely been set to suspend or hibernate.
USB Device Problems
Your LIFEBOOK does not recognize a USB device, or the device does not seem to work properly.	The device is not properly installed.	Remove and re-install the device. See "Device Ports" on page 50.
	The device may have been installed while an application was running, so the system is not aware of its installation.	Close the application and restart your LIFEBOOK.
	Your device may not have the correct software driver active.	See your software documentation and activate the correct driver.
Power Failures
You turn on the system and nothing seems to happen.	The power adapter is faulty. Try a different power adapter.
	The battery is completely discharged or there is no power adapter installed.	Check the Status Indicator Panel to determine the battery condition. See "Status Indicator Panels" on page 19. Install a power adapter to recharge the battery.
	The battery is faulty.	Use the Status Indicator panel to verify the presence/condition of the batteries. See "Status Indicator Panels" on page 19. If a battery is indicating a short, operate from another power source. To find out how to get a new battery installed, contact Fujitsu Support at: http://solutions.us.fujitsu.com/www/content/support/contact/index.php.
	The power adapter is not plugged in properly.	Verify that your adapter (AC or auto/airline) is connected correctly. See "Power Sources" on page 33.
	The battery is low. Check the Status Indicator Panel to determine the condition of the battery. Use a power adapter until the battery is charged.
	Power adapter has no power from AC outlet, airplane seat jack, or cigarette lighter.	Move the AC cord to a different outlet, check for a line switch or tripped circuit breaker for the AC outlet. If you are using an auto/airline adapter in a car make sure the ignition switch is in the On or Accessories position.

Problem Possible Cause Possible Solutions
Your LIFEBOOK Ultrabook turns off all by itself.	The power management parameters are set for auto timeouts which are too short for your operating needs.	Press any button on the keyboard, or move the mouse to restore operation. If that fails, push the Power/Suspend/Resume button. Check your power management settings, or close your applications and go to Power Options Properties located in the Control Panel to adjust the timeout values to better suit your needs.
	You have a battery failure.	Verify the battery condition using the Status Indicator panel (see page 19), and if the battery is shorted, contact Fujitsu Support at: http://solutions.us.fujitsu.com/www/content/support/contact/index.php to find out how to get a replacement battery installed.
	You are operating on battery power and ignored a low battery alarm until the battery is dead and system has entered Dead Battery Suspend mode.	Install a power adapter and then push the Power/Suspend/Resume button. See "Power Sources" on page 33.
	Your power adapter has failed or lost power.	Make sure the adapter is plugged in and the outlet has power.
Your LIFEBOOK Ultrabook will not work on battery alone.	The battery is dead. Install a power adapter to recharge the battery.
	The battery is faulty.	Verify the battery condition using the Status Indicator panel (see page 19), and if the battery is shorted, contact Fujitsu Support at: http://solutions.us.fujitsu.com/www/content/support/contact/index.php to find out how to get a replacement battery installed.
The battery seems to discharge too quickly.	You are running an application that uses a lot of power due to frequent drive access, or use of a wireless device.	Use a power adapter for this application when at all possible.
	The power savings features may be disabled.	Check the Power Options menu settings and adjust according to your operating needs.
	The battery is very old. Contact Fujitsu Support at: http://solutions.us.fujitsu.com/www/content/support/contact/index.php to find out how to get a replacement battery installed.
	The brightness is turned all the way up.	Turn down the brightness adjustment. The higher the brightness the more power your display uses.
The battery seems to discharge too quickly. (continued)	The battery has been exposed to high temperatures.	Contact Fujitsu Support at: http://solutions.us.fujitsu.com/www/content/support/contact/index.php to find out how to get a replacement battery installed.
	The battery is too hot or too cold.	Restore the LIFEBOOK to normal operating temperature. Charging icon on the Status Indicator panel will flash when battery is outside of operating range.
Shutdown and Startup Problems
The Suspend/Resume button does not work.	Suspend/Resume button is disabled.	Enable the button by going to the Control Panel > Power Options Properties. Select "Choose what the power button does" option.
	Possible software conflict. Close	all applications and try the button again.
The system powers up, and displays power on information, but fails to load the operating system.	Your system is secured, requiring a password to load the OS.	Make sure you have the right password. Enter the setup utility and verify the Security settings and modify them as accordingly. See "BIOS Setup Utility" on page 40.
	Boot sequence settings of the setup utility are not compatible with your configuration.	Set the operating source by pressing the [F12] key while the Fujitsu logo is on screen or use the [F2] key and enter the setup utility and adjust the source settings from the Boot menu. See "BIOS Setup Utility" on page 40.
Error message is displayed on the screen during the boot sequence.	Power On Self Test (POST) has detected a problem.	See the POST messages to determine the meaning and severity of the problem. Not all messages are errors; some are simply status indicators.
Your LIFEBOOK appears to change setup parameters when you start it.	BIOS setup changes were not saved before you exited the setup utility.	Make sure you select Save Changes And Exit when exiting the BIOS setup utility.
Video Problems
The built-in display is blank when you turn on your LIFEBOOK.	The LIFEBOOK is set for an external monitor only.	Pressing [F10] while holding down the [Fn] key opens the Fujitsu Display Manager, which allows you to change display devices.
	Display angle and brightness settings are not adequate for your lighting conditions.	Move the display and the brightness control until you have adequate visibility. Pressing either the [F6] or [F7] keys while holding down the [Fn] key also allows you to change the brightness level of the display.
	Power management timeouts may be set for short intervals and you didn't notice the display come on and go off.	Press a keyboard button or move the mouse to restore operation. If that fails, push the Power/Suspend/Resume button. (The display may be shut off by Standby mode, Auto Suspend or Video Timeout)
The LIFEBOOK turned on with a series of beeps and the built-in display is blank.	POST has detected a failure that doesn't allow the display to operate.	Contact your support representative.
The display goes blank by itself after you have been using it.	Power management timeouts may be set for short intervals and you didn't notice the display come on and go off.	Press any button on the keyboard, or move the mouse to restore operation. If that fails, push the Power/Suspend/Resume button. (The display may be shut off by Standby Mode, Auto Suspend or Video Timeout)
	The LIFEBOOK has gone into Video timeout, Standby, or Hibernate mode because you have not used it recently.	Press a button on the keyboard or move the mouse to restore operation. If that fails, push the Power/Suspend/Resume button.
Your display won't turn on when the system is turned on or when it has resumed.	The system may be password-protected.	Check the status indicator panel to verify that the Security icon is blinking. If it is blinking, enter your password.
The display does not close. Small object (like a paper clip) is stuck between the display and keyboard.		Remove all foreign objects from the keyboard.
The display has bright or dark spots.	If the spots are tiny and few, this is normal for a large LCD display.	This is normal; do nothing.
	If the spots are numerous or large enough to interfere with your operation needs.	Display is faulty; contact your support representative.
The display is dark when on battery power.	Power Management utility default is set on low brightness to conserve power.	Press [Fn] + [F7] to increase brightness or double-click on the battery gauge and adjust Power Control under battery settings.
You have connected an external monitor and it does not display any information.	Your external monitor is not properly installed.	Reinstall your device.
	Your operating system is not setup with the correct software driver for that device.	Check your device and operating system documentation and activate the proper driver.
You have connected an external monitor and it does not come on.	External monitor is not compatible with the LIFEBOOK.	See your monitor documentation and the External Monitor Support portions of the Specifications section. See "Specifications" on page 95.
Miscellaneous Problems
Error message is displayed on the screen during the operation of an application.	Application software often has its own set of error message displays.	See your application manual and help displays screens for more information. Not all messages are errors some may simply be status.

64 - Troubleshooting

Power On Self Test Messages

The following is a list of error-and-status messages that the Phoenix BIOS and/or your operating system can generate and an explanation of each message. Error messages are marked with an *. If an error message is displayed that is not in this list, write it down and check the operating system documentation on screen and in the manual. If you can find no reference to the message, contact a support representative.

\*Invalid NVRAM Data

Problem with NVRAM access. In the unlikely case that you see this message you may have a display problem. You can continue operating but should contact your support representative for more information.

\*Keyboard controller error

The keyboard controller test failed. You may have to replace your keyboard or keyboard controller but may be able to use an external keyboard until then. Contact your support representative.

\*Keyboard not detected

Keyboard not working. You may have to replace your keyboard or keyboard controller but may be able to use an external keyboard until then. Contact your support representative.

\*Operating system not found

Operating system cannot be located on drive A: or drive C: Enter the setup utility and see if both the fixed disk and drive A: are properly identified and that the boot sequence is set correctly. Unless you have changed your installation, the operating system should be on drive C:. If the setup utility is correctly set, your hard drive may be corrupted.

*Press to resume, to SETUP

Displayed after any recoverable error message. Press [F1] key to Continue or [F2] key to Enter Setup.

\*Real time clock error - Check date and time settings

Real-time clock fails BIOS test. May require board repair. Contact your support representative.

\*Fan error, system shutdown in 30s. Contact Fujitsu tech support

Fan error occurred. Please contact your support representative.

\*Fan error occurred during previous boot.

Fan error occurred during previous boot. Please contact your support representative.

Restoring Your System Image and Software (Windows 7)

Equivalent information for Windows 8 configurations can be found at "Restoring Your System Image and Software (Windows 8)" on page 79

It is very important that you create DVD copies of your Factory Image and Bootable Disc (along with other applicable media such as application discs) before beginning to use your system. To do so, follow the instructions in the "Saving Your Factory Image" and "Creating Backup Images of Factory Image and Discs" sections of this chapter.

Saving and Recovering Your Factory and System Images

Along with instructions on saving your Factory Image, this document outlines several other important procedures, such as making a system image, restoring your Factory Image and system images, managing your images, and restoring the partitions on a hard drive.

• IN ORDER TO INSTALL APPLICATIONS, MAKE COPIES OF FACTORY AND SYSTEM IMAGES, AND BURN APPLICATION MEDIA AND BOOTABLE DISCS YOU MUST HAVE AN INTERNAL OR EXTERNALLY CONNECTED WRITABLE DVD DRIVE.
• IT IS EXTREMELY IMPORTANT THAT YOU COPY YOUR FACTORY IMAGE TO REMOVABLE MEDIA (E.G., DVD DISCS). FAILURE TO DO SO COULD RESULT IN AN INABILITY TO RESTORE THE IMAGE AT A FUTURE DATE.
• WE RECOMMEND THAT YOU USE DVD-R OR DVD+R DISCS FOR YOUR BACKUP, BUT SUPPORTED MEDIA* FOR IMAGE BACKUPS INCLUDE: FOR FACTORY IMAGE, APPLICATION DATA, AND BOOTABLE DISC: DVD-R/+R. FOR USER-CREATED BACKUP IMAGE: DVD-R/+R, DVD-RW/+RW, DVD-DL.

* DEPENDING UPON YOUR OPTICAL DRIVE AND MEDIA FORMAT USED, SOME MEDIA TYPES MAY BE INCOMPATIBLE FOR CREATING IMAGE BACKUPS.

DUE TO CERTAIN LICENSING REQUIREMENTS, SOME THIRD-PARTY APPLICATIONS WILL NEED TO BE INSTALLED SEPARATELY USING THE APPLICATION MEDIA BUNDLED WITH YOUR SYSTEM.

Saving your Factory Image

When you purchased your new system, a copy of the pre-installed Factory Image was loaded into a hidden partition on your hard disk drive. Having a copy of the original Factory Image available to you means that in the event of system failure, you will be able to restore it to its original state.

To make a copy of the Factory Image to DVD discs, you will need several blank discs (DVD-R or DVD+R discs are recommended) to create the copy. After creating the copy, be sure to label the discs and keep them in a safe place to ensure they do not get damaged.

Creating Backup Images of Factory Image and Discs

• SOME CONFIGURATIONS OF CERTAIN STYLISTIC MODELS DO NOT HAVE APPLICATIONS LOADED ON THE HARD DRIVE; RATHER, THEY ARE AVAILABLE AT THE FUJITSU SUPPORT SITE FOR DOWNLOAD. PLEASE TAKE THAT INTO ACCOUNT WHEN READING THE FOLLOWING PROCEDURES.
• ALL USER-CREATED DATA WILL BE DELETED FROM YOUR SYSTEM WHEN THE FACTORY IMAGE IS RESTORED.

Using the [Manage/Change] button, you can create backup images of the Factory Image, Application Disc(s), or Bootable Disc.

1 Launch My Recovery from desktop icon
2 Select [Manage/Create]-> [Manage Backup Images].

The Backup Images menu displays a list from which you can choose which type of disc you want to burn: Bootable Disc, Application Discs, or Recovery Disc.

3 Select Recovery Disc, then click [Make DVD].

4 Confirm that the # box has "2" (Note that in some cases the box may display a larger number for the factory image, depending upon its size.)

5 The message "Recovery Disc #1 will be created. Enter your comments and the number of media on the DVD". Click [YES] to burn the Factory Image.

6 While the copy is being made, a "Writing to the media screen displays a progress bar. When the copy is complete, a dialog will appear informing you of the successful completion of the backup.

7 Repeat the process for the remaining images on disc (Bootable Disc and Application Discs). The number of images available may vary depending on your system model; some models do not have the applications loaded on the hard drive.

Recovering Your Factory Image

In the event you need to restore your original Factory Image, perform the following steps. Note that there may be some third-party applications that need to be installed from the application media bundled with your system.

ALL USER-CREATED DATA WILL BE DELETED FROM YOUR SYSTEM WHEN THE FACTORY IMAGE IS RESTORED.

In order to recover your Factory Image, perform the steps outlined in "Running Recovery and Utility from hard disk".

Backing Up a System Image

Optional Step: Launch the Fujitsu Bonus Apps utility from your desktop, and select the components you wish to install.

User-Configured System Backups: On your desktop, there is a [MyRecovery] icon that allows you to make backups of your current system image either to another location on your hard drive or on removable media. A system image is the configuration of your C: drive at a particular point of time. You may want to make system image backups occasionally in order to have points to which you can return without having to go all the way back to the Factory Image.

By default, system images are saved in the MyRecovery folder (either on D:\ or external hard drive, depending on your hardware type).

1 Click the [MyRecovery] icon on your desktop. The My Recovery screen will appear (See Figure 33). Note that the screen illustrated may vary, depending upon your system configuration.)
2 Click the [Backup] button on the MyRecovery screen.
3 On the next screen that appears, you can enter up to 200 characters of information about the backup file. This information will help you to identify the image at a later date.

My Recovery Create a backup image of the C: drive! A backup image will be created on D: drive (default). MyRecovery immediately restores the computer to the point of time when the backup image is created. There is no need to go through the complicated settings and reinstallation of drivers and applications. System restoration becomes simple and easy using MyRecovery! Backup Restore Manage/Create Exit

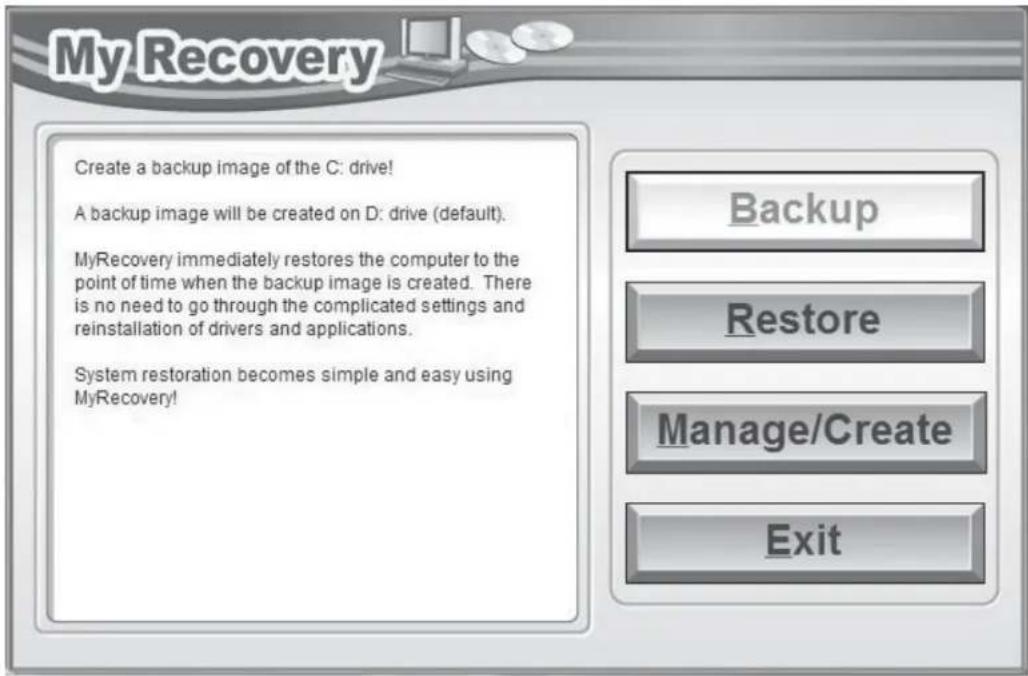

Figure 33. MyRecovery screen

4 Click the [Next] button and the system will reboot.
5 After rebooting, the "Creating of the backup image" window appears, in which you can either click [Create the image on D drive] or [Select the drive] if you want to save to an external hard disk drive. (Note that the [Create the image on D drive may not be available on all configurations.)
6 An image appears showing you graphically how the image will be stored. Click the [Next] button.
7 Click [Execute] to start the backup.

Managing Your Backup Images

With the MyRecovery tool you can also make copies of backup images, archive them on DVD, or delete them from your hard drive.

1 To begin, click the [MyRecovery] icon on your desktop.
2 Click the [Manage/Create] button in the MyRecovery window.
3 When the MyRecovery Manager window appears, click [Manage Backup Images].

4 In the next window, a list of your backup images appears. Below the list are three buttons allowing you to [Make DVD], [Copy], or [Delete] your backup images.

5 Select an image title from the list, then click the action button you would like to perform.

6 Note that you need to have an external disk drive connected for the [Copy] button to be enabled. If you elect to copy the image, you will be prompted to enter the destination. If you are ready to copy, click [OK] to proceed. A progress screen appears while the backup copy is being made.

7 Note that if you copy an image to an external hard drive, both the original and the copy will appear in the [Backup Images] window with identical names, dates, and file sizes, but with the different drive letter to distinguish them. Before you select [Make DVD], make sure you have a recordable DVD drive connected and blank DVDs available.

Using the Recovery and Utility Tools

The Recovery and Utility tools consist of a variety of tools that will help you recover your Factory Image, recover system images, and delete the data from your hard disk.

Methods for accessing the utilities

Recovery and Utility Tools are preinstalled in a hidden partition by the factory, or they can be accessed by using the bootable disc. Please note that you can delete Recovery and Utility tools from your hard disk drive if you modify the partitions. In this case you will not be able to use the hidden partition for booting to Recovery and Utility Tools, but you will still be able to boot from the Bootable Disc.

Determining whether Recovery and Utility is pre-loaded

1 Turn on or reboot your system. When the Fujitsu logo appears, press [F12] key. The Boot Menu will appear.
2 Press the Tab key to select Application menu.
3 Check whether the option is present. If it is not present, it means that the utility must be used from the disc. Proceed to "Running Recovery and Utility from the Bootable Disc" if is unavailable.

Running Recovery and Utility from hard disk

1 Turn on or reboot your system. When the Fujitsu logo appears, press [F12] key. The Boot Menu will appear.
2 Press the Tab key to select Application menu.
3 Cursor down to and press the [Enter] key.
4 While the files are being loaded from the disc, a progress bar will appear at the bottom of the screen.
5 When the System Recovery Options dialog opens, select a new keyboard layout, if necessary, then click [Next].
6 When the Operating System dialog appears, select "Use recovery tools...", then click [Next].
7 If necessary, enter your password, then click [OK].
8 When System Recovery Options window appears, click on Recovery and Utility.
9 The Recovery and Utility screen appears on the screen with three tabs: Diagnostics, Recovery and Utility. Please note that Diagnostics tab is not supported on certain LIFEBOOK/STYLISTIC models when running Recovery and Utility from the hard disk. In order to restore the operating system, please use the middle icon "Restoring the Factory Image (only C:\drive)" under the Recovery tab.

Running Recovery and Utility from the Bootable disc

To verify/change the boot-up priority (rather than booting-up from the hard drive or an external floppy disk drive), perform the following steps:

1 Power on your system. When the Fujitsu logo appears on the screen. press the [F12] key to get to the Boot Menu.
2 Highlight the CD/DVD option.
3 Insert the bootable disc into the drive tray.

4 Click [OK]. While the files are being loaded from the disc, a progress bar will appear at the bottom of the screen.
5 When the System Recovery Options dialog opens, select a new keyboard layout, if necessary, then click [Next].
6 When the Operating System dialog appears, click [Next].
7 If necessary, enter your password, then click [OK].
8 When System Recovery Options window appears, click on Recovery and Utility.
9 When the Recovery and Utility screen appears, three tabs will be present: Diagnostics, Recovery, and Utility.

Recovery and Utility tabs

Diagnostics tab: The Diagnostics tool is designed for use by IT professionals. It is not likely you will need to use this tool. When you select devices from the Diagnosis window then click [Execute], several tests are performed on the selected components.

Recovery tab: The Recovery tab contains three tools: Recovering User-Configured System Backups, Restoring the Factory Image (only C: drive), and Restoring the Factory Image (full hard drive recovery). You can use these tools to restore the Factory Image from the hidden partition, restore backup image(s) created by you or images stored on DVD discs, and perform a full hard drive recovery. Please refer to instructions above for details on how to create Factory Image Recovery DVDs, user backup DVDs and system image backup.

Utility tab: The Utility tab contains three tools: Hard Disk Data Delete, Restore Recovery and Utility, and Windows Complete PC Restore.

• The Hard Disk Data Delete utility is used to delete all data on the hard disk and prevent the data from being reused. NOTE: Do not use the Hard Disk Data Delete utility unless you are absolutely certain that you want to erase your entire hard disk, including all partitions.
• Restore Recovery and Utility allows you to restore the first hidden partition.
• Windows Complete PC Restore utility allows you to restore an image created with Windows Backup and Restore Center. Complete PC Restore will overwrite the data on your hard disk drive.

Using Windows 7 Recovery DVD on Windows 8 64-bit system (downgrade option).

When using the Windows 7 Recovery DVD on a system that was supplied with Windows 8 x64 pre-installed, you should first deactivate Secure Boot and activate CSM and Fast Boot using the following procedure:

1 To access the BIOS Setup, press the [F2] key after switching on the system.
2 Use right/left arrow keys to switch to the "Security" page.
NOTE: If your system doesn't have Supervisor Password, you cannot change the Secure Boot Configurations. In this case you need to select Set Supervisor Password and set the password.
3 Use up/down arrow keys to select Secure Boot Configurations.
4 Select Secure Boot or Secure Boot Option and using [Enter] key set it to [Disabled], then the use [ESC] key to exit Secure Boot Configurations.
5 Use arrow keys to switch to the "Advanced" page.
6 Select CSM and set it to [Enabled].
7 Select the Fast Boot and set it to [Disabled].
8 Use the arrow keys to switch to the "Exit" page.
9 Exit the BIOS Setup via Exit Saving Changes.

You can then start the system from Windows 7 Recovery DVD and install Windows 7 on the system.

Recovering your Factory Image using Recovery and Utility (for new hard drive or non-bootable hard drive)

If you have installed a new hard drive or your hard drive is not bootable, perform the following steps. Note that first you will need to create new partitions on the hard drive, then restore the Factory Image:

1 Power on your system. When the Fujitsu logo appears on the screen. press the [F12] key.
2 Highlight the CD/DVD option.
3 Insert the bootable disc in your DVD drive, then click [OK].
4 When System Recovery Options window appears, click on .
5 When the System Recovery Options dialog opens, select a new keyboard layout, if necessary, then click [Next].
6 When the Operating System dialog appears, click [Next].

7 If necessary, enter your password, then click [OK].
8 When System Recovery Options window appears, click on Recovery and Utility.
9 Click the Recovery tab in the Recovery and Utility window, then click Restoring the Factory Imageicon.
10 Click [Execute].
11 Read the precautions, then select "I Agree".
12 Click [Next], then click [Execute] to start the recovery process.
13 "1. Recovery Disc Check" will be in bold and the rest will be grayed out. Follow the instructions and "Insert the Recovery Disc #1". In some cases, you may prompted to "Insert the Recovery Disc #2", depending upon the size of the Recovery Image
14 Click [Next] to begin the check. Click [Next] again when the check is complete.
15 "2. Initializing hard disk drive" will be in bold with the message "Please insert the Bootable Disc into your optical drive". Insert the bootable disc. Click [Next] to proceed. A dialog box appears, with a checking disc message.
16 "Warning All DATA on the Hard Disk will be completely erased!!!" will appear. Select [OK]. The partition creation process will begin.
17 "3. Restoring Factory Image to hidden partition" will be in bold with the message "Please insert the Recovery Disk#1 into the optical drive". Click [Next] to proceed.

After completion, the tool will automatically go back to "3.Restoring Factory Image to hidden partition" but will include the note "Please insert your Third Party Applications Disc or CyberLink DVD, then click [OK]. After installation of each disc, insert the next and continue until all have been installed. If you don't have your Third Party Applications Disc and/or CyberLink DVD, or you have already inserted these discs, please click [Skip] to continue. NOTE: In some cases (products without an optical drive) you will not have a CyberLink DVD".

At this point, you can either:

• Insert Application Disc(s) to restore back to hidden partition, or,
• Click [Skip] to skip restoring Application disc(s) and continue with restore.

18 If you select to insert Application Disc, after copying of application disc(s) to hidden partition is completed, the message will appear again. Repeat inserting application disc(s) until all discs have been copied, then click [Skip] to continue with Restore.

19 After clicking [Skip], a confirmation message will appear "If you want to skip copying or you have finished copying, click [OK]. Click [Cancel] to go back to Restoring Factory Image to hidden partition."
20 Click [OK] and Restoring Factory Image will begin.
21 When restoration is complete, you will see the message "Restoration has been completed. Click [OK] to reboot the computer." Click [OK].

Downloading Driver Updates

The Fujitsu Software Download Manager (FSDM) utility is available to allow you to download the latest drivers, utilities, and applications from the Fujitsu Support site. If you have a Windows 8 or Windows 7 operating system, you will need to go to the Support Site (http://support.fujitsupc.com/CS/Portal/support.do?srch=DOWNLOADS).

Restoring Your System Image and Software (Windows 8)

Equivalent information for Windows 7 configurations can be found at "Restoring Your System Image and Software (Windows 7)" on page 69

It is very important that you create DVD copies of your Factory Image and Bootable Disc before beginning to use your system. To do so, follow the instructions in the "Saving Your Factory Image" and "Creating Backup Images of Factory Image and Discs" sections of this chapter.

Saving and Recovering Your Factory and System Images

Along with instructions on saving your Factory Image, this document outlines several other important procedures, such as making a system image, restoring your Factory Image and system images, managing your images, and restoring the partitions on a hard drive.

• IN ORDER TO MAKE COPIES OF FACTORY AND SYSTEM IMAGES AND BURN BOOTABLE DISCS YOU MUST HAVE AN INTERNAL OR EXTERNALLY CONNECTED WRITABLE DVD DRIVE.
• IT IS EXTREMELY IMPORTANT THAT YOU COPY YOUR FACTORY IMAGE TO REMOVABLE MEDIA (E.G., DVD DISCS). FAILURE TO DO SO COULD RESULT IN AN INABILITY TO RESTORE THE IMAGE AT A FUTURE DATE.
• WE RECOMMEND THAT YOU USE DVD-R OR DVD+R DISCS FOR YOUR BACKUP, BUT SUPPORTED MEDIA* FOR IMAGE BACKUPS INCLUDE: FOR FACTORY IMAGE, APPLICATION DATA, AND BOOTABLE DISC: DVD-R/+R. FOR USER-CREATED BACKUP IMAGE: DVD-R/+R, DVD-RW/+RW, DVD-DL.

* DEPENDING UPON YOUR OPTICAL DRIVE AND MEDIA FORMAT USED, SOME MEDIA TYPES MAY BE INCOMPATIBLE FOR CREATING IMAGE BACKUPS.

DUE TO CERTAIN LICENSING REQUIREMENTS, SOME THIRD-PARTY APPLICATIONS WILL NEED TO BE INSTALLED SEPARATELY.

Saving your Factory Image

When you purchased your new system, a copy of the pre-installed Factory Image was loaded into a hidden partition on your hard disk drive. Having a copy of the original Factory Image available to you means that in the event of system failure, you will be able to restore it to its original state.

To make a copy of the Factory Image to DVD discs, you will need four or five blank discs (DVD-R or DVD+R discs are recommended) to create the copy. After creating the copy, be sure to label the discs and keep them in a safe place to ensure they do not get damaged.

Creating Backup Images of Factory Image and Bootable Disc

Using the [Manage/Change] button, you can create backup images of the Factory Image and/or Bootable Disc.

ALL USER-CREATED DATA WILL BE DELETED FROM YOUR SYSTEM WHEN THE FACTORY IMAGE IS RESTORED.

1 Launch System Backup and Restore from the desktop icon and click [Yes] on the User Account Control dialog.
2 Click [Next] on the Backup Your Data screen.
3 Select the [Manage/Create] tab, then click [Make Recovery Disc set] to burn your factory image to DVD.
4 On "Step 1: Please select a media type for Recovery Disc" screen select Media Type from the drop down box, then click [Next]. (Note: This screen shows the number of discs required for backup.)
5 On "Step 2: Confirm your Recovery Disc" both the Bootable Disc and Recovery disks are selected by default under "List of Recovery Discs". When the backup is created for the first time, these options should stay selected. Click [Next].
6 Click [OK] on the "Attention about media" confirmation screen.

DURING THE FOLLOWING PROCESS, YOU SHOULD CONNECT AN AC ADAPTER SINCE THE PROCESS MAY TAKE A LONG TIME.

7 Click [Start] on "Step 3: Making Recovery Disc".

8 The process will prompt you to insert your discs.

9 Once the process completes successfully, click [Finish] on "Step 4: Making Recovery Disc process has been completed" screen.

Recovering Your Factory Image.

In the event you need to restore your original Factory Image, perform the following steps.

ALL USER-CREATED DATA WILL BE DELETED FROM YOUR SYSTEM WHEN THE FACTORY IMAGE IS RESTORED.

In order to recover your Factory Image, perform the steps outlined in "Running Recovery and Utility from hard disk".

Backing Up a System Image

Optional Step: Launch the Fujitsu Bonus Apps utility from your desktop, and select the components you wish to install.

User-Configured System Backups: On your desktop, there is a [System Backup and Restore] icon that allows you to make backups of your current system image either to another location on your hard drive or on removable media. A system image is the configuration of your C: drive at a particular point of time. You may want to make system image backups occasionally in order to have points to which you can return without having to go all the way back to the Factory Image.

By default, system images are saved in the D: drive in the System Backup and Restore folder. You can also elect to save the image to an external hard drive.

1 Launch System Backup and Restore from the desktop icon and click [Yes] on User Account Control dialog
2 Click [Next] on Backup Your Data screen
3 Select the [Backup] tab on System Backup and Restore screen.
4 Click the [Backup User System] button.
5 On the "Step 1: Select a backup destination" screen select your destination drive. By default the Destination is set to D: drive. You can also select the [Other drive] option to back up to an external drive. Select whether you would like the system to [Shutdown] or [Restart] after the process is completed.

6 On the "Step 2: Name your backup images" screen that appears, you can enter up to 300 characters of information about the backup file. This information will help you to identify the image at a later date.
7 On "Step 3: Backup the entire C: drive image" verify your backup settings and click [Next].
8 Click [OK] on "Step 4: Please confirm the following before starting your backup" to restart you computer and begin backup.
9 After backup completes and the system restarts, "Step 5: Backup Completed. Confirm the results" screen should appear on your desktop confirming that backup image has been created successfully. Click [Close] to close System Backup and Restore dialog.
10 Click [OK] to quit the System Backup and Restore utility.

Managing Your Backup Images

With the System Backup and Restore tool you can also make copies of backup images, archive them on DVD, or delete them from your hard drive.

1 Launch System Backup and Restore from the desktop icon and click [Yes] on User Account Control dialog.
2 Click [Next] on the Backup Your Data screen.
3 Select the [Create/Manage] tab and click on [Manage User System Backup].
4 In the next window there are three options allowing you to [Copy], [Delete], or [Add Comment] to your images. Click the action button you would like to perform:

Selecting [Copy] option (Note that you must have an external disk drive connected for the [Copy] button to work, otherwise an attempt to copy will result in an error.)

a. On "Step 1: Select a backup file that you wish to copy", select the location of a backup file. A list of backup files will appear. Select the file you wish to copy from the list and click [Next].
b. On "Step 2: Select a drive to copy a backup file", select the destination drive and click [Next].
c. On "Step 3: Start to copy the following information" confirm the information and click [Start].
d. "Step 4: Processing backup data copying" screen displays the progress bar.
e. Click [Finish] on "Step 5: Copy completed. Confirm the results" screen.

Selecting "Delete" option

a. On "Step 1: Please select your target data" screen select location of a backup file. A list of backup files will appear. Select the file(s) you wish to delete and click [Next].
b. Click [Start] on "Step 2: Delete backup data" screen.
c. Click [OK] to the confirmation message.
d. Click [Finish] on "Step 4: Delete process has been completed" screen.

Selecting "Add Comment" option

a. On the "Step 1: Select target data" screen select location of a backup file. A list of backup files will appear. Select the file you wish to add comments to and click [Next].
b. On the "Step 2: Add comment" screen, type in a maximum of 300 characters in "Comment" text area and click [Add].
c. Click [Finish] on the "Step 3: Adding comment has been completed" screen.

Restoring your backup images

1 Launch System Backup and Restore from the desktop icon and click [Yes] on the User Account Control dialog
2 Click [Next] on the Backup Your Data screen
3 Select the Restore tab and click on "Restore User System Backup"
4 On "Step 1: Please confirm the following before starting restore process", confirm information and click [OK]. The system will restart to begin restoring your backup.
5 After the system restarts, the "Explanation about Restore User System Backup" screen is shown. Once you read the EULA, select [Agree] choice and click [Next].
6 Select an image to restore from the Backup data list and click [Next]
7 Click [Start] on "Confirm before restoration" screen
8 Once restoration finishes, click [Close] in "Finished restoration" screen, the computer will restart to Windows.

Using the Recovery and Utility Tools

The Recovery and Utility tools consist of a variety of tools that will help you recover your Factory Image, recover system images, and delete the data from your hard disk.

Methods for accessing the utilities

Recovery and Utility Tools are preinstalled in a hidden partition by the factory, or they can be accessed by using the bootable disc. Please note that you can delete Recovery and Utility tools from your hard disk drive if you modify the partitions. In this case you will not be able to use the hidden partition for booting to Recovery and Utility Tools, but you will still be able to boot from the Bootable Disc.

Determining whether Recovery and Utility is pre-loaded

1 Turn on or reboot your system. When the Fujitsu logo appears, press [F12] key.
2 From the Boot Menu that appears, check whether the option is present. If it is not present, it means that the utility must be used from the disc. Proceed to "Running Recovery and Utility from the Bootable Disc" if is unavailable.

Running Recovery and Utility from hard disk

1 Turn on or reboot your system. When the Fujitsu logo appears, press the [F12] key.
2 Cursor down to and press the [Enter] key.
3 Choose your Language (English or French).
4 Three tool options appear: Diagnostics, Recovery and Utility (Please see Recovery and Utility tools section below for instructions on how to use these tools).

Running Recovery and Utility from the Bootable disc

To verify/change the boot-up priority (rather than booting-up from the hard drive or an external floppy disk drive), perform the following steps:

1 Power on your system. When the Fujitsu logo appears on the screen, press the [F12] key.
2 Highlight the CD/DVD option from the Boot menu, then press [Enter].

3 Insert the bootable disc into the drive tray.
4 Click [OK].

NOTE: In the following step, the Fujitsu logo screen may appear on the display for a couple of minutes before the progress bar appears.

5 Select CD/DVD boot mode: UEFI Mode) and press [Enter]. While the files are being loaded from the disc, the Fujitsu logo screen will appear followed by a progress bar screen at the bottom of the screen.

Recovery and Utility tools

Diagnostics tool: The Diagnostics tool is designed for use by IT professionals. It is not likely you will need to use this tool. If you should need to use this tool, perform the following steps:

1 Press the "Diagnostics Tool" button to start the Diagnostics tool. A progress bar appears while the Diagnostics tool is starting up.
2 Read the note, then click [OK].
3 Choose one or more of the following options for diagnostics on the "Fujitsu Hardware Diagnostics Tool window": CPU, Memory, Display, Hard Disk, CD/DVD/BD, Floppy Disk, Keyboard, and Mouse. Click the [Option] button to specify how many times the tool should run diagnostics on each selected component. Press [Execute] to start the Diagnostics tool.
4 After the execution is completed, the selected components are circled in red to indicated that they have been diagnosed and the result dialog window is opened.
5 Click [End] to close the Diagnostics tool, then click [Yes] to confirm the end of diagnostics session.

Recovery tool: The Recovery tool contains three options. User System Backups: Recovering C: Drive from D: Drive or external storage device), Restore C: Drive: Restore factory image (only C: drive), and Restore Full Hard Drive: Restore factory image (full hard drive). You can use these tools to restore the Factory Image from the hidden partition, restore backup image(s) created by you or images stored on DVD discs, and perform a full hard drive recovery. Please refer to instructions above for details on how to create Factory Image Recovery DVDs, user backup DVDs and system image backup.

To recover from D: drive or external storage device:

1 Click [User System Backups]

2 The progress bar screen is followed by EULA screen. Click [Agree] to accept the EULA.

3 On "Select an image to restore" screen select the image to restore from the list of images and click [Next].

4 Click [Start] on the "Confirm before restoration" screen to begin the restoration process.

5 Once restoration finishes, click [Close] in the "Finished restoration" screen; the computer will restart to Windows.

To restore from the Factory Image (hidden partition):

1 Click [Restore C: drive].
2 The progress bar screen is followed by "Restore Factory Image (only C: drive) screen confirming that the Factory Image will be restored to the C: drive and D: drive data will remain. Click [Next].
3 Read the instruction screen and select [Agree], then [Next].
4 Click [OK] to the warning message to restore factory image to the C: drive.
5 When the progress bar screen, wait for the process to complete.
6 Click [Finish] when the process completes; the computer will restart to Windows.

To restore full hard drive:

Follow the steps in section "Recovering your Factory Image using Recovery and Utility (for new hard drive or non-bootable hard drive)"

Utility tool: The Utility tool contains two options: Hard Disk Data Delete and Partition Creation.

- The Hard Disk Data Delete utility is used to delete all data on the hard disk and prevent the data from being reused. NOTE: Do not use the Hard Disk Data Delete utility unless you are absolutely certain that you want to erase your entire hard disk, including all partitions.

To delete hard disk data:

a. Click the [Hard Disk Data Delete] button
b. The progress bar appears, followed by the EULA screen.
c. Agree to the EULA and click [Next].
d. Choose the hard disk from which the data should be deleted in the list of hard disks and click [Next].

- The Partition Creation utility is used to change the C: and D: drive partition sizes. To run this utility:

a. Click the [Partition Creation] button.
b. A progress bar screen appears, followed by the EULA screen. Agree to the EULA.
c. On the Recovery Tool - Partition Creation screen move the slider to set disk size, then click [OK].
d. Click YES in the Partition Creation confirmation dialog.

Recovering your Factory Image using Recovery and Utility (for new hard drive or non-bootable hard drive)

If you have installed a new hard drive or your hard drive is not bootable, perform the following steps.

1 Power on your system. When the Fujitsu logo appears on the screen, press the [Enter] key.
2 Highlight the CD/DVD option from the Boot Menu and press [Enter].
3 Insert the bootable disc in your DVD drive, then click [OK].
4 Select CD/DVD boot mode: UEFI Mode and press [Enter]. While the files are being loaded from the disc, Fujitsu logo screen will appear followed by a progress bar screen at the bottom of the screen.
5 Choose your language ([English or French).
6 Three tool options appear: Diagnostics, Recovery and Utility. Select [Recovery].
7 Select [Restore full hard drive].
8 Click [Next] to confirm full hard drive restoration. (All data on HDD will be deleted).
9 Agree to EULA by selecting [Agree] option and clicking [Next].
10 Click [Next] on the Recovery Disk Check screen to verify that the bootable disk has been inserted into the optical drive.

11 The Checking for Recovery Disk screen appears followed by the prompt to insert the first disk. Click [OK] to continue. Repeat this step for all disks. After all recovery disks have been checked and the check has been completed, click [Next]
12 Reinsert the first recovery disk and click [Next]
13 Click [OK] when you receive the final warning informing you that all data on drives C: and D: will be lost. This starts the recovery process.
14 Follow the prompts to insert the next recovery disks and click [OK].
15 After the copying of the factory image to the HDD completes and the factory image is restored, follow the prompt to insert bootable disk.
16 After the restore process is complete, click [Finish] to restart the system. The computer will restart automatically and then go through the first boot process.

Changing BIOS settings between Windows 8 32-bit and Windows 8 64-bit

In order to install a 32-bit version of Windows 8 and to be able to boot from 32-bit media, you must disable the Security Boot option in the BIOS settings. Switching back to the 64-bit version of Windows 8 from the 32-bit version of Windows 8 will require you to revert the above change and to re-enable Secure Boot. If you do not re-enable Secure Boot, the following product functionalities will not be enabled as it relies on native UEFI (Unified Extensible Firmware Interface) mode boot:

1 Secure Boot
2 Seamless Boot experience
3 Network unlock for Bitlocker for systems with a Trusted Platform Module (TPM)
4 eDrive support

WARNING: Reverting back to UEFI mode will require a hard drive reformat. All data and personal settings will be lost. It is highly recommended that you back up your data before you revert back to UEFI mode.

For further information please refer to our support pages: http://www.fujitsu.com/us/support/

1 To access the BIOS Setup, press the [F2] key after switching the system on.

2 Use the right/left arrow keys to switch to the Security page.
* If your system doesn't have Supervisor Password, you cannot change the Secure Boot Configurations. In this case you need to select Set Supervisor Password and set the password.
3 Use the up/down arrow keys to select Secure Boot Configurations.
4 Select Secure Boot or Secure Boot Option and using the [Enter] key set it to [Disabled] for 32-bit and to [Enabled] for 64-bit, then use the [ESC] key to exit Secure Boot Configurations.
5 Use the arrow keys to switch to the Advanced page.
6 Select CSM and set it to [Enabled] for 32-bit and [Disabled] for 64-bit.
7 Select the Fast Boot and set it to [Enable] for 32-bit and [Disabled] for 64-bit.
8 Use the arrow keys to switch to the Exit page.
9 Exit the BIOS Setup via Exit Saving Changes.

Downloading Driver Updates

The Fujitsu Software Download Manager (FSDM) utility is available to allow you to download the latest drivers, utilities, and applications from the Fujitsu Support site. If you have a Windows 8 or Windows 7 operating system, you will need to go to the Support Site (http://support.fujitsupc.com/CS/Portal/support.do?srch=DOWNLOADS).

Chapter 5

Care and Maintenance

Caring for your LIFEBOOK Ultrabook

If you use your Fujitsu LIFEBOOK Ultrabook carefully, you will increase its life and reliability. This section provides some tips for looking after the system and its devices.

- THE SYSTEM CONTAINS COMPONENTS THAT CAN BE SEVERELY DAMAGED BY ELECTROSTATIC DISCHARGE (ESD). TO MINIMIZE RISK TO THE COMPONENTS, OBSERVE THE FOLLOWING PRECAUTIONS:

• BE SURE TO POWER DOWN YOUR SYSTEM BEFORE ADDING OR REMOVING SYSTEM COMPONENTS. EVEN IF THE SYSTEM IS IN HIBERNATE OR STANDBY STATES, DATA COULD BE LOST OR MEMORY COULD BE DAMAGED IF POWER IS STILL AVAILABLE TO THE SYSTEM.

• ELECTRICAL EQUIPMENT MAY BE HAZARDOUS IF MISUSED. OPERATIONS OF THIS PRODUCT OR SIMILAR PRODUCTS, MUST ALWAYS BE SUPERVISED BY AN ADULT. DO NOT ALLOW CHILDREN ACCESS TO THE INTERIOR OF ANY ELECTRICAL PRODUCTS AND DO NOT PERMIT THEM TO HANDLE ANY CABLES.

• Your LIFEBOOK Ultrabook is a durable but sensitive electronic device. Treat it with respect and care.

• Make a habit of transporting it in a suitable carrying case.
• Do not attempt to service the computer yourself. Always follow installation instructions closely.

• Keep it away from food and beverages.

• To protect your LIFEBOOK from damage and to optimize system performance, be sure to keep all air vents unobstructed, clean, and clear of debris. This may require periodic cleaning, depending upon the environment in which the system is used.

• Do not operate the LIFEBOOK in areas where the air vents can be obstructed, such as in tight enclosures or on soft surfaces like a bed or cushion.
• If you accidentally spill liquid on your LIFEBOOK Ultrabook:

1 Turn it off.
2 Position it so that the liquid can run out and let it dry out for 24 hours, or longer if needed.
3 If your LIFEBOOK will not boot after it has dried out, call your support representative.

• Do not use your LIFEBOOK in a wet environment (near a bathtub, swimming pool).
• Always use the AC adapter that is approved for your LIFEBOOK.
• Avoid exposure to sand, dust and other environmental hazards.
• Do not expose your LIFEBOOK to direct sunlight for long periods of time as temperatures above 140°F (60°C) may damage your system.
• Do not put heavy or sharp objects on the computer.
• If you are carrying your LIFEBOOK Ultrabook in a briefcase, or any other carrying case, make sure that there are no objects in the case pressing on the lid.

Cleaning your LIFEBOOK Ultrabook

• Always disconnect the power plug. (Pull the plug, not the cord.)
• Clean your LIFEBOOK Ultrabook with a damp, lint-free cloth. Do not use abrasives or solvents.
• Use a soft cloth to remove dust from the screen. Never use glass cleaners.
• Always shut down the computer and unplug the power adapter when cleaning or disinfecting the computer exterior or LCD display.

Cleaning guidelines using recommended off-the-shelf cleaners

Computer exterior

To clean the exterior, use one of the following off-the-shelf products:

• Office Depot® #154-616 Notebook Cleaning Kit

• Meridrew Enterprises Klear_Screen® Wipes
  • 3M CL563 Cleaner Wipes

Note: After cleaning with one of these products, polish with a dry, soft, lint-free cloth until the solution is no longer visible.

LCD display

To clean the LCD display, use one of the following off-the-shelf products:

• Office Depot® #154-616 Notebook Cleaning Kit
- Meridrew Enterprises Klear_Screen® Wipes

Wipe the LCD surface gently, allowing it to dry before turning on the computer.

Disinfecting LIFEBOOK computers

Wipe the surface with a soft cloth wipe and a 50% ethanol solution or use another ethanol-based germicide which has been registered as a hospital disinfectant by the EPA.

• USE OF INCORRECT CLEANERS CAN RESULT IN OPTICAL IMPAIRMENT OF THE LCD AND/OR DAMAGE TO THE COMPUTER. ALWAYS REFER TO THE CLEANER MANUFACTURER'S GUIDELINES AND MATERIAL SAFETY DATA SHEETS FOR PROPER HANDLING AND USE OF THE PRODUCTS.
• NEVER USE AMMONIA, ACIDIC, OR ALKALINE CLEANERS OR ORGANIC CHEMICALS SUCH AS PAINT THINNER, ACETONE, PROPYL OR ISOPROPYL ALCOHOL, OR KEROSENE. IT MAY DAMAGE SURFACE FINISHES AND THE COATING OF THE LCD SCREEN.

Storing your LIFEBOOK Ultrabook

• If storing your LIFEBOOK for a month or longer, turn your LIFEBOOK Ultrabook off and fully charge the battery.
• Store your Fujitsu LIFEBOOK in a cool, dry location. Temperatures should remain between 13°F (-25°C) and 140°F (60°C).

• ALWAYS POWER OFF THE COMPUTER BEFORE TRANSPORTING AND/OR PACKAGING IT. AFTER SHUTTING DOWN THE SYSTEM, WAIT UNTIL THE STATUS LED PANEL INDICATES POWER OFF (I.E., NO LIGHTS ARE ILLUMINATED).
• IT IS POSSIBLE THAT THE UNIT MAY NOT AUTOMATICALLY GO TO POWER OFF OR HIBERNATE MODE. THIS SITUATION MAY OCCUR DUE TO PRE-OS BOOT PASSWORD SECURITY SETTINGS OR SOME OTHER APPLICATION RUNNING ON THE COMPUTER.
• ATTEMPTING TO TRANSPORT THE COMPUTER WHILE POWER IS ON MAY DAMAGE THE LIFEBOOK DUE TO SHOCK OR OVERHEATING SINCE THE AIR VENTS MAY BE BLOCKED OR RESTRICTED.

Traveling with your LIFEBOOK Ultrabook

• Do not transport your LIFEBOOK while it is turned on.
• It is recommended that you carry your LIFEBOOK with you while traveling, rather than checking it in as baggage.
• Never put your LIFEBOOK through a metal detector. Have your LIFEBOOK hand-inspected by security personnel. You can however, put your LIFEBOOK through a properly tuned X-ray machine. To avoid problems, place your LIFEBOOK close to the entrance of the machine and remove it as soon as possible or have your it hand-inspected by security personnel. Security officials may require you to turn your system on, so make sure your battery is charged.
• Take the necessary plug adapters if you're traveling overseas. Check the following diagram to determine which plug adapter you'll need or ask your travel agent.

Outlet Type	Location	Outlet Type	Location
	United States, Canada, parts of Latin America, Mexico, Japan, Korea, the Philippines, Taiwan		Russia and the Commonwealth of Independent States (CIS), most of Europe, parts of Latin America, the Middle East, parts of Africa, Hong Kong, India, most of South Asia
	United Kingdom, Ireland, Malaysia, Singapore, parts of Africa		China, Australia, New Zealand

Increasing Battery Life

• Power your LIFEBOOK Ultrabook through the AC or optional auto/airline adapter whenever possible.
• If your LIFEBOOK is running on battery power all day, connect it to the AC adapter overnight to recharge the battery.
• Keep brightness to the lowest level comfortable.
• Set the power management for maximum battery life.
• Put your LIFEBOOK in Standby mode when it is turned on and you are not actually using it.

Secure Digital Cards

Caring for your Cards

Memory cards are durable, but you must treat them with care. The documentation supplied with your card will provide specific information, but you should pay attention to the following points:

• To keep out dust and dirt, store cards in their protective sleeves when they are not installed in your LIFEBOOK Ultrabook.
• Avoid prolonged exposure to direct sunlight or excessive heat.
• Keep the cards dry.
• Do not flex or bend the cards, and do not place heavy objects on top of them.
• Do not force cards into the slot.
• Avoid dropping cards, or subjecting them to excessive vibration.

Chapter 6

System Specifications

Specifications

This section provides the general hardware and environmental specifications for your LIFEBOOK Ultrabook. Specific details about your system may vary from those referenced here. For an updated list of current configurations, please go to the Fujitsu America Website at: us.fujitsu.com/computers.

Microprocessor

3rd Generation Intel ^® Core ^™ Processor. To determine the type and speed of your processor, right-click My Computer, select Properties, then select the General tab, or check the configuration label.

Chipset

Intel QM77 Express Chipset, or, Intel HM76 Express Chipset

Cache Memory

L1: 32 KB x 2

L2: 256 KB on-die

L3: Up to 8 MB, depending upon configuration

Memory

• Factory-installed memory is 2 GB, 4 GB, or 8 GB. Different modules can be installed, but only by authorized Fujitsu technicians
  • DDR3-1600 MHz, PC3-12800
  • One DIMM slot; maximum capacity 8 GB

Video

Built-in 14" high definition (HD) TFT (high contrast: 200cd/m2) LCD display with LED backlight

Video Color and Resolution

• Main Internal: 1366 x 768 pixel resolution, 16M colors max
• Simultaneous (HDMI): 1366 x 768 pixel resolution, 16M colors max (up to three monitors can be used simultaneously when connected to the optional port replicator).

Graphics Controller

Shared Intel® HD Graphics 4000 controller. Uses Unified Memory Architecture (UMA) built onto motherboard which shares part of main memory for video memory. The amount of shared video memory is determined by the amount of system memory.

Audio

HD Audio delivers the features and high-end performance of an add-in audio card, and is capable of playing back more channels of higher quality than was previously possible.

• Realtek ALC269-VB6 (HD audio)
- DTS® Boost™
- Stereo headphone jack, 1V_rms or less, minimum impedance 32 Ohms
- Two built-in stereo speakers
- Two built-in noise-cancelling digital microphones

Mass Storage Devices

One of the following mass storage devices is installed in your system, depending upon configuration.

Hard Disk Drive

Capacity is configuration-dependent, Serial-ATA, 5400 or 7200 rpm. Check the configuration label for your hard drive capacity. 32 GB m-SATA SSD cache for fast boot.

Solid State Drive

Capacity is configuration-dependent; check the configuration label for your drive capacity.

Features

Integrated Pointing Device:

Gesture-enabled touchpad, with areas that act as left and right buttons.

Theft Prevention Lock Slot:

Lock slot for use with physical restraint security systems.

Fingerprint Sensor:

The fingerprint sensor uses biometric readings to ensure that only a person with a registered fingerprint can access the system.

Communications

• Intel® 82579LM Gigabit LAN (requires included LAN Adapter to connect to standard RJ-45 connector)
• Intel® Centrino® Wireless-N 6205 device, Dual Band, 802.11AGN
• Bluetooth V4.0 device

Device Ports

On the System:

• Secure Digital/Secure Digital High Capacity Card slot
• Two connectors for USB 3.0 (Universal Serial Bus) input/output devices, one of which is an Anytime Charge USB connector

• One connector for USB 2.0 connector
- One HDMI port
- One LAN port (for use with included LAN Adapter)
• One stereo headphone jack
- Optional embedded high definition web camera
- One docking connector (for use with optional port replicator)

On the Optional Port Replicator:

• One 15-pin D-SUB connector for VGA external monitor or LCD projector
  • Four connectors for USB 3.0
  • One LAN (RJ-45) connector
• One DVI-D connector
  • One DisplayPort connector

Keyboard

Built-in keyboard with all functions

• Total number of keys: 86
• Function keys: 12, [F1] through [F12]
- Feature extension key: [Fn]
- Windows keys: 2 (Start key and Application key)
• Key pitch: 19.0 mm / Key stroke: 1.0 mm

External Keyboard and Mouse Support

USB or Bluetooth compatible

Power

Battery

4-cell Lithium-Polymer battery, rechargeable, 45 Wh (not user-replaceable)

Adapters

AC Adapter: Autosensing 100-240V AC supplying 19V DC, 3.42A, 65W to the LIFEBOOK (includes an AC cable).

Power Management

Conforms to ACPI (Advanced Configuration & Power Interface)

Dimensions

Overall Dimensions

LIFEBOOK U772 with Solid State Drive (SSD) and WLAN: 3.15 lbs. (1.43 kg)

LIFEBOOK U772 with Hard Disk Drive and WLAN: 3.19 lbs. (1.45 kg)

LIFEBOOK U772 with SSD, WLAN, and UMTS: 3.21 lbs. (1.46 kg)

Environmental Requirements

Temperature

Operating: 5° to 35° C (41° to 95° F)

Non-operating: -10^ to 60^ C ( 14^ to 140^ F)

Humidity

Operating: 20% to 80%, relative, non-condensing. Non-operating; 20% to 90%, relative, non-condensing

Altitude

Operating: 10,000 feet (3,048 m) maximum

Popular Accessories

To order Fujitsu accessories, please visit our Website at: www.shopfujitsu.com or call 1-800-8FUJITSU.

Pre-Installed Software

Depending on your pre-installed operating system, your LIFEBOOK comes with pre-installed software for playing audio and video files of various formats. In addition there is software for file transfer, virus protection and Power Management. The following list indicates the pre-installed software associated with your system.

• Adobe Reader
• Roxio Creator LJ
• Symantec Norton Internet Security (60-day free trial)
• Symantec Norton Studio
• CyberLink YouCam
• Skype
• DTS® Boost™

Learning About Your Software

Tutorials

All operating systems and most application software have tutorials built into them. We recommend that you step through the tutorial before you use an application.

Manuals

Included with your LIFEBOOK Ultrabook you will find manuals for your installed operating system and other pre-installed software; some of the manuals may be installed in the applications Help menu. We recommend that you review these manuals for general information on the use of these applications.

Acrobat Reader

Acrobat Reader allows you to view, navigate, and print PDF files from across all of the major computing platforms.

Roxio Creator LJ

Roxio Creator LJ allows you to easily burn CDs and edit and share photos, music, data, and videos.

Norton Internet Security™ from Symantec

Your system is pre-installed with a free 60-day trial version of Symantec's Norton Internet Security™. Internet Security is designed to protect your LIFEBOOK from computer viruses. It assists in protection of the data currently on your hard disk from contamination or destruction. The trial version is activated upon acceptance of software license agreement. After 60 days, you must purchase a subscription from Symantec to download the latest definitions.

Norton Studio

Easily manage your Norton™ protection for your PCs and other devices right from your Windows® 8 tile interface desktop. Designed and optimized for Windows 8 tile interface, Norton Studio lets you view, control, fix, update, and renew all your Norton protection products from a single screen.

Skype

Skype allows users to communicate with peers by voice, video, and instant messaging over the Internet. Skype can be used to place phone calls on traditional telephone networks. Calls to other users within Skype are free, while calls to landlines and cell phones are charged via a user account system. Skype is also a popular tool for file transfer and teleconferencing.

CyberLink YouCam

CyberLink YouCam allows you to capture photos or movies on the optional embedded webcam, add special effects to them, and share them in a variety of formats or via social networks.

DTS® Boost™

DTS Boost maximizes acoustic power beyond the volume limits of PC hardware, allowing users to create an overall louder or fuller master by limiting the dynamic range and boosting the perceived overall level of the mix.

Operating System

Microsoft Windows 7 Professional Edition or Microsoft Windows 8 Pro Edition

Glossary

AC Adapter

A device which converts the AC voltage from a wall outlet to the DC voltage needed to power your LIFEBOOK Ultrabook.

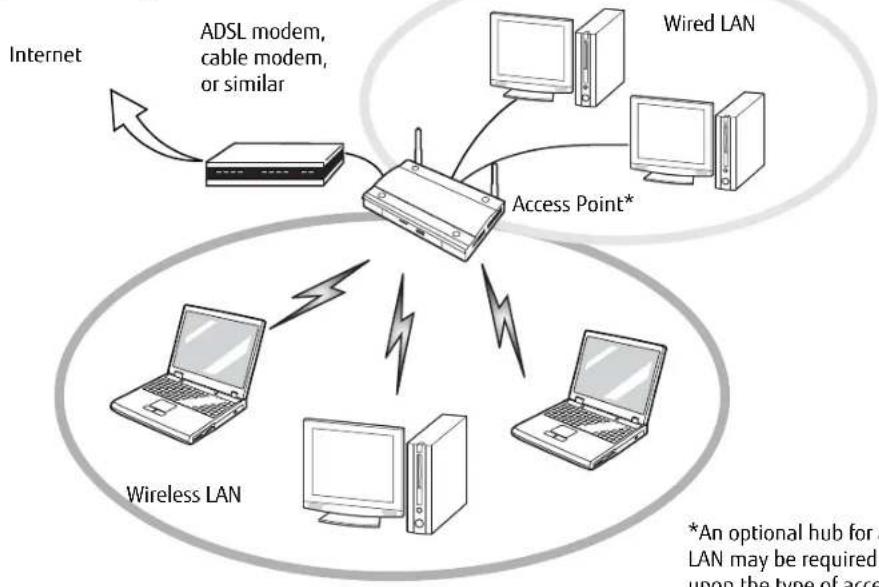

Access point

Wireless network device used to bridge wireless and wired network traffic.

ACPI

Advanced Configuration and Power Interface

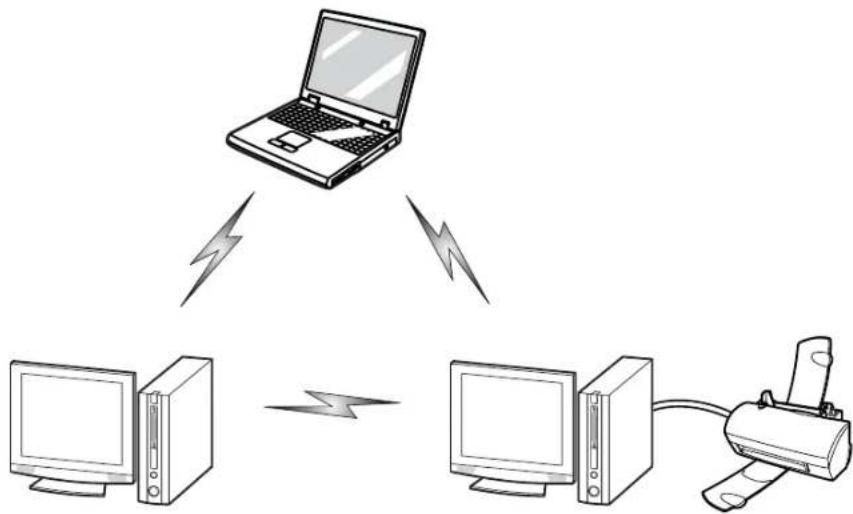

Ad Hoc Mode

Ad Hoc Mode refers to a wireless network architecture where wireless network connectivity between multiple computers is established without a central wireless network device, typically known as Access Points. Connectivity is accomplished using only client devices in a peer-to-peer fashion. For details, refer to "Ad Hoc Mode" on page 118.

ADSL

Asymmetric Digital Subscriber Line. Technology for transporting high bit-rate services over ordinary phone lines.

AGP

Accelerated Graphics Port. Graphics port specifically designed for graphics-intensive devices, such as video cards and 3D accelerators.

Auto/Airline Adapter

A device which converts the DC voltage from an automobile cigarette lighter or aircraft DC power outlet to the DC voltage needed to power your LIFEBOOK Ultrabook.

BIOS

Basic Input-Output System. A program and set of default parameters stored in ROM which tests and operates your LIFEBOOK Ultrabook when you turn it on until it loads your installed operating system from disk. Information from the BIOS is transferred to the installed operating system to provide it with information on the configuration and status of the hardware.

Bit

An abbreviation for binary digit. A single piece of information which is either a one (1) or a zero (0).

bps

An abbreviation for bits per second. Used to describe data transfer rates.

Boot

To start-up a computer and load its operating system from disk, ROM or other storage media into RAM.

Bus

An electrical circuit which passes data between the CPU and the sub-assemblies inside your LIFEBOOK Ultrabook.

Byte

8 bits of parallel binary information.

Cache Memory

A block of memory built into the micro-processor which is much faster to access than your system RAM and used in specially structured ways to make your overall data handling time faster.

Channel

Range of narrow-band frequencies used by the WLAN device to transmit data. IEEE802.11b/g - 11 channels, 22 MHz wide channels.

Command

An instruction which you give your operating system. Example: run a particular application or format a floppy disk.

Configuration

The combination of hardware and software that makes up your system and how it is allocated for use.

Data

The information a system stores and processes.

DC

Direct current. A voltage or current that does not fluctuate periodically with time.

Default Value

A pre-programmed value to be used if you fail to set your own.

DHCP

Dynamic Host Configuration Protocol. A protocol used to automatically acquire parameters required for the communication, such as IP address. The sender of IP address is called a DHCP server, and the receiver is called a DHCP client.

DMI

Desktop Management Interface. A standard that provides PC management applications with a common method of locally or remotely querying and configuring PC computer systems, hardware and software components, and peripherals.

DNS

Domain Name System. A function to control the association between the IP address and the name assigned to the computer. If you don't know the IP address but you know the computer name, you can communicate to that computer.

Driver

A computer program which converts application and operating system commands to external devices into the exact form required by a specific brand and model of device in order to produce the desired results from that particular equipment.

ECP

Extended Capability Port. A set of standards for high speed data communication and interconnection between electronic devices.

Encryption Key (Network Key)

Data encryption key used to encrypt message text and for computing message integrity checks. Data encryption protects data from unauthorized viewing.

This device uses the same encryption key to encode and decode the data, and the identical encryption key is required between the sender and receiver.

ESD

Electro-Static Discharge. The sudden discharge of electricity from a static charge which has built-up slowly. Example: the shock you get from a doorknob on a dry day or the sparks you get from brushing hair on a dry day.

FCC

Federal Communication Commission.

GB

Gigabyte. One billion bytes.

Hard drive

A spinning platter of magnetic data storage media where the platter is very stiff.

I/O

Input/Output. Data entering and leaving your computer in electronic form.

I/O Port

The connector and associated control circuits for data entering and leaving your computer in electronic form.

IDE

Intelligent Drive Electronics. A type of control interface for a hard drive which is inside the hard drive unit.

IEEE802.11a

Wireless LAN standard that supports a maximum data rate of 54 Mbps. 802.11a devices operate in the 5 GHz lower and middle UNII bands.

IEEE802.11b

Wireless LAN standard that supports a maximum data rate of 11 Mbps. 802.11b devices operate in the 2.4 GHz ISM band.

IEEE802.11g

Wireless LAN standard that supports a maximum data rate of 54 Mbps. 802.11g devices operate in the 2.4 GHz ISM band.

IEEE802.11n

Wireless LAN standard that supports a maximum data rate of up to 150 Mbps. 802.11n devices operate in the 2.4 and 5 GHz ISM bands.

Infrastructure

A name of a wireless LAN configuration. This type of communication uses an access point. Another type of communication is called Ad Hoc.

IP Address

An identifier for a computer or device on a TCP/IP network. Networks using the TCP/IP protocol route messages based on the IP address of the destination. The format of an IP address is a 32-bit numeric address written as four numbers separated by periods. Each number can be zero to 255. For example, 1.160.10.240 could be an IP address.

Within an isolated network, you can assign IP addresses at random as long as each one is unique. However, connecting a private network to the Internet requires using registered IP addresses (called Internet addresses) to avoid duplicates.

The four numbers in an IP address are used in different ways to identify a particular network and a host on that network. Three regional Internet registries -- ARIN, RIPE NCC and APNIC -- assign Internet addresses from the following three classes.

Class A - supports 16 million hosts on each of 126 networks

Class B - supports 65,000 hosts on each of 16,000 networks

Class C - supports 254 hosts on each of 2 million networks

The number of unassigned Internet addresses is running out, so a new classless scheme called CIDR is gradually replacing the system based on classes A, B, and C and is tied to adoption of IPv6.

IRQ

Interrupt Request. An acronym for the hardware signal to the CPU that an external event has occurred which needs to be processed.

KB

Kilobyte. One thousand bytes.

LCD

Liquid Crystal Display. A type of display which makes images by controlling the orientation of crystals in a crystalline liquid.

MAC Address

Media Access Control Address. A unique physical address of a network card. For Ethernet, the first three bytes are used as the vendor code, controlled and assigned by IEEE. The remaining three bytes are controlled by each vendor (preventing overlap), therefore, every Ethernet card is given a unique physical address in the world, being assigned with a different address from other cards. For Ethernet, frames are sent and received based on this address.

MB

Megabyte. One million bytes.

Megahertz

1,000,000 cycles per second.

Memory

A repository for data and applications which is readily accessible to your LIFEBOOK Ultrabook's CPU.

MHz

Megahertz.

MTU

Maximum Transmission Unit

The maximum data size that can be transferred at a time through the Internet or other networks. You can set a smaller MTU size to obtain successful communication, if you have difficulty transferring data due to the fact that the maximum size is too large.

Network key

Data that is used for encrypting data in data communication. The personal computer uses the same network key both for data encryption and decryption, therefore, it is necessary to set the same network key as the other side of communication.

Network name (SSID: Service Set Identifier)

When a wireless LAN network is configured, grouping is performed to avoid interference or data theft. This grouping is performed with "Network name (SSID)". In order to improve security, the network key is set allowing no communication unless "Network name (SSID)" coincides with the network key.

NTSC

National TV Standards Commission. The standard for TV broadcast and reception for the USA.

Open system authentication

Null authentication method specified in the 802.11 standard that performs no authentication checks on a wireless client before allowing it to associate.

Operating System

A group of control programs that convert application commands, including driver programs, into the exact form required by a specific brand and model of microprocessor in order to produce the desired results from that particular equipment.

Partition

A block of space on a hard drive which is set aside and made to appear to the operating system as if it were a separate disk, and addressed by the operating system accordingly.

Peripheral Device

A piece of equipment which performs a specific function associated with but not integral to a computer. Examples: a printer, a modem, a CD-ROM.

Pitch (keyboard)

The distance between the centers of the letter keys of a keyboard.

Pixel

The smallest element of a display, a dot of color on your display screen. The more pixels per area the clearer your image will appear.

POST

Power On Self Test. A program which is part of the BIOS which checks the configuration and operating condition of your hardware whenever power is applied to your LIFEBOOK. Status and error messages may be displayed before the operating system is loaded. If the self test detects failures that are so serious that operation can not continue, the operating system will not be loaded.

PPPoE

Point to Point Protocol over Ethernet. A protocol for Ethernet, using a Point-to-Point Protocol (PPP), which is used for connection on the phone line.

Protocol

Procedures and rules use to send and receive data between computers.

- Method of sending and receiving data

- Process used to handle communication errors

Conditions required for communication are organized in procedures for correct transfer of information.

Reset

The act of reloading the operating system. A reset erases all information stored in RAM.

Restart

See Reset.

Resume

To proceed after interruption. In your LIFEBOOK this refers to returning to active operation after having been in one of the suspension states.

SDRAM

Synchronous Dynamic Random Access Memory.

Shared key authentication

802.11 network authentication method in which the AP sends the client device a challenge text packet that the client must then encrypt with the correct WEP key and return to the AP. If the client has the wrong key or no key, authentication will fail and the client will not be allowed to associate with the AP. Shared key authentication is not considered secure, because a hacker who detects both the clear-text challenge and the same challenge encrypted with a WEP key can decipher the key.

SSID

Service Set Identifier, a 32-character unique identifier attached to the header of packets sent over a WLAN that acts as a password when a mobile device tries to connect to the BSS. The SSID differentiates one WLAN from another, so all access points and all devices attempting to connect to a specific WLAN must use the same SSID. A device will not be permitted to join the BSS unless it can provide the unique SSID. Because the SSID is broadcast in plain text, it does not supply any security to the network.

Standby

To make inoperative for a period of time. Your LIFEBOOK Ultrabook uses various suspension states to reduce power consumption and prolong the charge of your battery.

Status Indicator

A display which reports the condition of some portion of your hardware. On your LIFEBOOK Ultrabook this is an LCD screen just above the keyboard.

Subnet mask

TCP-IP network is controlled by being divided into multiple smaller networks (subnets). IP address consists of the subnet address and the address of each computer. Subnet mask defines how many bits of IP address comprise the subnet address. The same value shall be set among computers communicating with each other.

System Clock

An oscillator of fixed precise frequency which synchronizes the operation of the system and is counted to provide time of day and date.

TCP/IP

Transmission Control Protocol/Internet Protocol. A standard Internet protocol that is most widely used.

TFT

Thin Film Transistor – A technology for flat display panels which uses a thin film matrix of transistors to control each pixel of the display screen individually.

UL

Underwriters Laboratories – An independent organization that tests and certifies the electrical safety of devices.

USB

Universal Serial Bus. Standard that allows you to simultaneously connect up to 127 USB devices such as game pads, pointing devices, printers, and keyboards to your computer.

VRAM

Video Random Access Memory. A memory dedicated to video display data and control.

WFM

Wired for Management is Intel's broad-based initiative to reduce the total cost of ownership (TCO) of business computing without sacrificing power and flexibility.

Wi-Fi Compatible

Wi-Fi (Wireless Fidelity) Identifies that the product has passed the interoperability test, supplied by the WECA (Wireless Ethernet Compatibility Alliance), which guarantees the interoperability of wireless IEEE 802.11 LAN products. For more information on the Wi-Fi standard, go to the WECA Web site at: www.wirelessethernet.com.

WLAN

Wireless Local Area Network. A wireless interconnection of computers and peripherals within a single limited geographic location which can pass programs and data amongst themselves.

Regulatory Information

Notice

Changes or modifications not expressly approved by Fujitsu could void this user's authority to operate the equipment.

FCC Notices

Notice to Users of Radios and Television

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet that is on a different circuit than the receiver.
• Consult the dealer or an experienced radio/TV technician for help.

Shielded interconnect cables must be employed with this equipment to ensure compliance with the pertinent RF emission limits governing this device.

DOC (INDUSTRY CANADA) NOTICES

Notice to Users of Radios and Television

This Class B digital apparatus meets all requirements of Canadian Interference-Causing Equipment Regulations.

Appendix A: WLAN User's Guide

FCC Regulatory Information

Please note the following regulatory information related to the optional wireless LAN device.

Regulatory Notes and Statements

Wireless LAN, Health and Authorization for use

Radio frequency electromagnetic energy is emitted from Wireless LAN devices. The energy levels of these emissions, however, are far much less than the electromagnetic energy emissions from wireless devices such as mobile phones. Wireless LAN devices are safe for use by consumers because they operate within the guidelines found in radio frequency safety standards and recommendations. The use of Wireless LAN devices may be restricted in some situations or environments, such as:

• On board an airplane, or
  • In an explosive environment, or
  • In situations where the interference risk to other devices or services is perceived or identified as harmful.

In cases in which the policy regarding use of Wireless LAN devices in specific environments is not clear (e.g., airports, hospitals, chemical/oil/gas industrial plants, private buildings), obtain authorization to use these devices prior to operating the equipment.

Regulatory Information/Disclaimers

Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications made to this device that are not expressly approved by the manufacturer may void the user's authority to operate the equipment. The manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution or attachment of connecting cables and equipment other than those specified by the manufacturer. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. The manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failure to comply with these guidelines.

Federal Communications Commission statement

This device complies with Part 15 of FCC Rules.

Operation is subject to the following two conditions: (1) This device may not cause interference, and, (2) This device must accept any interference, including interference that may cause undesired operation of this device.

FCC Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures:

1 Reorient or relocate the receiving antenna.
2 Increase the distance between the equipment and the receiver.
3 Connect the equipment to an outlet on a circuit different from the one the receiver is connected to.
4 Consult the dealer or an experienced radio/TV technician for help.

FCC Radio Frequency Exposure statement

This Wireless LAN radio device has been evaluated under FCC Bulletin OET 65C and found compliant with the requirements as set forth in CFR 47 Sections 2.1091, 2.1093, and 15.247 (b) (4) addressing RF Exposure from radio frequency devices. The radiated output power of this Wireless LAN device is far below the FCC radio frequency exposure limits. Nevertheless, this device shall be used in such a manner that the potential for human contact during normal operation is minimized. When using this device, a certain separation distance between antenna and nearby persons must be maintained to ensure RF exposure compliance. In order to comply with RF exposure limits established in the ANSI C95.1 standards, the distance between the antennas and the user should not be less than 20 cm (8 inches).

Export restrictions

This product or software contains encryption code which may not be exported or transferred from the US or Canada without an approved US Department of Commerce export license. This device complies with Part 15 of FCC Rules., as well as ICES 003 B / NMB 003 B. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesirable operation. Modifications not expressly authorized by Fujitsu America, Incorporated, may invalidate the user's right to operate this equipment.

Canadian Notice

The device for the 5150-5250 MHz band is only for indoor usage to reduce the potential for harmful interference to co-channel mobile satellite systems.

The maximum antenna gain of 6 dBi permitted (for devices in the 5250-5350 MHz and 5470-5725 MHz bands) to comply with the e.i.r.p. limit.

In addition, users are cautioned to take note that high power radars are allocated as primary users (meaning they have priority) of 5250-5350 MHz and 5650-5850 MHz bands and these radars could cause interference and/or damage to LE-LAN devices.

Before Using the Wireless LAN

This manual describes the procedures required to properly set up and configure the integrated Wireless LAN Mini-PCI device (referred to as "WLAN device" in the rest of the manual). Before using the WLAN device, read this manual carefully to ensure its correct operation. Keep this manual in a safe place for future reference.

Wireless LAN Device Covered by this Document

This document is applicable to systems containing the following WLAN device:

- Intel® Centrino® Wireless-N 6205 device

Characteristics of the WLAN Device

• The WLAN device is a Mini-PCI card attached to the main board of the mobile computer.
• The WLAN device operates in license-free RF bands, eliminating the need to procure an FCC operating license. The WLAN operates in the 2.4 GHz Industrial, Scientific, and Medical (ISM) RF band and the lower, middle, and upper bands of the 5GHz Unlicensed National Information Infrastructure (UNII) bands.
• The wireless LAN devices are capable of three operating modes, IEEE802.11b, IEEE802.11g, and IEEE802.11n
• The WLAN device is Wi-Fi certified and operates at a the maximum data rate of 300 Mbps in IEEE802.11n mode; 54 Mbps in IEEE802.11g mode; and 11 Mbps in IEEE802.11b mode.
• The WLAN device supports the following encryption methods - WEP, TKIP, CKIP, and AES encryption.
• The WLAN device is compliant with the following standards: WPA, WPA2, CCX1.0, CCX2.0, CCX3.0, CX4.0.

Wireless LAN Modes Using this Device

Ad Hoc Mode

(See Figure A-1) "Ad Hoc Mode" refers to a wireless network architecture where wireless network connectivity between multiple computers is established without a central wireless network device, typically known as Access Point(s). Connectivity is accomplished using only client devices in a peer-to-peer fashion. That is why Ad Hoc networks are also known as peer-to-peer networks. Ad Hoc networks are an easy and inexpensive method for establishing network connectivity between multiple computers.

Ad Hoc mode requires that the SSID, network authentication, and encryption key settings are identically configured on all computers in the Ad Hoc network.

Figure A-1: Ad Hoc Mode Network

118 - Before Using the Wireless LAN

Access Point (Infrastructure) Mode

(See Figure A-2) Infrastructure mode refers to a wireless network architecture in which devices communicate with wireless or wired network devices by communicating through an Access Point. In infrastructure mode, wireless devices can communicate with each other or with a wired network. Corporate wireless networks operate in infrastructure mode because they require access to the WLAN in order to access services, devices, and computers (e.g., file servers, printers, databases).

Figure A-2: Access Point (Infrastructure) Mode Network
    note right of C: An optional hub for a LAN may be required upon the type of access.
    note right of F: An optional hub for a LAN may be required upon the type of access.

*An optional hub for a wired LAN may be required depending upon the type of access point used.

How to Handle This Device

The WLAN device comes pre-installed in your mobile computer. Under normal circumstances, it should not be necessary for you to remove or re-install it. The Operating System that your mobile computer comes with has been pre-configured to support the WLAN device.

• Integrated Intel Centrino module(300 Mbps Tx/300 Mbps Rx, 802.11 a/b/g/n) device supports IEEE802.11a, IEEE802.11b, IEEE802.11g, and IEEE802.11n.
• The WLAN device operates in the 2.4 GHz ISM lower, middle, and upper UNII bands.
• Microwave ovens may interfere with the operation of WLAN devices since they operate in the same 2.4GHz frequency range as IEEE802.11b/g/n devices.
• Wireless devices that transmit in the 2.4 GHz range may interfere with operation of WLAN devices in IEEE802.11b/g/n modes. Symptoms of interference include reduced throughput, intermittent disconnects, and many frame errors. It is HIGHLY recommended that these interfering devices be powered off to ensure proper operation of the WLAN device.

Deactivating the WLAN Device

Deactivation of the WLAN device may be desired in certain circumstances (to extend battery life) or where certain environments require it (i.e. hospitals, clinics, airplanes, etc.).

Deactivation using the [Fn] + [F5] key combination

The WLAN device can be deactivated quickly and efficiently by pressing the [F5] key while holding down the [Fn] key.

Activating the WLAN Device

Activation of the WLAN device can be accomplished using the same methods as the deactivation process, by pressing the [F5] key while holding down the [Fn] key.

Configuring the WLAN

The WLAN device can be configured to establish wireless network connectivity using the software that is built into Windows Vista. Support for most industry standard security solutions is contained in this software.

Pre-defined parameters will be required for this procedure. Please consult with your network administrator for these parameters:

1 From the Modern Start screen, press [Windows]+[X], then select Control Panel from the menu.
2 If the Control Panel is not in Classic View, select Classic View from the left panel. Double-click the Network and Sharing Center icon.
3 Select "Setup a new connection or network".
4 Depending upon what type of connection you would like to make, make a selection. For an infrastructure network, select "Manually connect to a wireless network".
5 Enter the required information. It may be necessary to consult with your network administrator for some of the information.
6 In the event you require assistance, go to the Network and Sharing Center window (Control Panel > Network and Sharing Center), and type in relevant keywords in the Search box.

Connecting to a Network

After you have configured your computer, you can connect to an active network by performing the following steps:

1 Click on the WLAN icon in the system tray.
2 Select "Connect to a network".
3 Select a network from the list that appears, and click the [Connect] button.

Troubleshooting the WLAN

Troubleshooting Table

Causes and countermeasures for troubles you may encounter while using your wireless LAN are described in the following table.

Problem Possible	Cause Possible Solution
Unavailable network connection	Incorrect network name (SSID) or network key	Ad hoc connection: verify that the network names (SSID's) and network keys (WEP) of all computers to be connected have been configured correctly. SSID's and WEP key values must be identical on each machine.Access Point (Infrastructure) connection: set the network name (SSID) and network key to the same values as those of the access point.Set the Network Authentication value identically to that of the Access Point. Please consult your network administrator for this value, if necessary.
	Weak received signal strength and/or link quality	Ad hoc connection: Retry connection after shortening the distance to the destination computer or removing any obstacles for better sight.Access Point (Infrastructure) connection: Retry connection after shortening the distance to the access point or removing any obstacles for better sight.
	The WLAN device has been deactivated or disabled	Check if the wireless device is turned ON. Also verify "Disable Radio" is not checked in "Network setting" window.
	The computer to be connected is turned off	Check if the computer to be connected is turned ON.
	RF interference from Access Points or other wireless networks	The use of identical or overlapping RF channels can cause interference with the operation of the WLAN device. Change the channel of your Access Point to a channel that does not overlap with the interfering device.
Unavailable network connection (continued)	Wireless network authentication has failed	Re-check your Network Authentication, Encryption, and Security settings. Incorrectly configured security settings such as an incorrectly typed WEP key, a misconfigured LEAP username, or an incorrectly chosen authentication method will cause the LAN device to associate but not authenticate to the wireless network.
	Incorrectly configured network settings	Recheck the configuration of your network settings.
	Incorrect IP address configuration	This only applies to networks using static IP addresses. Please contact your network administrator for the correct settings.

WLAN Specifications

Item Specification
Type of network	The integrated Intel Centrino Wireless-N 6205 device conforms to IEEE 802.11a/b/g/n, Wi-Fi based*
Transfer rate (Automatic switching) 54	Mbps maximum data rate.
Active frequency	802.11n: 2.4 GHz802.11b/g: 2400~2473 MHz
Number of channels	802.11b/g: 11 channels, 3 non-overlapping channels802.11n:2.4 GHz - 3 non-overlapping channels when Channel Bonding is not used; 2 non-overlapping channels when Channel Bonding is used.
Typical operating distances**	802.11b: 100 ft. (30 m) @ 11 Mbps; 300 ft. (91 m) @ 1 Mbps802.11g: 100 ft. (30 m) @ 54 Mbps; 300 ft. (91 m) @ 1 Mbps802.11n: Estimated double the operating distance of 802.11g and 802.11a in their respective frequencies.
Security	Encryption Types - WEP, TKIP, AES***; WPA 1.0 compliantEncryption Keylengths Supported: 64 bits and 128 bits; 802.1x/EAP
Maximum recommended number of computers to be connected over wireless LAN (during ad hoc connection)	10 units or less ****

* "Wi-Fi based" indicates that the interconnectivity test of the organization which guarantees the interconnectivity of wireless LAN (Wi-Fi Alliance) has been passed.
** The communication ranges shown above will increase or decrease depending on factors such as number of walls, reflective material, or interference from external RF sources.
*** Encryption with network key (WEP) is performed using the above number of bits, however, users can set 40 bits/104 bits after subtracting the fixed length of 24 bits.
**** Depending on practical environments, the allowable number of computers to be connected may be decreased.

Using the Bluetooth Device

The integrated Bluetooth V4.0 module is a wireless device installed in selected Fujitsu mobile computers.

What is Bluetooth?

Bluetooth technology is designed as a short-range wireless link between mobile devices, such as laptop computers, phones, printers, and cameras. Bluetooth technology is used to create Personal Area Networks (PANs) between devices in short-range of each other.

CLICKING THE [FN] + F5] KEYS WILL TOGGLE BOTH THE OPTIONAL WIRELESS LAN AND BLUETOOTH DEVICES ON AND OFF AT THE SAME TIME. TO ENABLE OR DISABLE EITHER ONE OF THE DEVICES INDIVIDUALLY, PERFORM THE FOLLOWING STEPS:

• PRESS THE [FN] AND [F5] KEYS AT THE SAME TIME. CHECK THE STATUS INDICATOR PANEL TO VERIFY THAT THE WIRELESS DEVICE IS ON.
• GO TO THE MODERN START SCREEN -> CHARMS->SETTINGS->CHANGE PC SETTINGS->WIRELESS.
  • UNDER WIRELESS->WIRELESS DEVICES CLICK ON "BLUETOOTH" SWITCH TO TURN IT ON.

Where to Find Information About Bluetooth

For additional information about Bluetooth Technology, visit the Bluetooth Web site at: www.bluetooth.com.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. The Bluetooth antenna is exempt from minimum distance criteria due to its low power.

The transmitters in this device must not be co-located or operated in conjunction with any other antenna or transmitter.

Canadian Notice

To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.

Warranty

Users are not authorized to modify this product. Any modifications invalidate the warranty.

This equipment may not be modified, altered, or changed in any way without signed written permission from Fujitsu. Unauthorized modification will void the equipment authorization from the FCC and Industry Canada and the warranty.

Appendix B: Fingerprint Sensor Device

Introducing the Optional Fingerprint Sensor Device

Your system has a fingerprint sensor device near the right front corner of the system. This also serves as a scroll button.

With a fingerprint sensor, you can avoid having to enter a username and password every time you want to:

• Log onto Windows
• Resume from sleep mode
• Cancel a password-protected screen saver
• Log into home pages that require a username and password

After you have "enrolled" - or registered - your fingerprint, you can simply swipe your fingertip over the sensor for the system recognize you.

Line drawing of a hand pressing down on a keyboard with a mouse pointer (no text or symbols)

Figure 34. Fingerprint sensor

ALTHOUGH THE SYSTEM MAY HAVE A FINGERPRINT SENSOR IN PLACE OF A SCROLL BUTTON, THE FINGERPRINT SENSOR CAN BE USED FOR SCROLLING. SIMPLY MOVE YOUR FINGERPRINT OVER THE SENSOR THE SAME AS YOU WOULD USE A SCROLL BUTTON.

The fingerprint sensor uses Softex OmniPass which provides password management capabilities to Microsoft Windows operating systems. OmniPass enables you to use a "master password" for all Windows, applications, and online passwords.

OmniPass requires users to authenticate themselves using the fingerprint sensor before granting access to the Windows desktop. This device results in a secure authentication system for restricting access to your computer, applications, web sites, and other password-protected resources.

OmniPass presents a convenient graphical user interface, through which you can securely manage passwords, users, and multiple identities for each user.

CERTAIN MODELS SUPPORT PRE-BOOT AUTHENTICATION OR PBA. PBA ALLOWS THE USER TO LOG IN PRIOR TO WINDOWS' OWN AUTHENTICATION MECHANISM. A PBA ENVIRONMENT SERVES AS AN EXTENSION OF THE BIOS OR BOOT FIRMWARE AND ALLOWS FOR A MORE SECURE ENVIRONMENT EXTERNAL TO THE OPERATING SYSTEM.

Getting Started

This section guides you through the preparation of your system for the OmniPass fingerprint recognition application. You will be led through the OmniPass installation process. You will also be led through the procedure of enrolling your first user into OmniPass.

Installing OmniPass

If OmniPass has already been installed on your system, skip this section and go directly to "User Enrollment" on page 131. You can determine whether OmniPass has already been installed by checking to see if the following are present:

• The gold key-shaped OmniPass icon in the system tray at the bottom right of the screen.
• The Softex program group in the Programs group of the Start menu

System Requirements

The OmniPass application requires space on your hard drive; it also requires specific Operating Systems (OS's). The minimum requirements are as follows:

• Windows XP Professional or later operating system
• At least 35 MB available hard disk space

Installing the OmniPass Application

If OmniPass is already installed on your system, go to "User Enrollment" on page 131. Otherwise continue with this section on software installation.

FOR INSTALLATION, OMNIPASS REQUIRES THAT THE USER INSTALLING OMNIPASS HAVE ADMINISTRATIVE PRIVILEGES TO THE SYSTEM. IF YOUR CURRENT USER DOES NOT HAVE ADMINISTRATIVE PRIVILEGES, LOG OUT AND THEN LOG IN WITH AN ADMINISTRATOR USER BEFORE PROCEEDING WITH OMNIPASS INSTALLATION.

If OmniPass is not installed on your system, or you need to re-install the application, you must first download it from the Fujitsu Support website before proceeding with the following steps.

To install OmniPass on your system you must:

1 Go to the Fujitsu Support Website (http://support.fujitsupc.com/CS/Portal/support.do?srch=DOWNLOADS) and download the OmniPass application to your computer.
1 After downloading OmniPass, run setup.exe from the downloaded OmniPass folder.
2 Insert the installation media for the OmniPass application into the appropriate drive. If you are installing from CD-ROM or DVD-ROM, you must find and launch the OmniPass installation program (setup.exe) from the media.
3 Follow the directions provided in the OmniPass installation program. Specify a location to which you would like OmniPass installed. It is recommended that you NOT install OmniPass in the root directory (e.g. C:).
4 Once OmniPass has completed installation you will be prompted to restart you system. Once your system has rebooted you will be able to use OmniPass. If you choose not to restart immediately after installation, OmniPass will not be available for use until the next reboot.
5 The installation program automatically places an icon (Softex OmniPass) in the Windows Control Panel as well as a golden key shaped icon in the taskbar.

Verifying Information about OmniPass

After you have completed installing OmniPass and restarted your system, you may wish to check the version of OmniPass on your system.

To check the version information of OmniPass:

1 From the Windows Desktop, double-click the key-shaped OmniPass icon in the taskbar (usually located in the lower right corner of the screen), or,

Click the Start button, select Settings, and click Control Panel. Double-click Softex OmniPass in the Control Panel, and the OmniPass Control Center will appear. If it does not appear, then the program is not properly installed, or,

Click the Start button, select Programs, and from the submenu select the Softex program group, from that submenu click OmniPass Control Center.

2 Select the About tab at the top of the OmniPass Control Panel. The About tab window appears with version information about OmniPass.

FOR UNINSTALLATION, OMNIPASS REQUIRES THAT THE USER UNINSTALLING OMNIPASS HAVE ADMINISTRATIVE PRIVILEGES TO THE SYSTEM. IF YOUR CURRENT USER DOES NOT HAVE ADMINISTRATIVE PRIVILEGES, LOG OUT AND THEN LOG IN WITH AN ADMINISTRATOR USER BEFORE PROCEEDING WITH OMNIPASS UNINSTALLATION.

Uninstalling OmniPass

To remove the OmniPass application from your system:

1 (Windows 7) Click Start on the Windows taskbar.
1 Select Settings, and then Control Panel.
2 Double-click Programs and Features.
3 Select OmniPass, and then click Uninstall.
4 Follow the directions to uninstall the OmniPass application.
5 Once OmniPass has finished uninstalling, reboot your system when prompted.

User Enrollment

Before you can use any OmniPass features you must first enroll a user into OmniPass.

Master Password Concept

Computer resources are often protected with passwords. Whether you are logging into your computer, accessing your email, e-banking, paying bills online, or accessing network resources, you often have to supply credentials to gain access. This can result in dozens of sets of credentials that you have to remember.

During user enrollment a "master password" is created for the enrolled user. This master password "replaces" all other passwords for sites you register with OmniPass.

Example: A user, John, installs OmniPass on his system (his home computer) and enrolls an OmniPass user with username "John_01" and password "freq14". He then goes to his webmail site to log onto his account. He inputs his webmail credentials as usual (username "John_02" and password "lifebook"), but instead of clicking [Submit], he directs OmniPass to Remember Password. Now whenever he returns to that site, OmniPass will prompt him to supply access credentials.

John enters his OmniPass user credentials ("John_01" and "freq14") in the OmniPass authentication prompt, and is allowed into his webmail account. He can do this with as many sites or password-protected resources he likes, and he will gain access to all those sites with his OmniPass user credentials ("John_01" and "freq14"). This is assuming he is accessing those sites with the system onto which he enrolled his OmniPass user. OmniPass does not actually change the credentials of the password protected resource. If John were to go to another computer without the OmniPass account to access his webmail, he would need to enter his original webmail credentials ("John_02" and "lifebook") to gain access. If he attempts his OmniPass user credentials on a system other than a system he's enrolled on, he will not gain access.

THE ENROLLMENT PROCEDURE ASSUMES YOU HAVE NO HARDWARE AUTHENTICATION DEVICES OR ALTERNATE STORAGE LOCATIONS THAT YOU WISH TO INTEGRATE WITH OMNIPASS. IF YOU DESIRE SUCH FUNCTIONALITY, CONSULT THE APPROPRIATE SECTIONS OF THIS DOCUMENT.

Basic Enrollment

The Enrollment Wizard will guide you through the process of enrolling a user. Unless you specified otherwise, after OmniPass installation the Enrollment Wizard will launch on Windows login. If you do not see the Enrollment Wizard, you can bring it up by clicking Start on the Windows taskbar; select Programs; select Softex; click OmniPass Enrollment Wizard.

1 Click Enroll to proceed to username and password verification. By default, the OmniPass Enrollment Wizard enters the credentials of the currently logged in Windows user.
2 Enter the password you use to log in to Windows. This will become the "master password" for this user. In most cases, the Domain: value will be your Windows computer name. In corporate environments, or when accessing corporate resources, the Domain: may not be your Windows computer name. Click [Next] to continue.
3 In this step OmniPass captures your fingerprint. Refer to "Enrolling a Fingerprint" on page 132 for additional information.
4 Next, choose how OmniPass notifies you of various events. We recommend you keep Taskbar Tips on Beginner mode taskbar tips and Audio Tips on at least Prompt with system beeps only until you get accustomed to how OmniPass operates. Click [Next] to proceed with user enrollment. You will then see a Congratulations screen indicating your completion of user enrollment.
5 Click [Done] to exit the OmniPass Enrollment Wizard. You will be asked if you'd like to log in to OmniPass with your newly enrolled user; click [Yes].

Enrolling a Fingerprint

Enrolling a fingerprint will increase the security of your system and streamline the authentication procedure.

You enroll fingerprints in the OmniPass Control Center. With an OmniPass user logged in, double-click the system tray OmniPass icon. Select the User Settings tab and click Enrollment under the User Settings area. Click Enroll Authentication Device and authenticate at the authentication prompt to start device enrollment.

1 During initial user enrollment, you will be prompted to select the finger you wish to enroll. Fingers that have already been enrolled will be marked by a green check. The finger you select to enroll at this time will be marked by a red arrow. OmniPass will allow you re-enroll a finger. If you choose a finger that has already been enrolled and continue enrollment, OmniPass will enroll the fingerprint, overwriting the old fingerprint. Select a finger to enroll and click [Next].
2 It is now time for OmniPass to capture your selected fingerprint. It may take a several capture attempts before OmniPass acquires your fingerprint. Should OmniPass fail to acquire your fingerprint, or if the capture screen times out, click [Back] to restart the fingerprint enrollment process.

Your system has a "swipe" fingerprint sensor. A swipe sensor is small and resembles a skinny elongated rectangle. To capture a fingerprint, gently swipe or pull your fingertip over the sensor (starting at the second knuckle) towards yourself. Swiping too fast or too slow will result in a failed capture. The Choose Finger screen has a [Practice] button; click it to practice capturing your fingerprint. When you are comfortable with how your fingerprint is captured, proceed to enroll a finger.

1. Once OmniPass has successfully acquired the fingerprint, the Verify Fingerprint screen will automatically appear. To verify your enrolled fingerprint, place your fingertip on the sensor and hold it there as if you were having a fingerprint captured. Successful fingerprint verification will show a green fingerprint in the capture window and the text Verification Successful under the capture window.
   4 After you finish enrolling and verifying your fingerprints, you have the option to Enable PBA with enrolled finger. If you enable this option, then you must choose two fingers to save in PBA. If you have enrolled successfully, the Finger Enrollment Status in PBA screen will state Finger saved in PBA successfully.

IF YOU ENABLE PBA ON YOUR SYSTEM, YOU MUST SET THE SUPERVISOR PASSWORD AND PASSWORD ON BOOT SETTINGS. SEE "HARD DISK DRIVE PASSWORDS" ON PAGE 40 FOR ADDITIONAL INFORMATION.

Using OmniPass

You are now ready to begin using OmniPass. Used regularly, OmniPass will streamline your authentications.

Password Replacement

You will often use the password replacement function. When you go to a restricted access website (e.g., your bank, your web-based email, online auction or payment sites), you are always prompted to enter your login credentials. OmniPass can detect these prompts and you can teach OmniPass your login credentials. The next time you go to that website, you can authenticate with your fingerprint to gain access.

OmniPass Authentication Toolbar

After installing OmniPass and restarting, you will notice a dialog you have not seen before at Windows Logon. This is the OmniPass Authentication Toolbar, and it is displayed whenever the OmniPass authentication system is invoked. The authentication system may be invoked frequently: during Windows Logon, during OmniPass Logon, when unlocking your workstation, when resuming from sleep or hibernate, when unlocking a password-enabled screensaver, during password replacement for remembered site or application logins. When you see this toolbar, you are being prompted to authenticate.

The Logon Authentication window indicates what OmniPass-restricted function you are attempting. Icons in the lower left (fingerprint and key) show what authentication methods are available to you. Selected methods are highlighted while unselected methods are not. When you click the icon for an unselected authentication method, the authentication prompt associated with that method is displayed.

When prompted to authenticate, you must supply the appropriate credentials: an enrolled finger for the fingerprint capture window or your master password for the master password prompt (the key icon).

Remembering a Password

OmniPass can remember any application, GUI, or password protected resource that has a password prompt.

Using the following procedure, you can store a set of credentials into OmniPass. These credentials will then be linked to your "master password" or fingerprint.

Go to a site that requires a login (username and password), but do not log in yet. At the site login prompt, enter your username and password in the prompted fields, but do not enter the site (do not hit [Enter], [Submit], [OK], or Login). Right-click the OmniPass system tray icon and select Remember Password from the submenu. The Windows arrow cursor will change to a golden key OmniPass cursor. Click the OmniPass cursor in the login prompt area, but don't click [Login] or [Submit].

Associating a Friendly Name

After clicking the OmniPass key cursor near the login prompt, OmniPass will prompt you to enter a "friendly name" for this site. You should enter something that reminds you of the website, the company, or the service you are logging into. In its secure database, OmniPass associates this friendly name with this website.

Additional Settings for Remembering a Site

When OmniPass prompts you to enter a "friendly name" you also have the opportunity to set how OmniPass authenticates you to this site. There are three effective settings for how OmniPass handles a remembered site.

The default setting is Automatically click the "OK" or "Submit" button for this password protected site once the user is authenticated. With this setting, each time you navigate to this site OmniPass will prompt you for your master password or fingerprint authentication device. Once you have authenticated with OmniPass, you will automatically be logged into the site.

Less secure is the option to Automatically enter this password protected site when it is activated. Do not prompt for authentication. Check the upper box to get this setting, and each time you navigate to this site OmniPass will log you into the site without prompting you to authenticate.

THIS SETTING IS MORE CONVENIENT IN THAT WHENEVER YOU GO TO A SITE REMEMBERED WITH THIS SETTING, YOU WILL BYPASS ANY AUTHENTICATION PROCEDURE AND GAIN INSTANT ACCESS TO THE SITE. BUT SHOULD YOU LEAVE YOUR SYSTEM UNATTENDED WITH YOUR OMNIPASS USER LOGGED IN, ANYONE USING YOUR SYSTEM CAN BROWSE TO YOUR PASSWORD PROTECTED SITES AND GAIN AUTOMATIC ACCESS.

If you uncheck both boxes in Settings for this Password Site, OmniPass will prompt you for your master password or fingerprint authentication device. Once you have authenticated with OmniPass your credentials will be filled in to the site login prompt, but you will have to click the website [OK], [Submit], or [Login] button to gain access to the site.

Click Finish to complete the remember password procedure. The site location, the credentials to access the site, and the OmniPass authentication settings for the site are now stored in the OmniPass secure database. The OmniPass authentication settings (Settings for this Password Site) can always be changed in Vault Management.

Logging in to a Remembered Site

Whether or not OmniPass prompts you to authenticate when you return to a remembered site is determined by Settings for this Password Site and can be changed in Vault Management.

The following cases are applicable to using OmniPass to login to: Windows, remembered web sites, and all other password protected resources.

With Master Password

Once you return to a site you have remembered with OmniPass, you may be presented with a master password prompt. Enter your master password and you will be allowed into the site.

Logging into Windows with a Fingerprint Device

When logging into Windows with a fingerprint device, the fingerprint capture window will now appear next to the Windows Login screen. Place your enrolled fingertip on the sensor to authenticate. You will be simultaneously logged into Windows and OmniPass. The capture window will also appear if you have used Ctrl-Alt-Del to lock a system, and the fingerprint device can be used to log back in as stated above.

IF A MACHINE IS LOCKED AND OMNIPASS DETECTS A DIFFERENT USER LOGGING BACK IN WITH A FINGERPRINT, THE FIRST USER WILL BE LOGGED OUT AND THE SECOND USER LOGGED IN.

Password Management

OmniPass provides an interface that lets you manage your passwords. To access this GUI, double-click the OmniPass key in the system tray. Click Vault Management; you will be prompted to authenticate. Once you gain access to Vault Management, click Manage Passwords under Vault Settings. You will see the Manage Passwords interface, with a list of friendly names.

You can view the credentials stored for any remembered website by highlighting the desired resource under Password Protected Dialog and clicking Unmask Values. Should a password be reset, or an account expire, you can remove stored credentials from OmniPass. Highlight the desired resource under Password Protected Dialog and click Delete Page. You will be prompted to confirm the password deletion.

The two check boxes in Manage Passwords govern whether OmniPass prompts you to authenticate or directly logs you into the remembered site.

OmniPass will overwrite an old set of credentials for a website if you attempt to use Remember Password on an already remembered site.

The exception to the above rule is when resetting the Windows password. If your password is reset in Windows, the next time you login to Windows, OmniPass will detect the password change and prompt you to "Update" or "Reconfirm" the password with OmniPass. Enter your new Windows password in the prompt and click OK. Your OmniPass "master password" will still be your Windows password.

OmniPass User Identities

Identities allow OmniPass users to have multiple accounts to the same site (e.g., [e-mail] and [e-mail]). If OmniPass did not provide you identities, you would be limited to remembering one account per site.

To create and manage identities, double-click the OmniPass key in the system tray. Click Vault Management; OmniPass will prompt you to authenticate. Once you gain access to Vault Management, click Manage Identities under Vault Settings. You can only manage the identities of the currently logged in OmniPass user

To add a new identity, click New Identity or double-click Click here to add a new identity. Name the new identity and click [OK], then click [Apply]. You can now switch to the new identity and start remembering passwords.

To delete an identity, highlight the identity you want to delete and click [Delete Identity], then click [Apply].

WHEN YOU DELETE AN IDENTITY, ALL OF ITS ASSOCIATED REMEMBERED SITES AND PASSWORD PROTECTED DIALOGS ARE LOST.

To set the default identity, highlight the identity you want as default and click [Set as Default]; click [Apply] to ensure the settings are saved. If you log in to OmniPass with a fingerprint device, you will automatically be logged in to the default identity for that OmniPass user. You can choose the identity with which you are logging in if you login using "master password".

Choosing User Identity during Login

To choose your identity during login, type your username in the User Name: field. Press [Tab] and see that the Domain: field self-populates. Click the Password: field to bring the cursor to it, and you will see the pull-down menu in the Identity: field. Select the identity to login as, then click OK.

Switch User Identity

To switch identities at any time, right-click the OmniPass system tray icon and click Switch User Identity from the submenu. The Switch Identity dialog will appear. Select the desired identity and then click OK.

Identities and Password Management

On the Manage Passwords interface of the Vault Management tab of the OmniPass Control Center, there is a pull-down selection box labeled, Identity. This field lets you choose which identity you are managing passwords for. When you select an identity here, only those password protected dialogs that are associated with that identity are shown. You can perform all the functions explained in "Password Management" on page 136.

Configuring OmniPass

This section gives an overview of both the Export/Import function and the OmniPass Control Center.

Exporting and Importing Users

YOU CANNOT IMPORT A USER INTO OMNIPASS IF THERE ALREADY IS A USER WITH THE SAME NAME ENROLLED IN OMNIPASS.

Using OmniPass Control Center, you can export and import users in and out of OmniPass. The export process backs up all remembered sites, credentials, and enrolled fingerprints for an OmniPass user. All OmniPass data for a user is backed up to a single encrypted database file. During the import process, the Windows login of the exported user is required. If the proper credentials cannot be supplied, the user profile will not be imported.

• YOU SHOULD PERIODICALLY EXPORT YOUR USER PROFILE AND STORE IT IN A SAFE PLACE. IF ANYTHING HAPPENS TO YOUR SYSTEM, YOU CAN IMPORT YOUR OMNIPASS PROFILE TO A NEW SYSTEM AND HAVE ALL YOUR REMEMBERED SETTINGS AND FINGERPRINTS INSTANTLY.
• YOU DON'T FORGET THE WINDOWS LOGIN CREDENTIALS WHEN EXPORTING. WHEN YOU EXAMINE THE IMPORTATION, YOU ARE PROMPTED FOR AUTHENTICATION. THE CREDENTIALS THAT WILL ALLOW A USER PROFILE TO BE IMPORTED ARE THE WINDOWS LOGIN CREDENTIALS OF THE EXPORTED USER. THEY ARE THE CREDENTIALS THAT HAD TO BE SUBMITTED WHEN THE USER PROFILE WAS EXPORTED. YOU WILL NEED USER NAME, PASSWORD, AND DOMAIN.

Exporting an OmniPass User Profile

To export a user, open the OmniPass Control Center, and click Import/Export User under Manage Users.

Click Exports an OmniPass user profile. OmniPass will prompt you to authenticate. Upon successfully authentication, you must name the OmniPass user profile and decide where to save it. An .opi file is generated, and you should store a copy of it in a safe place.

This .opi file contains all your user specific OmniPass data, and it is both encrypted and password protected. This user profile does NOT contain any of your encrypted data files.

Importing an OmniPass User Profile

To import an OmniPass user open the OmniPass Control Center, and click Import/Export User under Manage Users. Click Imports a new user into OmniPass and then select OmniPass Import/Export File (*.opi) and click Next. OmniPass will then prompt you to browse for the file you had previously exported (.opi file). When you select the .opi file for importation, OmniPass will prompt you for authentication. The credentials that will allow a user profile to be imported are the Windows login credentials of the exported user. They are the credentials that had to be submitted when the user profile was exported. You will need User Name, Password, and Domain. If you don't remember the value for Domain, in a PC or SOHO environment Domain should be your computer name.

OmniPass will notify you if the user was successfully imported.

Things to Know Regarding Import/Export

- Assume you export a local Windows User profile from OmniPass. You want to import that profile to another machine that has OmniPass. Before you can import the profile, a Windows user with the same login credentials must be created on the machine importing the profile.

Example: I have a Windows user with the username "Tom" and the password "Sunshine" on my system. I have enrolled Tom into OmniPass and remembered passwords. I want to take all my passwords to new system. I export Tom's OmniPass user profile. I go to my new system and using the Control Panel I create a user with the username "Tom" and the password "Sunshine". I can now successfully import the user data to the new system.

• If you export an OmniPass-only user, you can import that user to any computer running OmniPass, provided that a user with that name is not already enrolled in OmniPass.
• If you attempt to import a user profile who has the same name as a user already enrolled in OmniPass, the OmniPass import function will fail.

OmniPass Control Center

This section will serve to explain functions within the OmniPass Control Center that weren't explained earlier.

You can access the OmniPass Control Center any of three ways:

• Double-click the golden OmniPass key shaped icon in the Windows taskbar (typically in the lower-right corner of the desktop)
• Click the Start button; select the Programs group; select the Softex program group; and click the OmniPass Control Center selection.
• Open the Windows Control Panel (accessible via [Start] > Settings > Control Panel) and double-click the Softex OmniPass icon.

User Management

The User Management tab has two major interfaces: Add/Remove User and Import/Export User. Import/Export User functionality is documented in "Exporting and Importing Users" on page 138. Add/Remove User functionality is straightforward.

If you click Adds a new user to OmniPass you will start the OmniPass Enrollment Wizard. The Enrollment Wizard is documented in "User Enrollment" on page 131.

If you click Removes a user from OmniPass, OmniPass will prompt you to authenticate. Authenticate with the credentials (or enrolled fingerprint) of the user you wish to remove. OmniPass will prompt you to confirm user removal. Click OK to complete user removal.

REMOVING A USER WILL AUTOMATICALLY DESTROY ALL OMNIPASS DATA ASSOCIATED WITH THAT USER. ALL IDENTITIES AND CREDENTIALS ASSOCIATED WITH THE USER WILL BE LOST.

IF YOU'RE SURE YOU WANT TO REMOVE THE USER, WE RECOMMEND YOU EXPORT THE USER PROFILE.

User Settings

The User Settings tab has four interfaces: Audio Settings, Taskbar Tips, and Enrollment. User settings allow users to customize OmniPass to suit their individual preferences. Under User Settings (Audio Settings and Taskbar Tips) you can set how OmniPass notifies the user of OmniPass events (e.g., successful login, access denied, etc.). The details of each setting under the Audio Settings and Taskbar Tips interfaces are self-explanatory.

The Enrollment interface allows you to enroll fingerprints. For the procedure to enroll and authentication device refer to Chapter 2.3. To enroll additional fingerprints, click Enroll Authentication Device, and authenticate with OmniPass. Select the fingerprint recognition device in the Select Authentication Device screen (it should already be marked by a green check if you have a finger enrolled) and click Next.

System Settings

The OmniPass Startup Options interface can be found in the System Settings tab. With these options you can specify how your OmniPass Logon is tied to your Windows Logon.

The first option, Automatically log on to OmniPass as the current user, will do just as it says; during Windows login, you will be logged on to OmniPass using your Windows login credentials. If the user logging into Windows was never enrolled into OmniPass, upon login no one will be logged on to OmniPass. This setting is appropriate for an office setting or any setting where users must enter a username and password to log into a computer. This is the default setting.

With the second option, Manually log on to OmniPass at startup, OmniPass will prompt you to login once you have logged on to Windows.

With the third option, Do not log on to OmniPass at startup, OmniPass will not prompt for a user to be logged on. You can manually log on to OmniPass by right-clicking the OmniPass taskbar icon and clicking Log in User from the right-click menu.

Troubleshooting

You cannot use OmniPass to create Windows users. You must first create the Windows user, and you will need administrative privileges to do that. Once the Windows user is created, you can add that user to OmniPass using the same username and password

Cannot add Windows users to OmniPass

If you experience difficulties adding a Windows user to OmniPass, you may need to adjust your local security settings. You can do this by going to Start, Control Panel, Administrative Tools, and Local Security Settings. Expand Local Policies, expand Security Options, and double-click Network Access: Sharing and Security Model for Local Accounts. The correct setting should be Classic - Local Users Authenticate as Themselves.

Cannot add a User with a Blank Password to OmniPas

If you experience difficulties adding a user with a blank password to OmniPass, you may need to adjust your local security settings. First attempt the procedure explained in the Cannot add Windows user to OmniPass section. If the difficulties persist, then try the following procedure.

Click Start, Control Panel, Administrative Tools, and Local Security Settings. Expand Local Policies, expand Security Options, and double-click Accounts: Limit local account use of blank passwords to console login only. This setting should be set to Disabled.

Dialog appears after OmniPass authentication during Windows Logon

After installing OmniPass on your system, you can choose to logon to Windows using OmniPass. You authenticate with OmniPass (via master password, or an enrolled security device) and OmniPass logs you into Windows. You may, during this OmniPass authentication, see a Login Error dialog box.

This dialog box occurs when OmniPass was unable to log you into Windows with the credentials supplied (username and password). This could happen for any of the following reasons:

• Your Windows password has changed
• Your Windows account has been disabled

If you are having difficulties due to the first reason, you will need to update OmniPass with your changed Windows account password. Click Update Password and you will be prompted with a dialog to reconfirm your password.

Enter the new password to your Windows user account and click OK. If the error persists, then it is unlikely the problem is due to your Windows user account password changing.

Index

A

About This Guide 7

AC

adapter 34, 99

plug adapters 93

Air Vents 17

Anti-theft lock slot 14

Audio 96

Auto/Airline Adapter 34

B

Battery 48

Charge/DC-In Indicator 20

charging indicators 20

conserving power 43

dead 64

faulty 64

increasing life 93

level indicator 21

low 49

problems 64, 65

recharging 48

shorted 49

sleep mode 49

BIOS 40

Bluetooth 125

Boot Sequence 39

Built-in Speakers 62

C

CapsLock 21

Clicking 28

Color Resolution 96

Connecting the Power Adapters 34

Controls and Connectors 11

Conventions Used in the Guide 7

Cursor 27

Cursor Keys 24

D

DC Output Cable 34

DC Power Jack 34

Device Ports 50, 97

Display Panel 12, 35

adjusting 35

brightness 35

closing 36

opening 35

problems 65, 66

Double-Clicking 29

Dragging 29

E

ECO Button/Indicator 22

Error Messages 68

F

Fingerprint Sensor Device 127 enrolling a fingerprint 132 getting started 128 installing OmniPass 128 logging into a remembered site 136 OmniPass authentication toolbar 134 password replacement 134 remembering a password 134 uninstalling OmniPass 130 user enrollment 131 using OmniPass 134

Fujitsu Contact Information 8

H

Hard Disk Drive 97 access indicator 21 problems 62

Headphone Jack 50 Hibernation Feature 44

|

Integrated Pointing Device 97

K

Keyboard 23, 98 cursor keys 24 function keys 24 numeric keypad 23 problems 62 windows keys 24

L

Lithium-Polymer Battery 48

M

Memory 96

N

NumLk 21

P

Port Replicator 56 attaching 57 back panel components 56 detaching 58

Power 99

AC adapter 33

Auto/Airline adapter 33

failure 63

management 43

off 45

on 38

problems 65

sources 33

Power On Self Test 39

Power/Suspend/Resume button 12, 38, 43

Pre-Installed Software 100

R

Registration 42 Restarting 45 Restoring Your Pre-installed Software 69, 79 RJ-45 52 Roxio Easy Media Creator 100

S

Save-to-Disk 44

ScrLk 22

Secure Digital Card 53

Sleep Mode 43

Specifications 95

Status Indicator Panel 14

T

Theft Prevention Lock Slot 97

Touchpad 27

buttons 27

controls 30, 31

Touchpad Pointing Device 13

Troubleshooting 59

U

Universal Serial Bus Port 51

USB 14, 51, 63

V

Volume control 32

W

Warranty 9

Windows keys 24

Wireless Device Indicator 21

Wireless LAN

Before Using the Wireless LAN 117

Connection using Wireless Zero Tool 121

Specifications 124

Wireless LAN Glossary 122

Guide d'utilisation

Line drawing of a laptop computer with visible keyboard and mouse (no text or symbols)

FUJITSU

DÉCLARATION DE CONFORMITÉ

Bouton/voyant ECO 22

Clavier....23

Supports de stockage massif 109

Service et assistance

Line drawing of a laptop with a circular logo on the cover (no text or symbols)

Figure 1. Ordinateur Fujitsu LIFEBOOK U772 Ultrabook

ECO Bouton/voyant ECO

Two hand-drawn diagrams showing a finger pressing down on a card and then using a tool to cut the card (no text or symbols present)

Hand holding a card with a lightning bolt symbol (no text or labels)

Hand holding a stylized lightning bolt over a grid-patterned surface (no text or symbols)

Illustration of a hand pressing down on a flat surface with an arrow indicating the direction (no text or symbols)

Hand holding a document with a zigzag arrow symbol (no text or labels)

Illustration of a hand holding a square with arrows indicating movement or force direction (no text or symbols)

Hand holding a rectangular object with an arrow pointing diagonally (no text or symbols)

Figure 16. Zoom

Hand holding a square object with a finger pointing to the left side (no text or symbols)

Hand pointing at a square button with a downward arrow (no text or symbols)

Hand pointing at a rectangular object with an arrow, no text or symbols present

Figure 19. LDernière application

Line drawing of a laptop with a blue arrow pointing upward on the screen (no text or symbols)

Diagram of a laptop keyboard with an attached cable showing a blue arrow pointing to the cable (no text or symbols present)

Figure 23. Interface HDMI

Prise d'écouteurs

Line drawing of a laptop keyboard with an attached USB cable showing a blue arrow pointing to the keyboard (no text or symbols present)

"Anytime USB Charge" Function allows you to charge USB peripherals without powering on the PC. Only USD ports marked with this symbol are eligible to be charged. Disable "Anytime USB Charge" function Only enable "Anytime USB Charge" function when AC Adapter is connected. Enable "Anytime USB Charge" function with AC Adapter or battery - If the battery level becomes low while the PC is running or in sleep mode, charging will be suspended and the PC will enter hibernate mode. Change Cancel

Simple line drawing of a rectangular frame with no text or symbols

Figure 27. Cartes Secure Digital

Technical line drawing of a laptop showing the open rear panel and internal circuitry (no text or symbols)

My Recovery Create a backup image of the C: drive! A backup image will be created on D: drive (default). MyRecovery immediately restores the computer to the point of time when the backup image is created. There is no need to go through the complicated settings and reinstallation of drivers and applications. System restoration becomes simple and easy using MyRecovery! Backup Restore Manage/Create Exit

Figure 33. Écran MyRecovery

Supports de stockage massif

ACPI (Advanced Configuration and Power Interface)

ADSL (Asymmetric Digital Subscriber Line)

AGP (Accelerated Graphics Port)

DHCP (Dynamic Host Configuration Protocol)

DMI (Desktop Management Interface)

ECP (Extended Capability Port)

FCC (Federal Communication Commission)

IDE (Intelligent Drive Electronics)

IRQ (Interrupt Request)

NTSC (National TV Standards Commission)

PPPoE (Point to Point Protocol over Ethernet)

TFT (Thin Film Transistor)

UL (Underwriters Laboratories)

WFM (Wired for Management)

WLAN (Wireless Local Area Network)

Illustration of a hand pressing down on a keyboard with a mouse pointer (no text or symbols)

Bouton/voyant ECO 22

Boutons

Touchpad 27

C
