USER MANUAL LDFA++ 12H14 X EU HOTPOINT ARISTON

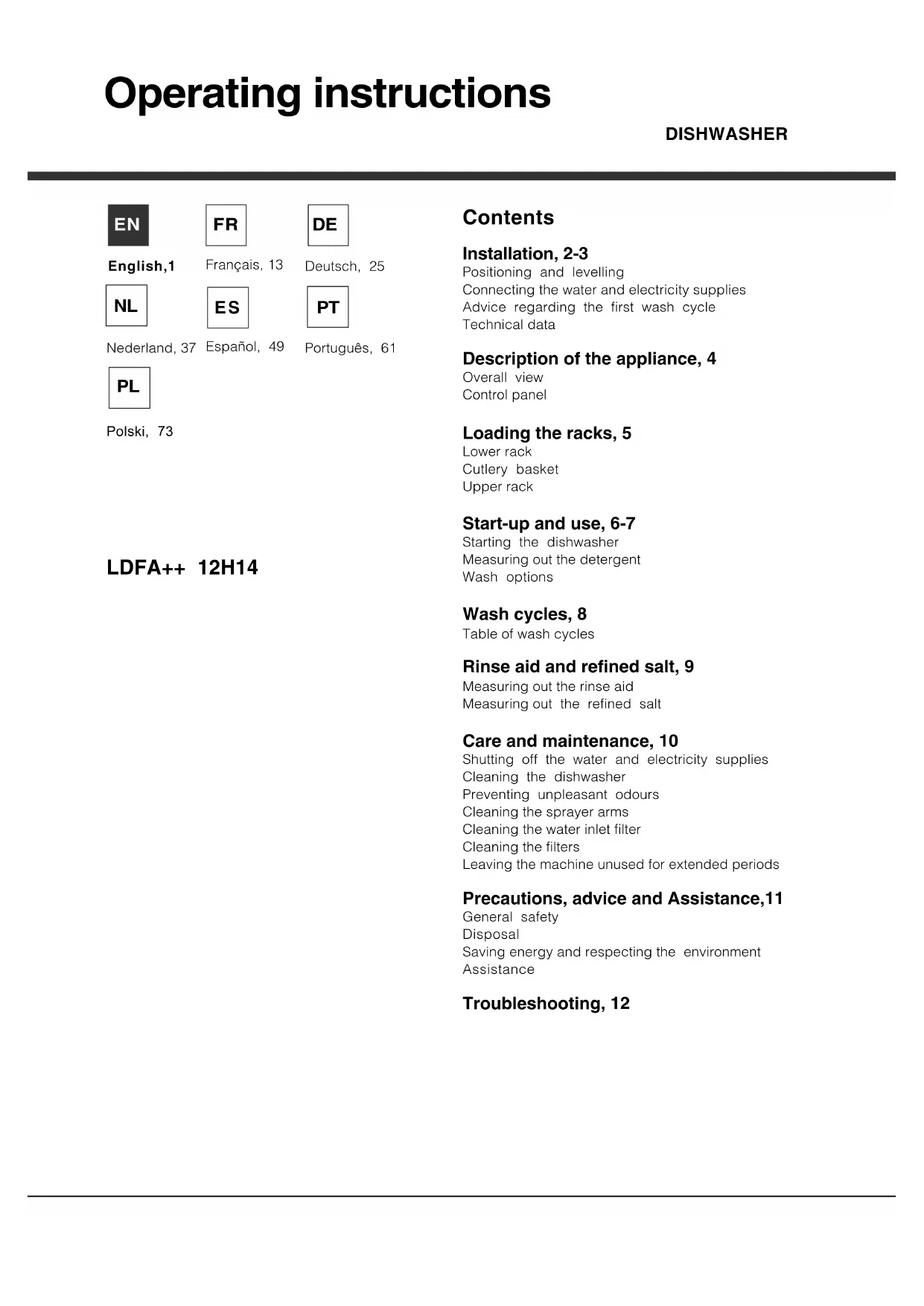

Operating instructions Contents Installation, 2-3 Positioning and levelling Connecting the water and electricity supplies Advice regarding the first wash cycle Technical data Description of the appliance, 4 Overall view Control panel Loading the racks, 5 Lower rack Cutlery basket Upper rack Start-up and use, 6-7 Starting the dishwasher Measuring out the detergent Wash options Wash cycles, 8 Table of wash cycles Rinse aid and refined salt, 9 Measuring out the rinse aid Measuring out the refined salt Care and maintenance, 10 Shutting off the water and electricity supplies Cleaning the dishwasher Preventing unpleasant odours Cleaning the sprayer arms Cleaning the water inlet filter Cleaning the filters Leaving the machine unused for extended periods Precautions, advice and Assistance,11 General safety Disposal Saving energy and respecting the environment Assistance Troubleshooting, 12 English,1

Installation Keep this instruction manual in a safe place for futurereference. If the appliance is sold, given away or moved,please ensure the manual is kept with the machine, so that thenew owner may benefit from the advice contained within it.Please read this instruction manual carefully: it containsimportant information regarding the safe installation, use andmaintenance of the appliance.If the appliance must be moved at any time, keep it in anupright position; if absolutely necessary, it may be tilted ontoits back.This appliance is intended to be used in household andsimilar applications such as:- staff kitchen areas in shops, offices and other workingenvironments;- farm houses;- by clients in hotels, motels and other residential typeenvironments;- bed and breakfast type environments. Positioning and levelling 1. Remove the appliance from all packaging and check that ithas not been damaged during transportation.If it has been damaged, contact the retailer and do notproceed any further with the installation process.2. Check the dishwasher by placing it so that its sides or backpanel are in contact with the adjacent cabinets or even with thewall. This appliance can also be recessed under a singleworktop

• (see the Assembly instruction sheet). 3. Position the dishwasher on a level and sturdy floor. If thefloor is uneven, the front feet of the appliance may be adjusteduntil it reaches a horizontal position. If the appliance is levelledcorrectly, it will be more stable and much less likely to move orcause vibrations and noise while it is operating.

• Adjust the height of the rear foot from the front of the appliance* on the central lower part of the dishwasher, turninga hexagonal spanner (red color) with an opening of 8 mm in aclockwise direction to increase the height or in ananticlockwise direction to decrease the height. Connecting the water and electricity supplies Connection to the water and electricity supplies shouldonly be performed by a qualified technician.The dishwasher should not stand on top of the waterhoses or the electricity supply cable.The appliance must be connected to the water supplynetwork using new hoses.Do not use old hoses.The water inlet and outlet hoses and the electricity supplycable may be positioned towards the right or the left in orderto achieve the best possible installation. Connecting the water inlet hose To a suitable cold water connection point: before attachingthe hose, run the water until it is perfectly clear so that anyimpurities that may be present in the water do not clog theappliance; after performing this operation, screw the inlethose tightly onto a tap with a ¾ gas threaded connection. To a suitable hot water connection point: your dishwashermay be supplied with hot water from the mains supply (ifyou have a central heating system with radiators) providedthat it does not exceed a temperature of 60°C.Screw the hose to the tap as described for connection to acold water supply. If the inlet hose is not long enough, contact a specialiststore or an authorised technician (see Assistance). The water pressure must be within the values indicated in the Technical data table (see adjacent information). The hose should not be bent or compressed. Connecting the water outlet hose Connect the outlet hose (without bending it) to a drain duct with a minimum diameter of 4 cm. The outlet hose must be at a height ranging from 40 to 80 cm from the floor / surface where the dishwasher rests (A). Before connecting the water outlet hose to the sink drain, remove the plastic plug (B).

• Only available in selected models.EN

Anti-flooding protection To ensure floods do not occur, the dishwasher:- is provided with a special system which blocks the watersupply in the event of anomalies or leaks from inside theappliance.Some models are also equipped with the supplementarysafety device New Acqua Stop*, which guarantees anti-flooding protection even in the event of a supply hose rupture.

WARNING: HAZARDOUS VOLTAGE!

Under no circumstance should the water inlet hose be cut as itcontains live electrical parts. Electrical connection Before inserting the plug into the electrical socket, make surethat: The socket is earthed and complies with currentregulations. The socket can withstand the maximum load of theappliance, which is indicated on the data plate located onthe inside of the door (see chapter entitled Description ofthe appliance). The power supply voltage falls within the values indicatedon the data plate on the inside of the door. The socket is compatible with the plug of the appliance. Ifthis is not the case, ask an authorised technician to replacethe plug (see Assistance); do not use extension cables ormultiple sockets.Once the appliance has been installed, the power supplycable and the electrical socket should be easily accessible.The cable should not be bent or compressed. If the power supply cable is damaged, it must be replacedby the manufacturer or its Technical Assistance Service in orderto prevent all potential hazards. (See Assistance)The Company shall not be held responsible for anyincidents that occur if these regulations are not observed. Anti-condensation strip* After installing the dishwasher, open the door and stick theadhesive transparent strip under the wooden shelf in order toprotect it from any condensation which may form. Advice regarding the first wash cycle After the appliance has been installed, immediately beforerunning the first wash cycle, completely fill the salt dispenserwith water and add only then approximately 1 kg of salt (seechapter entitled Rinse aid and refined salt). The water mayoverflow: this is normal and is not a cause for concern. Selectthe water hardness value (see chapter entitled Rinse aid andrefined salt). - After the salt has been poured into the machine, the LOW SALT indicator light

• switches off. If the salt container is not filled, the water softener and theheating element may be damaged as a result.
• Only available in selected models. Technical data Dimensions width 60 cm height 85 cm depth 60 cm Capacity 14 standard place-settings Water supply pressure 0,05 ÷ 1MPa (0.5 ÷ 10 bar) 7,25 – 145 psi Power supply voltage See appliance data plate Total absorbed power See appliance data plate Fuse See appliance data plate This dishwasher conforms to the following European Community Directives: -2006/95/EC (Low Voltage) -2004/108/EC (Electromagnetic Compatibility) -2005/32/EC (Comm. Reg. 1275/2008) (Ecodesign) -97/17/EC (Labelling) -2002/96/EC Waste Electrical and Electronic Equipment (WEEE)EN

Overall view Description of the appliance

3. Tip-up compartments

6. Lower sprayer arm

***Only in completely built-in models.

• Only available in selected models. The number and position may vary. Before loading the racks, remove all food residue fromcrockery and empty liquids from glasses and cups.After loading the appliance, make sure that the sprayerarms can rotate freely. Lower rack and cutlery basket The lower rack can hold pans, lids, plates, salad bowls, cutlery, etc.Large plates and lids should ideally be placed at the sides of the rack.Several dishwasher models are fitted with tip-up sections which can be used in a vertical position when arranging platesor in a horizontal position when arranging saucepans, saladbowls and frying pans.The type of cutlery basket may vary (modular or non-modular)according to the dishwasher model. The non-modular basket mustonly be positioned at the front of the lower rack.Both are fitted withgrilles over the top, forimproved cutleryarrangement. Knives and other utensils with sharp edges must beplaced in the cutlery basket with the points facingdownwards, or they must be positioned horizontally in the tip-up compartments on the upper rack. Upper rack Load this rack with delicate and lightweight crockery: glasses,cups, saucers and shallow salad bowls. Adjustable position tip-up compartments The tip-up compartmentscan be positioned at differentheights, to optimise thearrangement of crockerythroughout the rack. Wineglasses can be placedsafely in the tip-upcompartments, by insertingthe stem of each glass intothe corresponding slots.Some dishwasher models are fittedwith a sliding tray
• which can be used to hold serving utensils or small cups.For optimum washing performance,avoid positioning bulky crockerydirectly below the tray. Adjusting the height of the upper rack In order to make it easier to arrange the crockery, the upper rackmay be moved to a higher or lower level. The height of the upper rack should ideally be adjustedWHEN THE RACK IS EMPTY.NEVER raise or lower the rack on one side only.Open the left and right guide rail stopsand pull out the rack; position it higher orlower as required, slide it along the guiderails until the front wheels are in place andclose the stops (see figure).If the rack is fitted with Dual Spacehandles
• (see figure), pull out the upper rack until it reaches its stop point, grip thehandles at the sides of the rack and moveit upwards or downwards, then slowly letit fall back into place. Items that should not be washed in the dishwasher Wooden items, objects with wooden or horn handles or glued-on parts. Items made from aluminium, copper, brass, pewter or tin. Items made from plastic material which is not heat-resistant. Antique or hand-painted porcelain. Antique silver. Silver that is not antique may, however, bewashed in the dishwasher using a delicate wash cycle,provided that it does not come into contact with other metals. We recommend the use of crockery which is dishwasher safe.EN

• Only available in selected models. Switching the appliance on for the first time Selecting the language Press the ON/OFF symbol; the display will show the setlanguage. Use the DELAYED START button to scroll forwards, or the HALF LOAD button to scroll backwards through the list until you reachthe desired language. Press the P button to confirm the selection;you will then automatically enter the list of wash cycles.Every time the dishwasher is switched on subsequently, the listof wash cycles will be displayed.The language may also be changed at a later date, by pressingthe P button and the DELAYED START button simultaneously fora few seconds. Starting the dishwasher 1. Turn the water tap on.2. Press the ON/OFF button: you will hear a short beep andthe display will light up.3. Open the door and pour in a suitable amount of detergent(see below).4. Load the racks (see Loading the racks) and shut the door.5. Select the wash cycle in accordance with the type ofcrockery and its soil level (see Table of wash cycles) bypressing the P button.6. Select the wash options (see adjacent information).7. Start the cycle by pressing the Start button: a long beepsignals the start of the wash cycle; the name of the selectedcycle is displayed, along with the time remaining until the endof the cycle.8. Two short beeps and one long one indicate the end of thewash cycle and the text CYCLE END appears on thedisplay. Switch off the appliance by pressing the ON/OFFbutton, shut off the water valve and unplug the appliance fromthe electricity socket.9. Wait for a few minutes before removing the crockery, inorder to avoid burns. Unload the racks, beginning with thelower level. - The machine will switch off automatically during certain periods of inactivity, in order to minimise electricity consumption. AUTO WASH CYCLES*: this model of dishwasher is equipped with a special sensor which can be used to assessthe level of soiling and automatically select the most efficientand economic wash cycle accordingly.The duration of the auto wash cycles may vary due to theoperation of the sensor.If the crockery is only lightly soiled or if it has beenrinsed with water before being placed in the dishwasher,reduce the amount of detergent used accordingly. Modifying a wash cycle in progress If a mistake was made during the wash cycle selectionprocess it is possible to change the cycle, provided that it hasonly just begun: once the wash cycle has started, switch offthe machine by pressing and holding the ON/OFF/Resetbutton. Switch it back on using the same button and select thedesired wash cycle and options. Adding extra crockery Press the Start/Pause button (the corresponding indicator lightwill flash). Open the door, taking care to avoid the escapingsteam, and place the crockery inside the appliance. Press theStart/Pause button (fixed light): the cycle will restart after aprolonged beep is emitted.If the Start/Pause button is pressed so as to pause themachine, the wash cycle or the Delayed Start function (ifselected) is interrupted.At this stage it is not possible to change the wash cycle. Accidental interruptions If the door is opened during the wash cycle, or if there is a powercut, the cycle stops. It starts again from the point at which it wasinterrupted once the door has been shut or once the electricitysupply is restored. Measuring out the detergent A good wash result also depends on the correct amount ofdetergent being used; exceeding the stated amount doesnot result in a more effective wash and increasesenvironmental pollution. Only use detergent which has been specifically designed for dishwashers. DO NOT USE washing up liquid. Using excessive detergent may result in foam residue remaining in the machine after the cycle has ended. To achieve the best results from each washing and drying cycle, powder detergent, rinse aid liquid and salt should be used. Compartment A: Washing detergentCompartment B: Pre-wash detergent1. Open cover C by pressing button D.2. Pour in the detergent after consultingthe Table of wash cycles: For powder detergent usecompartments A and B. For detergent in tablet form: when thecycle requires 1 tablet, place it incompartment A and close the cover;when it requires 2, place the secondtablet at the bottom of the appliance.3. Remove detergent residues from the edges of thecompartment and close the cover until it clicks.

Wash options* The OPTIONS may only be set, modified or reset after the wash cycle has been selected and before the Start/ Pause button has been pressed. Only the options which are compatible with the type of washcycle set may be selected. If an option is not compatible with the selected wash cycle (see Table of wash cycles), the correspond- ing LED flashes rapidly 3 times and 2 short beeps will sound.If an option is selected which is incompatible with another (previ-ously selected) option, the indicator light corresponding to theoption selected first will flash 3 times, 3 beeps will sound and it willbe deselected, while the most recently selected option will remainactive.To deselect an option which has been set by mistake, press thecorresponding button again.EN

• Only available in selected models. Half load using the upper or lower rack If there are not many dishes to be washed, a half load cycle may be used in order to save water, electricity and detergent. Select the wash cycle and press the HALF LOAD button repeatedly: the triangle corresponding to the selected load will illuminate and the wash cycle will take place only using the upper or lower rack. If the button is pressed again, the option will be deselected. The Half Load option is not compatible with the Good Night and Short Time options. Remember to load the upper or lower rack only, and to reduce the amount of detergent accordingly. It is better to use powder detergent in this case. This option is incompatible with the following wash cycle: Speed wash and Baby cycle. Delayed start It is possible to delay the start time of the cycle for a period of time between 1 and 24 hours.

1. After selecting the desired wash cycle and any other options,

press the DELAYED START button. The Delayed Start symbol will begin to flash. Use the same button to select the time at which you wish the wash cycle to begin (after a period of 1 to 24 hours).

2. Confirm the selection using the STAR/PAUSE button; the

symbol will stop flashing and the countdown will begin. The text Start in will be displayed, the selected delay time will flash and the START/PAUSE button will remain lit in a fixed manner.

3. When the set time has elapsed, a long beep sounds,

the DELAYED START indicator light switches off and the wash cycle begins. To deselect the DLEAYED START option, press the DELAYED START button repeatedly until the text OFF appears. The Delayed Start function cannot be set once a wash cycle has been started. Short Time option This option can be used to reduce the duration of the main wash cycles while maintaining the same washing and drying perfor- mance levels. After selecting the wash cycle, press the Short Time option but- ton; the illumination of the corresponding indicator light followed by a short beep indicates its selection. To deselect the option, press the same button again. Good Night option This option reduces the amount of noise made by the machine and lengthens the wash cycles. It is a useful option because it enables users to benefit from the night-time energy rate. After selecting the wash cycle, press the Good Night option button; the illumination of the corresponding indicator light fol- lowed by a short beep indicates its selection. To deselect the option, press the same button again. Multi-functional tablets This option optimises washing and drying results. When using multi-functional tablets, press the MULTI- FUNCTIONAL TABLETS button; the corresponding indicator light will illuminate. If the button is pressed again the option will be deselected. The Multi-functional tablets option results in the lengthening of the wash cycle. The MULTI-FUNCTIONAL TABLETS option remains set for subsequent wash cycles if it is not deselected. The use of tablets is only recommended when the MULTI-FUNCTIONAL TABLETS option is available. This option is not recommended for use with wash cycles which do not specify the use of multi-functional tablets (see Table of options). The Short Time and Good Night options are not compatible with each other. The Short Time and Good Night options are not compatible with the HALF LOAD option. Extra drying To improve the dryness level of the crockery, press the EXTRA DRYING button; the indicator light will illuminate. If it is pressed again the option will be deselected. The EXTRA DRYING option increases the duration of the wash cycle.

This disinfecting wash cycle deep cleans the inside of the dishwasher, thereby reducing the formation of bad odours. WARNING The SELFCARE wash cycle should be performed as part of your dishwasher maintenance routine, using special single- dose products (follow the instructions on the packaging) while the dishwasher is EMPTY. A B C D E F Table of options Delayed Start Half Load Tabs Extra Dry Short Time Good Night Auto Super wash Yes Yes Yes Yes Yes

Normal Yes Yes Yes Yes Yes Yes Daily A 60’ Yes Yes Yes

Crystals Yes Yes Yes Yes

Ultra Intensive Yes Yes Yes Yes

Special Guest Yes Yes

Wash cycles For available OPTIONS please refer to the Table of options on the Start-up and use page. The number and type of wash cycles and options may vary depending on the dishwasher model. Notes: Optimum performance levels when using the "Daily A 60 and "Speed 25 cycles can be achieved by observing the maximum amounts of crockery specified. To make it easier to measure out the detergent, it is worth remembering that: 1 tablespoon = 15 grams of powder = approximately 15 ml of liquid - 1 teaspoon = 5 grams of powder = approximately 5 ml of liquid

• The Eco wash cycle adheres to the regulation EN-50242. Although it has a longer duration than other wash cycles it uses less energy and is les harmful to the environment. Note for Test Laboratories: for information relating to comparative EN testing conditions, please send an email to the following address: ASSISTENZA_EN_LVS@indesitcompany.com Detergent (A) = compartment A (B) = compartment B Wash cycle selection instructions Wash cycle Powder Liquid Tablets Wash cycles which include drying Options Wash cycle duration (tolerance ±10%) Hrs. Min. Heavily soiled dishes and pans (not to be used for delicate items). Auto Super Wash 35 g (A) 35 ml (A) 1 (A) Yes A-B-C-D-E 2:25’ Normally soiled pans and dishes. Standard daily wash cycle. Normal

29 g (A) 6 g (B) 29 ml (A) 6 ml (B) 1 (A) Yes

A-B-C-D-E-F 1:50’ Limited quantity of daily soiling. (4 place settings + 1 saucepan +1 frying pan). Daily A 60’

A-B-C 1:00’ Pre-wash for dishes while awaiting completion of the load with the dishes from the next meal. Soaking

A – B 0:08’ Environmentally-friendly wash cycle with low energy consumption levels, suitable for pans and dishes. Eco

Yes A–B-C-D-F 3:00’ Economic and fast wash to be used for lightly soiled dishes. (Run cycle immediately after use) (2 plates + 2 glasses + 4 pieces of cutlery + 1 saucepan + 1 small frying pan). Speed 25’

0:25’ Economic and fast wash for delicate items which are sensitive to high temperatures. (Run cycle immediately after use) (glasses, upper rack + delicate plates, lower rack ). Crystals

A–B–C-D 1:30’ Wash spread over the two racks: delicate for crystal and glasses on the upper rack and heavy duty for the pans on the lower rack.

1:45’ Heavily soiled saucepans or pans with residual dried-on food. Ultra Intensive

35 g (A) 5 g (B) 35 ml (A) 5 ml (B) 1 (A) 1 (bottom of the appliance)

Yes A–B–C-D 2:35' Rinse and drying cycle for dishes that are seldom used and are only dusty. Special Guest

Yes A–B – D 0:32’ Disinfecting wash cycle suitable for washing bottles, rings and teats together with plates, cups, glasses and cutlery. The crockery should only be loaded on the upper rack. Baby Cycle

1:20' Disinfecting cycle for cleaning the inside of the dishwasher, to be carried out only when the dishwasher is EMPTY using specific detergents designed for dishwasher maintenance. SelfCare

Rinse aid and refined salt Only use products which have been specifically designed for dishwashers. Do not use table salt or industrial salt, or washing up liquid. Follow the instructions given on the packaging. If using a multi-functional product it is not necessary toadd rinse aid; however, we recommend that you add salt,especially if you live in an area where the water is hardor very hard. Follow the instructions given on thepackaging. If you do not add salt or rinse aid, the LOW SALT

• and LOW RINSE AID* indicator lights remain lit. Measuring out the rinse aid Rinse aid makes it easier for the crockery to dry, as waterruns off surfaces more readily and therefore does not leavestreaks or marks.The rinse aid dispenser should be filled: When the LOW RINSE AID* indicator light on the controlpanel is illuminated;1. Open the dispenser by turning thelid (G) in an anticlockwise direction.2. Pour in the rinse aid, making sure itdoes not overflow from thedispenser. If this happens, clean thespill immediately with a dry cloth.3. Screw the lid back on.NEVER pour the rinse aid directlyinto the appliance tub. Adjusting the amount of rinse aid If you are not completely satisfied with the drying results,you may adjust the quantity of rinse aid used. Use ascrewdriver to turn the dosage adjuster (F) to one of the 6pre-set positions (the default position is set to 4): If there are streaks on the crockery, set the adjustmentdevice to a lower number (1-3). If drops of water remain on the crockery or if there arelimescale marks present after the cycle has finished, setthe adjuster to a higher number (4-6). Setting the water hardness Every dishwasher is equipped with a water softener which, byusing refined salt designed especially for this type ofappliance, supplies water without limescale which is then usedto wash the crockery.This dishwasher offers a setting which helps to reducepollution and optimises washing performance in accordancewith the water hardness level in your area. This information canbe obtained from the organisation which supplies yourhousehold with water.- Switch on the appliance by pressing the ON/OFF button.- Press the P button and hold for a few seconds; two short beeps will sound, The text "WATER HARDNESS" will appear on the display and the set hardness number will also flashslowly on the display (the water softening system is set bydefault to number 3).- Press the DELAYED START button (levels 1 to 5) or theHALF LOAD button (levels 5 to 1) repeatedly, until thedesired hardness level has been reached (1-2-3-4-5 *, see hardness table). You will be able to scroll through a maximumof 5 levels. Press the P button to confirm.To exit the function, wait a few seconds or press one of theoption buttons *, or switch off the machine using the ON/OFF button.Even if using multi-functional tablets, the salt dispenser shouldstill be filled.(°dH = hardness measured in German degrees - °f =hardness measured in French degrees - mmol/l = millimolesper litre) Measuring out the refined salt In order to achieve the best possible results using a washcycle, make sure that the dispenser is never empty.Refined salt removes limescale from the water, thusavoiding the formation of deposits on crockery.The salt dispenser is located in the lower part of thedishwasher (see Description) and should be filled: When the green float
• cannot be seen by simply looking at the cap of the salt dispenser. When the LOW SALT
• indicator light on the control panel is illuminated;1. Remove the lower rack and unscrewthe container cap (anticlockwise).2. The first time you do this: fill the watertank right up to its edge.3. Position the funnel
• (see figure) and fill the salt container right up to its edge (this should holdapproximately 1 kg); it is not unusual for a little water to leak out. 4. Remove the funnel* and wipe any salt residue away fromthe opening; rinse the cap under running water and thenscrew it on, the head facing downwards so as to let thewater flow out of the four cracks which are arranged in astar shape on the lower part of the cap. (the container capwith the green float It is advisable to perform this procedure every time youadd salt to the container.Make sure the cap is screwed on tightly, so that nodetergent can get into the container during the wash cycle(this could damage the water softener beyond repair).When necessary, measure out the salt before a washcycle so that any saline solution which has leaked out of thesalt dispenser is removed.
• Only available in selected models.

6,1 - 9 2/3 weeks For values between 0°f and 10°f, we do not recommend the use of salt. this setting may cause a slight increase in the duration of the cycles. for 1 wash cycle per day.EN

Care and maintenance Shutting off the water and electricity supplies Turn off the water tap after every wash cycle to avoidleaks. Always unplug the appliance when cleaning it andwhen performing maintenance work. Cleaning the dishwasher The external surfaces of the machine and the controlpanel may be cleaned using a non-abrasive clothwhich has been dampened with water. Do not usesolvents or abrasive products. Any marks on the inside of the appliance may beremoved using a cloth dampened with water and alittle vinegar. Preventing unpleasant odours Always keep the door of the appliance ajar in order toavoid moisture from forming and being trapped insidethe machine. Clean the seals around the door and detergentdispensers regularly using a damp sponge. This willavoid food becoming trapped in the seals, which isthe main cause behind the formation of unpleasantodours. Cleaning the sprayer arms Food residue may become encrusted onto the sprayerarms and block the holes used to spray the water. It istherefore recommended that the arms are checked fromtime to time and cleaned with a small non-metallicbrush.The two sprayer arms may both be removed.To remove the upper sprayerarm, rotate the locking ring inan anti-clockwise direction.The upper sprayer arm shouldbe replaced with the holesfacing upwards.The lower sprayer arm can beremoved by pressing on theside tabs and pulling itupwards. Cleaning the water inlet filter* If the water hoses are new or have not been used for anextended period of time, let the water run to make sure itis clear and free of impurities before performing thenecessary connections. If this precaution is not taken,the water inlet could become blocked and damage thedishwasher. Clean the water inlet filter at the tap outlet regularly. - Turn off the water tap. - Unscrew the end of the water inlet hose, remove the filter and clean it carefully under running water. - Replace the filter and screw the water hose back into position. Cleaning the filters The filter assembly consists of three filters which remove food residues from the washing water and then recirculate the water. They should be cleaned if you wish to achieve the best results in every wash. Clean the filters regularly. The dishwasher should not be used without filters, or if the filter is loose. After several washes, check the filter assembly and if necessary clean it thoroughly under running water, using a non-metallic brush and following the instructions below:

1. Turn the cylindrical filter C in an anti-clockwise direction

and pull it out (fig. 1).

2. Remove the cup filter B by exerting a slight pressure on

the side flaps (fig. 2).

3. Slide out the stainless steel plate filter A (fig. 3).

4. Inspect the trap and remove any food residue.

NEVER REMOVE the wash cycle pump (black detail) (fig. 4). After cleaning the filters, replace the filter assembly and fix it in position correctly; this is essential for maintaining the efficient operation of the dishwasher. Leaving the machine unused for extended periods Disconnect the appliance from the electricity supply and shut off the water tap. Leave the door of the appliance ajar. When you return, run a wash cycle when the dishwasher is empty.

• Only available in selected models.

Precautions, advice and Assistance This appliance was designed and manufactured incompliance with current international safety standards. Thefollowing information has been provided for safety reasonsand should therefore be read carefully. General safety This appliance is not intended for use by persons(including children) with reduced physical, sensory ormental capabilities, or lack of experience and knowledge,unless they have been given supervision or instructionconcerning use of the appliance by a person responsiblefor their safety. Children should be supervised to ensure that they do notplay with the appliance. The appliance was designed for domestic use inside thehome and is not intended for commercial or industrial use. The appliance must be used by adults only, to washdomestic crockery in accordance with the instructions inthis manual. The appliance must not be installed outdoors, even incovered areas. It is extremely dangerous to leave themachine exposed to rain and storms. Do not touch the appliance when barefoot. When unplugging the appliance always pull the plug fromthe mains socket, do not pull on the cable. The water supply tap must be shut off and the plug shouldbe removed from the electrical socket before cleaning theappliance or carrying out any maintenance work. If the appliance breaks down, do not under anycircumstances touch the internal parts in an attempt toperform the repair work yourself. Never touch the heating element. Do not lean or sit on the open door of the appliance: thismay cause the appliance to overturn. The door should not be left open as it may create adangerous obstacle. Keep detergent and rinse aid out of reach of children. The packaging material should not be used as a toy. Disposal Disposal of packaging materials: observe local legislationso that the packaging may be reused. The European Directive 2002/96/EC relating to WasteElectrical and Electronic Equipment (WEEE) states thathousehold appliances should not be disposed of using thenormal solid urban waste cycle. Exhausted appliancesshould be collected separately in order to optimise the costof re-using and recycling the materials inside the machine,while preventing potential damage to the atmosphere andto public health. The crossed-out dustbin is marked on allproducts to remind the owner of their obligations regardingseparated waste collection.For further information relating to the correct disposal ofhousehold appliances, owners may contact the relevantpublic authority or the local appliance dealer. Saving energy and respecting the environment Saving water and energy Only begin a wash cycle when the dishwasher is full. Whilewaiting for the dishwasher to be filled, prevent unpleasantodours using the Soak cycle (see Wash cycles). Select a wash cycle which is suited to the type of crockeryand to the soil level of the crockery using the Table of washcycles:- For dishes with a normal soil level, use the Eco washcycle, which guarantees low energy and waterconsumption levels.- If the load is smaller than usual activate the Half loadoption

• (see Start-up and use). If your electricity supply contract gives details of electricitysaving time bands, run wash cycles during the periodswhen a lower tariff is applied. The Delayed start
• button (see Start-up and use) helps you organise the wash cyclesaccordingly. Phosphate-free and chlorine-free detergents containing enzymes We strongly recommend that you use detergents that donot contain phosphates or chlorine, as these products areharmful to the environment. Enzymes provide a particularly effective action attemperatures around 50°C, and as a result detergentscontaining enzymes can be used in conjunction with low-temperature wash cycles in order to achieve the sameresults as a normal 65°C wash cycle. To avoid wasting detergent, use the product in appropriatequantities based on the manufacturers recommendations,the hardness of the water and the soil level and quantity ofcrockery to be washed. Even if they are biodegradable,detergents contain substances which may alter the balanceof nature. Assistance Before contacting Assistance: Check whether the problem can be resolved using theTroubleshooting guide (see Troubleshooting). Restart the programme to check whether the problem hasceased to exist. If the problem persists, contact the Authorised TechnicalAssistance Service.Never use the services of unauthorised technicians. Please have the following information to hand: The type of malfunction. The appliance model (Mod.). The serial number (S/N).This information can be found on the appliance data plate(see Description of the appliance).
• Only available in selected models.EN

Troubleshooting Whenever the appliance fails to work, check for a solution from the following list before calling for Assistance. Problem: Possible causes / Solutions: The dishwasher does not start or cannot be controlled

• Switch off the appliance by pressing the ON/OFF button, switch it back on after approximately one minute and reset the program.

• The appliance has not been plugged in properly.

• The dishwasher door has not been shut properly. The door won’t close • The lock was released. Strongly push the door until a “clacking” noise is heard. No water drains out from the dishwasher.

• The dishwasher cycle has not yet finished.

• The water inlet hose is bent (see Installation).

• The drain duct is blocked.

• The filter is clogged up with food residues. The dishwasher makes excessive noise.

• The dishes are rattling against each other or against the sprayer arms.

• An excessive amount of foam has been produced: the detergent has not been measured out correctly or it is not suitable for use in dishwashers (see Start-up and use). The dishes and glasses are covered in a white film or limescale deposits.

• The level of the refined salt is low or the dosage setting is not suited to the hardness of the water (see Rinse aid and salt).

• The lid on the salt dispenser is not closed properly.

• The rinse aid has been used up or the dosage is too low. The dishes and glasses are streaked or have a bluish tinge.

• The rinse aid dosage is too high. The crockery has not been dried properly.

• A wash cycle without a drying program has been selected.

• The rinse aid has been used up or the dosage is too low (see Rinse aid and salt).

• The rinse aid dispenser setting is not suitable.

• The crockery is made from non-stick material or plastic. The dishes are not clean. • The racks are overloaded (see Loading the racks).

• The crockery has not been arranged well.

• The sprayer arms cannot move freely.

• The wash cycle is too gentle (see Wash cycles).

• An excessive amount of foam has been produced: the detergent has not been measured out correctly or it is not suitable for use in dishwashers (see Start-up and use).

• The lid on the rinse aid compartment has not been shut correctly.

• The filter is dirty or blocked (see Care and maintenance).

• The refined salt level is low (see Rinse aid and salt). The dishwasher does not take any water in - Tap shut-off alarm (the ON/OFF indicator light flashes and the following message appears on the display: No water. Open tap. After a few seconds, A:6 will appear).

• There is no water in the mains supply.

• The water inlet hose is bent (see Installation).

• Turn on the tap and the appliance will start after a few minutes.

• The appliance lock has been activated because no action was taken when the beeps sounded. Switch off the appliance using the ON/OFF button, turn on the tap and switch the appliance back on after 20 seconds by pressing the same button. Re- program the appliance and restart the wash cycle. Water inlet hose alarm / Water inlet filter blocked (the ON/OFF indicator light flashes and the display shows A:7).

• Switch off the appliance by pressing the ON/OFF button. Shut off the water tap to eliminate the risk of flooding and remove the plug from the electrical socket. Make sure the water inlet filter has not become blocked by impurities (see “Care and maintenance” chapter)..4
