USER MANUAL Star Elements BEEM
Toaster
Grille-pain
Broodrooster
Two modern kitchen TOPS with black and silver shades, each holding a pair of bread slices (no text or symbols visible)natural_image
Modern black and silver toaster with two golden-brown cutouts (no text or symbols visible)natural_image
Modern toaster with two golden-brown baked goods on a metal grater (no text or symbols visible)natural_image
Close-up of a white and black toaster with a cable inserted, labeled '4' (no text or symbols on the device itself)Information on this user manual .... 3
Copyright 31
Warnings 32
Intended use 33
Liability disclaimer 33
Safety 3
Fundamental safety precautions 34
Danger of electric shock 35
Danger of burns 35
Startup 3
Safety instructions 36
Unpacking 36
Delivery contents and transport inspection 36
Disposing of the packaging 37
Requirements for the place of operation 37
Electrical connection 38
Appliance overview/delivery contents 39
Control panel 40
Before using for the first time 40
Operation 4
Safety instructions 41
General notes 41
Toasting 42
Canceling the toasting process 43
Toasting frozen bread 43
Warming up toast 43
Toasting bagels 44
Removing a stuck piece of toast 44
Using the bun rack 45
After use 45
EN
Table of Contents
Cleaning and care 4
Safety instructions 46
Cleaning 47
Housing 47
Crumb tray 47
Care of stainless steel parts 47
Troubleshooting 4
Safety instructions 48
Fault causes and remedies 48
Information on storage/disposal 4
Storage 49
Disposal 49
Appendix 4
Technical data 49
Spare parts and other accessories 50
Certifications 50
Guarantee, service and repairs....51
EU Declaration of Conformity 53
Index 5
Foreword
Dear customer,
By purchasing the Star*Elements toaster, you have chosen a quality product from BEEM.
Please read the information below to quickly become familiar with your appliance and make a full use of its functions.
Your appliance will serve your needs for many years to come provided you handle and maintain it with due care.
We would like to wish you much pleasure while using it.
Information on this user manual
This user manual forms an integral part of the toaster (hereinafter referred to as the appliance) and contains important information for startup, safety, intended use and care of the appliance.
The user manual must be kept near the appliance at all times. It must be read and observed by all persons entrusted with operation, troubleshooting and/or cleaning of the appliance.
Keep this user manual in a safe place and pass it on to any future owners together with the appliance.
Copyright
This document is protected by copyright.
Any duplication or reprinting, in whole or in part, as well as reproduction of the illustrations even in modified form is only permitted with the written approval of the manufacturer.
Warnings
The following warnings are used in this user manual:
EN
DANGER
A warning of this category indicates a potentially dangerous situation.
If the dangerous situation is not avoided, it may lead to serious injury or even death.
Follow the instructions in this warning to avoid the danger of serious injury or even death.
WARNING
A warning of this category indicates a potentially dangerous situation.
If the dangerous situation is not avoided, it may lead to injuries.
Follow the instructions in the warning to prevent injuries to persons.
CAUTION
A warning of this category indicates potential material damage.
If the situation is not avoided, it may lead to material damage.
Follow the instructions in the warning message in order to prevent such damage.
NOTE
A note contains additional information to simplify the use of the appliance.
Intended use
This appliance is intended primarily for toasting slices of bread, bagels or buns for non-commercial use in closed rooms
Any use other than previously stated is considered as improper use.
WARNING
Danger from use for other than the intended purpose!
If not used for its intended purpose and/or used in any other way, the appliance may be or become a source of danger.
Use the appliance only for its intended purpose.
Observe the procedures described in this user manual.
No claims of any kind will be accepted for damage resulting from use of the appliance for other than its intended purpose.
The risk must be borne solely by the user.
If used commercially, please observe the conditions of the modified guarantee period.
Liability disclaimer
All technical information, data and instructions on installation, operation and care of the appliance contained in this user manual represent the latest status at the time of printing.
The manufacturer assumes no liability for damage or injury resulting from failure to observe the user manual, use for other than the intended purpose, unprofessional repairs, unauthorised modifications or use of non-approved spare parts.
Safety
EN
This appliance complies with the prescribed safety regulations. Improper use can however result in personal injury and/or damage to the appliance.
For safe use of the appliance, observe the following fundamental safety precautions and the precautions described separately in the individual sections:
Fundamental safety precautions
Inspect the appliance for visible signs of damage before use. ■ Do not use a damaged appliance.
■ Do not allow children to use the appliance without supervision.
Do not leave the appliance unattended during operation. ■
Do not pull the mains cable to remove the plug from the mains socket.
Do not operate the appliance with a timer or similar appliance.
Persons who due to their physical, mental or motor response abilities are unable to operate the appliance may only use the appliance under supervision or instruction by a responsible person.
Repairs to the appliance must only be carried out by an authorised specialist or by the works customer service.
Unqualified repairs can lead to considerable danger for the user. They will also invalidate the guarantee.
Repairs to the appliance during the guarantee period may only be carried out by service centers authorised by the manufacturer as the guarantee will otherwise be invalidated in the event of damage or subsequent damage.
Defective parts may only be replaced with original spare
parts. Only original spare parts guarantee that the safety requirements are met.
Danger of electric shock
DANGER
Danger from electric current!
Contact with live wires or components could lead to serious injury or even death!
Observe the following safety precautions to avoid any danger from electric current:
Do not use the appliance if the mains cable or mains plug is damaged.
Do not open the housing of the appliance. Danger from electric current if live connections are touched and/or the electrical and mechanical configuration is changed.
Never immerse the appliance or the mains plug in water or other liquids.
Do not reach into toasting slot.
Do not try to remove toasted food stuck in the toasting slot using a knife or other tools. Remove the plug and let the appliance cool down before rectifying faults.
Danger of burns
WARNING
The appliance can become very hot during operation!
Observe the following safety precautions to avoid burning yourself.
Do not touch the hot surfaces during operation.
Only hold the appliance by the handle during operation.
Do not cover the toasting slot.
Bread can burn. Never use the appliance in the vicinity of or underneath flammable materials such as curtains.
Before cleaning, allow the appliance cool down.
Startup
Safety instructions
EN
WARNING
Damage to the appliance or to persons could occur when using the appliance for the first time!
Observe the following safety precautions to avoid any danger:
Never play with packaging material. Risk of suffocation. ▶ Observe all information on the requirements for the place of operation and the electrical connection of the appliance to avoid personal injury and damage to property.
Unpacking
Remove the appliance, all accessory parts and the user manual from the box.
Before using for the first time, remove all packaging materials and the protective film from the appliance and accessories.
NOTE
Do not remove the rating plate or any warning signs on the appliance.
Delivery contents and transport inspection
By default, the appliance is supplied with the components stated in the overview.
NOTE
Check for visible signs of damage or missing items on delivery. Report incomplete or damaged items to your supplier/retailer immediately.
Disposing of the packaging
The packaging protects the appliance against damage during transit. The packaging materials have been selected according to environmental and waste disposal aspects and can therefore be recycled.
Recycling the packaging material for further use saves raw materials and reduces waste. When no longer required, dispose of the packaging materials in accordance with the local regulations.
NOTE
If possible, keep the original packaging during the guarantee period in order to be able to pack the appliance properly in the event of a guarantee claim. Transport damage will invalidate the guarantee.
Requirements for the place of operation
For safe and trouble-free operation of the appliance, the place of operation must satisfy the following requirements:
Place the appliance on a dry, flat, waterproof and heat-resistant surface.
The surface finishes on furniture may contain substances that can be detrimental to the rubber feet of the appliance. If necessary, place a mat under the feet of the appliance.
Do not put the appliance in a hot, wet or very humid environment or in the vicinity of inflammable materials.
■ Select a location that does not allow children to reach the hot surfaces of the appliance.
The mains socket must be easily accessible to enable quick disconnection of the appliance from the electric circuit in the event of an emergency.
Electrical connection
For safe and trouble-free operation of the appliance, the following instructions must be observed for the electrical connection:
■ Before connecting the appliance, compare the connection data (voltage and frequency) on the rating plate with those of your mains power supply. This data must correspond in order to avoid damage to the appliance. If in doubt, ask your electrical appliance retailer.
The mains socket has to be protected by at least a 10 A circuit ■ breaker.
If the appliance is to be connected to the power supply via an extension lead, the cable cross section must be at least 1.5 mm ^4 .
Ensure that the mains cable is undamaged and is not laid over ■ hot surfaces or sharp edges.
The mains cable must not pulled tightly, bent or come into ■ contact with the hot appliance or hot surfaces.
■ Place the cable in such a way as to avoid danger from tripping.
The electrical safety of the appliance is only assured when it is connected to a properly installed protective earth (PE) conductor system. Connection to a mains socket without PE conductor is forbidden. If in doubt, the electrical system must be checked by a qualified electrician.
The manufacturer assumes no liability for injury or damage caused by a missing or interrupted protective earth conductor.

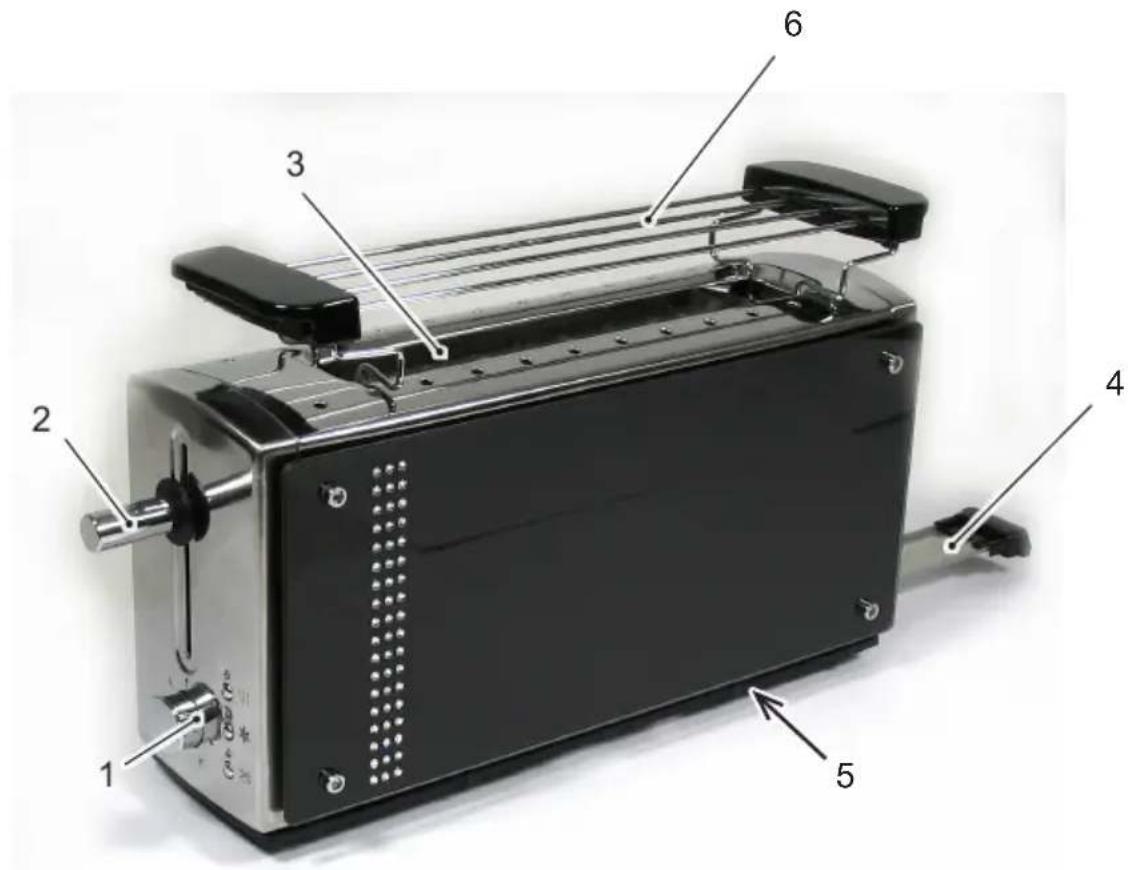

Appliance overview/delivery contents
5 Cable winder
2 Lifting lever
6 Bun rack
3 Toasting slot with bread centering guide
7 User manual (not illustrated)
4 Crumb tray

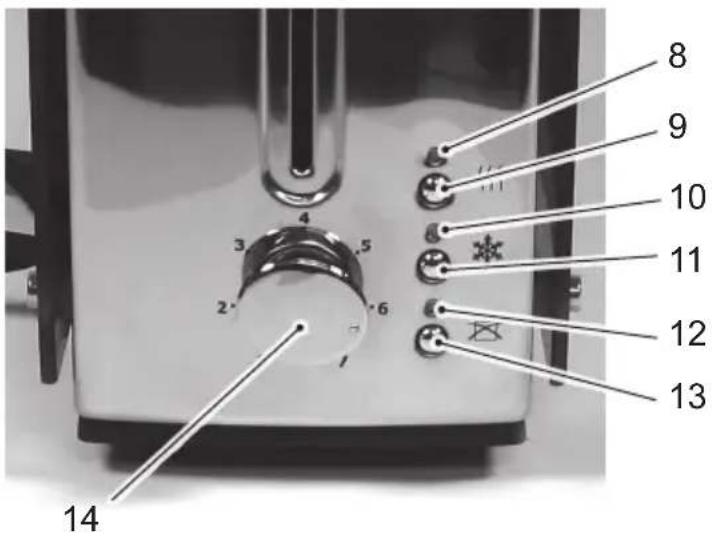

Control panel
EN
9 "Warm-up" button
10 "Defrost" indicator lamp
11 "Defrost" button
12 "Toasting" indicator lamp
13 "Cancel" button
14 Rotary switch for browning level
Before using for the first time
◆ Wipe the appliance and the crumb tray with a slightly damp cloth as described in the section Cleaning.
Switch on the toasting function of the appliance 3 to 4 times without bread and set to maximum browning level. Ensure sufficient ventilation.
Operation
This section contains important information on the operation of the appliance.
EN
Safety instructions
WARNING
Danger of burning! Hot steam may escape during operation and parts of the appliance become very hot.
Observe the following safety precautions to avoid burning yourself.
Do not touch the hot surfaces during operation.
Do not cover the toasting slot. ▶
General notes
Various different levels of browning are necessary and depend ■ on the type of bread:
white bread should be toasted at a low level, darker varieties ■ require a higher setting.
Set a browning level of 3 or 4 until you are familiar with the ■ appliance.
Set the browning level to allow the toast to become a golden ■ yellow and not too dark or brown.
■ Only use bread slices that fit into the slot of the toaster.
Only operate the appliance when the crumb tray has been ■ correctly inserted.

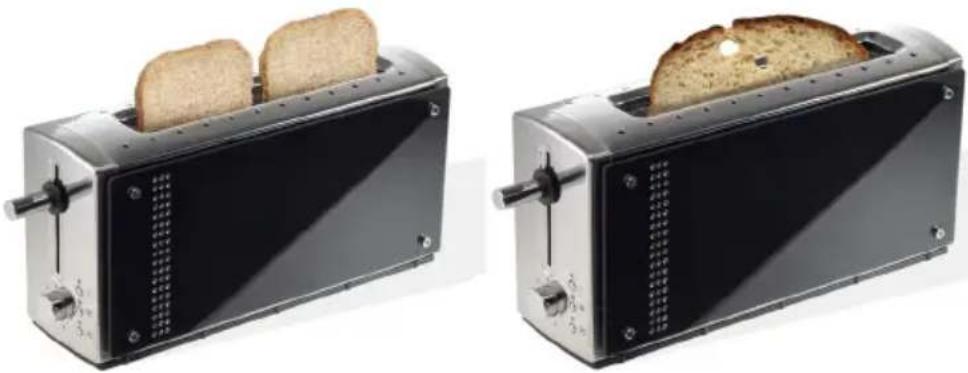

Toasting
EN
NOTE
Level 1: lowest browning level. ▶ Level 7: highest browning level. ▶
◆ Press down the lifting lever (2) until it locks. Toasting will start automatically. The "Toasting" indicator lamp (12) lights up.
NOTE
The lifting lever only locks at the bottom when the appliance is connected to the mains.
After toasting is completed, the appliance switches itself off automatically and the lifting mechanism returns to its upper position. The "Toasting" indicator lamp (12) extinguishes. Remove the bread from the slots
NOTE
You can push up the lifting lever manually. This simplifies removal of the toast.
Canceling the toasting process
◆ Press the "Cancel" button (13) to stop the toasting process. The lifting mechanism (2) returns to the upper position. The "Toasting" indicator lamp (12) extinguishes.
Toasting frozen bread
◆ Begin toasting as described in the section Toasting.
Also press the "Defrost" button (11). The "Defrost" indicator lamp (10) lights up.
After toasting is completed, the "Defrost" indicator lamp (10) extinguishes.
Warming up toast
The appliance is equipped with a heating function that allows you to warm up already toasted food. The warm up time is approximately 20 seconds and depends on the browning level set.
◆ Begin toasting as described in the section Toasting.
Also press the "Warm-up" button (9). The "Warm-up" indicator lamp (8) lights up.
After toasting is completed, the "Warm-up" indicator lamp (8) extinguishes.

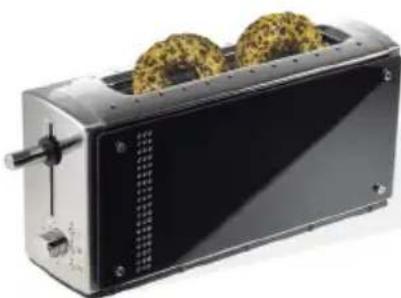

Toasting bagels
EN
NOTE
Depending on the supplier, bagels have different ▶ thicknesses and may not always fit into the toaster slot. In this case, cut the bagel into two halves or use the bun rack (6) to warm up the whole bagel.
Removing a stuck piece of toast
DANGER
Danger from electric current!
Contact with live wires or components could lead to serious injury or even death!
Observe the following safety precautions to avoid any danger from electric current:
Remove the plug and let the appliance cool down before removing toasted food.
Do not use sharp tools as these may damage the heating element and could also lead to injury.
Remove the toasted food carefully to prevent damage to the slots.
Using the bun rack


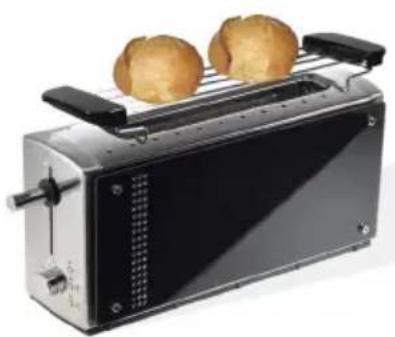

Modern kitchen toaster with two golden-brown baked goods on top (no text or symbols visible)Unfold both handles on the bun rack (6) and then fit the bun rack onto the appliance.
EN
Place a maximum of two buns onto the bun rack.
Turn the rotary knob (14) to the desired browning level.
NOTE
Choose a browning level between the lowest and middle levels.
◆ Press down the lifting lever (2) until it locks. Toasting will start automatically. The "Toasting" indicator lamp (12) lights up.
After toasting is completed, the appliance switches itself off automatically and the lifting mechanism (2) returns to its upper position. The "Toasting" indicator lamp (12) extinguishes.
Turn the buns over and press the lifting mechanism (2) down to switch on the toaster again.
Allow the appliance to cool down before removing the bun rack.
After use
Allow the appliance to cool down.
- Clean the appliance and the accessories used as described in the section Cleaning.
Cleaning and care
EN
This section contains important information on cleaning and care of the appliance.
Safety instructions
WARNING
Observe the following safety precautions before starting to clean the appliance:
Switch off the appliance and pull the plug out of the mains ▶ socket before starting cleaning.
Wait until the appliance has cooled down before you start to clean it.
Never immerse the appliance or the mains plug in water or other liquids.
CAUTION
Possible damage to the surface of the appliance!
Do not use sharp objects or abrasive cleaning agents to clean the surfaces.
Cleaning
Housing
Wipe the housing with a damp cloth. Use washing-up liquid to remove any stubborn stains.
EN
Crumb tray
Allow the crumb try to dry completely and push it back into the appliance.
Care of stainless steel parts
We recommend using INOX-METAL-POLISH from Beem for regular care and the removal of difficult stains from stainless steel surfaces. This polish restores the original gloss to your appliances. INOX-METAL-POLISH is available in tubes and is suitable for pots as well as for other objects made of stainless steel, chromium, brass, copper, aluminum, silver and also hard plastics. INOX-METAL-POLISH is used in factories for polishing stainless steel. You can obtain INOX-METAL-POLISH from your retailer or by phoning us or visiting our website at www.beem.de.
Troubleshooting
EN
Safety instructions
DANGER
Danger from electric current!
Disconnect the plug from the mains socket before starting ▶ troubleshooting.
WARNING
Danger from unqualified repairs!
Unqualified repairs can lead to considerable danger for the user and cause serious damage to the appliance.
Repairs to electrical appliances may only be carried out by specialists trained by the manufacturer.
Fault causes and remedies
| Fault Possible cause Remedy | ||
| Lifting mechanism does not lock into its lower position. | Not plugged in. | Insert the mains plug. |
| No mains power. | Check the fuse/socket. | |
| The automatic circuit breaker in the fuse box trips. | Too many appliances connected to the same power circuit. | Reduce the number of appliances on the power circuit. |
| Appliance is defective | Contact customer service. | |
NOTE
If you cannot resolve the problem with the steps described above, please contact customer service.
Information on storage/disposal
Storage
If you do not intend to use the appliance for a longer period of time, empty and clean it as described in the section Cleaning and care. Store the appliance and all accessory parts in a dry, clean and frost-free location which is protected against direct sunlight.
Disposal
This product may not be disposed of in the domestic refuse within the European Union.
Dispose of the appliance in accordance with the EU Directive 2002/96/EU-WEEE (Waste Electrical and Electronic Equipment). Should you have any questions, please contact the local authority responsible for waste disposal.
Appendix
Technical data
| Model Star*Elements Toaster | |
| Type number Z5.001 | |
| Operating voltage 220 - 240 V~ | |
| Mains frequency 50 Hz | |
| Power consumption 1000 W | |
| Protection class I | |
| Dimensions 230 x 430 x 140 mm (H x W x D) | |
| Approximate weight approx. 2.9 kg | |
Spare parts and other accessories
EN
| Item* Article No. Designation |
| 2 900 581 011 Lifting lever |
| 4 900 581 001 Crumb tray |
| 6 900 581 006 Bun rack |
| - 900 581 016 Glass plate with crystals |
* according to the drawing in the description of the appliance
Certifications
| Symbol Meaning | |
 | The appliance has been tested and certified by Intertek. |
 | The appliance conforms to the relevant EU Directives (see Declaration of Con-formity). |
 | This appliance conforms to the Directives on the Restriction of Hazardous Substances in Electrical and Electronic Devices (RoHS). |
 | This appliance conforms to the provisions of the Waste Electrical and Electronic Equipment Directive (WEEE). |
Guarantee, service and repairs
This is a quality product from BEEM and was produced using the latest manufacturing methods.
We guarantee the perfect condition of this quality product. We will remedy any faults due to material flaws or manufacturing faults free of charge within the guarantee period.
The guarantee period for this product is 2 years.
For commercial or equivalent use, e.g. in hotels, guest houses or communal premises, or if the customer is not a consumer as defined by the German Civil Code, the guarantee is 6 months. This does not infringe the guarantee disclaimer.
Guarantee disclaimer: the guarantee does not cover faults caused in particular by improper use, failure to observe instructions in the user manual and safety precautions, use of force, modifications, unauthorised attempted repairs and attempted repairs by unqualified third parties. Faults caused by normal wear are also excluded.
If we are obliged by law to provide a guarantee and will comply with such obligation – to the exclusion of the right to cancellation or price reduction – and at our discretion, repair or replace the product free of charge. Should the remedy fail despite several attempts or should the replacement product exhibit faults attributable to us, the customer shall be entitled to reduce the purchase price or to cancel the contract of purchase at his/her discretion. Claims under guarantee do not prolong the guarantee period. For exchange or return of the appliance (withdrawal from the purchase contract) or reduction of the purchase price, the first contact is always the retailer from whom you purchased the product. This particularly applies to returning the appliance or the claim for reductions as these must be settled with respect to the purchase price. Refunding the purchase price or a credit note in the event of a reduction of the purchase price can only be handled by the retailer from whom you purchased the appliance.
EN
Should faults nevertheless occur, please try to resolve the matter by telephone first. Should this not be successful, please send the carefully packed appliance to your retailer or to the customer service address shown below. Please state your complete address, the type and model number and the serial number of the appliance. This information can be found on the rating plate of the appliance. Please describe the fault or defect in as much detail as possible. The product or spare part order should be accompanied by a printed and dated receipt of purchase or an invoice. No services under guarantee can be provided for repairs, spare parts or other claims without a printed receipt of purchase or an invoice.
Outside Germany and in particular in non-EC countries, please contact your retailer or the local distributor first. Information can be obtained – preferably by e-mail – from the customer service address indicated below.
Repairs not covered by the guarantee can also be performed against individual payment by customer service - outside Germany by the retailer from whom you purchased the appliance or by a service centre, if available.
Replacement parts and consumables can be ordered from your retailer or the stated customer service address. Please contact your dealer or the local distributor first if you live outside of Germany.
For product information, ordering accessories or questions on service handling, please contact your retailer or the stated customer service. Outside Germany and in particular in non-EU countries, please contact your retailer or the local distributor first.
You can also use the Internet. You will find accessories and spare parts, as well as user manuals in various languages on our website www.beem.de. Additional product information can also be found there.
EU Declaration of Conformity
| Name/address of manufacturer: | BEEM Blitz-Elektro-Erzeugnisse Manufaktur Handels-GmbHDieselstraße 19-21D-61191 Rosbach v.d.H. |
| We hereby declare that the product | |
| Model: Star*Elements Toaster | |
| Type: Z5.001 | |
| conforms to the following relevant regulations:EU Directive 2006/95/EU Electrical devices for use within certain voltage limits,EU Directive 2004/108/EU Electromagnetic Compatibility. | |
| EN50366:2003+A1:06EN55014-1:2000+A1:2001+A2:2002EN55014-2:1997+A1:2001EN60335-1:2002+A11:07+A12:06+A2:06EN60335-2-9:2003+A1:04+A2+A2:06EN61000-3-2:2000+A2:2005EN61000-3-3:1995+A1:2001+A2:2005 | |
| Rosbach, 17th May, 2011 |  Bijan Mehshat(Legally binding signature of the issuer) |
Index
EN
A
Appliance elements 39
B
Before using for the first time ..... 4 0
C
Certifications....50
Checking contents 36
Cleaning
Crumb tray 47
Housing. 47
Control panel 40
D
Damaged appliance .... 3 4
Danger of burns 35
Delivery contents 36, 39
Disposal 37,49
E
Electrical connection....38
EU Declaration of Conformity.....53
G
Guarantee....51
/
Intended use....3 3
L
Liability disclaimer 33
N
New owner 31
O
Operation 41
P
Packaging. 37
Place of use 37
R
Repairs 51
S
Safety 34
Service 51
Spare parts....50
Startup 36
Storage 49
T
Technical data....49
Toasting 42
Toasting bagels....4 4
Toasting frozen bread....43
Troubleshooting 48
U
Unpacking....36
Using the bun rack .....45
W
Warming up toast 43
Warnings. 32
Table des matières
Avant-propos 5
Two identical black-and-white photo of a pair of modern kitchen toilets, each with one slot open to reveal the kernel and kernel cut (no text or symbols visible)natural_image
Modern toaster with two golden-brown cutlery and a black handle (no text or symbols visible)natural_image
Modern kitchen toaster with two round food items on top (no visible text or symbols)natural_image
Close-up of a modern toaster with a black clip inserted, labeled '4' (no text or symbols on the device itself)text_image
Labeled diagram of a black square grater with numbered parts for identificationNL
