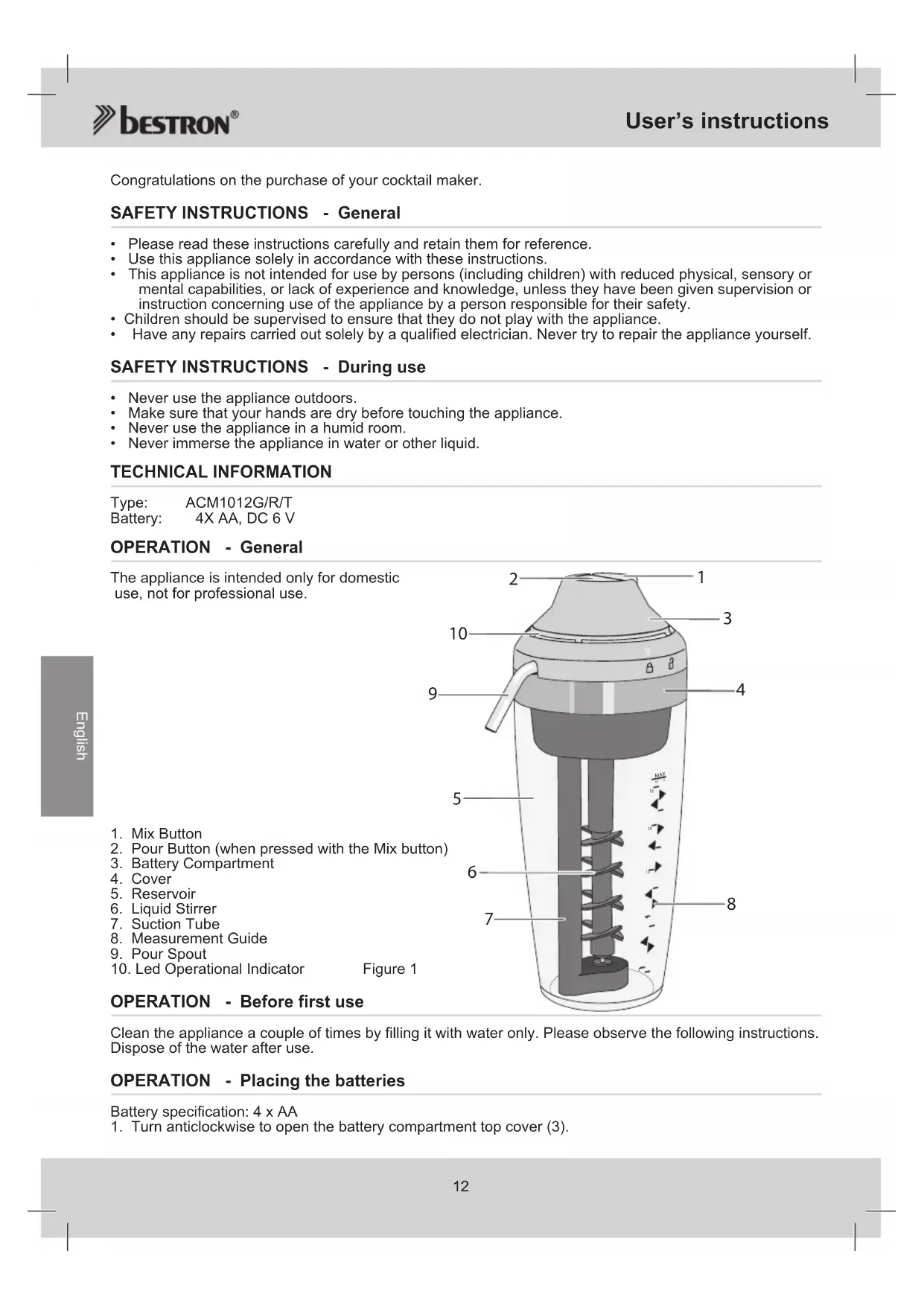

Congratulations on the purchase of your cocktail maker.

SAFETY INSTRUCTIONS - General

• Please read these instructions carefully and retain them for reference.
• Use this appliance solely in accordance with these instructions.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
  • Have any repairs carried out solely by a qualified electrician. Never try to repair the appliance yourself.

SAFETY INSTRUCTIONS - During use

• Never use the appliance outdoors.
• Make sure that your hands are dry before touching the appliance.
• Never use the appliance in a humid room.
- Never immerse the appliance in water or other liquid.

TECHNICAL INFORMATION

Type: ACM1012G/R/T

Battery: 4X AA, DC 6 V

OPERATION - General

The appliance is intended only for domestic use, not for professional use.

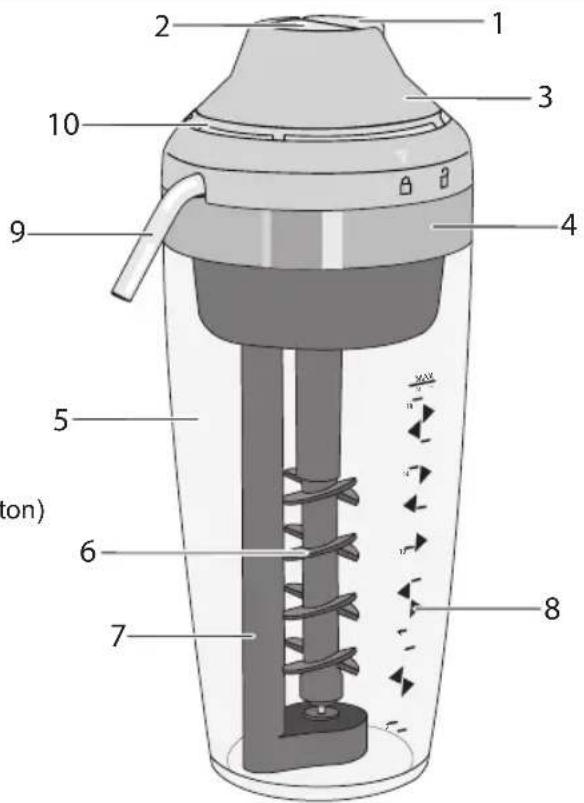

1 2 3 4 5 6 7 8 9 10 (ton)

1. Mix Button
2. Pour Button (when pressed with the Mix button)
3. Battery Compartment
4. Cover
5. Reservoir
6. Liquid Stirrer
7. Suction Tube
8. Measurement Guide
9. Pour Spout
10. Led Operational Indicator Figure 1

OPERATION - Before first use

Clean the appliance a couple of times by filling it with water only. Please observe the following instructions. Dispose of the water after use.

OPERATION - Placing the batteries

Battery specification: 4 x AA

1. Turn anticlockwise to open the battery compartment top cover (3).

2. Remove the battery compartment cover and install 4 AA batteries according to the polarity indicators inside the compartment.

3. Replace the battery compartment cover.

OPERATION - Use

1. Fill the reservoir (5) with your favorite drink combination.
2. Replace the cover with attachments (6-7) back on the Cocktail Mixer.
3. Press the mix button to mix (1). the led (10) will illuminate while the cocktail mixer is mixing your drink.

Tip For a chilled beverage, you may mix your drink with small chips of ice or small ice cubes.

1. Aim the pour spout (9) into the top of a frosted, ice filled glass and press the pour (2) and mix (1) buttons simultaneously to dispense your mixed drink. The led will illuminate.

Liquid may pour out of the spout unexpectedly if you are mixing a carbonated drink.

CLEANING AND MAINTENANCE

1. Unscrew the cover and remove it and the liquid stirrer and suction tube from the reservoir.
2. Fill the reservoir to the half-way mark with warm water and some liquid detergent and replace the cover with attachments back on the cocktail mixer's reservoir.
3. Press the mix button, led will illuminate.
4. Aim the pour spout back into the sink and dispense the water by pressing both the mix and pour buttons together. The led will illuminate. Repeat this process with just warm water until no more suds appear.
5. Unscrew the cover and remove it and the liquid stirrer and suction tube from the reservoir and carefully dry each piece.

- Never immerse the appliance in water. Never put the appliance in a dishwasher. Never use corrosive or scouring cleaning agents or sharp objects (such as knives or hard brushes) to clean the appliance.

THE ENVIRONMENT

- Dispose of packaging material, such as plastic and boxes, in the appropriate waste containers. When this product reaches the end of its useful life do not dispose of it by putting it in a dustbin; hand it in at a collection point for the reuse of electrical and electronic equipment. Please refer to the symbols on the product, the user's instructions or the packaging.

• The materials can be re-used as indicated. Your help in the re-use, recycling or other means of making use of old electrical equipment will make an important contribution to the protection of the environment.
• Contact your municipality for the address of the appropriate collection point in your neighbourhood.

GUARANTEE TERMS

The importer guarantees the appliance against defects caused by manufacturing and/or material faults for 60 months from the date of purchase, subject to the following conditions.

1. No charges will be made for labour costs or materials during the warranty period. Any repairs carried out during the warranty period do not extend the warranty period.
2. The importer automatically becomes the owner of any faulty parts that he replaces or a faulty appliance (in the event of replacement of the appliance).
3. All claims submitted under warranty must be accompanied by the original bill of sale.
4. Claims under warranty must be submitted to the dealer where the appliance was purchased or to the importer.
5. The warranty is issued solely to the first purchaser and cannot be transferred.
6. The warranty does not cover damage caused by:

a. Accidents, incorrect use, wear and/or neglect.
b. Faulty installation and/or use in a manner contravening the prevailing legal, technical or safety regulations.
c. Connection to a mains voltage other than the voltage specified on the type plate.
d. Unauthorized modifications.
e. Repairs carried out by third parties.
f. Careless transport, i.e. without suitable packaging materials or protection.

1. No claims may be made under this warranty for:
   a. Losses incurred during transport.
   b. The removal or changing of the appliance's serial number.
2. The guarantee does not cover power cords, lamps or glass parts.
3. No claims can be submitted under this warranty for damage other than the repair or replacement of faulty parts. The importer can never be held responsible for any consequential loss or damage or any other consequences, resulting either directly or indirectly from the appliance supplied by the importer.
4. In case of claims under guarantee you can contact your dealer where the appliance is purchased. Bestron offers you also the possibility to send the appliance directly to our Service Department. Do not send your appliance without consulting us. The package may be refused and any any costs will be for your account. Please contact the Service Department and they will tell you how to pack and send the appliance.
5. This appliance is not suitable for professional use.

SERVICE

If a fault should occur please contact the BESTRON service department:

THE NETHERLANDS:

BESTRON NEDERLAND BV

Bestron Service

Moeskampweg 20

5222 AW 's-Hertogenbosch

Tel: +31 (0) 73 - 623 11 21

Fax: +31 (0) 73 - 621 23 96

Email: [e-mail]

Internet: www.bestron.com

CE DECLARATION OF CONFORMITY

This product conforms to the essential requirements of the following EU safety directives:

• EMC Directive 2004/108/EC
• Low Voltage Directive 2006/95/EC
