USER MANUAL DM 90.2 CANTON

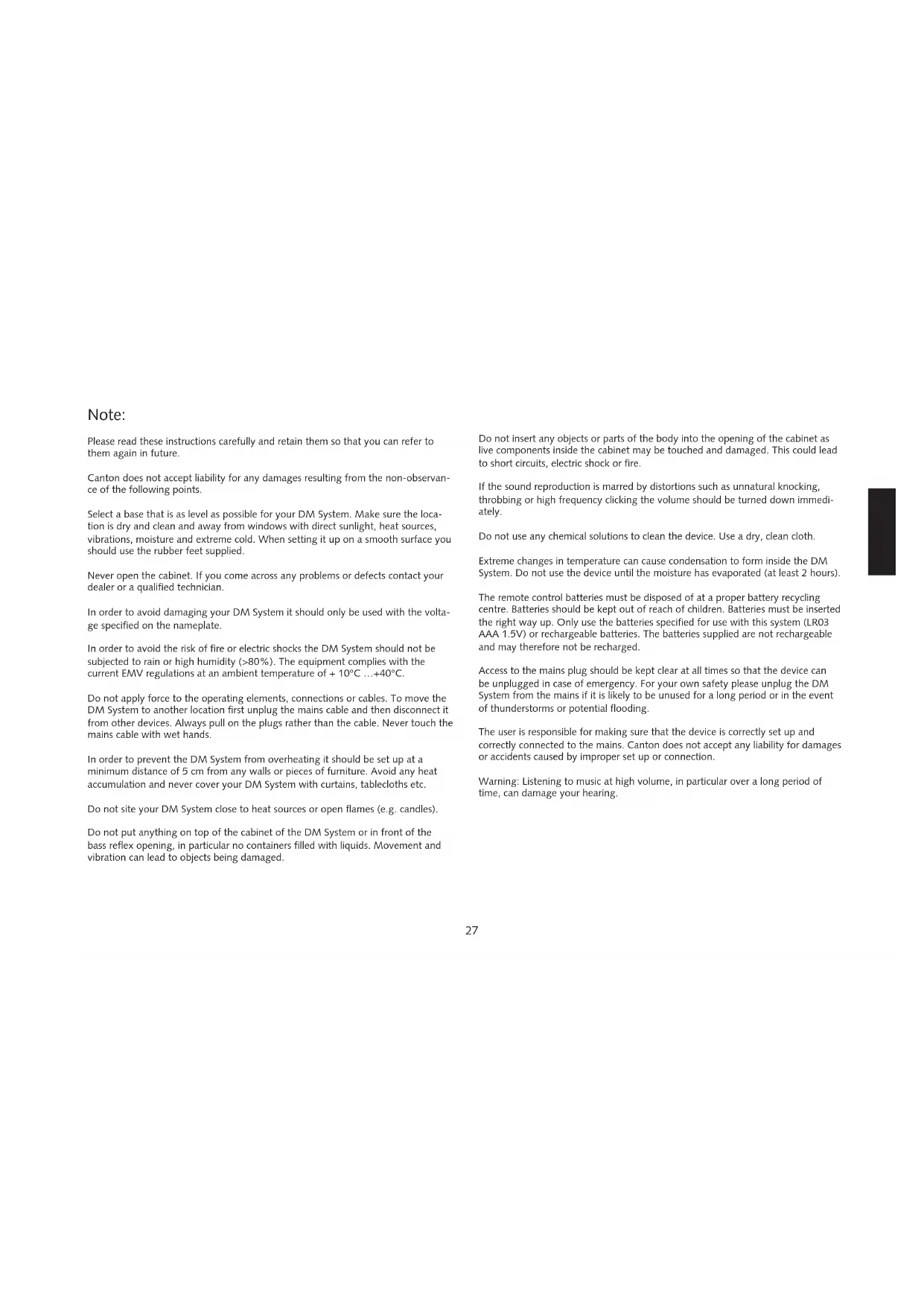

Warning: Listening to music at high volume, in particular over a long period of

time, can damage your hearing.28 System description The virtual surround system of the DM Series creates a rich and full sound field that is normally only possible with 5.1 Systems. To achieve this sound quality the individual channels of a multi-channel recording are put through a special frequency-specific process and mixed onto two channels, which then creates the impression of surround sound in the room. The result is outstanding listening pleasure for minimum installation costs. The systems have an integrated, RDS-enabled FM Tuner and adaptive remote control, which can be used to control a second listening zone (Multiroom). Dear Customer, Welcome to the Canton family and thank you for the confidence you have shown in us with the purchase of this system. You have selected a high quali- ty loudspeaker system, which shows that you have high standards regarding sound quality and workmanship. Please read through these instructions carefully before setting up and connecting your DM System. They are designed to help you to get the most out of your system. The Canton distribution network covers over 40 countries. If you have any questions our team of experienced distributors along with the authorised dealers will be happy to help you. We hope that you get many long hours of pleasure and satisfaction from your DM System. The Canton team29 DeutschEnglish FrançaisEspagnol Package contents DM 90.2 The Digital Movie System DM 90.2 is supplied with the following components:

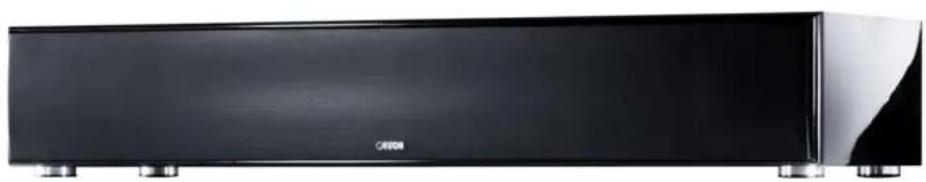

1) An active Center Surround loudspeaker with integrated audio receiver (including RDS-enabled FM Tuner).

2) A cable set for connecting 3 digital and 2 analog sources.

3) An easy-to-use remote control with display panel.

4) A coaxial cable for connection to a broadband cable network.

5) A power cable for connection to the mains power supply.

6) An aerial for VHF reception.

- Three batteries (LR03 AAA 1.5V) for the remote control

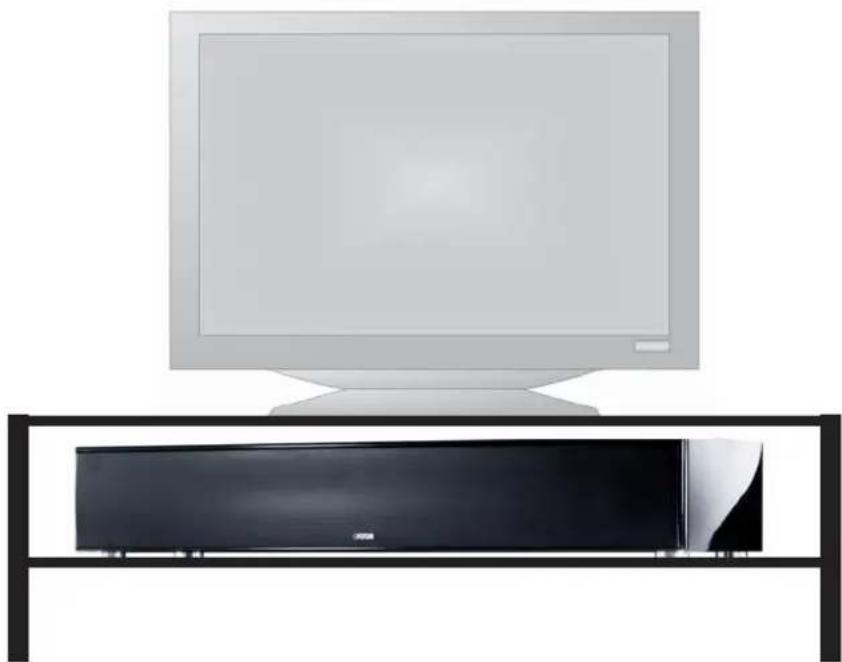

Positioning the DM System The Center Surround loudspeaker DM 90.2 should be positioned above or below the television. A flat screen TV may be placed directly on top of the DM 90.2. If using a tube TV that may be deeper than the DM System you must be careful to ensure that it is securely placed on the DM 90.2 and is not able to wobble.

Warning: The DM 90.2 can only tolerate weights of up to 80 kg.31

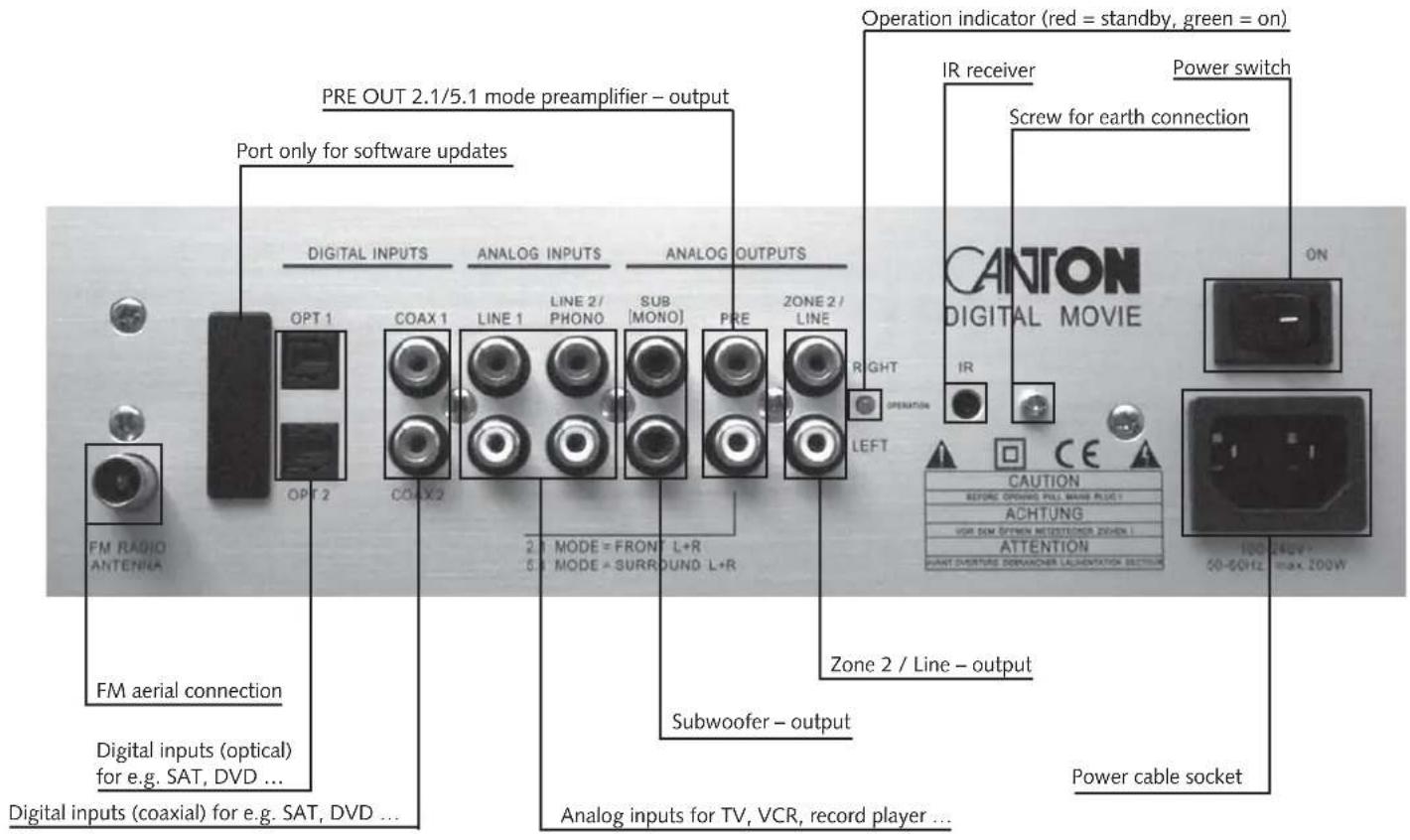

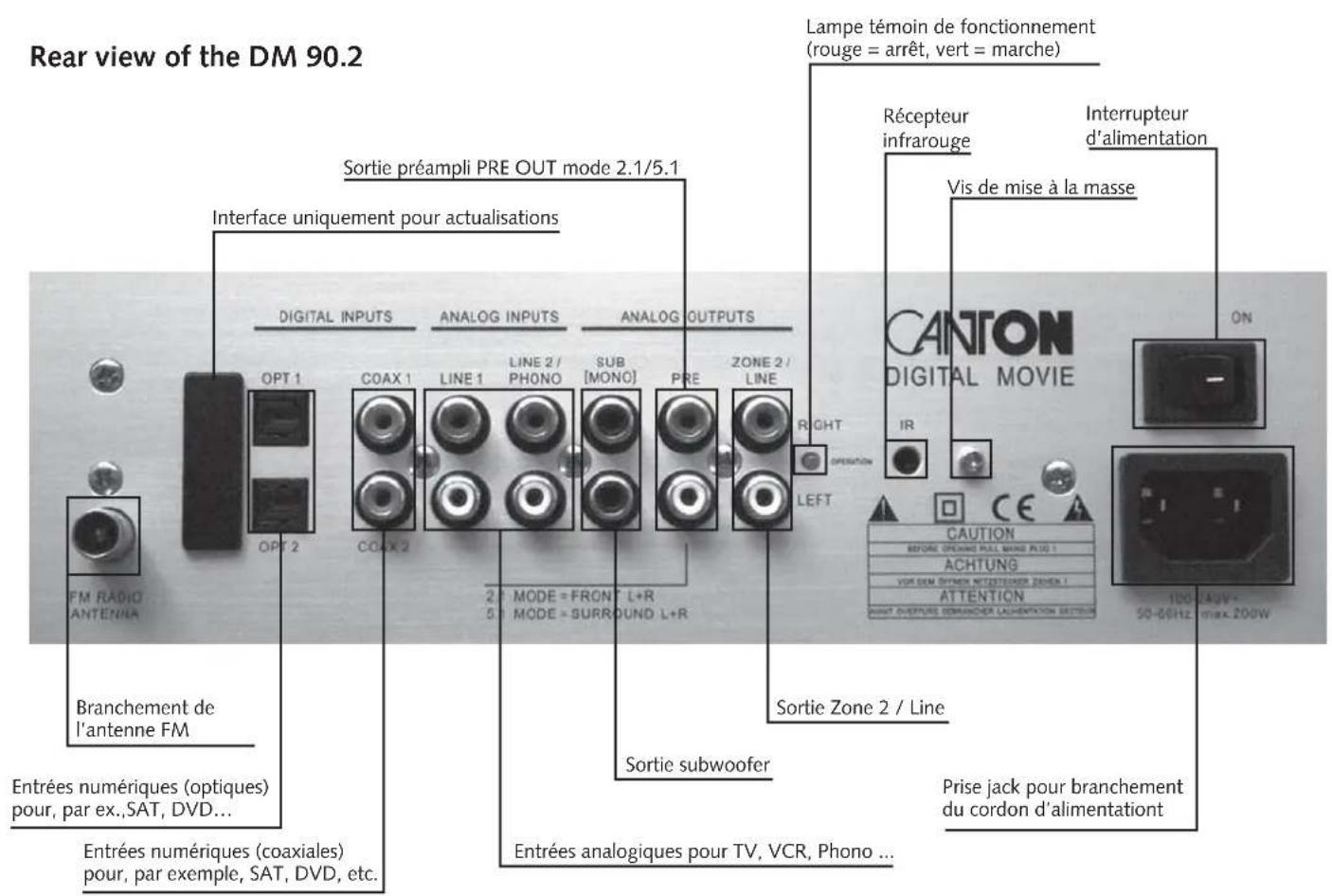

DeutschEnglish FrançaisEspagnol Rear view of the DM 90.2 FM aerial connection Digital inputs (coaxial) for e.g. SAT, DVD … Analog inputs for TV, VCR, record player … Digital inputs (optical) for e.g. SAT, DVD … PRE OUT 2.1/5.1 mode preamplifier – output Power cable socket Power switch Operation indicator (red = standby, green = on) Subwoofer – output Zone 2 / Line – output IR receiver Port only for software updates Screw for earth connection32 Connecting the DM 90.2 There is no need to connect up the individual “loudspeakers” with the DM 90.2 as all the wiring is internal. Connecting the source devices The Canton DM System offer a wide range of connection options for almost all popular source devices, such as DVD players, video recorders, satellite receivers, multi-media con- soles (Playstation®, X-Box®, …) etc. The audio connections for your source devices need to be connected to the corre- sponding ports on the back of the DM 90.2. Source devices that have a digital output for Dolby Digital and DTS Bitstream should be connected digitally to the DM System. This ensures full Dolby Digital and DTS sound quality. The video signal connections are made directly between the source devices and the image display device. The image source to be used is selected directly from the menu of the image display device. In order to use the integrated FM Tuner of the DM System you need to connect the aerial supplied to the appropriate socket on the DM 90.2. Better reception will be achieved if the aerial is extended. For optimal reception we recommend connection to a broadband cable network or a roof-mounted aerial using the coaxial cable supplied. Before you can start using the DM 90.2 for sound reproduc- tion you need to go through the initial installation process and assign the inputs to the source devices. You will be asked to do this automatically when you first switch on the device (see page 12). The Line 2 / Phono input allows you to connect either a line-level au- dio source (up to 2V) or a record player (up to 5mV). This can be done by selecting the relevant set up in the system menu. The Pre (2.1/5.1 Mode) output allows you to connect, for example, active wireless loudspeakers. According to the set up selected in the System Menu (Factory Set / Gerätenamen) the output will be through the front channels in 2.1 Mode or the surround loudspeakers in 4.1 Mode. The Zone 2 /Line output has a number of output options, which can be selected in the System Menu of the remote control: - Zone 2 with individually adjustable volume for connection to an active Multiroom or wireless loudspeaker system. - Line with fixed volume for connection to a recording device, etc …

Warning: In order to play 5.1 multi-channel recordings (Dolby Digital

or DTS) via the ZONE 2/LINE OUT the “dynamic” setting in the System Menu should be set to “comp”. For normal playback we recommend that you use the “full” setting (see page 40). In order to use Dolby Digital/DTS signals (Bitstream) via Zone 2 you need to select Zone 1 (Main listening zone) as the input. The Sub output allows an active subwoofer to be connected. This needs to be activated in the System Menu (see page 17). If the Sub output is activated the internal subwoofer of the DM System goes through the high pass filter while the external subwoofer goes through the low pass filter at 80Hz.33 DeutschEnglish FrançaisEspagnol Remote control Function keys, menu-dependent functions Number keys Volume keys OK key On/Standby key Function keys, menu-dependent functions Number keys Mute key Menu key Programme keys (only IR mode) Device selection key Personal settings (<preset>) Decoder mode Selected volume Playback mode Selected source Scroll key Exit key Sources selected using the function keys Modes and <preset> selected using the function keys34 Operating the DM System Press to start the DM System. If you want to turn the DM System off again press again. The DM System will go back into Standby mode. Setting up the remote control Insert the batteries supplied into the remote control. Be careful to insert them the correct way up according to the polarity markings (+/-). Using the remote control When all devices are connected to each other and the power has been switched on the Canton DM goes into Standby mode. Press any key to activate the remote control. If the remote control is not used for longer than 30 seconds it goes into idle mode. Press any key to reactivate it. Note: When the device is turned on for the first time it starts the initial installation process automatically (see page 36). If the display shows “keine Verbindung” then there is no radio connection between the remote control and the DM System. Check that the DM System is switched on and connected to the mains power supply or reduce the distance between the remote control and the DM System. Note: If the DM System is disconnected from the mains power supply when it is still switched on it will automatically go back into an active state when it is reconnected to the mains power supply (e.g. via a master or slave multiple socket lead).35 DeutschEnglish FrançaisEspagnol Initial installation Before you can use the DM 90.2 you need to assign the inputs to the connected source devices. You will be asked to do this when you first switch the device on. To get to the input configuration press . Use the “<” and “>” arrow keys to choose names for the connected devices. You must confirm these by pressing “OK”. To exit the input config menu press to save all the entries. Then press to end the initial installation and return to the main menu.

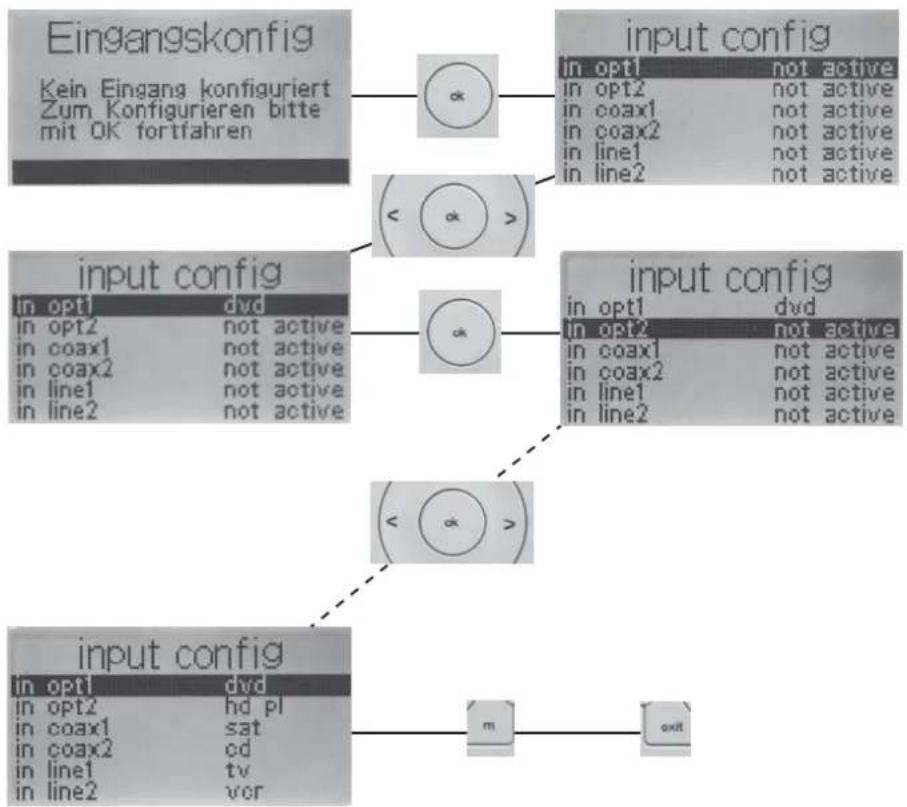

Warning: The arrow keys and may

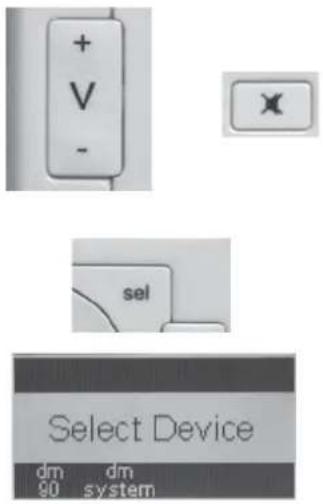

not be used when assigning the inputs. Inputs that are defined as “not active” are not shown in the main menu.36 Main menu The remote control supplied has 8 function keys that can be used in different ways for different operating modes. The upper and lower sections of the display show the functions of each key. The sources can be selected using the (upper) function keys lying directly above them. If you have more than 3 sources you can use to scroll on to the next page and back. The Volume (V+/-) can be used to adjust the volume of the DM System in all menus (even when controlling IR devices) over 100 levels from 0 to 99. Mute turns the volume off or on. With <select> you can select one of the registered RF devices or a programmed IR device. If more than 8 devices have been registered/ programmed you can use to scroll to the devices that are not currently displayed.37 DeutschEnglish FrançaisEspagnol With you select whether the playback should be in one of the two stereo or surround modes. In addition to the “conventional” Stereo mode the DM System also offers a Wide mode with virtually extended stereo base. In order to allow for the different recording philosophies that are present in music recordings we have implemented two surround modes. Use “surround 2”, above all in cases of poor intelligibility (e.g. if the voice reproduction is unusually flat and incomprehensible).

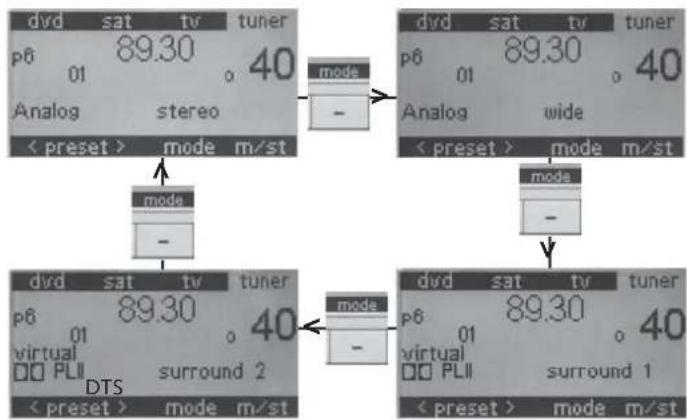

The system automatically adjusts to the appropriate decoder mode according to the input signal. The following decoder modes are possible: Analog Stereo Analog Surround Virtual Dolby PLII PCM (digital) Stereo PCM Surround Virtual Dolby PLII Dolby 2.0 Stereo Dolby Digital 2.0 Surround Virtual Dolby Digital 2.0 PLII Dolby 5.1 Stereo Dolby Digital Surround Virtual Dolby Digital DTS Stereo DTX Surround Virtual DTS38 Tuner The Canton DM 90.2 has an integrated FM Tuner (VHF) with RDS function. This can be selected using the function keys (radio) in the main menu of the remote control. There you can make the following adjustments: The automatic search is activated by pressing and holding (>2 sec.) the “<” or “>” arrow keys (to search backwards or forwards). During the search process the word “Seek” will appear in the display. The DM System stops automatically at every station with a sufficiently strong signal. The manual search is controlled by pressing on the “<” or “>” keys. This function can be used to fine-tune a radio station or to search manually for stations with a weaker signal. Reduction of hissing in stereo reproduction The DM System automatically uses stereo or mono reproduction depending on the strength of the signal. If you find a stereo reproduction has too much hissing you can use the function key to change it to mono reproduction and reduce the hissing. Saving a radio station To save a radio station in a programme slot press and the programme slot number will start to flash. Use arrow keys and to select from among 50 programme slots. Alternatively you can use the number keys to enter the programme slot number directly. After 5 seconds with no keys pressed the radio station will be saved in the programme slot shown on the display and the programme slot number will stop flashing. Note: The station name, transmitted via RDS, (e.g. HR 1, BR 2, SWR 3, …) will only appear upon selecting a saved radio station if the name appeared on the display at the point of pressing the OK key (the starting point of the saving process). Selecting a saved radio station Use the arrow keys and to select a programme slot. Alternatively you can use the number keys to enter the programme slot number directly. Stereo Mono39 DeutschEnglish FrançaisEspagnol Optional settings of the DM System Once your DM System is successfully connected and operational you have the option of setting various parameters. If you want to make any adjust- ments to the settings of the DM System just turn it on and press and hold (longer than 3 sec.). To exit the Settings Menu press again or use . Note: Basically you can use to exit the Settings Menu from almost all sub-menus. will just take you back one menu level. Settings Menu In the Settings Menu you can choose between the “Loudspeaker Menu” and the “System Menu”. On the next page you will find an overview of the menus. A more detailed description can be found on the website www.canton.de.40 Loudspeaker Menu In the Loudspeaker Menu the following parameters can be set to adjust the DM System to the room: Personal values To save all settings set in the loudspeaker menu up to 6 memory cells (<preset>) Volume adjustment To adjust the volume level of the individual channels (front left and right, subwoofer, …) Distance To balance out different distances between the loudspeakers and the listening spot Sound To adjust the treble and bass sounds to the room and according to personal taste Bass expand For the automatic volume-dependent adjustment of the bass volume level Room adjust Various parametric equalisers are available to balance out ambient factors System Menu In the System Menu the following parameters can be set: Output config To set the parameters for the Zone 2 /Line output Sub output To activate or deactivate the subwoofer output Input config To activate and name the 6 signal inputs (see the chapter “Initial installation”) IR programming To programme various remote operations (DVD player, TV, …, see the chapter “Learn Menu”) Lip sync To synchronise the sound with time-delayed TV images Dynamics To adjust the signal compression in the playback of multi-channel signals Factory Set The following parameters can be set using Factory Set: Switch-on volume To limit the maximum switch-on volume Max. volume To establish the maximum volume possible Device name To select the device configuration (2.1 Mode or 5.1 Mode …) Language To select German or English Line 2 config To select Line Level Input or Phono Level Input Factory setting To return the DM System to the factory setting it was supplied with Firmware To display the software versions (DM, tuner and remote control) Contrast To adjust the contrast settings of the display41 DeutschEnglish FrançaisEspagnol Learn Menu Pressing and at the same time brings you to the “Learn Menu”, where you can lern infrared-controlled devices and register other DM Systems. If the transfer of the remote control data is unsuccessful the message “Programming failed” will appear for approx. 5 seconds. After that the previous menu will be displayed and you can either repeat the programming or abort the process. If the programming has been successful you will see the message “Programming successful”. Repeat the process until all desired functions have been transferred. Press to return to the previous menu. Once you have selected the source with the function to be programmed and confirmed your selection using you will see the message “press remote button”. Position the original remote control (e.g. from your DVD player) opposite the one from your DM System (approx. 5 cm distance). On the original remote control briefly press the key with the function to be programmed and wait until the process has been confirmed on the display.42 Deleting source devices In order to totally delete a programmed device use the “Clear” func- tion. After pressing this function you will be asked if you really want to delete the device. Confirm this by pressing the “yes” function key. To abort the process press “no”. The remote control will then return to the Device Selection Menu. Use to enter the “Learn Menu”. To leave programming mode press again. Renaming the source devices If you want to rename a source device you can select a description from a comprehensive list of pre-programmed device names. Follow the steps described above. Programming the main keys The DM System has 5 main keys (Programme +/-, Volume +/- and Mute), which can be allocated to the IR codes of other infrared-controlled devices. Follow the steps shown above. Warning: The Volume +/- and Mute keys can only be used for infrared-controlled devices if no DM System has been registered. The volume control of the DM System will take priority over all other IR devices.43 DeutschEnglish FrançaisEspagnol Register your remote control with a DM System To register the remote control on a (further) DM System open the Programme Menu by pressing and simultaneously. Select “RF Learn” and confirm this with . Select “new device” to register a DM System on the remote control. After confirmation you will be asked to connect the DM System to be programmed to the mains power supply and to switch it on. Before doing this you should ensure that the DM System had been disconnected from the mains power supply for at least 1 minute. The remote control will now try to connect with the newly activated DM System. A successful connection will be shown in the display as “Installation successful”, while failure will bring the message “Installation failed”. If the connec- tion has failed you should identify the problem (device not switched on, distance too great, DM System not disconnected from the mains power supply for long enough, etc) and start the process again. After successful installation you must enter a name for the DM System. If you enter a name (e.g. DM 90) more than once the remote control will automatically allocate it a subscript (e.g. DM90.1, DM 90.2 …). You can then exit the “RF-Learn” menu by pressing twice. If you wish to overwrite an existing DM System, instead of selecting “new device” you should select the system you wish to replace and confirm your selection with . Select the “Learn” function to proceed. Confirm the overwriting with the “yes” function key or abort the process with “no”. Continue as previously described under “new device”. De-register your remote control from a DM System To de-register your remote control from a DM System open the Programme Menu by pressing the and simultaneously, select “RF Learn” and confirm with . Select the system you wish to “delete” and confirm your selection with . Select and confirm the “Clear” function to continue. Complete the de-registration process by pressing the “yes” function key or abort the process with “no”.44 Remote control (abbreviation: RC) Description of problem Possible cause(s) Solution The RC display is blank 1. The RC is in idle mode 1. Press any key to activate the RC

2. The batteries are missing or wrongly inserted 2. Insert the batteries correctly (+/-)

3. The batteries are “empty” 3. Insert new batteries correctly (+/-) or charge rechargeable

batteries The RC keeps showing “Welcome CANTON”, “Good bye 1. The RC processor has crashed 1. Remove a battery from the RC for min. 30 minutes then re- CANTON” or “please wait” insert correctly

2. The DM System processor has crashed 2. Switch the DM System off at the mains for min. 30 minutes

then switch it back on The RC shows “no connection” 1. The DM System is not ready 1. Connect the DM System to the mains power supply and / or switch it “ON”

2. The distance between the DM System and the RC is too great 2. Reduce the distance to less than 10 m

3. The DM System processor or the RC processor has crashed 3. Turn the DM System off at the mains for min. 30 minutes

then turn it back on and / or remove a battery from the RC for min. 30 minutes then re-insert correctly

4. The RC is not registered with the DM System 4. Register the DM System following the instructions on page

43 (Register your Remote Control with a DM System) Display on the RC is hard to read 1. Poor contrast setting 1. Press the “0” and “4” keys simultaneously until “kontrast xx” is displayed and use “<” or “>” to adjust the contrast. Press “exit” to close the window The display is in the “wrong” language 1. The display language of the RC has been switched 1. Press the “5” and “9” keys simultaneously until “language” (German and English are the 2 options) is displayed and use the function keys to select the desired language (display)

2. The language of the DM System has been switched 2. In the “System Menu” (m = > System Menu => factory set

=> language) select the desired language The RC jumps from IR mode into DM System mode 1. The batteries are almost “empty” 1. Insert new batteries correctly (+/-) or charge rechargeable batteries In IR mode commands are carried out 2x 1. When programming the code the key on the original RC was 1. When programming the function only press the key on the pressed for too long original RC for a (very) short time

2. The key on the DM – RC was pressed for too long 2. Only press the key on the DM – RC for a very short time

IR device is not operating (correctly) 1. The device has not been correctly programmed 1. Repeat the programming process for the Canton RC with the original RC of the IR device

2. The distance between the RCs was too great / too short 2. Ensure a distance of approx. 5 cm between the RCs when

3. The code of the original RC cannot be programmed 3. Due to the wide range of devices on the market it can

happen that codes cannot be programmed. Unfortunately this problem has no solution Troubleshooting and Optimisation45 DeutschEnglish FrançaisEspagnol DM System – Functions No inputs except “radio” can be selected 1. No inputs have been registered in the “input config” menu 1. Register the relevant inputs in the “input config” menu (e.g. initial installation was terminated with “exit”) (m => System Setup => input config). Follow the exact instructions on page 36! 2. During the configuration process the “up” or “down” arrow 2. Register the relevant inputs in the “Eingangskonfig” menu keys and / or the “exit” key were used (m => System Menu => Eingangskonfig) and only use the correct keys (see page 36) DM System does not recognise Dolby Digital or DTS data stream 1. The source is only connected to the analog port (Line 1 or 2) 1. Connect a digital output from the source device to Opt 1 / 2 or Coax 1 /2

2. The wrong settings have been selected on the source device 2. Select “Bitstream” or “Raw” as the data format on the

source device (referring to the instructions given for the source device) No signal from Zone2 / Line - Output 1. There should be a multi-channel signal from Zone2 / Line 1. Set “dynamic” (m => System Setup => Dynamic) to „comp“, under “Output Config” (m => System Setup => Output Config => Input) select “zone 1” as the input and on the main screen select the desired source as input

2. The volume for Zone2 is set too low 2. Increase the volume for Zone2 – output under “Volume”

(m => System Setup => Output Config => Volume) RC only displays “surround” instead of “surround 1” and 1. The DM System has been set to 4.1 or 5.1 mode 1. Set the system to 2.1 mode under “system preset” (m => “surround 2” System Setup => factory setup => System Preset)

Distorted radio reception 1. Poor aerial position 1. Arrange the extended (!) aerial as openly as possibly, well away from metal surfaces

2. Poor geographical location 2. Use a roof-mounted aerial or a broadband cable connection

3. The station has not been properly set 3. Tune the station manually, following the instructions on

page 39 A set radio station is no longer available once the system has 1. The station was not allocated a programme slot 1. Simply press the “OK” key to save a station in Programme been switched off and on again (display back on 87.50) Slot 1 Sound and image are not (lip)synched 1. Long processing times in the TV delay the image 1. Delay the sound in “lip sync” (m => System Menu => lip sync) so that the image and sound are synchronised (simulta neous)46 DM System -> Volume No (music) playback 1. The DM System is switched off or in Standby mode 1. Switch the DM System on so that the RC displays the main screen

2. The volume is set low or on mute 2. Use Volume + (V+) to increase the volume

3. The wrong input has been selected 3. Select the input that is connected to the relevant source

4. The signal (data stream) from the source has not been 4. Set the source to a different data format or select another

recognised by the DM System audio format during playback (referring to the instructions of the source device)

5. Wrong setting of Line2 / Phono input when using a 5. Set Line 2 / Phono – Input “line2 config” to “phono” (m

record player =>System Setup => factory set => line2 config) Volume will not go above a certain value (</=99) 1. The “max volume” is set to the maximum possible value 1. Set the volume limiter (m => System Setup => factory set => max volume) to the desired value (max. 99) DM System is quieter when switched on than when switched off 1. The “start volume” is set to a value that is lower than 1. Set the “start volume” (m => System Setup => factory the volume set before switching off set => start volume) to the desired value (max. 99 but not higher than “max volume”) The balance is wrong (location is not central) 1. The volume adjustment of the satellite speakers is wrongly set 1. In the Loudspeaker Menu use (m => Speaker Setup => or the listening spot is not central Level Trim) to set the correct volume levels and (m => Speaker Setup => Speaker Distance) to set the correct distances DM System – Sound In Surround Mode there is little or no surround sound 1. The Play Mode is set on “stereo” or “wide” 1. Set Play Modes to “surround 1” or “surround 2”

2. The listening spot is not central enough 2. In the Loudspeaker Menu use (m => Speaker Setup =>

Level Trim) to set the correct volume levels and (m => Speaker Setup => Speaker Distance) to set the correct distances to the listening spot

3. The source only supplies a 2-channel signal 3. To achieve optimal sound in the room the DM System

requires a multi-channel data stream. In this case the RC displays “virtual Dolby Digital” or “virtual DTS”. All other displays (e.g. “Virtual Dolby PLII) mean that it is not a multi- channel data stream, which leads to less of a surround sound impression

4. The DM System is set to 4.1/5.1 mode 4. Set the system to a 2.1 Mode with virtual surround-mode at

“System Preset” (m => System Setup => factory setup => System Preset)47 DeutschEnglish FrançaisEspagnol In Surround Mode the voices are hard to understand 1. During recording (BD or DVD) the voices were mixed 1. Select “surround 2“ as Play Mode between the right and left channels

2. The DM System is in 5.1 mode 2. Set the system to a 2.1 or 4.1 Mode at “System Preset”

(m => System Setup => factory setup => System Preset) The DM System has little or no low bass 1. Listening at a (very) low volume 1. Set “Bass expand” (m => Speaker Setup => Bass expand) to “low” or “high”

2. The output for an external subwoofer is activated but no 2. Deactivate the output for an external subwoofer at “Sub

subwoofer has been connected or is operating Output” (m => System Menu => Sub Output) or connect it to an operational external subwoofer using Sub-Out

3. The DM System is in a poor acoustic location 3. Where possible, set up the system in a different position (e.g.

4. Equalisers have been set in the “Room Comp” menu 4. Correct or delete the settings for the room adjustment (m =>

(volume level increase) Speaker Menü => Room Comp => subwoofer) The DM System has too much low bass 1. Listening at a high volume and activating the “Bass expand” 1. Set “Bass expand” (m => Speaker Setup => Bass expand) to “low” or “off”

2. Using an external subwoofer with too high a level 2. Adjust the external subwoofer (to a lower level)

3. The DM System is in a poor acoustic location 3. Where possible, set up the system in a different position (e.g.

4. Equalisers have been set in the “Room Comp” menu 4. Correct or delete the settings for the room adjustment (m =>

(volume level increase) Speaker Menü => Room Comp => subwoofer) The DM System has too little top bass 1. The DM System is in a poor acoustic location 1. Where possible, set up the system in a different position (e.g. closer to the wall)

2. Equalisers have been set in the “Room Comp” menu 2. Correct or delete the settings for the room adjustment (m =>

(volume level increase) Speaker Menü => Room Comp => subwoofer) 3. The bass level in the “Tone Control” menu is set to neutral 3. Increase the bass level in the Sound Regulation menu (m => or reduced Speaker Menü => Tone Control => Bass) 4. Use of an external subwoofer with the wrong phasing (phase 4. Correct the phasing on the external subwoofer to suit the adjustment) between internal and external subwoofers DM internal subwoofer or change the position of the external subwoofer48 The DM System has too much upper bass 1. The DM System is in a poor acoustic location 1. Where possible, set up the system in a different position (e.g. closer to the wall)

2. Equalisers have been set in the “Room Comp” menu 2. Correct or delete the settings for the room adjustment (m =>

(volume level increase) Speaker Menü => Room Comp => subwoofer)

3. The bass level in the “Tone Control” menu is neutral or 3. Decrease the bass – level in the Sound Regulation menu

(m => Speaker Menü => Tone Control => Bass) The DM System has too little or too much level in the 1. The volume level adjustment for the subwoofer is set wrong 1. In the Speaker Menu (m => Speaker Menu => whole bass range Level Trim =>subwoofer) set the desired volume level for the subwoofer The DM System sounds “flat” (too little treble) 1. The listening area has severely dampened acoustics or the treble 1. Increase the treble setting in the sound settings menu (m => sound setting is set very low Speaker Menü => Tone Control => treble )

2. A pure stereo signal is being played in one of the surround modes 2. Set the DM System to stereo play mode

3. Equalisers have been set in the “Room Comp” menu 3. Correct or delete the settings for the room adjustment (m =>

(volume level increase) Speaker Menü => Room Comp => front) The DM System sounds sharp or aggressive (too much treble) 1. The listening area is acoustically hard (less dampened) or the 1. Decrease the treble setting in the sound settings menu (m => treble sound setting is too high Speaker Menü => Tone Control => treble)

2. Equalisers have been set in the “Room Comp” menu 2. Correct or delete the settings for the room adjustment (m =>

(volume level increase) Speaker Menü => Room Comp => front) The sound signal sounds (very) distorted 1. Listening at very high volume, which leads to overmodulation 1. Immediately reduce the volume (also to avoid damaging the of the DM System device) 2. Use of an analog input with a signal level that is too high (level 2. Decrease the level of the source if this has a volume control of the source is higher than 2Veff) 3. Use of Line2 / Phono input with a Line-level source and the 3. Set the Line 2 /Phono – Input to “line” at “line2 config” (m “Phono” setting => System Setup => factory set => line2 config) 4. Use of Zone2 – Output to operate an external device with a 4. Reduce the volume for the Zone2 – Output using the Volume level that is set too high menu (m => System Setup => Output Config => zone2 vol)

5. With multi-channel recordings it is theoretically possible that 5. Set the “dynamic” to “comp” (m => System Setup =>
