USER MANUAL HP4671 PHILIPS

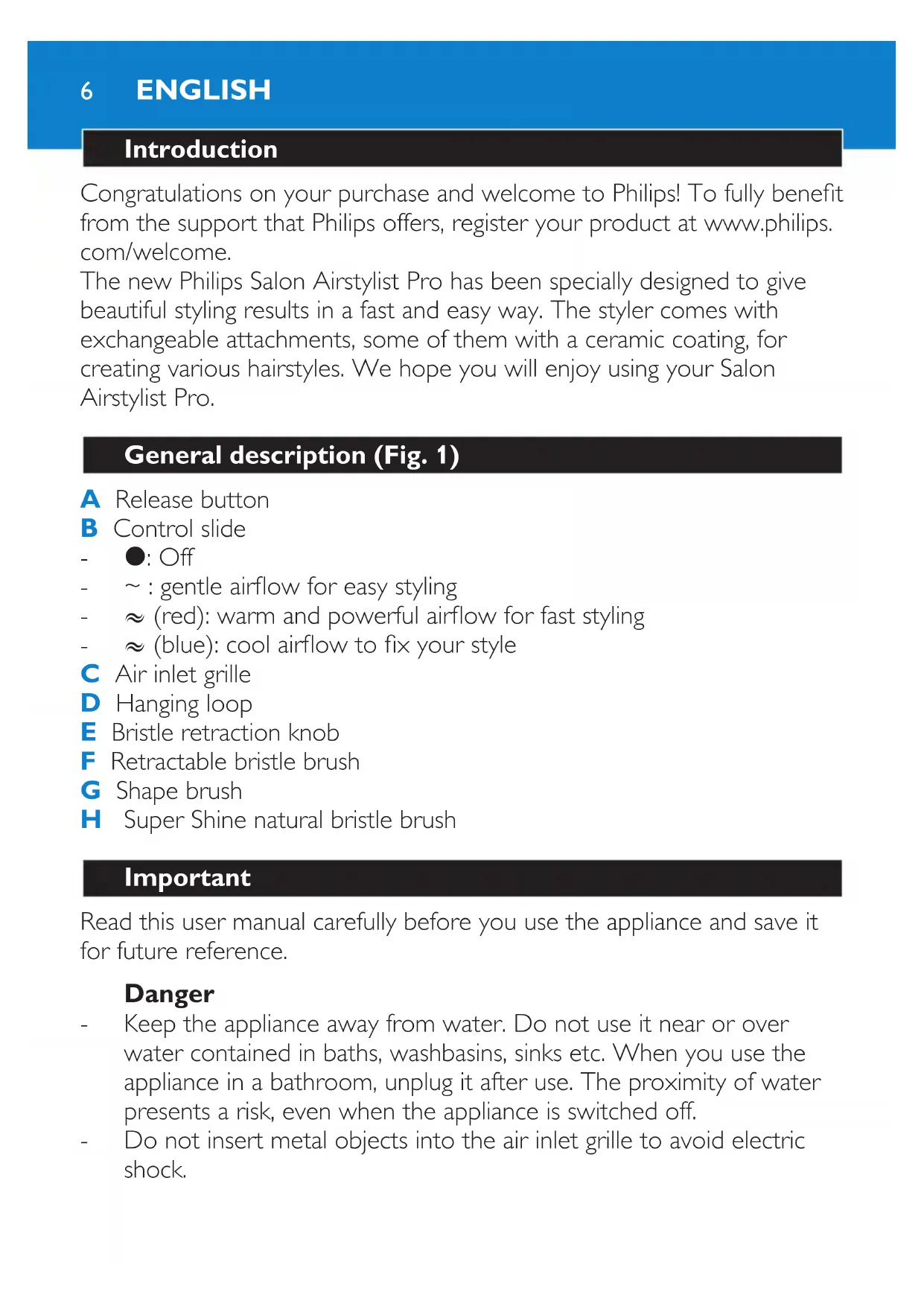

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

The new Philips Salon Airstylist Pro has been specially designed to give beautiful styling results in a fast and easy way. The styler comes with exchangeable attachments, some of them with a ceramic coating, for creating various hairstyles. We hope you will enjoy using your Salon Airstylist Pro.

General description (Fig. 1)

A Release button
B Control slide

• ●: Off
• ~: gentle airflow for easy styling
• ≈ (red): warm and powerful airflow for fast styling
• ≈ (blue): cool airflow to fix your style
  C Air inlet grille
  D Hanging loop
  E Bristle retraction knob
  F Retractable bristle brush
  G Shape brush
  H Super Shine natural bristle brush

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

• Keep the appliance away from water. Do not use it near or over water contained in baths, washbasins, sinks etc. When you use the appliance in a bathroom, unplug it after use. The proximity of water presents a risk, even when the appliance is switched off.
• Do not insert metal objects into the air inlet grille to avoid electric shock.

Warning

• Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.
• Check the condition of the mains cord regularly. Do not use the appliance if the plug, the mains cord or the appliance itself is damaged.
• If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

Caution

• For additional protection, we advise you to install a residual current device (RCD) in the electrical circuit that supplies the bathroom. This RCD must have a rated residual operating current not higher than 30mA . Ask your installer for advice.
• The attachments become hot during use. Prevent contact with the skin.
• Never block the air inlet grille.
• If the appliance overheats, it switches off automatically. Unplug the appliance and let it cool down for a few minutes. Before you switch the appliance back on, check the grilles to make sure they are not blocked by fluff, hair, etc.
• Always unplug the appliance after use.
• Wait until the appliance has cooled down before you store it.
• Always switch off the appliance before you put it down, even if it is only for a moment.
• Do not wind the mains cord round the appliance.
• Do not use the appliance on artificial hair.
• Do not use the appliance for any other purpose than described in this manual.

ENGLISH8

• Never use any accessories or parts from other manufacturers or that Philips does not specifically recommend. If you use such accessories or parts, your guarantee becomes invalid.
• Keep the attachments clean and free of dust, dirt and styling products such as mousse, spray and gel.

Electromagnetic fields (EMF)

This Philips appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.

Preparing for use

Hair

Do not use the appliance on wet hair, dry your hair with a towel first. The Airstylist Pro is most effective on towel-dry hair.

1 Comb or brush the hair so that it is untangled and smooth.
2 Use a comb to divide the hair into locks.

Do not put too much hair in one lock.

Connecting and disconnecting attachments

Always connect the appropriate attachment before you put the plug in the wall socket.

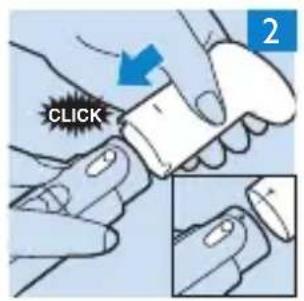

1 Choose the desired attachment and snap it onto the appliance ('click'). (Fig. 2)

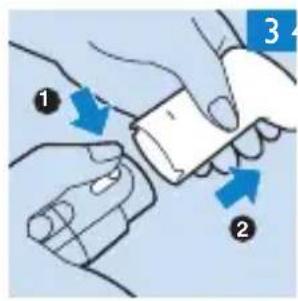

2 To remove the attachment from the appliance, press the release button (1) and pull the attachment off the appliance (2). (Fig. 3)

Using the appliance

Always connect the appropriate attachment before you put the plug in the wall socket.

Styling with the retractable bristle brush

We advise you to perform a curl test to determine how long you have to hold the brush in your hair to achieve a good result. Start with 8 to 10 seconds. You may have to hold the brush in your hair longer for tighter curls. Less tight curls require less than 8 seconds.

1 Snap the retractable bristle brush onto the appliance.
See chapter 'Preparing for use'.
2 Put the plug in the wall socket.
3 Take a lock of hair and wind it round the brush. Make sure you wind the end of the lock in the required direction.

• Do not wind too much hair round the brush at a time.
• The thinner the lock of hair, the tighter the curl. Do not wind a lock of hair more than twice round the brush.
• Make sure the lock of hair is in contact with the barrel of the brush.

Note: To give your hair optimum lift and volume, wind the hair at right angles to the scalp.

4 Select the preferred setting to switch on the appliance (Fig. 4).

gentle airflow for easy styling
≈ (red): warm airflow for fast styling

5 Hold the brush in place as long as required (normally 8 to 10 seconds).
As soon as the hair feels dry, fix the curl with a cool airflow (blue ≈ setting) for long-lasting results. (Fig. 5)

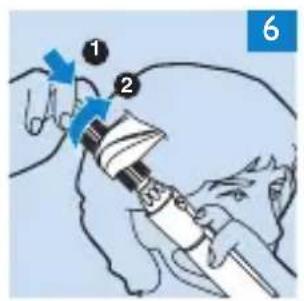

7 Switch off the appliance. Press the retractable bristle knob (1) and turn it in the direction of the arrow (2) to remove the brush from your hair (Fig. 6).
8 Let the curls cool down before you comb, brush or finger-comb the hair into its final style.

Super Shine natural bristle brush

Use the Super Shine natural bristle brush to add shine and create texture, especially for medium-length hair

1 Snap the natural bristle brush onto the appliance.
See chapter 'Preparing for use'.
2 Place the brush in the hair.
3 Select setting or ≈ (red) to switch on the appliance.
4 Make brushing movements from the top of the head downwards, while you slightly turn the brush (inwards or outwards, depending on the desired effect).
5 Finish off with a cool airflow (blue ≈ setting) to fix your style.
6 When you have finished styling your hair, switch off the appliance.

Styling with the shape brush

Use the shape brush to polish and shape your hair.

1 Snap the shape brush onto the appliance. See chapter 'Preparing for use'.
2 Place the brush in the hair.
3 Select setting or ≈ (red) to switch on the appliance.
4 Make brushing movements from the top of the head downwards.
5 Move the brush away from the head while you turn the brush. The hair is lifted and falls lightly back onto the head.
6 When you have finished styling your hair, switch off the appliance.

Cleaning

Remove the attachments from the appliance before you clean them.

Never rinse the appliance with water.

1 Make sure the appliance is unplugged.

2 Clean the appliance with a small brush or a dry cloth.
3 Clean the attachments with a moist cloth.

If you have used styling products on your hair before or during styling, clean the ceramic-coated attachments thoroughly with a moist cloth after use.

Make sure the attachments are dry before you use or store them.

Storage

1 Make sure the appliance is unplugged.
2 Remove the attachment (see chapter 'Preparing for use').
3 Put the appliance in a safe place and let it cool down.

Do not wind the mains cord round the appliance.

Environment

• Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment (Fig. 7).

Guarantee & service

If you need information or if you have a problem, please visit the Philips website at www.philips.com or contact the Philips Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Philips dealer or contact the Service Department of Philips Domestic Appliances and Personal Care BV.

Troubleshooting

If problems arise with your stylister and you are unable to solve them with the information below, please contact the nearest Philips service centre or the Philips Customer Care Centre in you country.

Problem Cause Solution

The appliance does not work at all.

Perhaps there is a power failure or the socket is not live.

Check if the power supply works. If it works, plug another appliance into the socket to check whether the socket is live.

Perhaps you did not switch on the appliance.

Make sure the appliance is plugged in. Then select the preferred setting to switch on the appliance.

Perhaps the appliance overheated and switched itself off.

Unplug the appliance and let it cool down for a few minutes. Before you switch the appliance back on, make sure the grille is not blocked by fluff, hair, etc.

Perhaps the appliance is not suitable for the voltage to which it is connected.

Make sure that the voltage indicated on the appliance corresponds to the local mains voltage.

Perhaps the mains cord of the appliance is damaged.

If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.
