USER MANUAL GNEV122S BEKO

Please read this manual first!

We hope that your product, which has been produced in modern plants and

checked under the most meticulous quality control procedures, will provide you

an effective service.

For this, we recommend you to carefully read the entire manual of your product

before using it and keep it at hand for future references.

• Will help you use your appliance in a fast and safe way.

• Read the manual before installing and operating your product.

• Follow the instructions, especially those for safety.

• Keep the manual in an easily accessible place as you may need it later.

• Besides, read also the other documents provided with your product.

Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

C Important information or useful usage tips.

A Warning against dangerous conditions for life and property.

B Warning against electric voltage.

This product is supplied with the selective sorting symbol for waste electrical

and electronic equipment (WEEE).

This means that this product must be handled pursuant to European Directive

2002/96/EC in order to be recycled or dismantled to minimise its impact on

the environment. For further information, please contact your local or regional

Electronic products not included in the selective sorting process are potentially

dangerous for the environment and human health due to the presence of

hazardous substances.

Recycling www.beko.com This product was manufactured using the latest technology in environmentally friendly conditions.EN

For products with a water dispenser; .... 6

Things to be done for energy saving 7

Points to be considered when re-

transporting your refrigerator 8

Before operating your refrigerator 8

Electric connection 9

Disposing of the packaging 9

Disposing of your old refrigerator 9

Placing and Installation 9

Floor balance adjustment 10

Adjusting the gap between the upper

Setting the fridge compartment

Setting the freezer compartment

Sliding Body Shelves 16

Crisper humidity control sliders 17

Chiller compartment 17

Recommendations for preservation of

6 Maintenance and cleaning 21

Protection of plastic surfaces 21

7 Recommended solutions for

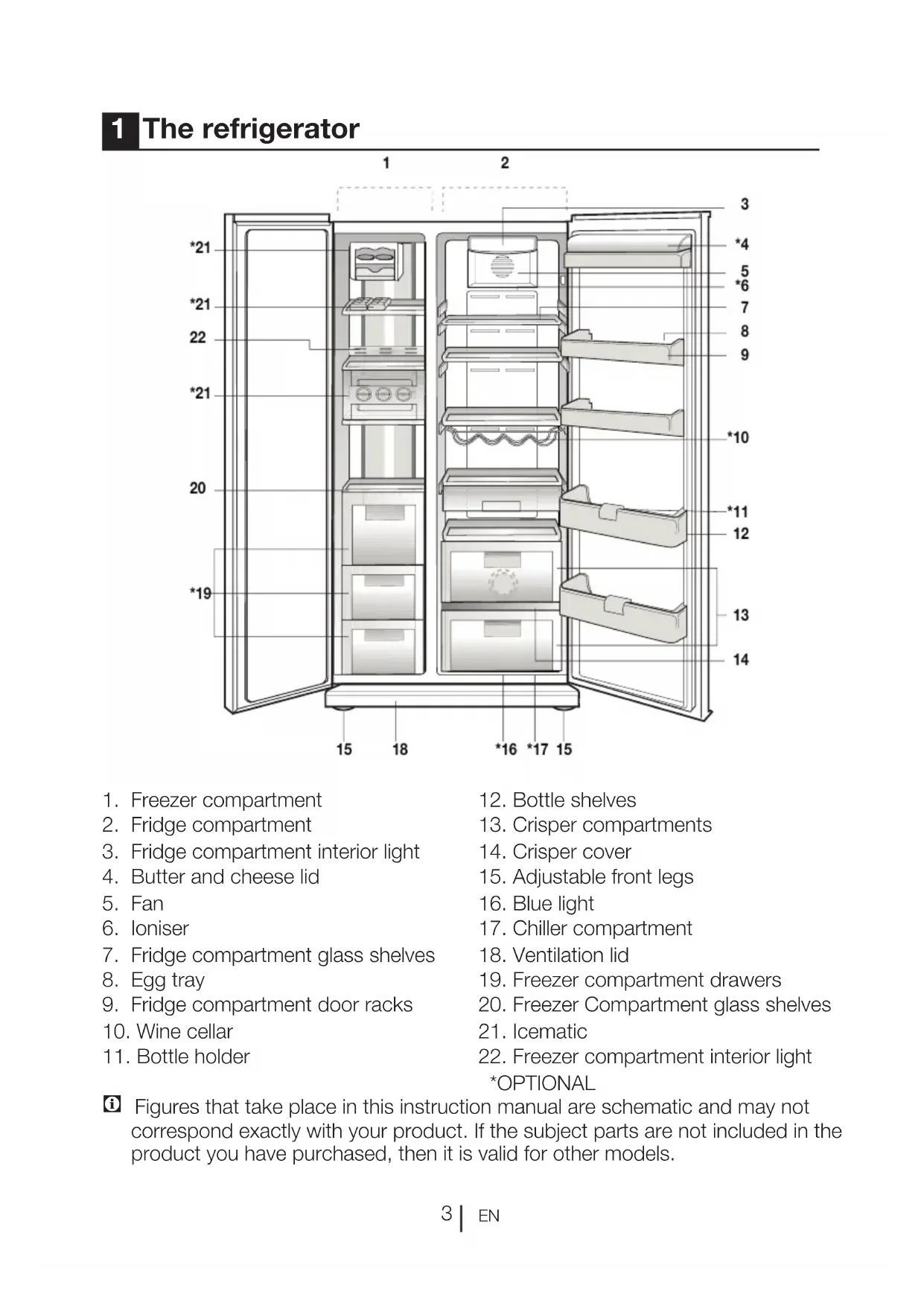

1. Freezer compartment

2. Fridge compartment

3. Fridge compartment interior light

4. Butter and cheese lid

7. Fridge compartment glass shelves

9. Fridge compartment door racks

13. Crisper compartments

15. Adjustable front legs

17. Chiller compartment

19. Freezer compartment drawers

20. Freezer Compartment glass shelves

22. Freezer compartment interior light

*OPTIONAL C Figures that take place in this instruction manual are schematic and may not

correspond exactly with your product. If the subject parts are not included in the

product you have purchased, then it is valid for other models.

2 Important Safety Warnings

Please review the following

information. Failure to observe this

information may cause injuries or

material damage. Otherwise, all

warranty and reliability commitments

will become invalid.

The usage life of the unit you

purchased is 10 years. This is the

period for keeping the spare parts

required for the unit to operate as

This product is intended to be used

– indoors and in closed areas such as

– in closed working environments such

as stores and offices;

– in closed accommodation areas such

as farm houses, hotels, pensions.

• This product should not be used

• When you want to dispose/scrap

the product, we recommend you

to consult the authorized service in

order to learn the required information

and authorized bodies.

• Consult your authorized service for

all your questions and problems

related to the refrigerator. Do not

intervene or let someone intervene to

the refrigerator without notifying the

authorised services.

• For products with a freezer

compartment; Do not eat cone ice

cream and ice cubes immediately

after you take them out of the freezer

compartment! (This may cause

frostbite in your mouth.)

• For products with a freezer

compartment; Do not put bottled and

canned liquid beverages in the freezer

compartment. Otherwise, these may

• Do not touch frozen food by hand;

they may stick to your hand.

• Unplug your refrigerator before

cleaning or defrosting.

• Vapor and vaporized cleaning

materials should never be used in

cleaning and defrosting processes of

your refrigerator. In such cases, the

vapor may get in contact with the

electrical parts and cause short circuit

• Never use the parts on your

refrigerator such as the door as a

means of support or step.

• Do not use electrical devices inside

• Do not damage the parts, where

the refrigerant is circulating, with

drilling or cutting tools. The refrigerant

that might blow out when the gas

channels of the evaporator, pipe

extensions or surface coatings are

punctured causes skin irritations and

• Do not cover or block the ventilation

holes on your refrigerator with any

• Electrical devices must be repaired

by only authorised persons. Repairs

performed by incompetent persons

create a risk for the user.

• In case of any failure or during

a maintenance or repair work,

disconnect your refrigerator’s mains

supply by either turning off the

relevant fuse or unplugging your

• Do not pull by the cable when pulling

• Place the beverage with higher proofs

tightly closed and vertically.

• Never store spray cans containing

flammable and explosive substances

in the refrigerator.

• Do not use mechanical devices

or other means to accelerate the

defrosting process, other than those

recommended by the manufacturer.

• This product is not intended to be

used by persons with physical,

sensory or mental disorders or

unlearned or inexperienced people

(including children) unless they are

attended by a person who will be

responsible for their safety or who will

instruct them accordingly for use of

• Do not operate a damaged

refrigerator. Consult with the service

agent if you have any concerns.

• Electrical safety of your refrigerator

shall be guaranteed only if the earth

system in your house complies with

• Exposing the product to rain, snow,

sun and wind is dangerous with

respect to electrical safety.

• Contact authorized service when

there is a power cable damage to

• Never plug the refrigerator into

the wall outlet during installation.

Otherwise, risk of death or serious

• This refrigerator is intended for only

storing food items. It must not be

used for any other purpose.

• Label of technical specifications is

located on the left wall inside the

• Never connect your refrigerator to

electricity-saving systems; they may

damage the refrigerator.

• If there is a blue light on the

refrigerator, do not look at the blue

light with optical tools.

• For manually controlled refrigerators,

wait for at least 5 minutes to start the

refrigerator after power failure.

• This operation manual should be

handed in to the new owner of the

product when it is given to others.

• Avoid causing damage on power

cable when transporting the

refrigerator. Bending cable may cause

fire. Never place heavy objects on

power cable. Do not touch the plug

with wet hands when plugging the

• Do not plug the refrigerator if the wall

• Water should not be sprayed directly

on inner or outer parts of the product

for safety purposes.

• Do not spray substances containing

inflammable gases such as propane

gas near the refrigerator to avoid fire

• Never place containers filled with water

on top of the refrigerator, otherwise this

may cause electric shock or fire.

• Do not overload your refrigerator

with excessive amounts of food. If

overloaded, the food items may fall

down and hurt you and damage

refrigerator when you open the door.

Never place objects on top of the

refrigerator; otherwise, these objects

may fall down when you open or close

the refrigerator's door.

• As they require a precise temperature,

vaccines, heat-sensitive medicine and

scientific materials and etc. should not

be kept in the refrigerator.EN

• If not to be used for a long time,

refrigerator should be unplugged. A

possible problem in power cable may

• The plug's tip should be regularly

cleaned; otherwise, it may cause fire.

• The plug’s tip should be cleaned

regularly with a dry cloth; otherwise, it

• Refrigerator may move if adjustable

legs are not properly secured on the

floor. Properly securing adjustable

legs on the floor can prevent the

refrigerator to move.

• When carrying the refrigerator, do not

hold it from door handle. Otherwise, it

• When you have to place your product

next to another refrigerator or freezer,

the distance between devices should

be at least 8cm. Otherwise, adjacent

side walls may be humidified.

For products with a water

Pressure of water mains should be

minimum 1 bar. Pressure of water

mains should be maximum 8 bars.

• Use only potable water.

• If the door has a lock, the key should

be kept away from reach of children.

• Children must be supervised to

prevent them from tampering with the

If your product's cooling system

This gas is flammable. Therefore, pay

attention to not damaging the cooling

system and piping during usage and

transportation. In the event of damage,

keep your product away from potential

fire sources that can cause the

product catch a fire and ventilate the

room in which the unit is placed.

Ignore this warning if your

product's cooling system contains

Type of gas used in the product is

stated in the type plate which is on the

left wall inside the refrigerator.

Never throw the product in fire for

Things to be done for energy

• Do not leave the doors of your

refrigerator open for a long time.

• Do not put hot food or drinks in your

• Do not overload your refrigerator so

that the air circulation inside of it is not

• Do not install your refrigerator

under direct sunlight or near heat

emitting appliances such as ovens,

dishwashers or radiators.

• Pay attention to keep your food in

• For products with a freezer

compartment; You can store

maximum amount of food items in

the freezer when you remove the

shelf or drawer of the freezer. Energy

consumption value stated for your

refrigerator has been determined

by removing freezer shelf or drawer

and under maximum load. There

is no harm to use a shelf or drawer

according to the shapes and size of

• Thawing frozen food in fridge

compartment will both provide energy

saving and preserve the food quality.

freshfood compartment

• Please do not let any foodstuff to

come to contact with the temperature

sensor in freshfood compartment.

In order to maintain freshfood

compartment at ideal storage

temperature, the sensor must not be

blocked by fodstuffs.

• Do not place hot foodstuff in your

temperaturesensor food MILKjuiceetc.temperaturesensor

temperaturesensor food

MILK juice etc. temperaturesensorEN

C Please remember that the

manufacturer shall not be held liable if

the information given in the instruction

manual is not observed.

Points to be considered

when re-transporting your

1. Your refrigerator must be

emptied and cleaned prior to any

2. Shelves, accessories, crisper and etc.

in your refrigerator must be fastened

securely by adhesive tape against any

jolt before repackaging.

3. Packaging must be tied with thick

tapes and strong ropes and the

rules of transportation printed on the

package must be followed.

C Always remember...

Every recycled material is an

indispensable source for the nature

and for our national resources.

If you wish to contribute to recycling

the packaging materials, you can

get further information from the

environmental bodies or local

Before operating your

Before starting to use your refrigerator

check the following:

1. Is the interior of the refrigerator dry

and can the air circulate freely in the

2. Clean the interior of the refrigerator as

recommended in the “Maintenance

and cleaning” section.

3. Insert the 2 plastic wedges onto the

rear ventilation as illustrated in the

following figure. Unscrew the existing

ones and use the screws given in the

same bag of wedges. Plastic wedges

will provide the required distance

between your refrigerator and the wall

in order to allow the air circulation.EN

4. Plug the refrigerator into the wall

outlet. When the door is open the

respective interior light will come on.

5. You will hear a noise as the

compressor starts up. The liquid and

gases sealed within the refrigeration

system may also give rise to noise,

even if the compressor is not running

and this is quite normal.

6. Front edges of the refrigerator may

feel warm. This is normal. These

areas are designed to be warm to

Connect your refrigerator to a

grounded socket which is being

protected by a fuse with the

appropriate capacity.

B The connection must be in

compliance with national regulations.

B The power cable plug must be easily

accessible after installation.

B The specified voltage must be equal

to your mains voltage.

B Extension cables and multiway plugs

must not be used for connection.

B A damaged power cable must be

replaced by a qualified electrician.

B The appliance must not be operated

before it is repaired! There is danger

Disposing of the packaging

A The packing materials may be

dangerous for children. Keep the

packing materials out of the reach

of children or dispose them of by

classifying them in accordance

with the waste instructions. Do not

dispose them of along with the normal

The packing of your refrigerator is

produced from recyclable materials.

Disposing of your old

Dispose of your old machine without

giving any harm to the environment.

A You may consult your authorized

dealer or waste collection center of

your municipality about the disposal

of your refrigerator.

A Before disposing of your refrigerator,

cut out the electric plug and, if there

are any locks on the door, make them

inoperable in order to protect children

Placing and Installation

B Caution: Never plug the refrigerator

into the wall outlet during installation.

Otherwise, risk of death or serious

A If the entrance door of the room

where the refrigerator will be installed is

not wide enough for the refrigerator to

pass through, than call the authorised

service to have them remove the

doors of your refrigerator and pass it

sideways through the door.

1. Install your refrigerator to a place

that allows ease of use.

2. Keep your refrigerator away from

heat sources, humid places and direct

3. There must be appropriate air

ventilation around your refrigerator in

order to achieve an efficient operation.

If the refrigerator is to be placed in a

recess in the wall, there must be at

least 5 cm distance with the ceiling

and at least 5 cm with the wall.

If the floor is covered with a carpet,

your product must be elevated 2.5 cm

4. Place your refrigerator on an even

floor surface to prevent jolts.

5. Do not keep your refrigerator in

ambient temperatures under 10°C.EN

Floor balance adjustment If your refrigerator is unbalanced;You can balance your refrigerator by turning the front legs of it as illustrated in the figure. (See Figure A) The corner where the leg exists is lowered when you turn in the direction of black arrow and raised when you turn in the opposite direction. Taking help from someone to slightly lift the refrigerator will facilitate this process.Door height adjustmentIn case there is a problem with the alignment of the doors with respect to each other, they may be re-aligned vertically in the order given below. Ensure that door shelves are empty when adjusting the door height.1. Remove the lower ventilation cover by unscrewing its screws as shown in the figure below. (See Figure B)2. Loosen the three screws of the hinges of the lower door, which you wish to escalate, with the help of a screwdriver as shown in the figure below. (Do not remove completely) (See Figure C) (A)

• If the freezer compartment door is

lower than the fridge compartment

door, bring them to the same level by

turning the turning the elevation screw

on the freezer compartment side in

the direction of arrow using a M6 Allen

wrench as illustrated in Figure D.

• If the freezer compartment door is

higher than the fridge compartment

door, bring them to the same level

by turning the elevation screw on

the freezer compartment side in the

reverse direction of arrow using a M6

Allen wrench as illustrated in Figure D.

After bringing the doors to the same

level by elevating the front part with

the aid of the elevation screws,ensure

the doors of the refrigerator shall close

properly. If the doors do not close

properly, this might adversely affect the

efficiency of the refrigerator.EN

Adjusting the gap between

C You can adjust the gap between

the fridge compartment doors as

illustrated in the figures.

Door shelves should be empty when

adjusting the door height.

Because of being wires in the

hinge cover of the freezer door,

switch off the refrigerator power

before removing hinge covers and

this situation should be made to

C Using a screwdriver, remove the

screw of upper hinge cover of the door

C Adjust the door appropriately as

you desire by loosing the screws.

C Fix the door you have adjusted by

tightening the screws without changing

the position of the door.

C Replace the hinge cover and fix

C Your refrigerator should be installed at

least 30 cm away from heat sources

such as hobs, ovens, central heater

and stoves and at least 5 cm away

from electrical ovens and should not

be located under direct sunlight.

C The ambient temperature of

the room where you install your

refrigerator should at least be 10°C.

Operating your refrigerator under

cooler conditions than this is not

recommended with regard to its

C Please make sure that the interior

of your refrigerator is cleaned

C If two refrigerators are to be installed

side by side, there should be at least

2 cm distance between them.

C When you operate your refrigerator

for the first time, please observe the

following instructions during the initial

- The door should not be opened

- It must be operated empty without

- Do not unplug your refrigerator. If

a power failure occurs out of your

control, please see the warnings in

the “Recommended solutions for

the problems” section.

C Original packaging and foam

materials should be kept for future

transportations or moving.EN

5 Using your refrigerator

Indicator panel aids in using your refrigerator with its audio and visual functions.

This panel allows you to start and use all functions of your refrigerator without

opening its doors since the panel is located on the outer side of the freezer

1. Freezer Compartment Temperature

2. Freezer compartment temperature

6. Fridge compartment temperature

10. Fridge compartment temperature

15. Freezer compartment temperature

C Figures that take place in this instruction manual are schematic and may not correspond

exactly with your product. If the subject parts are not included in the product you have

purchased, then it is valid for other models.EN

compartment temperature

When you want to change your

refrigerator’s temperature settings,

you need to press the “Fridge

compartment temperature

adjustment button” to make the

fridge compartment temperature

adjustment. The fridge compartment

temperature can be set to cooler

degrees every time you press on the

button (such as 8, 6, 4, 2, 8, …).

compartment temperature

When you want to change your

refrigerator’s temperature settings,

you need to press the “Freezer

compartment temperature

adjustment button” to make the

freezer compartment temperature

adjustment. The freezer compartment

temperature can be set to cooler

degrees every time you press on the

button (such as, -18, -20, -22, -24,

Fast Freeze function

You can use this function of your

refrigerator to rapidly freeze the food

you put into the freezer compartment

for the first time or to obtain ice more

quickly. If you want to keep your food

frozen for a long period, first apply the

fast freeze function to them. Fast freeze

is the healthiest way of keeping the

food for a long time. Temperature of

your refrigerator’s freezer compartment

drops down to -27°C during fast freeze

process. When you want to use the

“Fast Freeze” function, press on the

fast freeze button. Fast freeze indicator

lights up when you press the button.

Freezer Compartment Temperature

Adjustment Indicator turns to -27°C.

While fast freeze function is activated,

this compartment reaches colder

degrees than the adjusted values

and all of the freezer compartment

temperature indicators may light

up. Fast Freeze function lasts for

maximum 24 hours. Your refrigerator

will automatically exit the fast freeze

mode once the fast freeze process is

completed, fast freeze indicator lamp

will go off and the refrigerator will

turn back to the previously adjusted

temperatures. Freezer compartment

temperature indicators will gradually go

off until the adjusted temperature value

If you have unintentionally switched

your refrigerator to fast freeze mode or

if you want to cancel the process, just

press the “Fast Freeze” button again

to exit the fast freeze mode.

If you want to freeze large amounts of

fresh food, press the fast freeze button

24 hours before putting the food into

the freezer compartment.

This function can be used for food

placed in the fridge compartment and

desired to be cooled down rapidly.

Press quick cool button to activate the

function. During this process, the quick

cool indicator will light up and fridge

compartment temperature adjustment

indicator will turn into 1°C. While

quick cool function is activated, this

compartment reaches colder degrees

than the adjusted values. Meanwhile,

all of the temperature indicators of

the fridge compartment may light up.

Quick cool process will take about 2

hours and at the end of this period, the

quick cool indicator lamp will go off,

and the refrigerator will turn back to

the previously adjusted temperatures.EN

You can install the egg holder to the

desired door or body shelf.

Never store the egg holder in the

Sliding Body Shelves

Sliding body shelves can be pulled

by slightly lifting up from the front and

moved back and forth. They come to

a stop point when pulled towards front

to allow you reach the foods placed at

the back of the shelf; when it is pulled

after slightly lifted upwards at the

second stop point, the body shelf will

The shelf should be hold tightly from

the bottom as well in order to prevent

it from tipping over. The body shelf is

placed on the rails at the sides of the

refrigerator body by bringing it to one

lower or one upper level.

The body shelf should be pushed

backwards to seat it completely.

Foodstuff stored in the crispers that

are enlightened with a blue light

continue their photosynthesis by

means of the wavelength effect of blue

light and thus, preserve their freshness

and increase their vitamin content.EN

Crisper humidity control

Crisper of your refrigerator is

designed especially fresh to keep your

vegetables freshly without loosing their

humidity. Cold air circulates basically

around the crisper and the amount of

the cold air passing through the crisper

is controlled by the sliders on the front

side of the crisper cover.

You can adjust the humidity control

sliders to a suitable position according

to the humidity and cooling condition

of your food in the crisper.

If you want your food in the crisper

to cool more, open the holes of the

humidity control sliders and if you

want them to cool less and keep their

humidity for a longer time, close the

If you wish to use the storage

container under the shelf as the Chiller

compartment, the storage container

under the shelf should be placed as

shown in the picture.

Chiller compartments enable the

foods to be frozen become ready

for freezing. You can also use these

compartments to store your food at a

temperature a few degrees below the

You can increase the inner volume of

your refrigerator by removing any of

the chiller compartments. To do this,

pull the compartment towards yourself;

the compartment will lean against the

stopper and stop. This compartment

will be released when you lift it about 1

cm and pull it towards yourself.EN

preservation of frozen food

• Prepacked commercially frozen

food should be stored in accordance

with the frozen food manufacturer's

food storage compartment.

• To ensure that the high quality

achieved by the frozen food

manufacturer and the food retailer is

maintained, the following should be

1.Put packets in the freezer as quickly

as possible after purchase.

2.Ensure that contents are labelled

3.Do not exceed "Use By", "Best

Before" dates on the packaging.

If there is a power failure do not

open the freezer door. Even if the

power failure lasts up to the time

specified on Type Label (inside left of

the refrigerator), frozen food will not

be affected. In case the failure lasts

longer, the food must be checked and

when necessary, must be consumed

immediately or must be frozen after

The fridge and freezer compartments

defrost automatically.

Replacing the Interior Light

Should the light fail to work, proceed

1. Switch off at the socket outlet and

pull out the mains plug.

Remove all shelves and drawers for

2. Illumination covers in freezer and

fridge sections are opened by pressing

by hand; first release one side and

then the other by pressing on the sides

as shown in the figures.

3. First check that the bulb has not

worked loose by ensuring that it

is screwed securely in the holder.

Reinsert the plug and switch on. If the

bulb works, reinstall the light cover by

inserting the rear lug and pushing up

to locate the front two lugs.

4.If the light still fails to work, switch

off at the socket outlet and pull out

the mains plug. Replace the bulb with

a new 15 watt (max) screw cap E14

5.Carefully dispose of the burnt-out

light bulb immediately.

Replacement light bulb can easily be

obtained from a good local electrical or

Air is ionized by means of the ionizer

system in the fridge compartment air

duct. Thanks to this system, air-borne

bacteria and particles that cause

odour are removed.EN

* When the Icematic water supply

reservoir (1) is removed from its place

in order to fill it up, it must be replaced

within two minutes after it is filled with

water. The nozzle of the system will

open and the Icematic cells will be

filled with water automatically as soon

as the cartridge is seated in its place.

Your ice will be ready approximately in

• Do not remove the Icematic (2) from

its seating to take ice.

• Turn the knobs on it clockwise as

illustrated in the figure.

Ice cubes in the cells will fall down in to

the ice bank (3) below.

• You may take out the ice bank and

serve the ice cubes.

• If you wish, you may keep the ice

cubes in the ice bank.

The ice bank is just for

accumulating ice cubes. Do not

put water in it. Otherwise, it will

About water supply reservoir

Remove the water supply reservoir and

fill it up with water. After filled up with

water, the reservoir must be pushed

forward into its seating until a “click”

sound is heard. If there is any ice in

the reservoir, wait until it melts. Water

supply reservoir has a capacity of

approximately 290 ml.

6 Maintenance and cleaning

A Never use gasoline, benzene or

similar substances for cleaning

B We recommend that you unplug the

appliance before cleaning.

B Never use any sharp abrasive

instrument, soap, household

cleaner, detergent and wax polish for

C Use lukewarm water to clean the

cabinet of your refrigerator and wipe it

C Use a damp cloth wrung out in

a solution of one teaspoon of

bicarbonate of soda to one pint of

water to clean the interior and wipe it

B Make sure that no water enters the

lamp housing and other electrical

B If your refrigerator is not going to be

used for a long period of time, unplug

the power cable, remove all food,

clean it and leave the door ajar.

C Check door seals regularly to ensure

they are clean and free from food

A To remove door racks, remove all the

contents and then simply push the

door rack upwards from the base.

Protection of plastic

C Do not put the liquid oils or oil-cooked

meals in your refrigerator in unsealed

containers as they damage the

plastic surfaces of your refrigerator. In

case of spilling or smearing oil on the

plastic surfaces, clean and rinse the

relevant part of the surface at once

7 Recommended solutions for the problems

Please review this list before calling the service. It might save you time and

money. This list includes frequent complaints that are not arising from defective

workmanship or material usage. Some of the features described here may not

exist in your product.

The refrigerator does not operate.

• Is the refrigerator properly plugged in? Insert the plug to the wall socket.

• Is the fuse of the socket which your refrigerator is connected to or the main fuse

blown out? Check the fuse.

Condensation on the side wall of the fridge compartment (MULTIZONE, COOL CONTROL and FLEXI ZONE).

• Very cold ambient conditions. Frequent opening and closing of the door. Highly

humid ambient conditions. Storage of food containing liquid in open containers.

Leaving the door ajar. Switching the thermostat to a colder degree.

• Decreasing the time the door left open or using it less frequently.

• Covering the food stored in open containers with a suitable material.

• Wipe the condensation using a dry cloth and check if it persists.

Compressor is not running

• Protective thermic of the compressor will blow out during sudden power

failures or plug-out plug-ins as the refrigerant pressure in the cooling system of

the refrigerator has not been balanced yet. Your refrigerator will start running

approximately after 6 minutes. Please call the service if the refrigerator does not

startup at the end of this period.

• The fridge is in defrost cycle. This is normal for a full-automatically defrosting

refrigerator. Defrosting cycle occurs periodically.

• Your refrigerator is not plugged into the socket. Make sure that the plug is

properly fit into the socket.

• Are the temperature adjustments correctly made?

• Power might be cut off.EN

The fridge is running frequently or for a long time.

• Your new product may be wider than the previous one. This is quite normal.

Large refrigerators operate for a longer period of time.

• The ambient room temperature may be high. This is quite normal.

• The refrigerator might have been plugged in recently or might have been loaded

with food. Cooling down of the refrigerator completely may last for a couple of

• Large amounts of hot food might have been put in the refrigerator recently. Hot

food causes longer running of the refrigerator until they reach the safe storage

• Doors might have been opened frequently or left ajar for a long time. The warm

air that has entered into the refrigerator causes the refrigerator to run for longer

periods. Open the doors less frequently.

• Freezer or fridge compartment door might have been left ajar. Check if the doors

• The refrigerator is adjusted to a very low temperature. Adjust the refrigerator

temperature to a warmer degree and wait until the temperature is achieved.

• Door seal of the fridge or freezer may be soiled, worn out, broken or not properly

seated. Clean or replace the seal. Damaged/broken seal causes the refrigerator

to run for a longer period of time in order to maintain the current temperature.

Freezer temperature is very low while the fridge temperature is sufficient.

• The freezer temperature is adjusted to a very low temperature. Adjust the freezer

temperature to a warmer degree and check.

Fridge temperature is very low while the freezer temperature is sufficient.

• The fridge temperature might have been adjusted to a very low temperature.

Adjust the fridge temperature to a warmer degree and check.

Food kept in the fridge compartment drawers are freezing.

• The fridge temperature might have been adjusted to a very low temperature.

Adjust the fridge temperature to a warmer degree and check.

Temperature in the fridge or freezer is very high.

• The fridge temperature might have been adjusted to a very high degree.

Fridge adjustment has an effect on the temperature of the freezer. Change

the temperature of the fridge or freezer until the fridge or freezer temperature

reaches to a sufficient level.

• Doors might have been opened frequently or left ajar for a long time; open them

• Door might have been left ajar; close the door completely.

• Large amount of hot food might have been put in the refrigerator recently. Wait

until the fridge or freezer reaches the desired temperature.

• The refrigerator might have been plugged in recently. Cooling down of the

refrigerator completely takes time.

The operation noise increases when the refrigerator is running.

• The operating performance of the refrigerator may change due to the changes in

the ambient temperature. It is normal and not a fault.EN

Vibrations or noise.

• The floor is not even or it is weak. The refrigerator rocks when moved slowly.

Make sure that the floor is strong enough to carry the refrigerator, and level.

• The noise may be caused by the items put onto the refrigerator. Items on top of

the refrigerator should be removed.

There are noises coming from the refrigerator like liquid spilling or spraying.

• Liquid and gas flows happen in accordance with the operating principles of your

refrigerator. It is normal and not a fault.

There is a noise like wind blowing.

• Fans are used in order to cool the refrigerator. It is normal and not a fault.

Condensation on the inner walls of refrigerator.

• Hot and humid weather increases icing and condensation. It is normal and not a

• Doors might have been left ajar; make sure that the doors are closed fully.

• Doors might have been opened frequently or left ajar for a long time; open them

Humidity occurs on the outside of the refrigerator or between the doors.

• There might be humidity in the air; this is quite normal in humid weather. When

the humidity is less, condensation will disappear.

Bad odour inside the refrigerator.

• Inside of the refrigerator must be cleaned. Clean the inside of the refrigerator with

a sponge, lukewarm water or carbonated water.

• Some containers or package materials might cause the smell. Use a different

container or different brand packaging material.

The door is not closing.

• Food packages may prevent the door's closing. Replace the packages that are

obstructing the door.

• The refrigerator is not completely upright on the floor and rocking when slightly

moved. Adjust the elevation screws.

• The floor is not level or strong. Make sure that the floor is level and capable to

carry the refrigerator.

• The food might be touching the ceiling of the drawer. Rearrange food in the

temperaturesensor food

temperaturesensor food

temperaturesensor food MILKjuiceetc.temperaturesensor

temperaturesensor food

MILK juice etc. temperaturesensorSK

temperaturesensorfood MILK juice etc. temperaturesensorRU

temperaturesensorfood MILK juice etc. temperaturesensorFR

zoals boerderijen, hotels, pensions.

of mentale stoornis of ongeschoolde of

temperaturesensorfood MILK juice etc. temperaturesensorNL

temperaturesensorfood MILK juice etc. temperaturesensorDE

temperaturesensorfood MILK juice etc. temperaturesensorIT

temperaturesensor food MILKjuiceetc.temperaturesensor

temperaturesensor food

MILK juice etc. temperaturesensorSL

4. Gumb "Fast Freeze" (hitro
