Product Type	Juice Extractor and Citrus Press 2-in-1
Brand	Applica
Model	JM8000S
Power Supply	120 V AC, grounded plug
Juice Pitcher Capacity	About 1 L (4 cups)
Pulp Container Capacity	About 750 ml (3 cups)
Available Speeds	2 speeds: low (1) and high (2)
Main Functions	Juice extraction (centrifugal) and citrus pressing
Main Materials	Stainless steel filter, ABS plastic
Included Accessories	Small and large food pushers, 2 extraction cones (small and large), cleaning brush, juice pitcher
Removable Parts	Yes: lid, filter, pulp container, pushers, cones, spout, pitcher, latches, drive shaft
Repairability	Replacement parts available (part numbers in manual); visits to authorized service center
Maintenance and Cleaning	Removable parts dishwasher safe (top rack) or hand wash; base wipe with damp cloth only
Safety	Locking latches, non-removable screw, overheat protection (auto shut-off)
Warranty	2-year limited (United States and Canada)
Power Cord Length	Short (not specified); extension cord possible with precautions
Cord Wrap	Yes, under the base
Country of Origin	Made in People's Republic of China

Frequently Asked Questions - JM8000S Applica

What to do if the appliance does not start?

Check that the appliance is properly assembled. All latches must be locked for the appliance to operate. Refer to the ASSEMBLY section of the manual.

How to clean the stainless steel filter?

Use the provided cleaning brush to remove pulp from the small holes. Rinse the filter under running water while brushing inside and outside. Avoid metal scouring pads.

Why does the appliance strain during extraction?

This may be due to a full pulp container, pulp buildup under the lid, or incorrect speed setting. Empty the container, clean the lid, or adjust speed (1 for soft fruits, 2 for hard).

Can I put the parts in the dishwasher?

Yes, all removable parts except the base are dishwasher safe, only on the top rack. You can also wash them by hand with warm soapy water.

Which fruits and vegetables should not be juiced?

Avoid bananas, avocados, and coconuts which do not yield juice. Remove pits and large seeds from fruits. Citrus fruits should be peeled to avoid bitterness.

How to use the citrus press?

Assemble the citrus press with the appropriate cone. Cut the citrus fruit in half, place it on the cone, set speed to 1 and press. Put the latch in the open position during extraction then close after.

What to do if the spout leaks or extraction stops?

Check the latch position (open during extraction, closed before/after). Clean the filter and pulp container if clogged. Unplug and disassemble if necessary.

How to remove stubborn stains on parts?

Soak stained parts overnight in a solution of cider vinegar, baking soda, or diluted bleach. Then scrub with a soft brush and detergent.

Where to find replacement parts?

Part numbers are listed in the manual. Contact parts service at 1 800 738-0245 (US/Canada) or visit www.prodprotect.com/applica.

The appliance stopped during use, what to do?

The motor may have overheated. Unplug the appliance and let it cool for about 5 minutes before resuming. Make sure the pulp container is not too full.

USER MANUAL JM8000S Applica

2-in-1 Juice Extractor & Citrus Juicer

For online customer service

and to register your product, go to:

www.prodprotect.com/applica

When using electrical appliances, basic safety precautions should always be followed including the following:

Read all instructions.
To protect against risk of electrical shock do not put cord, plugs or appliance in water or other liquid.
Close supervision is necessary when any appliance is used by or near children.
Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
Avoid contacting moving parts.
- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment. Or, call the appropriate toll-free number on the cover of this manual.
The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.
Do not use outdoors.
Do not let cord hang over edge of table or counter.
Always make sure juicer cover is clamped securely in place before motor is turned on. Do not unfasten clamps while juicer is in operation.
Be sure to turn switch to OFF (0) position after each use of your juicer. Make sure the motor stops completely before disassembling.
Do not put your fingers or other objects into the juicer opening while it is in operation. If food becomes lodged in opening, use food pusher or another piece of fruit or vegetable to push it down. When this method is not possible, turn the motor off and disassemble juicer to remove remaining food.
Do not use the appliance if the rotating sieve is damaged.

SAVE THESE INSTRUCTIONS

This product is for household use only.

POLARIZED PLUG (120V Models Only)

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

ELECTRICAL CORD

a) A short power-supply cord (or detachable power-supply cord) is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
b) Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.
c) If a long detachable power-supply cord or extension cord is used,

1) The marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance,
2) If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord, and
3) The longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over.

Note: If the power supply cord is damaged, it should be replaced by qualified personnel or in Latin America by an authorized service center.

Note: The maximum wattage is obtained with the centrifugal juicer attachment. Other recommended attachments draw significantly less power.

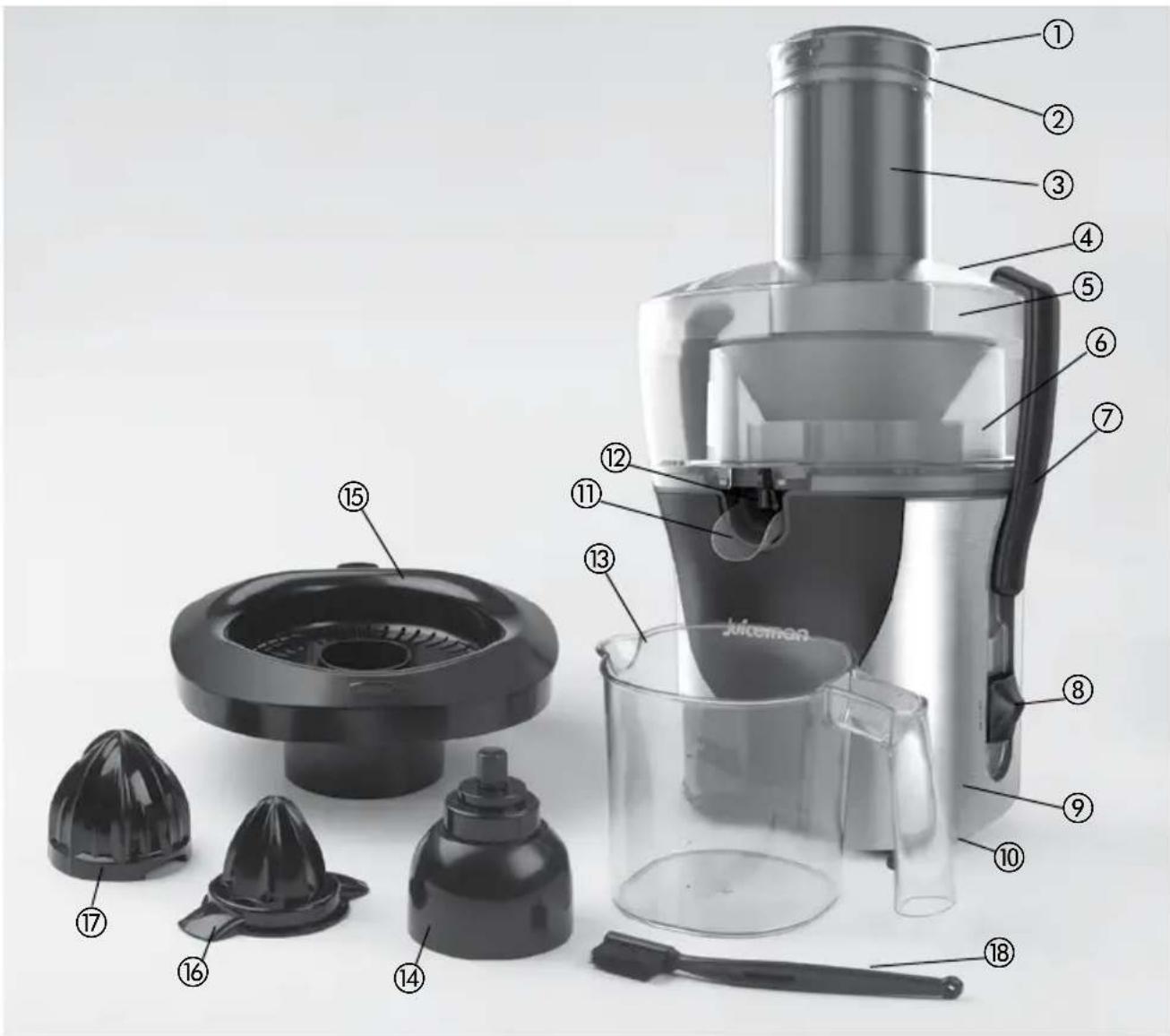

+1. Small food pusher (Part #770106)
+2. Large food pusher (Part #770108)
3. Feed chute
+4. Lid (Part #770109)
+5. Stainless steel filter (Part #770102)
+6. Integrated pulp container (Part #770104)
+7.Locking latches (both sides) (Part #081243EB)
8. Speed control switch
9. Base
10. Cord wrap (under base)

• 1. Anti-drip removable spout [Part #770105]
• 1. Open/close latch (Part # 770107)
     † 13. Juice pitcher (Part # 081244FI-S)
     † 14. Citrus juicer drive shaft (Part #770103)
• 1. Citrus juicer attachment (Part #081249EB)
• 1. Small juicing cone (Part #04178EB)
     +17. Large juicing cone (Part #04177EB)
     +18. Cleaning brush (Part #04186)

Note: † indicates consumer replaceable/ removable parts

How to Use

This product is for household use only.

GETTING STARTED

• Remove all packing material and, if applicable, any stickers from the product. Remove and save literature.
• Please go to www.prodprotect.com/applica to register your warranty. For additional information and recipes for your product go to www.juiceman.com.
• Take the appliance apart following instructions in DISASSEMBLING THE CITRUS JUCER and wash all removable parts as instructed in CARE AND CLEANING. This will remove any traces of dust or residue left from manufacturing and shipping.

Important: Do not rinse or immerse base in water or any other liquid.

• Place base on a dry, level counter to prepare and assemble, following instructions in ASSEMBLING THE JUICE EXTRACTOR.
• Once assembled place the appliance on a level dry space, allowing air space on all sides to provide proper ventilation for the motor.

PREPARATION

How to prepare fruits and vegetables for juicing.

Purchasing and Storing Ingredients:

Always use fresh fully ripened fruits and vegetables.
- When purchasing consider selecting fruits and vegetables in season for best freshness and flavor.
- Choose fruits that are plump, tender and have bright color. Fruits should be heavy for their size without bruises, cuts or blemishes.
- To ripen fruit, place in a small clean paper bag. Close the bag loosely and let stand at room temperature. (To speed ripening, add a ripe apple or banana to the bag.) Once ripened, store in the refrigerator for a day or 2 until ready to use.
- Store perishable vegetables in the refrigerator until ready to use.

Preparing Fruits and Vegetables for the Juice Extractor:

• Wash fruits and vegetables thoroughly just before using in the juice extractor using a natural bristle brush and a biodegradable cleaner to help remove pesticide residue.
• If desired, remove the skin. The skin may be left on all produce with the exception of all citrus fruits, including oranges, grapefruit, lemons, limes, tangerines.

Note: The oil in the skin of these fruits tastes bitter and is difficult to digest.

Hint: Although the skin may be left on melons and pineapple, you may choose to remove them to maximize the fruit flavor in the finished drink.

• All pits and large seeds should be removed from fruits, including apricots, cherries, nectarines, mangoes, peaches, plums, melons
• Remove and discard outer leaves of non-organic produce. Peel away any wax coatings.
• Trim any bruised or discolored sections of fruits and vegetables.
• The design of the feed chute accommodates larger produce. It will easily accommodate most whole fruits and vegetables, such as, apples, beets, carrots and celery. If necessary, cut into large pieces before inserting into feed chute.
• Be sure all parts of the juice extractor and clean and dry. See the CARE AND CLEANING instructions section of the manual.

DISASSEMBLING THE JUICE EXTRACTOR

1. Pull up at the bottom of each locking latch to disengage from the tab on the cover. The locking latches will raise up, so you can release them from the lid.
2. To remove the lid, take out the food pusher, grasp the feed chute and pull up.
3. To remove the integrated pulp container, grip the side edges with one hand and the back edge of the pulp container with the other. Pull up with the stainless steel filter in place.
4. To remove the stainless steel filter, grasp the filter by the rim to pull it out.

Caution: The stainless steel filter cutting teeth are very sharp. Handle it carefully.

1. Turn the pulp container upside-down.
2. Remove spout by grasping the center of the spout and pulling up to release from the 4 latches. (see A)

ASSEMBLING THE JUICE EXTRACTOR

1. Turn the pulp container upside-down.
2. Insert removable spout onto pulp container by aligning the 4 latches and pushing down on the center until it snaps into place (see B.)
3. Place integrated pulp container on the base with the juice spout facing you.
4. Insert the stainless steel filter in the center of the integrated pulp container and press down until it snaps into place.
5. Place the lid on top of the integrated pulp container.
6. Lock the locking latches by holding down the cover as you fit the locking mechanism at the top of each latch over the tab on each side of the lid. Press the bottom of each latch until you hear it click into place.
7. Insert the desired food pusher into the feed chute (see USING THE SMALL AND LARGE FOOD PUSHERS). Place the food pusher into the feed chute, matching the indentations on the food pusher to the projections on the feed chute.

Important: The appliance will not operate until the locking latches are locked.

USING THE ANIT-DRIP SPOUT

The Open/Close latch should be in the Closed [ ] position before and after each juicing cycle to avoid dripping. The latch should be in the Open [ ] position during juicing. See CARE AND CLEANING for further instruction.

Note: To begin, assemble the fruits and or vegetables to be used on the counter or in a bowl next to the extractor, following the tips in PREPARATION.

Important: The integrated pulp container holds about 3 12 cups of pulp. Do not allow the integrated pulp container to overfill. This may cause the appliance to stall.

1. Plug appliance into a standard electrical outlet. Press the speed control switch to the low setting (1) and allow it to run 10 seconds before placing any food into the feed chute.
2. Place food in the feed chute and press lightly with food pusher.
3. Use the food pusher as a guide to gently direct the produce through the feed chute.

To get the most juice from the fruits and vegetables, do not force or rush the food through the appliance.

1. When the pulp container or juice pitcher is almost full (the pulp container holds about 312 cups of pulp and the juice pitcher holds about 4 cups of juice) turn off [0]. Allow the motor to come to a complete stop before emptying either part.
2. Follow the instructions in DISASSEMBLING YOUR JUICE EXTRACTOR to remove the pulp container, then replace following instructions in ASSEMBLING YOUR JUICE EXTRACTOR. Be sure to replace the containers before resuming extraction.

Caution: The stainless steel filter cutting teeth are very sharp. Handle the filter carefully.

1. When juicing is complete, open/closed latch should be switched to close].
2. Turn off and unplug from outlet.

Note: Never place fingers or hand into the feed chute.

USING THE SMALL AND LARGE FOOD PUSHERS

Note: The food pusher has 2 parts; the smaller clear inner section locks into the larger outer section.

1. To remove the small food pusher, hold the large food pusher with one hand and twist counterclockwise until the lock of the inner section is disengaged; lift the small food pusher straight up.
2. Place the large food pusher into the feed chute, matching the indentations on the food pusher to the projections on the feed chute.

Note: Use the smaller opening for small fruits and vegetables. Use the small food pusher to help guide the fruits and vegetables through the opening in the large food pusher.

1. When using larger pieces of fruits and vegetables, replace the small food pusher into the large food pusher and use the assembled piece to help guide the larger fruits and vegetables through the feed chute. Match the notches to the opening. The clear center will drop into the slot; turn the top clockwise until the small pusher is locked in place.

• Do not put food into the extractor before turning the appliance on.
• Let the appliance run for at least 10 seconds before placing any food into the feed chute.
• Do not let the juice or pulp container overfill while using the machine. Turn the appliance off [0], wait for the motor to stop running and any juice to stop flowing. Empty the juice and/or pulp container. Be sure they are properly replaced before resuming operation of the extractor.
• Do not process bananas, avocados or coconut. They have no juice and will clog the appliance.
• Be sure to remove all pits and large seeds from fruits.
• For maximum nutritional benefits, drink your processed juice right a way.

FOR OPTIMUM JUICING

• Avoid excessive build up of pulp on the underside of the lid.
• Remove rind of melons; because they are so thick, they water down drinks.
• Refrigerate washed ripe fruits and vegetables until ready to use.

USES FOR THE PULP

The pulp from the fruits and vegetables is high in nutritional value. Use it to add fiber and flavor to muffins and quick breads. Use it to thicken soups, casseroles and sauces. Use fruit pulp to add nutrition and flavor to desserts, such as, puddings and cakes. Be sure to use it the same day you extract the juice.

Pulp is also food for your garden. You can use it as compost.

DISASSEMBLING THE CITRUS JUICER

1. To unlock the locking latches, pull open at the bottom of each latch to disengage from the tabs on the cover. The latches will raise and be released from the cover.
2. Lift the juicing cone assembly from the citrus juicer attachment.
3. Lift the citrus juicer attachment from the integrated pulp container.
4. Lift the pulp container and the drive shaft from the base.
5. Turn the pulp container upside-down.
6. Remove spout by grasping the center of the spout and pulling up to release from the 4 latches. (see C).

ASSEMBLING THE CITRUS JUCER

1. Turn pulp container upside-down.
2. Insert removable spout onto pulp container by aligning the 4 latches and pushing down on the center until it snaps into place (see D).
3. Place the integrated pulp container on the motor base.
4. Place the citrus juicer drive shaft into the center of the integrated pulp container and press down to make sure it is seated securely on the base.
   5 Place the citrus juicer attachment on top of the integrated pulp container so that the two small lock tabs are to the right and left.
5. Lock the locking latches by holding down the cover as you as you fit the locking mechanism at the top of each latch over the tab on each side of the attachment. Press the bottom of each latch until you hear it click into place.

Important: The appliance will not operate until the locking latches are locked.

1. Place the juice pitcher under the juice spout.
2. Flip the switch to open position
3. Choose your desired citrus cone and place on the drive shaft (see USING THE JUICING CONES).

USING THE JUICING CONES

Note: The small cone is recommended for small fruits, such as lemons and limes and the large cone for larger fruits, such as oranges and grapefruit.

1. Hold the small juicing cone in one hand by the 2 prongs. Place the thumb and forefinger of the other hand on the large juicing cone directly above the prongs. Press lightly and lift the conecompletely off. The small juicing cone will be revealed.
2. To replace the large juicing cone, simply place the large juicing cone with the openings on either side directly above the prongs on the small juicing cone and press down.

USING THE CITRUS JUCER

1. Assemble the citrus juicer as instructed in the ASSEMBLING THE CITRUS JUICER.

2. Unwrap the cord from the base and plug the cord into a standard electrical outlet.

3. Cut citrus fruit in half.

4. Place the cut-side of the fruit on top of the selected cone.
5. Press the speed control switch to low [1].
6. Using firm-to-moderate pressure, press down on the fruit to start the juicing action
7. When done juicing, press the speed control switch to off (0) to stop rotation of juicer and remove the fruit from the cone.
8. Flip the latch into the closed position.
9. Unplug the cord from the outlet.

CITRUS JUICER TIPS

• Before juicing a citrus fruit, roll the fruit under your hands on the countertop exerting slight pressure. This helps to release the juice.
• Drop rind into disposal in your sink to clear out lingering odors from other foods.
• Add the zest of a lemon, lime or orange to simple syrup to add a fresh taste to iced or hot teas
• Process 1 cup sugar with the zest of 1 lime or lemon and store in closed container in your refrigerator. Use to decorate cookies, muffins and doughnuts.

Care and Cleaning

This product contains no user serviceable parts. Refer service to qualified service personnel.

Important: Always unplug your juice extractor from the outlet before cleaning.

CLEANING

1. Disassemble the appliance following the instructions for disassembly.

Tip: Pulp from integrated pulp container can be used in many different ways: making breads, muffins, cakes, soup stocks, compressed facial packs and garden compost material. See USES FOR THE PULP.

1. Using a sponge or damp cloth, clean the base, feet and underside of the appliance. If necessary, you may use a damp toothbrush or cloth to clean juice from the inside the motor shaft (on top of motor base).

Important: Do not immerse the base in water or spray with water. Clean only by wiping with a damp sponge, cloth or paper towel.

1. All parts - except the base - are dishwasher-safe (top-rack only) or you may wash in warm, soapy water, using any mild liquid dishwashing detergent. Do not use any products containing ammonia or scouring powders, as these can dull, scratch or mar the surface. Use the cleaning brush provided to remove pulp left on any of the removable parts. Do not use metal brushes or pads.

NOTE: If needed the Open/Close latch can be removed for cleaning. Remove the Open/Close latch while in the open position. Turn the pulp container upside-down. Locate the back of the latch where it connects with the pulp container. Then press in the tab at the back of the latch (see arrow) while pulling up. (see E)

1. To clean the food pusher properly, twist to unlock and remove the E. small food pusher from the large food pusher. Clean with other removable parts; once parts are dry, put back together.

2. To clean the filter, use cleaning brush provided to make sure tiny holes in mesh

filter are not clogged. This can be accomplished by holding filter under a running faucet while brushing the mesh filter screen from both the inside and outside of the filter mesh with the cleaning brush.

REMOVING TOUGH STAINS

1. Due to powerful staining properties of carotenoids found in many vegetables, particularly carrots, we suggest soaking any stained parts overnight in one of the following solutions:

2. Biodegradable soap in enough warm water to cover juice extractor parts

3. cup bleach added to a sink full of warm water
4. 1 part warm water to 1 part cider vinegar
5. small box of baking soda in enough warm water to cover juicer parts.

Important: Never use ammonia or abrasive cleansers!

1. After soaking overnight, lightly scrub with soft bristle brush and liquid detergent.

STORAGE

Store your appliance in a clean, dry place. Never wrap cord tightly around the appliance. Do not put any stress on cord where it enters juicer, as this could cause cord to fray and break.

TROUBLESHOOTING

PROBLEM POSS	BLE CAUSE SOLUTION
Appliance will not start when speed switch is pressed.	The appliance may not be assembled correctly.	Check the ASSEMBLING directions found on page 6 or page 8.
The motor of the appliance seems to be struggling.	·Pulp container may be full. ·Pulp may have collected under the cover. ·The speed selected may not be correct for the type of produce you are juicing.	·Turn the appliance off and empty the pulp container. Remember, the pulp container holds about 3½ cups of pulp; do not allow to get too full. ·Turn off and unplug. Follow the directions for disassembly to take the lid off. Wash lid thoroughly and return to appliance following the assembly directions ·Hard fruits and vegetables require speed 2; softer fruits and vegetables use speed 1.
The juice extractor has stopped producing juice.	·The juice spout may be in the closed position. ·The integrated pulp container or the stainless steel filter may be blocked.	·Check to see if the spout is closed (■) or open (▲). ·Turn appliance off and unplug. Follow the directions for disassembly. Wash all parts thoroughly and return to appliance following the assembly directions.
The juice extractor is not producing as much juice as expected.	High fiber fruits and vegetables may be clogging the stainless steel filter.	Turn off and unplug the appliance. Follow the directions for disassembly. Wash all parts thoroughly and return to appliance following the assembly directions.
Appliance stops running	Motor may be overheating	Unplug appliance and allow it to cool approximately 5 minutes before continuing use.

For service, repair or any questions regarding your appliance, call the appropriate 800 number on cover of this book. Please DO NOT return the product to the place of purchase. Also, please DO NOT mail product back to manufacturer, nor bring it to a service center. You may also want to consult the website listed on the cover of this manual.

Two-Year Limited Warranty

(Applies only in the United States and Canada)

What does it cover?

• Any defect in material or workmanship provided; however, Applica's liability will not exceed the purchase price of product.

For how long?

• Two years from the date of original purchase with proof of such purchase.

What will we do to help you?

• Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

• Save your receipt as proof of date of sale.
• Visit the online service website at www.prodprotect.com/applica, or call toll-free 1-800-231-9786, for general warranty service.
• If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use
• Damage from misuse, abuse or neglect
• Products that have been modified in any way
• Products used or serviced outside the country of purchase
• Glass parts and other accessory items that are packed with the unit
• Shipping and handling costs associated with the replacement of the unit
• Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

• This warranty gives you specific legal rights. You may also have other rights that vary from state to state or province to province.

NECESITA AYUDA?

Register your product at www.prodprotect.com/applica

Made and Printed in People's Republic of China.
