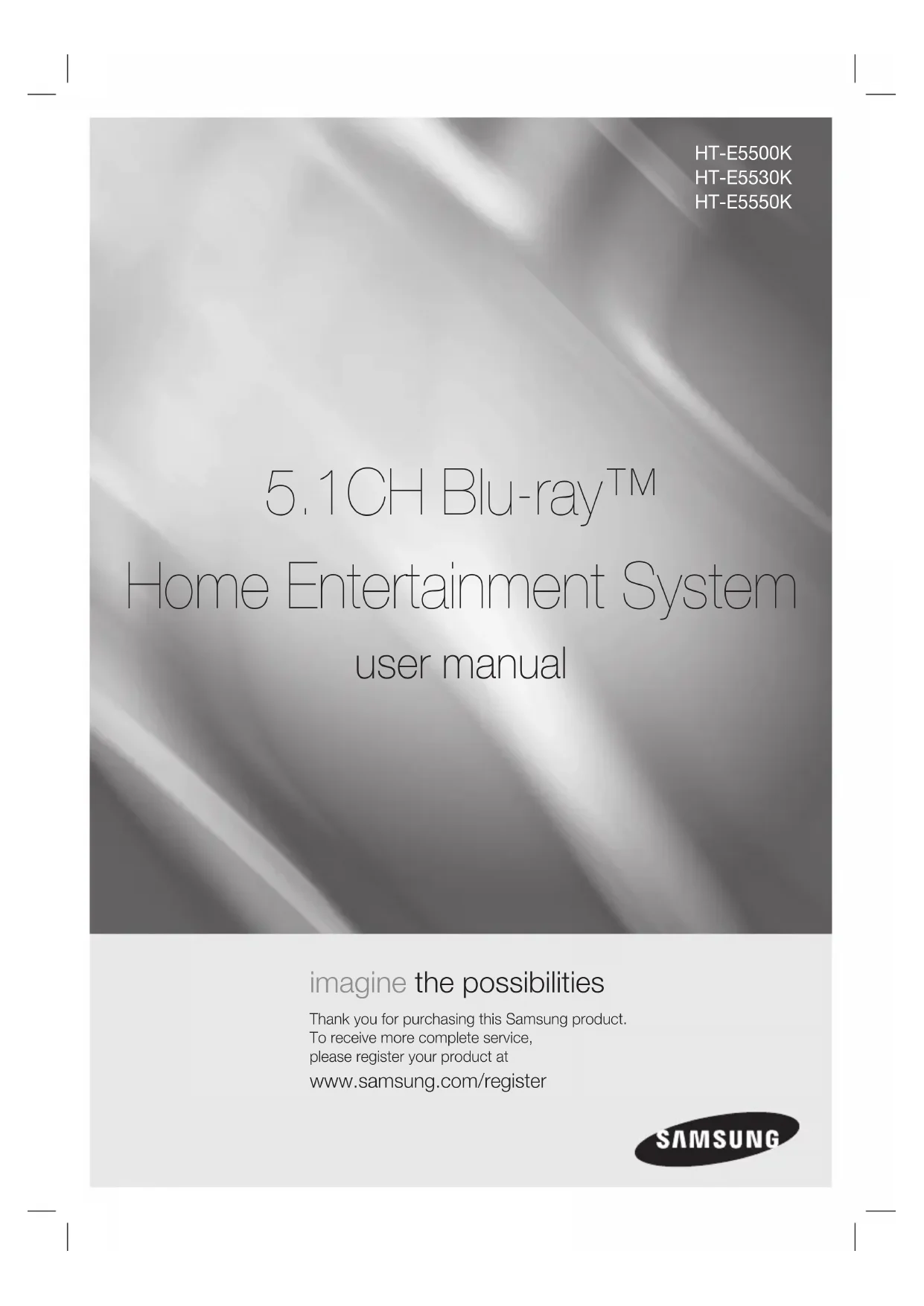

USER MANUAL HTE5550K SAMSUNG

imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register

Home Entertainment System

HT-E5500K HT-E5530K HT-E5550K|

Warning TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK).NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCKDO NOT OPENThis symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury.CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.This symbol indicates important instructions accompanying the product.WARNING• To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.CAUTION• Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.• The Mains plug is used as a disconnect device and shall stay readily operable at any time.• This apparatus shall always be connected to an AC outlet with a protective grounding connection. • To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.CLASS 1 LASER PRODUCTKLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITEKLASS 1 LASER APPARATPRODUCTO LÁSER CLASE 1CLASS 1 LASER PRODUCTThis Compact Disc player is classified as a CLASS 1 LASER product.Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.CAUTION• INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM.English 3

- Fingerprints or scratches on

a disc may reduce sound and

picture quality or cause skipping.

- Avoid touching the surface of a disc where

data has been recorded.

- Hold the disc by the edges so that fingerprints

will not get on the surface.

- Do not stick paper or tape on the disc.

- If you get fingerprints or dirt on a

disc, clean it with a mild detergent

diluted in water and wipe with a

- When cleaning, wipe gently from the inside to

the outside of the disc.

Do not keep in direct sunlight.

Keep in a cool ventilated area.

Keep in a clean protection jacket and store

• Apparatus shall not be exposed to dripping or

splashing and no objects filled with liquids, such

as vases, shall be placed on the apparatus.

• To turn this apparatus off completely, you must

pull the power plug out of the wall socket.

Consequently, the power plug must be easily

and readily accessible at all times.

• Do not touch the power plug with a wet hand.

It can cause an electric shock.

• Do not plug multiple electric devices into the

same wall socket. Ovedrloading a socket can

cause it to overheat, resulting in a fire.

• Maintenance of the Cabinet

- Before connecting other components to this

product, be sure to turn them off.

- If you move your product suddenly from a

cold place to a warm place, condensation

may occur on the operating parts and lens

and cause abnormal disc playback. If this

occurs, unplug the product, wait for two

hours, and then connect the plug to the

power outlet. Then, insert the disc, and try to

• If the product makes an abnormal noise or

produces a burning smell or smoke, turn off

the power switch immediately and disconnect

the power plug from the wall outlet. Then,

contact the nearest customer service centre for

technical assistance. Do not use the product.

Using the product as it is may cause a fire or an

• The Mains plug is used as a disconnect device

and shall stay readily operable at anytime.

Using the 3D Function

IMPORTANT HEALTH AND SAFETY INFORMATION FOR 3D PICTURES.

Read and understand the following safety

information before using the 3D function.

• Some viewers may experience discomfort while

viewing 3D TV such as dizziness, nausea, and

If you experience any such symptom, stop

viewing 3D TV, remove the 3D Active Glasses,

• Watching 3D images for an extended period of

time may cause eye strain. If you feel eye strain,

stop viewing 3D TV, remove your 3D Active

• A responsible adult should frequently check on

children who are using the 3D function.

If there are any reports of tired eyes, headaches,

dizziness, or nausea, have the child stop viewing

• Do not use the 3D Active Glasses for other

purposes (such as general eyeglasses,

sunglasses, protective goggles, etc.)

• Do not use the 3D function or 3D Active Glasses

while walking or moving around. Using the 3D

function or 3D Active Glasses while moving

around may cause you to bump into objects,

trip, and/or fall, and cause serious injury.|

Safety Information • If you want to enjoy 3D content, connect a 3D device (3D compliant AV receiver or TV) to the product’s HDMI OUT port using a high-speed HDMI cable. Put on 3D glasses before playing the 3D content.• The product outputs 3D signals only through HDMI cable connected to the HDMI OUT port.• As the video resolution in 3D play mode is fixed according to the resolution of the original 3D video, you can not change the resolution to your preference.• Some functions such as BD Wise, screen size adjustment, and resolution adjustment may not operate properly in 3D play mode.• You must use a high-speed HDMI cable for proper output of the 3D signal.• Stay at least three times the width of the screen from the TV when watching 3D images. For example, if you have a 46 inch screen, stay 3.5 meters from the screen. - Place the 3D video screen at eye level for the best 3D picture.• When the product is connected to some 3D devices, the 3D effect may not function properly.• This product does not convert 2D content into 3D. • “Blu-ray 3D” and “Blu-ray 3D” logo are trademarks of the Blu-ray Disc Association. Copyright © 2012 Samsung Electronics Co.,Ltd.All rights reserved; No part or whole of this user’s manual may be reproduced or copied without the prior written permission of Samsung Electronics Co.,Ltd. License • Dolby and the double-D symbol are registered trademarks of Dolby Laboratories.• Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,226,616; 6,487,535; 7,392,195; 7,272,567; 7,333,929; 7,212,872 & other U.S. and worldwide patents issued & pending. DTS-HD, the Symbol, & DTS-HD and the Symbol together are registered trademarks & DTS-HD Master Audio | Essential is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.• ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. DivX Certified® to play DivX® video up to HD 1080p, including premium content. DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license. Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274English 5

01 Safety Information

~ The terms HDMI and HDMI High-Definition

Multimedia Interface, and the HDMI Logo are

trademarks or registered trademarks of HDMI Licensing LLC in the United States and other

• Oracle and Java are registered trademarks of

Oracle and/or its affiliates. Other names may be

trademarks of their respective owners.

• This item incorporates copy protection

technology that is protected by U.S. patents

and other intellectual property rights of

Rovi Corporation. Reverse engineering and

disassembly are prohibited.

• Blu-ray Disc™, Blu-ray™, and the logos are

trademarks of Blu-ray Disc Association.

• iPad, iPhone, iPod, iPod classic, iPod nano,

iPod shuffle, and iPod touch are trademarks

of Apple Inc., registered in the U.S. and other

• This product uses Cinavia technology to

limit the use of unauthorized copies of some

commercially-produced film and videos and

their soundtracks. When a prohibited use of an

unauthorized copy is detected, a message will

be displayed and playback or copying will be

More information about Cinavia technology

is provided at the Cinavia Online Consumer

Information Center at http://www.cinavia.com.

To request additional information about Cinavia

by mail, send a postcard with your mailing

address to: Cinavia Consumer Information

Center, P.O. Box 86851, San Diego, CA, 92138,

This product incorporates proprietary technology

under license from Verance Corporation and is

protected by U.S. Patent 7,369,677 and other

U.S. and worldwide patents issued and pending

as well as copyright and trade secret protection

for certain aspects of such technology. Cinavia

is a trademark of Verance Corporation.

Copyright 2004-2010 Verance Corporation. All

rights reserved by Verance. Reverse engineering

or disassembly is prohibited.

• Open Source License Notice

- In the case of using open source software,

Open Source Licenses are available on the

SAFETY INFORMATION 2 Warning3 Disc Storage & Management3 Handling Cautions3 Using the 3D Function4 Copyright4 License GETTING STARTED 7 Disk and Format Compatibility8 Logos of Discs the product can play11 Accessories12 Front Panel12 Rear Panel13 Remote Control CONNECTIONS 15 Connecting the Speakers16 Speaker Components17 Installing the Speakers on the Tallboy Stand17 Connecting The Speakers18 Connecting the Optional Wireless Receiver Module20 Connecting the FM Antenna20 Connecting to an iPod/iPhone20 Using the USB Cable20 Using the Dock21 Connecting to a TV 21

Method 1 Connecting to a TV with an HDMI Cable - Best Quality (Recommended) 21

Method 2 Connecting to a TV with an Video Cable - Good Quality22 Connecting to External Devices 22

Method 1 HDMI IN : Connecting to an External Component with an HDMI Cable 22

Method 2 OPTICAL : Connecting an External Digital Audio Component 22

Method 3 AUX IN : Connecting an External Analog Component23 Connecting to a Network Router23 Wired Network23 Wireless Network SETTINGS 24 The Initial Settings Procedure26 The Home Screen26 Accessing the Settings Screen27 Settings Menu Functions32 Networks and the Internet36 Upgrading Software MEDIA PLAY 38 The AllShare Play Screen39 Playing Files on a USB Storage Device or iPod/iPhone39 iPod/iPhone Models You Can Use with This Product40 The Function Screen40 Playing Commercial Video Discs40 Playing Commercial Audio Discs41 Playing a Disc with User Recorded Content41 Using the AllShare Network Function43 Controlling Video Playback45 Controlling Music Playback48 Playing Photo Contents49 Using the Tools Menu when a File is Highlighted51 Listening to Radio51 Using the Special Effects Remote Control Buttons NETWORK SERVICES 53 Using Smart Hub55 BD-LIVE™ APPENDIX 56 Additional Information62 Troubleshooting65 SpecificationsEnglish 7 | 02 Getting Started Getting Started

Disk and Format Compatibility

Disc types and contents your product can play

Media Disc Type Details VIDEOBlu-ray Disc3D Blu-ray DiscBD-ROM or BD-RE/-R disc recorded in the BD-RE format.DVD-VIDEO, DVD-RW,DVD-R, DVD+RW,DVD+RDVD-VIDEO, recorded DVD+RW/DVD-RW(V)/DVDR/+R discs that have been recorded and Finalized, or a USB storage media containing DivX, MKV, MP4 contents.MUSICCD-RW/-R, DVD-RW/-R,BD-RE/-RMusic recorded on CD-RW/-R, DVD-RW/-R, BD-RE/-R discs or a USB storagemedia containing MP3 or WMA contents.PHOTOCD-RW/-R, DVD-RW/-R,BD-RE/-RPhotos recorded on CD-RW/-R, DVD-RW/-R, BD-RE/-R discs or a USB storagemedia containing JPEG contents. |

\ The product may not play certain CD-RW/-R and DVD-R because of the disc type or recording conditions.

\ If a DVD-RW/-R disc has not been recorded properly in DVD video format, it will not be playable.

\ Your product will not play content that has been recorded on a DVD-R at a Bitrate that exceeds 10 Mbps.

\ Your product will not play content that has been recorded on a BD-R or USB device at a Bitrate that exceeds 30 Mbps.

Playback may not work for some types of discs, or when you use specific operations, such as angle change and aspect ratio adjustment. Information about the discs is written in detail on the disc box. Please refer to this if necessary.

\ When you play a BD-J title, loading may take longer than a normal title or some functions may perform slowly. Disc types your product cannot play • HD DVD• DVD-ROM/PD/MV-Disc, etc• DVD-RAM• Super Audio CD (except CD layer)• DVD-RW(VR mode)• CVD/CD-ROM/CDV/CD-G/CD-I/LD(CD-Gs play audio only, not graphics.)• 3.9 GB DVD-R Disc for Authoring. |

\ This product may not respond to all operating commands because some Blu-ray Disc, DVD, and CD discs allow specific or limited operation and provide only certain features during playback.Please note that this is not a defect in the product.

\ Samsung cannot guarantee that this product will play every disc bearing the Blu-ray Disc, DVD or CD logo because disc formats evolve, and problems and errors may occur during the creation of Blu-ray Disc, DVD, and CD software and/or the manufacture of discs.

Please contact the SAMSUNG Customer Care Centre, if you have questions or encounter difficulty when playing Blu-ray Disc,

DVD, or CD discs in this product. Also, refer to rest of this user manual for additional information on playback restrictions.

\ Some commercial discs and DVD discs purchased outside your region may not play on this product.|

Getting Started Region CodeBoth products and discs are coded by region. These regional codes must match for a disc to play. If the codes do not match, the disc will not play.The Region Number for this product is displayed on the rear panel of the product.Disc TypeRegion Code

Area Blu-ray Disc A North America, Central America, South America, Korea, Japan, Taiwan, Hong Kong and South East Asia. B Europe, Greenland, French territories, Middle East, Africa, Australia and New Zealand. C India, China, Russia, Central and South Asia.DVD-VIDEO 1 The U.S., U.S. territories and Canada 2 Europe, Japan, the Middle East, Egypt, South Africa, Greenland 3 Taiwan, Korea, the Philippines, Indonesia, Hong Kong 4 Mexico, South America, Central America, Australia, New Zealand, Pacific Islands, Caribbean 5 Russia, Eastern Europe, India, most of Africa, North Korea, Mongolia 6 China |

\ If the Region number of a Blu-ray Disc/DVDs does not correspond to the Region number of this product, the product cannot play the disc.Logos of Discs the product can playBlu-ray Disc 3D Blu-ray DiscBD-LIVE DolbyDTS DivXPAL broadcast system inU.K, France, Germany, etc. Java Supported FormatsMusic File SupportFile ExtensionContainerAudio CodecSupport Range*.mp3 MP3 MP3 -*.wma

WMA WMA Compliant with WMA version 10* Sampling rates (in kHz) - 8, 11, 16, 22, 32, 44.1, 48* Bitrates - All Bitrates in the range 5kbps to 384kbpsEnglish 9

- Even when a file is encoded by a supported codec listed above, the file might not be played if its

content has a problem.

- Normal playback is not guaranteed if the file’s container information is wrong or the file itself is

- Files having higher bit or frame rates than standard may stutter when played back.|

- The Seek (skip) function is not available if the

file’s index table is damaged.

- When you playback a file remotely through a

network connection, video playback may stutter

depending on the network speed.

- Supports up to H.264 Level 4.1

- Does not support H.264 FMO/ASO/RS, VC1

SP/MP/AP L4 and AVCHD

Below 1280 x 720 : 60 frames max

- Does not support GMC 2 or higher

- Supports WMA 7, 8, 9 and STD

- Does not support WMA 9 PRO multi-channel

files if the number of channels is more than 2 or

the files require lossless audio decoding.

- Does not support WMA sampling rate of

Supported DivX subtitle file formats

*.ttxt, *.smi, *.srt, *.sub, *.txt

Notes on the USB connection

• Your product supports USB storage media,

MP3 players, digital cameras, and USB card

• The product does not support folder or file

names longer than 128 characters.

• Some USB/digital camera devices may not be

compatible with the product.

• Your product supports the FAT 16, FAT 32, and

• Connect USB devices directly to the product’s

USB port. Connecting through a USB cable

may cause compatibility problems.

• Inserting more than one memory device into

a multi-card reader may cause the reader to

• The product does not support the PTP protocol.

• Do not disconnect a USB device during a

• The bigger the image resolution, the longer the

image takes to display.

• This product cannot play MP3 files with DRM

(Digital Rights Management) downloaded from

• Your product only supports video that is under

• Your product only supports USB Mass Storage

Class (MSC) devices such as thumb drives and

USB HDD. (HUB is not supported.)

• Certain USB HDD Devices, multi-card readers

and thumb drives may not be compatible with

• If some USB devices require excessive power,

they may may be limited by the circuit safety

• If playback from a USB HDD is unstable, provide

addtional power by plugging the HDD into a wall

socket. If the problem continues, contact the

USB HDD manufacturer.

• You must remove the USB storage device safely

(by performing the “Safely Remove USB”

function) to prevent possible damage to the

Press the HOME button to move to the home

• SAMSUNG is not responsible for any data file

damage or data loss.

(Advanced Video Codec High Definition)

• This product can play back AVCHD format

discs. These discs are normally recorded and

• The AVCHD format is a high definition digital

video camera format.

• The MPEG-4 AVC/H.264 format compresses

images with greater efficiency than the

conventional image compressing format.

• Some AVCHD discs use the “x.v.Colour” format.

This product can play back AVCHD discs that

use “x.v.Colour” format.

• “x.v.Colour” is a trademark of Sony Corporation.

• “AVCHD” and the AVCHD logo are trademarks

of Matsushita Electronic Industrial Co., Ltd. and

Sony Corporation.English 11 |

Some AVCHD format discs may not play, depending on the recording conditions.

AVCHD format discs need to be Finalized.

“x.v.Colour” offers a wider colour range than normal DVD camcorder discs.

Some DivX, MKV and MP4 format discs may not play, depending on their video resolution and frame rate.

Check for the supplied accessories below.

Figures and illustrations in this User Manual are provided for reference only and may differ from actual

An administration fee may be charged if either

a. an engineer is called out at your request and there is no defect in the product (i.e. where you have

failed to read this user manual)

you bring the unit to a repair centre and there is no defect in the product (i.e. where you have failed to

read this user manual).

The amount of such administration charge will be advised to you before any work or home visit is carried

\ To upgrade the product's software through the USB Host jack, you must use a USB memory stick.

\ When the product displays the Blu-ray Disc menu, you cannot start the movie by pressing the 6 button on the product or the remote. To play the movie, you must select Play Movie or Start in the disc menu, and then press the E

\ Plug the microphone jack before using Karaoke function. Rear Panel

Ensure a minimum of 10 cm of clear space on all sides of the home cinema to ensure adequate ventilation. Do not obstruct the cooling fan or ventilation holes. LANiPodWIRELESS IM PEDANCE : 3

Tour of the Remote Control

MIC VOL- Turn the product on and off.To change to Home Cinema, press the BD button.Press numeric buttons to operate options.Press to skip backwards or forwards.Adjust the volume.Cut off the sound temporarily.Press this to see the full screen on a TV.Press to move to the Home screen.Select on-screen menu items and change menu value.Return to the previous menu.These buttons are used both for menus on the product and also several Blu-ray Disc functions.Press to view the disc menu.Press to use the Tools menu.Press to use Smart Hub.Selects the disc Audio language.To change to TV mode, press the TV button.Press to stop/play a disc.Press to search contents.Press this to use the vTuner.Press to apply sound effects.SLEEP: Set a Sleep time to shut off the product.ECHO: Adjust the echo level ofthe microphone.Press to select Blu-ray's mode (HDMI1, AUX, BD/DVD, etc.). or Press to select TV's video mode.Select MONO or STEREO for radio broadcasts.Press to search backwards or forwards.Press to pause a disc.TUNING/CH:Search for active FM stations and change channels.MIC VOL :Adjust the MIC volume.Use to adjust the level of the subwoofer.Use to enter the Popup menu/Title menu.Press to exit the menu.Use to display the playback information when playing a Blu-ray/DVD disc.Use to set a preset radio frequency.Allows you to repeat a title, chapter, track or disc.Press to enjoy an ordinary 2D video in 3D mode.Selects the disc subtitle language.Press to apply 3D sound effect.To eject the disc.|

Installing batteries in the Remote

Control Battery size: AAA 21

\ Make sure to match the “+” and “–” ends of the batteries with the diagram inside the compartment.

\ Assuming typical TV usage, the batteries last for about one year.

\ The remote control can be used up to approximately 7 meters from the product in a straight line. Setting the Remote Control You can control certain functions of your TV with this remote control.When operating a TV with the remote control 1 . Press the TV button to set the remote control to TV mode.2 . Turn on your TV.3 . While holding down the POWER button, enter the code corresponding to your brand of TV.• If there is more than one code listed for your TV in the table, enter one at a time to determine which code works.• Example : For a Samsung TVWhile holding down the POWER button, use the number buttons to enter 00. If that does not work, try 15, then 16, etc.4 . If the TV turns off, the setting is complete.• You can use the TV POWER, VOLUME, CHANNEL, and Numeric buttons (0~9). | NOTE |

\ The remote control may not work on some brands of TV's. Also, some operations may not be possible, depending on your brand of TV.

\ The remote control will work with Samsung TVs by default.TV Control CodesBrand CodeAdmiral (M.Wards)56, 57, 58A Mark 01, 15 Anam 01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14AOC 01, 18, 40, 48Bell & Howell (M.Wards)57, 58, 81Brocsonic 59, 60Candle 18Cetronic 03Citizen 03, 18, 25Cinema 97Classic 03Concerto 18Contec 46Coronado 15Craig 03, 05, 61, 82, 83, 84Croslex 62Crown 03Curtis Mates 59, 61, 63CXC 03Daewoo02, 03, 04, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 32, 34, 35, 36, 48, 59, 90Daytron 40Dynasty 03Emerson03, 15, 40, 46, 59, 61, 64, 82, 83, 84, 85Fisher 19, 65Funai 03Futuretech 03General Electric (GE)06, 40, 56, 59, 66, 67, 68Hall Mark 40Hitachi 15, 18, 50, 59, 69Inkel 45JC Penny 56, 59, 67, 86JVC 70KTV 59, 61, 87, 88KEC 03, 15, 40KMC 15LG (Goldstar)01, 15, 16, 17, 37, 38, 39, 40, 41, 42, 43, 44Luxman 18LXI (Sears)19, 54, 56, 59, 60, 62, 63, 65, 71Magnavox15, 17, 18, 48, 54, 59, 60, 62, 72, 89Marantz 40, 54Matsui 54MGA 18, 40Brand CodeMitsubishi/ MGA 18, 40, 59, 60, 75MTC 18NEC 18, 19, 20, 40, 59, 60Nikei 03Onking 03Onwa 03Panasonic06, 07, 08, 09, 54, 66, 67, 73, 74Penney 18Philco03, 15, 17, 18, 48, 54, 59, 62, 69, 90Philips15, 17, 18, 40, 48, 54, 62, 72Pioneer 63, 66, 80, 91Portland 15, 18, 59Proton 40Quasar 06, 66, 67Radio Shack 17, 48, 56, 60, 61, 75RCA/Proscan18, 59, 67, 76, 77, 78, 92, 93, 94Realistic 03, 19Sampo 40Samsung00, 15, 16, 17, 40, 43, 46, 47, 48, 49,59, 60, 98Sanyo 19, 61, 65Scott 03, 40, 60, 61Sears 15, 18, 19Sharp 15, 57, 64Signature 2000 (M.Wards)57, 58Sony 50, 51, 52, 53, 55Soundesign 03, 40Spectricon 01SSS 18Sylvania18, 40, 48, 54, 59, 60, 62Symphonic 61, 95, 96Tatung 06Techwood 18Teknika 03, 15, 18, 25TMK 18, 40Toshiba 19, 57, 63, 71Vidtech 18Videch 59, 60, 69Wards15, 17, 18, 40, 48, 54, 60, 64Yamaha 18York 40Yupiteru 03Zenith 58, 79Zonda 01Dongyang 03, 54English 15 | 03 Connections Connections This section describes various methods of connecting the product to other external components. Before moving or installing the product, be sure to turn off the power and disconnect the power cord. Connecting the Speakers Front Speakers Place these speakers in front of your listening position, facing inwards (about 45°) toward you. Place the front speakers so that their tweeters will be at the same height as your ear. Align the front face of the front speakers with the front face of the centre speaker or place them slightly in front of the centre speakers.Centre SpeakerIt is best to install the Centre Speaker at the same height as the front speakers. You can also install it directly over or under the TV.Surround SpeakersPlace these speakers to the side of your listening position.

If there isn't enough room, place these speakers so they face each other. Position them about 60 to 90cm above your ear, facing slightly downward. * Unlike the front and centre speakers, the surround speakers are used mainly for sound effects. Sound will not come from them all the time.SubwooferThe position of the subwoofer is not so critical. Place it anywhere you like.Position of the productPlace it on a stand or cabinet shelf, or under the TV stand.Selecting the Listening PositionThe listening position should be located about 2.5 to 3 times the distance of the TV's screen size away from the TV. For example, if you have a 46 inch screen, locate the listening position 2.92 to 3.50 meters from the screen.Front (L)Surround (L)Surround (R)Front (R)ProductCentreSubwoofer|

Installing the Speakers on the Tallboy Stand

* HT-E5530K only - Front Speakers

* HT-E5550K only - Front/Surround Speakers

1. Turn the Stand Base upside-dowon and

connect it to the Stand.

2. Insert screws clockwise into the three holes

marked using a screwdriver as shown in the

3. Straighten a supplied speaker wire and put in

the hole on the centre of Stand Base.

4. Connect the upper Speaker to the assembled

5. Insert a screw clockwise into the hole on the

rear of the speaker using a screwdriver.

And then connect a speaker cable.

6. This is the appearance after the speaker is

Follow this steps to install other speaker.

Connecting The Speakers

1. Match each speaker cable bundle to the correct speaker by matching the

colour coded plug on each bundle to the coloured sticker on the bottom

2. To attach speaker wire to each speaker:

a. Press down the red tab on the back of the speaker, insert the red wire,

and then release the tab.

b. Press down the black tab on the back of the speaker, insert the black

wire, and then release the tab.

3. Connect the speaker wire plugs to the back of the product by matching

the colours of the speaker plugs to the colours of the speaker jacks. Black Red

Connecting the Optional Wireless Receiver Module To connect the surround speakers wirelessly, you have to purchase the wireless receiver module and TX card from your Samsung retailer.• This product should be connected with the SWA-5000 only.

1. Follow the 1 to 3 steps as shown on the previous page.

2. With the product turned off, insert the TX card into the TX Card

Connection (WIRELESS) on the back of the product.

• Hold the TX card so that the label "WIRELESS" faces upward

and insert the card into the port.

• The TX card enables communication between the product and

the wireless receiver module.

3. Connect the left and right surround speakers to the wireless

receiver module. Again, match the colour of the plugs to the jacks

on the wireless receiver module.

4. Plug the power cord of the wireless receiver module into the

5. Turn on the product. The product and wireless receiver module will now communicate with each

other and you will hear sound from the Surround speakers.

Do not let children play with or near the speakers. They could get hurt if a speaker falls.

When connecting the speaker wires to the speakers, make sure that the polarity (+/ –) is correct.

Keep the subwoofer speaker out of reach of children to prevent children from inserting their hands or alien substances into the duct (hole)

of the subwoofer speaker.

Do not hang the subwoofer on the wall through the duct (hole).

Do not insert any other card except the TX card dedicated to the product.

If you insert a different TX card, you can damage the product and may not be able to remove the card easily.

Do not insert the TX card upside down or in the reverse direction.

Insert the TX card when the product is turned off. Inserting the card when it is turned on may cause a problem.

The wireless receiving antenna is built into the wireless receiver module. Keep it away from water and moisture.

For optimal listening performance, make sure that the area around the wireless receiver module location is clear of any obstructions.

If you hear no sound from the wireless surround speakers, switch the mode to Dolby Pro Logic II.

In 2-CH mode, you will hear no sound from the wireless surround speakers.

If you place a speaker near your TV set, the screen colour may be distorted because of the magnetic field.

Place the wireless receiver module at the rear of the listening position. If the wireless receiver module is too close to the product, sound

from the speakers may be disrupted because of interference.

If you use a device such as a microwave oven, wireless LAN Card, or any other device that uses the 2.4/5.8GHz frequencies near the

product, sound from the speakers may be disrupted because of interference.

The maximum transmission distance from the product to the wireless receiver module is about 33 feet (10m), but may vary depending on

your operating environment. If a steel-concrete wall or metallic wall is between the product and the wireless receiver module, the system

may not operate at all, because the radio wave cannot penetrate metal.

If the product doesn't make a wireless connection, you need to run an ID Set between the product and wireless receiver module. With the

product turned off, press "0"

"5" on the remote control. Turn on the wireless receiver module. Then, press and hold the “ID SET” button on the back of the wireless receiver module for 5 seconds, and then turn the product on.

WIRELESS I M P E D AN C E

HDMI OUT FM ANT FM Antenna (supplied)

1 . Connect the FM antenna supplied to the FM ANTENNA Jack.

2 . Slowly move the antenna wire around until you find a location where reception is good, then fasten it

to a wall or other rigid surface.

This product does not receive AM broadcasts.

Connecting to an iPod/iPhone

Make sure to connect the dock connector so that the label “

To view a video from your iPod on your TV,

you must also connect the Video Out jack

on the product to the Video In jack on

your TV. See page 21.English 21

Connecting to a TV Select either Method 1 or Method 2.

• If you have set the product's remote control to operate your TV, press the TV SOURCE button on the remote control,

and then select the correct external source from the TV's source list (HDMI, Video In, etc.) to view video from the home

Method 1 Connecting to a TV with an HDMI Cable - Best Quality (Recommended)

Connect an HDMI cable from the HDMI OUT jack on the back of the product to the HDMI IN jack on your

Method 2 Connecting to a TV with an Video Cable - Good Quality

Connect the supplied Video cable from the VIDEO OUT jack on the back of the product to the VIDEO IN

The VIDEO Out jack always outputs in the 576i/480i resolution regardless of the resolution set in the Setup menu.

Do not connect the unit through a VCR. Video signals fed through VCRs may be affected by copyright protection systems and

the picture will be distorted on the television.|

Connecting to External Devices

(Cable not supplied.) (Cable not supplied.) Method 1 HDMI IN : Connecting to an External Component with an HDMI Cable Connect an HDMI cable from the HDMI IN jack on the back of the product to the HDMI OUT jack on your

digital device.  Select the HDMI1 or HDMI2 mode. Method 2 OPTICAL : Connecting an External Digital Audio Component To connect the digital audio output of digital signal components such as Cable Boxes and Satellite

Receivers (Set-Top-Boxes).

Using a digital optical cable (not supplied), connect the Optical Digital Audio In jack on the product to the

To see video from your Cable Box/Satellite receiver, you must connect its video output directly to your TV.

This system supports Digital sampling frequencies of 32 kHz or higher from external digital components.

This system supports only DTS and Dolby Digital audio. MPEG audio, a bitstream format, is not supported. Method 3 AUX IN : Connecting an External Analog Component

Using an RCA audio cable (cable not supplied), connect the AUDIO In jack on the product to the AUDIO Out jack on the external Analog component.  Select the AUX mode.

~ Be sure to match the colours on the cable plugs to the colours on the input and output jacks.English 23 |

Connecting to a Network Router

You can connect your product to your network

router using one of the methods illustrated below.

(with integrated router)

Internet access to Samsung’s software update server

may not be allowed, depending on the router you use or

your ISP’s policy. For more information, contact your ISP

(Internet Service Provider).

DSL users, please use a router to make a network

To use the AllShare Play function, you must connect your

PC to your network as shown in the illustrations on the

The connection can be wired or wireless.

If your wireless IP router supports DHCP, this product can

use a DHCP or static IP address to connect to the wireless

Set your wireless IP router to Infrastructure mode. Ad-hoc

mode is not supported.

The product supports only the following wireless security

- WEP (OPEN/SHARED), WPA-PSK (TKIP/AES), WPA2-PSK

Select a channel on the wireless IP router that is not

currently being used. If the channel set for the wireless IP

router is currently being used by another device nearby, it

will result in interference and communication failure.

If you select the Pure High-throughput (Greenfield)

802.11n mode and set the Encryption type on your router

or AP to WEP, TKIP or TKIP-AES (WPS2Mixed), the product

will not support a connection in compliance with new Wi-

Fi certification specifications.

Wireless LAN, by its nature, may cause interference,

depending on the operating conditions (AP performance,

distance, obstacles, interference by other radio devices,

The Initial Settings Procedure • The Home menu will not appear if you do not configure the initial settings.• The OSD (On Screen Display) may change in this product after you upgrade the software version.• The access steps may differ depending on the menu you selected.1 . Turn on your TV after connecting the product, and then turn on the product. When you turn on the product for the first time, the product automatically displays the Initial Settings Language screen.2 . Use the ▲▼◄► buttons on the remote to select the desired language, and then press the E button twice. The Start screen appears.3 . Press the E button to start setup. The Network Settings screen appears.The next step is to set up a wireless network using an internal LAN Adapter.If you want to connect to your wired network, plug in a network cable.Previous Skip

Next Initial Settings > Network Settings (1/5)4 . Press the E button to set up the product's wired network connecton or select Skip, and then press the E button to skip network setup. If you selected Skip, go to Step 12. | NOTE |

\ The product starts the wireless network connection procedure by default. If you want to set up a wired connection, select Skip, and then go to "Configuring Your Network Connection" on page 30 after you have completed the Initial Settings Procedure.

\ If you skip wireless network setup here, go to "Wireless Network" on page 33 to set up the product's wireless network connection later.5 . The product searches for and then displays all available wireless router network connections.Initial Settings > Network Settings (2/5)RefreshWPS(PBC)Previous Next

Skip Select your wireless router from the list.1 / 4KIMING_VTOWER TIAS si-ap Add Network surlwang56 . Use the ▲▼ buttons to select a router, and then press the E button. The Next button is highlighted.7 . Press the E button to continue. The Security Key screen appears. | NOTE |

\ If you have a WPS(PBC) compatible router, select WPS(PBC) instead, press the E button, and then follow the directions on the screen. When done, go to Step 10.Initial Settings > Network Settings (4/5)PreviousWPS PIN Skip

Next Enter security key.0 entered A/a  Space 

- Del. 8 . Enter your network's security key. When done, use the ▲▼◄► buttons to select Next, and then press the E button. | NOTE |

\ Enter numbers by pressing the number buttons on your remote.

\ Enter letters by selecting a letter using the ▲▼◄► buttons, and then press E button.

\ To display capital letters (or redisplay small letters if capital letters are displayed), select A/a, and then press the

9 . If the connection is successful, the

Connection Complete screen appears. Select

Next, and then press the

Software Update screen appears.

If the connection is not successful, select Next, and then

button. After you have completed the Initial

Settings procedure, go to "Wireless Network" on page 33

to set up the product's wireless network connection.

10 . To upgrade the software, select Next, and

upgrade, select Skip, press the

If you skipped network set up, you must skip software

11 . If there is a software update available,

the product downloads and installs the

upgrade. This can take some time. If there

is no software update available, the "There

are no new software updates for you to

download. You already have the most up

to date version." message appears. Select

Next, and then press the

button. The TV Aspect Ratio screen appears.

Set to match the type of television connected.

4:3 Pan-Scan Select when connecting to a 16:9 TV Screen. All content will be displayed at original aspect ratio. Content formatted in 4:3 will be displayed with black bars on left and right. 12 . Using the ▲▼ buttons, select the aspect ratio

that matches your screen, select Next, and

You have four choices:

16:9 Original - For widescreen TVs. Displays

widescreen pictures in their orignal 16:9

format and 4:3 pictures (the old, standard

format) in 4:3 pillar box format with black bars

on the left and right.

16:9 Full - For widescreen TVs. Displays

widescreen pictures in their orignal 16:9

screen and 16:9 pictures in letter box format

that retains the 16:9 aspect ratio but puts

black bars above and below the picture.

4:3 Pan-Scan - For older, standard screen

Analog TVs. Displays 4:3 pictures in full

screen and 16:9 pictures in Pan-Scan format

that fills the screen, but cuts off the left and

right sides of the picture and enlarges the

 Press Smart Hub to enjoy a variety of Internet contents. 13 . The Setup completed screen appears. Check

the settings to confirm they are correct.

Select OK, and then press the

The Home screen appears.

If you want to display the Initial Setting screen again and

make changes, select the Reset option. (See page 31)

If you use an HDMI cable to connect the product to an

Anynet+(HDMI-CEC)-compliant Samsung TV and 1.) You

have set the Anynet+(HDMI-CEC) feature to ON in both

the TV and the product and 2.) You have set the TV to a

language supported by the product, the product will select

that language as the preferred language automatically.|

2 Play videos or music, or view photos from discs or connected devices.AllShare Play 1 Smart Hub. Starts Smart Hub. From Smart Hub, you can access YouTube, games, and other apps. 2 AllShare Play. Play videos, photos or music content from Disc, USB, PC or mobile devices. 3 Function. Select the audio/video input source. 4 Settings. Set various functions to suit your personal preferences.

 Selecting an Option on the Home Screen1 . To select an option on the Home screen, move the cursor using the ◄► buttons until it highlights the option of your choice, and then press the E button. Accessing the Settings Screen 1 . Select Settings on the Home screen, and then press E . The Settings screen appears.DisplayAudioNetworkSystemSupport3D SettingsTV Aspect Ratio 16:9 OriginalSmart Hub Screen Size Size 3BD Wise OnResolution AutoMovie Frame (24Fs) AutoHDMI Colour Format AutoHDMI Deep Colour AutoProgressive Mode Auto2 . To access the menus, sub-menus, and options on the Settings screen, please refer to the remote control illustration below. | NOTE |

\ If you leave the product in the stop mode for more than 5 minutes without using it, a screen saver will appear on your TV. If the product is left in the screen saver mode for more than 20 minutes, the power will automatically turn off.

Buttons on the Remote Control Used

for the Settings Menu

~ Press the E button to activate the currently selected item or confirm a setting. 4 EXIT Button : Press to exit the current menu. | NOTE |

E button on the product's front panel can be used for same purpose as the E button on the remote control. Detailed Function Information

Each Settings function, menu item, and

individual option is explained in detail on-screen.

To view an explanation, use the ▲▼◄► buttons

to select the function, menu item, or option.

The explanation will usually appear on the right

of the screen. A short description of each

Settings function starts on the next page.

Additional informaton on some of the functions

is also in the Appendix of this manual.English 27

Set up the 3D related functions.

3D Blu-ray Playback Mode: Select whether to play a Blu-

ray Disc with 3D contents in 3D Mode. If you move to the

Home or Smart Hub Home menu while in 3D mode, the

product will switch to 2D automatically.

Screen Size: Enter the size of the TV attached to the

product. The product will automatically adjust the 3D output

to the screen size of the TV.

Lets you adjust the output of the product to the screen size of

your TV. See page 25, Step 12 for a description of the screen

BD Wise is Samsung’s latest inter-connectivity feature.

When you connect a Samsung product and a Samsung TV

with BD Wise to each other via HDMI, and BD Wise is on in

both the product and TV, the product outputs video at the

video resolution and frame rate of the Blu-ray/DVD Disc.

Lets you set the output resolution of the HDMI video signal

to Auto, 1080p, 1080i, 720p, 576p/480p. If Composite

is connected, the resolution supports only 576i/480i. The

number indicates the number of lines of video per frame. The

i and p indicate interlaced and progressive scan, respectively.

The more lines, the higher quality.

Setting the Movie Frame (24Fs) feature to Auto lets the product

adjust its HDMI output to 24 frames per second automatically

for improved picture quality if attached to a 24Fs compatible

• You can enjoy the Movie Frame (24Fs) feature only on a TV

supporting this frame rate.

• Movie Frame is only available when the product is in the

HDMI 1080i or 1080p output resolution modes.

Lets you set the colour space format for the HDMI output to

match the capabilities of the connected device (TV, monitor, etc).

Lets you set the product to output video from the HDMI OUT

jack with Deep Colour. Deep Colour provides more accurate

colour reproduction with greater colour depth.

Lets you improve picture quality when viewing DVDs.|

You can set the speaker options.

Connect Karaoke microphone to enjoy karaoke function.

Karaoke scoring: This feature rates your singing ability and

gives you a score for each song you sing.

My Karaoke: Set the volume of the vocals when using the

Let you configure the Equaliser settings manually.

Lets you set the product so that the volume remains stable

when a scene change occurs or when you change the

Lets you select which speakers you want active, either the

TV's speakers or the Home theatre's speakers.

Lets you direct the sound from the TV to the Home Cinema

speakers. Requires an HDMI connection and an Audio Return

Channel (ARC) compatible TV.

• When Audio Return Channel set to on, use HDMI Cable to

connect the product to the TV. At this time, optical input

• When Audio Return Channel set to auto, use HDMI Cable to

connect the product to the TV. At this time, ARC and optical

input is selected automatically.

Let you set the Digital Output to match the capabilities of the

AV receiver you’ve connected to the product. For more details,

please refer to the digital output selection table. (See page 61)

Auto: Automatically controls the dynamic range of Dolby

TrueHD audio, based on information in the Dolby TrueHD

soundtrack. Also turns dynamic range control on for Dolby

Digital and Dolby Digital Plus.

Off: Leaves the dynamic range uncompressed, letting you

hear the original sound.

On: Turns dynamic range control on for all three Dolby

formats. Quieter sounds are made louder and the volume of

loud sounds is reduced.

When the product is attached to a digital TV, lets you adjust

the audio delay so that the audio syncs with the video. You

can set the delay between 0 and 300 milliseconds.English 29

For more information about Network Settings and network

functions, see "Networks and the Internet" starting on page

Let you check whether a connection to the network and the

Internet have been established.

Lets you connect a Wi-Fi Direct device to the product using a

Peer-to-Peer network, without a wireless router. You can use

the device to control the product.

Soft AP Lets you connect other types of Wi-Fi devices to the product

wirelessly. Requires that you create a security key which

you must enter into the other Wi-Fi devices when you are

connecting them to the network.

Lets you permit external devices such as smart phones to

connect to the product and share content with or control the

Lets you assign an identifying name to the product. You use

this name to identify the product when you are connecting

external Wi-Fi devices (smart phones, tablets, etc.) to it.

Lets you allow, limit, or prohibit an Internet connection for the

Lets you re-run the Initial Settings procedure. See page 24 for

You can connect a wireless USB keyboard or mouse to the

USB port on the front of the player.

Keyboard Settings : Lets you configure a wireless USB

keyboard connected to the player.

window appears in the Web Browser.

Mouse Settings : Lets you configure a wireless USB mouse

connected to the player. You can use the mouse in the

player's menu in the same way you use a mouse on your PC.

To use a mouse with the player's menu:

1 . Connect the USB mouse to the player.

2 . Click the primary button you selected in Mouse Settings.

The Simple Menu appears.

3 . Click the menu options you want.

Depending on the model of the USB HID keyboard and mouse may not

be compatible with your product.

Some HID keyboard keys may not work.

Wired USB keyboards are not supported.

Some applications may not be supported.

If a wireless HID Keyboard does not operate because of interference,

move the keyboard closer to the player.

Anynet+ is a convenient function that offers linked operations

with other Samsung products that have the Anynet+ feature

and lets you control those products with one Samsung TV

remote. To operate this function, you must connect this

product to an Anynet+ Samsung TV using an HDMI cable.

You can select the language you prefer for the On-Screen

menu, disc menu, subtitles, etc.

• The language you select for the disc menu, disc audio, or

subtitles will only appear if it is supported on the disc.English 31

The default PIN is 0000. Enter the default PIN to access the

security function if you haven't created your own password.

BD Parental Rating: Prevents playback of Blu-ray Discs

with a rating equal to or above a specific age rating you

enter unless the PIN is entered.

DVD Parental Rating: Prevents playback of DVDs with a

rating above a specific numerical rating you select unless

If you forget your password

1 . Remove any disc or USB storage device.

2 . Press and hold the

button on the front panel for 5

All settings will revert to the factory settings.

When the factory default settings are restored, all the user stored BD

data will be deleted.

You can specify the display brightness and time zone.

Front Display: Lets you change the brightness of the front

Time Zone: You can specify the time zone that is applicable

View DivX® VOD Registration Codes to purchase and play

For more information about the Software Update function, see

"Upgrading Software" on page 36.

Provides contact information for assistance with your product.

When activated, lets Samsung Call Centre agents diagnose

and fix problems with the product remotely. Requires an active

Internet connection. Remote Management service might not

be available in some countries.

All settings will revert to the default except for the network

and Smart Hub settings. The default security password is

Wired - Manual If you have a static IP address or the Automatic procedure does not work, you'll need to set the Network Settings values manually.After following Steps 1 to 3 above:1 . Select the Start in the Network Settings screen, and then press the E button.The Network Status screen appears. The player attempts to verify the network connection and fails.Network SettingsRetryIP SettingsPrevious OK Wireless network disconnectedUnable to connect to wireless router. Try the following: check that the router is turned on, and if it is, try turning it off and onagain. Check if you need to enter a security key to use the router.MAC Address XX:XX:XX:XX:XX:XXIP Address 0.0.0.0Subnet Mask 0.0.0.0Gateway 0.0.0.0DNS Server 0.0.0.02 . Select IP Settings on the right of the screen, and then press E button.The IP Settings screen appears.3 . Select the IP Mode field, and then set to Manual.4 . Use the number keypad on your remote to enter the Network values. Use the ▲▼◄►

buttons on the remote to move from entry field to entry field. | NOTE |

\ You can get these values from your Internet provider. You can also view these values on most Windows computers. For instructions, see "Getting the Network Settings Values." on page 33.5 . When done, highlight OK, and then press E button. The player verifies the network connection and then connects to the network. Networks and the Internet When you connect this player to a network, you can use network based applications and functions such as Smart Hub and BD-LIVE, and upgrade the player's software through the network connection. For more information about accessing and using Internet services, see the Network Services chapter of this manual on pages 53~55. Instructions for configuring the network connection start below. Configuring Your Network Connection Before you begin, contact your ISP to find out if your IP address is static or dynamic. If it is dynamic, and you have a wired or wireless network, we recommend using the Automatic configuration procedures described below.If you are connecting to a wired network, connect the player to your router using a LAN cable before you start the configuration procedure.If you are connecting to a wireless network, disconnect any wired network connection before you begin.To begin configuring your network connection, follow these steps:1 . In the Home menu, select Settings, and then press the E button. 2 . Select Network, and then press the E

button.3 . Select Network Settings, and then press the E button. 4 . Go to the instructions for Wired networks starting below or the instructions for Wireless networks starting on page 33. Wired Network

Wired – Automatic After following Steps 1 to 3 above:1 . Select the Start in the Network Settings screen, and then press the E button. The player detects the wired connection, verifies the network connection and then connects to the network.English 33

< Getting the Network Settings Values >

You can view your Network Settings values on

most Windows computers. To view the Network

Settings values, follow these steps:

1 . Right click the Network icon on the bottom

right of the Windows desktop.

2 . In the pop-up menu, click Status.

3 . On the dialog that appears, click the Support

4 . On the Support tab, click the Details button.

The Network settings are displayed.

3 . On the dialog that appears, click the Local

Area Connection or Wireless Network

Connection depending on your network

4 . On the Support tab, click the Details button.

The Network settings are displayed.

Depending on your Windows version, the information may

You can setup a wireless network connection in

When you configure the wireless network

connection, any wireless network devices currently

connected through the player or, if applicable,

the player's current wired connection, will be

Wireless(General) - Automatic

After followng Steps 1 to 3 in "Configuring Your

Network Connection" on page 32.

1 . Select the Start in the Network Settings

screen, and then press the

The player searches for and then displays a

list of the available networks. Network SettingsRefreshWPS(PBC)Previous Next CancelSelect your wireless router from the list. 1/10 iptime23

ELT JSY KT_WLAN_C361Mirhenge_eduSO070VOIP 2 . Select the desired network, and then press

4 . On the Security screen, enter your network’s

Security Code or Pass Phrase.

Enter numbers directly using the number

buttons on your remote control. Enter letters

by selecting a letter with an arrow button, and

5 . When done, select Next at the right of the

screen. The player verifies the network

connection and then connects to the

You should be able to find the Security Code or Pass

Phrase on one of the set up screens you used to set up

your router or modem.

Wireless (General) - Manual

If you have a static IP address or the Automatic

procedure does not work, you'll need to set the

Network Settings values manually.

After folloiwng Steps 1 to 3 in "Configuring Your

Network Connection" on page 32.

1 . Select Start in the Network Settings screen,

searches for and then displays a list of the

2 . Select the desired network or the Add

Network, and then press the

Settings 4 . If you select the Add Network, enter your wireless router's name to connect.Enter numbers directly using the number buttons on your remote control. Enter letters by selecting a letter with the ▲▼◀▶ buttons, and then pressing the E button.Select Next, and then press the E button again. You can select security type,then select Next, and then press the E button again.5 . On the Security screen, enter your network's Security Code or Pass Phrase. Enter numbers directly using the number buttons on your remote control. Enter letters by selecting a letter with the ▲▼◀▶ buttons, and then pressing the E button.6 . On the Security screen, enter your network's Security Code or Pass Phrase. Enter numbers directly using the number buttons on your remote control. Enter letters by selecting a letter with the ▲▼◄► buttons, and then pressing the E button.7 . When done, select Next at the right of the screen, and then press the E button.8 . The Network Status screen appears. The player attempts to verify the network connection and fails.9 . Select IP Settings on the right of the screen, and press the E button. The IP Settings screen appears. 10 . Select the IP Mode field, and then set it to Manual.11 . Use the number keypad on your remote to enter the Network values. Use the ▲▼◄► buttons on the remote to move from entry field to entry field. | NOTE |

\ You can get these values from your Internet provider. You can also view these values on most Windows computers. For instructions, see "Getting the Network Settings Values." on page 33.12 . When done, highlight OK, and then press E

button. The Network Status screen appears. The product verifies the network connection and then connects to the network. When it is done, highlight OK, and then press E

WPS(PBC) After following Steps 1 to 3 in "Configuring Your Network Connection" on page 32.1 . Select Start in the Network Settings screen, and then press the E button.Network SettingsRefreshWPS(PBC)Previous Next CancelSelect your wireless router from the list. 1/10 iptime23

ELT JSY KT_WLAN_C361Mirhenge_eduSO070VOIP2 . Select WPS(PBC), and then press the E

button.3 . Press the WPS(PBC) button on your router within two minutes. Your product automatically acquires all the network settings values it needs and connects to your network. The Network Status screen appears. The product connects to the network after the network connection is verified. Wi-Fi Direct The Wi-Fi Direct function allows you to connect Wi-Fi Direct devices to the player and each other using a peer-to-peer network, without a wireless router.1 . Turn on the Wi-Fi direct device and activate its Wi-Fi Direct function.2 . In the Home screen, select Settings, and then press the E button.3 . Select Network, and then press the E

button.4 . Select Wi-Fi Direct, and then press the E

button. The Wi-Fi Direct devices that you can connect appear.English 35 |

04 Settings DisplayAudioNetworkSystemSupportWi-Fi DirectDevice Name : [HTS]E5500WSelect your Wi-Fi Direct device to connect to.AndroidXXXXXXX DisconnectedCloseRefresh m Move " Enter ' Return 5 . You have three ways to complete the Wi-Fi

• Through the Wi-Fi device.

• Through the product using PBC.

• Through the product using a PIN.

Each is covered below.

Through the Wi-Fi Device

1 . On the Wi-Fi device, follow the procedure on

the device for connecting to another Wi-Fi

Direct device. See the device's user manual

2 . When you have completed the procedure,

you should see a pop-up on your TV screen

saying that a device that supports Wi-Fi

Direct has requested to connect. Select OK,

3 . The Connecting pop-up appears, followed

by the Connected pop-up. When it closes,

you should see the device listed on the Wi-Fi

Direct screen as connected.

Through the Product Using PBC

1 . Select the Wi-Fi Direct device you want to

connect to this player, and then press the

button. The PBC/PIN pop up appears.

The PBC pop-up appears.

3 . Press the PBC button on the Wi-Fi Direct

device within 2 minutes.

4 . The Connecting pop-up appears, followed

by the Connected pop-up. When it closes,

you should see the device listed on the Wi-Fi

Direct screen as connected.

Through the Product Using a PIN

1 . Select the Wi-Fi Direct device you want to

connect to this player, and then press the

button. The PBC/PIN pop up appears.

2 . Select PIN, and then press the

The PIN pop-up appears.

3 . Note the PIN code in the pop-up, and then

enter it into the appropriate field in the Wi-Fi

Direct device you want to connect.

4 . The Connecting pop-up appears, followed

by the Connected pop-up. When it closes,

you should see the device listed on the Wi-Fi

Direct screen as connected.

The wired or wireless network connection will be

disconnected when you use the Wi-Fi Direct function.

Soft AP Soft AP lets you connect other Wi-Fi devices to

your network through the player and lets them

access the Internet.

It requires that you create a security key which you

must enter into the other Wi-Fi devices when you

are connecting them to the network.

1 . In the Home screen, select Settings, and

1 . On the Soft AP screen, select Security Key,

2 . On the Security key screen, enter a security

key. Enter numbers directly using the number

buttons on your remote control. Enter

letters by selecting a letter with the ▲▼◄►

buttons, and then pressing the

move to DONE at the bottom of the screen,

When you connect a Wi-Fi device through the

connection procedure on the device, you must

enter the security key you created here into the

AllShare Settings The AllShare Settings screen lists your networkconnected AllShare devices and their IPaddresses. Through this screen, you can allowa device to access the player, deny access, ordelete the device from the AllShare list.1 . In the Home screen, select Settings, and then press the E button.2 . Select Network, and then press the E

button.3 . Select AllShare Settngs, and then press the E button.4 . Select a device, and then press the E

button. The AllShare Settings pop-up appears. 5 . Select Allow, Deny, or Delete from List, and then press the E button.The AllShare Settings screen only displays devices if you have established networked connections to AllShare devices. For more information about AllShare networked devices, see page 38. Upgrading Software The Software Update menu allows you to upgrade the product’s software for performance improvements or additional services.• Never turn the product off or back on manually during the update process.1 . In the Home menu, select the Settings, and then press the E button. 2 . Select Support, and then press the E

button.3 . Select Software Update, and then press the E button.4 . Select one of the following methods:• By Online• By USB• By Disc• By Downloaded • Standby Mode Upgrade5 . Press the E button.Directions for each method begin below. | NOTE |

\ The upgrade is complete when the product turns off, and then turns on again by itself.

\ Samsung Electronics takes no legal responsibility for product malfunction caused by an unstable Internet connection or consumer negligence during a software update.

\ If you want to cancel the upgrade while the upgrade software is downloading, press the E button. By Online Your product must be connected to the Internet to use the By Online function.1 . Select By Online, and then press the E

button. The Connecting to Server message appears.2 . If there is a download available, the Download pop-up appears with a progress bar and the download starts.3 . When the download is complete, the Upgrade Query window appears with three choices: Upgrade Now, Upgrade Later, or Don’t Upgrade. 4 . If you select Upgrade Now, the product upgrades the software, turns off, and then turns on automatically.5 . If you do not make a selection in one minute or select Upgrade Later, the product stores the new upgrade software. You can upgrade the software later using the By Downloaded function.6 . If you select Don’t Upgrade, the product cancels the upgrade. By USB 1 . Visit www.samsung.com.2 . Click SUPPORT on the top right of the page.3 . Enter the product's model number into the search field, and then click Find Product.4 . Click Get downloads in the centre of the page below the Downloads header.5 . Click Firmware in the centre of the page.6 . Click the ZIP icon in the File column on the right side of the page. 7 . Click OK in the pop-up that appears to download and save the firmware file to your PC.English 37

8 . Unzip the zip archive to your computer. You

should have a single folder with the same

name as the zip file.

9 . Copy the folder to a USB flash drive.

10 . Make sure no disc is inserted in the product,

and then insert the USB flash drive into the

USB port of the product.

11 . In the product’s menu, go to Settings >

Support > Software Update.

There should be no disc in the product when you upgrade

the software using the USB Host jack.

When the software update is done, check the software

details in the Software Update menu.

Do not turn off the product during the software update. It

may cause the product to malfunction.

Software Update using the USB Host jack must be

performed with a USB flash memory stick only.

1 . Visit www.samsung.com.

2 . Click SUPPORT on the top right of the page.

3 . Enter the product's model number into the

search field, and then click Find Product.

4 . Click Get downloads in the centre of the

page below the Downloads header.

5 . Click Firmware in the centre of the page.

6 . Click the ZIP icon in the File column on the

right side of the page.

7 . Click OK in the pop-up that appears to

download and save the firmware file to your

8 . Unzip the zip archive to your computer. You

should have a single .RUF file.

9 . Write the RUF file onto a disc. We recommend

10 . Finalize the disc before you remove it from

11 . Insert the disc into the product.

12 . In the product’s menu, go to Settings >

Support > Software Update.

When the system upgrade is done, check the software

details in the Software Update menu.

Do not turn off the product during the Software Update.

It may cause the product malfunction.

The By Downloaded option lets you upgrade

using a file the product downloaded earlier but

you decided not to install immediately.

1 . If upgrade software has been downloaded,

you will see the software version number to

the right of By Downloaded.

2 . Select By Downloaded, and then press the

want to upgrade. Select Yes. The product

4 . When the update is complete, the product

turns off automatically, and then turns on.

When the system upgrade is done, check the software

details in the Software Update menu.

Do not turn off the product during the software update. It

may cause the product to malfunction.

Standby Mode Upgrade

You can set the Standby Mode Upgrade function

so that the player downloads new upgrade

software when it is in Standby mode.

In Standby mode, the player is off, but its Internet

connection is active. This allows the player to

download upgrade software automatically, when

you are not using it.

Upgrade, and then press the

2 . Select On or Off.

If you select On, the player will automatically

download new upgrade software when it

is in Standby mode with the power off. If it

downloads new upgrade software, the player

will ask you if you want to install it when you

To use Standby Mode Upgrade function, your player must

be connected to the Internet.

If this function does not appear, you can upgrade to the

latest software and use it.|

Media Play Your Blu-ray product can play Disc and USB contents and the contents located on your PC, DLNA compatible mobile phone, or NAS using the AllShare Play function. For more information about AllShare Play, refer to page 38. The AllShare Play Screen To access the AllShare Play screen, select the AllShare Play icon on the Main screen, and then press the E button. Using the AllShare Play Screen My ListVideosPhotosMusic a Login ' Return Recently played

What's New Latest Updated 29.Jun.2011 Playlist

No playlists have been created.

Create playlists to access your content quickly and easily.

Recently played files will be displayed here.

When the AllShare Play screen appears, it displays My List and a list of content types - Videos, Photos, and Music - on the left side. On the right, it displays, by default, the content in My List: a list of recently played or viewed items, a list of the newest items you have viewed or listened to, and your most recent Playlist. If you have never played or viewed any items, or created a Playlist, this area will be empty. ❏

Playing My List Items To play displayed My List items, you must have the source of the items connected to or inserted in the product. For example, if recently played My List photos came from a DVD disc, you must have that disc in the product to view them.To play or view My List items, perform one of the actions below:• Use the ◄► buttons to select an item you want to view or play, and then press the E

button. To view or play another item, press the RETURN button, and then repeat the process described in the first sentence.• Use the ◄► buttons to select an item, press the TOOLS button to display the Tools menu, select Play, and then press the E button. To view or play another item, press the RETURN button, and then repeat the process described in the first sentence. ❏

Playing Video, Photo, or Music Content 1 . Make sure that the source of the content you want to play or view is connected to or inserted into the product.2 . Use the ▲▼ buttons to select Videos, Photos, or Music, and then press the E

button. The first source selection on the right side is highlighted.3 . Use the ▲▼ buttons to select the source of the content, and then press the E button. | NOTE |

\ Sources displayed for each content type may differ.4 . To control the playing of Videos, Photos, or Music, see:• Controlling Video Playback on page 43.• Controlling Music Playback on page 45.• Playing Photo Contents and Using the Tools Menu when a File is Highlighted on pages 48~50. | NOTE |

\ Depending on how and when you attach a content source to the product and the content type, the product may display a different series of screens to start playback. For alternative playback methods see:• Playing Files on a USB Storage Device or iPod/iPhone on page 39.• Playing Commercial Video Discs on page 40.• Playing Commercial Audio Discs on page 40. • Playing a Disc with User Recorded Content on page 41.English 39 |

Playing Files on a USB Storage

Device or iPod/iPhone

You can play multimedia files located on a

connected USB device.

1 . With the product turned off, connect a USB

storage device or an iPod/iPhone.

2 . Turn on the product. When the Main screen

appears, select AllShare Play > Videos,

Photos or Music > Connected device, and

button. Smart Hub Function Settings Safely Remove USB Play videos or music, or view photos from discs or connected devices. AllShare Play

. With the product turned off, connect a USB

storage device or an iPod/iPhone.

. When screen below appears, use the ▲▼

buttons to select the kind of content you

want to view or play, and then press the

button. Smart Hub Function Settings Safely Remove USB Play videos or music, or view photos from discs or connected devices. AllShare Play

Safely Remove USB Play videos or music, or view photos from discs or connected devices.

Play videos or music, or view photos from discs or connected devices.

Play videos or music, or view photos from discs or connected devices.

Even though the product will display all available folders,

it will only display files of the content type you selected

. For example, if you selected music, you

will only be able to see music files. You can change this

selection using AllShare Play.

3 . The kind of content you selected on the

connected device is displayed. Depending

on how the contents is arranged, you will see

either folders, individual files, or both.

buttons on your remote,

select the desired contents. To open a folder,

select it, and then press the

To play a file, select it, and then press the

) button to exit a folder

or to return to the Main screen.

You can play a video only when you use the iPod Dock.

To prevent possible damage to the USB memory, you

must remove the USB storage device safely using the

“Safely Remove USB” function. Press the HOME button

to move to the Home menu, select the YELLOW (C)

button, and then press the

The Photos menu does not support iPods or iPhones.

Only the playback screen will appear on the TV. View other

iPod screens on the iPod player.

If the connected iPod does not support video playback, the

"Playing video files is not supported on this iPod model."

message appears when you select the Video menu.

iPod/iPhone Models You Can Use

iPod touch 3rd/2nd/1st generation

iPod classic / iPod with video

iPod with dock connector

iPod with Click Wheel

iPod nano 5th/4th/3rd/2nd generation

iPhone 4S / iPhone 4

The Function Screen On the Function Screen, you can select the audio and/or video input source to view or listen to. | NOTE |

\ You can also change sources by pressing the Function button in the upper right of the remote.To access the Function Screen, select the Function icon on the Main screen, and then press the

E button. Options on the Function Screen To select, highlight an option using the ▲▼ buttons, and then press the E button.Digital InSelect to listen to the digital audio source connected to Digital Audio In AUX Select to listen to audio from the Analog audio source connected to Audio In.Remote iPodSelect to listen to music or view video from the iPod connected to the iPod jack.HDMI 1Select to view video from the device connected to HDMI 1.HDMI 2Select to view video from the device connected to HDMI 2.TunerSelect to listen to the FM radio.BluetoothSelect to listen to the music in the Bluetooth device. Playing Commercial Video Discs 1 . Place a disc into the disc tray with the disc’s label facing up and then close the disc tray. Playback starts automatically. If playback does not start automatically, press the

6 button on your remote or select the AllShare Play option on the Main screen, and then press the E button. See "Playing Video, Photo, or Music Content" on page 38. Playing Commercial Audio Discs

1 . Place a pre-recorded, commercial audio disc into the disc tray with the disc’s label facing up, and then close the tray. The AllShare Play Music screen appears listing the tracks. Playback of the first track starts automatically.AllShare Play

2 . To play a particular track, use the ▲▼ buttons on the remote to select the track, and then press the E button. ❏ Music Screen ControlsPause a track.Play a track. REC Make recording of karaoke with music.Repeat one track or all tracks.Play tracks in random order.Display the Equaliser.Adjust the equaliser manually.(Only when equaliser mode is On) | NOTE |

\ The Music Screen controls are only accessible when a track is playing.

\ All controls do not appear at the same time.

\ For more information about playing music, go to "Controlling Music Playback" on page 45.English 41 |

Playing a Disc with User Recorded

You can play mulitmedia files you have recorded

Place a user recorded disc into the disc tray

with the disc’s label facing up. The Device

Connected pop-up appears.

Use the ▲▼ buttons to select the type of

content you want to view or play - Videos,

Photos, or Music - and then press the

Even though the product will display folders for all content

types, it will only display files of the content type you selected

in Step 2. For example, if you selected music, you will only

be able to see music files. You can change this selection

using AllShare Play.

buttons to select the folder

containing the content type you selected in Step

2, and then press the

If you selected Music, the AllShare Play Music

screen appears listing the music files on the

disc. Use the ▲▼ buttons to select the file you

want to play, and then press the

If you selected Photos, the AllShare Play Photos

screen appears listing the photos on the disc.

Use the ▲▼◄► buttons to select the photo you

want to view, and then press the

If you selected Videos, the AllShare Play Videos

screen appears listing the video files on the disc.

Use the ▲▼◄► buttons to select the video you

want to watch, and then press the

For the Music and Video folders, you can also push the

TOOLS button on your remote, and then select Play Folder to

play or view all the files in the folder automatically. Select the

folder first before pushing the TOOLS button.

For more information about playing music, go to Controlling

Music Playback on page 45.

For more information about playing photo contents, go to

Playing Photo Contents and Using the Tools Menu when a

File is Highlighted on pages 48~50.

For more information about playing video contents, go to

AllShare lets you play Videos, Photos, or Music

located on your PC or your DLNA compatible

device through the product using a wireless

To Download the AllShare Software

To use AllShare with your PC or DLNA device, you

must install AllShare software on your PC.

You can download the PC software and get

detailed instructions for using AllShare from the

Samsung.com website.

1 . Go to www.samsung.com.

2 . Click Support at the top of the page.

3 . On the Support page, enter the model

number of your product into the Model

4 . On the page that appears, click Get

downloads on the left side under Downloads.

The Download Centre appears.

5 . On the Download Centre page, click the

6 . On the software tab, click the File icon on the

right side of the AllShare line.

7 . In the pop-up that appears, click Save File.

8 . Find the AllShare install file on your disk, and

then double click the file.

9 . In the pop-up that appears, click Run, and

then follow the directions that appear on your

Download the AllShare Installation/Instruction

manual from the same Software Tab by clicking

the corresponding PDF file symbol in the File

column on the right. The file, in PDF format, will

download and open. You can view and/or save

Playing Content Located on Your PC or

DLNA Device through the Product 5V 500mAMIC 1 MIC 2AllShare Connection PC ProductPlay back PC's files1 . Connect the product, your PC, and/or your DLNA compatible cell phone to the same wireless network.2 . Follow the directions in the AllShare software Installation/Instruction manual to set up devices and files for playing or viewing.3 . Select AllShare Play in the product's Home screen, and then press the E button. The AllShare Play screen appears.4 . Select the connected DLNA compatible device or your PC, and then press the E

button. A screen listing the available files appears.5 . Select the file you want to play or view, and then press the E button. Controlling the Playback of Content

Located on Your PC with Your Smart

Phone 5V 500mA MIC 1 MIC 2 AllShare ConnectionControl PC's files to Product PC Smart PhoneProductPlay back PC's files(Only available with Samsung phones supporting AllShare functionality.)1 . Connect the product, your PC, and your DLNA compatible cell phone to the same wireless network.2 . Follow the directions in the AllShare software Installation/Instruction manual to set up devices and files for playing or viewing.3 . On your computer, using the AllShare software, confirm your phone is connected.4 . On the phone, select the file you want to view or play, and then select the Blu-ray product as the playback device.5 . On the phone, start playback.English 43 | 05 Media Play

Playback related buttons The product does not play sound in Search, Slow, or Step mode. 6 Starts playback. 5 Stops playback. 7 Pauses playback.Fast Motion Play During playback, press the 3

2 button, the disc moves to the previous or next chapter or file. Controlling Video Playback You can control the playback of video files located on Blu-ray, DVD, and CD discs, and on USB storage devices. Depending on the disc, some of the functions described in this manual may not be available. Buttons on the Remote Control used for Video Playback

Repeat Playback Repeat a Title or Chapter1 . During playback, press the REPEAT button on the remote control.2 . Press the ▲▼ buttons to select a Chapter or Title or All, then press the

\ The screen may not display Chapter or Title immediately. Continue to press the ▲▼ buttons until your choice is inside the blue field.3 . To return to normal play, press the REPEAT button again, press the ▲▼ buttons to select Off, and then press the E button.Repeat a Section1 . During playback, press the REPEAT button on the remote control.2 . Press the ▲▼ buttons to select Repeat A-B.| NOTE |

\ The screen may not display Repeat A-B immediately. Continue to press the ▲▼ buttons until Repeat A-B is inside the blue field. 3 . Press the E button at the point where you want repeat play to start (A). 4 . Press the E button at the point where you want repeat play to stop (B).5 . To return to normal play, press the REPEAT button again.6 . Press the E button.| NOTE |

\ You must set point (B) at least 5 seconds of playing time after point (A).|

Using the TOOLS Menu During playback, press the TOOLS button.Title SearchTime SearchSelect to move to a desired title if the disc has more than one title, to a desired scene, or, using Time Search, to a specific point in a movie or video. With Time Search, you designate the specific point by entering a time coordinate in the following format 00:00:00 (hours, minutes, seconds) using the remote.Repeat ModeSelect to repeat a specific Title, Chapter (BD/DVD discs only) or marked section. Works the same as the REPEAT button. See page 43.Full ScreenSelect to set the desired full screen size. You can select Original, Mode1 (larger), and Mode2 (largest).Picture ModeSelect to set the picture mode. - Dynamic : Choose this setting to increase sharpness. - Standard : Choose this setting for most viewing applications. - Movie : This is the best setting for watching movies. - User : Lets you adjust the sharpness and noise reduction function respectively.| NOTE |

\ When you select User, the User Settings screen appears. Select an option, press E , use the ◄► buttons to make an adjustment, and then press E . Press the RETURN button to go back to the TOOLS menu.

\ When you use the BD wise function, this menu will not appear.Equaliser ModeSelect to use the Equaliser.Equaliser SettingsSelect to set the Equaliser.| NOTE |

\ It only appears when equaliser mode is on. Menu only appears when BD/DVD disc play Play from the BeginningSelect to play the movie from the beginning.Chapter SearchSelect to move to a chapter that you desire to watch.AudioSelect to set the desired audio language. - You can also operate this function by pressing the AUDIO button on the remote control.SubtitleSelect to set the desired subtitle language. - You can also operate this function by pressing the SUBTITLE button on the remote control.AngleTo view a scene from another angle. The Angle option displays the number of angles available to view (1/1, 1/2, 1/3, etc.). BONUSVIEW Video / BONUSVIEW Audio ( BD discs only)Select to set the desired bonusview option. Menu only appears when a file play Go to Videos List Move to video list screen.Scene SearchSearch the video file by the scene.InformationCheck the video file's information.| NOTE |

\ Depending on the disc or storage device, the Tools menu may differ. All options may not be displayed.English 45 |

Controlling Music Playback

You can control the playback of music content

located on a DVD, CD, or a USB storage device.

Buttons on the Remote Control used

During playback, press the

playback speed will change.

button : Plays the currently selected track.

Skip : During playback, press the

to move to the previous or next music of listed.

NUMBER buttons : During Playlist playback, press

the desired track number. The selected track is

Repeating Tracks on an Audio CD You can set the product to repeat tracks on an

audio CD (CD-DA/MP3).

1 . During playback, use the ► button to select

in the lower right corner of the screen,

want - Off, One Song, or All - and then

Shuffling Tracks on an Audio CD You can set the product to play tracks on an audio

CD (CD-DA/MP3) at random.

1 . During playback, use the ► button to select

in the lower right corner of the screen,

Off, and then press the

TOOLS button. The Tools menu appears.

selection screen appears.

3 . Use the ▲▼ buttons to select a track, and

button. A check appears

to the left of the track.

4 . Repeat Step 3 to select and check additional

5 . To remove a track from the list, move to the

track, and then press the

The check on the track is removed.

6 . When done, press the ► button to select

Play, and then press the

Music Playback screen reappears listing only

the tracks you checked. The selected tracks

You can create a playlist with up to 99 tracks on Audio

If you have created a playlist, Play selection is replaced by

Edit Playlist on the Tools menu.

On the Play selection screen, you can also choose Select

All, Deselect All, and Cancel.|

Media Play • Use Select All to select all tracks. This cancels your individual track selections. When you press the RETURN button on your remote or select PLAY and then press the

E button, all tracks will appear on the Music Playback screen, and the product will begin to play all tracks from Track 001.• Use Deselect All to deselect all selected tracks at once. Then, select individual tracks or use Select All to select all the tracks, and then press the RETURN button on your remote or select PLAY and then press the E

button. If you do not use Select All or select individual tracks, the Playlist will not change.• Cancel cancels any changes you made on the Play Select screen. When you return to the Playback screen, the Playlist will be unchanged. Ripping You can rip music from a music CD to a USB device inserted in the USB jack.1 . Insert a USB device into the USB jack on the front of the product, and then press the RETURN button on your remote.2 . Insert the disc you want to rip from into the product and close the disc tray.3 . With the Playback screen displayed, press the TOOLS button. The Tools menu appears.4 . Use the ▲▼ buttons to select Rip, and then press the E button. The Rip screen appears.5 . Use the ▲▼ buttons to select a track, and then press the E button. A check appears to the left of the track.6 . Repeat Step 4 to select and check additional tracks.7 . To remove a track from the list, move to the track, and then press the E button again. The check on the track is removed.8 . When done, press the ► button to select Rip, and then press the E button. The Rip pop-up appears.9 . Press the E button to begin the ripping process. The Ripping Completion Bar pop-up appears.10 . When ripping is complete, the “Ripping completed” message appears. Press the E button.11 . Press the RETURN button to go back to the Playback screen. 12 . Once ripping is finished, files are created under the folder “MP” of the destination USB. Using Bluetooth You can use a Bluetooth device to enjoy music with high quality stereo sound, all without wires! What is Bluetooth? Bluetooth is a technology that enables Bluetooth-compliant devices to easily interconnect with each other using a short wireless connection.• A Bluetooth device may cause a noise or malfunction, depending on usage. - When a part of the body is in contact with the receiving/transmitting system of the Bluetooth device or the Home Cinema. - Electrical variation from obstructions caused by a wall, corner or office partitioning. - Electrical interference from same frequency-band devices including medical equipment, microwave oven and wireless LAN.• Pair the Home Cinema with the Bluetooth device while maintaining a close distance.• The further the distance is between Home Cinema and Bluetooth device, the worse the quality is.If the distance exceeds the Bluetooth operational range, the connection is lost.• In poor reception-sensitivity areas, the Bluetooth connection may not work properly.• The Home Cinema has an effective reception range of up to 10 meters in all directions if there are no obstacles. The connection will be automatically cut off if the distance is out of this range. Even within this range, the sound quality may be deteriorated by obstacles such as walls or doors.• This wireless device may cause an electric interference during its operation.English 47

To connect the Home Cinema to a

Check if the Bluetooth device supports the

Bluetoothcompliant stereo headset function.

1 . Press the FUNCTION button on the remote

control of product to display the BT message.

2 . Select the Bluetooth menu on Bluetooth

device you want to connect. (refer to

Bluetooth device's user manual)

3 . Select the Stereo headset menu on the

• You will see a list of scanned devices.

4 . Select "Samsung HTS-Cxxxxx" from the

• When the Home Cinema is connected to

the Bluetooth device, the device name of

the connected Bluetooth device, followed

by the Home Cinema will display the

connected device name on the front display.

5 . Play music on the connected device.

• You can listen to the music playing on

the connected Bluetooth device over the

Crystal Surround Home Cinema system.

The Home Cinema only supports Middle Quality SBC

data (up to 237kbps@48kHz), and does not support High

Quality SBC data (328kbps@44.1kHz).

The AVRCP feature is supported and would work

differently according to another device's specification.

Connect only to a Bluetooth device that supports the

Only one Bluetooth device can be paired at a time.

Search or connection by product may not be performed

properly in the following cases:

- If there emits a strong electric wave around Home Cinema.

- If several Bluetooth devices are simultaneously paired

- If the Bluetooth device is turned off, not in place, or

- Note that such devices as microwave oven, wireless

LAN adaptor, plasma bulb and gas stove use the same

frequency range as the Bluetooth device, which can

cause an electric interference.

To disconnect the Bluetooth device from

You can disconnect the Home Cinema from the

Bluetooth device. (refer to Bluetooth deivice's

• The Home Cinema will be disconnected.

• When the Home Cinema is disconnected from

the Bluetooth device, the Home Cinema will

display DISCONNECTED on the front display.

To disconnect the Home Cinema from the

Press the ( ) button on the front panel of the

Home Cinema to switch from BT to another mode

or off the Home Cinema.

• Except disconnect through function conversion,

the connected Bluetooth device will wait a

certain time for response from the Home

Cinema before terminating the connection.

(Disconnection time may differ, depending on

the Bluetooth device)

• The currently connected device will be

In Bluetooth connection mode, the Bluetooth connection

will be lost if the distance between the Home Cinema

System and the Bluetooth device exceeds (10 meters).

If the distance is returned to the effective range or you

restart the Bluetooth device, you have to reconnect them.

If the Bluetooth device falls back in the effective range, you

can restart to restore the pairing with the Bluetooth device.

In BT function mode, Screen saver will operate if

the device keep Ready state last 5 minute. Then, for

connecting the BT device, turn off the screen saver and

connect it. To turn off the Screen saver, operate any

button on the remote control. (e.g. Volume button etc.)|

Using Karaoke You can enjoy the Karaoke with music.1 . Connect the microphone on the front of the product.2 . In the Home menu, select the Settings, and then press the E button.3 . Select Karaoke, and then press the E

button. • You can check the Karaoke score and adjust the volume of playback music's vocal.RecordingYou can make a recording of karaoke with music.1 . During the playback, move to the REC icon (

) on the bottom right side and press E button.2 . Press 5 button if you want to finish recording.3 . When recording is done, KARAOKE folder is created in the USB storage driver and saved as the form of KARAOKE.mp3.| NOTE |

\ If the microphone is connected, Speaker Selection is changed to Home theatre speakers automatically.

\ To save recording file, USB storage driver must be inserted.

\ Recording file is shown if you re-entry to AllShare Play.

\ If you hear strange noises (squealing or howling) while using the Karaoke feature, move the microphone away from the speakers. Turning down the microphone's volume or the speaker volume is also effective.

The microphone does not operate in the AUX, D.in and FM mode.

\ The karaoke scoring displays the score automatically when the Karaoke Scoring is set to On and a microphone is connected. Disconnect the microphone if you do not want to display the score. Playing Photo Contents You can play photo contents located on a DVD, USB, mobile device or PC. Using the Tools Menu During playback, press the TOOLS button.Go to Photos List Select to go to the list of photos on the current media.Start Slide Show Select to start the slide show.Slide Show SpeedSelect to set a slide show's speed.Slide Show EffectSelect to set a slide show's specialeffects.Background Music OnSelect to listen to music while viewing a slide show.Background Music SettingSelect to set the background music setting.Picture ModeSelect to set the picture settings. - Dynamic : Choose to increase Sharpness. - Standard : Choose for most viewing applications. - Movie : This is the best setting for watching movies. - User : Lets you adjust the sharpness and noise reduction function respectively.| NOTE |

\ When you use the BD wise function, this menu will not appear. Zoom Select to enlarge the current picture. (Enlarge up to 4 times)RotateSelect to rotate the picture. (This will rotate the picture either clockwise or counter clockwise.)InformationShows the picture information.| NOTE |

\ Depending on the disc or storage device, the Tools menu may differ. All options may not be displayed.

\ To enable the background music function, the photo file must be in the same storage media as the music file.However, the sound quality can be affected by the Bitrate of the MP3 file, the size of the photo, and the encoding method.

\ You can't enlarge the subtitle and PG graphic in the full screen mode.English 49

Select to access the sort options: Artist,

Genre, Monthly, Latest Date, etc. The

sort options that appear depend on the

storage and media type.

Appears in the View function screen.

Select to display the folders on the

Appears on the View function screen.

Select to sort all photo or video files on

a storage device by title.

Appears on the View function screen.

Select Artist to sort and then display

all music tracks on a storage device by

Appears on the View function screen.

Select Album to sort and then display

all music tracks on a storage device by

Appears on the View function screen.

Select Genre to sort and then display all

music tracks on a storage device by genre.

Appears on the View function screen.

Select to sort and then display all photo

or video files on a storage device from

the latest to earliest date.

Appears on the View function screen.

Select to sort and then display all photo

or video files on a storage device from

the earliest to latest date.

Appears on the View function screen.

Select to sort all photo or video files on

a storage device by the month created.

Play selection lets you select specific

music, video, and photo files to play.

It works essentially the same for all

media. The example below is for photos.

1. On the Thumbnail View screen,

highlight a photo, and then press

the TOOLS button on the remote.

2. In the Tools menu, select Play

selection, and then press the

3. On the selection screen, use the

▲▼◄► buttons to select a

photo you want to view, and and

A check mark appears to the left

4. Repeat Step 4 for each photo you

5. To de-select a photo, highlight it,

to select Play, and then press the

button. A slide show containing

the photos you selected begins.

After the slide show begins, you can

control the slide show by pressing

the TOOLS button and displaying

the Slide Show menu. See " Using

the Tools Menu" page 48.

Select Send to upload selected files

to Picasa, Facebook, Cloud Storage, N Drive, or Family Story.

To use Send, you need to establish an

account with the on-line site, and then

log in using the Log In function.

1. Use the ▲▼◄► buttons to

2. Repeat for each track or file you

You can also move to Select All on

the right, and then press the

button to select all tracks or files.

3. Select Send on the right side, and

on line site you want to upload the

The Log In/Out function lets you log in

to your online Samsung account.

Select to create a playlist or add files

or tracks to a playlist.

1. Select Add to Playlist, and then

highlight a track or file, and then

3. Repeat for each track or file you

4. Select Add on the right, and then

5. On the screen that appears,

perform one of the following

• Select the Playlist to which you want

to add the tracks or files and then

• Select Create New, and then press

button. On the keyboard

pop-up that appears, create a name

for the new playlist. Enter numbers

using the numbers on the remote.

Enter letters by using the ▲▼◄►

buttons to move the cursor, and

When finished, move to DONE at

the bottom of the screen, and then

Depending on the screen you are

viewing, select Delete to erase a file

from erasable media (such as a USB

device) or to delete a playlist.

Select Edit Playlist to remove files or

tracks from an existing playlist. The

storage device containing the playlist

must be inserted into or attached to

2. Repeat for each track or file you

You can also move to Select All on

the right, and then press the

button to select all tracks or files.

3. Select Remove on the right side,

After you have sorted by Artist, Genre,

Album,Title, Latest Date, Earliest Date,

or Monthly, select a group that is the

result of the sort (for example, all

pictures taken in August), and then

select Play Current Group to play or

view the files in that group only.

Select to go to the Playlist section of

the Main AllShare screen.

Encoding - which changes by language

or by geographical area - modifies

how the product sorts, arranges, and

presents files or tracks, displays dates,

etc. Select Encoding to change the

encoding to match your language or

Displays media file and content

Depending on the disc or storage device, the Tools menu

may differ. All options may not be displayed.English 51 | 05 Media Play Listening to Radio

Using Buttons on the Remote Control 1 . Press the FUNCTION button to select FM.2 . Tune in to the desired station.• Preset Tuning 1 : Press the 5 button to select PRESET and then press the TUNING/CH ( ,. ) button to select the preset station. - Before you can tune to preset stations, you must add preset stations to the product's memory. • Manual Tuning : Press the 5 button to select MANUAL and then press the TUNING/CH ( ,. ) button to tune in to a lower or higher frequency.• Automatic Tuning : Press the 5 button to select MANUAL and then press and hold the TUNING/CH ( ,. ) button to automatically search the band. Setting Mono/Stereo Press the MO/ST button. • Each time the button is pressed, the sound switches between STEREO and MONO.• In a poor reception area, select MONO for a clear, interference-free broadcast. Presetting Stations Example : Presetting FM 89.10 into memory. 1 . Press the FUNCTION button to select FM.2 . Press the TUNING/CH ( ,. ) button to select <89.10>.3 . Press the TUNER MEMORY button. • NUMBER flashes on the display.4 . Press the TUNER MEMORY button again.• Press the TUNER MEMORY button before NUMBER disappears from the display on its own. • After you press the TUNER MEMORY button, NUMBER disappears from the display and the station is stored in memory.5 . To preset another station, repeat steps 2 to 4. • To tune in to a preset station, press the TUNING/CH ( ,. ) button. Using the Special Effects Remote

Control Buttons SOUND EFFECT FunctionSOUNDEFFECTLets you select a mode that optimizes the sound.1. Press the SOUND EFFECT button.2. Press the ▲▼ button to select the desired mode: DSP, Dolby Pro Logic II Mode or SFE Mode.3. Press the ◄► buttons to select the desired sound effect. ❏

DSP MP3 Enhancer  Power Bass  Virtual 7.1 

• MP3 Enhancer : Helps enhance your sound experience (ex. mp3 music). You can upscale your MP3 level sound (24 kHz, 8bit) to CD level sound (44.1 kHz, 16bit). • Power Bass : Increases the volume level of bass tones and provides thudding sound effects. • Virtual 7.1 : Applies the 7.1 CH sound effect using the 5.1 CH speaker system. ❏

Dolby Pro Logic II Mode

• Movie : Adds realism to a movie soundtrack.

• Music : When listening to music, you can experience sound effects as if you are listening to the actual performance.• Game : Select to listen to sound from the front left and right speakers and the subwoofer only.• Matrix : Select to hear multi channel surround sound. • Prologic : Select to listen to a 2CH sound source in 5.1CH surround sound with all speakers active.- A specific speaker(s) may not output depending on the input signal.|

• Symphony Hall in Boston (Hall 1) : Also provides a clear vocal as if you are listening in a concert hall but, less powerful than HALL1.• Phillharmonic Hall in Bratislava (Hall 2) : This also helps enhance your sound experience (ex. mp3 music). You can upscale your MP3 level sound (24 kHz, 8bit) to CD level sound (44.1 kHz, 16bit). • Jazz Club in Seoul B : Recommended setting for Jazz. • Church in Seoul : Gives the feel of being in a grand church.• Amphitheater (Rock) : Recommended setting for Rock.• Off : Select this for normal listening.3D SoundYou can enjoy more natural and vivid surround sound with enriched tones by adjusting the depth of sound using the level options. Off

\ It is not available in FM mode.Playing a 2D video in 3D modeYou can enjoy an ordinary 2D video in 3D mode.| NOTE |

\ If you move to the Home or Smart Hub Home menu in 3D mode, it will switch to 2D automatically.vTunervTunervTuner is the fuction of the listening a radio. If you press the vTuner button, you can move to vTuner application.You can use the vTuner Function after download the vTuner application from Samung Apps.English 53 |

You can enjoy various network services such as

Smart Hub or BD-LIVE by connecting the product

To use network services, you must first:

1 . Connect the product to the network.

2 . Configure the network settings.

Using Smart Hub, you can download movies,

videos, and music from the Internet, and access

various for pay or free-of-charge applications

and view them on your TV. Application content

includes news, sports, weather forecasts, stock

market quotes, maps, photos, and games.

For instructions that explain how to use Smart

Hub, follow these steps:

1 . Go to www.samsung.com.

2 . Click Support at the top of the page.

3 . On the Support page, enter the model

number of your product into the Model

4 . On the page that appears, click Get

downloads on the left side under Downloads.

The Download Centre appears.

5 . On the Download Centre page, click the

The web location of the Smart Hub manual is subject to

change without notice.

Smart Hub at a Glance xxxxxxxxContents 1xxxxxxxxContents 4xxxxxxxxContents 3xxxxxxxxContents 2Samsung Apps Your Video Family Story Fitness Kids a Login b WallPaper / Tools ' Return Search

based on your tastes.

Search : Provides an integrated search of your

video providers and connected AllShare devices.

Recommended : Displays recommended contents

introduction to the product, and new application

Family Story : Effortless way to access family

• Provides access to family photos, messages, and

events, anytime and anywhere.

Fitness : Gateway to the Unified Self-Care Service.

• Presents fitness videos from various content

partners with feedback on calories burned after

Kids : Kids service gives kids an easy and safe way

to enjoy their Favorite content.

• Provides a wide variety of fun and safe content

Navigation Help : Displays the remote control

buttons you can use to navigate in Smart Hub.

• RED (A) : To log in to Smart Hub.

• GREEN (B) : To display the background screen.

9 My Applications : Displays your personal galleryof applications which you can add to, modify, anddelete. 0 Samsung Apps : Open Samsung Apps to download various for pay or free-of-charge application services. Using the Web Browser You can access the internet using the Web Browser application which is installed in the Smart Hub screen by default.1 . Select Smart Hub on the Home screen, and then press the E button.2 . Select the Web Browser application in Smart Hub, and then press the E button. | NOTE |

\ When you run the Web Browser with the product connected by HDMI to a BD Wise compatible TV - and BD Wise is on - the browser is maximized to fill the screen and the TV's resolution is set to the optimal resolution automatically.

\ The Web Browser is not compatible with Java applications.

\ If you attempt to download a file, and the file can not be saved, an error message will appear.

\ The playback of Flash videos is not supported.

\ E-commerce, for purchasing proudcts online, is not supported.

\ ActiveX is not supported. Web Browser at a Glance Google Search I’m Feeling Lucky b Control Panel  Link Browsing / Tools Exit http://www.google.com/

1 Control Panel : Displays the various Web Browser functions. • : Moves to the previous page. • : Moves to the last page before going back. • : Reloads the current page so that it is refreshed on the screen. • : Moves to the Home screen of the Web Browser. • : Allows you to zoom in or out of the screen at various percentages. • : Allows you to bookmark specific pages so that you can move to them easily. • : Allows you to view the history of your visited pages by date, name, or frequency. •

http://www.google.com/ : Allows you to enter a page address manually or select a page from the visited page list to move to that page. • : Allows you to switch easily between multiple, currently open Web Browser windows. • : Allows you to search for information by entering words. • : Lets you share the current site with your family group by sending a message. • : Allows you to configure all settings for using the Web Browser. 2 Navigation Help : Displays the remote control buttons you can use to navigate in Web Browser.• GREEN (B) : To display the Control Panel.• YELLOW (C) : To search a link.• Tools : To display Tools window.• Exit : To exit the menu.English 55

Once the product is connected to your network,

you can enjoy various movie-related service

contents available on BD-LIVE compliant discs.

1 . Attach a USB memory stick to the USB jack

on the front of the product, and then check

its remaining memory. The memory device

must have at least 1GB of free space to

accommodate the BD-LIVE services.

2 . Select Settings on the Home screen, and

3 . Select Network, and then press the

5 . Select BD Data management, and then

6 . Select Select Device, and then press the

8 . Insert a Blu-ray Disc that supports BD-LIVE.

9 . Select an item from the list of BD-LIVE service

contents provided by the disc manufacturer.

The way you use BD-LIVE and the provided contents may

differ, depending on the disc manufacturer.|

Additional Information

Note ConnectionsHDMI OUT• Certain HDMI output resolutions may not work, depending on your TV.• You must have an HDMI connection to enjoy videos with 3D technology. • A long HDMI cable may cause screen noise. If this occurs, set HDMI Deep Colour to Off in the menu.Settings3D Settings• For some 3D discs, to stop a movie during 3D playback, press the 5 button once. The movie stops and the 3D mode option is de-activated.To change a 3D option selection when you are playing a 3D movie, press the 5 button once. The Blu-ray menu appears. Press the 5 button again, then select 3D Settings in the Blu-ray menu. • Depending on the content and the position of the picture on your TV screen, you may see vertical black bars on the left side, right side, or both sides.TV Aspect• Depending on the disc type, some aspect ratios may not be available. • If you select an aspect ratio and option which is different than the aspect ratio of your TV screen, then the picture might appear to be distorted. • If you select the 16:9 Original, your TV may display 4:3 Pillarbox (black bars on sides of picture).BD Wise (Samsung Products only)• When BD Wise is on, the Resolution setting automatically defaults to BD Wise and BD Wise appears in the Resolution menu. • If the product is connected to a device that does not support BD Wise, you can not use the BD Wise function. • For proper operation of BD Wise, set the BD Wise option in both the product and the TV to On.Digital Output• Be sure to select the correct Digital Output or you will hear no sound or just loud noise. • If the HDMI device (AV receiver, TV) is not compatible with compressed formats (Dolby digital, DTS), the audio signal outputs as PCM.• Regular DVDs do not have BONUSVIEW audio and Navigation Sound Effects.• Some Blu-ray Discs do not have BONUSVIEW audio and Navigation Sound Effects. • This Digital Output setup does not affect the Analog (L/R) audio or HDMI audio output to your TV. It affects the optical and HDMI audio output when your product is connected to an AV receiver. • If you play MPEG audio soundtracks, the audio signal outputs as PCM regardless of your Digital Output selections (PCM or Bitstream).BD-LIVE Internet Connection• The Internet connection may be restricted while you are using BD-LIVE contents.English 57

• Depending on your TV, certain HDMI output resolutions may not work. Please refer to the user

• This function is not available if the HDMI cable does not support CEC.

• If your Samsung TV has an Anynet+ logo, then it supports the Anynet+ function.

• In the external memory mode, disc playback may be stopped if you disconnect the USB device in

the middle of playback.

• Only those USB devices formatted in the FAT file system (DOS 8.3 volume label) are supported.

We recommend you use USB devices that support USB 2.0 protocol with 4 MB/sec or faster

• The Resume Play function may not work after you format the storage device.

• The total memory available to BD Data Management may differ, depending on the conditions.

DivX® Video On Demand

• For more information about DivX(R) VOD, visit “http://vod.divx.com”.

• You cannot change the brightness of the

button and the Volume (

• When Speaker Selection is selected to TV Speaker, audio is produced through TV speakers.

• When HDMI audio output to the TV speaker, it is automatically down-mixed to 2 channels.

Audio Return Channel

• When Anynet+ (HDMI-CEC) is Off, the Audio Return Channel function is not available.

Using an HDMI cable not certified for ARC (Audio Return Channel) may cause a compatibility problem.

• The ARC function is only available if an ARC-compliant TV is connected.

• Digital Output can be activated when Speaker Selection is selected to TV Speaker.

Playing a Video files

• Video files with high bitrates of 20Mbps or more strain the product’s capabilities and may stop

playing during playback.

Selecting the Audio Language

• The ◄► indicator will not appear on the screen if the BONUSVIEW section does not contain any

BONUSVIEW audio settings.

• The languages available through the Audio Language function depend on the languages that are

encoded on the disc. This function or certain languages may not be available.

• Some Blu-ray Discs may allow you to select either the PCM or Dolby digital audio soundtrack in

Selecting the Subtitle Language

• Depending on the Blu-ray Disc / DVD, you may be able to change the subtitle language in the

Disc Menu. Press the DISC MENU button.

• This function depends on the selection of subtitles that are encoded on the disc and may not be

available on all Blu-ray Discs/DVDs.

• Information about the main feature BONUSVIEW mode will also appear if the Blu-ray Disc has a

• This function changes both the primary and secondary subtitles at the same time.

• The total number of primary and secondary subtitles are displayed respectively.

Playing a JPEG files

• You can’t enlarge the subtitle and PG graphic in the full screen mode.

Dolby Pro Logic II Mode

• Before selecting Dolby Pro Logic II mode, connect your external device to the AUDIO INPUT jacks

(L and R) on the product. If you connect to only one of the inputs (L or R), you cannot listen to

Using the TOOLS button while playing pictures

• If the system is connected to a BD Wise compliant TV that has set BD Wise to On, the Picture

Settings menu will not appear.

• The Background Music function will not work unless the music file and the photo file are located

on the same storage media. Also, sound quality can be impacted by the Bitrate of the MP3 music

file, the size of the photos, and the encoding method.

Playing back a USB Storage Device

• You must remove the USB storage device safely (by performing the “Safely Remove USB”

function) to prevent possible damage to the USB memory. Press the HOME button to move to the

Home menu, select the YELLOW (C) button, and then press the

• Adjust the volume to a moderate level before you connect your iPod to the product.

• When the product is on and you connect an iPod, the product will charge the iPod's battery.

• You must have the VIDEO output (Composite) connected to your TV to view iPod video (See page

• If you want to play iPod video via VIDEO output, set Anynet+ (HDMI-CEC) to off.

• Only the playback screen will appear on the TV. View other iPod screens on the iPod player.

• If you want to return to the iPod menus while the iPod player is connected using the dock, press

FUNCTION on the remote control or press

on the front panel of the system and select

The Function mode switches as follows :

iPod/iPhone Models You Can Use with This Product

• The volume control may not operate normally with iPod and iPhone models not listed on page

39. If you have a problem with any of the models listed above, please update the software of the

iPod/iPhone to the lastest version.

• Depending on the software version of the iPod, control problems may occur. This is not a

malfunction of the Home Cinema.

• Depending on the software version or the type of iPod, some operations may differ. Install the

latest iPod software. (recommended)

• You can enjoy music or videos through the Blu-ray/DVD disc function and enjoy music, videos

through the Remote iPod function. You need to use the iPod Dock to enjoy videos.

• Playback of applications' contents through the product is not guaranteed. We recommend

playing contents downloaded to the iPod.

• If you have a problem using your iPod, please visit www.apple.com/support/ipod.|

Resolution according to the output mode

PCM Up to PCM 7.1ch PCM DTS re-encoded

Up to PCM 7.1ch Dolby Digital Plus DTS re-encoded

Dolby TrueHD Up to PCM 7.1ch Dolby TrueHD DTS re-encoded

DTS Up to PCM 6.1ch DTS DTS re-encoded

Up to PCM 7.1ch DTS-HD Master Audio DTS re-encoded

DTS Up to PCM 6.1ch DTS DTS DTS Definition for

Decodes the main feature

audio stream together

into PCM audio and adds

Navigation Sound Effects.

Outputs only the main

feature audio stream so that

your AV receiver can decode

the audio bitstream.

Navigation Sound Effects.

* If the Source Stream is 2ch or mono, “Re-encoded Dolby D” Setting are not applied. Output will be

Blu-ray Discs may include three audio streams :

- Main Feature Audio : The audio soundtrack of the main feature.

- BONUSVIEW audio : An additional soundtrack such as the director or actor’s commentary.

- Navigation Sound Effects : When you choose some menu navigation, Navigation Sound Effects may

sound. Navigation Sound Effects are different on each Blu-ray Disc.|

Troubleshooting Refer to the table below when this product does not function properly. If the problem you are experiencing is not listed below or if the instructions below do not help, turn off the product, disconnect the power cord and contact the nearest authorized dealer or Samsung Electronics Service Centre.Symptom Check/RemedyI cannot eject the disc.• Is the power cord plugged securely into the outlet?• Turn off the power and then turn it back on.The iPod fails to connect.• Check the condition of the iPod connector and Dock.• Keep the iPod software version up to date.Playback does not start.• Check the region number of the Blu-ray/DVD disc.Blu-ray/DVD disc purchased from abroad may not be playable.• CD-ROMs and DVD-ROMs cannot be played on this product.• Make sure that the rating level is correct.Playback does not start immediately when the Play/Pause button is pressed.• Are you using a deformed disc or a disc with scratches on the surface?• Wipe the disc clean.Sound is not produced. • The home cinema does not play sound during fast playback, slow playback,and step motion playback. • Are the speakers connected properly? Is the speaker setup correctly customized?• Is the disc severely damaged?Sound can be heard only from a few speakers and not all 6.• On certain Blu-ray/DVD discs, sound is output from the front speakers only.• Check if the speakers are connected properly.• Adjust the volume.• When listening to a CD, radio or TV, sound is output to the front speakers only. Dolby Digital 5.1 CH Surround Sound is not produced.• Is there "Dolby Digital 5.1 CH" mark on the disc? Dolby Digital 5.1 CH Surround Sound is produced only if the disc is recorded with 5.1 channel sound.• Is the audio language correctly set to Dolby Digital 5.1-CH in the information display?The remote control does not work. • Are you operating the remote within its operational range and within the proper angle relative to the sensor? • Are the batteries drained? • Have you selected the mode (TV/BD) functions of the remote control (TV or BD) correctly?• The disc is rotating but no picture is produced.• Picture quality is poor and picture is shaking.• Is the TV power on?• Are the video cables connected properly?• Is the disc dirty or damaged?• A poorly manufactured disc may not be playable.Audio language and subtitles do not work. • Audio language and subtitles will not work if the disc does not contain them.English 63

Symptom Check/Remedy

The menu screen does not

appear even when the menu

function is selected.

• Are you using a disc that does not contain menus?

The aspect ratio cannot be

• You can play 16:9 Blu-ray/DVD discs in 16:9 Full mode, 4:3 Letter Box mode, or

4:3 Pan-Scan mode, but 4:3 Blu-ray/DVD discs are played in 4:3 ratio only. Refer to the

Blu-ray Disc jacket and then select the appropriate function.

• The product is not working.

(Example: The power goes

out or a strange noise is

The Product is not working

• Press and hold the remote control's

button for 5 seconds in STANDBY mode.

- Using the RESET function will erase all stored settings.

Do not use this unless necessary.

You have forgotten the rating

• With no disc in the product, press and hold the product's

button for longer than 5

seconds. INIT appears on the display and all settings will return to the default values.

Then, press the POWER button.

- Using the RESET function will erase all stored settings.

Do not use this unless necessary.

• Is the antenna connected properly?

• If the antenna's input signal is weak, install an external FM antenna in an area with

While listening to TV audio

through the Product, no

button is pressed while listening to TV audio using the D. IN or

functions are turned on and the TV audio is muted.

"Not Available" appears on

• The features or action cannot be completed at this time because:

1. The Blu-ray/DVD disc's software restricts it.

2. The Blu-ray/DVD disc's software doesn’t support the feature (e.g., angles)

3. The feature is not available at the moment.

You’ve requested a title or chapter number or search time that is out of range.

If the HDMI output is set to a

resolution your TV cannot

support (for example, 1080p),

you may not see a picture on

• Press and hold the

button on front panel for more than 5 seconds with no disc in

the product. All settings will revert to the factory settings.

• Check the connection between the TV and the HDMI jack of the product.

• Check if your TV supports 576p/480p/720p/1080i/1080p HDMI input resolution.

Abnormal HDMI output

• If random noise appears on the screen, it means that TV does not support HDCP (High-

bandwidth Digital Content Protection).|

Appendix Symptom Check/RemedyAllShare Play functionI can see folders shared through AllShare Play, but I cannot see the files.• AllShare Play shows only files corresponding to the Photo, Music, and Movie categories. Files that do not correspond to these categories may not be displayed.Video is played intermittently.• Check if the network is stable. • Check if the network cable is properly connected and if the network is not overloaded. • The wireless connection between the server and the product is unstable.Check the connection.The AllShare Play connection between the TV and PC is unstable. • IP address under the same subnetwork should be unique, otherwise IP collision can results in such a phenomenon. • Check if you have a firewall enabled.If so, disable the firewall function.BD-LIVEI cannot connect to the BD-LIVE server.• Test whether the network connection is successful by using the Network Status function.• Check whether a USB memory device is connected to the product.• The memory device must have at least 1GB of free space to accommodate the BD-LIVE service.You can check the available size in BD Data Management. (See page 57)• See if the BD-LIVE Internet Connection option is set to Allow(All). • If all above fails, contact the contents provider or update to the latest firmware.When using the BD-LIVE service, an error occurs. • The memory device must have at least 1GB of free space to accommodate the BD-LIVE service.You can check the available size in BD Data Management. (See page 57)| NOTE |

When the factory default settings are restored, all stored user BD data will be deleted.English 65

Operating Temperature Range +5°C to +35°C Operating Humidity Range 10 % to 75 %

Reading Speed : 6.98 ~ 7.68 m/sec.

Approx. Play Time (Single Sided, Single Layer Disc) : 135 min.

CD : 12cm (COMPACT DISC)

Reading Speed : 4.8 ~ 5.6 m/sec.

Maximum Play Time : 74 min.

CD : 8cm (COMPACT DISC)

Reading Speed : 4.8 ~ 5.6 m/sec.

Front speaker output 165W x 2(3Ω)

Centre speaker output 170W(3Ω)

Surround speaker output 165W x 2(3Ω)

5.1ch speaker system

Front Surround Centre Subwoofer

Impedance 3 Ω 3 Ω 3 Ω 3 Ω

HT-E5500K Front Surround Centre Subwoofer

90 x 207.5 x 68.5 90 x 141.5 x 68.5 360 x 74.5 x 68.5 200 x 390 x 356

HT-E5530K Front Surround Centre Subwoofer

HT-E5550K Front Surround Centre Subwoofer

HT-E5500K Front Surround Centre Subwoofer

0.73 kg 0.61 kg 0.88 kg 6.06 kg

HT-E5530K Front Surround Centre Subwoofer

3.73 kg 0.61 kg 0.88 kg 6.06 kg

HT-E5550K Front Surround Centre Subwoofer

3.73 kg 3.73 kg 0.88 kg 6.06 kg

• Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.

• Weight and dimensions are approximate.

• Design and specifications are subject to change without prior notice.

• For the power supply and Power Consumption, refer to the label attached to the product.

• Network speeds equal to or below 10Mbps are not supported.Area Contact Centre

Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer

Centre, P.O. Box 86851, San Diego, CA,

Matsushita Electronic Industrial Co., Ltd

WIRELESS I M P E D AN C E

◄ 

- WPA-PSK (TKIP/WEP (OPEN/SHARED

WPA2-PSK (TKIP/AESAES

◄ 

Next Enter security key.0 entered A/a  Space 

Set to match the type of television connected.

4:3 Pan-Scan Select when connecting to a 16:9 TV Screen. All content will be displayed at original aspect ratio. Content formatted in 4:3 will be displayed with black bars on left and right.

OK Wireless network disconnected

Unable to connect to wireless router. Try the following: check

that the router is turned on, and if it is, try turning it off and on

again. Check if you need to enter a security key to use the router.

MAC Address XX:XX:XX:XX:XX:XX IP Address 0.0.0.0

Wireless Network ConnectionConnection

E E Network SettingsRefreshWPS(PBC)Previous Next CancelSelect your wireless router from the list. 1/10 iptime23

E Play  My ListVideosPhotosMusic a Login ' Return Recently played

What's New Latest Updated 29.Jun.2011 Playlist

No playlists have been created.

Create playlists to access your content quickly and easily.

Recently played files will be displayed here.

 Smart Hub Function Settings Safely Remove USB Play videos or music, or view photos from discs or connected devices. AllShare Play

Smart Hub Function Settings Safely Remove USB Play videos or music, or view photos from discs or connected devices. AllShare Play

Safely Remove USB Play videos or music, or view photos from discs or connected devices.

Play videos or music, or view photos from discs or connected devices.

Play videos or music, or view photos from discs or connected devices.



(BDBD Data Management

 601080p  601080p576i/480i-1080i1080i576i/480i576i/480i720p720p576i/480i576i/480i576p/480p576p/480p576i/480i576i/480i576i/480i--576i/480i|

HT-E5500K HT-E5530K HT-E5550K|

WIRELESS I M P E D AN C E

- WEP (OPEN/SHARED), WPA-PSK (TKIP/AES), WPA2-PSK
