TRÅDFRI - Smart bulb IKEA - Free user manual and instructions

Product type	Connected LED bulb
Brand	IKEA
Model	TRÅDFRI
Lighting technology	Connected LED
Color temperature (without gateway)	Cool white (4000 K), Warm white (2700 K), Warm glow (2200 K), Candle (1780 K)
Color temperature (with gateway)	Up to 6000 K (Cool sky)
Number of colors and whites (without gateway)	9 (4 white tones + 5 colors)
Number of colors and whites (with gateway)	20 (7 white tones + 13 colors)
Dimming	Yes, via remote control or IKEA gateway
Power supply	Mains (230 V)
Wireless connectivity	IKEA proprietary (based on Zigbee), 2405–2480 MHz
RF output power	10 dBm
Max number of bulbs per control device	10
Pairing distance	Less than 5 cm
Reset	Toggle the main switch 6 times
Compatibility	Only with products from the IKEA connected lighting range
Warning	Do not use with standard dimmers

Frequently Asked Questions - TRÅDFRI IKEA

How to pair the TRÅDFRI bulb with a remote control?

Make sure the bulb is on. Hold the control device less than 5 cm from the bulb, press and hold the pairing button for at least 10 seconds. The red LED lights up, the bulb flashes once to confirm pairing.

How many bulbs can I pair with a single remote control?

You can pair up to 10 bulbs with a single control device. Pair them one by one.

Can I use the TRÅDFRI bulb with a standard dimmer?

No, never use with a standard (incandescent) dimmer. Only use the dimming device provided with the product or mentioned in the instructions.

What color temperatures are available without the gateway?

Without the gateway, you have 4 white tones: Cool white (4000 K), Warm white (2700 K), Warm glow (2200 K) and Candle (1780 K), as well as 5 colors: Amber, Dark peach, Saturated pink, Light purple, Light blue.

How to get more colors and whites?

Add the IKEA gateway and the IKEA Home smart app to access a total of 20 colors and whites, including additional tones like Cool sky (6000 K) and colors like Saturated red or Yellow-green.

How to reset the TRÅDFRI bulb?

To reset, toggle the main switch 6 times in a row. The bulb will return to factory settings.

What is the range of the wireless signal?

The typical range is about 10 meters indoors, but may vary depending on obstacles. IKEA devices use a mesh protocol to extend range.

Can I control the bulb with my smartphone?

Yes, if you add the IKEA gateway and install the IKEA Home smart app. You can then control the bulb remotely, create routines, and access more colors.

Is the TRÅDFRI bulb compatible with other smart home systems?

No, the bulb only works with products from the IKEA connected lighting range. It is not compatible with standard Zigbee or other non-IKEA protocols.

Is the bulb dimmable?

Yes, the brightness is adjustable, but only with the IKEA remote control or via the app with the gateway. Do not use a standard dimmer.

USER MANUAL TRÅDFRI IKEA

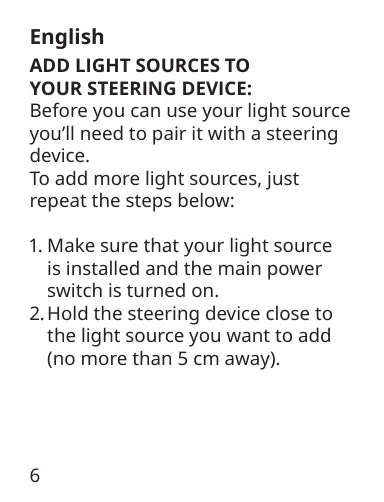

ADD LIGHT SOURCES TO YOUR STEERING DEVICE:

Before you can use your light source you'll need to pair it with a steering device.

To add more light sources, just repeat the steps below:

1. Make sure that your light source is installed and the main power switch is turned on.

2. Hold the steering device close to the light source you want to add (no more than 5 cm away).

3. Press and hold the pairing button for at least 10 seconds. A red light will shine steadily on the steering device. Your light source will begin to dim and finally flash one time to indicate that it has been successfully paired.

Up to 10 light sources can be paired with 1 steering device.

Make sure to pair them one at a time. If the light sources are close to each other, disconnect those that have already been paired from the main power switch.

CAUTION:

DO NOT USE WITH STANDARD DIMMERS. Only use the control provided with or specified by these instructions to control this bulb. This bulb will not operate properly when connected to a standard (incandescent) dimmer or dimming control. Only controllable by IKEA Smart lighting products.

With the remote control you can switch between 9 colours and white lights:

White tones

Cool white - 4000 KelvinWarm white - 2700 KelvinWarm glow - 2200 KelvinCandle light - 1780 Kelvin

Colours

Amber, Dark peach, Dark pink, Light purple, Light blue

If you add the gateway and the app, you get a total of 20 colours and white lights:

White tones

Cold sky - 6000 KelvinCool daylight - 5000 KelvinCool white - 4000 KelvinSunrise - 3000 KelvinWarm white - 2700 KelvinWarm glow - 2200 KelvinCandle light - 1780 Kelvin

Colours

Amber, Peach, Dark peach, Dark red, Pink, Light pink, Dark pink, Light purple, Dark purple, Blue, Light blue, Lime, Yellow

RESET YOUR DEVICE

Toggle the main switch 6 times.

TECHNICAL DATA:

Operating

frequency: 2405 - 2480 MHz

Output power: 10 dBm

Manufacturer: IKEA of Sweden AB

Address:

Box 702, SE-343 81

Almhult, SWEDEN

This device complies with Part 15 of the FCC Rules. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation Science and 9 Economic Development Canada's licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation of the device.

WARNING:

Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

RF EXPOSURE INFORMATION

According to RF exposure regulations, under normal operations the end user shall refrain from being closer than 20~cm from the device.

License rights and limitations

NO RIGHTS OR LICENSES, EXPRESS

OR IMPLIED, ARE GRANTED TO

USE THIRD-PARTY DEVICES IN

COMBINATION WITH THESE

PRODUCTS IN A WIRELESS MESH

NETWORK, OR TO USE THIRD-PARTY

SERVICES TO ACCESS, MONITOR OR

CONTROL THESE PRODUCTS IN A

WIRELESS MESH NEWORK VIA THE

INTERNET OR ANOTHER EXTERNAL

WIDE AREA NETWORK.

For use pursuant to U.S. Patent Nos.:

US 6,914,893

US 7,697,492

US 8,964,708

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.

François

AJOUT SOURCES LUMINEUSES AU DISPOSITIF DE COMMANDE

Fabricant : IKEA of Sweden AB

Adresse: Box 702, SE-343 81 Almhult, SUÉDE
