USER MANUAL FI043 FUJIFILM
User's Guide/Safety precautions
Before using the camera, check the following.
Supplied Accessories
USB cable for charging (1)
- Hand strap (1)
- User's Guide (1)
This book provides a quick guide to the use of the INSTAX MINI LIPLAY.
For a comprehensive guide of the INSTAX MINI LIPLAY, please access the following web site and download the digital User's Guide (Full version).
https://instax.com/mini_lplay/support/manuals/
You can also scan the following QR Code with your smartphone to download the digital User's Guide (Full version).
The text QR Code itself is a registered trademark and wordmark of Denso Wave Incorporated.
Notes on Disposing of the Camera
A built-in lithium ion battery is used for this camera.
When you dispose of the camera, follow your local regulations and dispose of it properly.
Do not attempt to remove the built-in battery. Injury may result.
For proper disposal in the United States at product end-of-life, please contact 1-800-800-3854 Option #1 INSTAX.
EN

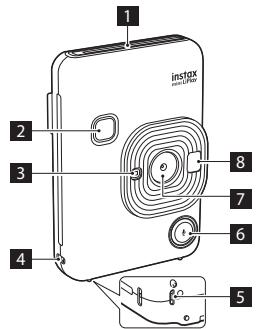

Part Names
Front
Rear
1 Film ejection slot
2 Shutter button
3 Flash/ Self timer lamp
4 Swap hook
5 USB port
6 (Sound) button
7 Lens
Selfie mirror
9 Film door lock
10 Film door
11 1 (Shortcut button for selecting frame 1)
12 Reset button*
13 2(Shortcut button for selecting frame 2)
14 3 (Shortcut button for selecting frame 3)
15 Micro SD card slot
16 (Power) button
17 Microphone
18 Speaker
19 Select button
20 MENU/OK button
21 (Back) button
22 (Playback) button
23. (Print) button
24 LCD monitor
About This Camera
Main Features
Smallest INSTAX product available on the market.
- You can take a photo while looking at the LCD screen and save it on the camera memory or on your micro SD card.
- You can select a photo from your photo library and print it using the INSTAX print feature.
- You can edit your photos by using 10 frames and 6 filters.
- You can save your photo with the recorded sound.
- Equipped with front mirror for easy taking of selfies.
Functions Available with the Smartphone Application
Audio function
Record sound with the camera, convert it to QR code and print the QR code on a photo. Sound is played when QR codes printed with the INSTAX print feature are read with your smartphone.
Remote camera control
Control the camera with your smartphone for remote shooting of photos.
- Shortcut function
Press any of the 3 shortcut buttons located on the side of the camera to use a frame on your photo. Or use the smartphone app to assign your favorite templates to the 3 shortcut buttons instead.
- Direct print
Transfer a photo from your smartphone to the camera, and print it with the INSTAX print feature. Before sending the photo, you can use the smartphone application to move, rotate, enlarge, or reduce the size of the photo.

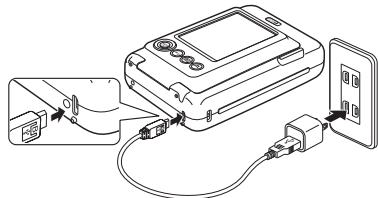

Charging the Battery
Turn off the camera before charging the battery. Battery will not charge if the camera is powered on. Be careful to properly attach cable as indicated.
EN
Connect the camera and a USB AC adapter supplied with your smartphone using the supplied USB cable, then connect the USB AC adapter to an indoor power outlet.
- Charging time is approximately 2 to 3 hours.
Charging status indication
| While charging | Self timer lamp lights up. |
| Charging finished | Self timer lamp goes off. |
| Charging error | Self timer lamp flashes. |
EN
Loading/Unloading the INSTAX MINI Film Pack
Loading the Film Pack
1 Slide the film door lock and open the film door.
2 Insert film pack by aligning the yellow marks.
3 Close the film door.
4 Remove the black film cover that is automatically rejected.
Unloading a Used Film Pack
1 Slide the film door lock and open the film door.
2 Grasp the rectangular holes on the film pack, then pull film pack out from the camera.
IMPORTANT SAFETY NOTICE
This product has been designed with safety in mind, and to provide safe service when handled correctly and in accordance with the User's Guide and instructions. It is important that both the product and the INSTAX MINI film are handled properly and used only to print photos as instructed in the User's Guide and in the INSTAX MINI film instructions. For your ease and safety, strictly follow the instructions in the User's Guide. Keep the User's Guide in a safe, convenient place for easy future reference as needed.
WARNING
This symbol indicates danger, which could result in product damage, injury or death. Follow the instructions indicated to avoid damage to the camera or injury.
WARNING
If one of the following cases occur, immediately unplug the USB cable, turn the camera off and refrain from any further use of the camera:
- The camera becomes hot, emits smoke, has a burnt smell, or otherwise seems abnormal.
- The camera is dropped into water, or foreign objects like water, sand, dirt or metal get inside the camera.
The camera has a built-in battery. Do not subject it to heat, expose it to an open flame, drop it, or otherwise apply impact to it. Doing so may cause the camera to explode, resulting in injury.
WARNING
Never attempt to take this product apart. You may be injured.
All repairs should be handled solely by Fujitsu. Injury may result from attempts to self-assess or repair this camera.
If this product is dropped or damaged so that the inside is showing, do not touch it. Contact Fujimf Corporation.
Do not touch any parts which are inside the back cover. You may be injured.
Never get this product wet or handle it with wet hands. Doing so may result in electric shock and injury.
Promptly unplug the USB cable once battery is fully charged.
Keep out of the reach of small children. This product could cause injury in the hands of a child.
Do not cover or wrap the camera or the AC power adapter in a cloth or blanket, or otherwise place the camera in the sun or an environment where heat may build up. This could distort the casing and cause a fire.
The "CE" mark certifies that this product satisfies the requirements of the EU (European Union) regarding safety, public health, environment and consumer protection. ("CE" is the abbreviation of Conformite Europeenne.)
EN
Common Sense Camera Care
Camera Care
- Do not open the film door until you have used up the film; otherwise, the rest of the film is exposed and turns white. The film can no longer be used.
- Your camera is a precision instrument. Do not get it wet or drop it. Also, do not expose it to sand, dust or dirt.
- Do not use a strap made for cellular phones or other similar electronic products. These straps are usually too weak to hold your camera securely. For safety, use only straps designed for your camera, and use only as specifically intended and instructed.
- Do not use cleaning products or solvents such as those with bleach or alcohol to remove dirt.
- In hot weather, do not leave your camera in hot places such as in a car or on the beach. Do not leave it in damp places or places where weather exposure could result.
- Moth repellent gas such as naphthalene may affect your camera and prints. Store your camera and photo prints in a place where exposure to harmful cleaning or other household elements will be avoided.
- Note that the temperature range within which your camera can be used is +5^ to +40^ (+41^) to +104^ .
- Take great care to ensure that printed materials do not violate copyright, image rights, privacy or other personal rights and do not offend public decency. Actions that violate the rights of others, are contrary to public decency or constitute a nuisance may be punishable by law or otherwise legally actionable.
■ Handling the LCD Monitor
As the LCD monitor can be easily damaged, do not scratch the surface with a solid material. To avoid the LCD monitor
getting damaged, we recommend you attach a protective, clear plastic sheet (commercially available) on the monitor.
Charging the Battery
The battery is not charged at shipment. Charge the battery completely before use.
Charge the battery using the supplied USB cable. Charging times will increase at ambient temperatures below +10^ (+50^) or above +35^ (+95^) . Do not attempt to charge the battery in environments with temperatures above +40^ (+104^) ; at temperatures below +5^ (+41^) , the battery will not charge.
Battery Life
At normal temperatures, the battery can be recharged about 300 times. A noticeable decrease in the length of time the battery will hold a charge indicates that it has reached the end of its service life.
Cautions: Handling the Battery
The battery and camera body may become warm to the touch after extended use. This is normal.
- Certification marks acquired by the camera are located inside the film chamber.
Cautions During Printing
Do not shake the camera while printing.
Do not drop the camera while printing.
Do not cover the film ejection slot while printing.
INSTAX MINI Film and Print Care
See FUJIFILM Instant Film INSTAX MINI for film use instructions. Follow all instructions for safe and proper use.
- Keep the film in a cool place. Do not leave the film in a place where the temperature is extremely high (e.g., in a closed car) for many hours.
- Do not puncture, tear, or cut INSTAX MINI film. If film becomes damaged, do not use.
- When you load a film pack, use the film as soon as possible.
- If the film has been kept in a place where the temperature is extremely high or low, bring it to room temperature before loading or starting to print photos.
- Be sure to use the film before the expiration or "Use Before" date.
- Avoid airport checked luggage inspection and other strong X-ray illumination. The effect of fogging, etc. may appear on unused film. Carrying your camera and film onto an aircraft in your carry-on luggage is recommended. (Check with each airport for more information.)
- Avoid strong light, and keep the developed prints in a cool and dry place.
- Do not puncture or cut this film as it contains a small amount of caustic paste (high alkaline). Never let children or animals put the film into their mouth. Also pay attention so that the paste does not come into contact with skin or clothes.
- In case the paste inside the film comes into contact with skin or clothes, immediately wash off with plenty of water. If the paste comes into contact with the eyes or mouth, immediately wash the area with plenty of water and contact a doctor. Note that the alkaline inside the film remains active for about 10 minutes after the photo has been printed.

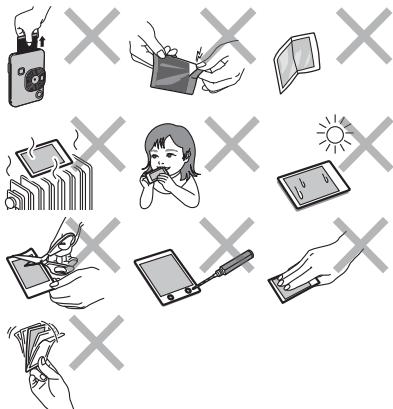

Cautions on Handling the Film and Prints
For details, refer to the instructions and warnings on FUJIFILM Instant Film INSTAX MINI.
EN
Bluetooth® Devices: Cautions
IMPORTANT: Read the following notices before using the product's built-in Bluetooth transmitter.
Use only as part of a Bluetooth network.
FULFILM Corporation and its affiliates do not accept liability for damages resulting from unauthorized use. Do not use in applications requiring a high degree of reliability, for example in medical devices or other systems that may directly or indirectly impact human life. When using the device in computer and other systems that demand a greater degree of reliability than Bluetooth networks, be sure to take all necessary precautions to ensure safety and prevent malfunction.
Use only in the country in which the device was purchased.
This device conforms to regulations governing Bluetooth devices in the country in which it was purchased. Observe all location regulations when using the device. FUJIFILM Corporation and its affiliates do not accept liability for problems arising from use in other jurisdictions.
- Wireless data (images) may be intercepted by third parties.
The security of data transmitted over wireless networks is not guaranteed.
Do not use the device in locations subject to magnetic fields, static electricity, or radio interference.
Do not use the transmitter in the vicinity of microwave ovens or in other locations subject to magnetic fields, static electricity, or radio interference that may prevent reception of wireless signals. Mutual interference may occur when the transmitter is used in the vicinity of other wireless devices operating in the 2.4 GHz band.
The Bluetooth transmitter operates in the 2.4 GHz band. The maximum radio-frequency power is X.XX mW.
This device operates on the same frequency as commercial, educational, and medical devices and wireless transmitters.
It also operates on the same frequency as licensed transmitters and special unlicensed low-voltage transmitters used in radio-frequency identification tracking systems for assembly lines and in other similar applications.
To prevent interference with the above devices, observe the following precautions.
Confirm that the radio-frequency identification transmitter is not in operation before using this device. If you notice that this device causes interference in low-voltage radio-frequency identification tracing systems, contact a FUJIFILM representative.
The following may be punishable by law:
- Disassembly or modification of this device.
- Removal of device certification labels.
Trademark Information
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc., and any use of such marks by FUJIFILM is under license.
For customers in the USA:
FCC ID: W2Z-03000014
FCC Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
For more information, access the website below.
http://www.fujfilm.com/products/instant/photo/camera/instax-mini_liplay/
CAUTION
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by FUJIFILM responsible for compliance could void the user's authority to operate the equipment.
This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
The available scientific evidence does not show that any health problems are associated with using low power wireless devices. There is no proof, however, that these low power wireless devices are absolutely safe. Low power Wireless devices emit low levels of radio frequency energy (RF) in the microwave range while being used. Whereas high levels of RF can produce health effects (by heating tissue), exposure of low-level RF that does not produce heating effects causes no known adverse health effects. Many studies of low-level RF exposures have not found any biological effects. Some studies have suggested that some biological effects might occur, but such findings have not been confirmed by additional research. The F1043 has been tested and found to comply with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines.
Notes on the Grant
To comply with Part 15 of the FCC Rules, this product must be used with a Fujilm-specified ferrite-core USB cable.
For customers in Canada :
IC:7736B-03000013
CANICES-3(B)/NMB-3(B)
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:
- This device may not cause interference.
- This device must accept any interference, including interference that may cause undesired operation of the device. The available scientific evidence does not show that any health problems are associated with using low power wireless devices.
EN
There is no proof, however, that these low power wireless devices are absolutely safe. Low power Wireless devices emit low levels of radio frequency energy (RF) in the microwave range while being used. Whereas high levels of RF can produce health effects (by heating tissue), exposure of low-level RF that does not produce heating effects causes no known adverse health effects. Many studies of low-level RF exposures have not found any biological effects. Some studies have suggested that some biological effects might occur, but such findings have not been confirmed by additional research. The FI043 has been tested and found to comply with ISED radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the ISED radio frequency (RF) Exposure rules.
Disposal of Electric and Electronic Equipment in Private Households
Disposal of used Electrical & Electronic Equipment
(Applicable in the European Union and other European countries with separate collection systems)
This symbol on the product, or in the manual and in the warranty, and/or on its packaging indicates that this product shall not be treated as household waste.
Instead it should be taken to an applicable collection point for the recycling of electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will help prevent potential negative consequences to the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
The recycling of materials may help to conserve natural resources. For more detailed information about recycling of this product, please contact your local city recycling office, your
12
household waste disposal service or the authorized FUJIFILM dealer from which you purchased the product.
For proper disposal in the United States at product end-of-life, please contact 1-800-800-3854 Option #1 INSTAX.
In Countries outside of EU: If you wish to discard this product, please contact your local authorities and ask for the correct way of disposal.
Information for FUJIFILM in the United States
FUJIFILM North America Corp.
200 Summit Lake Drive
Valhalla, New York 10595, USA
Information for FUJIFILM in Canada
FUJIFILM Canada Inc.
600 Suffolk Court, Mississauga, Ontario L5R 4G4, Canada
