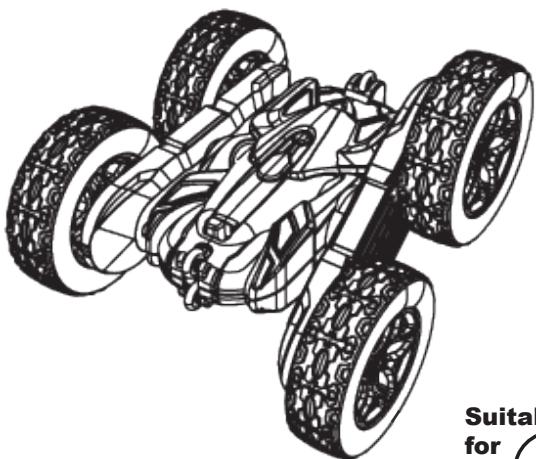

USER MANUAL HG4-10 SGILE

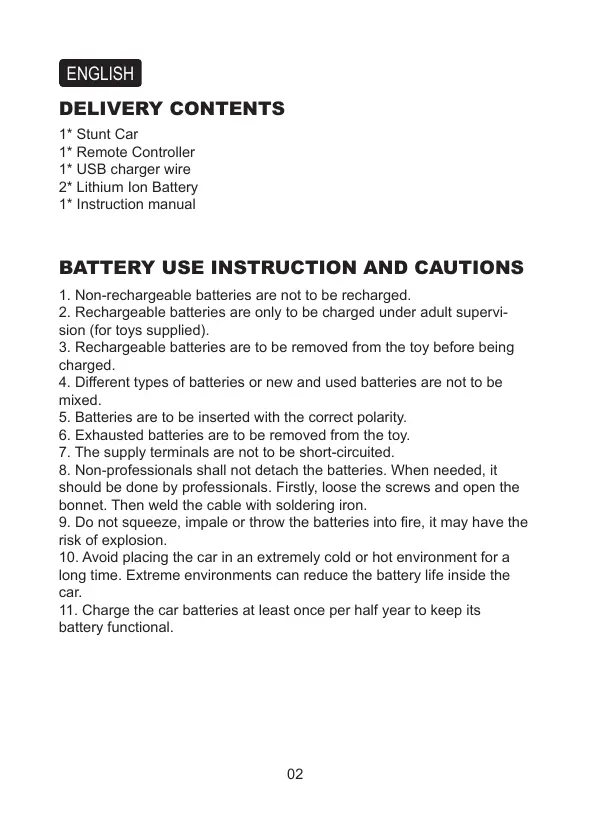

BATTERY USE INSTRUCTION AND CAUTIONS

1. Non-rechargeable batteries are not to be recharged.

2. Rechargeable batteries are only to be charged under adult supervi- Sion (for toys supplied)

3. Rechargeable batteries are to be removed from the toy before being charged

4. Different types of batteries or new and used batteries are not to be mixed.

5. Batteries are to be inserted with the correct polarity.

6. Exhausted batteries are to be removed from the toy.

7. The supply terminals are not to be short-circuited.

8. Non-professionals shall not detach the batteries. When needed, it should be done by professionals. First, loose the screws and open the bonnet. Then weld the cable with soldering iron.

9. Do not squeeze, impale or throw the batteries into fire, it may have the risk of explosion.

10. Avoid placing the car in an extremely cold or hot environment for a long time. Extreme environments can reduce the battery life inside the car.

11. Charge the car batteries at least once per half year to keep its battery functional.

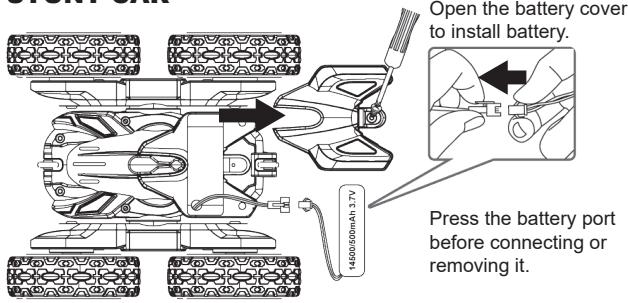

STUNT CAR Open the battery cover battery.

Press the battery port before connecting or removing it.

NOTE: After 5 minutes without control, the car will enter hibernation. Restart the car, and use it normally.

REMOTE CONTROLLER ÿ 2x 1.5V AA (Not included)

1. Open the battery cover using the screwdriver. 2. Load two 1.5V AA batteries following the polarity markings (+ and -) inside the battery compartment. 3. Replace the battery cover and tighten the screws.

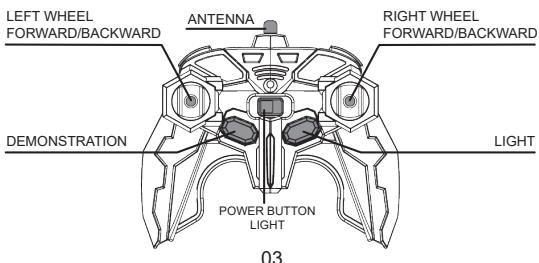

LEFT WHEEL ANTENNA RIGHT WHEEL FORWARDIBACKWARD FORWARDIBACKWARD DEMONSTRATION LIGHT

> \ LU }, CZ) vorraurren Q \

OPERATING INSTRUCTION

1. Turn on the controller, and the indicator light flashes.

2. Turn on the car, and the indicator light flashes.

3. Finish pairing car and controller, the indicator lights on car and controller stays on.

4. The side without screws is the front.

WARNING: If the pairing isn't finished, the indicator lights keep flashing. After 5 minutes, the lights turn off and sleep. Please restart the controller and car to re-pair.

WHEN THERE ARE OBSTACLES IN FRONT OF THE CAR.

1. Please use original USB charger. We suggest you charge it using a computer. 2. WARNING! Do not use the SGILE RC vehicle in road traffic. 3. Do not use the SGILE RC vehicle for transporting goods, persons or animals. 4. Never use the SGILE RC vehicle outdoors during rain or snowall. The car must not be run through water, puddles and snow, and must always be kept stored in a dry place 5. Avoid running on courses which are laid exclusively with sand. 6. Do not expose the SGILE RC vehicle to direct sunlight. 7. Never subject the SGILE car to repeated changes of load - that means continuousiy reversin 8. Never throw the car on the floor from a standing position. 9. The SGILE RC vehicle must be inspected before and after operation, each time it is used, to ensure that it has not become disasembled. Any screws or nuts that may have become loosened during operation must be tightened

Please help the environment by disposing of your product responsibly at the end of its life. The wheeled bin symbol indicates that this product should not be disposed of in your household waste containers. Instead, the product should be disposed of by using a designated collection point for the recycling of waste electrical and electronic equipment, The Waste of Electrical and Electronic Equipment(WEEE) Directive (2012/19/EU) requires that the best available recycling techniques be employed to minimize the impact on the environment. Recycling electronics helps by keeping harmful chemicals out of the environment, and also saves money by reusing precious metals. Remove any batteries and dispose of them and the product at your local authority recycling facility. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the location where You purchased this product

This symbol, showing refuse bins with a cross through them, denotes that empty batteries, rechargeable batteries, button cells, rechargeable battery packs, equipment batteries, disused electrical equipment, etc. should not be disposed of in domestic refuse, as they are harmful to the environment and health

DECLARATION OF CONFORMITY Hereby, Fujian EastWest Lifewit Technology Co. LTD declares that this model including the controller conforms with the fundamental require- ments of the following EC directives: EC Directives Toys (Safety) requlations 2011 and the other relevant regulations of Directive Radio

equipment regulations 2014/53/EU The original declaration of conformity can be requested from https:/www.sgile.com/pages/compliance.

Maximum radio-frequency power transmitted: <10dBm

Frequency range: 2405MHz-2475MHz

The appliance is only to be used with the power supply unit provided with the appliance. The use of a different power supply unit may lead to the

permanent damage of the battery and neighbouring parts, as well as physical injury! Battery chargers used with the toy are to be regularly examined for damage to the cord, plug, enclosure and other parts, and in the event of such damage, they must not be used until the damage has been repaired

) "ris 107 contains small parts which can be swalowed and is EX) inerefore not suitable for children under 3 years of age. WARNING! danger of pinching during operation! Remove all packaging materials and wire fastenings before handing the toy over to the child. Please retain the packaging and address for information and in the event of any questions.

FCC Compliance Statement

FCC ID: 2AZNY-HG4X This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

{1)This device may not cause harmful interference.

(2)This device must accept any interference received, including interference that may cause undesired operation.

ISED Compliance Statement

IC: 30108-HG4X This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference.

2) This device must accept any interference, including interference that may cause undesired operation of the device.

L'émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d'innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 ofthe FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. Ifthis equipment does cause harmfül interferenceto radio or television reception, which can be determined by turning the equipment ofand on, the user is encourage to try to correct the interference by one or more ofthe following measures

: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Gonsult the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure Statement The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

ISED Radiation Exposure Statement

The device has been evaluated to meet general RF exposure requirement. The device can be used installed and operated with minimum distance Omm between the radiator and your body.

L'appareila été évalué pour ré pondre aux exigences g 6 n 6 rales d'exposition
