USER MANUAL BHV4663B BRANDT

Brandt Dear Customer, Thank you for buying a BRANDT product and for your confidence in our company. This product has been designed and manufactured for you considering your lifestyle and your requirements, so that it meets your expectations in the best way possible. We have invested it with our expertise, spirit of innovation and all the enthusiasm which has driven us for more than 60 years. So that we are always able to satisfy your requirements as well as possible, our customer service is available, ready to listen and answer all your questions or suggestions. You can also visit our website www.brandt.com where you will find our latest innovations as well as additional useful information. BRANDT is happy to support you daily and hopes you will enjoy your purchase to the full. Important: Before starting your machine, please read this guide for A installation and use carefully in order to familiarise yourself with how it operates quickly.

As part of our commitment to constantly improving our products, we reserve the right to make changes to them based on technical advances to their technical and functional features and appearance.

Before installing and using your appliance, please carefully read this Guide to Installation and Use, which will allow you to quickly familiarise yourself with its o1.09peration.

CONTENT EN 1 / Safety instructions 4 2 / Installation 12 3 / Start using your cooker hood 15 4 | Troubleshooting 17 5 / Maintenance and cleaning 18 6 / Environment protection 22 7 | AFTER-SALES SERVIC 23 8 / Ecodesign information / Technical product che 24

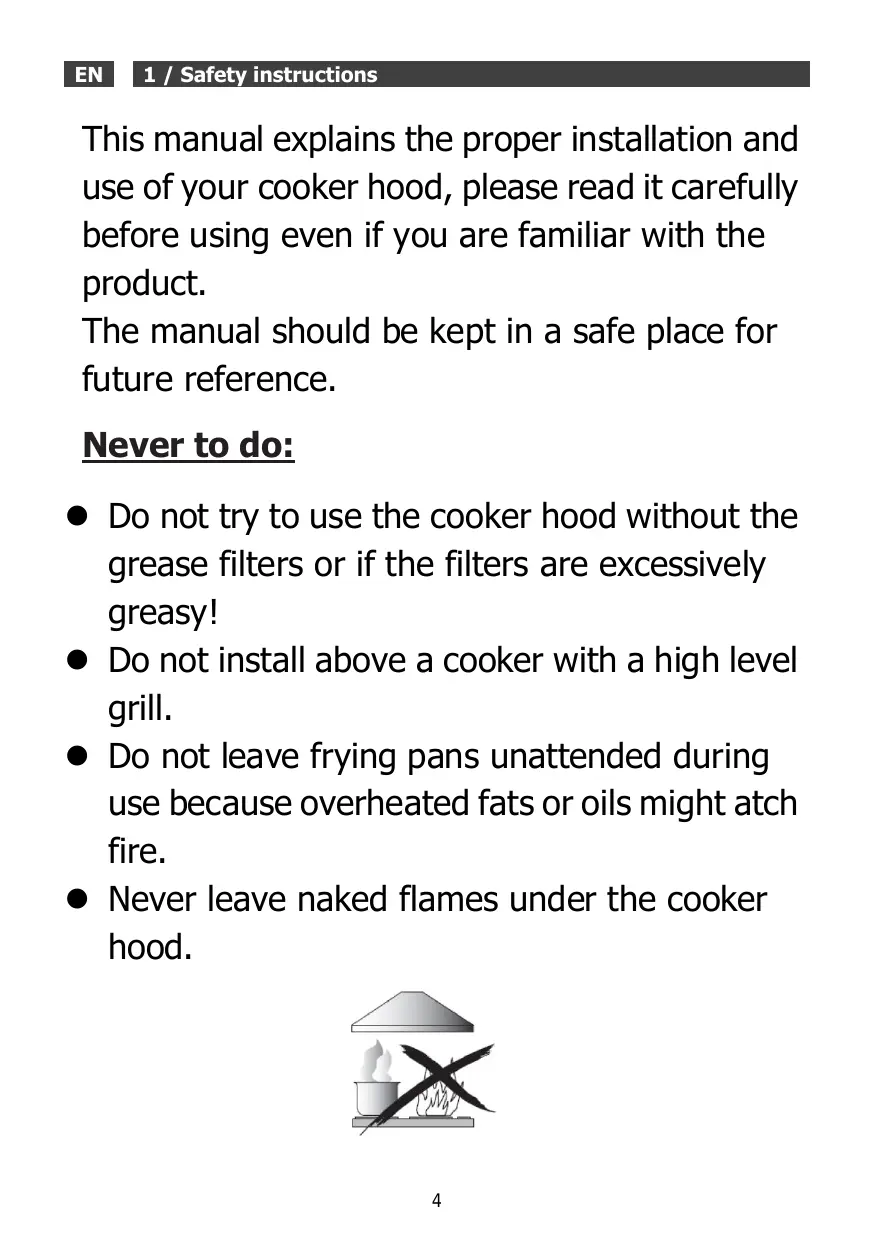

| EN DS 1 / Safety instructions This manual explains the proper installation and use of your cooker hood, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference. Never to do: e Do not try to use the cooker hood without the grease filters or if the filters are excessively greasy! e Do not install above a cooker with a high level grill. © Do not leave frying pans unattended during use because overheated fats or oils might atch fire. e Never leave naked flames under the cooker hood.

1 / Safety instructions | EN | e Ifthe cooker hood is damaged, do not attempt to use. e Do not flambé under the cooker hood. @ CAUTION: Accessible parts may become hot when used with cooking appliances. e The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood. (When the cooker hood is located above a gas appliance, this distance shall be at least 65 cm) e The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

Always to do: e Important! Always switch off the electricity supply at the mains during installation and maintenance such as light bulb replacement.

E«< e The cooker hood must be installed in accordance with the installation instructions and all measurements followed. © All installation work must be carried out by a competent person or qualified electrician. © Please dispose of the packing material carefully. Children are vulnerable to it. © Pay attention to the sharp edges inside the cooker hood especially during installation and cleaning. e Make sure the ducting has no bends sharper than 90 degrees as this will reduce the efficiency of the cooker hood.

1 / Safety instructions | EN | e Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards. e Warning: Before obtaining access to terminals, all supply circuits must be disconnected. Always to do: © Always put lids on pots and pans when cooking on a gas cooker. e When in extraction mode, air in the room is being removed by the cooker hood. Please make sure that proper ventilation measures are being observed. The cooker hood removes odours from room but not steam. @e Cooker hood is for domestic use only. e Ifthe supply cord is damaged, it must be replaced by the manufacturer, its service

| EN DS 1 / Safety instructions agent or similarly qualified persons in order to avoid a hazard. e This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play With the appliance. Cleaning and user maintenance shall not be made by children without supervision. Always to do: @e Caution: The appliance and its accessible parts can become hot during operation. Be careful to avoid touching the heating

1 / Safety instructions | EN | elements. Children younger than 8 years old should stay away unless they are under permanent supervision. e There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels. e Thereis a fire risk if cleaning is not carried out in accordance with the instructions. e Regulations concerning the discharge of air have to be fuffilled. © Clean your appliance periodically by following the method given in the chapter MAINTENANCE. © For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual. e Regarding the details about the method and frequency of cleaning, please refer to maintenance and cleaning section in the instruction manual.

| EN DS 1 / Safety instructions © Cleaning and user maintenance shall not be made by children without supervision. © When the range hood and appliances supplied With energy other than electricity are simultaneously in operation,the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar). e WARNING: Danger of fire: do not store items on the cooking surfaces. A steam cleaner is not to be used. ©@ NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. With a lid or a fire blanket.

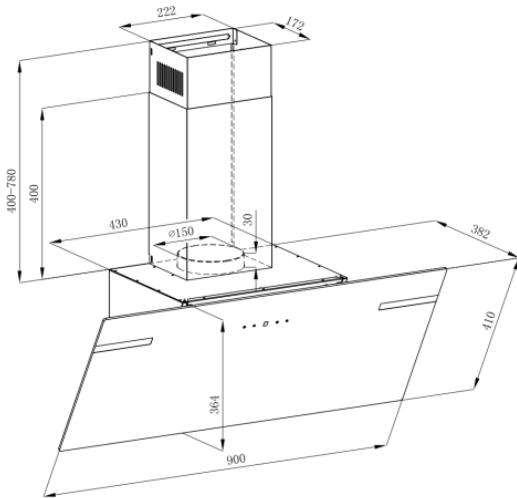

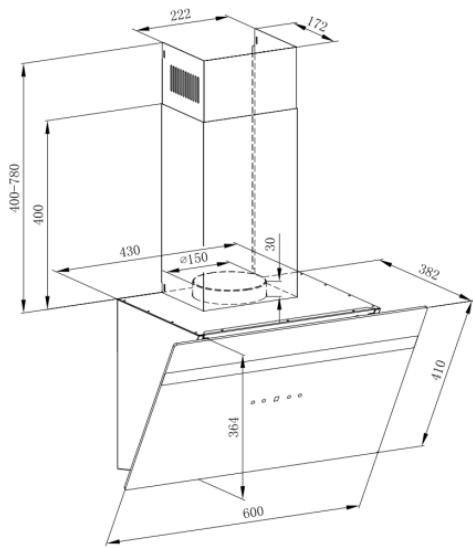

© DESCRIPTION OF YOUR APPLIANCEL

| EN À 2 / INSTALLATION e MOUNTING OF THE V-FLAP If the cooker hood does not have an assembled V-flap 1, you should mount the half-parts to its body.The images only show an example of how to mount the V-flap, because the outlet may vary according to different models and configurations. To mount the V-flap 1 you should: - Mount two half-parts 2 into the body 6. - the pin 3 should be top oriented. - the axis 4 should be inserted into the holes 5 on the body. - repeat all the operations for the 2nd half-part. © INSTALLATION If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe or non-flammable material with an interior diameter of 150mm).

1. Before installation, turn the unit off and

unplug it from the outlet. 2.The cooker hood should be placed at a distance of 65+75cm above the cooking surface for best effect. See pic1.

3. After decide the cooker hood height,

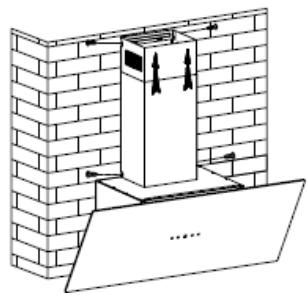

measure the position of the holes for hanging hood and inside chimney bracket. Drill 4 8 holes, 2 for inside chimney bracket and 2 for hanging the hood,and keep the hood level. The fixed position of the inside chimney bracket is the highest place of inside chimney. See pic 2. 4, Screw 2pcs ST4 x 30mm screws on the wall with wall plugs to fix the hood,then use 2pcs ST4 x 40mm screws to fix the inside chimney bracket. See Pic 2.

5. Use 4pcs ST4*8mm screws to fix the plastic

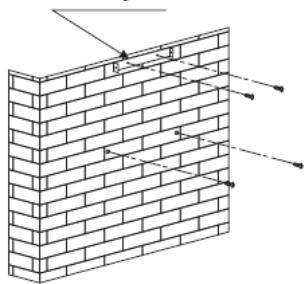

outlet onto the T-shaped outlet ; Use 4pcs ST4*8mm screws to fix the T-shaped outlet assembly onto the inside chimney. See pic3. . Install the outside chimney bracket onto the outside chimney with 2pcs ST4*8mm screws, make the inside chimney can be flexed freely inside. See Pic 4. . Install the V-flap,converter and expansion pipe onto the cooker hood. Fix the expansion pipe on the outlet with a cable tie. See Pic 5. Note : the expansion pipe is not included in the package. . Hang the appliance on the wall mounted screws,adjust its position, and fix it with 2pcs ST4*30mm safety screws. Note: The two safety vents are positioned on the back housing, with a diameter of 6mm. See pic 6. . Install the chimney assembly onto the appliance by 2pcs ST4*8mm screws;At the same time,connect the expansion pipe to the T-shaped outlet and bind them with cable tie.Pull up the inside chimney until it reach the position of inside chimney bracket,and then fix it by 2pcs ST4*8mm screws. See pic7.

Pic 3 inside chimney | outside chimney bracket \ outside chimey Pic 4 _ expansion pipe y Ef, converter cable tie

© HINTS FOR EXHAUST DUCT

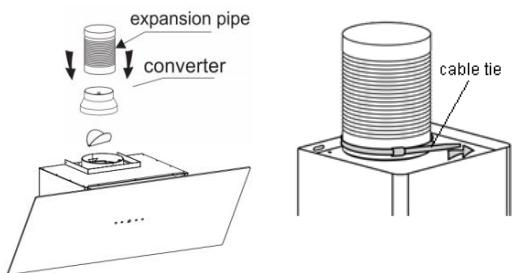

INSTALLATION The following rules must be strictly followed to obtain optimal air extraction: + Keep exhaust duct short and straight. - Do not reduce the size or restrict the exhaust duct. + When using the flexible duct always install the duct pulled taut to minimize pressure loss. -_ Failure to observe these basic instructions will reduce the performance and increase noise levels of the range hood. - Any installation work must be carried out by a qualified electrician or competent person. - Do not connect the ducting system of the hood to any existing ventilation system which is being used for any other appliance, such as warmer tube, gas tube, hot wind tube. - The angle of the bend of the ventilation pipe should not be less than 120°; you must direct the pipe horizontally, or, alternatively, the Right Wrong pipe should go up from the initial point and should be led to an outer wall. - After the installation ,\make sure that the cooker hood is level to avoid grease collection at on end. Ensure the exhaust ducting selected for installation complies with relevant standards and is fire retardant. Warning For safety reason, please use only the same size of fixing or mounting screws which are recommended in this instruction manual. Warning Faïilure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

3 / Start using your cooker hood | EN | e Five-key touch control There are five touch buttons: & (Low, À (Mid), À (High), ÆF(Lamp), (e] (Delay). See picture above.

1. Power-on: After connecting the cooker

hood to the main supply, indicate light will be on. Output closed, the cooker hood enter standby state. If there is no any operation, the indicate light will be off automatically after prompted.

2. (Lamp) button: Les

Press & (Lamp) button once, the LED light æ æ < © of cooker hood and indicate light of lamp button will be on. Press #X(Lamp) button again, the LED light of cooker hood and indicate light of lamp button will be off. The above steps can be operated repeatediy.

work at low speed and the indicator light of low button will be on. Press it again, the motor will stop and the indicator light will be off. The above steps can be operated repeatedly.

3.2 Pressthe "# (Mid) button, the motor

work at mid speed and the indicator light of mid button will be on. Press it again, the motor will stop and the indicator light will be off. The above steps can be operated repeatedly.

3.3 Press the À (High) button, the

motor work at high speed and the indicator

[ EN D 3 / Start using your cooker hood light of high button will be on. Press it again, the motor will stop and the indicator light will be off. The above steps can be operated repeatedly. When the cooker hood work at high speed for 7minutes, it Will change to mid speed automatically.

3.4 Three speeds can't work at the same

time and they can change to each other. For example, press the low speed button while working in high speed state, the cooker hood will change to low speed immediately.

4. Delay button : (e]

4.1 Only when the cooker hood is working

at low/mid/high speed the delay button is valid. When the cooker hood is in standby state or only the LED light is on, the delay button is invalid.Press © the delay button once and the corresponding indicator will light on. The delayed shutdown takes Smin.Press delay button C again, the delay function and indicate light will shut down. The above steps can be operated repeatediy. When the setting time is over, the motor and LED light will shut down.

4.2 Adjust the speed after delay function is

set, the delay function wil exit automatically.

4 | Troubleshooting | EN | Fault Possible Cause Solution Fan switch turned off Select a fan switch position. Light on, but motor Fan switch failed Contact service center. does not work Motor failed Contact service center. House fuses blown Reset/Replace fuses. Light does not work, Refit mains power cable to motor does not work Mains power cable is loose or power outlet. disconnected Switch power outlet on. One way valve and the outlet Reset/Replace fuses. are not tightly sealed Oil leakage . Refit mains power cable to Leakage from the connection of . power outlet. chimney and cover Switch power outlet on. Take down the one way valve Lights not working Broken or faulty bulbs and seal with sealant. The distance between the Insufficient suction cooker hood and the gas top is | Take chimney down and seal. too far The Cooker hood The fixing screw is not tight Tighten the hanging screw and inclines enough make it horizontal. Note: Any electrical repairs to this appliance must conform to your local, state and federal laws. Please contact the service centre if in any doubt before undertaking any of the above. Always disconnect the unit from the power source when opening the unit.

EI MAINTENANCE AND CLEANING

© Caution: Before maintenance or cleaning is carried out, the cooker hood should be disconnected from the mains power supply. Ensure that the cooker hood is switched off at the wall socket and the plug removed. External surfaces are susceptible to scratches and abrasions, so please follow the cleaning instructions to ensure the best possible result is achieved without damage. e GENERAL Cleaning and maintenance should be carried out with the appliance cold especially when cleaning.Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on the surfaces. © STAINLESS STEEL The stainless steel must be cleaned regularly (e.g.weekly) to ensure a long life expectancy.Dry with a clean soft cloth. A specialized stainless steel cleaning fluid may be used. Note: Ensure that wiping is done along with the grain of the stainless steel to prevent any unsightly crisscross scratching patterns from appearing.

© CONTROL PANEL SURFACE

The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is clean and well wrung before cleaning. Use a dry soft cloth to remove any excess moisture left after cleaning. Important: Using neutral detergents and avoid using harsh cleaning chemicals, strong household detergents or products containing abrasives,as this will affect the appearance of the appliance and potentially remove any printing of artwork on the control panel and will void manufactures warrantee.

e ALUMINIUM GREASE FILTERS The aluminium grease filters can be cleaned by hand. Soak them for about 3 minute in water with a mild detergent and then brush it gently with a soft brush. Do not apply too much pressure so as to avoid any damage to it . (Leave to dry naturally out of direct sun light) Filters should be washed separately to crockery and kitchen utensils. It is advisable not to use rinse aid.Following the picture beside to dismantle the grease filter. © INSTALLING ALUMINIUM GREASE FILTERS To install filters for the following four steps: - Angle the filter into the slots at the back of the hood. - Push the button on the handle of the filter. - Release the handle once the filter fits into a resting position. - Repeat to install all filters. © CARBON FILTER Activated carbon filter can be used to trap odors. Normally the activated carbon filter should be changed every 3 to 6 months according to your cooking habits. The installation procedure of activated carbon filter is as below:

1. Before installing or replacing the carbon

filters, disconnect the mains power to the unit.

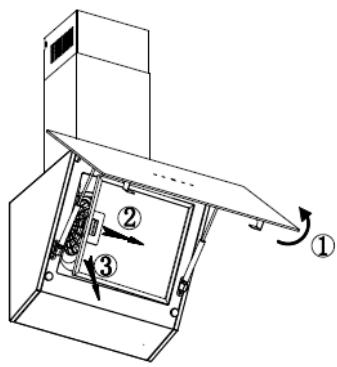

2. Press the filter lock and remove the

ALUMINIUM GREASE filter.

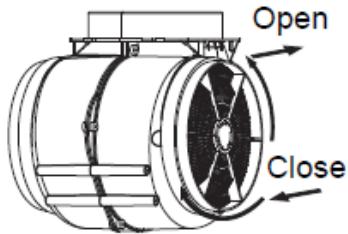

3. Turn the carbon filter on both sides of the

motor anti-clockwise. Replace the carbon filters with the new carbon filters.

4. Place the ALUMINIUM GREASE filter.

5. Connect the power supply to the wall

socket. NOTE: Make sure the filter is securely locked. Otherwise, it would loosen and cause danger. When activated carbon filter attached, the suction power will be lowered.

EI MAINTENANCE AND CLEANING

.. Important : © The bulb must be replaced by the manufacturer, its service agent or similarly qualified persons. e Always switch off the electricity supply before carrying out any operations on the appliance. When handling bulb, make sure it has completely cooled down before any direct contact with hands. © © When handling bulbs hold with a cloth or gloves to ensure perspiration does not come in contact with the bulb as this can reduce the life of the bulb. NOTE: Before changing the lights, make sure that the appliance is turned off and unplugged. Protect against danger when changing lights, such as wearing gloves.

e Changing the lights:

1. Remove the grease filter.

2. Use a tool or the hand to press the spring

splinter of both sides of LED light to the inside, until the light is pressed out, see pic 1.Then slightly pull the light connecting wire out, and dismantle the terminal of the light connecting wire. See pic 2. Pic1

3. Apply the reverse procedure to reinstall

the light. 4.LED light replacement:LED lighting source Replaceable by professional.Warning: the LED light must not be replaced by the user! If the LED light is damaged, contact an authorized service representative for repairing. ILCOS D code for this lamp is: DSR-1/65-S-64 — LED modules -round lamp — Max wattage: 2x1.5W — Voltage range: DC 12V — Dimensions:

© ENVIRONMENTAL PROTECTION This product is marked with the symbol on the selective sorting of waste electronic equipment. This means that this product must not be disposed of with household waste but must be supported by a system of selective collection in accordance with Directive 2012/19/EU. It will then be recycled or dismantled to minimize impacts on the environment, electrical and + electronic products are potentially dangerous for the environment and human health due to the presence of hazardous substances.For more information, please contact your local or regional authorities. NOTE: The following shows how to reduce total environmental impact (e.g. energy use) of the cooking process). (1) Install the cooker hood in a proper place where there is efficient ventilation. (2) Clean the cooker hood regularly so as not to block the airway. (3) Remember to switch off the cooker hood light after cooking. (4) Remember to switch off the cooker hood after cooking.

© INFORMATION FOR DISMANTLING

Do not dismantle the appliance in a way which is not shown in the user manual. The appliance could not be dismantled by user. At the end of life, the appliance should not be disposed of with household waste. Check with your Local Authority or retainer for recycling advice.

Any maintenance on your equipment should be undertaken by: - either your dealer, -or another qualifi ed mechanic who is an authorized agent for the brand appliances. When making an appointment, state the full reference of your equipment (model, type and serial number). This information appears on the manufacturer's nameplate attached to your equipment.

| EN D 8 / Ecodesign information / Technical product c This device complies with the delegated regulations (EU) 65/2014 and 66/2014 of the European Commission on the eco design requirements and energy labeling of household hoods. Symbol Value Unit Brand Brandt Model number BHV4663B-01 ‘Annual energy consumption AEC 15.9 KWh/annum Energy efficiency index EEi 347 - Huid dynamic effciency index FDE 34.8 - Lighting efficiency index LE si - Grease fitering efficiency GFE 722 - Time increase factor F 07 - Maximum volumetric airflow of the cooker hood Q mo 625 mh Volumetric airflow at best efficiency point Qu 269.0 m/h Static pressure at the best efficiency point P ae 241 Pa Power consumption at the best efficiency point CES 518 nm Nominal power consumption of lighting system We 37 w Average illumination of the lighting system E miéde 187.2 Lux/W Power consumption in off mode Po nm Power consumption in standby mode Ps 0.48 w Volumetric airflow at the highest speed setting in normal 599.1 m/h use Volumetric airflow at the lowest speed setting in normal 2221 m/h use Volumetric airflow in intensive or boost mode - 780.1 m/h Sound power emissions at the highest speed setting in 6 dB(Lua) normal use Sound power emissions at the lowest speed setting in 45 dB(Lua) normal use Sound power emissions in intensive / boost mode 70 dB(Lua)

8 / Ecodesign information / Technical product che | EN] Symbol Value Unit Brand Brandt Model number BHV4963B-01 ‘Annual energy consumption AEC 14.9 kWh/annum Energy efficiency index EEi 341 - Huid dynamic effciency index FDE 34.9 - Lighting efficiency index LE 43 - Grease fitering efficiency GFE 722 - Time increase factor F 07 - Maximum volumetric airflow of the cooker hood Q mo 623 mh Volumetric airflow at best efficiency point Qu 239.6 m/h Static pressure at the best efficiency point P ae 251 Pa Power consumption at the best efficiency point CES 47.9 w Nominal power consumption of lighting system We 37 w Average illumination of the lighting system E miéde 158.4 Lux/W Power consumption in off mode Po w Power consumption in standby mode Ps 0.48 w Volumetric airflow at the highest speed setting in normal 597.1 m/h use Volumetric airflow at the lowest speed setting in normal 2216 m/h use Volumetric airflow in intensive or boost mode - 778.6 m/h Sound power emissions at the highest speed setting in 68 dB(Lua) normal use Sound power emissions at the lowest speed setting in 46 dB(Lua) normal use Sound power emissions in intensive / boost mode 69 dB(Lua)
