USER MANUAL VENTURE 75 GOAL ZERO
Venture 75 is in protective shipping mode.
Plug it into a USB port before using.
Frequently Asked Questions 5
Technical Specifications 6
François 8
Deutsch 14
Espanol 20
Italiano 26
Portugués 32
日本語 38
Suomalainen 44
Nederland 50
Svenska 56

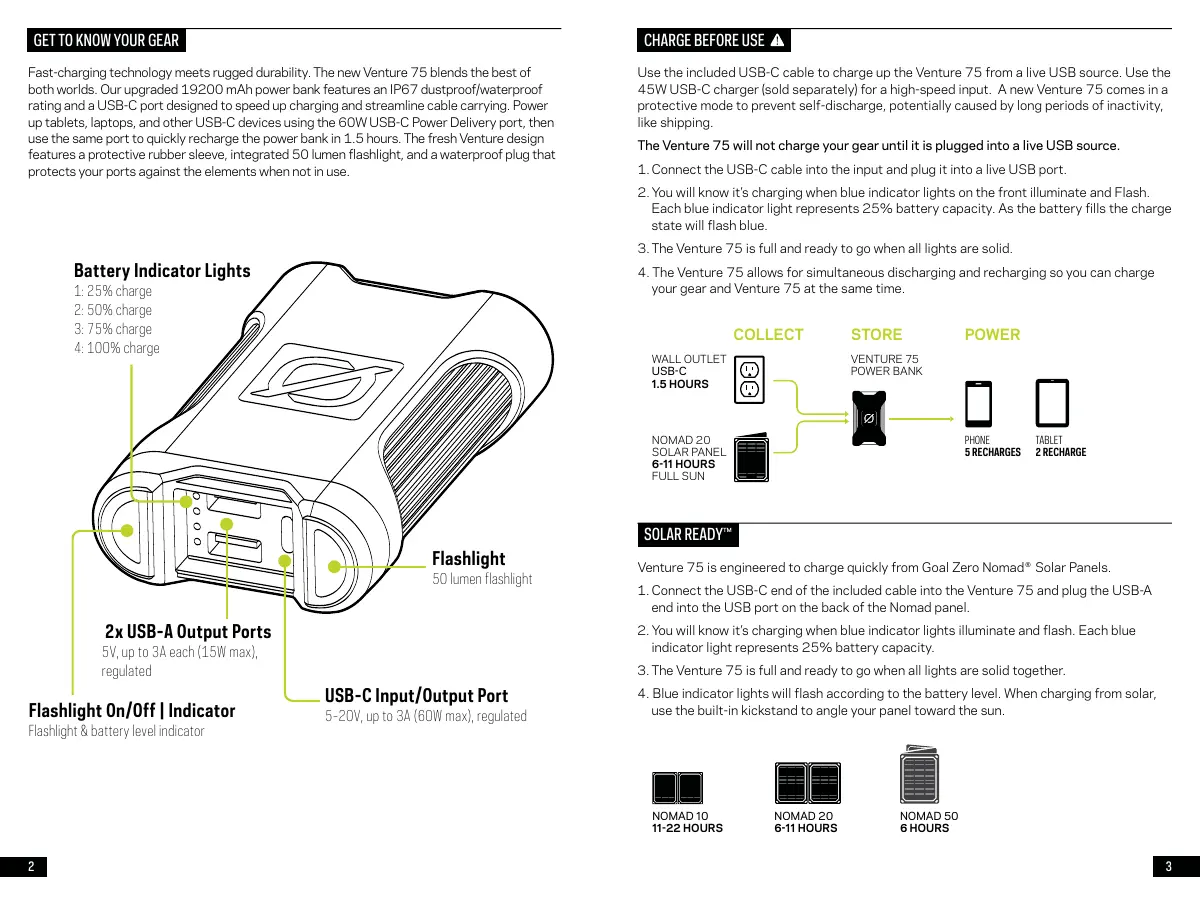

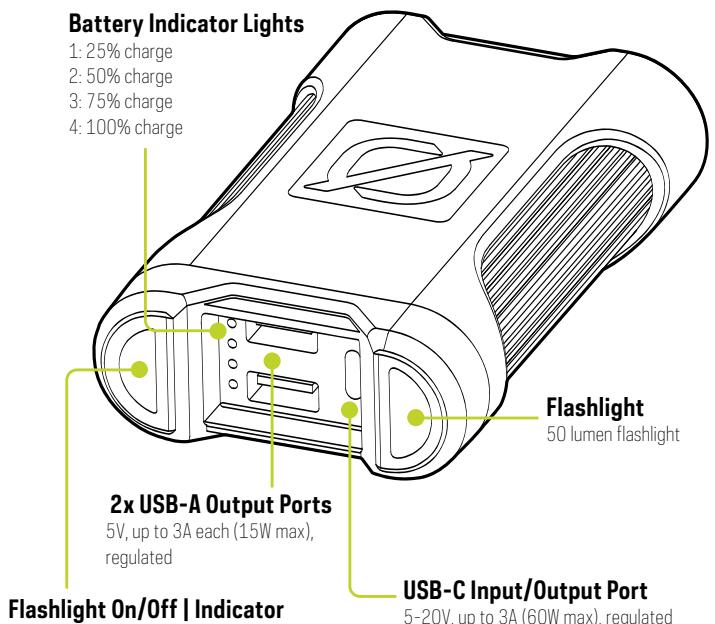

GET TO KNOW YOUR GEAR
Fast-charging technology meets rugged durability. The new Venture 75 blends the best of both worlds. Our upgraded 19200 mAh power bank features an IP67 dustproof/waterproof rating and a USB-C port designed to speed up charging and streamline cable carrying. Power up tablets, laptops, and other USB-C devices using the 60W USB-C Power Delivery port, then use the same port to quickly recharge the power bank in 1.5 hours. The fresh Venture design features a protective rubber sleeve, integrated 50 lumen flashlight, and a waterproof plug that protects your ports against the elements when not in use.
Flashlight & battery level indicator
CHARGE BEFORE USE
Use the included USB-C cable to charge up the Venture 75 from a live USB source. Use the 45W USB-C charger (sold separately) for a high-speed input. A new Venture 75 comes in a protective mode to prevent self-discharge, potentially caused by long periods of inactivity, like shipping.
The Venture 75 will not charge your gear until it is plugged into a live USB source.
- Connect the USB-C cable into the input and plug it into a live USB port.
- You will know it's charging when blue indicator lights on the front illuminate and Flash. Each blue indicator light represents 25% battery capacity. As the battery fills the charge state will flash blue.
- The Venture 75 is full and ready to go when all lights are solid.
- The Venture 75 allows for simultaneous discharging and recharging so you can charge your gear and Venture 75 at the same time.
SOLAR READYTM
Venture 75 is engineered to charge quickly from Goal Zero Nomad® Solar Panels.
- Connect the USB-C end of the included cable into the Venture 75 and plug the USB-A end into the USB port on the back of the Nomad panel.
- You will know it's charging when blue indicator lights illuminate and flash. Each blue indicator light represents 25% battery capacity.
- The Venture 75 is full and ready to go when all lights are solid together.
- Blue indicator lights will flash according to the battery level. When charging from solar, use the built-in kickstand to angle your panel toward the sun.
NOMAD 10 11-22 HOURS
NOMAD 20
6-11 HOURS
NOMAD 50
6 HOURS
CHARGE YOUR GEAR
The Venture 75 is designed to charge phones, tablets, POV cameras, and other USB powered devices. Charge up to 3 devices simultaneously.
HEADLAMP UP TO 14 RECHARGES
The Venture 75 comes with a built in 50 lumen flashlight.
TURN ON/OFF
Press the Power Batt/Flashlight button for 2 seconds to turn on and off.
RUGGED DESIGN
The Venture 75's IP67 rating lets you power through any adventure, rain or shine. When waterproof port plug is fully closed, the Venture 75 is protected against dust, sand, and debris, and can withstand submersion up to 1 meter of water for at least 30 minutes.
FREQUently ASKED QUESTIONS
Q: Why is my gear not charging?
A: Check the battery level of the Venture 75 by pressing the power battery indicator button. Make sure to use the certified cables that came with your gear.
Q: Is the Venture 75 fully waterproof?
A: Yes with the waterproof door fully closed, the unit is rated at IP67 and is protected against dust, sand, and debris, and can withstand submersion up to 1 meter of water for at least 30 minutes.
Q: How does the flashlight function?
A: The Venture 75 has a built in 50 lumen flashlight controlled by the battery indicator power button. Simply press the button down for 2 seconds to turn the flashlight on and off.
Q: What if the power from my USB-C devices is not flowing the correct way?
A: The USB-C port on the Venture 75 is bi-directional. Meaning power can flow in and out. If the power is not flowing the way you would like, try to unplug and re-plug the USB-C cable once or twice. This will re-register the direction the power is flowing.
TECHNICAL SPECIFICATIONS
Venture 75 Power Bank
| CHARGE TIMES: | |
| GOAL ZERO Nomad 10 | 11-22 hrs |
| GOAL ZERO Nomad 20 | 6-11 hrs |
| GOAL ZERO Nomad 50 | 6 hrs |
| USB-C Source (60W) | 1.5 hrs |
| BATTERY: | |
| Cell chemistry | Li-ion NMC |
| Cell type | 18650 by LG chem |
| Cell capacity | 71.04Wh (11.1V, 6400mAh) |
| Single Cell capacity | 19200mAh @ 3.7V |
| Lifecycles | Hundreds of cycles |
| Shelf-life | Keep plugged in, or charge every 3-6 months |
| Fuses | None |
| Management system | Charging and low-battery protection built-in |
PORTS:
| USB port (output) | 5V, up to 3A each (1.5W max), regulated |
| USB-C port (input/output) | 5-20V, up to 3A (60W max), regulated |
GENERAL:
IP Rating IP67
Chainable No
Weight 1.27 lbs (577 g)
| Dimensions | 6.1 x 3.8 x 1.1 in(15.6 x 9.6 x 2.9 cm) |
| Operating usage | 32-113F (0-45C) |
| temperature |
Certifications
Warranty 12 months
Be sure to ACTIVATE YOUR WARRANTY at goalzero.com/warranty
POWER. ANYTHING. ANYWHERE.
BRANCHEZ-MOI
CÁMARA POV
14
RECARGAS
TELEFONO 5 RECARGAS
TABLEETA 2 RECARGAS
ORDENADOR PORTÁTIL HASTA 1 RECARGA
LINTERNA
P: La Venture 75 es Completely impermeable?
GARANTIA em goalzero.com/warranty
あたの半アを知りまう
寸法 6.1×3.8×1.1 in (15.6×9.6×2.9 cm)
動作溫度 32-113F(0-45C)
認定
保证 12月
必複goalzero.com/warrantyd保証为有效
TUTUSTU LAITTEESESI
Venture 75 Power Bank
| LAADTIJUDEN: | |
| Goal Zero Nomad 10 | 11-22 Uhr |
| Goal Zero Nomad 20 | 6-11 Uhr |
| Goal Zero Nomad 50 | 6 Uhr |
| USB-C bron | 1.5 Uhr |
| ACCU: | |
| Celchemie | Li-ion NMC |
| Celtype | 18650 door LG chem |
| Celvermogen | 71.04Wh (11.1V, 6400mAh) |
| Enkel Cel vermogen | 19200mAh @ 3.7V |
| Levenscylussen | Honderden cyclussen |
| Houdbaarheid | Ingeplug houden of elke 3 tot 6 maanden opladen |
| Zekeringen | Geen |
| Managementsystem | Ingebouwde bescherming laden en batterij bijna leeg |
POORTEN:
Venture 75 Power Bank
Designed in the U.S.A.
Made in China
1-888-794-6250
Goal Zero Switch and Nomad are trademarks of Goal Zero LLC.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
