USER MANUAL GLOBE DXCF0 DUUX

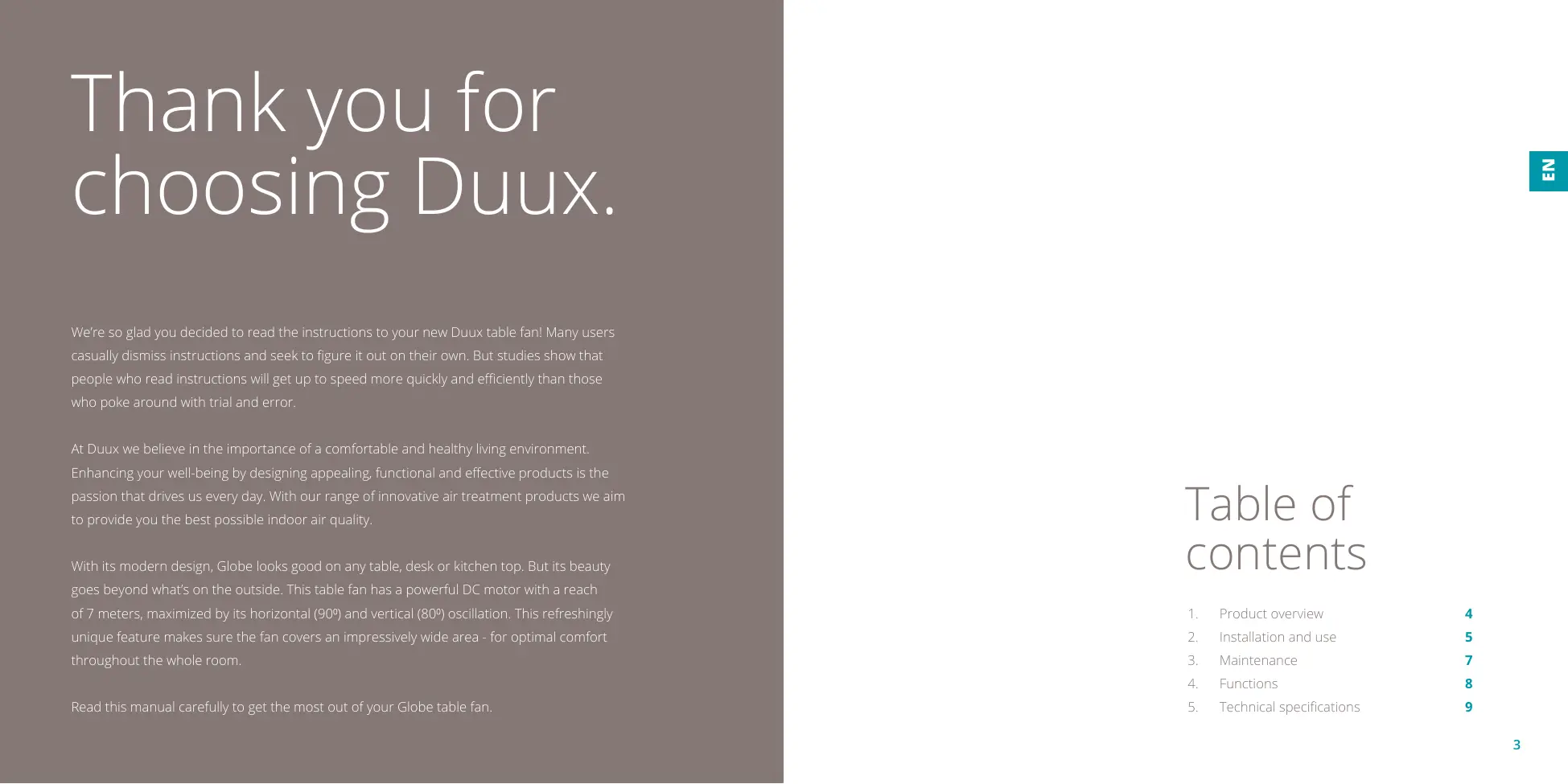

Thank you for choosing Duux.

We're so glad you decided to read the instructions to your new Duux table fan! Many users casually dismiss instructions and seek to figure it out on their own. But studies show that people who read instructions will get up to speed more quickly and efficiently than those who poke around with trial and error.

At Duux we believe in the importance of a comfortable and healthy living environment. Enhancing your well-being by designing appealing, functional and effective products is the passion that drives us every day. With our range of innovative air treatment products we aim to provide you the best possible indoor air quality.

With its modern design, Globe looks good on any table, desk or kitchen top. But its beauty goes beyond what's on the outside. This table fan has a powerful DC motor with a reach of 7 meters, maximized by its horizontal (90°) and vertical (80°) oscillation. This refreshingly unique feature makes sure the fan covers an impressively wide area - for optimal comfort throughout the whole room.

Read this manual carefully to get the most out of your Globe table fan.

Table of contents

1. Product overview 4
2. Installation and use 5
3. Maintenance 7
4. Functions 8
5. Technical specifications 9

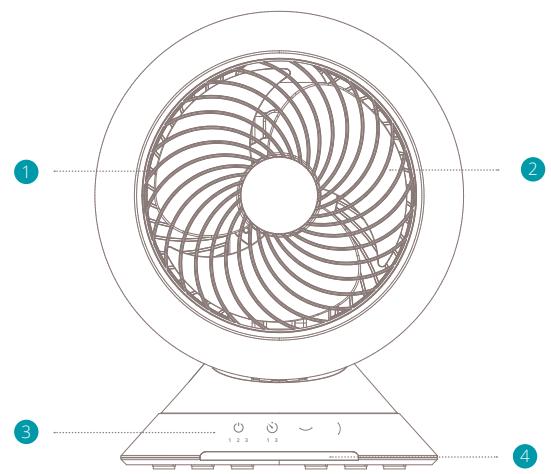

1. Product overview

1 Fan grill
2 Fan blade
3 Touch control interface
Remote control receiver

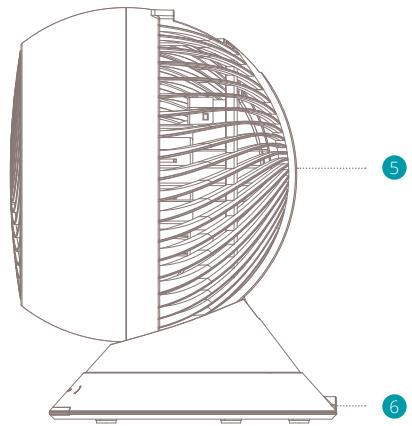

5 Oscillation mechanism
6 Adapter input

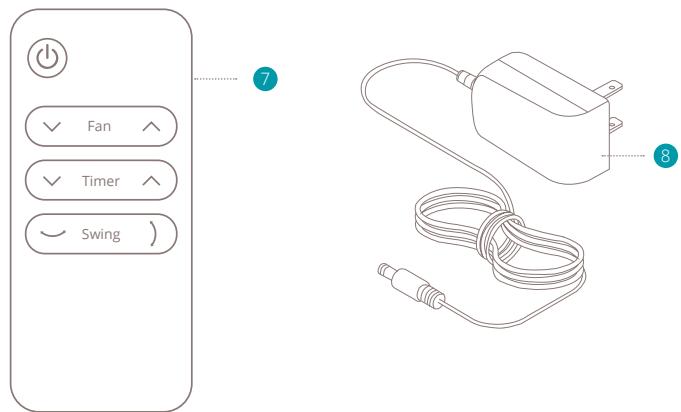

Remote control
8 Power adapter

2. Installation and use

Read before installation:

• When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury.
• Before using the device, please carefully read the entire instruction manual.

General cautions

• For indoor use only. Do not use in commercial, industrial or outdoor environments.
• Do not use the device in the vicinity of flammable or explosive substances or fuels. Never use any paint, cleaning sprays, anti-insect sprays or similar near the unit; this could deform the plastic or cause electrical damage.
• Always turn off and unplug the power cord when not in use, servicing, cleaning or moving the device.
• Do not route the power cord or adaptor under rugs, carpets or furniture. This may damage the cord/adaptor or cause it to overheat creating a fire hazard.
• Do not route the power cord in or through doorways or areas where the cord may be damaged or create a tripping hazard.
  Only use the device in the upright position on a

flat level surface (even during transport) and at least 50cm from any objects.

• Never insert or allow fingers or objects to enter grill openings while the device is operating to prevent injury and/or damage to the device.
• Do not block, cover or obstruct the air inlet/outlet while the device is operating.
• Never use a single extension cord to operate more than one electrical device.
• Do not use the device near a window opening. Rain may create an electrical hazard.
• Do not use this device when it is damaged or not functioning properly.
• Do not operate the device with a damaged cord or plug.
• Do not mount the device on walls or ceiling.
• Do not operate the device when the housing is removed or damaged.
• Do not use the device in swimming pools, washrooms or similar wet areas.
• Do not use the device in a potentially explosive environment containing combustible liquids, gases or dusts.
• Ensure that there is at least 50cm between the sides of the device and any flammable, heating materials.

• Closely supervise any children and pets when the device is in use.

• Keep children away from playing with the device.

• Do not pull the unit along by the cord.
• If the supplied power cord is damaged it must be replaced by an electrician or qualified person to avoid any hazard.
• The mains supply must confirm to the specification shown on the rating label on the back of the device.
• Close doors and windows for optimal efficiency.
• Keep curtains or blinds closed during the sunniest hours of the day.
• Do not turn on the device if you have discovered damage to the appliance, cord or plug or if the device is malfunctioning or if there are signs of any other defect. Return the complete product to the point of purchase or to a certified electrician for inspection and/or repair. Always ask for original parts. The device (incl. cord and plug) may only be opened and/or repaired by properly authorized and qualified persons.
• Only a licensed professional is allowed to dismantle or modify the device.
• This device is to be used only for its prescribed purpose. Any other use is deemed to be a cause of misuse. The user/operator, not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this

Installing the device

Unpack the device and remove the packing materials from the unit. Store the packing materials for possible future transportation.
Plug in the adapter to the connector that's located on the back side of the device.
Press and hold the power button for 3 seconds the turn on the device.

Note: When powering on for the first time, the vertical swing will only be activated after 10 seconds due to calibration.

Installing the remote control

1 Remove the lid
Place the battery according to the instructions on the lid with the correct polarity
3 Close the lid

Note:

• Only use 1x CR2025 3V batteries
• Non-rechargeable batteries are not to be recharged
• Exhausted batteries are to be removed from the remote control and safely disposed of
• If the remote control is to be stored unused for a long period, the battery should be removed
• The supply terminals are not to be short-circuited.

3. Maintenance

Important: Always unplug the device from the mains before cleaning. To maximize the efficiency of the device, clean regularly

Cleaning the body

Use a soft, damp cloth to wipe the body clean. Never use aggressive chemicals, gasoline, detergents, chemically treated cloths, or other cleansing solutions. These all could possibly hurt the casing material.

Follow below instructions to clean the fan blades:

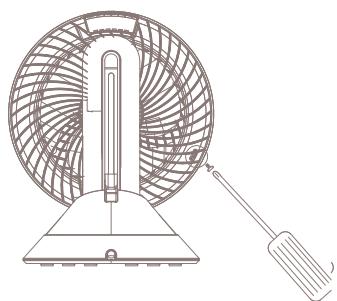

1 Remove the screws from the back side of the unit as shown in the picture
Rotate the outside cover to unlock the grill and remove it

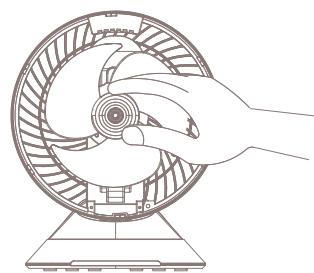

Disassemble the fan blades from the motor as shown in the picture.

1

2

3

4. Functions

Turning the device On/Off

Press and hold the ON/OFF button and the unit will start automatically.
Indicators of the functions in progress are shown simultaneously.
To turn the unit off, press ON/OFF button again.

Setting the timer

Press the TIMER button to switch between 1- or 3-hour time-out. When the set time has been reached, the device will turn off automatically. The indicators will show the hour(s) you set as you press the TIMER button.

Use the ON/OFF button to switch between various speed. The indicator of your selected speed (1, 2 or 3) will illuminate.

Using the oscillation mode

Press the HORIZONTAL- and/or VERTICAL OSCILLATION buttons to activate the oscillation mode(s).

Note: When powering on for the first time, the vertical swing will only be activated after 10 seconds due to calibration.

Dimming of the display

The LED's of the display will dim after 10 seconds.
To reactive the control panel, press any button.

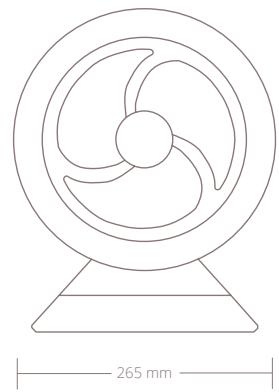

5. Technical specifications

Disposal

The European directive 2012 / 19 / CE on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Notes

Designed in The Netherlands bij Duux International BV. Made in P.R.C. Duux International BV, P.O. Box 145, 5400 AC Uden Netherlands, www.duux.com

© 2019 Duux. All rights reserved. DUUX® is a trademark of Duux International BV, registered in the EU and other countries.

The brand cited belongs exclusively to the respective owners.

Specifications are subject to modification without notice.

duux

Version:IMDXCF0708_V2
