USER MANUAL 4 embouts – 6 vitesses TERRAILLON

CHARGEMENT DU PRODUIT

Dear Customer, Thank you for purchasing the Fitness Massager Please read the instructions before using the massager as this manual provides additional information including safety precautions and warings.

DISCLAIMER CAUTION If you have the following conditions or any health issues, please consult with your doctor before use.

1. Pregnancy, diabetes including complications such as neuropathy and retinal damage

2. Use of cardiac pacemaker, recent surgery, epilepsy or migraines, protrusion of lumbar intervertebral

discs and anterior displacement of bone vertebrae.

3. Recent joint replacement surgery, intrauterine device placement, metal implants and other concerns

of the body ÂÀ WARNING: consult doctor before using this product to reduce the risk of injury. PRECAUTIONS

1. Minors are not allowed to use this product. This product is not a toy, please store it out of reach of

2. Do not immerse the product in water. If the product falls into the water, please submit it for inspection

3. Do not place the product near the fire source or into the fire

4. Do not use the gun massager on the head, near the heart or on the genitals.

5. Do not use the gun massager on the bones and joints. The massager is designed for use on soft

6. Do not drop the product intentionally.

7. Do not remove screws or attempt to disassemble the product

8. It is forbidden to replace or supplement medical treatment with the device, if you feel pain or are

receiving treatment, please consult before using the device your doctor

9. Do not put fingers, hair or other parts of the body near the axis and back of the massage head to avoid

10. Ifthe equipment is damaged, stop operation immediately.

11. Do not place fingers, hair or other body parts near the axis or back of the massager to prevent injury.

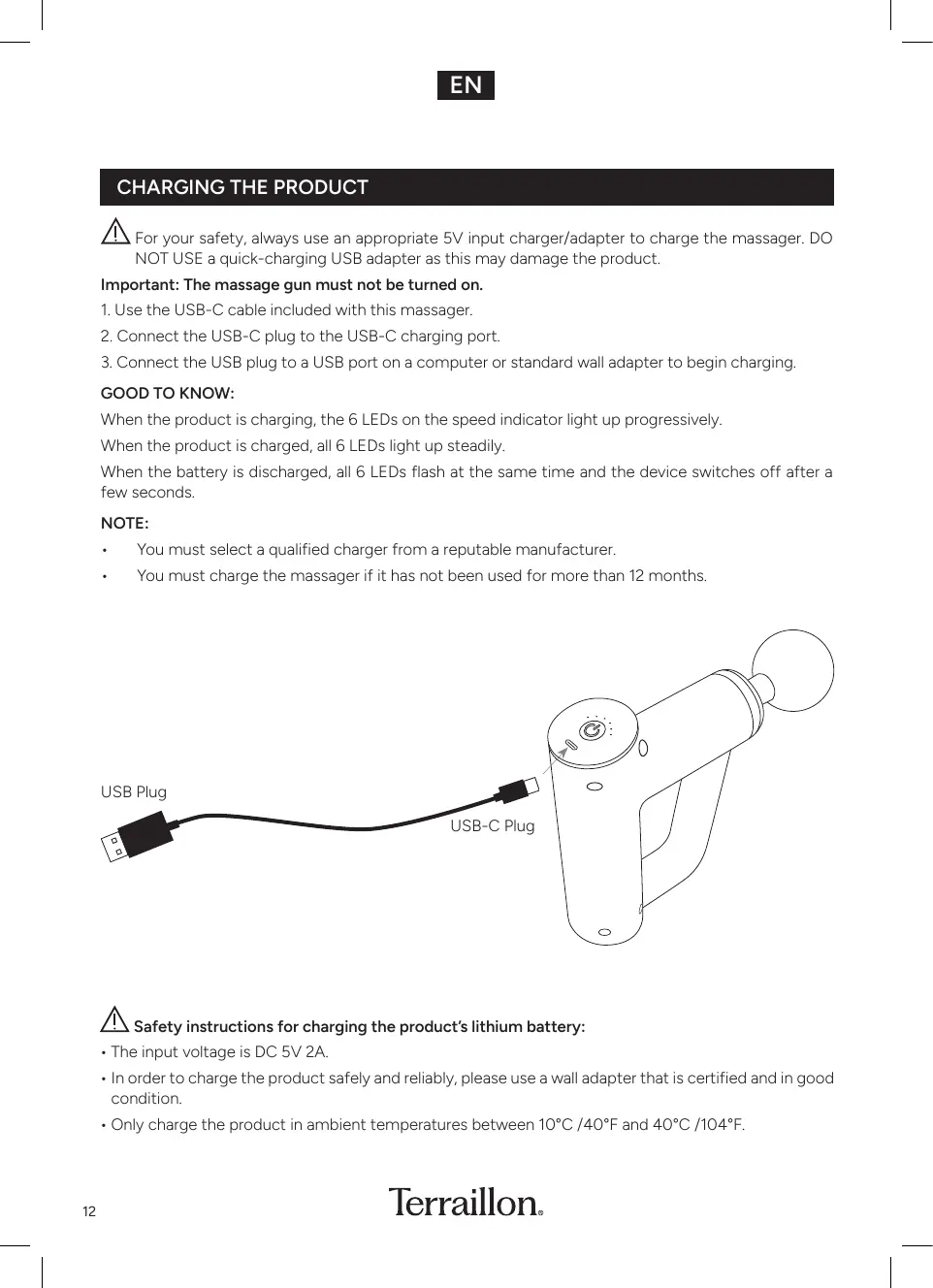

CHARGING THE PRODUCT

Âror your safety, always use an appropriate SV input charger/adapter to charge the massager. DO NOT USE a quick-charging USB adapter as this may damage the product Important: The massage gun must not be turned on.

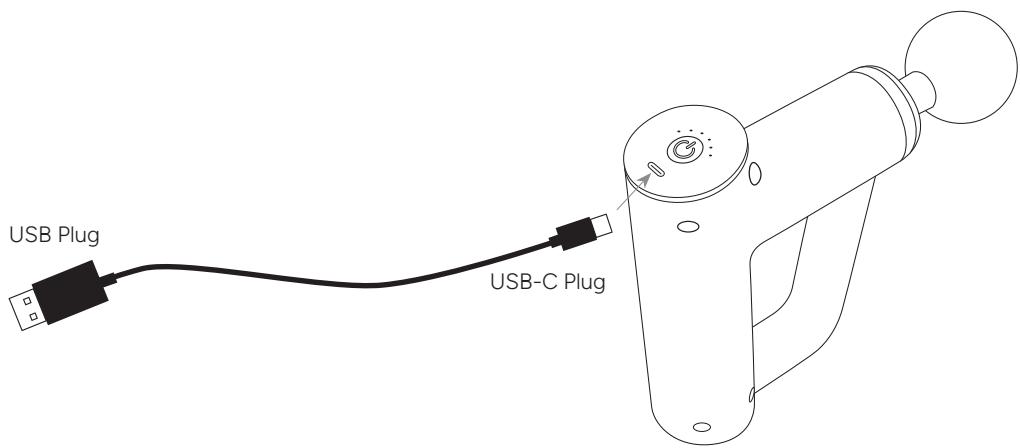

1. Use the USB-C cable included with this massager.

2. Connect the USB-C plug to the USB-C charging port

3. Connect the USB plug to a USB port on a computer or standard wall adapter to begin charging:

GOOD TO KNOW: When the product is charging, the 6 LEDs on the speed indicator light up progressively. When the product is charged, all 6 LEDs light up steadily. When the battery is discharged, all 6 LEDs flash at the same time and the device switches off after à few seconds. NOTE: + You must select a qualified charger from a reputable manufacturer. + You must charge the massager if it has not been used for more than 12 months. USB Plug USB-C Plug À Safety instructions for charging the product‘ lithium battery: + The input voltage is DC 5V 2A. + In order to charge the product safely and reliably, please use à wall adapter that is certified and in good condition. + Only charge the product in ambient temperatures between 10°C /40°F and 40°C /104°F. e Terraillon.

+ Do not heat above 70°C /158°F. Do not dispose of in a fire. + Keep out of direct sunlight. + Turn off the product after use + Please note: we will not take any responsibility for the misuse of the product, such as using voltage higher than indicated. Misuse may result in serious injury or loss of property. + In extreme cases, abuse or misuse of a lithium battery can lead to an explosion, heat generation, fire or smoke development. MASSAGE HEADS (|_/ + Spherical Head: suitable for Relaxing Large Muscle Groups, including your arms, waist, back, a buttocks, and thighs + Flat Head: suitable for Relaxation and Shaping of Various Muscle Groups and especially the abdominal belt, the pectoral muscles of the chest or even the biceps and triceps femoris inthe leg + Cone Head: suitable for deep tissue impact recovery sessions, Ideal for targeting trigger | points and small specific areas: such as the soles of the feet, palms, Achilles heel and Ë rhomboid muscles in the back. (ES) + U-Shaped Head: suitable for trapezius muscles, areas around the achilles tendon muscle, fl ankle muscle and calf muscles. can find an article detailing them in our

CONNECTING THE ATTACHMENT

Place the massage head you want on the end of the gun and snap it on. Then turn on the gun to start the massage To change the massage head, turn the gun off by holding down the On/Off button: you can remove the head you are using and insert the new one. Terraillon.

at the slowest speed and will display the slow indicator light

2. Short press the on/off speed button to change the intensity.

3. The Gun Massager switches off automatically after each 10-minute session, corresponding to the

recommended massage time. To restart, simply long press the on/off speed button.

4. The gun massager features six speeds

5. If you wish to stop the session before the 10-minute timer, simply long press the on/off button until

the massager powers off. FAQ + Why is my Fitness Massager not tuning on? If the Fitness Massager will not power on, please ensure the battery is fully charged: + Why is my Fitness Massager is not charging? If your Fitness Massager will not charge, please ensure each end of the charging cable is securely attached to the Gun Massager and the power source. Check to ensure the wall outlet has power. If using a computer USB port, please ensure that the computer has power. TECHNICAL SPECIFICATION Product Name Fitness Massager Battery capacity 1200 mAh Charging time 2-3 Hours Vibration mode Glevels Charging interface USB-C Speed 1800 RPM Usage time 1-2 hours 2 000 RPM Rated Power 25W 2 300 RPM 5 600 RPM Product size 190 x 155 x 32 mm 2 900 RPM 3200 RPM w Terraillon.

To reduce the risk of failure, electric shock, injury, fire and equipment damage, please read all the instructions and warnings in this manual.

1. Do not dispose of, store or use the massager near or in fire or open flames.

2. Do not remove screws or attempt to disassemble the massager.

3. Please consult with your doctor before use. This massager is not intended to replace or supplement

prescribed medical treatments. WARRANTY This product is guaranteed against defects in materials and workmanship. This warranty does not cover damage resulting from accidents, improper use or negligence. f you have à complaint, first contact the store where you made your purchase ENVIRONMENTAL PROTECTION When the product is no longer usable, please take it to a collection point for the recycling of waste electrical and electronic equipment. Terraillon.
