USER MANUAL VC 5060 4MC S701T VALBERG

This product has a 2-year warranty as of the date of purchase*, covering any fault resulting from a manufacturing or material defect. This warranty does not cover defects or damage resulting from incorrect installation, improper use or abnormal wear of the appliance.

*upon presentation of the sales receipt.

CONDITION DE GARANTIE

FR

Thank you for choosing this VALBERG product. Selected, tested and recommended by ELECTRO DEPOT, VALBERG brand products are easy to use, reliable and known for their impeccable quality. With this appliance, you can be sure of complete satisfaction every time you use it.

Welcome to ELECTRO DEPOT.

Visit our website: www.electrodepot.fr

Preview of the appliance

Features of the Product

Using the appliance

Installation and preparation for use Use of the appliance

Useful information

Cleaning and maintenance Repair and transport

Features of the Product

IMPORTANT

Product specifications vary and your appliance may look different from those that appear in the figures below.

List of components

1 Hob
Control panel
3 Oven door handle
Oven door
5 Adjustable feet

Control panel

6 Timer
7 Function control
Oven thermostat knob
9 Hob control

Installation and preparation for use

WARNING

This appliance must be fitted by an authorised professional or qualified technician in accordance with the instructions in this manual and the applicable installation standards.

• Incorrect installation will invalidate the warranty and may result in damage or injury for which the manufacturer cannot be held liable.
• Before fitting, make sure that the local power supply conditions (voltage and current frequency and/or type and pressure of the gas) and the settings of the appliance are compatible. The setting conditions for this appliance are shown on the label.
• The laws, regulations, decrees and standards applicable in the country of installation must be observed (safety regulations, recycling in accordance with regulations, etc.).
• If the product contains guides for the removable racks (wire racks) and the user manual includes recipes like yoghurt, the wire racks must be removed and the oven must operate using the set cooking mode. Information on removing the wire rack is included in the CLEANING AND MAINTENANCE section.

Instructions for the installer

General instructions

• After removing the packaging from the appliance as well as its accessories, check the appliance for damage. If the appliance appears to be damaged, do not use it and immediately contact an authorised professional or qualified technician.
• Check that there are no combustible or flammable objects or materials, e.g. curtains, oil, cloth, etc., in the immediate vicinity.
• The worktop and furniture units surrounding the appliance must be able to withstand temperatures of over 100^ .
• This appliance must not be fitted directly above a dishwasher, refrigerator, freezer, washing machine or tumble dryer.
• The appliance can be fitted next to a furniture unit, provided that the height of the unit does not exceed the height of the hob in the installation area.

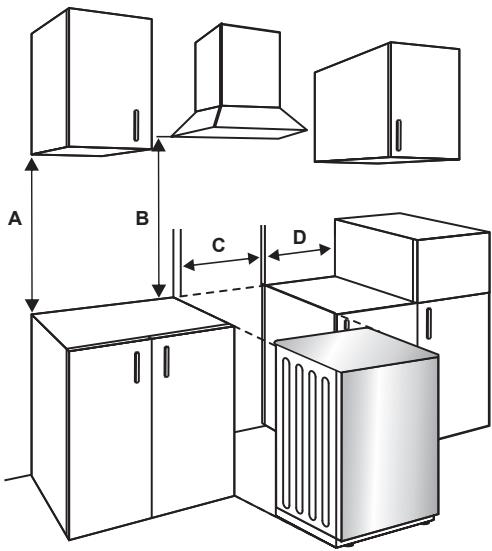

Cooker installation

• If the kitchen units are higher than the hob, there must be a gap of at least 10cm between the units and the sides of the appliance so that air can flow freely in between.
• If an extractor fan or cupboard is to be fitted above the appliance, the safety distance between the hob and the cupboard or extractor fan must respect the gap shown on the diagram below.

A (mm) 420

Furniture

B (mm) 650/700

Extractor fan

C (mm) Product width

D [mm] 50

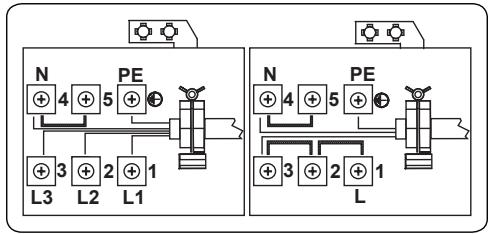

Electrical connection and safety

WARNING

This appliance must be connected to the power supply by an authorised professional or qualified technician in accordance with the instructions in this manual and the applicable installation standards.

WARNING

The appliance must be grounded.

• Before connecting to the power supply, check that the rated voltage of the appliance (marked on the nameplate of the appliance) matches the voltage of the power supply. The rated voltage of the power cable must also be at least equal to the nominal voltage of the appliance (also stated on the appliance's rating plate).
• When fitting, be sure to use appropriately insulated cables. Incorrect connection may damage your appliance. If the power cable is damaged and needs to be replaced, this should be done by a qualified person.
• Do not use adapters, power strips or extension cords.
• The power cable should be kept away from the hot parts of the appliance and should not be bent or crushed. Failure to do so may result in damage to the cable and cause a short circuit.
• If the appliance is not connected to the mains supply by a plug, fit a multi-pole isolator (with a contact spacing of at least 3mm ) in accordance with the safety regulations.
• This appliance is designed for a 220-240 V~.380-415 3N~ power supply. If your power supply is different, contact an authorised professional or qualified electrician.
• The power cable (H05VV-F) must be long enough to connect to the appliance.
• This fused disconnect switch must be easily accessible once the appliance is installed.
• Check that all connections are properly tightened.
• Attach the power cable to the terminal block and close the cover.
• The junction box connection is placed on the junction box.

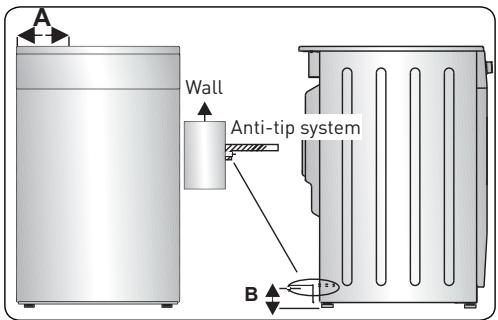

Anti-tip kit

The documentation bag contains an anti-tip kit. Fasten the anti-tip device (1) to the wall using the screw (2) and the wall plug (3), in accordance with the dimensions in the illustration and table below. Adjust the height of the anti-tip device so that it is aligned with the groove on the cooker, then tighten the screw (2). Push the appliance towards the wall, making sure that the anti-tip device fits into the groove at the back of the appliance.

Product dimensions (width X depth X height) (cm)	A (mm)	B (mm)
60 x 60 x 90 (double cavity oven)	297.5	52
50 x 60 x 90 (double cavity oven)	247.5	52
90 x 60 x 85	430	107
60 x 60 x 90	309.5	112
60 x 60 x 85	309.5	64
50 x 60 x 90	247.5	112
50 x 60 x 85	247.5	64
50 x 50 x 90	247.5	112
50 x 50 x 85	247.5	64

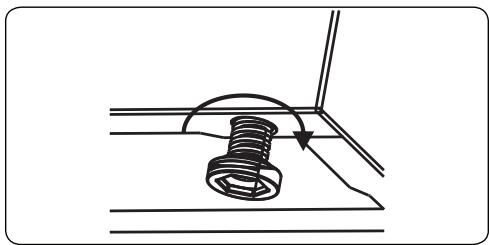

Adjusting the feet

Your appliance stands on adjustable feet. For safe operation, it is important to check the balance of the appliance. Check that the appliance is level before you start cooking. To raise the appliance, turn the feet anti-clockwise. To lower the appliance, turn the feet clockwise. The height of the appliance can be increased by up to 30mm by adjusting the feet. The appliance is very heavy and we recommend that it should be handled by at least two people. Never pull the appliance.

Using the appliance

Hob controls

Heating element

The heating element is controlled by a 6-position button.

The heating element is controlled by the corresponding controller, which must be set to the required setting. Beside each controller is a symbol that indicates which element is controlled by the controller. The on/off indicator light on the control panel indicates whether one of the heating elements is in use.

Button position	Function
0	Off position
1	Keep warm position
2-3	Low heat position
4-5-6	Cook, sear and boil position

IMPORTANT

The direction of rotation of the button varies depending on the product's characteristics.

Double and oval cooking zone (if available)

The double and oval cooking zone is composed of two cooking zones. To activate the outer part of a double/oval element, turn the button to the position. The two exterior zones light up. To deactivate the outer part of a double/oval element, turn the button to the Off position. The two exterior zones switch off.

Residual heat indicator (if available)

After using the hob, some of the heat will remain stored up in the ceramic surface. This is the residual heat. If the residual heat level is above +60^ , the residual heat indicator of the cooking zone concerned will light up.

If the power supply to the hob is cut off while the residual heat indicator light is on, the warning light will flash when the power is restored. The display flashes until the residual heat has dropped or one of the cooking zones is activated.

Tips and advice

IMPORTANT

When the heating elements are set to the highest levels, the hot zones may switch on and off. This is because of a safety system that prevents the glass from overheating. This is normal at high temperatures, will not damage the hob and only extend cooking times very slightly.

WARNING

• Never use the hob without any cookware on the cooking zone.
• Only use flat-bottomed pans with a thick base.
• Check that the bottom of the cookware is completely dry before placing them on the hob.
• When the cooking zone is on, it is important to check that the cookware is centred on the zone.
• To save energy, do not use cookware with a different diameter from that of the cooking zone used.

Pan with rounded bottom

Pan is too small

Pan is incorrectly positioned

WARNING

• Do not use cookware with a rough base, as it may damage the ceramic surface.
• If possible, always use a lid with the cookware.
• During use, the temperature of the accessible surfaces may be high. Keep children and pets away from the hob during use and until it has cooled down completely after use.
• If there is a crack on the hob, turn it off immediately and get it replaced by an authorised technician.

Oven controls

Function control

Turn the button to the symbol of the function you want. For the details of the different functions, refer to "Oven functions".

Oven temperature control

Once the cooking function is selected, turn this button to adjust the temperature. The oven temperature light turns on whenever the thermostat is working to heat the oven or maintain it at the required temperature setting.

Oven functions

• Oven light: Only the oven light comes on. It remains on throughout the cooking process.

• Defrost function: The oven warning lights come on and the fan starts. To use the Defrost function, place the frozen food in the oven on a tray/rack inserted on the third level from the bottom. It is recommended to place a drip pan under the defrosting food to catch the water from the melted ice. This function does not cook your food, but simply accelerates defrosting.

• Natural convection function: The thermostat light and the oven indicator light will come on and the upper and lower heating elements will start to heat up. The Static heat function emits heat that cooks the food evenly. It is ideal for pastries, cakes, pasta gratins, lasagne and pizzas. It is recommended to preheat the oven for 10 minutes and to use only one level at a time in this mode.

• Fan function: The thermostat light and the oven warning lights come on, the top and bottom heating elements start to heat up and the fan starts. This function is suitable for baking pastries. The cooking process is carried out by the upper and lower heating elements of the oven and by the fan which circulates the air, giving the food a slightly "grilled" appearance. It is recommended to preheat the oven for about 10 minutes.

• Fan with bottom heat function: The temperature light and the oven warning lights come on, the bottom heating element starts to heat up and the fan starts to turn. The Fan with bottom heat function is suitable for evenly cooking food like pizza with a short cooking time. The fan distributes the heat evenly throughout the oven, while the bottom element cooks the food. It is recommended to preheat the oven for about 10 minutes.

• Grill function: The thermostat light and the oven indicator light come on and the grill element starts to heat up. This function is used to toast and broil food placed on the upper levels of the oven. Lightly oil the wire rack with a brush to prevent food from sticking, then put the food in the centre of the rack. Always place a drip pan under the grill to catch oil or grease. It is recommended to preheat the oven for about 10 minutes.

WARNING

When broiling, the oven door must be closed and the oven temperature set to 190^ .

• Express Grill function: The thermostat light and the oven warning lights come on and the grill and top heater start to heat up. This function is recommended for grilling food more quickly over a larger surface area (e.g.: meat). Use the top level. Lightly oil the wire rack with a brush to prevent food from sticking, then put the food in the centre of the rack. Always place a drip pan under the grill to catch oil or grease. It is recommended to preheat the oven for about 10 minutes.

WARNING

When broiling, the oven door must be closed and the oven temperature set to 190^ C .

• Double grill with fan function: The thermostat light and oven warning lights come on, the grill and upper heating elements start to heat up and the fan starts. This function is recommended for grilling thicker food faster and over a larger area. The upper heating elements and the grill work simultaneously with the fan to ensure even cooking. Use the top level. Lightly oil the wire rack with a brush to prevent food from sticking, then put the food in the centre of the rack. Always place a drip pan under the grill to catch oil or grease. It is recommended to preheat the oven for about 10 minutes.

WARNING

When broiling, the oven door must be closed and the oven temperature set to 190^ C .

Cooktop

Function	Dishes
Static	Puff pastry	1-2	170-190	35-45
	Cake	1-2	170-190	30-40
	Cookies	1-2	170-190	30-40
	Beef stew	2	175-200	40-50
	Chicken	1-2	200	45-60
Fan	Puff pastry	1-2	170-190	25-35
	Cake	1-2-3	150-170	25-35
	Cookies	1-2-3	150-170	25-35
	Beef stew	2	175-200	40-50
	Chicken	1-2	200	45-60
Grill	Grilled meatballs	4	200	10-15
	Chicken	*	190	50-60
	Chops	3-4	200	15-25
	Steak	4	200	15-25

*If available, use the roasting spit.

Using the mechanical timer

Description of the function
M	Manual operation
0............100	With the timer setting

Manual operation

When the timer button is set to the "M" position, the oven runs continuously.

When the timer button is set to the "0" position, the oven does not work.

With the timer setting

Set the required cooking time by turning the timer button to a value between 0 and 100 minutes.

Once the time has elapsed, the oven will automatically turn off and an audible alarm will sound.

Accessories

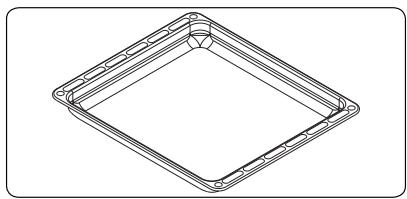

Deep tray

The deep tray is used to cook stews.

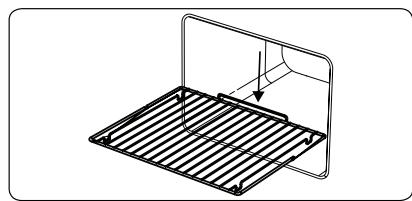

To position the rack properly in the cavity, place it on any rail and push it to the back.

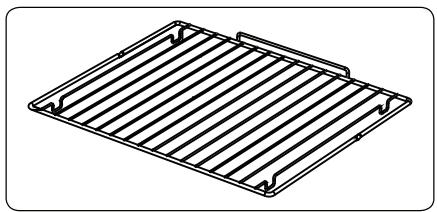

Wire rack

The wire mesh is used for grilling or preparing food in other containers.

WARNING

Correctly place the oven rack in the oven cavity by pushing it all the way in.

Cleaning and maintenance

Cleaning

WARNING

Turn off the appliance and allow it to cool before cleaning.

General instructions

• Check that the cleaning products are suitable and recommended by their manufacturer before using them on the appliance.
• Use particle-free cream or liquid cleaners. Do not use caustic (corrosive) creams, abrasive cleaning powders, rough steel wool or hard tools, as they may damage the cooker's surfaces.

WARNING

Do not use cleaners that contain particles, as they could scratch the glass, or the enamelled and/or painted parts of the appliance.

• If some liquid spills over, immediately wipe it up to avoid damaging the parts.

WARNING

Do not use a steam cleaner to clean any part of this appliance.

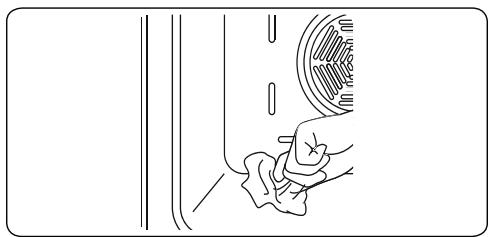

Cleaning the inside of the oven

• Preferably clean the inside of the enamelled oven when it is hot.
• Wipe the oven with a soft cloth soaked in soapy water after each use. Then, wipe the oven again with a damp cloth and dry it.
• You may need to occasionally use a liquid cleaning product to completely clean the oven.

Catalytic cleaning

• The oven has catalytic panels installed inside the cavity. These are the light coloured matte panels on the sides and/or the matte panel at the back of the oven. They work by collecting any grease and oil residues during cooking.
• The liner self-cleans by absorbing the grease and oil, and burning them to ashes, which can then be easily removed from the bottom of the oven with a damp cloth. The liner must be porous to remain effective. The liner may discolour with age.
• If a large amount of grease has been spilled on the liner, it may diminish its effectiveness. To overcome this problem, set the oven to maximum heat for about 20 to 30 minutes. Once the oven has cooled down, wipe the bottom of the oven.
• It is not advisable to clean the catalytic liners manually. Using a pad of steel wool filled with soap or any other abrasive product will damage the product. Furthermore, we do not recommend using spray cleaners on the liners. The walls of a catalytic coating can become ineffective when covered with too much grease. Excess grease can be removed with a soft cloth or sponge moistened with warm water, and the cleaning can be done as described above.

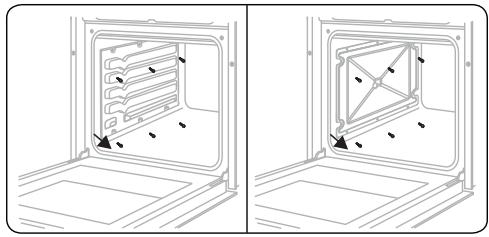

Removing the catalytic coating

To remove the catalytic coating, remove the screws that secure each catalytic panel to the oven.

Cleaning the ceramic glass

Ceramic glass can bear the weight of heavy utensils but may break when struck by a sharp object.

WARNING

Ceramic hobs: If the surface is cracked, turn off the appliance to avoid the risk of an electric shock and contact the maintenance department.

• Use a cream or liquid cleaner to clean the ceramic glass. Then, rinse and dry the glass thoroughly with a dry cloth.

WARNING

Do not use steel cleaning products as these may damage the glass.

• If substances with a low melting point are used in the base or on the coatings, they can damage the ceramic hob. If any plastic, aluminium foil, sugar or sweet food items fall onto the ceramic hob while it is hot, remove it as quickly and as safely as possible. If these substances melt, they can damage the ceramic hob. When cooking very sweet dishes, like jam, cover the hob with a suitable protective product beforehand if possible.
• Dust on the surface should be wiped off with a damp cloth.

C Useful information

• Any change in the colour of the ceramic glass will not affect the structure or durability of the ceramic and is not the result of a change in the material.

A change in the colour of the ceramic glass can be caused by a number of factors:

1. Spilled food that was not wiped off the surface.
2. Using incorrect dishes on the hob will wear out the surface.
3. Using unsuitable cleaning products.

Cleaning the glass parts

• Regularly clean the enamelled parts of the appliance.
• Use a window cleaner to clean the inside and outside of the glass parts. Then, rinse and dry the glass thoroughly with a dry cloth.

Cleaning the enamelled parts

• Regularly clean the enamelled parts of the appliance.
• Wipe the enamelled parts with a soft cloth dipped in soapy water. Then, wipe them again with a damp cloth and dry them.

WARNING

• Do not clean the enamelled parts that are still hot after cooking.
• Do not leave any vinegar, coffee, milk, salt, water, lemon or tomato juice on the enamel for too long.

Cleaning the stainless steel parts (if applicable)

• Regularly clean the stainless steel parts of the appliance.
• Wipe the stainless steel parts with a soft cloth dampened with water only. Then, dry the glass thoroughly with a dry cloth.

WARNING

• Do not clean the stainless steel parts while they are still hot after cooking.
• Do not leave any vinegar, coffee, milk, salt, water, lemon or tomato juice on the stainless steel for too long.

Cleaning the painted surfaces (if applicable)

• Stains from tomatoes, tomato paste, ketchup, lemon, oil derivatives, milk, sugary foods, sugary drinks and coffee should be wiped off immediately with a cloth dipped in warm water. If these stains are not wiped away and dried from the surfaces they are on, do NOT scrub them with hard objects (sharp objects, steel and plastic scrubbers, dish sponge which will damage the surface) or cleaning products containing high levels of alcohol, stain removers, grease removers or abrasive surface chemicals. Otherwise, corrosion may occur on the powder-coated surfaces, and stains may appear. The manufacturer will not be held responsible for any damage caused by the use of inappropriate products or cleaning methods.

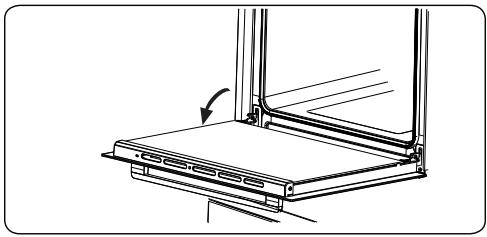

Removing the oven door

Before cleaning the glass of the oven door, the internal glass must be removed as follows:

1. Open the oven door.

1. Fully open the saddle support (a) (with a screwdriver) until it stops.

1. Close the door until it is almost fully closed and remove it by pulling it towards you.

Maintenance

WARNING

This appliance should be maintained by an authorised person or qualified technician.

Replacing the oven lamp

WARNING

Turn off the appliance and let it cool down before cleaning.

• Remove the glass cover, then remove the bulb.
• Insert the new bulb (resistant to 300^ ) to replace the one you removed [230 V, 15 - 25 Watt, Type E14].
• Replace the glass cover. The oven is now ready to operate.
• This product contains a light source with an energy efficiency rating of G .
• The light source cannot be replaced by the end user. After-sales servicing is required.
• The included light source cannot be used for other applications.

Light source replaceable by a professional

WARNING

The light is made exclusively for use in household cooking appliances. It is not suitable for lighting up a room.

Repair and transport

Troubleshooting

WARNING

If the problem persists with your appliance after following these basic repairs, contact an authorised professional or qualified technician.

Problem	Possible cause	Solution
The hob or cooking zones cannot be switched on.	There is no power.	Check the fuse for the appliance in the fuse box. Check that the power supply is not cut by trying to turn on other electronic appliances.
The oven does not switch on.	The power supply is off.	Check that the power supply is connected. Also check that other kitchen appliances are working.
No heat is generated or the oven does not preheat.	The oven temperature setting is incorrect. The oven door is open.	Check that the oven temperature control is set correctly.
Uneven cooking in the oven.	The plates/racks are incorrectly positioned.	Check that the recommended temperatures and levels are being followed. Do not open the door frequently unless the food being cooked needs to be turned. Opening the door too often causes the temperature in the oven to drop, which can affect the cooking result.
The oven light is not working.	The bulb does not work. The power supply is switched off or disconnected.	Replace the bulb according to the instructions. Check the plug is connected to the power socket.
The oven fan (if present) is noisy.	The oven trays/ racks vibrate.	Check that the oven is level. Check that no trays/racks or dishes are vibrating or touching the rear panel of the oven.

Transport

• If the appliance has to be moved, pack it in its original packaging and cardboard box. Follow the transport guidelines indicated on the packaging. Tape moving parts to the appliance to prevent any damage during transport.
• If the original packaging is not available, use a cardboard box to protect the appliance - especially the external surfaces - from external hazards.

Merci!
