USER MANUAL CE2500X BRANDT

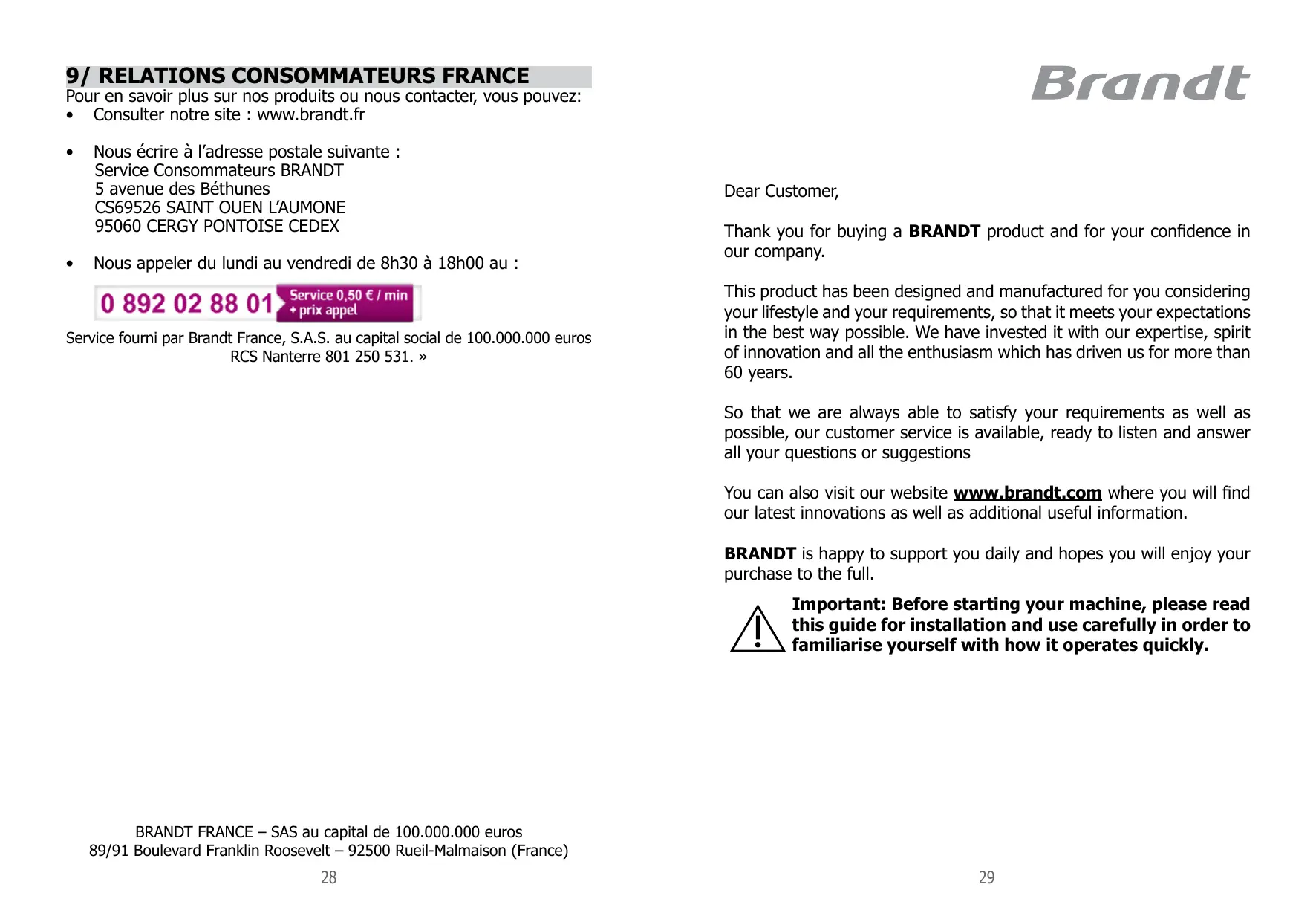

9/ RELATIONS CONSOMMATEURS FRANCE... ENGLISH INSTRUCTION MANUAL. © © NI $ D À U W N h © o Ur

Brandt Dear Customer, Thank you for buying a BRANDT product and for your confidence in our company. This product has been designed and manufactured for you considering your lifestyle and your requirements, so that it meets your expectations in the best way possible. We have invested it with our expertise, spirit of innovation and all the enthusiasm which has driven us for more than 60 years. So that we are always able to satisfy your requirements as well as possible, our customer service is available, ready to listen and answer all your questions or suggestions You can also visit our website www.brandt.com where you will find our latest innovations as well as additional useful information. BRANDT is happy to support you daily and hopes you will enjoy your purchase to the full. this guide for installation and use carefully in order to Important: Before starting your machine, please read /\ familiarise yourself with how it operates quickly.

AN Keep these instructions with your machine. If you sell this machine to another person second- hand, make sure you give the new owner these instructions. Please read these instructions before installing and using your machine. They are written for your safety and that of others.

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE This appliance is intended to be used in household and similar applications such as: - staff kitchen areas in shops, offices and other working environments; - farm houses; - byclientsin hotels, motels and other residential type environments; - bed and breakfast type environments. Ifthe supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

WARNING: If the door or door seals are damaged,

the oven must not be operated until it has been repaired by a competent person.

WARNING: It is hazardous for anyone other than

a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

WARNING: Liquids and other foods must not be

heated in sealed containers since they are liable

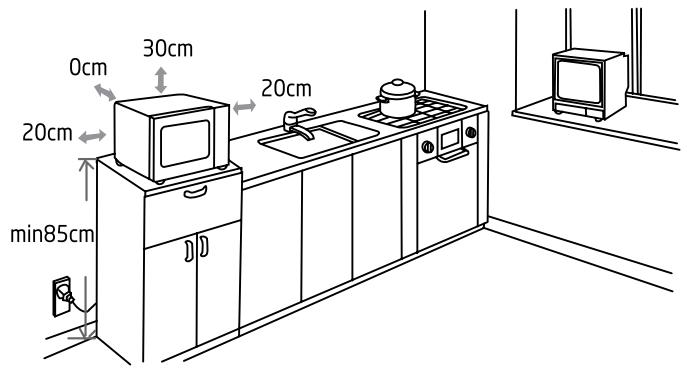

to explode. Keep a minimum free space 30 cm above the top surface of the oven. Only use utensils that are suitable for use in microwave ovens. Metallic containers for food and beverages are not allowed during microwave cooking. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended. Regarding the instructions of the details for cleaning the door seals, cavities, adjacent parts

and the surfaces in contact with food, refer to the section “CLEANING AND MAINTENANCE" on pages 46-47 of the manual. The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. The appliance shall not be cleaned with a steam cleaner.

WARNING: When the appliance is operated

in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. The microwave oven is intended to be used freestanding. Group 2, Class B equipment This equipment is Group 2 equipment as it intentionally generates radio-frequency energy for treating material and is designed to be used in domestic premises or an establishment directly connected to the low voltage electricity distribution network supplying buildings used for domestic purposes (Class B). ° The appliance must not be placed in a cabinet. ° This appliance can be used by children ages from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use

of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised. Keep the appliance and its cord out of reach of children less than 8 years. The appliance is not intended to be operated by means of an external timer or separate remote- control system. The temperature of accessible surfaces may be high when the appliance is operating. The door or the outer surface may get hot when the appliance is operating. AA caution: Hot Surface. The surfaces are liable to get hot during use. The rear surface of appliance shall be placed against a wall. Do not place the appliance in or near hot gas or electric burner, or permit to touch a heated oven or mini oven. a) Safety Instructions °_ When you will not use the microwave oven for a long period of time, please disconnect it from the supply mains, to do this you must remove the plug from the supply outlet. ° The plug shall be the main disconnection device and shall remain accessible at all times.

°_The microwave oven cannot be operated with the door open due to the safety interlocks built into the door mechanism which switch off the cooking functions when the door is opened. Operating the microwave oven with the door open could result in harmful exposure to microwave energy. It is important not to tamper with the door mechanism. ° Do not let water or any other liquid enter the oven through the ventilation slots. ° Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. °_Avoid using straight-sided containers with narrow necks. ° Stir any liquid before placing the container back into the microwave oven half way through the heating time. ° After heating, always allow standing time, stir or shake the contents and carefully check the temperatures before consumption. b) Technical Data Model CE2500X Rated voltage and frequency 230V 50Hz Rated input power (Microwave) 1320W Rated output power (Microwave) 850W Rated input power (Grill) 1200 W Rated input power (Convection) 2200 W Microwave frequency 2450MHzZ Turntable Diameter 31.5cm Extenal Dimensions L367.5 x W510 x H303 mm Net Weight 16.1kg

c) Environmental Protection

At the end of its life this product must not be discarded with household waste. It must be taken to a recycling centre or to your dealer. This makes it possible to avoid consequences resulting from inappropriate disposal that are harmful to health and the environment, and to recycle materials to save energy and significant resources. A logo appears on the product reminding you not to discard it with household waste. For further information, contact your council offices or the shop where you bought this product.

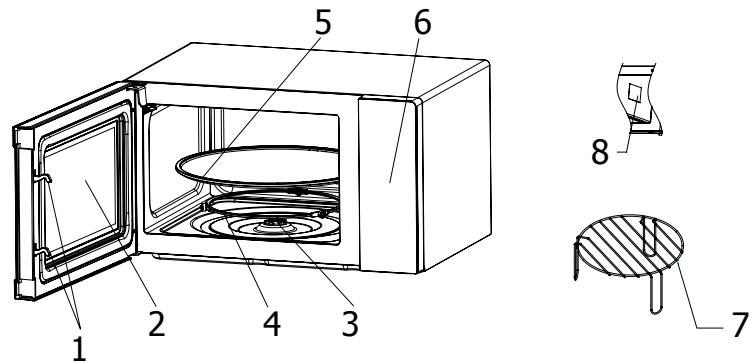

Microwave oven door must be properly closed in order for it to operate.

Allow user to see the cooking status.

The glass turntable sits on the axis; the motor underneath it drives the turntable to rotate.

The glass turntable sits on its wheels; it supports the turntable and helps it to balance when rotating.

The food sits on the turntable, its rotation during operation helps to cook food evenly. A CAUTION + Place the rotating ring first. + _ Fit the turntable onto the rotating axis and make sure that it is geared in properly.

See below in details.

Itis inside the microwave oven, next to the wall of control panel. A WARNING Never remove the wave guide cover.

3/ INSTALLATION Preparation Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install the microwave oven if it is damaged. Cabinet: Remove any protective film found on the microwave oven cabinet surface Do not remove the light brown Mica cover that is attached to the inside of the oven cavity to protect the magnetron. Position + Select a level surface that provides enough open space for the intake and/or outlet vents. + __ The microwave oven must be placed on a surface with height more than 85 cm above the floor. °__A minimum clearance of 20 cmis required on both sides of the oven. ° The minimum height of free space above the top surface of the oven is 30 cm. Do not remove the feet from the bottom of the oven. Blocking the intake and/or outlet openings can damage the oven. Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception. ° Plug your oven into a standard grounded outlet. Be sure the voltage and the frequency are the same as the voltage and the frequency on the rating label. e WARNING: Do not install the oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged.

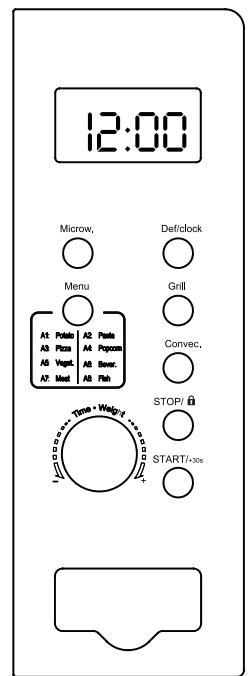

Before Cooking The display lights up when the plugging in the microwave oven, then the microwave oven enters the standby state and the display shows 1:00. Microwave Function There are five power levels, 100P, 80P, 50P, 30P ee ne and 10P. Press the “Microw.” button continuously O O to select the desired microwave power. Turn the knob to select cooking time, and the time range can be 0:10 + 60:00. After selecting the cooking time, press "“START/+30s" button to start cooking. Ps A buzzing sound will be heard to notify completion d À of the operation. :

100% microwave power. Applicable for quick and thorough cooking. 80% microwave power. Applicable for normal cooking. 50% microwave power. Applicable for slow cooking. 30% microwave power. Applicable for defrosting food. 10% microwave power. Applicable for keeping warm. High power Medium High power Medium power Medium Low power Low power AN CAUTION a. The max time which can be set is 60 minutes. b. Never use the grill rack during microwave cooking. c. Never operate the oven empty. d. At the maximum microwave power, the oven will automatically lower the power after a certain time of cooking to lengthen the

service life. e._If you turn the food during operation, press the “Start/+30s” button once and the preset cooking procedure will continue. f. If you intend to remove the food before the preset time, you must press “Stop/ À” button once to clear the preset procedure to avoid unintended operation of next time use. Defrost/Clock DEFROST There are two defrost mode, dEF1 and dEF2. dEF1 is for defrost-by- weight and dEF2 is for defrost-by- time. Press the “Def/Clock” button to select defrost by weight or by time, and the display will show “dEF1” or “dEF2”. Turn the knob to select food weight or defrost time. The weight range of dEF1 is from 100g to 1500g, and the optional time range of dEF2 is from 0:10 to 60:00. After selecting the defrost weight or time, press the “START/+30s" button to start defrosting. À buzzing sound will be heard to notify completion of the operation. The dEF1 defrost mode by weight will have a beeping sound to prompt the food to be turned over during defrosting. Below is some food defrosting time advice: dEF1 | For defrosting, the weight range is from 100g to 1500g. dEF2 | For defrosting, the time range is from 0:10 to 60:00. À CAUTION It is necessary to turn over the food during operation to obtain uniform effect. b. Usually defrosting will need longer time than that of cooking the food. c. If the food can be cut by knife, the defrosting process can be considered completed. d. Microwave penetrates around 4cm into most food. e. Defrosted food should be consumed as soon as possible, it is not advised to put back to fridge and freeze again. CLOCK (24 hour) In standby mode, press and hold the “Def/Clock” button for more than 3 seconds to enter the clock setting interface. At the same time, the display screen blinks in hours. The hour time can be set by turning the knob. After setting the hour, press the “START/+30s" button to enter

the minute setting mode. The minutes can be set by turning the knob. After setting minutes, press the “START/+30s"” button again to exit the setting mode. AUTO COOKING There are eight automatic menus, Potato, Pasta, Pizza, Popcorn, Vegetable, Beverage, Meat and Fish. Press the “Menu” button to select the desired automatic menu, and the display will show A.1 + A.8. Turn the knob to select the desired food weight, and then press “START/+30s" button to start cooking. À buzzing sound will be heard to notify completion of the operation. Display Food Cooking Weight Al Potato | The optional weights are 250g, 500g and 750g. A2 Pasta The optional weights are 50g, 100g and 150g. A3 Pizza The optional weights are 200g and 400g. A4 Popcorn |The optional weight is 100g. A5 Vegetable | The optional weights are 200g, 400g and 600g. The optional weights are 1 cup, 2 cups or 3 cups, each one about 250ml. A7 Meat The optional weights are 200g, 400g and 600g. A.8 Fish The optional weights are 200g, 400g and 600g. 2 caunon The temperature of food before cooking would be 20°C — 25°C. Higher or lower temperature of the food before cooking would require increase or decrease of cooking time. b. The temperature, weight and shape of food will largely influence the cooking effect. If any deviation has been found to the factor noted on above menu, you can adjust the cooking time for best result. A.6 Beverage Grill FUNCTION There are three modes of Grill: G, G-1 and G-2. They are grill, combination 1 of grill and microwave cooking and combination 2 of grill and microwave cooking. Press the “Grill” button continuously to select the desired mode and the display will show “G.”, “G-1” or “G- 2". Turn the knob to select the cooking time and the optional time

range is from 0:10 to 60:00. After selecting the cooking time, press the “START/+30s" button to start cooking. À buzzing sound will be heard to notify completion of the operation. Grill, the heat element will be energized during operation time. G |Which is applicable for rolling thin meats or pork, sausage, chicken wing as good brown color can be obtained. Combination of grill and microwave cooking. 30% microwave and 70% grill. Combination of grill and microwave cooking. 55% microwave and 45% grill. AN CAUTION In the grill mode, all of the oven parts, as well as the rack and cooking containers, may become very hot. Use caution when removing any item from the oven. Use heavy potholders or oven mitts to PREVENT BURNS. G-1 G-2 CONVECTION There are three modes of Convection: C, C-1 and C-2. They are convection, combination 1 of convection and microwave cooking and combination 2 of convection and microwave cooking. Press the “Convec.” button continuously to select the desired mode and the display will show the set temperature, “C-1” or “C-2”. Turn the knob to select the cooking time and the optional time range is from 0:10 to 60:00. After selecting the cooking time, press the “START/+30s" button to start cooking. À buzzing sound will be heard to notify completion of the operation. C |There are five temperature setting available for choice. Combination of convection and microwave cooking. 30% C1 | microwave and 70% convection. Combination of grill and microwave cooking. 55% C2 | microwave and 45% grill.

A CAUTION In the convection mode, all of the oven parts, as well as the rack and cooking containers, may become very hot. Use caution when removing any item from the oven. Use heavy potholders or oven mitts to PREVENT BURNS. Stop In the process of cooking settings, you can press “STOP/ À ” button to cancel the settings and return to standby state. During cooking, you can press “STOP/À ” button to pause. In the standby state, you can press “STOP/@” button again to cancel the function and return to standby state. START/+30s After setting the cooking time or food weight, press “START/+30s" button to start cooking immediately. In working state, you can press “START/+30s” button to increase time, each pressing of the button will increase the cooking time by 30 seconds, but the cooking time cannot be adjusted in the menu mode and weight defrosting mode. EXPRESS In standby mode, after the food is put in the microwave oven and the door is closed, press the "START/+30s" button to quickly start cooking. The default cooking time is 30 seconds. A buzzing sound will be heard to notify completion of the operation.

Use this feature to lock the control panel so that children can not use the oven unsupervised. All the buttons are rendered inoperable in this mode.

1. Set lock: Press and hold the “STOP/ À ” for about 3 seconds.

2. Cancel lock: Press and hold the “STOP/ À ” for about 3 seconds.

5/ UTENSILS GUIDELINE It is strongly recommended to use the containers which are suitable and safe for microwave cooking. Generally speaking, the containers which are made of heat-resistant ceramic, glass or plastic are suitable for microwave cooking. Never use the metal containers for microwave cooking and combination cooking as spark is likely to occur. You can refer to below table. Material of : Microwave | Gril | Combi | Notes container Never use the ceramics which are Heat-resistant | Yes |Yes decorated with metal rim or glazed ceramic Heat-resistant Can not be used for long time | Yes No No microwave cooking plastic Heat-resistant Yes Yes [Yes glass It should not be used when un cooking meat or chops as the over- Plastic film Yes No |No temperature may do damage to the film The grill rack can only be used in Grill rack No Yes |Yes Grill mode. It should not be used in microwave Metal container | No No No oven. Microwave can not penetrate through metal. Poor heat-resistant. Can not be lacquer No No No used for High-temperature cooking Poor heat-resistant. Can not be Bamboo wood | No |No used for High-temperature cooking and paper

6/ COOKING TIPS The following factors may affect the cooking result: Food arrangement Place thicker areas towards outside of dish, the thinner part towards the center and spread it evenly. Do not overlap if possible. Cooking time length Start cooking with a short time setting, evaluate it after it times out and extend it according to the actual need. Over cooking may result in smoke and burns. Cooking food evenly Food such as chicken, hamburger or steak should be turned once during cooking. Depending on the type of food, if applicable, stir it from outside to center of dish once or twice during cooking. Allow standing time After cooking times out, leave the food in the oven for an adequate length of time, this allows it to complete its cooking cycle and cooling it down in a gradual manner. Whether the food is done Color and hardness of food help to determine if it is done, these include: -__ Steam coming out from all parts of food, not just the edge; - Joints of poultry can be moved easily; -__ Pork or poultry shows no signs of blood; - Fish is opaque and can be sliced easily with a fork. Browning dish When using a browning dish or self-heating container, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage to the turntable and rotating ring. Microwave safe plastic wrap When cooking food with high fat content, do not allow the plastic wrap come into contact with food as it may melt. Microwave safe plastic cookware Some microwave safe plastic cookware might not be suitable for cooking foods with high fat and sugar content. Also, the preheating time specified in the dish instruction manual must not be exceeded.

Before any cleaning or maintenance operation, disconnect the microwave oven from the mains supply and allow it to cool to room temperature. General Advice Frequent cleaning prevents the formation of smoke and bad odours during cooking and also sparking in the oven cavity and around the door seal. Do not let food deposits or grease accumulate inside the oven cavity or on the door seal. Make sure that the waveguide cover is kept clean at all times. Should food deposits or grease be allowed to accumulate on the cover, sparking will occur and may damage your oven invalidating the warranty. Oven Door Remove any food deposits and grease between the door seal and oven cavity using a damp cloth, it is important to keep this area clean at all times. Interior Walls Remove any grease splashes from the oven cavity walls with a damp cloth. The door seal and oven cavity have to be particularly well cleaned to ensure the door will close properly and to avoid sparking between the oven cavity and door assembly. Do not use abrasive products such as scouring pads which will damage the surfaces of the oven cavity and door.

Outer Surfaces To clean the outside surface, use a damp cloth. Avoid using abrasive products such as scouring pads that may damage the cosmetic surfaces. Make sure water does not seep into the ventilation slots. Accessories should be washed in warm soapy water by hand. CAUTION: Some waveguide covers can be easily damaged, take care when cleaning. Do not wash accessories in a dishwasher. Cleaning surfaces that come into contact with food For hygiene safety the glass tray should be cleaned regularly as it may come into contact with food. It should be cleaned with warm soapy water and dried thoroughly. If the inside of the oven cavity and door seal are not kept perfectly clean, there is a danger of damage due to sparking inside the oven cavity invalidating the warranty. Never scrape the oven cavity walls with sharp objects.

8/ TROUBLESHOOTING If you have doubts about the proper functioning of your appliance, this does not necessarily mean it is broken. In any event, check the following items: You observe that... What should you do? Check the electrical connection of your appliance. Ensure that your oven's door is fully closed. Ensure that the child safety feature is not activated. Clean the wheels and the rolling area under the turntable. Ensure that the wheels are properly positioned. The appliance does not start. The appliance is noisy. The turntable does not rotate properly. You see steam on the window. Wipe the condensation away with a cloth. Ensure that the cookware is suitable for microwave ovens and that the power level is appropriate. Food is not thoroughly heated during a microwave programme. Thoroughly clean the appliance: remove grease, cooking particles, etc. Remove any metal items from the walls of the oven. Never use metal items with the grid. Call the brand's authorized technician to replace the bulb. The appliance is creating sparks. The bulb doesn't work. ÂÀ Warning: Be careful, this appliance is equipped with a high tension circuit. Do not make yourself any repairing inside the oven. BRANDT FRANCE - Simplified Joint Stock Company with capital of 1,000,000 Euros 89/91 Boulevard Franklin Roosevelt - 92854 Rueil-Malmaison (France)
