USER MANUAL HO RT23 HIGH ONE

To use the device safely, please follow the assembly instructions opposite.

Thank you for choosing this HIGHONE product. HIGHONE products are chosen, tested, and recommended by ELECTRO DEPOT, so you can be sure you are getting a top-quality, easy-to-use product that won't let you down.

We're confident your new device will be a pleasure to use every day!

Welcome to ELECTRO DEPOT.

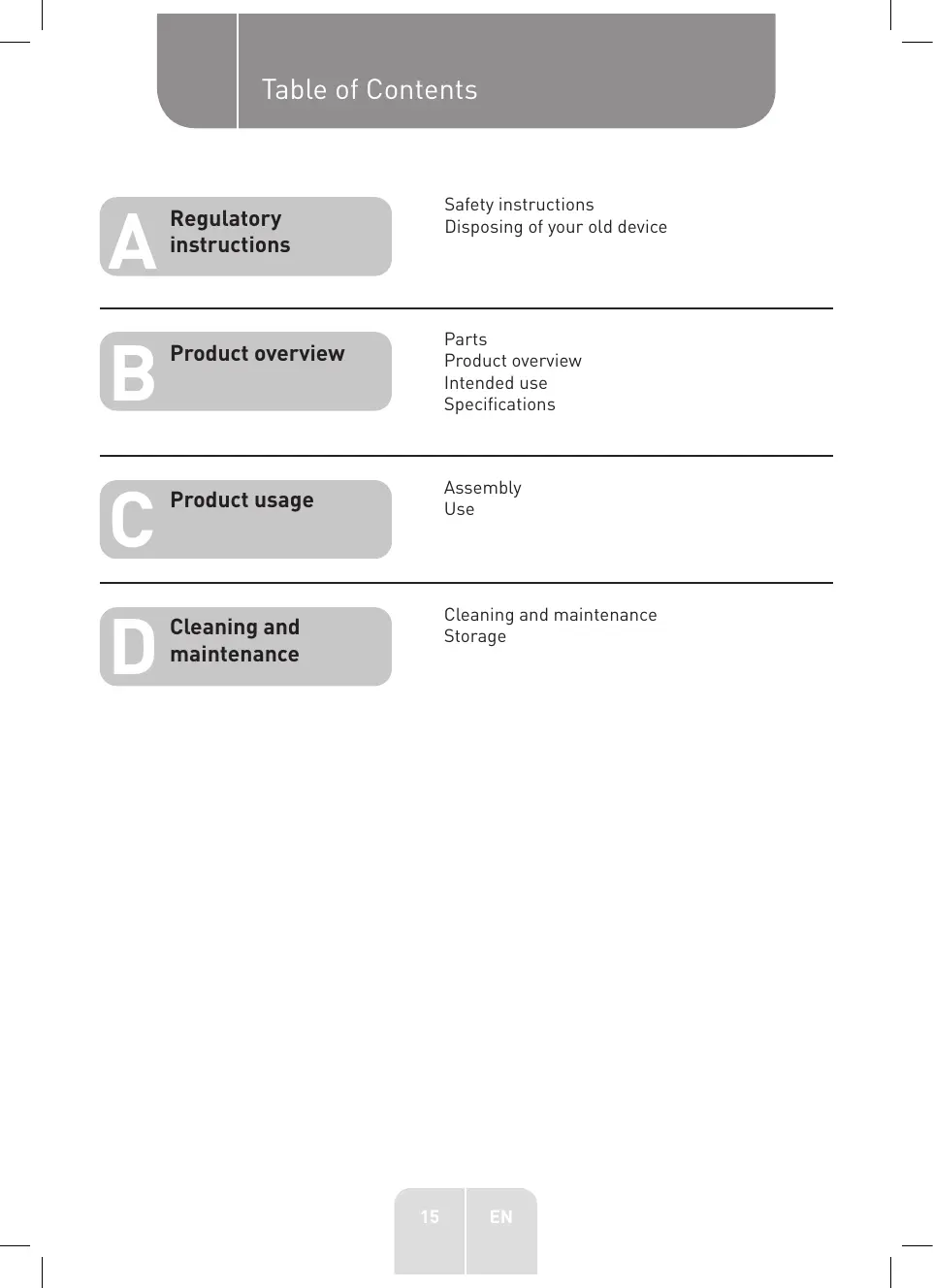

Table of Contents

A Regulatory instructions	Safety instructions Disposing of your old device
B Product overview	Parts Product overview Intended use Specifications
C Product usage	Assembly Use
D Cleaning and maintenance	Cleaning and maintenance Storage

A Regulatory instructions

Read the user manual after reading this regulatory warning booklet.

Safety instructions

• Please read the instructions carefully before using the unit and keep them for future reference. Should the unit be given to someone else, please include this user manual too.
• This unit has been designed exclusively for household use. Any other use (professional, commercial, etc.), is prohibited. Do not use outdoors.
• This unit may be used by children aged 8 years and above, persons with reduced physical, sensory or mental capacities, and persons with no experience of using or knowledge of the unit, provided they are properly supervised or receive prior instruction regarding how to safely use the unit and understand the risks involved.
• Children should not play with the unit.
• User cleaning and maintenance operations must not be performed by unsupervised children.
• Remove all packaging materials before using the unit. Keep the packaging materials out of the reach of children, as they pose a choking or suffocation risk.
• Under no circumstances should the housing be opened. Do not insert fingers or foreign objects into any of the unit's openings. Furthermore, do not obstruct the air vents.
• Keep the unit away from heat. Do not place the unit near heat sources, such as stoves or heaters.
• Before connecting your unit, check that the indicated voltage on the unit's nameplate corresponds to that of your home's electrical mains.
• If the power cable is damaged, it must be replaced by the retailer, its after-sales service or a similarly qualified person in order to prevent any risks.

A Regulatory instructions

• WARNING - RISK OF ELECTRIC SHOCK! Do not immerse the unit, power cable or plug in water or any other liquid (i.e. to clean it). Do not handle the unit or plug with wet hands.
• When disconnecting the cable, always pull it out at the plug - do not pull on the cable itself.
• Risk of electrocution! Do not attempt to repair the unit yourself. In the event of a malfunction, repairs must be carried out exclusively by qualified personnel.
• To avoid damaging the power cable, take care not to crush, bend, or rub it against sharp edges.
• Only use the product in indoor, non-humid rooms.
• Do not place any open flames - e.g. a candle - on or near the unit. Do not place any water-filled objects - e.g. a vase - on or near the unit.
• Always use the unit on a level, stable, clean and dry surface. Keep the unit away from hot and cold environments, dust, direct sunlight, moisture, and dripping or splashing water.
• Unplug the power plug from the mains socket whenever the unit is not in use and before cleaning it.
• During use, the unit must be placed on a stable surface to prevent any risk of it tipping over.
• Make sure that the unit's power switch has been turned off and the unit has been unplugged from the power source before assembling, moving, cleaning or maintaining it.
• Do not insert any object into the unit or allow any foreign object to get into the unit. Doing so poses a risk of electric shock and could damage the fan.
• Never use the product without the protective grill or with a damaged protective grill.
• During use, keep hands, hair, clothing and accessories away from the protective grill to prevent any risk of injury and damage to the product.
• For safe use of the device: please take note of the assembly instructions included in "Product usage" section.
• WARNING! Once installation is complete, it is strictly prohibited to remove the fan protection grilles for cleaning or maintenance.

Disposing of your old device

SEPARATE COLLECTIONS FOR ELECTRONIC AND ELECTRICAL DEVICES

m = 311 ;

This product must not be disposed of or recycled with other household waste when it reaches the end of its useful life.

The product and its packaging should be collected and recycled separately from other waste.

WHAT SHOULD I DO WITH MY WASTE?

Please dispose of your waste in accordance with the advice below to reduce the impact of your new purchase on the environment.

You are legally responsible for separating the waste associated with this product (and any accessories) so that it can be recycled, including any instructions or/or packaging.

Electric and electronic appliances should not be sorted or recycled together with other household waste.

Keep used products and packaging out of the reach of children, as they can pose a safety hazard.

Please retain the instructions and any other notices throughout the service life of the device, and include these documents with the device if it is passed on to third party.

For packaging and other notices, please refer to the recycling instructions on the main packaging, and to the advice available on the Internet.

For the product itself, please refer to the instructions available on the Internet.

If you do not have Internet access, please contact your local authority for advice on how to sort and recycle your waste.

For your children's safety, please store your old devices in a safe place outside your home until they are collected.

Parts

A Front guard

Motor housing

B Fan blades

H Tilt adjustment knob

Rear guard mounting nut

Screw

D Rear guard

J Nut

E Motor shaft

Power cable and plug

Product overview

• Unpack and remove all labels from the unit except the nameplate. Please check that all parts are included and intact. If the unit is damaged or faulty, do not use it and take it to your retailer or after-sales service centre.
• Keep all packaging out of the reach of children. There is a risk of accidents if children play with packaging materials.

Intended use

This unit is intended for household use only and not for commercial, industrial, or outdoor use. The unit has been designed for indoor use to circulate air and generate airflow. Use the unit in a room with dry conditions and adequate ventilation.
Any other use may damage the unit or cause injury.

Specifications

Model:	976380
Operating voltage:	220-240 V~, 50 Hz
Rated power:	22 W
Dimensions (W x D x H):	27.5 x 18.5 x 38 cm
Net weight:	Approx. 1.18 kg
Protection class:	Class II

Information requirements for comfort fans according to Regulation (EU) N°206/2012

Model identification	976380 - H0-RT23
Description	Symbol	Value	Unit
Maximum fan flow rate	F	15.60	m³/min
Fan power input	P	18.7	W
Service value	SV	0.83	[m³/min]/W
Standby power consumption	PSB	0.00	W
Fan sound power level	LWA	52.8	dB(A)
Maximum air velocity	c	2.65	meters/sec
Measurement standard for service value	EN IEC 60879 : 2019

Contact details for obtaining more information

Electro Dépôt - 1 route de Vendeville F-59155 FACHES THUMESNIL - France

Assembly

WARNING

Before assembling or disassembling the unit, always disconnect the unit from the mains supply.

1. Unplug the unit from the mains socket.
2. Remove the protective rubber tube from the motor shaft (E) and save it with the original box for future storage of the unit.
3. Remove the mounting nut (C) from the motor shaft (E) by turning it anti-clockwise.
4. 3 Hold the rear guard (D) with the carry handle at the top and facing back. Then insert the rear guard onto the motor shaft (E), making sure that it is properly aligned with the 2 raised dots on the motor housing (G).
5. 4 Insert the mounting nut (C) onto the motor shaft (E) and tighten the nut clockwise until the rear guard (D) is secured in place.
6. 5 Align the fan blades (B) with the motor shaft (E) and push it in until it is firmly attached.
7. 6 Open the clips around the rim of the front guard (A) and hook the bracket at the top onto the rear guard (D).
8. Align the hole at the bottom of both guards and close the clips to attach the guards together.
9. Insert the screw (I) into the hole and tighten the nut (J) (both supplied) on the back to lock the guards.

Use

1. Place the fan upright on a dry, level and stable surface.
2. Make sure the fan is properly assembled.
3. Plug the power cable into a suitable mains socket.
4. Turn the Control knob (K) clockwise to turn on the fan and select the desired speed. To turn off the fan, turn the Control knob anti-clockwise to "0".

0 (Off) - 1 (Low) - 2 (High)

1. Press the Oscillation knob (F) down to activate the automatic left-right oscillation. To stop the oscillation, pull the Oscillation knob up.
2. To adjust the vertical tilt, turn off the fan first. Hold the bottom of the fan head with one hand, and slowly turn the Tilt adjustment knob (H) anti-clockwise to loosen the fan head. Adjust the fan head to the desired tilt and tighten the Tilt adjustment knob.
3. Turn off the fan after each use. Unplug the fan from the mains socket if it is not going to be used for a long period of time.

Cleaning and maintenance

WARNING

Before cleaning or maintaining the unit, make sure that it has been switched off and unplugged from the mains socket. Never immerse the unit in water or any other liquid.

• Clean the unit regularly. Keep the air vents and guards free from dust or dirt.
• Clean the unit with a soft cloth, lightly moistened with water or mild soapy water. Wipe off with a clean moist cloth after cleaning. Make sure that no moisture gets inside the unit while cleaning it. Allow to dry completely.
• Never use solvents, chemical or abrasive cleaning agents, wire brushes, sharp objects or scouring pads to clean the unit.

Storage

• Always unplug the unit before storing it.
• Store the unit in a fresh, dry and dust-free place, out of the reach of children and pets.
• Please retain the packaging and use it to store your unit when it is not in use for an extended period of time.
