USER MANUAL SM 67 TX LA GERMANIA

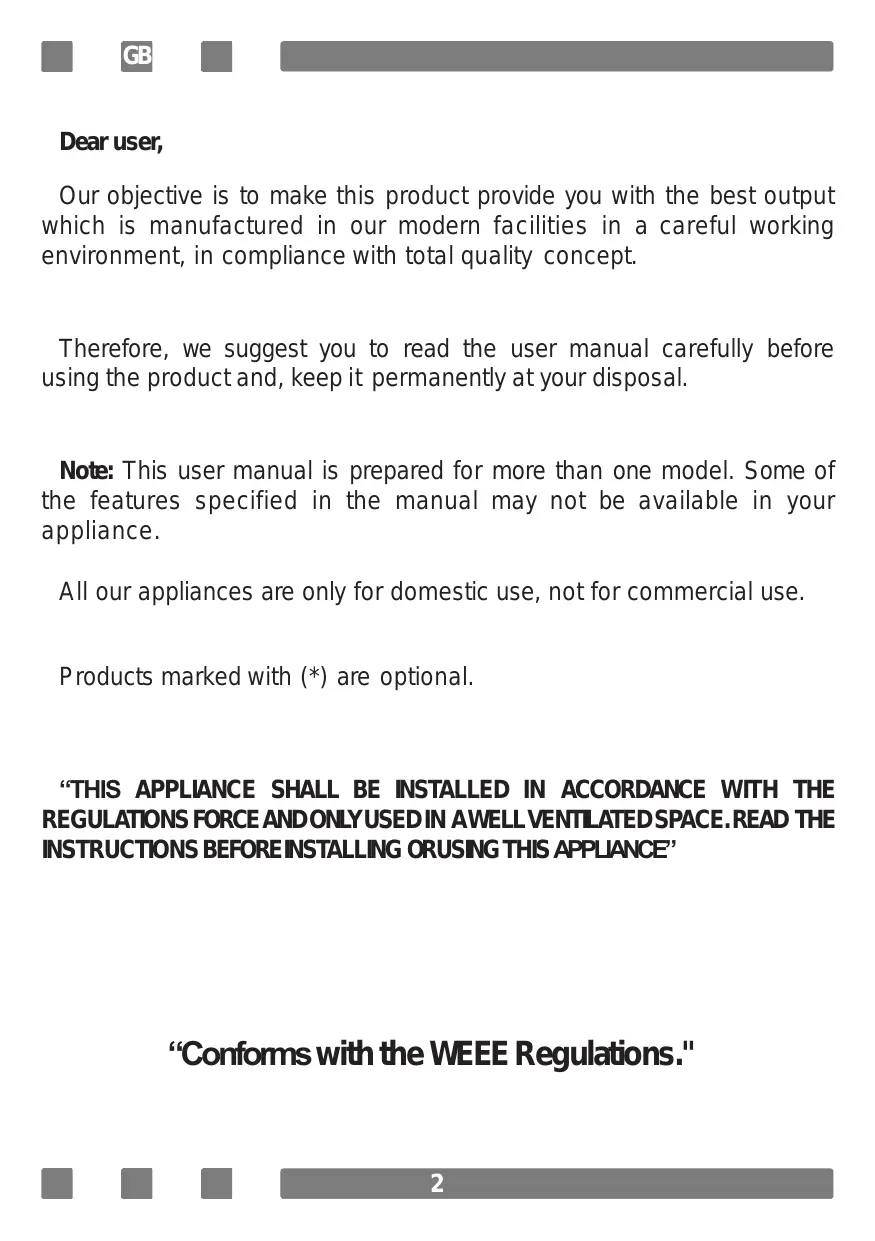

BC CE Dear user, Our objective is to make this product provide you with the best output which is manufactured in our modern facilities in a careful working environment, in compliance with total quality concept. Therefore, we suggest you to read the user manual carefully before using the product and, keep it permanently at your disposal. Note: This user manual is prepared for more than one model. Some of the features specified in the manual may not be available in your appliance. All our appliances are only for domestic use, not for commercial use. Products marked with (*) are optional. “THIS APPLIANCE SHALL BE INSTALLED IN ACCORDANCE WITH THE REGULATIONS FORCE AND ONLY USED IN AWELL VENTLATED SPACE. READ THE

INSTRUCTIONS BEFORE NSTALLING ORUSING THIS APPLIANCE”

“Confonms with the WEEE Regulations."

Contents Important warmings ___ _… 4 Electrical connection 15 Gas connection 16 Introduction of the appliance 21 Accessories _ 22 Technical features of your oven. Installation of your oven Chain lashing illustration Control panel Using oven section Using the grill Using the chicken roasting_ Using cooker section Program types Cooking time table Maintenance and cleaning_ Installation of the oven door. Cleaning and maintenance of the Oven' front door glass Catalytic walls Rack positions Changing the oven lamp. Using the grill deflector sheet Troubleshooting_ Handling rules Recommendations for energy saving Environmentally-friendly disposal___ Package information

BCE CEE IMPORTANT WARNINGS L.installation and repair should always be performed by “AUTHORLED SERVICE”. Manufacturer shall not be held responsible for operations performed by unauthorized persons. 2.Please read this operating instructions carefully. Only by this way you can use the appliance safely and in a correctmanner. 3.The oven should be used according to operating instructions. 4Keep children below the age of 8 and pets away when operating. 5SWARNNG: The accessible parts may be hotwhile using the grill, Keepaway from children. 6WARNNG: Fire hazard; do not store the materials on the cooking surface. 7NARNNG: The appliance and its accessible parts are hot during operation. 8.Setting conditions of this device are specified on the label. (Oronthe data plate) 9.The accessible parts may be hot when the grill is used. Small children should be kept away. 10WARNING: This appliance is intended for cooking. It should notbe used for other purposes like heating a room.

11. Toclean the appliance, do not use steamcleaners.

12.Ensure that the oven door is completely closed after putting food inside the oven.

RS) Œ HE 13.NEVER try to put out the fire with water. Only shut down the device circuit and then cover the flame with à cover or a fire blanket. 14.Children under 8 years of age should be kept away, if they cannot be monitored continuously.

15. Touching the heating elements should be avoided.

16CAUTION: Cooking process shall be supervised. Cooking process shall always be supervised. 17.This device can be used by children over 8 years of age, people with physical, hearing or mental challenges or people with lack of experience or knowledge; as long as control is ensured or information is provided regarding the dangers. 18.This device has been designed for household use only. 19.Children must not play with the appliance. Cleaning or user maintenance of the appliance shall not be performed by children unless they are older than 8 years and supervised by adults. 20.Keep the appliance and its power cord away from children less than 8 years old. 21.Put curtains, tulles, paper or any flammable (ignitable) material away from the appliance before starting to use the appliance. Do not put ignitable or flammable materials on orin the appliance.

22. Keep the ventilation channels open.

BCE CEE 23.The appliance is not suitable for use with an extemal timer or a separate remote control system. 24.Do not heat closed cans and glass jars. The pressure may lead jars to explode. 25.0ven handle is not a towel drier. Do not hang towels, etc. on the oven handle. 26.Do not place the oven trays, plates or aluminium foils directly on the oven base. The accumulated heat may damage the base of the oven. 27.While placing food to or removing food from the oven, etc., always use heat resistant oven gloves. 28.Do not use the product in states like medicated and/or under influence of alcohol which may affect your ability of judgement. 29.Be careful when using alcohol in your foods. Alcohol will evaporate at high temperatures and may catch fire to cause a fire if it comes in contact with hot surfaces.

30. After each use, check if the unit is turned off.

31.1f the appliance is faulty or has a visible damage, do not operate the appliance. 32.Do not touch the plug with wet hands. Do not pull the cord to plug off, always hold the plug. 33.Do not use the appliance with its front door glass removed or broken. 34.Place the baking paper together with the food into a pre-heated oven by putting it inside a cooker or on an oven accessory (tray, wire grill etc.).

RES) ΠEE 35.Do not put objects that children may reach on the appliance. 36.It is important to place the wire grill and tray properly on the wire racks and/or correctly place the tray on the rack. Place the grill or tray between two rails and make sure it is balanced before putting food on it. 37.Against the risk of touching the oven heater elements, remove excess parts of the baking paper that hang over from the accessory or container. 38.Never use it at higher oven temperatures than the maximum usage temperature indicated on your baking paper. Do not place the baking paper on the base ofthe oven. 39.When the door is open, do not place any heavy object on the door or allow children to sit on it. You may cause the oven to overtum or the door hinges to be damaged. 40.The packaging materials are dangerous for children. Keep packaging materials away from the reach ofchildren. 41.Do not use abrasive cleaners or sharp metal scrapers to clean the glass as the scratches that may occur on the surface of the door glass may cause the glass to break. 42.Do not place the appliance on a surface covered with carpets. Electric parts gets overheated since there will be no ventilation from below. This will cause failure of the appliance. RES OH

BCE CE 43.Do not hit glass surfaces of vitro-ceramic cookers with a hard metal, resistance can get damaged. It may cause an electric shock.

44. User should not handle the oven by himself.

45.Use shall be careful when cleaning gas burners. It may cause personal injuries. 46.Food can spill when foot of oven is dismantled or gets broken, be careful. It may cause personal injuries. 47.During usage, the internal and external surfaces of the oven get hot. As you open the oven door, step back to avoid the hot vapour coming out from the interior. There is risk of burning. 48.Upper cover of the oven can be closed for a reason, than cookware can trip over. Step back to avoid the hot food coming on you. There is risk of burning. 49.Do not place heavy objects when oven door is open, risk of toppling. 50.User should not dislocate the resistance during cleaning. It may cause an electric shock. 51.Do not remove ignition switches from the appliance. Otherwise, live electric cables can be accessed. It may cause an electric shock. 52.0ven supply can be disconnected during any construction work at home. After completing the work, re-connecting the oven shall be done by authorized service. 53.Do not place metal utensils such as knife, fork, spoon on the surface of the appliance, since they will get hot.

RS) ΠHE 54To prevent overheating, the appliance should not be installed behind of a decorative cover. 55.Tum off the appliance before removing the safeguards. After cleaning, install the safeguards according to instructions.

56. Cable fixing point shall be protected.

57WARNNG: Don't use oven and grill bumers at same time. 58.Please don’t cook the food directly on the tray / grid. Please put the food into or on appropriate tools before putting them in the oven. 59.Hot surface, leave for cooling before closing the cover. Electrical Safety 1Plug the appliance in a grounded socket protected by a fuse conforming to the values specified in the technical specifications chart. 2.Have an authorized electrician set grounding equipment. Our company shall not be responsible for the damages that shall be incurred due to using the product without grounding according to local regulations. 3.The circuit breaker switches of the oven shall be placed so that end user can reach them when the oven is installed. 4.The power supply cord (the cord with plug) shall not contact the hot parts of the appliance.

BCE CEE 5.1f the power supply cord (the cord with plug) is damaged, this cord shall be replaced by the manufacturer or its service agent or an equally qualified personnel to prevent a hazardous situation. 6.Never wash the product by spraying or pouring water onit! There is a risk of electrocution. 7ZWNARNNG: To avoid electric shock, ensure that the device circuit is open before changing the lamp. 8WARNNG: Cut off all supply circuit connections before accessing the terminals. AMARNING: ff the surface is cracked, tum off the appliance to avoid risk ofelectric shock.

10. Donotuse cut or damaged cords or extension

cords other than the original cord. 11.Make sure that there is no liquid or humidity in the outlet where the product plug is installed. 12.The rear surface of the oven also heats up when the oven is operated. Electrical connections shall not touch the rear surface, otherwise the connections may be damaged. 13.Do not tighten the connecting cables to the oven door and do not run them over hot surfaces. If the cord melts, this may cause the oven to short circuit and even a fire. 14.Unplug the unit during installation, maintenance, cleaning and repair. ES CSC

15.1f the power supply cable is damaged, it must be replaced by its manufacturer or authorized technical service or any other personnel qualified at the same level, in order to avoid any dangerous situation. 16.Make sure the plug is inserted firmly into wall socket to avoid sparks. 17.Do not use steam cleaners for cleaning the appliance, otherwise electric shock may occur. 18.An omnipolar switch capable to disconnect power supply is required for installation. Disconnection from power supply shall be provided with a switch or an integrated fuse installed on fixed power supply according to building code.

19. Appliance is equipped with a type ‘Y” cord cable.

20.Fixed connections shall be connected to a power supply enabling omnipolar disconnection. For appliances with over voltage category below 111, disconnection device shall be connected to fixed power supply according to wiring code. RE ES HO

BCE CE Gas Safety LThis appliance is not connected to burning products evacuation apparatus.This appliance must be connected and installed according to the installation regulations in force. Conditions regarding ventilation must be considered. 2.When a gas cooking appliance is used; humidity, heat and burning products are generated in the room. First of all, make sure the kitchen is well ventilated when operating the appliance and maintain natural ventilation openings or install a mechanical ventilation equipment. 3.After using the appliance heavily for en extended period of time, additional ventilation may be required. For example open a window or adjust a higher speed for mechanical ventilation, if any. 4This appliance must be used only in well ventilated locations in accordance with the regulations in force. Please read the manual before installing or using this product. 5.Before positioning the appliance, make sure local network conditions (gas type and gas pressure) meets appliance requirements. 6.The mechanism cannot be run for longer than 15 seconds. If the burner is not on after 15 seconds, stop the mechanism and wait for at least one minute before trying to ignite the burner again.

CES HE 7.AI kinds of operations to be performed on gas installation must be performed by authorized and competent people. 8.This appliance is adjusted for natural gas (NG). 1f you have to use your product with a different gas type, you have to apply to authorized service for the conversion. 9.For proper operation, hood, gas pipe and clamp should be replaced periodically accordint to manufacturer recommendations and when required. 10.Gas should burn well in gas products. Well burning gas can be understood from blue flame and continuous burning. If gas does not burn sufficiently, carbon monoxide (CO) can be generated. Carbon monoxide is a colourless, odourless and very toxic gas; even small amounts have lethal effect. 11Ask your local gas supplies about the phone numbers for emergencies related to gas and the measures to be taken upon gas odouris detected. What To Do When Gas Odourls Detected

3. Do not use telephone or mobile phone.

4. Open the doors and windows.

5.Close all valves on the appliances that utilize gas and the gas counters. RES OH

6. Callfire brigade from a telephone outside the home.

7.Check all hoses and their connections against leaks. If you still smell gas, leave the house and warm your neighbours. 8.Do not enter into the house until authorities clarify it is safe. intended Use LThis product is designed for home use. Commercial use of the appliance is not permitted. 2.This appliance may only be used for cooking purposes. It shallnot be used for other purposes like heating a room. 3.This appliance shall not be used to heat plates under the grill, drying clothes or towels by hanging them on the handle or for heating purposes. 4The manufacturer assumes no responsibility for any damage due to misuse or mishandling. 5.0ven part of the unit may be used for thawing, roasting, frying and grilling food. 6.Operational life of the product you have purchased is 10 years. This is the period for which the spare parts required for the operation of this product as defined is provided by the manufacturer. ES CESSE

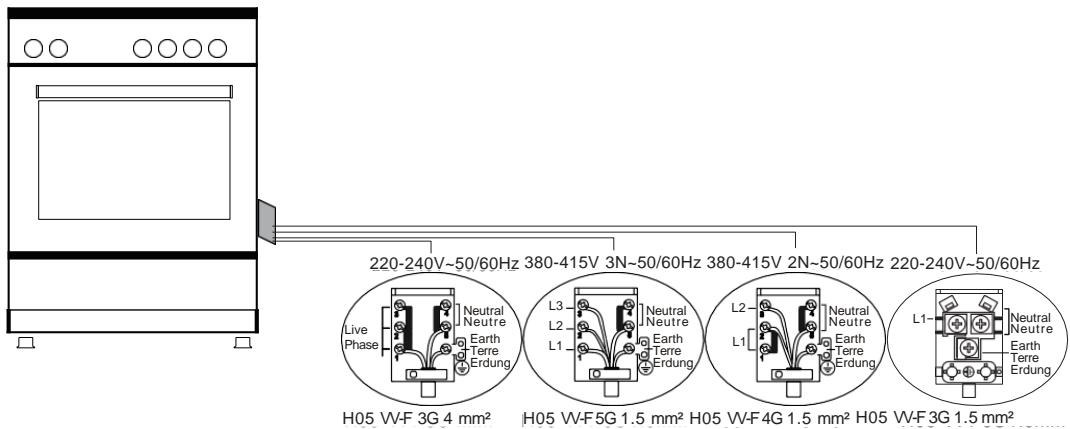

Electrical Connection Your oven requires 16 or 32 Ampere fuse according to the appliance’s power. Ifnecessary, installation by a qualified electrician is recommended. 2.Your oven is adjusted in compliance with 220-240V AC/380-415V AC 50/60Hz.electric supply. If the mains are different from this specified value, contact your authorized service. 3.Electrical connection of the oven should only be made by the sockets With earth system installed in compliance with the regulations. If there is no proper socket with earth system in the place where the oven will be placed, immediately contact a qualfied electrician. Manufacturer shall never be responsible from the damages that will arise because of the sockets connected to the appliance with no earth system. If the ends of the electrical connection cable are open, according to the appliance type, make a proper switch installed in the mains by which all ends can be disconnected in case of connecting / disconnecting from / to the mains. 4.1f your electric supply cable gets defective, it should definitely be replaced by the authorized service or qualfied electricians in order to avoid from the dangers.

5. Electrical cable should not touch the hot parts of the appliance.

6. Please operate your oven in dry atmosphere.

WARNNG:Before starting any work related with gas installation, turn off gas supply. Risk of explosion. Please operate your oven in dry atmosphere. L.Fitthe clamp to the hose. Push one of the hose until it goes to the end ofthe pipe. 2.For the sealing control; ensure that the buttons in the control panel are closed, but the gas cylinder is open. Apply some soap bubbles to the connection. lfthere is gas leakage, there will be foaming in the soaped area. 3.The oven should be using a well ventilation place and should be install on flat ground. 4.Re-inspectthe gas connection. 5.When placing your oven to its location, ensure that it is at the counter level. Bring it to the counter level by adjusting the feetif necessary. 6.Do not make gas hose and electrical cable of your oven go through theheated areas, especially through the rear side of the oven. Do not move gas connected oven. Since the forcing shall loosen the hose, gas leakage may occur.

7. Please use flexible hose for gas connection.

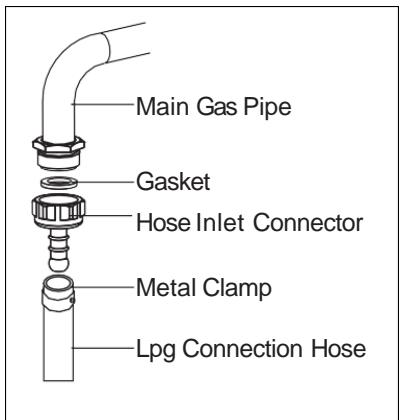

ForLPGconnection; <— For LPG (cylinder) connection, affix metal LT clamp onthe hose coming from LPG Main Gas Pipe cylinder. Affix an edge of the hose on hose inlet connector behind the appliance by = —Gasket pushing to end through heating the hose in Hose Inlet Connector boiled water. Afterward, bring the clamp Metal Clamp towards end section of the hose and tighten it with screwdriver. The gasket and hose inlet Lpg Connection Hose connector required for connection is as the picture shown below. NOTE: The regulator to be affixed on LPG cylinder should have 300 mmssS feature.

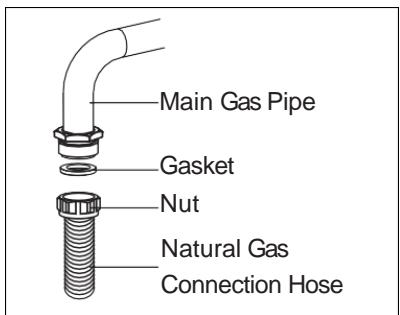

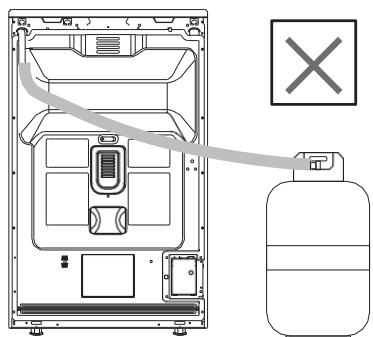

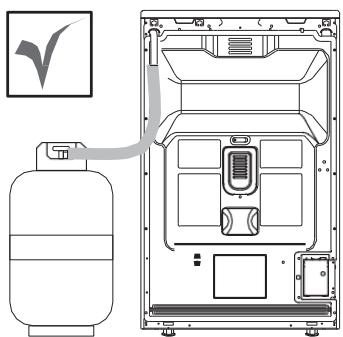

Fornatural gas connection; D WARNING: Natural gas connection should Main Ga PI be done by authorized service. F- pe : For natural gas connection, place gasket Æ-Gasket in the nut at the edge of natural gas connection Nut hose. To install the hose on main gas pipe, F Natural Gas turn the nut. Complete the connection by Connection Hose making gas leakage control. Gas hose passage way Connect the appliance to the gas piping tap in shortest possible route and in a way that ensure no gas leakage will occur. In order to carry on a tightness and sealing safety check ensure that the knobs on the control panel are closed and the gas cylindir is open.

WARNING: While performing a gas leakage

check, never use any kind of lighter, match, cigarette or similar burning substance. Apply soap bubble on the connection points. If there is any kind of leakage then it will cause bubbling. While inserting the appliance in place ensure that it is on the same level with the worktop. EE If required adjust the legs inorder the make

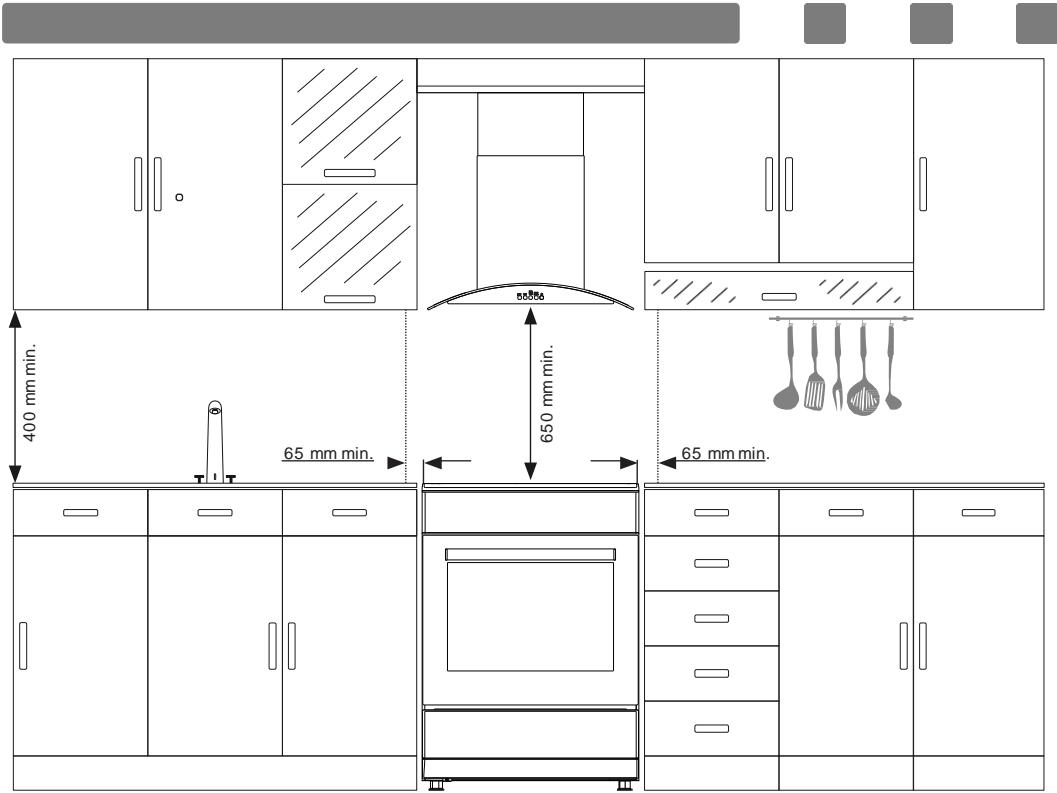

level with the worktop. Use the appliance on a level surface and in a well ventilated environment. Figure 2 WARNNG:Before placint the appliance, check that the localdistribution conditions (gas type and pressure) conform to the product settings.

Nozzle change operation 1.Please use driver with special head for removed and install nozzle as. (figure 3) 2.Please remove nozzle (figure 4) from burner with special nozzle driver and install new nozzle. (figure 5) L_Ô | | . e

2 Y cb y Figure 3 Figure 4 Figure 5 Ventilation ofroom The air needed for burning is received from room air and the gases emitted are given directly in room. For safe operation of your product, good room ventilation is a precondition. 1f no window or room to be utilized for room ventilation is available, additional ventilation should be installed. However, room has a door opening outside, it is no needed to vent holes. Room size Ventilating opening Smaller than 5 m° min. 100 cm? Between 5 m° - 10 m° min. 50 cm? Bigger than 10 m° no need In basementor cellar min. 65 cm?

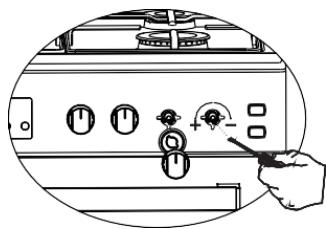

Reduced gas flow rate setting for hob taps L.ignite the burner that is to be adjustment and turn the knob to the reduced position.

2. Remove the knob from the gas tap.

3.Use an appropriately sized screwdriver to adjust the flow rate adjustment screw. For LPG (butane-pro pane) turn the screw clockwise. For the naturel gas, you should turn the screw counter- clockwise once. “The normal length of a straight flame in the reduced position should be 6-7 mm.“ 4.1f the flame is higher then the desired position, turn the screw clockwise. If it is smaller turn anticolockwise. 5.For the last control, bring the burner both to higt-flame and reduced positions and check whether the flame is on or off. Depending on the type of gas tap used in your appliance the adjustment screw position may vary. To adjust your oven acc. to the gas type, make the adjustment for reduced flame carefully by turning with a small screwdriver as shown below on the screw in the middle of the gas cocks as well as nozzle changes. (figure 6 and 7) = Fu = û 00 ges ) Û 00 ge | Figure 6 Figure 7

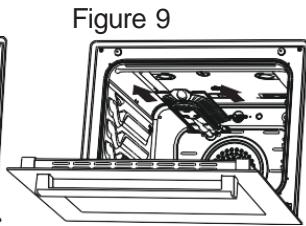

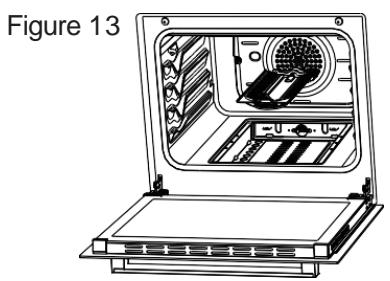

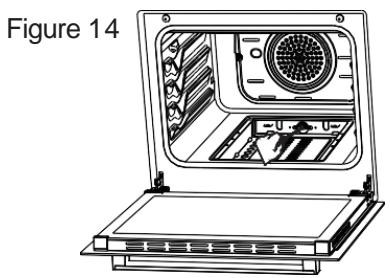

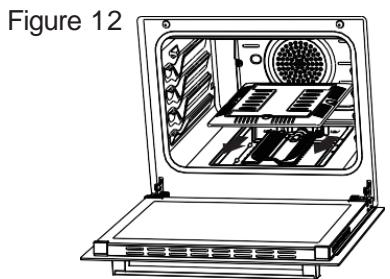

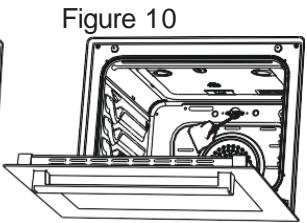

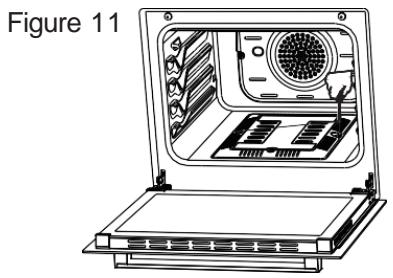

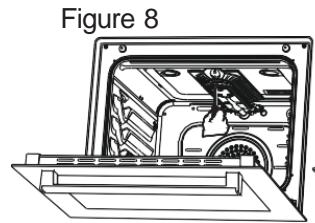

BCE CE Removal of the lower and upper bumer and installation of the injector to the gas oven Removal ofthe upperbumer: With the help of a screw driver, remove the screw as shown in figure 8. As shown in figure 9, remove the burner from its place by pulling it to yourself. As shown in figure 10, remove the injector in the bearing with a socket wrench. In order to re-place the burner, apply the removal process reversely. Figure 8 Figure 9 Figure 10 Removal ofthe lowerbumer: The lower burner door has been fixed with two screws. As shown in figure 11, remove it with the help of a screw driver. Remove the door by pulling upwards as shown in figure 12. Remove the burner from its place by pulling it to yourself as shown in figure 13. As shown in figure 14, remove the injector in the bearing with a socket wrench. In order to replace the burner, apply the removal process reversely. Figure 11

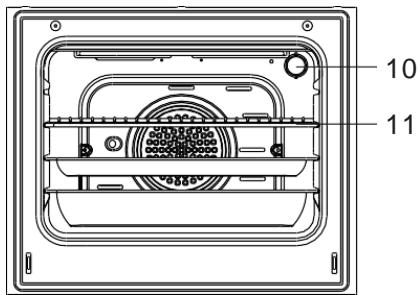

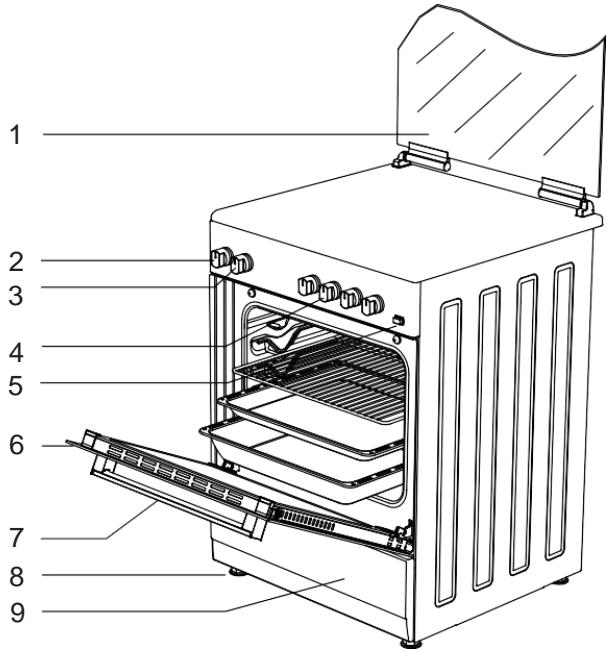

INTRODUCTION OFTHE APPLIANCE

3. Oven setting 9. Lower cabinet door 14. Auxiliary burner

BC CE Accesories Deep tray* Used for pastry, big roasts, watery foods. It can also be used as oil collecting container if you roast directly on grill with cake, frozen foods and meat dishes. Tray / Glass tray* Used for pastry (cookie, biscuit etc.), frozen foods. Circular tray* Used for pastry frozen foods. Wire grill Used for roasting or placing foods to be baked, roasted and frozen into desired rack. Telescopic rail * TT Trays and wire racks can be removed and installed easily thanks to telescopic rails. In tray wire grill * Foods to stick while cooking such as steak are placed on in tray grill. Thus contact of food with tray and sticking are prevented. Tray handle* It is used to hold hot trays. SÉ Coffee potsupportunit* Can be used for coffee pot.

WARNING: For the modification to be done by authorized service, this

table should be considered. Manufacturer may not be held responsible for any problems rising because of any faulty modification.

WARNING: In order to increase the product quality, the technical

specifications may be changed without prior notice.

WARNING: The values provided with the appliance or its accompanying

documents are laboratory readings in accordance with the respective standards. These values may differ depending on the use and ambient conditions.

a comma. For example; The diameter of 1,70 mm is specified as 170 on the injector.

Check if the electrical installation is proper to bring the appliance in operating condition. If electricity installation is not suitable, call an electrician and plumber to arrange the utilities as necessary. Manufacturer shall not be held responsible for damages caused by operations performed by unauthorized persons. WARNNG: It is customers responsibility to prepare the location the product shall be placed on and also to have the electrical installation prepared. WARNNG: The rules in local standards about electrical installations shall be followed during product installation.

WARNING: Check for any damage on the appliance before installing it.

Do not have the product installed if it is damaged. Damaged products cause a risk for your safety. Right Place Forinstallation And important Wamings Appliance feet should not stay on soft surfaces such as carpets. The kitchen floor shall be durable to carry the unit weight and any other kitchenware that may be used on the oven. Appliance should be used with a clearance of minimum 400 mm over the upper hob surfaces, and 65 mm from side surfaces inside a kitchen furniture. The appliance is suitable for use on both side walls, without any support, or without being installed in a cabinet. If a hood or aspirator will be installed above the cooker, follow the instructions of the manufacturer for height of mounting. (min. 650 mm)

WARNING: The kitchen furniture near the appliance must be heat

resistant. WARNNG: Do not install the appliance beside refrigerators or coolers. Heat radiated by the appliance increases the energy consumption of cooling devices.

WARNING: Do not use the door and/or handle to carry or move the appliance.

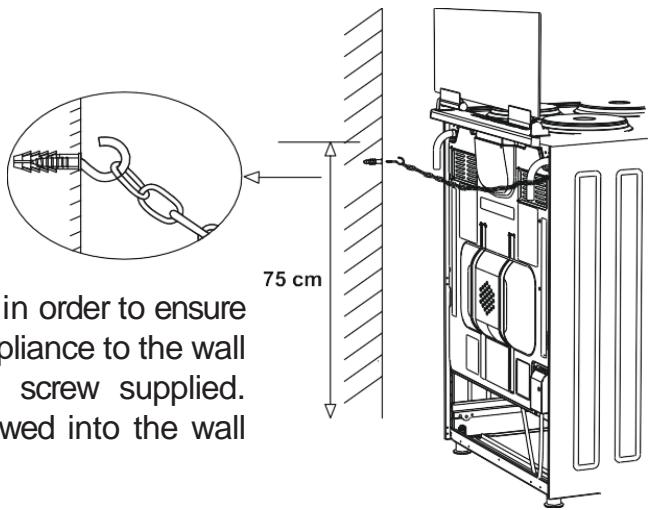

ECS CEE Chain lashing illustration 75cm Before using the appliance, in order to ensure safe use, be sure to fix the appliance to the wall using thechain and hooked screw supplied. Ensure that the hook is screwed into the wall securely. NN ANR CONTROL PANEL [ TI Tal TN : FFF Ne eo se 2 2 Ly 2

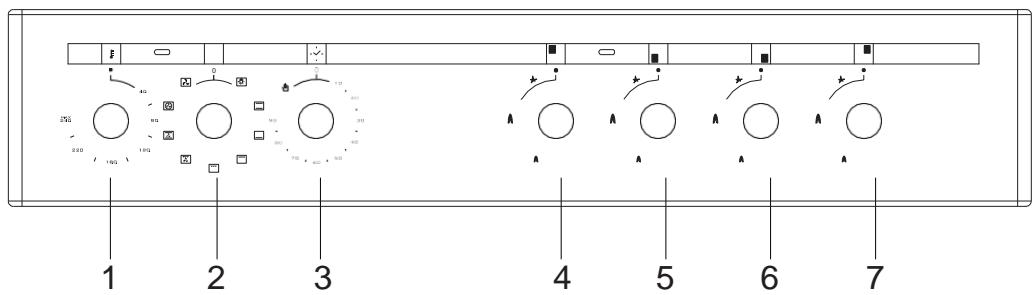

WARNING: The control panel above is only for illustration purposes.

Consider the control panel on your device. Thermostat Used for determining the cooking temperature LL of the dish to be cooked in the oven. After placing ° the food inside the oven, turn the switch to adjust se CN L desired temperature setting between 40-240 °C. : NV 2 For cooking temperatures of different food, see cooking . © table.

ñ Mechanical timer“ Used for determining the period 0 for cooking in the oven. When adjusted time is — = expired, power to heaters is turned off and an audible = ) + warnig signal is emitted. Mechanical timer can be . NZ adjusted to desired period between 0-90 minutes. | oO For cooking periods, see cooking tables.

Using Oven Bumers 1.If your oven equipped with burners that operates with gas, appropriate knob should be used in order to ignite the burners. Some models have automatic ignition from the knob; it is easy to ignite the burner by turning the knob. Also, burners can be ignited by pressing the ignition button or they can be ignited with a match. 2.Do not continuously operate the igniter for more than 15 seconds. If the burner does not ignite, wait minimum one minute before trying again. If the burner is extinguished for of the any reason, close the gas control valve and wait a minimum of one minute before trying again. Using Oven Heating Elements 1.When your oven is operated first time, an odor will be spread out which will be sourced from using the heating elements. In order to get rid of this, operate it at 240 °C for 45-60 minutes while it is empty. 2.0Oven control knob should be positioned to desired value; otherwise oven does not operate. 3.Kinds of meals, cooking times and thermostat positions are given in cooking table. The values given in the cooking table are characteristic values and were obtained as a result of the tests performed in our laboratory. You can find different flavors suitable for your taste depending on your cooking and using habits. 4You can make chicken revolving in your oven by means of the accessories. 5.Cooking times: The results may change according to the area voltage and material having different quality, amount and temperatures.

6. During the time when cooking is being performed in the oven, the lid

of the oven should not be opened frequently. Otherwise circulation of the heat may be imbalanced and the results may change. Using The Grill 1.When you place the grill on the top rack, the food onthe grill shall not touch the grill. 2.You can preheat for 5 minutes while grilling. If necessary, you may turn the food upside down. 3.Food shall be in the center of the grill to provide maximum air flow through the oven. Totum onthe grill;

Totum the grill off; Setthe function button to the off position.

WARNING:Keep the oven door closed while grilling. (electrical grill)

WARNING:Keep the oven door opened while grilling. (gas grill)

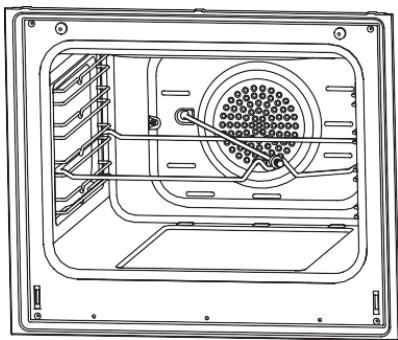

Using The Chicken Roasting* Place the spit on the frame. Slide turn spit frame into the oven at the desired level. Locate a dripping pan through the bottom in order to collect the fast. Add some water in dripping pan for easy cleaning.Do not forget to remove plastic part from spit. After grilling, screw the plastik handle to the skewer and take outthe food from oven. Figure 15

Using Cooker Section Using gas bumers Flame cut-off safety device (FFD)*; operates instantly when safety mechanism activates due to overflown liquid over upperhobs. 1.The valves controlling the gas cookers have special security mechanism. In order to light the cooker always press on the switch forward and bring it to flame symbol by turnin counter clockwise. All of the lighters shall operate and the cooker you controlled shall light only. Keep the switch pressed until ignition i performed. Press on the lighter button and turn the knob counter clockwise. 2.Do not continuously operate the igniter for more than 15 seconds. If the burner does not ignite, wait minimum one minute before try again. 3.In models with gas security system, when flame of the cooker is extinguished, control valve cuts off the gas automatically. For operate the burners with gas security system you must press the knob and turn counter-clock-wise. After the ignition you must wait nearly 5-10 second for gas security systems activation. 1f the burner is extinguished for of the any reason, close the gas control valve and wait a minimum of one minute before trying again.

4. @ Closed 4 Fully open Hg£ open

5.Before operating your hob please make sure that the burner caps are well positioned. The right placement of the burner caps are shown as below. Figure 16

BCE CE Using HotPlates Levell | Level2 | Level3 | Level4 | Level5 Level6 280 mm 200W | 250W | 450W — — — 9145 mm 250W | 750W | 1000 W — — — 2180 mm 500W | 750W |1500W — — — 9145 mm rapid | 500 W | 1000 W | 1500 W — — — 2180 mm rapid | 850 W | 1150 W | 2000 W — — — 9145 mm 95W | 155W | 250W | 400W | 750W | 1000W 2180 mm 115W | 175W | 250W | 600W | 850W | 1500W 9145 mm rapid | 135 W | 165W | 250W | 500W | 750W | 1500W 2180 mm rapid | 175 W | 220W | 300W | 850W | 1150W | 2000W 2220 mm 220W | 350W | 560W | 910W | 1460 W | 2000W L.Electric hotplates have standard of 6 temperature levels. (as describe herein above) 2.When using first time, operate your electric hotplate in position 6 for 5 minutes. This will make the agent on your hotplate which is sensitive to heat get hardened by burning. 3.Use flat bottomed saucepans which fully contact with the heatas much as you can, so that you can use the energy more productively. Pot Sizes 50*55 50*60 60*60 Small bumer | 12-18 cm | 12-18 cm | 12-18 cm = Z. SR. Normal bumer | 18-20 cm | 18-20 cm | 18-20 cm L_ ll D'I Big bumer 22-24cm/|22-26cm|22-26cm| = = incorrect Incor incorrect WOKbumer 24-28 cm 24-26 cm

PROGRAM TYPES z 8 Function Button: Used for determining the heaters to be used for cooking the dish to be cooked in the LES © | oven. Heater program types in this button and their EN Va functions are described below. All heater types and program types consisting of these heaters may not F a 0 be available at all models. | | Roast chicken BI Fan — Louer and upper heating © Turbo heating and fan Lame ea Louer-upper heang element æ)] Lower heating element and fan bd Gril and fan 5] Grill and roast chicken land Grill ka Grill and lamp —] | Upper heating element Ni] Electrical timer Lower heating element @. Flame EI ignition lighter

WARNING:A I! heater types and program types consisting of these heaters

may not be available at all models.

BCE CE COOKNGTIME TABLE

WARNING: O ven must be preheated for 10 minutes before placing the

1. Disconnectthe plug supplying electricity for the oven from the socket.

2.While oven is operating or shortly after it starts operating, it is extremely hot. You must avoid touching from heating elements. 3.Never clean the interior part, panel, lid, tays and all other parts of the oven by the tools like hard brush, cleaning mesh or knife. Do not use abrasive, scratching agents and detergents. 4.After cleaning the interior parts of the oven with a soapy cloth, rinse it and then dry thoroughly with a soft cloth.

5. Cleanthe glass surfaces with special glass cleaning agents.

6. Do not clean your oven with steam cleaners.

7.Before opening the upper lid of the oven, clean spilled liquid off the lid. Also, before closing the lid, ensure that the cooker table is cooled enough. 8.Never use inflammable agents like acid, thinner and gasoline when cleaning your oven.

9. Do not wash any part of your oven in dishwasher.

10.In order to clean the front glass lid of the oven; remove the fixing screws fixing the handle by means of a screwdriver and remove the oven door. Than clean and rinse it thoroughly. After drying, place the oven glass properly and re-install the handle.

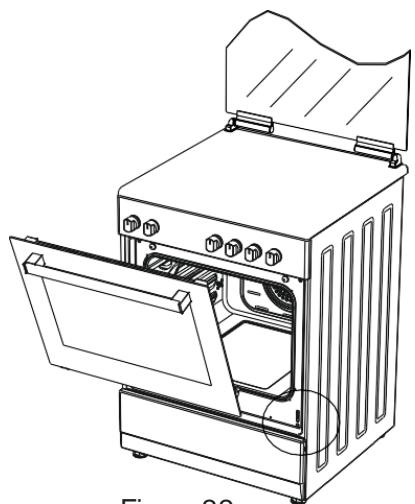

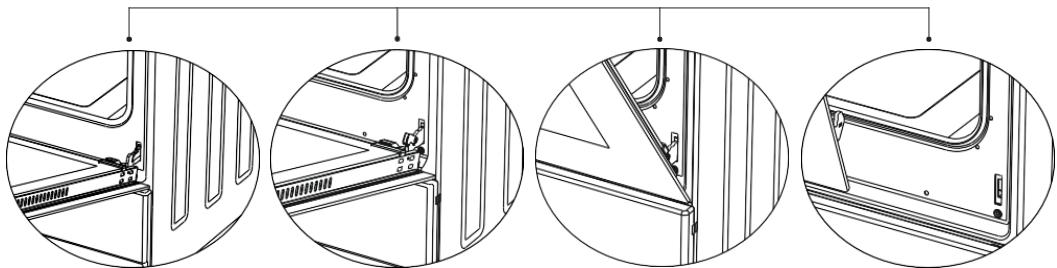

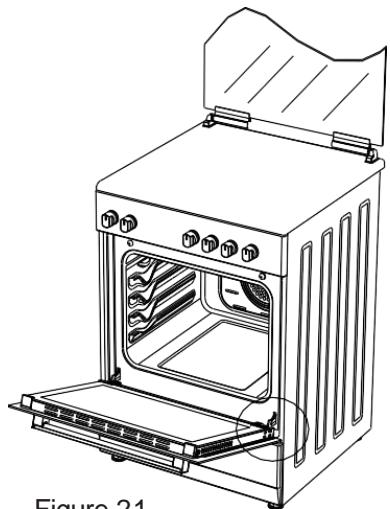

BC CRE Installation OfThe Oven Door I L Figure 22 Figure 21.1 Figure 21.2 Figure 22.1 Figure 22.2 Completely open Bring the hinge Afterwards, close Toremove the the oven door lock to the widest the oven door asto oven door, pull it by pulling it to angle as shown in lean on the hinge upwards by holding yourself. After figure 21.2. Bring lock as shown in it with both hands wards, perform both hinges figure 22.1. when close to the the unlocking connecting the closed position process by pulling oven door to as shown in the hinge lock the oven to the figure 22.2. upwards with the same position. help of a screw driver as shown in figure 21.1. In order to re-place the oven door, perform the abovementioned steps in reverse.

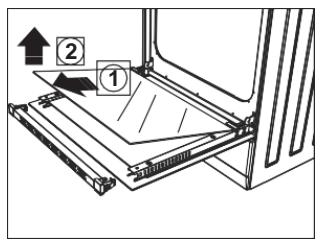

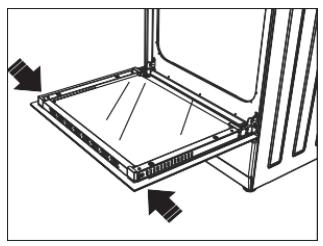

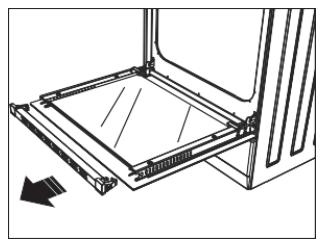

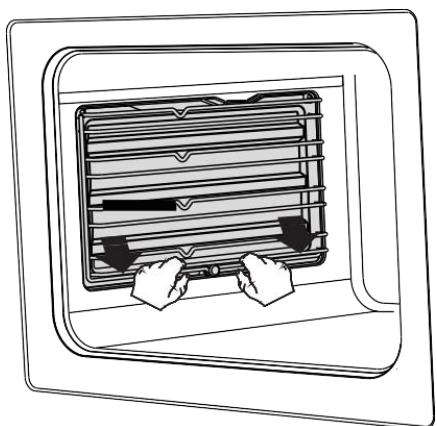

EEE Cleaning And Maintenance OfThe Oven's Front Door Glass Remove the profile by pressing the plastic latches on both left and right sides as shown in figure 23 and pulling the profile towards yourself as shown in figure 24. Then remove the inner-glass as shown in figure 25. 1f required, middle glass can be removed in the same way. After cleaning and maintenance are done, remount the glasses and the profile in reverse order. Make sure the profile is properly seated in its place. Figure 23 Figure 24 Catalytic Walls * Catalytic walls are located on the left and the right side of cavity under the guides. Catalytic walls banish the bad smell and obtain the best performance from the cooker. Catalytic walls also absorb oil residue and clean your oven while it's operating. Figure 26 Removing the catalytic walls In order to remove the catalytic walls; the guides must be pulled out. As soon as the guides are pulled out, the catalytic walls will be released automatically. The catalytic walls must be changed after 2-3 years.

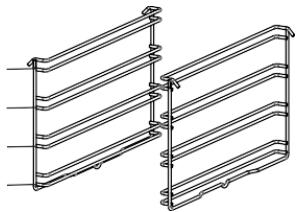

BC CE Rack Positions It is important to place the wire grill into the oven properly. Do not allow wire rack to touch rear wall of the oven. Rack positions are shown in the next figure. You may place a deep tray or a standard tray in the lower and upper wire racks. Installing and removing wire racks To remove wire racks, press the clips shown with arrows in the figure, first remove the lower, and than the upper side from installation location. Toinstall wire racks; reverse the procedure for removing wire rack. Changing The Oven Lamp

WARNING: To avoid electric shock, ensure that the appliance circuit is

open before changing the lamp. (having circuit open means power is off) First disconnectthe power of appliance and ensure that appliance is cold. Remove the glass protection by turning as indicated in the figure. If you have difficulty in turning, then using plastic gloves will help you in turning. Then remove the lamp by turning, install the new lamp with same specifications. Reinstall glass protection, plug the power cable of appliance into electrical socket and complete replacement. Now you can use your oven. Type G9 Lamp TypeE 14 Lamp 220-240 V,AC ) [= 220-240 V,AC S—— 15-25 W 15W (L LE? LL — Figure 27 Figure 28

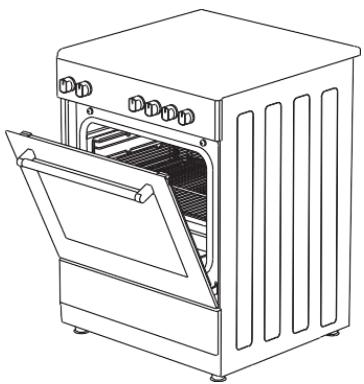

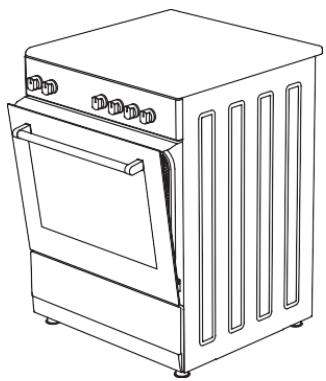

Using The Grill Deflector Sheet* LA safety panel is designed to protect control panel and the buttons when the ovenis in grill mode. (figure 29) 2.Please use this safety panel in order to avoid the heat to damage control panel and the buttons when the ovenis grill mode.

WARNING: Accessible parts may be hot when the grill in use. Young

children should be kept away. 3.Place the safety panel under control panel by opening the oven front cover glass. (figure 30) 4.And then secure the safety panel in between oven and front cover by gently closing the cover. (figure 31) 5.1t is important for cooking to keep the cover open in specified distance when cooking in grill mode. 6.Safety panel will provide an ideal cooking circumstance while protecting control panel and buttons.

WARNING: |f the cooker has the “closed grill functioned” option with

thermostat, you can keep the oven door closed during operation; in this case the grill deflector sheet will be unnecessary. Figure 29 Figure 30

ECS CEE TROUBLESHOOTNG You may solve the problems you may encounter with your product by checking the following points before calling the technical service. Check Points In case you experience a problem aboutthe oven, first check the table below and try outthe suggestions. Problem Possible cause What do Power supply notavailable. Check for power supply Check if main gas valve is open. Check if gas pipe is bent or Oven does notoperate. Kinked, Gas supply not available. Make sure gas hose is connected to the oven Check if suitable gas vale is being used. . Plug comes out from the wall Re-instalthe plug into wall Ovenstops during cooking. socket. socket. ro! . “ Letthe oven cool down after long oolong continuous operation. | Ecko eee, Tums off duringcooking. More than one plugs in a wall | Use oniy one plug for each wall socket. socket. . : Food residues jammed betueen | Clean the oven well and try to Ovendooris notopeningproperÿ. | 4e door and internal cavity. re-open the door. Tips or body of ignition plugs are | Clean tips or body ofignition Lighernotoperting, clogged. lugs of gas burners. Gas bumer pipes are clogged. | Clean gas bumer pipes. No proper grounding. Electric shockwhentouchingthe Make sure power supply is oven. grounded proper. Ungrounded wall socketis used.

Problem Possible cause Whatto do Water dripping. Water or steam may generate under Steamcomingoutfroma crackon | certain conditions depending on | Lette oven cool doun and than aven door. the food being cooked. This is not| wipe dry with a dishcloth a fault of the appliance. Waterremaining inside the oven. Oven door is open. Close the door and restart. Oven controls not correctiy Read the section regarding operation Oven does notheat. adjusted of the oven and resetthe oven. Replace the fuse orresetthe fuse tipped or circuit breaker | circuit breaker. If this is repeating ume off. frequentiy, call an electrician. Smoke comes out from the heaters. ponen operating te oven forte [This is not a fault. After 2-3 cycles, irst time. there will be no more smoke. Smoke comingout during operatioi mn. Letthe oven to cool down and Food on heater. clean food residues from the heater. 0! éng the oven bumtor Plastic or other not heat resistant Athigh temperatures, When operating the accessories are being used inside plastic odourcoming out use suitable glassware accessories. the oven. Do not open oven door requenty, if the food you are cooking does not Oven door is opened require tuming. If you open the Oven does notcookwell. frequentiy during cooking. door frequent internal temperature drops and therefore cooking result will be infuenced. Foreign object covering the lamp | Clean internal surface ofthe oven during cooking. and check again Interal lightis dim or does not operate. . , Replace with a lamp with same Lamp might be failed. SprcheatOns.

1. Do notuse the door and/or handle to carry or move the appliance.

2. Carry out the movement and transportation in the original packaging.

3.Pay maximum attention to the appliance while loading/unloading and handling. 4.Make sure that the packaging is securely closed during handling and transportation. 5.Protect from external factors (such as humidity, water, etc.) that may damage the packaging. 6.Be careful not to damage the appliance due to bumps, crashes, drops, etc. while handling and transporting and not to break or deform it during operation.

RECOMMENDATIONS FORENERGY SAVING

Following details will help you use your product ecologically and economically. 1.Use dark coloured and enamel containers that conductthe heat better in the oven. 2.As you cook your food, if the recipe orthe user manual indicates that pre-heating is required, pre-heatthe oven.

3. Do not open the oven door frequently while cooking.

4Try not to cook multiple dishes simultaneously in the oven. You may cook at the same time by placing two cookers on the wire rack.

5. Cook multiple dishes successively. The oven will not lose heat.

6.Tum off the oven a few minutes before the expiration time of cooking. In this case, do not open the oven door.

7. Defrost the frozen food before cooking.

ENVRONMENTALLY-FRENDLY DISPOSAL Dispose of packaging in an environmentally-fiendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the frame work for the return and recycling of used appliances as ss applicable throughout to the EU. PACKAGE INFORMATION Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.
