Read this Manual Dear Customer, Please carefully read this manual before using the dishwasher, it will help you use and maintain the dishwasher properly. Keep this manual for future reference. Pass it on to any subsequent owner of the appliance. This manual contains sections on safety Instructions, Operating Instructions, Installation Instructions and Troubleshooting Tips, etc. Before Calling for Service To review the section on troubleshooting Tips will help you to solve some common problems by yourself If you can not solve the problems by yourself, please ask for the help of professional technicians. NOTE: The manufacturer, following a policy of constant development and updating ofthe product, may make modifications without giving prior notice If lost or out-of-date, you can receive a new user manual from the manufacturer or responsible vendor.

3) Operating Instructions.

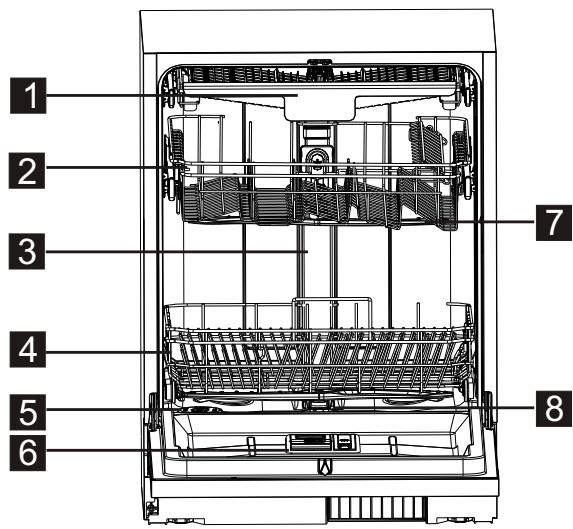

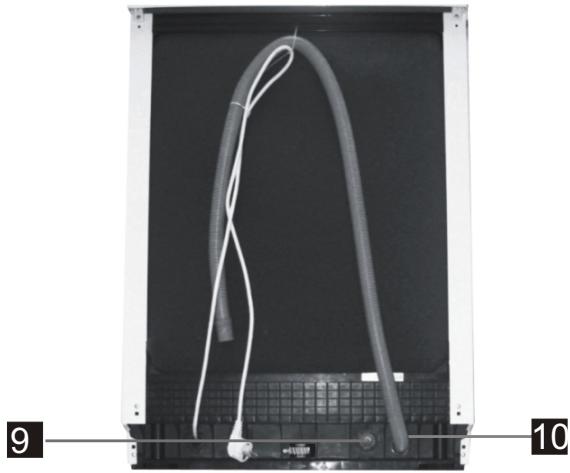

Control Panel... Dishwasher Features.

4) Prior to first time us.

A.Water Softener…...… B.Loading the Salt into the Softener. C.Filling the Rinse Aid Dispenser. D.Function of Detergent.

5) Preparing and loading dishes.

Recommendations for loading and unloading the dishwasher. 12 Standard loading pattern 13

6) Starting a washing program

Wash Cycle Table... Turning on the Appliance.. Changing the Program mid-cycle. At the end of the Wash Cycle

7) Maintenance and cleanin 16

Filter System ee Caring for the Dishwasher.

8) Installation Instruction.

Positioning the Appliance. About Power Connection Water connection Start of dishwasher..…

9) Troubleshooting Tips.

Before calling for servic: Error codes Technical information. Loading the baskets

When using your dishwasher, A HARNIRES follow the precautions listed below: a This applianceis intended to be used in household and similar applications such as: -Staff kitchen areas in shops, offices and other working environments; -farm houses;: -by clients in hotels, motels and other residential type environments; -bed and breakfast type environments. x This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use ofthe appliancein a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision.(For EN60335-1) “ Packaging material could be dangerous for children! = This applianceis for indoor household use only. = To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid. x Please unplug before cleaning and performing maintenance on the appliance. # Use a soft cloth moistened with mild soap, and then use a dry cloth to wipeit again.

EARTHING INSTRUCTIONS # This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with an earthing conductor plug. # The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local codes and ordinances. # Improper connection of the equipment-earthing conductor can result in the risk of an electric shock. # Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. # Do not modify the plug provided with the appliance; Ifit does not fit the outlet. # Have a proper outlet installed by a qualified electrician. # Do not abuse, sit on, or stand on the door or dish rack ofthe dishwasher. # Do not operate your dishwasher unless all enclosure panels are properly in place. x Open the door very carefullyifthe dishwasheris operating, there is a risk of water squirting out. # Do not place any heavy objects on or stand on the door whenitis open. The appliance could tip forward. # When loading items to be washed:

1) Locate sharp items so that they are not likely to

damage the door seal;

2) Warning: Knives and other utensils with sharp points

must be loaded in the basket with their points facing down or placed in a horizontal position. “Check that the detergent powder is empty after completion of the wash cycle. #Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent. “For unmarked plastic items not so marked,check the manufacturer's recommendations. “Use only detergent and rinse agents recommended for use in an automatic dishwasher. a Never use soap, laundry detergent, or hand washing detergent in your dishwasher. aThe door should not be left open, since this could increase the risk of tripping. m|f the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. #During installation, the power supply must not be excessively or dangerously bent or flattened. #Do not tamper with controls. “The appliance needs to be connected to the main water valve using new hose sets. Old sets should not be reused. aThe maximum number of place settings to be washed is 15. aThe maximum permissible inlet water pressure is 1MPa. aThe minimum permissible inlet water pressure is 0.04MPàa.

Disposal a This appliance's packaging materials are recyclable. Dispose of the packaging into a suitable waste collection container to recycle it. TT “Itis prohibited to dispose of this appliance as household waste. D Correct Disposal of this product: this symbol on the product or in its packing indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate waste collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by the inappropriate waste handling of this product. For more detailed information about the recycling of this product, please contact your local council your household waste disposal service, or the shop where you purchased the product. À WARNING! # For disposing of package and the appliance please go to a recycling centre. Therefore cut off the power Supply cable and make the door closing device unusable. # Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling. “By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. “For more detailed information about recycling of this product. lease contact your local city office and your ousehold waste disposal service. # DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

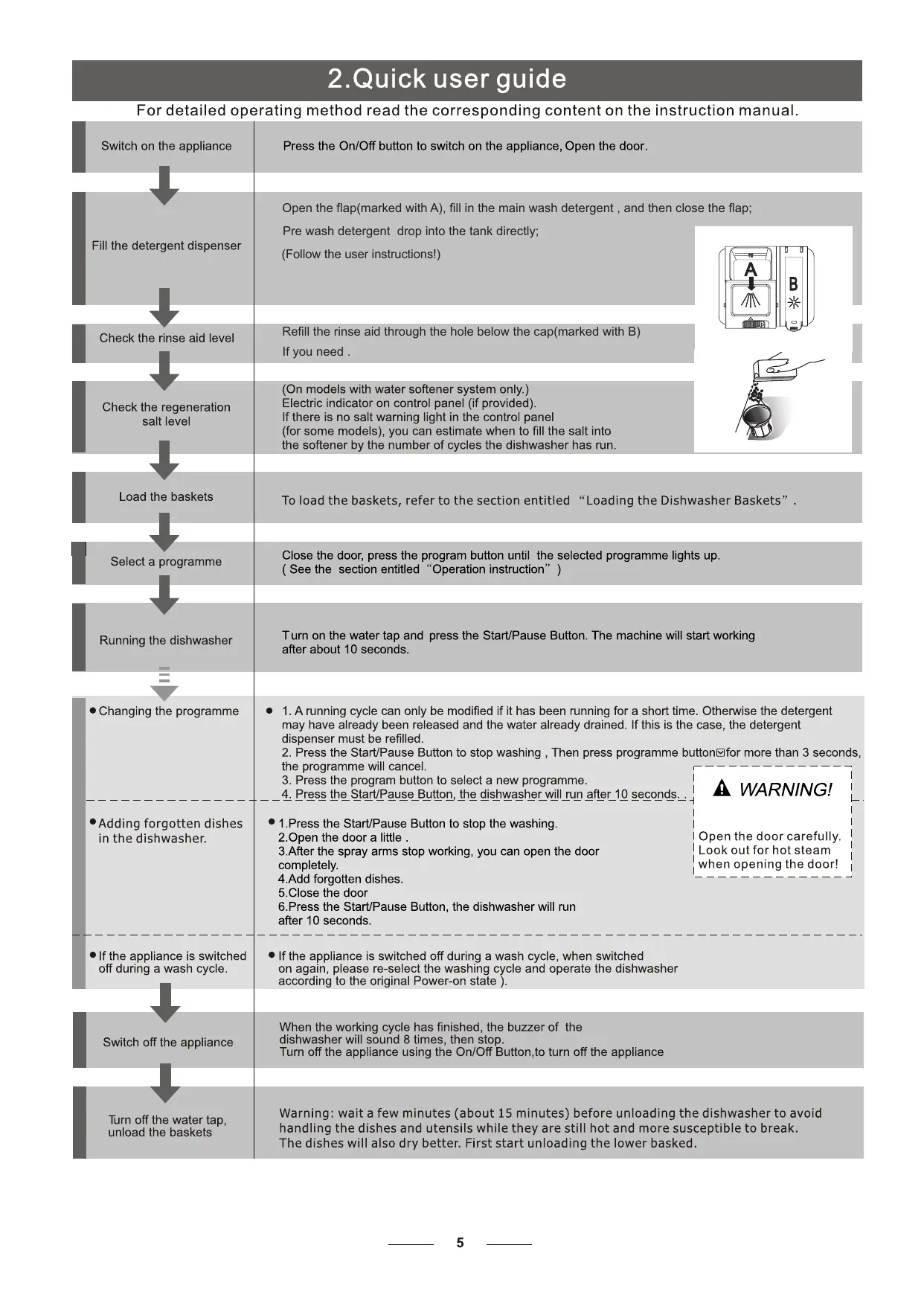

For det. Switch on the appliance Fill the detergent dispenser Check + rinse aid level Check the regeneration salt level Load the baskets Select ÿ ra Running the dishwasher Ve the programme +Adding forgotten dishes in the dishwasher. « Ifthe appliance is switched off ani a wash cycle. Turn off the water tap, unload the baskets | Switch off the appliance 2.Quick user guide ed operating method read the corresponding content on the instruction manual. Press the On/Off button to switch on the appliance, Open the door. Open the flap(marked with A), fil in the main wash detergent , and then close the flap; Pre wash detergent drop into the tank directly; {Follow the user instructions!) Refill the rinse aid through the hole below the cap(marked with B) If you need . (On models with water softener system only.) Electric indicator on control panel (if provided). Ifthere is no salt warning light in the control panel for some models), you can estimate when to fill the salt into the softener by the number of cycles the dishwasher has run. To load the baskets, refer to the section entitled “Loading the Dishwasher Baskets” Close the door, press the program button until the selected programme lights up. (See the section entitled “Operation instruction” Turn on the water tap and press the Start/Pause Button. The machine will start working after about 10 seconds. e 1. Arunning cycle can only be modified if it has been running for a short time. Otherwise the detergent may have already been released and the water already drained. If this is the case, the detergent dispenser must be refilled.

2. Press the Start/Pause Button to stop washing , Then press programme button&ifor more than 3 seconds,

the programme will cancel.

3. Press the program button to select a new programme.

ss the Start/Pause Button, the dishwasher will run after 10 second: e 1.Press the Start/Pause Button to stop the washing. 2.0Open the door a little . 3.After the spray arms stop working, you can open the door ‘completely. 4.Add forgotten dishes. 5.Close the door 6.Press the Start/Pause Button, the dishwasher will run after 10 seconds. Open the door carefully. Look out for hot steam + Ifthe appliance is switched off during a wash cycle, when switched on again, please re-select the washing cycle and operate the dishwasher according to the original Power-on state Y When the working cycle has finished, the buzzer of the dishwasher will sound 8 times, then stop. Turn off the appliance using the On/Off Button,to turn off the appliance

Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid

handling the dishes and utensils while they are still hot and more susceptible to break. The dishes will also dry better. First start unloading the lower basked.

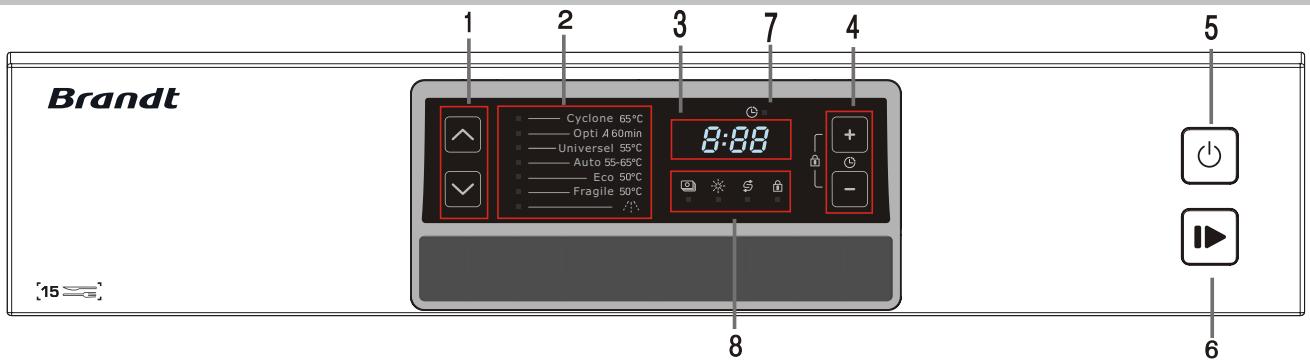

3.Operation Instruction IMPORTANT Togetthe best performance from your dishwasher, read all operating instructions before using it for the first time. Control Panel

wash Program. washing program or pause the washing program Press the two buttons for 3 seconds when the machine is working. simultaneously to select the all in one function. : Press them again to cancel. 7.Delay indicator, (The "All in one" function is selected by default for Intensive, 8.Display indicator: One hour,Universal and Glass programs) 2.Program indicators 3.Display screen: to show the remaining time * Rinse Aid indicato and the state(running state, delay time etc) Indicates when the d 4.Delay button: Press the boutons to delay de start of * Add saltindicator:® . the wash cycle.Press + and - buttons simoultaneously Indicates when the dispenser needs to be refilled for 3seconds to lock the program, press them again to «+ Child lockindicator:f] cancel. 5.0n/Off Button: To turn on/off the power supply. Warning! + Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended + Washing tableware in a household dishwasher usually consumes less energy and water in the use phase than hand dishwashing when the household dishwasher is used according to the manufacturer’s instructions. Dishwasher Features Front view Back View + Allin one function indicator: ispenser needs to be refilled. Cutlery rack Lower basket Spray arms [9] Inlet pipe connector Upper basket Salt container E Filter assembly Drain pipe Inner pipe [6 | Dispenser

4. Prior to first time use

Before using your dishwasher for the first time: Set the water softener B.| Add 1.5 kg dishwasher salt and then full fill the salt container with water Fillthe rinse aid dispenser ® Fill in detergent A. Water Softener The water softener must be set manually, using the water hardness dial The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance. The more minerals there are, the harder your water is The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area. Adjusting Salt Consumption The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level o f salt consumption. Please followthe steps below for adjustment in salt consumption.

1. Close the door and switchon the appliance

2. Press the Program” button formore than 5seconds to startthe water softener set

model within 60seconds after the appliance was switched on

3. Press the Program” button toselect the properset according to your local

environment, the sets will change in the following sequence: H3->H4->H5->H6->H1->H2->H3

4. Without operation in 5 seconds or press the Power button to complete the setup

and exit the setup mode. WATER HARDNESS Salt consumptionl Selector Position ‘4H ‘th “Clarke mmol/l ° n (gram/cycle) 0-5 0-9 0-6 0-0.94 Hi 0 6-11 10-20 7-14 1.0-2.0 H2 9 12-17 21-30 15-21 2.1-3.0 H3 12 18-22 31-40 22-28 3.1-4.0 Ha 20 23-34 41-60 29-42 4.1-6.0 H5 30 35-55 61-98 43-69 6.1-9.8 H6 60 Note:1 1dH=1.25 Clarke=1.78 fH=0.178mmol/l DH: German degree fH: French degree Clark: British degree Note:2 The manufactory setting: H3 Contact your local water board for information on the hardness of your water supply. À NOTE: If your model does not have any water softener, you may skip this section. WATER SOFTENER The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate lime and minerals from the water.

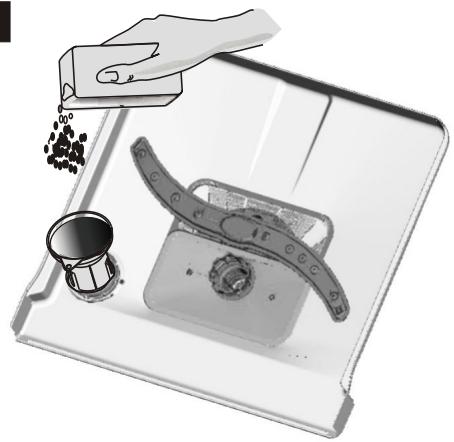

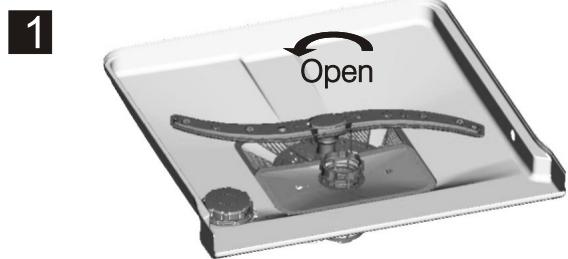

B. Loading the Salt Into the Softener Always use salt intended for dishwasher use. The salt containeris located beneath the lower basket and should be filled as explained in the following: Warning! Æ Only use salt specifically designed for dishwashers use! Every other type of salt not specifically designed for dishwasher use, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable saltthe manufacturer does not give any warranty nor is liable for any damages caused H Only fill with salt before running a cycle. This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom ofthe machine for any period oftime, which may cause corrosion. After the lower basket has been removed, unscrew and remove the cap from the salt container. À Place the end of the funnel (supplied) into the hole and poor in about 1.5kg of dishwasher salt. Fill the salt container to its maximum limit with water,lt is normal for a small amount of waterto EX come out of the salt container. After filling the container, screw back the cap tightly. The salt warning light will stop being after the salt container has been filled with salt. Immediately after filling the salt into the salt container, a washing program should be started (We suggest to use a short program). Otherwise the filter system, pump or other important parts of the machine may be damaged by salty water. This is out of warranty. À NOTE:

1. The salt container must only be refilled when the salt warning light in the control panel comes on.

Depending on how well the salt dissolves, the salt warning light may still be on even though the salt container is filled. Ifthere is no salt warning light in the control panel (for some Models),you can estimate when to fill the salt into the softener by the cycles thatthe dishwasher has run.

2. Ifsalt has spilled, run a soak or quick program to removeit

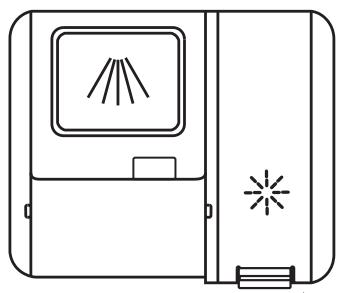

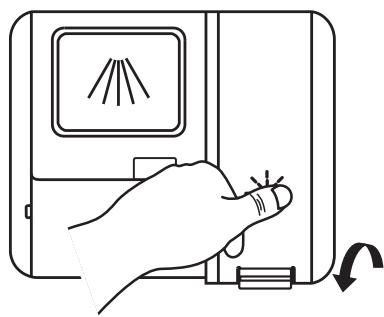

C. Filling the Rinse Aid Dispenser [ r \ Remove the rinse reservoir cap by lifting up the handle .

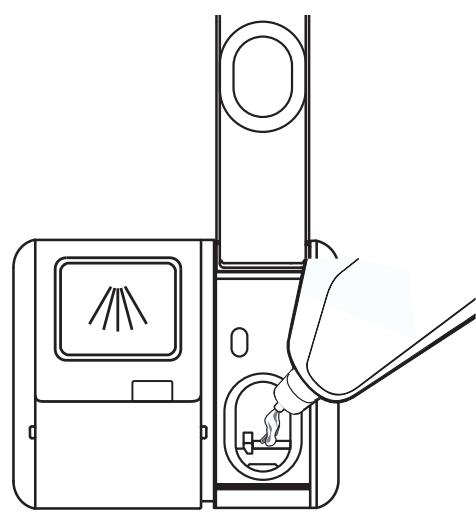

Pour the rinse aid into the dispenser, being careful not to overfill. È Close the cap after all. Adjusting the rinse aid reservoir To achieve a better drying performance with limited rinse aid, the dishwasher is designed to adjust the consumption by user. Follow the below steps.

1. Close the door and switch on the appliance;

2. Within 60 seconds after step 1, press the Program * button more than 5 seconds,

and then press the Delay + button to enter the set model, the rinse aid indication blinks as 1Hz frequency.

3. Press the Program” button to select the proper set according to your using habits,

the sets will change in the following sequence: D3->D4->D5->D1->D2->D3. Dispenser drops more rinse aid in D5 level than in another, the manufactory setting is D3.

4. Without operation in 5 seconds or press the Power button to complete the setup

and exit the setup mode.

Filing The Detergent Dispenser

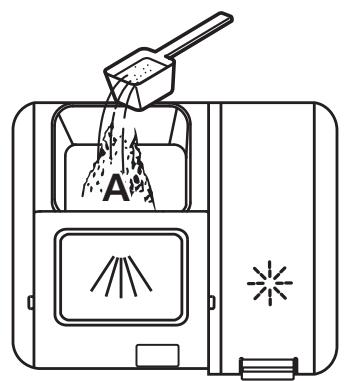

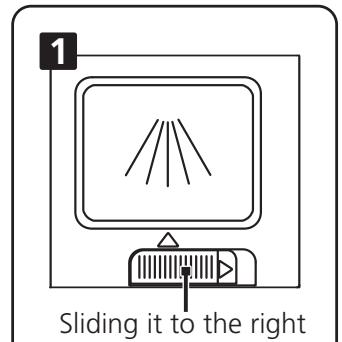

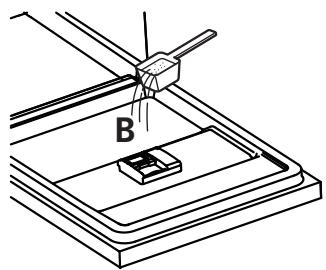

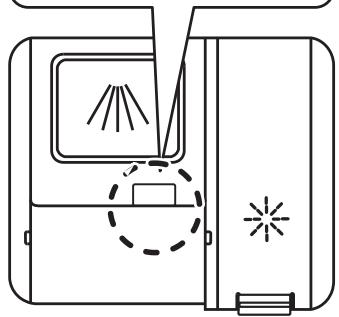

Please choose an open way according [ f \ D —— A EVA TG a Sliding it th the right (=) B—— 2 \ Bl Press down ) == Add detergent into the larger cavity ZI (A) for the main wash cycle . nd For better cleaning result, especially if -— je you have very dirt items, pour a small -.. amount of detergent onto the door. The additional detergent will activate during the pre-wash phase. to the actual situation.

1. Open the cap by sliding the release

2. Open the cap by pressing down the

release catch. % NOTE: Close the flap by sliding it to the front and then pressing it down. + Be aware that depending on the soiling of water, setting may be different. + Please observe the manufacturer's recommendations on the detergent packaging.

D. Function of Detergent Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose. Attention! Proper Use of Detergent Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry. Don't put powdered detergent into the dispenser until you're ready to wash dishes. Detergents There are 3 sorts of detergents 1.With phosphate and with chlorine 2.With phosphate and without chlorine 3.Without phosphate and without chlorine Normally new pulverised detergent is without phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only 6 * dH. If detergents without phosphate are used in the case of hard water often white spots appear on dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not be removed completely. In this case please choose a program with a higher temperature. Concentrated Detergent Based on their chemical composition, detergents can be split in two basic types: & conventional, alkaline detergents with caustic components H low alkaline concentrated detergents with natural enzymes Detergent Tablets Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short programs. Therefore please use long programs when using detergent tablets, to ensure the complete removal of detergent residuals. Detergent Dispenser The dispenser must be refilled before the start of each wash cycle following the instructions provided in the wash cycle table . Your dishwasher uses less detergent and rinse aid than Conventional dishwasher. Generally, only one tablespoon of detergent is needed for a normal wash load. More heavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly.

Recommendation H Consider buying utensils which are identified as dishwasher-proof. EH Use a mild detergent that is described as ‘kind to dishes'. If necessary, seek further information from the detergent manufacturers. B For particular items, select a program with the lowest possible temperature. Œ To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the programme has ended. For washing thefollowing cutlery/dishes Are not suitable Are of limited suitability M Cutlery with wooden, horn china or m Some types of glasses can become mother-of-pearl handles dull after a large number of washes E Plastic items that are not heat resistant M Older cutlery with glued parts that are not EH Silver and aluminum parts have a temperature resistant tendency to discolour during washing æ Bonded cutlery items or dishes H Pewter or cooper items M Glazed patterns may fade if machine m Crystal glass washed frequently Æ Steel items subject to rusting H Wooden platters Æ ltems made from synthetic fibres Recommendations for loading and unloading the dishwasher (For best performance of the dishwasher, follow these loading guidelines. Features and appearance of baskets and cutlery baskets may vary from your model.) Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. Itis not necessary to rinse the dishes under running water. Place objects in the dishwasher in following way: 1.1tems such as cups, glasses, pots/pans, etc. are faced downwards. 2.Curved items, or ones with recesses, should be loaded aslant so that water can run off 3.All utensils are stacked securely and can not tip over. 4.All utensils are placed in the way that the spray arms can rotate freely during washing À NOTE: Very small items should not be washed in the dishwasher as they could easily fall out ofthe basket. Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base. Dishes and items of cutlery must not lie inside one another, or cover each other. To avoid damage, glasses should not touch one another. Load large and difficult to clean items in the lower basket. The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups Long bladed knives stored in an upright position are a potential hazard! Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket. Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy. Removing the Dishes To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first, followed by the upper basket

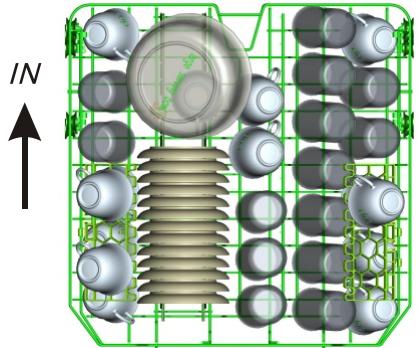

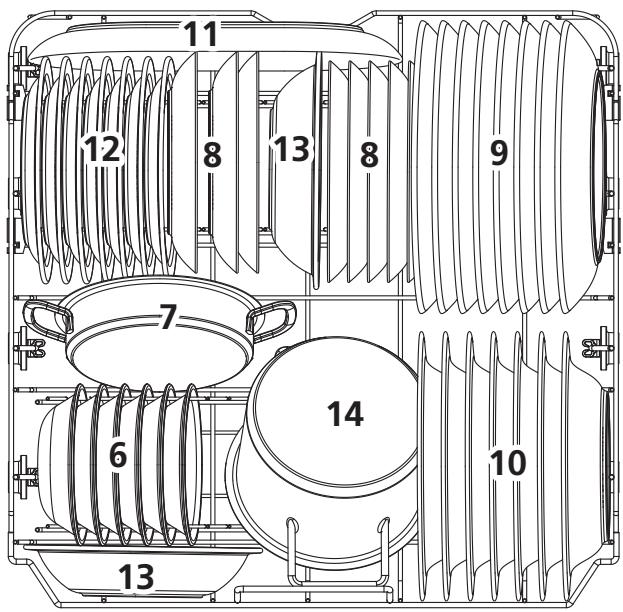

Standard Loading Pattern A. Loading the Upper Basket The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowlis and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will B. Loading the Lower Basket We suggest that you place large items and the most difficult to clean items into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. Itis preferable to place serving dishes and lids on the side of the racks in orderto avoid blocking the rotation ofthe top spray arm The maximum diameter advised for plates in front of the detergent dispenser is of 19 cm, this not to hamper the opening of it not get moved by the spray of water.

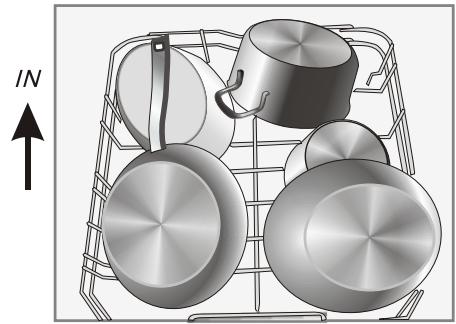

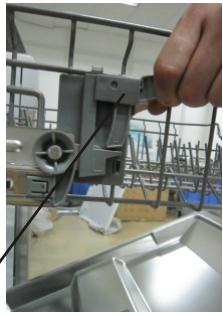

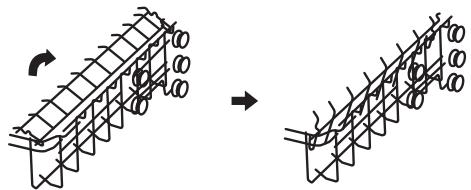

TON Ta Please be reminded that: Pots, serving bowls, etc, must always be placed top down. Deep pots should be slanted to allow water to flow out The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded C. Adjusting the Upper Basket D. Folding back the cup shelves To make room for taller items in the upper basket, raise the cup rack upwards. You can then lean the tall glasses against it. You can also remove it when it is not required for use. The height of the upper rack can be easily adjusted to accommodate taller dishes in either the upper and lower rack. To raise the rack to the upper position, lift rack until both sides are at the same height. The rack will secure into place. To lower the rack, push down on the handle andrelease. Lift the basket Press down onthe E. Folding Spikes of Lower Basket For better stacking of pots and pans, the spikes can be folded down as show in the picture below.

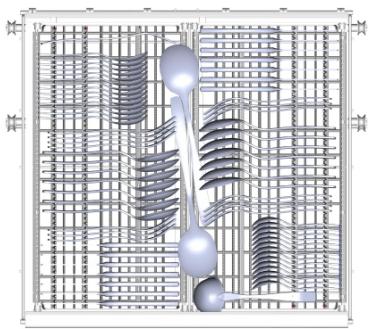

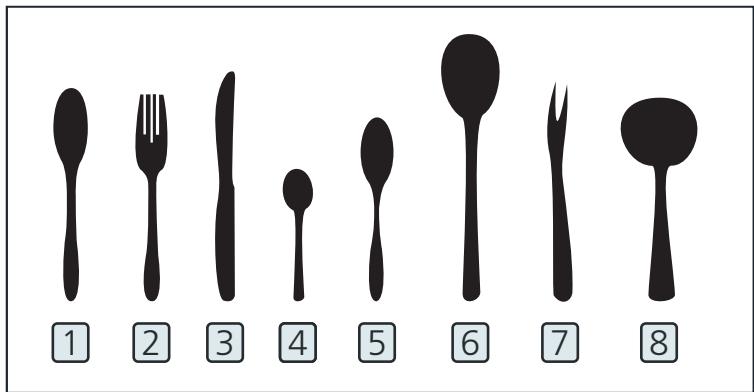

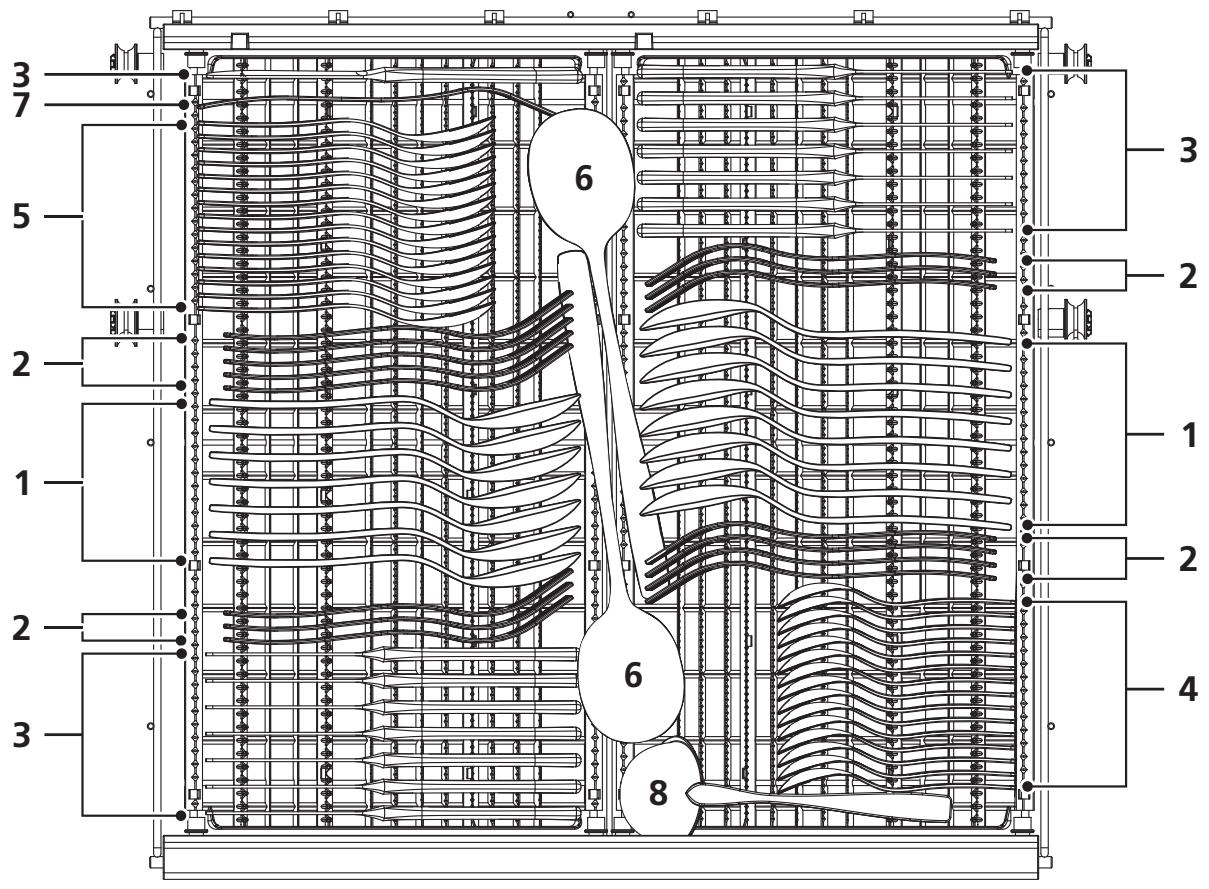

Adjust handle F. Loading the Cutlery Basket Cutlery should be placed in the cutlery rack separatelyfrom each other in the appropriate positions, and do make sure the utensils do not nest together, this may cause bad performance. For a top quality cleaning, place the silverware in the basket making sure that: M They do not nest together. HE Silverware is placed with the male face up. H Long utensils inthe middle À WARNING! Do not let any item extend through bottom. Always load sharp utensils with the sharp pointing down!

Wash Cycle Table À NOTE: ( ) Means: Rinse-aid dispenser needs to be filled. Cycle Selection Runn Energy Water Rinse Running Program Information ofCycle pre/main time(min)® (kw) Ù Pre-wash(50 ‘C) Gyclone ss | For heaviest soiled crockery, Liu] (65 C) 4199 intensive | and normally soiled pots. Rinse (1 or 2 pieces) 205 1.651 16.5 220 pans, dishes etc with dried Rinse(60C) on soiling. h Drying Wash (55 C) For lightly soiled loads that | Rinse 239 94460 | do not need excellent drying| Rinse(50'C) “(1 piece) 60 0.853 Is ED One hour | efficiency. Drying Pre-wash(45 C) F Il led load: Rest GS 0) 4/19. or normally soiled loads, Rinse g Unersel 5 | Such as pots, plates,glasses| Rinae (Torzpiece) 275 1451 16.5 195 Universal | and lightly soiled pans. Rinse(60°C) Drying Pre-wash(45 ‘C) Auto sensing wash, lightly, RENE ®) 4/19g | normally or heavily soiled A ———| 85-150 |1.050-1.551|10.6-15.9 ll AUTO 55-85°c : Î Rinse (1 or 2 pieces) Auto crockery, with or with out Rinse(50-55C) u dried-on food Di rying This is standard programme, …__ |itis suitable to clean normally < Eco 50C | Soiled tableware anditisthe Wash (60 €) 23g ECO |mostefficientprogrammein | Rinse | 210 0.861 10.0 230 (EN 60436)| terms of its combined energy | Rinse(50C) (1 or 2 pieces) and water consumption for Drying that type of tableware. : | Pre-wash(40 C) Freale 08 | Forlightly soiled crockery | Wash (50 °C) 4199 and glass. Rinse | 120 0.902 13.5 135 Glass Rinse(50'C) (1 or 2 pieces) Drying To rinse dishes that you plan Soak to wash later that day Pre-wash / 15 0.021 4 / Running time (min)(: with the "All in one* function NOTE: Running time (min) ©: without the "AI in one" function The "AI in one" function is selected by default for Intensive, One hour,Universal and Glass programs “EN 60436 : This programme is the test cycle. The information for comparability test in accordance with EN 60436, as follows: Values other than the ECO program are purely indicative. HE Capacity: 15 settings H Position Upper basket: upper wheels on rails M Rinse aid setting: 5 H Po:0.49W Turning On the Appliance Starting a cycle wash Draw out the lower and upper basket, load the dishes and push them back. Itis recommended to load the lower basket first, then the upper one (seethe section entitled “Loadingthe Dishwasher” ). Pour in the detergent (see the section entitled “Salt, Detergent and Rinse Aid” ) Insert the plug into the socket. The power supply is 220-240 VAC /50 Hz, the specification ofthe socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure. Close the door, press the ON/OFF Button. Press the program button to select the desired program. If a programis selected, the response light will turn on. Then press the Start/Pause button and the dishwasher will start its cycle.

À NOTE: When you press the Start/Pause button to pause during washing, the running indicator will stop blinking unless you press the Start/Pause button to start. Changing the Program Mid-Cycle Premise: Arunning cycle can only be changed if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. Ifthis is the case, the detergent dispenser must be refilled (see the section entitled" Loadingthe Detergent"). M Press the Start/Pause Button to stop washing , then press programme button for more than 3 seconds , the programme will cancel. Then press the program button to select the desired cycle setting, press the Start/Pause Button,the dishwasher will run after 10 seconds. (See the section entitled " Starting a wash cycle..." ). NOTE: À If you open the door during a wash cycle , the machine will pause. The program light will stop blinking unless you close the door . After you close the door ,the machine will keep on working after 10 seconds. Forgot to Add a Dish? A forgotten dish can be added any time before the detergent cup opens. Open the door a little . EA Ciose the door WA After the spray arms stop working, you can open the door Press the Start/Pause Button. The dishwasher will run completely. after 10 seconds. Add forgotten dishes. Atthe End of the Wash Cycle When the working cycle has finished. Turn off the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher. Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to break. They will also dry better. E Switching Off the Dishwasher The program light is on but is not blinking, only in this case has the program ended. 1.Switch off the dishwasher by pressing the ON/OFF button. 2.Turn off the water tap! # Open the door carefully. Hot dishes are sensitive to shocks. The dishes should cool down for around 15 minutes before removing from the appliance. Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved. # Unloading the dishwasher Itis normal for the dishwasher to be wet inside Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto the dishes in the lower one À WARNIN G! Itis dangerous to open the door mid-cycle, as hot steam may scald you. Auto Open Door After washing, the door will open automatically to achieve better drying effect. NOTE: The dishwasher door must not be blocked when set to open automatically. This can disrupt door lock functionality.

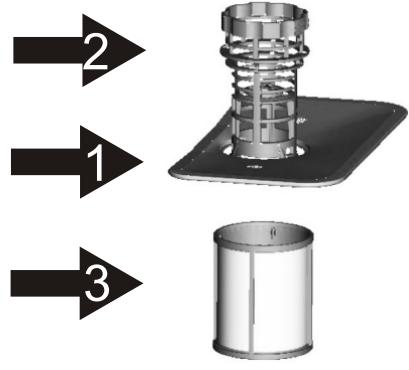

Mainte ce and Cleanin Filter System The filter prevents larger remnants of food or other objects from getting inside the pum. The residues may block the filter, in this case they must be removed. The filter system consists of a coarse filter,a flat (Main filter) And a microfilter(Fine filter) Food and soil particles trapped in this filter are pulverized by a special jet on the lower spray arm and washed down the drain. Coarse filter [2 | Larger items, such as pieces of bones or glass, that could block the drain are trapped in the coarse filter. To remove the items caught by the filter, gently squeeze the tap on the top ofthis filter and lift out. This filter holds soil and food residues in the sump area and prevents them from being redeposited on the dishes during wash cycle. Filter assembly The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the filter must be cleaned regularly. For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water. To remove the filter device, pull the cup handle in the upward direction. & The dishwasher must never be used without the filters. À WARNING! EÆ Improper replacement of the filter may reduce the performance level ofthe appliance and damage dishes and utensils. Step 1: Turnthe filter counterclockwise, Step 2: liftthe filter assy up NOTE: __ When following this procedure from step1 to step 2, the filter system will be removed: when following it from Step 2 to Step 1, the filter system will be installed.

Remarks: - After each cycle, check for any debris in the filter to avoid future blockage. - By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water. À NOTE: The entire filter assembly should be cleaned once a week. Cleaning the Filter To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts (see page 13) and reinsert them in the dishwasher, positioning them in their seat and pressing downwards When cleaning the filters, do not knock them.Otherwise, the filters could be À WARNING! contorted and the performance of the dishwasher could be decreased. Caring for the Dishwasher The control panel can be cleaned by using a lightly dampened cloth. After cleaning, make sure to dry itthoroughly. For the exterior, Use a good appliance polish wax. Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher. Cleaning The Door To clean the edge around the door, you should only use a soft, ward and damp cloth. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind Æ Never use a spray cleaner to clean the door panel as it may damage the door lock À WARNING! and electrical components. H Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots on the stainless steel surface. Winterizing please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows: 1.Cut off the electrical power to the dishwasher at the supply source.

2. Turn off the water supply and disconnect the water inlet pipe from the water valve.

3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)

4. Reconnect the water inlet pipe to the water valve.

5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

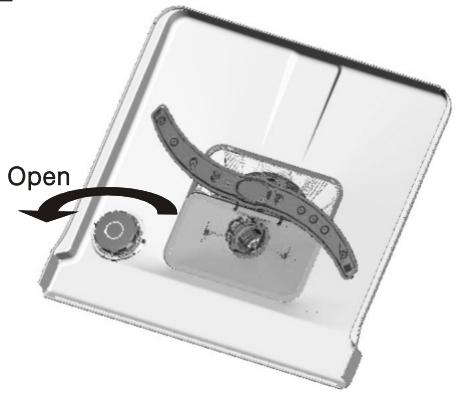

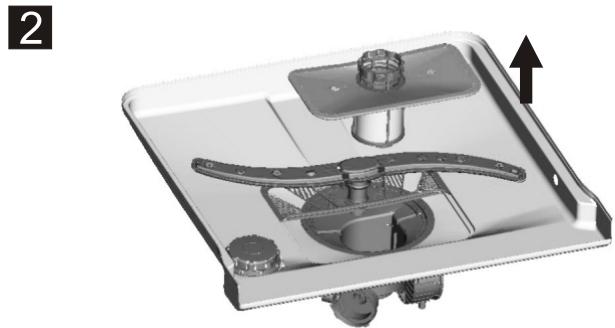

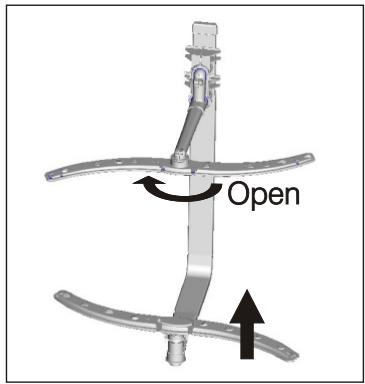

À NO TE: If your dishwasher cannot work because ofthe ice, please contact professional service persons. Cleaning the Spray Arms Itis necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. To remove the upper spray arm, hold the nut, rotate the arm clockwise to remove it. To remove the lower spray arm, pull out the spray arm upward. Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.

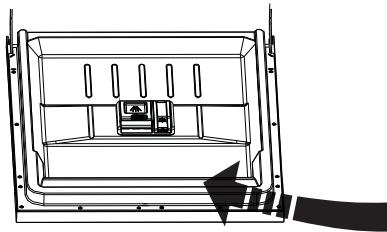

How to Keep Your Dishwasher in Shape H After Every Wash EH When not in Use for a longTime Itis recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odours are not trapped inside. HE Remove the Plug seals to last longer and prevent odours from forming Before cleaning or performing maintenance, always within the appliance remove the plug from the socket. Æ Moving the Appliance H No Solvents or Abrasive Cleaning Ifthe appliance must be moved, try to keepitinthe To clean the exterior and rubber parts ofthe dishwasher, Vertical position. If absolutely necessary, it can be do not use solvents or abrasive cleaning products positioned on its back Only use a cloth with warm soapy water. E Seals To remove spots or stains from the surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers. One ofthe factors that cause odours to forminthe dishwasher is remaining food strapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring. 8.Installation instruction Positioning the Appliance Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation. Levelling the Appliance may be altered by adjusting the screwing level ofthe feet. In any case, | Once the appliance is positioned for levelling, the height of the dishwasher the appliance should not be inclined more than 2° amet amet About Power Connection À WARNING! For personal safety: # Do not use an extension cord or an adapter plug with this appliance. ”“ Do not, under any circumstances, cut or remove the earthing connection from the power cord. Electrical Requirements Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance. Electrical Connection À Ensure the voltage and frequency of the power being corresponds to Ensure that proper {ose onthe rating plate. Only insert the plug into an electrical socket which is earthed earthing exists properly. Ifthe electrical socket to which the appliance must be connected is not before use appropriate for the plug , replace the socket, rather than using a adaptors orthe like as they could cause overheating and burns.

Water Connection Cold Water Connection << Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure thatitis fastened tightly in place. Ifthe water pipes are new or have not been used for an extended period oftime, letthe water run to make sure that the water is clear. This precaution is needed to avoid the risk of the water inlet to be blocked and damage the appliance. À WARNING! Please close the hydrant after use. Drain hose Connection Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to avoid bending or crimpingit. The height of the drain pipe must be less than 1000mm. [AT PLEASE HANG UP THE DRAIN HOSE EITHER WAY OF A, 8 — DS Front Counter NOTE The top of the hose must be less than 1000mm. MAX 1000mm Drain pipe

How to Drain Excess Water From Hoses Ifthe sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink. Water Outlet Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kinked or squashed Extension Hose If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced. Syphon Connection The distance between the drain connection and the bottom of the appliance must not be longer than 1000mm The water drain hose should be fixed. Start of Dishwasher The following things should be checked before starting the dishwasher. The dishwasher is levelled and fixed properly Theinlet valve is open To avoid any water leak, check if inlet valve is correctly screwed to the dishwasher The wires are tightly connected The power is switched on Bi The inlet and drain hoses are knotted All packing materials and printings have been removed from the dishwasher. À éterier: After installation, please make sure to keep this manual. The content of this manual is very helpful to the users.

Before Calling for Service Reviewing the charts on the following pages may save you from calling for service. Problem Possible CausesWhat To Do Dishwasher doesn't Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other start circuit breaker tripped appliances sharing the same circuit with the dishwasher Power supply is not Make sure the dishwasher is turned on and the door is turned on closed securely. Make sure the power cord is properly plugged into the wall socket. Water pressure is low Check that the water supply is connected properly and the water is turned on. Technical blems Door of dishwasher Make sure to close the door properly and latch it. pro not properly closed properly u water not pumped Kink in drain hose Check drain hose. form dishwasher Filter clogged Check the coarse filter (see section titled" Cleaning The Filter") Kitchen sink clogged Check the kitchen sink to make sure it is draining well. If the kitchen sink is not draining properly, you may need a plumber rather than a serviceman for dishwashers. Suds in the tub Use only the special dishwasher detergent to avoid suds. Improper detergent If this occurs, open the dishwasher and let suds evaporate. Add 1 gallon of cold water to the tub. Close and latch the dishwasher, then select any cycle. Dishwasher will drain out the water at the first step.Open the door after draining is over and check if the suds have disappeared. Spilled rinse-aid Always wipe up rinse-aid spills immediately. Stained tub interior Detergent with colorant Make sure that the detergent is the one without was used colorant. White film on General _ inside surface problems Hard water minerals To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves. Never use any other cleaner than dishwasher detergent for the risk of foaming or suds There are rust stains on cutlery The affected items are not corrosion resistant. A programme was not Always run the quick wash programme . run after dishwasher Without any crockery in the dishwasher and salt was added. Without selecting the Turbo function (if present), Traces of salt have after adding dishwasher salt. gotten into the wash cycle. The lid of the softer Check the lid .Ensure the fix is fine. is loose Knocking noise A spray arm is Interrupt the programme, and rearrange the items in the wash cabinet knocking against which are obstructing the spray arm. an item in a basket Rattling noise Items of crockery Interrupt the programme, in the wash cabinet are loose in the and rearrange the items of crockery. Noise wash cabinet Knocking noise in the water pipes This may be caused This has no influence on the dishwasher function. by on-site installation If in doubt, contact a qualified plumber. or the cross-section of the piping.

Problem Possible Causes What To Do The dishes are not clean The dishes were not loaded correctly. See notes in " Loading the Dishwasher Baskets ". The programme was not powerful enough. Select a more intensive programme. See" Wash Cycle Table ". Not enough detergent was dispensed. Use more detergent, or change your detergent. Items are blocking the path of spray arms. Rearrange the items so that the spray can rotate freely. The filter combination in the base of wash Clean and/or fit the filter combination correctly. Clean the spray arm jets. See "Cleaning the Spray Unsatis cabinet is not clean or Arms". -factory is not correctly fitted washing This may cause it the spray arm jets resu to get blocked. Cloudiness Combination of soft Use less detergent if you have soft water and select on glassware water and too much a shorter cycle to wash the glassware and to get detergent. them clean. Black or gray Aluminum utensils Use a mild abrasive cleaner to eliminate those marks. marks on dishes have rubbed against dishes. Detergent left in Dishes block Re-loading the dishes properly. dispenser cups detergent cups. The dishes Improper loading Load the dishwasher as suggested in the directions. are not drying Too little rinse-aid Increase the amount of rinse-aid/refill the rinse-aid dispenser. Dishes are removed Do not empty your dishwasher immediately after Unsatis too soon washing. Open the door slightly so that the steam can -facto ry escape. Begin unloading the dishwasher only once t dryin: he dishes are barely warm to the touch. Empty the | y 1 ower basket first to prevent any water from dripping resu into the lower basket. Wrong program With a short program, the washing temperature has been selected is lower, decreasing cleaning performance. Choose a program with a long washing time. Use of cutlery with Water drainage is more difficult with these items. a low-quality coating Cutlery or dishes of this type are not suitable for washing in the dishwasher. Error Codes In case of malfunctions, the appliance will display error codes to warn you: Codes Meanings Possible Causes El Longer inlet time Faucet is not opened, or water intake is g ‘ restricted, or water pressure is too low. E3 Not reaching required temperature. Malfunction of heating element . E4 Overflow. Some element of dishwasher leaks . E8 Failure of orientation of distributary valve. PT MAI SN Ed Failure of communication between main Open circuit or break wiring for the PCB with display pcb. communication. 22 —

æ |f overflow occurs, turn off the main water supply before calling a service. À WARNING! # lfthe base pan overflows: - Turn off the main water supply before calling for service - Remove the excess water before restarting the dishwasher. Technical Information

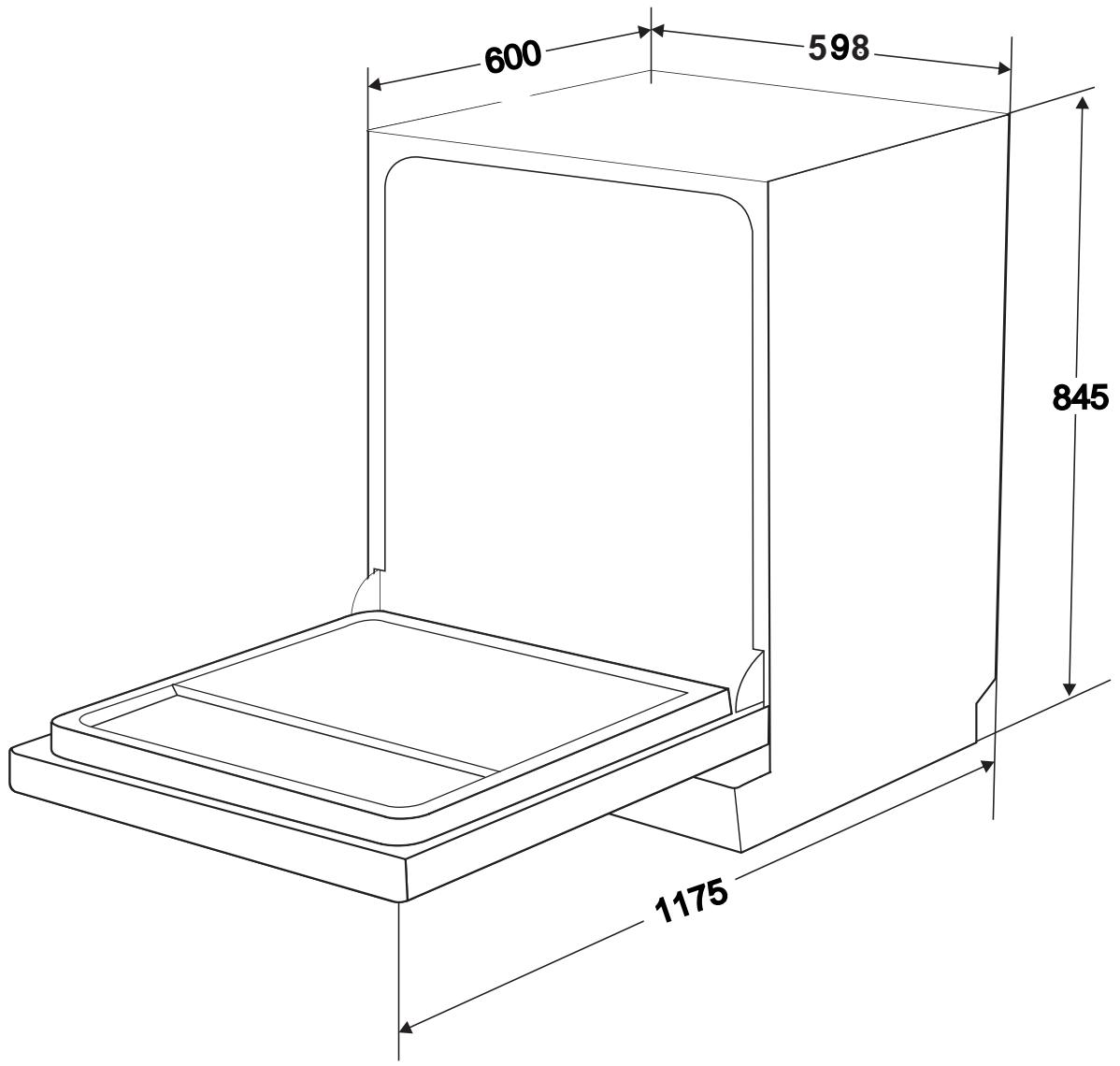

Height : 845mm Width: 598mm Depth: 600mm{(with the door closed) Water pressure: 0.04-1.0MPa Power supply: see rating label Capacity: 15 place settings

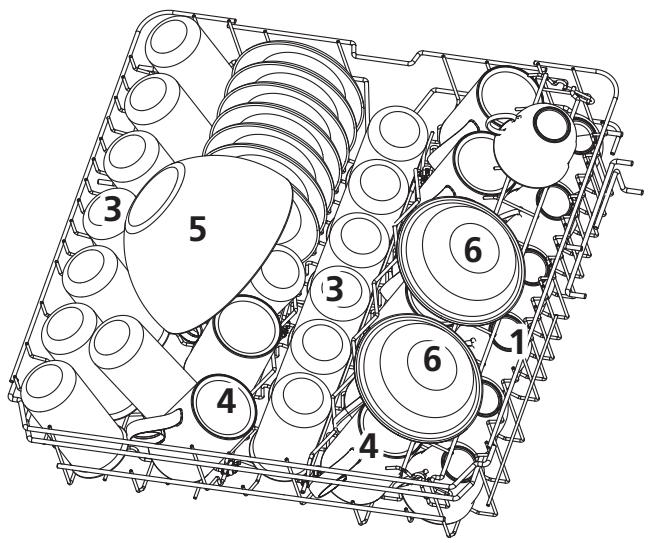

ACCORDING TO EN60436: 1.Upper basket: Number Item 1 Cups 2 Saucers 3 Glasses 4 Mugs 5 Glass bowl 6 Dessert bowis Number Item 7 Oven pot 8 Dessert plates 9 Dinner plates 10 Soup plates 11 Oval platter 12 Melamine dessert plates 13 Melamine bowls 14 Small pot WARNING! Non compliance with the loading can result in poor washing quality.

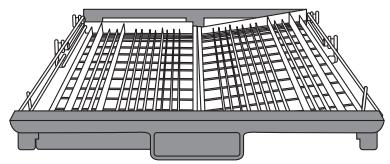

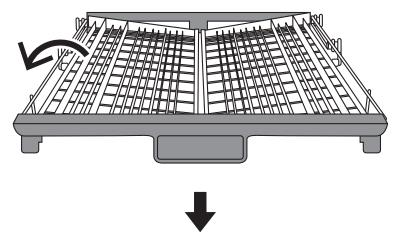

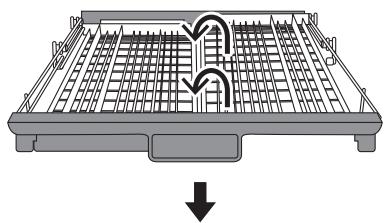

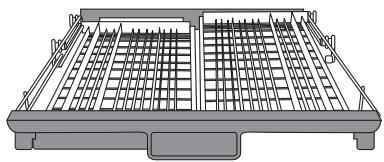

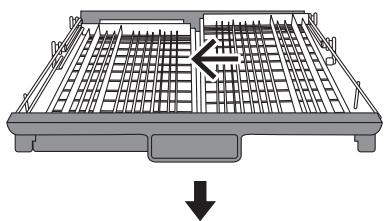

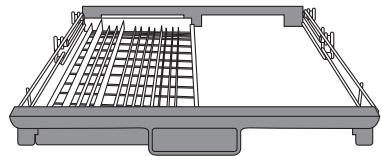

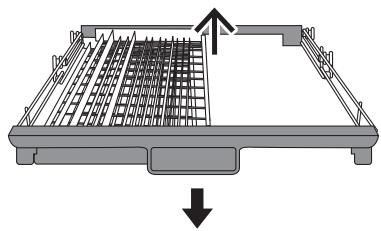

« Cutlery Rack Used Tips Lift the left basket up, adjust it to lower position, left basket is flat and right basket is sideling.

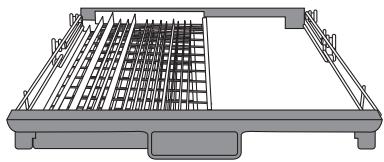

2H) n Lift the right basket up, both left and right baskets are flat. Move the right basket from right to left, two basket are overlapping. Remove the right basket from the tray, only has the Ÿ left basket.

DATABASE ACCESS In order to access to your model information stored in the product database, as set out in Regulation (EU) 2019/2017 and relating to energy labelling, please log on to the website: https://eprel.ec.europa.eu/ Look for the reference of your product on the website by putting the service reference that is indicated on your product rating plate. Another means to access this information is to flash the "QR" code on the energy label of your product. [ENE After Sales Service: Any maintenance on your equipment should be undertaken by: -Either your dealer, -Or another qualified mechanic who is an authorized agent for the brand appliances. When making an appointment, state the full reference of your equipment (model, type and serial number). This information appears on the manufacturer's nameplate attached to your equipment. INFORMATION: The minimum period of availability of spare parts listed in the European Regulation 2019-2022-EU and accessible in particular to the user of the appliance, is 10 years under the conditions layed down in the same regulation.
