USER MANUAL HW-T400 SAMSUNG

SAMSUNG FULL MANUAL HW-T400

Imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register

your product at wwwsamsung.com/register

SAFETY INFORMATION SAFETY WARNINGS TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK)

NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Refer to the table below for an explanation of symbols which may be on your Samsung product

CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN.

This symbol indicates that high voltage is present inside. Itis dangerous to make any kind of contact with any internal part of this product.

This symbol indicates that this product has included important literature concerning operation and maintenance.

Class I! product : This symbol indicates that it does not require a safety connection to electrical earth (ground). Ifthis symbol is not present on a product with a power cord, the product MUST have a reliable connection to protective earth (ground).

AC voltage : This symbol indicates that the rated voltage marked with the symbol is AC voltage

DC voltage : This symbol indicates that the rated voltage marked with the symbol is DC voltage.

Caution, Consult instructions for use This symbol instructs the user to

consult the user manual for further safety related information.

+ Toreduce the riskof fire or electric shock, do not expose this appliance to rain or moisture

+ To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.

+_ This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm:

+_ Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases, on the apparatus.

+ To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times.

FCC NOTE (for U.S.A): FCC Supplier’s Declaration of Conformity

Responsible Party -U.S. Contact Information: Samsung Electronics America, Inc.

Ridgefield Park, NJ 07660

Phone: 1-800-SAMSUNG (726-7864)

FCC Compliance Statement :

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

+ Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment.

To prevent electromagnetic interference with electric appliances, such as radios and televisions, use shielded cables and connectors for connections.

Class B FCC Statement This equipment has been tested and found to comply with the limits for à Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in à particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

+ _Reorienting or relocating the receiving

increasing the separation between the equipment and receiver.

Connecting the equipment to an outlet that is on a different circuit than the radio or TV. Consulting the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure Statement :

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated so there is at least 8 inches (20 cm) between the radiator and your body. This device andits antenna(s) must not be co-located or operated in conjunction with any other antenna or transmitter.

CALIFORNIA USA ONLY (Applicable for networking models only.)

This Perchlorate warning applies only to primary CR(Manganese Dioxide) Lithium coin cells in the product sold or distributed ONLY in California USA “Perchloate Material - special handling may apply, See www.dtsc.ca.gov/hazardouswaste/ perchlorate."

Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website:www.samsung.com/ recycling Or call, 1-800-SAMSUNG

Â\ WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov.

Important Safety Instructions

Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference. 1. Read these instructions. 2. Keepthese Instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth 7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug.

A polarized plug has two blades with one wider than the other. À grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10.Protect the power cord from being walked

on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

. Only use attachments/accessories specified

by the manufacturer.

. Use only with the cart, stand,

tripod, bracket, or table

specified by the manufacturer,

or sold with the apparatus.

When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

1. Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker located on the bottom of your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (3-4 inches). Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or other equipment which may become hot. This unit is designed for continuous use.

To fully turn off the unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of time.

2. During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to Lightning could damage the unit.

3. Do not expose the unit to direct sunlight or other heat sources. This could lead to overheating and cause the unit to malfunction

4. Protect the product from moisture (i.e. vases), and excess heat (e.g. a fireplace) or equipment creating strong magnetic or electric fields. Unplug the power cable from the AC wall socket if the unit malfunctions. Your product is not intended for industrial use. It is for personal use only. Condensation may occur if your product has been stored in cold temperatures. If transporting the unit during the winter, wait approximately 2 hours until the unit has reached room temperature before using.

5. The battery used with this product contains chemicals that are harmful to the environment. Do not dispose of the battery in the general household trash. Do not expose the battery to excess heat, direct sunlight, or fire. Do not short circuit, disassemble, or overheat the battery. Danger of explosion if the battery is replaced incorrectly. Replace only with the same or

ABOUT THIS MANUAL The user manual has two parts: this simple paper USER MANUAL and a detailed FULL MANUAL you can download

Led USER MANUAL See this manual for safety instructions, product installation, components, connections, and product specifications

FULL MANUAL You can access the FULL MANUAL on Samsung's on-line

e E customer support center by scanning the QR code on the left. à Ë To see the manual on your PC or mobile device, download the

manual in document format from Samsung's website.

(http:/www.samsung.com/support)

| Design and specifications are subject to change without prior notice.

Checking the Components Inserting battery (AAA) into the Remote Control Product Overview

Front / Right Side Panel of the Soundbar

Bottom Panel of the Soundbar

Using the Hidden Buttons (Buttons with more than one function)

Adjusting the Soundbar volume with a TV remote control Connecting the Soundbar

Connecting Electrical Power

Connecting to a TV Connecting using an Optical Cable Connecting a TV or Bluetooth Device via Bluetooth

Connecting a Soundbar to a mobile device via NFC function

Connecting an External Device

Connecting using an Optical Cable

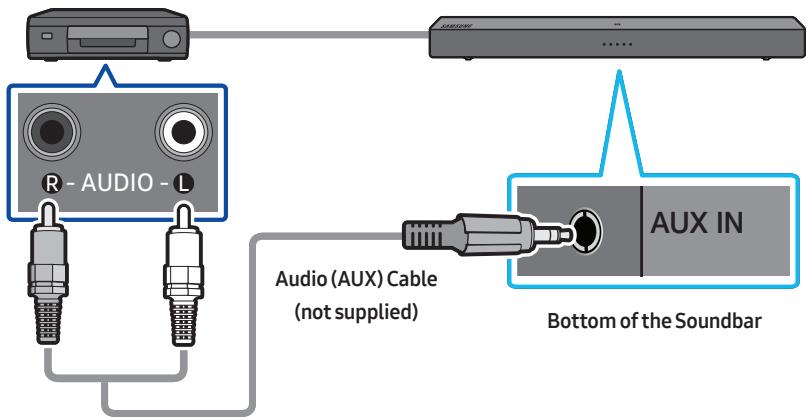

Connecting using an Analog Audio (AUX) Cable

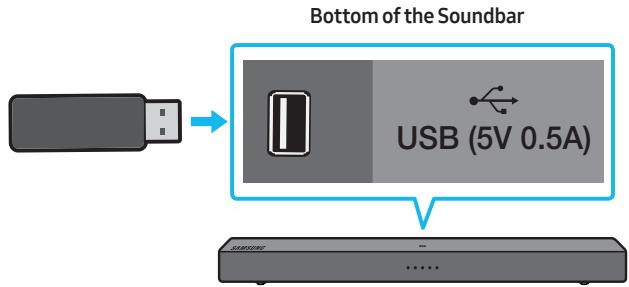

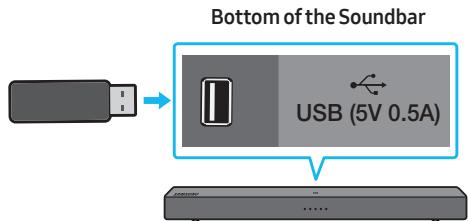

Connecting a USB Storage Device

Specifications and Guide

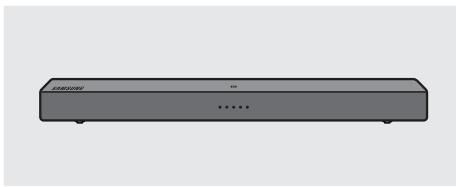

Soundbar Main Unit Power Cord Remote Control (AH81-11699A) (AH81-11700A) /Battery(AAAx1)

+ User Manual / Warranty Card / Regulatory Guide (Not available in some locations).

+ For more information about the power supply and power consumption, refer to the label attached tothe product. (Label: Bottom of the Soundbar Main Unit)

<_ To purchase additional components or optional cables, contact a Samsung Service Center or Samsung Customer Care.

«The appearance of the accessories may differ slightly from the illustrations above.

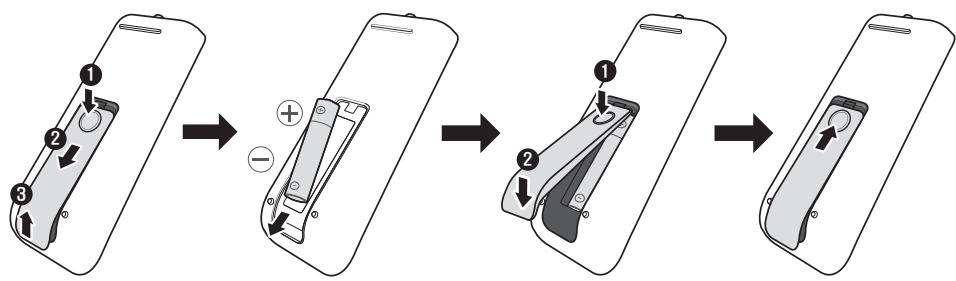

Inserting battery (AAA) into the Remote Control

Match the polarity of the battery to the symbols on the battery compartment.

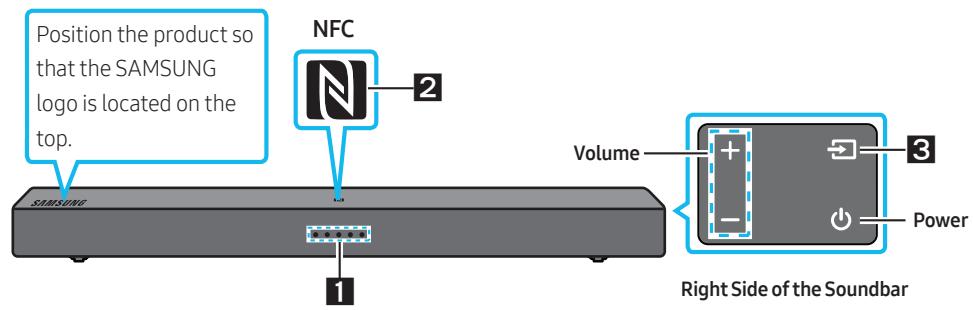

02 PRODUCT OVERVIEW Front / Right Side Panel of the Soundbar

Position the product so that the SAMSUNG Logo is located on the top.

Right Side of the Soundbar

The LED Indicator flashes, glows, or changes color depending on the Soundbar's current mode or status. The color of the LED indicator and the number of lights indicate the active mode as described below

ii LED Où LED Or LED Ocreen LED Mode

Remote control Button

NFC | You can activate your Bluetooth connection by placing your phone in the NFC detection area Logo | ofthe Soundbar.

Selects the source input mode. (D.IN / Bluetooth / AUX / USB) Source +_Toturn on ‘Bluetooth pairing” mode, change the source to “Bluetooth” mode and then

press and hold the button for more than 5 seconds.

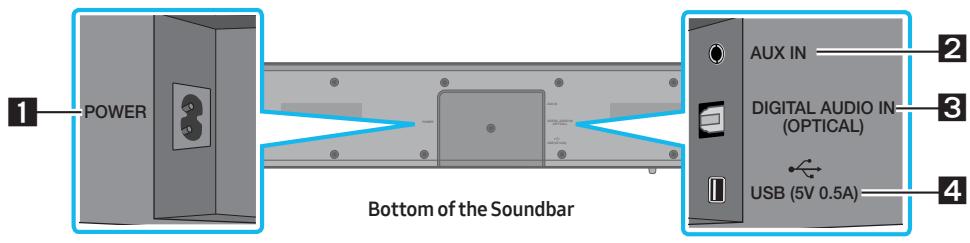

Bottom Panel of the Soundbar

Bottom ofthe Soundbar

EN | POMER | Connectthe Soundbar's AC power cord

AUX Connect to the Analog output of an external device.

D.IN Connect to the digital (optical) output of an external device.

EE) USB | ConnectaUSB device here to play music files onthe USB device through the Soundbar.

When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.

When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

If you want to enjoy sound only from the Soundbar, you must turn off the TV's speakers in the Audio Setup menu of your TV. Refer to the owner's manual supplied with your TV.

When disconnecting the power cord from a wall outlet, pull the plug. Do not pull the cable.

Do not connect this unit or other components to an AC outlet until all connections between components are complete.

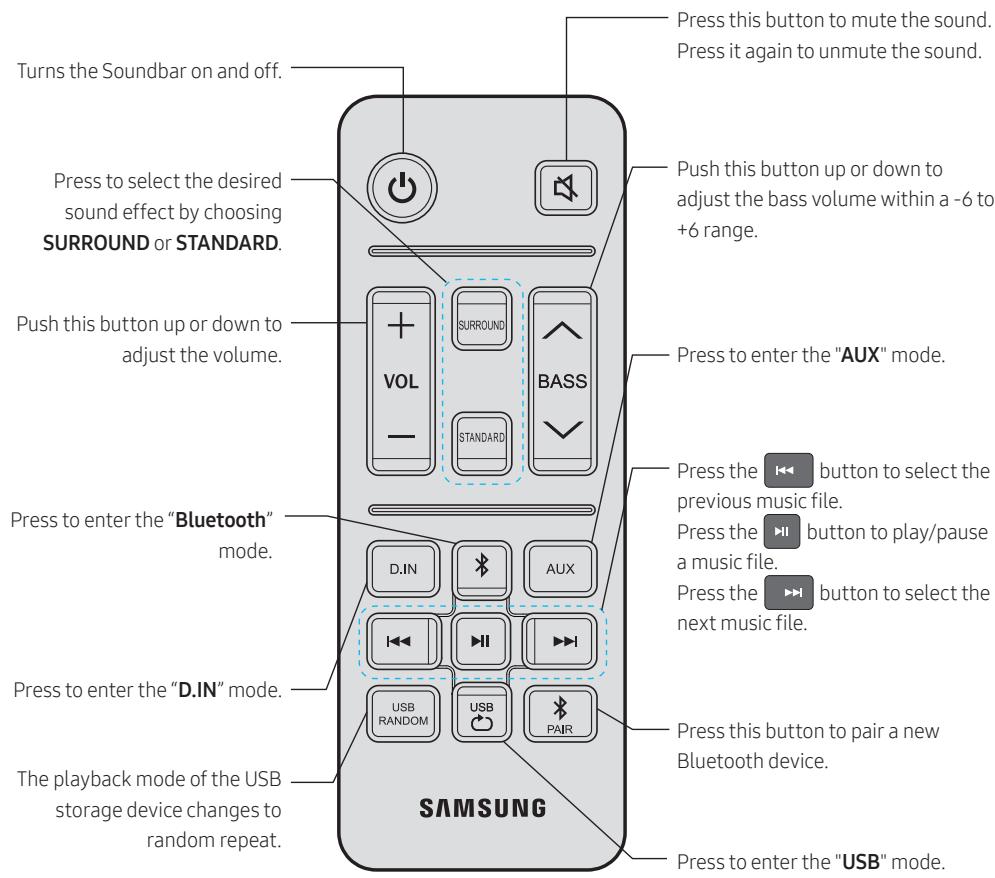

03 THE REMOTE CONTROL

+ Theimages, buttons, and functions of the remote control may differ depending on the model

Turns the Soundbar on and off.

Press to selectthe desired —} sound effect by choosing SURROUND or STANDARD.

Push this button up or down to —— adjust the volume.

Press to enter the "Bluetooth" —— mode.

Press to enter the “D.IN” mode. _

The playback mode of the USB —À storage device changes to

Press this button to mute the sound. Press it again to unmute the sound.

— Push this button up or doun to adjust the bass volume within a -6 to +érange.

— Press to enter the "AUX" mode.

| Pressthe Bioroscecttre

previous music ile. Pressthe Co] button to play/pause a music file.

Press the (EE button to select the next music ile.

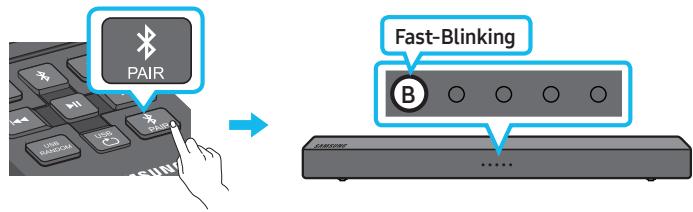

[— Press this button to pair anew Bluetooth device.

—— Press to enter the "USB" mode.

Using the Hidden Buttons (Buttons with more than one function)

Remote Control How to Use the Remote Control

— D.IN/ Bluetooth / USB / AUX Mode : there is no audio signal for 18 minutes. — _fthere is no KEY input for 8 hours when the Audio (AUX) Cable is connected. (Auto Power Down function can be turned off

only in that case.) — To turn off Auto Power Down function, while in "AUX" mode,

Auto Power press and hold the B button tor 5 seconds

Down On/Off (AUX mode) LED indicator

pins | ITS Eu CIS CI)

Auto Power Down On Auto Power Down Off

Press the [EB button for 5 seconds in the standby power off station to trigger the system initial function — This operation will not clear Bluetooth paired history.

NN \ For detailed information about TV remote control, please see "Adjusting control On/Off the Soundbar volume with a TV remote control" on page 14.

BASS (Standby) TV Connect | For detailed information about TV Connect, please see "Disconnecting (Bluetooth mode) | the Soundbar from the TV” on page 19.

Bluetooth Power On/off

Press the Le) button for 5 seconds inthe power on station to trigger the Bluetooth Power On/Off function.

(eine (suviins_ EX) O | EX ®

Bluetooth Power On Bluetooth Power Off

Auto Power Link On/off

For detailed information about Auto Power Link On/Off function, please see "Auto Power Link” on page 17.

Adjusting the Soundbar volume with a TV remote control

If you have a Samsung TV, you can adjust the Soundbar’s volume using the IR remote control that came with your Samsung TV. First use the TV menu to set the TV audio on your Samsung TV to external speakers, then use your

Samsung remote to control the Soundbar's volume. For more information, see the TV's user manual.

The default mode for this function is control by a Samsung TV. 1. lyour TV is not a Samsung TV and you want your TV' remote to control the Soundbar's volume, you can change the settings of this function by pressing and holding the BASS BA button repeatedly. To have your TV's remote adjust the Soundbar's volume, follow Steps 1 through

2. If you want to turn off this function completely, follow Steps 1 and 2

Mode Remote control Button LED indicator FLO 3 PTE s 2. “Off” mode 7 OIDIOIO 3. “ALLTV” mode TT OLOLO1O à “Samsung TV” mode | (Default mode) O\0\0 ®

—_ Each time you press the BASS Bbutton and hold it for 5 seconds, the mode switches in the following order:Samsung TV” (Default mode) > "Off" ->"AILTV”

— The LED'S blink for 3-4 seconds, then return tothe standby power off mode

=" This function may not be available, depending on your TV°s remote control.

= Manufacturers supporting this function: VIZIO, LG, Sony, Sharp, PHILIPS, PANASONIC, TOSHIBA,

Hisense, RCA ENG -14

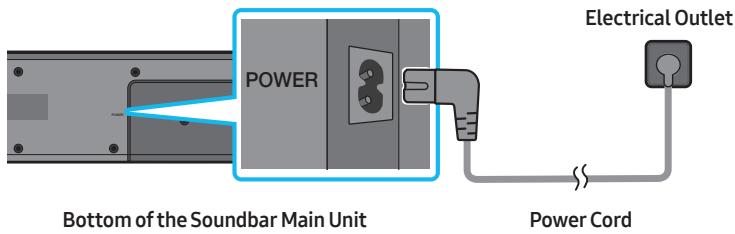

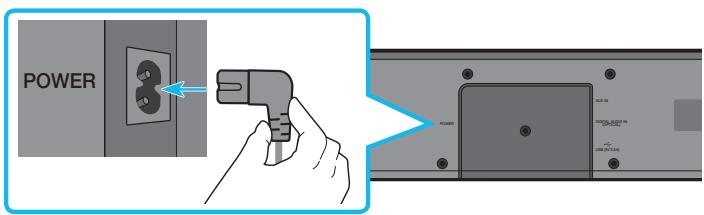

04 CONNECTING THE SOUNDBAR Connecting Electrical Power

+ For information about the required electrical power and power consumption, refer to the Label attached to the product. (Label : Bottom of the Soundbar Main Unit)

05 CONNECTING TO ATV Hear TV sound from your Soundbar through wired or wireless connections. + When the Soundbar is connected to selected Samsung TVS, you can control the Soundbar using the TV's remote control. — This feature is supported by 2017 and later Samsung Smart TVs that support Bluetooth when you connect the Soundbar to the TV using an optical cable. — This function also allows you to use the TV menu to adjust the sound field and various settings as well as the volume and mute.

Connecting using an Optical Cable

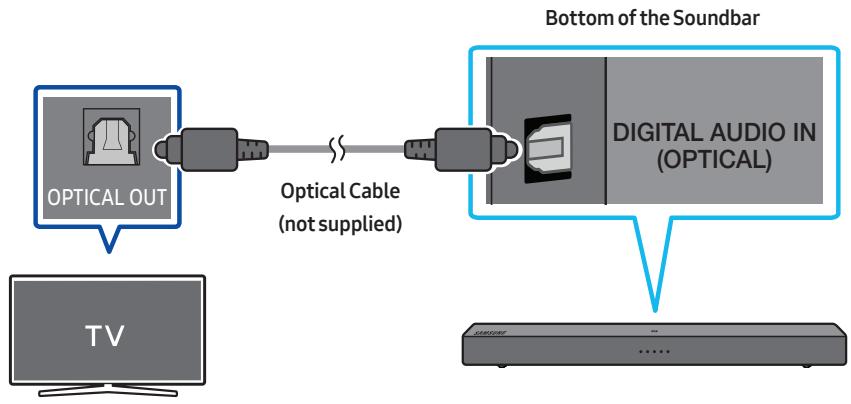

Step 1. Connect an Optical Cable

NOTE — When the audio in a broadcast is encoded in Dolby Digital and the “Digital Output Audio Format” on your TV is set to PCM, we recommend that you change the setting to Dolby Digital. When the setting on the TV is changed, you will experience better sound quality. (The TV menu may use different words for Dolby Digital and PCM depending on the TV manufacturer.)

Right Side of the Soundbar

Auto Power Link This Function automatically turns on the Soundbar when the TV is turned on if the Soundbar is connected to the TV by an Optical Cable (not supplied).

Press and hold the (Æ button on the remote control for more than 5 seconds to toggle this function + Auto Power Link is set to ON by default + Depending on the connected device, Auto Power Link may not function. <_ This function is only available in the “D.IN” mode.

Mode Remote control Button LEDindicator (X) @ ON _—

EE NOTE — You cannot connect more than one TV or Bluetooth device at a time.

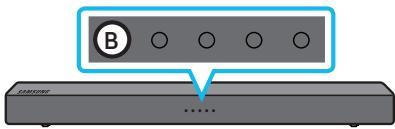

Step 3. Check the Soundbar's status

The blue LED should not be blinking once the Bluetooth connection is complete.

Ifthe TV or device fails to connect +_Ifa previously connected Soundbar listing appears in the device list of your TV or Bluetooth device, delete it. (e.9."[AV] Samsung Soundbar T400 T-Series”) «Then repeat steps 1 through 3.

Disconnecting the Soundbar from the TV Press the] button on the right side panel or on the remote control and switch to any mode but “Bluetooth” + _Disconnecting takes time because the TV must receive a response from the Soundbar. (The time required may differ, depending on the TV model.) + To cancel the automatic Bluetooth connection between the Soundbar and TV, press and hold L+ | button for 5 seconds in “Bluetooth Ready” mode. TV Connect is turned OFF. +_Toturn TV Connect back on, press and hold the ER button for 5 seconds with the Soundbar in “Bluetooth Ready” mode. + TV Connect is set to ON by default.

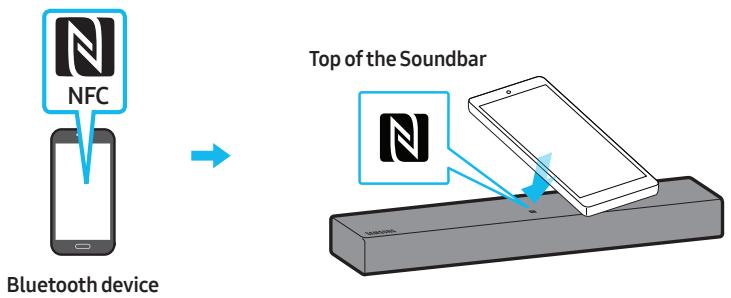

Step 1. Place your mobile device in the NFC detection area on top of the Soundbar

NOTES — Make sure that your mobile device has the NFC function turned on and that the screen is active. — Bluetooth connection is unavailable when NFC of the mobile device is in card emulation mode.

Step 2. Check the Soundbar's status

The blue LED should not be blinking once the Bluetooth connection is complete.

—_Ifasked for a PIN code when connecting a Bluetooth device, enter «0000». — The Soundbar automatically turns off after 18 minutes in the Ready state. — The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances: — _lfthere is a strong electrical field around the Soundbar. — _ lfseveral Bluetooth devices are simultaneously paired with the Soundbar. — _lfthe Bluetooth device is turned off, not in place, or malfunctions. — Electronic devices may cause radio interference. Devices that generate electromagnetic waves must be kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc. — The Soundbar supports SBC data (44.1kHz, 48kH/z). — Connect only to a Bluetooth device that supports the A2DP (AV) function. — You cannot connect the Soundbar to a Bluetooth device that supports only the HF (Hands Free) function: — Once you have paired the Soundbar to a Bluetooth device, selecting “[AV] Samsung Soundbar T400 T-Series” from the device’s scanned devices list will automatically change the Soundbar to

“Bluetooth” mode. — Available only if the Soundbar is listed among the Bluetooth device's paired devices. {The Bluetooth device and the Soundbar must have been previously paired at least once.) — The Soundbar cannot be paired to another Bluetooth device if already in Bluetooth mode and paired to a Bluetooth device.

Bluetooth Power On/Off If a previously paired Bluetooth device tries to pair with the Soundbar when the Bluetooth Power function is on and the Soundbar is turned off, the Soundbar turns on automatically. Press and hold the Πbutton for more than 5 seconds in the power on station to trigger/shut off Bluetooth Power On function. For more information about Bluetooth Power On/Off, see page 13.

+ Bluetooth Power function is set to On by default

More About Bluetooth Bluetooth is a technology that enables Bluetooth-compliant devices to interconnect easily with each other using a short wireless connection. + _A Bluetooth device may cause noise or malfunction, depending on usage, if. — Apart of your body is in contact with the receiving/transmitting system of the Bluetooth device or the Soundbar. —_Itis subject to electrical variation from obstructions caused by a wall, corner, or office partition. — _Itis exposed to electrical interference from same frequency-band devices including medical equipment, microwave ovens, and wireless LANs. + Pair the Soundbar with the Bluetooth device while they are close together. + _The further the distance between the Soundbar and Bluetooth device, the worse the quality is. Ifthe distance exceeds the Bluetooth operational range, the connection is lost. +_ In poor reception areas, the Bluetooth connection may not work properly. +_The Bluetooth connection only works when it is close to the unit. The connection will be automatically cut off if the Bluetooth device is out of range. Even within range, the sound quality may be degraded by obstacles such as walls or doors. + This wireless device may cause electric interference during its operation:

06 CONNECTING AN EXTERNAL DEVICE Connect to an external device via an optical cable or analog cable to play the external device's sound through the Soundbar.

Connecting using an Optical Cable

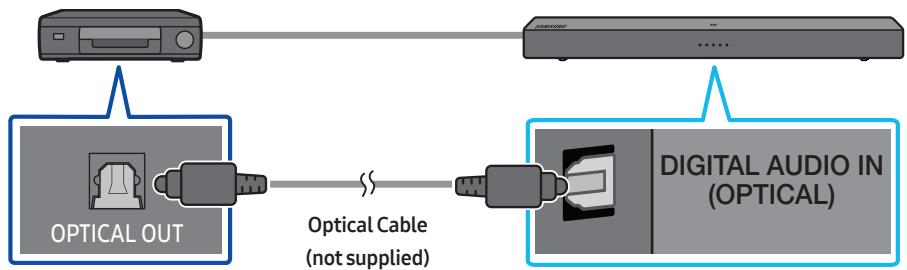

Step 1. Connect using an Optical Cable

BD / DVD player /Set-top box / Game console

BD / DVD player /Set-top box / Game console

REAUDIO® L Audio (AUX) Cable tu

{not supplied) Bottom of the Soundbar

V NOTE — The Soundbar automatically turns off (Auto Power Off) if you do not connect a USB device to the Soundbar within 18 minutes.

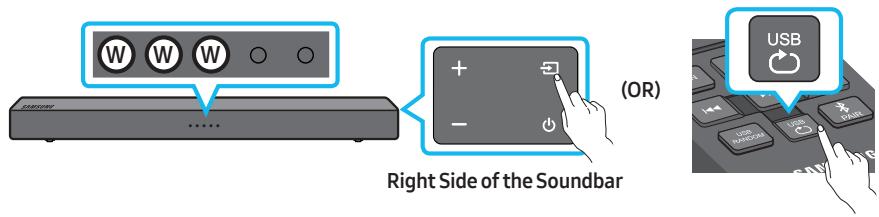

Setting Repeat Play Options

Repeat play When the Soundbar is in “USB” mode, each time you press the FA button the “USB” mode changes

how it plays tracks in the following order. “Repeat - Off" > “Repeat - 1song' > "Repeat - All songs” See the table below for details

Mode Remote control Button LED indicator

Repeat play at Random

When the Soundbar is in “USB” mode, once you press the (EM button, the "USB" mode changes how it plays tracks to "Repeat - Random”. See the table below for details.

Mode Remote control Button LED indicator

«_Ifthere are too many folders and files stored on the USB device, it may take the Soundbar some time to access and play files

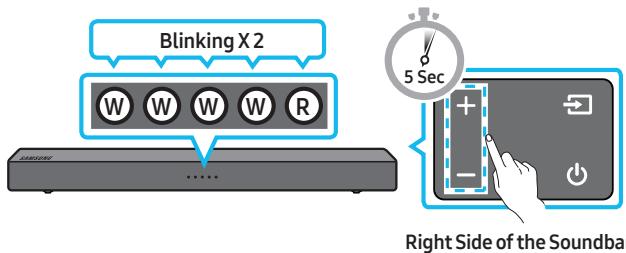

08 SYSTEMINITIALIZE Right Side of the Soundbar

With the Soundbar on, press the + — (Volume) buttons on the body at the same time for at least 5 seconds.

= Allthe settings of the Soundbar are initialized. Be sure to perform this only when initialization is required

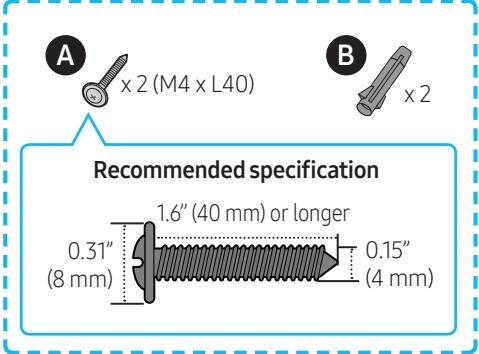

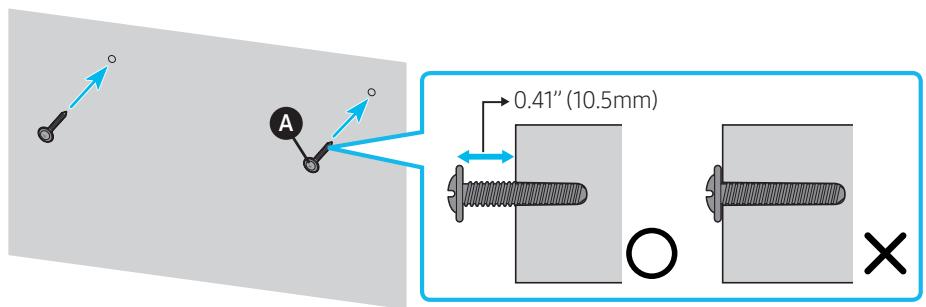

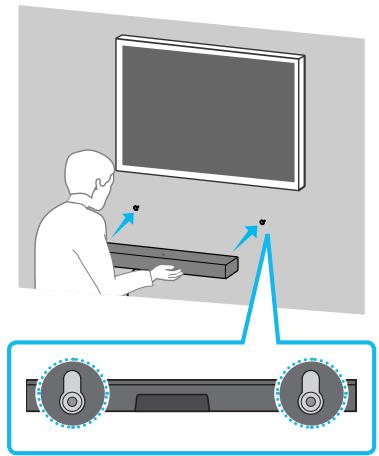

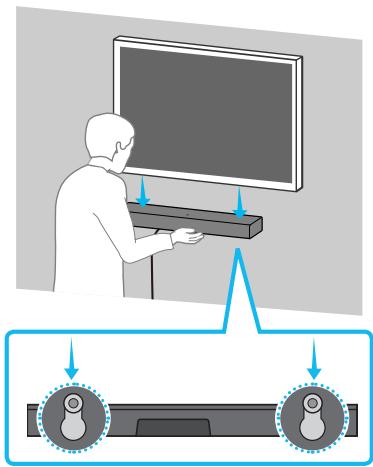

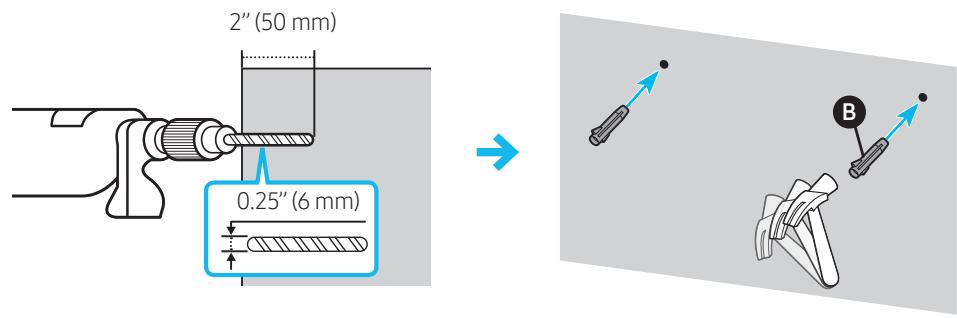

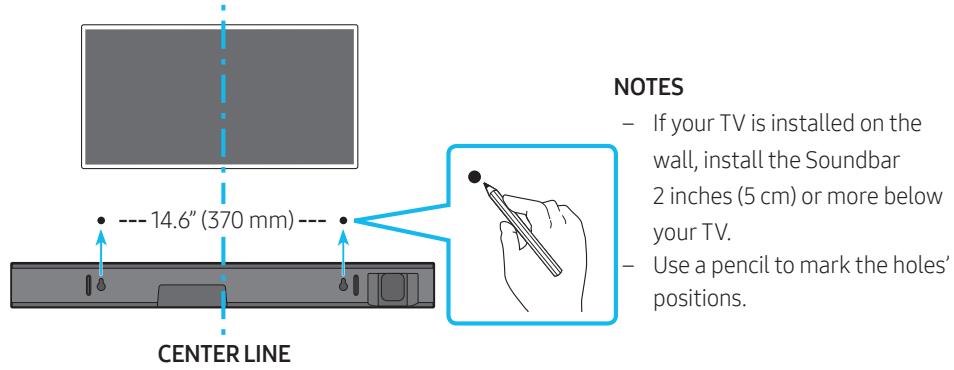

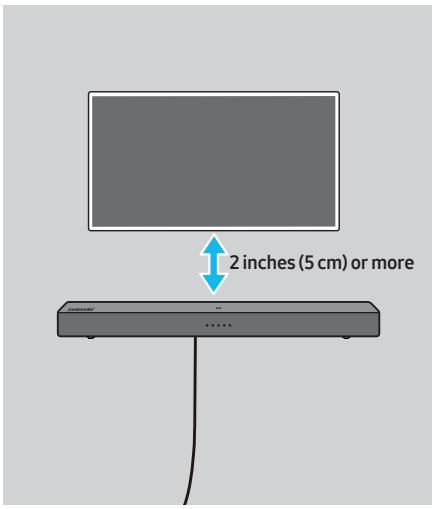

09 INSTALLING THE WALL MOUNT (OPTIONAL)

Installation Precautions

Install on a vertical wall onty, Do not instal in a place with high temperature or humidity. Verify whether the wall is strong enough to support the products weight. If not, reinforce the wall or choose another installation point

Purchase and use the fixing screws or anchors appropriate for the kind of wall you have (plaster board, iron board, wood, etc.)

If possible, fixthe support screws into wall studs.

Purchase wall mounting screws according to the type and thickness of the wall you want to mount the Soundbar on.

= Length: 1.6 inches or longer recommended Connect cables from the unit to external devices before you install the Soundbar on the wall

Make sure the unit is turned off and unplugged before you install it. Otherwise, it may cause an electric shock

Wall mount Components For Installation on Concrete Walls {not supplied)

ne n 1 La 0» : rwaxuao) «2 1 1 q 2inches(5 em) ormore Recommended specification ' 2 1.6" (40 mm) or longer : 037 on” |; (8mm) (mm) | 1 1 1

2222 J NOTE —_ Installations on other types of walls will require

different kinds of screws.

— lfyour TVis installed on the wall, install the Soundbar 2inches (5 cm) or more below

your TV. — Use à pencil to markthe holes’ positions CENTER LINE 2" (50 mm) , 0.25" (6 mm) 025" mm

= The installation method shown here is for CONCRETE walls. Installation methods will vary depending on the wall type. For installation on dry wall, we strongly recommend you drill crew support holes into the underlying wood studs,

NOTE À CAUTION — Supports for wall installation are built

into the back of the Soundbar. — Press the Soundbar down with sufficient

force to fix it to the wall. Ifthe Soundbar is not firmly fixed to the wall, it could be accidently detached, resulting in personal injury.

— Do not bump into or strike the Soundbar (especially from the bottom). The impact could detach the Soundbar from the wall, resulting in personal injury.

10 SOFTWARE UPDATE Samsung may offer updates for the Soundbar's system firmware in the future.

Bottom of the Soundbar

If an update is offered, you can update the firmware by connecting à USB device with the firmware update stored on it to the USB port on your Soundbar. For more information about how to download update files, go to the Samsung Electronics website at (www.samsung.com + Support).

Then, select the product type or enter the model

number of your Soundbar, select the Software & Apps option, and then Downloads. Note that the option names can vary.

Important: The updating function erases all user

settings. We recommend you write down your settings so that you can easily reset them after the update.

Connect a USB thumb drive to the USB port on your computer.

Important: Make sure there are no music files on the USB thumb drive. This may cause the firmware update to fail.

Go to the Samsung website at (samsung.

com) — select Enter Model Number and enter the model of your Soundbar. Select manuals and downloads and download the latest software file.

. Save the downloaded software to a USB

stick and select “Extract Here” to unzip the folder.

Turn off the Soundbar and connect the USB

stick containing the software update to the USB port.

. Disconnect the power cord, reconnect it, and

then turn on the Soundbar.

. Turn on the Soundbar and select mode to

USB. Within 3 minutes, 4 white LEDs on and update begins.

When the update finishes, the Soundbar

turns off. Press the [button onthe remote control for 5 seconds. Al LEDs blink 2 times and then the Soundbar turns off. The update is complete. _lfthe firmware fails to update, you can update the firmware again.

. Restore your settings on the Soundbar.

1. Turn off the Soundbar, disconnect and then reconnect the USB storage device that contains the update files to the Soundbar's USB port.

2. Disconnect the Soundbar's power cord, reconnect it, and then turn on the Soundbar.

— The firmware update may not work properly if audio files supported by the Soundbar are stored in the USB storage device.

— Do not disconnect the power or remove the USB device while updates are being applied. The main unit will turn off automatically after completing the firmware update.

— After the update is completed, the user setup in the Soundbar is initialized so you can reset your settings. We recommend you write down your settings so that you can easily reset them after the update. If the software update fails, check if the USB stick is defective

— MacOS users should use MS-DOS (FAT) as the USB format.

— Updating via USB may not be available, depending on the USB storage device manufacturer.

11 TROUBLESHOOTING Refer to the table below if this product does not function properly. fthe problem you are experiencing is not listed below or if the instructions below do not help, turn off the product, disconnectthe power cord, and contact Samsung Electronics at 1-800-SAMSUNG (1-800-726-7864)

The unit will not turn on.

Is the power cord firmly plugged into the wall outlet? — Unplug and reconnect the power cord to the wall outlet to make sure the connection is secure.

Afunction does not work when the button is pressed.

Is there static electricity in the air? — Disconnect the power plug and connect it again

Sound dropouts occur in Bluetooth mode.

— See the Bluetooth connection sections on pages 18 - 21. —_ In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 32.8 ft (10m).

Soundis not produced.

Isthe Mute function on?

— Press the VOL button to cancel the function. Is the volume set to minimum?

The remote control does not work.

Isthe battery drained?

— Replace with new batteries

Is the distance between the remote control and Soundbar main unit too far? — Move the remote control closer to the Soundbar main unit.

DOLBY AUDIO Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.

For DTS patents, see http://patents.dts.com Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS 2.0 Channel are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. AL Rights Reserved

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co, Ltd. is under license. Other trademarks and trade names are those of their respective owners.

13 OPEN SOURCE LICENSE NOTICE To send inquiries and requests regarding open sources, contact Samsung via Email (oss.request@samsung.com)

14 IMPORTANT NOTES ABOUT SERVICE Figures and'illustrations in this User Manual are provided for reference only and may differ from actual product appearance.

An administration fee may be charged if either: 8. An engineer is called out to your home at your request and there is no defect in the product.

b. You bring the unit to a repair center and there is no defect in the product.

You will be advised of the amount of the

administration fee before any work is done or a home visit is made.

If you have a problem with this product, we strongly recommend you read the appropriate section of this manual, visit the Support page for your product at www.samsung.com, or call Samsung Product Support (1-800-726-7864) to find an answer before you contact a service center for à repair.

15 SPECIFICATIONS AND GUIDE Specifications Model Name HW-T400 USB 5V/05A Weight 4.4 lbs (2.0 kg)

Dimensions (W x H x D) (641.0 x 65.0 x 107.0 mm)

Operating Temperature Range HAT to +959F (459C to +359) Operating Humidity Range 10%-75% Supported play formats LPCM 2ch, Dolby Audio"

(DTS 2.0 sound is played in DTS format.) (supporting Dolby® Digital), DTS NOTES

— Samsung Electronics Co, Ltd reserves the right to change the specifications without notice. — Weight and dimensions are approximate.

LIMITED WARRANTY TO ORIGINAL PURCHASER This SAMSUNG brand product, as supplied and distributed by SAMSUNG and delivered new, inthe original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and wrorkmanship for a limited warranty period of

One (1) Year Parts and Labor* {+90 Days Parts and Labor for Commercial Use)

This limited warranty begins on the original date of purchase, and is valid only on products purchased and used inthe United States. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG authorized service center. Transportation of the product to and from the service center is the responsibility of the purchaser.

SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. AlLreplaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG: Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer. SAMSUNGS obligations with respect to software products distributed by SAMSUNG under the SAMSUNG brand name are set forth in the applicable end user license agreement. Non-SAMSUNG hardware and software products, if provided, are on an"AS IS" basis

Non-SAMSUNG manufacturers, suppliers, publishers, and service providers may provide their oun warranties.

This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, and except to the extent otherwise expressly provided for in this statement, noncommercial use of this product, and shall not apply to the following, including, but not limited to: damage which occurs in shipment; delivery and installation, applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior finish, accidents, abuse, neglect, fire, water, Lightning or other acts of nature; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied and authorized by SAMSUNG, or which damage this product or result in service problems; incorrect electrical line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions, cleaning, maintenance and environmental instructions that are covered and prescribed in the instruction book; product removal or reinstallation; reception problems and distortion related to noise, echo, interference or other signal transmission and delivery problems. SAMSUNG does not warrant uninterrupted or error-free operation of the product.

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO WARRANTIES WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILIT Y OR FITNESS FOR À PARTICULAR PURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY PERIODS STATED ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PURCHASER AND PURCHASER'S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT SOLD BY SAMSUNG NOT CAUSE DIRECTLY BY THE NEGLIGENCE OF SAMSUNG. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.

Some states do not allow limitations on how long an implied warranty lasts, orthe exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This werranty gives you specific legal rights, and you may also have other rights which very from state to state.

To obtain warranty sendice, please contact SAMSUNG customer care center.

The benefits of this Limited Warranty extend only to the original purchaser of Samsung products from an autharized

Samsung reseller THIS LIMITED WARRANTY SHALL NOT APPLY TO ANY SAMSUNG PRODUCTS PURCHASED FROM UNAUTHORIZED RESELLERS OR RETAILERS, EXCEPT IN STATES WHERE SUCH RESTRICTION MAY BE PROHIBITED. For ist of Samsung authorized retailrs, please go to: httpi//umausamsung.com/us/peaceofmind/authorized._resellers html.

© 2020 Samsung Electronics Co, Ltd. All rights reserved.
