USER MANUAL HW-M350 SAMSUNG

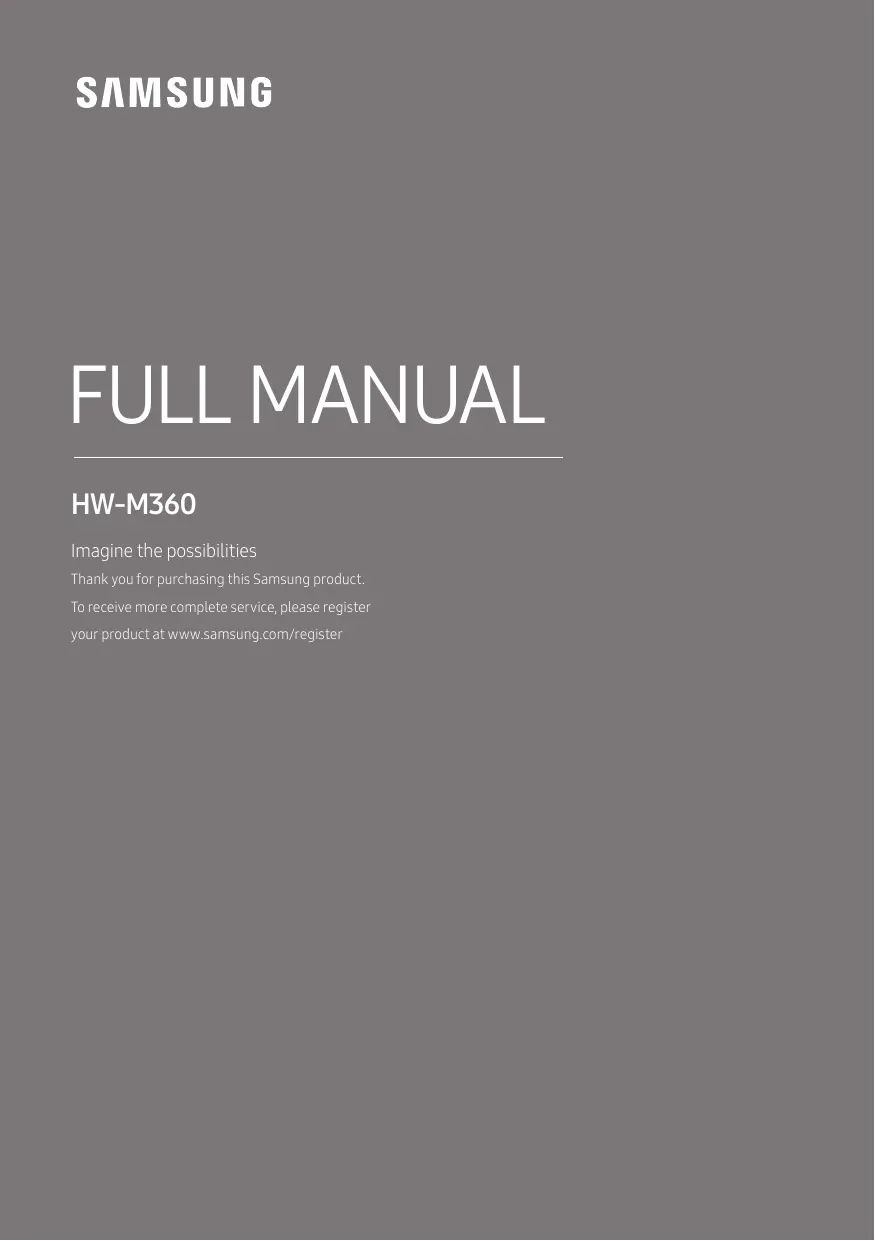

SAMSUNG FULL MANUAL HW-M360

Imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register

your product at www samsung.com/registei

SAFETY INFORMATION WARNING + Toreducethe risk of fire or electric shock, do

SAFETY WARNINGS TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

(1 RISK OF ELECTRIC SHOCK. DO NOT OPEN.

This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.

This symbol indicates that this product has included important literature concerning operation and maintenance.

Class ll product : This symbol indicates that it does not require a safety connection to electrical earth (ground)

AC voltage : This symbol indicates that the rated voltage marked with the symbol is AC voltage.

DC voltage : This symbol indicates that the rated voltage marked with the symbol is DC voltage.

Caution, Consult instructions for use This symbol instructs the user to consult the user manual for further safety related information.

not expose this appliance to rain or moisture.

CAUTION TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

This apparatus shall always be connected to a AC outlet with a protective grounding connection

To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable

Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the apparatus.

To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times.

1. Ensure thatthe AC power supply in your house complies with the power requirements listed on the identification sticker located on the back of your product Install your product horizontally, on à suitable base (furniture), with enough space around it for ventilation (7-10 cm). Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or other equipment which may become hot, This unit is designed for continuous use. To fully turn offthe unit, disconnect the AC plug from the wall outlet, Unplug the unit if you intend to leave it unused for à long period of time:

2. During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to lightning could damage the unit

3. Do not expose the unit to direct sunlight or other heat sources, This could lead to overheating and cause the unit to malfunction

4. Protect the product from moisture (Le. vases) and excess heat (e.g. a fireplace) or equipment creating strong magnetic or electric fields. Unplug the power cable from the AC wall socket if the unit malfunctions. Your product is not intended for industrial use. Itis for personal use only. Condensation may occur if your product has been stored in cold temperatures. If transporting the unit during the winter, wait approximately 2 hours until the unit has reached room temperature before using

5. The battery used with this product contains chemicals that are harmful to the environment. Do not dispose of the battery in the general household trash. Do not expose the battery to excess heat, direct sunlight, or fire. Do not short circuit, disassemble, or overheat the battery. Danger of explosion if the battery is replaced incorrectly. Replace only with the same or equivalent type

ABOUT THIS MANUAL The user manual has two parts: this simple paper USER MANUAL and a detailed FULL MANUAL you can download

USER MANUAL See this manual for safety instructions, product installation, components,

connections, and product specifications

FULL MANUAL You can access the customer support centre by scanning the QR code. To see the manual on your PC or mobile device, download the manual in document format from the website. (http:/www.samsung.com/support)

Design and specifications are subject to change without prior notice.

Inserting Batteries before using the Remote Control (AA batteries X 2)

Front Panel / Right Side Panel of the Soundbar

Bottom Panel of the Soundbar Connecting the Soundbar

Connecting Electrical Power

Connecting the Soundbar to the Subwoofer Automatic connection b

e subwoofer and the Soundbar Manually connecting the subwoofer if automatic connection fails

Connecting to your TV Method 1. Connecting with a Cable Connecting using an Optical Cable

Method 2. Connecting Wirelessly Connecting a TV via Bluetooth

Connecting an External Device

Connecting using an Optical or Analogue Audio (AUX) Cable

Connecting a USB ENG -iv

Connecting a Mobile Device

Connecting via Bluetooth

Using the Samsung Audio Remote App Installing the Samsung Audio Remote À Launching the Samsung Audio Remot

Using the Remote Control

How to Use the Remote Control

Adjusting the Soundbar volume with a TV remote control Using the Hidden Buttons

Output specifications for the different sound effect modes

Installing the Wall Mount

Installation Precautions Wallmount Components

Detaching the Soundbar from the Wall

Upditing Procedure H UPDATE is not displayed

Specifications and Guide

| D Soundbar Main Unit Subwoofer Remote Control / Batteries ° © Power Cord (Subwoofer) AC/DC Adapter (Main Unit) Optical Cable LC] Connect the AC plug to the adapter (en) until you hear a “snapping” sound to ensure they are securely fastened ACPlug Do not detach the AC plug from the (Depending on the country and adapter (it will not be removed once it model) has been attached).

The power connection steps are labelled (@, @, @). For more information about power connections, see page 5

For Soundbar wall mounting components, see page 24.

Micro USB to USB adapter Cable is sold separately. To purchase, contact a Samsung Service Centre or Samsung Customer Care

Depending on the region, the AC plug may vary in appearance, or it may be supplied integrated with the AC/DC adapter. The appearance of the accessories may differ slightly from the illustrations above.

Inserting Batteries before using the Remote Control (AA batteries X 2)

Slide the battery cover in the direction of the arrow until it is completely removed. Insert 2 AA batteries (1.5V) oriented so that their polarity is correct. Slide the battery cover back into position.

02 PRODUCT OVERVIEW Front Panel / Right Side Panel of the Soundbar

Position the product so that the

SAMSUNG logo is located on the top.

Right Side of the Soundbar

Displays the products status and current mode

+/- (Volume) Button Adjusts the volume. +_ When adjusted, the volume level appears on the Soundbar s front display.

Turns the power on and off,

5] (Source) Button Selects the source input mode. Inputmode Display Optical Digital input DIN [4] AUX input AUX BLUETOOTH mode BT USB mode USB

+_Toturn on “BT PAIRING" mode, change the source to "BT” mode, and then press and hold the Æ] (Source) button for more than 5 seconds.

+ When you plug in the AC cord, the power button will begin working in 4 to 6 seconds,

+ When you turn on this unit, there will be a 4 to 5 second delay before it produces sound

+_ifyou want to enjoy sound only from the Soundbar, you must turn off the TV'5 speakers in the Audio Setup menu of your TV. Refer tothe owners manual supplied with your TV.

Bottom Panel of the Soundbar

ü DIGITAL AUDIO IN (OPTICAL) Connect to the digital (optical) output of an external device.

USB (5V0.5A) Connect a USB device here to play music files on the USB device through the Soundbar.

AUXIN Connect to the Analogue output of an external device.

A DC19V (Power Supply In) Connect the AC/DC power adapter.

+ When disconnecting the power cable of the AC/DC power adaptor from a wall outlet, pull the plug. Do not pull the cable.

+ Do not connect this unit or other components to an AC outlet until all connections between components are complete.

03 CONNECTING THE SOUNDBAR Connecting Electrical Power

Use the power components (@, @, @) to connect the units to electrical outlets in the following order. 1.) Subwoofer — 2.) Soundbar Main Unit. See the illustrations below + For more information about the required electrical power and power consumption, refer to the label attached to the product. (Label : Bottom of the Soundbar Main Unit)

© ACPlug © AC/DC Adapter

Rear of Subwoofer Connecting Electrical Power Bottomofthe

Connecting the Soundbar to the Subwoofer

When the subwoofer is connected, you can enjoy rich bass sound

Automatic connection between the subwoofer and the Soundbar

When you turn the power on after connecting the power cables to the Soundbar and subwoofer, the subwoofer is automatically connected to the Soundbar. + When auto pairing is complete, the blue indicators at the top of the subwoofer turn on.

LED Indicator Lights on the Top of Subwoofer

LED Status Description Resolution a Successfully connected n - {normal operation) Check if the power cable to the main Blue Soundbar unit is connected properly or Blinking | Recoveringthe connection _ | wait for a while. (If blinking persists, try manually connecting the subwoofer. See page 7) Standby (with the Soundbar | Check if the power cable to the main main unit turned off) Soundbar unit is connected properly. Red On Connect again. See the instructions for Connection failed manual connection on page 7. . and Blinking Malfunction See the contact information for the ue

Samsung Service Centre in the manual

Manually connecting the subwoofer if automatic connection fails

Check before performing the manual connection + Check whether the power cables for the Soundbar and subwoofer are connected properly. + Make sure that the Soundbar is turned on.

1. Press and hold ID SET on the rear of the subwoofer for at least 5 seconds. The red indicator on the top of the subwoofer turns off and the blue indicator blinks.

A Rear ofthe Subwoofer Top ofthe Subwoofer 2. Turn offthe Soundbar. 3. Press and hold the VOL button on the remote control for at least 5 seconds with the Soundbar turned off (OFF). 4. The ID SET message appears on the display of the Soundbar for 1.3 seconds, and then disappear.

5. When the blue indicator on the subwoofer blinks, turn on the Soundbar's power by pressing 4) (Power) button on the right side of the main unit or on the remote control. 6. When the connection is successfully established, the blue indicator on the top of the subwoofer stops blinking and glows continuously. +_Ifthe connection process fails, the blue indicator will flash continuously. Go to Step 1 and start again.

NOTES + Do not connect the power cord of this product or your TV to a wall outlet until all connections between components are complete. + Before moving or installing this product, be sure to turn off the power and disconnect the power cord.

«_Ifthe main unit is powered off, the wireless subwoofer will go into stand-by mode and the STANDBY LED on the top will be Red after linking Blue several times, If you use a device that uses the same frequency (5.8GHz) as the Soundbar near the Soundbar,

interference may cause some sound interruption.

The maximum transmission distance of the wireless signal of the main unit is about 10 meters, but may vary depending on your operating environment. fa steel-concrete or metallic wall is between the main unit and the wireless subwoofer the system may not operate at all, because the wireless signal cannot penetrate metal

PRECAUTIONS + Wireless receiving antennas are built into the wireless subwoofer. Keep the units away from water and moisture + For optimal listening performance, make sure thatthe area around the wireless subwoofer and Wireless Receiver Module (Sold separately) location is clear of any obstructions.

Expand to true wireless surround sound by connecting the Samsung Wireless Rear Speaker Kit (SWA-85005) to your Soundbar (Sold separately). For more information, see the Samsung Wireless Rear Speaker Kit manual.

04 CONNECTING TO YOURTV Hear TV sound from your Soundbar through wired or wireless connections. + When the Soundbar is connected to a selected Samsung TV, the Soundbar can be controlled using the TV’s remote control. = When using optical cable, this feature can be supported by 2017 Samsung Smart TVs that support Bluetooth. — "This function also allows you to use the TV menu to adjust the sound field and various settings as well as the volume and mute.

Method 1. Connecting with a Cable

Connecting using an Optical Cable

(ll TV L opricaL our Optical Cable — —

Bottom ofthe Soundbar

1. Connect the DIGITAL AUDIO IN (OPTICAL) jack on the Soundbar to the OPTICAL OUT jack of the TV with a digital optical cable. 2. Press the #7] (Source) button on the right side panel or remote control, and then select mode “DIN” + When the Soundbar is connected to a Samsung smart TV released in 2017 or later, the Bluetooth POWER function automatically turns on to enable the Soundbar to be controlled with the TV remote control. (See page 21 for details on Bluetooth POWER.)

Auto Power Link Auto Power Link automatically turns on the Soundbar when the TV is turned on. 1. Connect the Soundbar and a TV with a digital optical cable. 2. Press the #] (Source) button on the right side panel or on the remote control, and then select “DIN” 3. Press the Left button on the remote control for 5 seconds to turn Auto Power Link on or off. + Auto Power Link is set to ON by default. {To turn off this function, turn off Auto Power using the Soundbar.) + Depending on the connected device, Auto Power Link may not function

+_ This function is only available in the “D.IN” mode.

Method 2. Connecting Wirelessly

Connecting a TV via Bluetooth

When a TV is connected using Bluetooth, you can hear stereo sound without the hassle of cabling

+ Only one TV can be connected at atime

Theinitial connection 1. Press the #] (Source) button on the right side panel or on the remote control, and then select "BT 2. Change "BT” to "BT PAIRING”. +_IF"BTREADV' appears, press and hold the] (Source) button on the right side panel of the Soundbar or on the remote control for more than 5 seconds to display “BT PAIRING". 3. Select Bluetooth mode on the TV. (For more information, see the TV's manual.) 4. Select "[AV] Samsung Soundbar Mxxx M-Series” from the list on TV's screen An available Soundbar is indicated with "Need Pairing” or “Paired” on the TV Bluetooth device list. To connect to the Soundbar, select the message and establish a connection. + When the TV is connected, [TV Name] - "BT” appears on the Soundbars front display. 5. You can now hear TV sound from the Soundbar.

Ifthe device fails to connect +_lfthe previously connected Soundbar listing (e.g. [AV] Samsung Soundbar Mxxx M-Series”) appears in the List, delete it. +_In"BT' mode, press and hold the Æ] (Source) button for more than 5 seconds on the right side panel of the Soundbar or on the remote control to switch to “BT PAIRING” mode. Then, select "[AV] Samsung Soundbar Mxxx M-Series” from the TV's search list.

What are the BT READY and BT PAIRING statuses? + BTREADY: In this mode, you can search for previously connected TVSs or connect to the Soundbar from a previously connected mobile device. + BTPAIRING: In this mode, you can connect to a new device. (While in “BT” mode, press and hold the Æ1 (Source) button for more than 5 seconds on the right side of the Soundbar or on the remote

NOTES +_Ifasked for a PIN code when connecting a Bluetooth device, enter «00009. +_In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 10 meters. + The Soundbar automatically turns off after 5 minutes in the Ready state. +_The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances: —_ lfthere is a strong electrical field around the Soundbar. — Ifseveral Bluetooth devices are simultaneously paired with the Soundbar. —_lfthe Bluetooth device is turned off, not in place, or malfunctions. + Electronic devices may cause radio interference. Devices that generate electromagnetic waves must be kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc.

Disconnecting the Soundbar from the TV Press the #1] (Source) button on the right side panel or on the remote control and switch to any mode but"BT” + _Disconnecting takes time because the TV must receive à response from the Soundbar. (The time required may differ, depending on the TV model.) + To cancel automatic Bluetooth connection between the Soundbar and TV, press the »il (Play/Pause) button on the remote control for 5 seconds in “BT READY" status. (Toggle On + Off)

05 CONNECTING AN EXTERNAL DEVICE Connect to an external device via a wired or wireless network to play the external device's sound through the Soundbar.

Connecting using an Optical or Analogue Audio (AUX) Cable

BD / DVD player /Set-top box / Game console Right Side ofthe Soundbar

LE OPTICAL OUT R- AUDIO - L Audio (AUX) Cable (not supplied) Bottom ofthe Soundbar

1 Optical Cable © Connect DIGITAL AUDIO IN (OPTICAL) on the main unit to the OPTICAL OUT jack of the Source Device using à digital optical cable. @ Select "D.IN’ mode by pressing the #1] (Source) button on the right side panel or on the remote control.

2 Audio (AUX) Cable © Connect AUX IN (Audio) on the main unit to the AUDIO OUT jack of the Source Device using an audio cable. @ Select "AUX mode by pressing +] (Source) button on the right side panel or on the remote control.

06 CONNECTING À USB You can play music files located on USB storage devices through the Soundbar.

USB (5V 0.5A) USB Micro USBto À NSBacanter Cable

1. Connect a Micro USB to USB adapter cable with a male USB 2.0 Micro USB plug (Type B) on one end and a standard female 2.0 USB jack (Type A) on the other end to the micro USB jack on your Soundbar.

+ Micro USB to USB adapter Cable is sold separately. To purchase, contact a Samsung Service Centre or Samsung Customer Care.

2. Connect your USB device to the female end of the adapter cable

3. Press the #] (Source) button on the right side panel or on the remote control, and then select “USB”

4. “USB" appears in the display screen

5. Play music files from the USB storage device through the Soundbar.

+_ The Soundbar automatically turns off (Auto Power Off) if no USB device has been connected for more than 5 minutes.

File Format Type Compatibility List

«_Ifthere are too many folders and files stored on the USB device, it may take the Soundbar some time to access and play files

07 CONNECTING À MOBILE DEVICE Connecting via Bluetooth

When a mobile device is connected using Bluetooth, you can hear stereo sound without the hassle of

cabling + You cannot connect more than one Bluetooth device at a time.

Theinitial connection 1. Press the #5] (Source) button on the right side panel or on the remote control, and then select "BT 2. Change "BT” to "BT PAIRING”. +_IÉ"BTREADV' appears, press and hold the] (Source) button on the right side panel of the Soundbar or on the remote control for more than 5 seconds to display “BT PAIRING”. 3. Select "[AV] Samsung Soundbar Mxxx M-Series” from the list. + When a Soundbar is connected to the Bluetooth device, [Bluetooth Device Name] > "BT” appears in the front display. 4. Play music files from the device, connected via Bluetooth, through the Soundbar.

If the device fails to connect +_lfthe previously connected Soundbar listing (e.g. [AV] Samsung Soundbar Mxxx M-Series”) appears in the list, delete it. +_In"BT' mode, press and hold the Æ] (Source) button for more than 5 seconds on the right side panel of the Soundbar or on the remote control to switch to "BT PAIRING” mode. Then, select "[AV] Samsung Soundbar Mxxx M-Series” from the Bluetooth device search list.

What are the BT READY and BT PAIRING statuses? + BTREADY: In this mode, you can search for previously connected TVSs or connect to the Soundbar from a previously connected mobile device. + BTPAIRING: In this mode, you can connect to a new device. (While in “BT” mode, press and hold the Æ1 (Source) button for more than 5 seconds on the right side of the Soundbar or on the remote control.)

NOTES +_lfasked for a PIN code when connecting a Bluetooth device, enter «0000». In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 10 meters. The Soundbar automatically turns off after 5 minutes in the Ready state. The Soundbar may not perform Bluetooth search or connection correctly under the following

— lfthere is a strong electrical field around the Soundbar.

— _ lfseveral Bluetooth devices are simultaneously paired with the Soundbar.

—_Ifthe Bluetooth device is turned off, not in place, or malfunctions. Electronic devices may cause radio interference. Devices that generate electromagnetic waves must be kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc. The Soundbar supports SBC data (441kHz, 48kHz), Connect only to a Bluetooth device that supports the A2DP (AV) function. You cannot connect the Soundbar to a Bluetooth device that supports only the HF (Hands Free) function: Once you have paired the Soundbar to à Bluetooth device, selecting “[AV] Samsung Soundbar MxxxM-Series” from the device's scanned devices list will automatically change the Soundbar to "BT' mode.

— Available only if the Soundbar is listed among the Bluetooth device's paired devices.

(The Bluetooth device and the Soundbar must have been previously paired at least once.)

The Soundbar will appear in the Bluetooth devices searched devices list only when the Soundbar is displaying"BT READY”. Soundbar cannot be paired to another Bluetooth device, while using the Bluetooth function.

Bluetooth POWER On (Bluetooth POWER)

If a previously paired Bluetooth device tries to pair with the Soundbar when the Bluetooth POWER On function is on and the Soundbar is turned off, the Soundbar turns on automatically.

1. Press the Bluetooth POWER button on the remote while the Soundbar is turned on

2. “ON-BLUETOOTH POWER" appears on the Soundbar's display.

Disconnecting the Bluetooth device from a Soundbar

You can disconnect a Bluetooth device from the Soundbar. For instructions, see the Bluetooth device's user manual. + The Soundbar will be disconnected + When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display “BT DISCONNECTED" on the front display.

Disconnecting the Soundbar from the Bluetooth device

Press the #7 (Source) button on the right side panel or on the remote control, and then change to any mode except "BT”. + Disconnecting takes time because the Bluetooth device must receive a response from the

Soundbar. (Disconnection time may differ, depending on the Bluetooth device) + When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display “BT DISCONNECTED" on the front display.

NOTES +_In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 10 meters. + The Soundbar automatically turns off after 5 minutes in the Ready state.

More About Bluetooth Bluetooth is a technology that enables Bluetooth-compliant devices to interconnect easily with each other using a short wireless connection. + _A Bluetooth device may cause noise or malfunction, depending on usage, if. — Apart of your body is in contact with the receiving/transmitting system of the Bluetooth device or the Soundbar. —_Itis subject to electrical variation from obstructions caused by a wall, corner, or office partition. —_Itis exposed to electrical interference from same frequency-band devices including medical equipment, microwave ovens, and wireless LANSs. + Pair the Soundbar with the Bluetooth device while they are close together. The further the distance between the Soundbar and Bluetooth device, the worse the quality is. Ifthe distance exceeds the Bluetooth operational range, the connection is lost. In poor reception areas, the Bluetooth connection may not work property. The Bluetooth connection only works when it is close to the unit. The connection will be automatically cut off if the Bluetooth device is out of range. Even within range, the sound quality may be degraded by obstacles such as walls or doors. This wireless device may cause electric interference during its operation:

Using the Samsung Audio Remote App

Installing the Samsung Audio Remote App

To control the Soundbar with your smart device and the Samsung Audio Remote app, download the

Samsung Audio Remote app from the Google Play store

Market search : Samsung Audio Remote GETTON oogle Play

Launching the Samsung Audio Remote App

To launch and use the Samsung Audio Remote app, touch the Audio Remote icon on your smart device,

and then follow the directions on the screen.

<_ The Samsung Audio Remote app is only compatible with Android mobile phones and mobile devices running Android OS 3.0 or later.

08 USING THE REMOTE CONTROL How to Use the Remote Control

Turns the Soundbar on and off.

You can select from TREBLE, BASS, or AUDIO Sync

+ To control the volume of the treble or bass sound, select TREBLE or BASS in Sound Settings, and then adjust the volume between -6-+6 by using the Up/Down buttons. Press and hold the 463 (Sound Control) button for about 5 seconds to adjust the sound for each frequency band. 150Hz, 300Hz, 600Hz, 1.2KHz, 2.5KHz, 5KHz, and 10KHz are selectable (Left/Right) and each can be adjusted to a setting between -6- +6 (Up/Down) Ithe video and audio between the TV and your Soundbar are not synchronised, select AUDIO SYNC in Sound Settings, and then set audio delay between 0-300 milliseconds by using the Up/Down buttons. (Except USB' mode) Audio Sync is only supported in some functions.

The Surround Sound function adds depth and a sense of space to sound Each time you press this button, ON and OFF alternate.

+_ ON: Play sound over all the speakers

+_ OFF: Youcan hearthe sound ofthe original source channel from several speakers

SOUND MODE You can select the desired sound effect by choosing STANDARD, MUSIC, CLEAR VOICE,

Select the “STANDARD mode if you want to enjoy the original sound

+ DRC (Dynamic Range Control) Lets you apply dynamic range control to Dolby Digital tracks. f you press and hold the SOUND MODE button while in standby mode, DRC (Dynamic Range Control) turns on or off. With the DRC turned on, loud sound is reduced. (The sound may be distorted.)

Press to select a source connected to the Soundbar. + BTPAIRING mode To turn on “BT PAIRING” mode in “BT" mode, press and hold the S] (Source) button for more than 5 seconds. See page 15 for details. + Auto Power Down Function The unit turns off automatically in the following situations. — DIN/BT/USB Mode : fthere is no audio signal for 5 minutes. — AUX Mode — _Ifthe Audio (AUX) Cable is disconnected for 5 minutes —_lfthereis no KEY input for 8 hours when the Audio (AUX) Cable is connected. {Auto Power Down function can be turned off only in that case) =" Toturn off Auto Power Doun function, while in‘AUX" mode, press and hold the »11 button for 5 seconds. “ON-AUTO POWER DOWN" / “OFF-AUTO POWER DOWN" appears on the display.

Press the mil button to pause à music file tempararily. If you press the button again, the music file plays

Press the indicated areas to select Up/Down/Left/Right.

Press Up/Down/Left/Right on the button to select or set functions.

To use the Repeat function in "USB" mode, press the Up button

Press the Right button to select the next music file. Press the Left button to select the previous music file.

You can turn Auto Power Link on or off.

Auto Power Link is controlled by the Right and Left buttons respectively.

— Auto Power Link: the Soundbar is connected to your TV through a digital optical cable, the Soundbar can automatically turn on when you turn on your TV. Press and hold the Left button for 5 seconds to toggle Auto Power Link ON and OFF.

— Auto Power Link is set to ON by default.

POWER Press to turn the Bluetooth POWER or volume restriction function on and off.

+ Bluetooth POWER function: Ifthe Soundbar is in standby mode and the Bluetooth POWER function is On, when you turn on a previously connected Bluetooth device, the Soundbar automatically turns on and connects via Bluetooth to the device.

— Whenthe Bluetooth POWER function is on, "ON-BLUETOOTH POWER" appears on the Soundbar display. To turn off the Bluetooth POWER function, press the Bluetooth POWER button once. Then "OFF-BLUETOOTH POWER" appears on the front display.

— _lfthe"D.IN" mode is on and the Soundbar is connected to a Samsung smart TV released in 2017 or Later, the Soundbar can be controlled with the TV remote control.

In this mode, you cannot turn off Bluetooth POWER.

+ Volume restriction function : Because it may damage hearing when the power is turned on at high volumes, it adjusts the volume to 20 when the set volume is higher than 20.

— "The default value for Volume restriction is off. The set volume is maintained even when the power is turned off.

— To change the setting, press the Bluetooth POWER button on the remote control for 5 seconds. With the volume restriction off, "V FREE” appears onthe front display and with the function on, "V LOCK" appears

WOOFER Push the button up or down to adjust the volume of the subwoofer to -12 or -6 to +6. Pressing the button reverts the subwoofer volume to level 0.

voL Push the button up or down to adjust the volume. + Mute

Press the VOL button to mute the sound. Press it again to unmute the sound

Adjusting the Soundbar volume with a TV remote control

Use the TV menu to set the TV speaker on a Samsung TV to external speakers. (For more information, see the TV's user manual.)

+ _After installing the Soundbar, you can adjust the Soundbar's volume using the IR remote control that came with à Samsung TV. (If you do not want to use this function, when the Soundbar is on, press and hold the Surround button for 5 seconds. “OFF-TV REMOTE" appears in the Soundbar's display and the function turns off.)

To adjust the volume using only the Samsung TV remote control, press and hold the Surround button for more than 5 seconds until "SAMSUNG-TV REMOTE" appears in the Soundbar display.

— Each time the Surround button is held for 5 seconds, the mode switches in the following order:

“SAMSUNG-TV REMOTE" (Default mode) >"OFF-TV REMOTE" > "ALL-TV REMOTE" To adjust the Soundbar volume with the remote control that came with à TV made by a third party manufacturer, turn the Soundbar on, press and hold the Surround button for 5 seconds ('OFF-TV REMOTE” appears on the Soundbar's display), release the Surround button, and then press and hold the Surround button again for more than 5 seconds. (‘ALL-TV REMOTE" appears on the Soundbar's display.)

— This function may not be available, depending on the remote control.

— Manufacturers supporting this function:

Using the Hidden Buttons

Surround TV remote control On/Off page 22 1 (Source) BT Paring page 15 Auto Power Down On/Off (AUX mode) page 20

»il (Play / Pause) Initialise (Standby) page 28 VOL ID SET (Standby) page 7 Left Auto Power Link ON/OFF page 10 #8 (Sound Control) 7 Band EQ page 19 SOUND MODE DRC ON/OFF (Standby) page 20 Bluetooth POWER Volume restriction On/Off page 21

Output specifications for the different sound effect modes

+ Samsung Wireless Rear Speaker Kit can be purchased separately. To purchase a Kit, contact the vendor you purchased the Soundbar from

09 INSTALLING THE WALL MOUNT Installation Precautions

Install on a vertical wall onty, Do not instal in a place with high temperature or humidity. Verify whether the wall is strong enough to support the products weight. If not, reinforce the wall

or choose another installation point Purchase and use the fixing screws or anchors appropriate for the kind of wall you have (plaster board, iron board, wood, etc). f possible, fixthe support screws into wall studs

Purchase wall mounting screws according to the type and thickness of the wall you want to mount

the Soundbar on. = Diameter M5 = Length: 35 mm or longer recommended Connect cables from the unit to external devices before you install the Soundbar on the wall Make sure the unit is turned off and unplugged before you install it. Otherwise, it may cause an

Wallmount Components Lo O5 cm | SRE Sn 1@ | Wall Mount Guide

Holder-Screw (2 EA) Screw(2EA) Bracket-Wall MountL Bracket-Wall MountR ENG -24

1. Place the Wall Mount Guide against the wall 3. Push a pen tip or sharpened pencil tip

surface through the centre of the B-TYPE images on +_ The Wall Mount Guide must be level each end of the Guide to mark the holes for +_ifyour TVis mounted on the wall, install the supporting screws, and then remove the the Soundbar at least 5 cm below the TV. Wall Mount Guide

4. Using an appropriately sized drill bit, drill a  hole in the wall at each marking «_Ifthe markings do not correspond to the

©) =! © positions of studs, make sure you insert

appropriate anchors or mollies into the

2. Align the Paper Templates Centre Line with holes before you insert the support the centre of your TV (if you are mounting screws. ff you use anchors or mollies, the Soundbar below your TV), and then fix make sure the holes you drill are large the Wall Mount Guide to the wall using tape. enough for the anchors or mollies you

+_Ifyou are not mounting below a TV, place use the Centre Line in the centre of the 5. Push a screw (not supplied) through each installation area. Holder-Screw, and then screw each screw

firmly into a support screw hole.

6. Use the two Screws (M4 x L12) to attach both + The left and right mounts are different Bracket-Wall Mount Land R to the shapes. Make sure to position them Soundbar's bottom. correctly.

For a proper fit, make sure to align the

intesantreeenionte VEN brackets.

ESS Wall Mount R Wall Mount L

4 ee 7. InstalLthe Soundbar with the attached Bracket-Wall Mounts by hanging the Bracket-Wall Mounts on the Holder-Screws on the wall

+ When assembling, make sure the hanger — “À la part of the Bracket-Wall Mounts are located behind the rear of the Soundbar.

+ Slightly tilt the Soundbar to insert both Holder-Screw heads into Bracket-Wall Mount holes. Push the Soundbar in the direction of the arrow to make sure both sides are firmly fixed.

Right end of Soundbar

Detaching the Soundbar from the Wall To separate the Soundbar from the wall

mount, push it in the direction of arrow, tilt it up slightly, and then pull it away from the

Do not hang onto the installed unit and avoid striking or dropping the unit

Secure the unit firmly to the wall so that it does not fall off. the unit falls off, it may

cause an injury or damage the product When the unit is installed on a wall, please make sure that children do not pull any ofthe

connecting cables, as this may cause it to fall

For the optimal performance of a wall mount installation, install the speaker system at least5 cm belowthe TV, ifthe TV is mounted onthe wall

For your safety, if you do not mount the unit onthe wall install it on a secure, flat surface

where it is unlikely to fall.

10 SOFTWARE UPDATE Samsung may offer updates for the Soundbar's system firmware in the future.

Micro USBto USB adapter Cable À (notsupplied)

If an update is offered, you can update the firmware by connecting a USB device with the firmware update stored on it to the USB port on your Soundbar.

For more information about how to download update files, go tothe Samsung Electronics website at (www.samsung.com — Support) Then, enter or select the model of your Soundbar, select Software & Apps, andthen Downloads. The option name can vary.

Connect a Micro USB to USB adapter cable

with à male USB 2.0 Micro USB plug (Type B)

on one end and a standard female 2.0 USB

jack (Type A) on the other end to the micro

USB jack on your Soundbar.

+_The Micro USB to USB adapter cable is

sold separately. To purchase, contact à Samsung Service Centre or Samsung Customer Care.

Follow the steps below to download the

Go to the Samsung website at

{samsung.com) — search for the model name

- select the customer support option (the

option name is subject to change)

. Save the downloaded software to a USB

stick and select “Extract Here” to unzip the folder.

. Turn offthe Soundbar and connect the USB

stick containing the software update to the female port on a Micro USB adapter cable. Connect the cable to the USB port on the Soundbar.

. Turn on the Soundbar. Within 3 minutes,

“UPDATE is displayed and updating begins.

. When the update finishes, the Soundbar

turns off. Press the »i button on the remote

control for 5 seconds. “INIT” appears on the

display and then the Soundbar turns off.

The update is complete.

+ This product has a DUAL BOOT function If the firmware fails to update, you can update the firmware again.

If UPDATE is not displayed

1. Turn off the Soundbar, disconnect and then reconnect the USB storage device that contains the update files to the Soundbar's USB port.

2. Disconnect the Soundbar's power cord, reconnect it, and then turn on the Soundbar.

+ Updating firmware may not work properly if audio files supported by the Soundbar are stored in the USB storage device.

Do not disconnect the power or remove the USB device while updates are being applied. The main unit will turn off automatically after completing the firmware update.

After update is completed, the user setup in Soundbar is initialised. We recommend

you write down your settings so that you can easily reset them after the update. Note that updating firmware resets the subwoofer connection too.

Ifthe connection to the subwoofer is not re-established automatically after the update, refer to page 6.

Ifthe software update fails, check if the USB stick is defective.

Mac OS users should use MS-DOS (FAT) as the USB format.

Updating via USB may not be available, depending on the USB storage device manufacturer.

11 TROUBLESHOOTING Before seeking assistance, check the following

The unit will not turn on.

Is the power cord plugged into the outlet? — Connect the power plug to the outlet

Afunction does not work when the button is pressed.

Is there static electricity in the air? — Disconnect the power plug and connect it again

Sound dropouts occur in BT mode.

— See the Bluetooth connection sections on pages 10 and 15

Soundis not produced.

Isthe Mute function on?

— Press the VOL button to cancel the function. Is the volume set to minimum?

The remote control does not work.

Are the batteries drained?

— Replace with new batteries

Isthe distance between the remote control and Soundbar main unit too far? — Move the remote control closer to the Soundbar main unit

The red LED on the subwoofer blinks and the subwoofer is not producing sound.

This issue can occur ifthe subwoofer is not connected to the Soundbar main unit. — Try to connect your subwoofer again. (See page 6.)

The subwoofer drones and vibrates noticeably.

Tryto adjust the vibration of your subwoofer. — Push the WOOFER button on your remote control up or down to adjust the subwoofer volume. {between -12, -6 - +6)

DOLBY AUDIO Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, andthe double-D symbol are trademarks of Dolby Laboratories

For DTS patents, see http://patents.dts.com Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS 2.0 Channel are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. AIL Rights Reserved

13 OPEN SOURCE LICENCE NOTICE To send inquiries and requests regarding open

sources, contact Samsung via Email (oss.request@samsung.com)

IMPORTANT NOTES ABOUT SERVICE Figures and'illustrations in this User Manual

are provided for reference only and may differ

from actual product appearance.

An administration fee may be charged if

(a) an engineer is called out at your request andthere is no defect with the product (ie. where the user manual has not been read)

{b) you bring the unit to a repair centre and there is no defect with the product (ie where the user manual has not been read)

You will be informed of the administration fee

amount before a technician visits

15 SPECIFICATIONS AND GUIDE Specifications USB SV/05A Soundbar Main Unit 1.5kg Weight Subwoofer (PS-WM20) 4.6kg GENERAL | Dimensions Soundbar Main Unit 907.5 x 53.5 x 70.5 mm (WxHxD) Subwoofer (PS-WM20) 179.0 x 353.0 x 299.5 mm

Operating Temperature Range +5°C to +35°C Operating Humidity Range 10 %- 75% Soundbar Main Unit 35W x2,60hm AMPLIFIER Rated Output power Subwoofer (PS-WM20) 130W, 3 ohm Supported play formats LPCM 2ch, Dolby Audioï"t

{DTS 2.0 sound is played in DTS format.)

BT max transmitter power

100mW at 2.4GHz - 2.4835GHz

SRD max transmitter power

25mW at 5.725GHz - 5.825GHz

+ Samsung Electronics Co, Ltd reserves the right to change the specifications without notice.

+ Weight and dimensions are ap

+ For more information about the power supply and power consumption, refer to the label attached to the product. (Label: Bottom of the Soundbar Main Unit)

Overall Standby Power Consumption (W)

Port deactivation method

Press the "Bluetooth POWER" button on the remote control when "BT” mode.

+ Hereby, Samsung Electronics, declares that this equipment is in compliance

with Directive 2014/53/EU CE The full text of the EU declaration of conformity is available at the following internet address: http:/www.samsung.com go to Support > Search Product Support and enter the model name

This equipment may be operated in all EU countries.

K [Correct disposal of batteries in this product]

(Applicable in countries with separate collection systems)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66.

If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

KX Correct Disposal of This Product

(Waste Electrical & Electronic Equipment) = (Applicable in countries with separate collection systems) This marking on the product, accessories or Literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste atthe end of their working Life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling Business users should contact their supplier and check the terms and conditions of the purchase contract This product and its electronic accessories should not be mixed with other commercial wastes for disposal

For information on Samsung's environmental commitments and product specific regulatory obligations e.g. REACH, WEEE, Batteries, visit http:/www.samsung.com/uk/aboutsamsung/samsungelectronics/corporatecitizenship/data_corner.html

12 LIZENZ DOLBY AUDIO Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, andthe double-D symbol are trademarks of Dolby Laboratories

For DTS patents, see http://patents.dts.com Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS 2.0 Channel are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. AIL Rights Reserved

OPEN NOOIT DE BEHUIZING VAN DIT APPARAAT,

© AC-stekker © Lichtnetadapter

Wandmontage R Wandmontage L

DOLBY AUDIO Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, andthe double-D symbol are trademarks of Dolby Laboratories

For DTS patents, see http://patents.dts.com Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS 2.0 Channel are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. AIL Rights Reserved

13 KENNISGEVING OPEN SOURCE-

LICENTIE Neem voor vragen en verzoeken met betrekking

© Cordon © Adaptateur CA/CC

DOLBY AUDIO Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, andthe double-D symbol are trademarks of Dolby Laboratories

For DTS patents, see http:/patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS 2.0 Channel are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. ALL Rights Reserved

© 2017 Samsung Electronics Co, Ltd. All rights reserved.

Contact SAMSUNG WORLD WIDE Cr

ENERGY STAR If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care Centre.

urwsamsung com/ch/ support (German) wwsamsung com / ch frsupport (French)

wnsemsung com sel support
