Product type	Supplementary heating (fan heater)
Brand	ANNA
Model	NC
Dimensions (L x H x D)	146 x 367 x 95 mm
Weight	1.96 kg
Maximum / minimum power	2000 W / 1200 W
Rated voltage	220-240 V ~ 50/60 Hz
Heating type	Fan heater with ventilation
Thermostat	Yes, continuous adjustment
Number of power levels	2 (max and min power)
Air outlet grille	Yes
Removable and washable filter	Yes, on the air intake grille
LED indicator light	Yes
Stable base	Yes
Noise level	< 46 dB(A)
Overheating protection	Yes, thermal cut-out
Warranty	2 years
Certifications	CE, WEEE, RoHS
Filter cleaning	Wash with water or vacuum
Exterior maintenance	Damp cloth, dry thoroughly

Frequently Asked Questions - NC ANNA

How to clean the filter of my ANNA NC heater?

Unplug the device. Remove the filter from the intake grille and wash it with water or clean it with a vacuum cleaner. Let it dry completely before putting it back.

Why does my heater stop automatically?

The heater is equipped with a thermostat and a thermal cut-out. If the ambient temperature reaches the thermostat setting or if the device overheats, it stops. Once cooled down, it restarts automatically.

Can I use an extension cord with this heater?

No, it is not recommended to use an extension cord. Plug the device directly into a wall socket installed by a professional.

Which power should I use to heat a room?

The heater offers two levels: 2000 W (full power) and 1200 W (reduced power). Use maximum power for quick heating, then reduce to maintain the temperature.

Can I use this heater in a bathroom?

No, do not place the device near a bathtub, shower, or pool. It is not protected against water splashes.

How to adjust the thermostat?

Turn the thermostat to the left (sun symbol) for maximum temperature, to the right (cold symbol) for minimum. The device automatically maintains the set temperature.

What to do if the device does not turn on?

Check that the wall socket is working, that the power cord is not damaged, and that the on/off button is pressed. If the problem persists, contact a professional.

Can I cover the heater?

No, never cover the device to avoid overheating. The air outlet grille reaches high temperatures and must not be obstructed.

What is the recommended area for use?

The device should not be used in rooms smaller than 4 m². Place it away from walls and objects to ensure good air circulation.

How to maintain the device?

Unplug it before any cleaning. Clean the casing with a damp cloth and dry it. Wash the filter regularly. Never immerse the device in water.

USER MANUAL NC ANNA

Operating instructions

Mode d'emploi

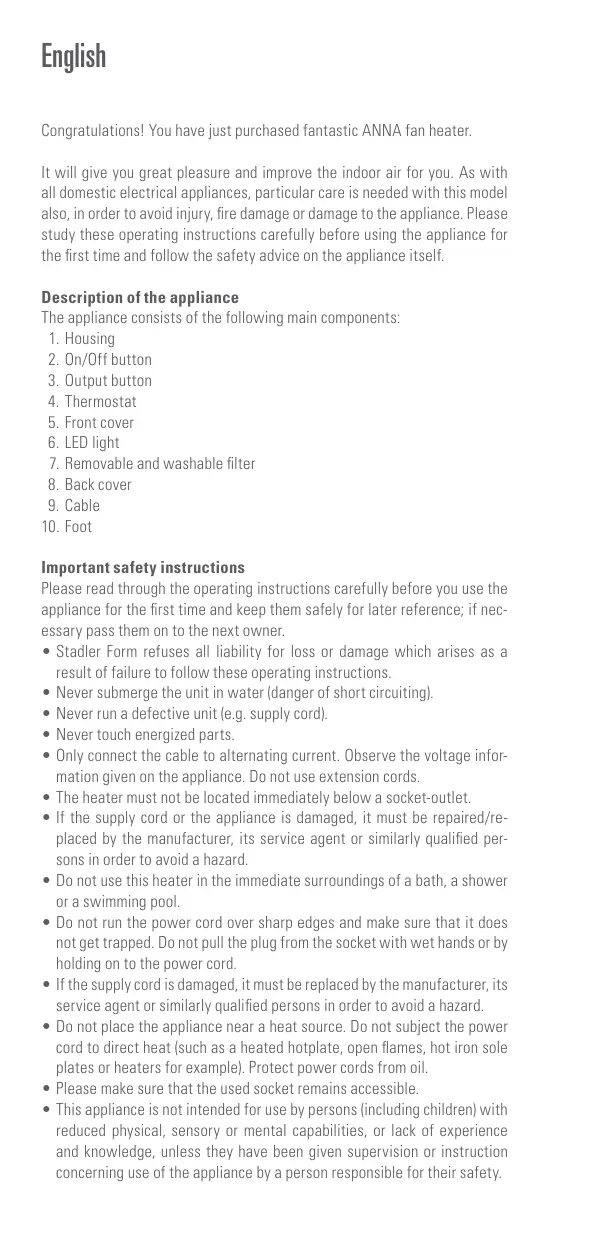

Congratulations! You have just purchased fantastic ANNA fan heater.

It will give you great pleasure and improve the indoor air for you. As with all domestic electrical appliances, particular care is needed with this model also, in order to avoid injury, fire damage or damage to the appliance. Please study these operating instructions carefully before using the appliance for the first time and follow the safety advice on the appliance itself.

Description of the appliance

The appliance consists of the following main components:

1. Housing
2. On/Off button
3. Output button
4. Thermostat
5. Front cover
6. LED light
7. Removable and washable filter
8. Back cover
9. Cable
10. Foot

Important safety instructions

Please read through the operating instructions carefully before you use the appliance for the first time and keep them safely for later reference; if necessary pass them on to the next owner.

• Stadler Form refuses all liability for loss or damage which arises as a result of failure to follow these operating instructions.
• Never submerge the unit in water (danger of short circuiting).
• Never run a defective unit (e.g. supply cord).
• Never touch energized parts.
• Only connect the cable to alternating current. Observe the voltage information given on the appliance. Do not use extension cords.
• The heater must not be located immediately below a socket-outlet.
• If the supply cord or the appliance is damaged, it must be repaired/replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
• Do not run the power cord over sharp edges and make sure that it does not get trapped. Do not pull the plug from the socket with wet hands or by holding on to the power cord.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not place the appliance near a heat source. Do not subject the power cord to direct heat (such as a heated hotplate, open flames, hot iron sole plates or heaters for example). Protect power cords from oil.
• Please make sure that the used socket remains accessible.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Do not run the heater on an uneven or soft surface.

• WARNING: In order to avoid overheating, do not cover the heater.
• Do not use the heater in small rooms (below 4 square meter surface), in explosive environment, and for drying laundry.
• Do not touch the front grille, it might reach hot temperature.
• Use the heater only under supervision.
• Do not insert any object and/or finger into the openings of the heater.
• To extinguish burning appliances only use fire blanckets.

Setup / operation

1. Having set up the ANNA heater in the desired position connect the cable (9) to the household supply socket.
2. Switch on ANNA by clicking the on/off button (2)
3. Using the output button (3), you can control the heating output of ANNA

a. Switch in = 2000W / 1200W (little)
b.Switch out = 1200W / 700W (little)

1. Room thermostat (4): The room thermostat control allows an infinitely variable temperature adjustment. Setting: for maximum temperature turn to the left (sun symbol), for minimum temperature, turn the control to the right (cold symbol).

Recommended procedure: Turn the thermostat control to the left to the maximum. If the desired room temperature has been reached, turn the thermostat control to the right until the appliance switches off. If the room temperature drops, then ANNA switches on again automatically.

Note: make quite sure that there is always sufficient space between the appliance and the wall or other large objects. The air flow must not be impeded by objects of any kind.

Cleaning

Before servicing the humidifier and after each occasion of use, switch off the appliance and unplug the mains cable from the socket.

• Attention: Never immerse the appliance in water (danger of short-circuit).
• To clean the appliance, only wipe it down with a damp cloth and then dry it carefully.
• If the filter (7) behind the back cover is full of dust, please remove the filter, wash it or clean it with the vacuum cleaner.

Repairs/disposal

• Repairs to electrical appliances must only be carried out by a qualified electrical technician. If improper repairs are carried out, the guarantee lapses and all liability is refused.
• Never operate the appliance if the adaptor or plug is damaged, after it has malfunctioned, if it has been dropped or has been damaged in any other way (cracks/breaks in the casing).
• Do not push any object into the appliance. Do not disassemble the purifier.

• If the appliance is beyond repair, make it unusable immediately and hand it in at the collection point provided for the purpose.

• Do not dispose of electrical appliances in the domestic waste. Please use the communal collection points.

• Ask your local authority if you do not know where the communal collection points are located.
• If electrical appliances are disposed of thoughtlessly, exposure to the elements may cause hazardous substances to find their way into the groundwater and from there into the food chain, or to poison the flora and fauna for many years to come.
• If you are replacing the appliance with a new one, the seller is legally obliged to take back the old one at least free of charge for disposal.

Specifications

Rated voltage

Power output

Dimensions:

220-240V

ANNA 2000/1200W, ANNA little 1200/700W

ANNA 146 mm x 367 mm x 95 mm

ANNA little 146mm× 236mm× 95mm

(with x height x depth)

Weight:

approx. ANNA 1.96 kg, ANNA little 1.5 kg

Sound level

<46dB(A)

Complies with EU

regulations

CE/WEEE/RoHS

All rights for any technical modifications are reserved

Reparation/Bortskaffelse

This warranty covers defects of construction, production and material. All abrasion parts are excluded and also inappropriate usage or maintenance.

Garantie 2 ans

Thanks to all people involved in this project: Del Xu for his engagement, ideas and organisation, John Ye for the engineering and Liang Weibao for his CAD work, Claudia Fagagnini and Paul Gsell for the photos, Matti Walker for the timeless design and graphic work.

Martin Stadler, CEO Stadler Form Aktiengesellschaft
