USER MANUAL CE922110 MOULINEX

Follow these 6 key steps before cooking your first recipe 1

Discover many tutorials on the Moulinex YouTube channel

To accompany you throughout the experience

Please connect and update your Cookeo

Touch Mini before the first use 32

And join the Cookeo movement

Moulinex Application

Cookeo touch mini in the kitchen.

Cookeo touch mini helps you with every meal.

NB: A safety information booklet is included with this appliance. Before using your appliance for the first time, please read this booklet carefully and keep it in a safe place for future reference.

My cookeo touch mini lets me cook quickly and well.

It provides me with lots of recipe ideas in no time at all. The cookeo touch mini has a large touch screen display to show me all the steps to follow. 35 The cookeo touch mini does the cooking for me.

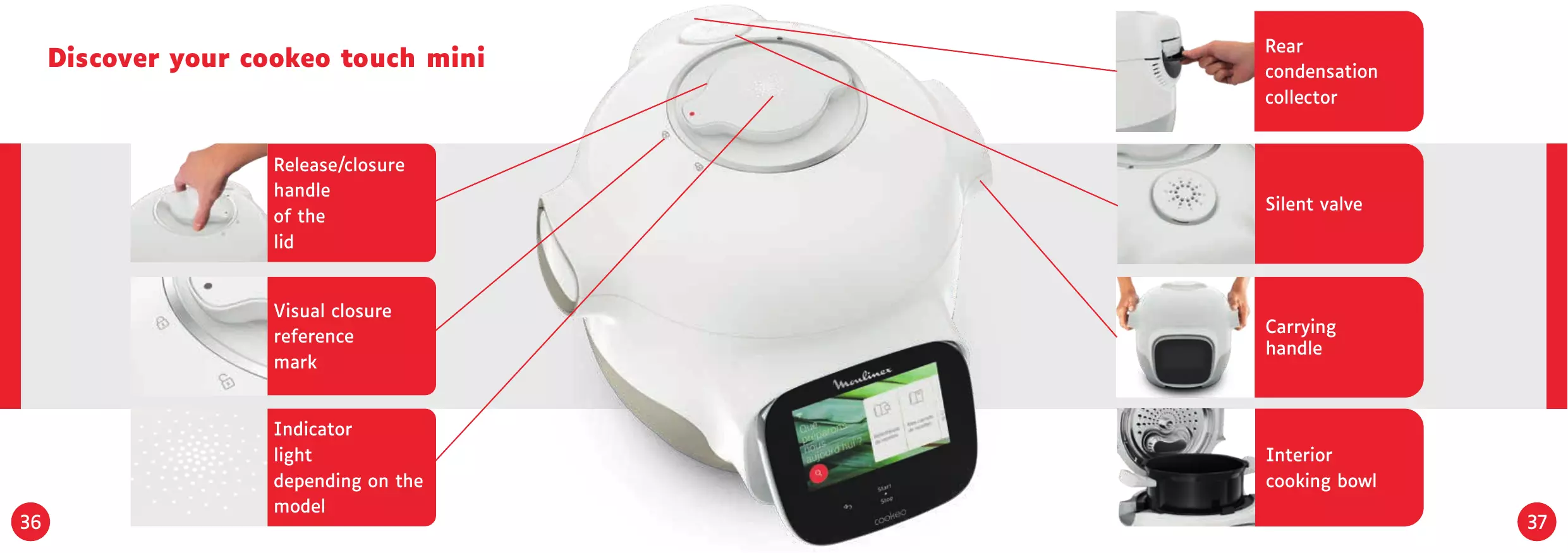

Rear condensation collector

Release/closure handle of the lid

Visual closure reference mark

Indicator light depending on the model

Interior cooking bowl

Tilting touch screen

Before you start cooking:

• remove all stickers, • read the instructions.

Start/Stop and wake-up button

The back and on/off buttons are only visible when needed.

Cleaning your cookeo touch mini

There are 5 steps to follow before you use your cookeo touch mini for the first time and after each use. Step 1 — the cookeo touch mini Clean the cookeo touch mini with a damp cloth.

Step 2 — the touch screen

Clean the touch screen with a soft, damp cloth. Do not use a metal sponge as it may scratch the screen.

Step 3 — the cooking bowl

To clean the bowl, you can: • put the bowl in the dishwasher, or • wash it in hot soapy water. If the cooking bowl turns an off-white colour on the outside, a metal sponge can be used. Step 4 — the water tray After each use: • clean the condensation collector with clean water or in the dishwasher, • dry the condensation collector, • remember to return the condensation collector to the cookeo touch mini.

Remove the inner part of the lid by pulling it towards you.

Remove the cover underneath the lid.

Remove the valve cover and take out the ball.

Check the mobility of:

• the locking rod, • the safety valve.

Clean all parts of the cookeo touch mini lid with clean water or in the dishwasher.

Installing the steam basket

Wash the steam basket using hot soapy water.

Rinse and thoroughly dry the steam basket.

To ensure safety while cooking, place your cookeo touch mini on a flat, dry surface.

How to install the steam basket?

Plug in your cookeo touch mini.

Replacing the steam basket.

Squeeze the leg between your thumb and index finger to position it in the notches.

Put the steam basket back into place.

Place the steam basket in the cookeo touch mini cooking bowl using the handles.

When using your cookeo touch mini for the first time, the pot can release a slight odour.

Mastering the cooking process

On the recipe menu, visible on the touch screen, Via WIFI connection access over 400 recipes. No more boring mealtimes! • starters, • mains, • and desserts. The recipes are delicious and quick to make.

Using the ingredients menu, you can cook food without worrying about the cooking mode or the cooking time.

The cookeo touch mini provides all the information you need according to the weight and type of ingredients.

Using the different options

Using the manual mode, you can select the cooking mode and cooking time for your meal.

The various cooking modes:

Lid position: closed and locked.

Cooking intensity Low: to cook soft ingredients quickly. High: to cook all ingredients quickly. Express: to cook ingredients very quickly. Timer delay mode: Possible The timer delay mode allows you to start cooking at a later time.

Use the steam basket.

Lid position: closed and locked. Cooking intensity Gentle: to cook soft ingredients. Boost: to cook all ingredients quickly. Timer delay mode: Possible

The bowl heats from below, like a stove.µ

Lid position: open and raised. Cooking intensity Gentle: to brown delicate ingredients. Medium: to brown and crisp all ingredients quickly. High: to brown and crisp all ingredients very quickly.

The bowl heats from below to act like a stew pot.

Lid position: open and raised. Cooking intensity Gentle: slow and gentle cooking. Medium: slow cooking. High: medium cooking.

The cookeo touch mini keeps your dishes warm until it is time to serve them.

Lid position: May be open or closed.

The cookeo touch mini reheats dishes to the perfect temperature.

Lid position: May be open or closed.

Cookeo touch functions

Depending on your cookeo touch model, these are various useful features. The "Recipe Book" function: You can create several recipe books. Examples: • Paul's recipes • My favourite desserts The "What's in my fridge" function: Input the ingredients that you have in your fridge and the cookeo touch mini will find a suitable recipe.

The cookeo touch mini has several safety features.

Using the "Settings" menu, you can:

• adjust the brightness, • turn the sound on or off, • select country and language, •u nderstand your cookeo touch mini's connectivity. This is a QR Code. By scanning the QR code with the camera of your mobile phone or a special app, you can access the cookeo touch mini playlist on YouTube. Open and scan

The locking rod is a safety system that automatically locks the cookeo touch mini as soon as it is pressed. The cookeo touch mini is locked when the icon appears on the touch screen.

The internal pressure has dropped when there is no more steam coming out of the valve.

Safety in case of too much pressure: If the pressure is too high, the cookeo touch mini can release pressure automatically through the safety valve.

Do not open the cookeo touch mini when it is locked.

Wait for the internal pressure to drop before opening the lid.

If any of the safety systems are activated:

•u nplug the cookeo touch mini, • allow the cookeo touch mini to cool completely, • open the cookeo touch mini, • check and clean: - the safety valve, - the ball, - the covering. If your cookeo touch mini is still leaking or not working, take it to an Approved Service Centre. An Approved Service Centre is a repair centre that has been approved by Moulinex.

Regulating the cookeo touch mini:

When pressure cooking, the cookeo touch mini can emit small amounts of steam. This serves to automatically regulate the pressure. The cookeo touch mini lid: The metal lid should only be used with the cookeo touch mini. The metal lid should not be used with other equipment.

You may encounter various problems when using the cookeo touch mini. The lid does not close: • There may be something stuck between the bowl and the hot plate. Remove the bowl to check that all parts are clean: - the heating plate, - the central element, - under the bowl. Also check that the central element can move around.

• The lid release handle is not in the correct position.

Ensure that the release handle is fully open. • The metal lid is not installed correctly. Ensure that all elements of the metal lid are in the correct position. • The bowl damaged after being hit or dropped. The bowl should be replaced at an Approved Service Centre.

The cookeo touch mini pressure fails to be built and steam is not being released properly:

• The gasket seal is dirty or damaged. Ensure that the gasket seal is clean and in good condition. The gasket seal should be changed every three years at an Approved Service Centre. • The inner lid is missing or not tight enough. Ensure that the central nut under the metal lid is tight enough.

• The locking rod is dirty or the seal is missing.

Clean the locking rod according to the instructions. The locking rod must be able to move up and down properly.

Ensure that the seal is correctly positioned on the locking rod.

• The decompression ball is dirty or incorrectly positioned. Ensure that the ball is correctly positioned and that the ball cover is in the locked position. Clean and dry the ball and the support.

• The edge of the bowl is damaged or dirty.

Clean the bowl. Ensure that the bowl is in good condition.

•T he collector is not in place or is overflowing.

Ensure that the collector is correctly positioned behind the cookeo touch mini.

• If the locking rod is built upside down:

• The bowl is too full. place the magnetic side of the Ensure that the contents do not stem on the same side as the ball exceed the maximum volume. The cookeo touch mini does not decompress:

• The ball coveris out of place:

Leave the cookeo touch mini to cool down completely, remove the metal lid, and place the ball cover in the correct position. Water is leaking behind the cookeo touch mini:

• I f you are using certain ingredients such as:

- cream, - wine, - or milk, Respect the quantities shown in the recipe.

These ingredients can cause the cookeo touch mini to overflow.

The lid won't open when steam is released:

• The locking rod is still in the upwards position. Check that all of the steam has been released and wait until the cookeo touch mini has cooled down fully. The light on the lid handle no longer lights up: • The LED is not working. Take the device to an Approved Service Centre.

The screen does not light up:

• The cookeo touch mini is not plugged in. Ensure that the cookeo touch mini is plugged in correctly.

• The cookeo touch mini is on standby.

Press the dot on the screen. The inner metal lid cannot be removed: • The ball lid is positioned incorrectly: Unscrew the nut on the lid, remove the inner part of the lid by pulling it towards you, access the ball cover, correctly reposition the lid.

There are several error codes:

• error 1 error communicating with the keypad. • error 2 error communicating with the Wi-Fi. • error 3 error communicating with the power board.

• If the temperature sensor fails, the numbers 04, 05, 06, 07, 08,

09 are displayed on the cookeo touch mini. • error 10 heating error.

• error 11 pressure problem.

Unplug the cookeo touch mini. Ensure that all elements of your cookeo touch mini are in good condition. If needed, clean the elements of your cookeo touch mini following the cleaning instructions. Ensure that the valve cover is correctly in place. • error 13 excess pressure. • error 14 low pressure due to lack of water: - add water to the bowl, - resume cooking.

• error 15 decompression fault:

- unplug the cookeo touch mini, - leave to cool, - remove the metal lid, - correctly position the ball cover. • error 16 the cookeo touch mini doesn't build up pressure: - add water to the bowl, - resume cooking. • error 17 the cookeo touch mini pressure fails to raise. See page 56 "The cookeo touch mini pressure fails to raise and steam is not being released properly".

• error 18 failure to detect the locking rod.

• error 101, 106 display or recipe loading error: Unplug and restart the appliance. If the problem persists, take your appliance to an Approved Service Centre.

For all problems, unplug the cookeo touch mini.

If the problem persists, contact an Approved Service Centre. If you experience connection problems, visit www.moulinex.co.uk or the Moulinex app.

Your cookeo touch mini model :

SERIE EPC21 Technical information about your cookeo touch mini: Low pressure: 40kPa (109°c) High pressure: 70kPa (115°c) Very high pressure: 100kPa (119°C) PS = 140kPa Cookeo touch mini capacity: 3L Usable capacity: 2L Built-in heater: enclosed heating resistor. A beep signals that operating pressure has been reached. WiFi: Maximum transmitted power: 20dBm, 100mW Frequency: 2,4GHz Power consumption in standby mode(s)

when the product is connected : 0,29 W What do Cookeo Touch Mini pictograms mean ?

•P roduct connected to the Wifi • Product connected to the Wifi but not connected to Moulinex database •P roduct not connected to the Wifi
