USER MANUAL AMW 730 IX WHIRLPOOL

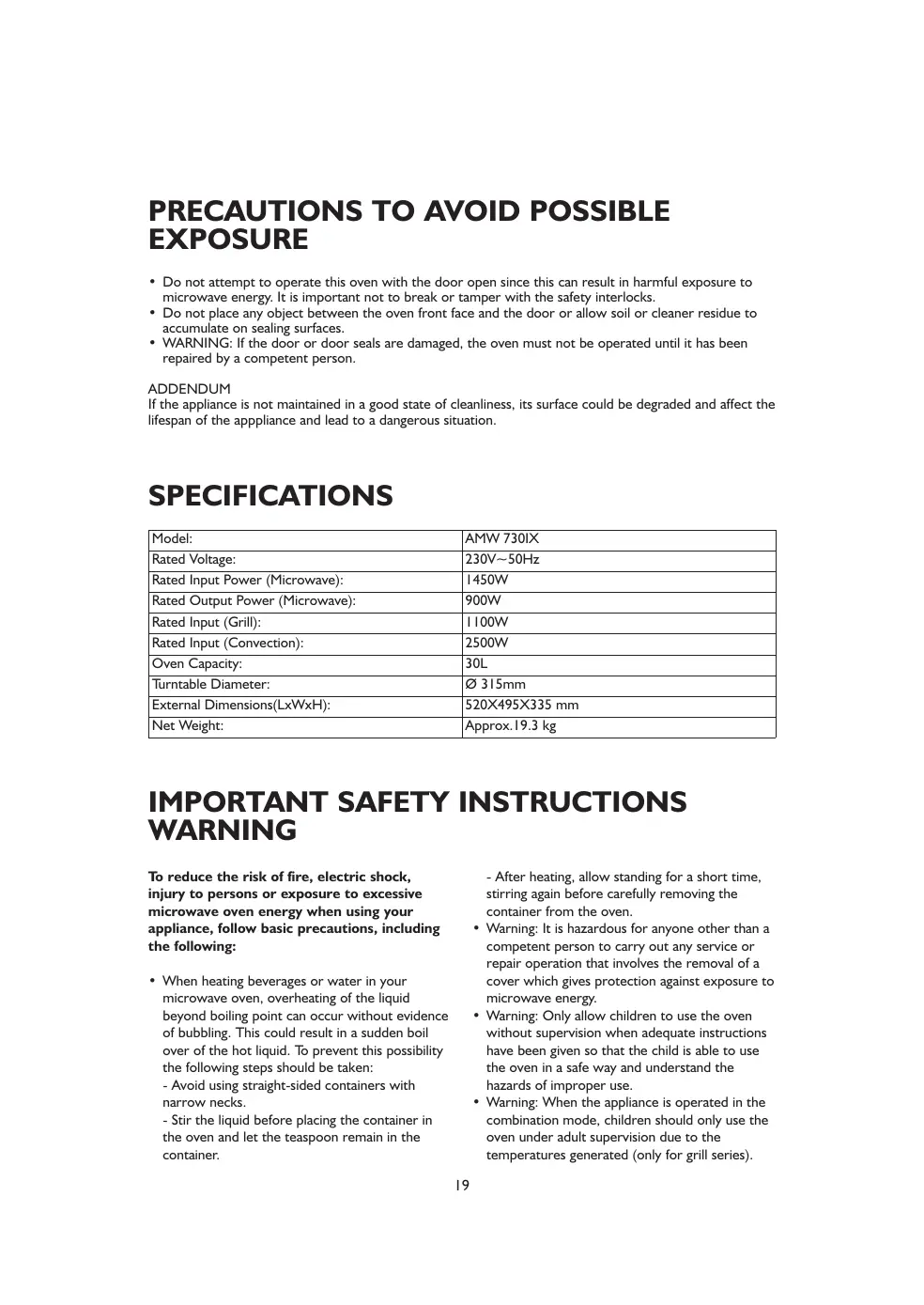

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE

• Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
• Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
• WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the appliance is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the appliance and lead to a dangerous situation.

SPECIFICATIONS

Model:	AMW 730IX
Rated Voltage:	230V~50Hz
Rated Input Power (Microwave):	1450W
Rated Output Power (Microwave):	900W
Rated Input (Grill):	1100W
Rated Input (Convection):	2500W
Oven Capacity:	30L
Turntable Diameter:	Ø 315mm
External Dimensions(LxWxH):	520X495X335 mm
Net Weight:	Approx.19.3 kg

IMPORTANT SAFETY INSTRUCTIONS WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

• When heating beverages or water in your microwave oven, overheating of the liquid beyond boiling point can occur without evidence of bubbling. This could result in a sudden boil over of the hot liquid. To prevent this possibility the following steps should be taken:
• Avoid using straight-sided containers with narrow necks.

• Stir the liquid before placing the container in the oven and let the teaspoon remain in the container.

• After heating, allow standing for a short time, stirring again before carefully removing the container from the oven.

• Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

• Warning: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understand the hazards of improper use.

• Warning: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated (only for grill series).

• Only use utensils suitable for use in microwave ovens.

• The oven should be cleaned regularly and any food deposits should be removed.
• Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
• If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
• Do not overcook food.
• Do not use the oven cavity for storage purposes.
• Do not store items, such as bread, cookies, etc. inside the oven.
• Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.
  Install or locate this oven only in accordance with the installation instructions provided.
• Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
• Use this appliance only for its intended uses as described in manual.
  Do not use corrosive chemicals or vapors in this appliance.
  This oven is especially designed to heat. It is not designed for industrial or laboratory use.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not store or use this appliance outdoors.
• Do not use this oven near water, in a wet basement or near a swimming pool.
• The temperature of accessible surfaces may be high when the appliance is operating.
  The surfaces are liable to get hot during use.
  Keep cord away from heated surface, and do not cover any ventilation openings on the oven.
• Do not let cord hang over edge of table or

counter.

• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
• The contents of feeding bottles and After heating baby food or liquids in a baby food jar, always stir and check the temperature before serving. This will ensure that the heat is evenly distributed and the risk of scalding or burns can be avoided. Ensure the Lid and the Teat is removed before heating!
• The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
• The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.
• The appliances are not intended to be operated by means of an external timer or separate remote-control system.
  WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
• Accessible parts may become hot during use. Young children should be kept away steam cleaner is not to be used.
• Surface of a storage drawer can get hot.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven do or glass since they can scratch the surface, which may result in shattering of the glass.
• During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
• Only use the temperature probe recommended for this oven (for ovens provided with a facility to use a temperature-sensing probe).
• The rear surface of appliance shall be placed against a wall.

TO REDUCE THE RISK OF INJURY TO PERSONS GROUNDING INSTALLATION

DANGER

Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

CLEANING

Before cleaning the oven be sure to disconnect it from the power supply.

• Clean the inside of the oven after using with a slightly damp cloth.
• Clean the accessories in the usual way in soapy water.
• The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

The earthing of this appliance is compulsory. The manufacturer will accept no responsibility for injury to persons, animals or damage to objects arising from the non-observation of this requirement.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

• A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

• If a long cord set or extension cord is used:

• The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.

• The extension cord must be a groundingtype 3-wire cord.
• The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

The manufacturers are not liable for any problems caused by the user's failure to observe these instructions.

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal

of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven".

There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

• Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
• Cook on maximum power for 1 minute.
• Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
• Do not exceed I minute cooking time.

Materials you can use in microwave oven

Utensils	Remarks
Aluminum foil	Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper	Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils	Remarks
Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

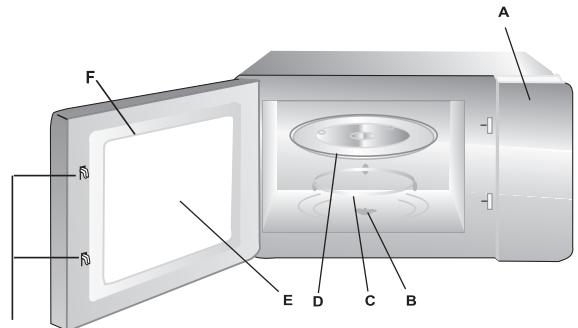

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray I

Turntable ring assembly I

Instruction Manual I

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

Pizza Plate

G

Grill Rack (Only for Grill series)

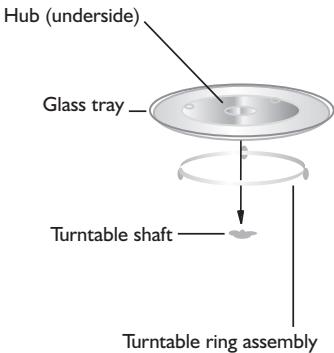

Turntable Installation

• Never place the glass tray upside down. The glass tray should turn freely.
• Both glass tray and turntable ring assembly must always be used during cooking.
• All food and containers of food are always placed on the glass tray for cooking.
• If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged. Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

INSTALLATION

1. Select a level surface that provide enough open space for the intake and/or outlet vents. A minimum clearance of 3.0 inches (7.5cm) is required between the oven and any adjacent walls. One side must be open.
2. Leave a minimum clearance of 12 inches (30cm) above the oven.
3. Do not remove the legs from the bottom of the oven.
4. Blocking the intake and/or outlet openings can damage the oven.

5. Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

6. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void. The accessible surface may be hot during operation.

The temperature of accessible surfaces of the grill rack may be high when the appliance is operating.

OPERATION

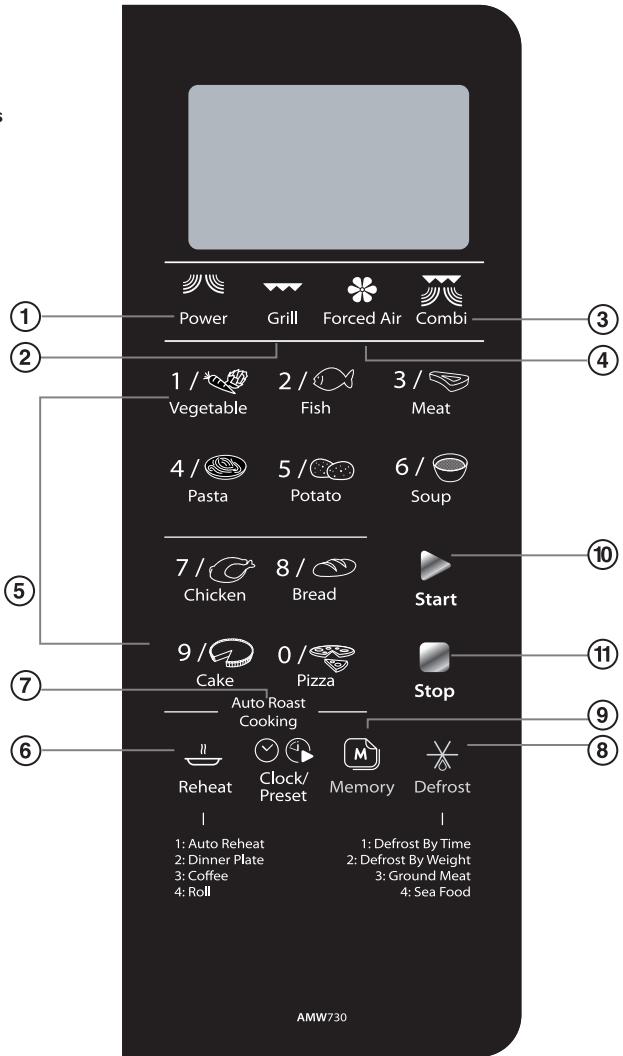

Control Panel and Features

I. Power Function
2. Grill Function
3. Combi Function
4. Convection Function
5. Auto Menu
6. Reheat Function
7. Clock/Preset Function
8. Quick Defrost
9. Memory Function
10. Start
11. Stop

When the microwave oven is electrified, the oven will display "0:00", buzzer will ring once. The input time should be within 0:00--23:59(24 Hour); 1:00--12:59(12 Hour).

Example: To set 12:12.

1. Press 口 口 once to select 24 hours system and twice for 12 hours system, at the same time, "24H" or "12H" will display.
2. Press the number buttons of I, 2, I, 2 in order.
3. Press to finish clock setting, ":" will flash, and the time will light.

Note:

• If the clock is not set, it would not function when powered.
• During the process of clock setting, if you press , the oven will go back to the previous status automatically.

Microwave Cooking

Select different microwave power level and set cooking time as you wish. There are five power levels

available for choosing. Keep on pressing to choose the power.

Example: If you want to use 80% microwave power to cook for 10 minutes, you can operate the oven as the following steps.

I. Press once, the oven will display "P100", indicator will light.
2. Press once again to choose 80% power, the oven will display "P80".
3. Press the number buttons of 1, 0, 0, 0 in order, the oven will display "10:00"
4. Press to start cooking, ":" will light and the indicator will flash.

Note: Pad presses instructions

Presses instructions	Display	Microwave Power
1	P100	100%
2	P80	80%
3	P50	50%
4	P30	30%
5	P10	10%

Grill Cooking

Example: If you want to use 100% to cooking for 35 minutes, you can operate the oven as the following steps.

I. Press the · key, the oven will display G-I, at the same time · will light.
2. Press the number buttons of 3, 5, 0, 0 in order, the oven will display "35:00"
3. Press the key to start cooking. The will flash, "n" will light.

Note: if half the grill time passes, the oven sounds twice, and this is normal. In order to have a better effect of grilling food, you should turn the food over, close the door, and then if no operation the oven will continue cooking.

Convection Cooking (With preheating function)

I. Press the key once, the oven will display "140". At the same time, "℃", will light. (Press the key several times to select the temperature.)
2. Press the key to start cooking. The temperature figure will flash when reach to the temperature in advance and buzzer will ring twice to remind you to put the food into the oven.
3. Press the number buttons of 4, 0, 0, 0 in order, the oven will display "40:00"
4. Press the key to start cooking. The will flash, ":" will light.

Convection Cooking (Without preheating function)

I. Press the key once, the oven will display "140". At the same time, "℃", will light. (Press the key several times to select the temperature.)
2. Press the number buttons of 4, 0, 0, 0 in order, the oven will display "40:00".
3. Press the key to start cooking. The will flash, ":" will light.

Note: Pad presses instructions

Presses instructions	Display	Convection
1	140 °C	●
2	150 °C	●
3	160 °C	●
4	170 °C	●
5	180 °C	●
6	190 °C	●
7	200 °C	●
8	210 °C	●
9	220 °C	●
10	230 °C	●

Combination Cooking

Example: If you want to use combination to cook (C-1) for 40 minutes, you can operate the oven as per the following steps.

I. Press the key once, the oven will display" C-1". At the same time, and will light.
2. Press the number buttons of 4, 0, 0, 0 in order, the oven will display "40:00".
3. Press the key to start cooking. The will flash, ":" will light.

Note: Pad presses instructions

Presses Instructions	Display	Microwave Power	Grill Power	Convection power
1	C-1	●		●
2	C-2	●	●
3	C-3		●	●
4	C-4	●	●	●

Delay Start

Example: To start a cooking at 12:12.

I. First, set the clock, then set the cooking program you want (not including defrost function).
2. Press to display "0:00".
3. Press I, 2, 1, 2 in order.
4. Press to confirm the setting. The unit will turn back to the clock state.
5. Cooks begin when the time arrives, ":" will light.

Reheat

I. Press pad, the "h-1" will display in oven and flash and "AUTO" indicators will light. (Press the pad several times to select the the cooking program you wanted.)
2. Press key to confirm, the "h-1" will display.
3. Press pad, the oven will display "150". and "AUTO" and "g" indicators will light. (Press the pad several times to select the weight of the cooking food.)
4. Press key to start cooking.

Reheat Chart

Menu	Weight(g)	Display
h-1 (Auto Reheat)	150	150
	250	250
	350	350
	450	450
	600	600
h-2 (Dinner Plate)	250	250
	350	350
	450	450
h-3 (Beverage)	1 (approximately 240g)	1
	2 (approximately 480g)	2
	3 (approximately 720g)	3
h-4 (Roll)	1 (approximately 70g)	1
	2 (approximately 140g)	2
	3 (approximately 210g)	3

Defrost By time

1. Press 6 once, the oven will display "d-1".
2. Input the figure of the time of cooking 99 minutes and 99 seconds.)
3. Press key to start defrosting and indicators will flash.

Defrost By weight

I. Press pad twice, the oven will display "d-2".
2. Input the figure of the weight of food. (The input figure of the weight should be within 100--2000g)
3. Press key to start defrosting and indicators will flash and "g" indicator will go out.

Defrost Groud meat

I. Press pad thrice, the oven will display "d-3".
2. Input the figure of the weight of food. (The input figure of the weight should be within 100--2000g)

1. Press key to start defrosting and indicators will flash.

Defrost Fish

I. Press pad 4 times, the oven will display "d-4".
2. Input the figure of the weight of food. (The input figure of the weight should be within 100--2000g)
3. Press key to start defrosting and indicators will flash.

Auto Menu Cooking

The numeral pads 0-9 are matching with ten different subjects respectively;

Pad	Cook	Pad	Cook	Pad	Cook	Pad	Cook
1	VEGETABLE	4	PASTA	7	CHICKEN	0	PIZZA
2	FISH	5	POTATO	8	BREAD
3	MEAT	6	SOUP	9	CAKE

Example: Cooking vegetable of 350g:

1. Press button, and "AUTO" will light.
2. Press button again to choose weight, oven will display "350", "g", and "AUTO" will light.
3. Press to start cooking, "g" will go out, time counts down, and "AUTO" will flash.

Auto menu Chart

Menu	Weight(g)	Press Times	Display
1 /	150	Once	150
	350	Twice	350
	500	3 times	500
2 /	150	Once	150
	250	Twice	250
	350	3 times	350
	450	4 times	450
	650	5 times	650
3 /	150	Once	150
	300	Twice	300
	450	3 times	450
	600	4 times	600
4 /	50(with cold water 450ml)	Once	50
	100(with cold water 800ml)	Twice	100
	150(with cold water 1200ml)	3 times	150
5 /	1(approximately230g)	Once	1
	2(approximately460g)	Twice	2
	3(approximately690g)	3 times	3
6 /	200ml	Once	200
	400ml	Twice	400
	600ml	3 times	600
7 /	500	Once	500
	750	Twice	750
	1000	3 times	1000
	1200	4 times	1200
8 /	50g	Once	50
	100g	Twice	100
	150g	3 times	150
9 /	475g	Once	475
0 /	200g	Once	200
	300g	Twice	300
	400g	3 times	400

Note: cake menu is under convection cooking with 180 -warm-up function, and you should preheat first following the auto menu operation, when the oven reaches the temperature, it will continue cooking with output power and waiting for 5 minutes, and then if no opening the door to put cake into the oven will turn back to standby states.

Memory

I. Press key several times to set "memory 1" to "memory 3" program, and the oven will display I, to 3.

1. Set one or two stages program you want. Example: a) Press once to choose 100% microwave power; b) Press number keys 1, 0, 0, 0 in order to adjust the cooking time;

2. Press key to save the memory program set, or press to start cooking and save the program automatically.

3. Next time when you want to cook with the memory program which has been set, you just only need to

press key to choose the program wanted and then press to start cooking.

Multi-Stage Cooking

Two stages of cooking can be maximumly set. If one of the stages is defrosting, it should be put in the first stage, and auto cooking should not be set here. The buzzer will ring once after each stage and the next stage will begin, and auto cooking should not be set here.

Example: if you want to cook the food with 100% microwave power for 10 minutes + 80% microwave power for 15 minutes.

Do it as following:

I. Press once to choose 100% microwave power;
2. Press number keys 1, 0, 0, 0 in order to adjust the cooking time;
3. Press twice to choose 80% microwave power;
4. Press number keys I, 5, 0, 0 in order to adjust the cooking time;
5. Press to start cooking.

Speedy Cooking

When the oven is in the waiting states, press key to start cooking with full microwave power for 30 seconds (the maximum setting is 99 minutes and 99 seconds).

When the oven is in the combination cooking states, press key to add 30 seconds cooking time (invalid in the Defrost d-2,d-3,d-4, Multi-stage cooking or Auto Menu state).

Inquiring Function

1. In cooking state, press the current power will be displayed for 2 3 seconds.

press * , "C-1" - "C-4" will be displayed for 2 3 seconds.

press "140°C" - 230°C" will be displayed for 2~3 seconds.

1. In cooking state, press ⑦ to inquire the time for cooking. The cooking time will flash for 2-3 seconds.
2. In pre-set state, press to inquire the time for delay start cooking. The pre-set time will flash for 2-3 seconds.

Key Lock Function for Children

Lock: with the door closed, no operation in I minute in stand by mode or in I I minutes after the end of

cooking there will be a long "beep" denoting entering into the children-lock state and a key will light. The oven will display "0:00" or current time.

Lock quitting: In locked state, open the ove door, there will be a long "beep" denoting that the lock is

released and will go out.

Display Specification

I. In stand by mode, the oven will display clock and ":" will flash.
2. In function setting state, the oven will display the related setting.
3. In the operation and suspending state, the oven will display the residual cooking time.

MAINTENANCE - TROUBLESHOOTING

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in	It is forbidden to run the unit without any food inside. It is very dangerous. Operation in this manner is likely to damage the appliance.

Trouble	Possible cause	Remedy
Oven can not be started	(1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat	(4) Door not closed well.	Close door well.
Glass turntable makes noise when microwaves oven operates	(5) Dirty roller rest and oven bottom.	Refer to "Maintenance of Microwave" to clean dirty parts.

The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. Before scrapping, cut off the mains cord so that the appliance cannot be connected to the mains.

INSTALLATION DU FOUR

BELANGRIJKE VEILIGHEIDSINSTRUCTIES WAARSCHUWING
