iNsman 240CcobDic - Projection screen INSTAAL - Free user manual and instructions

Product type	Manual projection screen
Brand	INSTAAL
Model	iNsman 240CcobDic
Screen material	Matte white PVC
Gain	1.0
Viewing angle	150°, no hot spot
Screen treatments	Anti-yellowing, antistatic, anti-waving
Casing material	White lacquered steel
Installation type	Wall or ceiling (screws and anchors not included)
Deployment mechanism	Manual pull with automatic locking
Minimum load supported by rings	25 kg
Minimum distance from weighting bar to floor	2 cm
Usage precautions	Do not fold the screen, do not touch the surface with hands, avoid chemicals and liquids
Cleaning	Dry cloth or soft-bristle brush
Warranty	Repair or replacement in the country of purchase, subject to conditions
After-sales service	Contact the place of purchase or an authorized distributor

Frequently Asked Questions - iNsman 240CcobDic INSTAAL

How to install the projection screen?

Choose a suitable location. Attach the rings to the wall or ceiling with appropriate screws (not included). The distance between screws must match that between rings. Ensure the rings can support a load greater than 25 kg. The weighting bar must be at least 2 cm from the floor.

How to deploy and retract the screen?

Firmly hold the pull ring and gently lower the screen. Stop pulling when the black border appears or at desired height. The screen locks automatically. For retraction, gently release the screen to let it retract into its casing.

What to do if the screen does not lock?

Repeat the lowering operation by pulling gently. If the problem persists, check that the screen is not stuck and that the mechanism is clean.

How to clean the projection screen?

Use a dry cloth or soft-bristle brush to remove dust. Gently rub. Never use chemicals, do not spill liquid, and do not touch the surface with hands.

What precautions should be taken to avoid damaging the screen?

Do not fold the screen, do not place or hang anything on the deployed screen, do not put fingers in the casing during retraction. Avoid hard and sharp objects, heat, and insects before retraction.

What type of screen material is used?

Matte white PVC screen with a gain of 1.0, a viewing angle of 150° without hot spot. Anti-yellowing, antistatic, and anti-waving treatments.

What are the dimensions or format of the screen?

Exact dimensions are not specified in the manual. The model may indicate the diagonal (240 could be in cm or inches). Check product specifications or measure the screen once deployed.

How to obtain warranty service?

Contact the place of purchase or an authorized distributor. Warranty service is valid only in the country of purchase. You will need to provide a copy of the invoice, a description of the problem, and the original packaging for shipping.

Can I use anchors not supplied for installation?

Yes, screws and anchors are not included. You must choose anchors suitable for your wall or ceiling type. Ensure they support the weight of the screen.

How to store the screen during prolonged non-use?

After use, close the screen to protect the material. If not using for a long period, remove the screen and put it back in its original box to avoid damage.

USER MANUAL iNsman 240CcobDic INSTAAL

INSTAAL ACCESSORIES & CO

INSMAN

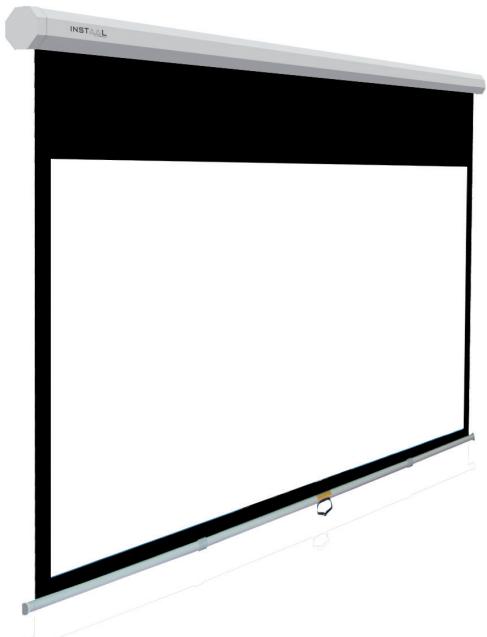

ÉCRAN MANUEL MANUAL SCREEN

MODE D'EMPLOI

Thank you for choosing our projection screen. Please read the manual carefully before use.

I. INSTALLATION

Garder always had a pre-chaught. Veuillez was not very happy to be in the centre of the centre, but he was happy to be in the centre of the centre.

Thank you for choosing our INSTAAL screen. All our screens have passed a strict quality inspection before delivery. Please read this manual carefully to ensure proper use.

1. Unpack the screen carefully, and make sure it is in good condition. Check that all the accessories are packed inside the carton.
2. Choose a suitable place for installation. Moving parts (weight bar) must be installed higher than 2 cm above the floor.

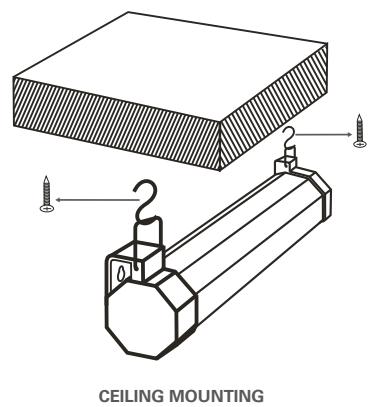

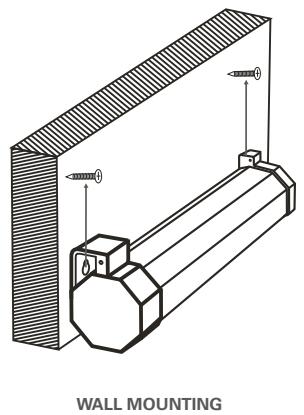

3. Refer to the below figure to fix the screen on the wall or on the ceiling (screws and brackets are not provided). The distance between the screws must be equal to the one between the 2 rings and they should be at the same level. The rings must be strong enough to load more than 25kg

II. OPERATING

Hold tightly the pulling ring and pull down the screen slowly. Stop when the black border comes out (or where you want to stop). The screen should lock automatically. If not, repeat the operation. After use, release the screen to make it roll back up in the casing.

III. PRECAUTIONS FOR USE

• Do not fold the screen.
• Do not hang anything on the screen when rolled down.
• Do not put your fingers inside the casing when rolling up.

• Dirt and scratches can damage the quality of the screen, please pay attention to these points :

• Do not touch the surface of the screen with your hands

• Do not draw on the screen
• Do not scratch the screen with hard and sharp objects that can cause damage

• Do not use chemicals to wash the screen surface

• Do not spill liquids on the screen.

• Keep the screen away from fire or high temperature.
• Make sure there are no bugs or any debris on the screen before rolling it back up.
• To remove dirt from the screen, use a soft cloth and a soft skin brush and gently rub.
• To roll down the screen, pull slowly and vertically. Do not force. Stop pulling as soon as the black border is completely out of the casing or if the screen is jammed or injured.
• After use, roll back up the screen in the case to protect it. If you won't use the screen for a long time, please take the screen off the wall or ceiling and put it back in its box.

IV. SPECIFICATIONS

Fabric	White matt, PVC surface projection
Gain	1.0
Directivity	150°, no shine point
Treatments	Anti-yellowing, antistatic, anti-warping
Case	White lacquered steel

This product is warranted for one year from the date of purchase. If the product becomes defective due to faulty materials or workmanship within the warranty period, please return the complete unit to your local service center with the invoice prepaid transportation charge by yourself.

This warranty DOES NOT apply to :

• break down due to usage of incompatible spare parts
• normal wear and torn parts, cord, plug, chuck, charger, switch, bearing housing, gear
• brackets and accessories
• unauthorized repair, alteration, modification
• damage caused by foreign objects, substances, accidents, obvious misuse, abuse, neglect and improper applications.

Details may vary from country to country. Please consult the local service center for more details, we reserve the right to change the terms of warranty without prior notice..

FOR YOUR RETENTION

CUSTOMER COPY
NAME Mr. □Miss □Mrs □
ADDRESSTEL. NO.:
PRODUCT MODEL	SERIAL NO. OR DATE CODE
DATE OF PURCHASE	INVOICE / RECEIPT NO.
DEALER'S NAMETEL. NO.:
