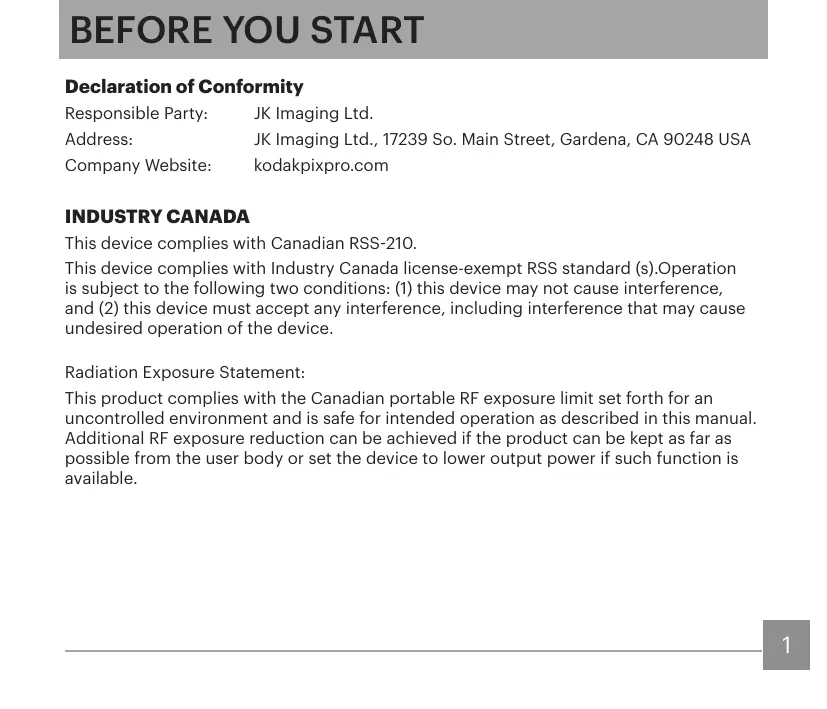

BEFORE YOU START

Declaration of Conformity

Responsible Party: JK Imaging Ltd.

Address: JK Imaging Ltd., 17239 So. Main Street, Gardena, CA 90248 USA

Company Website: kodakpixpro.com

INDUSTRY CANADA

This device complies with Canadian RSS-210.

This device complies with Industry Canada license-exempt RSS standard (s).Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Radiation Exposure Statement:

This product complies with the Canadian portable RF exposure limit set forth for an uncontrolled environment and is safe for intended operation as described in this manual. Additional RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available.

For Customers in Europe

This symbol [crossed-out wheel bin WEEE Annex IV] indicates separate collection of electrical waste and electronic equipment in the European countries. Please do not throw the equipment into domestic refuse. Please use the return and collection systems available in your country for proper, safe disposal of this product.

CE "CE" mark indicates that this product complies with the European requirements for safety, health, environment and customer protection. "CE" marked cameras are intended for sales in Europe.

Europe – EU Declaration of Conformity

This device complies with the essential requirements of the R&TTE Directive 2014/53/EU. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 2014/53/EU:

- EN 60950-1: 2006+A11:2009 +A1:2010 +A12:2011

Safety of Information Technology Equipment

- EN 50566: 2013

Product standard to demonstrate compliance of radio frequency fields from handheld and body-mounted wireless communication devices used by the general public (30 MHz — 6 GHz)

- EN 62209-2: 2010

Human exposure to radio frequency fields from handheld and bodymounted wireless communication devices — Human models, instrumentation, and procedures

Part 2: Procedure to determine the specific absorption rate (SAR) for wireless communication devices used in close proximity to the human body (frequency range of 30 MHz to 6 GHz)

Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems; Data transmission equipment operating in the 2.4 GHz ISM band and using spread spectrum modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive.

- EN 301 489-1 V1.9.2: 2011

Electromagnetic compatibility and Radio Spectrum Matters (ERM); Electro Magnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements.

- EN 301 489-17 V2.2.1:2012

Electromagnetic compatibility and Radio spectrum Matters (ERM); Electro Magnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for 2.4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment.

Manufacturer: Sintai Optical (Shenzhen) Co., Ltd

Address: Qiwei Ind Sec, 1st, 2nd,& 3RD Bldg, Lisonglang Village, Gongming Town, Bao'an District, Shenzhen, Guangdong, China

Batteries: Please dispose of used batteries at designated collection centers.

Packaging: Please follow local regulations for the recycling of packaging.

For Customers in the U.S.A.

Federal Communication Commission Interference Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Radiation Exposure Statement:

This product complies with the FCC portable RF exposure limit set forth for an uncontrolled environment and is safe for intended operation as described in this manual. Additional RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available.

About this Manual

Thank you for purchasing the KODAK PIXPRO Digital Camera. Please carefully read this manual and keep it well for future reference.

JK Imaging Ltd. reserves all rights of this document. No part of this published manual may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form, by any means, without the prior written permission of JK Imaging Ltd.
All trademarks mentioned in this manual are used for identification purposes only and are properties of their respective owners.
This manual provides you with instructions on how to use your new KODAK PIXPRO Digital Camera. Every effort has been made to ensure that the contents of this manual are accurate; however JK Imaging Ltd. reserves the right to make changes without notice.
- Throughout this manual, the following symbols are used to help you locate information quickly and easily:

Indicates useful information.

In introducing you how to operate this camera, the following symbols may appear to facilitate your understanding:

「Item properties」: The optional properties in the camera interface are indicated by the symbol 「」.

SAFETY NOTES

Safety notes for this camera

• Do not drop the camera or allow it to hit solid objects.
• Do not attempt to disassemble or repair the camera.
  Do not use or store the camera in dusty places or on a beach to prevent dust or sand from entering the camera, causing possible damage.
• Do not use or store the camera in a hot environment or in direct sunlight.
  Do not use or store the camera near a powerful magnetic field, such as a magnet or transformer.
• Avoid touching the lens of the camera.
• Do not expose the camera to direct sunlight for a long period of time.
  To prevent the camera from being damaged by moisture, do not use or store the camera in very humid environments, such as in rain or near bodies of water.
  If water accidentally comes in contact with the camera, turn the camera off, remove the battery and the memory card, and dry it completely within 24 hours.
  When you take the camera from a cold environment to a warmer environment, condensation may occur. Please wait for a reasonable period of time before you turn the camera on.
  Before you remove the battery and memory card, the camera should be turned off.
  When you clean the body of the camera, do not use abrasive, alcohol-based or organic cleansers or solvents.
  ■ Use a professional lens cleaning cloth and appropriate cleaner to wipe and clean the lens.
  ■ Download your photos and remove the memory card when you are going to store the camera for a long period of time.
  If this camera is not in use for a long period of time, please keep it in a dry and clean storage location.
  Our company will not pay compensation for any failure of playback including: pictures or videos damaged or unrecoverable by improper operation.

Safety notes for battery

• Please use a battery that is the same type as the one included.
• Please use the attached charger to charge the battery.
  If battery fluid leaks inside the camera, contact our customer service department immediately. If battery fluid leaks onto your skin, rinse your skin with clean water and seek immediate medical attention.
  ■ Disposal of used batteries should be carried out in accordance with the local (national or regional) regulations.
  To prevent the battery from being damaged, do not drop the battery or allow it to hit solid objects or to be scratched by foreign objects.
  Do not let the battery come in contact with metal objects (including coins) to avoid short circuiting, discharging, excessive heat, or possible leakage.
• Do not attempt to disassemble the battery.
• Do not expose the battery to water. Always keep the battery contacts dry.
• Do not heat the battery or throw it into a fire to avoid a possible explosion.
• Do not store the battery in a hot environment or in direct sunlight.
  If the battery overheats during charging or use, stop charging or stop use immediately. Turn off the product, remove the battery carefully, and wait until it cools down.
  When the camera is stored for a long period of time, remove the battery and keep it in a dry place that is not accessible to infants and children.
  In a colder environment, the performance of the battery could be noticeably reduced.
  When you install the battery, align the battery markings according to the positive and negative markings inside the battery compartment. Never force the battery into the battery compartment.

Safety notes for memory card

We suggest buying only well-known, name brand memory cards to ensure peak performance and reliability.
- Format the memory card using the camera before you use it or insert a new one.
- Do not drop the memory card or allow it to hit solid objects to avoid damaging it.
- Do not attempt to disassemble or repair the memory card.
- Do not expose the memory card to water. Always keep it dry.
Do not remove the memory card when the camera is turned on. Otherwise, the memory card and photo/video files could be permanently damaged.
Do not directly edit the data on the memory card. Copy the data to your computer before you edit them.
When the camera is stored for a long period of time, be sure to download your photos and remove the memory card. Store the memory card in a dry environment.
Do not modify the name of the files or folders of the memory card using your computer. Modifying the file names may cause the files to not be recognized on the camera or a possible permanent error may occur.
A photo taken with the camera will be stored in the folder that is automatically generated on the memory card. Do not store photos that are not taken using this camera in these folders as the pictures cannot be recognized during the playback.
When you insert the memory card, make sure the notch of the card matches the markings on the top of the camera card slot.

Other Safety Notes

Do not disconnect the power or turn the camera off during the update process. Doing so may cause incorrect data to be written and the camera may not power on later.
- Do not hang the neck strap of the camera around the neck of a child.
When using your camera on an airplane, observe the relevant rules specified by the airline and FAA regulations.
Due to the limitations of manufacturing technology, the LCD may have a few dead or bright pixels. These pixels do no effect the quality or performance of the camera, photos or video.
Do not expose the camera's LCD to water. In a humid environment, only wipe it with a soft and dry cleaning cloth.
If the LCD screen is damaged, pay particular attention to the liquid crystal in the screen.

If any of the following situations arise, immediately take the steps listed below:

1. If liquid crystal comes in contact with your skin, please wipe with a dry cloth, wash thoroughly with soap, and rinse with plenty of clean water.
2. If liquid crystal gets into your eye, flush the eye immediately with plenty of clean water for at least 15 minutes and then seek medical assistance.
3. If liquid crystal is swallowed, immediately rinse your mouth thoroughly with clean water and induce vomiting. Seek medical assistance.

CONTENTS

BEFORE YOU START......1

SAFETY NOTES ......6

CONTENTS......10

GETTING READY...... 15

Accessories Included....15

Install Lens Cap and Neck Strap.....16

Part Names ...... 17

Installing Battery and

Memory Card....19

Charging Battery 21

Turning Camera On and Off......23

Set your Language, Date/Time......24

Set your Language, Date/Time after the First Power-On......24

Resetting your Language......25

Resetting Date/Time 26

MODE OVERVIEW ...... 27

Display Setting 27

LCD Display....28

Overview of the screen icons in photo shooting mode....28

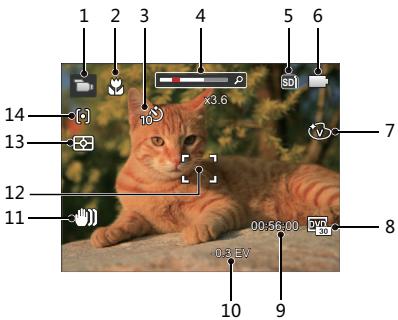

Overview of the screen icons in movie mode 29

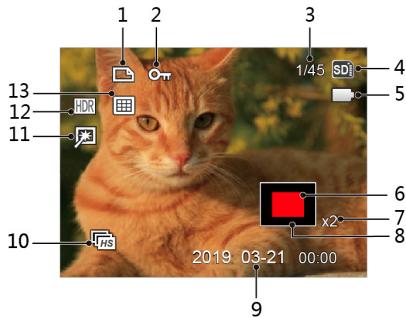

Overview of the screen icons in playback mode....30

How to Take Pictures....31

Using the Mode Dial 32

Auto Mode 35

Face Beautifier 37

Wi-Fi® Mode....38

Scene Mode 45

Panorama Mode 47

Movie Mode....50

Custom Settings 51

BASIC OPERATION...... 53

Using the Zoom Function...... 53

Focus Setting...... 54

Macro Mode....55

Self-Timer Setting...... 56

Flash Mode 57

White Balance Setting......58

Continuous Shot 59

EV Settings 60

EV Adjustment......60

ISO Adjustment......61

Shutter Adjustment......61

Aperture Adjustment ...... 62

Using Quick Recording 62

i Button Function Menu....63

PLAYBACK MODE...... 64

Viewing Photos and Videos ...... 64

Thumbnail View......65

Using Zoom Playback (for still pictures only)....66

Deleting Photos and Videos...... 67

Slideshow 68

Continuous Capture Group Playback....69

Animation Panorama Play 70

USING THE MENUS...... 71

Photo Setup Menu....71

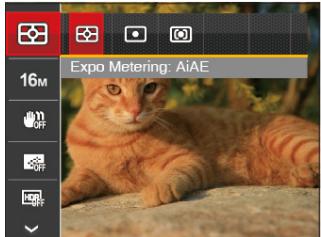

Expo Metering 71

Image Size 72

OIS (Optical Image Stabilization) 73

Cont. AF (Continuous Auto-Focus)....73

HDR (High Dynamic Range)...... 74

Beautifier 74

Scene....75

Photo Shooting Settings Menu......76

Quality 77

AF Assist Beam....77

Digital Zoom....77

Date Imprint 78

Quick Review....78

Custom Settings 79

Movie Menu 80

Expo Metering (Exposure Metering) 80

Movie Size 81

OIS (Optical Image

Stabilization) 82

Movie Setting Menu 83

Digital Zoom 84

Custom Settings 84

Playback Menu 85

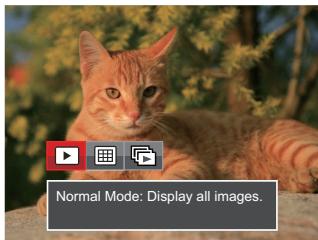

Playback Mode 85

HDR (High Dynamic Range)...... 86

Touch-Up 86

Rotate 87

Resize 87

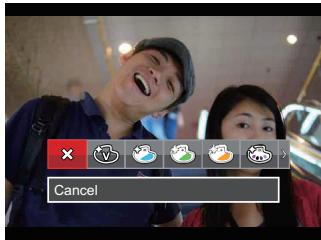

Color 88

Playback Settings Menu......89

Protect 90

Delete 91

DPOF (Digital Print Order

Format) 92

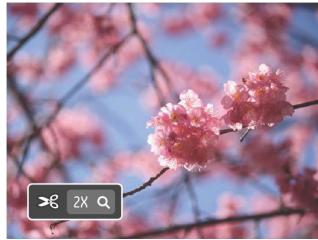

Trim....92

General Settings Menu 93

Sound Settings......94

Power Saver....94

Language....95

Zone....95

Date/Time 95

LCD Brightness......95

File Settings 96

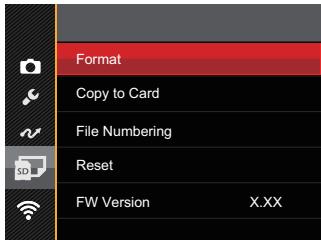

Format 97

Copy to Card....97

File Numbering......98

Reset....98

FW Version....99

CONNECTION SETTINGS ...100

Connecting to a Computer...... 101

Setting the USB Mode .... 101

Transferring files to your computer....102

Connecting to a PICTBRIDGE™

Compatible Printer 103

Setting the USB Mode ...... 103

Connecting to your Printer..... 104

Using the PICTBRIDGE™

Menu 105

Video System 109

APPENDICES ...... 110

Product Specifications....110

Prompts and Warning Messages .....114

Troubleshooting 118

GETTING READY

Accessories Included

Your camera box should contain the camera model you purchased along with the following accessories. If anything is missing or appears to be damaged, please contact your retailer first or our customer service center. (The battery chargers may be a little different in shape due to the different countries or regions this camera is sold to. The illustration may not match the actual product.)

Simple line drawing of a rectangular electronic device with three ports (no text or symbols)

Rechargeable Li-ion Battery

Simple line drawing of a battery with two leads (no text or symbols)

AC Adapter

Two types of USB connectors shown in line drawing style (no text or symbols)

Micro USB Cable

Line drawing of a magnifying glass with two circular components and a handle (no text or symbols)

Lens Cap With Strap

Line drawing of a pair of athletic belt belts (no text or symbols)

Neck Strap

Quick, Quick Color

Quick Start Guide

Warranty card

Warranty Card

STOP

Service Card

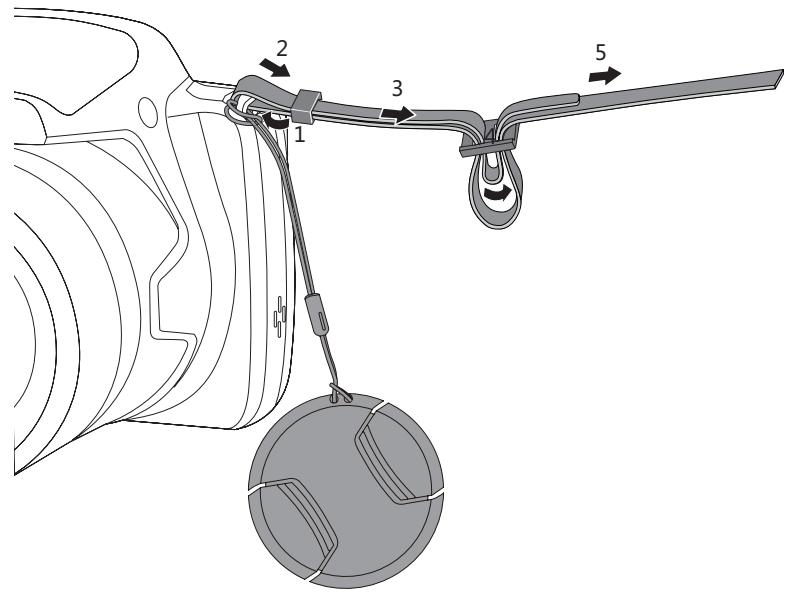

Install Lens Cap and Neck Strap

Technical diagram showing a mechanical assembly with labeled parts 1, 2, 3, and 5, including a circular component inset.

Part Names

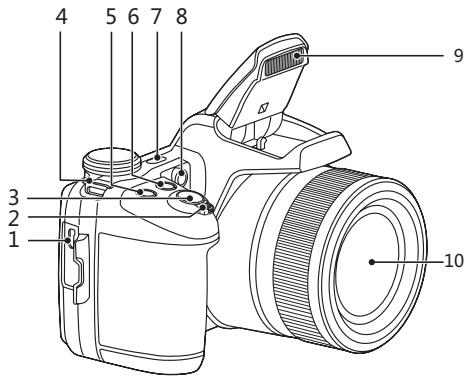

4 5 6 7 8 3 2 1 9 10

1. Micro USB Port

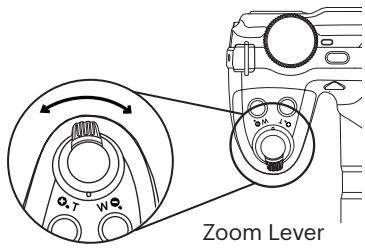

2. Zoom Lever
3. Shutter Button
4. Strap Eyelet
5. ☒ Exposure Compensation Button
6. ☐ Continuous Shot Button

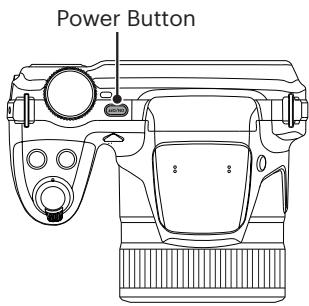

7. Power Button
8. AF Assist Beam/Self-Timer Lamp
9. Flash Lamp
10. Lens

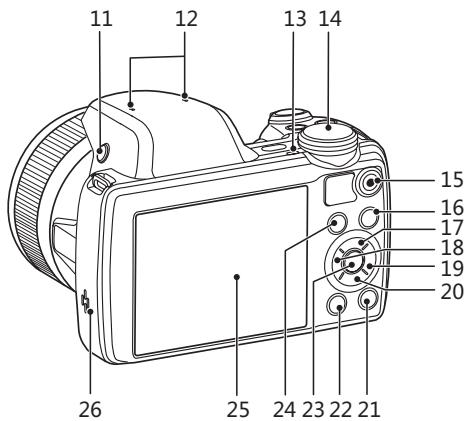

11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26

0 27 0 28

1. Flash Button
2. Microphones
3. Indicator Lamp
4. Mode Dial
5. ● Fast Video Recording Button
6. ☐ Menu Button
7. [▲AF] AF Button/Up Button
8. [◀◀] Macro Button/Left Button
9. [▶] Flash Button/Right Button
10. [▼图标] Delete Button/Self-Timer Button/Down Button
11. DISP. Display Button
12. ☑ Playback Button
13. SET Button
14. ⓘ i Button
15. LCD
16. Speaker
17. Battery Cover Door
18. Tripod Socket (1/4" Standard)

Installing Battery and Memory Card

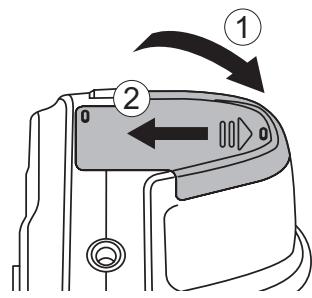

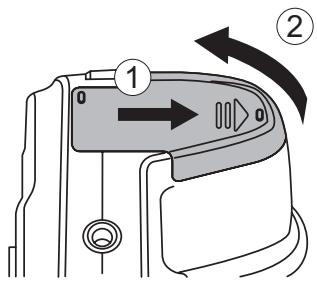

1. Open the battery cover according to the direction of arrow.

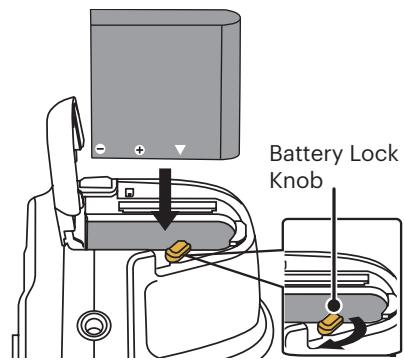

2. Insert the battery into the battery compartment according to the negative and positive directions as illustrated in the picture. Push the battery down until it locks in place.

Diagram of a device with labeled parts and directional arrows indicating movement or rotation

Battery Lock Knob

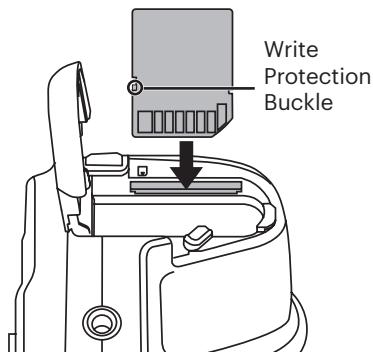

1. Insert the memory card into the memory card slot as shown in the diagram.

2. Close the battery cover.

Write Protection Buckle

Diagram of a sewing machine's back panel with labeled parts and directional arrows indicating movement or adjustment.

A standard SD memory card is not included in the camera packaging and needs to be purchased separately. This camera takes a standard (SD/SDHC) memory card. We recommend using a name brand memory card that is Class 4 or higher and has a capacity of 4GB to 32GB. The camera is not compatible with Micro SD, Ultra, Ultra Plus, Extreme, or adapters for any of these other memory cards.

To remove your memory card, open the battery cover, gently press the memory card to eject it and remove it carefully.

Charging Battery

Before you charge the battery, ensure that the battery is inserted properly and the camera is off.

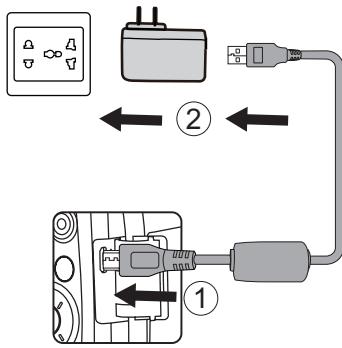

1. Connect the camera and the power charger using the supplied Micro USB cable.
2. Insert the plug of the power charger into the power outlet to charge the battery.

After the battery is stored for a long period of time, use the supplied power charger to charge the battery prior to use.

To have maximum battery life, charge the battery for at least 4 hours the first time.

Charging indicator:

Steady orange: Charging

The indicator will go out once charging is finished.

Diagram showing two connected electrical components with labeled parts and directional arrows indicating connection steps.

Indicator Lamp

ON/OFF

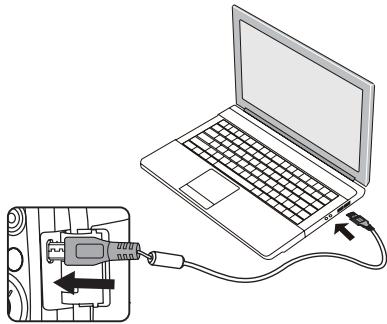

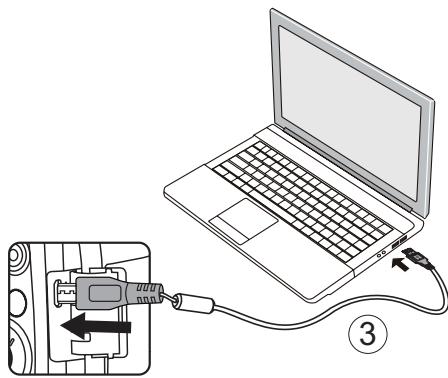

1. When the camera is turned off, you can also connect the camera to your PC using a USB cable to charge the battery.

Diagram showing a laptop connected to a cable via a plug, with an inset photo of a device (no text or symbols present)

Please charge the battery indoors between 0^ C and 40^ C ( 32^ F and 104^ F).

Turning Camera On and Off

Press the power button to turn the camera on. To turn the camera off, press the power button again.

Power Button

When the power is off, press and hold the ☐ button to power on and enter playback mode.

Set your Language, Date/Time

Set your Language, Date/Time after the First Power-On

1. When you turn the camera on for the first time, the language selection screen will appear.
2. Press the [▲AF] /[▼→○] /[◀◀] /[▶◀] buttons to select your desired language.
3. After you press the Ⓗ button to confirm the selection, the Date/Time settings screen appears.
4. Press the [◀◀] /[▶◀] button to select the Date/Time to be adjusted: Time is displayed in YYYY.MM.DD HH:MM.
5. Press the [▲AF] /[▼→] button to adjust the value for the selected Date/Time.
6. Press the Ⓗ button to confirm the time settings and the shooting screen will appear.

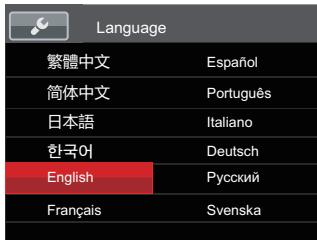

Language 繁體中文 Español 簡体中文 Português 日本語 Italiano 한국어 Deutsch English Pусский Français Svenska

Date & Time H-M YMD 2019 03:21 00:00

Resetting your Language

After you set your language for the first time, follow the instructions below to reset your desired language.

1. Press the ☐ button, press the [▲AF] / [▼ ➕ ⚙] button to select ☐ , and press the ⏻ button to enter the menu.
2. Press the [▲AF] /[▼→○] button to select 🎨, and press the Ⓜ/[▶] button to enter the menu.
3. Press the [▲AF] /[▼→○] button to select 「Language」 and press the Ⓗ/[▶⚡] button to enter the menu.
4. Press the [▲AF] /[▼→○] /[◀○] /[▶◆] buttons to select your desired language and press the ⏻ button to confirm.
5. Press the ☐ button and the shooting screen appears.

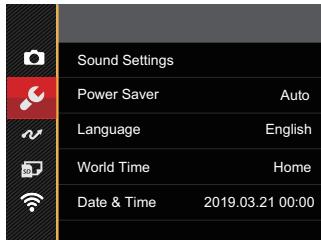

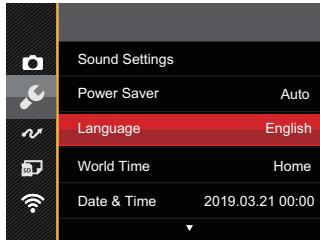

Sound Settings Power Saver Auto Language English World Time Home Date & Time 2019.03.21 00:00

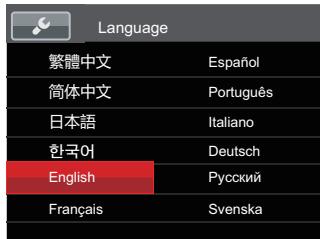

Language 繁體中文 Español 簡体中文 Português 日本語 Italiano 한국어 Deutsch English Pусский Français Svenska

Resetting Date/Time

After you set your Date/Time for the first time, follow the instructions below to reset date and time.

1. Press the ⏻ button, press the [▲AF] / [▼ ➕ ⚙] button to select 📋 , and press the ⏻ button to enter the menu.
2. Press the [▲AF] /[▼→] button to select 🔊, and press the Ⓗ/[▶◀] button to enter the menu.
3. Press the [▲AF] /[▼→○] button to select 「Date & Time」 and press the Ⓗ/[▶↘] button to enter the menu.
4. Press the [◀◀] /[▶◀] button to select the Date/Time to be adjusted: Time is displayed in YYYY.MM.DD HH:MM.
5. Press the [▲AF] /[▼] button to press the value for your selected block. After you finish your settings, press the ⏚ button to confirm.
6. Press the ☐ button and the shooting screen appears.

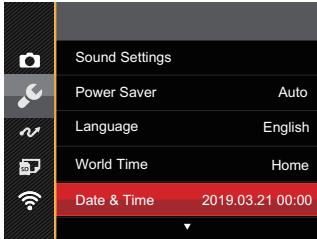

Sound Settings Power Saver Auto Language English World Time Home Date & Time 2019.03.21 00:00

Date & Time H-M YMD 2019 03:21 00:00 Back

Display Setting

Press the DISP. button to display the settings: Classic, Full, Off.

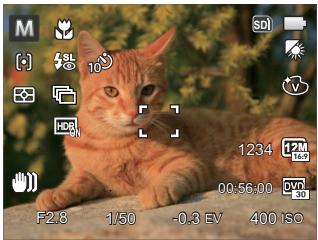

Classic: Displays the camera parameters on screen

Orange tabby cat resting on a surface with blurred green foliage background (no text or symbols visible)

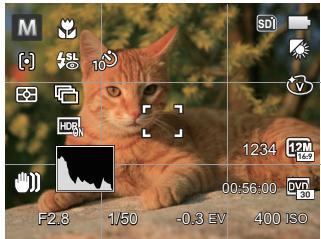

Full: Camera parameters with Grid and Histogram

Orange tabby cat resting on a surface with camera interface overlays (no readable text or symbols)

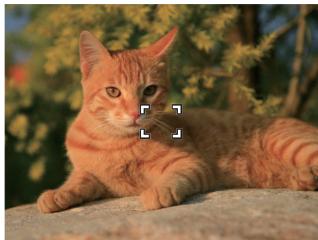

Off: Does not display any additional icons on screen

Orange tabby cat resting on a stone surface with blurred green foliage in the background (no text or symbols visible)

LCD Display

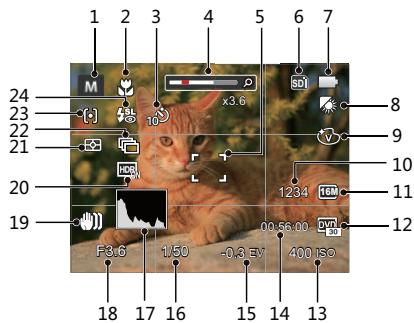

Overview of the screen icons in photo shooting mode

1 2 3 4 5 6 7 M x3.6 8 24 23 10 9 22 21 12 10 20 19 F3.6 1/50 -0.3 EV 1234 16M 00:56:00 DWN 400 ISO 18 17 16 15 14 13

1 Shooting Mode

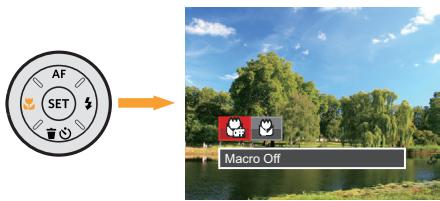

2 Macro Mode
3 Self-Timer
4 Zoom Display (By turning the Zoom Lever)
5 Focus Frame
6 SD Memory Card/Built-in Memory
7 Battery Status

8 White Balance
9 Color Effect
10 Number of Remaining Shots
11 Image Size
12 Video Quality
13 ISO Value
14 Remaining Recording Time
15 Exposure Compensation
16 Shutter Speed
17 Histogram
18 Aperture Value

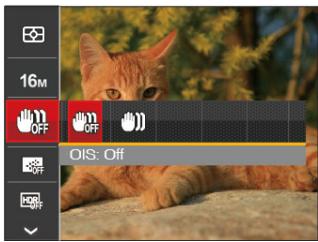

19 OIS (Optical Image Stabilization)
20 HDR

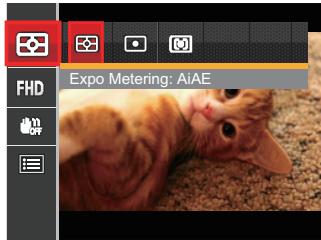

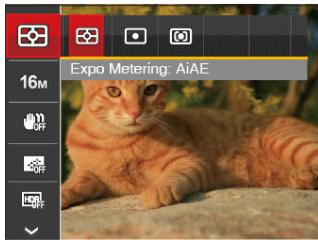

21 Expo Metering
22 Continuous Shot

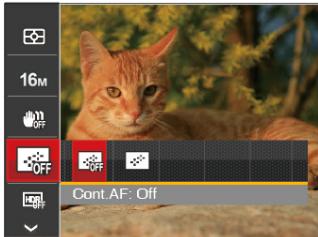

23 AF Mode

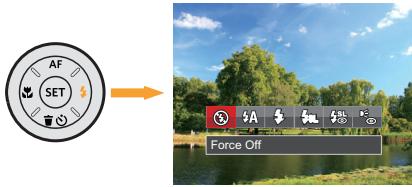

24 Flash Mode

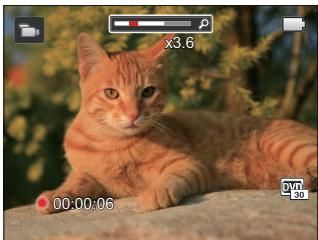

Overview of the screen icons in movie mode

1 2 3 4 5 6 14 10 x3.6 13 12 11 7 00:56.00 8 10 9

1 Movie Mode
2 Macro Mode
3 Self-Timer
4 Zoom Display (By turning the Zoom Lever)
5 SD Memory Card/Built-in Memory
6 Battery Status

7 Color Effect
8 Video Quality
9 Remaining Recording Time
10 Exposure Compensation
11 OIS (Optical Image Stabilization)
12 Focus Frame
13 Expo Metering
14 AF Mode

For optimal video shooting, it is recommended that an SDHC memory card be used.

Optical Zoom and Digital Zoom can be adjusted (208X in total). Digital Zoom can be adjusted to 4X.

Overview of the screen icons in playback mode

1 2 3 1/45 SDI 4 13 HDR 5 12 11 x2 6 7 10 FRTS 8 2019 03-21 00:00 9

1 DPOF File
2 File Protection
3 Memory Space (indicating the current number of photos and total number of photos)

4 SD Memory Card/Built-in Memory
5 Battery Status
6 Zoom Magnification Area
7 Image Zoom Ratios
8 Image Zone
9 Shooting Date

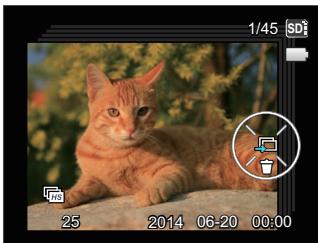

10 Continuous Capture Group Playback
11 Touch-up
12 HDR
13 Date Folder

How to Take Pictures

Line drawing of a hand holding a camera lens (no text or symbols)

Line drawing of two hands holding a circular device (no text or symbols)

1. Hold the camera securely with both hands, being careful not to block the flash and lens with fingers.
2. Point the lens toward the object you want to take a picture of.
3. Use the zoom lever to select Tele or Wide position to zoom in or out on your subject.
4. Press the shutter button down half-way to allow the camera to focus on your subject.
5. When the frame around your subject turns green and the LCD is focused to your liking, push the shutter button down completely to take the picture.

Using the Mode Dial

This camera provides a convenient mode dial that allows you to manually switch between different modes with ease. The available modes are listed below:

Mode Name	Icon	Description
Auto Mode	[TSHC]	In this mode, the optimal conditions for taking pictures will be set based on the subject and environment. It is the most commonly used mode for taking pictures.
Program AE		Under different scenes, the user can switch the ISO and EV value according to personal preference, the camera can automatically set the shutter speed and aperture value.
Shutter priority		Setting allows you to adjust the shutter speed / EV value and ISO value. The camera automatically sets the aperture value based on the shutter speed and ISO value to get the most appropriate exposure value.
Aperture priority		In this mode, you can adjusting the aperture size, EV and ISO values. The large aperture is to highlight the object focused through blurring the background, while the small aperture is for clear focusing on both the background and the object.
Manual Mode	[01:00:01]	This mode is for manually setting the aperture, shutter speed and ISO value.
Face Beautifier	[02:04:1]	This mode automatically enhances facial features with skin softening touches and eye brightening capabilities.
Wi-Fi Mode	[03:05:1]	Enable image transmission and remote control by connecting smart device with Wi-Fi.
Scene Mode	SCN	Choose from 13 different pre-set scene types and effects for your photos.
Movie Mode	[04:06:01]	Record videos.
Custom Settings	[07:06:1]	The user can store frequently used shooting modes and parameters. Switching to this mode enables quick adjustment.

Mode: PSAM

Follow the steps below to adjust the parameters:

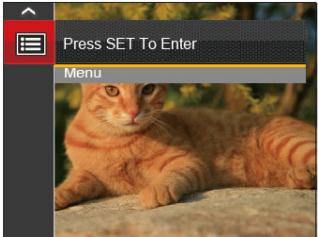

1. Rotate the mode dial to select a mode you want, press the ☑ button to configure settings.

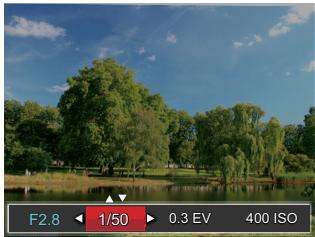

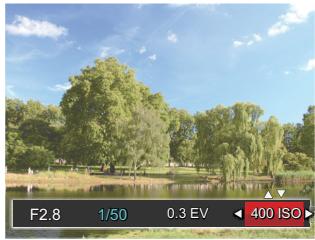

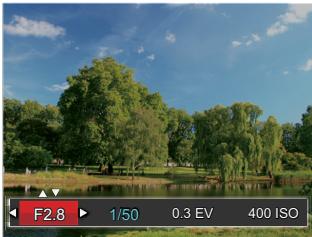

F2.8 1/50 0.3 EV 400 ISO

1. Press the [◀◀] /[▶◀] button to select an adjustment setting.
2. Press the [▲AF] /[▼图标] button to adjust the parameters.
3. Press the Ⓗ button to confirm the settings and enter the shooting screen.

Please refer to the table below for any nonadjustable options in PSAM mode: (O: Available X: Not Available)

Mode\Options	Aperture	Shutter	EV	ISO
P	X	X	O	O
S	X	O	O	O
A	O	X	O	O
M	O	O	X	O

Please note that even if an option is not able to be adjusted in a particular mode, its value will still be displayed on the shooting screen.

Auto Mode

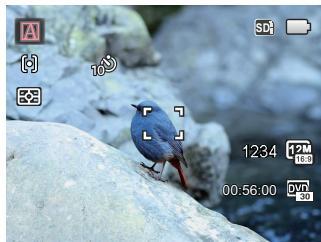

The camera will automatically detect the most suitable scene to capture the best pictures.

A bird perched on a rocky surface, surrounded by camera lens icons and timecode (no readable text or symbols in the image)

Auto Mode

The camera automatically adjusts the exposure and focus to ensure the best possible pictures.

Landscape Mode

For landscapes, automatically adjusts the exposure to match the background.

Portrait Mode

Most suitable for capturing people with focus on their faces.

Night Portrait

When you take portraits at night or in low light conditions, automatically adjust the exposure for people and night scenes.

Backlit Portrait

When the sun or any other light source is behind you, automatically adjusts the foreground exposure to produce the best pictures possible.

Night Mode

For night scenes, automatically increases the ISO value to compensate for low light.

Macro Mode

To produce more detailed close-ups, will automatically engage the camera's Macro Mode and automatically focus the lens.

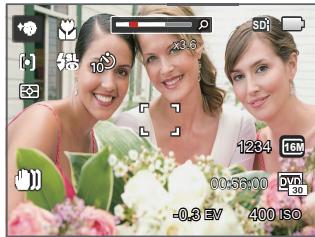

Face Beautifier

The camera is set to automatically adjust camera exposure for realistic portrayal of skin tones.

1. Turn the mode dial to select face beautifier mode ✦.

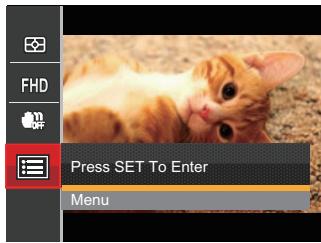

2. Press the ⏻ button and press the [▲AF] /[▼ ➕ ⚙] button to select ✗1 .
3. Press the [◀◀] /[▶◀] button to select an option and press the Ⓗ button to confirm and return to photo shooting mode.

Street photo with visible store signboards and a close-up of three women's flowers

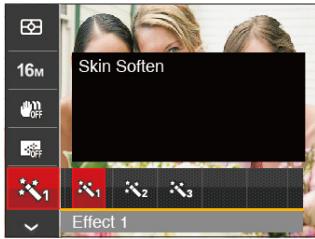

• Effect 1: Skin Soften
• ✉2 Effect 2: Skin Soften+Eye Brightening
• Effect 3: Skin Soften+Eye Brightening+Eye Enlargement

Wi-Fi® Mode

Enable image transmission and remote control by connecting smart device with Wi-Fi.

Before utilizing Wi-Fi Mode, please review the following:

• Your smart device operating system version needs to be iOS 10 or higher, or Android 5.0 or higher. If not, please upgrade your smart device before using the App.
  Please do not use in places having high intensity magnetic field, electrostatic and electric wave interference (for example near a microwave oven), which may cause failure in receiving signals.
  To maintain a connection, please keep the camera within 10 meters (32.8 feet) without signal shielding interference.
• Please do not use Wi-Fi connection functionality on a plane.
  ■ The camera and the smart device can only be connected one to one.

Downloading the App package:

Download a dedicated installation package from the application store (App name: PIX-PRO Remote Viewer) and then install it.

• Android devices : Search and download the App "PIXPRO Remote Viewer"
  in Google play, and install it following the instructions on the interface.

- iOS devices : Search and download the App "PIXPRO Remote Viewer" in App store, and install it following the instructions on the interface.

1. Rotate the mode dial to 📋 and then enter the Wi-Fi selection interface.

Wi-Fi Mode Settings Station AP mode In AP mode, the camera will act as an access point enabling another Wi-Fi device to connect to it.

1. Press the [◀◀] / [▶◀] button to select and set options.

2. [Settings] : Customize the Wi-Fi settings for the camera system.
   • 📷 「Station」： Use the Station Mode to connect to a "Personal Hotspot" created by your mobile device.
   • [IMAGE] 「AP mode」: In AP mode, the camera will act as an access point enabling another Wi-Fi device to connect to it.

Rotate the mode dial to disconnect.

AP Mode

This camera may connect with your smart device through Wi-Fi®.

Settings of Camera:

1. Select Wi-Fi and press the SET button to enter the setting interface.

AP mode Setting pre-connected device for the following serial number: SSID: PIXPRO AZ528_XXXX WPA2 PSK: XXXXXXXXX Refresh Back

1. Press the [▲AF] /[▼→] button to select:

2. Refresh: Create a new WPA2 PSK password

3. Back: Back to previous page

Settings of Smart Device:

1. Enable the Wi-Fi of smart device and then search surrounding wireless devices.
2. Select the name of camera SSID to be connected and then input the eight-digit number password after WPA2-PSK on the camera.
3. Click the icon of the App to enable the App.

Set up completion:

Once the App is connected to the camera, functional operations can be enabled on the smart device.

Station

Enable image transmission and remote control by connecting the camera with a Wi-Fi access point created by your smart device.

1. Enable the Wi-Fi access point of smart device.
2. Select 📷 on camera and then press the Ⓗ button to confirm connection with smart device.

Wi-Fi Mode Station Searching for devices. *SSID ► Device1-SSID Device2-SSID Device3-SSID Back Scan

Press the [◀◀] /[▶◀] button to select:

• Scan: Search again surrounding wireless devices.
• ▶: Select the name of device to be connected.

• Back: Back to Wi-Fi mode select screen.

• Press the [▲AF] /[▼icon] button to select the name of smart device to be connected and then press the Ⓜ button to confirm. Then, the camera enters the password input interface.

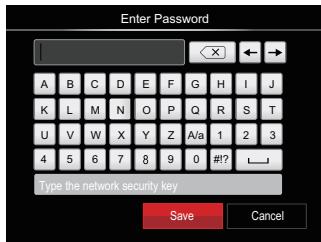

Enter Password A B C D E F G H I J K L M N O P Q R S T U V W X Y Z A/a 1 2 3 4 5 6 7 8 9 0 #? Type the network security key. Save Cancel

Meanings of interface icons:

Icon	Description
	Backspace
	Switch between capital and lowercase letters
	Move the Cursor
	Switch the symbol input
	Space

1. Press the [▲AF] /[▼图标] /[◀图标] / [▶图标] buttons to select and then press the Ⓗ button to confirm your selection. Enter the completion of WPA2 PSK after password storage.

2. Connect immediately after saving.

- If connected, the LCD will display as shown below:

Wi-Fi Mode Station Connected with device SSID: XXXXXXXX Disconnect

- If connect failed, please check Wi-Fi device and try again.

1. After connection, click the icon of the App 📷 on the smart device, you may use it to carry out relative operation.

Display of Wi-Fi Connection Status

The Wi-Fi has successfully connected but App is not enabled:

Wi-Fi Mode AP mode Connected with device MAC Address : xx:xx:xx Disconnect

The Wi-Fi has successfully connected and App is enabled:

Wi-Fi Mode Connected with APP XXXXX Disconnect

To Disconnect from Wi-Fi:

Wi-Fi Mode Disconnect from device? No Yes

• No: Keep Wi-Fi connected and back to previous page.
• Yes: Disconnect and back to Wi-Fi connection screen.

Disconnected from smart device Wi-Fi :

Wi-Fi Mode AP mode Disconnected, please check Wi-Fi device and try again. Back

- Back: Back to the SSID interface.

Settings

The name of this camera can be changed under Wi-Fi® settings.

1. Select the 📞 and then press the Ⓗ button to enter the setting interface.
2. Press the [▲AF] / [▼ ≡] button to select the option to be adjusted and then press the ⏚ button to enter the menu.

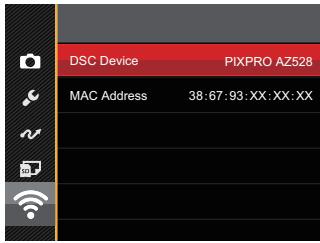

DSC Device PIXPRO AZ528 MAC Address 38:67:93:XX:XX:

1. Press the Ⓗ button to confirm settings and then skip the menu.

DSC Device

The default name of DSC Device is 「PIXPRO AZ528」. Change the name of DSC device through typing.

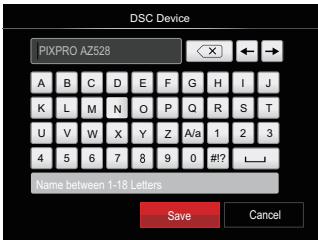

DSC Device PIXPRO AZ528 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z A/a 1 2 3 4 5 6 7 8 9 0 #? _ Name between 1-18 Letters Save Cancel

For the method of input, please refer to the introduction on password input on Page 41.

MAC Address

Check the wireless MAC Address of this camera.

App Operating Instructions

Refer to the "PIXPRO Remote Viewer User Manual" located on the web:

Americas

QR code image containing encoded data, no visible human-readable text

http://kodakpixpro.com/Ameri- cas/support/downloads.php

Europe

QR code image containing encoded data, no visible human-readable text

http://kodakpixpro.com/Europe/support/downloads.php

Scene Mode SCN

The user can select an appropriate mode from the 13 scene modes according to the type of environment you are shooting in. The camera then configures the most appropriate settings for the best possible photos.

1. Rotate the mode dial to select SCN.
2. Press the [▲AF] /[▼→○] /[◀○] /[▶◆] buttons to select a scene, and press the ⏚ SET button to confirm.

Multi Exposure

1. To change to a different scene, please press the ⏻ button and then the Ⓗ button and finally the [▲AF] /[▼◀○] /[◀◀] /[▶◀] buttons to reselect the scene.

Scene		Description
[0XYW]	Handheld Night	Reduce blur when shooting low light/ illuminated scenes.
	Cat/Dog	Rapidly identify pet (dog/cat), capture the dynamic movement of pet.
[64DX]	Sunset	For sunsets. Capture subjects in strong sunlight.
	Fireworks	For fireworks at night. The use of a tripod is recommended.

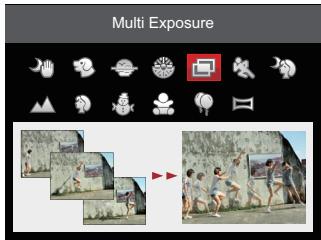

[1VDA7]	Multi Exposure	Suitable for shooting moving objects (as many as 7) in the same background.
	Sport	For fast-moving subjects. Capture sharp action shots without blur.
[1YWKA]	Night Portrait	For portraits against night time scenery. The use of a tripod is recommended.
[CS&W]	Landscape	For landscapes and outdoor shots. Vivid reproduction of greens and blues.
[XSB4]	Portrait	Most suitable for capturing people with focus on their face.
[84DS]	Snow	For snowy scenes. Reproduces natural, clear, white scenes.
[1077W]	Children	For kids and pets. Flash is disabled for eye protection.
[2WZX]	Party	Suitable for taking indoor party photos, even under complicated lighting conditions.
	Panorama Mode	For shooting up to 360-degrees of landscape. This feature allows you to capture a panoramic view that will have significantly more content than a single photograph.

Handheld Night

Quickly take 4 photos below 8M (including 8M) and then overlap as a clear night image.

Pet Mode

When a cat /dog face is detected, a white focus frame appears. The camera will take a picture and save it regardless of whether the focus is successful (if successful, there appears a green focus frame; if not, there is an orange frame).

At most, 10 dog/cat faces can be detected at one time.

Multi Exposure

Keep camera steady before shooting. Press and hold the Shutter button to take 7 photos continuously when it will stop automatically. To stop shooting, release the Shutter button in the midway.

Objects shall be moved only from left to the right in order to be recorded. Objects moving from other directions would not be recorded.

Shooting effect will be influenced if object is moving too fast or too close.

Panorama Mode

Follow the arrow while keeping the camera steady to seamlessly shoot an ultra-wide scene of up to 360 degrees.

Follow the steps below:

1. Select the Panorama Mode (☐) and then press the Ⓗ button to confirm.
2. Press the [▲AF] /[▼◀○] /[◀◀] /[▶◀] button to select a shooting direction. (Should you not select the direction, the default shooting direction is "right"). 2 seconds later, the camera is ready to take pictures. You can also press the Ⓗ button or press the Shutter button halfway down to be ready to take pictures.
3. Compose your shot on the LCD and half press the shutter button to focus on the subject. After focusing, fully press the down shutter button to take the first picture. At this time, the process dialog of panorama mode stitching appears on the screen.

Coastal landscape with a coastal cliff, distant islands, and clear blue sky (no text or symbols visible)

Scenic coastal town with blue-roofed buildings and a red arrow pointing to a 'Cancel' button (no text or symbols on the main image)

1. Move the camera according to the set direction. When the range of motion does not exceed the range that the camera can detect, the progress dialog along the indication arrow partially turns red. When it completely turns red, panorama mode shooting is finished.

Panoramic image can be played back by the method of flash playing. Please see the animation panoramic playback on page 70.

During shooting, the flash, self-timer, macro modes and exposure compensation are not available. Focus adjustment is also not available at this time.

During panorama mode shooting, press the SET button to interrupt shooting and save the current pictures taken. Press the [▼💡] button to cancel shooting and not to save the previously taken pictures.

During panorama mode shooting, when the moving direction of the camera is wrong or the angle deviates from the internal settings, the LCD shows a warning message [Improper alignment. Please try again.] and the current pictures taken are saved.

Movie Mode

Switch to this mode to record videos.

Follow the steps below:

1. Rotate the mode dial to select ☐, and it will enter the movie screen.

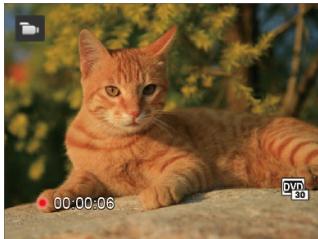

2. Press the ⬙ button or the Shutter button to start recording.

Orange tabby cat resting on a stone surface, surrounded by green foliage (no text or symbols visible)

1. Press the Ⓧ button or the Shutter button again to stop recording, save it automatically and then the camera will return to the movie screen.

In the recording process, you can rotate the zoom lever to zoom in or out on the subject.

Custom Settings CS

The user can store the frequently used shooting modes and parameters and switch to this mode for quick adjustment.

Settings under CS mode (unset state or state after reset):

1. Turn the mode dial to select the CS mode, and enter the setup screen, as shown in the figure below:

Select one capture mode to define CS . < P S > Auto Mode SET Save Exit

1. As shown in the picture, press the [◀◀] /[▶◀] button to select a capture mode that you want to define as CS, and press the Ⓗ button to enter the shooting screen.

2. As shown in the picture, press the ⏻ button to confirm setting or to exit without setting by turning the mode dial.

Go to setting CS mode. Yes Or Rotate the mode dial to skip.

For setting under other modes (use this method to select a different custom setting):

1. Select any mode or scene mode to be stored.

2. Set your desired parameters in the current mode.

3. Press the ⏻ button and then the [▲AF] / [▼ ➕ ➕ ] button to select 📋, and press the SET button to enter the menu.

4. Press the [▲AF] /[▼→] button to select 📷, and press the SET /[▶◀] button to enter the menu.
5. Press the [▼→] button to select 'Custom Settings' and then press the SET/[▶] button to enter the menu

Custom Settings

Custom Settings Reset camera settings to custom settings mode. No Yes

1. Rotate the mode dial to switch to CS.
2. The photo settings you stored the last time are invoked.

When the CS mode is used for the first time, there is no preset parameter stored in the CS mode.

If you want to remove the parameter setting of 「Custom Settings」, please see the reset function on page 98 to operate.

Using the Zoom Function

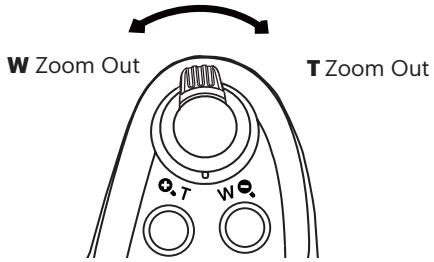

Your camera is equipped with two types of zoom functions: Optical Zoom and Digital Zoom. Toggle the Zoom Lever of the camera to zoom in or out on the subject while taking pictures.

Zoom Lever

When the Optical Zoom reaches the threshold as Digital Zoom, release and turn the Zoom Lever to T to switch between the Optical Zoom and Digital Zoom.

Orange tabby cat resting on a surface with blurred greenery background (no readable text or symbols)

Zoom Indicator

Focus Setting

This function can be adjusted in PSAM mode, please follow the steps below to configure the settings:

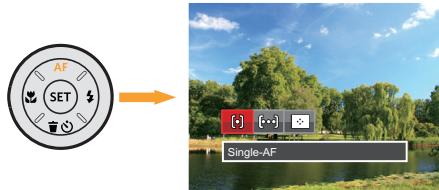

1. Press the [▲AF] button to enter the Focus menu.

AF SET Single-AF

1. Press the [◀◀] /[▶◀] button to select the following 3 modes:

2. Single-AF
   The focus frame appears on the center of the LCD to focus on the subject.
   • [bog] Multi-AF
   The camera automatically focuses the subject in a wide area to find the focus point.
   Object Tracking
   Smart tracking of the object in motion under the focusing shooting.

3. Press the Ⓗ button to confirm the settings and exit the menu.

Once enabled, Object Tracking will only work when lens is focused on the object.

Macro Mode

The Macro Setting is ideal for shooting small objects or close-up photos. This mode allows you to focus on subjects very close to the camera.

It can be adjusted in PSAM mode. Please follow the steps below to configure the settings:

1. Press the [◀] button to enter the Macro menu.

AF SET Macro Off

1. Press the [◀◀] /[▶◀] button to select the following 2 modes:

Macro Off

Select this option to disable Macro.

Macro On

Select this option to make focusing on the object closer to the lens. (At the W side, the shooting distance should be more than 1 cm).

1. Press the Ⓗ button to confirm the settings and exit the menu.

Self-Timer Setting

Use this function to take pictures at pre-set intervals. The camera can be set to shoot after 2 seconds, 10 seconds after pressing the shutter or when a smile is detected.

It can be adjusted in ⚪ PSAM ⚫ mode. Please follow the steps below to configure the settings:

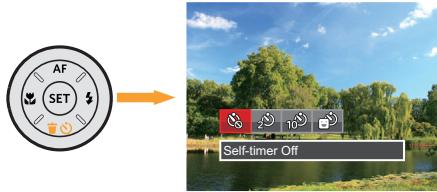

1. Press the [▼💡] button to enter the Self-Timer menu.

AF SET Self-timer Off

1. Press the [◀◀] /[▶◀] button to select the following 4 modes:

• Self-Timer Off Disables the Self-Timer.
• Self-Timer 2 sec A single picture is shot 2 seconds after the Shutter Button is pressed.
• 10 Self-Timer 10 sec A single picture is shot 10 seconds after the Shutter Button is pressed.

Self-Timer Smile Press the Shutter Button and a picture will be taken immediately after a smile is detected.

1. Press the Ⓗ button to confirm the settings and exit the menu.

When enabling the Self-Timer, pressing the Shutter Button or the [▼💡] button will select the highlighted Self-Timer option and return to the shooting screen, and keep the Self-Timer setting.

When enabling the smile detection, pressing the Shutter Button or the SET button will select the Self-Timer smile option (if highlighted) and return to the shooting screen, and keeping the Self-Timer smile setting.

Flash Mode

The flash provides supplemental light for a scene. The flash is usually used when shooting against the light to highlight the object. It is also suitable for metering and shooting in darker scenes to improve the exposure.

It can be adjusted in ⚪PSAM mode. Please follow the steps below to configure the settings:

1. Press the Flash Button ⬤ to pop up the flash.

Diagram of a vehicle's frontview and rearview components with numbered labels indicating parts of the seat or dashboard.

1. Press the [▶] button to enter the Flash Settings Menu.

AF SET Force Off

1. Press the [◀◀] /[▶◀] button to select the following 6 modes:

Force Off

Flash is turned off.

• 5A Flash Auto

Camera flash goes off automatically based on existing light conditions.

• Fill Flash

The flash goes off when a picture is taken, supplementing the existing light in a scene and helping to eliminate shadows.

- Slow Sync.

This allows you to take pictures of people at night that clearly show both your subjects and the night time backdrop. The use of a tripod is recommended when shooting with this setting.

• Slow Sync. + Red-Eye

Use this mode for slow synchro shots with red-eye reduction.

• Red-Eye Reduction

The camera emits a brief pre-flash before the picture is taken to reduce red-eye effects.

1. Press the Ⓗ button to confirm the settings and enter the shooting screen.

White Balance Setting

The white balance function allows adjustment of the color temperature for different light sources.

It can be adjusted in PSAM mode. Please follow the steps below to configure the settings:

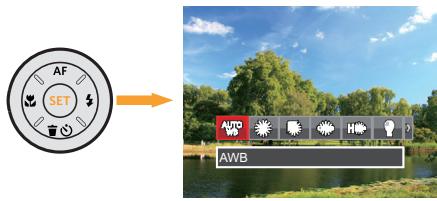

1. Press SET button to enter the White Balance menu.

AF SET AUTO H1 AWB

1. Press the [◀◀] /[▶◀] button to select the following 8 modes:

• AUTO WB
AWB
•
Daylight
•
Cloudy

•
Fluorescent
•
Fluorescent CWF
.
Incandescent
•
Manual WB (Fully press the Shutter button to detect the white balance value)

• [K] Color Temp. (1900K-10000K) Press the [▲AF] / [▼💡💡] button to "Adjust the K value"; Press the [◀💡] button to exit the K value.

1. Press the Ⓗ button to confirm the settings and exit the menu.

Continuous Shot

This function can be adjusted in PSAM mode. Please follow the steps below to configure the settings:

1. Press the ☐ button to enter the Continuous Shot menu.

Single

1. Press the [◀◀] /[▶◀] button to select the following 5 modes:

Single

Capture a single shot only.

Continuous Shot

Take several pictures at a time.

Cont.Shot-High Speed (VGA) For continuous shot with VGA pixel.

Cont.Shot-Fast (4M)

For continuous shot with 4M pixels.

Time-Lapse

Take pictures based on the preset interval (30sec/ 1min/ 5min/ 10min).

1. Press the Ⓗ button to confirm the settings and exit the menu.
2. Press the Shutter button to start continuous shooting.

In Continuous Shot mode, the flash is automatically set to Force Off in order to achieve quick succession of shots.

EV Settings

The EV function menu of the camera includes functions, such as EV (Exposure Value) Adjustment, ISO, Shutter Adjustment, Aperture Adjustment, etc. Using the appropriate function settings can improve your pictures.

Please follow the steps below to set:

1. Press the Ⓥ button to display the settings screen.
2. Press the [◀◀] /[▶◀] button to select the setting options.
3. Press the [▲AF] /[▼→] button to adjust the option values.
4. Press the Ⓗ button to complete the setting and enter shooting mode.

EV Adjustment

Set up to adjust the picture brightness. In the case of a very high contrast between the photographed object and the background, the brightness of the picture can be appropriately adjusted. (Adjustable in PSA Mode)

F2.8 1/50 0.3 EV 400 ISO

The adjustable range of exposure value is from EV -3.0 to EV+3.0.

ISO Adjustment

ISO allows you to set the sensitivity of the camera sensor. Please use a higher ISO value in darker places and a lower value in brighter conditions. (Adjustable in P S A M Mode).

F2.8 1/50 0.3 EV 400 ISO

Options for ISO value: Auto, 100, 200, 400, 800, 1600 and 3200.

Shutter Adjustment

For shutter speed, the camera may automatically set the aperture value corresponding to the manually set shutter speed so as to obtain a most suitable exposure value. The movement of object may be shown by adjusting the shutter speed. High shutter value can help you more clearly capture fast moving objects while low shutter value can better show the movement of objects. (Adjustable in S M Mode).

Scenic outdoor view of a park with trees and water, no visible text or symbols

Aperture Adjustment

You can adjust the aperture size value. Selecting a large aperture opening will emphasize the point of focus and show a blurry background and foreground. A small aperture opening will keep both the background and main object in clear focus. (Adjustable in AM Mode)

F2.8 1/50 0.3 EV 400 ISO

Using Quick Recording

In shooting mode, press the Ⓧ button to begin recording video.

Orange tabby cat resting on a stone surface with green foliage background (no text or symbols visible)

After recording, press the Ⓧ button again or press the Shutter Button to stop recording. The camera will save the video and return to the shooting screen.

i Button Function Menu

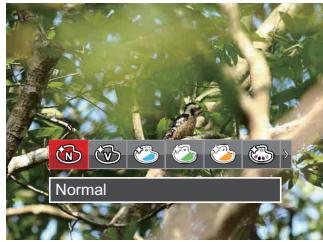

The Image Color Setting allows you to select different color effects.

It can be adjusted in PSAM mode. Please follow the steps below to configure the settings:

1. Press the ⓘ button to select the Image Color Setting Menu.
2. Press the [◀◀] /[▶◀] button to select the Image Color Setting options.

( ▶ ) represents options that are available in Movie mode.

Normal

There are 20 Image Color options in photo shooting mode PSAM:

	Normal ( [IMAGE])		Sepia ( [IMAGE])		Vignetting
[DIY8H]	Vivid ( [IMAGE])	[2DGW]	Partial Color-Red ( [IMAGE])		Salon
	Japan Style		Partial Color-Blue ( [IMAGE])		Fish Eye
[50DT]	Italian Style	[5A0D]	Partial Color-Yellow ( [IMAGE])	[3H8O]	Reflection
	French Style	[28O3]	Partial Color-Green ( [IMAGE])		4 Grids - Stylish(2M)
	Punk	[0ZHW]	Negative		Sketch
[YTBW]	Black and White ( [IMAGE])	[0GC6]	Dreamy

Viewing Photos and Videos

For viewing previously taken photos and videos on the LCD:

1. After pressing the ☐ button, the last photo or video clip taken will be displayed on the LCD.
2. Press the [◀◀] /[▶◀] button to scroll through the photos or video clips stored in the internal memory or on the memory card.
3. To play a selected video clip, press the SET button to enter the Movie Playback mode. An operation guide appears on the screen when playing back a video. Press the appropriate buttons to enable the corresponding functions.

Under Playback

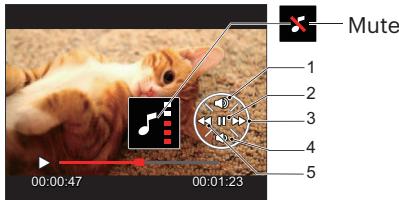

Mute 1 2 3 4 5 00:00:47 00:01:23

Paused

Orange tabby cat lying on a textured surface, with a play button icon and playback time markers (no readable text or symbols)

1	Increase Volume
2	Pause
3	Fast Forward
4	Decrease Volume
5	Rewind

6	Back to the beginning of the video
7	Play
8	Frame Forward
9	Cancel playback
10	Frame Backward

Thumbnail View

When in Playback Mode, rotate the Zoom Lever counter clockwise to the Ⓦ position to display thumbnail images of the photos and videos on the screen.

W Zoom Out T Zoom Out T W

1. Slide the Zoom Lever to switch between 3x3 and 4x4 thumbnails.

Two grid diagrams with black squares and red-outlined squares, no text or symbols present

1. Press the [▲AF] /[▼][◀] /[▶] buttons to select a picture or video clip to view and press the SET button to restore it to the original size.

When the icon ▷ appears, it means this is a video file.

Using Zoom Playback (for still pictures only)

When playing back photos, you can also use the Zoom Lever to zoom in on the photos 2 to 8 times.

1. Press the ⬆ button to switch to Playback Mode.

2. Press the [◀◀] /[▶◀] button to select a picture to be zoomed in on.

3. Rotate the Zoom Lever clockwise to ⚠, T to zoom in.

4. The screen will display the number of times and area of the photo zooming operation.

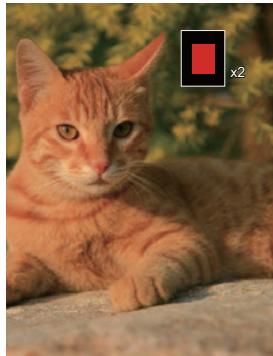

Orange tabby cat resting on a surface with green foliage background (no text or symbols)

Orange tabby cat resting on a stone surface, with a red square overlay and 'x2' label (no text or symbols on the cat or background)

1. Press the [▲AF] /[▼̄] /[◀◀] /[▶◀] buttons to navigate and select a part of the image to be zoomed in on.
2. Press the Ⓗ button to return the image to its original scale.

Movie images cannot be magnified.

Deleting Photos and Videos

In Playback Mode, press the [▼💡] button to delete your photos and videos.

To delete photos or videos:

1. Press the ▶ button to switch to Playback Mode.
2. Press the [◀◀] /[▶◀] button to select the photos and videos to be deleted.
3. Press the [▼💡] button and the deletion screen is displayed.

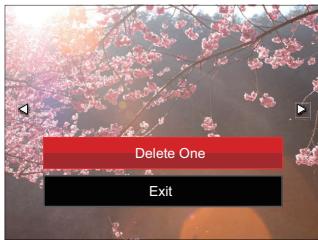

Delete One Exit

1. Press the [▲AF] / [▼ ➕ ➕] button to select 「Delete One」 or 「Exit」 and press the Ⓗ button to confirm.

Erased photos/video clips cannot be recovered.

Please refer to page 91 for instructions on deleting more than one image at a time.

Slideshow

This setting allows you to view all the stored images as a slideshow.

1. Press the ▶ button to enter playback screen.
2. Press the Ⓗ button to enter slide option.

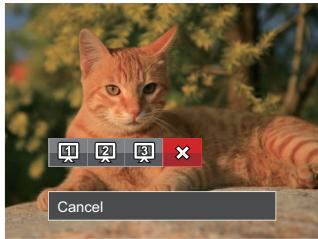

3. Press the [◀◀] /[▶◀] button to select the slideshow playing option or [Cancel] to return to the playback screen.

Cancel

1. Press the Ⓗ button to confirm the setting.

The Continuous Capture Group Playback may be displayed by slideshow.

Pictures rotate automatically during a slide show.

Slide playing function supports movie playing.

Continuous Capture Group Playback

Cont.Shot-High Speed (VGA) and Cont.Shot-Fast (4M) can make continuous capture for group image playback.

1. Press ▶ button to enter playback screen.
2. Press the [◀◀] /[▶◀] button to select Cont. Group.
3. Press Ⓗ to start playback.

Orange tabby cat resting on a bench with green foliage background, no visible text or symbols

Animation Panorama Play

Panoramic Animation Playing is when full sized images are played in accordance with the shooting direction. After playing, it will automatically return to the initial panorama screen.

1. Press the ▶ button to enter Playback Screen.
2. Press the [◀◀] /[▶◀] button to select animated panoramic photos.
3. Press the Ⓗ button to play in selected shooting direction.

Scenic coastal landscape with distant mountains and a clock face overlay (no text or symbols on main scene)

In the process of Panoramic Animation Playback, press the [▼◀◀] button (◀) to stop playing and return to the Playback Screen.

Photo Setup Menu

Mode: PSAM SCNCS

1. In Photo Shooting Mode, press the ⏻ button to enter the Photo Setup menu.
2. Press the [▲AF] /[▼图标] button to select the item to be set.

16M Expo Metering: AiAE

1. Press the [◀◀] /[▶◀] button to select an option and press the Ⓗ button to confirm.

Refer to the following pages for more details about each setting.

Expo Metering

Use this setting to select the "target" size of the camera's field of view to be metered.

16M Expo Metering: AiAE

• AiAE (Artificial Intelligence AE): Evaluates the light intensity at multiple points in the frame and automatically determines the best value for the light meter.
- Spot: For metering the block displayed in the center of the screen.
• [C] Center: For metering the object in the center of the screen.

It can be adjusted in all modes except for Panorama Mode.

Image Size

The size setting refers to the image resolution in pixels. A higher image resolution allows you to print that image in larger sizes without sacrificing the image quality.

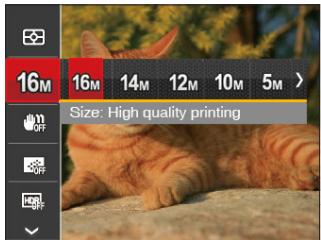

16M 16M 14M 12M 10M 5M > Size: High quality printing

• 16M Size: High quality printing
• 14M Size: Full size printing
- 12M Size: 16:9 display
- 10M Size: Poster printing

• 5M Size: A3 printing
  • 3M Size: A4 printing
• 2M Size: 4"x 6" printing
  • VGA Size: E-Mail

The larger the number of recorded pixels, the larger the file size and the fewer files that can be saved on your memory card.

OIS (Optical Image Stabilization)

This mode can help reduce photo blur caused by unsteady hands and low light.

16M OFF OFF OIS: Off OFF OK OFF

OIS: Off

OIS: On

Use this image stabilization mode in dark environments.

Shooting in a windy or unstable environment (such as a moving vehicle) may cause blurry images.

It is recommended to turn off OIS when using a tripod.

Cont. AF (Continuous Auto-Focus)

Enable Continuous AF to be able to continuously focus automatically when taking pictures.

Close-up photo of a tabby cat with orange fur, set against a blurred natural background (no text or symbols visible)

Cont.AF: Off

Cont.AF: On

HDR (High Dynamic Range)

Use this setting to control wide dynamic image range when taking static pictures. Photos with extreme contrast of bright and dark areas will still maintain distinguishable detail and depth. (Use of a tripod is recommended with this setting)

Orange tabby cat photo with green foliage background, no visible text or symbols on the cat or background

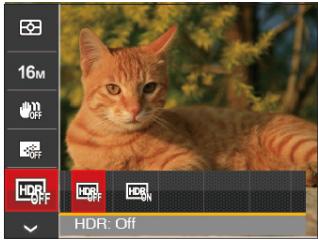

HDR: Off

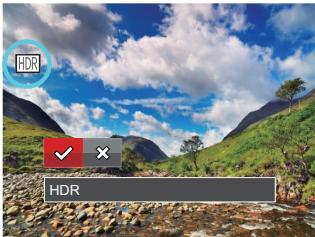

HDR: On

In a setting with extreme contrast (very dark or very bright), this function can be used to shoot better photos.

Beautifier

Select an effect of the Face Beautifier Mode.

Skin Soften Effect 1

• Effect 1: Skin Soften
• ✿2 Effect 2: Skin Soften+Eye Brightening
• Effect 3: Skin Soften+Eye Brightening +Eye Enlargement

Please refer to P37 for more detailed instructions.

Scene

Select the scene mode under the SCN mode.

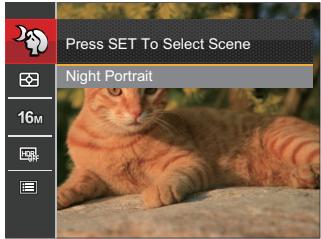

Press SET To Select Scene Night Portrait 16M

Please refer to P45 for more detailed instructions.

Shooting menu in the Photo Shooting Mode (O: Available X: Not Available)

Photo Shooting Settings Menu

Mode: PSAM SCNCS

1. Press the 📋 button in Photo Shooting Mode and press the [▲AF] / [▼ ➕ ⚙] button to select 📋.

Press SET To Enter Menu

1. Press the Ⓗ button to enter the menu.
2. Press the [▲AF] /[▼→] button to select 📷, and press the Ⓗ/[▶] button to enter the menu.
3. Press the [▲AF] /[▼] button to select the item to be set and press the Ⓤ/[▶] button to enter the menu.
4. Press the [▲AF] /[▼→] button to select an option and press the Ⓗ button to confirm.

Quality

The Quality Setting can be used to adjust the image compression ratio.

Quality Best Fine Normal

There are three options for picture quality:

• Best
• Fine
• Normal

AF Assist Beam

In a darker environment, AF Assist Beam can be turned on for better focus.

Off AF Assist Beam On

Digital Zoom

Turn on or off the digital zoom.

Off On Digital Zoom

Date Imprint

Include a Date/Time stamp on the photo image.

Date Imprint Off Date Date/Time

Orange tabby cat resting on a stone surface with green foliage in the background (no text or symbols visible)

• Off
• Date
• Date/Time

Quick Review

This option enables a quick review of the photos immediately after they are taken. Each photo is displayed on the LCD based on the selected time.

Off 1 sec 2 sec 3 sec Quick Review

There are 4 options:

• Off
  • 1 sec
  • 2 sec
  • 3 sec

Custom Settings

Custom Settings stores the current photo shooting mode or scene mode and its parameters. The stored mode and parameters are retrieved in CS mode.

Custom Settings Reset camera settings to custom settings mode. No Yes

There are 2 options:

• No
• Yes

In CS mode, select 「Custom Settings」 the camera will enter the setting menu as shown below:

Select one capture mode to define CS . < P S > Auto Mode SET Save Exit

Movie Menu

Mode:

1. Rotate the mode dial to select 📄 and press the ⏻ button to enter the Movie menu.

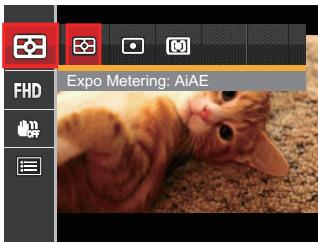

Expo Metering: AiAE

1. Press the [▲AF] /[▼→] button to select the item to be set.
2. Press the [◀◀] /[▶◀] button to select an option and press the Ⓗ button to confirm.

Expo Metering (Exposure Metering)

Use this setting to select the “target” size of the camera’s field of view to be metered.

FHD Expo Metering: AiAE

• AiAE (Artificial Intelligence AE): Evaluates the light intensity at multiple points in the frame and automatically determines the best value for the light meter.
- Spot: For metering the block displayed in the center of the screen.
• Center: For metering the object in the center of the screen.

Movie Size

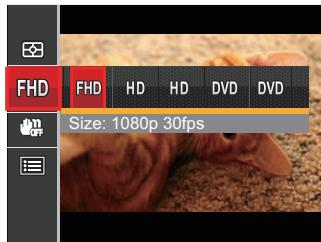

Set the image resolution used during video recording.

FHD FHD HD HD DVD DVD Size: 1080p 30fps

• FHD Size: 1080p 30fps
• HD Size: 720p 60fps
• HD Size: 720p 30fps
• DVD Size: 640x480 30fps
• DVD Size: High Speed Movie

The speed requirements for reading and writing high image pixel images to SD card are as follows:

No.	Image Pixel	Frame	Recommendation	Recording time (4GB) About
1	1920x1080 *	30	Class 6	30 minutes
2	1280x720 *	60	Class 6	32 minutes
3	1280x720 *	30	Class 4	59 minutes
4	640x480	30	Class 4	106 minutes
5	640x480	120	Class 6	54 minutes

* The longest recording time is 29 minutes at one time.

When recording in higher pixel resolutions for extended periods of time, this can cause the camera to generate heat. This is not a camera malfunction.

When the video format is set as 640x480 (120fps), shooting time is 30 seconds, playback time is 2 minutes.

Sound recording is disabled when 640x480 120fps is chosen.

OIS (Optical Image Stabilization)

This mode can help reduce photo blur caused by unsteady hands and low light.

FHD OFF OFF OIS: Off

Use this image stabilization mode in dark environments.

Shooting in a windy or unstable environment (such as a moving vehicle) may cause blurry images.

It is recommended to turn off OIS when using a tripod.

Movie Setting Menu

Mode:

1. Rotate the Mode Dial and select 📋 to enter the video recording screen.
2. Press the ⏻ button, press the [▲AF] / [▼💡] button to select 📋, and press the Ⓗ button to enter the Movie Setting menu.

FHD OFF Press SET To Enter Menu

1. Press the [▲AF] /[▼→] button to select 📷, and press the Ⓗ/[▶] button to enter the menu.
2. Select the item to be set and press the Ⓗ/[▶⚡] button to enter the menu.
3. Press the [▲AF] /[▼→] button to select an option and press the Ⓗ button to confirm.

Digital Zoom

Turn the Digital Zoom on or off.

Digital Zoom Off On

Custom Settings

Custom Settings stores the current movie mode and its parameters. The stored mode and parameters can be retrieved directly in CS mode.

Custom Settings Reset camera settings to custom settings mode. No Yes

Playback Menu

Mode: ▶

1. Press the ☐ button to display the playback screen and press the ☐ button to enter the menu.
2. Press the [▲AF] /[▼→] button to select the item to be set and press the Ⓤ button to enter.
3. Press the [◀◀] /[▶◀] button to select an option and press the Ⓗ button to confirm.

Press SET To Confirm Normal Mode

Refer to the following pages for more details about each setting.

Playback Mode

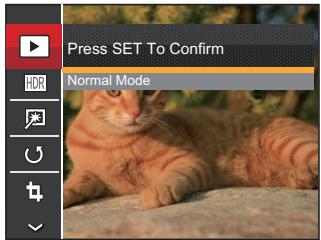

Select ▶, and press the Ⓗ button to enter the settings screen:

Normal Mode: Display all images.

• ▶ Normal Mode: Display all images.
- Date Mode: Arranged by date.

• Cont. Photo Mode: Arranged by Cont. Photo Group.

The Date Folder is displayed in date order based on camera's Date/Time Settings.

If there is no Continuous Shot image file in memory, Continuous Shot Playback mode cannot be enabled.

HDR (High Dynamic Range)

With the HDR function, pictures that are overexposed may be corrected to optimize the highlights and lowlights captured to more accurately represent the actual scene.

Select HDR, and press the Ⓗ button to enter the settings screen:

HDR HDR

HDR

Cancel

After using the HDR function, the image will be saved as a new file and the original file is still stored in the memory.

Touch-Up

The playback beauty feature allows for beautification using three individual effects.

Select 📄, and press the Ⓗ button to enter the settings screen:

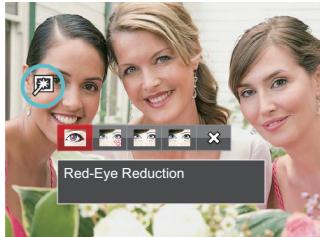

Red-Eye Reduction

Red-Eye Reduction

Skin Soften

Eye Brightening

Eye Enlargement

Cancel

Using the Face Beautifier Mode allows you to select from one, two, or all three effects combined.

Rotate

You can use this setting to change the orientation of the picture.

Select ⏻, and press the Ⓗ button to enter the settings screen:

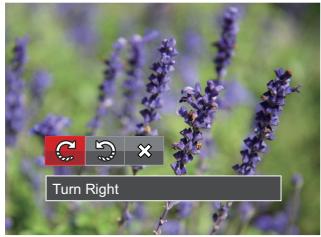

Close-up of purple flowers with blurred green background (no text or symbols)

Turn Right

Turn Left

Cancel

Videos and panoramic pictures cannot be rotated.

The rotated picture file will replace the original photo.

Resize

This setting allows you to resize a picture to a particular resolution and saves it as a new picture.

Select ☐, and press the Ⓗ button to enter the settings screen:

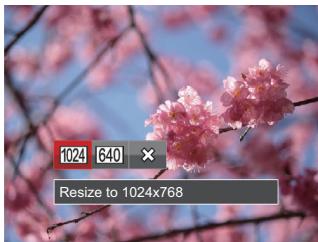

1024 640 × Resize to 1024x768

Resize to 1024x768

Resize to 640x480

Cancel

This function can only be used to downsize photos to a lower resolution.

Sizes of photos taken in panorama mode or rotated cannot be adjusted.

Color

This setting allows you to change the picture color effect. The file is saved as a new photo and stored in memory together with the original photo.

Press the ⓘ button to enter the settings screen:

Cancel

There are 19 options available:

Descened	Cancel		Sepia		Vignetting
Escened	Vivid		Partial Color-Red		Salon
Escened	Japan Style (8M)		Partial Color-Blue		Fish Eye
Swirzeal	Italian Style (8M)		Partial Color-Yellow		Reflection
Tresed	French Style (8M)		Partial Color-Green		4 Grids - Stylish(2M)
Tresed	Punk (4M)		Negative (8M)
Tresed	Black and White		Dreamy

Playback Settings Menu

Mode: ▶

1. Press the ☐ button to show the playback screen, press the ☐ button, press the [▲AF] /[▼] button to select ☐, and press the SET button to enter the menu.
2. Press the [▲AF] /[▼→] button to select 📋, and press the Ⓗ/[▶◀] button to enter the menu.

Protect Delete DPOF Trim

1. Press the [▲AF] /[▼] button to select the item to be set and press the Ⓜ/[▶] button to enter the menu.
2. Press the [▲AF] /[▼icon] button to select an option and press the Ⓜ button to confirm.

Refer to the following pages for more details about each setting.

Protect

To prevent any pictures or videos from being accidentally erased, use this setting to lock one or all of the files.

Protect One Date Folder Cont. Group All Reset

There are 5 options available:

• One: Lock the selected photo or video if it is unprotected; unlock the selected photo or video if it is protected.
• Date Folder: Protect all photos in the Date Folder.
• Cont. Group: Protect all photos in the Cont. Photo Folder.
  • All: Lock all photos or videos.
• Reset: Unlock all photos or videos.

Delete

You can delete one or all photo/video files.

Delete One Date Folder Cont. Group All

There are 4 options available:

• One: Delete one photo or video.
• Date Folder: Delete all photos in the Date Folder.
• Cont. Group: Delete all photos in the Cont. Photo Folder.
• All: Delete all photos or videos

The “◎” indicator means a file is protected. File protection must be removed first before a file can be deleted.

Deleting files will cause DPOF settings to be reset.

When one photo in the Cont. Photo and Date Folders is protected, it will be kept but any other photos will be deleted.

DPOF (Digital Print Order Format)

The DPOF feature allows you to compile and select a group of pictures that you would like to print and will save your selection on the memory card so that you can use the SD memory card to print without having to individually specify the photos you want to print.

One All Reset DPOF

The printer that supports DPOF is needed for printing.

Trim

The Trim Setting allows you to crop photos and save them as new pictures.

1. Select 「Yes」 to confirm trim. Rotate the zoom lever to select the aspect ratio and press the [▲AF] / [▼ ➕ ➕] / [◀ ➕ ] / [▶ ➕ ] buttons to adjust the part you want to trim.

Close-up of pink cherry blossoms against a blue sky background (no text or symbols visible)

1. Press the Ⓗ button and the 「Save change?」 prompt appears. Select 「✔」 to change and save the picture. Select 「✗」 to cancel changes and return to the trim prompt screen.

The image cannot be clipped/trimmed again once it has been clipped to 640X480.

General Settings Menu

Mode: PSAM SCN CS

1. Press the ⏻ button in any mode, press the [▲AF] /[▼ ➕ ⚙] button to select 📋 , and press the Ⓗ button to enter the menu.
2. Press the [▲AF] / [▼→○] button to select 🔊, and press the ⏚/ [▶◀] button to enter the menu.

Sound Settings Power Saver Auto Language English World Time Home Date & Time 2019.03.21 00:00

1. Press the [▲AF] / [▼◀◀] button to select the item to be set and press the Ⓗ️/ [▶◀] button to enter the menu.

2. Press the [▲AF] /[▼→] button to select an option and press the Ⓜ button to confirm.

Refer to the following pages for more details about each setting.

Sound Settings

With this setting you may adjust the sound volume.

Press the [◀◀] /[▶◀] button to adjust the volume and press the ⏻ button to confirm your setting.

Sound Settings Volume Back

Power Saver

This setting allows you to save power and get the maximum possible running time for your camera's batteries. It turns the LCD and camera off automatically after a certain period of inactivity.

Power Saver Auto Normal Best

• Auto
• Normal
• Best

Power Saver	LCD power off time	Turn off time
Auto	3 min	5 min
Normal	1 min	3 min
Best	30 sec	1 min

Language

Refer to the "Reset your language" section on page 25.

Zone

The Zone setting is a useful function for your overseas trips. This feature enables you to display the local time on the LCD while you are abroad.

1. Press the [▲AF] /[▼→] button to select the departure place (↑) and destination (⊕) fields.
2. Press the [◀◀] /[▶◀] button to select a city located in the same time zone as that of the field. Press the Ⓗ button to confirm settings.

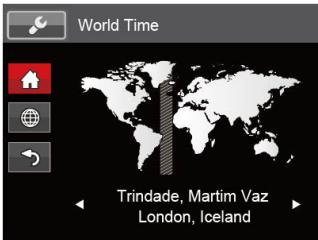

World Time Trindade, Martim Vaz London, Iceland

Date/Time

Refer to the "Reset Date/Time" section on page 26.

LCD Brightness

Use this setting to adjust the brightness of your LCD.

Press the [▲AF] /[▼icon] button to adjust the brightness of screen and press the ⏚ button to confirm.

LCD Brightness +2 +1 Normal -1 -2

File Settings

Mode: PSAM SCN CS

1. Press the ☐ button, press the [▲AF] /[▼ ➕ ⚙] button to select ☐ and press the Ⓗ button to enter the menu.
2. Press the [▲AF] /[▼→○] button to select 📄 and press the ⏚/[▶↘] button to enter the menu.
3. Press the [▲AF] / [▼→○] button to select the item to be set and press the ⓊT/ [▶↓] button to enter the menu.

Format Copy to Card File Numbering Reset FW Version X.XX

1. Press the [▲AF] /[▼→] button to select an option and press the Ⓗ button to confirm.

Refer to the following pages for more details about each setting.

Format

Please note: formatting enables you to delete all contents in the memory card and built-in memory, including protected photo and movie files.

Format Doing so will clear all data. No Yes

If you select 「Yes」 the camera will format its memory.

If there is no memory card in the camera, the built-in memory will be formatted; if there is a memory card, only the card will be formatted.

Copy to Card

Use this setting to copy the files stored in the built-in memory to a memory card.

Copy to Card Copy files from built-in memory to the memory card. No Yes

If there is no card available in the camera, this function will not be displayed.

File Numbering

After you take a picture or video clip, the camera will save it with a sequential number. You can use this to reset the file numbering to 1.

File Numbering Create a new directory and reset the file number. No Yes

Reset

Use this setting to restore the camera to its original default settings.

Reset Reset camera settings to factory defaults. No Yes

FW Version

Use this setting to view the current camera firmware version.

FW Version Current Ver:1.XX Back

When there is a new firmware version in the memory card, select 「Yes」 to update.

FW Version Current Ver:1.XX New Ver:2.XX Update Firmware? Yes Cancel

CONNECTION SETTINGS

Mode: PSAM SCN CS

1. Press the ⏻ button, press the [▲AF] /[▼ ➕ ⚙] button to select ⏱ and press the Ⓜ button to enter the menu.
2. Press the [▲AF] /[▼→] button to select ↗ and press the Ⓗ/[▶] button to enter the menu.
3. Press the [▲AF] / [▼◀◀] button to select the item to be set and press the Ⓜ/ [▶◀] button to enter the menu.

USB PC TV-System NTSC

1. Press the [▲AF] /[▼→] button to select an option and press the Ⓗ button to confirm.

Refer to the following pages for more details about each setting.

Connecting to a Computer

You can use the Micro USB cable to connect the camera and copy (transmit) photos to a computer, printer or other device.

Setting the USB Mode

The camera's Micro USB port can be set to connect with either a computer or a printer. The following steps will allow you to ensure that the camera is correctly configured to connect with a PC.

1. Press the [▲AF] /[▼] button to select 「USB」 and press the Ⓜ/[▶] button to enter the menu.
2. Press the [▲AF] /[▼→] button to select 「PC」 and press the Ⓗ button to confirm.

USB PC Printer

Transferring files to your computer

The computer will automatically detect the camera as a removable drive. Double-click the My Computer icon on the desktop to locate the removable drive and to copy folders and files in the drive to a directory on your PC as you would copy any typical folder or file.

Follow the steps below to connect the camera to a computer.

1. Make sure the computer is turned on.
2. Connect one end of the supplied Micro USB cable to the Micro USB port on your camera.
3. Connect the other end of the cable to an available USB port on your computer.

Illustration of a laptop connected to an attached device via cable (no text or symbols present)

1. After the transmission is complete, disconnect the Micro USB cable according to the instructions specifying how to safely remove USB devices.

Connecting to a PICTBRIDGE™ Compatible Printer

PICTBRIDGE™ technology allows printing of the photos saved in the memory card by the printer.

To find out if a printer is PICTBRIDGE™ compatible, simply look for the PICTBRIDGE™ logo on the packaging or check the owner's manual for specifications. With the PICTBRIDGE™ function on your camera, you can print the captured photos directly to a PICTBRIDGE™ compatible printer using the supplied Micro USB cable, without the need for a PC.

Setting the USB Mode

The camera's Micro USB port can be set to connect with either a PC or a Printer; the following steps will ensure that the camera is correctly configured to connect with a Printer.

1. Press the [▲AF] / [▼→] button to select 「USB」 and press the Ⓗ️/ [▶◀] button to enter the menu.

2. Press the [▲AF] /[▼→] button to select 「Printer」 and press the Ⓗ button to confirm.

USB PC Printer

After the camera is reset, it will switch to PC mode automatically from USB mode.

See "PICTBRIDGE™" section on page 105.

Connecting to your Printer

1. Make sure the printer is turned on.
2. Connect one end of the supplied Micro USB cable to the Micro USB port on your camera.
3. Connect the other end of the cable to the USB port on the printer.

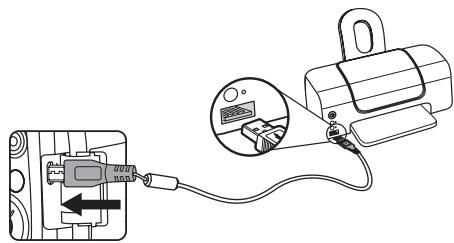

Diagram showing a device connected to an electrical socket with cable, no text or symbols present

If the camera is not connected to a PICTBRIDGE™ compatible printer, the following error message will appear on the LCD.

Connection Failed!

The error message above will also appear if the USB mode is set incorrectly, in which case you should disconnect the Micro USB cable, check the USB mode settings, ensure that the printer is turned on, and then try connecting the Micro USB cable again.

Using the PICTBRIDGE™ Menu

After setting the USB mode to Printer, the PICTBRIDGE™ menu will appear.

PictBridge Print (with Date) Print (without Date) Print Index Print DPOF Images Exit

Press the [▲AF] /[▼→] button to select a menu item and press the Ⓗ/[▶↓] button to enter the item.

Refer to the following sections for more detailed information on each setting.

Print (with Date)

If you have set the date and time on your camera, the date and time will be recorded and saved with each photo you take.

1. In the PICTBRIDGE™ menu, select「Print (with Date)」 and the screen as shown below appears.

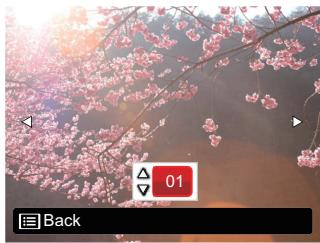

Spring cherry blossoms in the background with a red play button labeled '01' and a black 'Back' button at bottom left (no other text or symbols)

1. Press the[◀◀] / [▶◀] button to select a photo to be printed.

2. Press the [▲AF] /[▼→] button to select the number of copies for the currently displayed photo.

3. Press the Ⓗ button and the following screen will appear.

Print (with Date) Yes Cancel

1. Select 「Yes」 and press the Ⓗ button to confirm printing; select 「Cancel」 and press the Ⓗ button to cancel printing.

Print (without Date)

Use this setting to print the photos without dates on them.

1. In the PICTBRIDGE™ menu, select「Print (without Date)」 and the screen as shown below appears.

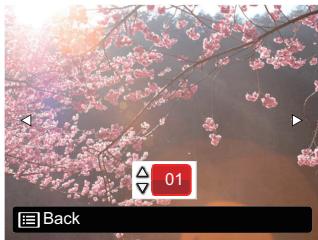

Spring cherry blossoms with blurred background, no visible text or symbols

1. Press the[◀◀] /[▶◀] button to select a photo to be printed.

2. Press the [▲AF] /[▼→] button to select the number of copies for the currently displayed photo.

3. Press the Ⓗ button and the following screen will appear.

Print (Without Date) Yes Cancel

1. Select 「Yes」 and press the Ⓗ button to confirm printing; select 「Cancel」 and press the Ⓗ button to cancel printing.

Print Index

You can print all photos in the camera via this function.

1. In the PICTBRIDGE™ menu, select 「Print Index」 and the screen as shown below appears.

Print Index Yes Cancel

1. Select 「Yes」 and press the Ⓗ button to confirm printing; select 「Cancel」 and press the Ⓗ button to cancel printing.

Print DPOF Images

To use DPOF printing, you must select your photos for printing using the DPOF settings beforehand. See “DPOF” section on page 92.

1. In the PICTBRIDGE™ menu, select「Print DPOF Images」and the screen as shown below appears.

Print DPOF Images Yes Cancel

1. Select 「Yes」 and press the Ⓗ button to confirm printing; select 「Cancel」 and press the Ⓗ button to cancel printing.

Exit

Select 「Exit」 to exit the PICTBRIDGE™ menu. At this time, the message 「Remove USB Cable!」 appears on the screen.

Remove USB Cable!

Disconnect the Micro USB cable from the camera and printer.

Video System

You can use the AV cable (which should be purchased separately) to connect the camera and the television for the video output. Connect one end of the AV cable to USB/AV port of the camera; connect the other end to AV-OUT port of the television. Adjust the format of the video output system according to your requirements, and the steps are as follows:

1. Press the [▲AF] /[▼→○] button to select 「TV-System」 and press the Ⓗ/[▶↓] button to enter the menu.
2. Press the [▲AF] /[▼icon] button to select 「NTSC」, and press the Ⓜ button to confirm.

TV-System NTSC PAL

The video output system would change accordingly based upon the changes of the selected language.

NTSC: English, Chinese (Traditional), Japanese, French, Korean, Russian, Vietnamese, Greek, Hungarian

PAL: German, Spanish, Italian, Chinese (Simplified), Portuguese, Swedish, Danish, Finnish, Indonesia, Norwegian, Dutch, Turkish, Polish, Thai, Croatian, Czech, Arabic, Hindi

Product Specifications

Design and specifications are subject to change without notice.

Image Sensor	Type	1/2.3”BSI CMOS
	Effective Pixels	16.35 Megapixels
	Total Pixels	16.76 Megapixels
Lens	Focal Length	4.3mm (Wide) — 223.6mm (Tele)
	35mm film equivalent	24mm (Wide) — 1248mm (Tele)
	F number	F2.8 (Wide) ~ F5.6 (Tele)
	Lens Construction	13 groups 15 elements
	Optical Zoom	52x
	Optical Zoom	Normal: (Wide) 60cm ~ ∞, (Tele) 300cm ~ ∞;Macro: 1cm ~ ∞ (Wide Only)
Autofocus System		TTL Autofocus
Anti-Handshake		Optical Image Stabilization
Digital Zoom		4x Digital Zoom (Combined Zoom: 208x)

Number of Recording Pixels	Still Image	(4:3)16MP: 4608 X 345610MP: 3648 X 27365MP: 2592 X 19443MP: 2048 X 15360.3MP: 640 X 480	(3:2)14MP: 4608 X 3072	(16:9)12MP: 4608 X 25922MP: 1920 X 1080
	Movie	1920 X 1080 (30fps), 1280 X 720 (60fps/30fps), 640 X 480 (30fps), High-Speed Movie: 640 X 480 (120fps)
Image Compression		Best, Fine, Normal
DCF, DPOF (Ver1.1) Support		Yes
File Format	Still Image	Exif 2.3 (JPEG)
	Movie	MOV [Image: H.264; Audio: Linear PCM (Stereo)]
Shooting Modes		Auto Mode, Program AE, Shutter priority, Aperture priority, Manual Mode, Face Beautifier, Wi-Fi Mode, Scene Mode, Movie Mode, Custom Settings
Scene Mode		Handheld Night, Pet Mode, Sunset, Fireworks, Multi Exposure, Sport, Night Portrait, Landscape, Portrait, Snow, Children, Party, Panorama Mode
Detection Features		Face, Smile, Blink, Cat, Dog
Photo Touch-up		Red-Eye Reduction, Skin Soften, Eye Brightening, Eye Enlargement
HDR		Yes
Scan Panorama		Up to 360°
LCD		3.0 inch (460k Pixels)
Image Auto Rotation		Yes
ISO Sensitivity		Auto, ISO100/200/400/800/1600/3200
AF Method		Single AF, Multi-AF (TTL 25-point), Object Tracking ,Face-Detection
Exposure Metering Method		Artificial Intelligence AE (AiAE), Center-Weighted Average, Spot (Fixed to Center of Frame), Face AE
Exposure Control Method		Program AE (AE-Lock Available), Shutter Prior AE, Aperture Prior AE
Exposure Compensation		±3 EV in 1/3 Step Increments
Shutter Speed		1/2000 ~ 30 Seconds
Continuous Shot		Yes
Playback Modes		Single, Index (9/16 Thumbnails), Slide Show, Date, Continuous Shooting, Zoom (Approx. X 2 ~ X 8)
White Balance Control		AWB, Daylight, Cloudy, Fluorescent, Fluorescent CWF, Incandescent, Manual WB, Color Temp. (1900K ~ 10000K)
Flash	Flash Method	Pop-up (Manual)
	Flash Modes	Force Off, Flash Auto, Fill Flash, Red-Eye Reduction, Slow Sync., Slow Sync.+Red-Eye Reduction
Recording Media	Internal Memory: Approx. 8MB
	SD/SDHC Card (Up to 32GB Support) [MMC Card Not Supported]
Multi-Language Support	27 Languages
Jacks	AV-OUT/USB 2.0 (Micro 5 pin USB)
Wi-Fi	Yes (802.11b/g/n)
Remote Viewfinder	Yes (via smart device)
Power	Rechargeable Li-ion Battery LB-060, 3.7V 1100mAh, In-Camera Charging
Shooting Capability (Battery Performance)	Approx. 240 Shots (Based on CIPA Standards)
Operation Environment	Temperature: 0 ~ 40°C, Humidity: 0 ~ 90%
Dimensions (W X H X D)	Approx. 121.3 X 85.8 X 97.5mm (Based on CIPA Standards)
Weight	Approx. 508g (Body only)

Prompts and Warning Messages

Message	Description	Action
Warning! Battery exhausted.	Camera battery is depleted. It is a warning indicating that the camera is going to shut off.	Charge battery or replace with a charged battery.
Lens obstruction, Re-start Camera.	The lens is jammed or some foreign object is preventing the lens from functioning properly.	Turn off the camera and restart it to reset the lens.
Suggest using tripod.	When continuous exposure is enabled, this prompt message is displayed when the photo shooting screen is displayed for the first time.	The message will disappear after 2 seconds.
Built-in memory error!	An error has occurred in the built in memory.	Try shutting off the camera and turning it on again.
Improper alignment. Please try again.	The offset is too big for panorama shooting.	Keep the camera steady while shooting to maintain alignment.
Warning! Do not turn off your camera during update!	The message appears during the firmware update process.	The message disappears after the camera update and restart.
Remove USB Cable!	Indicates that you can disconnect the Micro USB cable.	The message disappears after you disconnect the Micro USB cable.
Connection Failed!	Failure to connect to PC, printer, or TV-system.	Remove cable, reinsert cable, and retry connection.
Write Protect !	The SD card is locked.	Turn off camera and remove SD card. Slide tab on the side of card to unlock.
Card Full !	The memory of the SD card is full.	Either delete photos or videos to create room on the card, or replace with another card that has available memory.
Memory Full !	The camera's internal memory is full.	Erase files or insert a memory card that has available memory.
Card Error !	The card cannot be recognized after being formatted.	Check that the SD card is compatible with the camera.
Card is not formatted.	An error has occurred with the memory card.	Format the memory card. This will erase all data on the card; be sure to copy the data from the card onto another device if you wish to keep it.
Slow access	When a card lower than Class 4 is recording movie above HD, the writing speed will be slower and the recording will not continue.	Replace SD card with a Class 4 or higher card.
Cannot write to SD card.	The camera cannot write to the SD card.	Turn off the camera. Remove and reinsert the SD card and turn the camera on to try again.Check if the SD card is in a locked position, or if the memory is full.
No Red-Eye Detected!	No red-eye is detected when selecting Red-Eye Removal in Playback Touch-up.	The message will disappear after 2 seconds and return to the touch-up menu.
This image cannot be edited.	The file format does not support editing or the edited file cannot be edited again.	The message will disappear after 2 seconds and return to the original image.
Exceeded maximum folder number.	The folder number in the card exceeds the maximum folder number (999).	Copy the data to your PC, and format the memory card.
Too many pictures for fast processing.	During Playback by Date, the images exceed specifications so it is not possible to play by date.	The message will disappear after 2 seconds and return to Thumbnail 3x3 mode.
Unable to recognize files.	The format of the file viewed is not supported or the file is damaged and cannot be recognized properly.	This message will only disappear after the file is deleted.
No Picture!	When the play button is pushed and there are no files on memory card or in camera.	The message will disappear after 2 seconds and return to previous screen.
No continuous group file.	When the camera switches from Playback Mode to Cont. Playback Mode, and there are no continuous group files, this message will be displayed.	The message will disappear after 2 seconds and return to Thumbnail 3x3 mode.
Protected! Undeletable!	The file is protected and cannot be deleted.	Unlocked file under “Protect”, and make sure SD card is unlocked.

Troubleshooting

Problem	Possible Causes	Solution
Camera does not turn on	The battery has been depleted.The battery is not inserted correctly.	Recharge the battery.Correctly reinstall the battery.
Camera turns off suddenly during operation	The batteries have been depleted.	Recharge the battery.Make sure the camera is actually shutting off and not entering Power Save Mode, where the LCD will turn off after the camera has been idle for a period of time.
The picture is blurry	Camera shakes while taking a picture.	Turn on OIS feature.Please use tripod for high magnification (above 15X) optical zoom. If you are holding the camera, be sure to use both hands.
Images and video files cannot be saved	The SD memory card is full.The memory card is locked.	Use another memory card or delete unnecessary files.Unlock the memory card.
Images will not print from the connected printer	The camera is not connected to the printer correctly.The printer is not PICTBRIDGETM compatible.The printer is out of paper or ink.The printer paper is jammed.	Check the connection between the camera and printer.Use a PICTBRIDGETM compatible printer.Load paper into the printer or replace the ink cartridge in the printer.Remove the jammed paper.
Saving data to memory card is slow	Using a memory card below Class 4 may result in slower recording times.	Use a memory card with write Class 4 or higher than 4 to improve performance.
Cannot write to the memory card	The SD memory card has been locked.	Release the write lock of the memory card or replace with another card.
Too many movies to process	The number of pictures or folders in the memory card exceed the specifications, so the playback of data folder can not be displayed.	Delete unwanted files.
The flash icon appears on the LCD	Current shooting environment requires flash.	Turn on flash.

When shooting with stacked filters attached, the corners of the photo may turn dark (Vignetting effect) because the filter holder blocks light from reaching the camera image sensor; especially, at wide angle zoom control settings. Please take test shots and review the results when using stacked filters.

Please enter the new password on smart device after changing Wi-Fi password. Some models of smart device will remember the Wi-Fi password previously entered, so please clear the old password on smart device manually before connection (For different models, this operation may be varied, please subject to your user manual.)

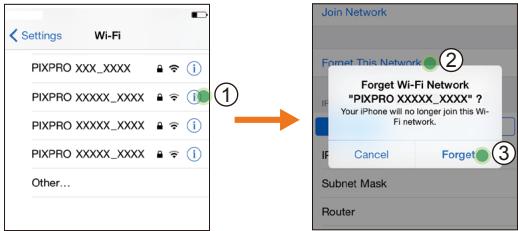

iOS system

Settings Wi-Fi PIXPRO XXX_XXXX PIXPRO XXXXX_XXXX PIXPRO XXXXXX_XXXX PIXPRO XXXXXX_XXXX Other... Join Network Format This Network Forget Wi-Fi Network "PIXPRO XXXXX_XXXX" Your iPhone will no longer join this Wi-Fi network. Cancel Forget Subset Mask Router

Android system

PIXPRO XXXXX_XXXX Authentication problem PIXPRO XXXXX_XXXX Secured with WPA2 PIXPRO XXXXX_XXXX Signal strength Excellent Security WPA2 PSK Cancel Forget Connect

© 2019 JK Imaging Ltd. All Rights Reserved.

The Kodak and Kodachrome, Kodacolor and Ektachrome trademarks, logo and trade dress are used under license from Eastman Kodak Company.

All other logos, products or company names that are referred to in this document are trade names, trademarks or registered trademarks of their respective owners and holders. The owners and holders are not affiliated with JK Imaging Ltd., our products or our website.

JK Imaging Ltd., 17239 So. Main Street, Gardena, CA 90248 USA

kodakpixpro.com

Made in Myanmar
