USER MANUAL NC SURFLINE
DÉPANNAGE
-

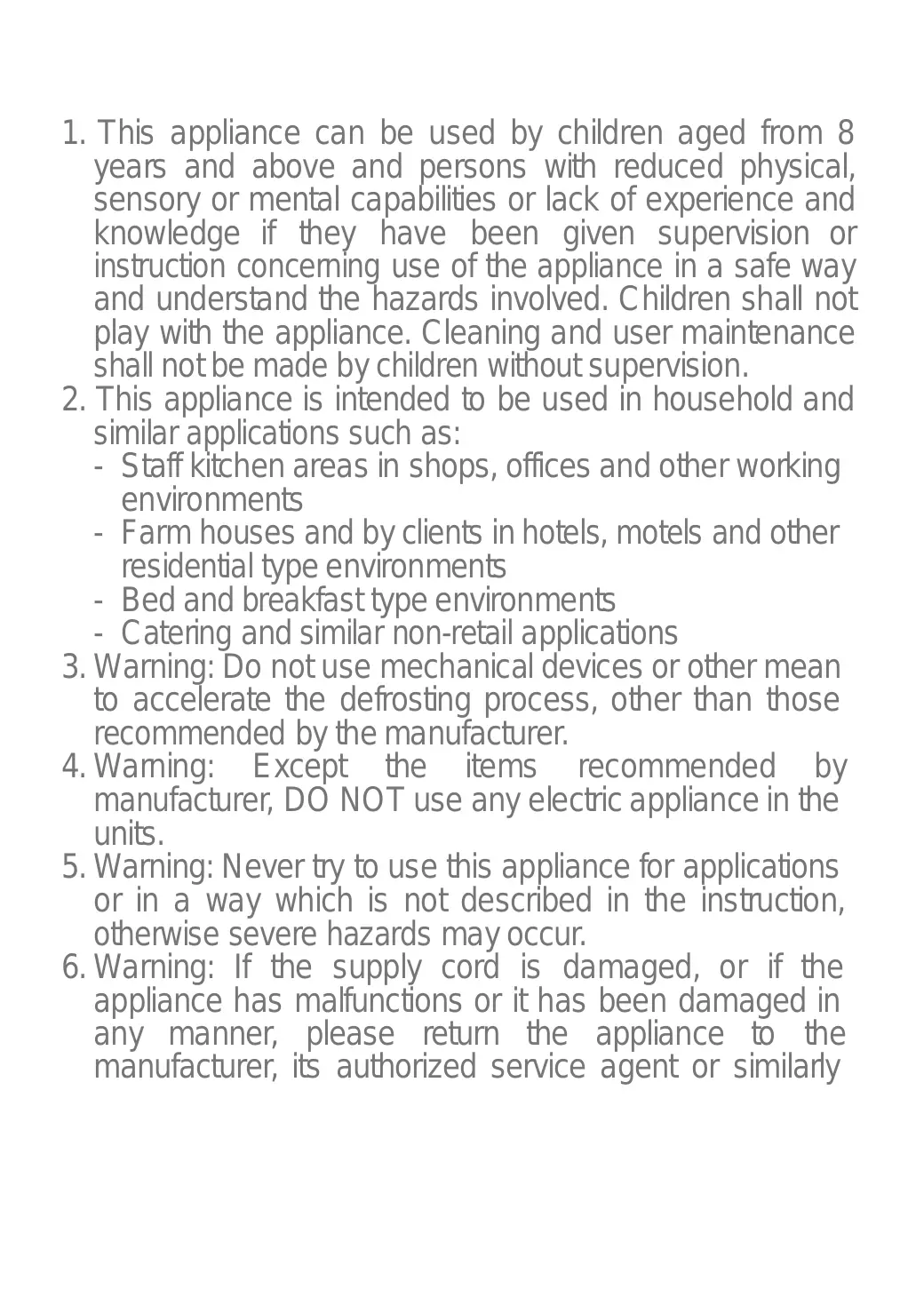

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
-
This appliance is intended to be used in household and similar applications such as:
-
Staff kitchen areas in shops, offices and other working environments
- Farm houses and by clients in hotels, motels and other residential type environments
- Bed and breakfast type environments
-
Catering and similar non-retail applications
-
Warning: Do not use mechanical devices or other mean to accelerate the defrosting process, other than those recommended by the manufacturer.
-
Warning: Except the items recommended by manufacturer, DO NOT use any electric appliance in the units.
-
Warning: Never try to use this appliance for applications or in a way which is not described in the instruction, otherwise severe hazards may occur.
-
Warning: If the supply cord is damaged, or if the appliance has malfunctions or it has been damaged in any manner, please return the appliance to the manufacturer, its authorized service agent or similarly
qualified persons for examination, repair or adjustment in order to avoid a hazard.
- WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
- WARNING: Do not damage the refrigerant circuit.
- WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- Do not use the appliance in a dusty environment or in an explosive and inflammable atmosphere (inflammable gases, vapors, vapors from organic solvents, etc.)
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- Do not pour water directly onto the freezer, which may cause declining of insulation and corrosiveness.
- Insert the plug into a single grounded socket. Make sure to place the plug all the way into socket when connecting your appliance.
- To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. And the disposal should only be done through public collection points.
- Appliance should be placed on a horizontal floor and keep the ventilation freely. Don't try to replace or repair any components by yourself, ask the service agency for help if necessary.
- Always handle the appliance to avoid any damage.
- Caution: Do not connect grounding wire to a water or gas pipe.
- Strictly no storing strong base, strong acid, organic
solvent and corrosive goods together with food.
- Please refer to the “Trouble Shooting” references when the unit is facing some problems. Do not attempt to solve the problem on your own, please refer to certified technician only.
- As regards the information for the installation, operation, maintenance and disposal of the device, refer to the following parts of the manual.
CE
This device was tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and was manufactured in accordance with the latest safety regulations.
- The products, which are described in this instruction manual, comply with the harmonized regulations.
- The relevant documents can be requested from the final retailer by the competent authorities.
The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless follow the instructions in such a case. Delivery without content.
➢ Any modifications, which do not influence the functions of the appliance, shall remain reserved by the manufacturer. Please dispose of the packaging with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid.
➢ Technical modifications as well as misprints shall remain reserved.
SAFETY INSTRUCTIONS
Read the safety instructions carefully before you operate the appliance for the first time. All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life.
⚠️ DANGER! indicates a hazardous situation which, if ignored, will result in death or serious injuiy.
⚠ WARNING! indicates a hazardous situation which, if ignored, could result death or serious injury.
⚠️ CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.
⚠ NOTICE! indicates possible damage the appliance.
Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
➢ Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly-made connections must be done by an authorized professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the
installation of the appliance must be performed by a qualified professional.
The appliance is intended for commercial and indoor use only.
➢ Operate the appliance in accordance with its intended use only.
Do not allow anybody who is not familiar with this instruction manual to operate the appliance.
This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.
DANGER!
- Do not connect the appliance to the mains if the appliance itself or the power cord or the plug are visibly damaged.
- Never try to repair the appliance yourself. If the appliance does not operate properly please contact the shop you purchased the appliance at. Original spare parts should be used only.
- When the power cord is damaged, it must be replaced by the manufacturer or an authorized aftersales service or a qualified professional only.
WARNING!
- This appliance is equipped with the environmental-friendly refrigerant R600a. The refrigerant R600a is inflammable. The components of the cooling circuit must neither be damaged during transport nor use.
-
If any part of the cooling circuit is damaged, the appliance must not stand near a fire, naked light or spark-generating devices. Contact the shop you purchased the appliance at immediately.
-
If gas is set free in your home:
a) Open all windows.
b) Do not unplug the appliance and do not use the control panel or thermostat.
c) Do not touch the appliance until all the gas has gone.
d) Otherwise sparks can be generated which will ignite the gas.
-
Keep all components of the appliance away from fire and other sources of ignition when you dispose of or decommission the appliance.
-
Do not install the appliance near of volatile or combustible materials (e.g. gas, fuel, alcohol, paints) and in rooms which may have poor air circulation (e.g.
garage).
-
EXPLOSION HAZARD! Do not store any explosive materials or sprays, which contain flammable propellants, in appliance. Explosive mixtures can explode there.
-
While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD.
-
Do not connect the appliance to the electric supply unless all packaging and transit protectors have been removed.
-
Operate the appliance with 220\~240V/50Hz/AC only. All connections and energy-leading components must be replaced by an authorized professional.
-
Do not use a socket board or a multi socket when connecting the appliance to the mains.
-
A dedicated and property grounded socket meeting the data of the plug is required to minimize any kind of hazard. The appliance must be grounded properly.
-
Check that the power cord is not placed under the appliance or damaged when moving the appliance.
-
The technical data of your energy supplier must meet the data on the model plate of the appliance.
-
Your domestic circuit must be equipped with an automatic circuit breaker.
-
Do not modify the appliance.
-
Turn off the power before you install the appliance and before you connect it to the mains. RISK OF FATAL ELECTRIC SHOCK!
-
Disconnect the appliance from the mains before you clean or maintain it.
-
Do not use any electric appliances inside the food storage compartments of your appliance unless they are recommended by the manufacturer of your refrigerator.
-
Do not put any heat-radiating appliances onto your appliance.
-
Do not install the appliance in a place where it may come in contact with water/rain; otherwise the insulation of the electrical system will be damaged.
-
Do not put a water-boiler or vases onto your appliance. The electrical components of your appliance can be seriously damaged by water over-boiling or spilled water.
-
Do not use any steam cleaners to clean or defrost the appliance. The steam can get into contact with the electrical parts and cause an electrical short. RISK OF ELECTRIC SHOCK!
-
Never use mechanic deuces, knives or other sharp-edged items to remove encrusted ice inside the appliance. RISK OF ELECTRIC SHOCK caused by damaging the interior of the appliance.
-
Children must never play with the appliance.
-
If you decommission your appliance (even temporarily), ensure that children cannot get into the appliance. Strictly observe the corresponding safety instructions numbers. 1 and 4, chapter DECOMMISSIONING, ultimate
-
Strictly observe the instructions in chapter INSTALLATION.
CAUTION!
- The condenser and the compressor, located at the rear of the appliance, can reach high temperatures during ordinary operation. Carry out the installation according to this manual. An insufficient ventilation of the appliance will impair its operation and will damage the appliance. Do not cover or block the ventilation slats at any time
- Do not touch the extreme cooled surfaces with wet or damp hands, because your skin may stick on these surfaces.
NOTICE!
- When you move the appliance, hold it at its base and lift it carefully. Keep the appliance in an upright position.
- Do not tilt the appliance more than 45° .
- If the appliance is transported in a horizontal position, some oil may flow from the compressor into the refrigerant circuit.
- Leave the appliance in an upright position for 4-6 hours before you switch it on to ensure, that the oil has flowed back into the compressor.
- Never use the door for moving the appliance as you will damage the hinges.
- The appliance must be transported and installed by at least two persons.
- When you unpack the appliance, you should take note of the position of every part of the interior accessories in case you have to repack and transport it at a later point of time.
- Do not operate the appliance unless all components are installed properly.
- Do not stand or lean on the base, the drawers, the doors etc of the appliance.
- Do not put hot liquids or hot foodstuff into the appliance.
- The air vents of the appliance or its built-in structure (if the appliance is suitable for being built-in) must be completely open, unblocked and free of any kind of dirt.
- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
-
Do not damage the refrigerant circuit.
-
Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
CLIMATIC CLASSES
| Test room climate | Dry bulb temperature °C | Relative humidity % | Dew point °C | Water weight in dry air g/kg |
| 0 | 20 | 50 | 9.3 | 7.3 |
| 1 | 16 | 80 | 12.6 | 9.1 |
| 2 | 22 | 85 | 15.2 | 10.8 |
| 3 | 25 | 60 | 16.7 | 12 |
| 4 | 30 | 55 | 20.0 | 14.8 |
| 5 | 40 | 40 | 23.9 | 18.8 |
| 6 | 27 | 70 | 21 | 15.8 |
| 7 | 35 | 75 | 30 | 27.3 |
INSTALLATION
Site
- Unpack the appliance carefully. Dispose of the packaging as described in chapter waste management.
- Completely remove the transport-protection. Be very careful and do not use any aggressive or abrasive detergents to remove residuals of the transport- protection.
- Install the appliance in a suitable position with an adequate distance from sources of heat and cold.
- Check that the appliance and the power cord are not damaged.
- Install the appliance in a dry and well-ventilated place.
- Protect the appliance from direct sunlight.
- The doors must open completely and without hindrance.
- Install the appliance on a level, dry and solid floor. Check the correct installation with a bubble level.
- Connect the appliance to the mains properly.
- The nameplate is situated inside the appliance or at the back.
Ventilation
Minimum distances required for proper ventilation:
A. Back to wall: Min. 5cm
B. Right /left to any piece of furniture/wall: Min. 1cm
Change of the hinge position
⚠ WARNING! Switch off and unplug the appliance before changing the hinge position. RISK OF ELECTRIC SHOCK!
⚠️ CAUTION! The change of the position must be carried out by at least two persons; otherwise you may hurt yourself or damage the appliance.
Preparation:
- Empty the appliance completely.
- Tools required: Cross slot screwdriver, flathead screwdriver, hexagonal spanner.
- Set the adjustable feet to their highest position.
- You must tilt the appliance backwards to remove the door. Lean the appliance against a solid construction and block it, so the appliance cannot slide away while you are working.
- The appliance must not tip over or lie on one of its sides. Otherwise you may cause serious damage to the cooling system.
- Keep all de-installed parts in a safe place.
Change:
- Open the door. Remove the 7 screws (1) below the top and the 6 screws (3) covered by (2);
- Push the door up to remove it. Put the door to one side and lay it down gently on a padded surface.
- Swap over the position of the lower hinge (5) (6) and the feet (7) (8) to the other side.
- Remove the hinge pin (9) (10) that are in the bottom of the door. At the other side of the door, insert the replacement hinge pin that is supplied with the appliance.
- Follow steps in opposite way to assembly the doors.
MAIN COMPONENTS
- Light/Thermostat
- Adjustable shelves
- Shelf
- Adjustable feet
After installation wait 4-6 hours, before you connect your appliance to the mains!
-
Light on/off
-
Rotary knob
MIN: Lowest setting (warmest cooling temperature)
MAX: Highest setting (coldest cooling temperature)
SUPER: Super cooling
NORMAL: Recommended setting at cool ambient temperatures
- Initial operation: Plug in the appliance and turn the rotary knob clockwise.
Before initial operation
- Clean the appliance thoroughly. Be very careful especially inside the appliance (look at chapter CLEANING AND MAINTENANCE).
- If the accessories inside the appliance are not fitted in their correct position, replace them according to the image in chapter 4.
- The appliance must be connected to the mains properly.
- If the appliance was disconnected from the energy supply, wait 5 minutes before
you restart it.
- Do not overfill the appliance
Temperature setting
Initial operation:
Set the thermostat to MAX until the desired cooling temperature has been reached; then set the thermostat to NORMAL. Correcting the temperature will be easier at a later point in time.
Super:
-
This setting accelerates the cooling process.
-
This setting is not intended for permanent operation!
Operation parameters
- The appliance can only reach the relevant temperatures when:
a) the ambient temperature meets the climatic class.
b) the doors close properly.
c) you do not open the doors too often or too long.
d) the door seals are in proper condition.
e) the appliance is properly positioned.
f) you have not overfilled the appliance.
g) you do not store warm or hot food in the appliance.
- High ambient temperatures and simultaneously operating at the coldest setting may make the compressor operate permanently to keep the temperature constant inside the appliance.
▶ Helpful hints/energy saving
- Try opening the door as little as possible, especially when the weather is warm and humid.
- If you open the door, close it as soon as possible.
- Permanently check, if the appliance is well-ventilated. The appliance has to be well-ventilated from all sides.
- Set the temperature control from a high to a low position as soon as it is possible. This depends on the amount of contents and the room temperature.
- Encrusted ice causes higher energy consumption. Defrost encrusted ice if its diameter is more than 3 mm (1/8").
- Occasionally clean the rear of your appliance with a brush or a vacuum cleaner to avoid increased energy consumption.
-
Disconnect the appliance from the mains if you do not operate it.
-
Always keep the door seals clean and in a proper condition.
CLEANING AND MAINTENANCE
- ⚠WARNING! Disconnect the appliance from the mains before you clean or maintain it.
- Always keep the appliance clean so that unpleasant odours do not occur.
- Dust deposits on the condenser will increase the energy consumption. Clean the condenser twice a year with a vacuum cleaner or a soft brush.
- Take off all rings and bracelets before cleaning or maintaining the appliance; otherwise you will damage the surface of the appliance.
Detergent
- Do not use any harsh, abrasive detergents.
- Do not use any aggressive detergents.
- Do not use any solvents.
- These instructions are valid for all surfaces of your appliance.
External cleaning
- Use a moist cloth and a mild, non-acrid detergent.
- Use clear water to rinse.
- Dry the cleaned surfaces with a cloth.
Internal cleaning
- Clean the shelves and the other removable parts with warm water and a mild, non-acrid detergent.
- Use clear water to rinse.
- Dry the cleaned surfaces with a cloth.
- Clean the interior with baking soda (3 tablespoons per 1 litre of water) or with water and a mild, non-acrid detergent.
- Use clear water to rinse.
- Dry the cleaned surfaces with a cloth.
- Check the water drain and clean it if needed.
Door seals
Clean with warm water and a mild, non-acrid detergent.
Defrosting
-
The appliance is equipped with an automatic defrost-system.
-
The water is drained at the back inside the appliance.
- The water is collected in a container underneath the compressor. The water evaporates in this container
- The drain must not be blocked.
- Clean the drain carefully with a pipe cleaner.
Replacing of the illuminant
The lamp only can be replaced by the professionals when it cannot work.
TROUBLE SHOOTING
| MALFUNCTION | POSSIBLE CAUSE | MEASURE |
| The appliance does not | The plug of the appliance | Check the corresponding |
| work at all | is not connected to the socket. | socket by connecting it with another appliance. |
| The plug has become loose. | Check the fuse box. |
| The socket is not supplied with energy. | Compare the data on the model plate with the data of your energy supplier. |
| The fuse is switched off. |
| The voltage is too low. |
| The compressor does not work at all. | Incorrect energy supply. | Check the energy supply. |
| The compressor operates for too long. | The appliance has been switched off for a while. | The appliance needs some time to reach the preset temperature. |
| Doors opened too often or too long. | Do not open the door too often/too long. |
| Unsatisfactory cooling capacity. | The door was frequently opened. | Do not open the door too often. |
| The door is not properly closed. | Check the door and close it properly. |
| Encrusted ice inside the appliance. | Take out the encrustment. |
| The current temperature setting is too warm. | Select a different setting if necessary. |
| Warm or hot beverages inside the appliance. | Take them out and put in when they are cool. |
| The appliance is overfilled. | Take out some food |
| The door seals are damaged. | Check the door/door seals. |
| Strong formation of encrusted ice. | The door is not properly closed. | Close the door. |
| The door seal is damaged or soiled. | Clean/replace the door seal. |
| The door makes a strange sound when opened. | The door seals are soiled. | Clean the seals. |
| Unusual noise. | The appliance is not installed on a level, dry and solid floor. | Realign/Readjust the appliance. |
| The appliance is in contact with a wall or another item. The bottles are incorrectly positioned. | Realign the bottles. |
| Some items have dropped behind the appliance. | Remove these items. |
If the appliance shows a malfunction not noted on the schedule above or if you have checked all items on the above schedule but the problem still exists, please contact the shop you purchased the appliance at.
The operating procedures described below are normal and do not indicate a malfunction.
- The refrigerant generates a sound similar to flowing water.
- Sometimes you may hear a sound which is generated by the injection process of the cooling circuit.
- The sides of the appliance get warm while the appliance is running.
Distinct noise
When you run the appliance for the first time or the temperature falls below a certain level the appliance will operate with high power to reach the preset temperature.
Condensed water in/on the appliance
may be generated inside or outside the appliance by high humidity or very warm ambient temperatures.
Clicking
You will hear the compressor click when it is activated or deactivated.
Hum
is caused by the compressor while running.
Knocking/snapping
may be generated by sequential expansion and shrinkage of the components of the cooling system. It is caused by variation of temperature before and after the compressor is activated or deactivated.
DECOMMISSIONING
● Decommissioning, temporarily
If the appliance is not used for a longer period of time:
- Draw the plug out of the socket.
- Remove all food stored in the appliance.
- Dry the inside of the appliance with a cloth and leave the door open for a few days.
While away on an average vacation/holiday (14-21 days):
- Do the same as described above, or
- let the appliance operate.
a) remove all perishable food from the cooling compartment.
b) clean the cooling compartment.
c) freeze all food which is suitable to be frozen.
If you want to move the appliance:
- Secure all removable parts and the contents of the appliance. Pack them separately if necessary.
- Transport the appliance in an upright position only. All other positions can cause damage to the compressor.
- Do not damage the feet of the appliance.
- Decommissioning, ultimate
- Draw the plug out of the socket.
- Cut off the power cord at the appliance.
- Completely remove every door of the appliance.
- Leave the shelves in their position so that children are not able to get into the appliance.
- Follow the advice for the disposal of the appliance in chapter 12.
WASTE MANAGEMENT
- Dispose of the appliance relevant to the current legislation in view of explosive gases. The cooling systems and insulation of refrigerators and freezers contain refrigerants and gases which have to be deposed of properly. Do not damage the cooling fins and tubes. If refrigerants escape there is FIRE HAZARD!
- While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD!
- Old and unused appliances must be sent for disposal to the responsible recycling centre. Never expose to open flames.
- Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately. Remove the door completely so children are not able to get into the appliance as this endangers their lives!
- Dispose of any paper and cardboard into the corresponding containers.
- Dispose of any plastics into the corresponding containers.
- If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.
- Receive more detailed information from your retailer or your municipal facilities.
Refrigerant
The refrigerant circuit of the appliance contains the refrigerant R600a, a natural gas of high environmental compatibility.
Do not damage any components of the refrigerant circuit while transporting the appliance. FIRE HAZARD!
SPECIFICATIONS
| Electric shock protection class | I |
| Rated voltage and frequency | 220-240V~ 50Hz |
| Rated current | 0.5 A |
| Lamp power | Max 10W |
| Refrigerant/Amount | R600a/ 42 g |
| Net weight | 50kg |
| Insulation blowing gas | Cyclopentane |
Replaceable (LED only) light source by a professional
This product contains a light source of energy efficiency class G.
Supplier's name or trade mark: CAFOM DISTRIBUTION | Surfline
Supplier's address: 9 RUE JACQUARD 93310 LE PRE ST GERVAIS FRANCE
Model identifier: VSC256
| Use: | Display and sale |
| Type of refrigerating appliance with a direct sales function: | Beverage coolers |
| Cabinet family code, according to the harmonised standards or other reliable, accurate and reproducible methods in accordance with Annex IV. | BCSTn |
Beverage coolers:
| Gross volume (dm3 or L) | Ambient conditions for which the appliance is suitable |
| Warmest temperature (°C) | Relative humidity (%) |
| 259 | +25 | 60 |
General product parameters:
| Parameter | Value | Parameter | Value |
| Annual energy consumption (kWh/a) | 1059,00 | Recommended temperature(s) for optimised food storage (°C) | 5°C |
| EEI | 79,4 | Energy efficiency class | F |
Light source parameters (a)
| Type of light source | LED |
| Energy efficiency class | G |
Minimum duration of the guarantee offered by the manufacturer : 2 years
Additional information:
The weblink to the supplier's website, where the information in point 3 of Annex II of Commission Regulation (EU) 2019/2024 is found: www.cafom.com
(a) as determined in accordance with Commission Delegated Regulation (EU) 2019/2015.
This appliance is intended to operate in climates where the maximum temperature and the humidity are +25°C and 60% respectively.

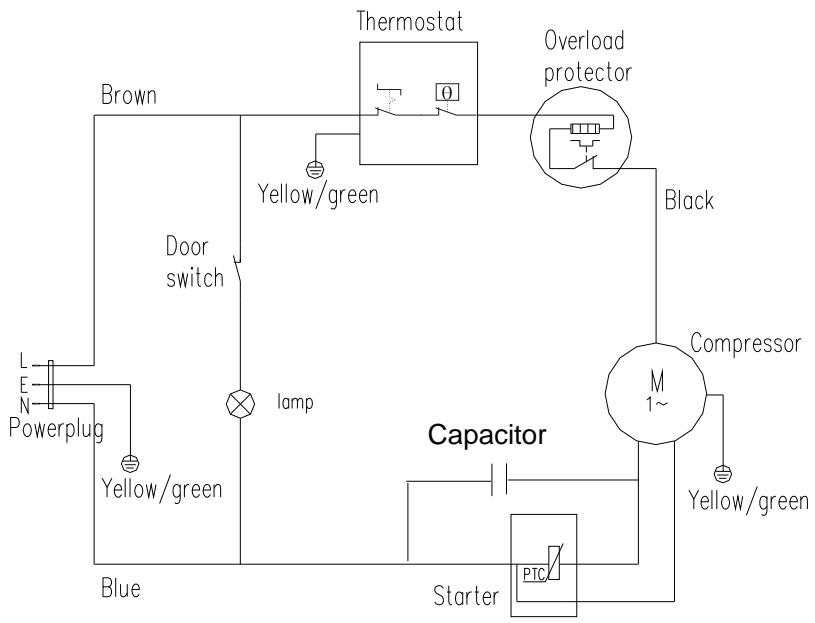

Attention:
Scheme provided for information only. The specific parameters are based only on data on the nameplate.
We decline liability for any damage or accident derived from any use of this product which is not in conformity with the instructions contained in this booklet.
| CORRECT DISPOSAL OF THIS PRODUCT |
 | This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. |
N°86202103406
Product Description -
Surfline
Model number -
We declare that the above product has been evaluated and deemed to comply with the requirements of the listed European Directives and standards:
Low Voltage Directive (LVD)
Eco design requirements for energy-related products (ErP)
RoHS
EMC:
EN 55014-1:2017
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
LVD:
EN 60335-1:2012+A11:2014+A13:2017
EN 60335-2-89:2010+A1:2016+A2:2017
EN 62233:2008
ErP:
(EU) No 2019/2018 (EU) No 2019/2024
EN 16902:2016
This declaration of conformity is drawn up under the sole responsibility of the manufacturer.
The person responsible for this declaration is:
Position - Fonction: Market Manager Export
Place, Date / Lieu :
Le Pré Saint Gervais, mars 16, 2021
