1

Overview

The Orbi™ WiFi System creates dedicated high-speed WiFi connections to your Internet service. The Orbi router connects to your modem or gateway. The Orbi satellite extends the WiFi signal throughout your home.

This manual describes how to manage your Orbi WiFi System from your Orbi router web interface. You can manage any add-on Orbi satellite from the Orbi router web interface.

If you own one of the following add-on Orbi satellites, you can find more information about your satellite from its user manual, which is available at https://www.netgear.com/support/:

• Orbi Outdoor Universal Satellite (model RBS50Y)
  Orbi Voice (model RBS40V)

This chapter contains the following sections:

• Orbi Router and Satellite Hardware Overviews
  LED Behavior
• Connect Your Router
• Place Your Satellite
  Sync Your Orbi Satellite

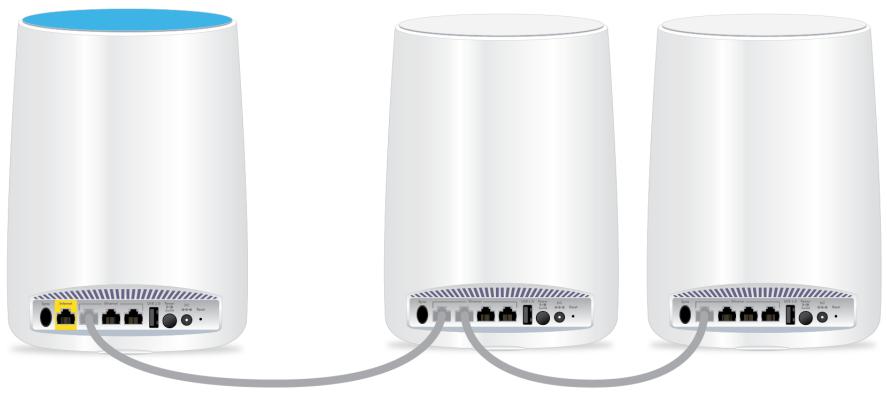

• Set Up an Ethernet Backhaul Connection
• Download the NETGEAR Orbi App

For more information about the topics covered in this manual, visit the support website at https://www.netgear.com/support/.

Note: This manual refers to all Orbi router models as the router and refers to all Orbi satellite models (including the Orbi wall plug satellite) as the satellite.

Orbi Router and Satellite Hardware Overviews

Different types of Orbi routers and satellites are available. To determine which Orbimodel you own, look on the router or satellite label for the model number. For more information about what the label might look like, see Labels on page 30.

The following sections display the hardware features available for different Orbi routers and satellites.

Orbi Router Model RBR50 Hardware Overview

Figure 1. Orbi router model RBR50, front and back views

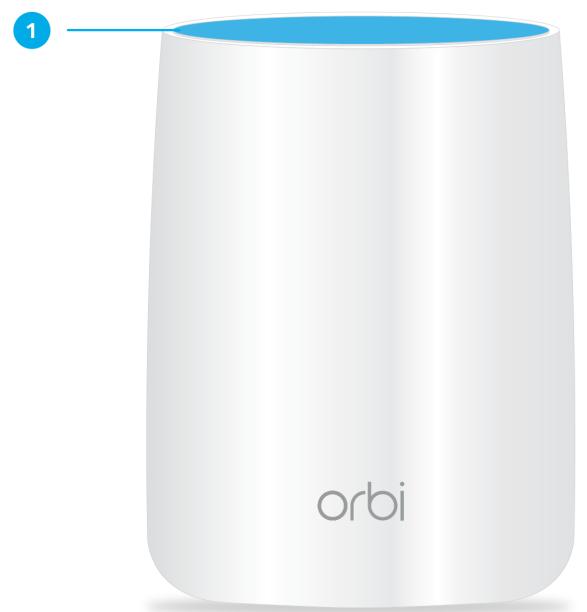

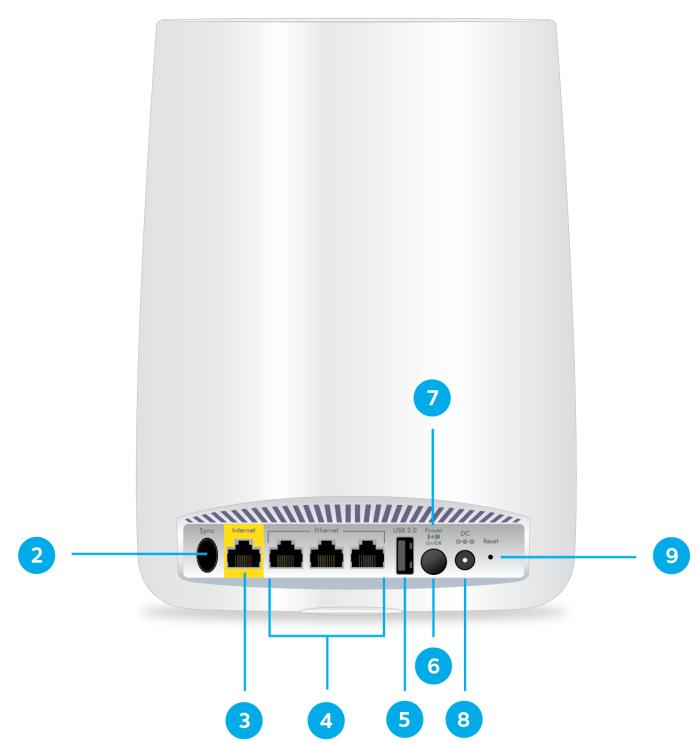

1. Ring LED (not shown in image)
2. Sync button (also used for WPS connection)
3. Internet port
4. Ethernet ports

5. USB port

6. Power On/Off button

7. Power LED
8. DC Power connector
9. Reset button

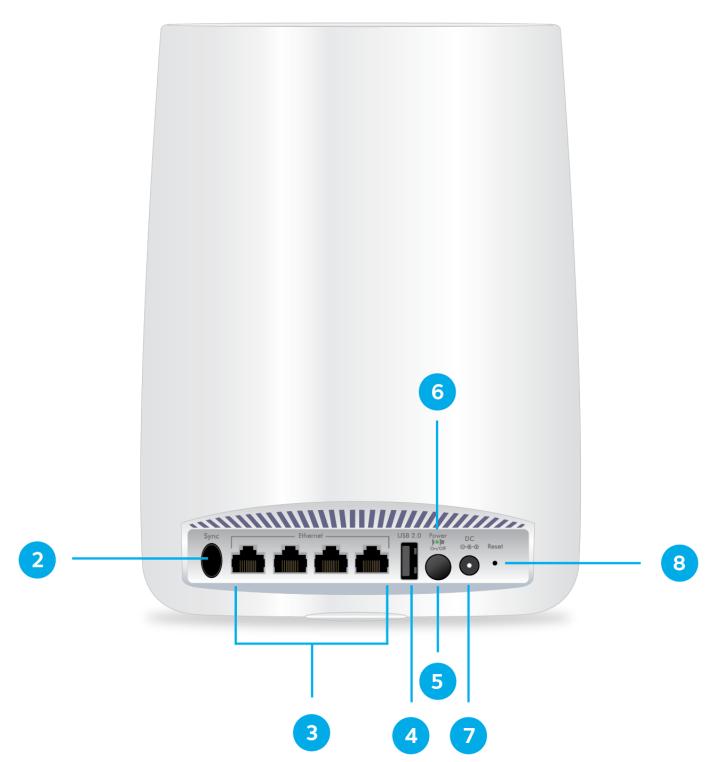

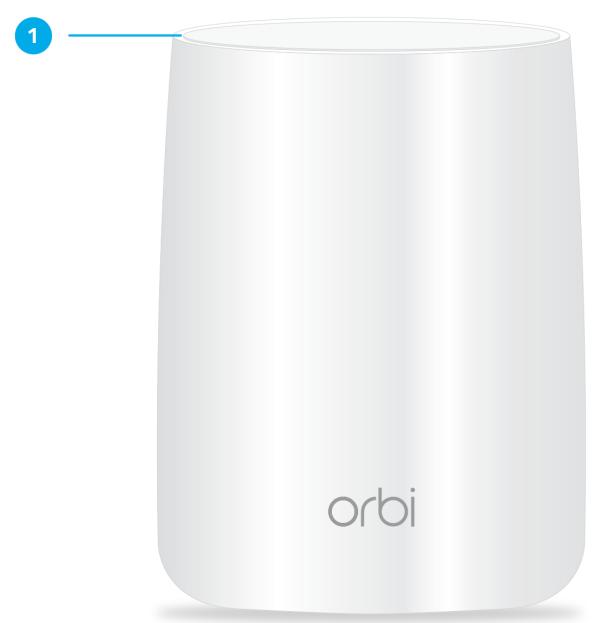

Orbi Satellite Model RBS50 Hardware Overview

Figure 2. Orbi satellite model RBS50, front and back views

1. Ring LED (not shown in image)
2. Sync button (also used for WPS connection)
3. Ethernet ports
4. USB port
5. Power On/Off button
6. Power LED
7. DC Power connector
8. Reset button

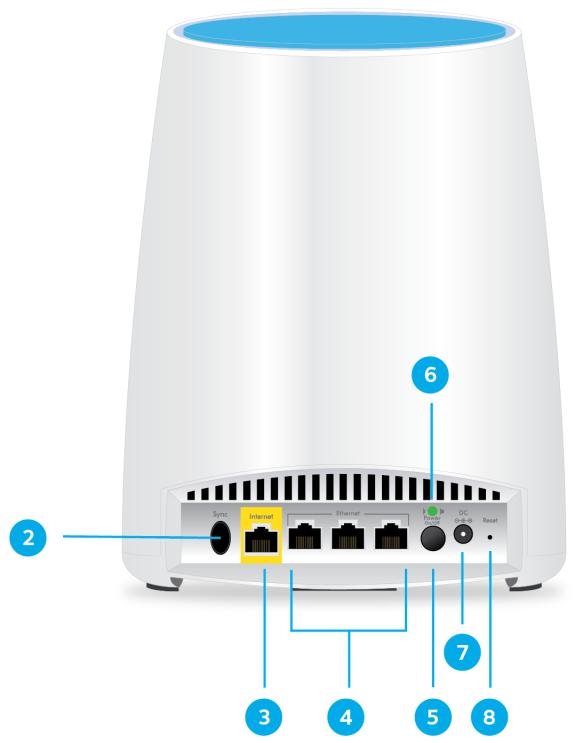

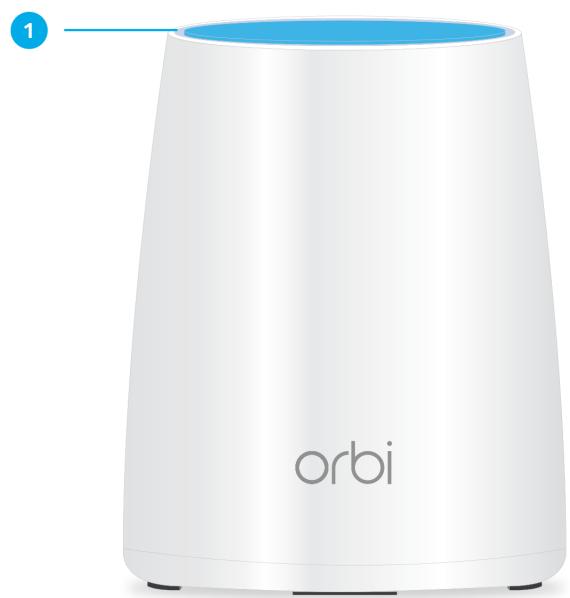

Orbi RouterModelRBR40HardwareOverview

1. Ring LED (not shown in image)
2. Sync button (also used for WPS connection)
3. Internet port
4. Ethernet ports
5. Power On/Off button
6. Power LED
7. DC Power connector
8. Reset button

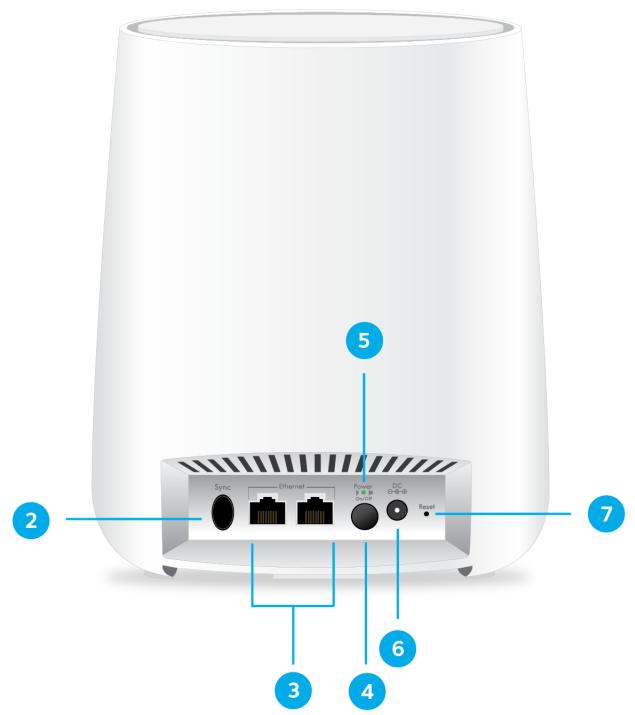

Orbi Satellite Model RBS40 Hardware Overview

Figure 4. Orbi satellite model RBS40, front and back views

1. Ring LED (not shown in image)
2. Sync button (also used for WPS connection)
3. Ethernet ports
4. Power On/Off button
5. Power LED
6. DC Power connector
7. Reset button

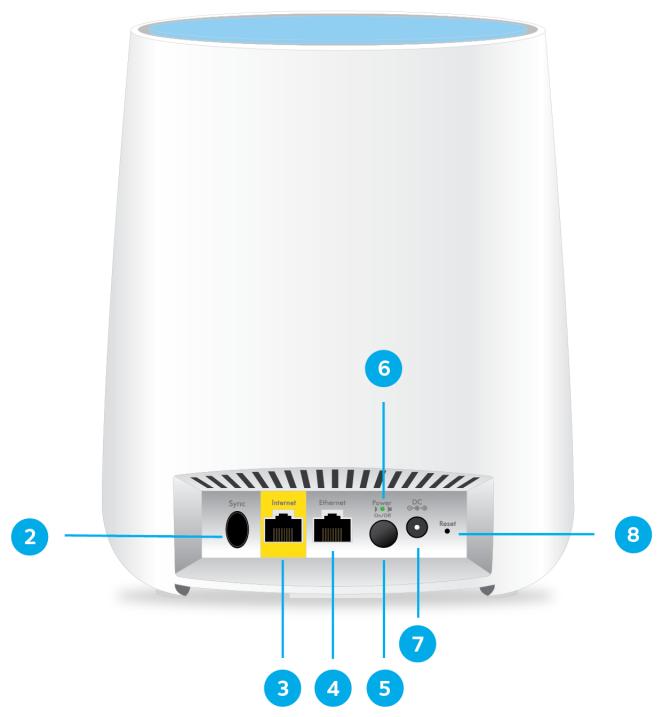

Orbi RouterModelRBR20HardwareOverview

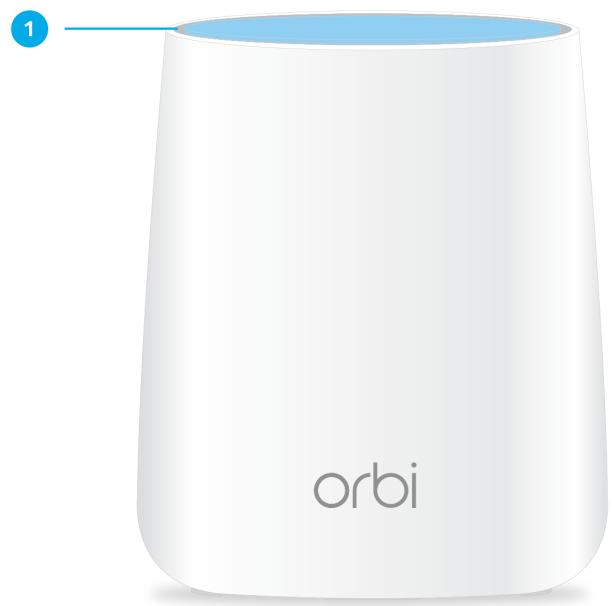

1. Ring LED (not shown in image)
2. Sync button (also used for WPS connection)
3. Internet port
4. Ethernet port
5. Power On/Off button
6. Power LED
7. DC Power connector
8. Reset button

Orbi Satellite Model RBS20 Hardware Overview

Figure 6. Orb satellite model RBS40, front and back views

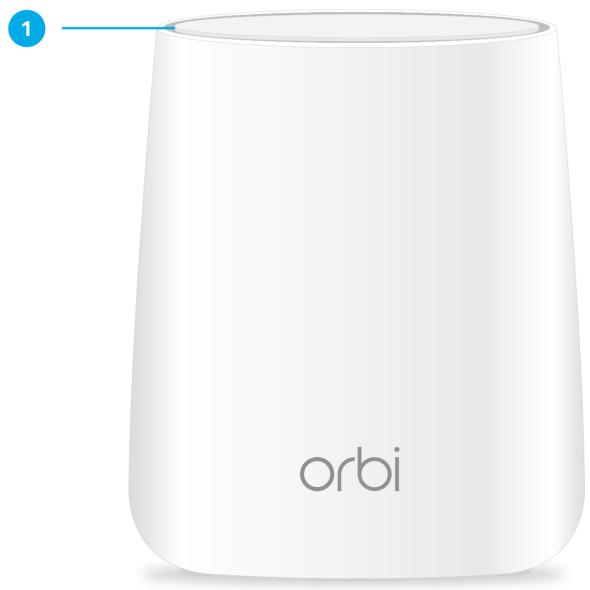

1. Ring LED (not shown in image)
2. Sync button (also used for WPS connection)
3. Ethernet ports
4. Power On/Off button
5. Power LED
6. DC Power connector
7. Reset button

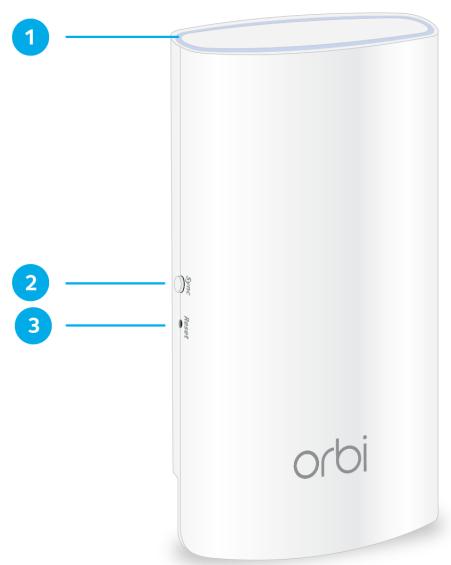

Orbi Wall Plug Satellite Model RBW30 Hardware Overview

Figure 7. Orbi wall plug satellite model RBW30, front and back views

1. Ring LED (not shown in image)
2. Sync button (also used for WPS connection)
3. Reset button

LED Behavior

When you sync a satellite to the router, the LED behavior for a satellite that comes in a WiFi system is different from the LED behavior for add-on satellites.

Orbi WiFi System LEDs

The following table describes the LED behavior for an Orbi router and Orbi satellites that are purchased together and come in the same package.

Table 1. Orbi WiFi System router and satellite LED descriptions

LED	LED Behavior
Power LED	The Power LED is located above the Power On/Off button on the rear panel. Note: The wall plug satellite does not include a Power LED. • Solid green. Power is on. • Solid amber. The router or satellite is booting. • Blinking amber. The router or satellite is resetting to factory default settings. • Blinking red. The firmware is corrupted. • Off. Power is not supplied.
Router ring LED	The ring LED is located on the top. • Pulsing white. The router is booting or someone pressed the Sync button. • Off. The router finished booting and is working normally. • Solid white. The router is resetting to factory default settings. • Solid magenta. The router cannot connect to the Internet. See Cannot Access the Internet on page 142.
Satellite ring LED	This satellite is included when you buy an Orbi router. The ring LED is located on the top. • Pulsing white. The satellite is booting. • Blue for three minutes. The connection between the satellite and the router is good. • Amber for three minutes. The connection between the satellite and the router is fair. • Magenta. The satellite failed to sync to the router. See The Router and Satellite Do Not Sync on page 140. • Off. The satellite synchronized to the router and is working normally.

Optional Orbi Add-On Satellite LEDs

You can purchase add-on Orbi satellites (sold separately) and add them to your Orbi network.

Table 2. Orbi add-on satellite LED description

LED	LED Behavior
Power LED	The Power LED is located above the Power On/Off button on the rear panel. Note: The wall plug satellite does not include a Power LED. • Solid green. Power is on. • Solid amber. The satellite is rebooting. • Blinking amber. The satellite is resetting to factory default settings. • Blinking red. The firmware is corrupted. • Off. Power is not supplied.
Add-on satellite ring LED	Optional add-on satellites are sold separately and can be added to your Orbi network. The ring LED is located on the top. • Pulsing white. The satellite is booting. • Solid white. The satellite is ready to sync to the router (press the Sync button). • Blue for three minutes. The connection between the satellite and the router is good. • Amber for three minutes. The connection between the satellite and the router is fair. • Magenta. The satellite is not connected to the router or is not getting an IP address. • Off. The satellite synchronized to the router and is working normally.

Connect Your Router

To cable your router:

1. Unplug your modem's power, leaving the modem connected to the wall jack for your Internet service.

If your modem uses a battery backup, remove the battery.

1. Plug in and turn on your modem.

If your modem uses a battery backup, put the battery back in.

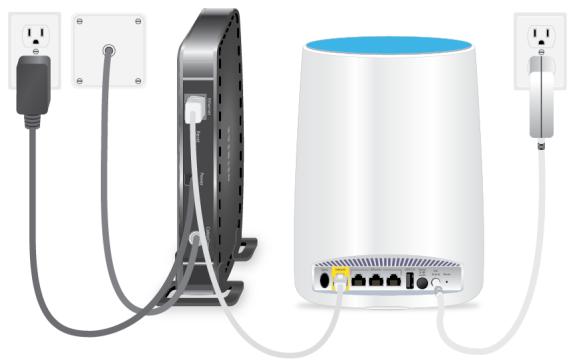

1. Connect your modem to the Internet port of your router with the yellow Ethernet cable that came with your router.

The router shown in this is the Orbi router (model RBR50). The same setup applies to all Orbi routers.

1. Connect the power adapter to your router and plug the power adapter into an outlet.
2. If the Power LED does not light, press the Power On/Off button on the rear panel of the router.

Place Your Satellite

If your satellite came with your Orbi WiFi System, the satellite attempts to sync with your router. If you bought an add-on satellite, you must manually sync your satellite. For more information, see Sync Your Orbi Satellite on page 22.

Note that your satellites must be within range of your router's WiFi signal in order for it to sync with the router. Use each satellite's ring LED to help you determine where to place your satellite.

Examples of Placement for One Satellite

The following images are examples of where to place your router and satellite. The router shown in the following images is the Orbi router model RBR50 and the satellite shown in the images is the Orbi satellite model RBS50.

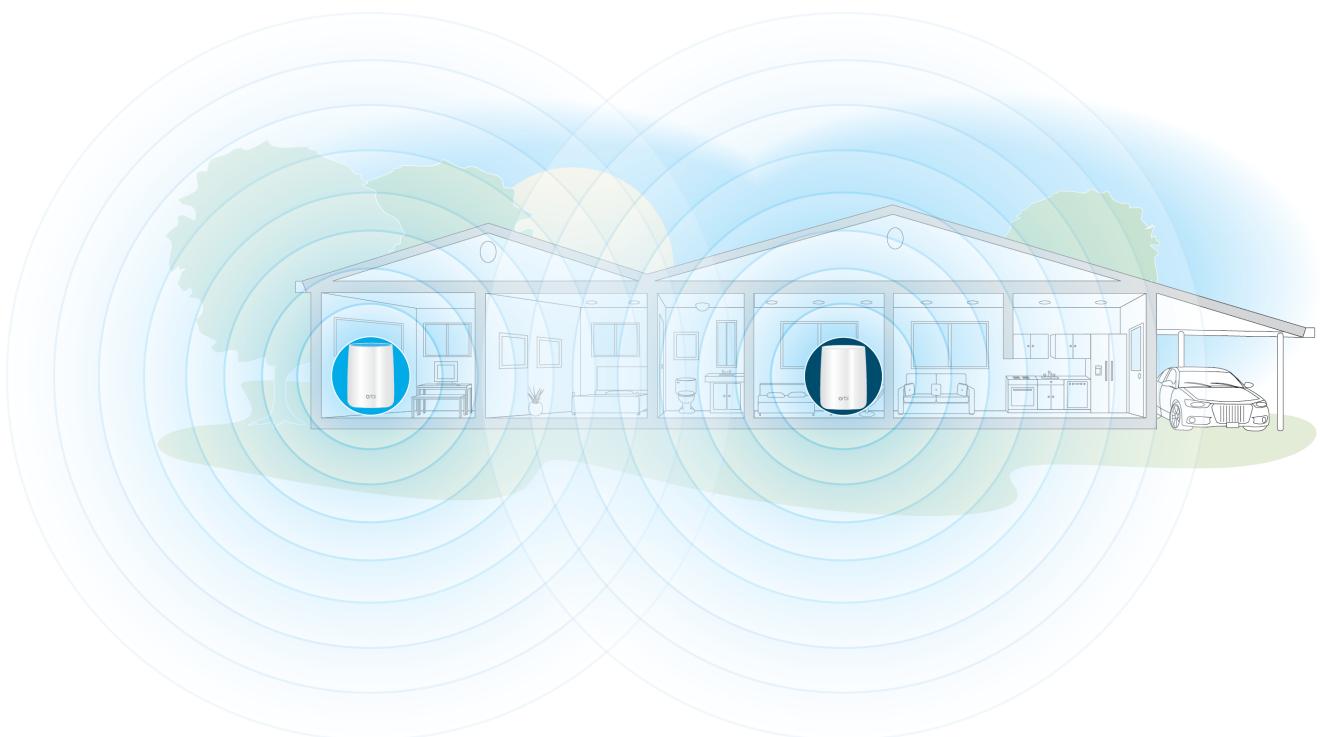

Figure 8. Single-story house with one Orbi satellite

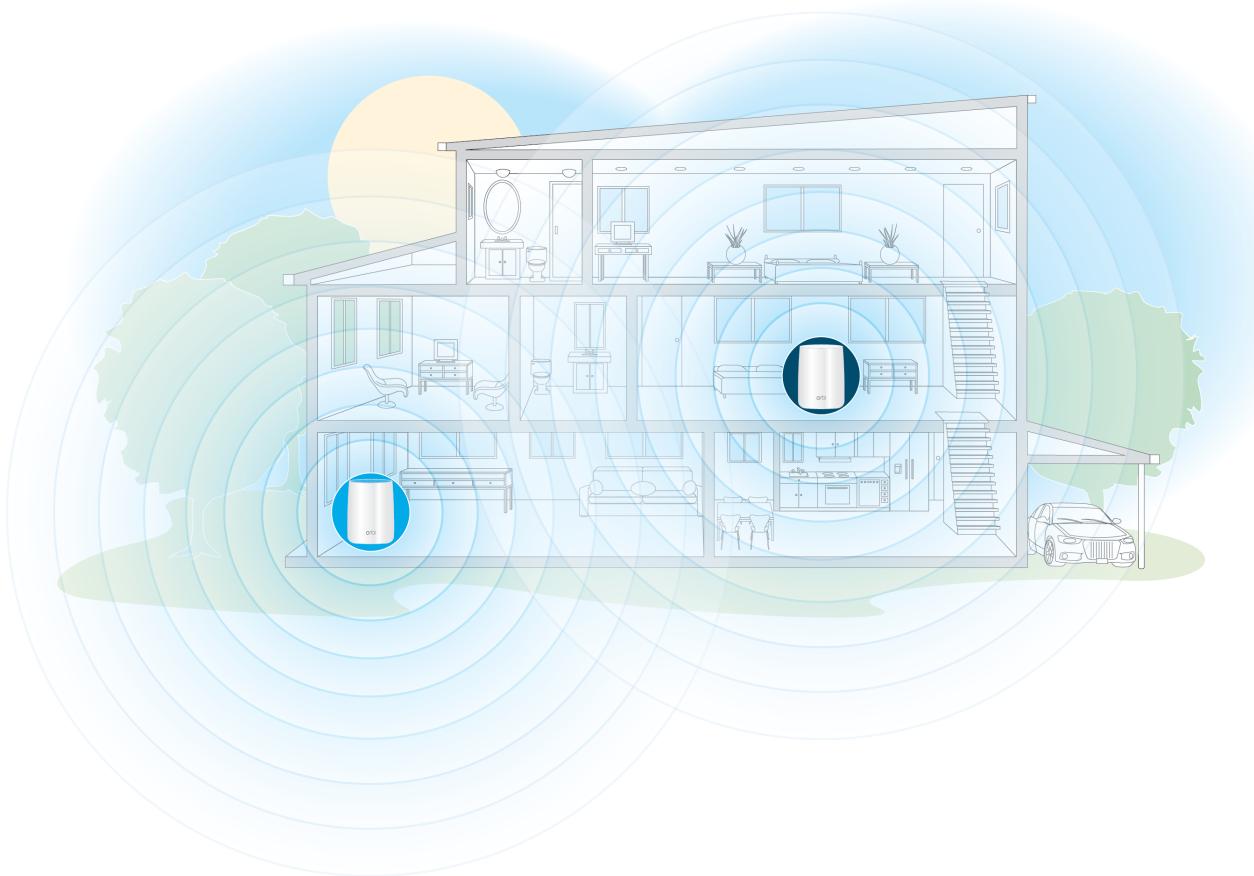

Figure 9. Multilevel house with one Orbi satellite

Examples of Placement for Multiple Satellites

If you own more than one Orbi satellite, we recommend that you place your router in the middle of your home with the satellites placed on opposite sides of your home. The router shown in the following images is the Orbi router model RBR50 and the satellites shown in the images are the Orbi satellites model RBS50.

If you own multiple Orbi wall plug satellites model RBW30, you might need to place the satellites closer to the router. Use the satellite ring LED to determine the best placement for your satellites.

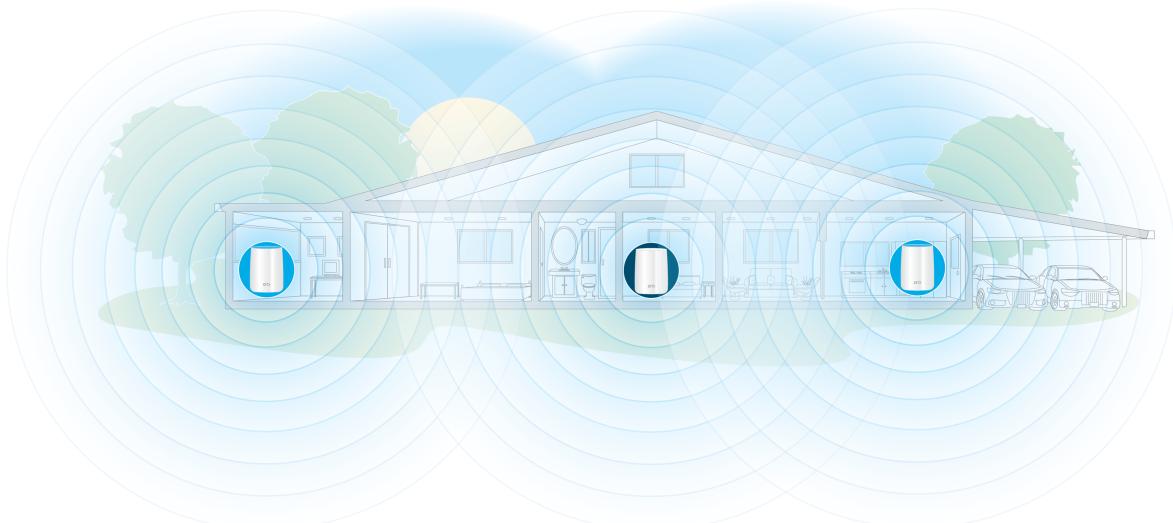

Figure 10. Single-story house with two Orbi satellites

If you have a multi-level house, place the satellites on different floors.

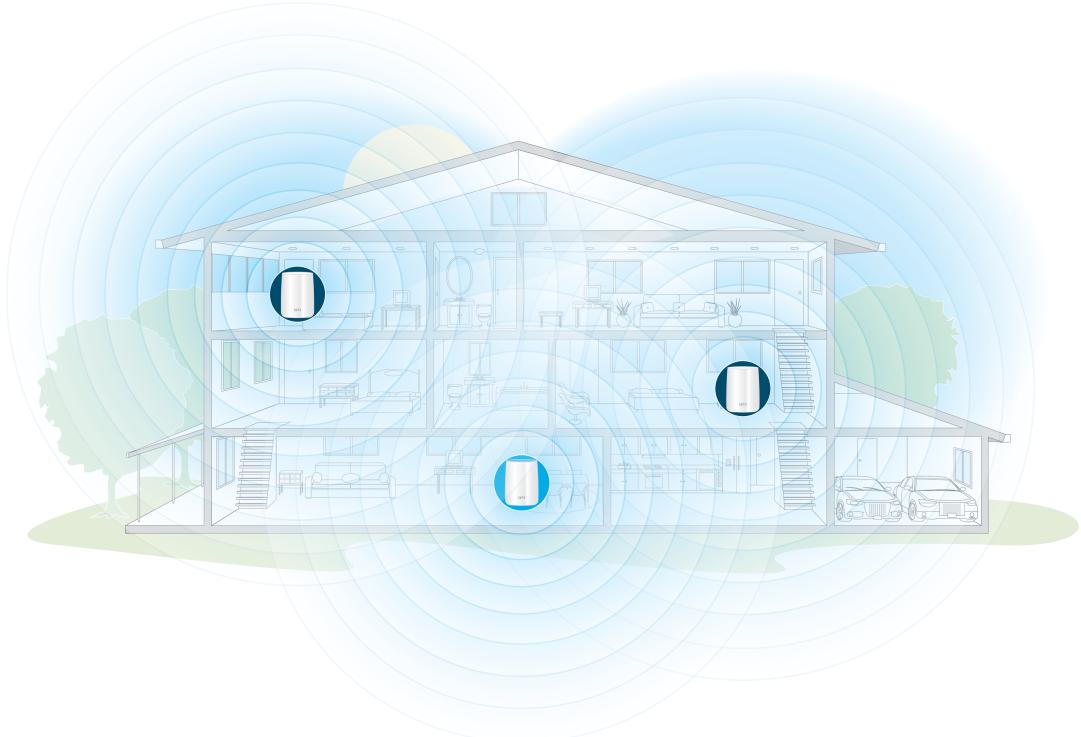

Figure 11. Multilevel house with two Orbi satellites

Sync Your Orbi Satellite

The sync process for your satellite depends on whether your satellite came with your Orbi WiFi System, or if your satellite is an add-on satellite.

Sync a Satellite From an Orbi WiFi System

The Orbi WiFi System includes an Orbi router and either one or two satellites. The satellite in the WiFi system is preset to automatically find and sync to the WiFi signal from the Orbi router in the same WiFi system.

To sync your satellite:

1. Place your satellite.

For more information, see Place Your Satellite on page 18.

1. Connect the satellite to a power source.

2. If the Power LED on the back of the satellite does not light, press the Power On/Off button.

The satellite ring LED pulses white. The satellite automatically finds the Orbi router's WiFi signal and attempts to sync to the Orbi router.

The satellite ring LED lights one of the following colors for about three minutes and then turns off:

• Blue. The Orbi router and satellite successfully synced, and the connection between the router and satellite is good.
• Amber. The Orbi router and satellite successfully synced, and the connection between the router and satellite is fair. Consider moving the Orbi satellite closer to the Orbi router.

• Magenta. The Orbi router and satellite failed to sync.

• If the satellite ring LED is magenta, move the satellite closer to the router and then sync the satellite to the router:

a. Press the Sync button on the back of the router.
b. Within two minutes, press the Sync button on the back of the satellite. The satellite attempts to sync to the Orbi router. The satellite ring LED lights blue, amber, or magenta as described in Step 3 of this procedure and then turns off.

1. Repeat Steps 1-4 if your Orbi WiFi System came with a second satellite.

Sync an Add-On Satellite

If you already set up an Orbi router and satellite are adding an optional add-on satellite (sold separately), follow these steps.

To sync your add-on satellite:

1. Place your satellite.

For more information, see Examples of Placement for Multiple Satellites on page 20.

1. Connect the satellite to a power source.
2. If the Power LED on the back of the satellite does not light, press the Power On/Off button.
3. Wait about two minutes for the satellite ring LED to light solid white.
4. Press the Sync button on the back of the satellite and within two minutes, press the Sync button on the back of your Orbi router.

The satellite ring LED pulses white, then lights one of the following colors for about three minutes, and then turns off:

• Blue. The Orbi router and satellite successfully synced, and the connection between the router and satellite is good.
• Amber. The Orbi router and satellite successfully synced, and the connection between the router and satellite is fair. Consider moving the Orbi satellite closer to the Orbi router.
• Magenta. The Orbi router and satellite failed to sync. Move the satellite closer to the router and try again.

Log In to Your Router and Add Satellites to Your Network

You can use the router web interface to add a satellite to your Orbi network.

To add a satellite to your Orbi network using the router web interface:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the router admin user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

Orbi WiFi System

The BASIC Home page displays.

4. Select Add Orbi Satellite.

The Place Your Satellite page displays.

1. Follow the instructions about where to place your satellite in your house.
2. Connect the satellite to a power source.
3. If the Power LED on the back of the satellite does not light, press the Power On/Off button.
4. Click the NEXT button.
5. Wait about two minutes for the satellite's ring LED to light solid white.
6. Press the Sync button on the satellite.

The satellite's ring LED pulses white.

1. Click the SYNC button in the router web interface.

The router attempts to sync with the satellite.

The satellite's ring LED lights one of the following colors for about three minutes and then turns off:

• Blue. The Orbi router and satellite successfully synced, and the connection between the router and satellite is good.
• Amber. The Orbi router and satellite successfully synced, and the connection between the router and satellite is fair. Consider moving the Orbi satellite closer to the Orbi router.
• Magenta. The Orbi router and satellite failed to sync. Move the satellite closer to the router and try again.

Set Up an Ethernet Backhaul Connection

Your Orbi satellite automatically connects wirelessly to your Orbirouter or another Orbisatellite to create a wireless backhaul, or you can use an Ethernet cable to connect your satellite to your router or another satellite to create a wired backhaul connection.

Before you set up an Ethernet backhaul connection, make sure that you update the firmware on all your Orbi devices.

The following image shows how to connect your Orbi satellites to your Orbi router to create an Ethernet backhaul connection.

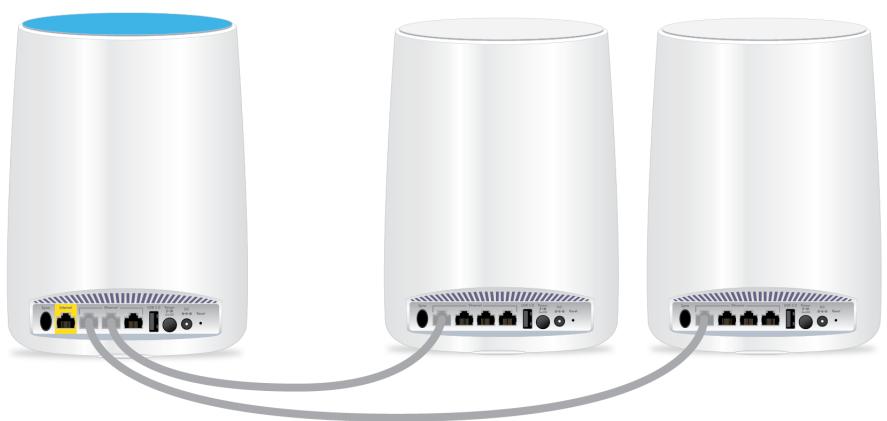

Figure 12. Satellites connected to the router's Ethernet ports

The following image shows another way to connect your Orbi satellites to your Orbi router to create an Ethernet backhaul connection.

Figure 13. Satellite 1 connected to router and satellite 2 connected to satellite 1

The following image shows how to connect your Orbi satellites and your Orbi router to an Ethernet switch.

Note: The Ethernet ports on the Orbi router and satellite are rated at 1 Gbps. Make sure the switch ports are 1 Gbps or faster.

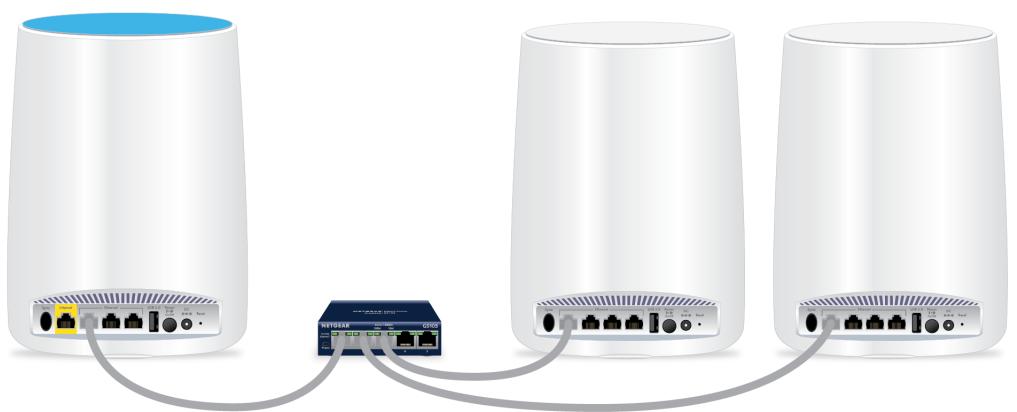

Figure 14. Ethernet backhaul connection using a switch

Download the NETGEAR Orbi App

You can use the NETGEAR Orbi app to set up your Orbi network.

To find the app, scan a QR code or search for NETGEAR Orbi in the Apple App Store or Google Play Store. Launch the NETGEAR Orbi app on your mobile device and follow the prompts.

2

Connect to the Network and Access the Router

This chapter contains the following sections:

• Connect to the Network
• Labels
• Types of Logins
• Use a Web Browser to Access the Router
• Change the Language
• Access the Orbi Router With NETGEAR genie App

Connect to the Network

You can connect to the Orbi network through a wired or WiFi connection. If you set up your computer to use a static IP address, change the settings so that it uses Dynamic Host Configuration Protocol (DHCP).

Wired Connection

You can connect your computer to the router using an Ethernet cable and join the router's local area network (LAN).

To connect your computer to the router with an Ethernet cable:

1. Make sure that the router is receiving power (its Power LED is lit).
2. Connect an Ethernet cable to an Ethernet port on your computer.
3. Connect the other end of the Ethernet cable to one of the router's Ethernet ports. Your computer connects to the local area network (LAN). A message might display on your computer screen to notify you that an Ethernet cable is connected.

WiFi Connection

To find and select the WiFi network:

1. Make sure that the router or satellite is receiving power (its Power LED is lit).

2. On your WiFi-enabled computer or mobile device, find and select the WiFi network. The WiFi network name is on the router label. The WiFi network name is the same for the router and the satellite in the Orbi WiFi System.

Note: If you bought the router and the satellite separately, their default WiFi network names are different.

1. Join the WiFi network and enter the WiFi password.

The password is on the router label.

Your WiFi-enabled computer or mobile device connects to the WiFi network.

WiFi Connection Using WPS

You can connect to the router's WiFi network with Wi-Fi Protected Setup (WPS) or you can find and select the WiFi network.

To use WPS to connect to the WiFi network:

1. Make sure that the router is receiving power (its Power LED is lit).
2. Check the WPS instructions for your computer or WiFi device.
3. Press the Sync button on the router.
4. Within two minutes, on your WiFi-enabled computer or mobile device, press its WPS button or follow its instructions for WPS connections.

Your computer or mobile device connects to the WiFi network.

Labels

The router label shows the login information, the WiFi network name and password, the router's MAC address, and the router's serial number. The following is an example of what the router label might look like:

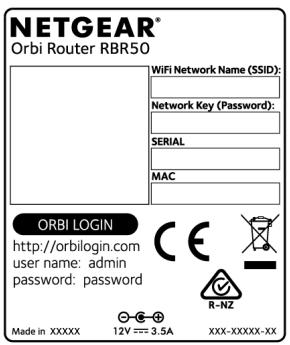

Figure 15. Router label

The satellite label shows the WiFi network name and password, the satellite's MAC address, and the satellite's serial number. The following is an example of what the satellite label might look like:

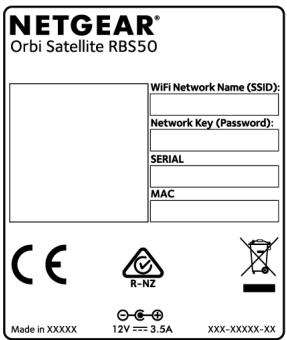

Figure 16. Satellite label

Types of Logins

Separate types of logins serve different purposes. It is important that you understand the difference so that you know which login to use when.

Types of logins:

• Internet service login. The login that your Internet service provider (ISP) gave you logs you in to your Internet service. Your service provider gave you this login information in a letter or some other way. If you cannot find this login information, contact your service provider.
• WiFi network key or password. Your router and satellite are preset with the same WiFi network name (SSID) and password for WiFi access. This information is on the router label and the satellite label.
• Router login. This logs you in to the router interface from a web browser as admin.

Use a Web Browser to Access the Router

When you connect to the network (either with WiFi or with an Ethernet cable), you can use a web browser to access the router to view or change its settings. The first time you access the router, the NETGEAR installation assistant automatically checks to see if your router can connect to your Internet service.

Automatic Internet Setup

You can set up your router automatically, or you can use a web browser to access the router and set up your router manually. Before you start the setup process, get your ISP information and make sure that the computers and devices in the network use the settings described here.

When your Internet service starts, your Internet service provider (ISP) typically gives you all the information needed to connect to the Internet. For DSL service, you might need the following information to set up your router:

• The ISP configuration information for your DSL account
• ISP login name and password
  Fixed or static IP address settings (special deployment by ISP; this setting is rare)

If you cannot locate this information, ask your ISP to provide it. When your Internet connection is working, you no longer need to launch the ISP login program on your

Orbi WiFi System

computer to access the Internet. When you start an Internet application, your router automatically logs you in.

Installation and basic setup takes about 15 minutes to complete.

To automatically set up your router:

1. Turn the router on by pressing the On/Off button.

2. Make sure that your WiFi-enabled computer or mobile device is connected to the router with an Ethernet cable (wired) or wirelessly with the preset security settings listed on the label.

Note: If you want to change the router's WiFi settings, use a wired connection to avoid being disconnected when the new WiFi settings take effect.

1. Launch a web browser.

The page that displays depends on whether you accessed the router before:

• The first time that you set up the Internet connection for your router, the browser goes to orbilogin.com, and the Orbi login page displays.

• If you already set up the Internet connection, enter orbilogin.com in the address field for your browser to start the installation process.

• Follow the onscreen instructions.

The router connects to the Internet.

1. If the browser does not display the web page, do the following:

2. Make sure that the computer is connected to one of the four LAN Ethernet ports or over WiFi to the router.

3. Make sure that the router is receiving power, and that its Power LED is lit.
4. Close and reopen the browser or clear the browser cache.
5. Browse to orbilogin.com.

6. If the computer is set to a static or fixed IP address (this setting is uncommon), change it to obtain an IP address automatically from the router.

7. If the router does not connect to the Internet, do the following:

a. Review your settings.
b. Make sure that you selected the correct options and typed everything correctly.
c. Contact your ISP to verify that you are using the correct configuration information.
d. Read Troubleshooting on page 139.

Orbi WiFi System

If problems persist, register your NETGEAR product and contact NETGEAR technical support.

Log In to Orbi Web Interface

When you log in to the Orbi, the browser displays the router web interface. You can use the router web interface to change the router or satellite settings.

To log in to your Orbi:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orbilogin.com.

A login window opens.

1. Enter the router admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

Change the Language

By default, the language is set as Auto.

To change the language:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orbilogin.com.

A login window opens.

1. Enter the router admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. In the upper right corner, select a language from the menu.
2. When prompted, click the OK button to confirm this change.

The page refreshes with the language that you selected.

Access the Orbi Router With NETGEAR genie App

The genie app is the easy dashboard for managing, monitoring, and repairing your home network. The genie app can help you with the following:

• Automatically repair common WiFi network problems.
• Easily manage router features like Live Parental Controls, Internet traffic meter, speed test, and more.

To use the genie app to access the router:

1. Visit the NETGEAR genie web page at NETGEAR.com/genie.
2. Follow the onscreen instructions to install the app on your smartphone, tablet, or computer.

The genie app dashboard page displays.

1. Launch the genie app.

3

Specify Your Internet Settings

Usually, the quickest way to set up the router to use your Internet connection is to allow Orbi to detect the Internet connection when you first access the router with a web browser. You can also customize or specify your Internet settings.

This chapter contains the following sections:

• Use the Internet Setup Wizard
• Manually Set Up the Internet Connection
• Specify IPv6 Internet Connections
• Change the MTU Size

Use the Internet Setup Wizard

You can use the Setup Wizard to detect your Internet settings and automatically set up your router.

To use the Setup Wizard:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orbilogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Setup Wizard.

The Setup Wizard page displays.

1. Select the Yes radio button.

If you select No, you are taken to the Internet Setup page (see Manually Set Up the Internet Connection on page 36).

1. Click the Next button.

The Setup Wizard searches your Internet connection for servers and protocols to determine your ISP configuration and checks your operation mode.

Manually Set Up the Internet Connection

You can view or change the router's Internet connection settings.

Specify an Internet Connection Without a Login

To specify the Internet connection settings:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

Orbi WiFi System

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select Internet.

The Internet Setup page.

1. Leave the Does your Internet connection require a login No radio button selected.
2. If your Internet connection requires an account name or host name, type it in the Account Name (If Required) field.
3. If your Internet connection requires a domain name, type it in the Domain Name (If Required) field.

For the other sections in this page, the default settings usually work, but you can change them.

1. Select an Internet IP Address radio button:

2. Get Dynamically from ISP. Your ISP uses DHCP to assign your IP address. Your ISP automatically assigns these addresses.

3. Use Static IP Address. Enter the IP address, IP subnet mask, and the gateway IP address that your ISP assigned. The gateway is the ISP router to which your router connects.

4. Select a Domain Name Server (DNS) Address radio button:

5. Get Automatically from ISP. Your ISP uses DHCP to assign your DNS servers. Your ISP automatically assigns this address.

6. Use These DNS Servers. If you know that your ISP requires specific servers, select this option. Enter the IP address of your ISP's primary DNS server. If a secondary DNS server address is available, enter it also.

7. Select a Router MAC Address radio button:

8. Use Default Address. Use the default MAC address.

9. Use Computer MAC Address. The router captures and uses the MAC address of the computer that you are now using. You must use the one computer that the ISP allows.

10. Use This MAC Address. Enter the MAC address that you want to use.

11. Click the Apply button.

Orbi WiFi System

Your settings are saved.

1. Click the Test button to test your Internet connection.

If the NETGEAR website does not display within one minute, see Troubleshooting on page 139.

Specify an Internet Connection That Uses a Login

To view or change the basic Internet setup:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select Internet.

The Internet Setup page displays.

1. Select the Does your Internet connection require a login Yes radio button.

The page adjusts.

1. From the Internet Service Provider menu, select the encapsulation method:

The selections are PPPoE, PPTP, or L2TP.

1. In the Login field, enter the login name your ISP gave you.

This login name is often an email address.

1. In the Password field, type the password that you use to log in to your Internet

service.

1. If your ISP requires a service name, type it in the Service Name (if Required) field.

2. From the Connection Mode menu, select Always On, Dial on Demand, or Manually

Connect.

1. To change the number of minutes until the Internet login time out, in the Idle Timeout

(In minutes) field, type the number of minutes.

This is how long the router keeps the Internet connection active when no one on the

network is using the Internet connection. A value of 0 (zero) means never log out.

Orbi WiFi System

1. Select an Internet IP Address radio button:

2. Get Dynamically from ISP. Your ISP uses DHCP to assign your IP address. Your ISP automatically assigns these addresses.

3. Use Static IP Address. Enter the IP address, IP subnet mask, and gateway IP address that your ISP assigned. The gateway is the ISP router to which your router connects.

4. Select a Domain Name Server (DNS) radio button:

5. Get Automatically from ISP. Your ISP uses DHCP to assign your DNS servers. Your ISP automatically assigns this address.

6. Use These DNS Servers. If you know that your ISP requires specific servers, select this option. Enter the IP address of your ISP's primary DNS server. If a secondary DNS server address is available, enter it also.

7. Select a Router MAC Address radio button:

8. Use Default Address. Use the default MAC address.

9. Use Computer MAC Address. The router captures and uses the MAC address of the computer that you are now using. You must use the one computer that the ISP allows.

10. Use This MAC Address. Enter the MAC address that you want to use.

11. Click the Apply button. Your settings are saved.

12. Click the Test button to test your Internet connection. If the NETGEAR website does not display within one minute, see Cannot Access the Internet on page 142.

Specify IPv6 Internet Connections

You can set up an IPv6 Internet connection if the router does not detect it automatically.

To set up an IPv6 Internet connection:

1. 1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orbilogin.com. A login window opens.

Orbi WiFi System

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Advanced Setup > IPv6.

The IPv6 page displays.

1. From the Internet Connection Type menu, select the IPv6 connection type:

2. If you are not sure, select Auto Detect so that the router detects the IPv6 type that is in use.
   If your Internet connection does not use PPPoE, DHCP, or fixed, but is IPv6, select Auto Config.

Your Internet service provider (ISP) can provide this information. For more information about IPv6 Internet connection, see the following sections:

• Use Auto Detect for an IPv6 Internet Connection on page 41
• Use Auto Config for an IPV6 Internet Connection on page 42
• Set Up an IPv6 6rd Tunnel Internet Connection on page 43
• Set Up an IPv6 6to4 Tunnel Internet Connection on page 45
• Set Up an IPv6 Pass Through Internet Connection on page 47
• Set Up an IPv6 Fixed Internet Connection on page 47
• Set Up an IPv6 DHCP Internet Connection on page 48

• Set Up an IPv6 PPPoE Internet Connection on page 50

• Click the Apply button.

Your settings are saved.

Requirements for Entering IPv6 Addresses

IPv6 addresses are denoted by eight groups of hexadecimal quartets that are separated by colons. You can reduce any four-digit group of zeros within an IPv6 address to a single zero or omit it. The following errors invalidate an IPv6 address:

More than eight groups of hexadecimal quartets
More than four hexadecimal characters in a quartet
- More than two colons in a row

Use Auto Detect for an IPv6 Internet Connection

To set up an IPv6 Internet connection through auto detection:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Advanced Setup > IPv6.

The IPv6 page displays.

1. From the Internet Connection Type menu, select Auto Detect.

The page adjusts.

The router automatically detects the information in the following fields:

• Connection Type. This field indicates the connection type that is detected.
• Router's IPv6 Address on WAN. This field shows the IPv6 address that is acquired for the router's WAN (or Internet) interface. The number after the slash (/) is the length of the prefix, which is also indicated by the underline (___) under the IPv6 address. If no address is acquired, the field displays Not Available.
• Router's IPv6 Address on LAN. This field shows the IPv6 address that is acquired for the router's LAN interface. The number after the slash (/) is the length of the prefix, which is also indicated by the underline (___) under the IPv6 address. If no address is acquired, the field displays Not Available.

Orbi WiFi System

1. Select an IP Address Assignment radio button:

2. Use DHCP Server. This method passes more information to LAN devices, but some IPv6 systems might not support the DHCPv6 client function.

3. Auto Config. This is the default setting.

This setting specifies how the router assigns IPv6 addresses to the devices on your home network (the LAN).

1. (Optional) Select the Use This Interface ID check box and specify the interface ID to be used for the IPv6 address of the router's LAN interface.
   If you do not specify an ID here, the router generates one automatically from its MAC address.
2. Click the Apply button.
   Your settings are saved.

Use Auto Config for an IPV6 Internet Connection

To set up an IPv6 Internet connection through auto configuration:

1. 1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Advanced Setup > IPv6.

The IPv6 page displays.

1. From the Internet Connection Type menu, select Auto Config.

The page adjusts.

The router automatically detects the information in the following fields:

• Router's IPv6 Address on WAN. This field shows the IPv6 address that is acquired for the router's WAN (or Internet) interface. The number after the slash (/) is the

Orbi WiFi System

length of the prefix, which is also indicated by the underline (___) under the IPv6 address. If no address is acquired, the field displays Not Available.

• Router's IPv6 Address on LAN. This field shows the IPv6 address that is acquired for the router's LAN interface. The number after the slash (/) is the length of the prefix, which is also indicated by the underline (___) under the IPv6 address. If no address is acquired, the field displays Not Available.

• (Optional) In the DHCP User Class (If Required) field, enter a host name.

Most people can leave this field blank, but if your ISP gave you a specific host name, enter it here.

1. (Optional) In the DHCP Domain Name (If Required) field, enter a domain name.

You can type the domain name of your IPv6 ISP. Do not enter the domain name for the IPv4 ISP here. For example, if your ISP's mail server is mail.xxx.yyy.zzz, type xxx.yyy.zzz as the domain name. If your ISP provided a domain name, type it in this field. For example, Earthlink Cable might require a host name of home, and Comcast sometimes supplies a domain name.

1. Select an IP Address Assignment radio button:

2. Use DHCP Server. This method passes more information to LAN devices, but some IPv6 systems might not support the DHCPv6 client function.

3. Auto Config. This is the default setting.

4. (Optional) Select the Use This Interface ID check box and specify the interface ID that you want to be used for the IPv6 address of the router's LAN interface.

If you do not specify an ID here, the router generates one automatically from its MAC address.

1. Click the Apply button.

Your settings are saved.

Set Up an IPv6 6rd Tunnel Internet Connection

The 6rd protocol makes it possible to deploy IPv6 to sites using a service provider's IPv4 network. 6rd uses the service provider's own IPv6 address prefix. This limits the operational domain of 6rd to the service provider's network and is under direct control of the service provider. The IPv6 service provided is equivalent to native IPv6. The 6rd mechanism relies on an algorithmic mapping between the IPv6 and IPv4 addresses that are assigned for use within the service provider's network. This mapping allows for automatic determination of IPv4 tunnel endpoints from IPv6 prefixes, allowing stateless operation of 6rd.

Orbi WiFi System

With a 6rd Tunnel configuration, the router follows the RFC5969 standard, supporting two ways to establish a 6rd tunnel IPv6 WAN connection:

• Auto Detect Mode. In IPv6 Auto Detect mode, when the router receives option 212 from the DHCPv4 option, auto detect selects the IPv6 as 6rd Tunnel setting. The router uses the 6rd option information to establish the 6rd connection.
• Manual Mode. Select 6rd. If the router receives option 212, the fields are automatically completed. Otherwise, you must enter the 6rd settings.

To set up an IPv6 6rd Tunnel Internet connection:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orbilogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Advanced Setup > IPv6.

The IPv6 page displays.

1. In the Internet Connection Type menu, select 6rd.

The page adjusts.

The router automatically detects the information in the following sections:

• 6rd (IPv6 Rapid Development) Configuration. The router detects the service provider's IPv4 network and attempts to establish an IPv6 6rd Tunnel connection. If the IPv4 network returns 6rd parameters to the router, the page adjusts to display the correct settings in this section.
• Router's IPv6 Address on LAN. This field shows the IPv6 address that is acquired for the router's LAN interface. The number after the slash (/) is the length of the prefix, which is also indicated by the underline (___) under the IPv6 address. If no address is acquired, the field displays Not Available.

Orbi WiFi System

1. Select an IPv6 Domain Name Server (DNS) Address radio button:

2. Get Automatically from ISP. Your ISP uses DHCP to assign your DNS servers. Your ISP automatically assigns this address.

3. Use These DNS Servers. If you know that your ISP requires specific servers, select this option. Enter the IP address of your ISP's primary DNS server. If a secondary DNS server address is available, enter it also.

4. Select an IP Address Assignment radio button:

5. Use DHCP Server. This method passes more information to LAN devices, but some IPv6 systems might not support the DHCPv6 client function.

6. Auto Config. This is the default setting.

This setting specifies how the router assigns IPv6 addresses to the devices on your home network.

1. (Optional) Select the Use This Interface ID check box and specify the interface ID that you want to be used for the IPv6 address of the router's LAN interface. If you do not specify an ID here, the router generates one automatically from its MAC address.
2. Click the Apply button. Your settings are saved.

Set Up an IPv6 6to4 Tunnel Internet Connection

The remote relay router is the router to which your router creates a 6to4 tunnel. Make sure that the IPv4 Internet connection is working before you apply the 6to4 tunnel settings for the IPv6 connection.

To set up an IPv6 Internet connection by using a 6to4 tunnel:

1. 1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orbilogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Advanced Setup > IPv6.

Orbi WiFi System

The IPv6 page displays.

5. From the Internet Connection Type menu, select 6to4 Tunnel.

The page adjusts.

The router automatically detects the information in the Router's IPv6 Address on LAN field. This field shows the IPv6 address that is acquired for the router's LAN interface. The number after the slash (/) is the length of the prefix, which is also indicated by the underline (___) under the IPv6 address. If no address is acquired, the field displays Not Available.

1. Select a Remote 6to4 Relay Router radio button:

2. Auto. Your router uses any remote relay router that is available on the Internet. This is the default setting.

3. Static IP Address. Enter the static IPv4 address of the remote relay router. Your IPv6 ISP usually provides this address.

4. Select an IPv6 Domain Name Server (DNS Address) radio button:

5. Get Automatically from ISP. Your ISP uses DHCP to assign your DNS servers. Your ISP automatically assigns this address.

6. Use These DNS Servers. If you know that your ISP requires specific servers, select this option. Enter the IP address of your ISP's primary DNS server. If a secondary DNS server address is available, enter it also.

7. Select an IP Address Assignment radio button:

8. Use DHCP Server. This method passes more information to LAN devices, but some IPv6 systems might not support the DHCPv6 client function.

9. Auto Config. This is the default setting.

This setting specifies how the router assigns IPv6 addresses to the devices on your home network.

1. (Optional) Select the Use This Interface ID check box and specify the interface ID that you want to be used for the IPv6 address of the router's LAN interface. If you do not specify an ID here, the router generates one automatically from its MAC address.
2. Click the Apply button.

Your settings are saved.

Set Up an IPv6 Pass Through Internet Connection

In pass-through mode, the router works as a Layer 2 Ethernet switch with two ports (LAN and WAN Ethernet ports) for IPv6 packets. The router does not process any IPv6 header packets.

To set up a pass-through IPv6 Internet connection:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Advanced Setup > IPv6.

The IPv6 page displays.

1. From the Internet Connection Type menu, select Pass Through.

The page adjusts, but no additional fields display.

1. Click the Apply button.

Your settings are saved.

Set Up an IPv6 Fixed Internet Connection

To set up a fixed IPv6 Internet connection:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Advanced Setup > IPv6.

The IPv6 page displays.

Orbi WiFi System

1. From the Internet Connection Type menu, select Fixed. The page adjusts.

2. Configure the fixed IPv6 addresses for the WAN connection:

IPv6 Address/Prefix Length. The IPv6 address and prefix length of the router WAN interface.
- Default IPv6 Gateway. The IPv6 address of the default IPv6 gateway for the router's WAN interface.
- Primary DNS Server. The primary DNS server that resolves IPv6 domain name records for the router.
- Secondary DNS Server. The secondary DNS server that resolves IPv6 domain name records for the router.

Note: If you do not specify the DNS servers, the router uses the DNS servers that are configured for the IPv4 Internet connection on the Internet Setup page. (See Manually Set Up the Internet Connection on page 36.)

1. Select an IP Address Assignment radio button:

2. Use DHCP Server. This method passes more information to LAN devices, but some IPv6 systems might not support the DHCPv6 client function.

3. Auto Config. This is the default setting.

This setting specifies how the router assigns IPv6 addresses to the devices on your home network.

1. In the IPv6 Address/Prefix Length fields, specify the static IPv6 address and prefix length of the router's LAN interface.

If you do not specify an ID here, the router generates one automatically from its MAC address.

1. Click the Apply button.

Your settings are saved.

Set Up an IPv6 DHCP Internet Connection

To set up an IPv6 Internet connection with a DHCP server:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

Orbi WiFi System

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Advanced Setup > IPv6.

The IPv6 page displays.

1. From the Internet Connection Type menu, select DHCP.

The page adjusts.

The router automatically detects the information in the following fields:

• Router's IPv6 Address on WAN. This field shows the IPv6 address that is acquired for the router's WAN (or Internet) interface. The number after the slash (/) is the length of the prefix, which is also indicated by the underline (_ ) under the IPv6 address. If no address is acquired, the field displays Not Available.

• Router's IPv6 Address on LAN. This field shows the IPv6 address that is acquired for the router's LAN interface. The number after the slash (/) is the length of the prefix, which is also indicated by the underline (___) under the IPv6 address. If no address is acquired, the field displays Not Available.

• Select an IPv6 Domain Name Server (DNS) Address radio button:

• Get Automatically from ISP. Your ISP uses DHCP to assign your DNS servers. Your ISP automatically assigns this address.

• Use These DNS Servers. If you know that your ISP requires specific servers, select this option. Enter the IP address of your ISP's primary DNS server. If a secondary DNS server address is available, enter it also.

• (Optional) In the User Class (If Required) field, enter a host name.

Most people can leave this field blank, but if your ISP gave you a specific host name, enter it here.

1. (Optional) In the Domain Name (If Required) field, enter a domain name.

You can type the domain name of your IPv6 ISP. Do not enter the domain name for the IPv4 ISP here. For example, if your ISP's mail server is mail.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx.xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx(xx✕

Orbi WiFi System

1. Select an IP Address Assignment radio button:

2. Use DHCP Server. This method passes more information to LAN devices, but some IPv6 systems might not support the DHCPv6 client function.

3. Auto Config. This is the default setting.

This setting specifies how the router assigns IPv6 addresses to the devices on your home network (the LAN).

1. (Optional) Select the Use This Interface ID check box and specify the interface ID that you want to be used for the IPv6 address of the router's LAN interface. If you do not specify an ID here, the router generates one automatically from its MAC address.
2. Click the Apply button. Your settings are saved.

Set Up an IPv6 PPPoE Internet Connection

To set up a PPPoE IPv6 Internet connection:

1. 1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orbilogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Advanced Setup > IPv6.

The IPv6 page displays.

1. From the Internet Connection Type menu, select PPPoE.

The page adjusts.

The router automatically detects the information in the following fields:

• Router's IPv6 Address on WAN. This field shows the IPv6 address that is acquired for the router's WAN (or Internet) interface. The number after the slash (/) is the

Orbi WiFi System

length of the prefix, which is also indicated by the underline (___) under the IPv6 address. If no address is acquired, the field displays Not Available.

• Router's IPv6 Address on LAN. This field shows the IPv6 address that is acquired for the router's LAN interface. The number after the slash (/) is the length of the prefix, which is also indicated by the underline (___) under the IPv6 address. If no address is acquired, the field displays Not Available.

• In the Login field, enter the login information for the ISP connection.

This is usually the name that you use in your email address. For example, if your main mail account is [e-mail], you would type JerAB in this field. Some ISPs (like Mindspring, Earthlink, and T-DSL) require that you use your full email address when you log in. If your ISP requires your full email address, type it in this field.

1. In the Password field, enter the password for the ISP connection.
2. In the Service Name field, enter a service name.

If your ISP did not provide a service name, leave this field blank.

Note: The default setting of the Connection Mode field is Always On to provide a steady IPv6 connection. The router never terminates the connection. If the connection is terminated, for example, when the modem is turned off, the router attempts to reestablish the connection immediately after the PPPoE connection becomes available again.

1. Select an IPv6 Domain Name Server (DNS) Address radio button:

2. Get Automatically from ISP. Your ISP uses DHCP to assign your DNS servers. Your ISP automatically assigns this address.

3. Use These DNS Servers. If you know that your ISP requires specific servers, select this option. Enter the IP address of your ISP's primary DNS server. If a secondary DNS server address is available, enter it also.

4. (Optional) Select the Use This Interface ID check box and specify the interface ID that you want to be used for the IPv6 address of the router's LAN interface. If you do not specify an ID here, the router generates one automatically from its MAC address.

5. Click the Apply button. Your settings are saved.

Change the MTU Size

The maximum transmission unit (MTU) is the largest data packet a network device transmits. When one network device communicates across the Internet with another, the data packets travel through many devices along the way. If a device in the data path uses a lower MTU setting than the other devices, the data packets must be split or "fragmented" to accommodate the device with the smallest MTU.

The best MTU setting for NETGEAR equipment is often the default value. In some situations, changing the value fixes one problem but causes another. Leave the MTU unchanged unless one of these situations occurs:

• You experience problems connecting to your ISP or other Internet service, and the technical support of either the ISP or NETGEAR recommends changing the MTU setting. These web-based applications might require an MTU change:

• A secure website that does not open, or displays only part of a web page

• Yahoo email
• MSN portal

• America Online's DSL service

• You use VPN and experience severe performance problems.

• You used a program to optimize MTU for performance reasons, and now you are experiencing connectivity or performance problems.

Note: An incorrect MTU setting can cause Internet communication problems. For example, you might not be able to access certain websites, frames within websites, secure login pages, or FTP or POP servers.

To change the MTU size:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Setup > WAN Setup.

The WAN Setup page displays.

1. In the MTU Size field, enter a value from 64 to 1500.
2. Click the Apply button.

Your settings are saved.

If you suspect an MTU problem, a common solution is to change the MTU to 1400. If you are willing to experiment, you can gradually reduce the MTU from the maximum value of 1500 until the problem goes away. The following table describes common MTU sizes and applications.

Table 3. Common MTU sizes

MTU	Application
1500	The largest Ethernet packet size. This setting is typical for connections that do not use PPPoE or VPN, and is the default value for NETGEAR routers, adapters, and switches.
1492	Used in PPPoE environments.
1472	Maximum size to use for pinging. (Larger packets are fragmented.)
1468	Used in some DHCP environments.
1460	Usable by AOL if you do not send or receive large email attachments, for example.
1436	Used in PPTP environments or with VPN.
1400	Maximum size for AOL DSL.
576	Typical value to connect to dial-up ISPs.

4

Control Access to the Internet

The router comes with a built-in firewall that helps protect your home network from unwanted intrusions from the Internet.

This chapter includes the following sections:

• Set Up Parental Controls
• Allow or Block Access to Your Network
• Use Keywords to Block Internet Sites
• Block Services From the Internet
• Manage Network Access Control Lists
• Schedule When to Block Internet Sites and Services
• Set Up Security Event Email Notifications

Set Up Parental Controls

To set up Parental Controls, you must download the NETGEAR genie app on your mobile device. For more information about the NETGEAR genie app, visit NETGEAR.com/genie.

After you set up and enable Parental Controls, you can change the web filtering level for each device on the network through the network map page on the genie app.

To set up Parental Controls:

1. Connect your mobile device to your router's WiFi network.
2. Launch the app store on your mobile device and download the NETGEAR genie app.
3. Launch the NETGEAR genie app.

The dashboard displays.

1. Tap Parental Controls.

The Parental Controls page displays.

1. To log in to your OpenDNS account, tap the LOGIN button, enter your OpenDNS user name, and tap the LOGIN button.

Parental Controls is automatically enabled.

1. To create an OpenDNS account, tap CREATE ACCOUNT, fill in the fields, tap the SIGN UP button.

Your account is created and Parental Controls is automatically enabled.

For more information about how to setup Parental Controls using the NETGEAR genie app, see the genie Mobile App User Manual, which is available at downloadcenter.netgear.com/.

Allow or Block Access to Your Network

You can use access control to block access to your network.

To set up access control:

1. 1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

Orbi WiFi System

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Security > Access Control.

The Access Control page displays.

1. Select the Turn on Access Control check box.

You must select this check box before you can specify an access rule and use the Allow and Block buttons. When this check box is cleared, all devices are allowed to connect, even if a device is in the blocked list.

1. Select an access rule:

2. Allow all new devices to connect. With this setting, if you buy a new device, it can access your network. You don't need to enter its MAC address on this page. We recommend that you leave this radio button selected.

3. Block all new devices from connecting. With this setting, if you buy a new device, before it can access your network, you must enter its MAC address for an Ethernet connection and its MAC address for a WiFi connection in the allowed list.

The access rule does not affect previously blocked or allowed devices. It applies only to devices joining your network in the future after you apply these settings.

1. To allow the computer or device you're currently using to continue to access the network, select the check box next to your computer or device, and click the Allow button.
2. To view a list of allowed or blocked devices that are not connected, click one of the following links:

View list of allowed devices not currently connected to the network
- View list of blocked devices not currently connected to the network

The list displays.

1. Click the Apply button.

Your settings are saved.

Use Keywords to Block Internet Sites

You can use keywords to block certain Internet sites from your network. You can use blocking all the time or based on a schedule.

To block Internet sites:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Security > Block Sites.

The Block Sites page displays.

1. Select a keyword blocking option:

2. Per Schedule. Turn on keyword blocking according to a schedule that you set. (See Schedule When to Block Internet Sites and Services on page 56.)

3. Always. Turn on keyword blocking all the time, independent of the Schedule page.

4. In the Type keyword or domain name here field, enter a keyword or domain that you want to block.

For example:

• Specify XXX to block http://www.badstuff.com/xxx.html.
• Specify .com if you want to allow only sites with domain suffixes such as .edu or .gov.

• Enter a period (. to block all Internet browsing access.

• Click the Add Keyword button.

The keyword is added to the keyword list. The keyword list supports up to 32 entries.

1. Click the Apply button.

Keyword blocking takes effect.

Orbi WiFi System

Delete Keywords

To delete keywords from the list:

1. 1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Security > Block Sites.

The Block Sites page displays.

1. Do one of the following:

2. To delete a single word, select it and click the Delete Keyword button. The keyword is removed from the list.

3. To delete all keywords on the list, click the Clear List button.

All keywords are removed from the list.

1. Click the Apply button.

Your settings are saved.

Avoid Blocking on a Trusted Computer

You can exempt one trusted computer from blocking. The computer that you exempt must be assigned a fixed IP address. You can use the reserved IP address feature to specify the IP address. See Manage Reserved LAN IP Addresses on page 79.

To specify a trusted computer:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

Orbi WiFi System

The BASIC Home page displays.

1. Select ADVANCED > Security > Block Sites.

The Block Sites page displays.

1. Scroll down and select the Allow trusted IP address to visit blocked sites check box.
2. In the Trusted IP Address field, enter the IP address of the trusted computer.
3. Click the Apply button.

Your settings are saved.

Block Services From the Internet

You can block Internet services on your network based on the type of service. You can block the services all the time or based on a schedule.

To block services:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Security > Block Services.

The Block Services page displays.

1. Specify when to block the services:

2. To block the services all the time, select the Always radio button.

3. To block the services based on a schedule, select the Per Schedule radio button.

For information about how to specify the schedule, see Schedule When to Block Internet Sites and Services on page 62.

1. Click the Add button.

The Block Services Setup page displays.

Orbi WiFi System

1. To add a service that is in the Service Type list, select the application or service. The settings for this service automatically display in the fields.

2. To add a service or application that is not the list, select User Defined.

a. If you know that the application uses either TCP or UDP, select the appropriate protocol.

Otherwise, select TCP/UDP (both).

b. Enter the starting port and ending port numbers.

• If the service uses a single port number, enter that number in both fields.

• To find out which port numbers the service or application uses, you can contact the publisher of the application, ask user groups or newsgroups, or search on the Internet.

• To specify how to filter the services, select one of the following radio buttons:

• Only This IP Address. Block services for a single computer.
  IP Address Range. Block services for a range of computers with consecutive IP addresses on your network.

• All IP Addresses. Block services for all computers on your network.

• Click the Add button.

Your settings are saved.

Manage Network Access Control Lists

You can use access control to block or allow access to your network.

To manage devices that are allowed or blocked:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orbilogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

Orbi WiFi System

1. Select ADVANCED > Security > Access Control.

The Access Control page displays.

1. Select the Turn on Access Control check box.

2. Click the View list of allowed devices not currently connected to the network link.

The list displays.

1. Select the check box for a device.
2. Use the Add button, Edit button, and Remove from the list button as needed.
3. Click the Apply button.

Your settings are saved.

Schedule When to Block Internet Sites and Services

When you schedule blocking, the same schedule is used to block sites and to block services. For information about how to specify what you want the router to block, see Use Keywords to Block Internet Sites on page 57 and Avoid Blocking on a Trusted Computer on page 59.

To schedule blocking:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Security > Schedule.

Orbi WiFi System

1. Specify when to block keywords and services:

2. Days to Block. Select the check box for each day that you want to block the keywords or select the Every Day check box, which automatically selects the check boxes for all days.

3. Time of Day to Block. Select a start and end time in 24-hour format, or select All Day for 24-hour blocking.

4. Select your time zone from the list.

5. If you live in a region that observes daylight saving time, select the Automatically adjust for daylight savings time check box.
6. Click the Apply button.

Your settings are saved.

Set Up Security Event Email Notifications

The router can email you its logs of router activity. The log records router activity and security events such as attempts to access blocked sites or services.

To set up email notifications:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Security > E-mail.

The E-mail page displays.

1. Select the Turn Email Notification On check box.

2. In the Primary E-mail Address field, enter the email address to which logs and alerts are sent.

This email address is also used for the From address. If this field is blank, log and alert messages are not sent.

Orbi WiFi System

1. In the Your Outgoing Mail Server field, enter the name of your ISP outgoing (SMTP) mail server (such as mail.myIsp.com).

You might be able to find this information in the configuration window of your email program. If you leave this field blank, log and alert messages are not sent.

1. In the Outgoing Mail Server Port Number field, enter your mail server's port number.

You might be able to find this information in the configuration window of your email program.

1. If your outgoing email server requires authentication, select the My Mail Server requires authentication check box and do the following:

2. In the User Name field, type the user name for the outgoing email server.

3. In the Password field, type the password for the outgoing email server.

4. To send alerts immediately, select the Send Alerts Immediately check box. Email alerts are sent immediately when someone attempts to visit a blocked site.

5. To send logs based on a schedule, specify these settings:

From Send logs according to this schedule menu, select the schedule type.
From the Day menu, select the day.
From the Time menu, select the time, and select the am or pm radio button.

1. Click the Apply button.

Your settings are saved.

Logs are sent automatically. If the log fills before the specified time, it is sent. After the log is sent, it is cleared from the router memory. If the router cannot email the log and the log buffer fills, the router overwrites the log.

5

Optimize Performance

This chapter contains the following sections:

• WiFi Multimedia Quality of Service
• Improve Network Connections With Universal Plug N Play

WiFi Multimedia Quality of Service

Wi-Fi Multimedia Quality of Service (WMM QoS) prioritizes WiFi voice and video traffic over the WiFi link. WMM QoS is automatically enabled for the router.

WMM QoS prioritizes WiFi data packets from different applications based on four access categories: voice, video, best effort, and background. For an application to receive the benefits of WMM QoS, WMM must be enabled for both it and the client running that application. Legacy applications that do not support WMM and applications that do not require QoS are assigned to the best effort category, which receives a lower priority than voice and video.

To disable WMM QoS:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Setup > QoS Setup > WMM.

The WMM page displays.

1. Clear the Enable WMM (Wi-Fi multimedia) settings (2.4 GHz b/g/n) check box.
2. Clear the Enable WMM (Wi-Fi multimedia) settings (5 GHz a/n/ac) check box.
3. Click the Apply button.

Your settings are saved.

Improve Network Connections With Universal Plug N Play

Universal Plug N Play (UPnP) helps devices, such as Internet appliances and computers, access the network and connect to other devices as needed. UPnP devices can automatically discover the services from other registered UPnP devices on the network.

Orbi WiFi System

If you use applications such as multiplayer gaming, peer-to-peer connections, or real-time communications such as instant messaging or remote assistance (a feature in Windows XP), enable UPnP.

To enable Universal Plug and Play:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orbilogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Advanced Setup > UPnP.

The UPnP page displays.

1. Select the Turn UPnP On check box.

By default, this check box is selected. UPnP for automatic device configuration can be enabled or disabled. If the Turn UPnP On check box is cleared, the router does not allow any device to automatically control router resources, such as port forwarding.

1. Type the advertisement period in minutes.

The advertisement period specifies how often the router broadcasts its UPnP information. This value can range from 1 to 1440 minutes. The default period is 30 minutes. Shorter durations ensure that control points receive current device status at the expense of more network traffic. Longer durations can compromise the freshness of the device status but can significantly reduce network traffic.

1. Type the advertisement time to live in hops.

The time to live for the advertisement is measured in hops (steps) for each UPnP packet sent. Hops are the steps a packet takes between routers. The number of hops can range from 1 to 255. The default value for the advertisement time to live is 4 hops, which should be fine for most home networks. If you notice that some devices are not being updated or reached correctly, it might be necessary to increase this value.

1. Click the Apply button.

The UPnP Portmap Table displays the IP address of each UPnP device that is accessing the router and which ports (internal and external) that device opened. The UPnP

Orbi WiFi System

Portmap Table also displays what type of port is open and whether that port is still active for each IP address.

1. To refresh the information in the UPnP Portmap Table, click the Refresh button.

6

Specify Network Settings

This chapter includes the following sections:

View or Change WAN Settings
Dynamic DNS
- Set Up a Default DMZ Server
- Change the Router's Device Name
- Change the LAN TCP/IP Settings
- Use the Router as a DHCP Server
- Disable the DHCP Server Feature in the Router
- Manage Reserved LAN IP Addresses
- Custom Static Routes
- Specify Basic WiFi Settings
- Set Up a Guest WiFi Network
View or Change Advanced WiFi Settings
- Use the Router as aWiFi Access Point
- Generate a New Backhaul Password
- Set Up a Bridge for a Port Group or VLAN Tag Group
- Enable British Telecom IGMP Proxy Support

View or Change WAN Settings

You can view or configure wide area network (WAN) settings for the Internet port. You can set up a DMZ (demilitarized zone) server, change the maximum transmit unit (MTU) size, and enable the router to respond to a ping to its WAN (Internet) port.

To view the WAN settings:

1. 1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Setup > WAN Setup

The WAN Setup page displays.

1. View or change the following settings:

2. Disable Port Scan and DoS Protection. DoS protection protects your LAN against denial of service attacks such as Syn flood, Smurf Attack, Ping of Death, and many others. Select this check box only in special circumstances.

3. Default DMZ Server. This feature is sometimes helpful when you are playing online games or videoconferencing, but it makes the firewall security less effective. See Set Up a Default DMZ Server on page 73.
4. Respond to Ping on Internet Port. This feature allows your router to be discovered. Use this feature only as a diagnostic tool or if you have a specific reason.
5. Disable IGMP Proxying. IGMP proxying allows a computer on the local area network (LAN) to receive the multicast traffic it is interested in from the Internet. If you do not need this feature, select this check box to disable it.
6. MTU Size (in bytes). The normal MTU (maximum transmit unit) value for most Ethernet networks is 1500 bytes, or 1492 bytes for PPPoE connections. Change the MTU only if you are sure that it is necessary for your ISP connection. See Change the MTU Size on page 52.
7. NAT Filtering. Network Address Translation (NAT) determines how the router processes inbound traffic. Secured NAT protects computers on the LAN from

Orbi WiFi System

attacks from the Internet, but might prevent some Internet games, point-to-point applications, or multimedia applications from working. Open NAT provides a much less secured firewall, but allows almost all Internet applications to work.

1. Click the Apply button.

Your settings are saved.

Dynamic DNS

Internet service providers (ISPs) assign numbers called IP addresses to identify each Internet account. Most ISPs use dynamically assigned IP addresses. This means that the IP address can change at any time. You can use the IP address to access your network remotely, but most people don't know what their IP addresses are or when this number changes.

To make it easier to connect, you can get a free account with a Dynamic DNS service that lets you use a domain name to access your home network. To use this account, you must set up the router to use Dynamic DNS. Then the router notifies the Dynamic DNS service provider whenever its IP address changes. When you access your Dynamic DNS account, the service finds the current IP address of your home network and automatically connects you.

If your ISP assigns a private WAN IP address (such as 192.168.x.x or 10.x.x.x), the Dynamic DNS service does not work because private addresses are not routed on the Internet.

Set Up a New Dynamic DNS Account

To set up Dynamic DNS and register for a free NETGEAR account:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Advanced Setup > Dynamic DNS.

The Dynamic DNS page displays.

Orbi WiFi System

1. Select the Use a Dynamic DNS Service check box.
2. In the Service Provider list, select NETGEAR.
3. Select the No radio button.
4. In the Host Name field, type the name that you want to use for your URL. The host name is sometimes called the domain name. Your free URL includes the host name that you specify, and ends with mynetgear.com. For example, specify MyName.mynetgear.com.
5. In the Email field, type the email address that you want to use for your account.
6. In the Password (6-32 characters) field, type the password for your account.
7. Click the Register button.
8. Follow the onscreen instructions to register for your NETGEAR Dynamic DNS service.
9. To check that Dynamic DNS is enabled in the router, click the Show Status button. A message displays the Dynamic DNS status.

Specify a DNS Account That You Already Created

If you already own a Dynamic DNS account with NETGEAR, no-IP, or Dyn, you can set up the router to use your account.

To set up Dynamic DNS if you already created an account:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Advanced Setup > Dynamic DNS.

The Dynamic DNS page displays.

1. Select the Use a Dynamic DNS Service check box.
2. In the Service Provider list, select your provider.
3. Select the Yes radio button.

The page adjusts and displays to show the Status, Cancel, and Apply buttons.

Orbi WiFi System

1. In the Host Name field, type the host name (sometimes called the domain name) for your account.
2. For a no-IP Dyn account, in the User Name field, enter the user name for your account.
3. For a NETGEAR account at no-IP, in the Email field, type the email address for your account.
4. In the Password (6-32 characters) field, type the password for your DDNS account.
5. Click the Apply button. Your settings are saved.
6. To verify that your Dynamic DNS service is enabled in the router, click the Show Status button. A message displays the Dynamic DNS status.

Change the Dynamic DNS Settings

To change your settings:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com. A login window opens.
3. Enter the admin user name and password. The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive. The BASIC Home page displays.
4. Select ADVANCED > Advanced Setup > Dynamic DNS. The Dynamic DNS page displays.
5. Change your DDNS account settings as necessary.
6. Click the Apply button. Your settings are saved.

Set Up a Default DMZ Server

The default DMZ server feature is helpful when you are using some online games and videoconferencing applications that are incompatible with Network Address Translation

Orbi WiFi System

(NAT). The router is programmed to recognize some of these applications and to work correctly with them, but other applications might not function well. In some cases, one local computer can run the application correctly if the IP address for that computer is entered as the default DMZ server.

DMZ servers pose a security risk. A computer designated as the default DMZ server loses much of the protection of the firewall and is exposed to exploits from the Internet. If compromised, the DMZ server computer can be used to attack other computers on your network.

The router usually detects and discards incoming traffic from the Internet that is not a response to one of your local computers or a service that you configured in the Port Forwarding/Port Triggering page. Instead of discarding this traffic, you can specify that the router forwards the traffic to one computer on your network. This computer is called the default DMZ server.

To set up a default DMZ server:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Setup > WAN Setup.

The WAN Setup page displays.

1. Select the Default DMZ Server check box.
2. Type the IP address.
3. Click the Apply button.

Your settings are saved.

Change the Router's Device Name

The router's device name is its model number. This device name displays in a file manager when you browse your network.

To change the router's device name:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Setup > Device Name.

The Device Name page displays.

1. In the Device Name field, type a new name.
2. Click the Apply button.

Your settings are saved.

Change the LAN TCP/IP Settings

The router is preconfigured to use private IP addresses on the LAN side and to act as a DHCP server. The router's default LAN IP configuration is as follows:

LAN IP address. 192.168.1.1
- Subnet mask. 255.255.255.0

These addresses are part of the designated private address range for use in private networks and are suitable for most applications. If your network requires a different IP addressing scheme, you can change these settings.

You might want to change these settings if you need a specific IP subnet that one or more devices on the network uses, or if you use competing subnets with the same IP scheme.

To change the LAN TCP/IP settings:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

Orbi WiFi System

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Setup > LAN Setup.

The LAN Setup page displays.

1. In the IP Address field, type the IP address.
2. In the IP Subnet Mask, type the subnet mask of the router.

The IP address and subnet mask identifies which addresses are local to a specific device and which must be reached through a gateway or router.

1. Change the RIP settings.

Router Information Protocol (RIP) allows a router to exchange routing information with other routers.

a. Select the RIP direction:

• Both. The router broadcasts its routing table periodically and incorporates information that it receives.
• Out Only. The router broadcasts its routing table periodically.
• In Only. The router incorporates the RIP information that it receives.

b. Select the RIP version:

• Disabled. This is the default setting.
• RIP-1. This format is universally supported. It is adequate for most networks, unless you are using an unusual network setup.

• RIP-2. This format carries more information. Both RIP-2B and RIP-2M send the routing data in RIP-2 format. RIP-2B uses subnet broadcasting. RIP-2M uses multicasting.

• Click the Apply button.

Your settings are saved.

If you changed the LAN IP address of the router, you are disconnected when this change takes effect.

1. To reconnect, close your browser, relaunch it, and log in to the router.

Use the Router as a DHCP Server

By default, the router acts as a Dynamic Host Configuration Protocol (DHCP) server. The router assigns IP, DNS server, and default gateway addresses to all computers connected to the LAN. The assigned default gateway address is the LAN address of the router.

These addresses must be part of the same IP address subnet as the router's LAN IP address. Using the default addressing scheme, define a range between 192.168.1.2 and 192.168.1.254, although you can save part of the range for devices with fixed addresses.

To use the router as a DHCP server and specify the pool of IP addresses that the router assigns:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Setup > LAN Setup.

The LAN Setup page displays.

1. If you previously disabled the DHCP server feature, select the Use Router as DHCP Server check box.
2. Specify the range of IP addresses that the router assigns:

a. In the Starting IP Address field, enter the lowest number in the range.

This IP address must be in the same subnet as the router. The default starting IP address is 192.168.1.2.

b. In the Ending IP Address field, enter the number at the end of the range of IP addresses.

This IP address must be in the same subnet as the router. The default ending IP address is 192.168.1.254.

1. Click the Apply button.

Your settings are saved.

Orbi WiFi System

The router delivers the following parameters to any LAN device that requests DHCP:

• An IP address from the range that you defined
• Subnet mask
• Gateway IP address (the router's LAN IP address)
  DNS server IP address (the router's LAN IP address)

Disable the DHCP Server Feature in the Router

By default, the router acts as a DHCP server. The router assigns IP, DNS server, and default gateway addresses to all computers connected to the LAN. The assigned default gateway address is the LAN address of the router.

You can use another device on your network as the DHCP server, or specify the network settings of all your computers.

To disable the DHCP server feature in the router:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Setup > LAN Setup.

The LAN Setup page displays.

1. Clear the Use Router as DHCP Server check box.
2. Click the Apply button.
3. (Optional) If this service is disabled and no other DHCP server is on your network, set your computer IP addresses manually so that they can access the router.

Manage Reserved LAN IP Addresses

When you specify a reserved IP address for a computer on the LAN, that computer always receives the same IP address each time it accesses the router's DHCP server. Assign reserved IP addresses to computers or servers that require permanent IP settings.

Reserve an IP Address

To reserve an IP address:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orbilogin.com. A login window opens.
3. Enter the admin user name and password. The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive. The BASIC Home page displays.
4. Select ADVANCED > Setup > LAN Setup. The LAN Setup page displays.
5. In the Address Reservation section of the page, click the Add button.
6. In the IP Address field, type the IP address to assign to the computer or server. The page adjusts.
7. Choose an IP address from the router's LAN subnet, such as 192.168.1.x.
8. Type the MAC address of the computer or server.

Tip: If the computer is already on your network, you can copy its MAC address from the Attached Devices page and paste it here.

1. Click the Apply button. The reserved address is entered into the table.

The reserved address is not assigned until the next time the computer contacts the router's DHCP server. Reboot the computer, or access its IP configuration and force a DHCP release and renew.

Edit a Reserved IP Address

To edit a reserved address entry:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Setup > LAN Setup.

The LAN Setup page displays.

1. Select the radio button next to the reserved address.
2. Click the Edit button.

The Address Reservation page displays.

1. Change the settings.
2. Click the Apply button.

Your settings are saved.

Delete a Reserved IP Address Entry

To delete a reserved address entry:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Setup > LAN Setup.

The LAN Setup page displays.

Orbi WiFi System

1. Select the radio button next to the reserved address.
2. Click the Delete button.

The address is removed.

Custom Static Routes

Typically, you do not need to add static routes unless you use multiple routers or multiple IP subnets on your network.

As an example of when a static route is needed, consider the following case:

• Your main Internet access is through a cable modem to an ISP.
• Your home network includes an ISDN router for connecting to the company where you are employed. This router's address on your LAN is 192.168.1.100.
• Your company's network address is 134.177.0.0.

When you set up your router, two implicit static routes were created. A default route was created with your ISP as the gateway, and a second static route was created to your local network for all 192.168.1.x addresses. With this configuration, if you try to access a device on the 134.177.0.0 network, your router forwards your request to the ISP. The ISP forwards your request to the company where you are employed, and the company firewall is likely to deny the request.

In this case you must define a static route, telling your router to access 134.177.0.0 through the ISDN router at 192.168.1.100. Here is an example:

• The Destination IP Address and IP Subnet Mask fields specify that this static route applies to all 134.177.x.x addresses.
• The Gateway IP Address field specifies that all traffic for these addresses will be forwarded to the ISDN router at 192.168.1.100.
• A metric value of 1 works because the ISDN router is on the LAN.
• The Private check box is selected only as a precautionary security measure in case RIP is activated.

Set Up a Static Route

To set up a static route:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Advanced Setup > Static Routes.

The Static Routes page displays.

1. Click the Add button.

The page adjusts.

1. In the Route Name field, type a name for this static route (for identification purposes only.)
2. To limit access to the LAN only, select the Private check box.

If Private is selected, the static route is not reported in RIP.

1. Select the Active check box to make this route take effect.
2. Type the IP address of the final destination.
3. Type the IP subnet mask for this destination.

If the destination is a single host, type 255.255.255.255.

1. Type the gateway IP address.

This address must be on the same LAN segment as the router.

1. Type a number from 1 through 15 as the metric value.

This value represents the number of routers between your network and the destination. Usually, a setting of 2 or 3 works, but if this is a direct connection, set it to 1.

1. Click the Apply button.

The static route is added.

Edit a Static Route

To edit a static route:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Advanced Setup > Static Routes.

The Static Routes page displays.

1. In the table, select the radio button for the route.
2. Click the Edit button.

The Static Routes page adjusts.

1. Edit the route information.
2. Click the Apply button.

Your settings are saved.

Delete a Static Route

To delete a static route:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Advanced Setup > Static Routes.

The Static Routes page displays.

1. In the table, select the radio button for the route.
2. Click the Delete button.

The route is removed from the table.

Specify Basic WiFi Settings

The router and satellite come preset with the same WiFi network name (SSID) and the same WiFi security. You can find theSSID and password on the router label and on the satellite label. If you log in to the router and change the WiFi settings, the router automatically sends the new settings to the satellite.

If you change your WiFi settings, make a note of the new settings and store it in a safe place where you can easily find it.

If your computer or mobile device is using a WiFi connection when you change the network name (SSID) or other WiFi security settings, you are disconnected when you click the Apply button. To avoid this problem, use a computer with a wired connection to access the router.

To specify basic WiFi settings:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the Orbi admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select Wireless.

The Wireless Settings page displays.

1. To change the network name (SSID), type a new name in the Name (SSID) field. The name can be up to 32 characters long and it is case-sensitive. The defaultSSID is randomly generated and is on the router's label. If you change the name, make sure to write down the new name and keep it in a safe place.
2. To change the WiFi channel, select a number in the Channel list.

Orbi WiFi System

In some regions, not all channels are available. Do not change the channel unless you experience interference (shown by lost connections or slow data transfers). If this happens, experiment with different channels to see which is the best.

When you use multiple access points, it is better if adjacent access points use different channels to reduce interference. The recommended channel spacing between adjacent access points is four channels (for example, use Channels 1 and 5, or 6 and 10).

1. Click the Apply button.

Your settings are saved. The router sends the new settings to the satellite.

If you are using a WiFi connection and you changed the SSID, you are disconnected from the network.

1. Make sure that you can connect to the WiFi network with its new settings.

If you cannot connect using WiFi, check the following:

• Is your WiFi-enabled computer or mobile device connected to another WiFi network in your area? Some WiFi devices automatically connect to the first open network without WiFi security that they discover.
• Is your computer or WiFi device trying to connect to your network with its old settings (before you changed the settings)? If so, update the WiFi network selection in your computer or WiFi device to match the current settings for your network.

Change the WiFi Password or Security Level

The router and satellite come preset with the same WiFi network name (SSID) and the same WiFi security. You can find the SSID and password on the router label and on the satellite label. If you log in to the router and change the WiFi settings, the router automatically sends the new settings to the satellite. We recommend that you do not disable security.

To change the WPA settings:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the Orbi admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select Wireless.

The Wireless Settings page displays.

1. Under Security Options, select a WPA option:

WPA2-PSK [AES]
- WPA-PSK [TKIP] + WPA2-PSK [AES]

The WPA2 option uses the newest standard for the strongest security, but some older computers and WiFi devices cannot use WPA2. If your network includes old computers and WiFi devices, select the WPA-PSK [TKIP] + WPA2-PSK [AES] radio button.

The Password (Network Key) field displays.

1. In the Password (Network Key) field, enter the network key (password) that you want to use.

It is a text string from 8 to 63 characters.

1. Write down the new password and keep it in a secure place for future reference.
2. Click the Apply button.

Your settings are saved.

Set Up a Guest WiFi Network

To set up a guest WiFi network:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the Orbi admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select Guest Network.

The Guest Network Settings page displays.

1. Select the Enable Guest Network check box.
2. Leave the Enable SSID Broadcast check box selected.

Allowing the router to broadcast its WiFi network name (SSID) makes it easier to find your network and connect to it. If you clear this check box, that creates a hidden network.

1. To change the network name, type a new name in the Guest Wireless Network Name (SSID) field.

The name can be up to 32 characters long and it is case-sensitive. If you change the name, make sure to write down the new name and keep it in a safe place.

1. Select or clear the Allow guests to see each other and access my local network check box.

To protect your privacy, this check box is cleared by default. That means your guests can use your Internet connection but they cannot access computers or devices that are connected to your Orbi network.

1. Select a security option.

The WPA2 options use the newest standard for the strongest security. WPA2 is the default setting.

1. Click the Apply button.

Your settings are saved. The router sends the new settings to the satellite.

View or Change Advanced WiFi Settings

To view or change advanced WiFi settings:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Advanced Setup > Wireless Settings.

The Advanced Wireless Settings page displays.

Note: The backhaul password is a security key that is used in WiFi communication between the router and the satellite. For information about generating a new backhaul password, see Generate a New Backhaul Password on page 90.

1. In the Region list,- select your region.

In some locations, you cannot change this setting.

1. To control the SSID broadcast, select or clear the Enable SSID Broadcast check box.

When this check box is selected, the router broadcasts its network name (SSID) so that it displays when you scan for local WiFi networks on your computer or WiFi device.

1. Click the Apply button.

Your settings are saved.

Use the Router as aWiFi Access Point

You can set up the router to run as an access point (AP) on the same local network as another router or gateway.

Orbi WiFi System

For example, you can use the Orbi router as a WiFi access point that connects to a gateway or modem router that you already use for your Internet service. In this situation, you do not need to change the settings for the gateway or modem router.

To set up the Orbi router as an AP after you set up your Internet connection:

1. Use an Ethernet cable to connect the Internet port of this router to a LAN port on your existing router or gateway.
2. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
3. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Advanced Setup > Router/AP Mode.

The Router/AP Mode page displays.

1. Select the AP Mode radio button.

The page adjusts.

1. Select the IP address setting:

2. Get dynamically from existing router. The other router on the network assigns an IP address to this router while this router is in AP mode.

3. Enable fixed IP settings on this device (not recommended). Use this setting if you want to manually assign a specific IP address to this router while it is in AP mode. Using this option effectively requires advanced network experience.

Note: To avoid interference with other routers or gateways in your network, we recommend that you use different WiFi settings on each router. You can also turn off the WiFi radio on the other router or gateway and use the Orbi only for WiFi client access.

1. Click the Apply button.

The IP address of the router changes, and you are disconnected.

1. To reconnect, close and restart your browser and enter orbilogin.com.

Generate a New Backhaul Password

The backhaul password is a security key that is used in WiFi communication between the router and the satellite. You can generate a new backhaul password. After you generate a new backhaul password, you must use the Sync button to build a new backhaul connection so that the router and satellite can communicate with each other using WiFi.

To generate a new backhaul password:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Advanced Setup > Wireless Settings.

The Advanced Wireless Settings page displays.

1. In the Backhaul Password section, click the GENERATE button.

The router generates a new backhaul password.

Set Up a Bridge for a Port Group or VLAN Tag Group

This feature is available only in Singapore.

Some devices, such as an IPTV, cannot function behind the router's Network Address Translation (NAT) service or firewall. Based on what your Internet service provider (ISP) requires, for the device to connect to the ISP's network directly, you can enable the bridge between the device and the router's Internet port or add new VLAN tag groups to the bridge.

Note: If your ISP provides directions on how to set up a bridge for IPTV and Internet service, follow those directions.

Set Up a Bridge for a Port Group

If the devices that are connected to the router's Ethernet LAN port include an IPTV device, your ISP might require you to set up a bridge for a port group for the router's Internet interface.

A bridge with a port group prevents packets that are sent between the IPTV device and the router's Internet port from being processed through the router's Network Address Translation (NAT) service.

To configure a port group and enable the bridge:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the Orbi admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Advanced Setup > VLAN/Bridge Settings.

The VLAN / Bridge Settings page displays.

1. Select the Enable VLAN/Bridge Settings check box.

The page expands.

1. Select the By bridge group radio button.

The section expands.

1. Select the Wired Ports check box that corresponds to the Ethernet port on the router to which the device is connected.

You must select at least one Wired Ports check box. You can select more than one check box.

1. Click the Apply button.

Your settings are saved.

Set Up a Bridge for a VLAN Tag Group

If the devices that are connected to the router's Ethernet LAN ports include an IPTV device, your ISP might require you to set up a bridge for a VLAN tag group for the router's Internet interface.

If you are subscribed to IPTV service, the router might require VLAN tags to distinguish between the Internet traffic and the IPTV traffic. A bridge with a VLAN tag group prevents packets that are sent between the IPTV device and the router's Internet port from being processed through the router's Network Address Translation (NAT) service.

You can add VLAN tag groups to a bridge and assign VLAN IDs and priority values to each VLAN tag group.

To add a VLAN tag group and enable the bridge:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the Orbi admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Advanced Setup > VLAN/Bridge Settings.

The VLAN / Bridge Settings page displays.

1. Select the Enable VLAN/Bridge Group check box.

The page expands.

1. Select the By VLAN tag group radio button.

The section expands.

1. Click the Add button.

The Add VLAN Rule page displays.

1. Specify the settings as described in the following table.

Field	Description
Name	Enter a name for the VLAN tag group. The name can be up to 10 characters.
VLAN ID	Enter a value from 1 to 4094.

(Continued)

Field

Description

Priority

Enter a value from 0 to 7.

Select the check box for a wired Ethernet port.

If your device is connected to an Ethernet port on the router, select the Ethernet port check box that

corresponds to the Ethernet port on the router to which the device is connected.

You must select at least one Ethernet port. You can select more than one port.

1. Click the Add button.

The VLAN tag group is added.

1. Click the Apply button.

Your settings are saved.

Set Up an IPTV Port to Lease an Intranet Port

You can set up the router to create an Internet Protocol television (IPTV) port that can lease an IP address from your IPTV service provider. Use this feature only if you subscribe to an IPTV service and your IPTV service requires an intranet address.

Some IPTV ports cannot work behind Network Address Translation (NAT) because the IPTV port requires an IP address within the Internet service provider's network (intranet address). You can set up a bridge connection from the WAN to one of the LAN ports.

When IPTV is connected through WiFi, the home router also must support the bridging of the WAN port to the WiFi network name (SSID). The designated LAN port becomes an IPTV port with direct access to the WAN without going through NAT.

To configure an IPTV port:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the Orbi admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Advanced Setup > VLAN/Bridge Settings.

The VLAN / Bridge Settings page displays.

Orbi WiFi System

1. Select the Enable VLAN/Bridge Group check box.

The page expands.

1. Select the By bridge group radio button.

The section expands.

1. Select the Wired Ports check box that corresponds to the Ethernet port on the router to which the device is connected.

You must select at least one Wired Ports check box. You can select more than one check box.

1. Click the Apply button.

Your settings are saved.

Enable British Telecom IGMP Proxy Support

You must use this feature only for British Telecom (BT) Internet Protocol television (IPTV) service. It might also work with TalkTalk IPTV service.

To enable BT IGMP proxy support:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the Orbi admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Setup > WAN Setup.

The WAN Setup page displays.

1. Clear the Disable IGMP Proxying check box.
2. Select the Support British Telecom (BT) IGMP Proxying check box.
3. Click the Apply button.

Your settings are saved.

7 Manage Your Network

This chapter describes the router settings for administering and maintaining your router and home network.

The chapter includes the following sections:

• Update the Router and Satellite Firmware
• Change the admin Password
• Set Up Password Recovery
• Recover the admin Password
  View RouterStatus
  ViewSatelliteStatus
  View and Manage Logs of Router Activity
  View Devices Connected to the Network or Edit Device Information
  View Satellites Connected to the Network or Edit Satellite Information
• Manage the Orbi Outdoor Satellite LED Lighting
  Monitor Internet Traffic
• Manage the Router Configuration File
• Set Up Remote Management
• Use Remote Access
• Remotely Access Your Router Using the genie App

Update the Router and Satellite Firmware

You can use the router web interface to check if new firmware is available and update your router and satellite, or you can manually update the firmware for your router and satellite.

Check for Firmware Updates

To check for new firmware and update your router and satellite:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the router admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Administration > Firmware Update.

The Firmware Update page displays.

1. Click the Check button.

The router checks to see if new firmware is available for the router and satellite.

1. If new firmware is available, click the Update All button.

The router locates and downloads the firmware for the router and satellite and begins the update.

Note: To avoid the risk of corrupting the firmware, do not interrupt the upgrade. For example, do not close the browser, click a link, or load a new page. Do not turn off the router or satellite.

When the upload is complete, your router and satellite restart. The update process typically takes about one minute. Read the new firmware release notes to find out if you must reconfigure the router after updating.

Manually Update Firmware

If a satellite is connected to your router, you can log in to the router to manually upload the firmware on your satellite.

Warning: We recommend that you always update the firmware on your satellite first, and then update your router. Also, do not update the firmware on your router and satellite at the same time.

To manually update the firmware on your Orbi router and satellite, follow these high level steps:

1. Visit netgear.com/support and download the firmware for both your Orbi router and satellite.
2. Update the firmware on your Orbi satellite.

For more information, see Manually Update Satellite Firmware on page 97.

1. Update the firmware on your Orbi router.

For more information, see Manually Update Router Firmware on page 98.

Manually Update Satellite Firmware

To manually update your satellite's firmware:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the router admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Administration > Firmware Update > Manual Update.

The Firmware Update page displays.

1. Select the check box next to your satellite's model name.
2. Click the Update button.

The Orbi satellite Firmware Update window opens.

1. If the browser ask you for the admin password, enter the same password that you entered for the router.

Orbi WiFi System

1. Click the BROWSE button.
2. Locate and select the satellite firmware file that you downloaded.

The firmware file name ends in .img or .chk.

It takes a few minutes to complete the process.

1. After Orbi satellite finishes updating, select Status and double-check the firmware version on the Status page.

The firmware on your Orbi satellite is updated.

Manually Update Router Firmware

We recommend that you update your satellite's firmware before updating the router's firmware.

To manually update your router's firmware:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Administration > Firmware Update > Manual Update.

The Firmware Update page displays.

1. Click the Browse button.
2. Locate and select the router firmware file you downloaded.

The firmware file name ends in .img.

1. Click the Upload button.
   The firmware is updated.

Change the admin Password

This feature let you change the default password that is used to log in to the router with the user name admin. This password is not the one that you use for WiFi access. The router label shows your unique WiFi network name (SSID) and password for WiFi access.

Note: Be sure to change the password for the user name admin to a secure password. The ideal password contains no dictionary words from any language and contains uppercase and lowercase letters, numbers, and symbols. It can be up to 30 characters.

To set the password for the user name admin:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Administration > Set Password.

The Set Password page displays.

1. Type the old password, and type the new password twice.
2. To be able to recover the password, select the Enable Password Recovery check box.

We recommend that you enable password recovery.

1. Click the Apply button.

Your settings are saved.

Set Up Password Recovery

We recommend that you enable password recovery if you change the password for the router user name admin. Then you can recover the password if it is forgotten. This recovery process is supported in Internet Explorer, Firefox, and Chrome browsers, but not in the Safari browser.

To set up password recovery:

1. Launch a web browser from a computer or WiFi device that is connected to the network.
2. Enter http://www.routerlogin.net.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Administration > Set Password.

The Set Password page displays.

1. Select the Enable Password Recovery check box.
2. Select two security questions and provide answers to them.
3. Click the Apply button.

Your settings are saved.

Recover the admin Password

We recommend that you enable password recovery if you change the password for the router user name admin. Then you can recover the password if it is forgotten. This recovery process is supported in Internet Explorer, Firefox, and Chrome browsers, but not in the Safari browser.

To recover your password:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Click the Cancel button.

If password recovery is enabled, you are prompted to answer two security questions.

1. Enter the saved answers to the security questions.
2. Enter the serial number of your router.

The serial number is on the router label.

Orbi WiFi System

1. Click the Continue button.
   A window opens and displays your recovered password.
2. Click the Login again button.
   A login window opens.
3. With your recovered password, log in to the router.

View RouterStatus

To view router status and usage information:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Click the ADVANCED tab.

The ADVANCED Home page displays the router status.

Display Internet Port Statistics

To display Internet port statistics:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Click the ADVANCED tab.
2. In the Internet Port pane, click the Show Statistics button.

The Show Statistics window opens and displays following information:

• System Up Time. The time elapsed since the router was last restarted.
• Port. The statistics for the WAN (Internet) and LAN (Ethernet) ports. For each port, the page displays the following information:

Status. The link status of the port.
- TxPkts. The number of packets transmitted on this port since reset or manual clear.
- RxPkts. The number of packets received on this port since reset or manual clear.
- Collisions. The number of collisions on this port since reset or manual clear.
- Tx B/s. The current transmission (outbound) bandwidth used on the WAN and LAN ports.
- Rx B/s. The current reception (inbound) bandwidth used on the WAN and LAN ports.
- Up Time. The time elapsed since this port acquired the link.
- Poll Interval. The interval at which the statistics are updated in this page.

1. To change the polling frequency, enter a time in seconds in the Poll Interval field and click the Set Interval button.
2. To stop the polling entirely, click the Stop button.

Check the Internet Connection Status

To check the Internet connection status:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Click the ADVANCED tab.
2. In the Internet Port pane, click the Connection Status button.

The Connection Status window opens and displays the following information

• IP Address. The IP address that is assigned to the router.
• Subnet Mask. The subnet mask that is assigned to the router.
• Default Gateway. The IP address for the default gateway that the router communicates with.
• DHCP Server. The IP address for the Dynamic Host Configuration Protocol server that provides the TCP/IP configuration for all the computers that are connected to the router.
  DNS Server. The IP address of the Domain Name Service server that provides translation of network names to IP addresses.
• Lease Obtained. The date and time when the lease was obtained.

• Lease Expires. The date and time that the lease expires.

• To return the status of all items to 0, click the Release button.

• To refresh the page, click the Renew button.
• To exit the page, click the Close Window button.

View Satellite Status

To view your satellite's status, it must be connected to your Orb i network.

To view your satellite's status:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the router admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select Attached Devices.

The Attached Devices page displays.

1. In the Connected Satellites section, find your satellite's IP address.
2. Enter your satellite's IP address in your web browser's address bar.

A login window opens.

1. Enter the same admin user name and password that you entered for the router. The satellite's status displays.

View and Manage Logs of Router Activity

The log is a detailed record of the websites you accessed or attempted to access and other router actions. Up to 256 entries are stored in the log.

To view and manage logs:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Administration > Logs.

Orbi WiFi System

The Logs page displays the following information:

• Date and time. The date and time the log entry was recorded.
• Source IP. The IP address of the initiating device for this log entry.
• Target address. The name or IP address of the website or news group visited or to which access was attempted.

• Action. The action that occurred, such as whether Internet access was blocked or allowed.

• To refresh the log page, click the Refresh button.

• To clear the log entries, click the Clear Log button.
• To email the log immediately, click the Send Log button.

View Devices Connected to the Network or Edit Device Information

You can view the devices that are connected to your Orbi network. You can also edit the information that displays on the Attached Devices page in the router web interface.

View Devices Connected to the Network

You can view all computers or devices that are currently connected to your Orbi network.

To view devices connected to your network:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the router admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select Attached Devices.

Orbi WiFi System

The Attached Devices page displays the following information in the Connected Devices section:

Device Name. This section displays the device model, name, type, and IP address.
- IP Address. This section displays the device IP address. The device's IP address can change because the router assigns an IP address to each device when it joins the network.
- MAC Address. This section displays the device MAC address. The unique MAC address for each device does not change.
- Connection Type. This section displays how the device is connected to the Orbi network through a wired Ethernet connection or WiFi connection.
- Connected Orbi. This section displays the Orbi router or satellite that the device is connected to. The Orbi router's or satellite's MAC address also displays.

1. To update this page, click the Refresh button.

Edit Device Information on the Attached Devices Page

You can change the connected device model and name that display on the Attached Devices page.

To view devices connected to your network:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the router admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select Attached Devices.

The Attached Devices page displays.

1. Select a connected device that displays on the page.
   The Edit Device page displays.
2. To change the device model, enter a new model in the Device Model field.
3. To change the device name, enter a new name in the Device Name field.

4. To change the device type, select a device from the Device Type menu.

5. Click the APPLY button. Your settings are saved.

View Satellites Connected to the Network or Edit Satellite Information

You can view the satellites that are connected to your Orbi network. You can also edit the information that displays on the Attached Devices page in the router web interface.

View Satellites Connected to the Network

You can view the satellites that are connected to your Orbi network.

To view satellites connected to your network:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the router admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select Attached Devices.

The Attached Devices page displays the following information in the Connected Satellites section:

Device Name. This section displays the satellite model, name, and IP address.
- IP Address. This section displays the satellite IP address. The satellite's IP address can change because the router assigns an IP address to each satellite when it joins the network.
- MAC Address. This section displays the satellite MAC address. The unique MAC address for each satellite does not change.
- Connection Type. This section displays how the satellite is connected to the Orbic network through a wired Ethernet connection or 2G or 5G WiFi connection.

Orbi WiFi System

• Connected Orbi. This section displays the Orbi router or satellite that the satellite is connected to. The Orbi router's or satellite's MAC address also displays.

• Backhaul Status. This section displays the backhaul connection status between the satellite and router or another satellite.

• To update this page, click the Refresh button.

Edit Satellite Information That Displays On the Attached Devices Page

You can change the satellite's model and name that display on the Attached Devices page.

To edit the satellite's model or name that displays on the Attached Devices page:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the router admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select Attached Devices.

The Attached Devices page displays.

1. Select a connected device that displays on the page.

The Edit Device page displays.

1. To change the device model, enter a new model in the Device Model field.
2. To change the device name, enter a new name in the Device Name field.
3. Click the APPLY button.

Your settings are saved.

Manage the Orbi Outdoor Satellite LED Lighting

If you own an Orbi Outdoor Satellite, you can turn its LED lighting on or off, adjust the LED brightness, or schedule when to turn on the light. You can also enable or disable the satellite's Sync button.

Enable the Sync Button

After your satellite syncs with your router, the satellite's Sync button is disabled for security reasons. If you press the Sync button and the satellite's bottom Light LED pulses magenta, this LED behavior indicates that the Sync button is disabled. To enable the Sync button, log in to the router and go to the Attached Devices page.

AfterSyncing your satellite and placing your satellite outdoors, we recommend that you disable the Sync button to prevent an unauthorized user from connecting to your satellite.

To enable your satellite's Sync button using the router web interface:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orbilogin.com.

A login window opens.

1. Enter the router admin user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select Attached Devices.

The Attached Devices page displays.

1. Select your satellite.

The Edit Device page displays.

1. In the Sync Button section, click the Disabled button.

The Sync button is enabled. You can now use the Sync button to sync your satellite to your router.

Turn the Satellite LED Lighting On or Off

You can use the satellite's top and bottom Light LEDs to provide light to your outdoor area.

To turn the top and bottom LED lighting on or off:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the router admin user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select Attached Devices.

The Attached Devices page displays.

1. Select your satellite.

The Edit Device page displays.

1. To turn the LED lighting on, in the LED On/Off section, click the Off button.

The top and bottom Light LEDs turn on.

1. To turn the LED lighting off, in the LED On/Off section, click the On button.

The top and bottom Light LEDs turn off.

1. Click the APPLY button.

Your settings are saved.

Set LED Lighting Brightness

After you turn on the satellite's LED lighting, you can set its brightness percentage.

To set the satellite's LED lighting brightness:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the router admin user name and password.

Orbi WiFi System

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select Attached Devices.

The Attached Devices page displays.

1. Select your satellite.

The Edit Device page displays.

1. Make sure that the LED On/Off slider is set to ON.
2. If the LED lighting is turned off, click the LED On/Off slider to turn the LED on.

The top and bottom Light LEDs turn on.

1. Select an LED lighting brightness percentage from the LED Lighting Brightness menu.
2. Click the APPLY button.

Your settings are saved.

Schedule When to Turn On LED Lighting

You can schedule when to turn on the satellite's LED lighting:

To schedule the LED lighting:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the router admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select Attached Devices.

The Attached Devices page displays.

1. Select your satellite.
   The Edit Device page displays.
2. Make sure that the LED On/Off slider is set to ON.

Orbi WiFi System

1. If the LED lighting is turned off, click the LED On/Off slider to turn the LED on. The top and bottom Light LEDs turn on.

2. Select the Schedule LED Lighting check box.

3. Click the ADD A NEW PERIOD button. The LED Lighting Schedule page displays.

4. Specify the lighting schedule settings:

5. Start. Select a start time from the menu.

6. End. Select an end time from the menu.

7. Recurrence Pattern. Select if you want the Light LEDs to turn on daily of select specific days.

8. Click the APPLY button. The Edit Device page displays. The schedule is added.

9. Click the APPLY button. Your settings are saved.

Monitor Internet Traffic

Traffic metering allows you to monitor the volume of Internet traffic that passes through the router Internet port. You can set limits for traffic volume.

To monitor Internet traffic:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Advanced Setup > Traffic Meter.

The Traffic Meter page displays.

Orbi WiFi System

1. Select the Enable Traffic Meter check box.

2. To control the volume of Internet traffic, use either the traffic volume control feature or the connection time control feature:

3. Select the Traffic volume control by radio button and then select one of the following options:

4. No Limit. No restriction is applied when the traffic limit is reached.
   Download only. The restriction is applied to incoming traffic only.

5. Both Directions. The restriction is applied to both incoming and outgoing traffic.

6. Select the Connection time control radio button and enter the allowed hours in the Monthly limit field.

7. If your ISP charges for extra data volume when you make a new connection, enter the extra data volume in MB in the Round up data volume for each connection by field.

8. In the Traffic Counter section, set the traffic counter to begin at a specific time and date.

To start the traffic counter immediately, click the Restart Counter Now button.

1. If you want the router to issue a warning message before the monthly limit of Mbytes or hours is reached, in the Traffic Control section, enter a numeric value.
   By default, the value is 0 and no warning message is issued.
2. To stop the Internet connection when the limit is attained, select the Disconnect and disable the Internet connection check box.
3. Click the Apply button.

The Internet Traffic Statistics section helps you to monitor the data traffic.

1. To update the Internet Traffic Statistics section, click the Refresh button.
2. To display more information about the data traffic on your router and to change the poll interval, click the Internet Traffic Status button.

Manage the Router Configuration File

The configuration settings of the router are stored within the router in a configuration file. You can back up (save) this file to your computer, restore it, or reset it to the factory default settings.

Back Up Settings

To back up the router's configuration settings:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Administration > Backup Settings.

The Backup Settings page displays.

1. Click the BACK UP button.
2. Specify a location on your network.

A copy of the current settings is saved in the location you specified.

Erase the Current Configuration Settings

You can erase the current configuration and restore the factory default settings. You might want to do this if you move the router to a different network.

To erase the configuration settings:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Administration > Backup Settings.

The Backup Settings page displays.

1. Click the ERASE button.

Orbi WiFi System

The factory default settings are restored. The user name is admin, the password is password, and the LAN IP address is 192.168.1.1. DHCP is enabled.

Restore Configuration Settings

To restore configuration settings that you backed up:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.
   The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.
   The BASIC Home page displays.
2. Select ADVANCED > Administration > Backup Settings.

The Backup Settings page displays.

1. Click the Browse button to find and select the .cfg file.
2. Click the RESTORE button.

The file is uploaded to the router and the router reboots.

Warning: Do not interrupt the reboot process.

Set Up Remote Management

You can access your router over the Internet to view or change its settings. You must know the router's WAN IP address to use this feature. For information about Dynamic DNS, see Dynamic DNS on page 71.

Note: Be sure to change the password for the user name admin to a secure password. The ideal password contains no dictionary words from any language and contains uppercase and lowercase letters, numbers, and symbols. It can be up to 30 characters. See Change the admin Password on page 99.

To set up remote management:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Advanced Setup > Remote Management.

The Remote Management page displays.

1. Select the Turn Remote Management On check box.
2. In the Allow Remote Access By section, specify the external IP addresses to be allowed to access the router's remote management.

Note: For enhanced security, restrict access to as few external IP addresses as is practical.

Select one of the following:

• To allow access from a single IP address on the Internet, select the Only This Computer radio button. Enter the IP address to be allowed access.
• To allow access from a range of IP addresses on the Internet, select the IP Address Range radio button. Enter a beginning and ending IP address to define the allowed range.

• To allow access from any IP address on the Internet, select the Everyone radio button.

• Specify the port number for accessing the router.

Normal web browser access uses the standard HTTP service port 80. For greater security, enter a custom port number for the remote router access. Choose a number from 1024 to 65535, but do not use the number of any common service port. The default is 8080, which is a common alternate for HTTP.

1. Click the Apply button.

Your settings are saved.

Use Remote Access

To use remote access:

1. Launch a web browser on a computer that is not on your home network.
2. Type your router's WAN IP address into your browser's address or location field followed by a colon (:) and the custom port number.
   For example, if your external address is 134.177.0.123 and you use port number 8080, enter http://134.177.0.123:8080 in your browser.

Remotely Access Your Router Using the genie App

You can use the genie app to remotely access your router and change its settings. Before you can use remote access with the genie app, you must update your router's firmware and download the latest genie app for your computer or mobile device. Remote access with the genie app is supported for Windows computers, iOS mobile devices, and Android mobile devices.

For more information about how to update your router's firmware, see Update the Router and Satellite Firmware on page 96.

To download the latest genie app for your computer or mobile device, visit NETGEAR.com/genie. For more information about how to set up remote access using the genie app, see the genie app user manual, which is available at downloadcenter.netgear.com/.

8

Customize Internet Traffic Rules for Ports

You can use port forwarding and port triggering to set up rules for Internet traffic. You need networking knowledge to set up these features.

This chapter includes the following sections:

• Port Forwarding to a Local Server
• Port Triggering

Port Forwarding to a Local Server

If your home network includes a server, you can allow certain types of incoming traffic to reach the server. For example, you might want to make a local web server, FTP server, or game server visible and available to the Internet.

The router can forward incoming traffic with specific protocols to computers on your local network. You can specify the servers for applications and you can also specify a default DMZ server to which the router forwards all other incoming protocols.

Set Up Port Forwarding to a Local Server

To forward specific incoming protocols:

1. Decide which type of service, application, or game you want to provide.
2. Find the local IP address of the computer on your network that will provide the service.

The server computer must always use the same IP address. To specify this setting, use the reserved IP address feature. See Manage Reserved LAN IP Addresses on page 79.

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orbilogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Advanced Setup > Port Forwarding/Port Triggering.

The Port Forwarding/Port Triggering page displays.

1. Leave the Port Forwarding radio button selected as the service type.
2. In the Service Name menu, select the service name.

If the service that you want to add is not in the list, create a custom service. See Add a Custom Port Forwarding Service on page 120.

1. In the Server IP Address field, enter the IP address of the computer that will provide the service.

Orbi WiFi System

1. Click the Add button.

The service displays in the list.

Add a Custom Port Forwarding Service

To add a custom service:

1. Find out which port number or range of numbers the application uses.
   You can usually find this information by contacting the publisher of the application or user groups or news groups.
2. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
3. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Advanced Setup > Port Forwarding/Port Triggering.

The Port Forwarding/Port Triggering page displays.

1. Leave the Port Forwarding radio button selected as the service type.
2. Click the Add Custom Service button.

The Ports - Custom Services page displays.

1. In the Service Name field, enter a descriptive name.
2. In the Protocol menu, select the protocol.

If you are unsure, select TCP/UDP.

1. In the External Port range field, enter the port numbers.

2. Specify the internal ports by one of these methods:

3. Leave the Use the same port range for Internal port check box selected.

4. Type the port numbers in the Internal port range field.

5. Type the IP address in the Internal IP address fields or select the radio button for an attached device listed in the table.

6. Click the Apply button.

Orbi WiFi System

The service is now in the list on the Port Forwarding/Port Triggering page.

Edit a Port Forwarding Service

To edit a port forwarding entry:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Advanced Setup > Port Forwarding/Port Triggering.

The Port Forwarding/Port Triggering page displays.

1. Leave the Port Forwarding radio button selected as the service type.
2. In the table, select the radio button next to the service name.
3. Click the Edit Service button.

The Ports - Custom Services page displays.

1. Specify changes to any of the following settings:

Service Name. Type the service name.
- Protocol. If you are unsure, select TCP/UDP.
- External port range.
- For the internal ports, leave the Use the same port range for Internal port check box selected or enter the ports in the Internal port range field.
- Internal IP address. Type the IP address in the Internal IP address fields, or select the radio button for an attached device listed in the table.

1. Click the Apply button.

Your settings are saved.

Delete a Port Forwarding Entry

To delete a port forwarding entry:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Advanced Setup > Port Forwarding/Port Triggering.

The Port Forwarding/Port Triggering page displays.

1. Select the Port Forwarding radio button as the service type.
2. In the table, select the radio button next to the service name.
3. Click the Delete Service button.

Application Example: Make a Local Web Server Public

If you host a web server on your local network, you can use port forwarding to allow web requests from anyone on the Internet to reach your web server.

To make a local web server public:

1. Assign your web server either a fixed IP address or a dynamic IP address using DHCP address reservation.

In this example, your router always gives your web server an IP address of 192.168.1.33.

1. In the Port Forwarding/Port Triggering page, configure the router to forward the HTTP service to the local address of your web server at 192.168.1.33.

HTTP (port 80) is the standard protocol for web servers.

1. (Optional) Register a host name with a Dynamic DNS service, and specify that name on the Dynamic DNS page of the router.

Dynamic DNS makes it much easier to access a server from the Internet because you can type the name in the Internet browser. Otherwise, you must know the IP address that the ISP assigned, which typically changes.

How the RouterImplements thePortForwardingRule

The following sequence shows the effects of a port forwarding rule:

1. When you type the URL www.example.com in your browser, the browser sends a web page request message with the following destination information:

2. Destination address. The IP address of www.example.com, which is the address of your router.

3. Destination port number. 80, which is the standard port number for a web server process.

4. Your router receives the message and finds your port forwarding rule for incoming port 80 traffic.

5. The router changes the destination in the message to IP address 192.168.1.123 and sends the message to that computer.
6. Your web server at IP address 192.168.1.123 receives the request and sends a reply message to your router.
7. Your router performs Network Address Translation (NAT) on the source IP address, and sends the reply through the Internet to the computer or WiFi device that sent the web page request.

Port Triggering

Port triggering is a dynamic extension of port forwarding that is useful in these cases:

• An application must use port forwarding to more than one local computer (but not simultaneously).
• An application must open incoming ports that are different from the outgoing port.

With port triggering, the router monitors traffic to the Internet from an outbound "trigger" port that you specify. For outbound traffic from that port, the router saves the IP address of the computer that sent the traffic. The router temporarily opens the incoming port or ports that you specify in your rule and forwards that incoming traffic to that destination.

Port forwarding creates a static mapping of a port number or range of ports to a single local computer. Port triggering can dynamically open ports to any computer when needed and close the ports when they are no longer needed.

Add a Port Triggering Service

To add a port triggering service:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Advanced Setup > Port Forwarding/Port Triggering.

The Port Forwarding/Port Triggering page displays.

1. Select the Port Triggering radio button.

The page adjusts.

1. Click the Add Service button.

The Port Triggering - Services page displays.

1. In the Service Name field, type a descriptive service name.

2. In the Service User menu, select Any, or select Single address and enter the IP address of one computer:

3. Any (the default) allows any computer on the Internet to use this service.

4. Single address restricts the service to a particular computer.

5. Select the service type, either TCP or UDP or TCP/UDP (both).

If you are not sure, select TCP/UDP.

1. In the Triggering Port field, enter the number of the outbound traffic port that will open the inbound ports.
2. Enter the inbound connection port information in the Connection Type, Starting Port, and Ending Port fields.
3. Click the Apply button.

The service is now in the Portmap Table. You must enable port triggering before the router used port triggering for the service that you added. See Enable Port Triggering on page 125.

Enable Port Triggering

To enable port triggering:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Advanced Setup > Port Forwarding/Port Triggering.

The Port Forwarding/Port Triggering page displays.

1. Select the Port Triggering radio button.

The page adjusts.

1. Clear the Disable Port Triggering check box.

If this check box is selected, the router does not use port triggering even if you specified port triggering settings.

1. In the Port Triggering Timeout field, enter a value up to 9999 minutes.

This value controls how long the inbound ports stay open when the router detects no activity. This value is required because the router cannot detect when the application terminates.

Application Example: Port Triggering for Internet Relay Chat

Some application servers, such as FTP and IRC servers, send replies to multiple port numbers. Using port triggering, you can tell the router to open more incoming ports when a particular outgoing port starts a session.

An example is Internet Relay Chat (IRC). Your computer connects to an IRC server at destination port 6667. The IRC server not only responds to your originating source port, but also sends an "identify" message to your computer on port 113. Using port triggering, you can tell the router, "When you initiate a session with destination port 6667, you must

Orbi WiFi System

also allow incoming traffic on port 113 to reach the originating computer." The following sequence shows the effects of the port triggering rule you define:

1. You open an IRC client program to start a chat session on your computer.
2. Your IRC client composes a request message to an IRC server using a destination port number of 6667, the standard port number for an IRC server process. Your computer then sends this request message to your router.
3. Your router creates an entry in its internal session table describing this communication session between your computer and the IRC server. Your router stores the original information, performs Network Address Translation (NAT) on the source address and port, and sends this request message through the Internet to the IRC server.
4. Noting your port triggering rule and observing the destination port number of 6667, your router creates another session entry to send any incoming port 113 traffic to your computer.
5. The IRC server sends a return message to your router using the NAT-assigned source port (for example, port 33333) as the destination port. The IRC server also sends an "identify" message to your router with destination port 113.
6. When your router receives the incoming message to destination port 3333, it checks its session table to see if a session is active for port number 3333. Finding an active session, the router restores the original address information replaced by NAT and sends this reply message to your computer.
7. When your router receives the incoming message to destination port 113, it checks its session table and finds an active session for port 113 associated with your computer. The router replaces the message's destination IP address with your computer's IP address and forwards the message to your computer.
8. When you finish your chat session, your router eventually senses a period of inactivity in the communications. The router then removes the session information from its session table, and incoming traffic is no longer accepted on port numbers 33333 or 113.

9

Use VPN to Access Your Network

You can use OpenVPN software to remotely access your router using virtual private networking (VPN). This chapter explains how to set up and use VPN access.

This chapter includes the following sections:

• Set Up a VPN Connection
• Specify VPN Service in the Router
  Install OpenVPN Software
• Use a VPN Tunnel on Your Windows Computer
• Use VPN to Access Your Internet Service at Home
• Block VPN Client Internet Access in the Router
• Use a VPN Tunnel to Access Your Internet Service at Home

Set Up a VPN Connection

A virtual private network (VPN) lets you use the Internet to securely access your network when you aren't home.

This type of VPN access is called a client-to-gateway tunnel. The computer is the client, and the router is the gateway. To use the VPN feature, you must log in to the router and enable VPN, and you must install and run VPN client software on the computer.

VPN uses DDNS or a static IP address to connect with your router.

To use a DDNS service, register for an account with a host name (sometimes called a domain name). You use the host name to access your network. The router supports these accounts: NETGEAR, No-IP, and Dyn.

If your Internet service provider (ISP) assigned a static WAN IP address (such as 50.196.x.x or 10.x.x.x) that never changes to your Internet account, the VPN can use that IP address to connect to your home network.

Specify VPN Service in the Router

You must specify the VPN service settings in the router before you can use a VPN connection.

To specify the VPN service:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Advanced Setup > VPN Service.

The VPN Service page displays.

1. Select the Enable VPN Service check box.

By default, the VPN uses the UDP service type and uses port 12974. If you want to customize the service type and port, we recommend that you change these settings before you install the OpenVPN software.

1. To change the service type, scroll down and select the TCP radio button.
2. To change the port, scroll down to the Service Port field, and type the port number that you want to use.
3. Click the Apply button.

Your settings are saved. VPN is enabled in the router, but you must install and set up OpenVPN software on your computer before you can use a VPN connection.

Install OpenVPN Software

You must install this software on each Windows computer, Mac computer, iOS device, or Android device that you plan to use for VPN connections to your router.

Install OpenVPN Software on Your Windows Computer

You must install this software on each Windows computer that you plan to use for VPN connections to your router.

To install VPN client software on your Windows computer:

1. 1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orbilogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Advanced Setup > VPN Service.

The VPN Service page displays.

1. Make sure that the Enable VPN Service check box is selected.
2. Specify any VPN service settings on the page.

For more information, see Specify VPN Service in the Router on page 128.

1. Click the For Windows button to download the OpenVPN configuration files.

2. Visit openvpn.net/index.php/download/community-downloads.html to download the OpenVPN client utility.

3. In the Windows Installer section of the page, double-click the openVPN-install-xxx.exe link.

4. Download and install the Open VPN software on your computer, click the openVPN-install-xxx.exe file.

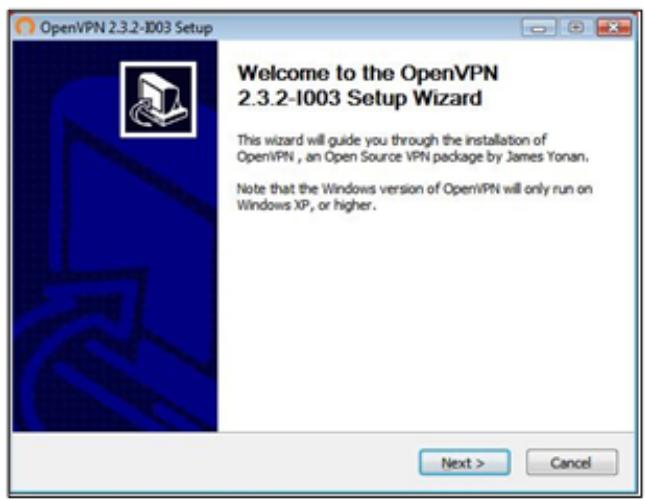

1. Click the Next button.
2. When prompted, read the License Agreement and click the I Agree button.

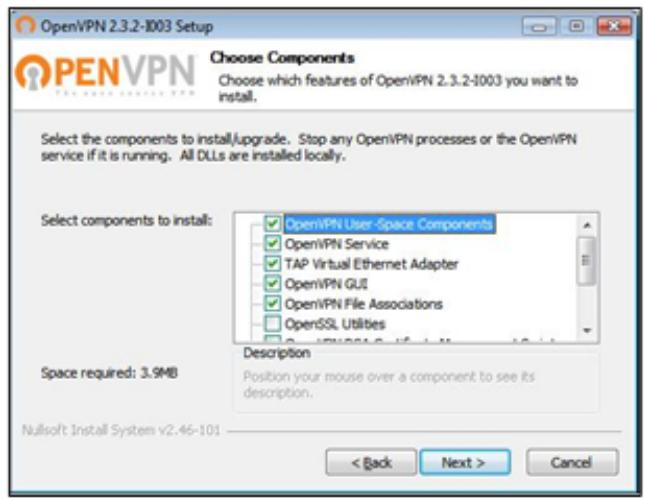

1. Leave the check boxes selected, and click the Next button.
2. To specify the destination folder, click the Browse button and select a destination folder.

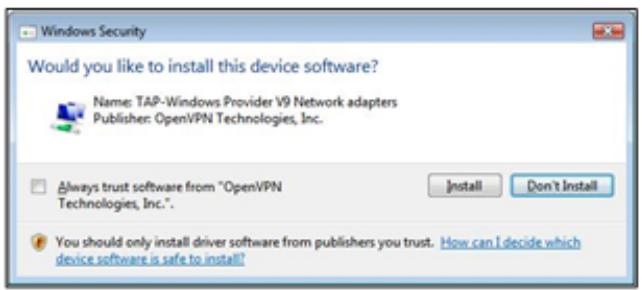

Figure 17. A Windows Security window opens.

1. Click the Install button.

The window displays the progress of the installation and then displays the final installation page.

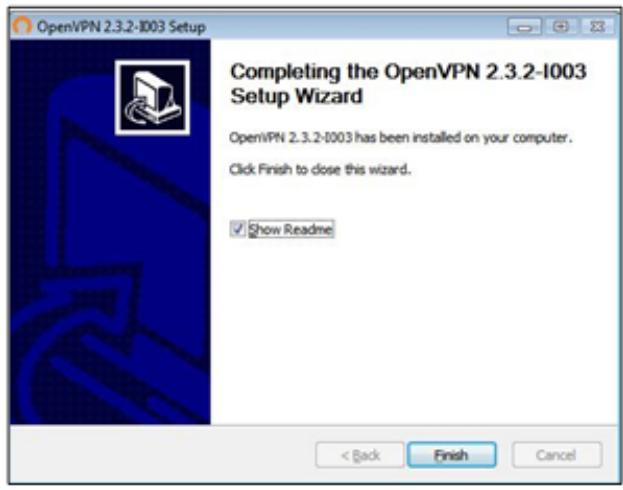

1. Click the Finish button.
2. Unzip the configuration files that you downloaded and copy them to the folder where the VPN client is installed on your device.

For a client device with Windows 64-bit system, the VPN client is installed at C:\Programfiles\OpenVPN\config\ by default.

1. For a client device with Windows, modify the VPN interface name to NETGEAR-VPN:

a. On your computer, go to the Networks page. If you are using Windows 10, select Control Panel > Network and Sharing Center > Change adapter settings.
b. In the local area connection list, find the local area connection with the device name TAP-Windows Adapter.
c. Select the local area connection and change its name (not its device name) to NETGEAR-VPN.

If you do not change the VPN interface name, the VPN tunnel connection will fail.

Orbi WiFi System

For more information about using OpenVPN on your Windows computer, visit https://openvpn.net/index.php/open-source/documentation/howto.html#quick.

Install OpenVPN Software on Your Mac Computer

You must install this software on each Mac computer that you plan to use for VPN connections to your router.

To install VPN client software on your Mac computer:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Advanced Setup > VPN Service.

The VPN Service page displays.

1. Make sure that the Enable VPN Service check box is selected.
2. Specify any VPN service settings on the page.

For more information, see Specify VPN Service in the Router on page 128.

1. Click the FOR MAC OS button to download the OpenVPN configuration files.
2. Visit https://tunnelblick.net/index.html to download the OpenVPN client utility for Mac OS X.
3. Download and install the file.
4. Unzip the configuration files that you downloaded and copy them to the folder where the VPN client is installed on your device.

The client utility must be installed by a user with administrative privileges.

For more information about using OpenVPN on your Mac computer, visit https://openvpn.net/indexphp/accessserver/docs/adminguides/183-how-to-connectto-accessserverfroma-mach.html

Orbi WiFi System

Install OpenVPN Software on an iOS Device

You must install this software on each iOS device that you plan to use for VPN connections to your router.

To install VPN client software on an iOS device:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orblogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Advanced Setup > VPN Service.

The VPN Service page displays.

1. Make sure that the Enable VPN Service check box is selected.
2. Specify any VPN service settings on the page.

For more information, see Specify VPN Service in the Router on page 128.

1. Click the FOR SMART PHONE button to download the OpenVPN configuration files.
2. On your iOS device, download and install the OpenVPN Connect app from the Apple app store.
3. On your computer, unzip the configuration files that you downloaded and send the files to your iOS device.

Note that when you open the .ovpn file, a list of apps displays. Select the OpenVPN Connect app to open the .ovpn file.

For more information about using OpenVPN on your iOS device, visit http://www.vpngate.net/en/howto_openvpn.aspx#ios.

Install OpenVPN Software on an Android Device

You must install this software on each Android device that you plan to use for VPN connections to your router.

To install VPN client software on an Android device:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orbilogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Advanced Setup > VPN Service.

The VPN Service page displays.

1. Make sure that the Enable VPN Service check box is selected.
2. Specify any VPN service settings on the page.

For more information, see Specify VPN Service in the Router on page 128.

1. Click the FOR SMART PHONE button to download the OpenVPN configuration files.
2. On your Android device, download and install the OpenVPN Connect app from the Google Play Store.
3. On your computer, unzip the configuration files that you downloaded and send the files to your Android device.
4. Open the files on your Android device.
5. Open the .ovpn file using the OpenVPN Connect app.

For more information about using OpenVPN on your Android device, visit http://www.vpngate.net/en/howto_openvpn.aspx#android.

Use a VPN Tunnel on Your Windows Computer

After you set up the router to use VPN and install the OpenVPN application on your computer, you can open a VPN tunnel from your computer to your router over the Internet.

For the VPN tunnel to work, the local LAN IP address of the remote router must use a different LAN IP scheme from that of the local LAN where your VPN client computer is

connected. If both networks use the same LAN IP scheme, when the VPN tunnel is established, you cannot access your home router or your home network with the OpenVPN software.

The default LAN IP address scheme for the router is 192.x.x.x. The most common IP schemes are 192.x.x.x, 172.x.x.x, and 10.x.x.x. If you experience a conflict, change the IP scheme either for your home network or for the network with the client VPN computer. For information about changing these settings, see Change the LAN TCP/IP Settings on page 75.

To open a VPN tunnel:

1. Launch the OpenVPN application with administrator privileges.

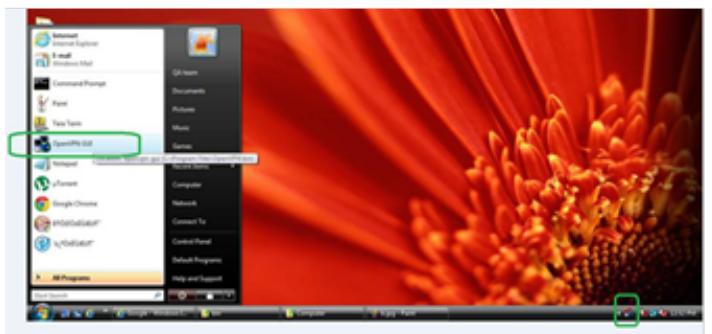

Figure 18. The OpenVPN icon displays in the Windows taskbar.

TIP: You can create a shortcut to the VPN program, then use the shortcut to access the settings and select the run as administrator check box. Then every time you use this shortcut, OpenVPN automatically runs with administrator privileges.

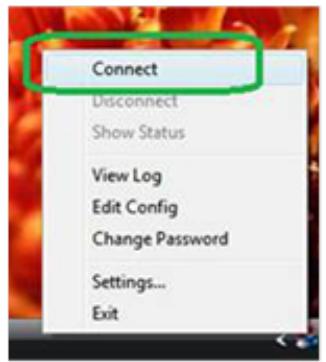

1. Right-click the OpenVPN icon.

1. Select Connect.

The VPN connection is established. You can launch a web browser and log in to your router.

Use VPN to Access Your Internet Service at Home

When you're away from home and you access the Internet, you usually use a local Internet service provider. For example, at a coffee shop you might be given a code that lets you use the coffee shop's Internet service account to surf the web.

Orbi Pro lets you use a VPN connection to access your own Internet service when you're away from home. You might want to do this if you travel to a geographic location that doesn't support all the Internet services that you use at home. For example, your Netflix account might work at home but not in a different country.

Set Up VPN Client Internet Access in the Router

By default, the router is set up to allow VPN connections only to your home network, but you can change the settings to allow Internet access. Accessing the Internet remotely through a VPN might be slower than accessing the Internet directly.

To allow VPN clients to use your home Internet service:

1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orbilogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Advanced Setup > VPN Service.

The VPN Service page displays.

1. Select the Enable VPN Service radio button.

2. Scroll down to the Clients will use this VPN connection to access section, and select the All sites on the Internet & Home Network radio button.

When you access the Internet with the VPN connection, instead of using a local Internet service, you use the Internet service from your home network.

1. Click the Apply button.

Your settings are saved.

1. Click the FOR WINDOWS or FOR MACOSX button and download the configuration files for your VPN clients.

2. Unzip the configuration files and copy them to the folder where the VPN client is installed on your device.

For a client device with Windows 64-bit system, the VPN client is installed at C:\Programfiles\OpenVPN\config\ by default.

Block VPN Client Internet Access in the Router

By default, the router is set up to allow VPN connections only to your home network, not to the Internet service for your home network. If you changed this setting to allow Internet access, you can change it back.

To allow VPN clients to access only your home network:

1. 1. Launch a web browser from a computer or mobile device that is connected to your Orbi network.
2. Enter orbilogin.com.

A login window opens.

1. Enter the admin user name and password.

The user name is admin. The password is the one that you specified the first time that you logged in. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Select ADVANCED > Advanced Setup > VPN Service.

The VPN Service page displays.

1. Select the Enable VPN Service radio button.

2. Scroll down to the Clients will use this VPN connection to access section, and select the Home Network only radio button.

This is the default setting. The VPN connection is only to your home network, not to the Internet service for your home network.

1. Click the Apply button.

Your settings are saved.

1. Click the FOR WINDOWS or FOR MACOSX button and download the configuration files for your VPN clients.

Orbi WiFi System

1. Unzip the configuration files and copy them to the folder where the VPN client is installed on your device.

For a client device with Windows 64-bit system, the VPN client is installed at C:\Programfiles\OpenVPN\config\ by default.

Use a VPN Tunnel to Access Your Internet Service at Home

To access your Internet service:

1. Set up the router to allow VPN access to your Internet service.
   See Specify VPN Service in the Router on page 128.
2. On your computer, launch the OpenVPN application.
   The OpenVPN icon displays in the Windows taskbar.
3. Right-click the icon and select Connect.
4. When the VPN connection is established, launch your Internet browser.

10

Troubleshooting

This chapter provides information to help you diagnose and solve problems you might experience with your Orbirouter or satellite. If you do not find the solution here, check the NETGEAR support site at support.netgear.com for product and contact information.

This chapter includes the following sections:

• Quick Tips
• The Router and Satellite Do Not Sync
• Cannot Log In to the Router
• Cannot Access the Internet
  Troubleshoot Your Network Using the Ping Utility

Quick Tips

This section describes tips for troubleshooting some common problems.

Sequence to Restart Your Network

When you restart your network, follow this sequence:

1. Turn off and unplug the modem.
2. Turn off the router.
3. Plug in the modem and turn it on. Wait two minutes.
4. Turn on the router and wait two minutes.

WiFi Settings

Make sure that the WiFi settings in the WiFi-enabled computer or mobile device and the router match.

The WiFi network name (SSID) and WiFi security settings must match exactly.

If you set up an access list, you must add each WiFi-enabled computer or mobile device's MAC address to the router's access list.

Network Settings

Make sure that the network settings of the computer are correct. Wired and wirelessly connected computers must use network (IP) addresses on the same network as the router. The simplest way to do this is to configure each computer to obtain an IP address automatically using DHCP.

Some cable modem service providers require you to use the MAC address of the computer initially registered on the account. You can view the MAC address on the Attached Devices page.

The Router and Satellite Do Not Sync

If you are experiencing difficulty syncing the router and the satellite, we recommend that you move the satellite into the same room as the router during the sync. Then move the satellite to a different location.

Orbi WiFi System

To sync the router and the satellite:

1. Place the satellite in the same room as the Orbi router.
   Use this satellite location only during the sync process.
2. Connect the satellite to a power source.
3. If the Power LED on the back of the satellite does not light, press the Power On/Off button.
4. Wait for the satellite's ring LED to light solid white or magenta.
5. Press the Sync button on the router and then within two minutes, press the Sync button on the satellite.

The satellite's ring LED pulses white, then lights one of the following colors for about three minutes and then turns off:

• Blue. The Orbi router and satellite successfully synced, and the connection between the router and satellite is good.

• Amber. The Orbi router and satellite successfully synced, and the connection between the router and satellite is fair. Consider moving the Orbi satellite closer to the Orbi router.

• Move the satellite to a location closer to the middle of your home.

• Connect the satellite to a power source.
• If the Power LED on the back of the satellite does not light, press the Power On/Off button.

The satellite's ring LED pulses white, then lights one of the following colors for about three minutes and then turns off:

• Blue. The Orbi router and satellite successfully synced, and the connection between the router and satellite is good.
• Amber. The Orbi router and satellite successfully synced, and the connection between the router and satellite is fair. Consider moving the Orbi satellite closer to the Orbi router.
• Magenta. The Orbi router and satellite failed to sync. Move the satellite closer to the router and try again.

Cannot Log In to the Router

Make sure that your computer or mobile device is connected to the Orbi WiFi network. If you do not want to use a WiFi connection, you can connect your computer to the Orbi router with an Ethernet cable.

If you changed the admin password and you forgot what it is, see Recover the admin Password on page 100.

Cannot Access the Internet

Check your network and Internet connections:

1. Make sure that your WiFi-enabled computer or mobile device is connected to the Orbi network.
2. If you are connected to Orbi but you cannot access the Internet, check to see if your Internet connection is working.
3. Launch a web browser from a computer or WiFi device that is connected to the network.
4. Enter orblogin.com.

A login window opens.

1. Enter the router admin user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Click the ADVANCED tab.

The ADVANCED Home page displays.

1. Check that an IP address is shown for the Internet port.

If 0.0.0.0 is shown, your router did not obtain an IP address from your Internet service provider (ISP).

If your router cannot obtain an IP address from the ISP, you can force your cable or DSL modem to recognize your new router by restarting your network. For more information, see Sequence to Restart Your Network on page 140.

If your router is still unable to obtain an IP address from the ISP, the problem might be one of the following:

• Your Internet service provider (ISP) might require a login program. Ask your ISP whether they require PPP over Ethernet (PPPoe) or some other type of login.
• If your ISP requires a login, the login name and password might be set incorrectly.

Orbi WiFi System

• Your ISP might check for your computer's host name. Assign the computer host name of your ISP account as the account name on the Internet Setup page.
• If your ISP allows only one Ethernet MAC address to connect to Internet and checks for your computer's MAC address, do one of the following:
  Inform your ISP that you bought a new network device and ask them to use the router's MAC address.
• Configure your router to clone your computer's MAC address.

Troubleshoot Internet Browsing

If your router can obtain an IP address but your computer is unable to load any web pages from the Internet, it might be for one of the following reasons:

• The traffic meter is enabled, and the limit was reached.

By configuring the traffic meter not to block Internet access when the traffic limit is reached, you can resume Internet access. If your ISP sets a usage limit, they might charge you for the overage.

• Your computer might not recognize any DNS server addresses. A DNS server is a host on the Internet that translates Internet names (such as www addresses) to numeric IP addresses.

Typically, your ISP provides the addresses of one or two DNS servers for your use. If you entered a DNS address during the router's configuration, restart your computer. Alternatively, you can configure your computer manually with a DNS address, as explained in the documentation for your computer.

• The router might not be configured as the default gateway on your computer.

Reboot the computer and verify that the router address (www.ruterlogin.net) is listed by your computer as the default gateway address.

• You might be running login software that is no longer needed. If your ISP provided a program to log you in to the Internet (such as WinPoET), you no longer need to run that software after installing your router. You might need to go to Internet Explorer

and select Tools > Internet Options, click the Connections tab, and select Never dial a connection. Other browsers provide similar options.

Troubleshoot PPPoE

If you are using PPPoE, try troubleshooting your Internet connection.

To troubleshoot a PPPoE connection:

1. Launch a web browser from a computer or WiFi device that is connected to the network.
2. Enter orblogin.com.

A login window opens.

1. Enter the router admin user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home page displays.

1. Click the ADVANCED tab.

Orbi WiFi System

The ADVANCED Home page displays.

1. In the Internet Port pane, click the Connection Status button.

The Connection Status window opens.

1. Check the Connection Status window to see if your PPPoE connection is active and working.

If the router is not connected, click the Connect button.

The router continues to attempt to connect indefinitely.

1. If you cannot connect after several minutes, the router might be set up with an incorrect service name, user name, or password, or your ISP might be experiencing a provisioning problem.

Unless you connect manually, the router does not authenticate using PPPoE until data is transmitted to the network.

WiFi Connectivity

If you are experiencing trouble connecting to the Orbi WiFi network, try to isolate the problem:

• Does the WiFi-enabled computer or mobile device that you are using find your WiFi network?
  If you disabled the router's SSID broadcast, then your WiFi network is hidden and does not display in the list of networks that your computer or WiFi device finds. (By default, SSID broadcast is enabled.)
• Does your WiFi-capable device support the security that you are using for your WiFi network (WPA or WPA2)?
• To view the WiFi settings for the router, use an Ethernet cable to connect a computer to a LAN port on the router. Then log in to the router, and select BASIC > Wireless.
  Note: Be sure to click the Apply button if you change settings.
• If you are trying to connect to the 5 GHz 1 or 5 GHz 2 band, does your WiFi-enabled computer or mobile device support this standard?
• Did your computer or WiFi device automatically connect to a different WiFi network in your area, such as a WiFi hotspot?

Troubleshoot Your Network Using the Ping Utility

Most network devices and routers contain a ping utility that sends an echo request packet to the designated device. The device then responds with an echo reply. You can easily troubleshoot a network using the ping utility in your computer or workstation.

Test the LAN Path to Your Router

You can ping the router from your computer to verify that the LAN path to your router is set up correctly.

To ping the router from a Windows computer:

1. From the Windows toolbar, click the Start button and select Run.
2. In the field provided, type ping followed by the IP address of the router, as in this example:

ping www)((256.109.109)

1. Click the OK button.

You should see a message like this one:

Pinging with 32 bytes of data

If the path is working, you see this message:

Reply from < IP address >: bytes=32 time=NN ms TTL=xxx

If the path is not working, you see this message:

Request timed out

If the path is not functioning correctly, you might be experiencing one of the following problems:

• Wrong physical connections

For a wired connection, make sure that the numbered LAN port LED is lit for the port to which you are connected.

Check that the appropriate LEDs are on for your network devices. If your router and computer are connected to a separate Ethernet switch, make sure that the link LEDs are lit for the switch ports that are connected to your computer and router.

• Wrong network configuration

Verify that the Ethernet card driver software and TCP/IP software are both installed and configured on your computer.

Verify that the IP address for your router and your computer are correct and that the addresses are on the same subnet.

Orbi WiFi System

Test the Path From Your Computer to a Remote Device

After verifying that the LAN path works correctly, test the path from your computer to a remote device.

To test the path from your computer to a remote device:

1. From the Windows toolbar, click the Start button and select Run.
2. In the Windows Run window, type:

ping -n 10

where <IP address> is the IP address of a remote device such as your ISP DNS server.

If the path is functioning correctly, messages display that are similar to those shown in Test the LAN Path to Your Router on page 146.

If you do not receive replies, check the following:

• Check to see that the IP address of your router is listed as the default gateway for your computer. If DHCP assigns the IP configuration of your computers, this information is not visible in your computer Network Control Panel. Verify that the IP address of the router is listed as the default gateway.
• Check to see that the network address of your computer (the portion of the IP address specified by the subnet mask) is different from the network address of the remote device.
• Check to see that your cable or DSL modem is connected and functioning.
• If your ISP assigned a host name to your computer, enter that host name as the account name on the Internet Setup page.
• Your ISP might be rejecting the Ethernet MAC addresses of all but one of your computers.

Many broadband ISPs restrict access by allowing traffic only from the MAC address of your broadband modem. Some ISPs additionally restrict access to the MAC address of a single computer connected to that modem. If your ISP does this, configure your router to "clone" or "spoof" the MAC address from the authorized computer.

11

Supplemental Information

This appendix covers the following topics:

Factory Settings for Orbi Routers on page 149
Factory Settings for Orbi Satellites on page 155
Technical Specifications for Orbi Routers on page 163
Technical Specifications for Orbi Satellites on page 167

Factory Settings for Orbi Routers

You can return the router to its factory settings. Use the end of a paper clip or a similar object to press and hold the Reset button on the back of the router for at least seven seconds. The router resets, and returns to the factory settings.

Factory Settings for Orbi Router Model RBR50

The following table shows the factory default settings for the router.

Table 4. Factory default settings for the router

Feature		Default Setting
Router login	User login URL	orbilogin.com
	User name (case-sensitive)	admin
	Login password (case-sensitive)	password
Internet connection	WAN MAC address	Use default hardware address
	WAN MTU size	1500
	Port speed	AutoSensing
Feature		Default Setting
Local network (LAN)	LAN IP	192.168.1.1
	Subnet mask	255.255.255.0
	DHCP server	Enabled
	DHCP range	192.168.1.2 to 192.168.1.254
	DHCP starting IP address	192.168.1.2
	DHCP ending IP address	192.168.1.254
	DMZ	Disabled
	Time zone	GMT for WW except NA and GR, GMT+1 for GR, GMT-8 for NA
	Time zone adjusted for daylight saving time	Disabled
	SNMP	Disabled
Firewall	Inbound (communications coming in from the Internet)	Disabled (except traffic on port 80, the HTTP port)
	Outbound (communications going out to the Internet)	Enabled (all)
	Source MAC filtering	Disabled
Feature		Default Setting
WiFi	WiFi communication	Enabled
	SSID name	See router label
	Security	WPA2-PSK (AES)
	Broadcast SSID	Enabled
	Transmission speed	\( Auto^1 \)
	Country/region	United States in the US; otherwise, varies by region
	RF channel	2.4GHz front and backhaul: Auto5 GHz front haul:Channel 48 for NA,PR,AU, CA, and TWChannel 36 for EU, KO,JP, and IN5 GHz back haul:Channel 157 for NA, PR, AU, CA, and TWChannel 108 for EU, KO,JP, and IN

1 Maximum wireless signal rate derived from IEEE Standard 802.11 specifications. Actual throughput can vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate.

Factory Settings for Orbi Router Model RBR40

The following table shows the factory default settings for the router.

Table 5. Factory default settings for the router

Feature		Default Setting
Router login	User login URL	orbilogin.com
	User name (case-sensitive)	admin
	Login password (case-sensitive)	password
Feature		Default Setting
Internet connection	WAN MAC address	Use default hardware address
	WAN MTU size	1500
	Port speed	AutoSensing
Local network (LAN)	LAN IP	192.168.1.1
	Subnet mask	255.255.255.0
	DHCP server	Enabled
	DHCP range	192.168.1.2 to 192.168.1.254
	DHCP starting IP address	192.168.1.2
	DHCP ending IP address	192.168.1.254
	DMZ	Disabled
	Time zone	GMT for WW except NA and GR, GMT+1 for GR, GMT-8 for NA
	Time zone adjusted for daylight saving time	Disabled
	SNMP	Disabled
Firewall	Inbound (communications coming in from the Internet)	Disabled (except traffic on port 80, the HTTP port)
	Outbound (communications going out to the Internet)	Enabled (all)
	Source MAC filtering	Disabled
Feature		Default Setting
WiFi	WiFi communication	Enabled
	SSID name	See router label
	Security	WPA2-PSK (AES)
	Broadcast SSID	Enabled
	Transmission speed	\( Auto^2 \)
	Country/region	United States in the US; otherwise, varies by region
	RF channel	2.4 GHz front and back haul: Auto5 GHz front haul:Channel 48 for NA, PR, AU, CA, and TWChannel 36 for EU, KO, JP, and IN5 GHz back haul: Channel 157 for NA, PR, AU, CA, and TWChannel 108 for EU, KO, JP, and IN

2Maximum wireless signal rate derived from IEEE Standard 802.11 specifications. Actual throughput can vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate.

Factory Settings for Orbi Router Model RBR20

The following table shows the factory default settings for the router.

Table 6. Factory default settings for the router

Feature		Default Setting
Router login	User login URL	orbilogin.com
	User name (case-sensitive)	admin
	Login password (case-sensitive)	password
Feature		Default Setting
Internet connection	WAN MAC address	Use default hardware address
	WAN MTU size	1500
	Port speed	AutoSensing
Local network (LAN)	LAN IP	192.168.1.1
	Subnet mask	255.255.255.0
	DHCP server	Enabled
	DHCP range	192.168.1.2 to 192.168.1.254
	DHCP starting IP address	192.168.1.2
	DHCP ending IP address	192.168.1.254
	DMZ	Disabled
	Time zone	GMT for WW except NA and GR, GMT+1 for GR, GMT-8 for NA
	Time zone adjusted for daylight saving time	Disabled
	SNMP	Disabled
Firewall	Inbound (communications coming in from the Internet)	Disabled (except traffic on port 80, the HTTP port)
	Outbound (communications going out to the Internet)	Enabled (all)
	Source MAC filtering	Disabled
Feature		Default Setting
WiFi	WiFi communication	Enabled
	SSID name	See router label
	Security	WPA2-PSK (AES)
	Broadcast SSID	Enabled
	Transmission speed	\(Auto^3\)
	Country/region	United States in the US; otherwise, varies by region
	RF channel	2.4 GHz front and backhaul: Auto5 GHz front haul:Channel 48 for NA, PR, AU, CA, and TWChannel 36 for EU, KO, JP, and IN5 GHz back haul: Channel 157 for NA, PR, AU, CA, and TWChannel 108 for EU, KO, JP, and IN

3 Maximum wireless signal rate derived from IEEE Standard 802.11 specifications. Actual throughput can vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate.

Factory Settings for Orbi Satellites

You can return the satellite to its factory settings. Use the end of a paper clip or a similar object to press and hold the Reset button on the back of the satellite for at least seven seconds. The satellite resets, and returns to the factory settings.

Factory Settings for Orbi Satellite Model RBS50

The following table shows the factory default settings for the satellite.

Table 7. Factory default settings for the satellite

Feature		Default Setting
Router login	User login URL	orbilogin.com
	User name (case-sensitive)	admin
	Login password (case-sensitive)	password
Internet connection	WAN MAC address	Use default hardware address
	WAN MTU size	1500
	Port speed	AutoSensing
Local network (LAN)	LAN IP	192.168.1.250
	Subnet mask	255.255.255.0
	DHCP server	Enabled
	DHCP range	192.168.1.2 to 192.168.1.254
	DHCP starting IP address	192.168.1.2
	DHCP ending IP address	192.168.1.254
	DMZ	Disabled
	Time zone	GMT for WW except NA and GR, GMT+1 for GR, GMT-8 for NA
	Time zone adjusted for daylight saving time	Disabled
	SNMP	Disabled
Firewall	Inbound (communications coming in from the Internet)	Disabled (except traffic on port 80, the HTTP port)
	Outbound (communications going out to the Internet)	Enabled (all)
	Source MAC filtering	Disabled
Feature		Default Setting
WiFi	WiFi communication	Enabled
	SSID name	See satellite label
	Security	WPA2-PSK (AES)
	Broadcast SSID	Enabled
	Transmission speed	\( Auto^4 \)
	Country/region	United States in the US; otherwise, varies by region
	RF channel	2.4 GHz front and back haul: Auto5 GHz front haul:Channel 48 for NA, PR, AU, CA, and TWChannel 36 for EU, KO, JP, and IN5 GHz back haul: Channel 157 for NA, PR, AU, CA, and TWChannel 108 for EU, KO, JP, and IN

4 Maximum wireless signal rate derived from IEEE Standard 802.11 specifications. Actual throughput can vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate.

Factory Settings for Orbi Satellite Model RBS40

The following table shows the factory default settings for the satellite.

Table 8. Factory default settings for the satellite

Feature		Default Setting
Router login	User login URL	orbilogin.com
	User name (case-sensitive)	admin
	Login password (case-sensitive)	password
Feature		Default Setting
Internet connection	WAN MAC address	Use default hardware address
	WAN MTU size	1500
	Port speed	AutoSensing
Local network (LAN)	LAN IP	192.168.1.250
	Subnet mask	255.255.255.0
	DHCP server	Enabled
	DHCP range	192.168.1.2 to 192.168.1.254
	DHCP starting IP address	192.168.1.2
	DHCP ending IP address	192.168.1.254
	DMZ	Disabled
	Time zone	GMT for WW except NA and GR, GMT+1 for GR, GMT-8 for NA
	Time zone adjusted for daylight saving time	Disabled
	SNMP	Disabled
Firewall	Inbound (communications coming in from the Internet)	Disabled (except traffic on port 80, the HTTP port)
	Outbound (communications going out to the Internet)	Enabled (all)
	Source MAC filtering	Disabled
Feature		Default Setting
WiFi	WiFi communication	Enabled
	SSID name	See satellite label
	Security	WPA2-PSK (AES)
	Broadcast SSID	Enabled
	Transmission speed	\( Auto^5 \)
	Country/region	United States in the US; otherwise, varies by region
	RF channel	2.4 GHz front and back haul: Auto 5 GHz front haul: Channel 48 for NA, PR, AU, CA, and TW Channel 36 for EU, KO, JP, and IN 5 GHz back haul: Channel 157 for NA, PR, AU, CA, and TW Channel 108 for EU, KO, JP, and IN

Maximum wireless signal rate derived from IEEE Standard 802.11 specifications. Actual throughput can vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate.

Factory Settings for Orbi Satellite Model RBS20

The following table shows the factory default settings for the satellite.

Table 9. Factory default settings for the satellite

Feature		Default Setting
Router login	User login URL	orbilogin.com
	User name (case-sensitive)	admin
	Login password (case-sensitive)	password
Feature		Default Setting
Internet connection	WAN MAC address	Use default hardware address
	WAN MTU size	1500
	Port speed	AutoSensing
Local network (LAN)	LAN IP	192.168.1.250
	Subnet mask	255.255.255.0
	DHCP server	Enabled
	DHCP range	192.168.1.2 to 192.168.1.254
	DHCP starting IP address	192.168.1.2
	DHCP ending IP address	192.168.1.254
	DMZ	Disabled
	Time zone	GMT for WW except NA and GR, GMT+1 for GR, GMT-8 for NA
	Time zone adjusted for daylight saving time	Disabled
	SNMP	Disabled
Firewall	Inbound (communications coming in from the Internet)	Disabled (except traffic on port 80, the HTTP port)
	Outbound (communications going out to the Internet)	Enabled (all)
	Source MAC filtering	Disabled
Feature		Default Setting
WiFi	WiFi communication	Enabled
	SSID name	See satellite label
	Security	WPA2-PSK (AES)
	Broadcast SSID	Enabled
	Transmission speed	\( Auto^6 \)
	Country/region	United States in the US; otherwise, varies by region
	RF channel	2.4 GHz front and back haul: Auto5 GHz front haul:Channel 48 for NA, PR, AU, CA, and TWChannel 36 for EU, KO, JP, and IN5 GHz back haul: Channel 157 for NA, PR, AU, CA, and TWChannel 108 for EU, KO, JP, and IN

6 Maximum wireless signal rate derived from IEEE Standard 802.11 specifications. Actual throughput can vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate.

Factory Settings for Orbi Wall Plug Satellite Model RBW30

The following table shows the factory default settings for the wall plug satellite.

Table 10. Factory default settings for the satellite

Feature		Default Setting
Router login	User login URL	orbilogin.com
	User name (case-sensitive)	admin
	Login password (case-sensitive)	password
Local network (LAN)	LAN IP	192.168.1.250
	Subnet mask	255.255.255.0
	DHCP server	Disabled
	DHCP range	192.168.1.2 to 192.168.1.254
	DHCP starting IP address	192.168.1.2
	DHCP ending IP address	192.168.1.254
	DMZ	Disabled
	Time zone	GMT for WW except NA and GR, GMT+1 for GR, GMT-8 for NA
	Time zone adjusted for daylight saving time	Disabled
	SNMP	Disabled
WiFi	WiFi communication	Disabled
	SSID name	See satellite label
	Security	WPA2-PSK (AES)
	Broadcast SSID	Enabled
	Transmission speed	\( Auto^7 \)
	Country/region	United States in the US; otherwise, varies by region
	RF channel	2.4 GHz front and back haul: Auto5 GHz front haul:Channel 48 for NA, PR, AU, CA, and TWChannel 36 for EU5 GHz back haul: Channel 157 for NA, PR, AU, CA, and TWChannel 108 for EU

7Maximum wireless signal rate derived from IEEE Standard 802.11 specifications. Actual throughput can vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate.

Technical Specifications for Orbi Routers

The following are the technical specifications for Orbi routers.

Technical Specifications for Orbi Router Model RBR50

The following table shows the technical specifications for the router.

Table 11. RBR50 specifications

Feature	Description
Data and routing protocols	TCP/IP, RIP-1, RIP-2, DHCP, PPPoE, PPTP, Bigpond, Dynamic DNS, UPnP, and SMB
Power adapter	North America: 120V, 60 Hz, inputUK, Australia: 240V, 50 Hz, inputEurope: 230V, 50 Hz, inputAll regions (output): 12V, 3.5A DC output
Dimensions	6.7 x 3.1 x 8.89 in. (170.3 x 78.9 x 225.8 mm) each
Weight	1.96 lb (890.5 g)
Operating temperature	0° to 40°C (32° to 104°F)
Operating humidity	90% maximum relative humidity, noncondensing
Electromagnetic emissions	FCC Part 15 Class BVCCI Class BEN 55 022 (CISPR 22), Class B C-Tick N10947
LAN	10BASE-T or 100BASE-TX or 1000BASE-T, RJ-45
WAN	10BASE-T or 100BASE-TX or 1000BASE-T, RJ-45
WiFi	Maximum wireless signal rate complies with the IEEE 802.11 standard.8
Radio data rates	2.4 GHz: Max. 400 Mbps5 GHz Front haul: Max. 866 Mbps5 GHz Back haul: Max. 1733 Mbps
Data encoding standards	IEEE 802.11b/g/n 2.4 GHz-256 QAM supportIEEE 802.11a/n/ac 5GHz-256 QAM support
Maximum number of computers per wireless network	Limited by the amount of WiFi network traffic generated by each node (typically 50-70 nodes)2.4 GHz: 1275 GHz (front haul): 127
Operating frequency range	2.4 GHz: • 2.412-2.462 GHz (US) • 2.412-2.472 GHz (Japan) • 2.412-2.472 GHz (Europe ETSI)
	5 GHz: • 5.18 GHz-5.24 GHz and 5.745 GHz-5.825 GHz (US) • 5.18 GHz-5.24 GHz and 5.5 GHz-5.7 GHz (Europe, Japan) • 5.26 GHz-5.32 GHz (Europe, Japan, to be supported in later firmware.)
802.11 security	WPA-PSK [TKIP], WPA2-PSK [AES]

Maximum wireless signal rate derived from IEEE Standard 802.11 specifications. Actual throughput can vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate.

Technical Specifications for Orbi Router Model RBR40

The following table shows the technical specifications for the router.

Table 12. RBR40 specifications

Feature	Description
Data and routing protocols	TCP/IP, RIP-1, RIP-2, DHCP, PPPoE, PPTP, Bigpond, Dynamic DNS, UPnP, and SMB
Power adapter	• North America: 120V, 60 Hz, input • UK, Australia: 240V, 50 Hz, input • Europe: 230V, 50 Hz, input • All regions (output): 12V, 2.5A DC output
Dimensions	6.4 x 3.1 x 8.0 in. (163 x 78 x 203 mm)
Weight	1.65 lb (748 g)
Operating temperature	0° to 40°C (32° to 104°F)
Operating humidity	90% maximum relative humidity, noncondensing
Electromagnetic emissions	FCC Part 15 Class B VCCI Class B EN 55 022 (CISPR 22), Class B C-Tick N10947
LAN	10BASE-T or 100BASE-TX or 1000BASE-T, RJ-45
WAN	10BASE-T or 100BASE-TX or 1000BASE-T, RJ-45
WiFi	Maximum wireless signal rate complies with the IEEE 802.11 standard.9
Radio data rates	2.4 GHz: Max 400 Mbps 5 GHz Front haul: Max 866 Mbps 5 GHz Back haul: Max 866 Mbps
Data encoding standards	IEEE 802.11b/g/n 2.4 GHz-256 QAM support IEEE 802.11 a/n/ac 5 GHz-256 QAM support
Maximum number of computers per wireless network	Limited by the amount of WiFi network traffic generated by each node (typically 50-70 nodes) 2.4 GHz: 127 5 GHz (front haul): 127
Operating frequency range	2.4 GHz: • 2.412-2.462 GHz (US) • 2.412-2.472 GHz (Japan) • 2.412-2.472 GHz (Europe ETSI) 5 GHz: • 5.18 GHz-5.24 GHz and 5.745 GHz-5.825 GHz (US) • 5.18 GHz-5.24 GHz and 5.5 GHz-5.7 GHz (Europe, Japan) • 5.26 GHz-5.32 GHz (Europe, Japan, to be supported in later firmware.)
802.11 security	WPA-PSK [TKIP], WPA2-PSK [AES]

9Maximum wireless signal rate derived from IEEE Standard 802.11 specifications. Actual throughput can vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate.

Technical Specifications for Orbi Router Model RBR20

The following table shows the technical specifications for the router.

Table 13. Technical specifications for the router.

Feature	Description
Data and routing protocols	TCP/IP, RIP-1, RIP-2, DHCP, PPPoE, PPTP, Bigpond, Dynamic DNS, UPnP, and SMB
Power adapter	North America: 120V, 60 Hz, inputUK, Australia: 240V, 50 Hz, inputEurope: 230V, 50 Hz, inputAll regions (output): 12V, 1.5A DC output
Dimensions	6.4 x 3.1 x 8.0 in. (163 x 78 x 203 mm)
Weight	1.65 lb (748 g)
Operating temperature	0° to 40°C (32° to 104°F)
Operating humidity	90% maximum relative humidity, noncondensing
Electromagnetic emissions	FCC Part 15 Class BVCCI Class BEN 55 022 (CISPR 22), Class B C-Tick N10947
LAN	10BASE-T or 100BASE-TX or 1000BASE-T, RJ-45
WAN	10BASE-T or 100BASE-TX or 1000BASE-T, RJ-45
WiFi	Maximum wireless signal rate complies with the IEEE 802.11 standard.10
Radio data rates	2.4 GHz: Max 400 Mbps5 GHz Front haul: Max 866 Mbps5 GHz Back haul: Max 866 Mbps
Data encoding standards	IEEE 802.11b/g/n 2.4 GHz-256 QAM supportIEEE 802.11 a/n/ac 5 GHz-256 QAM support
Maximum number of computers per wireless network	Limited by the amount of WiFi network traffic generated by each node (typically 50-70 nodes)2.4 GHz: 1275 GHz (front haul): 127
Operating frequency range	2.4 GHz: • 2.412-2.462 GHz (US) • 2.412-2.472 GHz (Japan) • 2.412-2.472 GHz (Europe ETSI)
	5 GHz: • 5.18 GHz-5.24 GHz and 5.745 GHz-5.825 GHz (US) • 5.18 GHz-5.24 GHz and 5.5 GHz-5.7 GHz (Europe, Japan) • 5.26 GHz-5.32 GHz (Europe, Japan, to be supported in later firmware.)
802.11 security	WPA-PSK [TKIP], WPA2-PSK [AES]

10 Maximum wireless signal rate derived from IEEE Standard 802.11 specifications. Actual throughput can vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate.

Technical Specifications for Orbi Satellites

The following are technical specifications for the Orbi satellites.

Technical Specifications for Orbi Satellite Model RBS50

The following table shows the technical specifications for the satellite.

Table 14. RBS50 specifications

Feature	Description
Data and routing protocols	TCP/IP, RIP-1, RIP-2, DHCP, PPPoE, PPTP, Bigpond, Dynamic DNS, UPnP, and SMB
Power adapter	• North America: 120V, 60 Hz, input • UK, Australia: 240V, 50 Hz, input • Europe: 230V, 50 Hz, input • All regions (output): 12V, 3.5A DC output
Dimensions	6.7 x 3.1 x 8.89 in. (170.3 x 78.9 x 225.8 mm)
Weight	1.96 lb (890.5 g) each
Operating temperature	0° to 40°C (32° to 104°F)
Operating humidity	90% maximum relative humidity, noncondensing
Electromagnetic emissions	FCC Part 15 Class B VCCI Class B EN 55 022 (CISPR 22), Class B C-Tick N10947
LAN	10BASE-T or 100BASE-TX or 1000BASE-T, RJ-45
WAN	10BASE-T or 100BASE-TX or 1000BASE-T, RJ-45
WiFi	Maximum wireless signal rate complies with the IEEE 802.11 standard.11
Radio data rates	2.4 GHz: Max 400 Mbps 5 GHz Front haul: Max 866 Mbps 5 GHz Back haul: Max 1733 Mbps
Data encoding standards	IEEE 802.11b/g/n 2.4 GHz-256 QAM support IEEE 802.11 a/n/ac 5 GHz-256 QAM
Maximum number of computers per wireless network	Limited by the amount of WiFi network traffic generated by each node (typically 50-70 nodes). 2.4 GHz: 127 5 GHz (front haul): 127
Operating frequency range	2.4 GHz: • 2.412-2.462 GHz (US) • 2.412-2.472 GHz (Japan) • 2.412-2.472 GHz (Europe ETSI) 5 GHz: • 5.18 GHz-5.24 GHz and 5.745 GHz-5.825 GHz (US) • 5.18 GHz-5.24 GHz and 5.5 GHz-5.7 GHz (Europe, Japan) • 5.26 GHz-5.32 GHz (Europe, Japan, to be supported in later firmware.)
802.11 security	WPA-PSK [TKIP], WPA2-PSK [AES]

11Maximum wireless signal rate derived from IEEE Standard 802.11 specifications. Actual throughput can vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate.

Technical Specifications for Orbi Router Model RBS40

The following table shows the technical specifications for the satellite.

Table 15. RBS40 specifications

Feature	Description
Data and routing protocols	TCP/IP, RIP-1, RIP-2, DHCP, PPPoE, PPTP, Bigpond, Dynamic DNS, UPnP, and SMB
Power adapter	North America: 120V, 60 Hz, inputUK, Australia: 240V, 50 Hz, inputEurope: 230V, 50 Hz, inputAll regions (output): 12V, 2.5A DC output
Dimensions	6.4 x 3.1 x 8.0 in. (163 x 78 x 203 mm)
Weight	1.65 lb (748 g)
Operating temperature	0° to 40°C (32° to 104°F)
Operating humidity	90% maximum relative humidity, noncondensing
Electromagnetic emissions	FCC Part 15 Class BVCCI Class BEN 55 022 (CISPR 22), Class B C-Tick N10947
LAN	10BASE-T or 100BASE-TX or 1000BASE-T, RJ-45
WAN	10BASE-T or 100BASE-TX or 1000BASE-T, RJ-45
WiFi	Maximum wireless signal rate complies with the IEEE 802.11 standard.12
Radio data rates	2.4 GHz: Max 400 Mbps5 GHz Front haul: Max 866 Mbps5 GHz Back haul: Max 866 Mbps
Data encoding standards	IEEE 802.11b/g/n 2.4 GHz-256 QAM supportIEEE 802.11 a/n/ac 5 GHz-256 QAM support
Maximum number of computers per wireless network	Limited by the amount of WiFi network traffic generated by each node (typically 50-70 nodes).2.4 GHz: 1275 GHz (front haul): 127
Operating frequency range	2.4 GHz: • 2.412-2.462 GHz (US) • 2.412-2.472 GHz (Europe ETSI)
	5 GHz: • 5.18 GHz-5.24 GHz and 5.745 GHz-5.825 GHz (US) • 5.18 GHz-5.24 GHz and 5.5 GHz-5.7 GHz (Europe) • 5.26 GHz-5.32 GHz (Europe)
802.11 security	WPA-PSK [TKIP], WPA2-PSK [AES]

12Maximum wireless signal rate derived from IEEE Standard 802.11 specifications. Actual throughput can vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate.

Technical Specifications for Orbi Router Model RBS20

The following table shows the technical specifications for the satellite.

Table 16. Technical specifications for the satellite

Feature	Description
Data and routing protocols	TCP/IP, DHCP, Dynamic DNS, and UPnP
Power adapter	• North America: 120V, 60 Hz, input • UK, Australia: 240V, 50 Hz, input • Europe: 230V, 50 Hz, input • All regions (output): 12V, 1.5A DC output
Dimensions	6.4 x 3.1 x 8.0 in. (163 x 78 x 203 mm)
Weight	1.65 lb (748 g)
Operating temperature	0° to 40°C (32° to 104°F)
Operating humidity	90% maximum relative humidity, noncondensing
Electromagnetic emissions	FCC Part 15 Class B VCCI Class B EN 55 022 (CISPR 22), Class B C-Tick N10947
LAN	10BASE-T or 100BASE-TX or 1000BASE-T, RJ-45
WAN	10BASE-T or 100BASE-TX or 1000BASE-T, RJ-45
WiFi	Maximum wireless signal rate complies with the IEEE 802.11 standard.13
Radio data rates	2.4 GHz: Max 400 Mbps5 GHz Front haul: Max 866 Mbps5 GHz Back haul: Max 866 Mbps
Data encoding standards	IEEE 802.11b/g/n 2.4 GHz-256 QAM supportIEEE 802.11 a/n/ac 5 GHz-256 QAM support
Maximum number of computers per wireless network	Limited by the amount of WiFi network traffic generated by each node (typically 50-70 nodes).2.4 GHz: 1275 GHz (front haul): 127
Operating frequency range	2.4 GHz:2.412-2.462 GHz (US)2.412-2.472 GHz (Europe ETSI)5 GHz:5.18 GHz-5.24 GHz and 5.745 GHz-5.825 GHz (US)5.18 GHz-5.24 GHz and 5.5 GHz-5.7 GHz (Europe)5.26 GHz-5.32 GHz (Europe)
802.11 security	WPA-PSK [TKIP], WPA2-PSK [AES]

13 Maximum wireless signal rate derived from IEEE Standard 802.11 specifications. Actual throughput can vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate.

Technical Specifications for Orbi Wall Plug Satellite Model RBW30

The following table shows the technical specifications for the satellite.

Table 17. RBW30 specifications

Feature	Description
Data and routing protocols	TCP/IP, DHCP server, and client
Power consumption	100-240V, 50/60 Hz, 0.2A maximum
Dimensions	6.4 x 3.1 x 8 in. (83.8 x 76.2 x 161 mm)
Weight	0.67 lb (306 g)
Operating temperature	0° to 40°C (32° to 104°F)
Operating humidity	90% maximum relative humidity, noncondensing
Electromagnetic emissions	FCC Part 15 Class B EN55032 (CISPR 32), Class B C-Tick N10947
WiFi	Maximum wireless signal rate complies with the IEEE 802.11 standard.14
Radio data rates	2.4 GHz: Max 400 Mbps 5 GHz Front haul: Max 866 Mbps 5 GHz Back haul: Max 866 Mbps
Data encoding standards	IEEE 802.11b/g/n 2.4 GHz-256 QAM support IEEE 802.11a/n/ac 5GHz-256 QAM support
Maximum number of computers per wireless network	Limited by the amount of WiFi network traffic generated by each node (typically 50-70 nodes) 2.4 GHz: 127 5 GHz (front haul): 127
Operating frequency range	2.4 GHz: • 2.412-2.462 GHz (US) • 2.412-2.472 GHz (Europe ETSI) 5 GHz: • 5.18 GHz-5.24 GHz and 5.745 GHz-5.825 GHz (US) • 5.18 GHz-5.24 GHz and 5.5 GHz-5.7 GHz (Europe) • 5.26 GHz-5.32 GHz (Europe)
802.11 security	WPA-PSK [TKIP], WPA2-PSK [AES]

14 Maximum wireless signal rate derived from IEEE Standard 802.11 specifications. Actual throughput can vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate.
