HANWELL - TV MARSHALL - Free user manual and instructions

Product type	Active stereo speaker
Dimensions	350 x 185 x 185 mm
Weight	5.10 kg
Power supply	100-240 V~, 50-60 Hz, 200 W
Wireless connectivity	Bluetooth 4.0 + EDR with aptX codec
Audio inputs	1x 3.5 mm stereo, 1x RCA (left/right), 1x optical digital
Output power	80 W RMS
Amplifier	Digital class D: 2 x 20 W + 1 x 40 W
Speakers	2 x 3/4" dome tweeters, 1 x 5.14" woofer
Frequency response	45 - 22 000 Hz ± 3 dB
Crossover frequency	2 500 Hz
Standby modes	Energy saving (0.43 W) and standard (8.7 W)
Box contents	Speaker, power cord, 3.5 mm stereo spiral cord, user manual and warranty information
Care and cleaning	Clean with a dry cloth only
Safety	Do not expose to water, do not open the chassis, use only approved accessories
Warranty	1 year limited
Origin	Designed in Stockholm, made in China

Frequently Asked Questions - HANWELL MARSHALL

How do I connect my phone via Bluetooth to the Marshall Stanmore?

Turn on the speaker, select Bluetooth as source by holding the SOURCE/WAKE button until the Bluetooth LED lights up. Enable Bluetooth on your phone, then press the PAIR button. The LED blinks rapidly in red. On your phone, select 'Stanmore' from the list. The LED becomes solid: the connection is established.

How do I change the audio source?

Briefly press the SOURCE/WAKE button to cycle through sources in order: Bluetooth, optical, input 1 (3.5 mm), input 2 (RCA). The corresponding LED lights up to indicate the active source.

What to do if the sound is distorted?

Lower the volume on the speaker and/or source. Ensure the audio file is not of poor quality. Reduce bass or treble boost if set too high.

How do I use the optical input?

Connect an optical cable (not supplied) from the source (TV, Apple TV...) to the OPTICAL input at the back of the speaker. Select the optical source by pressing SOURCE/WAKE. Note: the optical input only works with a stereo PCM signal.

Why doesn't the speaker turn on?

Check that the power cord is properly connected to the jack at the back of the speaker and to a working wall outlet. The on/off switch located on top of the unit must be in the 'ON' position.

What is the difference between the energy-saving and standard standby modes?

In energy-saving mode, the speaker consumes 0.43 W and does not wake up automatically: you need to press the WAKE button to activate it. In standard mode (8.7 W), it wakes up automatically as soon as an audio signal is detected on the last used source.

How do I clean my Marshall speaker?

Use a dry, soft cloth. Do not use liquid or abrasive products. Do not clean the interior.

Can I plug a guitar into the Stanmore?

No, do not plug a guitar into the speaker. The Stanmore is designed to play music from audio sources such as phones, computers, or turntables.

What to do if the Bluetooth connection is unstable or drops?

Bring the speaker closer to your Bluetooth device (maximum range about 10 meters without obstacles). Avoid obstacles such as walls and doors. Keep other electronic devices that may cause interference away.

How do I adjust the bass and treble?

Turn the BASS and TREBLE knobs located on top of the speaker to adjust the desired level. Excessive adjustment may cause distortion.

USER MANUAL HANWELL MARSHALL

LE SON EST FAIBLE OU
IL N'Y A PAS DE SON
DU TOUT.

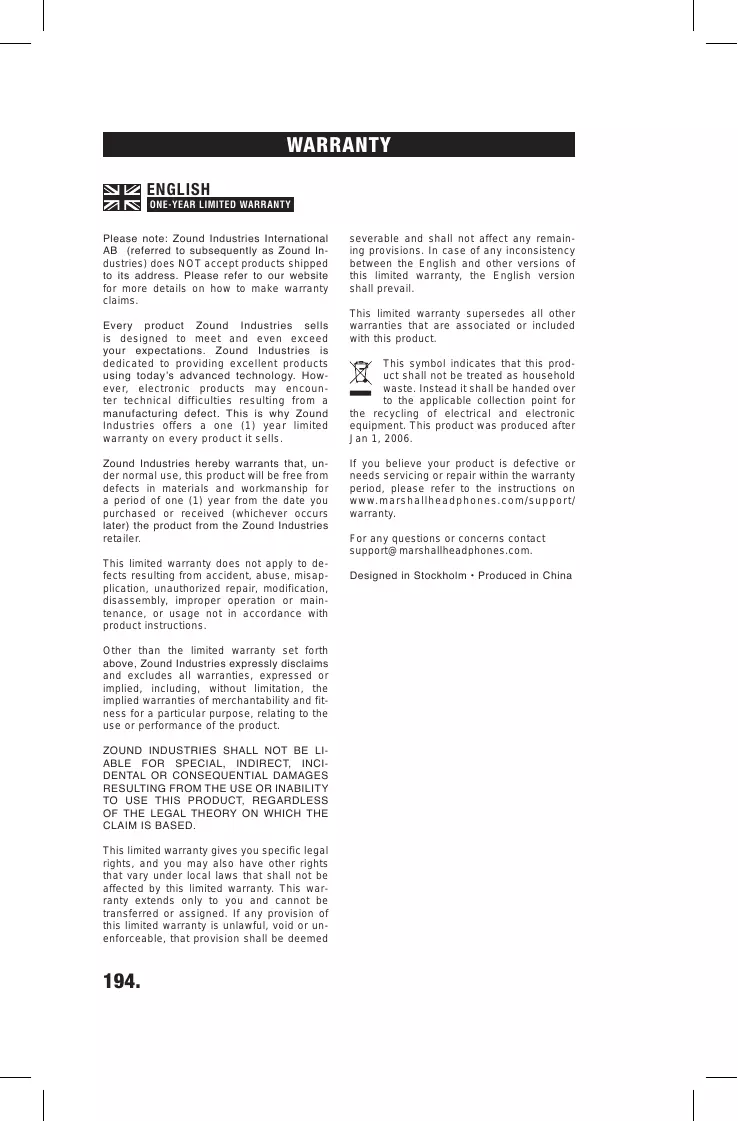

Please note: Zound Industries International AB (referred to subsequently as Zound Industries) does NOT accept products shipped to its address. Please refer to our website for more details on how to make warranty claims.

Every product Zound Industries sells is designed to meet and even exceed your expectations. Zound Industries is dedicated to providing excellent products using today's advanced technology. However, electronic products may encounter technical difficulties resulting from a manufacturing defect. This is why Zound Industries offers a one (1) year limited warranty on every product it sells.

Zound Industries hereby warrants that, under normal use, this product will be free from defects in materials and workmanship for a period of one (1) year from the date you purchased or received (whichever occurs later) the product from the Zound Industries retailer.

This limited warranty does not apply to defects resulting from accident, abuse, misapplication, unauthorized repair, modification, disassembly, improper operation or maintenance, or usage not in accordance with product instructions.

Other than the limited warranty set forth above, Zound Industries expressly disclaims and excludes all warranties, expressed or implied, including, without limitation, the implied warranties of merchantability and fitness for a particular purpose, relating to the use or performance of the product.

ZOUND INDUSTRIES SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED.

This limited warranty gives you specific legal rights, and you may also have other rights that vary under local laws that shall not be affected by this limited warranty. This warranty extends only to you and cannot be transferred or assigned. If any provision of this limited warranty is unlawful, void or unenforceable, that provision shall be deemed

severable and shall not affect any remaining provisions. In case of any inconsistency between the English and other versions of this limited warranty, the English version shall prevail.

This limited warranty supersedes all other warranties that are associated or included with this product.

This symbol indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for recycling of electrical and electronic material. This product was produced after 2006.

If you believe your product is defective or needs servicing or repair within the warranty period, please refer to the instructions on www.marshallheadphones.com/support/warranty.

For any questions or concerns contact [e-mail].

Designed in Stockholm · Produced in China

CESKY

JEDNOLETA OMEZENA ZARUKA

Please note: Zound Industries International AB (referred to subsequently as Zound Industries) does NOT accept products shipped to its address. Please refer to our website for more details on how to make warranty claims.

Every product Zound Industries sells is designed to meet and even exceed your expectations. Zound Industries is dedicated to providing excellent products using today's advanced technology. However, electronic products may encounter technical difficulties resulting from a manufacturing defect. This is why Zound Industries offers a one (1) year limited warranty on every product it sells.

Zound Industries hereby warrants that, under normal use, this product will be free from defects in materials and workmanship for a period of one (1) year from the date you purchased or received (whichever occurs later) the product from the Zound Industries retailer.

This limited warranty does not apply to defects resulting from accident, abuse, misapplication, unauthorized repair, modification, disassembly, improper operation or maintenance, or usage not in accordance with product instructions.

Other than the limited warranty set forth above, Zound Industries expressly disclaims and excludes all warranties, expressed or implied, including, without limitation, the implied warranties of merchantability and fitness for a particular purpose, relating to the use or performance of the product.

ZOUND INDUSTRIES SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED.

This limited warranty gives you specific legal rights, and you may also have other rights that vary under local laws that shall not be affected by this limited warranty. This warranty extends only to you and cannot be transferred or assigned. If any provision of this limited warranty is unlawful, void or unenforceable, that provision shall be deemed

severable and shall not affect any remaining provisions. In case of any inconsistency between the English and other versions of this limited warranty, the English version shall prevail.

This limited warranty supersedes all other warranties that are associated or included with this product.

This symbol indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for recycling of electrical and electronic. ment. This product was produced after 2006.

If you believe your product is defective or needs servicing or repair within the warranty period, please refer to the instructions on www.marshallheadphones.com/support/warranty.

For any questions or concerns contact [e-mail].

Designed in Stockholm · Produced in China

FRANCAIS

GARANTIE LIMITEE D'UN AN

www.marshallheadphones.com/support/warranty.

質問等の問題合わせ先

[e-mail]

Stück木ルムにデサイン·中国製

[e-mail]

Ontworpen in Stockholm · Geproduceserd in China

POLSKI ROZCA OGRANICZONA GWARANGJA (1 ROK)
