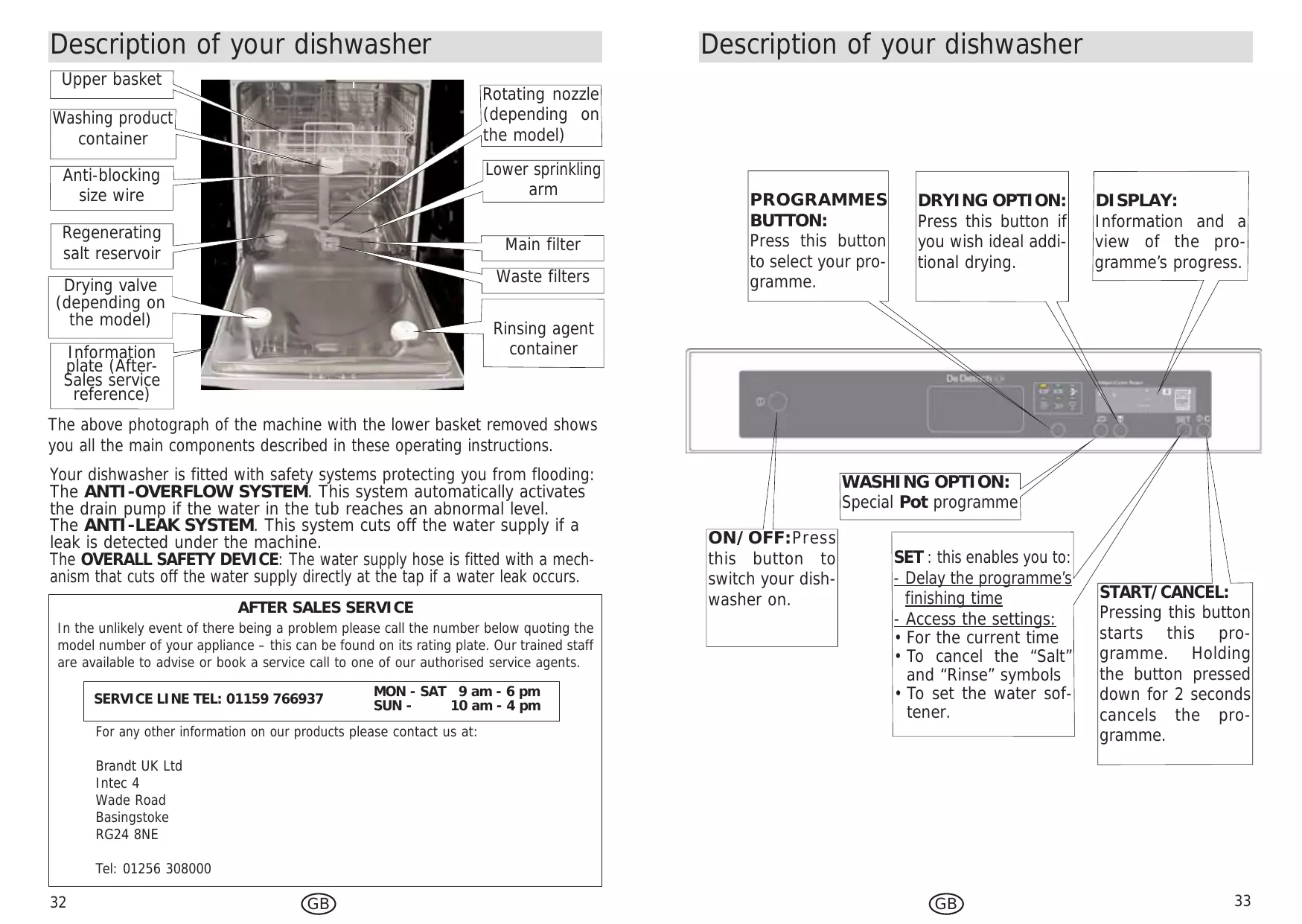

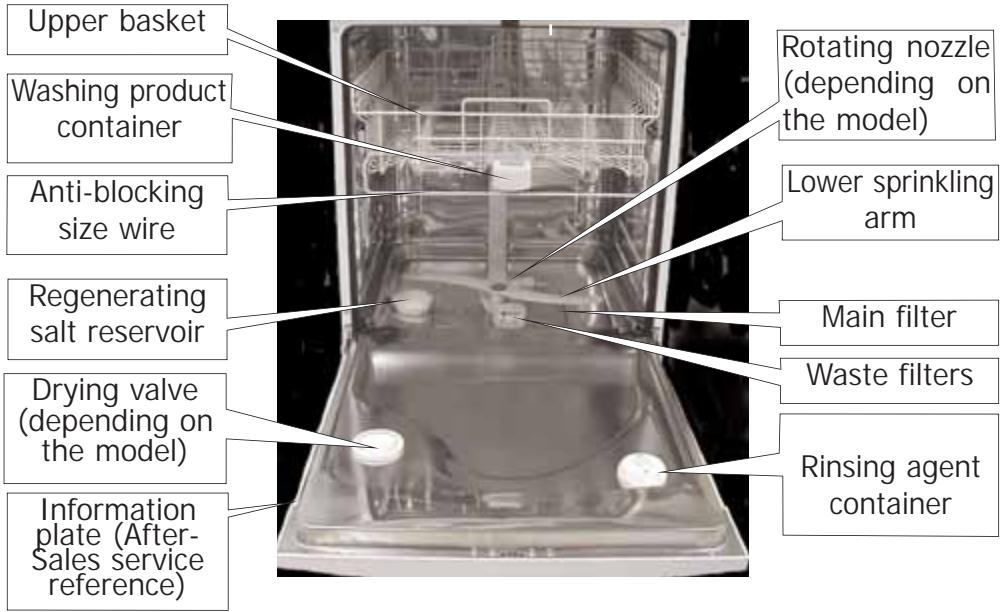

Description of your dishwasher Upper basket

Description of your dishwasher

Washing product container

Rotating nozzle (depending on the model)

Anti-blocking size wire

Lower sprinkling arm

Regenerating salt reservoir

Main filter Waste filters

Drying valve (depending on the model)

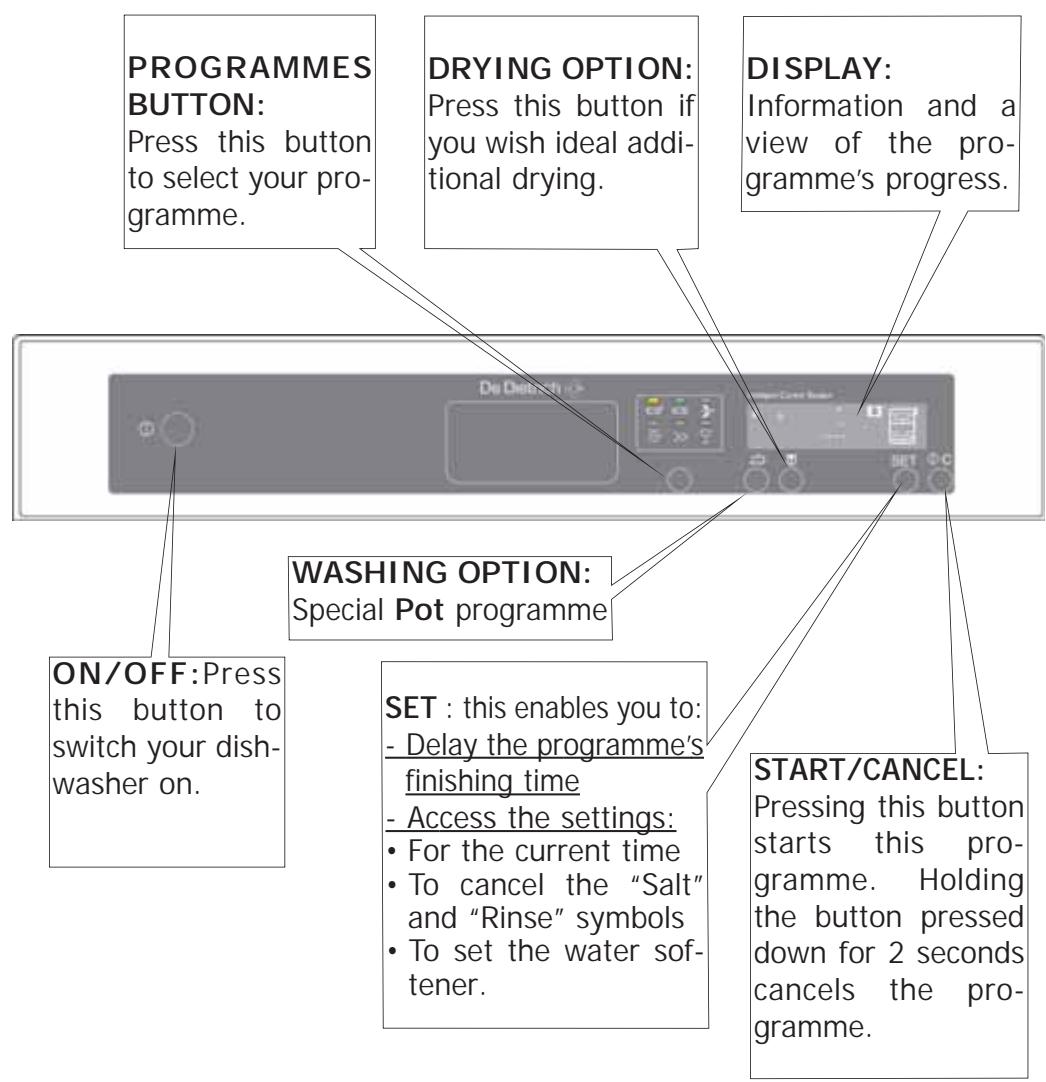

PROGRAMMES BUTTON: Press this button to select your programme.

DRYING OPTION: Press this button if you wish ideal additional drying.

DISPLAY: Information and a view of the programme’s progress.

Rinsing agent container

Information plate (AfterSales service reference)

The above photograph of the machine with the lower basket removed shows you all the main components described in these operating instructions. Your dishwasher is fitted with safety systems protecting you from flooding: The ANTI-OVERFLOW SYSTEM. This system automatically activates the drain pump if the water in the tub reaches an abnormal level. The ANTI-LEAK SYSTEM. This system cuts off the water supply if a leak is detected under the machine. The OVERALL SAFETY DEVICE: The water supply hose is fitted with a mechanism that cuts off the water supply directly at the tap if a water leak occurs. AFTER SALES SERVICE In the unlikely event of there being a problem please call the number below quoting the model number of your appliance – this can be found on its rating plate. Our trained staff are available to advise or book a service call to one of our authorised service agents. SERVICE LINE TEL: 01159 766937

MON - SAT 9 am - 6 pm SUN 10 am - 4 pm

WASHING OPTION: Special Pot programme ON/OFF:Press this button to switch your dishwasher on.

SET : this enables you to: - Delay the programme’s finishing time - Access the settings: • For the current time • To cancel the “Salt” and “Rinse” symbols • To set the water softener.

For any other information on our products please contact us at:

START/CANCEL: Pressing this button starts this programme. Holding the button pressed down for 2 seconds cancels the programme.

Présentation What to do before deusing votre thelave-vaisselle machine for the first time STEP 1:

Adjusting the water softener

For impeccable washing and drying results with no streaks. The water softener must be adjusted correctly to ensure no streaks after washing and drying. Your dishwasher is fitted with a water softening system that operates using regenerating salt. You must set the water softener according to the hardness of the water in your area.

➀ - Measuring the water hardness To do this: contact your local water supplier to find out the water hardness level and adjust on the machine as described below. ➁ - Settings on the control panel Water Salt Water softener Press the “SET” button hardness required setting to set the water softenNO 0 - 10°F Ca er: a long press to Ca 10 - 18°F YES access the “settings” Ca 18 - 25°F YES and 2 short presses for 25 - 40°F YES Ca the water softener. The YES Ca 40 - 55°F water softener’s setting Ca YES 55 - 70°F is then shown on the Dureté d’eau > 70 °F YES Ca display. • Press the Programmes button to change the setting • The setting is confirmed automatically after 10 seconds without having to press the Programmes button again. The display shows the water’s hardness in accordance with the above table. Ca on When the machine is first switched on, the setting is 10 - 25° ( the display). Testing strip

You must fill the salt reservoir with water before using the machine, even if the water softener setting selected does not require any regenerating salt. If you move house and take the dishwasher with you you will need to check the water hardness and adjust accordingly. For good wash results it is very important to set the dishwasher to the correct level of water hardness and to set the correct level of rinse aid (see page 36) 34

GB What to do before using the machine for the first time ③ Filling the regenerating salt reservoir You must fill this, with water just before starting your first wash then add the salt:

Filling with salt is essential to obtain a good wash with no streaks. The salt regenerates the resins, which soften the water by removing its limestone content unless the water is already sufficiently soft (see Never put detergent in this reservoir: “Adjusting the water softener”). this will ruin the water softener. - Unscrew the salt reservoir’s stopper and remove it. - Use the funnel to introduce the salt. - Fill the reservoir with regenerating salt specially designed for dishwashers. - On the first time, add water until it reaches the edge of the reservoir. - Screw the salt reservoir’s stop SEL back in fully. Do not use kitchen salt. Should any regenerating salt overflow when filling, we recommend that you remove the loose salt crystals to avoid oxidising the tub. See Page 46-48 : symbol been completely filled, for instance indicating the level of regener- when putting the machine into operation using the sample). ating salt: After you have refilled the salt If the water is especialreservoir, this symbol may still ly soft and does not require flash until the salt has dissolved the use of any regenerating salt, the sufficiently, generally after one SALT light remains lit. cycle (or if the reservoir has not GB

For brilliant and very dry results

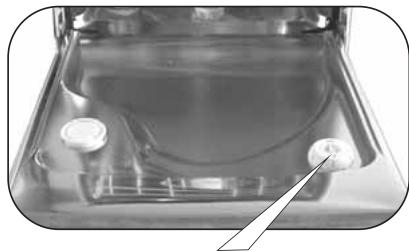

➀ Filling When putting the machine into operation, fill the container level with the top of the adjustment lever. Put in at least all the contents of the sample supplied.

Tablets Place the tablet in the compartment. underneath the top basket.

Contents: 120 ml (approx. one glass)

Powder or liquid Pull the container out to fill it with liquid detergent or powder. Fill it up to the Minimum mark for lightly soiled items. Fill it up to the Maximum mark for dirty items. Close the container.

Indicator: Opaque: some product remaining Brilliant: container empty Should any regenerating salt overflow when filling, mop up the excess to avoid foam forming.

➁ Adjustment (if necessary) The original setting is in the middle (Medium position: setting 2). After a few cycles, if there are streaks or the drying is poor, you can adjust the setting using the adjustment lever: - Setting 1 to reduce the dose, (soft water) - Setting 3 to increase the dose (hard water)

the washing products

For easy loading, the detergent container is located on the front of the upper basket. The detergent container is designed to take tablets powder or liquid recommended for dishwasher use.

Close the container tightly

What to do before using the machine for the first time

Keep all these products out of children’s reach and away from any damp environments.

symbol indicating the level of rinse aid.

GB Only use the washing products specially designed for dishwasher use.

- For good wash results it is recommended to use individual detergent, salt and rinse aid products. - However “2 in 1” tablets (detergent and rinse aid) can be used, if so, you may need to adjust the rinse aid dial according to the wash results (see page 35) - Good wash results depend on getting the salt + rinse aid levels set correctly according to use level of water hardness (see pages 34-37).

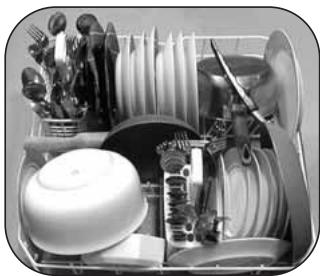

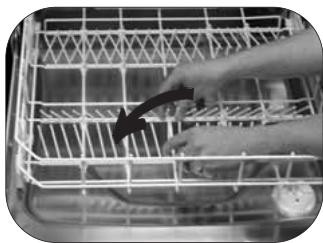

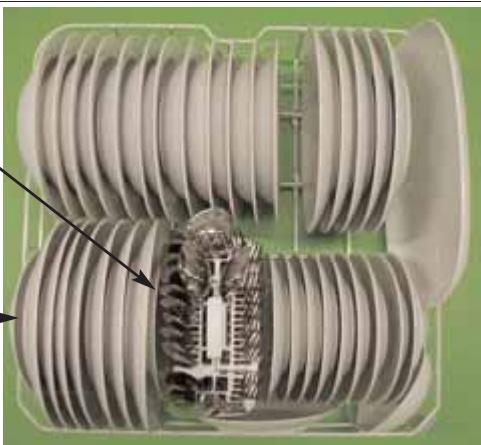

The lower basket Lay the items out so that the water can circulate freely and spray all the utensils. Place the plates and the wide pots and pans at the sides. Do not intersperse or superimpose plates and dishes or place them side-by-side.

The fold-down spikes help you to arrange your large items (depending on the model).

No items should interfere with the rotation of the washing arms (pot handles, cutlery, etc.)

Removable lids are available if you wish to organise the loading of your cutlery. For optimum washing and drying, use these separation lids fully or partially. - Place your cutlery with the handles at the bottom. - Avoid washing cutlery with horn handles in your machine. - Separate silverware from cutlery in other metals using the separation grills.

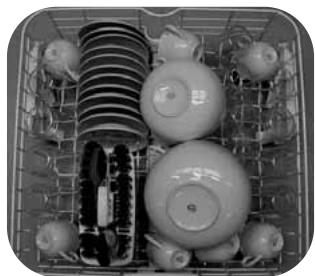

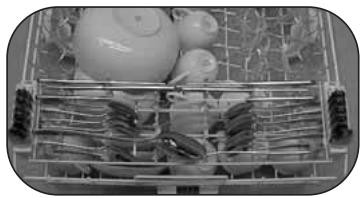

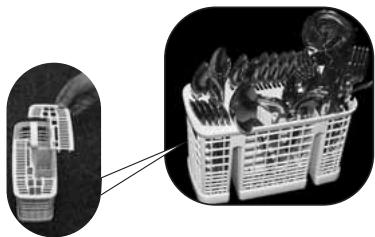

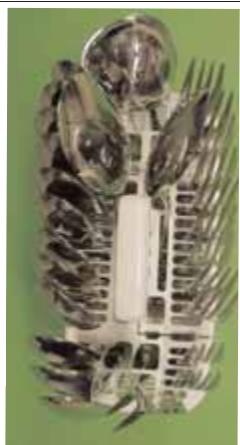

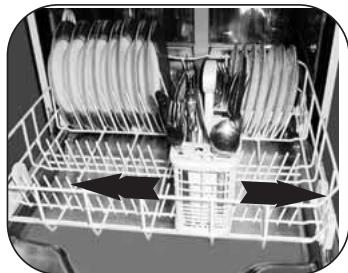

The sliding cutlery baskets These can be arranged in any position in the lower basket. You can therefore arrange different loads according to the items you wish to wash.

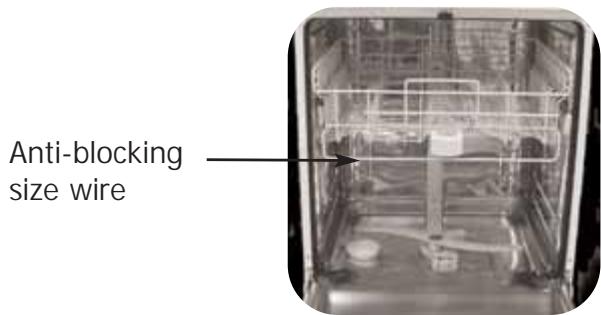

Anti-blocking size wire

You can place a cutlery basket in the upper basket.

Unloading the dishwasher First of all empty the lower basket to avoid any drops of water falling onto it from the upper basket. Items unsuitable for dishwasher use - Wooden cutting boards - Oxidisable steel or non heat-resistant plastic utensils, - Pewter or copper items, - Glued items, - Cutlery with wooden, horn or mother-of-pearl handles, - Antique or hand-painted porcelain. When purchasing crockery, glassware, cutlery, etc., ensure that they are suitable for use in a dishwasher. 38

Loading the dishwasher

GB If your cutlery or your plates are too large, adjust the height of the upper basket (it is height-adjustable).

Important note: For safety reasons, we recommend that you arrange any knives with pointed ends point downwards in the cutlery baskets (to avoid accidents). Any long-bladed knives and other sharp kitchen utensils should be placed flat in the upper basket. GB

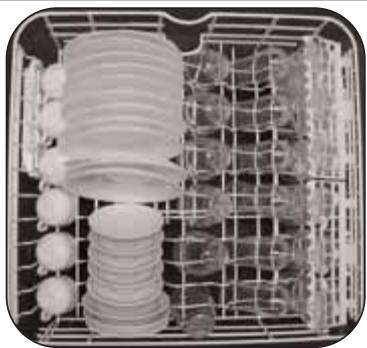

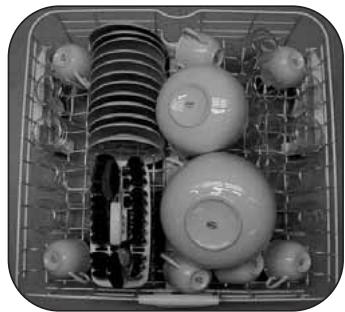

Présentation Loading the dishwasher de votre lave-vaisselle The upper basket This basket is designed in particular to take: glasses, cups, ramekins, small salad bowls, bowls, saucers, etc. Arrange the items methodically to save space (a row of glasses, cups, bowls, etc.).

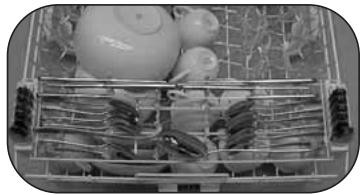

Place glasses, cups and bowls facing downwards. You can also place cups, ladles, etc. on the foldaway brackets as well as in a cutlery basket. Arrange stemmed glasses along the wire shelf. The wire shelf enables you to load cutlery of any size, arranging it either in the lower or upper basket by removing the cup-holding shelves.

Depending on the model: when loading large plates into the lower basket, you may have to adjust the height of the upper basket. This can be done even when the basket is full.

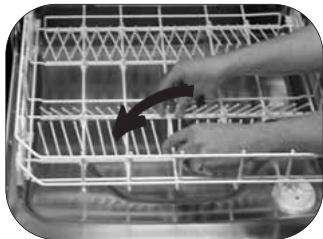

① Adjusting to the HIGH POSITION: Gently lift the basket until you hear the first “Click” on both sides.

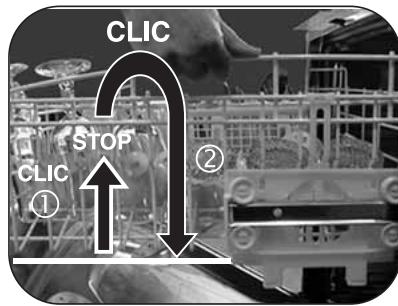

② Adjusting to the LOW POSITION: Lift the basket at the back on both sides (“Click”) and then gently lower it. Check that the slides are both at the same height and that the basket is level. 40

GB Everyday: selecting a washing programme Refer to the Programmes table on the following pages to determine the programme you need for the amount of washing up and how dirty it is. Press the “ON/OFF” button to switch the machine on. Press the “Start” button : the display tells you about your programme. Please refer to Page 44 for more details. Special Pots programme: to select this specific programme, press the button and “Start”. This programme cancels any other programme selected. Advantages: this programme enables you to clean pots and plates with dried-on, sticky residue perfectly by washing them under high pressure with a cross-jet spraying system.

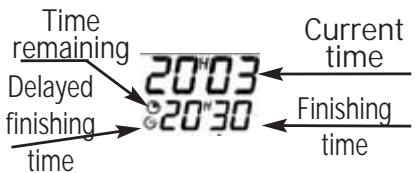

Everyday: selecting a delayed programme finishing time Press the “SET” button once (1 short press) and hold down the Programmes Time button until you obtain the programme remaining finishing time you desire. Delayed Press “Start” to confirm the pro- finishing gramme. time When the programme has started, the display shows the programme finishing time.

Current time Finishing time

Starting the programme; its various stages When you have selected your programme, press “Start” . The progress lights show the various programme stages up to “STOP”. GB

Présentation The washing de programmes votre lave-vaisselle Type of items: -Porcelain, pans, cutlery, glasses, etc.

The washing programmes

This very short cycle enables you to rinse through your items while waiting to wash them until the following day or even the day after.

INTENSIVE PROGRAMME A large amount of dried-on and adhering residue, baked-on stains, grease, residue from frying, cooked cheese, sauce, etc

NORMAL PROGRAMME Normal amount of dried-on and adhering residue: everyday items

Some slightly greasy, adhering residue: everyday items

Small amount of easy to remove residue: glass or fragile porcelain.

Rapid programme for a small amount of easy to remove residue and nongreasy items: coffee cups, dessert bowls or everyday items.

Special Pot programme: for dried-on, sticky residue, baked on stains, grease, fat, cheese, sauce, etc.

ICS Programme cycle.

Washing at 60°C/70°C Washing at 55°C Washing at 55°C Washing at 45°C Washing at 40°C Washing at

Quantity, type, amount of food residue.

55°C For information only Length in minutes Water Energy

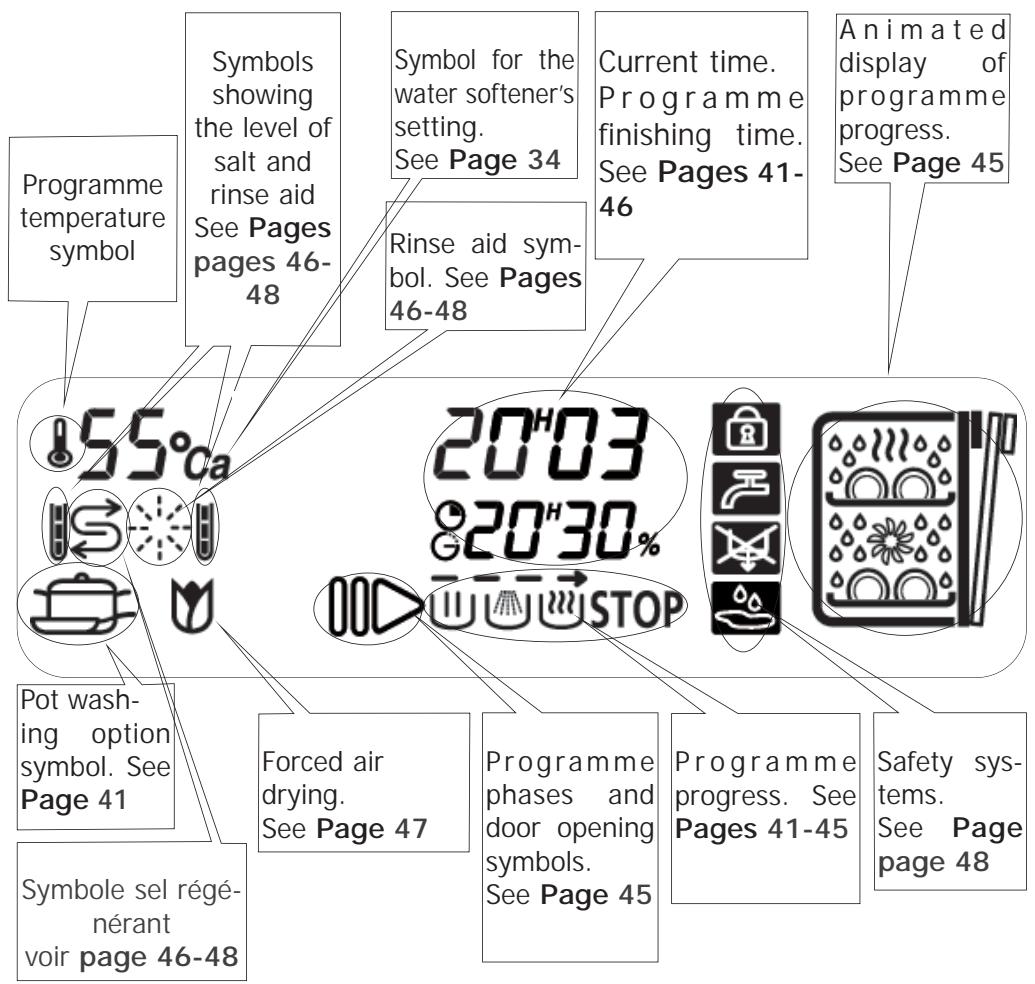

Meaning of the symbols

Meaning of the symbols

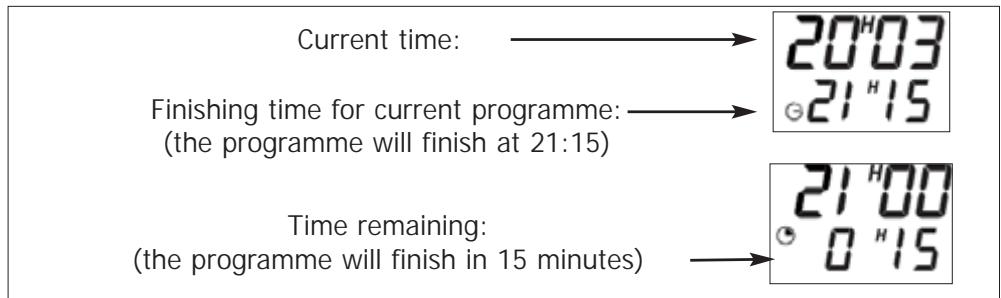

Current time: Finishing time for current programme: (the programme will finish at 21:15)

Symbols showing the level of salt and Programme rinse aid temperature See Pages symbol pages 4648

Symbol for the water softener’s setting. See Page 34

Current time. Programme finishing time. See Pages 41-

Animated display of p r o g ra m m e progress. See Page 45

Time remaining: (the programme will finish in 15 minutes)

46 Rinse aid symbol. See Pages 46-48

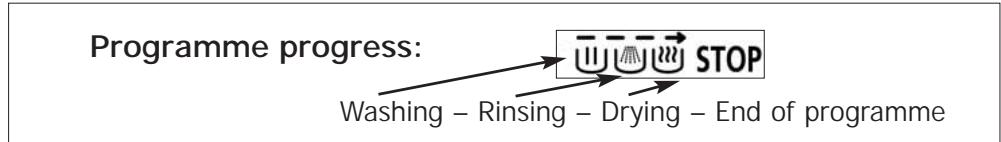

Programme progress: Washing – Rinsing – Drying – End of programme

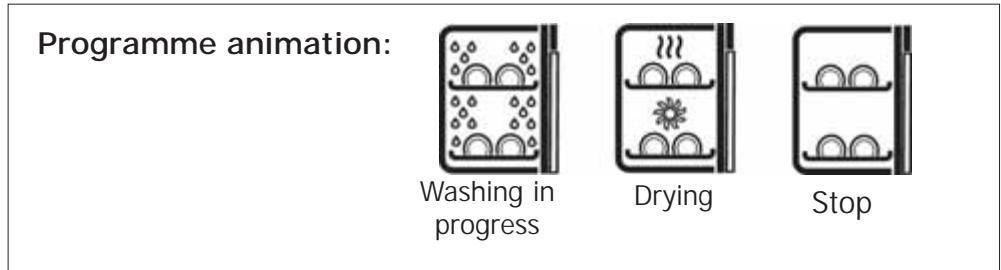

Programme animation:

Pot washing option symbol. See Page 41 Symbole sel régénérant voir page 46-48

Washing in progress Forced air drying. See Page 47

Programme P r o g r a m m e phases and progress. See door opening Pages 41-45 symbols. See Page 45

Safety systems. See Page page 48

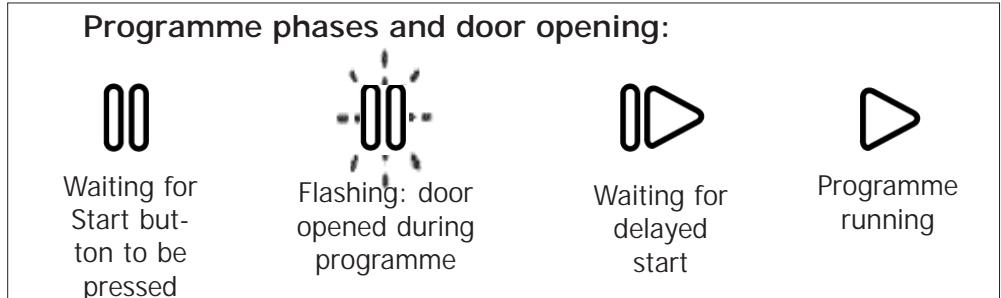

Programme phases and door opening:

Waiting for Start button to be pressed

Flashing: door opened during programme

GB Waiting for delayed start

Setting the time: When the machine is switched on the current time reads . Press the Programmes button until you have the hour setting you desire.

Options / Settings / Information Cancelling a programme Hold down the Start button for a few seconds: the programme light will go out and you can then reprogramme.

Press the Programmes button to set the minutes.

Releasing the regenerating salt and rinsing agent: If you are using “2-in-1” or “3-in-1” products, you can cancel display of the salt and rinsing agent symbols.

This programme makes savings by automatically detecting the amount of washing up and how dirty it is.

Press the Programmes button: the

“Level” symbol disappears. Repeat the operation if you wish to see the symbols displayed.

1 short press flashing

Checking the water softener’s setting: Press the Programmes button to change the setting.

Forced air drying Your machine is set at the factory for the air drying system to run for 5 hours. Pressing the “ “ button re-activates the air drying system for 5 minutes every hour until the door is opened. This will ensure that your washing up and your tub are perfectly dry. Take care not to place anything in front of the door (bags, towels) that may block the ventilation grill.

The setting is confirmed automatically after 10 seconds without pressing the “Menu” button or by pressing the “SET” button again. 46

Running Présentation maintenance de votre lave-vaisselle Cleaning the waste filters The filtration system consists of several components: A – The two-part waste filter B – The main filter C – The micro-filter

Door poorly closed: The light for the selected programme and the Door Open symbol both flash.

Keypad locking: While the programme is running, the keypad is automatically protected against any activities. It unlocks automatically when the programme finishes or if it is cancelled.

➀ Before removing the filters, remove any

waste from the main filter with a sponge to avoid the waste blocking the sprinkling arms.

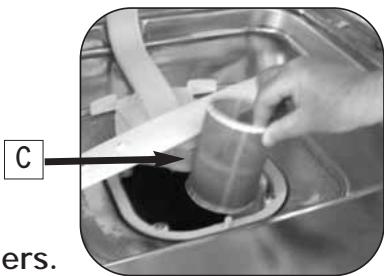

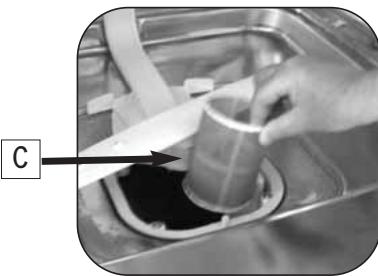

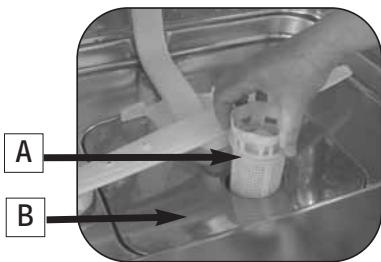

A the waste filter a quarter turn and remove it. B

③ Remove the main filter

Regenerating salt Filling level:

The filters are located in the middle of the tub and must be cleaned regularly to ensure optimum washing results.

④ Remove the micro-filter. C The water tap is closed.

The drain or the drain hose is blocked. Anti-leak system: intervention by the After-Sales Service required!

Filter cleaning warning Approximately once a month, your machine will advise you to service the filters (see following page). 48

GB A - Two-part waste filters.

clean all the filters under running water.

C To re-inset the filters Follow the above instructions in reverse. Important: Do not forget to lock the waste filter by turning it a quarter turn. GB

Présentation Running maintenance de votre lave-vaisselle Regularly proceed to clean (if required): All around the door and the door seal with a damp sponge to remove any deposits.

Only use soap and water on the casing and the control panel. Do not use abrasive powders, metal sponges, alcohol-based products or thinners. Use a soft cloth or a sponge.

Every year To ensure your machine’s longterm operation, clean it once or twice a year by running an Intensive programme with the machine empty, using a commercially available special dishwasher cleaning product. Prolonged stoppage Clean your dishwasher completely, then disconnect the power supply and close the water tap. Keep your machine away from the risk of frost.

If you are moving, to avoid any water leaking, first of all run a soak programme.

Protecting Présentation thedeenvironment votre lave-vaisselle Recycling the packaging Warning: Keep all the packaging materials out of children’s reach (e.g. plastic bags, polystyrene, etc.): these can be dangerous for children: risk of suffocation). Recovering and reprocessing packaging material saves on material and reduces the amount of waste. Take your packaging to the nearest recycling centre. Contact your town’s local authorities for details of its location.

Washing economically and ecologically DO not wash the items first by hand (unnecessary waste of water). Use your dishwasher’s capacity to the full. You will then wash economically and ecologically. Always select a washing programme suitable for the type of items and how dirty they are.

GB GB Recycling your old dishwasher If you wish to dispose of your old dishwasher, make it completely unusable. Break the door lock so that it cannot close (children can become locked in when playing inside the machine – risk of suffocation). Remove the electrical plug and cut off the power cable. Take your unusable machine to the nearest recycling centre. Contact your town’s local authorities for details of its location.

Do not overdose with detergent, regenerating salt or rinse aid. Follow the recommendations in these instructions (Pages 34 - 35 - 36) and the manufacturer’s instructions on the pack. Ensure that the water softener is set correctly (see Page 34)

Présentation de votre Troubleshooting, whatlave-vaisselle to do?

If you are in any doubt about the operation of your machine, before calling a qualified engineer, check the following points (depending on the symptoms noticed).

- The machine is wobbly, - Adjust the adjustable not level feet - The door is not correct- - Adjust the rear feet ly centred on the tub - The seal’s lip has been - Take off the door seal flattened during storage. all around the door.

- Leak at the tap Small leak around or under the machine (move the machine to locate the - Leak in the machine leak better)

- Check that the seal is present and re-tighten the nut - Close the water tap and call an engineer.

The door “catches” when - The machine or the door is not correctly you close it centred on the tub

- Recentre the door by adjusting the rear feet. - Contact the installer

- The door springs are The door falls down not tensioned enough heavily when you open it to compensate for the (integratable models) weight of the basket.

- Pull the machine out 10cm and tighten the 2 tensioning screws. - Contact the installer

The door is not level when open or goes back up too quickly (integratable machine)

- The door springs are over-tensioned. - No wooden panel

The cycle takes too long. - The energy-saving pro- - Use these programmes grammes take longer preferably at night because they compenwhen the length and sate for the lower wash- the finishing time are ing and drying temperatures by longer agitation not important. and drying. 52 GB

- Wrongly programmed.

The Salt light does not go - No salt or too little salt out in the reservoir to trigger the float.

What to do - Cancel the current programme by holding down the “Start” button for 3 seconds and then reprogramme. - Fill the reservoir and wait until the cycle ends. If the water is soft enough not to require salt, the Salt light is permanently lit. What to do

The machine cuts off

- Insufficient amperage to - Check the plug’s amperage (10A minimum) supply all the equipand the meter’s capacity ment being used at the same time. - Call an engineer. - Internal fault in the machine

The machine will not start

- No power supply to the - Check the socket and the fuse socket - Check that the tap is - The tap is closed open - The water supply hose - Check that hose run is kinked - Cancel by pressing - Programme selection “Start” for 3 seconds error and programme and reprogramme blocked - “Start” button held down - Press “Start” only briefly to start the programme too long (> 2 seconds) - Safety system (anti-leak) - Call an engineer.

The machine does not drain.

- Remove the protective - Protective cover on the sink’s U bend not removed cover - Drainage hose kinked - Check the hose runs correctly behind the machine - Drain filter totally - Remove the filters and blocked clean them and the drain hole - Start a soak pro- Pump blocked. gramme. If the fault persists, call an engineer.

- Pull the machine out 10cm and tighten the 2 tensioning screws. - Fit a wooden panel to the door (a chipboard panel OK if on a temporary basis) and adjust the springs. - Contact the installer

The upper basket will not - Poor handling (the bas- - Move the basket graduket has been pulled ally on one side and stay in the high position upwards too quickly). then the other (until you hear a “Click”) = -> see the Operating Instructions. Programming, display anomalies

The lights light up one after another

A lot of residue left on - The drain hole and the the main filter at the end filters are blocked by of the cycle. too much residue.

Steam appears approx. 20 minutes before the end of the cycle (model with ventilated drying).

Poor washing results Traces of food, deposits, “grains of sand” in the glasses.

What to do - Remove the filters and clean them and the drain hole. Remove any large amounts of residue from the plates before placing them in the dishwasher.

Présentation Troubleshooting, de votre whatlave-vaisselle to do? Poor washing results White marks (Identify the nature of the marks)

- The steam from drying - A normal but infrequent is in contact with a flow occurrence only when drying starts (connecof cold air. ted with the temperature of the room, draughts, etc.). Possible causes

- Arrange the items cor- The washing up has rectly; use the most suibeen badly arranged table areas and acces(items masked by sories for each type of another, larger item or item (see Operating placed under it, items Instructions). side by side or nesting - Check that the agitator together). rotates freely (sizing - The upper agitator is wire), set the basket to blocked by cutlery, the High position if necplates, etc.) - The filter is not screwed essary. - Check the seating and in tightly and is lifting the tightness of the filduring washing ter (screw it in fully to - The micro-filter’s sieve the right). is clogged. - Remove and clean all the filters (with warm water), including the sieve. - Too little detergent, poor detergent, stale detergent. - Unsuitable programme (temperature too low, not long enough).

- Increase the amount of detergent; try another detergent. - Select a programme with a higher temperature.

- Chalky film (can be removed with vinegar).

- Check that there is salt in the reservoir (light unlit = OK) - Check the water hardness at the tap and that the water softener is set correctly. Set it on a higher setting if necessary. - Water too hard for using a “3 in 1” detergent (not recommended)

- Traces of salt (item ahs a salty taste)

- Check that the salt pot’s stopper is firmly closed.

- Opalisation of the glass - Check the water hardbecause water too soft ness at the tap and that (cannot be removed). the water softener is set correctly. Some detergent tablets are more aggressive to glasses and decorations (change the detergent, use a protective product if necessary). Coloured marks (tea, wine, coffee, blood)

- Items poorly arranged - Not enough or poor detergent - Programme with too low a temperature.

Run marks or dried droplets on the glasses

- Turn the open ends (of glasses, bowls, etc.) towards the jets - Increase the amount of detergent - Select a more suitable programme, with a higher temperature. - Check the indicator light and fill the reservoir completely, set the dispenser to the upper position if necessary. - Replace with a recent agent (a good rinse aid dilutes easily and foams in cold water). 55

Traces of rust on stainless - The quality of the stain- - Use special “dishwasteel less steel (in knives in sher-safe” cutlery particular) is unsuitable - Check that the salt pot’s for washing in a machine. stopper is firmly closed. Poor washing results A lot of drops on the glasses

Possible causes - Insufficient or no rinse aid. - The dose has not been distributed. - Position of the items.

What to do - Check the indicator light and fill the reservoir completely. - If the reservoir is not empty after approximately 60 washes, call an engineer. - To relieve the problem, arrange the items so as to restrict as much as possible any water retention: if possible, leave the door ajar for a few minutes.

Drops on plastic glasses, Tefal coatings, etc.

- These insulating items have a low calorific mass.

- Arrange them optimally, prioritising the use of the upper basket if possible.

Drying is less good in rapid programmes.

- In the rapid programmes, the drying temperature and the drying time are reduced to restrict the length of the cycle to a minimum level.

- Select the most appropriate rapid programme.

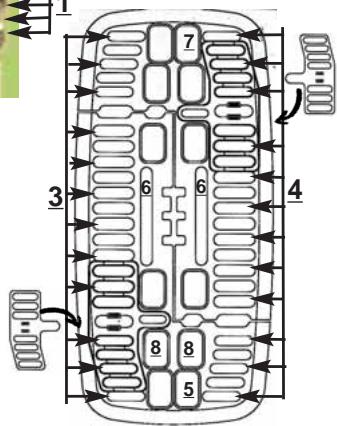

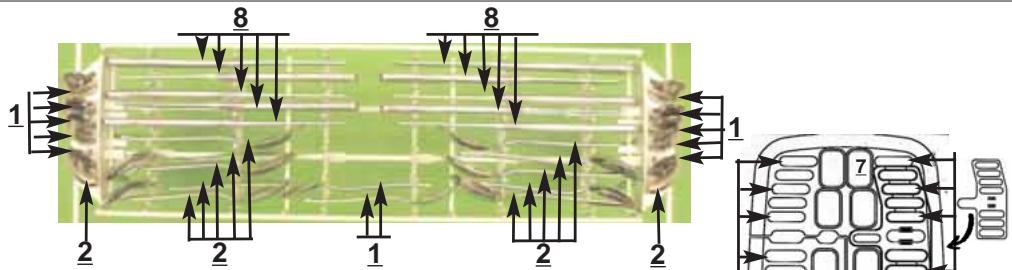

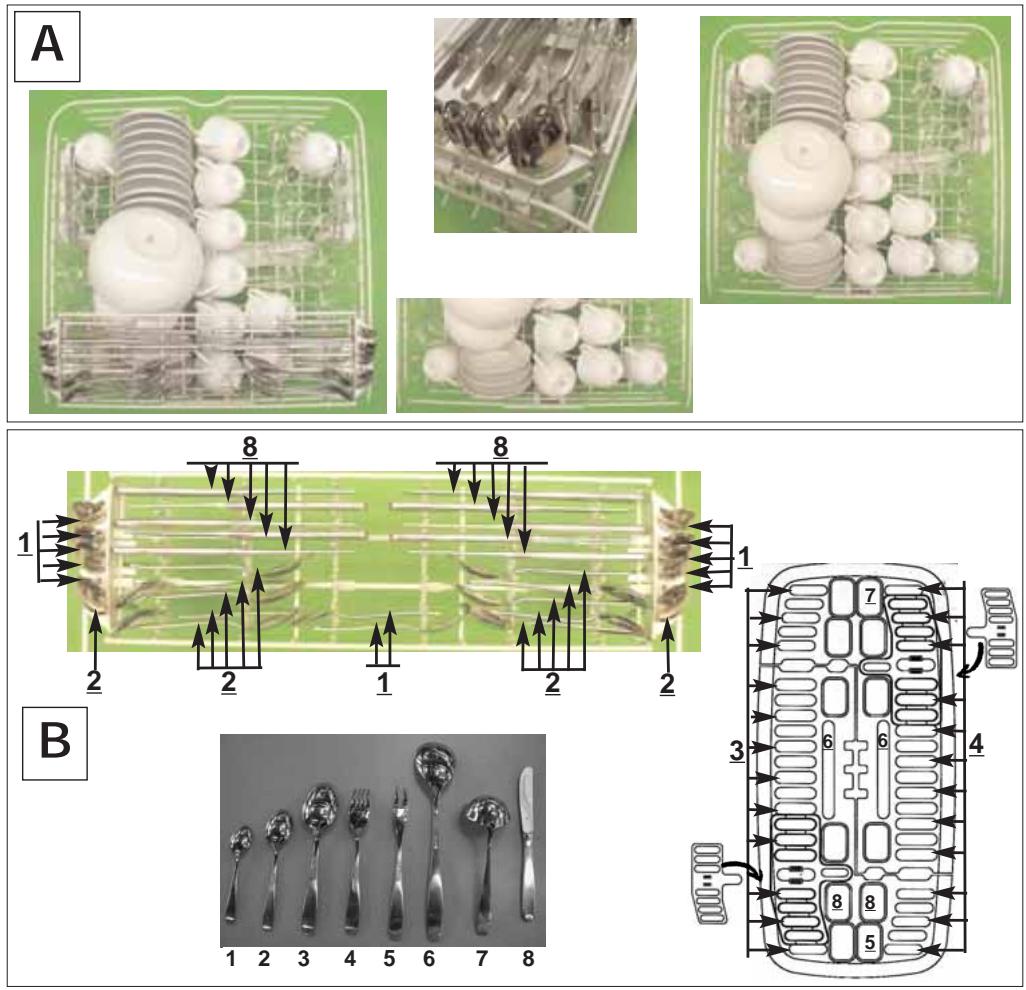

12 standardised place settings 30g of detergent B

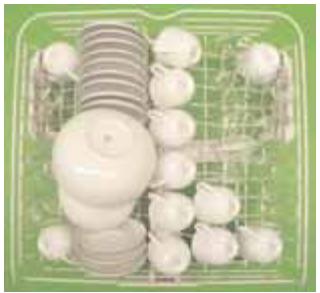

Setting for the upper basket

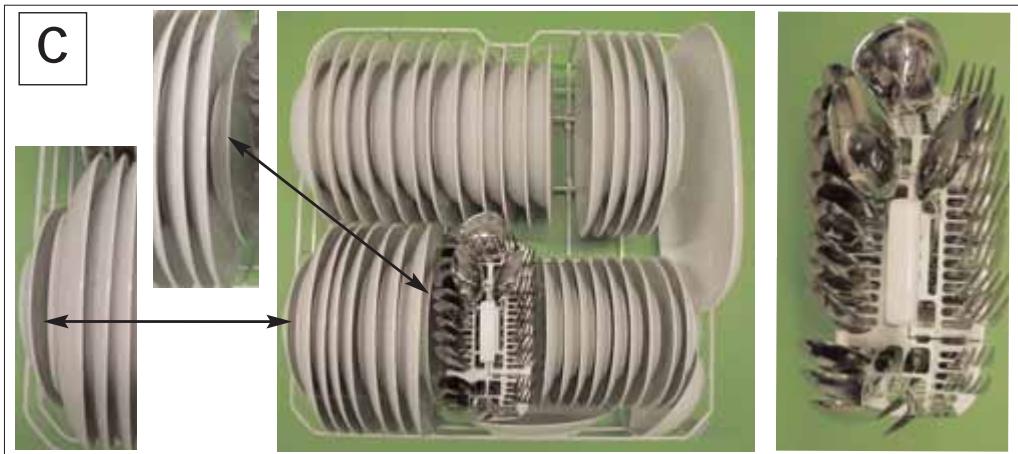

Loaded in accordance with the instructions on the following page, with no side shelves.

The water softener MUST be set to a setting immediately higher than that recommended, depending on the water hardness, to take into account the lack of phosphate in standardised detergents.

For more information on the comparison tests in accordance with EN 50242 regarding the level of soiling, the type of items, etc., please contact the manufacturer of the machine before commencing testing.

Condensation on the - Condensation may form walls of the inner door or on the walls, particularthe tub. ly after cooling down (sound insulation increases its occurrence).
