USER MANUAL TBO252-72 FABER

EN DE IT PL GR USER MANUAL3 GEBRAUCHSANLEITUNG7 LIBRETTO DI USO 11 INSTRUKCJA UŻYTKOWANIA15 ΟΔΗΓΊΕΣ ΧΡΉΣΗΣ19

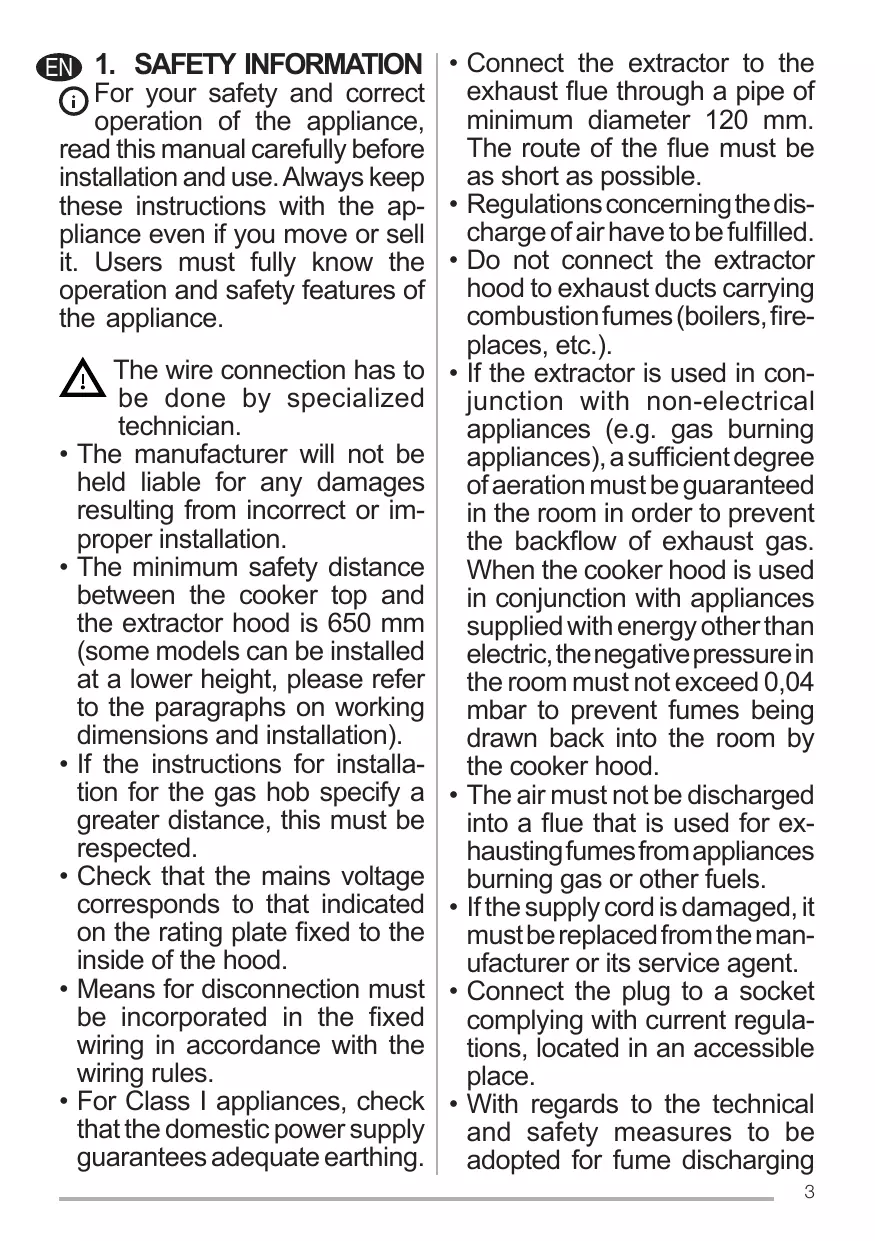

1. SAFETY INFORMATION • Connect the extractor to the EN

exhaust flue through a pipe of For your safety and correct minimum diameter 120 mm. operation of the appliance, The route of the flue must be read this manual carefully before as short as possible. installation and use. Always keep these instructions with the ap- • Regulations concerning the discharge of air have to be fulfilled. pliance even if you move or sell it. Users must fully know the • Do not connect the extractor hood to exhaust ducts carrying operation and safety features of combustion fumes (boilers, firethe appliance. places, etc.). The wire connection has to • If the extractor is used in conbe done by specialized junction with non-electrical technician. appliances (e.g. gas burning • The manufacturer will not be appliances), a sufficient degree held liable for any damages of aeration must be guaranteed resulting from incorrect or imin the room in order to prevent proper installation. the backflow of exhaust gas. • The minimum safety distance When the cooker hood is used between the cooker top and in conjunction with appliances the extractor hood is 650 mm supplied with energy other than (some models can be installed electric, the negative pressure in at a lower height, please refer the room must not exceed 0,04 to the paragraphs on working mbar to prevent fumes being dimensions and installation). drawn back into the room by • If the instructions for installathe cooker hood. tion for the gas hob specify a • The air must not be discharged greater distance, this must be into a flue that is used for exrespected. hausting fumes from appliances • Check that the mains voltage burning gas or other fuels. corresponds to that indicated • If the supply cord is damaged, it on the rating plate fixed to the must be replaced from the maninside of the hood. ufacturer or its service agent. • Means for disconnection must • Connect the plug to a socket be incorporated in the fixed complying with current regulawiring in accordance with the tions, located in an accessible wiring rules. place. • For Class I appliances, check • With regards to the technical that the domestic power supply and safety measures to be guarantees adequate earthing. adopted for fume discharging 3

of experience and knowledge, it is important to closely follow unless they have been given the regulations provided by the supervision or instruction. local authorities. Accessible parts may beWARNING: Before installing come hot when used with the Hood, remove the procooking appliances. tective films. Use only screws and small parts • Clean and/or replace the Filters in support of the hood. after the specified time period WARNING: Failure to install (Fire hazard). See paragraph the screws or fixing device Care and Cleaning. in accordance with these • There shall be adequate veninstructions may result in tilation of the room when the electrical hazards. range hood is used at the same Do not look directly at the light time as appliances burning gas through optical devices (binocor other fuels (not applicable to ulars, magnifying glasses…). appliances that only discharge Do not flambè under the range the air back into the room). hood; risk of fire. This appliance can be used • The symbol on the product or on its packaging indicates that by children aged from 8 years this product may not be treated and above and persons with as household waste. Instead reduced physical, sensory or it shall be handed over to the mental capabilities or lack of exapplicable collection point for perience and knowledge if they the recycling of electrical and have been given supervision or electronic equipment. By ensurinstruction concerning use of the ing this product is disposed of appliance in a safe way and uncorrectly, you will help prevent derstand the hazards involved. potential negative consequences Children shall not play with the for the environment and human appliance. Cleaning and user health, which could otherwise be maintenance shall not be made caused by inappropriate waste by children without supervision. handling of this product. For Children should be supervised more detailed information about to ensure that they do not play recycling of this product, please with the appliance. contact your local city office, The appliance is not to be used your household waste disposal by persons (including children) service or the shop where you with reduced physical, sensory purchased the product. or mental capabilities, or lack

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells. • Never use the hood for purposes other than for which it has been designed. • Never leave high naked flames under the hood when it is in operation. • Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides. • Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

The Grease filters must be cleaned every 1 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

• Clean the hood using a damp cloth and a neutral liquid detergent.

3. CARE AND CLEANING

-- The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

By pressing T1 Button the controls board are On and Off. After 2 minuts without button pressing, the control board turn Off.

All buttons are 50% lighting.

Decreases the speed of the Motor.

100% lighting and T1 Flash

Increases the speed of the Motor.

100% lighting and T1 Flash

Enable shutdown with a 5 minute delay (Motor+Lights). It is possible to change the operating speed when this function is enabled.

Flash at 100% lighting and T1 Flash

L Turns the Lighting System on and off.

• For replacement contact technical support (“To purchase contact technical support”).
