DIGITAL IXUS IIS - Camera CANON - Free user manual and instructions

Brand	CANON
Model	DIGITAL IXUS IIS
Product type	Compact digital camera
Sensor resolution	3.2 megapixels
Optical zoom	3x
Digital zoom	3.2x
LCD screen	1.5 inches, 118,000 pixels
Dimensions (W x H x D)	85 x 56 x 22 mm
Weight (without battery)	130 g
Power supply	Lithium-ion battery NB-4L
Storage	SD/MMC card
Image formats	JPEG
Image resolutions	2048 x 1536, 1600 x 1200, 1024 x 768, 640 x 480
Video	640 x 480, 10 fps, mono
Shutter speed	15 s to 1/1500 s
ISO sensitivity	Auto, 50, 100, 200, 400
Built-in flash	Yes, modes: auto, red-eye reduction, slow sync, off
Connectivity	USB 1.1, video output (NTSC/PAL)
Care and cleaning	Clean the lens with a soft, dry cloth. Do not use solvents.
Safety	Use only Canon-approved batteries and chargers. Keep out of reach of children.
Spare parts and repairability	NB-4L battery, CB-2LV charger, IFC-400PCU USB cable. Canon after-sales service.

Frequently Asked Questions - DIGITAL IXUS IIS CANON

How to turn on the camera?

Press the ON/OFF button on top of the camera. The screen lights up and the lens extends.

What type of memory card to use?

The Canon DIGITAL IXUS IIS accepts SD (Secure Digital) and MMC (MultiMediaCard) cards.

How to recharge the battery?

Use the included CB-2LV charger. Insert the NB-4L battery into the charger and plug it into a power outlet. The light turns off when charging is complete.

How to set the photo resolution?

In Playback mode, press the MENU button, go to the Settings tab, then choose Resolution. Select from options: L (2048x1536), M1 (1600x1200), M2 (1024x768), or S (640x480).

How to delete photos?

In Playback mode, display the photo to delete, then press the Erase (trash) button. Confirm with OK.

How to use the zoom?

Use the Zoom lever around the shutter button. Push right to zoom in (telephoto) and left to zoom out (wide-angle).

How to activate the flash?

Press the Flash (lightning) button to cycle through modes: Auto, Red-eye reduction, Slow sync, Off. The setting is displayed on the screen.

How to transfer photos to a computer?

Connect the camera to the computer with the IFC-400PCU USB cable. The computer recognizes the camera as a removable drive. Copy the files from the DCIM folder.

What to do if the screen displays 'Memory card locked'?

Check the small switch on the side of the SD card. If it is in the LOCK position (down), slide it up to unlock the card.

How to clean the lens?

Use a soft, dry cloth specifically designed for optics. Avoid any solvents or liquid cleaners. Gently blow to remove dust before wiping.

USER MANUAL DIGITAL IXUS IIS CANON

30-2 Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan

For technical support, please contact the Canon Help Desk:

P.O. Box 431, Wallington, Surrey, SM6 0XU, UK

Tel: [phone] Fax: [phone]

http://www.canon.co.uk/Support/index.asp

CANON COMMUNICATION & IMAGE FRANCE S.A.

Tel: [phone] Fax: [phone]

Pronto Canon: 02/8249.2000

E-mail: [e-mail]

http://www.canon.it

CANON ESPAÑA S.A.

C/Joaquín Costa, 41 - 28002 Madrid, Spain

Tel. Atención al Cliente: 901.301.301

Helpdesk: 906.301.255

http://www.canon.es

CANON BELGIUM N.V. / S.A.

Bessenveldstraat 7, B - 1831 Diegem, Belgium

Tel: [phone] Fax: [phone]

Helpdesk:0900-10627

http://www.canon.be

CANON LUXEMBOURG S.A.

Rue des Joncs 21, L-1818 Howald, Luxembourg

Tel: [phone] Fax: [phone]

Helpdesk:900-74100

http://www.canon.lu

CANON NEDERLAND N.V.

Gustav III:s Boulevard 26, S-169 88 Solna, Sweden

Helpdesk: 08-744 8620 Fax [phone]

http://www.canon.se

CANON (SCHWEIZ) AG

Industriestrasse 12, 8305 Dietlikon, Switzerland

Consumer Imaging Group

Tel. [phone]

Hotline [phone] (CHF 2.13/min)

http://www.canon.ch

Itävalta

CANON GES.M.B.H.

Zetschegasse 11, A - 1230 Wien, Austria

Helpdesk Tel.: [phone] Fax: [phone]

http://www.canon.at

Portugali

SEQUE - SOC. NAC. EQUIP., S.A.

Pr. Alegria, 58 - 2°C, 1269-149 Lisboa, Portugal

Tel: [phone] Fax: [phone]

E-mail: [e-mail]

http://www.sequence.pt

Itä-Eurooppa

CANON CEE GMBH

Oberlaerstr 233, A-1100 Wien, Austria

Tel: [phone] Fax: [phone]

CIS

CANON NORTH-EAST OY

Huopalahdentie 24, 00350 Helsinki, Finland

Tel: [phone] Fax: [phone]

http://www.canon.ru

Camom

DIGITAALIKAMERA

DIGITAL IXUS IIs

Canon

DIGITAL

IXUS IIs

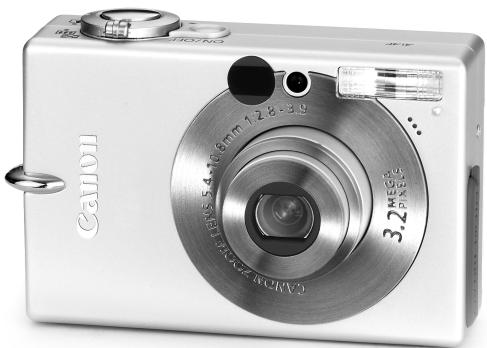

Silver Canon digital camera with visible lens and control knobs (no text or symbols on body)

Kameran käyttöopas

Kameran käyttöopas

Two identical gray open book illustrations with no text or symbols

Isometric line drawing of a mechanical device with no visible text or symbols

Simple line drawing of a key being lifted by a lock, with a crossed-out black X symbol below (no text or labels)

Kuva B

Diagram showing a hand pressing down on a device before and after assembly, with no visible text or symbols.

Simple line drawing of a circular device with an arrow indicating rotation, accompanied by icons for search, person, and data display (no text or symbols)

Digitaalizoomaus

Black-and-white photo of a small dog walking on grass, no visible text or symbols

Black-and-white beach scene with palm trees, umbrellas, and a building in the background (no visible text or symbols)

Black-and-white beach scene with palm trees, beach, and umbrellas (no visible text or symbols)

Black-and-white photo of a small dog walking on a paved surface, with no visible text or symbols.

Black-and-white beach scene with palm trees, umbrellas, and a distant building (no visible text or symbols)

Side view of a modern, white metro train with large windows and tracks (no visible text or symbols)

Black-and-white photo sequence showing a lake surrounded by dense trees, with an arrow indicating direction of change (no text or symbols)

Black-and-white landscape photo showing a tree in a field with a large rectangular frame overlay (no text or symbols)

Black-and-white landscape photo showing a lone tree in the sky with a shadow on the right (no text or symbols)

Black-and-white beach scene with palm trees, beach, and air conditioner (no visible text or symbols)

Black-and-white beach scene with palm trees, umbrellas, and a distant building (no readable text or symbols)

Black-and-white beach scene with palm trees, beach, and umbrellas (no visible text or symbols)

Simple line drawing of a camera with a blade and circular background (no text or symbols)

Black-and-white photo of the Sydney Waterways Bridge (no visible text or symbols)

Simple line drawing of a circular ring with an arrow indicating rotation, surrounded by icons (no text or symbols)

Black-and-white photo of a large steel truss bridge over water, with buildings and a river in the background (no visible text or symbols)

Simple line drawing of a circular ring with a clockwise arrow and small icons (no text or symbols)

Front view of a modern subway train with visible windows and side-mounted play buttons (no readable text or symbols)

Front view of a modern subway car with visible tracks and windows (no text or symbols)

Front view of a modern subway train with visible windows and tracks, no text or symbols on the train body

Exterior view of a mechanical assembly with no visible text or symbols

0° (alkuasetus)

Black-and-white exterior view of a historic building with a lit streetlamp and pedestrians (no visible text or signage)

90°

Black and white photo of a historic building with reflection in water, no visible text or symbols

270°

Black-and-white cityscape photo with modern high-rise buildings and cloudy sky (no visible text or symbols)

Black-and-white cityscape photo with high-rise buildings and cloudy sky (no visible text or symbols)

Black-and-white cityscape photo with a circular control panel above and a 30° UI overlay (no readable text or symbols)

Black-and-white cityscape with modern high-rise buildings and distant mountains under cloudy sky (no visible text or symbols)

Exterior view of a historic building with ornate architecture and a statue in front (no visible text or symbols)

Suojauskuvake

Simple line icon showing a camera and video camera with a circular target, no text or symbols present

Black-and-white photo of a bird perched on a branch with foliage, labeled 'Canon' in the top left corner (no other text or symbols)

3

Black-and-white cityscape photo of a coastal town with high-rise buildings and mountains in the background (no visible text or symbols)

Black-and-white photo of a slice of cake on a plate with a teacup, coffee cup, and fruit in the background (no text or symbols visible)

Alivalotus

Black-and-white photo of a slice of cake on a plate with fork, accompanied by a teacup and cup (no text or symbols visible)

Black-and-white photo of a slice of layered cake on a plate with a fork, accompanied by a teacup and cup (no text or symbols visible)

Ylivalotus

Nighttime exterior view of a modern sculpture with a star and geometric pattern, surrounded by illuminated buildings (no visible text or symbols)

ISO 50:aa vastaava

Black-and-white photo of a modern building with a large illuminated sculpture in front (no visible text or symbols)

ISO 400:aa vastaava

Black-and-white photo of poppy flowers in a grassy field with distant buildings (no visible text or symbols)

Black-and-white close-up of blooming peony flowers with visible petals and stems (no text or symbols)
