iRobot®

Roomba Combo™

Robot Vacuum & Mop

& Clean Base™ Automatic Dirt Disposal

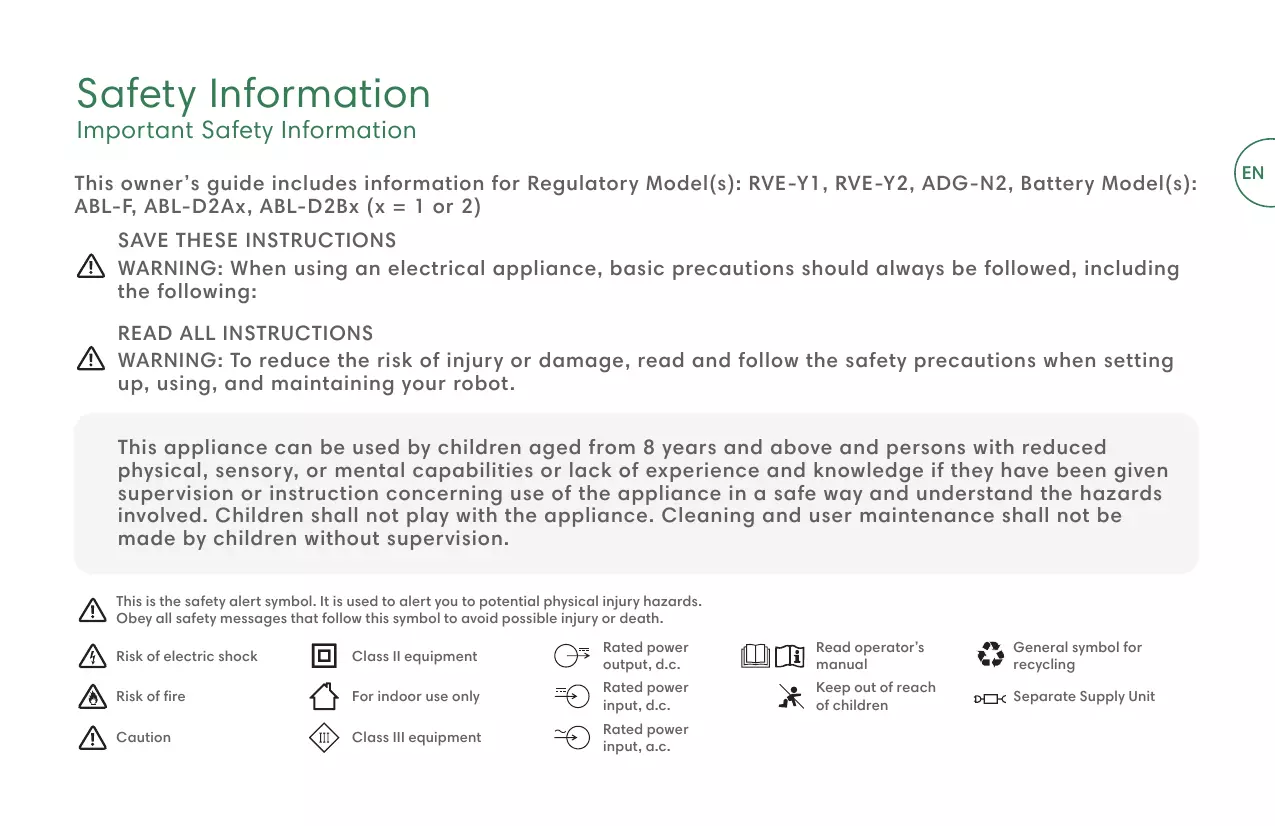

This owner's guide includes information for Regulatory Model(s): RVE-Y1, RVE-Y2, ADG-N2, Battery Model(s): ABL-F, ABL-D2Ax, ABL-D2Bx (x = 1 or 2)

SAVE THESE INSTRUCTIONS

WARNING: When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS

WARNING: To reduce the risk of injury or damage, read and follow the safety precautions when setting up, using, and maintaining your robot.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

This is the safety alert symbol. It is used to alert you to potential physical injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

Risk of electric shock

Risk of fire

Class II equipment

For indoor use only

Class III equipment

Rated power output, d.c.

Rated power input, d.c.

Rated power input, a.c.

Read operator's manual

Keep out of reach of children

General symbol for recycling

Separate Supply Unit

WARNING: Indicates a hazardous situation that, if not avoided, could result in death or serious injury.

CAUTION: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.

NOTICE: Indicates a hazardous situation that, if not avoided, could result in property damage.

GENERAL

WARNING

• Your robot comes with a region-approved power supply cord and is designed to be plugged into a standard household AC power outlet only. Do not use any other power supply cord. For replacement cords, please contact Customer Care to ensure proper selection of country-specific power supply cord.
• Do not open your robot or charging station other than instructed in the Owner's Guide. There are no user serviceable parts inside. Refer servicing to qualified service personnel.
• Risk of electric shock, use indoors in dry location only.
• Do not handle your robot or charging station with wet hands.
• Do not use unauthorised chargers. Use of an unauthorised charger could cause the battery to generate heat, smoke, catch fire or explode.
• Your robot is not a toy. Small children and pets should be supervised when your robot is operating.
• Do not sit or stand on your robot or charging station.
• Store and operate your robot in room-temperature environments only.
• If the room to be cleaned contains a balcony, a physical barrier should be used to prevent robot access to the balcony and ensure safe operation.
• If the room to be cleaned contains equipment, such as a stove, fan, portable heater, or humidifier, remove the equipment before operation. There is a risk of injury, accident or malfunction if the robot comes in contact with and pushes the equipment.
• Do not allow your robot or charging station to become wet.
• Be aware that floors may be slippery after wet cleaning with your robot
• Clean cliff sensors for buildup.

CAUTION

• Do not operate the robot in areas with exposed electrical outlets in the floor.
• Do not use this device to pick up sharp objects, glass, or anything that is burning or smoking.
• Be aware that the robot moves on its own. Take care when walking in the area that the robot is operating in to avoid stepping on it.
• If the device passes over a power cord and drags it, there is a chance an object could be pulled off a table or shelf.
  Before using this device, pick up objects such as clothing, loose papers, pull cords for blinds or curtains, power cords and any fragile objects. Extinguish candles. Shut off portable heaters.
• Perform the required maintenance as per the Owner's Guide to ensure safe operation of the robot and charging station.
• If the robot is operating on a floor with stairs, please remove any clutter from the top step.
• Do not flip the robot over with the Combo Bin installed.
• Perform the required maintenance as per the Owner's Guide to ensure safe operation of the robot and charging station.

NOTICE

• Do not place anything on top of your robot or charging station.
• Failure to maintain cleanliness of charger contacts could result in loss of ability for the robot to charge the battery.
• Before running your robot on hard floors, please test your robot on a small section of the hard floor to ensure that it is compatible. Using your robot on a hard floor that is not compatible could result in damage to your floor. Contact your hard floor manufacturer with questions on compatibility.
• Before running your robot on carpets or rugs, ensure that the carpets or rugs are compatible with the dual multi-surface rubber brushes on your robot, otherwise known as beater bars. Using your robot on a carpet or rug that is not compatible could result in damage to your carpet or rug. Contact your carpet or rug manufacturer with questions on compatibility.

CLEANING SOLUTION

WARNING

• Household cleaning products are safe when used and stored according

to the instructions on the label. Always be sure to read and follow the directions carefully.

• Only use authorised cleaning solutions found on answers.irobot.com/s/roomba-combo-cleanser.
• For cleaning solution warnings, please refer to the outer box and solution bottle.

Keep away from children

Rinse hands after use

Keep away from eyes. If product gets into eyes rinse thoroughly with water

BATTERY

WARNING

• Do not open, crush, heat above 176^ : 80^ or incinerate. Follow the Owner's Guide instructions for proper use, maintenance, handling and disposal.
• Do not short-circuit the battery by allowing metal objects to contact battery terminals or immerse in liquid. Do not subject batteries to mechanical shock.
• Lithium ion batteries and products that contain lithium ion batteries are subject to stringent transportation regulations. If you need to post this product (with the battery included) for service, travel, or any other reason, you MUST refer to the Troubleshooting section of your manual or contact Customer Care for postage instructions.
• Periodically inspect the battery pack for any sign of damage or leakage. Do not charge damaged or leaking battery packs, do not allow the liquid to come in contact with skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice. Place the battery in a sealed plastic bag and recycle or dispose of safely according to local environmental regulations, or return it to your local authorised iRobot Service Centre for disposal.

CAUTION

- Battery usage by children should be supervised. Seek medical advice immediately if a cell or a battery has been swallowed.

NOTICE

• The battery pack must be removed from the robot before recycling or disposal.
• For best results, only use the Lithium Ion Battery that comes with the robot.
• Do not use non-rechargeable batteries. Use only the rechargeable battery supplied with the product. For replacement, purchase identical iRobot battery or contact iRobot Customer Care for alternative battery options.
• Always charge and remove the battery from your robot and accessories before long-term storage.

This symbol on the battery indicates that the battery must not be disposed of with unsorted common municipal waste. As the end-user, it is your responsibility to dispose of the end-of-life battery in your appliance in an environmentally sensitive manner as follows:

(1) returning it to the distributor/dealer from whom you purchased the product; or
(2) depositing it in a designated collection point.

The separate collection and recycling of end-of-life batteries at the time of disposal will help to conserve natural resources and to ensure that it is recycled in a manner that protects human health and the environment. For more information, please contact your local recycling office or the dealer from whom you originally purchased the product. Failure to properly dispose of end-of-life batteries may result in the negative potential effects on the environment and human health due to the substances in the batteries and accumulators.

Information regarding the effects of problematic substances in the battery waste stream may be found at the following source: http://ec.europa.eu/environment/waste/batteries/

AUTOMATIC DIRT DISPOSAL

WARNING

• Do not use if the cord or plug is damaged. If appliance is not working as it should, has been dropped, damaged, left outdoors or dropped into water, return it to a service centre.

• Always disconnect your robot from the dirt disposal before cleaning or maintaining it.

• Do not use the dirt disposal as a step.

• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair and anything that may reduce air flow.
• To properly maintain your dirt disposal, do not place foreign objects inside and ensure that it is clear of debris.
• In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
• Do not allow liquids to get on or into the dirt disposal.
• Do not pour any liquids into the device and do not immerse in water.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
  • Use only as described in this manual.
• To reduce the risk of electric shock, unplug your dirt disposal before cleaning.
• Keep the dirt disposal and power cord away from heated surfaces.

NOTICE

• Product may not be used with any type of power converter. Use of power converters will immediately void the warranty.
• If you live in an area prone to electrical storms, it is recommended that you use additional surge protection. Your dirt disposal may be protected with a surge protector in the event of severe electrical storms.
• Do not use without dust bag and/or filters in place.

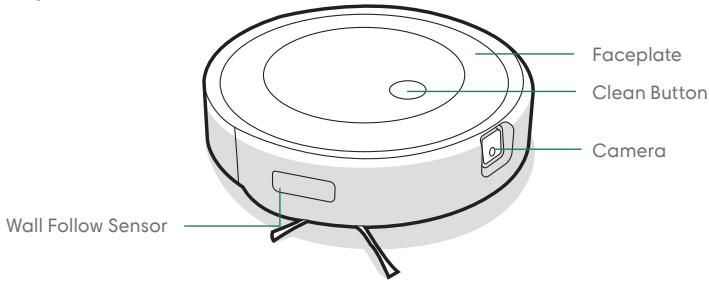

About Your Roomba® Robot Vacuum

Top View

Faceplate Clean Button Camera Wall Follow Sensor

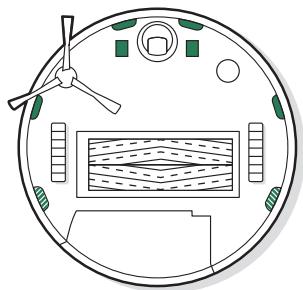

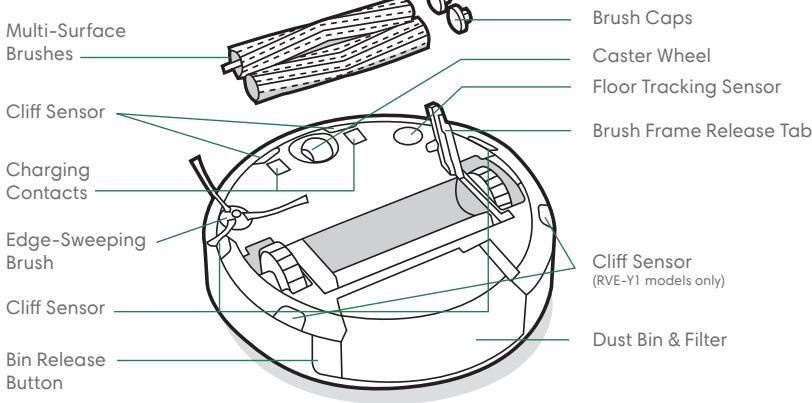

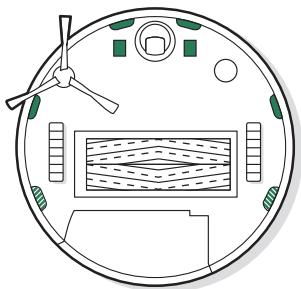

Bottom View

Multi-Surface Brushes Cliff Sensor Charging Contacts Edge-Sweeping Brush Cliff Sensor Bin Release Button Brush Caps Caster Wheel Floor Tracking Sensor Brush Frame Release Tab Cliff Sensor (RVE-Y1 models only) Dust Bin & Filter

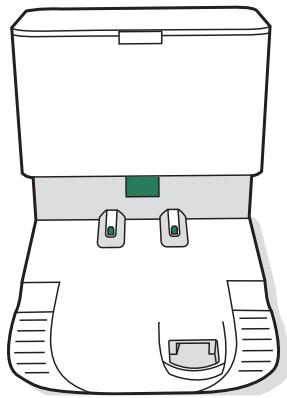

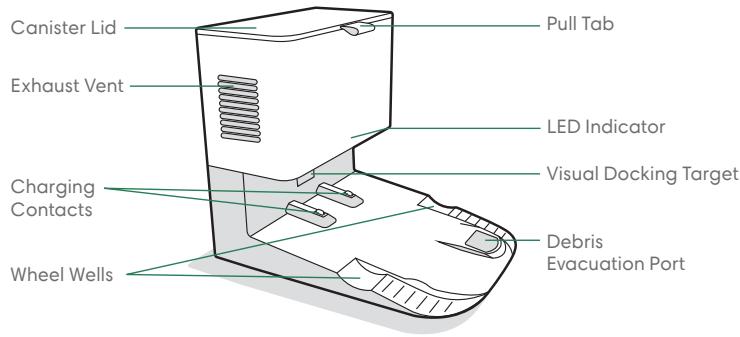

About your Clean Base™ Automatic Dirt Disposal

Front view

Canister Lid Pull Tab Exhaust Vent LED Indicator Charging Contacts Visual Docking Target Wheel Wells Debris Evacuation Port

Back view

Cord Wrap

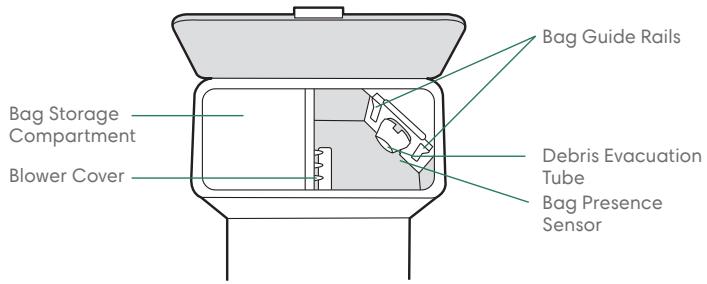

Top view

Bag Storage Compartment Blower Cover Bag Guide Rails Debris Evacuation Tube Bag Presence Sensor

Bottom view

Debris Evacuation Tube

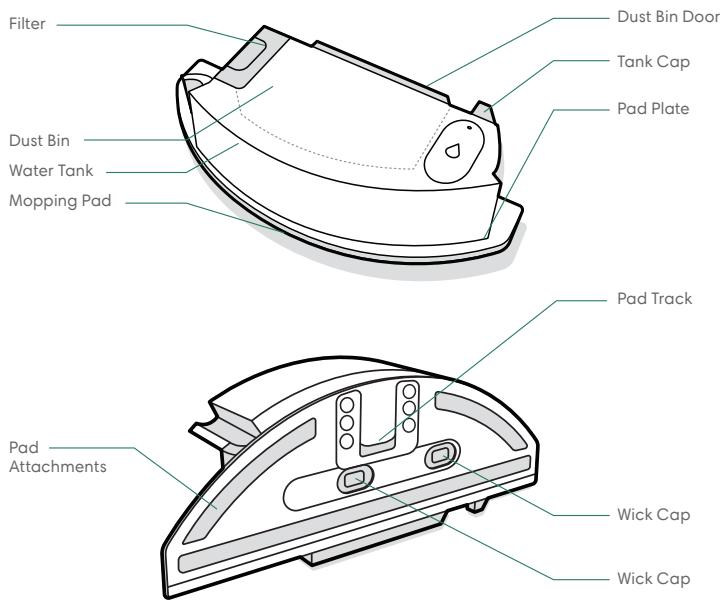

About Your Roomba Combo™ Bin

Filter Dust Bin Door Tank Cap Pad Plate Water Tank Mopping Pad Pad Track Pad Attachments Wick Cap Wick Cap

IMPORTANT: You must register your product in the iRobot Home App and complete a mapping run before using your Combo Bin. See the Activate your Combo Bin card for instructions.

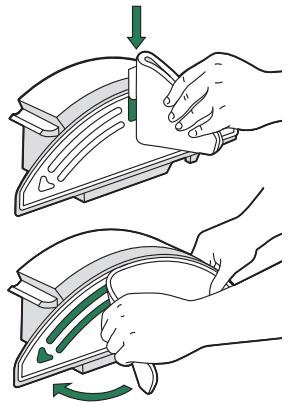

1 INSTALL THE MOPPING PAD

Slide the pad down over the track. Press the pad to the plate to attach.

Illustration of hands using a tool to adjust or clean air from an iron iron (no text or symbols present)

FILL THE BIN

Fill the Combo Bin with water. You may also use a compatible cleaning solution. Compatible solutions are listed at this answers.irobot.com/s/roomba-combo-cleanser

Illustration of a hand using a pipette to lift a small object on a base (no text or symbols)

Note: The product starts wicking as soon as water is put into the tank.

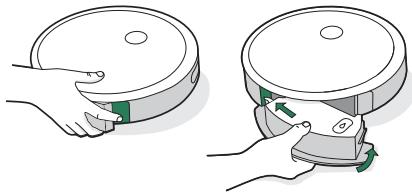

SWAP THE BINS

Remove the Dust Bin from the robot, and install the Combo Bin.

Important: Do not flip the robot over with the Combo Bin installed

Illustration of two hands operating a circular device with a green handle (no text or symbols)

Using Your Roomba® Robot Vacuum

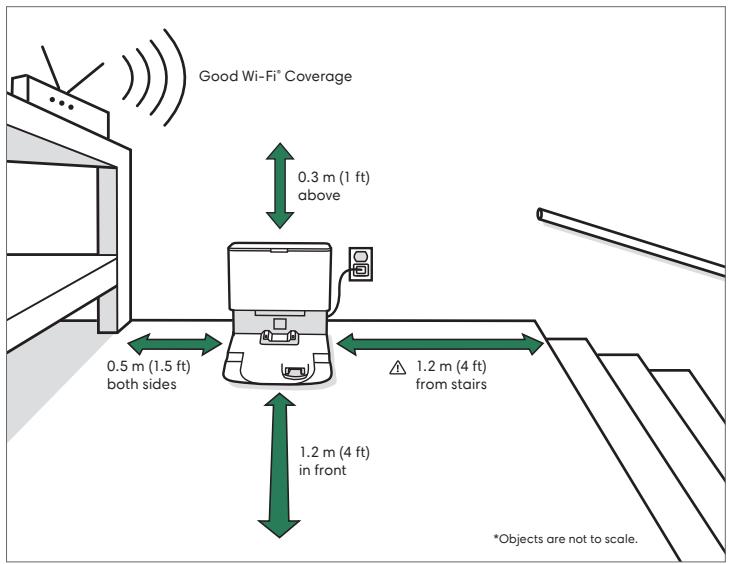

Positioning the CleanBase™ Automatic Dirt Disposal

Good Wi-Fi* Coverage 0.3 m (1 ft) above 0.5 m (1.5 ft) both sides 1.2 m (4 ft) from stairs 1.2 m (4 ft) in front *Objects are not to scale.

Note: Do not place your CleanBase in direct sunlight. Ensure that the area around the dock is free of clutter to improve docking performance.

WARNING: To prevent the risk of your robot falling downstairs, ensure that the Charging Station is placed at least 1.2 metres (4 feet) away from stairs.

Download the iRobot Home App and Connect to Wifi

• Follow the step-by-step instructions to set up your Roomba.
• Set up PrecisionVision Navigation to avoid obstacles in real time.
• Set an automatic cleaning schedule and customise cleaning preferences.
• Create smart maps to tell your robot where and when to clean.

App Store

Google Play

About your Automatic Dirt Disposal

While cleaning, your robot will automatically return to the dirt disposal to empty its bin and recharge as needed.

The dirt disposal's LED indicator will turn solid red when a new bag is needed. If a clog is detected, the dirt disposal will trigger additional attempts to automatically clear the clog.

Note: If you place your robot on the dirt disposal by hand, it will not empty automatically. In this case, use the iRobot Home App or hold the button down for 2-5 seconds.

Charging

Simple diagram of a circular ring with two green curved arrows indicating rotation or cycle (no text or symbols)

Light Ring Spiral While Charging

White Spiral: charging

Red Spiral: charging, low battery

A solid white light will indicate the battery charge percentage of your robot

- Place the robot on the charging station to activate the battery.

Note: Your robot comes with a partial charge, but we recommend that you charge the robot for 3 hours prior to starting the first cleaning job.

Simple circular diagram with green lines radiating from center, no text or symbols present

When your robot is fully charged, the light ring indicator will intermittently pulse white at the rear.

• The robot uses a small amount of power whenever it is on the charging station. You can put the robot in a further-reduced power state when not in use. To put your robot into reduced power standby mode, remove the dust bin and tap the clean button 5 times. To exit reduced power standby mode, place your robot on the charging station and tap the clean button. For more details on this Reduced Power Standby Mode, refer to the FAQ page on our website.
• For long-term storage, turn off the robot by removing it from the charging station and holding down the clean button for 3 seconds with one wheel off the ground. Store the robot in a cool, dry place.

Cleaning

Illustration of a hand holding a small green object on a circular device (no text or symbols)

Just press the clean button

Tap to Start/Pause/Resume

Hold for 2-5 seconds to end a job

- Your robot will automatically explore and clean your home. It will return to the charging station at the end of a cleaning job and whenever it needs to recharge.

Remove excess clutter from floors before cleaning. Use your robot frequently to maintain well-conditioned floors.

• To end a job and send the robot back to its charging station, hold the clean button down for 2-5 seconds. A blue light ring pattern will indicate that the robot is seeking the charging station.
• When your robot detects an especially dirty area, it will engage Dirt Detect™ mode, moving in a forward/backward motion to clean the area more thoroughly. The light ring indicator will flash blue.

Simple diagram of a circular ring with curved arrows indicating rotation or direction (no text or symbols)

When the robot senses its bin needs to be emptied, the light ring indicator will illuminate in a red sweeping motion toward the rear.

Care and Maintenance

Care and Maintenance Instructions for Your Robot

To keep your robot running at peak performance, perform the procedures on the following pages.

There are additional instructional videos in the iRobot Home App. If you notice the robot picking up less debris from your floor, empty the bin, clean the filter, and clean the brushes.

Part	Care Frequency	Replacement Frequency*
Bin	Wash bin as needed	-
Filter	Clean once a week (twice a week if you have a pet).Do not wash.	Every 2 months
Full Bin Sensor	Clean every 2 weeks	-

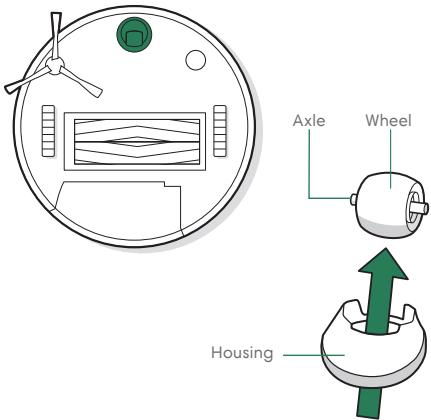

Front Caster Wheel	Clean every 2 weeks	Every 12 months
Edge-Sweeping Brush and Multi-Surface Brushes	Clean once a month (twice a month if you have a pet)	Every 12 months
Sensors and Charging Contacts	Clean once a month	-
Camera Window	Clean and inspect once a month	After 30 washes
Mopping pad	Clean after a mopping job	After 30 washes
Wick cap	Replace if dirty or shows wear	-

Note: iRobot manufactures various replacement parts and assemblies. If you think you need a replacement part, please contact iRobot Customer Care for more information.

*Replacement frequency may vary. Parts should be replaced if visible wear appears.

Emptying the Bin

1 Press bin release button to remove bin.

Illustration of a hand holding a lid with a green clip, no text or symbols present

2 Open bin door to empty bin.

Line drawing of a hand holding a handheld device above a container (no text or symbols)

3 Place bin back in the robot.

Illustration of a hand holding a circular device with green arrows indicating rotation or change (no text or symbols)

Cleaning the Filter

1 Remove the bin. Remove the filter by grasping both ends and pulling out.

Line drawing of a hand inserting a small component into a device (no text or symbols)

2 Remove debris by tapping the filter against your trash container.

Line drawing of a hand pouring liquid into a container (no text or symbols)

3 Reinsert filter with ridged grips facing out. Place bin back in the robot.

Important: The robot will not run if the filter is not installed correctly. Replace the filter every two months.

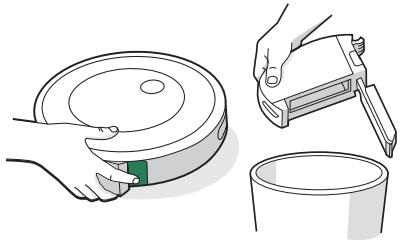

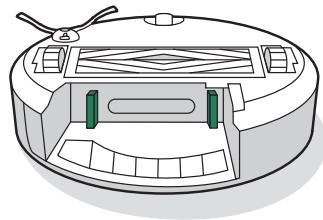

Cleaning the Full Bin Sensors

1 Remove and empty the bin.

Illustration of three different cleaning or cleaning tools: a lid, a hand holding a tool, and a bucket (no text or symbols present)

2 Wipe the inner sensors with a clean, dry cloth.

Line drawing of a robotic vacuum cleaner with control panel and buttons (no text or symbols)

3 Wipe the bin door with a clean, dry cloth.

Closed Door

Open Door

Diagram of a door assembly with green and gray components (no text or symbols)

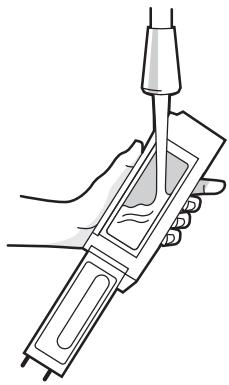

Washing the Bin

Important: Do not wash the filter. Remove the filter before washing the bin.

1 Release the bin, remove the filter, and open the bin door.

2 Rinse the bin using warm water.

Illustration of a hand using a pipette to measure a device (no text or symbols visible)

Note: Bin is not dishwasher safe.

3 Make sure bin is completely dry. Reinsert filter and place bin back in the robot.

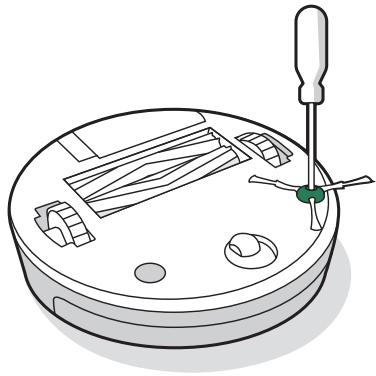

Cleaning the Edge-Sweeping Brush

1 Use a coin or small screwdriver to remove the screw holding the Edge-Sweeping Brush in place.

2 Pull to remove the Edge-Sweeping Brush. Remove any hair or debris, then reinstall the brush.

Illustration of a mechanical device with a green handle and internal components (no text or symbols)

Cleaning the Front Caster Wheel

1 Pull firmly on the front wheel module to remove it from the robot.
2 Pull firmly on the wheel to remove it from its housing (see illustration below).
3 Remove any debris from inside the wheel cavity.
4 Reinstall all parts when finished. Make sure the wheel clicks back into place.

Axle Wheel Housing

Important: A front wheel clogged with hair and debris could result in damage to your floor. If the wheel is not spinning freely after you have cleaned it, please contact Customer Care.

Cleaning the Multi-Surface Brushes

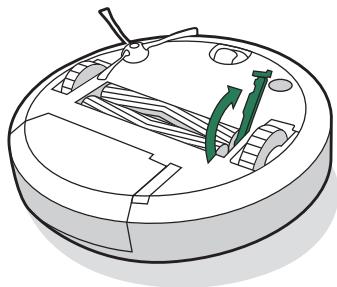

1 Pinch the brush frame release tab, lift the tab, and remove any obstructions.

Illustration of a robotic vacuum cleaner with green directional arrows indicating motion (no text or symbols)

2 Remove the brushes from the robot. Remove the brush caps from the ends of the brushes. Remove any hair or debris that has collected beneath the caps. Reinstall the brush caps.

Illustration of two cylindrical pipes with green connectors, no text or symbols present

3 Remove any hair or debris from the square and hexagonal pegs on the opposite side of the brushes.

Line drawing of a hand holding a rolled document or scroll (no text or symbols present)

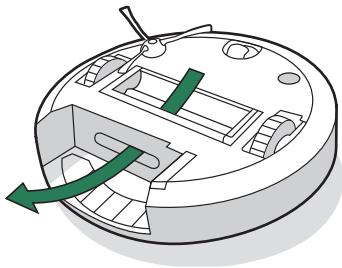

4 Remove the bin from the robot and clear any debris from the vacuum path.

Diagram of a circular device with internal compartments and a green arrow indicating rotation (no text or symbols)

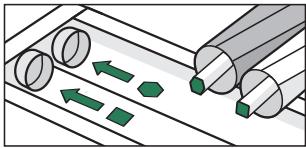

5 Reinstall the brushes in the robot. Match the shape of the brush pegs with the shape of the brush icons in the cleaning head module

Diagram showing green directional arrows between cylindrical and rectangular components, no text or symbols present

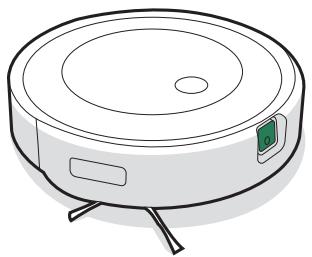

Cleaning the Sensors, Camera Window and Charging Contacts

1 Wipe sensors, camera window, and charging contacts with a clean, dry cloth.

Line drawing of a vacuum cleaner with a green sensor module (no text or symbols)

Top-down schematic of a circular mechanical or architectural component with internal components and no visible text or symbols

RVE-Y1 models only

Important: Do not spray cleaning solution or water onto the sensors or sensor openings.

Cleaning the Mopping Pad

HAND WASHING

Thoroughly wash the pad with warm water.

Illustration of a medical procedure with a needle inserted into a shaded area (no text or symbols)

MACHINE WASHING

Wash using the warm cycle, then air dry. Do not tumble dry. Do not wash with delicates.

Simple line drawing of a washing machine with no text or symbols

Replacing the Wick Cap

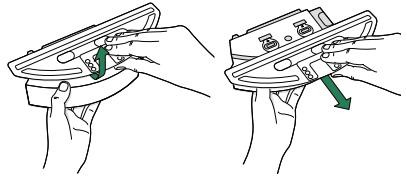

1 Remove pad plate

Diagram showing two hands holding a device with a green arrow indicating the change, labeled '区·区'.

2 Remove the wick cap by pulling on the side rubber tab.

Illustration of a hand using a tool to press green coins into a container (no text or symbols)

3 Replace with a new wick cap, pressing firmly into place to create a tight seal to prevent leaking.

4 Reintall pad plate

Care and Maintenance Instructions for Your Clean Base

To keep your dirt disposal running at peak performance, follow these care procedures:

Part	Care frequency	Replacement frequency
Bags	-	Bags should be replaced when prompted by the LED indicator/app.
Charging Contacts Visual Docking Target	Once every month	-
Blower Cover inside canister	Once every month (remove debris from blower cover)	-

Note: iRobot manufactures various replacement parts and assemblies. If you think you need a replacement part, please contact iRobot Customer Care for more information.

Replacing the Bag

1 Lift up on the canister lid to open.

Line drawing of a trash bin with an open lid and a green arrow indicating rotation (no text or symbols)

2 Pull up on the plastic card to remove the bag from the canister.

Diagram of a trash bin with an upward arrow indicating waste or disposal (no text or symbols present)

Note: This will seal the bag so dust and debris cannot escape.

3 Discard the used bag.

4 Install a new bag, sliding the plastic card into the guide rails.

Line drawing of a box with an open lid and a green arrow pointing to the interior (no text or symbols)

5 Press down on the lid making sure that it is completely closed.

Note: To achieve optimal performance with your robot and automatic dirt disposal, clean and/or replace your robot's filter as needed.

Cleaning the Visual Docking Target and Charging Contacts

Inspect the visual docking target and charging contacts to make sure that they are clear of debris. Wipe with a clean, dry cloth.

Important: Do not spray cleaning solution or water onto the sensors or sensor openings.

Line drawing of a toilet with two side-mounted buttons and a green indicator light (no text or symbols)

Removing Debris from Blower Cover

Inspect blower cover for any lint or debris build-up, and wipe with a clean dry cloth to remove.

Line drawing of a toolbox with internal compartments and a green tool inside (no text or symbols)

Troubleshooting

Troubleshooting Your Robot

- Your robot will tell you something is wrong by playing an audio alert and turning the light ring indicator red. Press the clean button or tap the bumper for details. Check the iRobot Home App for further support.

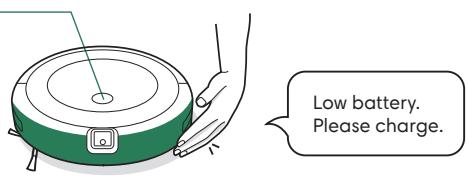

Red Light Ring

Low battery. Please charge.

• After 90 minutes of inactivity off the charging station, the robot will automatically end its cleaning job.
• To factory reset your robot, remove the dust bin and hold the clean button down for seven (7) seconds. A sound will let you know when the factory reset has been completed. Press the clean button down once more to confirm.

Battery Safety & Shipping

For best results, only use the iRobot Lithium Ion Battery that comes with your robot.

WARNING: Lithium ion batteries and products that contain lithium ion batteries are subject to stringent transportation regulations. If you need to ship this product for service, travel or any other reason, you MUST follow the below shipping instructions.

• Battery MUST be turned off before shipping.
• Turn off the battery by removing the robot from the charging station and holding down the clean button for 3 seconds with one wheel off the ground. All indicators will turn off.
• Package the robot securely for shipping.
• If you need further assistance, contact our Customer Care team or visit global.irobot.com.

Troubleshooting Your Automatic Dirt Disposal

Your dirt disposal will tell you if something is wrong via an LED indicator on the front of the canister and through the iRobot Home App.

LED indicator	Common error	How to fix
Solid red	Bag full or missing	1. Replace bag if it is full or missing.2. Make sure that the bag is securely inserted.3. If problem persists, remove any debris from the port on the bottom of your robot and the dirt disposal.
Blinking red	There is a leak or a clog in the dock evacuation path	1. Make sure that the canister lid is pushed down and firmly sealed. Hold the clean button on your robot down for 2-5 seconds to manually empty the bin.2. Remove any debris from the port on the bottom of your robot and dirt disposal.3. Unplug the dirt disposal from the wall. Place it on its side and inspect the debris evacuation tube for debris. If necessary, remove the tube to clear any debris.

This product has been equipped with a thermal protector designed to protect against damage due to overheating. If the protector operates, the motor will stop running. If this happens, unplug the unit, allow it to cool for 30 minutes, clear any obstructions from the evacuation port and evacuation tube, then plug the unit back in.

Regulatory Information

Hereby, iRobot Corporation declares that this robot vacuum cleaner model RVE-Y1/RVE-Y2 is in compliance with the EU Radio Equipment Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following web address:

www.irobot.com/compliance.

Hereby, iRobot Corporation declares that this robot vacuum cleaner model RVE-Y1/RVE-Y2 is in compliance with the Radio Equipment Regulations 2017. The full text of the UKCA Declaration of Conformity is available at the following web address:

www.irobot.com/compliance.

This symbol on the product indicates that the appliance must not be disposed of with unsorted common municipal waste. As the end-user, it is your responsibility to dispose of the end-of-life appliance in an environmentally sensitive manner as follows:

(1) returning it to the distributor/dealer from whom you purchased the product; or
(2) depositing it in a designated collection point.

Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details or your nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste in accordance with your national legislation.

More information may be found at the following source: https://environment.ec.europa.eu/topics/waste-and-recycling/waste-electrical-and-electronic-equipment-weee_en

Chemical information report listing SVHC (substances of very high concern) per EU Regulation EU 1907/2006 can be found here:

www.irobot.com/compliance.

Regulatory Model RVE-Y1 incorporates the Sextant radio module model AXG-Y1. The Sextant radio module is a dual band radio which operates in the WLAN 2.4 GHz and WLAN 5GHz bands. The Sextant radio module also incorporates Bluetooth and BLE which operates in the 2400 MHz – 2483.5 MHz band.

• The 2.4 GHz band is limited to operate between 2400 MHz – 2483.5 MHz with a maximum EIRP output power of 17.78 dBm (59.98 mW) at 2442 MHz.
• The 5 GHz band is limited to operate between 5150 MHz – 5850 MHz with a maximum EIRP output power of 20.81 dBm (120.50 mW) at 5190 MHz.
• For Israel, the 5 GHz band is limited to operate in the 5150 MHz – 5350 MHz band.

Or

Regulatory Model RVE-Y2 incorporates the FN Link radio module Model 6233E-UUB. The 6233E-UUB radio module is a dual-band radio which operates in the WLAN 2.4GHz and WLAN 5GHz bands. The 6233E-UUB radio module also incorporates Bluetooth and BLE which operate in the 2400-2483.5MHz band.

• The 2.4 GHz band is limited to operate between 2400 MHz – 2483.5 MHz with a maximum EIRP output power of 19.75 dBm (94.41 mW) at 2462 MHz.
• The 5 GHz band is limited to operate between 5150 MHz – 5850 MHz with a maximum EIRP output power of 20.07 dBm (101.62 mW) at 5180 MHz.
• For Israel, the 5 GHz band is limited to operate in the 5150 MHz -5350 MHz band.

Recycle your end-of-life iRobot product responsibly as per local regulations. The following is a list of the WEEE recycling organisations contracted by iRobot at the time of product sale.

Location	Organisation	URL
Austria	UFH	http://www.elektro-ade.at/elektrogeraete-sammeln/liste-der-sammelstoesterreich/
Belgium	Recupel	https://www.recupel.be/en/where-to-go/?searchcollectionPoints=&categories=1%2C2%2C3%2C4#
Germany	Zentek	https://www.ear-system.de/ear verzeichnis/sammel-und-ruecknahmestback
Denmark	Elretul	https://www.dpa-system.dk/DPAAplications/DPADB.aspx?wf=CollectionPointSearch.as
Spain	Ecotic	https://punto-limpio.info/
France	Eco-systemes	https://www.eco-systemes.fr/france
Ireland	WEEE Ireland	http://www.weeeireland.ie/household-recycling/where-can-i-recycle/
Netherlands	Wecycle	https://www.watismijnapparaatwaard.nl/
Sweden	El-Kretsen	https://www.sopor.nu/sortera-återvinn/
United Kingdom	Repic	http://www.responsible-recycling.co.uk/contact-us/find-your-local-recy

Manufacturer Address: iRobot Corporation, 8 Crosby Drive, Bedford MA 01730, USA

iRobot®

©2023 iRobot Corporation, 8 Crosby Drive, Bedford, MA 01730, USA. All rights reserved. iRobot is a registered trademark of iRobot Corporation, Roomba Robot Vacuum, Clean Base and Dirt Detect are trademarks of iRobot Corporation. Wi-Fi and the Wi-Fi logo are registered trademarks of Wi-Fi Alliance. Apple and App Store are trademarks of Apple Inc., registered in the US and other countries. Google Play is a trademark of Google LLC.

iRobot Customer Care

USA & Canada

If you have questions or comments about your dirt disposal, please contact iRobot before contacting a retailer.

You can start by visiting global.irobot.com for support tips, frequently asked questions, and information about accessories. This information can also be found in the iRobot HOME App. If you need further assistance, call the US Customer Care team at [phone].

iRobot USA Customer Care Hours

Monday to Friday, 9AM — 9PM Eastern Time

Saturday and Sunday 9AM — 6PM Eastern Time

Outside USA & Canada

Visit global.irobot.com to:

Learn more about iRobot in your country

Get hints and tips to improve your product performance

Get answers to questions

Contact your local support center

The complete owner's guide is available at about.irobot.com/manual#comboj5plus

Illustration of hands using a tool to lift a steamer, showing motion and angle change (no text or symbols)

Illustration of a hand using a pipette to lift a small object on a base (no text or symbols)

Illustration of two hands performing a circular device manipulation task (no text or symbols present)

Simple diagram of a circular ring with green arrows indicating rotational direction (no text or symbols)

Simple circular diagram with green lines and dots, no text or symbols present

Illustration of a hand holding a small green object on a circular device (no text or symbols)

Simple circular diagram with arrows indicating direction, no text or symbols present

Illustration of a hand holding a circular object with a green tag, no text or symbols present

Illustration of a hand using a handheld tool to lift a cylindrical container (no text or symbols)

Illustration of a hand holding a circular device with green arrows indicating rotation or change (no text or symbols)

Nettoyage du filtre

Line drawing of a hand inserting a component into a device (no text or symbols)

Line drawing of a hand pouring liquid into a container (no text or symbols)

Illustration of three steps: adding a lid, using a scraper to remove a cup (no text or symbols present)

Line drawing of a robotic vacuum cleaner with control panel and buttons (no text or symbols)

Diagram of a device casing with green and gray compartments, no text or symbols present

Nettoyage du bac

Illustration of a hand using a pipette to measure a device (no text or symbols visible)

Illustration of a mechanical device with a screwdriver and internal components (no text or symbols)

Diagram of a robotic vacuum cleaner with green directional arrows indicating motion (no text or symbols)

Illustration of two cylindrical mechanical components with green connectors, no text or symbols present

Line drawing of a hand holding a cylindrical object with tassels, no text or symbols present

Diagram of a circular device with internal compartments and a green arrow indicating rotation (no text or symbols)

Diagram showing directional arrows and geometric shapes on a surface, no text or symbols present

Line drawing of a vacuum cleaner with a green sensor module (no text or symbols)

Top-down schematic of a circular mechanical or architectural component with no visible text or symbols

Diagram of a medical procedure showing a needle inserted into a shaded area (no text or labels)

NETTOYAGE EN MACHINE À LAVER

Simple line drawing of a washing machine with no text or symbols

Diagram showing two hand positions of a device with a green arrow indicating the change direction, labeled '图 2'.

Illustration of a hand pressing down on a device with green arrows indicating upward motion (no text or symbols)

Line drawing of a box with an open lid and a green arrow indicating rotation (no text or symbols)

Illustration of a box with an open lid and a green upward arrow inside, indicating a process or operation (no text or symbols present)

Line drawing of a door opening with a green arrow indicating direction (no text or symbols)

Line drawing of a toilet with two side-mounted buttons and a green indicator light (no text or symbols)

Line drawing of a toolbox with internal compartments and a green handle (no text or symbols)

Dépannage

Dépannage du robot

www.irobot.com/compliance.

www.irobot.com/compliance.

Illustration of two hands performing a manual press or cleaning operation on a device, showing green arrows indicating motion (no text or symbols present)

Illustration of a hand using a sewing machine to press or install a small object (no text or symbols visible)

Illustration of two hands holding a circular device with a green handle, showing internal components and movement (no text or symbols)

Simple circular diagram with green arrows indicating rotational or feedback motion (no text or symbols)

Simple circular diagram with green lines radiating from center, no text or symbols present

Illustration of a robotic vacuum cleaner with a green sensor on the wheel (no text or symbols)

Simple circular diagram with arrows indicating direction, no text or symbols present

Illustration of a hand holding a circular device with a green clip, no text or symbols present

Illustration of a hand using a tool to lift a cylindrical container (no text or symbols)

Illustration of a hand holding a circular appliance with green arrows indicating rotation or change (no text or symbols)

Limpieza del filtro

Line drawing of a hand inserting a component into a device (no text or symbols)

Line drawing of a hand pouring liquid into a container (no text or symbols)

Illustration of three different cleaning or cleaning tools: a circular device with a handle, a handheld tool, and a bucket (no text or symbols present)

Line drawing of a robotic vacuum cleaner with control panel and mesh chamber (no text or symbols)

Illustration of a hand using a pipette to measure a device (no text or symbols visible)

Illustration of a mechanical device with a screwdriver and internal components (no text or symbols)

Diagram of a robotic vacuum cleaner with green directional arrows indicating motion (no text or symbols)

Illustration of two cylindrical pipes with green connectors, no text or symbols present

Line drawing of a hand holding a cylindrical object with tassels, no text or symbols present

Diagram of a circular device with internal compartments and a green arrow indicating rotation (no text or symbols)

Diagram showing three cylindrical objects with green directional arrows indicating movement or force (no text or symbols)

Line drawing of a vacuum cleaner with a green sensor module (no text or symbols)

Top-down schematic of a circular room with a central rectangular area and surrounding furniture (no text or symbols)

Solo modelos RVE-Y1

Diagram of a medical procedure showing a needle inserted into a shaded area (no text or labels)

LAVADO A MÁQUINA

Simple line drawing of a washing machine with a circular button and wavy handle (no text or symbols)

Diagram showing two hands holding a device with a green arrow indicating the change from the left to the right.

Illustration of a hand using a computer to press green buttons (no text or symbols present)

Line drawing of a handbag with an open lid and internal compartments, no text or symbols present

Diagram of a hand holding a device inside a container with an upward arrow (no text or symbols)

Line drawing of a box with an open lid and a green arrow pointing to the interior (no text or symbols)

Line drawing of a toilet with two side-mounted buttons and a green indicator light (no text or symbols)

Line drawing of a toolbox with internal compartments and a green handle (no text or symbols)

www.irobot.com/compliance.

www.irobot.com/compliance.

www.irobot.com/compliance.

Illustration of two hands performing a manual press or cleaning operation on a device, showing green arrows indicating motion (no text or symbols present)

2 RIEMPIRE IL CONTENITORE

Illustration of a hand using a tool to work on a mechanical component (no text or symbols visible)

Illustration of two hands holding a circular device with green buttons, no text or symbols present

Simple circular diagram with green arrows indicating rotational or directional movement (no text or symbols)

Simple circular diagram with green lines radiating from center, no text or symbols present

Illustration of a hand holding a small green object on a white circular device (no text or symbols)

Simple diagram of a circular ring with two curved arrows pointing outward, no text or symbols present.

Illustration of a hand holding a bowl with a green label, no text or symbols present

Line drawing of a hand holding a handheld device above a bowl (no text or symbols)

Illustration of a hand pressing down on a circular object with green arrows indicating motion (no text or symbols)

Pulizia del filtro

Line drawing of a hand inserting a component into a device (no text or symbols)

Line drawing of a hand pouring liquid into a container (no text or symbols)

Illustration of a hand holding a small cleaning device next to a circular component, with another container nearby (no text or symbols)

Line drawing of a circular robotic device with control panel and green buttons (no text or symbols)

Diagram of a mechanical component with labeled parts, showing internal structure without any readable text or symbols.

Illustration of a hand holding a handheld device with a pipette inserted (no text or symbols visible)

Illustration of a mechanical device with a screwdriver and internal components (no text or symbols)

Diagram of a robotic vacuum cleaner with green directional arrows indicating motion (no text or symbols)

Illustration of two cylindrical pipes with green connectors, no text or symbols present

Line drawing of a hand holding a cylindrical object with a tassel, no text or symbols present

Diagram of a circular device with internal compartments and a green arrow indicating rotation (no text or symbols)

Diagram showing green directional arrows interacting with cylindrical and rectangular components (no text or symbols)

Line drawing of a vacuum cleaner with a green sensor module (no text or symbols)

Top-down schematic of a circular mechanical or architectural component with no visible text or symbols

Solo su modelli RVE-Y1

Illustration of a medical procedure with a needle inserted into a shaded area (no text or symbols)

LAVAGGIO IN LAVATRICE

Simple line drawing of a washing machine with no text or symbols

Illustration showing two hand positions of a device with a green arrow indicating the change direction, labeled in Chinese.

Illustration of a hand using a power switch to press green buttons (no text or symbols)

Line drawing of a trash bin with an open lid and a green arrow indicating rotation (no text or symbols)

Diagram of a hand holding a device inside a container with an upward arrow (no text or symbols)

Line drawing of an open box containing a small object with a green arrow pointing to it, no text or symbols present.

Line drawing of a toilet with two sinks and a green indicator light (no text or symbols)

Line drawing of a toolbox with internal compartments and a green handle (no text or symbols)

www.irobot.com/compliance.

www.irobot.com/compliance.

www.irobot.com/compliance.

Illustration of two hands performing a manual press or cleaning operation on a device, showing green arrows indicating motion (no text or symbols present)

FÜLLEN DES AUFFANGBEHÄLTERS

Illustration of a hand using a tool to apply material or equipment (no text or symbols visible)

Illustration of two hands holding a circular device with green arrows indicating rotation (no text or symbols)

Simple circular diagram with two green arrows indicating rotational or directional movement (no text or symbols)

Simple circular diagram with green lines and a gradient fill, no text or symbols present.

Line drawing of a robotic vacuum cleaner with a green sensor on the wheel (no text or symbols)

Simple diagram of a circular ring with two curved arrows pointing outward, no text or symbols present.

Illustration of a hand holding a lid with a green clip, no text or symbols present

Line drawing of a hand using a handheld device to lift a container (no text or symbols)

Illustration of a hand pressing down on a circular object with green arrows indicating motion (no text or symbols)

Reinigen des Filters

Line drawing of a hand inserting a component into a device (no text or symbols)

Line drawing of a hand pouring liquid into a container (no text or symbols)

Line drawing of a robotic vacuum cleaner with control panel and buttons (no text or symbols)

Illustration of a hand holding a handheld device with a pipette inserted (no text or symbols visible)

Illustration of a mechanical device with a screwdriver and internal components (no text or symbols)

Illustration of a circular robotic vacuum cleaner with green blades and handle (no text or symbols)

Illustration of two cylindrical pipes with green connectors, no text or symbols present

Line drawing of a hand holding a wooden object with tassels, no text or symbols present

Diagram of a circular device with internal compartments and directional arrows indicating movement (no text or symbols)

Diagram showing green directional arrows between cylindrical and rectangular components, no text or symbols present

Line drawing of a vacuum cleaner with a green sensor module (no text or symbols)

Top-down schematic of a circular mechanical or architectural component with no visible text or symbols

Nur RVE-Y1 Modelle

Illustration of a medical or laboratory procedure showing a hand holding a needle inserted into a shaded tissue area (no text or symbols)

MASCHINENWÄSCHE

Simple line drawing of a washing machine with no text or symbols

Diagram showing two steps of a device handle with Chinese labels indicating 'Close' and 'Close' states.

Illustration of a hand using a tool to press or install a device with green arrows indicating upward movement (no text or symbols present)

Simple line drawing of a box with an open lid and a green arrow indicating rotation (no text or symbols)

Illustration of a box with a green upward arrow inside, indicating a process or operation (no text or symbols present)

Line drawing of an open box with a green arrow pointing to a small object inside, no text or symbols present.

Line drawing of a toilet with two side-mounted buttons and a green indicator block (no text or symbols)

Diagram of a closed open tool kit with internal components (no text or symbols)

Fehlerbehebung

www.irobot.com/compliance.

www.irobot.com/compliance.

www.irobot.com/compliance.

Illustration of two hands using a power tool to clean or adjust a device (no text or symbols present)

NAPEŁNIJ POJEMNIK

Illustration of a hand using a sewing machine to press or install a small electronic component (no text or symbols visible)

Illustration of two hands holding a circular object with green arrows indicating movement or change (no text or symbols)

Simple circular diagram with green arrows indicating rotational or directional movement (no text or symbols)

Simple circular diagram with green lines and dots, no text or symbols present

Illustration of a hand holding a small green object on a circular device (no text or symbols)

Simple circular diagram with two curved arrows pointing inward, no text or symbols present.

Illustration of a hand holding a lid with a green clip, no text or symbols present

Illustration of a hand using a handheld tool to lift a cup (no text or symbols present)

Illustration of a hand pressing down on a circular object with green arrows indicating motion (no text or symbols)

Czyszczenie filtra

Line drawing of a hand inserting a component into a device (no text or symbols)

Line drawing of a hand pouring liquid into a container (no text or symbols)

Illustration of three steps: adding a lid, holding a tool, and pouring liquid into a cup (no text or symbols)

Line drawing of a robotic vacuum cleaner with control panel and buttons (no text or symbols)

Diagram of a mechanical component with green and gray sections, no visible text or symbols

Illustration of a hand using a pipette to measure a device (no text or symbols visible)

Illustration of a mechanical device with a screwdriver and internal components (no text or symbols)

Diagram of a robotic vacuum cleaner with green directional arrows indicating motion (no text or symbols)

Illustration of two cylindrical pipes with green connectors, no text or symbols present

Line drawing of a hand holding a cylindrical object with tassels, no text or symbols present

Diagram of a circular device with internal compartments and a green arrow indicating rotation (no text or symbols)

Diagram showing green directional arrows interacting with cylindrical and rectangular components (no text or symbols)

Line drawing of a vacuum cleaner with a green sensor module (no text or symbols)

Top-down schematic of a circular mechanical or architectural component with internal layout and no visible text or symbols

Tylko RVE-Y1 modele

Illustration of a medical or surgical procedure with a tool inserted into a shaded area (no text or symbols)

PRANIE W PRALCE

Simple line drawing of a washing machine with no text or symbols

Diagram showing two steps of a device or component with directional arrows indicating movement, likely illustrating a process or assembly.

Illustration of a hand using a tool to press green pins on a device (no text or symbols present)

Line drawing of a handbag with an open lid and green arrow indicating rotation (no text or symbols)

Simple line drawing of a box with an open lid and a green upward arrow inside, no text or symbols present.

Simple line drawing of an open box with a green arrow pointing to the interior (no text or symbols)

Line drawing of a toilet with two side-mounted buttons and a green indicator light (no text or symbols)

Line drawing of a box with an open lid and internal compartments (no text or symbols)

Line drawing of a hand holding a green circular device with a knob, no text or symbols present

www.irobot.com/compliance.
