THFZ233NFWH - Freezer THOMSON - Free user manual and instructions

Product Type	Vertical freezer with forced air (No Frost)
Brand	THOMSON
Model	THFZ233NFWH
Dimensions (HxWxD)	1722 x 595 x 632 mm
Net weight	63 kg
Total volume	238 L
Energy efficiency class	E
Annual consumption	234 kWh/year
Freezing capacity	11.1 kg/24h
Power failure autonomy	8 hours
Noise level	41 dB(A) - Class C
Power supply	220-240 V ~ 50 Hz, 0.6 A
Refrigerant	R600a (48 g)
Climate class	SN-T (10 °C to 43 °C)
Main functions	Fridge/freezer conversion, Super Freeze, Super Cool, door alarm, digital display
Defrosting	Automatic (No Frost)
Door reversal	Possible - recommended to call a professional
Maintenance and cleaning	Soft cloth, warm water, mild detergent. Clean the seals regularly.
Safety	Do not use electrical appliances inside, do not damage the refrigeration circuit
Spare parts and repairability	Parts available within 15 working days. 2-year warranty. FNAC DARTY after-sales service.
General information	Domestic and similar use. Do not expose to rain. Disposal via collection points.

Frequently Asked Questions - THFZ233NFWH THOMSON

How to set the temperature of the THFZ233NFWH freezer?

Press the + or - buttons repeatedly to select the desired temperature. The adjustment range is -24°C to -16°C for freezer mode and 2°C to 8°C for refrigerator mode.

How to activate the Super Freeze function?

In freezing mode, press the Mode button several times until the SUPER FRZ. symbol lights up. This function lowers the temperature to -24°C and disables automatically after 24 hours.

How to convert the freezer into a refrigerator?

Press and hold the HOLD 3SEC. button for about 3 seconds until the refrigerator temperature symbol lights up. Before changing modes, remove all frozen or refrigerated food as applicable.

What to do in case of error code E2, E5, E6 or E7?

These codes indicate sensor or communication failures. Note the code and contact FNAC DARTY's authorized after-sales service. Do not attempt to repair it yourself.

How to clean the interior of the freezer?

Unplug the appliance, remove the food. Clean with a soft cloth soaked in warm water and a little liquid detergent. Rinse and dry thoroughly. Do not use solvents or abrasive cleaners.

The appliance is noisy, is this normal?

Yes, some noises are normal: the operation of the motor and the circulation of the refrigerant. If the appliance is unstable, check that it is level by adjusting the front feet.

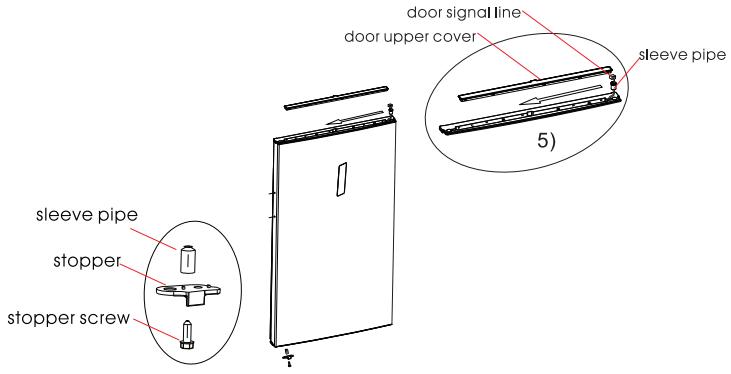

How to reverse the door opening direction?

It is recommended to call a certified technician. The procedure involves disassembling the hinges, transferring the connectors, and reassembling. The appliance must be unplugged and empty before the operation.

What is the energy consumption of the THFZ233NFWH?

Annual consumption is 234 kWh/year, with energy class E. To save energy, avoid opening the door too often and let hot food cool down before placing it inside.

How long do foods stay frozen in case of a power outage?

The autonomy is about 8 hours, provided the door is not opened. Do not refreeze completely thawed food.

What types of food can be frozen in this appliance?

Meat, fish, seafood, blanched vegetables, fruits, pastries, prepared dishes, etc. Avoid foods with high water content like lettuce or shell eggs. Wrap tightly and label with the date.

USER MANUAL THFZ233NFWH THOMSON

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/1343541

SERVICE DE RÉPARATION ET PIEÇES DE RECHANGE

UW APPARAAT VERPLAATSEN

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/1343541

PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE AND KEEP FOR FUTURE REFERENCE.

WARNING

• This appliance is intended to be used in household and similar applications such as

staff kitchen areas in shops, offices and other working environments;
- farm houses and by clients in hotels, motels and other residential type environments;
bed and breakfast type environments;
- catering and similar non-retail applications.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Regarding the details instructions for cleaning the surfaces in contact with food and splash area, refer to the section "Cleaning and Maintenance" in page 10.
  The appliance shall not be exposed to rain.
  WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
  WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
  WARNING: Do not damage the refrigerant circuit.
• WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• CAUTION: The cooling system is under high pressure. Do not touch it. Contact qualified maintenance services before disposal.
• INSTALLATION: DO NOT INSTALL THIS APPLIANCE IN AREAS THAT ARE TOO HUMID OR TOO COLD, SUCH AS THE OUTBUILDINGS, GARAGES OR WINE CELLARS.
  For disposal of the appliance:

To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle the appliance responsibly to promote the sustainable reuse of material resources, the refrigerants and the flammable insulation blowing gases. The disposal should only be done through public collection points; contact the waste treatment center nearest your home for more details on the correct procedures for disposal.

For installation, servicing:

Appliance should be placed on a horizontal floor and keep the ventilation freely. Don't try to replace or repair any components by yourself, ask the service agency for help if necessary.

For handling:

Always handle the appliance to avoid any damage.

WARNING: For making ice (ice cubes), use potable water only.
- Never freeze defrosted food except if they have been cooked before, in order to eliminate harmful bacteria. Never refreeze seafood that has been defrosted.

Warning; Risk of fire / flammable materials

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48h ; flush the water system connected to a water supply if water has not been drawn for 5 days.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

IMPORTANT SAFETY INSTRUCTIONS

If you are discarding an old appliance with a lock / catch fitted to the door, ensure that it is left in a disabled condition to prevent the entrapment of young children when playing.
- Unplug the appliance from the mains socket when not in operation and before cleaning. Remove food before cleaning the appliance.
- Do not insert oversized food as this could cause incorrect operation.
- Extreme caution must be used when moving the appliance.
- Do not give children ice-cream and water ices direct from the freezer drawers as the low temperature may cause 'freeze burns' on the lips.
- Do not stand or support yourself on the base or door, etc.
- Effervescent drinks should not be stored in the appliance.

Dispose of your old appliance

Fridges or freezers contain refrigerant and gases in the insulation.

Refrigerant and blowing gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.

NAMES OF PARTS

Refrigerator compartment (4°C) Cold air sinks so the bottom part is the coldest. Store your food in the optimal space to enjoy the fresh taste.		Freezer compartment (-18°C)
Top section:	canned food, bread, cake...	Freezer compartment :	Freezing, storage of frozen food
Middle section:	dairy products, readymade food, desserts, meat, meat products, delicatessen ...	Freezer shelves :	Leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts. Vegetables, fruits
Containers:	fresh fruit, vegetables, salads...

BEFORE INSTALLING THE APPLIANCE

Before connecting your appliance to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home. A different voltage could damage the appliance.

The plug is the only way to unplug the appliance and should therefore be accessible at all times. To turn off main power to the appliance, turn it off and then detach the plug from the outlet.

The appliance must be grounded. The manufacturer is not responsible for damages that may occur as a result of usage without grounding.

INSTALLATION

Install the appliance in a dry, well ventilated room. The installation location should neither be exposed to direct sunlight nor near a heat source, e.g. a cooker, radiator, etc.

To ensure adequate ventilation for the appliance, allow a minimum of 10cm of airspace on each side of the cabinet.

For uneven surfaces, front feet can be aligned.

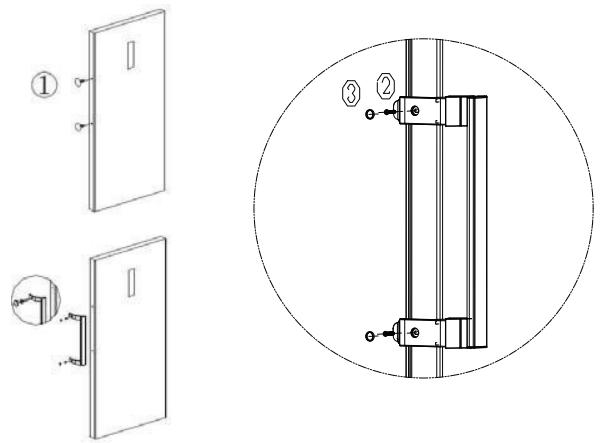

Installing the Door Handle

1. Remove the screw hole covers ① on the side of the door. There will be 2 designated holes for the handle to be installed.
2. Align the screw holes of the door handle to those on the side of the door.
3. Tighten the screws to fix the handle to the door.
4. Assemble the screw covers to the screws.

AMBIENT TEMPERATURE

This appliance is designed to operate in ambient temperature between 10^ and 43^ . If these temperatures are exceeded, i.e. colder or warmer, the appliance will not operate correctly. If the ambient temperatures are exceeded for long periods, the temperature in the freezer compartment will rise above -18^ and food spoilage may occur.

BEFORE PLACING FOOD IN THE APPLIANCE

• Remove all packaging.
• Allow the appliance to run empty for 2 - 3 hours so the compartments can cool to the appropriate temperature.
• Clean the inside of the appliance with warm water and a little liquid detergent to remove manufacturing and transportation dust.

POWER FAILURE

If there is a power failure, do not open the appliance door. Frozen food should not be affected if the power failure lasts for less than 8 hours. Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat.

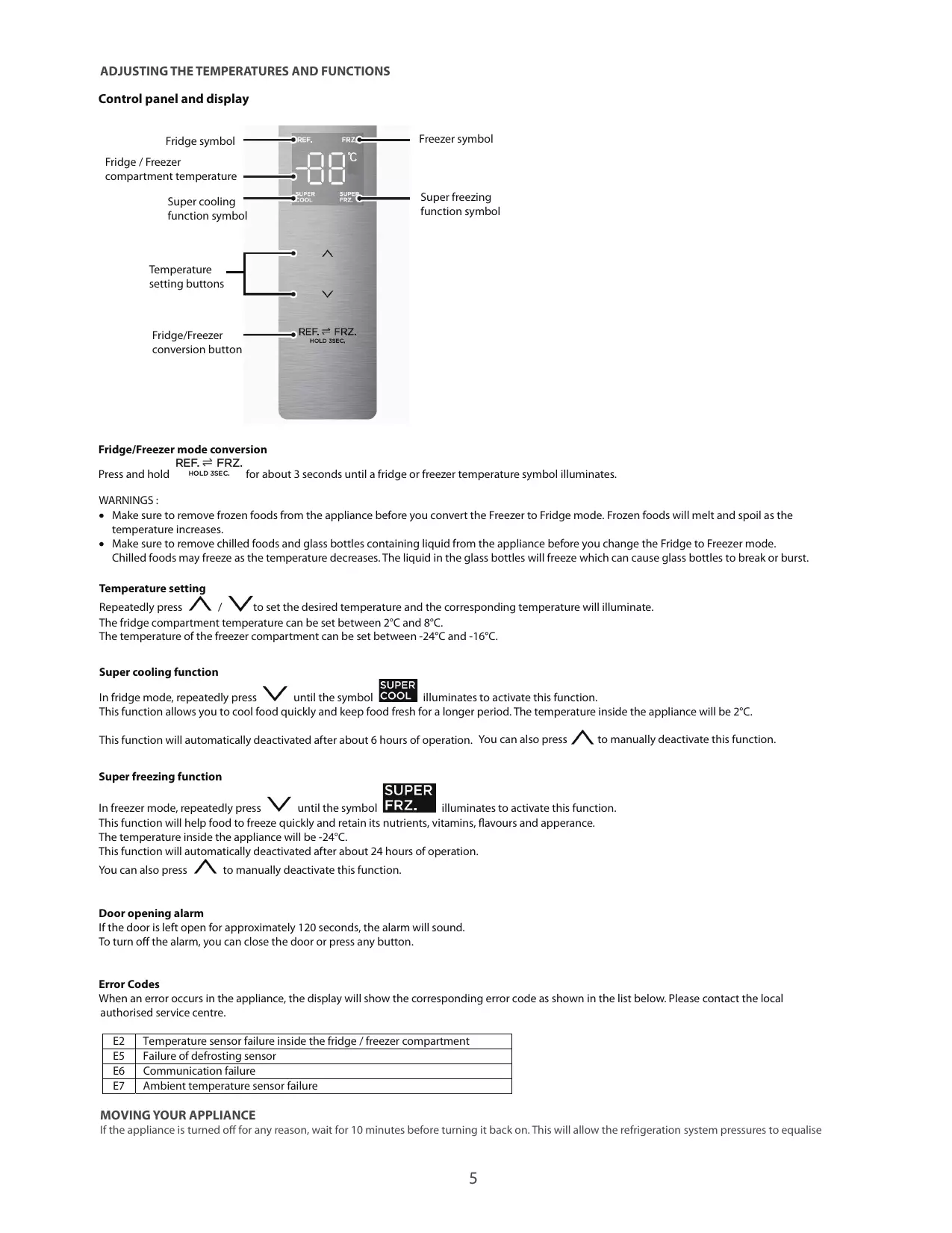

Control panel and display

Fridge/Freezer mode conversion

REF. FRZ.

Press and hold HOLD 3SEC. for about 3 seconds until a fridge or freezer temperature symbol illuminates.

WARNING:

• Make sure to remove frozen foods from the appliance before you convert the Freezer to Fridge mode. Frozen foods will melt and spoil as the temperature increases.
• Make sure to remove chilled foods and glass bottles containing liquid from the appliance before you change the Fridge to Freezer mode. Chilled foods may freeze as the temperature decreases. The liquid in the glass bottles will freeze which can cause glass bottles to break or burst.

Temperature setting

Repeatedly press / to set the desired temperature and the corresponding temperature will illuminate.

The fridge compartment temperature can be set between 2^ and 8^ .

The temperature of the freezer compartment can be set between -24^ and -16^ .

Super cooling function

In fridge mode, repeatedly press √ until the symbol SUPER COOL illuminates to activate this function.

This function allows you to cool food quickly and keep food fresh for a longer period. The temperature inside the appliance will be 2^ .

This function will automatically deactivated after about 6 hours of operation. You can also press to manually deactivate this function.

Super freezing function

In freezer mode, repeatedly press √ until the symbol SUPER FRZ. illuminates to activate this function.

This function will help food to freeze quickly and retain its nutrients, vitamins, flavours and appearance.

The temperature inside the appliance will be -24^

This function will automatically deactivated after about 24 hours of operation.

You can also press to manually deactivate this function.

Door opening alarm

If the door is left open for approximately 120 seconds, the alarm will sound.

To turn off the alarm, you can close the door or press any button.

Error Codes

When an error occurs in the appliance, the display will show the corresponding error code as shown in the list below. Please contact the local authorised service centre.

E2	Temperature sensor failure inside the fridge / freezer compartment
E5	Failure of defrosting sensor
E6	Communication failure
E7	Ambient temperature sensor failure

MOVING YOUR APPLIANCE

If the appliance is turned off for any reason, wait for 10 minutes before turning it back on. This will allow the refrigeration system pressures to equalise

before restarting.

Turn off the appliance and unplug it from the mains socket. Remove all food. Also remove all mobile parts (shelves, accessories, etc.) or fix them into the appliance to avoid any shock.

Relocate and install. If the appliance has been left on its side for any length of time, leave it standing upright for at least 10 minutes before turning on.

Your appliance uses isobutane (R600a) as a refrigerant. Although R600a is an environmentally friendly and natural gas, it is explosive. Therefore you should be careful during shipment and installation to prevent your appliance's cooler elements from being damaged. In the event of a leak caused by damage to the cooler elements, move your appliance from open flame or heat sources and ventilate the room where the appliance is located for a few minutes.

FREEZING AND STORING FOOD IN THE FREEZER

Use the freezer compartment

• To store deep-frozen food.
• To make ice cubes.
  To freeze food.

Note: Ensure that the appliance door has been closed properly.

Purchasing frozen food

• Packaging must not be damaged.
• Use by the 'use by /best before/best by/' date.
  If possible, transport deep-frozen food in an insulated bag and place quickly in the appliance.

Storing frozen food

Store at -18°C or colder. Avoid opening the appliance door unnecessarily.

Freezing fresh food

Freeze fresh and undamaged food only.

To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing.Aubergines, peppers, zucchini and asparagus do not require blanching.

Note: Keep food to be frozen away from food which is already frozen.

• The following foods are suitable for freezing:

Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese and butter, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts.

• The following foods are not suitable for freezing:

Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yoghurt, soured milk, sour cream, and mayonnaise.

Packing frozen food

To prevent food from losing its flavour or drying out, place food in airtight packaging.

1. Place food in packaging.
2. Remove air.
3. Seal the wrapping.
4. Label packaging with contents and dates of freezing.

Suitable packaging:

Plastic film, tubular film made of polyethylene, aluminium foil, freezer containers.

These products are available from specialist outlets.

Recommended storage times of frozen food in the freezer drawers

These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at -18^ ).

Food	Storage time
Bacon, casseroles, milk	1 month
Bread, ice cream, sausages, pies, prepared shellfish, oily fish	2 months
Non-oily fish, shellfish, pizza, scones and muffins	3 months
Ham, cakes, biscuits, beef and lamb chops, poultry pieces	4 months
Butter, vegetables (blanched), eggs whole and yolks, cooked crayfish, minced meat (raw), pork (raw)	6 months
Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes	12 months

Never forget:

• When you freeze fresh foods with a 'use by /best before/best by/' date, you must freeze them before the expiry of this date.
• Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen.
• Once defrosted, food should be consumed quickly.

STORING FOOD IN THE FRIDGE

The fridge compartment helps to extend the storage times of fresh perishable foods.

Fresh food care

For best results:

• Store foods that are very fresh and of good quality.
• Ensure that food is well wrapped or covered before it is stored. This will prevent food from dehydrating, deteriorating in colour or losing taste and will help maintain freshness. It will also prevent odour transfer.
• Make sure that strong smelling foods are wrapped or covered and stored away from foods such as butter, milk and cream which can be tainted by strong odours.
  Cool hot foods down before placing them in the appliance.

Dairy foods and eggs

• Most pre-packed dairy foods have a recommended 'use by /best before/best by/' date stamped on them. Store them in the appliance and use within the recommended time.
• Butter can become tainted by strong smelling foods so it is best stored in a sealed container.
• Eggs can be stored in the appliance.

Red meat

• Place fresh red meat on a plate and loosely cover with waxed paper, plastic wrap or foil.
• Store cooked and raw meat on separate plates. This will prevent any juice lost from the raw meat from contaminating the cooked product.

Poultry

• Fresh whole birds should be rinsed inside and out with cold running water, dried and placed on a plate. Cover loosely with plastic wrap or foil.
• Poultry pieces should also be stored this way. Whole poultry should never be stuffed until just before cooking, otherwise food poisoning may result.

Fish and seafood

• Whole fish and fillets should be used on the day of purchase. Until required, refrigerate on a plate loosely covered with plastic wrap, waxed paper or foil.
• If storing overnight or longer, take particular care to select very fresh fish. Whole fish should be rinsed in cold water to remove loose scales and dirt and then patted dry with paper towels. Place whole fish or fillets in a sealed plastic bag.
• Keep shellfish chilled at all times. Use within 1 – 2 days.

Precooked foods and leftovers

• These should be stored in suitable covered containers so that the food will not dry out.
• Keep for only 1 - 2 days.
• Reheat leftovers only once and until steaming hot.

Vegetable and fresh fruit

• Take care not to store the following at temperatures of less than 7^ C for long periods: Citrus fruit, melons, aubergines, pineapple, papaya, courgettes, passion fruit, cucumber, peppers, tomatoes.
• Undesirable changes will occur at low temperatures such as softening of the flesh, browning and/or accelerated decaying.
• Do not refrigerate avocados (until they are ripe), bananas, and mangoes.

DOOR CONVERSION

If you need to hinge the door on the opposite sides it is recommended that you call your local authorized service agent to make this conversion or ask a technician.

Before you reverse the door, you should ensure the appliance is unplugged and empty.

It is recommended to use screwdrivers and a spanner (both not supplied).

1. Dismantle the screw hole caps, screws and handle. Remove the plastic screw hole caps from the other side.
2. Dismantle the upper hinge cover, screws and upper hinge. Remove the hole cover from the other side. Unplug the wiring connectors on the right side of the top of the appliance.

Wiring connectors ①②③④⑤⑥ hole cover

1. Dismantle the door and right bottom hinge assembly (hinge shaft, adjustable foot and hinge), disassemble the right bottom hinge assembly, and assemble the hinge shaft and adjustable foot on the other side of the hinge, then assemble the whole hinge assembly on the other side of the appliance.

1. Remove the door upper cover, install the upper hinge sleeve, door signal line to the other side and install the door upper cover. Dismantle the right door stopper, sleeve pipe from the right bottom of door, and insert the sleeve pipe into hinge hole of left bottom of door, and take out left door stopper from the accessory bag, and assemble it on the left bottom of door. Please keep the right door stopper for future use.

1. Take out the left top hinge , left top hinge cover from accessories package ; Place the door on bottom hinge ,and mount left top hinge.

Connect signal line terminal ⑤ with signal line terminal ①, connect signal line terminal ⑥ to the door switch.
connect signal line terminal ② with signal line terminal ④;

Mount top hinge cover and hole cover.

1. Assemble the door handle by tightening the screws and then attach the screw covers to the screws.

DEFROSTING

This appliance is equipped with a frost free system.

This system enables the appliance to remain permanently ice-free, however the food stored in the appliance will not defrost when it is converted as a freezer.

TIPS FOR SAVING ENERGY

For the most energy efficient use of your appliance:

• Ensure your appliance has adequate ventilation as recommended in the installation instructions.
• Allow warm food and drinks to cool down before placing in the appliance.
• Thaw frozen food in the fridge and use the low temperature of the frozen food to cool refrigerated food.
• Keep door openings to a minimum.
• Open the appliance as briefly as possible.
• Ensure that the door is always closed properly.

OPERATING NOISES

Normal noises

• Motors are running.
• Refrigerant is flowing through the tubing.

CLEANING AND MAINTENANCE

Do not use abrasive cleaning agents or solvents.

1. Disconnect the mains plug from the mains socket.
2. Take out the food and store in a cool location.
3. Clean the appliance with a soft cloth, warm water and detergent.
4. Wipe the door seal with clear water only and then wipe dry thoroughly.
5. After cleaning reconnect and set the temperature as desired.
6. Put the food back into the appliance.

Cleaning Tips

• Remove all shelves, door shelves, vegetable containers, removable accessories (such as egg tray and ice cube tray if included) and/or drawers from the appliance. Wash them in warm soapy water with a soft sponge. Rinse and dry thoroughly.
• Wipe the interior parts (including door switch, temperature control knob and lamp cover) with a damp cloth soaked in a mixture of warm water and dishwashing liquid. For stubborn stains, use baking soda.
• Wipe down the doors, including edges, with a microfiber cloth dampened with a mild dishwashing liquid and water. Use a wet sponge and soft brush (such as toothbrush) to remove any stuck-on food.

TROUBLESHOOTING

If there is a problem with your appliance, please check the following points before contacting customer service.

Problem	Possible causes	Possible solution
Appliance does not operate.	No electricity at power outlet.	Check that the plug is correctly connected and power switched on.
Appliance is noisy.	Cabinet not stable or level.	See “Installation” section.
Appliance not cool	Temperature setting not correct.	See “Adjusting the temperatures and functions” section.
	Frequent door openings.	Minimise door openings to allow temperatures to stabilise.
	Large amount of food recently added.

SPECIFICATIONS

Temperature rise time	Power cut safe 8h
Electric shock protection class	Class I
Rated voltage and frequency	220-240V~50Hz
Rated current	0.6A
Defroster power	280W
Energy consumption	E16 : 0,413 kWh/24h E32 : 0,741 kWh/24h
Insulation blowing gas	Cyclopentane
Refrigerant/Amount	R600a/ 48g
Net weight	63kg

Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2016 with regard to energy labelling of refrigerating appliances
Supplier's name or trade mark: Etablissements Darty & fils © | THOMSON
Supplier's address: 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France
Model identifier: THFZ233NFWH
Type of refrigerating appliance:
Low-noise appliance:		no	Design type:		freestanding
Wine storage appliance:		no	Other refrigerating appliance:		yes
General product parameters:
Parameter		Value	Parameter		Value
Overall dimensions (millimeter)	Height	1722	Total volume (dm3or l)		238
	Width	595
	Depth	632
EEI		100	Energy efficiency class		E
Airborne acoustical noise emissions (dB(A) re 1 pW)		41	Airborne acoustical noise emission class		C
Annual energy consumption (kWh/a)		234	Climate class:		extended temperate/ temperate/ subtropical/ tropical
Minimum ambient temperature (℃), for which the refrigerating appliance is suitable		10	Maximum ambient temperature (℃), for which the refrigerating appliance is suitable		43
Winter setting		no
Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment Volume (dm3or l)	Recommended temperature setting for optimised food storage (℃)	Freezing capacity (kg/24 h)	Defrosting type (auto-defrost = A, manual defrost = M)
Pantry	no	—	—	—	—
Wine storage	no	—	—	—	—
Cellar	no	—	—	—	—
Fresh food	no	—	—	—	—
Fresh food	no	—	—	—	—
Chill	no	—	—	—	—
0-star or ice-making	no	—	—	—	—
1-star	no	—	—	—	—
2-star	no	—	—	—	—
3-star	no	—	—	—	—
4-star	no	—	—	—	—
2-star section	no	—	—	—	—
Variable temperature compartment	yes	238	4	—	A
			-18	11,1
For 4-star compartments
Fast freeze facility			yes
For wine storage appliances
Number of standard wine bottles			—
Light source parameters (a):
Type of light source			—
Energy efficiency class			—
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the supplier's website, where the information in point 4 of Annex II of Commission Regulation (EU)2019/2019 is found: www.darty.com

(a) as determined in accordance with Commission Delegated Regulation (EU) 2019/2015.

Climate class:

• Extended temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10^ to 32^' .
• Temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ C to 32^ C' .
• Subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ to 38^' .
• Tropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ C to 43^ C' .

This refrigerating appliance is not intended to be used as a built-in appliance.

To find the model information in the product database :

Click the link

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/1343541

REPAIR AND SPARE PARTS SERVICE

Do not disassemble or repair the appliance by yourself. Failure to do so may result in an electric shock or personal injury.

To access to professional repair and order spare parts, please get the support from FNAC DARTY after-sales service.

Spare parts for your appliances will be delivered within 15 working days after having received the order.

Please Note!

All appliances have a 2-year warranty.

Warranty does not cover damages caused due to improper installation, unauthorized modification, self-repair or non-professional repair.

Contact us at :

DISPOSAL

As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations.

Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling.

The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

THE COLDEST PART OF THE REFRIGERATOR

The symbol indicates the location of the coldest part of your refrigerator. This area is in between the vegetable compartment at the bottom and the symbol at the top, or the shelf at the same height. In order to maintain the temperature in this area, make sure not to change the position of this shelf.

In pulsed air refrigerators (equipped with a fan) or No Frost models, the coldest area symbol is not shown because the temperature is uniform throughout the interior.

INSTALLING THE TEMPERATURE INDICATOR

To help you adjust your refrigerator correctly, it is equipped with a temperature indicator that you can use to control the average temperature in the coldest area.

WARNING: This indicator is only intended for use in your refrigerator. Do not use it in another refrigerator (as the coldest area will not be the same) or for any other purpose.

TEMPERATURE INDICATOR: THE COLDEST PART OF YOUR REFRIGERATOR

CHECKING THE TEMPERATURE IN THE COLDEST AREA

• Using the temperature indicator, you should regularly check that the temperature is correct in the coldest part of your refrigerator. The temperature inside your refrigerator depends on a number of factors, such as the outside room temperature, how full your refrigerator is, and how often you open the door. Take these factors into consideration when adjusting your appliance.

When the indicator shows "OK", it means your thermostat is set properly and the temperature inside your refrigerator is correct.

If the indicator is white it means the temperature is too high, so you should

increase the thermostat and wait for 12 hours before checking the indicator

again.

After loading the refrigerator or opening the door, the indicator may turn

white for a few seconds.

Correct setting

Temperature too high -adjust the thermostat

EU Declaration of Conformity

Product Description:

Frost-Free Upright Freezer

The object of the declaration described above is in conformity with the relevant Union

harmonisation legislation:

Low Voltage Directive (LVD)

Eco design requirements for energy-related products (ErP)

RoHS

EMC:

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019+A1:2021

EN 61000-3-3:2013+A1:2019+A2:2021

LVD :

EN 60335-1: 2012 + A11:2014 + A13:2017 + A1:2019 + A2:2019 + A14:2019 +A15:2021

EN 60335-2-24:2010 + A1:2019 + A2:2019+A11:2020

EN 62233:2008

ErP :

(EU) 2019/2016 (EU) 2019/2019
(EU) 2021/340 (EU) 2021/341
EN 62552-1:2020
EN 62552-2:2020
EN 62552-3:2020
EN 60704-1:2010 + A11:2012
EN 60704-2-14:2013 + A11:2015 + A1:2019

This declaration of conformity is drawn up under the sole responsibility of the manufacturer.

The person responsible for this declaration is:

Place, Date / Lieu :
