USER MANUAL KP105 TP-LINK

This guide provides a brief introduction to Kasa Smart Wi-Fi Plug Slim and the Kasa Smart app, as well as regulatory information.

Please note that features of Kasa Smart Wi-Fi Plug Slim may vary slightly depending on the model and software version you have, and on your location language and internet service provider. All images, steps, and descriptions in this guide are only examples and may not reflect your actual experience.

Conventions

In this guide, the following convention is used:

Convention	Description
Teal	Key information appears in teal, including management page text such as menus, items, buttons and so on.
Underline	Hyperlinks are in teal and underlined. You can click to redirect to a website.

More Info

• Specifications can be found on the product page at https://www.tp-link.com.
  Our Technical Support and troubleshooting information can be found at https://www.tp-link.com/support/.

Introduction

Kasa Smart Wi-Fi Plug Slim is convenient and safe to turn your appliances on/off or set flexible schedules—all from your phone, free up your hands using voice control with Alexa or Google Assistant and prevent overheating with automatic shutoff.

Compact Design

Smart Plug's compact size leaves adjacent sockets accessible and ready for use.

Control from Anywhere

Manage connected electronics from anywhere with the Kasa Smart app.

No Hub Required

Connects to your home's Wi-Fi network. No need for a hub or extra equipment.

Home Automation

Set multiple schedules, create scenes and groups, and simulate occupancy while away with away mode.

Model	Supported Load Type	Note
KP105(EU)	100~240V ac, 50/60Hz, 16A max, Resistive Load; 100~240V ac, 50/60Hz, 2.5FLA/16LRA*, Motor Load Construction of Switch: Micro-Disconnection(μ)
KP105(UK)	100~240V ac, 50/60Hz, 13A max, Resistive Load; 100~240V ac, 50/60Hz, 2.0FLA/13LRA*, Motor Load Construction of Switch: Micro-gap Switch(μ)	*FLA = Full Load Ampere; LRA = Lock Rotor Ampere
KP105(AU)	220~240V ac, 50/60Hz, 10A max, Resistive Load; 220~240V ac, 50/60Hz, 1.6FLA/10LRA*, Motor Load Construction of Switch: Micro-gap Switch(μ)
KP105(FR)	230V~, 50/60Hz, 16A Max, Resistive Load; 230V~, 50/60Hz, 2.5FLA/16LRA*, Motor Load Construction of Switch: Micro-Disconnection(μ)

Appearance

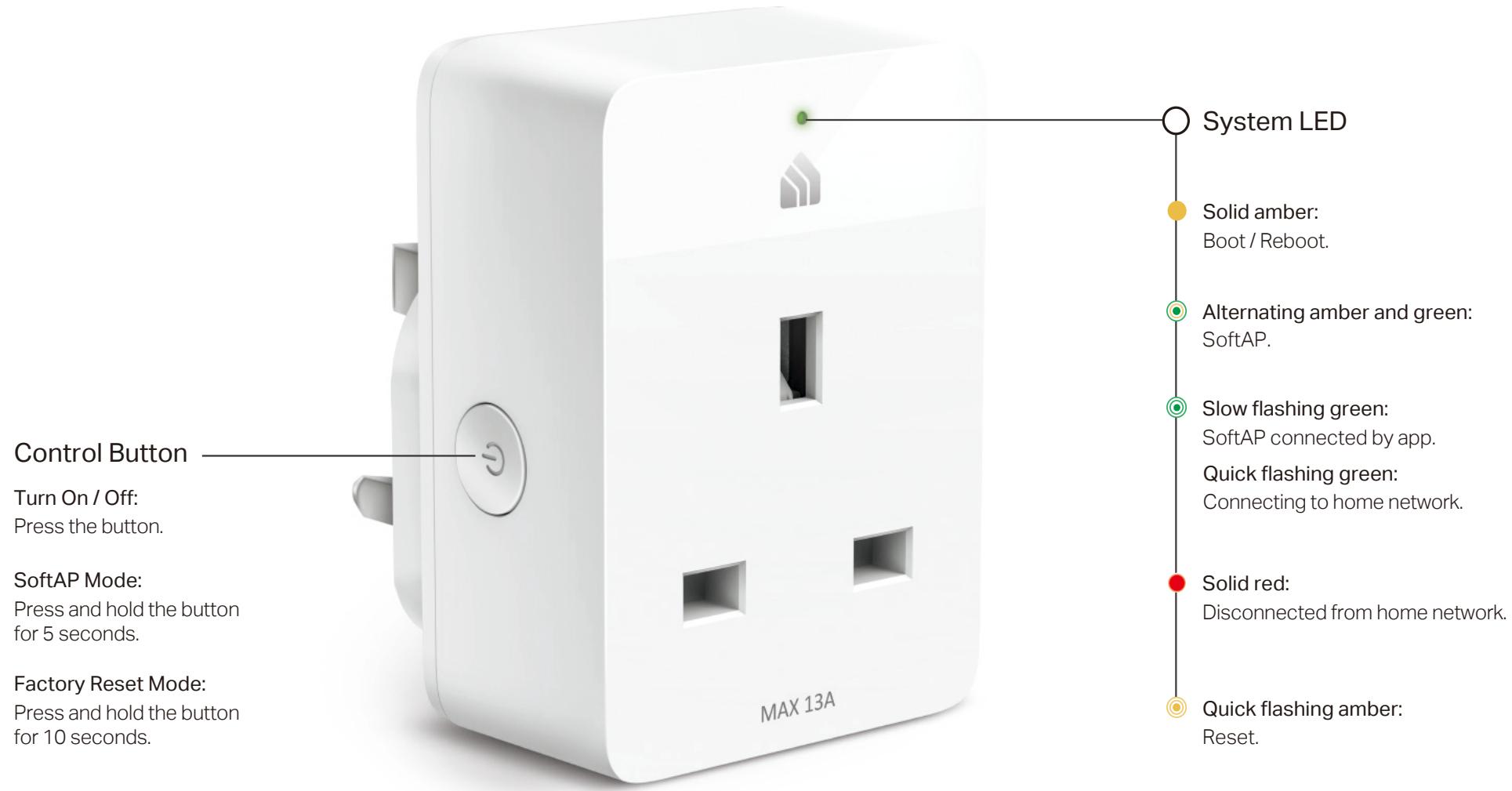

Kasa Smart Wi-Fi Plug Slim has 1 individual smart outlets, with a control button to turn on/off the device plugged in, and 1 LED to show you the current status. See the explanation below:

*KP105 (UK version) is used for demonstration in this guide.

Set Up Your Smart Wi-Fi Plug Slim

Follow the steps below to set up your smart plug via Kasa Smart app.

1. Install Kasa Smart app

Get the Kasa Smart app from Google Play or the Apple App Store, or scan the QR code below to download it.

2. Log in or sign up with TP-Link ID

Open the Kasa Smart app and log in with your TP-Link ID. If you don't have an account, create one first.

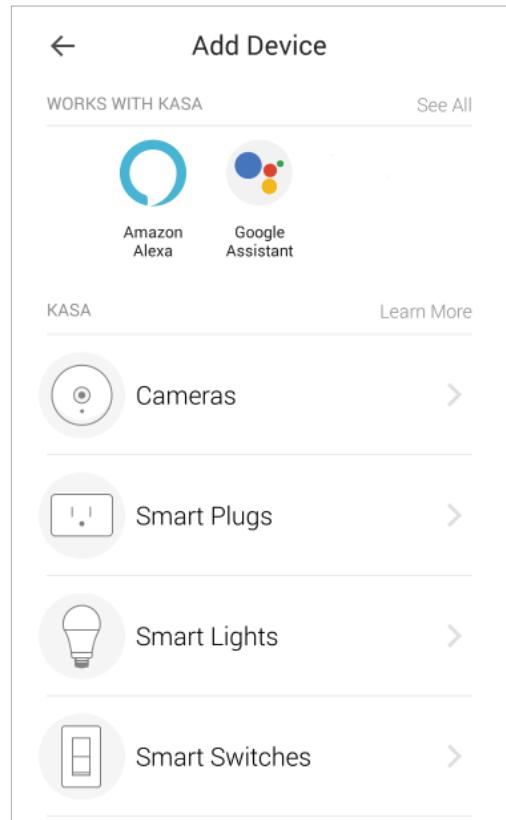

3. Add Device

Tap the button in the Kasa Smart app, select Add a Device >Smart Plugs and then follow step-by-step app instructions to complete the setup.

OR

↓

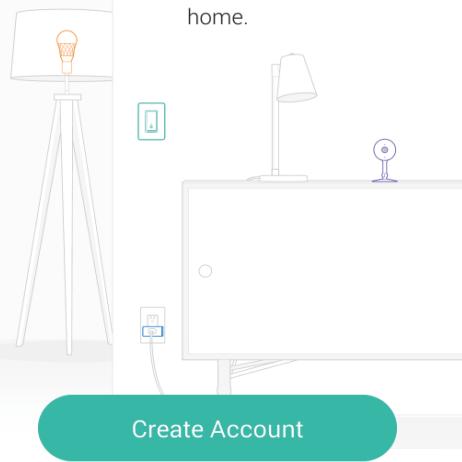

Welcome Home to Kasa

Everything you need to get up and running, Kasa helps you enjoy the convenience and peace of mind of a fully connected smart

Log In

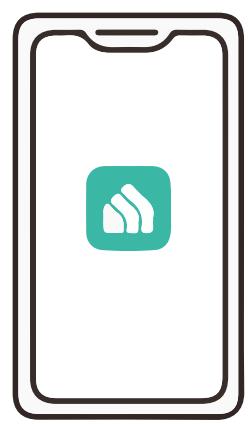

Simple to Set up and Use with Alexa

Setup is faster than ever before with Alexa. Use your Echo device to set up the plug via voice command.

1

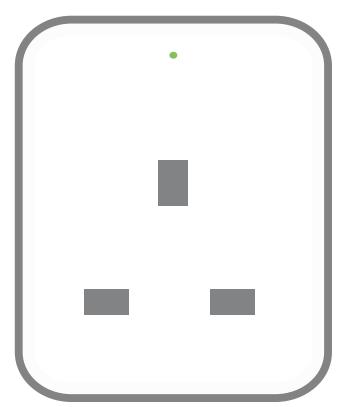

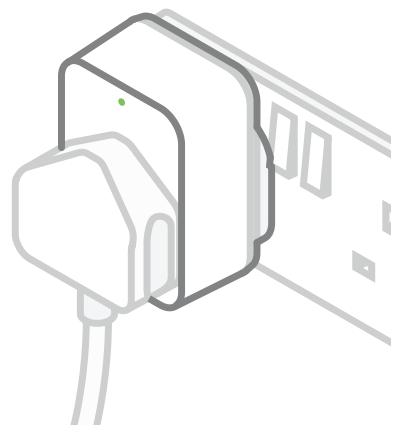

Once you've set up your Echo device, plug in your TP-Link smart plug. If Alexa or the Alexa app says "New plug found," go straight to step 3.

2

In the Kasa app, click the ^ + icon and then follow the step-by-step instructions to set up your smart plug and link your TP- Link account to Amazon.

3

To use your device with Alexa, just say "Alexa, turn on First Plug."

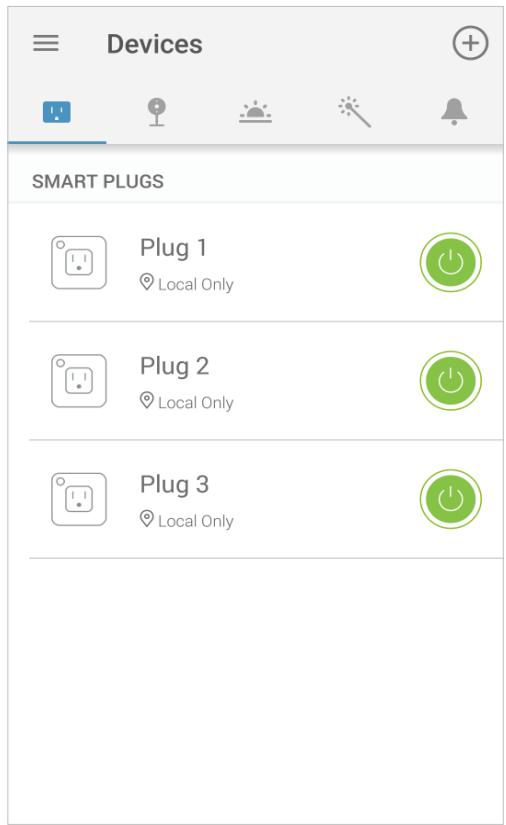

Main Device Controls

After you successfully set up your smart plug, you will see the home page of the Kasa Smart app. Here you can view and manage all devices that you've added to Kasa. Tap a smart power plug to control and manage it.

Home Page

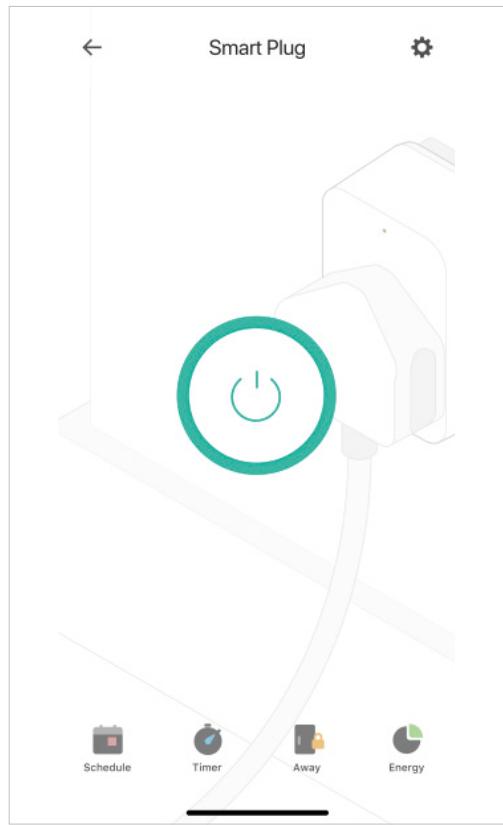

Device Status

Configure Your Smart Wi-Fi Plug Slim

On Device Status page, you can set Schedule, preset Away Mode, set Timer, check Usage and change the settings of your smart plug.

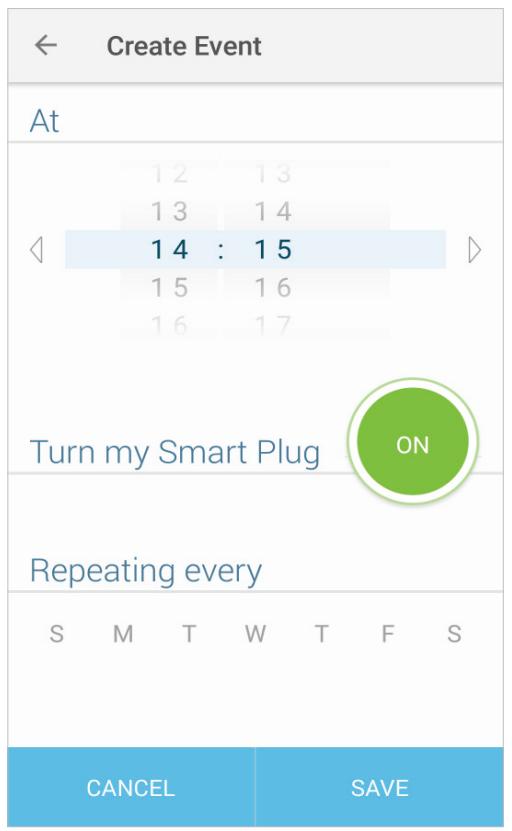

Set Schedule

Tap to set a schedule for your smart Schedule plug to simplify your daily routine by creating automatic On/Off action.

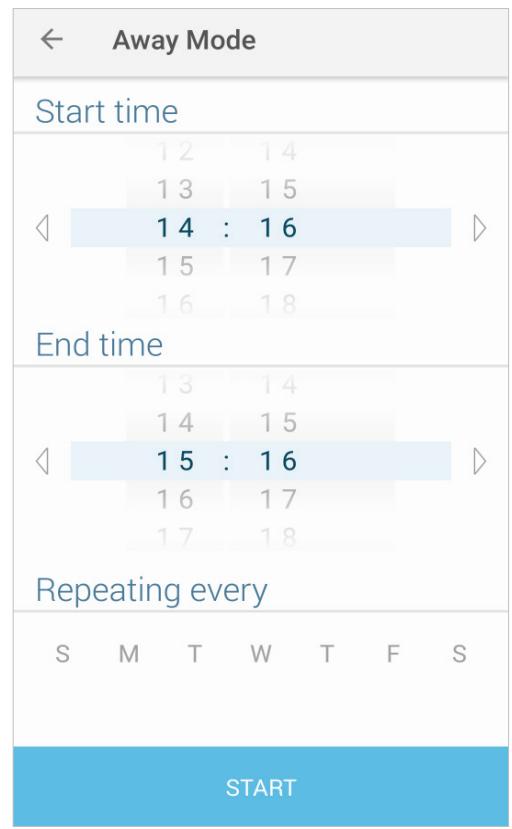

Preset Away Mode

Tap to preset the Away Mode and your smart plug will be randomly turned on/off during this time.

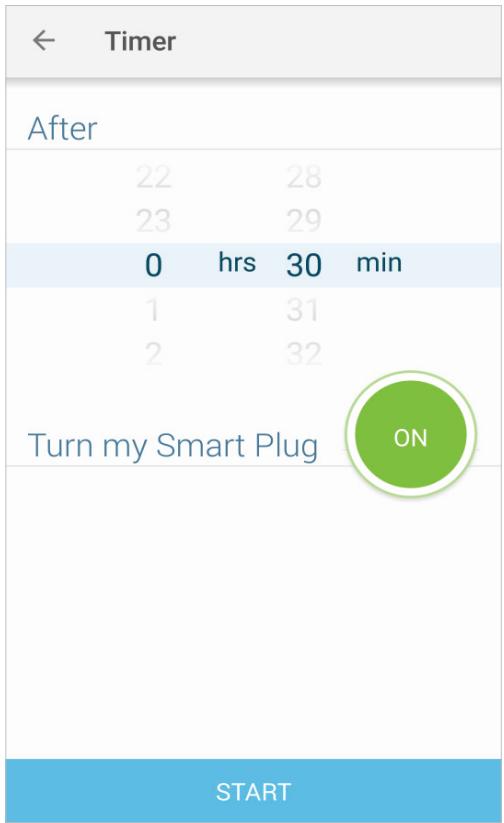

Set Timer

Tap to set the timer and your smart plug will automatically be turned on/off after the time ends.

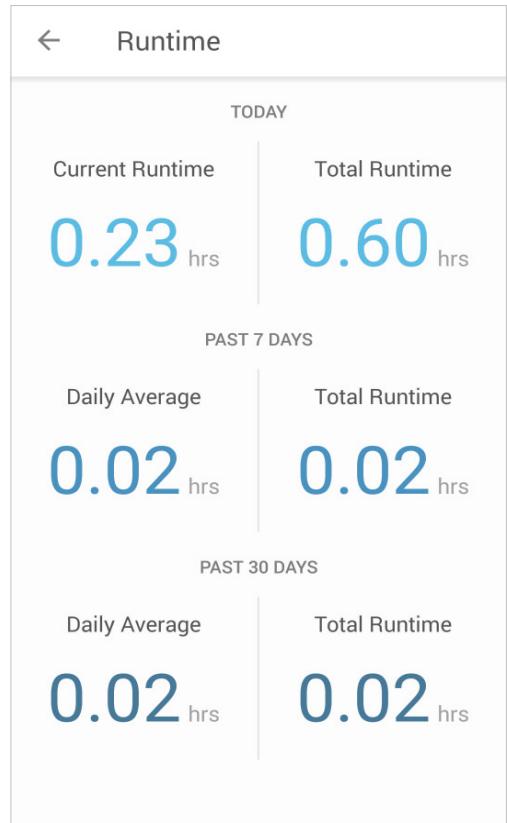

Check Usage

Tap to view and track energy consumption.

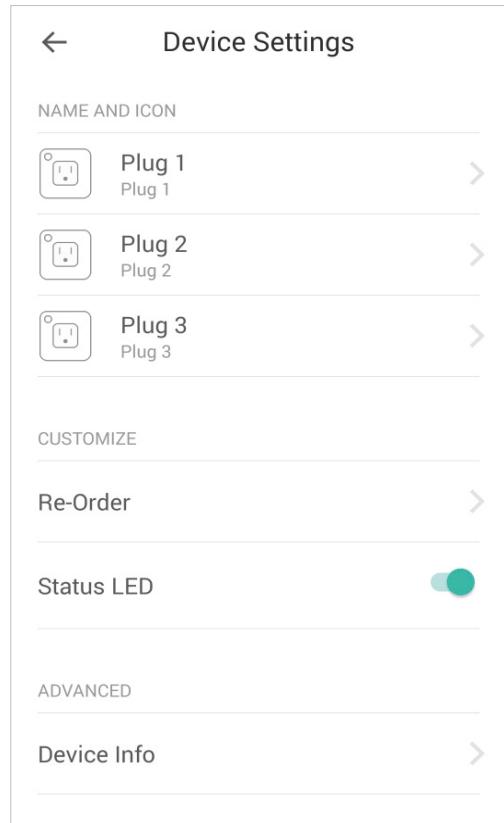

Device Settings

Tap to view and change the settings of your smart plug.

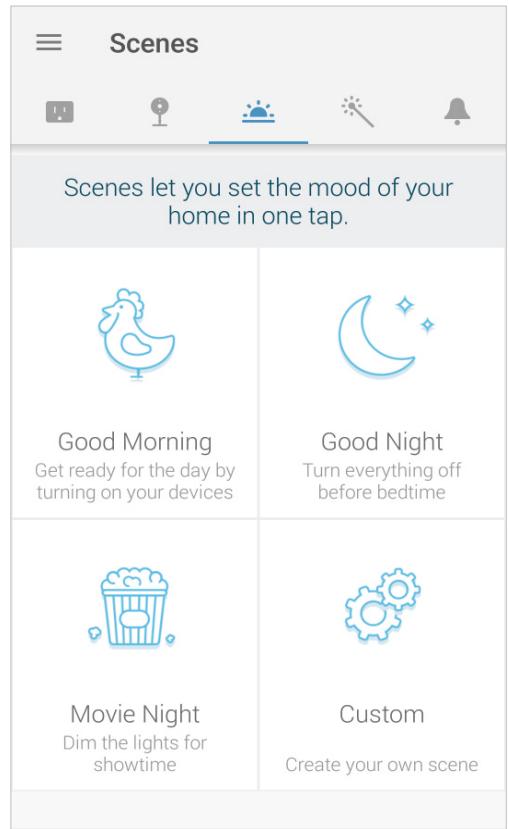

Create Scenes

A scene is a preset group of smart devices that can be programmed, customized and activated simultaneously at the touch of a button from your smartphone or tablet, allowing you to easily set your mood, activity or fit any special occasion. This page allows you to preset how your smart home devices should act automatically at special occasions.

Discover Kasa

Use the Kasa Smart app to pair your Smart Wi-Fi Plug with Amazon Alexa, Google Home Assistant, and enjoy a full hands-free experience. Kasa helps manage the rest of your smart home too, working with Samsung SmartThings to trigger changes when you arrive home or leave for the day.

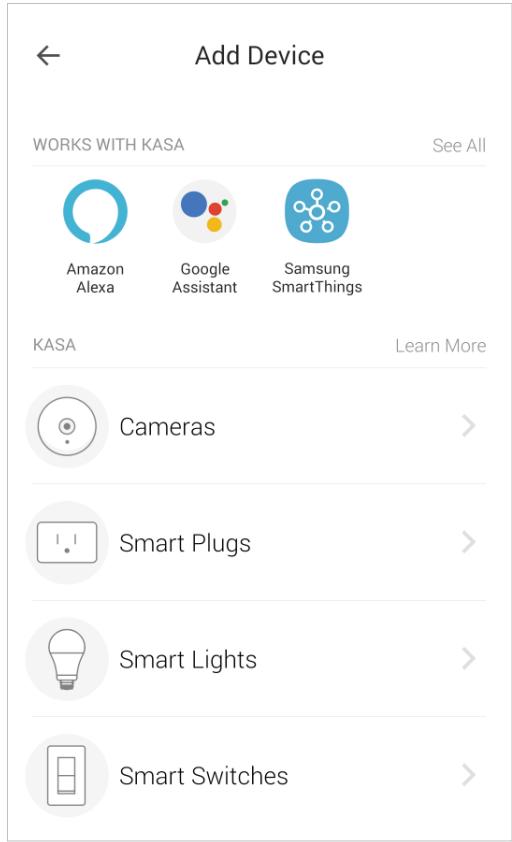

Launch the Kasa Smart app and go to Add Device > WORKS WITH KASA > Amazon Alexa / Google Assistant / Samsung SmartThings for detailed instructions.

Authentication

COPYRIGHT & TRADEMARKS

Specifications are subject to change without notice. tp-link is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-Link Technologies Co., Ltd. Copyright © 2020 TP-Link Technologies Co., Ltd. All rights reserved.

CE Mark Warning

This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

OPERATING FREQUENCY(the maximum transmitted power)

2400 MHz - 2483.5 MHz(20dBm)

EU declaration of conformity

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863.

The original EU declaration of conformity may be found at https://www.tp-link.com/en/ce.

RF Exposure Information

This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by way of health protection.

The device complies with RF specifications when the device used at 20~cm from your body.

Korea Warning Statements

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• Do not use the device where wireless devices are not allowed.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.
• For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.
• The devices are not intended for use in locations where the temperature may be less than actual room conditions, such as unheated warehouses or garages.
• Function switch of Micro-gap construction / Micro-disconnection is used. Power is completely off only when the plug has been withdrawn from Kasa Smart Wi-Fi plug.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

Explanation of the symbols on the product label

Symbol	Explanation
	Indoor use only
~	AC voltage
	RECYCLING This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment. User has the choice to give his product to a competent recycling organization or to the retailer when he buys a new electrical or electronic equipment.
	Protection earth
μ	Switch of micro-gap / micro-disconnection construction
