EY2018 - Deep fryer TEFAL - Free user manual and instructions

Product type	Hot air fryer
Brand	TEFAL
Model	EY2018
Maximum capacity	Up to 1.2 kg (whole chicken) / 700 g (fries)
Temperature range	80 - 200 °C
Timer	0 - 60 minutes with auto shut-off
Power	1500 W
Power supply	220-240 V, 50/60 Hz
Cooking type	Hot air (oil-free)
Bowl material	Non-stick coating
Grid material	Non-stick coating
Cleaning of bowl and grid	Dishwasher safe
Light indicators	Power and heating indicator lights
Functions	Cooking, reheating, preheating
Safety	Auto shut-off, hot surfaces
Included accessories	Removable grid

Frequently Asked Questions - EY2018 TEFAL

How to clean the bowl and grid?

Wash the bowl and grid with hot water, dish soap and a non-abrasive sponge. They are dishwasher safe. For stubborn dirt, soak for 10 minutes.

Can I use oil in the fryer?

No, the appliance operates with hot air. Never pour oil into the bowl. You can add a spoonful of oil to the food for extra crispiness.

What is the maximum capacity of the fryer?

Do not exceed the MAX mark in the bowl. For frozen fries, count 700 g maximum, for a whole chicken up to 1.2 kg.

How to set the temperature and cooking time?

Turn the temperature knob between 80 and 200 °C. Set the timer from 0 to 60 minutes. The appliance turns off automatically at the end.

Can I cook a whole chicken in the Easy Fry?

Yes, a whole chicken up to 1.2 kg. Cook at 180 °C for about 60 minutes. Shake halfway through if necessary.

What to do if the appliance does not turn on?

Check that the timer is set to a time > 0. If the problem persists, contact TEFAL customer service or check the online FAQ.

How to preheat the appliance?

Set the timer to more than 3 minutes without food. Wait until the heating indicator goes out (about 3 min). Then add the food and set the cooking time.

Can I put the bowl and grid in the dishwasher?

Yes, the bowl and grid are dishwasher safe. Use a gentle cycle to preserve the non-stick coating.

How to make homemade fries?

Cut potatoes into sticks, soak them 30 min in cold water, dry well. Add 1/2 spoon of oil, mix. Cook at 180 °C for 22-32 min, shaking halfway through.

Does the appliance make noise during operation?

Like any hot air appliance, it emits a normal humming due to ventilation. This is not a sign of malfunction.

USER MANUAL EY2018 TEFAL

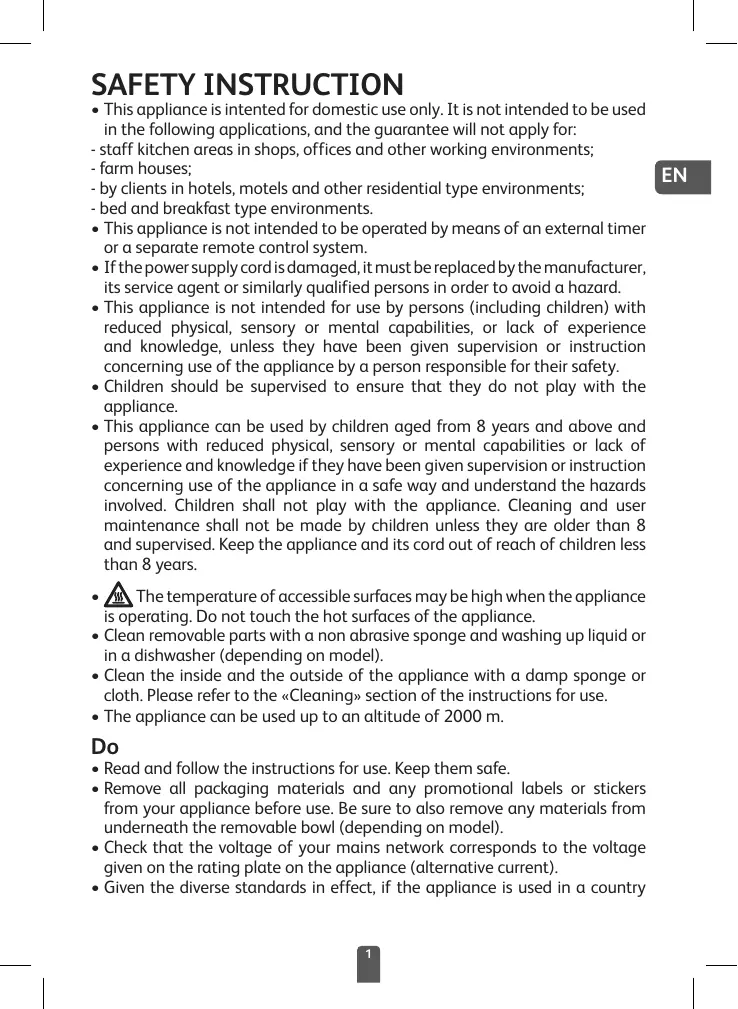

• This appliance is intended for domestic use only. It is not intended to be used in the following applications, and the guarantee will not apply for:
• staff kitchen areas in shops, offices and other working environments;
  -farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.
• This appliance is not intended to be operated by means of an external timer or a separate remote control system.
• If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children less than 8 years.
• The temperature of accessible surfaces may be high when the appliance is operating. Do not touch the hot surfaces of the appliance.
• Clean removable parts with a non abrasive sponge and washing up liquid or in a dishwasher (depending on model).
• Clean the inside and the outside of the appliance with a damp sponge or cloth. Please refer to the «Cleaning» section of the instructions for use.
• The appliance can be used up to an altitude of 2000m .

Do

• Read and follow the instructions for use. Keep them safe.
• Remove all packaging materials and any promotional labels or stickers from your appliance before use. Be sure to also remove any materials from underneath the removable bowl (depending on model).
• Check that the voltage of your mains network corresponds to the voltage given on the rating plate on the appliance (alternative current).
• Given the diverse standards in effect, if the appliance is used in a country

other than that in which it is purchased, have it checked by an approved Service Centre.

• Use the appliance on a flat, stable, heat-resistant work surface away from water splashes.
• Place the appliance at minimum 20~cm from a wall.
• Always unplug your appliance: after use, to move it, or to clean it.
• In the event of fire, unplug the appliance and smother the flames using a damp tea towel.
• To avoid damaging your appliance, please ensure that you follow recipes in the instructions and at www.tefal.co.uk or www.tefal.com.au; make sure that you use the right amount of ingredients.

Do not

• Do not use the appliance if it or the power cord is damaged or if it has fallen and has visible damage or appears to be working abnormally. If this occurs, the appliance must be sent to an Approved Service Centre.
• Do not use an extension lead. If you nevertheless decide to do so, under your own responsibility, use an extension lead that is in good condition and compliant with the power of the appliance.
• Do not leave the cord hanging. The power cord must never be in close proximity to or in contact with the hot parts of your appliance, close to a source of heat or rest on sharp edges.
• Do not unplug the appliance by pulling on the power cord.
• Never move the appliance when it still contains hot food.
• Never operate your appliance when empty.
• Do not switch on the appliance near to flammable materials (blinds, curtains...). or close to an external heat source (gas stove, hot plate etc.).
• Do not store any flammable products close to or underneath the furniture unit where the appliance is located.
• Never take the appliance apart yourself
• Do not immerse the appliance in water or any other liquid.
• Do not use any powerful cleaning products (notably soda based strippers), nor brillo pads, nor scourers.
• Do not store your appliance outside. Store it in a dry and well ventilated area.
• Never leave the appliance unattended whilst in operation.

Advice/information

• When using the product for the first time, it may release a non-toxic odour. This will not affect use and will disappear rapidly.

• For your safety, this appliance conforms with applicable standards and regulations (Directives on Low Voltage, Electromagnetic Compatibility, Materials in contact with food, Environment, etc.).

• This appliance is designed for domestic use only and not outdoor. In case of professional use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee does not apply.

• For your safety, only use the accessories and spare parts designed for your appliance

Environment

Environment protection first!

① Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point.

DESCRIPTION

A. Bowl
B. Bowl handle
C. Removable grid
D. Temperature control knob (80 - 200^)

E. Power on/off and timer (0-60 min) knob with auto shut-off
F. Power indicator light
G. Heating-up light

BEFORE FIRST USE

1. Remove all packaging material.
2. Remove any stickers or labels from the appliance.
3. Thoroughly clean the the bowl and the removable grid with hot water, some washing-up liquid and a non-abrasive sponge.

Note: You can also clean these parts in the dishwasher.

1. Wipe the inside and outside of the appliance with a damp cloth. Easy Fry works by producing hot air. Do not fill the bowl (A) with oil or frying fat.

PREPARING FOR USE

1. Place the appliance on a flat, stable, heat-resistant work surface away from water splashes.
2. Do not fill the bowl with oil or any other liquid.
   Do not put anything on top of the appliance. This disrupts the airflow and affects the hot air frying result.

USING THE APPLIANCE

Easy Fry can cook a large range of recipes. Cooking times for the main foods are given in the section 'Cooking Guide'. Online recipes at www.tefal.co.uk help you get to know the appliance.

1. Connect the power supply cord to an electrical socket.
2. Carefully pull the bowl out of the Easy Fry.
3. Place the food in the bowl.

Note: Never fill the bowl beyond the MAX level mark or exceed the maximum amount indicated in the table (see into section 'Cooking Guide'), as this could affect the quality of the end result.

1. Slide the bowl back into the Easy Fry.

Caution: Do not touch the bowl during use and for some time after use, as it gets very hot. Only hold the bowl by the handle.

1. Move the temperature control knob to the required temperature. See section 'Cooking Guide' to select the right temperature

2. Select the required cooking time (see section 'Cooking Guide').

3. To switch on the appliance, turn the timer knob to the required cooking time.

Add 3 minutes to the cooking time stated in the tables on pages 7 and 8 when using the appliance from cold.

To set a short time, turn the timer knob until 10 minutes and then go back to the desired time.

Note: If you want, you can also let the appliance preheat without any food inside. In this case, turn the timer knob to more than 3 minutes and wait until the heating-up light goes out (after approx. 3 minutes). Then fill the bowl and turn the timer knob to the required cooking time (see Cooking Guide for timings).

The timer starts counting down the set cooking time.
The heating-up light goes on.
- During the hot air frying process, the heating-up light goes on and off from time to time. This indicates that the heating element is switched on and off to thermostatically maintain the set temperature.
8. Excess oil from the food is collected in the bottom of the bowl.
9. Some foods require shaking halfway through the cooking time (see section 'Cooking Guide'). To shake the food, pull the bowl out of the appliance by the handle and shake it. Then slide the bowl back into the Easy Fry.

Tip: You can set the timer to half of the cooking time, and when the timer sounds shake the ingredients. Then set the timer again for the remaining cooking time.

1. When you hear the timer sound, the cooking time set has finished. Pull the bowl out of the appliance and place it on a heat-resistant surface.

Note: You can also switch off the appliance manually. To do this, turn the timer control knob to 0.

1. Check if the food is ready.

If the food is not ready yet, simply slide the bowl back into the appliance and set the timer for a few extra minutes.

1. When the food is cooked, take out the bowl. To remove food, use a pair of tongs to lift the food out of the bowl.
   Caution: When you turn the bowl, be careful of any excess oil collected at the bottom of the bowl that may leak onto the food and the grid which may fall out.
   After hot air frying, the bowl, the grid and the food are very hot. Depending on the type of food cooked in the Easy Fry, be careful as steam may escape from the bowl.
2. When a batch of food is ready, the Easy Fry is instantly ready for preparing another batch of food.

COOKING GUIDE

The table below helps you to select the basic settings for the food you want to prepare.

Note: The cooking times below are only a guide and may vary according to the variety and batch of potatoes used. For other foods the size, shape and brand may affect results. Therefore, you may need to adjust the cooking time slightly.

	Min max amount (g)	Approx time (mins)	Temperature (°C)	Shake*	Extra information
Potatoes & fries
Frozen chips (10 mm x 10 mm standard thickness)	300-700	15-20 min	200°C	Yes
Homemade French Fries (8 x 8 mm)	300 - 800**	22-32 min	180°C	Yes	Add ½ tbsp of oil
Frozen potato wedges	300 - 800	22-27 min	180°C	Yes
Meat & Poultry
Frozen steak	100-400	9-17 min	180°C
Frozen meatballs Frozen meatballs	400	8-12 min	180°C
Chicken breast fillets (boneless)	100-500	12-19 min	180°C
Chicken (whole)	1200	60 min	180°C
Fish
Salmon fillet	350	15-17 min	140°C
Snacks
Frozen chicken nuggets	100-600	7-12 min	200°C
Frozen chicken wings	300	16-20 min	200°C
Frozen cheese sticks	125 (5 pieces)	8 min	180°C
Frozen onion rings	200 (10 pieces)	8-10 min	200°C	Yes
Baking
Muffins	4 x 100	18-22 min	180°C		Use a baking tin/oven dish***

• Shake halfway through cooking.
  ** Weight of unpeeled potatoes

IMPORTANT: To avoid damaging your appliance, never exceed the maximum quantities of ingredients and liquids indicated in the instruction manual and in the recipes.

***place a cake tin/oven dish in the bowl (silicon, stainless steel, aluminium, terracotta oven dish).

When you use mixtures that rise (such as with cake, quiche or muffins) the oven dish should not be filled more than halfway.

TIPS

• Smaller foods usually require a slightly shorter cooking time than larger size foods.
• A larger amount of food only requires a slightly longer cooking time, a smaller amount of food only requires a slightly shorter cooking time.
• Shaking smaller size foods halfway through the cooking time improves the end result and can help prevent uneven cooking.
• Add some oil to fresh potatoes for a crispy result. After adding a spoon of oil, fry the potatoes within a few minutes.
• Do not cook extremely greasy foods in the Easy Fry.
  Snacks that can be cooked in an oven can also be cooked in the Easy Fry.
  The optimal recommended quantity for cooking fries is 700 grams.
• Use ready made puff and shortcrust pastry to make filled snacks quickly and easily.
• Place an oven dish in the Easy Fry bowl if you want to bake a cake or quiche or if you want to fry fragile ingredients or filled ingredients. You can use an oven dish in silicon, stainless steel, aluminium, terracotta.
• You can also use the Easy Fry to reheat food. To reheat food, set the temperature to 160^ for up to 10 minutes.

MAKING HOME-MADE CHIPS

For the best results, we advise to use frozen chips. If you want to make home-made chips, follow the steps below.

1. Choose a variety of potato recommended for making chips. Peel the potatoes and cut them into equal thickness chips.
2. Soak the potato chips in a bowl of cold water for at least 30 minutes, drain them and dry them with a clean, highly absorbent tea towel. Then pat with paper kitchen towel. The chips must be thoroughly dry before cooking.
3. Pour 12 tablespoon of oil (vegetable, sunflower or olive) in a dry bowl, put the chips on top and mix until they are coated with oil.
4. Remove the chips from the bowl with your fingers or a kitchen utensil so that any excess oil stays behind in the bowl. Place the chips in the bowl.

Note: Do not tip the container of oil coated chips directly into the bowl in one go, otherwise excess oil will end up at the bottom of the bowl.

1. Fry the chips according to the instructions in the section Cooking guide.

CLEANING

Clean the appliance after every use.

The bowl and the grid have a non-stick coating. Do not use metal kitchen utensils or abrasive cleaning materials to clean them, as this may damage the nonstick coating.

1. Remove the main plug from the wall socket and let the appliance cool down. Note: Remove the bowl to let the Easy Fry cool down more quickly.
2. Wipe the outside of the appliance with a damp cloth.
3. Clean the bowl and grid with hot water, some washing-up liquid and a non-abrasive sponge.

You can use a degreasing liquid to remove any remaining dirt.

Note: The bowl and grid are dishwasher-safe.

Tip: If dirt is stuck at the bottom of the bowl and the grid, fill them with hot water and some washing-up liquid. Let the bowl and the grid soak for approximately 10 minutes. Then rinse clean and dry.

1. Wipe inside of the appliance with hot water and a damp cloth.
2. Clean the heating element with a dry, cleaning brush to remove any food residues.
3. Do not immerse the appliance in water or any other liquid.

STORAGE

1. Unplug the appliance and let it cool down.
2. Make sure all parts are clean and dry.

GUARANTEE AND SERVICE

If you need service or information or if you have a problem, please visit the Tefal website at www.tefal.co.uk or www.tefal.com.au or contact the Tefal Consumer Care Centre in your country. You can find the phone number in the worldwide guarantee leaflet. If there is no Consumer Care Centre in your country, go to your local Tefal dealer.

TROUBLESHOOTING

If you encounter problems with the appliance, visit www.tefal.co.uk or www.tefal.com.au for a list of frequently asked questions or contact the Consumer Care Centre in your country.

If you have any problems with your appliance or queries call our Customer Relations Team first for expert help and advice: Helpline: 0345 602 1454 - UK

[phone] - ROI

or contact us via our web site: www.tefal.co.uk

FOR AUSTRALIA

Helpline: 1300307824

GROUPE SEB AUSTRALIA

PO Box 7535,Silverwater NSW 2128

www.tefal.com.au

Ref. NC00145122

S.A.S. SEB SELONGEY CEDEX · RC. DIJON B 302 412 226

01/2018
