ASPIRE M3985-1TO - Desktop computer ACER - Free user manual and instructions

Product Type	Desktop computer
Brand	Acer
Model	Aspire M3985-1TO
Processor	Intel Core i5 (estimated)
RAM Memory	4 GB to 8 GB DDR3 (estimated)
Storage	SATA hard drive 500 GB to 1 TB
Optical drive	DVD/CD combo burner or DVD reader
Connectivity	Ethernet RJ-45, USB 2.0/3.0 (depending on model), HDMI, VGA, audio ports
Operating system	Windows 7 or Windows 8 (estimated)
Power supply	300 W (estimated)
Dimensions (approx.)	175 x 410 x 360 mm (width x height x depth)
Weight (approx.)	8 kg
Main functions	Office work, multimedia, Internet browsing, Clear.fi compatibility (for some models)
Maintenance and cleaning	Clean with a soft cloth moistened with water. Avoid liquids and aerosols. Disconnect before cleaning.
Safety	Do not obstruct the ventilation slots. Use a grounded outlet. Do not open the case.
Spare parts and repairability	Hard drive, memory, additional card (PCI) replaceable by a qualified technician.
General information	Compliant with ENERGY STAR standard. Has an energy-saving function. Operating temperature: 5 °C to 35 °C.

Frequently Asked Questions - ASPIRE M3985-1TO ACER

The computer does not turn on. What to do?

Check that the power cord is plugged in and the power outlet works. Look at the power indicator: if it is off, check the voltage selector on the back. If it is on but the system does not start, remove any non-system diskette and restart with Ctrl+Alt+Del.

Nothing is displayed on the screen.

The screen may be in sleep mode. Press a key on the keyboard or move the mouse to wake it up. If that doesn't work, restart the computer. If the problem persists, contact a technician.

The printer does not work.

Make sure the printer is turned on and the cable is properly connected to the parallel or USB port. Also check the printer drivers in the system.

The computer makes no sound.

Check the Volume icon in the taskbar: if it is crossed out, click to unmute. Also check that headphones or external speakers are not plugged in, as they disable the internal speakers.

How to clean my computer?

Turn off the computer and unplug it. Use a soft cloth slightly dampened with water to wipe the exterior and keyboard. Never use liquids or cleaning aerosols.

Can I upgrade the memory or hard drive?

Yes. Open the side panel after unplugging the power. You can replace the hard drive with a higher capacity model or add compatible RAM memory. For installation, follow the instructions provided with the components.

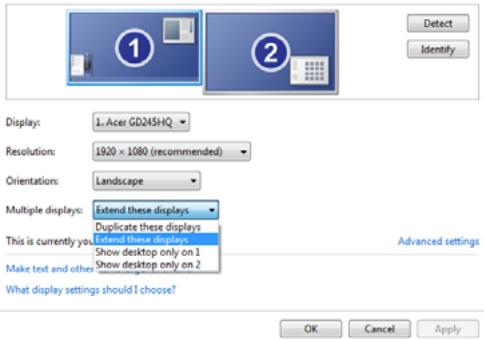

How to connect a second monitor?

Connect the monitor to the VGA, DVI, or HDMI port on the back. Right-click on the desktop, select Screen Resolution, and choose 'Extend' or 'Duplicate' to configure the display.

What to do if the system does not read a CD/DVD?

Check that the disc is inserted correctly, that it is not scratched or dirty. Try with a good disc. If the problem persists, the drive may be defective.

How to save energy with this computer?

The computer is ENERGY STAR certified. It automatically goes into sleep mode after 10 minutes (screen) and 30 minutes (system). You can also turn off the computer via the Start menu > Shut Down.

Can I share multimedia files with other devices?

If your model supports Acer Clear.fi, you can stream videos, photos, and music on the local network. Enable sharing in the Clear.fi app and make sure all devices are on the same network.

USER MANUAL ASPIRE M3985-1TO ACER

Federal Communications Commission 20

Change the appearance of your displays

This Class B digital apparatus complies with Canadian ICES-003.

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi,

New Taipei City 221, Taiwan

CE

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contact Person: Mr. RU Jan, e-mail: [e-mail]

And,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone], www.acer.it

Hereby declare that:

Product:

Personal Computer

Trade Name:

Acer

Model Number:

AcerSystem

SKU Number:

XXX-xxx ("x" = 0~9, a ~ z, A ~ Z or Blank)

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have been taken and are in force to assure that production units of the same product will continue comply with the requirements.

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

• EN55022, AS/NZS CISPR22, Class B
• EN55024
• EN55013 (Applicable to product built with TV tuner module)
• EN55020 (Applicable to product built with TV tuner module)
• EN61000-3-2 Class D
• EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

• EN60950-1
• EN60065 (Applicable to product built with TV tuner module)

Council Decision 98/482/EC (CTR21):

-. (Applicable to product with pan- European single terminal connection

to the Public Switched Telephone Network (PSTN).)

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

• . The maximum concentration values of the restricted substances by

weight in homogenous material are:

Lead	0.1%	Polybrominated Biphenyls (PBB's)	0.1%
Mercury	0.1%	Polybrominated Diphenyl Ethers (PBDE's)	0.1%
Hexavalent Chromium	0.1%	Cadmium	0.01%

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

The standards listed below are applied to the product if built with WLAN module or wireless keyboard and mouse.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

Article 3.1(a) Health and Safety

. EN301 489-1
- EN301 489-3 (Applicable to non-bruethooth wireless keyboard mouse set).

EN301489-17

• Article 3.2 Spectrum Usages

• EN300 440-2 (Applicable to non-bruethow wireless keyboard mouse set).

• EN300 328
• EN301 893 (Applicable to 5GHz high performance RLAN).

Year to begin affixing CE marking 2011.

R1I1

RU Jan/Sr. Manager

Regulation Center, Acer Inc.

Mar. 13, 2012

Date

Acer America Corporation

333 West San Carlos St., San Jose

CA 95110, U. S. A.

Tel:[phone]

Fax:[phone]

www.acer.com

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer /Importer is responsible for this declaration:

Product:	Personal Computer
Trade Name:	Acer
Model Number:	AcerSystem
SKU Number:	XXX-xxx, ("x" = 0~9, a ~ z, A ~ Z or Blank)
Name of Responsible Party:	Acer America Corporation
Address of Responsible Party:	333 West San Carlos St. San Jose, CA 95110 U. S. A.
Contact Person:	Acer Representative
Phone No.:	254-298-4000
Fax No.:	254-298-4147
