USER MANUAL DVD-P191 SAMSUNG

DVD-P191 DVD Player user manual imagine the possibilities Thanks you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/global/register AK68-01762A(03) precautions

- Refer to the identification label located on the rear of your player for its proper operating voltage. - Install your player in a cabinet with adequate ventilation holes. (7~10cm) Do not block ventilation holes on any of the components for air circulation. - Do not push the disc tray in by hand. - Do not stack components. - Be sure to turn all components off before moving the player. - Before connecting other components to this player, be sure to turn them off. - Be sure to remove the disc and turn off the player after use, especially if you are not going to use it for a long time. - The mains plug is used as a disconnect device and shall stay readily operable at any time.

- This product utilizes a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. - Do not open covers and do not repair yourself. Refer servicing to qualified personal.

- Your player is not intended for industrial use but for domestic purposes. Use of this product is for personal use only. - Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. - Exterior influences such as lightning and static electricity can affect normal operation of this player. If this occurs, turn the player off and on again with the POWER button, or disconnect and then reconnect the AC power cord to the AC power outlet. The player will operate normally. 2_ precautions - When condensation forms inside the player due to sharp changes in temperature, the player may not operate correctly. If this occurs, leave the player at room temperature until the inside of the player becomes dry and operational.

- Do not use record-cleaning sprays, benzene, thinner, or other volatile solvents that may cause damage to the disc surface. - Do not touch the disc’s signal surface. Hold by the edges or by one edge and the hole in the center. - Wipe the dirt away gently; never wipe a cloth back and forth over the disc.

5. Environmental info

- The battery used in this product contains chemicals that are harmful to the environment. - So, dispose of batteries in the proper manner, according to federal, state, and local regulations. The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties. This license is limited to private non-commercial use by end-user consumers for licensed contents. No rights are granted for commercial use. The license does not cover any product unit other than this product unit and the license does not extend to any unlicensed product unit or process conforming to ISO/OUR 11172-3 or ISO/OUR 13818-3 used or sold in combination with this product unit. The license only covers the use of this product unit to encode and/or decode audio files conforming to the ISO/OUR 11172-3 or ISO/OUR 13818-3. No rights are granted under this license for product features or functions that do not conform to the ISO/OUR 11172-3 or ISO/OUR 13818-3. CAUTION: USE OF ANY CONTROLS,

THAN SPECIFIED HEREIN MAY RESULT IN

1. Open the battery cover on the back of the remote

2. Insert two AAA batteries.

Make sure that the polarities (+ and -) are aligned correctly.

3. Replace the battery cover.

• Selecting the Audio Language p. 18
• Selecting the Subtitle Language p. 19
• Changing the Camera Angle p. 19
• Using the Bookmark Function p. 19
• Using the Zoom Function p. 20
• Clips Menu for MP3/WMA/JPEG/MPEG4/ CD Audio p. 20

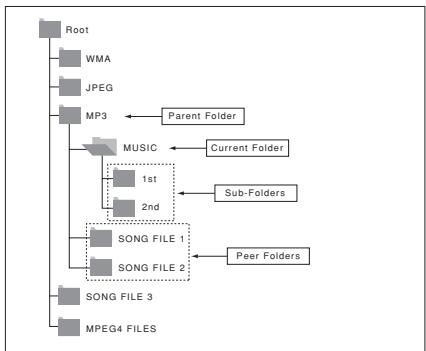

• Folder Selection p. 21
• MP3/WMA/CD Audio Playback p. 21
• MPEG4 Playback p. 22
• Picture CD Playback p. 23
• If remote control doesn’t operate properly: - Check the polarity + - of the batteries (Dry-Cell) - Check if the batteries are drained. - Check if remote control sensor is blocked by obstacles. Changing Setup Menu Using the Setup Menu p. 24
• Setting Up the Language Features p. 24
• Setting Up the Audio Options p. 25
• Setting Up the Display Options p. 26
• Setting Up the Parental Control p. 27
• - Check if there is any fluorescent lighting nearby. Reference Note Firmware upgrade p. 29
• - The rechargeable battery incorporated in this Troubleshooting p. 30
• product is not user replaceable. Specifications - For information on its replacement, please contact your service provider. English _3 setup General Features Excellent Sound Dolby Digital, a technology developed by Dolby Laboratories, provides crystal clear sound reproduction. Screen Both regular and widescreen(16:9) pictures can be viewed. Slow Motion An important scene can be viewed in slow motion. Parental Control (DVD) The parental control allows users to set the level necessary to prohibit children from viewing harmful movies such as those with violence, adult subject matter, etc. Various On-Screen Menu Functions You can select various languages (Audio/Subtitle) and screen angles while enjoying movies. Progressive Scan Progressive scanning creates an improved picture with double the scan lines of a conventional interlaced picture. EZ VIEW (DVD) Easy View enables picture adjustment to match your TV's screen size (16:9 or 4:3). Digital Photo Viewer (JPEG) You can view Digital Photos on your TV. Repeat You can repeat a song or movie simply by pressing the REPEAT button. MP3/WMA This unit can play discs created from MP3/WMA files. MPEG4 This unit can play MPEG4 formats within an avi file. 4_ setup Note - Discs which cannot be played with this player. p. 31

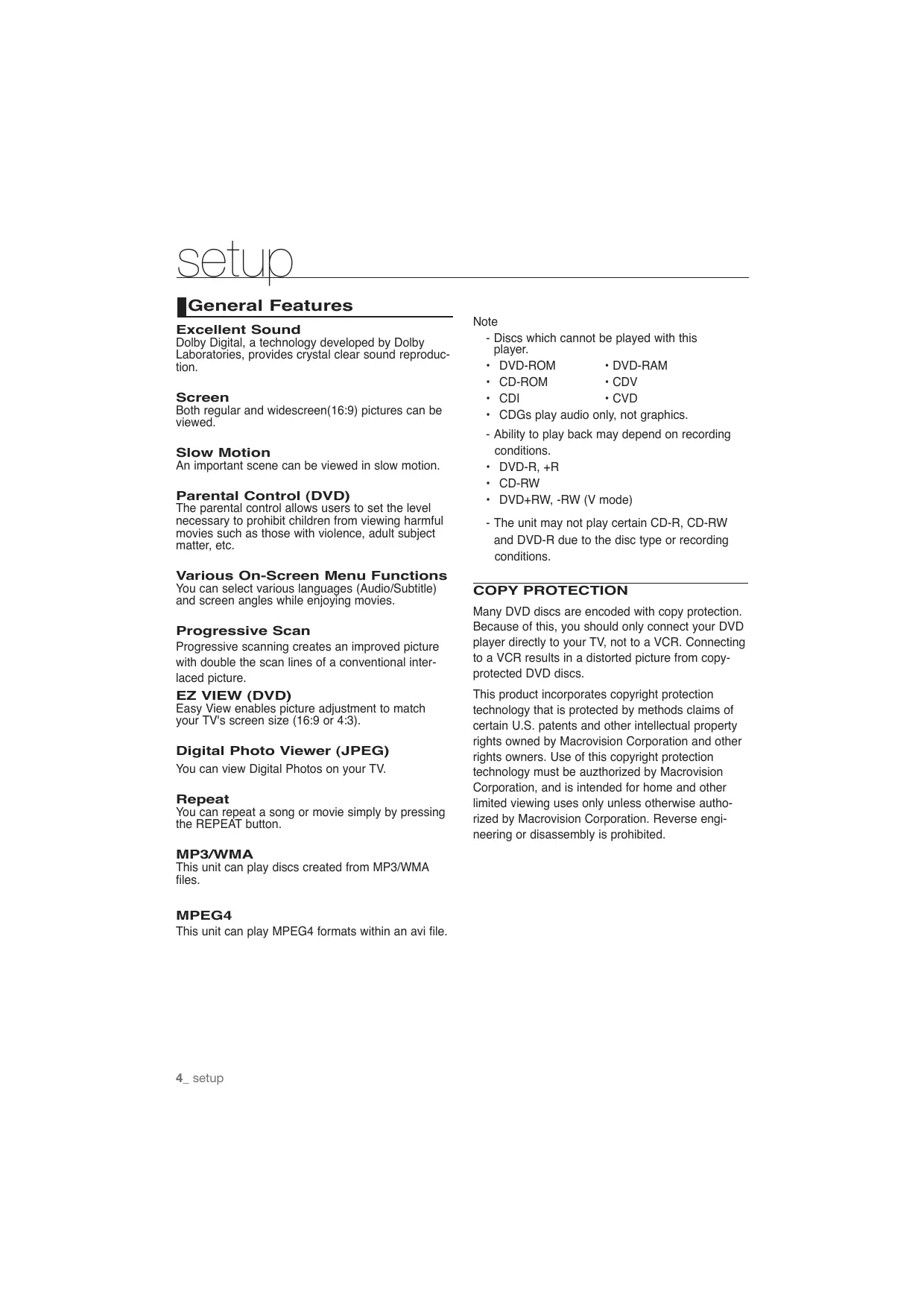

• CDGs play audio only, not graphics. - Ability to play back may depend on recording conditions.
• DVD+RW, -RW (V mode) - The unit may not play certain CD-R, CD-RW and DVD-R due to the disc type or recording conditions. COPY PROTECTION Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copyprotected DVD discs. This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be auzthorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. Disc Type and Characteristics This DVD player is capable of playing the following types of discs with the corresponding logos: Disc Types (Logos) Recording Types Audio Video AUDIO-CD Max. Playing Time 12 Cm Single-sided 240 min. Double-sided 480 min. - DVD contains excellent sound and video due to Dolby Digital and MPEG2 system. 8 Cm Single-sided 80 min. Double-sided 160 min. - Various screen and audio functions can be easily selected through the onscreen menu. 12 Cm 74 min. 8 Cm 20 min. Audio - CD is recorded as a Digital Signal with better audio quality, less distortion and less deterioration of audio quality over time. Disc Markings Region Number

Play Region Number PAL

STEREO DIGITAL SOUND PAL broadcast system in U.K, France, Germany, etc. Dolby Digital disc Stereo disc Digital Audio disc Both the DVD player and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play. The Region Number for this player is described on the rear panel of the player. DTS disc MP3 disc You must only insert one DVD disc at a time. Inserting two or more discs will not allow to play them back and it may cause damage to the DVD player. DivX Certification DivX, DivX Certified, and associated logos are trademarks of DivXNetworks, Inc and are used under license English _5 ● SETUP DVD Characteristics Disc Size setup Description Front Panel Controls

DISC TRAY Place the disc here.

Press to open and close the disc tray/ Stops disc play. Turn on/of and the player is turned on/off

Begin or pause disc play. DISPLAY Operation indicators are displayed here. Front Panel Display Total playing time/Displays various messages concerning operations such as PLAY, STOP, LOAD ... nodISC: No disc loaded. OPEn: The disc tray is open. LOAd: Player is loading disc information. 6_ setup Rear Panel

SCART JACK - Connect to a TV scart input jack.

- Connect to the Audio input jacks of your television or audio/video receiver.

- Use a video cable to connect to the Video input jack on your television.

COMPONENT VIDEO OUT JACK

- Use these jacks if you have a TV with Component Video in jacks. These jacks provide PR, PB and Y video.

If P-SCAN Video Output is selected in Setup Menu, progressive scan mode will work. - If I-SCAN Video Output is selected in Setup Menu, interlaced scan mode will work.

DIGITAL AUDIO OUT JACKS

- Use coaxial digital cable to connect to a compatible Dolby Digital receiver. - Use coaxial digital cable to connect to an A/V Amplifier that contains a Dolby Digital, MPEG2 or DTS decoder. Note - See pages 24-26 to get more information on how to use the setup menu. English _7 setup Tour of the Remote Control

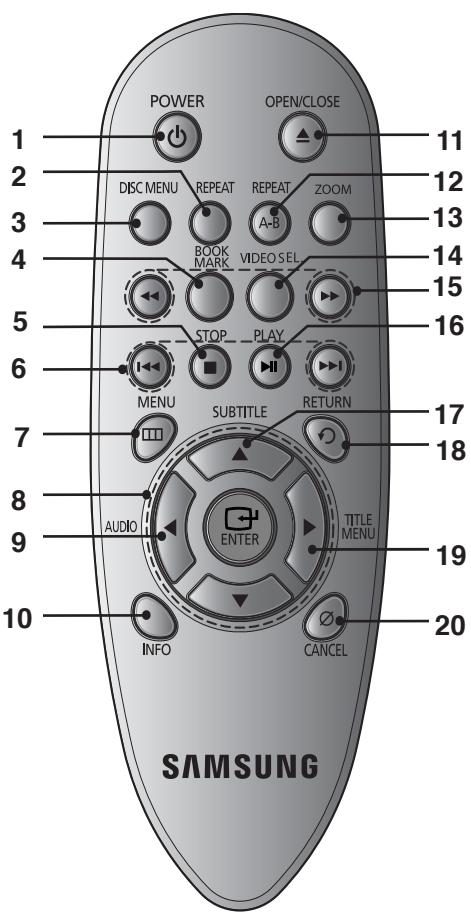

8_ setup DVD Power Button Turns the power on. REPEAT Button Allows you to repeat play a title, chapter, track, or disc. Returns to a previous menu. DISC MENU Button Brings up the Disc menu. BOOKMARK Quickly find bookmark sections of a DVD. STOP Button ( Use to stop playback. SKIP Buttons (

Use to skip the title, chapter or track. MENU Button Brings up the DVD player’s menu. ENTER/π/†,√/® Buttons This button functions as a toggle switch. AUDIO Button Use this button to access various audio functions on a disc. INFO Button Displays the current disc mode. OPEN/CLOSE ( ) Button To open and close the disc tray REPEAT A-B Button Allows you to repeat A-B disc. ZOOM Enlarge DVD Picture VIDEO SEL.Button Change video output mode SEARCH Buttons (

Allow you to search forward/backward through a disc. PLAY/PAUSE Button ( Begin/Pause disc play. SUBTITLE Button Use to change subtitle. RETURN Button Returns to a previous menu. TITLE MENU Button Brings up the Title menu. CANCEL Button Use to remove menus or status displays from the screen. connections Choosing a Connection The following shows examples of connections commonly used to connect the DVD player with a TV and other components. - Refer to the user’s manual of the additional components you are connecting for more information on those particular components. Connecting to a TV (VIDEO CVBS)

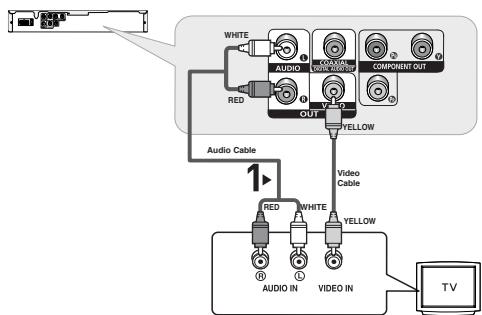

Using video/audio cables, connect the VIDEO (yellow)/ AUDIO (red and white) OUT terminals on the rear of the DVD player to the VIDEO (yellow)/AUDIO (red and white) IN terminals of TV. WHITE RED

YELLOW Audio Cable Turn on the DVD player and TV. Video Cable RED WHITE YELLOW

Press the input selector on your TV remote control until the Video signal from the DVD player appears on the TV screen. Note - Noise may be generated if the audio cable is too close to the power cable. - If you want to connect to an Amplifier, please refer to the Amplifier connection page. (See pages 13 to 14) - The number and position of terminals can vary depending on your TV set. Please refer to the user's manual of the TV. - If there is one audio input terminal on the TV, connect it to the [AUDIO OUT][left] (white) terminal of the DVD player. English _9 ● CONNECTIONS Before Connecting the DVD Player - Always turn off the DVD player, TV, and other components before you connect or disconnect any cables. connections Connection to a TV (Interlace) - Connecting to your TV using Component video cables. - You will enjoy high quality and accurate color reproduction images. Component video separates the picture element into black and white(Y), blue(Pb), red(Pr) signals to present clear and clean images. (Audio signals are delivered through the audio output.)

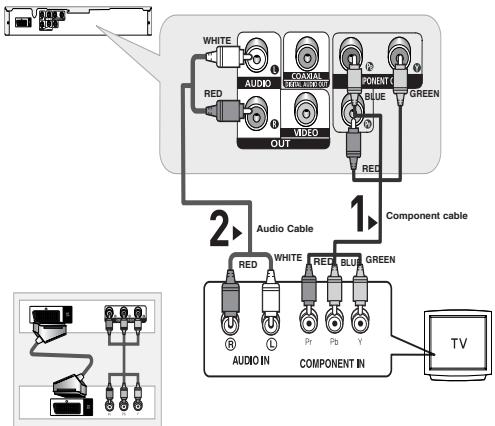

Using component video cables, connect the COMPONENT VIDEO OUT terminal on the rear of the DVD player to the COMPONENT IN terminal of TV. WHITE

Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of TV. Turn on the DVD player and TV. RED GREEN BLUE RED Component cable Audio Cable

Press the input selector on your TV remote control until the Component signal from the DVD player appears on the TV screen.

Set the Video Output to I-SCAN in the Display Setup menu. (See pages 27) do not use the connection Scart and Component Video (Y, Pb, Pr) simultaneously. Note - If you want to connect to an Amplifier, please refer to the Amplifier connection page. (See pages 13 to 14) - The component terminal of TV can be marked by “R-Y, B-Y, Y” or “Cr, Cb, Y” instead of “Pr, Pb, Y” depending on the manufacturer. The number and position of terminals can vary depending on the TV set. Please refer to the user's manual of the TV. - There is no commponent video displayed when " Scart-RGB" selected by pressing video select button on the remote control 10_ connections Connection to a TV (Progressive)

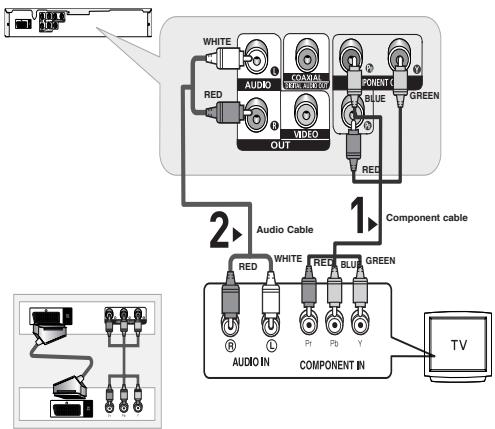

Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of TV. Turn on the DVD player and TV. RED GREEN BLUE RED Component cable Audio Cable

Press the input selector on your TV remote control until the Component signal from the DVD player appears on the TV screen.

Set the Video Output to P-SCAN in the Display Setup menu. (See pages 27) do not use the connection Scart and Component Video (Y, Pb, Pr) simultaneously. To see the progressive video output, -You Consult TVsupporting User’s Manual to find out need ayour TV set the progressive scanif your TV supports Progressive Scan. If Progressive Scan isfunction. supported, follow TV up User’s Manual regarding Progressive Scan settings in the TV’s input And you havethe to set the TV menu system. - Depending on your TV, the connection method may differ from the illustration above. Note - What is "Progressive Scan"? Progressive scan has twice as many scanning lines as the interlace output method has. Progressive scanning method can provide better and clearer picture quality. - There is no commponent video displayed when " Scart-RGB" selected by pressing video select button on the remote control English _11 ● CONNECTIONS Using component video cables, connect the COMPONENT VIDEO OUT terminal on the rear of the DVD player to the COMPONENT IN terminal of TV. connections Connecting to a TV (SCART)

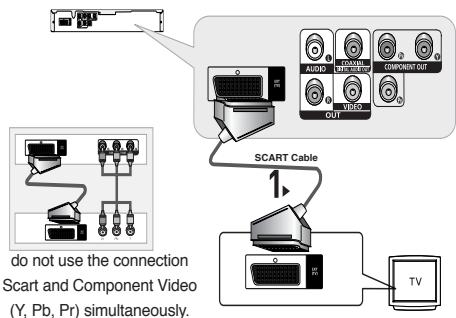

Using scart cable, connect the SCART terminals on the rear of the DVD player to the SCART IN terminals of TV.

SCART Cable Turn on the DVD player and TV.

do not use the connection Scart and Component Video (Y, Pb, Pr) simultaneously. Press the input selector on your TV remote control until the Video signal from the DVD player appears on the TV screen. Note - Noise may be generated if the audio cable is too close to the power cable. - If you want to connect to an Amplifier, please refer to the Amplifier connection page. (See pages 13 to 14) - The number and position of terminals can vary depending on your TV set. Please refer to the user's manual of the TV. 12_ connections Connection to an Audio System (2 Channel Amplifier)

Using the video signal cable(s), connect the VIDEO terminals on the rear of the DVD player to the VIDEO terminal of your TV as described on pages 9. ● CONNECTIONS Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of the Amplifier. WHITE RED Audio Cable

RED WHITE Turn on the DVD player, TV, and Amplifier.

Press the input select button of the Amplifier to select external input in order to hear sound from the DVD player. Refer to your Amplifier's user manual to set the Amplifier's audio input. Note - Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the speakers and your ears. - Please set the audio in the menu screen according to the Amplifier. (See pages 26) - The position of terminals can vary depending on the Amplifier. Please refer to the user's manual of the Amplifier. English _13 connections Connection to an Audio System (Dolby digital, MPEG2 or DTS Amplifier)

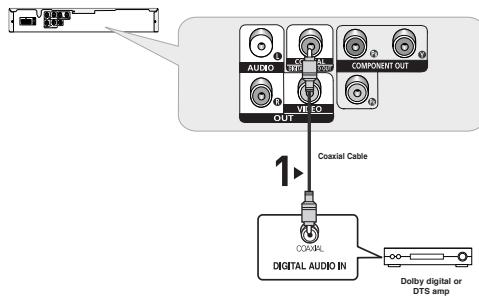

If using a coaxial cable, connect the DIGITAL AUDIO OUT (COAXIAL) terminal on the rear of the DVD player to the DIGITAL AUDIO IN (COAXIAL) terminal of the Amplifier.

Using the video signal cable(s), connect the VIDEO terminals on the rear of the DVD player to the VIDEO terminal of your TV as described on pages 9. Coaxial Cable

Turn on the DVD player, TV, and Amplifier. Dolby digital or DTS amp

Press the input select button of the Amplifier to select external input in order to hear sound from the DVD player. Refer to your Amplifier's user manual to set the Amplifier's audio input. Note - Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the speakers and your ears. - Please set the audio in the menu screen according to the Amplifier. (See pages 26) - The position of terminals can vary depending on the Amplifier. Please refer to the user's manual of the Amplifier. 14_ connections

Press the STOP ( Playing a Disc Before Play - Turn on your TV and set it to the correct Video Input by pressing TV/VIDEO button on the TV remote control. After plugging in the player, the first time you press the DVD POWER button, this screen comes up: If you want to select a language, press a π/† button. (This screen will only appear when you plug in the player for the first time.) If the language for the startup screen is not set, the settings may change whenever you turn the power on or off. Therefore, make sure that you select the language you want to use. Once you select a menu language, you can change it by pressing the button on the front panel of the unit for more than 5 seconds with no disc in the unit. Then the SELECT MENU LANGUAGE window appears again where you can reset your preferred language. English Français Deutsch Español Italiano Nederlands Playback

1. Press the OPEN/CLOSE (

Press the PLAY/PAUSE ( ) button on the remote control during play. - Screen stops, no sound. To resume, press the PLAY/PAUSE ( ) button once again.

Press the SEARCH ( / ) button to choose the play speed between 1/8, 1/4 and 1/2 of normal during-PAUSE or STEP mode. - No sound is heard during slow mode. - Press the PLAY/PAUSE ( ) button to resume normal play. Note - If the player is left in the stop mode for more than one minute without any user interaction, a screen saver will be activated. Press the PLAY/PAUSE ( ) button to resume normal play. - If the player is left in the stop mode for more than about 30 minutes, the power will automatically shut off. (Automatic Power-Off Function) - If the player is left for about 5 minutes in pause mode, it will stop. - This ( ) icon indicates an invalid button press. ) button.

2. Place a disc gently into the tray with the disc’s label

3. Press the PLAY/PAUSE ( ) button or OPEN/ CLOSE

( ) button to close the disc tray. When you stop disc play, the player remembers where you stopped, so when you press PLAY/PAUSE ( ) button again, it will pick up where you left off. English _15 ● BASIC FUNCTIONS - If you connected an external Audio System, turn on your Audio System and set it to the correct Audio Input. ) button during play.

Press the OPEN/CLOSE ( basic functions Using the Search and Skip Functions During play, you can search quickly through a chapter or track, and use the skip function to jump to the next selection. Using the Display Function When Playing a DVD/MPEG4

1. During play, press the INFO button on the remote control.

2. Press the π/† buttons to select the desired item.

Searching through a Chapter or Track During play, press the SEARCH ( remote control for more than 1 second. DVD 2X, 4X, 64X, 128X

3. Press the √/® buttons to make the desired setup and then

press the ENTER button. You may use the number buttons of the remote control to directly access a title, chapter or to start the play back from a desired time. ) button on the

4. To make the screen disappear, press the CANCEL button.

Note Note - The speed marked in this function may be different from the actual playback speed. - No sound is heard during search mode (Except CD). Title Chapter Skipping Tracks During play, press the SKIP (

button, it moves to the beginning of the chapter. One more press makes it move to the beginning of the previous Audio chapter. - When playing a CD, if you press the SKIP ( ) button, it moves to the next track. If you press the SKIP ( ) but Subtitle ton, it moves to the beginning of the track. One more press makes it move to the beginning of the previous track. Shortcut 16_ basic functions To access the desired title when there is more than one in the disc. For example, if there is more than one movie on a DVD, each movie will be identified. Most DVD discs are recorded in chapters so that you can quickly find a specific passage. Allows playback of the film from a desired time. You must enter the starting time as a reference.The time search function does not operate on some disc. Refers to the language of the film soundtrack. In the example, the soundtrack is played in English 5.1CH. A DVD disc can have up to eight different soundtracks. Refers to the subtitle languages available in the disc. You will be able to choose the subtitle languages or, if you prefer, turn them off from the screen. A DVD disc can have up to 32 different subtitles. To access the desired Bookmark or Angle function. Some DVD discs do not support the angle function. Bookmark function allows you to easily and quickly to find a track or chapter from DVD. The EZ View function is used for changing the aspect ratio in DVD. Using the Disc and Title Menu Using the Disc Menu

1. With the unit in Stop mode, press the MENU button on the

remote control. Press ENTER key for Disc Menu Repeat the current track, chapter, title, a chosen section (A-B), or all of the disc. When playing a DVD

1. Press the REPEAT button on the remote control.

Repeat screen appears.

2. Press the √/® buttons to select Chapter, Title or A-B,

then press the ENTER button. - DVD repeats play by chapter or title. - Chapter ( ): repeats the chapter that is playing. - Title ( ): repeats the title that is playing. - A-B: repeats a segment of the disc that you select.

DVD Off Note - Depending on the disc, the Disc Menu may not work. - You can also access the Disc Menu by pressing the DISC MENU button on the remote control.

01 A - B ENTER REPEAT Using the A-B Repeat function

1. Press the REPEAT A-B button at the point where you

want repeat play to start (A). B is automatically highlighted.

2. Press the REPEAT A-B button at the point where you

want the repeat play to stop (B). Using the Title Menu

1. With the unit in Stop mode, press the MENU button on the

2. Press the π/† buttons to select Title Menu, then press the

® or ENTER button. Repeat A-B Press ENTER key for Title Menu Note - Depending on the disc, the Title Menu may not work. - Title Menu will only be displayed if there are at least two titles in the disc. Note - A-B REPEAT allows you to set point (B) until at least 5 seconds of play back time has elapsed after point(A) has been set. - Depending on the disc, the Repeat function may not work. Slow Play This feature allows you to repeat scenes slowly containing sports, dancing, musical instruments being played etc., so you can study them more closely. When playing a DVD

1. During play, press the PLAY/PAUSE (

) button. ) button to choose the play

2. Press the SEARCH (

speed between 1/8, 1/4 and 1/2 of normal during PAUSE or STEP mode. English _17 ● BASIC FUNCTIONS

2. Press the π/† buttons to select Disc Menu, then-press the

® or ENTER button. Repeat Play advanced functions Adjusting the Aspect Ratio (EZ View) To play back using aspect ratio (DVD)

1. During play, press the INFO button on the remote control.

2. Press the π/† buttons to select Shortcut.

3. Press the √/® buttons to select EZ VIEW, then -press the

4. Press the √/® buttons to select desired item.

WIDE SCREEN EZ VIEW If you are using a 16:9 TV For 16:9 aspect ratio discs - WIDE SCREEN Displays the content of the DVD title in 16:9 aspect ratio. - SCREEN FIT The top and bottom portions of the screen are cut off. When playing a 2.35:1 aspect ratio disc, the black bars at the top and bottom of the screen will disappear. The picture will look vertically stretched. (Depending on a type of disc, the black bars may not disappear completely.) - ZOOM FIT The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarged. For 4:3 aspect ratio discs - Normal Wide Displays the content of the DVD title in 16:9 aspect ratio. The picture will look horizontally stretched. - SCREEN FIT The top and bottom portions of the screen are cut off and the full screen appears. The picture will look vertically stretched. - ZOOM FIT The top, bottom, left and right portions of the screen are cut off and the central portion of the screen is enlarged. - Vertical Fit When a 4:3 DVD is viewed on a 16:9 TV, black bars will appear at the left and right of the screen in order to prevent the picture from looking horizontally stretched. 18_ advanced functions If you are using a 4:3 TV For 16:9 aspect ratio discs - 4:3 Letter Box Displays the content of the DVD title in 16:9 aspect ratio. The black bars will appear at the top and bottom of the screen. - 4:3 Pan Scan The left and right portions of the screen are cut off and the central portion of the 16:9 screen is displayed. - SCREEN FIT The top and bottom portions of the screen are cut off and a full screen appears. The picture will look vertically stretched. - ZOOM FIT The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarged. For 4:3 aspect ratio discs - Normal Screen Displays the content of the DVD title in 4:3 aspect ratio. - SCREEN FIT The top and bottom portions of the screen are cut off and the full screen appears. The picture will look vertically stretched. - ZOOM FIT The top, bottom, left and right portions of the screen are cut off and the central portion of the screen is enlarged. Note This function may behave differently depending on the type of disc. Selecting the Audio Language You can select a desired audio language quickly and easily with the AUDIO button. Using the AUDIO button (DVD/ MPEG4)

1. Press the √/AUDIO button. The Audio changes when the

button is pressed repeatedly. The audio languages are represented by abbreviations. DVD

2. To remove the AUDIO icon, press the CANCEL or RETURN

button. Note - This function depends on the audio languages that are encoded on the disc and may not work. - A DVD disc can contain up to 8 audio languages. Selecting the Subtitle Language When a DVD contains multiple angles of a particular scene, you can use the ANGLE function. Using the ANGLE button (DVD) If the disc contains multiple angles, the ANGLE appears on the screen.

1. During play, press the INFO button on the remote control.

2. Press the π/† buttons to select Shortcut.

3. Press the √/® buttons to select Angle, then -press the

ENTER button. You can select a desired subtitle quickly and easily with the SUBTITLE button. Using the SUBTITLE button (DVD/ MPEG4)

1. Press the π/SUBTITLE button. The subtitle languages are

represented by abbreviations. Press the π/† buttons to select desired item.

4. Press the √/® buttons-on the remote control to select the

desired angle. DVD Off SUBTITLE 4/6 MPEG4 Subtitle Selection External Subtitle Off readme.TXT External Subtitle option will appear, depends on the DivX disc. Non-standard fonts are not supported Enter Press π/SUBTITLE button on the remote control repeatedly to select the desired subtitle language on a MPEG4 then press ENTER . Return Menu MPEG4 Off Note - If the disc has only one angle, this feature won’t work. Currently, very few discs have this feature. - Depending on the disc, these functions may not work. SUBTITLE

2. To remove the SUBTITLE icon, press the CANCEL or

RETURN button. Note - You have to change the desired subtitle in the Disc Menu, according to discs. Press the DISC MENU button. - This function depends on what subtitles are encoded on the disc and may not work on all DVDs. - A DVD disc can contain up to 32 subtitle languages. - To have the same subtitle language come up whenever you play a DVD; Refer to “Using the Subtitle Language” on page 25. Using the Bookmark Function This feature lets you bookmark sections of a DVD so you can quickly find them at a later time. Using the Bookmark Function (DVD)

1. During play, press the INFO button on the remote control.

2. Press the π/† buttons to select Shortcut, then -press the

ENTER button. DVD English _19 ● ADVANCED FUNCTIONS - To have the same audio language come up whenever you play a DVD; Refer to “Using the Audio Language” on page 25. Changing the Camera Angle advanced functions

3. Press the √/® buttons to select Bookmark, then press the

4. When you reach the scene you want to mark, press-the

ENTER button. Up to three scenes may be marked at a time.

1. During play or pause mode, press the ZOOM button on the

remote control, Press the ENTER button

2. Press the π/† or √/® buttons to select the part of the

screen you want to zoom in-on. - During DVD play, press ENTER to zoom in 2X/4X/2X/ Normal in order. Note - Depending on a disc, the Bookmark function -may not work. Recalling a Marked Scene

1~3. The first 1~3 steps are the same as those for “Using the Bookmark Function” on page 19.

4. Press the √/® buttons to select a marked scene.

5. Press the PLAY/PAUSE (

scene. ) button to skip to the marked Clearing a Bookmark 1~3. The first 1~3 steps are the same as those for “Using the Bookmark Function” on page 19.

4. Press the √/® buttons to select the bookmark number you

want to delete. Clips Menu for MP3/WMA/ JPEG/ MPEG4/CD Audio CD Audio or discs with MP3/WMA/JPEG contain individual songs and/or pictures that can be organized into folders as shown below. They are similar to how you use your computer to put files into different folders.

5. Press the CANCEL button to delete a bookmark number.

20_ advanced functions Open the disc tray. Place the disc on the tray. Close the tray. The tray closes and this screen displays. Off

: Name of currently playing file.

: Current Playback Mode : There are four modes. They can be selected in order by

1. Open the disc tray. Place the disc on the tray. Close the tray.

- Only one kind of file is played back when a disc or a folder contains both MP3 and WMA files.

2. Press the π/† buttons to select a song file.

Press ENTER to begin playback of the song file. - Off: Normal Playback Off Play - Track: Repeats the current track. 00:00:23 B e c a u s e Yo u - Folder: Repeats the current folder

- Random: Files in the disc will be played in B e c a u s e Yo u Cactus Sad Dayu random order. Wonderful

: AVI file icon. Enter Return REPEAT Repeat Repeat/Random playback Folder Selection The folder can be selected in Stop or Play mode. - To select the Parent Folder Press the RETURN button to go to parent folder, or press the π/† buttons to select “..” and press ENTER to go to the parent folder. - To select the Peer Folder Press the π/† buttons to select the desired folder, then press ENTER. - To select the Sub-Folder Press the π/† buttons to select the desired folder, then press ENTER. Root WMA JPEG Parent Folder MP3 MUSIC Current Folder 1st Sub-Folders 2nd SONG FILE 1 Peer Folders SONG FILE 2 SONG FILE 3 MPEG4 FILES Press the REPEAT button to change the playback mode. There are four modes, such as Off, Track,Disc, Folder and Random. - Off: Normal Playback - Track: Repeats the current song file. - Disc : repeats the Disc that is playing. - Folder: Repeats the song files which have the same extension in the current folder. - Random: Song files which have the same extension will be played in random order. To resume normal play, press the CANCEL button. CD-R MP3/WMA file When you record MP3 or WMA files on CD-R, please refer to the following. - Your MP3 or WMA files should be ISO 9660 or JOLIET format. ISO 9660 format and Joliet MP3 or WMA files are compatible with Microsoft's DOS and Windows, and with Apple's Mac. This format is the most widely used. - When naming your MP3 or WMA files, do not exceed 8 characters, and enter “.mp3, .wma” as the file extension. General name format : Title.mp3. or Title.wma. When composing your title, make sure that you use 8 characters or less, have no spaces in the name, and avoid the use of special characters including: (.,/,\,=,+). - Use a decompression transfer rate of at least 128 Kbps when recording MP3 files. Sound quality with MP3 files basically depends on the rate of compression/decompression you choose. Getting CD audio sound requires an analog/digital sampling rate, that is conversion to MP3 format, of at least 128 Kbps and up to 160 Kbps. However, choosing higher rates, like 192 Kbps or more, only rarely give better sound quality. Conversely, files with decompression rates below 128 Kbps will not be played properly. English _21 ● ADVANCED FUNCTIONS pressing the REPEAT button. MP3/WMA/CD Audio Playback advanced functions - Use a decompression transfer rate of at least 64Kbps when recording WMA files. Sound quality with WMA files basically depends on the rate of compression/decompression you choose. Getting CD audio sound requires an analog/digital sampling rate, that is conversion to WMA format, of at least 64Kbps and up to 192Kbps. Conversely, files with decompression rates below 64Kbps or over 192Kbps will not be played properly. - Do not try recording copyright protected MP3 files. Certain "secured" files are encrypted and code protected to prevent illegal copying. These files are of the following types: Windows MediaTM (registered trade mark of Microsoft Inc) and SDMITM (registered trade mark of The SDMI Foundation). You cannot copy such files. - Important: The above recommendations cannot be taken as a guarantee that the DVD player will play MP3 recordings, or as an assurance of sound quality. You should note that certain technologies and methods for MP3 file recording on CD-Rs prevent optimal playback of these files on your DVD player (degraded sound quality and in some cases, inability of the player to read the files). - This unit can play a maximum of 500 files and 500 folders per disc. MPEG4 Playback MPEG4 Play Function AVI files are used to contain the audio and video data. Only AVI format files with the “.avi” extensions can be played.

1. Open the disc tray. Place the disc on the tray. Close the tray.

a01_divx51b-8 a02_divx505b-8 a03_divx502sp-8 a04_divx412-8 Return Menu Repeat playback Press the REPEAT button to change playback mode. There are 4 modes, such as Off, Folder. - Folder : repeats the AVI files which have the same extension in the current folder. - Title : repeats the title that is playing. 22_ advanced functions Function Description Reference page During play, press the Skip button, it moves forward

) or backward 5 minutes. During play, press the SEARCH

) button and press Search

) again to search at a faster speed. Allows you to search at a faster speed in an AVI file. (2X, 4X, 8X) Slow Motion Allows you to search at a slower speed in an AVI file. Play (1/8X, 1/4X, 1/2X) ZOOM

P 15 P 20 2X/4X/2X/Normal in order - These functions may not work depending on MPEG4 file. CD-R AVI file This unit can play the following video compression formats within the AVI file format: - DivX 3.11 contents - DivX 4 contents (Based on MPEG-4 Simple Profile) - DivX 5 contents (MPEG-4 simple profile plus additional features such as bi-directional frames. Qpel and GMC are also supported.) - XviD MPEG-4 compliant Contents. This unit supports all resolutions up to maximum below.

2. Press the π/† buttons to select an avi file

(DivX/XviD) and then press ENTER button. Enter MPEG4 Function Description DivX3.11 & DivX4 & XviD DivX5 Bitrate may fluctuate: Device may skip decoding the high bitrate portions and begin decoding again when Bitrate returns to normal. 720 x 480 @30fps 720 x 576 @25fps : Maximum bitrate : 4Mbps Note

• Some MPEG-4 files created on a personal computer may not be play back. That is why Codec Type, Version and Higher resolution over specification is not supported.
• This unit supports CD-R/RW written in MPEG4 in accordance with the “ISO9660 format”. Picture CD Playback

1. Select the desired folder.

2. Press the π/† buttons to select a Picture file in the clips

menu and then press the ENTER button.

3. Press the INFO button on the remote control to select the

menu you want to view and then press the ENTER button. Note - Press the STOP button to return to the clips menu. - When playing a Kodak Picture CD, the unit displays the Photo directly, not the clips menu. Rotation : Each time the ENTER button is pressed, the picture rotates 90 degrees clockwise. Zoom : Press the π/† buttons to select the part of the screen you want to zoom in on. Press the ENTER button. Each time the ENTER button is pressed, the picture is enlarged up to 2X. Slide Show

: The unit enters slide show mode.

• Before beginning the Slide Show, the picture interval must be set.

: When this icon is selected and ENTER is pressed, the pictures change automatically with about a 6 second interval.

: The pictures change automatically with about a 12 second interval.

: The pictures change automatically with about a 18 second interval. Timer : CD-R JPEG Disc - Only files with the “.jpg” and “.JPG” extensions can be played. - If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played. - Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played. - The name of the JPEG file may not be longer than 8 characters and should contain no blank spaces or special characters (. / = +). - Only a consecutively written multi-session disc can be played. If there is a blank segment in the multi-session disc, the disc can be played only up to the blank segment. - A maximum of 500 images can be stored on a single CD. - Kodak Picture CDs are recommended. - When playing a Kodak Picture CD, only the JPEG files in the pictures folder can be played. - Kodak Picture CD: The JPEG files in the pictures folder can be played automatically. - Konica Picture CD: If you want to see the Picture, select the JPEG files in the clips menu. - Fuji Picture CD: If you want to see the Picture, select the JPEG files in the clips menu. - QSS Picture CD: The unit may not play QSS Picture CD. - If the number of files in 1 Disc is over 500, only 500 JPEG files can be played. - If the number of folders in 1 Disc is over 500, only JPEG files in 500 folders can be played ENTER RETURN English _23 ● ADVANCED FUNCTIONS ENTER RETURN Note - Depending on a file size, the amount of time between each picture may be different from the manual. - If you don’t press any button, the slide show will start automatically in about 10 seconds by default. changing setup menu Using the Setup Menu The Setup menu lets you customize your DVD player by allowing you to select various language preferences, set up a parental level, even adjust the player to the type of television screen you have.

❶ Language Setup: Setup of the Language. ❷ Audio Setup : Setup of the Audio Options. ❸ Display Setup : Setup of the Display Options. Use to select which type of screen you want to watch and several display options. ❹ Parental Setup : Setup of the Parental Level. Allows users to set the level necessary to prevent children from viewing unsuitable movies such as those with violence, adult subject matter, etc. Setting Up the Language Features If you set the player menu, disc menu, audio and subtitle language in advance, they will come up automatically every time you watch a movie. Using the Player Menu Language

1. With the unit in Stop mode, press the MENU button.

2. Press the π/† buttons to select Setup, then press the ®

3. Press the π/† buttons to select Language Setup, then

4. Press the π/† buttons to select Player Menu, then press

the ® or ENTER button.

5. Press the π/† buttons to select the desired language,

then press the ® or ENTER button. - The language is selected and the screen returns to Language Setup menu. - To make the setup menu disappear, press the MENU button. LANGUAGE SETUP ❺ Divx(R) Registration : Please use the Registration code to register this player with the DivX(R) Video On Demand format. To learn more go to www.divx.com/vod.

2. Press the π/† buttons to access the different features.

Press the ® or ENTER button to access the sub features.

3. To make the setup screen disappear after setting up, press

the MENU button again. Note Depending on the disc, some Setup Menu selections may not work. 24_ changing setup menu Using the Disc Menu Language This function changes the text language only on the disc menu screens.

1. With the unit in Stop mode, press the MENU button.

2. Press the π/† buttons to select Setup, then press the ®

3. Press the π/† buttons to select Language Setup, then

4. Press the π/† buttons to select Disc Menu, then press

the ® or ENTER button.

5. Press the π/† buttons to select the desired language,

then press the ® or ENTER button. If the selected language is not recorded on the disc, the original pre-recorded language is selected. - The language is selected and the screen returns to Language Setup menu. - To make the setup menu disappear, press the MENU button. LANGUAGE SETUP LANGUAGE SETUP Using the DivX Subtitle Language

1. With the unit in Stop mode, press the MENU button.

2. Press the π/† buttons to select Setup, then press the ®

3. Press the π/† buttons to select Language Setup, then

4. Press the π/† buttons to select Audio, then press the ®

5. Press the π/† buttons to select the desired language, then

press the ® or ENTER button. Select “Original” if you want the default soundtrack language to be the original language the disc is recorded in. - If the selected language is not recorded on the disc, the original pre-recorded language is selected. - The language is selected and the screen returns to Language Setup menu. - To make the setup menu disappear, press the MENU-button.

1. With the unit in Stop mode, press the MENU button.

2. Press the π/† buttons to select Setup, then press the ®

3. Press the π/† buttons to select Language Setup, then

4. Press the π/† buttons to select DivX Subtitle, then press

5. Press the π/† buttons to select the desired language,

then press the ® or ENTER button. - The language is selected and the screen returns to Language Setup menu. - To make the setup menu disappear, press the MENU-button. LANGUAGE SETUP Player Menu Disc Menu Audio Subtitle LANGUAGE SETUP DivX Subtitle √ Western Turkish Central Cyrillic Greek Arabic Setting Up the Audio Options Using the Subtitle Language

1. With the unit in Stop mode, press the MENU button.

2. Press the π/† buttons to select Setup, then press the ®

3. Press the π/† buttons to select Language Setup, then

4. Press the π/† buttons to select Subtitle, then press the ®

5. Press the π/† buttons to select the desired language,

then press the ® or ENTER button. - Select “Automatic” if you want the subtitle language to be the same as the language selected as the audio language. - Some discs may not contain the language you select as your initial language; in that case the disc will use its original language setting. - The language is selected and the screen returns to setup menu. - To make the setup menu disappear, press the MENU button. Audio Options allows you to setup the audio device and sound status settings depending on the audio system in use.

1. With the unit in Stop mode, press the MENU button.

2. Press the π/† buttons to select Setup, then press the ®

3. Press the π/† buttons to select Audio Setup, then press

the ® or ENTER button.

4. Press the π/† buttons to select the desired item, then

2. Press the π/† buttons to select Setup, then press the ®

3. Press the π/† buttons to select Display Setup, then press

the ® or ENTER button.

4. Press the π/† buttons to select the desired item, then

- Bitstream : Converts to MPEG-2 Digital Bitstream (5.1CH or 8CH). Select Bitstream when using the Digital Audio Output. ❸ Dynamic Compression - On : To select dynamic compression. - Off : To select the standard range. ❹ PCM Down Sampling - On : Select this when the Amplifier connected to the player is not 96KHz compatible. In this case, the 96KHz signals will be down converted to 48KHZ. - Off : Select this when the Amplifier connected to the player is 96KHz compatible. In this case, all signals will be output without any changes. Note :

• Even when PCM Down sampling is Off Some discs will only output down sampled audio through the digital outputs.
• To make the Setup menu disappear, press the MENU-button. Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. “DTS” e “DTS Digital Out” são marcas comerciais da Digital Theater Systems, Inc. ❶ TV Aspect Depending on a type of television you have, you may want to adjust the screen setting (aspect ratio). - 4:3 Letter Box : Select when you want to see the total 16:9 ratio screen the DVD supplies, even though you have a TV with a 4:3 ratio screen. Black bars will appear at the top and bottom of the screen. - 4:3 Pan&Scan : Select this for conventional size TVs when you want to see the central portion of the 16:9 screen. (Extreme left and right side of movie picture will be cut off.) - 16:9 Wide : You can view the full 16:9 picture on your wide screen TV. DISPLAY SETUP TV Aspect 4:3 Letter Box 4:3 Pan&Scan Screen Message √ 16:9 Wide Still Mode Black Level : Off TV System : PAL Video Output : SCART-RGB ❷ Still Mode These options will help prevent picture shake in still mode and display small text clearer. - Auto : When selecting Auto, Field/Frame mode will be automatically converted. - Field : Select this feature when the screen shakes in the Auto mode. - Frame : Select this feature when you want to see small letters more clearly in the Auto mode. 26_ changing setup menu ❸ Screen Messages Use to turn on-screen messages On or Off. ❹ Black Level Adjusts the brightness of the screen. Setting Up the Parental Control The Parental Control function works in conjunction with DVDs that have been assigned a rating, which helps you control the types of DVDs that your family watches. There are up to 8 rating levels on a disc. ❺ TV System - Auto - NTSC : In case of using NTSC disc

• If your TV system only has NTSC, input you must choose “NTSC ”. Setting Up the Rating Level

1. With the unit in Stop mode (in condition no DVD or CD on

the set), press the MENU button.

2. Press the π/† buttons to select Setup, then press the ®

or ENTER button. - PAL : In case of using PAL disc

• If your TV system only has NTSC-Video input, you must choose “NTSC”.
• If your TV system only has PAL input, you must choose “PAL ”. Language Setup

3. Press the π/† buttons to select Parental Setup, then

4. Press the π/† buttons to select Rating Level, then press

5. Enter your password.

Press the π/† buttons then press the ® or ENTER button. By default, password-is set to 0000. - Please change password to something other than 0000 to activate the parental control function. PARENTAL SETUP Note : Rating Level : Kids Safe Change Password

• If your TV system only has PAL-Video input, you must choose “PAL”. When you choose “PAL”, Interlace output format is PAL 60 Hz output. changing setup menu

6. Press the π/† buttons to select the Rating Level you want,

then press the ® or ENTER button. e.g) Setting up in Kids Safe. 5. The Enter password screen appear. Enter your current password (default password is 0000), then Enter your new password twice. PARENTAL SETUP Rating Level √ Kids Safe Change Passwor Level 2 Level Level Level Level

PARENTAL SETUP Rating Level :Kids Safe Change Password Enter Password

Enter Note To make the setup menu disappear, press the MENU button. For example, if you select up to Level 6, discs that contain Level 7,8 will not play. Return Menu PARENTAL SETUP Rating Level :Kids Safe Change Password Enter New Password

Changing the Password Enter

1. With the unit in Stop mode ( in condition no DVD or CD on

the set), press the MENU button.

2. Press the π/† buttons to select Setup, then press the ®

3. Press the π/† buttons to select Parental Setup, then

4. Press the π/† button to select Change Password, then

press the ® or ENTER button. Enter your new password again. PARENTAL SETUP Rating Level Change Password 28_ changing setup menu :Kids Safe Return Menu Note If you have forgotten your password, see “Forgot Password” in the Troubleshooting Guide. reference Firmware upgrade

2. Press the √/® buttons to select Total, then press the

ENTER button. Introduction ● REFERENCE Samsung offers software upgrades to improve the performance of this unit, through the Samsung Internet Site (www.samsung.com). Because the new mpeg4 codec continues to appear more often. What improvements are made depends on the software upgrade you are using as well as the software that your DVD-player contained before the upgrade. How to make an upgrade disc Write the downloaded file onto a blank CD-R or CDRW disc, using the following settings: Firmware upgrade starts - In the middle of the writing, the tray will open automatically. After taking out the disc, please wait for about 2 minutes. - If the unit was succesfully updated, the unit will turn off and on after closing the tray automatically. When the unit turns on, this screen will display.

3. Press the number buttons to select the desired language

1. You have to download a new file through Download Center

on the Samsung Internet Site (www.samsung.com).

2. Write the file to Disc using CD-RW of your computer.

English Français Deutsch Español Note - File System CD-ROM ISO Level - Character set ISO 9660 - Finalized, single session - Write speed low Upgrade procedure

1. Open the disc tray. Place the disc on the tray. Close the

tray. The Firmware upgrade screen appears. Italiano Nederlands Note - If the “Select Menu Language” doesn’t appear, please contact the “Samsung Service Center”. - Do not press any button or unplug the power during upgrade. - The upgrade procedure may change, refer to the web site (www.samsung.com). Firmware upgrade appears on the display English _29 reference Troubleshooting Before requesting service (troubleshooting), please check the following. Action Problem Page No operations can be performed with the remote control.

• Check the batteries in the remote control. They may need replacing.
• Operate the remote control at a distance of no more than 20 feet.
• Remove batteries and hold down one or more buttons for several minutes to drain the microprocessor inside the remote control to reset it. Reinstall batteries and try to operate the remote control again.

• Ensure that the disc is installed with the label side facing up.

5.1 channel sound is

not being reproduced. The icon appears on screen.

• 5.1 channel sound is reproduced only when the following conditions are met. :

1) The DVD player is connected with the proper Amplifier

2) The disc is recorded with 5.1 channel sound.

• Check whether the disc being played has the “5.1 ch” mark on the outside.
• Check if your audio system is connected and working properly.
• In a SETUP Menu, is the Audio Output set to Bitstream?
• The features or action cannot be completed at this time because:

1. The DVD’s software restricts it.

2. The DVD’s software doesn’t support the feature (e.g., angles).

3. The feature is not available at the moment.

4. You’ve requested a title or chapter number or search time that is out of range.

P13-14 P25-26 Disc Menu doesn’t appear. • Check if the disc has a Menu. Play mode differs from the Setup Menu selection.

• Some of the functions selected in the Setup Menu may not work properly if the disc is not encoded with the corresponding function. The screen ratio cannot be changed.

• The Screen Ratio is fixed on your DVDs. No audio.

• Make sure you have selected the correct Digital Output in the Audio Options Menu. The screen is blocked Forgot password

• Press the button (in front panel) for more than 5 seconds under no disc inside. P26-27 P25-26 P15 All settings will revert to the factory settings.
• Press the button (in front panel ) for more than 5 seconds under no disc inside. All settings including the password will revert to the factory settings. Don't use this unless absolutely necessary. If you experience other problems.

• Go to the contents and find the section of the instruction book that contains the explanations regarding the current problem, and follow the procedure once again.
• If the problem still cannot be solved, please contact your nearest authorized service center. The picture is noisy or distorted

• Make sure that the disc is not dirty or scratched.

*: Nominal specification - Samsung Electronics Co., Ltd reserves the right to change the specifications with out notice. - Weight and dimensions are approximate. English _31 UNITED KINGDOM This Samsung product is warranted for the period of twelve (12) months from the original date of purchase, against defective materials and workmanship. In the event that warranty service is required, you should return the product to the retailer from whom it was purchased. However, Samsung Authorised Dealers and Authorised Service Centres in other EC Countries will comply with the warranty on the terms issued to purchasers in the country concerned. In case of difficulty, details of our Authorised Service Centres are available from: Samsung Electronics U.K. Ltd. Customer Care Centre PO Box 17243 Edinburgh, EH11 4YB United Kingdom United Kingdom Tel : 0845 SAMSUNG (7267864) Fax : 0845 650 8080 Web : www.samsung.com EIRE Tel : 0818 717 100 Fax : +44 (0)131 202 0630 Web : www.samsung.com „ WARRANTY CONDITIONS

1. The warranty is only valid if, when warranty service

is required, the warranty card is fully and properly completed and is presented with the original invoice or sales slip or confirmation, and the serial number on the product has not been defaced.

2. Samsung’s obligations are limited to the repair or,

at its discretion, replacement of the product or the defective part.

3. Warranty repairs must be carried out by Authorised

Samsung Dealers or Authorised Service Centres. No re-imbursement will be made for repairs carried out by non Samsung Dealers and, any such repair work and damage to the products caused by such repair work will not be covered by this warranty. EIRE

4. This product is not considered to be defective

in materials nor workmanship by reason that it requires adaptation in order to conform to national or local technical or safety standards in force in any Country other than the one for which the product was originally designed and manufactured. This warranty will not cover, and no re-imbursement will be made for such adaptation nor any damage which may result.

5. This warranty covers none of the following:

a) Periodic check ups, maintenance and repair or replacement of parts due to normal wear and tear. b) Cost relating to transport, removal or installation of the product. c) Misuse, including the faiure to use this product for its normal purposes or incorrect installation. d) Damage caused by Lightning, Water, Fire, Acts of God, War, Public Disturbances, incorrect mains voltage, improper ventilation or any other cause beyond the control of Samsung.

6. This warranty is valid for any person who legally

acquired possession of the product during the warranty period.

7. The consumers statutory rights in any applicable

national legislation whether against the retailer arising from the purchase contract or otherwise are not affected by this warranty. Unless there is national legislation to the contrary, the rights under this warranty are the consumers sole rights and Samsung, its subsidiaries and distributors shall not be liable for indirect or consequential loss or any damage to records, compact discs, videos or audio taper or any other related equipment or material. SAMSUNG ELECTRONICS (U.K.) LTD. Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. Region North America Latin America Country CANADA MEXICO U.S.A ARGENTINE BRAZIL CHILE NICARAGUA HONDURAS COSTA RICA ECUADOR EL SALVADOR GUATEMALA JAMAICA PANAMA PUERTO RICO REP. DOMINICA TRINIDAD & TOBAGO VENEZUELA COLOMBIA BELGIUM CZECH REPUBLIC DENMARK FINLAND FRANCE Europe CIS Asia Pacific Middle East & Africa GERMANY HUNGARY ITALIA LUXEMBURG NETHERLANDS NORWAY POLAND PORTUGAL SLOVAKIA SPAIN SWEDEN U.K EIRE AUSTRIA SWITZERLAND RUSSIA KAZAKHSTAN UZBEKISTAN KYRGYZSTAN TADJIKISTAN UKRAINE LITHUANIA LATVIA ESTONIA AUSTRALIA NEW ZEALAND CHINA HONG KONG INDIA INDONESIA JAPAN MALAYSIA PHILIPPINES SINGAPORE THAILAND TAIWAN VIETNAM TURKEY SOUTH AFRICA U.A.E Contact Center 1-800-SAMSUNG(726-7864) 01-800-SAMSUNG(726-7864) 1-800-SAMSUNG(726-7864) 0800-333-3733 0800-124-421, 4004-0000 800-SAMSUNG(726-7864) 00-1800-5077267 800-7919267 0-800-507-7267 1-800-10-7267 800-6225 1-800-299-0013 1-800-234-7267 800-7267 1-800-682-3180 1-800-751-2676 1-800-SAMSUNG(726-7864) 0-800-100-5303 01-8000112112 800-726-786 (800 - SAMSUNG) 030-6227 515 3260 SAMSUNG (€ 0,15/Min) 08 25 08 65 65 (€ 0,15/Min) 01805 - SAMSUNG(726-7864 € 0,14/Min) 06-80-SAMSUNG(726-7864) 800-SAMSUNG(726-7864) 0900-SAMSUNG (726-7864 € 0,10/Min) 815-56 480 0 801 801 881, 022-607-93-33 80820-SAMSUNG(726-7864) 0800-SAMSUNG(726-7864) 902-1-SAMSU(72678) 0771-400 200 0845 SAMSUNG (7267864) 0800-SAMSUNG(726-7864) 0800-SAMSUNG(726-7864) 8-800-555-55-55 8-10-800-500-55-500 8-10-800-500-55-500 00-800-500-55-500 8-10-800-500-55-500 8-800-502-0000 8-800-77777 8000-7267 800-7267 0800 SAMSUNG (0800 726 786) 800-810-5858, 400-810-5858, 010-6475 1880 3698-4698 3030 8282, 1800 110011, 1-800-3000-8282 0800-112-8888 0120-327-527 1800-88-9999 1800-10-SAMSUNG(726-7864) 1800-SAMSUNG(726-7864) 1800-29-3232, 02-689-3232 0800-329-999

11. Touche OPEN/CLOSE (

Allow you to search forward/backward through a
