USER MANUAL DVD-VR350 SAMSUNG

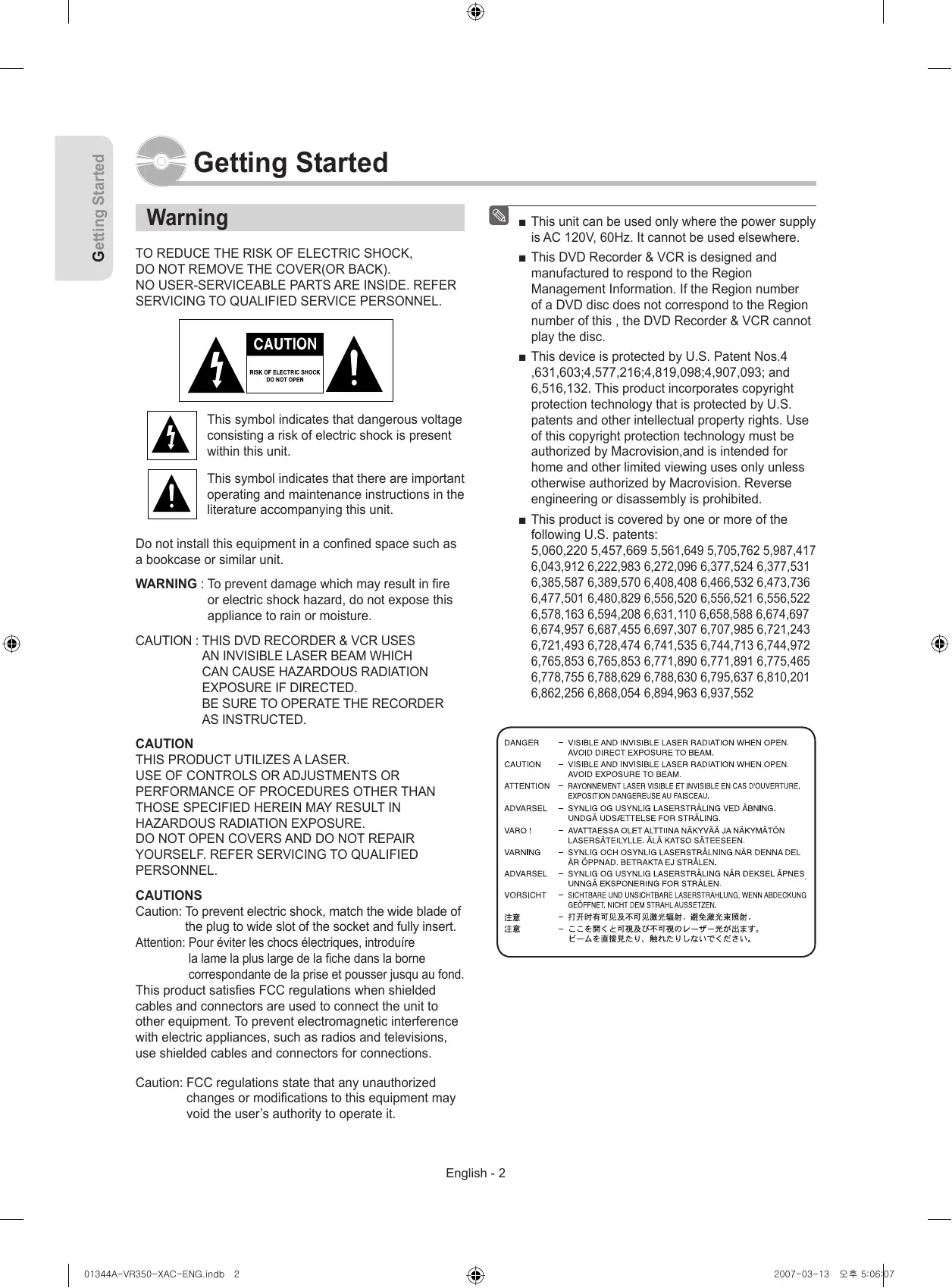

Getting Started Warning

■ This unit can be used only where the power supply is AC 120V, 60Hz. It cannot be used elsewhere.

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit. This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit. Do not install this equipment in a confined space such as a bookcase or similar unit. WARNING : To prevent damage which may result in fire or electric shock hazard, do not expose this appliance to rain or moisture. CAUTION : THIS DVD RECORDER & VCR USES AN INVISIBLE LASER BEAM WHICH CAN CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE RECORDER AS INSTRUCTED.

■ This DVD Recorder & VCR is designed and manufactured to respond to the Region Management Information. If the Region number of a DVD disc does not correspond to the Region number of this , the DVD Recorder & VCR cannot play the disc. ■ This device is protected by U.S. Patent Nos.4 ,631,603;4,577,216;4,819,098;4,907,093; and 6,516,132. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision,and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited. ■ This product is covered by one or more of the following U.S. patents: 5,060,220 5,457,669 5,561,649 5,705,762 5,987,417 6,043,912 6,222,983 6,272,096 6,377,524 6,377,531 6,385,587 6,389,570 6,408,408 6,466,532 6,473,736 6,477,501 6,480,829 6,556,520 6,556,521 6,556,522 6,578,163 6,594,208 6,631,110 6,658,588 6,674,697 6,674,957 6,687,455 6,697,307 6,707,985 6,721,243 6,721,493 6,728,474 6,741,535 6,744,713 6,744,972 6,765,853 6,765,853 6,771,890 6,771,891 6,775,465 6,778,755 6,788,629 6,788,630 6,795,637 6,810,201 6,862,256 6,868,054 6,894,963 6,937,552

CAUTION THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL. CAUTIONS Caution: To prevent electric shock, match the wide blade of the plug to wide slot of the socket and fully insert. Attention: Pour éviter les chocs électriques, introduíre la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu au fond. This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances, such as radios and televisions, use shielded cables and connectors for connections. Caution: FCC regulations state that any unauthorized changes or modifications to this equipment may void the user’s authority to operate it.

01344A-VR350-XAC-ENG.indb 2

2007-03-13 오후 5:06:07

▌Important Safety Instructions Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference. 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with a dry cloth. 7) Do not block any ventilation openings, Install in accordance with the manufacturer's instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9) Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two blades with one wider than the other. A groundingtype plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11) Only use attachments/accessories specified by the manufacturer. 12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over. 13) Unplug this apparatus during lightning storms or when unused for long periods of time. 14) Refer all servicing to qualified service personnel. Service is required when the apparatus has been damaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus. Service is also required if the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

▌Handling Cautions • Before connecting other components to this recorder, be sure to turn them all off. • Do not move the recorder while a disc is being played, or the disc may be scratched or broken, and the recorder’s internal parts may be damaged. • Do not put a flower vase filled with water or any small metal objects on the recorder. • Be careful not to put your hand into the disc tray. • Do not place anything other than the disc in the disc tray.

• Exterior interference such as lightning and static electricity can affect normal operation of this recorder. If this occurs, turn the DVD Recorder & VCR off and on again with the POWER button, or disconnect and then reconnect the AC power cord to the AC power outlet. The recorder will operate normally. • Be sure to remove the disc and turn off the recorder after use. • Disconnect the AC power cord from the AC outlet when you don’t intend to use the recorder for long periods of time. • Clean the disc by wiping in a straight line from the inside to the outside of the disc. • Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. • The Mains plug is used as a disconnect device and shall stay readily operable at any time.

▌Maintenance of Cabinet For safety reasons, be sure to disconnect the AC power cord from the AC outlet. • Do not use benzene, thinner, or other solvents for cleaning. • Wipe the cabinet with a soft cloth.

▌Disc Handling • Use discs with regular shapes. If an irregular disc (a disc with a special shape) is used, this DVD Recorder & VCR may be damaged.

Holding discs • Avoid touching the surface of a disc where recording is performed.

DVD-RAM, DVD-RW and DVD-R • Clean with an optional DVD-RAM/PD disc cleaner. Do not use cleaners or cloths for CDs to clean DVD-RAM/DVD-RW/DVD-R discs.

DVD-Video, Audio CD • Wipe off dirt or contamination on the disc with a soft cloth.

Cautions on handling discs • Do not write on the printed side with a ball-point pen or pencil. • Do not use record cleaning sprays or antistatic. Also, do not use volatile chemicals, such as benzene or thinner. • Do not apply labels or stickers to discs. (Do not use discs fixed with exposed tape adhesive or leftover peeled-off stickers.) • Do not use scratch-proof protectors or covers. • Do not use discs printed with label printers available on the market. • Do not load warped or cracked discs.

▌Disc Storage Be careful not to damage the disc because the data on these discs are highly vulnerable to the environment. • Do not keep under direct sunlight. • Keep in a cool ventilated area. • Store vertically. • Keep in a clean protection jacket. • If you move your DVD Recorder & VCR suddenly from a cold place to a warm place, condensation may generate on the operating parts, including the lens, and cause abnormal disc playback. In this case, do not connect the plug to the power outlet and wait for two hours. Then insert the disc and try to play back again. It will work properly when condensation has evaporated.

▌Disc Specifications DVD-Video • A digital versatile disc (DVD) can contain up to 135minutes of images, 8 audio languages and 32 subtitle languages. It is equipped with MPEG-2 picture compression and Dolby 3D surround, allowing you to enjoy vivid and clear theater quality images in the comfort of your own home. • When switching from the first layer to the second layer of a double-layered DVD Video disc, there may be momentary distortion in the image and sound. This is not a malfunction of the unit. • Once a DVD-R/DVD-RW(V) recorded is finalized, it is playable in a standard DVD player.

Audio CD • An audio disc on which 44.1kHz PCM Audio is recorded. • Plays CD-DA format audio CD-R and CD-RW discs. This unit may not be able to play some CD-R or CD-RW discs due to the condition of the recording.

CD-R/-RW MP3 CD-R/-RW • Only CD-R discs with MP3 files recorded with ISO9660 or JOLIET format can be played back • Only MP3 files with the "mp3" or "MP3" extension can be used. • For MP3 files recorded with a VBR(Variable Bit Rates), from 80 Kbps to 320 Kbps, the sound may cut in and out. • Playable bitrate range is from 56Kbps to 320Kbps. • The unit can handle a maximum of 1000 files and folders. • DVD-RAM/±RW/±R discs that contain MP3 files can be played back. JPEG CD-R/-RW • Only JPEG files with the ".jpg", ".JPG" extension can be used. • The unit can handle a maximum of 1000 files and folders. • Maximum size of progressive JPEG is 3M pixels. • MOTION JPEG is not supported. • DVD-RAM/±RW/±R discs that contain JPEG files can be played back.

Using MPEG4 disc • Disc : CD-R/-RW, DVD-RAM, DVD±R/ DVD±RW, • MPEG4 File with following extensions can be played. : .avi, .divx, .AVI, .DIVX • MPEG4 Codec format : DivX 3.11 DivX 4.x DivX 5.x • Available Audio Format : “MP3”, “MPEG”, “PCM”,“AC3”, “DTS” • Supported subtitle file formats: .smi, .srt, .sub, .psb,.txt Using CD-R/-RW • Use a 700MB(80 minutes) CD-R/-RW disc. If possible, do not use a 800MB(90 minutes) or above disc, as the disc may not play back. • If the CD-R/-RW disc was not recorded as a closed session, you may experience a delay in the early playback time, and all recorded files may not play. • Some CD-R/-RW discs may not be playable with this unit, depending on the device which was used to burn them. For contents recorded on CD-R/-RW media from CDs for your personal use, playability may vary depending on contents and discs. • When recording from CDs for your personal use to CD-R/-RW discs, playability may vary depending on the contents and discs.

DVD-R Disc Playback • Once a DVD-R is recorded and finalized, it is playable in a standard DVD player. • You can record onto the available space on the disc and perform editing functions such as giving titles to discs and programs and erasing programs before finalizing. • When programming is erased from a DVD-R, that space does not become available. Once an area on a DVD-R is recorded on, that area is no longer available for recording, whether the recording is erased or not. • It takes about 30 seconds for the unit to update the recorded information after recording finishes. • This product optimizes the DVD-R for each recording. Optimizing is excuted when you start recording after inserting the disc or turning on the unit. Recording onto the disc may become impossible if optimizing is performed too many times. • Playback may be impossible in some cases due to the condition of recording. • This unit can play back DVD-R discs recorded and finalized with a Samsung DVD video recorder. It may not be able to play some DVD-R discs depending on the disc and the condition of the recording.

DVD-RW Disc Playback and Recording • Recording and playback can be performed on DVD-RW discs in both Video and VR Modes. • Once a DVD-RW is recorded in VR or Video mode and finalized, you cannot perform additional recordings. • Once a DVD-RW is recorded in Video Mode and finalized, it becomes a DVD-Video. • In both modes, playback can be performed before and after finalization, but additional recording, deleting and editing can not be performed after finalization. • If you want to record the disc in VR Mode and then record in V Mode, be sure to execute format. Be careful when executing Format because all the recorded data may be lost.

01344A-VR350-XAC-ENG.indb 4

2007-03-13 오후 5:06:11

DVD-RAM Disc Playback and Recording • For cartridge type DVD-RAM discs, remove the cartridge and use only the disc. • Ensure that the recording mode is set to VR mode. Otherwise, this product will not be able to play the recording. • You cannot play a DVD-RAM in most DVD players due to compatibility issues. • Only DVD-RAM standard Version 2.0 discs can be played in this unit. • DVD-RAM discs recorded on this unit may not work with other DVD Players. To determine compatibility with these DVD-RAM discs, refer to the user’s manual for the player.

COPY PROTECTION Protection • Program-protection: See page 68 “Locking a Title” • Disc-protection: See page 76 “Disc Protection” > DVD-RAM/DVD-RW/DVD-R discs that are incompatible with the DVD-VIDEO format cannot be played with this product. > For more information on DVD recording compatibility, consult your DVD-RAM/DVD-RW/DVD-R manufacturer.

• When inserting an unused disc, a message will appear asking whether to initialize the disc or not. If you select "YES", the disc will be formatted in VR mode. • DVD-RW (VR mode) - This is a format that is used for recording data on DVDRW disc. You can record multiple titles, edit, delete, partial delete, create a playlist, etc. - A disc that is recorded in this mode may not be played by existing DVD players. • DVD-RW (Video mode) - This is a format that is used for recording data on a DVD-RW or DVD-R disc. The disc can be played by an existing DVD player once it has been finalized. - If a disc that has been recorded in Video mode by a different manufacturer's recorder but has not been finalized it cannot be played or recorded by this recorder.

> Use of poor quality DVD-RAM/DVD-RW/DVD-R discs may cause the following unexpected problems including, recording failure, loss of recorded or edited materials, or damage to the recorder.

Do not use the following discs! • LD, CD-G, CD-I, CD-ROM and DVD-ROM discs should not be used in this product. [Note] • Some commercial discs and DVD discs purchased outside your region may not be playable with this product. When these discs are played, either “No Disc” or “The disc cannot be played. Please check the regional code of the disc.” will be displayed. • If your DVD-RAM/DVD-RW/DVD-R disc is an illegal copy or is not in DVD video format, it may also not be playable. Disc Compatibility • Not all brands of discs will be compatible with this unit. • The latest firmware upgrade to improve recording & playback quality can be downloaded from our web site. (Download Center at www.samsung.com/ca) • If disc compatibility problems continue, or there is an issue upgrading your recorder, contact the Call Center at 1-800-SAMSUNG.

• Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD Recorder & VCR directly to your TV, not to a VCR. Connecting your recorder to a VCR results in a distorted picture from copy-protected DVD discs. • This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Contents Getting Started

■ How to use the DVD Recorder & VCR 9

■ Setting Up the Video(Display) Options 31

■ Unpacking 10 Accessories 10 Connecting the Power Cord 10 Preparing the Remote Control 11 Tour of the Remote Control 12

■ Setting Up the Parental Control 33

■ Description 13 Front Panel 13 Front Panel Display 13 Rear Panel 14

■ Manual Clock Set 27 ■ Channel Set 28 ■ Auto Channel Memory 28 ■ Channel Add/Delete 29 ■ RF Output Channel 29

■ VCR Setting 34 Tape Length 34 Auto Play 34 Auto Repeat 34 ■ Video Input 35 ■ DVD EP Mode Time 35 ■ Automatic Chapter Creator 36 ■ Quick Recording 37

Connecting & Setting Up ■ Connecting the Antenna Cable 15 Antenna + DVD Recorder & VCR + TV : No Cable box 15 Antenna + Cable box + DVD Recorder & VCR + TV : Cable box with many scrambled channels 16 Antenna + DVD Recorder & VCR + Cable box + TV : Cable box with a few scrambled channels 17

■ Connecting the Video Cable 18 Connecting to Component Video Input Jacks (Y,PB,PR) .. 18 Connecting to an S-Video Input Jacks 19 Connecting to a Video Input Jacks 20

■ Connecting the Audio Cable 21 Connecting to your TV 21 Connecting to a Stereo Amplifier with Analog Input Jacks 22 Connecting to an AV Amplifier with a Digital Input Jack 23 ■ Connecting External Devices 24 Connecting a VCR, cable box/satellite receiver (Set top box) or DVD player to the AV 1 IN or S-VIDEO IN Jacks 24 Connecting a Camcorder 25

DVD Playback ■ Region code (DVD-Video only) 38 ■ Logos of Discs that can be played 38 ■ Disc types that can be played 38 Discs That Cannot be Played 39 ■ Using the Disc Menu and Title Menu 40 ■ Using the Search & Skip Functions 40 ■ Slow Motion Play/Step Motion Play 41 ■ Using the ANYKEY button 42 ■ Repeat Playback 42 Playing Repeatedly 42 Playing a Certain Section Repeatedly 43 ■ Selecting the Subtitle Language 43 ■ Selecting the Audio language 44 ■ Changing the Camera Angle 44 ■ Zooming-In 45 ■ Using the Bookmarks 45 ■ Using the Markers 46

Editing ■ Playing the Title List 67 ■ Basic Editing (Title List) 68 Renaming(Labeling) a Title 68 Locking(Protecting) a Title 68 Deleting a Title 69 Deleting a Section of a Title 70

■ Playing Back an Audio CD (CD-DA)/MP3 47 Buttons on the Remote Control Used for Audio CD (CD-DA)/MP3 Playback 47 Playing an Audio CD (CD-DA) 47 Playing an MP3 Disc 48 Repeat Playback of an Audio/MP3 Disc 48

■ Advanced Editing (Playlist) 71 Creating a Playlist 71 Playing Titles in the Playlist 71 Renaming a Playlist Title 72 Editing a Scene for the Playlist 72 Copying a Playlist Title to the VCR 75 Deleting a Playlist Title from the Playlist 75 ■ Disc Manager 75 Editing the Disc Name 75 Disc Protection 76 Formatting a Disc 76 Finalizing a disc 77 Unfinalizing a disc (V/VR mode) 77 Delete All Title Lists 78

DVD Recording ■ Recordable discs 53 Recording Formats 54 ■ Recording Mode 54

■ Unrecordable Video 55 ■ Recording the Current Channel you are watching .. 56

■ Troubleshooting (DVD-VIDEO/DVD-RAM/DVD-RW/DVD-R) 79

■ Recording from External Equipment you are Watching.. 57

■ Editing the Scheduled Record List 61

■ Deleting the Scheduled Record List 62 ■ EZ REC MODE 62 VCR Recording ■ Basic VCR Recording 63 ■ Check Remaining Time 64 ■ Special Recording Features 64 ■ Copy to DVD or VCR 65

A variety of functions with an easy-to-use user interface

General Features The DVD-VR350 allows you to record and play high quality digital video on DVD-RAM/DVD-RW/DVD-R discs. High quality digital audio and video recording and playback You can record up to approximately 16-hours of video on a double side 9.4 GB DVD-RAM disc,up to 15-hours on a dual-layer 8.5GB DVD-R disc, and up to 8-hours on a 4.7 GB DVD-RAM/DVD-RW/DVD-R disc, depending on the recording mode. Creating DVD video titles using DVD-RW/DVD-R discs With the DVD-VR350, you can create your own DVD video titles on 4.7 GB DVD-RW/DVD-R or 8.5GB DVD-R discs.

The Integrated menu systems and messaging functionality allow you to perform the desired operations easily and conveniently. With a DVD-RAM/DVD-RW(VR mode) disc, you can edit recorded images, create playlist, and edit videos in a specific sequence according to your needs. MPEG4 playback This DVD Recorder & VCR can play MPEG4 formats within an avi file. DivX Trademark DivX, DivX Certified, and associated logos are trademarks of DivXNetworks, Inc and are used under license.

EZ REC MODE A Variety of Recording Options Select an appropriate recording mode between XP, SP, LP and EP to meet your recording needs. (See page 54.) • XP mode - High quality, about 1 hour • SP mode - Standard quality, about 2 hours • LP mode - Low quality, about 4 hours • EP mode - Lower quality, about 6 or 8 hours - The dual layer DVD-Rs have approximately double the capacity of single layer DVD-Rs. (See page 38.)

This function allows you Initialize and Finalize a disc automatically. (See page 62.)

Copying digital camcorder content using DV input jack Record digital camcorder images onto DVD-RAM/DVDRW/ DVD-R discs or video tape using the DV input jack (IEEE 1394-4pin). (See page 58.) High quality progressive scan Progressive scanning provides high resolution and flicker free video. The 10-bit 54-MHz DAC, 2D Y/C Separating circuitry and Time Base Corrector processor technology provide you with the highest image playback and recording quality. (See page 18.) Component progressive scan output video is available in both DVD and VCR modes.

01344A-VR350-XAC-ENG.indb 8

Make sure to check the following terms before reading the user’s manual. Icons that will be used in manual Icon

DVD This involves a function available with DVD or DVD-R/DVD-RW(V) discs that have been recorded and finalized.

RAM This involves a function available with DVD-RAM discs.

-RW This involves a function available with DVD-RW discs.

-R This involves a function available with DVD-R discs.

+RW This involves a function available with DVD+RW discs.

+R This involves a function available with DVD+R discs.

CD This involves a function available with a data CD (CD-R or CD-RW).

JPEG This involves a JPEG function available with CD-R/-RW or DVD±R/±RW/-RAM discs.

This involves an MP3 function available with CD-R/-RW or DVD±R/±RW/-RAM discs.

▌Step 1 : Select the disc type This unit can record on the following types of discs. If you want to repeatedly record on the same disc or you want to edit the disc after recording, select a rewritable DVD-RW or DVD-RAM type disc. If you want to save a recording without making any changes, choose a nonrewritable DVD-R.

▌Step 2 : Format the disc to start recording Unlike a VCR, the recorder automatically starts formatting when an unused disc is inserted. This is required for the preparation of recording on a disc.

This involves an MPEG4 function available with DVD±R/±RW/-RAM discs.

This involves a case where a function does not operate or settings may be cancelled.

NOTE How to use the DVD Recorder & VCR Getting Started

Before Reading the User’s Manual

Using a DVD-RAM This type of disc can be formatted in DVD-Video Recording format (VR mode). You can edit recorded images and create a playlist in a specific sequence according to your requirements. Using a DVD-RW • When an unused DVD-RW disc is first inserted, the message "Uninitialized Disc. Do you want to initialize this disc?" will be displayed. If you select Yes, initializing will be begin. DVD-RW discs can be formatted in either DVD-Video format (Video mode) or DVD-Video Recording format (VR mode) Using a DVD-R When using a DVD-R disc, only V mode recording is possible and no initialization is needed to play it on this recorder. However, finalization is necessary to play this disc on other DVD players.

This involves tips or instructions on the page that help each function operate.

■ You can only use either the VR or Video mode on a DVD-RW, but not both at the same time.

One-Touch A function that can be operated by button using only one button.

■ You can format a DVD-RW to V or VR mode using disc manager. It should be noted that the disc's data will be lost when changing formats.

ANYKEY A function that can be operated by button using ANYKEY button. About the use of this user’s manual 1) Be sure to be familiarize yourself with the Safety Instructions before using this product. (See pages 2~5) 2) If a problem occurs, check the Troubleshooting section. (See pages 79~81) Copyright ©2007 Samsung Electronics Co. All rights reserved; No part or whole of this user’s manual may be reproduced or copied without the prior written permission of Samsung Electronics Co.

▌Step 3 : Recording There are two different recording methods: Direct Recording and Timer Recording. Timer recording is determined as a date and recording can be done once, daily or weekly. There are 4 recording modes : XP (high quality mode), SP (standard quality mode), LP (long recording mode), and EP (extended mode).

To start playback, select the title you want to play from the title list. A DVD consists of sections called titles, and sub sections called chapters. During recording, a title is created between two points where you start and stop recording. Chapters will be created automatically when you finalize recording on DVD-R/DVD-RW discs in Video mode.

▌Accessories Check for the supplied accessories below.

▌Step 5 : Editing a recorded disc

Video/Audio Cable (AC39-00073A)

Editing on discs is easier than conventional video tapes. The recorder supports many different edit functions, possible only with DVDs. With a simple and easy edit menu, you can operate various edit functions, such as delete, copy, rename, lock, etc., on a recorded title. Creating a playlist (DVD-RAM/-RW in VR mode) With this recorder, you can create/edit a new playlist on the same disc without changing the original recording.

Remote Control (AK59-00062G)

▌Step 6 : Finalizing & Playing on other DVD components To play your DVD on other DVD players, finalizing may be necessary. First, finish all editing and recording operations, then finalize the disc. When using a DVD-RW disc in VR Mode Although finalizing is generally unnecessary when playing the disc on a VR Mode compatible component, a finalized disc should be used for playback. When using a DVD-RW disc in Video Mode The disc should be finalized first to enable playback on anything other than this recorder. No more editing or recording can be made on the disc once it has been finalized. When using a DVD-R disc You should finalize the disc to play it on other DVD players. No more editing or recording can be made on the disc once it has been finalized.

▌Connecting the Power Cord After all connections are complete, plug the power cord into a wall outlet. “Auto” appears in the front panel display. This means that the current time is being set automatically through the antenna under connection(Auto Program). The setup may take several minutes. When the DVD Recorder & VCR operates normally, the current time is automatically set and displayed in the front panel display.

2007-03-13 오후 5:06:19

Install Batteries in the Remote Control • Open the battery cover on the back of the remote control. • Insert two AAA batteries. Make sure that the polarities (+ and -) are aligned correctly. • Replace the battery cover. If the remote control does not operate properly: • Check the polarity +/- of the batteries. • Check if the batteries are drained. • Check if the remote sensor is blocked by obstacles. • Check if there is any fluorescent lighting nearby. Dispose of batteries according to local environmental regulations. Do not put them in the household trash.

■ If several codes are indicated for your television brand, try each one in turn until you find one that works. If you replace the remote control’s batteries, you must set the brand code again. You can then control the television using the following buttons. Button TV POWER INPUT SEL. TV VOL +/CH/TRK ( / ) TV MUTE 0~9 100+

▌Preparing the Remote Control

Function Used to switch the television on and off. Used to select an external source. Used to adjust the volume of the television. Used to select the desired channel. Used to toggle the sound on and off. Used to input number directly. Used to select channels over 100.

■ The various functions may not be able to be controlled on all televisions. If you encounter problems, operate the television directly.

To determine whether your television is compatible, follow the instructions below. 1. Switch your television on. 2. Point the remote control towards the television. 3. Press and hold the TV button and enter the two-figure code simultaneously corresponding to the brand of your television by pressing the appropriate number buttons. Brand

SAMSUNG DAEWOO EMERSON GRADIENTE HITACHI JVC LG LOEWE MAGNAVOX MITSUBISHI Codes 01,14,15,23,31 19 21 30 10 11 06,08,18 28 04 13

Result: If your television is compatible with the remote control, it will switch off. It is now programmed to operate with the remote control.

▌Tour of the Remote Control You can control part of another manufacturer’s TV functions with this remote control. • Buttons that can be controlled on your TV : TV POWER, INPUT SEL., TV VOL +/-, CH/TRK ( / ), TV MUTE, 0~9, 100+ Button.

27 28 29 30 31 32 33

1. DVD Button Press this when you use a DVD. 2. TV Button Press this to operate your TV. 3. POWER Button Press to power the DVD Recorder & VCR on and off. 4. NUMBER Button 5. 100+ Button Press this to select channel 100 or higher. 6. F.ADV/SKIP Button Press to skip a disc backwards or forwards. 7. Playback-related Buttons Forward/Rewind, Search, Skip, Stop, Play/Still 8. TV VOL (Volume) Button TV volume adjustment 9. MENU Button Press this to bring up the DVD Recorder & VCR’s setup menu.

10. ENTER/DIRECTION Buttons (UP/DOWN or LEFT/RIGHT Buttons) This button functions as a toggle switch. 11. INFO Button Press this to display current setting or disc status. 12. TITLE LIST/DISC MENU Button Press this to enter the TITLE LIST/Disc menu. 13. SUBTITLE Button Press this to switch the DVD’s subtitle language. 14. ANYKEY Button Press this to set the status of the disc that is being played. 15. REC Button Press this to make a recording on VCR, DVD-RAM/ -RW/-R discs. 16. TO DVD COPY Button Press this when you copy from the VCR to the DVD. 17. REC SPEED Button Press this to set the desired recording time and picture quality. 18. VCR Button Press this when you use a VCR. 19. INPUT SEL. Button Press this to select AV input signal in external input mode. (Tuner, AV input, DV input) 20. OPEN/CLOSE Button Press this to open and close the disc tray. 21. TV POWER Button Press to power your TV on and off. 22. TV/VCR Button 23. MARKER Button Press this to bookmark or mark a position while playing a disc. 24. CH/TRK Button Use this to select a TV channel. Press this to adjust the tape tracking. 25. RETURN Button Returns to a previous menu. 26. TV MUTE Button This also operates as sound mute. (TV mode) 27. EXIT Button Exit the current menu. 28. PLAY LIST/TITLE MENU Button Press this to enter the Edit playlist/Title menu. 29. AUDIO Button Press this to access various audio functions. 30. EZ REC MODE Button (See page 62) Use this to set the EZ REC MODE. 31. TIMER REC Button Press this when you use Timer Recording. 32. TO VCR COPY Button Press this when you copy from the DVD to the VCR. 33. CANCEL Button à This is a special remote control for the visually impaired,

and has Braille points on the POWER( and PLAY( ) buttons.

DVD is activated. DVD-RAM is activated. DVD(±)R or DVD(±)RW is actived. Progressive Scan mode is activated. Record function is activated. VCR is activated.

7. DVD or CD media is loaded. 8. The time, counter position or current deck status is indicated. 9. When you set a Timer recording, this indicator appears. 10. VHS video tape is loaded.

Fan The fan always revolves when the power is on. Ensure a minimum of 4” clear space on all sides of the fan when installing the product.

2007-03-13 오후 5:06:44

Connecting & Setting Up Connecting the Antenna Cable There are several ways to connect your DVD Recorder & VCR. Select the antenna connection that best suits you below.

You can record non-scrambled channels by selecting the channel on the DVD Recorder & VCR. Also use this method if you watch channels without a cable box.

■ If you are using an off-air antenna that has 300-ohm twin flat leads, use an external antenna connector (300-75 ohm adaptor : not supplied) to connect the antenna to the DVD Recorder & VCR.

▌Antenna + DVD Recorder & VCR + TV : No Cable box

■ If you have two separate antennas (one VHF and the other UHF), use a UHF/VHF combineradaptor (available at most electronics shops) to connect the antenna to the DVD Recorder & VCR.

01344A-VR350-XAC-ENG.indb 15

▌Antenna + Cable box + DVD Recorder & VCR + TV : Cable box with many scrambled channels

You can record channels by selecting the channel on the cable box. You cannot record one channel while watching another channel. Be sure that the cable box is turned on.

01344A-VR350-XAC-ENG.indb 16

▌Antenna + DVD Recorder & VCR + Cable box + TV : Cable box with a few scrambled channels You can record non-scrambled channels by selecting the channel on the cable box. You cannot record scrambled channels that require a cable box.

2007-03-13 오후 5:06:58

Connecting the Video Cable There are several ways to connect your DVD Recorder & VCR. Select one of the video connections on the following pages. You must use one of the following audio/video connections on this unit.

▌Connecting to Component Video Input Jacks (Y,PB,PR) Connections

Connect Component video cables (not supplied) between the COMPONENT OUT (Y,PB,PR) jacks on DVD Recorder & VCR and COMPONENT IN (Y,PB,PR) jacks on your TV.

• You will enjoy high quality images. Component video separates the picture element into black and White(Y), blue(PB), red(PR) signals to present clear and clean images. • Connect the audio cables(white and red) between the Component AUDIO OUT jacks on the DVD Recorder & VCR and Component AUDIO IN jacks on your TV(or AV amplifier). (See pages 19~21)

■ Compared to standard interlaced video, progressive scan doubles the amount of video lines fed to your TV, resulting in a clearer, more stable, and flicker free image than interlaced video. The component output jack of the DVD player can be used for progressive output mode, which is only available with TVs that support progressive scan.

• Progressive scan - If your TV supports Progressive Scan, you can enjoy higher quality video by pressing the P.SCAN button. (The component cable has to be connected.) 1. With the unit in Stop mode, press the P.SCAN button on the front of the DVD Recorder & VCR. 2. The message “Press “Yes” to confirm Progressive scan mode. Otherwise press “No”” will appear. Press the ◄ ► buttons to select Yes, and then press the ENTER button.

■ Progressive Scan Output (480p) Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. If you experience 480p progressive scan picture problems, it is recommended that you switch the connection to the ‘standard definition’ output. If there are questions regarding TV set compatibility with this model, please contact our customer service center at 1-800-SAMSUNG.

01344A-VR350-XAC-ENG.indb 18

▌Connecting to an S-Video Input Jacks Connect an S-Video cable(not supplied) between the S-VIDEO OUT jack on DVD Recorder & VCR and S-VIDEO IN jack on your TV.

• You will enjoy high quality images. S-Video separates the picture element into black and white (Y) and color (C) signals to present clearer images than regular video input mode. • Connect the audio cables(white and red) between the AUDIO OUT jacks on the DVD Recorder & VCR and AUDIO IN jacks on your TV(or AV amplifier). (See pages 21~23)

■ S-Video and Component video output are available only if your TV supports S-Video input or Component video input, respectively. If S-Video or Component video output does not work, check your TV connections and the TV input selection settings.

01344A-VR350-XAC-ENG.indb 19

▌Connecting to a Video Input Jacks

Connect a video(yellow) cable between the VIDEO(yellow) OUT jack on DVD Recorder & VCR and VIDEO(yellow) IN jack on the TV.

• You will enjoy regular quality images. • Connect the audio cables(white and red) between the AUDIO OUT jacks on the DVD Recorder & VCR and AUDIO IN jacks on your TV(or AV amplifier). (See pages 21~23)

01344A-VR350-XAC-ENG.indb 20

2007-03-13 오후 5:07:29

Connecting the Audio Cable Select one of the Audio connections on the following pages.

▌Connecting to your TV This connection will use your TV’s speakers.

▌Connecting to a Stereo Amplifier with Analog Input Jacks

If your stereo amplifier only has AUDIO INPUT jacks(L and R), use the AUDIO OUT (AV OUT) jacks.

▌Connecting to an AV Amplifier with a Digital Input Jack If your AV amplifier has a Dolby Digital or DTS decoder and a digital input jack, use this connection. To enjoy Dolby Digital or DTS sound, you will need to set up the audio settings. (See page 30)

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

“DTS” and “DTS Digital Out” are trademarks of DTS, Inc.

01344A-VR350-XAC-ENG.indb 23

2007-03-13 오후 5:07:41

Connecting External Devices This allows you to connect your DVD Recorder & VCR to other external devices and view or record their outputs.

▌Connecting a VCR, cable box/satellite receiver (Set top box) or DVD player to the AV 1 IN or S-VIDEO IN Jacks

Connecting a VCR or external device to AV 1 IN jacks of the DVD Recorder & VCR. If desired, you can connect an S-Video cable to the S-Video In jack instead of connecting the Video (yellow) cable. You can record from connected equipment (VCR, cable box/satellite receiver (Set top box) or DVD).

■ You can also use the AV 2 IN jacks on the front panel of the DVD Recorder & VCR. ■ Press the INPUT SEL. button to select the AV1 or S-Video input. ■ Copy protected content cannot be recorded. ■ Depending on your input connection, you must choose AV 1 (Composite) or S-video. (See page 35)

01344A-VR350-XAC-ENG.indb 24

▌Connecting a Camcorder You can record from connected equipment, such as a camcorder by using the AV2 IN or DV IN jacks on front of the DVD Recorder & VCR.

■ If the Input is not selected automatically, press the INPUT SEL. button on the remote control to select desired input. ■ Check your camcorder's owner's manual to see how to use the camcorder in this mode.

Scheduled Record List

MOVE ENTER RETURN EXIT The on-screen menus allow you to enable or disable various functions on your DVD Recorder & VCR. Press the MENU button to open the on-screen menu and then use the following buttons to navigate through the on screen menus. 1. ▲▼, ◄ ► Buttons Press these buttons on the remote control to move the selection bar ▲▼,◄ ► to cycle through the menu options. 2. ENTER Button Press this button on the remote control to confirm any new settings.

3. RETURN Button Press this button on the remote control to return to the previous menu screen displayed or to exit the on-screen menu. 4. EXIT Button Press this button to exit the on-screen menu.

This menu is used to set the current time. You need to set the time to use timer recording. ■ You must have the antenna connected to set the Auto Clock. See pages 15~17 for Antenna Connections. ■ The Clock will be automatically set when you turn off the recorder.

Press the ▲▼ buttons to select a channel that carries a time signal, then press the ENTER button. Select Auto to set the channel automatically.

Automatic : Automatic Atlantic : Automatic Eastern : Automatic Central

▌Time Zone Press the ▲▼ buttons to select the time zone of your area, then press the ENTER or ► button. Select Automatic to set the time zone automatically.

Mountain Pacific Alaska Hawaii

MOVE ENTER RETURN If Auto Setup fails to set the DVD Recorder & VCR’s internal clock by locating a local TV station, follow these steps to set the date and time manually.

:Antenna Antenna Auto Channel MemoryCable TV

Antenna/Cable TV RF Output Channel

This feature allows you to manually set the DVD Recorder & VCR’ s tuner band to Antenna or Cable, whichever you connected to the Antenna In jack during initial setup. • Use this setting only if Auto Setup detected the incorrect tuner band, i.e. channels are coming in on the wrong channel numbers. 1. With the unit in Stop mode/No Disc mode, press the MENU button.

2. Press the ▲▼ buttons to select Setup, then press the ENTER or ► button. 3. Press the ▲▼ buttons to select Channel Set, then press ENTER or ► button.

4. Press the ▲▼ buttons to select Antenna/Cable TV, then press the ENTER or ► button. Select the Antenna or Cable TV(Signal Source) that matches the antenna connection you selected on pages 15~17. • Antenna : Select this if the DVD Recorder & VCR is connected to an indoor or outdoor VHF/UHF antenna. (See pages 15, 17) • Cable TV : Select this if the DVD Recorder & VCR is connected to a cable TV. (See page 16)

Auto Channel Memory Auto Channel Memory will automatically seek and store all active channels in your area. Auto Channel Memory

1. With the unit in Stop mode/No Disc mode, press the MENU button.

Total channel numbers : 06/125 Saved channel : 4% Stop

Channel Add/Delete DVD-Recorder

RETURN EXIT Channel Add/Delete

• Using CH/TRK ( / ) buttons for channel selection allows the user to add/delete one channel at a time. • Using ▲▼ buttons for channel selection jumps to the next channel memorized in Auto Channel Memory. 6. Press the ◄► buttons to select Add or Delete, then press the ENTER button.

5. Press the ▲▼ or number buttons to select the channels you want to add or delete on the Select channel screen. Then, press the ENTER button.

Use this feature if Auto Channel Memory missed a channel that you would like to add or if you wish to remove a channel.

RF Output Channel DVD-Recorder

Antenna/Cable TV Setup

If you set the language options in advance, they will come up automatically every time you watch a movie. 1. With the unit in Stop mode/No Disc mode, press the MENU button.

5. Press the ▲▼ buttons to select the desired language, then press the ENTER or ► button. ■ If the selected language is not recorded on the disc, the original pre-recorded language is selected. ■ The selected language will only appear if it is supported on the disc.

▌DTS • Off : Doesn’t output digital signal. • On : Outputs DTS bitstream. (via Digital Audio Output) Select DTS when connecting to a digital amp with a DTS decoder. ■ When a DTS soundtrack is played, sound is not output from the Analog Audio Output (AV OUT).

MOVE ENTER RETURN This is only active when a Dolby Digital signal is detected. • On : When the Movie soundtracks are played at low volume or from small speakers, the system can apply appropriate compression to make low-level content more intelligible and prevent dramatic passages from getting too loud. • Off : You can enjoy the movie with the standard Dynamic Range.

▌TV Aspect Depending on the type of television you have, you may want to adjust the screen setting. (aspect ratio) • 4:3 Letter Box : Select when you want to see the total 16:9 ratio screen that a DVD supplies. Even though you have a TV with a 4:3 ratio screen, black bars will appear at the top and bottom of the screen. • 4:3 Pan & Scan : Select this for a conventional size TV when you want to see the central portion of the 16:9 screen. (Extreme left and right side of movie picture will be cut off.) • 16:9 Wide : You can view the full 16:9 picture on your wide-screen TV.

Adjusts the level of the input signal. • Darker : If you feel the screen is too light and you want to make the screen darker. • Lighter : If you feel the screen is too dark and you want to make the screen lighter.

MOVE ENTER RETURN EXIT Adjusts the black level of the screen. • 0 IRE : This is the standard NTSC reference black level for consistent brightness/contrast across all sources. Select this when you want to make the screen darker. • 7.5 IRE : This will enhance the black level for increased brightness/ contrast when viewing DVDs. Select this when you want to make the screen lighter.

▌3D Noise Reduction • Off : Normal • On : Select to remove noise from the screen. ■ This function depends on disc type. It may not work for some disc types. ■ IRE: Short for the Institute of Radio Engineers. An IRE unit is a relative unit of measure equaling 1/140th of the peak-to peak (p-p) video amplitude. ■ Black level function is not available in the progressive scan mode.

Please use the Registration code to register your DVD Recorder & VCR with the DivX(R) Video On Demand format. To learn more, visit www.divx.com/vod

The Parental Control function works in conjunction with DVDs that have been assigned a rating - which helps you control the types of DVDs that your family watches. There are up to 8 rating levels on a disc. 1. With the unit in Stop mode/No Disc mode, press the MENU button on the remote control. 2. Press the ▲▼ buttons to select Setup, then press the ENTER or ► button.

3. Press the ▲▼ buttons to select Parental Control, then press the ENTER or ► button. 4. Create a 4-digit password using the 0 to 9 buttons on the remote control. 5. The Re-enter Password screen appears to confirm the password. Enter your password again, and then press the ENTER or ► button. 6. Press the ▲▼ buttons to select On, then press the ENTER or ► button. The Parental Control screen appears.

■ Refer to Troubleshooting if you forget your password. (See page 79)

▌Changing the Rating Level 1. Press the ▲▼ buttons to select Rating Level, then press the ENTER or ► button. 2. Press the ▲▼ buttons to select the rating level you want, then press the ENTER or ► button. For example, if you select up to Level 6, discs that contain Level 7, 8 will not play. A larger number indicates that the program is intended for adult use only.

▌Tape Length This information is usually printed on the tape box. The menu cycles through: T-120, T-160 or T-180. Once the type of cassette is set, the VCR can display the amount of time remaining on the tape when you press the INFO button.

▌Auto Play If you want your videotapes to play automatically when you insert them, turn on Auto Play. • Off : Auto play is disabled. • On : The VCR will automatically begin playing a video tape when it is inserted, as long as the safety tab of the cassette has been removed.

▌Auto Repeat It sets the VCR to play a tape repeatedly (unless a tape control is activated :Stop, Fast Forward or Rewind).

EXIT You can set the EP(Extended Play)mode’s time setting to 6 or 8 hours.

Do you want to create the chapter menu after this recording?

6. Set the recording speed by pressing the REC SPEED button on the remote (see page 54 for more information on recording speeds). 1/1 JAN/01/2007 12:00 AM AV 1

8. Press the ◄► buttons to select Yes and press the ENTER button and recording begins. In XP and SP mode, you must record at least 5 minutes to create a chapter. In LP and EP mode, 15 minutes.

9. Press the STOP button to stop recording. 1/1

7. Press the REC button to start recording. The message "Do you want to create the chapter menu after this recording?" is displayed.

10. To display the created titles, finalize the disc (see page 77) and then press the TITLE MENU button. The title menu will be displayed. 11. To display the created chapters, select the desired Title and then press the DISC MENU button. The chapter menu for the selected Title will be displayed. ■ On DVD-RW discs, additional chapters and titles can be added to a finalized disc by unfinalizing and recording again.On DVD-R discs, once finalized, no additional chapters or titles can be recorded. ■ The Automatic Chapter Creator function does not work during Timer Recording or when you turn the power off. ■ DVD-R discs cannot be unfinalized.

MOVE ENTER RETURN EXIT It takes about 10 seconds for a disc to load (initialize) every time you turn on the unit. To bypass this initialization process, you can set the Quick Recording feature to On. This enables you to record immediately without having to wait for the disc to load. 1. With the unit in Stop mode/No Disc mode, press the MENU button. 2. Press the ▲▼ buttons to select Setup, then press the ENTER or ► button. 3. Press the ▲▼ buttons to select System, then press the ENTER or ► button. 4. Press the ▲▼ buttons to select Quick Recording, then press the ENTER or ► button. 5. Press the ▲▼ buttons to select On, then press the ENTER or ► button. ■ The Quick Recording is set to Off as default.

■ If this function is set to on, power consumption Note will be increased when the unit is powered off.

01344A-VR350-XAC-ENG.indb 37

2007-03-13 오후 5:08:26

Playback This section introduces basic functions of playback by disc type. Read the following information before playing a disc.

Region code (DVD-Video only) Both the DVD Recorder & VCR and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play. The Region Number for this DVD Recorder & VCR is described on the rear panel of the DVD Recorder & VCR.

Logos of Discs that can be played

D I G I TA L Dolby Digital

DivX NTSC broadcast system in U.S.A, Canada, Korea, Japan,etc.

2007-03-13 오후 5:08:28

▌Discs That Cannot be Played • DVD-Video with a region number other than “1” or “ALL” • 3.9 GB DVD-R Disc for Authoring. • A DVD±R/DVD-RW(V) disc which has been recorded and not finalized in a different manufacturer's recorder. • PAL discs • DVD-ROM/PD/MV-Disc, etc. • Video CD/CVD/SVCD/CD-ROM/CDV/CD-G/CD-I ■ This DVD Recorder & VCR can only operate with discs that are compatible with DVD-RAM Standard Version 2.0. ■ Playback and/or recording may not work for some types of discs or when specific operations, such as angle change and aspect ratio adjustment, are being performed. Information about the disc is written in detail on the box. Please refer to this if necessary. ■ Do not allow the disc to become dirty or scratched. Fingerprints, dirt, dust, scratches and deposits of cigarette smoke on the recording surface may make it impossible to use the disc for recording. ■ DVD-RAM/±RW/±R discs may not be able to play on some DVD players, depending on the player, disc and the condition of the recording. ■ Discs with PAL programs recorded on them cannot be played using this product.

Playing a Disc 1. Press the OPEN/CLOSE button. 3. Press OPEN/CLOSE button to close the disc tray. • Your DVD Recorder & VCR closes the disc tray and plays the disc automatically. • The recorder does not play discs automatically after initially being powered on initially. • When the recorder is powered on and a disc is in the tray, the unit will be activated and wait in stop mode. Press the PLAY button to start playback. • Power on the unit with the PLAY button if you wish to automatically play a disc in the recorder while it is powered off.

2. Place a disc gently into the tray with the disc’s label facing up.

4. Press the STOP button to stop playback. ■ When you stop playing the disc, the DVD Recorder & VCR remembers where you stopped. When you press the PLAY button again, it will pick up where you left off. (unless the disc is removed, the DVD Recorder & VCR is unplugged, or if you press the STOP button twice.) This function is only applicable to DVDVIDEO, DVD-RAM, DVD±RW, DVD±R or Audio CDs (CD-DA). ■ Do not move your DVD Recorder & VCR while playing, as this may cause damage to the disc. ■ Make sure to press the OPEN/CLOSE button to open or close the disc tray. ■ Do not push the disc tray while it is being opened or closed, as this may cause a product malfunction. ■ Do not place foreign materials on or in the disc tray. ■ Some functions may perform differently or be disabled depending on the disc type. If this occurs, refer to the instructions written on the disc case. ■ Be especially careful that children's fingers are not caught between the disc tray and the tray chassis when it closes. ■ After turning the power on, it will take a few seconds until the DVD Recorder & VCR operates. English - 39

01344A-VR350-XAC-ENG.indb 39

2007-03-13 오후 5:08:30

Using the Disc Menu and Title Menu Some discs contain a dedicated menu system that allows you to select special functions for title, chapters, audio track, subtitles, film previews, information on characters, etc.

▌For DVD-VIDEO Discs

Disc Menu : Press the DISC MENU button to enter the disc menu of the disc. • Move to the setup menu related to playback operation. • You can select audio language and subtitle etc., provided by the disc. Title Menu : Press the TITLE MENU button to move to the title menu of the disc. • Use this button if the disc contains more than one title. Some discs may not support the title menu functionality.

▌For DVD-RAM/DVD±RW/DVD±R Discs

Title List : Press the TITLE LIST button. The Title List is simply a list of titles on a disc. If a title is deleted, that title cannot be played again. Playlist (DVD-RAM/-RW(VR)) : Press the PLAY LIST button. A playlist is a custom-made list of titles. When one playlist is played, only the titles within the playlist will play and then stop. Even if that playlist is deleted, the original recording will not be deleted.

• You can scan the program in reverse order. To return to normal speed playback, press the ►ll button. ■ No sound is heard during Scan(Search) mode, except on CDs (CD-DA). (You can hear the sound during forward search (Fast 1).) No sound is heard during scanning in all MPEG4 modes. Depending on the disc type, the sound quality may lower during Fast 1 mode.

01344A-VR350-XAC-ENG.indb 40

▌Skipping Chapters or Tracks

During playback, press the l◄◄ or ►►l button on the remote control. • If you press the l◄◄ button If you press the l◄◄ button, it moves to the beginning of the chapter, track or marker(DVD-RAM, DVD-RW(VR mode) ). Pressing the button once again within 3 seconds returns to the beginning of the previous chapter, track or marker(DVD-RAM, DVD-RW(VR mode) ). • If you press the ►►l button If you press the ►►l button, it moves to the next chapter, track or marker(DVD-RAM,DVD-RW (VR mode) )

▌Skipping Ahead 30 Seconds

During the playback, press F.ADV/SKIP button to skip ahead exactly 30 seconds.

Slow Motion Play/Step Motion Play ▌Slow Motion Play Playback

During Still mode, press the SEARCH ◄◄ or ►► button on the remote control for more than 1 second. • Each time you press the ►► button : l► Slow 1 l► Slow 2 l► Slow 3 • Each time you press the ◄◄ button : ◄l Slow 1 ◄l Slow 2 ◄l Slow 3 To return to normal speed playback, press the ►ll button. ■ Slow motion operates only in the forward direction on MPEG 4 discs.

During Still mode, press the F.ADV/SKIP button on the remote control. • Each time the button is pressed, a new frame will appear. To return to normal speed playback, press the ►ll button. ■ No sound is heard during Step or Slow mode. ■ Step motion operates only in the forward direction on MPEG 4 discs.

01344A-VR350-XAC-ENG.indb 41

Using the ANYKEY button The ANYKEY functions allows you to easily search for a desired scene by accessing title, chapter or time. You can also change the subtitle and audio settings and set some features including Repeat, Angle and Zoom.

MOVE CHANGE If you want to move to a certain title, chapter or time use this function. 1. Press the ANYKEY button during playback. 2. Press the ▲▼ buttons to select a Title a Chapter or a Time. 3. Press the ◄► buttons or number (0~9) buttons to select the desired scene. In case of searching a time, enter the time in sequence of hours, minutes, seconds using the number buttons. Then, press the ENTER button. ■ This may not work for some discs. When an Audio CD(CDDA) or an MP3 disc is inserted, depending on the disc type, the information display may not be appear.

2007-03-13 오후 5:08:35

▌Playing a Certain Section Repeatedly

1. Press the ANYKEY button during playback.

4. Press the ENTER button at the point where you want repeat play to start (A) and press it again at the point where you want the repeat play to stop (B). Repeat playback of the A-B section starts. - To return to normal playback 5. Press the CANCEL button to return to normal playback.

■ If you set point (B) before five seconds has lapsed, the prohibition mark ( ) will appear. ■ Audio CDs(CD-DA), MP3 and MPEG4 discs do not support the Repeat A-B function.

Selecting the Subtitle Language

MOVE D 5.1CH Subtitle languages may not work depending on the disc type. This is only available during playback. You can also operate this function by pressing the SUBTITLE button on the remote control.

1. Press the ANYKEY button during playback.

2. Press the ▲▼ buttons to select Subtitle, then press the ◄► buttons to select the desired subtitle language. ■ The subtitle display may be different depending on the disc type. ■ If the subtitles overlap, disable the caption function on your TV. ■ Some discs allow you to select the language for the disc menu only. ■ To make the sub-menu disappear, press the ANYKEY or RETURN button.

01344A-VR350-XAC-ENG.indb 43

Selecting the Audio language

1. Press the ANYKEY button during playback.

MOVE Audio languages may not work depending on the disc type. This is only available during playback. You can also operate this function by pressing the AUDIO button on the remote control.

2. Press the ▲▼ buttons to select Audio, then press the ◄► buttons to select the desired audio language. ■ Audio languages may be different because they are disc-specific. ■ Some discs allow you to select the audio language from the disc menu only. ■ To make the sub-menu disappear, press the ANYKEY or RETURN button.

Changing the Camera Angle

MOVE If a DVD-VIDEO contains multiple angles of a particular scene, you can use the Angle function. If the disc contains multiple angles, ANGLE appears on the screen. You can also operate this function by pressing the ANGLE button on the remote control. 1. Press the ANYKEY button during playback. 2. Press the ▲▼ buttons to select Angle, then press the ◄► buttons or number (0~9) buttons to select the desired angle scene. ■ This function is disc-dependent, and may not work all DVDs. ■ This function does not work when a DVD has not been recorded with a multi-camera angle system. ■ To make the sub-menu disappear, press the ANYKEY or RETURN button.

1. Press the ANYKEY button during playback. 2. Press the ▲▼ buttons to select Zoom, then press the ENTER button. ( ) will be displayed. 3. Press ▲▼◄ ► buttons to move to the area you want to enlarge. 4. Press the ENTER button. Each time the ENTER button is pressed, the picture is enlarged up to 4X (four times the normal size). DVD-VIDEO/DVD-RAM/ DVD±RW/DVD±R

Set marks at scenes you want to see again so that you can start playback from the marked position.

1. Press the MARKER button during playback. 2. Press the ENTER button when the desired scene appears. • The number 1 is displayed and the scene is memorized.

MOVE PLAY CANCEL RETURN

3. Press the ◄► button to move to the next position. 4. Press the ENTER button again when the desired scene appears. • The number 2 is displayed and the scene is memorized. Repeat the steps above to bookmark other positions. You can bookmark up to 10 scenes.

▌Playing Back a Bookmark

1. Press the MARKER button. 2. Press the ◄► buttons to select a bookmarked scene. 3. Press the ENTER or ►ll button to start playing from the selected scene.

▌Clearing a Bookmark 1. Press the MARKER button. 2. Press the ◄► buttons to select a bookmarked scene. 3. Press the CANCEL button to delete the selected bookmark.

■ When the disc tray is opened and then closed, bookmarks will disappear.

1. Press the MARKER button during playback. 2. Press the ENTER button when the desired scene appears. • The number 01 is displayed and the scene is memorized. 3. Press the ◄► button to move to the next position.

4. Press the ENTER button again when the desired scene appears. • The number 02 is displayed and the scene is memorized. • DVD-RAM or DVD-RW (VR Mode) discs have the Marker function instead of the Bookmark function. The Marker function allows you to mark up to 99 scenes. Since the scenes may be displayed as many different pages, numbering is necessary. If a disc in use is encoded with Disc Protect, Markers cannot be set or deleted. Only playback is available.

▌Playing Back a Marker 1. Press the MARKER button during playback.

2. Press the ◄► buttons to select a marked scene.

01 02 03 04 05 06 07 08 09 10 ► N : 10

3. Press the ENTER or ►ll button to start playing from the selected scene. • If you press the NEXT SKIP(►►l) button or the PREVIOUS SKIP(l◄◄) button in marker mode, and the next or current marked point plays for shorter than three seconds, playback starts from the previous marked point.

▌Clearing a Marker 1. Press the MARKER button during playback.

2. Press the ◄ ► buttons to select a marked scene. Press the CANCEL button to delete the selected mark. • When a marker is cleared while a DVD-RAM/DVD-RW(VR mode) is playing, marker numbers will change. For example, if the 7th marker is cleared after ten markers are registered, the marker numbers after the eighth will automatically move ahead by one and the 8th marker becomes the 7th.

00:03:50 00:04:00 00:03:49

TRACK 4 TRACK 5 TRACK 6 TRACK 7

00:03:47 00:04:29 00:03:44 00:03:44

1. l◄◄ button : Returns to the beginning of the current track when pressed during playback. If pressed again, your DVD Recorder & VCR moves to and plays the previous track. If you press this button within three seconds after playback starts, the previous track will be played. If you press this button after three seconds, the current track will be replayed from the beginning. 2. ►►l button : Plays the next track. 3. Press the (◄◄ /►►) buttons : Fast Play (X2, X4, X8) (Audio CD only) 4. : Stops a track (song). 5. ►ll : Plays a track(song) or pauses playback. 6. RETURN button : Moves to the folder to which the current song belongs. 7. ▲▼ : Selects a track (song). 8. ►, ENTER button : Plays the selected track (song). 9. ANYKEY : To display the play mode window. (Repeat or Play Option).

▌Playing an Audio CD (CD-DA) 1. Insert an Audio CD (CD-DA) into the disc tray. • The Audio CD menu appears and the tracks (songs) are played automatically. 2. Press the ▲▼ buttons to select the track (song) to start playback from, and then press the ENTER button.

00:03:50 00:04:00 00:03:49

TRACK 4 TRACK 5 TRACK 6 TRACK 7

00:03:47 00:04:29 00:03:44 00:03:44

MOVE ENTER RETURN EXIT

2. Current track (song) : Displays the number of the track currently being played. 3. Displays the current play index and total track number. 4. This shows the operating state of a disc and a playback time corresponding to a portion that is currently played. 5. Displays the track list (song list) and the playing time of each track. 6. Button display

4. Press the ▲▼ buttons to select the track (song) you want to hear, and then press the ENTER button.

2. Current track (song) : Displays the name of the track being played.

SONGO4 SONGO5 SONGO6

4. This shows the operating state of a disc and a playback time corresponding to a portion that is currently played.

3. Displays the current play index and total file number.

5. Displays the mp3 file and folder list (song list). 6. Button display.

00:03:50 00:04:00 00:03:49 00:03:47 00:04:29 00:03:44 00:03:44

- To return to normal playback 3. Press the CANCEL button to return to normal playback.

00:03:50 00:04:00 00:03:49

Play 004 option : TRACK Normal4 005 TRACK 5 006 TRACK 6 007 TRACK 7

00:03:47 00:04:29 00:03:44 00:03:44

MOVE ENTER EXIT RETURN

1. During Stop, Press the ANYKEY button. The Play option will be highlighted. 2. Press the ◄► buttons to select a desired Play Option, then press the ENTER button. • Normal : Tracks on a disc are played in the order in which they were recorded on the disc. • Playlist : The Playlist playback option allows you to select the order in which you want tracks to play. • Intro[ I ] : The first 10 seconds of each track will be played. If you want to listen to the music that you have selected, press the ENTER button or ►ll button. The play option will be changed to Normal Play. When Intro Play is completed, Normal Play is performed. • Random[R] : The Random option plays a disc’s tracks in random order. After a random list is generated and played completely, another random list is generated and played. Random Play is continued until the play option is changed.

PLAY MODE You can register a maximum 30 tracks in the playlist. 1. In still mode, press the ANYKEY button. The Play option will be highlighted. 2. Press the ◄► buttons to select Playlist, then press the ENTER button. Playlist screen is displayed.

3. Press the ▲▼ buttons to select tracks in the order in which you want them to play, then press the ENTER button. If there is a track on your playlist you wish to remove. Press the ► button, then press the ▲▼ buttons to select the track you wish to remove, then press the CANCEL button. The selected track will be removed.

4. Press the PLAY button to play the playlist.

ROOT Playing a Picture Disc

: The unit enters slide show mode. Before the slide show can begin, the picture interval (Slide show speed) must be set.

: Each time the ENTER button is pressed, the picture rotates 90 degrees clockwise. : Each time the ENTER button is pressed, the picture is enlarged up to 4X(four times the normal size).

Title ROOT DIVX01 DIVX02

ROOT MOVE ENTER RETURN EXIT An MPEG4 File is used to contain audio and video data. An MPEG4 File with the following extensions can be played. - .AVI, .DIVX, .avi, .divx 1. Insert a MPEG4 Disc into the disc tray. 2. Press the ▲▼ buttons to select the Disc Navigation, and then press the ENTER or ► button. 3. Press the ▲▼ buttons to select the DivX, and then press the ENTER or ► button. 4. Press the ▲▼ buttons to select the avi file (DivX), then press the ENTER, ► or PLAY button. 5. When an MPEG4 file is played, you can use following functions. Pressing the STOP button once during playback will display the file list, pressing the button again will exit the menu screen. MPEG4 Function Description Function Skip Scene Search Scene

Slow Motion Step Motion

Description During playback, press the SKIP ( or ) button, it moves forward or backward 5 minutes. During playback, press the SEARCH ( or ) button and press again to search at a faster speed. (Fast 1 → Fast 2 → Fast 3) In Still or step mode, press the SEARCH ( ) button on the remote control. (Slow 1 → Slow 2 → Slow 3) In the still or play mode, press the F.ADV/SKIP button on the remote control.

01344A-VR350-XAC-ENG.indb 50

2007-03-13 오후 5:08:54

■ This DVD Recorder & VCR can play the following video compression formats. - MPEG4 Codec format : DivX 3.11 DivX 4.x DivX 5.x - Audio format : .MP3, .MPEG, .PCM, .AC3, .DTS. ■ Supported subtitle file formats: .smi, .srt, .sub, .psb, .txt (The subtitle file should have exactly the same name to corresponding MPEG4 file name) ■ Some MPEG4 files that were created on a personal computer may not be able to play back. That is why Codec Type, Version and Higher resolution over specification is not supported.

Playing the VCR 1. Insert a standard VHS tape into the VCR deck. • When a tape is inserted, the power will turn on automatically. 2. Press the ►II (PLAY/STILL) button on the remote control or on the front panel of the unit. The videotape will begin to play automatically if the Record Safety Tab is removed and Auto Play is turned on. 3. Press the (STOP) button on the remote control or on the front panel of the unit.

Adjust Tracking Manually During playback, press the CH/TRK ( buttons to remove white lines from the picture.

The Tracking adjustment removes the white lines that sometimes appear during playback because of slight differences in recording decks.

▌Special VCR Playback Features While a videotape is playing, you can enjoy a variety of special playback features, including Still, Frame Advance, Skip, Slow motion, and more.

STILL In Play mode, press the ►II (PLAY/STILL) button to still a single frame.

Frame Advance In Still mode, press the F.ADV/SKIP button to advance to the next frame.

Fps/Review In Play mode, press the Forward (►►) button or Rewind (◄◄) button to Fps/review at two speeds: • Picture Search - Press and release repeatedly to advance the tape forward or backward at 2,3,5,7 times normal speed. • Jet Search - Press and hold to advance the tape forward or backward at 7 times normal speed.

01344A-VR350-XAC-ENG.indb 51

2007-03-13 오후 5:08:58

Skip In Play mode, press F.ADV/SKIP button to cue ahead exactly 30 seconds. Press F.ADV/SKIP button repeatedly up to 4 times to cue ahead 2 minutes.

Slow motion In Still mode, press ►► button for slow motion. Press the ►► button repeatedly to play slow motion speed at 1/10, 1/7, 1/5 times. Press the PLAY button twice to resume normal viewing.

▌S-VHS Playback The DVD Recorder & VCR allows you to playback high quality S-VHS tapes. 1. Insert an S-VHS tape into the VCR deck. 2. Press ►II (PLAY/STILL) button on the remote control or on the front panel to play an S-VHS tape.

▌Variable Search System Each time you record a cassette on this DVD Recorder & VCR, an “index” is automatically marked on the tape when recording is started. The Search function allows you to fast-forward or rewind to a specific index and start playback from that point. Depending on the direction selected, the indexes are numbered as follows

• This DVD Recorder & VCR uses a standard indexing system (VISS). As a result, it will recognize any indexes marked by other VCRs using the same system and vice versa.

Go To Zero Go To Zero ◄◄ 00:00:49

Use this feature when you want to search for the 0:00:00 counter position on a cassette. 1. During playback, press the CANCEL button at the point on the tape where you want to set the counter to 0:00:00. 2. While a cassette is stopped, press the ANYKEY button. 3. Press the ▲▼ buttons to select Go To Zero, then press the ENTER button. The VCR will rewind or fast forward, searching for the 0:00:00 counter position, and then automatically stop at that position.

End Search End Search ►► 00:00:13

Use this feature when you want to search for a blank position to record a program on a cassette. 1. While a cassette is stopped, press the ANYKEY button. 2. Press the ▲▼ buttons to select End Search, then press the ENTER button. The VCR will fast forward, searching for a blank position, and then automatically stop at that position. If the VCR reaches the end of the tape during end search, the tape will be ejected.

Forward/Reverse Intro Scan Scan and Play ►► 00:01:49

Use scan and play when you don’t know exactly where a program is located on a cassette tape. 1. While a cassette is stopped, press the ANYKEY button. 2. Press the ▲▼ buttons to select Forward Intro Scan or Reverse Intro Scan, then press the ENTER button. When an Index mark is found, the DVD Recorder & VCR will playback the tape for 5 seconds, after which it will continue searching for the next Index mark.

01344A-VR350-XAC-ENG.indb 52

2007-03-13 오후 5:09:00

Recording This section explains various DVD recording methods. This unit can record on various types of discs. Before recording, read the following instructions and select the disc type according to your preference.

Recordable discs This recorder can record on the following discs.

DVD-RAM DVD-RW DVD-R

• DVD-RWs and DVD-RAMs are rewritable. • DVD-Rs are non-rewritable.

▌Compatibility between Samsung and other manufacturer's Recorders. Disc Types

X X finalized Samsung not finalized VR Mode finalized Other Company not finalized DVD-RW finalized Samsung not finalized V Mode finalized Other Company not finalized finalized Samsung not finalized DVD-R V Mode finalized Other Company not finalized DVD-RAM VR Mode

Samsung Other Company

■ Finalize - This closes the DVD-RW/-R so no additional recording can be done. ■ Unfinalize - This allows additional recording on a DVD-RW disc originally recorded on the DVD-VR350. - A DVD-RW disc that has been recorded by DAO(Disc At Once) in a PC cannot be unfinalized. - A DVD-RW disc that has been recorded in Video Mode of a different manufacturer's recorder cannot be unfinalized. - A DVD-R disc cannot be unfinalized.

DVD-RAM Since available functions differ depending on the disc type, select a disc that best fits your preference. When you insert an unused disc, the following message appears. Unformatted Disc Do you want to format this disc?

• This mode involves multiple editing functions (such as deletion of the whole title, partial deletion of a title, etc.). • Various editing options using a created Playlist.

Do you want to initialize this disc?

DVD-RW(Video mode)/-R Yes

Recording Mode With the unit in Stop mode, select one of four recording modes by pressing the REC SPEED button repeatedly for the desired recording time and picture quality. In general, picture quality improves as the recording time decreases. In AUTO mode, the most suitable record mode is adjusted automatically, according to remaining time on the disc and length of the timer recording. You can select only one mode from XP, SP, LP and EP for timer recording. Recording Times Data Rates XP Select when the video Approx. 1 hour (high quality mode) quality is important. about 8 Mbps SP Select to record in Approx. 2 hours (standard quality mode) standard quality. about 4 Mbps Select when a long Approx. 4 hours LP recording time is (long recording mode) about 2 Mbps required. Approx. 6 hours/ Select when a long EP about 1.2 Mbps recording time is (extended mode) Approx. 8 hours/ required. about 0.8 Mbps For timer recording only Approx 1 to 8 hours AUTO see pages 60~61. Approx 0.8 to 8Mbps Mode

• The dual layer DVD-Rs have approximately double the capacity of single layer DVD-Rs. (See page 38.)

You cannot record copy protected movie.

Pictures with copy protection cannot be recorded on this DVD Recorder & VCR. When the DVD Recorder & VCR receives a copy guard signal while recording, recording stops and the following message (to the left) appears on the screen.

Concerning Copy Control Signals TV broadcasts that contain copy control signals may have one of the following three signal types, Copy-Free, Copy-Once and Copy-Never. If you want to record a copy-once type program, use a DVD-RW with CPRM in VR Mode or DVD-RAM discs. ('O' : Supported, '-' : Not Supported) Copy-Free

Once “Copy Once” has been recorded, additional recordings cannot be performed. * compatible with CPRM.

Content Protection for Recordable Media (CPRM) CPRM is a mechanism that ties a recording to the media on which it is recorded. It is supported by some DVD Recorder & VCR, but not by many DVD players. Each blank recordable DVD has a unique 64-bit media ID etched in the BCA(Burst Cutting Area). When protected content is recorded onto the disc, it can be encrypted with a 56-bit C2 (Cryptomeria) cipher derived from the media ID. During playback, the ID is read from the BCA and used to generate a key to decrypt the contents of the disc. If the contents of the disc are copied to other media, the ID will be absent or wrong and the data will not be decryptable.

01344A-VR350-XAC-ENG.indb 55

2007-03-13 오후 5:09:04

Recording the Current Channel you are watching Before you start 1. Check to make sure the antenna cable is connected. 2. Check the remaining time on the disc. DVD-RAM/DVD-RW discs should be formatted or initialized in advance before beginning recording. (See page 54.) 3. Press the OPEN/CLOSE button to close the disc tray. Wait until “LOAD” disappears from the front panel display. 1. Press the OPEN/CLOSE button and place a recordable disc on the disc tray. 2. Press the OPEN/CLOSE button to close the disc tray. Wait until “LOAD” disappears from the front panel display. 3. Press the CH/TRK ( / ) buttons or number buttons to select the channel you want to record. 4. Press the REC SPEED button repeatedly, to select the recording speed (quality). • XP(High, approx. 1 hour) → SP(Standard, approx. 2 hours) → LP(Low, approx. 4 hours) → EP(Extended Play, approx. 6 hours/8hours) 5. Press the REC button. • “ ” is displayed on the screen and recording begins. 6. Press the STOP button to stop or finish a recording in progress. • The message “Updating the information of disc. Please wait for a moment” is displayed.

Pausing / Resuming • Press the REC PAUSE button to pause a recording in progress.

• Press the REC PAUSE button again during pause to resume recording. • You can switch channels by pressing the CH/TRK ( recording pauses.

■ Recording will stop automatically if there is no free space left for recording. ■ Up to 99 titles can be recorded onto a DVD-RAM/-RW/-R disc. ■ If the power is interrupted due to power failure or other reasons, the title being recorded will not be saved onto the disc. ■ Recording will stop automatically if a copy protected image is selected. ■ Do not use DVD-R authoring discs with this unit.

01344A-VR350-XAC-ENG.indb 56

Recording from External Equipment you are Watching

-RW VR Recordable Time 00:26

1. Power on your DVD Recorder & VCR and switch to AV In mode by pressing the INPUT SEL. button on the remote control. The front panel display changes in the following sequence depending on the Video input setting in the menu. AV1: → Channel Number → AV1 → AV2 → DV S-Video: → Channel Number → S-Video → AV2 → DV 2. Press the DVD or VCR button on the remote, or DVD/VCR on the front panel to select the DVD or VCR mode. 3. Press the REC SPEED button repeatedly to select the recording speed(quality). DVD: → SP → LP → EP → XP VCR: → SP → SLP 4. When your DVD Recorder & VCR is in Stop mode, start playback on your external device. 5. Press the REC button on your DVD Recorder & VCR to start recording, when the desired video is displayed from the external device.

Pausing / Resuming • Press the PLAY/STILL(

) button to pause a recording in progress.

• Press the PLAY/STILL(

) button again during pause to resume recording.

To stop recording Press the STOP ( ) button to stop or finish the recording in progress. • When using DVD-RAM/DVD-RW/DVD-R discs, the message ‘Updating the information of disc. Please wait for a moment.’ is displayed.

■ You can also record an external source through S-Video cable. (see page 24).

■ Also refer to the user manual for your External Devices when recording through AV In jacks on the DVD/VCR using Audio/Video cable.

Recording Through the DV Input Jack

DV You may control your Camcorder using the IEEE1394 (DV) interface. Follow these directions to record onto a disc or tape from a camcorder that has a DV output jack. 1. Connect the DV output jack of your camcorder to the DV input jack on the front of your DVD Recorder & VCR using a DV cable.

The DV device is connected.

2. Power on your DVD Recorder & VCR and switch to DV mode by pressing the INPUT SEL. on the remote control. 3. Press the DVD or VCR button on the remote, or DVD/VCR on the front panel to select the DVD or VCR mode. 4. Press the REC SPEED button repeatedly to select the recording speed(quality). DVD: → SP → LP → EP → XP VCR: → SP → SLP 5. If the input is set to DV, a playback/record menu that enables camcorder control appears on the top of the screen. 6. Select the Play icon on the upper part of the screen to playback the camcorder and find the starting position to copy. 7. To start recording, Press the ◄► button to select the Rec( ) icon in the top side of the screen, then press the ENTER button. You can press the REC button on the remote control to start recording. To display playback related icons on the screen. 8. Press the STOP button on your DVD Recorder & VCR when the recording is finished.

■ Some camcorders may not work with your DVD Recorder & VCR even if they have a DV output jack.

■ Also refer to the user manual for your camcorder when recording through the DV jack.

01344A-VR350-XAC-ENG.indb 58

2007-03-13 오후 5:09:08

Making a One Touch Recording (OTR)

One-Touch Recording (OTR) allows you to add recording time in preset increments up to 4 hours by pressing the REC button repeatedly. 1. Press the CH/TRK ( / ) buttons or number buttons to select the channel to record. If you want to record through a connected external component, press the INPUT SEL. button to select an appropriate external input(AV1, AV2 or DV). • CATV channel: 1 to 125 • TV channel: 2 to 69 2. Press the DVD or VCR button on the remote, or DVD/VCR on the front panel to select the DVD or VCR mode. 3. Press the REC button to start recording. 4. While in Record mode, press the REC button again to activate the One-Touch Recording (OTR). • Record length 0:30 appears on the On-Screen Display and the DVD Recorder & VCR will record for exactly 30 minutes. 5. Continue pressing REC button to add recording time in preset increments up to 4hours. → 0:30 → 1:00 → 1:30 → 2:00 → 3:00 → 4:00 → Off • The DVD Recorder & VCR stops recording automatically when the time has elapsed.

To stop recording 1. Press the STOP ( ) button. The message “Press STOP button once more to cancel Timer Record.” is displayed.

■ The timer counter decreases by the minute from 4:00 to 0:00, then the DVD Recorder & VCR stops recording.

2. Press the STOP ( ) button again. The message “Updating the Information of disc. Please wait for a moment.” is displayed.

DVD-RAM(VR) Title List

Scheduled Record List

The clock (Setup – Clock Set) must be set before proceeding with a timer recording. (See page 27)

Disc Manager Timer Rec. Setup Copy

MOVE ENTER RETURN DVD-Recorder

Scheduled Record List

Current Time 1:05 AM DVD-RAM(VR) No.

03:05 AM 05:05 AM SP

03:05 AM 05:05 AM SP

Mon~Fri 03:05 AM 05:05 AM SP

03:05 AM 05:05 AM SP

1. Press the OPEN/CLOSE button, and place a recordable disc on the disc tray(or load a tape into the VCR). 2. Press the OPEN/CLOSE button to close the disc tray. Wait until “LOAD” disappears from the front panel display. 3. With the unit in Stop mode, press the MENU button. 4. Press the ▲▼ buttons to select Timer Rec., then press the ENTER or ► button. 5. Press the ▲▼ buttons to select Timer Record, then press the ENTER or ► button. You can go to the Timer recording screen directly by pressing the TIMER REC button. The Timer Recording screen is displayed. 6. Fill in the items using the ▲▼◄ ► buttons. ◄► : Moves to the previous/next item, ▲▼or 0~9 : To set or change items in the Scheduled Record List Menu. • To : Select the media to record (DVD or VCR). • Source : The video input source (AV1 or AV2) or the broadcasting channel you want to make a timer recording from. • Date : Date that the timer recording starts - There are three options when setting the date. see below: To make a recording on a specific date, press the ▲▼ or number buttons until the date you want appears.

To make a recording at the same time every day (Mon-Fri), press the ▲▼ buttons until Mon-Fri appears: To make a recording on a specific day of the week(Sun’s-Sat’s), press the ▲▼ buttons until Sun’s….Sat’s appears: • Start/End Time: Start and end time of the timer recording. Recording mode (DVD) AUTO : Select when you want the video quality adjusted automatically. In AUTO mode, the most suitable record mode is chosen according to the remaining time on the disc and length of the timer recording. You can select only one mode from XP, SP, LP and EP for timer recording. XP (high quality) : Select when audio and video qualities are important. (Approx. 1 hour) SP (standard quality) : Select to record in standard quality. (Approx. 2 hours) LP (low quality) : Select when a long recording time is required. (Approx. 4 hours) EP (extended mode) : Select when a longer recording time is required. (Approx.6 hours at 1.2 Mbps or Approx.8 hours at 0.8 Mbps ) ■ When you are recording in EP mode on a DVD-RW(V)/-R disc, it may not record for the full 6 or 8 hours because the unit uses the VBR(Variable Bit Rate) ENCODING system. For example, if you record a program with a lot of action, it uses a higher bit rate which in turn consumes more disc memory. English - 60

01344A-VR350-XAC-ENG.indb 60

2007-03-13 오후 5:09:11

Recording mode (VCR) AUTO : Select when you want to set video quality automatically. The auto quality depends on remaining time of VCR tape. SP : Standard Play, for best picture quality. SLP : Super Long Play, for maximum recording time (3 times SP). 7. Press the ENTER button. • will appear on the front panel. It means that a timer recording is registered. If the timer settings overlap The first program has priority. After recording of the first program is complete, the second program starts being recorded. 8. Turn the power off to finish the timer recording. • will blink if a disc or tape is not inserted. ■ When the scheduled recording is operating, the program being recorded will not display on the TV. ■ The timer recording time may differ from the set time depending on disc status and overall timer recording status (for example, recording times overlapping, or when the previous recording ends within 3 minutes before the start time of the next recording.)

Editing the Scheduled Record List

Scheduled Record List

Current Time 1:07 AM Date

03:05 AM 05:05 AM SP

5. Press the ▲▼ button to select Edit, then press the ENTER button. • The Timer Recording screen is displayed. Edit the items you want to modify. See the Timer Recording section for more information on Timer Recording Input items. (See pages 60~61) 6. Press the ENTER button to confirm the edited setting.

01344A-VR350-XAC-ENG.indb 61

2007-03-13 오후 5:09:12

Deleting the Scheduled Record List DVD-Recorder DVD-Recorder

Scheduled Record List

DVD-RAM(VR) DVD-RAM(VR) No. No.

Current Current Time Time 12:27

12:27 AM AM Source Source

Date Date Start Start No. 01

CH06 05:05AM SP CH06 01/01 01/01 03:05AM 03:05AM 05:05AM SP CH06 03:06AM SP CH06 01/02 01/01 01:06AM 01:06AM 03:06AM SP Do you––want to delete ‘N0.01’? ––– //–– ––:–– : –– ––::–– –– ––

4. Press the ▲▼ button to select the number of the scheduled record list you want to delete, and then press the ENTER button. • The Edit and Delete items are displayed. 5. Press the ▲▼ button to select Delete, then press the ENTER or ► button. • You will be prompted with a delete confirm message such as “Do you want to delete ‘No.01’?”. 6. Press the ◄► buttons to select Yes, then press the ENTER button. • The selected title will be deleted from the list. ■ You can not delete programs that are currently being recorded.

EZ REC MODE This function allows you Initialize and Finalize a disc automatically. Press “On” to confirm EZ REC mode. Otherwise press “Off”

2. Press the ◄ ► buttons to select On, and then press the ENTER button. The EZ REC MODE is set up.

1. With the unit in Stop/No Disc mode, press the EZ REC MODE button on the remote control.

3. Insert a disc. If the disc is new, it will initialize automatically. 4. Press the REC button. 5. EZ REC MODE will Automatically Finalize the disc under the following conditions.

Disc Initialize (DVD-V) Now, initializing..

- When you press the OPEN/CLOSE button on your DVD Recorder & VCR after recording on at least 30% of the disc. The tray will open after the disc has been finalized. - When the disc is full, it will finalize automatically and the Recorder will remain in stop mode. - When you make a timer recording and it occupies at least 30% of the disc, the disc will finalize automatically and the Recorder will power off. Please note that auto finalization will not work if the Recorder has more than one Timer Recording set in the Scheduled Record List. ■ If you insert a new DVD-RW disc, it will be formatted in V mode after auto initializing. ■ If you select off, you must initialize (see page 54) and finalize the disc manually in the Disc Manager menu.(see page 77) ■ The length of Recording is different according to recording mode. (see page 54)

01344A-VR350-XAC-ENG.indb 62

2007-03-13 오후 5:09:14

Basic VCR Recording Before starting 1. Check TV channel and Antenna connections. 2. Check the remaining time on the tape. You can record a TV show in progress by inserting a blank tape and pressing the (REC) button. You can even add time in preset increments up to 4 hours by pressing the (REC) button repeatedly. ■ Be sure your videotape has a Record Safety Tab. If the tab is missing, you can cover the opening with a small piece of tape. ■ Warning: Do not cover this opening unless you are sure you want to record over the tape. 1. Insert a blank VHS tape into the VCR deck. • Make sure the tape is long enough to record the entire program. 2. Press the Number buttons or the CH/TRK ( / ) buttons to select the desired channel. Press the INPUT SEL. button to select AV 1, AV 2 or DV if recording from an external device connected to the input jacks of the recorder. 3. Press the REC SPEED button on the remote control to set the Record Speed to one of the following options: • SP – Standard Play, for best picture quality. • SLP – Super Long Play, for maximum recording time (3 times SP). ■ The selected Record Speed will appear on the front panel and have on-screen displays.

Maximum Recording Time - SP vs. SLP SP (Standard Play) Approx. 2 hrs Approx. 2hrs 40 mins Approx. 3 hrs

SLP (Super Long Play) Approx. 6 hrs Approx. 8 hrs Approx.9 hrs

■ When you watch or record on the VCR during DVD Recording, some function buttons may not operate. The message “This function is not available.” will be displayed.

Tape Length T-120 T-160 T-180

4. Press the (REC) button on the remote control or front panel. For options while recording is in progress, see “Special Recording Features”. 5. Press the STOP button to stop or finish a recording in progress.

1. Press the INFO button on the remote control. The following information will be displayed. (Current deck status, recording speed, remaining time, input channel, current time.)

01:08 AM Special Recording Features While a recording is in progress,you can watch a different media,or add recording time in preset increments. (for example, you can watch VCR playback while recording from a DVD and vice-versa) 1. To watch a different a Different Channel from the One being Recorded When you watching through the Antenna input during recording, Press the TV/VCR button on the remote control. Change the channel you want to watch with the TV's remote. 2. Watch a different media during recording You can watch a DVD during VCR recording or watch a Video tape during DVD recording. • During VCR recording, insert a DVD in the DVD deck. The output will automatically change to the DVD and start playback. • During DVD recording, insert a Video tape in the VCR deck. The output will automatically change to the VCR and start playback. (Only if the tape is missing the safety tab)

3. To Add Recording Time Refer to the One-Touch Recording (OTR). (See page 59) 4. Recording on the DVD and VCR at the same time You can record on the DVD and VCR at the same time, but both modes must be set up to record separately. • Press the DVD/VCR button to set the unit to DVD or VCR mode. • Choose AV input mode (CH, AV1, AV2 or DV). for DVD or VCR. • Choose REC mode for DVD or VCR. • Press REC button for DVD or VCR. ■ When the DVD Recorder & VCR is connected to your TV using an S-Video or component video cable, the video tape's playback screen will not be displayed during DVD recording. ■ You cannot record different channels at the same time. ■ The DVD and VCR cannot start recording at the exact same time. You must set one mode to start recording, then the other.

01344A-VR350-XAC-ENG.indb 64

Copy to DVD or VCR You can copy from the DVD to VCR or VCR to DVD. Check the remaining time on the tape and Disc. DVD-RAM(VR)

▌To Copy from DVD to VCR

JAN/01/2007 No. Title

01 JAN/01/2007 12:0 Play00:00:11 √ 02 JAN/01/2007 12:0 00:00:09 √ Rename Edit Scene

JAN/01/2007 12:00 AM Copy

▌Direct Copy: DVD to VCR • Insert a DVD disc you want to copy. • Insert a VHS tape. • To stop recording, press the STOP button. • You can also copy from DivX to VCR when the desired DivX is played back. If the DivX disc has various files, only the selected file will be played back

• Press the VCR copy button on front panel or remote control (TO VCR).

■ The copy function is not allowed in progressive scan mode.

01344A-VR350-XAC-ENG.indb 65

▌To Copy from VCR to DVD DVD-Recorder

▌Direct Copy: VCR to DVD Recording

Editing This section introduces basic functions of DVD editing and explains both, edit functions for recording on a disc and edit functions for the entire disc.

RAM Length Edit 12:00 00:00:11 12:30 00:00:09 Play 00:01:36 01:00

Rename 01:30 00:00:11 Delete

RETURN Follow these instructions to play back a scene from the Title List. 1. Press the TITLE LIST button. The Title List screen is displayed.

XP MOVE Playing the Title List

2. Press the ▲▼ buttons to select a Title, then press the ENTER or ► button. The Edit menu is displayed:Play, Rename, Delete, Edit, Protection (See pages 68~70) 3. Press the ▲▼ buttons to select Play to play the title list, then press the ENTER button. The selected title will be played back.

4. Press the STOP button to stop playing. To return the title list screen, press the TITLE LIST button.

▌Title List Screen Elements Title List

00:00:11 00:00:09 00:01:36 00:00:11

Rename 01:30 00:00:11

■ By pressing the ANYKEY button, you can play the desired title. (see page 42)

JAN/01/2007 01:00 AM AV1

Playback screen for recorded titles. Information window for the selected title: Title name, recording date, lock status, recording mode Recorded title No. Recorded title name Recording Length (i.e., the playing time) Edit menu Play: Plays the selected title. Rename: Changes the name of a selected title. Delete: Deletes the selected title from the list. Edit: Deletes a section of title. Protection: Locks or unlocks the selected title. Button display.

■ This may depend on the disc type. ■ DVD-RW(V)/-R discs have limited editing function.

01344A-VR350-XAC-ENG.indb 67

Basic Editing (Title List) DVD-Recorder

Follow these instructions to rename a title list name, i.e., to edit the title of a recorded program.

1. Press the TITLE LIST button. The Title List screen is displayed. 2. Press the ▲▼ buttons to select a title you want to rename from the Title List, then press the ENTER or ► button.

DVD-RAM(VR) Sports(A1)

3/4 No. Title Length Edit 01 JAN/01/2007 12:00 00:00:11 ►

04 JAN/01/2007 01:30 00:00:11

3. Press the ▲▼ buttons to select Rename, then press the ENTER or ► button. The Rename screen is displayed. 4. Select the desired characters using the ▲▼◄ ► buttons, press the ENTER button. • Back Space : Moves the cursor one position backwards. • Space : Enters a blank and moves the cursor one forward (to the right). • Delete : Deletes the character at the cursor position. • Clear : Deletes all the character inputs. • Save : Registers the character inputs. 5. Press the ▲▼◄► buttons to select Save, and then press the ENTER button. The changed title name is displayed in the title field of the selected title.

Title Protection: JAN/01/2007 12:00 AM AV1

Follow these instructions to lock a title to protect it from accidental deletion.

3/4 No. Title Length Edit 01 JAN/01/2007 12:00 00:00:11 ►

04 JAN/01/2007 01:30 00:00:11

▌Deleting a Title Title List

DVD-RAM(VR) JAN/01/2007

Do you want to delete? (Related playlists may be deleted.)

Follow these instructions to delete a title from the Title List.

1. Press the TITLE LIST button. The Title List screen is displayed.

2. Press the ▲▼ buttons to select a title you want to delete in the Title List, then press the ENTER or ► button. 3. Press the ▲▼ buttons to select Delete, then press the ENTER or ► button. You will be prompted with a confirmation message. DVD-RAM(VR), DVD-RW(VR mode) : Since a Playlist is present, the message ‘Do you want to delete? (Related playlists may be deleted.)’ is displayed. DVD-RW(Video mode), DVD-R : Since a Playlist is not present, the message ‘Do you want to delete?’ is displayed. • The message may depend on the type of disc. 4. Press the ◄► buttons to select Yes, then press the ENTER button. ■ You cannot delete a protected title. If you want to delete a protected title, select Off in the Title Protection menu. ■ Once a title is deleted from the Title List it cannot be recovered. ■ Once a DVD-R, DVD-RW is finalized, it cannot be deleted. ■ With DVD-R discs, titles are only deleted from the menu, however, the Title remains physically on the disc.

▌Deleting a Section of a Title

Edit Title List Title List No. 05 Start End

EXIT Edit Title List Title List No. 05 Start End

EXIT Edit Title List Title List No. 05 Start End

Do you want to delete? (Deleted part will not be restored.) 00:00:05 00:00:20 Yes Start

RETURN EXIT Edit Title List

Tist List No. 05 Start End

Follow these instructions to delete a section of a Title List title. 1. Press the TITLE LIST button. The Title List screen is displayed. 2. Press the ▲▼ buttons to select a title you want to delete from the Title List, then press the ENTER or ► button. 3. Press the ▲▼ buttons to select Edit, then press the ENTER or ► button. The Edit Title List screen is displayed. 4. Press the ENTER button at the starting point. The image and starting point time are displayed in the section deletion starting point window. 5. Press the ENTER button at the end point. The image and end point time are displayed in the Section deletion ending point window. 6. Press the ◄► buttons to select Delete, then press the ENTER button. 7. Press the ◄► buttons to select Yes, then press the ENTER button. The selected section has been deleted. To return to the Title List screen, press the ◄► buttons to select Return. Edit Title List Screen Elements 1 Playback bar 2 Playtime 3 Section deletion starting point window and time 4 Section deletion end point window and time • Select the start and end points of the section you want to delete using the playback related buttons. • Playback related buttons: (►II, I◄◄, ◄◄, ►►). ■ The length of the section to be deleted must be at least 5 seconds long. ■ End point cannot be marked earlier than start point.

■ The section cannot be deleted when it includes a still picture.

Advanced Editing (Playlist) DVD-Recorder

▌Creating a Playlist

Follow these instructions to create a new playlist title from a recorded title.

JAN/01/2007 12:00 AM 1 Scene

JAN/01/2007 12:00 AM MOVE ENTER RETURN

1. With the unit in Stop mode, press the MENU button. 2. Press the ▲▼ buttons to select Playlist, then press the ENTER or ► button. 3. Press the ▲▼ buttons to select New Playlist, then press the ENTER or ► button. The Make Scene screen is displayed. 4. Press the ENTER button at the start point. • The image and time at the start point are displayed on the Start window. • The yellow-colored selection bar moves to the End item. • Select the starting point of the section from which you want to create a new scene using the playback related buttons (►II,I◄◄,►►I,◄◄,►►). 5. Press the ENTER button at the end point. • The image and end point time are displayed in the End window. • The yellow-colored selection bar moves to the Make icon. - To make a new playlist 6. Press the ◄► buttons to select Make, then press the ENTER button. A new Scene will be added to the current Playlist. A new Make Scene screen is displayed.

■ You can check and see all the scenes on the Edit Playlist screen. ■ Repeat steps 1~6 if you want to make a new playlist. ■ Repeat steps 4~6 if you want to add scenes to the playlist. - To return to Edit Playlist menu 7. Press the ▲▼ buttons to select Return, then press the ENTER button. The Edit Playlist screen is displayed. ■ You can create up to 99 playlist titles. ■ Depending on the kind of disc, the displayed screen may have a slight difference. ■ A disc that is recorded on this unit will not display the playlist menu if EZ REC MODE is set to 'On'.

APR/24/2006 JAN/01/2007 12:0012:00 AM AM 1 Scene Scene APR/24/2006 JAN/01/2007 12:0012:00 AM AM MOVE

▌Playing Titles in the Playlist

RETURN EXIT Follow these instructions to play the playlist titles.

1. Press the PLAY LIST button with the disc stopped. The Edit Playlist screen is displayed. 2. Press the ▲▼ buttons to select the title you want to play from the Playlist, then press the ENTER or ► button. 3. Press the ▲▼ buttons to select Play, then press the ENTER or ► button. The playlist titles will be played back. 4. Press the STOP button to stop playing. The screen returns to the Edit Playlist screen. English - 71

01344A-VR350-XAC-ENG.indb 71

2007-03-13 오후 5:09:33

▌Renaming a Playlist Title

Follow these instructions to rename a playlist title, i.e. to edit the title of a playlist title.

1. Press the PLAY LIST button with the disc stopped. The Edit Playlist screen is displayed.

3. Press the ▲▼ buttons to select Rename, then press the ENTER or ► button. The Rename screen is displayed. 4. Enter the desired characters using the ▲▼◄ ► buttons. • Back Space : Moves the cursor one position backwards. • Space : Enters a blank and moves the cursor one forward (to the right). • Delete : Deletes the character at the cursor position. • Clear : Deletes all the character inputs. • Save : Registers the character inputs.

JAN/01/2007 12:00 AM MOVE

2. Press the ▲▼ buttons to select the title you want to rename from the Playlist, then press the ENTER or ► button.

5. Press the ▲▼◄ ► buttons to select Save, then press the ENTER button. The changed title is displayed in the title field of the selected title.

▌Editing a Scene for the Playlist

DVD-RAM(VR) Scene No.

Follow these instructions to edit scenes for a playlist.

1. Press the PLAY LIST button with the disc stopped. The Edit Playlist screen is displayed.

2. Press the ▲▼ buttons to select the title you want to edit from the Playlist, and then press the ENTER or ► button. 3. Press the ▲▼ buttons to select Edit Scene, then press the ENTER or ► button. The Edit Scene screen is displayed.

Playing a Selected Scene

Playlist No. Play Modify

4. Press the ▲▼◄ ► buttons to select the scene you want to play, then press the ENTER button. The playlist title to be played is selected. 5. Press the ENTER button. The selected scene will be played back. • To stop playback of a selected scene, press the STOP button.

01344A-VR350-XAC-ENG.indb 72

Modifying a Scene (Replacing a Scene) DVD-Recorder

Follow steps 1 to 3 on page 72.

DVD-RAM(VR) Scene No.

6. Press the ENTER button at the start point of the scene. • The image and starting point time are displayed on the Start window. • Select the starting or ending point of the section you want to modify using the playback related buttons (►II,I◄◄,►►I,◄◄,►►). 7. Press the ENTER button at the end point of the scene. • The image and ending point time are displayed in the End window.

8. Press the ◄► buttons to select Change, then press the ENTER button. • The scene you want to modify is changed with the selected section.

DVD-RAM(VR) Scene No.

MOVE ENTER Move Add Delete

EXIT Moving a Scene (Changing the Position of a Scene)

DVD-RAM(VR) Scene No. 2/7

Follow steps 1 to 3 on page 72. 3

6. Press the ▲▼◄ ► buttons to select the position to which you want to move the selected scene, then select the ENTER button. • The selected scene is moved to the selected position.

5. Press the ▲▼ buttons to select Move, then press the ENTER button. • A yellow selection window is displayed on the scene to be moved.

DVD-RAM(VR) Scene No. 1/7

■ Depending on the kind of disc, the displayed screen may be different.

MOVE ENTER RETURN Delete

Follow steps 1 to 3 on page 72.

DVD-RAM(VR) Scene No.

6. Press the ENTER button at the starting point of the scene. • The image and starting point time are displayed in the Start window. • Select the end point of the section where you want to add the new scene using the playback related buttons (►II,I◄◄,►►I,◄◄,►►). 7. Press the ENTER button at the end point of the scene. • The image and time of the end point are displayed in the End window. • To cancel, press the ◄► buttons to select cancel and then press the ENTER button.

4. Press the ▲▼◄ ► buttons to select the scene that will have a new scene inserted before it, then press the ENTER button. A yellow selection window is displayed on the scene to be added as the new scene.

8. Press the ▲▼ buttons to select Add, then press the ENTER button. • The section you want to add is inserted prior to the scene selected in step 4.

DVD-RAM(VR) Scene No.

EXIT Deleting a Scene

DVD-RAM(VR) Scene No. 4/4

Follow steps 1 to 3 on page 72.

DVD-RAM(VR) Scene No. 4/3

▌Copying a Playlist Title to the VCR DVD-Recorder

2. Press the ▲▼ buttons to select the title you want to copy to the VCR, and then press the ENTER or ► button. 3. Press the ▲▼ buttons to select Copy, then press the ENTER button. • The title you choose is played and copied to VCR tape.

JAN/01/2007 12:00 AM

1. Press the PLAY LIST button with the disc stopped. The Edit Playlist screen is displayed.

4. Press the EXIT button after the operation has finished. The menu screen will disappear. ■ The playlist can contain up to 99 playlist titles.

▌Deleting a Playlist Title from the Playlist

1. Press the PLAY LIST button with the disc stopped. The Edit Playlist screen is displayed.

Do you want to delete? Dolphin

2. Press the ▲▼ buttons to select the title you want to delete from the Playlist, then press the ENTER or ► button.

4. Press the ◄► buttons to select Yes, then press the ENTER button. After the delete operation is complete, it will automatically return to the Edit Playlist screen.

Follow these instructions to give a name to a disc. 1. With the unit in Stop mode, press the MENU button.

Delete All Title Lists

3. Press the ▲▼ buttons to select Disc Name, then press the ENTER or ► button. The Edit Name screen is displayed. 4. Enter the desired characters using the ▲▼◄ ► buttons. • Back Space : Moves the cursor one position backwards. • Space : Enters a blank and moves the cursor one forward (to the right). • Delete : Deletes the character at the cursor position. • Clear : Deletes all the character inputs. • Save : Registers the character inputs.

5. Press the ▲▼◄► buttons to select Save, then press the ENTER button. A disc name is given to the disc. ■ You may need to clear disc protection before editing. ■ Depending on the kind of disc, the displayed screen may be different.

DVD-RAM(VR) Title List

Delete All Title Lists

Disc Protect allows you to protect your discs from being formatted or deleted due to unintended operations. 1. With the unit in Stop mode, press the MENU button.

DVD-RAM(VR) Title List

: Disc Manager Disc Format Do you want to format disc? Timer Rec. Delete All Title Lists

DVD-VR and DVD-V modes are compatible with the following disc types.

: DVD-VR Disc Manager Disc Format Do you want to finalize disc? Disc Finalize Timer Rec. Delete Yes All Title Lists No Setup

MOVE ENTER RETURN EXIT After you record titles onto a DVD-RW/DVD-R disc with your DVD Recorder & VCR, it needs to be finalized before it can be played back on external devices. 1. With the unit in Stop mode, press the MENU button. 2. Press the ▲▼ buttons to select Disc Manager, then press the ENTER or ► button. 3. Press the ▲▼ button to select Disc Finalize, then press the ENTER or ► button. You will be prompted with the message 'Do you want to finalize disc?'. 4. Press the ◄► buttons to select Yes, then press the ENTER button. You will be prompted again with the message “Disc will be finalized. Do you want to continue?”. 5. Press the ◄► buttons to select Yes, then press the ENTER button. The disc is finalized. ■ Once a disc is finalized, you cannot delete titles from the record list. ■ Once a DVD-R/DVD-RW (video mode)disc is finalized, it is playable in a standard DVD player. ■ Depending on the disc type, the displayed screen may be different. ■ Finalizing time may be different depending on the amount of data recorded on the disc. ■ Data on the disc will be damaged if the recorder is powered off during the finalization process. ■ You can automatically finalize a disc using EZ REC MODE. (See page 62)

Disc Unfinalize Do you want to unfinalize disc?

Additional recording, protection and deletion are possible.

■ A DVD-RW can be finalized or unfinalized in VR mode. Mark Operation

Finalize DVD-RW(VR:F)

Unfinalize DVD-RW(VR)

Additional recording, deletion, editing, and protection are impossible.

Additional recording, deletion, editing, and protection are possible.

01344A-VR350-XAC-ENG.indb 77

▌Delete All Title Lists DVD-Recorder

DVD-RAM(VR) Title List

: Disc Manager Disc Format Do you want to delete all title lists? Timer Rec. Delete All Title Lists Setup

1. With the unit in Stop mode, press the MENU button. 2. Press the ▲▼ buttons to select Disc Manager, then press the ENTER or ► button. 3. Press the ▲▼ button to select Delete All Title Lists, then press the ENTER or ► button. • You will be prompted with the confirmation message 'Do you want to delete all title lists?'. • When Protected Title exists: The Delete All Title List function will not operate. If there is a title containing a still picture, however, that function will not operate. If you want to delete a protected title, disable Protect for it on the Lock item.

4. Press the ◄ ► buttons to select Yes, then press the ENTER button. All title lists are deleted.

01344A-VR350-XAC-ENG.indb 78

2007-03-13 오후 5:09:58

Reference Troubleshooting (DVD-VIDEO/DVD-RAM/DVD-RW/DVD-R) If your product malfunctions, go through the check points below before contacting a Samsung authorized service center, Problem

Explanation/Solution • Check whether the power cord is securely plugged into the power outlet. • Did you press the power button of your DVD Recorder & VCR.

The input is displayed for a while when the power turns on.

• The DVD Recorder & VCR requires some time to initialize after it is turned on. If Quick recording function is set to on, the DVD Recorder & VCR will power on quickly, which enables you to immediately record a desired channel. (See page 37.)

Cannot record TV programs.

• Check whether the power cord is securely plugged into the power outlet. • Did you set the DVD Recorder & VCR channel settings correctly? • Check the free space on your DVD-RAM/DVD-RW/DVD-R disc. • Check if the antenna cable is connected properly.

Timer recording does not work properly.

• Check the recording time, end time and current time settings again. • Recording will be cancelled if the power is interrupted due to a power failure or other reason during recording.

• Check whether the disc is formatted. This product can record on formatted discs only. (See pages 54, 76.) • Check whether your DVD-RAM/DVD-RW/DVD-R disc has a sufficient free space.

I pressed the REC button but there is no response.

• Recording is available on DVD-RAM/DVD-RW/DVD-R discs only. • If a program is copy protected, you cannot record it.

I forgot the parental control password.

• Press and hold the CH ( / ) button on the front panel of your unit for more than 5 seconds with no disc, and then press the POWER OFF/ON button. All settings including password will revert to factory settings. Do not use it if not absolutely required. (Note that this function is available only when there is no disc inserted.)

Cannot play the disc.

• Check whether the disc is inserted correctly with the label facing up. • Check the regional code of your DVD disc. • This DVD Recorder & VCR cannot playback some types of disc. (See pages 5, 39.)

• Are you watching a program in slow or skip mode? If you are playing a program at a speed other than normal speed, sound is not output. (Except for forward search Playback (Fast1)) • No sound will be heard when scanning an MPEG4 disc. • Check the connections and initial settings. • Check whether the disc is damaged. • Clean the disc, if necessary. • Check whether the disc is inserted correctly with the label facing up.

Troubleshooting (DVD) Problem

Explanation/Solution You cannot use the operation or function due to one of the following reasons: (1) Your DVD disc does not support the feature (for example, angles) (2) You've requested a title, chapter, or scan time that is out of the correct range.

Play mode settings are different from the settings configured with the Setting menu.

The disc does not support all the selected functions. In this case, some settings you configure on the Setting menu may not work properly.

Cannot change the aspect ratio.

Aspect ratio is fixed on DVD disc.

Check whether you selected the correct digital output options in the Audio Output Options menu.

No video or audio output. The disc tray is ejected after 2 to 5 seconds.

Did you move your DVD Recorder & VCR suddenly from a cold place to a warm place? In this case, do not connect the plug to the power outlet and wait for two hours. Then insert the disc and try to play back again. It will work properly when condensation has evaporated.

Angle operation does not work during playback of a DVD disc.

Angle operation is available only when the disc contains images captured at different angles.

The disc revolves, but no image or bad quality images are output.

• Check whether there is damage or foreign materials on your disc. • Some discs with bad manufacturing quality may not be played back. • If the scene changes from dark to bright suddenly, the screen may jitter temporarily, but it is not defective.

Desired sound language and subtitle language are not played.

Sound languages and subtitle languages are disc-specific. Only the sound and subtitle languages contained on a DVD disc are available and displayed on the disc menu.

No progressive output.

• Check whether PS is displayed on front panel. • Make sure to change the component video output using the Progressive button when the disc is stopped.

The remote control doesn't work.

• Point the remote control at the remote control sensor on your DVD Recorder & VCR. Operate within distance. (15ft) Remove obstacles between your DVD Recorder & VCR and remote control. • Check whether the batteries are depleted.

• Read the table of contents and then find and read the sections describing your problem, and follow the directions given. • Turn the unit off and on. • If your problem still persists, contact your nearest Samsung service center.

icon appears on the screen.

01344A-VR350-XAC-ENG.indb 80

2007-03-13 오후 5:10:00

Troubleshooting (VCR) Before contacting a Samsung authorized service center, perform the following simple checks. Problem

Explanation/Solution

• Check that the power plug is connected to a wall outlet. • Have you pressed the POWER button?

You cannot insert a video cassette

• A video cassette can only be inserted with the window side up and the safety tab facing you.

The television program was not recorded

• Check the DVD Recorder & VCR antenna connections. • Is the DVD Recorder & VCR tuner properly set? • Check if the safety tab is intact on the cassette.

Timer recording was unsuccessful

• Re-check the recording start/stop time settings and the current time • Check whether you insert a tape which has enough time record

No playback picture or the picture is distorted

• Check to see if you are using a prerecorded tape.

Noise bars or streaks on playback

• Check the tuner/external setting. It should be on tuner. • Check the TV antenna connections. • Press the CH/TRK ( / ) buttons to minimize this effect.

When the ►II button is pressed during playback, the still picture has severe “noise bar” streaks

• A still picture may have “noise bars”, depending on the condition of the tape. Press the CH/TRK ( / ) buttons during slow motion to minimize this effect.

• If poor pictures appear on a variety of cassettes, the video heads may need cleaning. This is not a common problem and unless it appears, the heads should not be cleaned. When cleaning the video heads, read all instructions provided with the head cleaning cassette. Incorrect head cleaning can permanently damage the video heads.

You cannot see normal broadcasts

If you are unable to solve the problem after reading the above instructions, note: • The model and serial number on the rear of your DVD Recorder & VCR • The warranty information • A clear description of the problem Then contact your nearest SAMSUNG authorized service center.

2007-03-13 오후 5:10:02

Problems and Solutions (Display error Message) Before contacting a Samsung authorized service center, perform the following simple checks. Problem You cannot record a copy protected movie.

Explanation / Solution • You can’t record the video since it is protected by copyright.

You cannot record. This disc is protected. This disc cannot be formatted (the disc is protected). This disc cannot be renamed (the disc is protected).

• The disc you are using is protected. To record on this disc or use this function, cancel the disc protection function. Refer to page 80.

This disc cannot be finalized (the disc is protected). This [Menu] is not available (the disc is protected). The disc cannot be played, Please check the regional code of the disc.

• The disc does not match the regional code for your area and cannot be played on this device.

This disc cannot be formatted. Please check the disc. You could not format the disc because of error detection. • Make sure there are no scratches or dirt on the disc. You could not finalize the disc because of error detection. You could not unfinalize the disc because of error detection. The disc cannot be played, Please check the TV system.

• The disc is PAL format and cannot be played on this unit.

The disc can be neither played nor recorded. The disc cannot be played, Please check the disc.

• You can’t use the disc because it contains errors from previous recordings. Use the disc after formatting.

If the disc has invalid information, no more titles can be recorded. Please format the disc beforehand.

• Make sure there are no scratches or dirt on the disc.

Explanation / Solution

Error is detected on the disc.

• You can’t use the disc because it contains errors from previous recordings. Use the disc after formatting.

System error is found. Please try it again after turning off the power.

• When operating, errors happen. Turn off the device. (To turn off, press and hold the power button on the front of the device for 10 seconds.) After turning off, press the Open button and remove the disc from the device.

The DV device is not connected.

• Make sure the DV device is connected properly to the DV connection Jack. If it is connected properly, turn it off and on once again.

If you are unable to solve the problem after reading the above instructions, note: • The model and serial number on the rear of your DVD Recorder & VCR • The warranty information • A clear description of the problem Then contact your nearest SAMSUNG authorized service center. Call 1-800-SAMSUNG for a center near you.

+41°F to +95°F Other conditions

Keep level when operating. Operate in less than 75% humidity

1.0 V p-p at 75Ω load, sync negative S-Video input (Y: 1.0Vp-p, C: 0.286Vp-p at 75Ω load)

Regular TV broadcasting: VHF (2~13), UHF (14~69) Cable TV broadcasting: 1~125 Audio output jacks 1, 2 Optical/Coaxial digital audio output support

Min. 100 dB signal-to-noise ratio Max. 0.005% total harmonic distortion (T.H.D)

at average 1 KHz Video output jacks Video

XP (about 8 Mbps), SP (about 4 Mbps), LP (about 2 Mbps), EP (about 1.2 Mbps)

Min. 50dB at standard recording

Min. 75dB Audio frequency characteristics

Audio Output For DVD discs, audio signals recorded at 96kHz sampling frequency are converted into and output at 48kHz. DVD 48 / 96KHz

LIMITED WARRANTY TO ORIGINAL PURCHASER Samsung Electronics Canada Inc.(SECA), warrants that this product is free from defective material and workmanship. SECA further warrants that if this product falls to operate properly within the specified warranty period and the failure is due to improper workmanship or defective materials, SECA will repair or replace the product at its option. All warranty repairs must be performed by a SECA Authorized Service Center. (The name and address of the location nearest you can be obtained by calling toll free: 1- 800- SAMSUNG)

LABOR PARTS One year (Carry- in)

On carry-in models, transportation to and from the service center is the customer’s responsibility. The original dated sales receipt must be retained by the customer and is the only acceptable proof of purchase. It must be presented to the authorized service center at the time service is requested.

EXCLUSIONS (WHAT IS NOT COVERED)

This warranty does not cover damage due to accident, fire, flood and/ or other acts of God; misuse, incorrect line voltage, improper installation, improper or unauthorized repairs, commercial use or damage that occurs in shipping. Exterior and interior finish, lamps, glass are not covered under this warranty. Customer adjustments which are explained in the instruction manual are not covered under the terms of this warranty. This warranty will automatically be voided for any unit found with a missing or altered serial number. This warranty is valid only on products purchased and used in Canada.

01344A-VR350-XAC-ENG.indb 85

Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

Câble Coaxial (non compris)

00:03:50 00:04:00 00:03:49

TRACK 4 TRACK 5 TRACK 6 TRACK 7

00:03:47 00:04:29 00:03:44 00:03:44

00:03:50 00:04:00 00:03:49

TRACK 4 TRACK 5 TRACK 6 TRACK 7

00:03:47 00:04:29 00:03:44 00:03:44

00:03:50 00:04:00 00:03:49 00:03:47 00:04:29 00:03:44 00:03:44

00:03:50 00:04:00 00:03:49 00:03:47 00:04:29 00:03:44 00:03:44

03:05 AM 05:05 AM SP

03:05 AM 05:05 AM SP

03:05 AM 05:05 AM SP

03:05 AM 05:05 AM SP

00:00:11 00:00:09 00:01:36 00:00:11

04 JAN/01/2007 01:30 00:00:11

04 JAN/01/2007 01:30 00:00:11

Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.
