USER MANUAL DVD-VR335 SAMSUNG

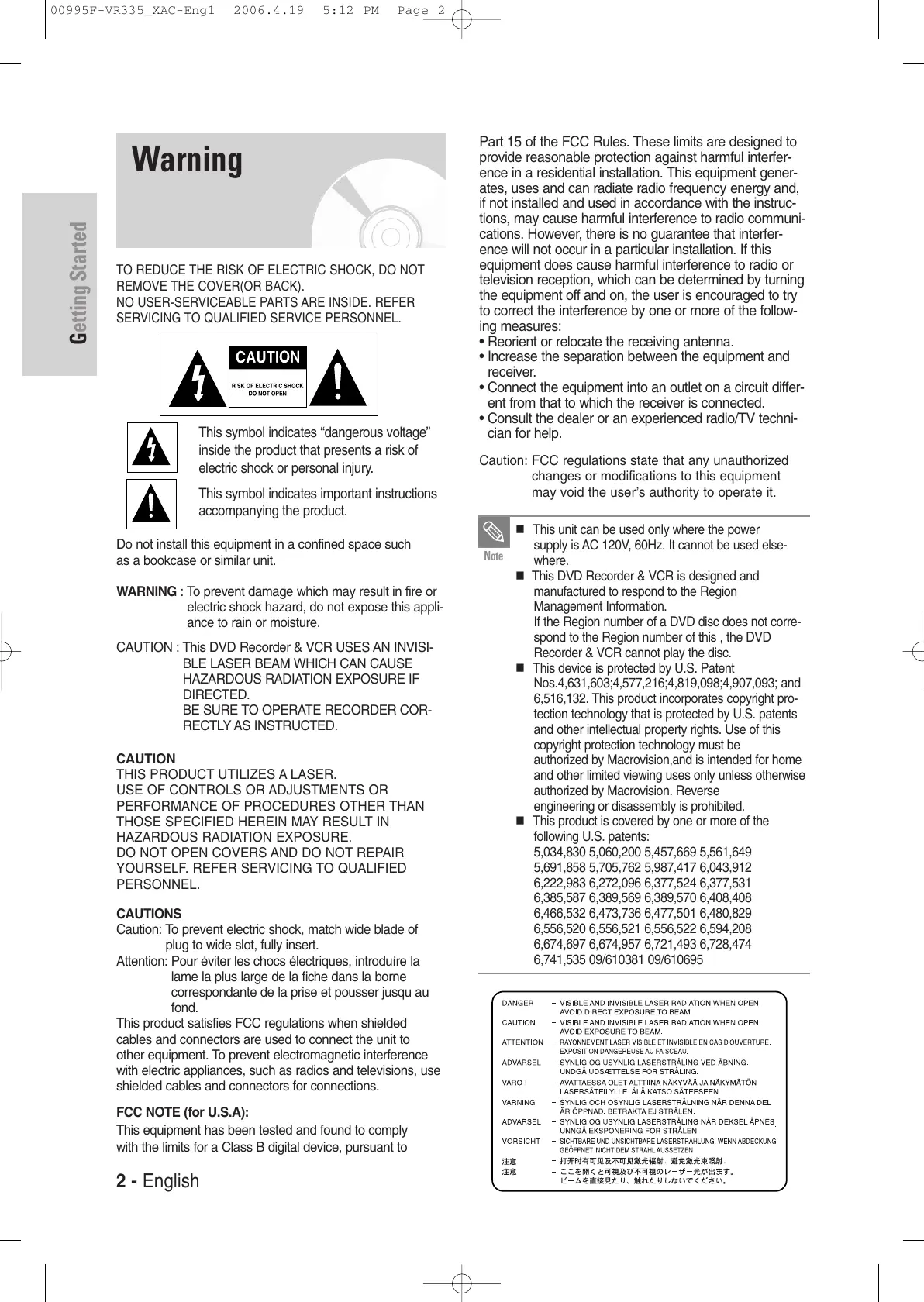

This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury. This symbol indicates important instructions accompanying the product. Do not install this equipment in a confined space such as a bookcase or similar unit. WARNING : To prevent damage which may result in fire or electric shock hazard, do not expose this appliance to rain or moisture. CAUTION : This DVD Recorder & VCR USES AN INVISIBLE LASER BEAM WHICH CAN CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE RECORDER CORRECTLY AS INSTRUCTED. CAUTION THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL. CAUTIONS Caution: To prevent electric shock, match wide blade of plug to wide slot, fully insert. Attention: Pour éviter les chocs électriques, introduíre la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu au fond. This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances, such as radios and televisions, use shielded cables and connectors for connections. FCC NOTE (for U.S.A): This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: FCC regulations state that any unauthorized changes or modifications to this equipment may void the user’s authority to operate it. This unit can be used only where the power supply is AC 120V, 60Hz. It cannot be used elseNote where. This DVD Recorder & VCR is designed and manufactured to respond to the Region Management Information. If the Region number of a DVD disc does not correspond to the Region number of this , the DVD Recorder & VCR cannot play the disc. This device is protected by U.S. Patent Nos.4,631,603;4,577,216;4,819,098;4,907,093; and 6,516,132. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision,and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited. This product is covered by one or more of the following U.S. patents: 5,034,830 5,060,200 5,457,669 5,561,649 5,691,858 5,705,762 5,987,417 6,043,912 6,222,983 6,272,096 6,377,524 6,377,531 6,385,587 6,389,569 6,389,570 6,408,408 6,466,532 6,473,736 6,477,501 6,480,829 6,556,520 6,556,521 6,556,522 6,594,208 6,674,697 6,674,957 6,721,493 6,728,474 6,741,535 09/610381 09/610695

• Exterior interference such as lightning and static electricity can affect normal operation of this recorder. If this occurs, turn the DVD Recorder & VCR off and on again with the POWER button, or disconnect and then reconnect the AC power cord to the AC power outlet. The recorder will operate normally. use.

Important Safety Instructions Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference. 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings, Install in accordance with the manufacturer's instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9) Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. if the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11) Only use attachments/accessories specified by the manufacturer. 12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13) Unplug this apparatus during lightning storms or when unused for long periods of time. 14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Handling Cautions • Before connecting other components to this recorder, be sure to turn them all off. • Do not move the recorder while a disc is being played, or the disc may be scratched or broken, and the recorder’s internal parts may be damaged. • Do not put a flower vase filled with water or any small metal objects on the recorder. • Be careful not to put your hand into the disc tray. • Do not place anything other than the disc in the disc tray.

• Disconnect the AC power cord from the AC outlet when you don’t intend to use the recorder for long periods of time. • Clean the disc by wiping in a straight line from the inside to the outside of the disc.

Maintenance of Cabinet For safety reasons, be sure to disconnect the AC power cord from the AC outlet. • Do not use benzene, thinner, or other solvents for cleaning. • Wipe the cabinet with a soft cloth.

Disc Handling • Use discs with regular shapes. If an irregular disc (a disc with a special shape) is used, this DVD Recorder & VCR may be damaged.

Holding discs • Avoid touching the surface of a disc where recording is performed.

DVD-RAM, DVD±RW and DVD±R • Clean with an optional DVD-RAM/PD disc cleaner. Do not use cleaners or cloths for CDs to clean DVD-RAM/DVD±RW/DVD±R discs.

DVD-Video, CD • Wipe off dirt or contamination on the disc with a soft cloth.

Cautions on handling discs • Do not write on the printed side with a ball-point pen or pencil.

• Do not use record cleaning sprays or antistatic. Also, do not use volatile chemicals, such as benzene or thinner. • Do not apply labels or stickers to discs. (Do not use discs fixed with exposed tape adhesive or leftover peeled-off stickers.)

• Be sure to remove the disc and turn off the recorder after

• Do not use scratch-proof protectors or covers. • Do not use discs printed with label printers available on the market.

• Do not load warped or cracked discs.

Disc Storage Be careful not to harm the disc because the data on these discs is highly vulnerable to the environment. • Do not keep under direct sunlight. • Keep in a cool ventilated area. • Store vertically. • Keep in a clean protection jacket. • If you move your DVD Recorder & VCR suddenly from a cold place to a warm place, condensation may generate on the operating parts and lens and cause abnormal disc playback. In this case, do not connect the plug to the power outlet and wait for two hours. Then insert the disc and try to play back again. It will work properly when condensation has evaporated.

Disc Specifications DVD-Video • A digital versatile disc (DVD) can contain up to 135minutes of images, 8 audio languages and 32 subtitle languages. It is equipped with MPEG-2 picture compression and Dolby 3D surround, allowing you to enjoy vivid and clear theater quality images in the comfort of your own home. • When switching from the first layer to the second layer of a double-layered DVD Video disc, there may be momentary distortion in the image and sound. This is not a malfunction of the unit. • Once a DVD±R/DVD-RW(V) recorded is finalized, it is playable in a standard DVD player.

Audio CD JPEG CD-R/-RW • Only JPEG files with the ".jpg", ".JPG" extension can be used.

• The unit can handle a maximum of 1000 files and folders. • Maximum size of progressive JPEG is 3M pixels. • MOTION JPEG is not supported. • DVD-RAM/±RW/±R discs that contain JPEG files can be played back.

Using MPEG4 disc • Disc : CD-R/-RW, DVD-RAM, DVD±R/ DVD±RW, • MPEG4 File with following extensions can be played. : .avi, .divx, .AVI, .DIVX • MPEG4 Codec format : DivX 3.11 DivX 4.x DivX 5.x • Available Audio Format : “MP3”, “MPEG”, “PCM”,“AC3”, “DTS” • Supported subtitle file formats: .smi, .srt, .sub, .psb,.txt

Using CD-R/-RW • Use a 700MB(80 minutes) CD-R/-RW disc. If possible, do not use a 800MB(90 minutes) or above disc, as the disc may not play back. • If the CD-R/-RW disc was not recorded as a closed session, you may experience a delay in the early play-back time, and all recorded files may not play. • Some CD-R/-RW discs may not be playable with this unit, depending on the device which was used to burn them. For contents recorded on CD-R/-RW media from CDs for your personal use, playability may vary depending on contents and discs.

DVD±R Disc Playback and Recording • Once a DVD±R recorded is finalized, it is playable in a standard DVD player.

• You can record onto the available space on the disc and • An audio disc on which 44.1kHz PCM Audio is recorded. • Plays CD-DA format audio CD-R and CD-RW discs. This unit may not be able to play some CD-R or CD-RW discs due to the condition of the recording.

CD-R/-RW MP3 CD-R/-RW • Only CD-R discs with MP3 files recorded with ISO9660 or JOLIET format can be played back

• Only MP3 files with the "mp3" or "MP3" extension can be used.

• For MP3 files recorded with a VBR(Variable Bit Rates), from 80 Kbps to 320 Kbps, the sound may cut in out. • Playable bitrate range is from 56Kbps to 320Kbps. • The unit can handle a maximum of 1000 files and folders. • DVD-RAM/±RW/±R discs that contain MP3 files can be played back.

perform editing functions such as giving titles to discs and programs and erasing programs before finalizing. • When programming is erased from a DVD±R, that space does not become available. Once an area on a DVD±R is recorded on, that area is no longer available for recording, whether the recording is erased or not. • It takes about 30 seconds for the unit to complete recording management information after recording finishes. • This product optimizes the DVD±R for each recording. Optimizing is carried out when you start recording after inserting the disc or turning on the unit. Recording onto the disc may become impossible if optimizing is carried out too many times. • Playback may be impossible in some cases due to the condition of recording. • This unit can play back DVD±R discs recorded and finalized with a Samsung DVD video recorder. It may not be able to play some DVD±R discs depending on the disc and the condition of the recording.

DVD-RW Disc Playback and Recording • Recording and playback can be performed on DVDRW discs in both Video and VR Modes. is finalized, you cannot perform additional recording.

• Once a DVD-RW recorded in Video Mode is finalized, it becomes DVD-Video. • In both modes, playback can be performed before and after

finalization, but additional recording, deleting and editing can not be performed after finalization. • If you want to record the disc in VR Mode and then record in V Mode, be sure to execute format. Be careful when executing Format because all the recorded data may be lost. • For an unused disc, a message that asks whether to initialize a disc or not. If you select “Yes”, disc will be formatted in VR mode.

• DVD-RW (VR mode) - This is a format that is used for recording data on DVDRW disc. You can record multiple titles, edit, delete, partial delete, create a playlist, etc. - A disc that is recorded in this mode may not be played by existing DVD players.

• DVD-RW (Video mode) - This is a format that is used for recording data on a DVD-RW or DVD-R disc. The disc can be played by an existing DVD player once it has been finalized. - If a disc that has been recorded in Video mode by a different manufacturer's recorder but has not been finalized it cannot be played or additionally be recorded by this recorder.

• Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD Recorder & VCR directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs. • This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

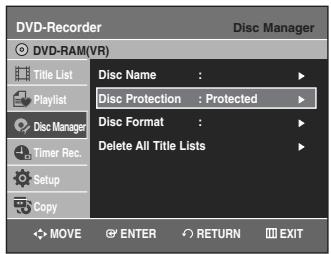

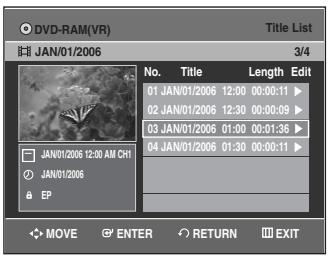

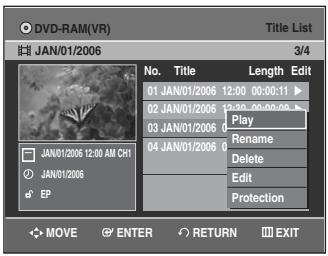

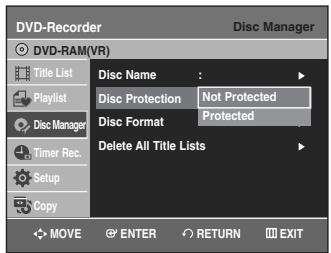

Protection • Program-protection: See page 76 “Locking a Title” • Disc-protection: See page 89 “Disc Protection” ❋ DVD-RAM/DVD±RW/DVD±R discs that are incompatible with the DVD-VIDEO format cannot be played with this product.

❋ For more information on DVD recording compatibility, consult your DVD-RAM/DVD±RW/DVD±R manufacturer.

❋ Use of poor quality DVD-RAM/DVD±RW/DVD±R discs may cause following unexpected problems including, without limitation, recording failure, loss of recorded or edited materials or damage to the recorder.

Do not use the following discs! DVD+RW Disc Playback and Recording • With DVD+RW discs, there is no difference between DVD-Video format (Video mode) and DVD-Video Recording format (VR mode). • You can make your own chapters on DVD+RWs and edit them using the Chapter Edit menu. • Finalizing is generally unnecessary when using a DVD+RW disc.

• LD, CD-G, CD-I, CD-ROM and DVD-ROM discs should not be used in this product. [Note] • Some commercial discs and DVD discs purchased outside your region may not be playable with this product. When these discs are played, either “No Disc” or “The disc cannot be played. Please check the regional code of the disc.” will be displayed. • If your DVD-RAM/DVD±RW/DVD±R disc is an illegal copy or is not in DVD video format, it may also not be playable.

DVD-RAM Disc Playback and Recording • For cartridge type DVD-RAM discs, remove the cartridge and use the disc only.

• Ensure that the recording mode is set to VR mode. Otherwise, this product will not be able to play the recording. • You cannot play a DVD-RAM in most DVD players due to compatibility issues. • Only DVD-RAM standard Version 2.0 discs can be played in this unit. • DVD-RAM recorded on this unit may not work with other DVD Players. To determine compatibility with these DVD-RAM discs, refer to the user’s manual for the player.

Disc compatibility • A 8X speed DVD+RW or greater disc can be played, but maximum recording speed is 4x.

• Not all brands of discs will be compatible with this unit. • The latest firmware upgrade to improve recording & playback quality can be downloaded from our web site. (Download Center at www.samsung.com/ca) • If disc compatibility problems continue, or there is an issue upgrading your recorder, contact the Call Center at 1-800-SAMSUNG.

• Once a DVD-RW recorded in VR Mode or Video mode

A variety of functions with easy-to-use user interface

General Features The DVD-VR335 allows you to record and play high quality digital video on DVD-RAM/DVD±RW/DVD±R discs. You can record and edit digital video on DVD-RAM/DVD±RW/ DVD±R discs as if they were VCR tapes.

Integrated menu system and messaging functionality allow you to perform the desired operations easily and conveniently. With a DVD-RAM/DVD-RW(VR mode) disc, you can edit recorded images, create playlist, and edit video in specific sequence according to your needs.

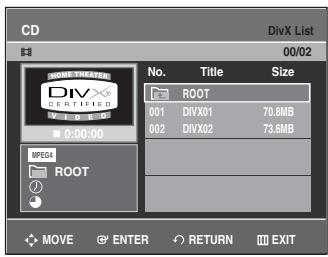

MPEG4 playback This DVD Recorder can play MPEG4 formats within an avi file.

High quality digital audio and video recording and playback You can record up to approximately 16-hours of video on a double side 9.4 GB DVD-RAM disc,up to 15-hours on a dual-layer 8.5GB DVD±R disc, and up to 8-hours on a 4.7 GB DVD-RAM/DVD±RW/DVD±R disc, depending on the recording mode.

With the DVD-VR335, you can create your own DVD video titles on 4.7 GB DVD±RW/DVD±R or 8.5GB DVD±R discs.

HDMI reduces picture noise by allowing a pure digital video/audio signal path from the DVD Recorder & VCR to your TV.

A Variety of Recording Options Select an appropriate recording mode between XP, SP, LP and EP to meet your recording needs. (See page 63.) • XP mode - High quality, about 1 hour • SP mode - Standard quality, about 2 hours • LP mode - Low quality, about 4 hours • EP mode - Lower quality, about 6 or 8 hours - The dual layer DVD±Rs have approximately double the capacity of single layer DVD±Rs. (See page 45.)

Copying digital camcorder content using DV input jack Record digital camcorder images onto DVD-RAM/DVD ±RW/DVD±R discs or video tape using the DV input jack (IEEE 1394-4pin). (See page 65.)

High quality progressive scan Progressive scanning provides high resolution and flicker free video. The 10-bit 54-MHz DAC, 2D Y/C Separating circuitry and Time Base Corrector processor technology provide you with the highest image playback and recording quality. (See page 20.) Component progressive scan output video is available in both DVD and VCR modes.

DivX, DivX Certified, and associated logos are trademarks of DivXNetworks, Inc and are used under license.

Before Reading the User’s Manual Icons that will be used in manual Icon

DVD This involves a function available in DVD or DVD-R/DVD-RW(V)/+R discs that have been recorded and finalized.

RAM This involves a function available in DVD-RAM.

-RW This involves a function available in DVD-RW.

-R This involves a function available in DVD-R.

+RW This involves a function available in DVD+RW.

+R This involves a function available in DVD+R.

This involves a case where a function does not operate or settings may be cancelled.

NOTE This involves tips or instructions on the page that help each function operate.

One-Touch A function that can be operated button by using only one button. ANYKEY button

©2006 Samsung Electronics Co. All rights reserved; No part or whole of this user’s manual may be reproduced or copied without the prior written permission of Samsung Electronics Co.

How to use the DVD Recorder & VCR Step 1

This unit can record on the following types of discs. If you want to repeatedly record on the same disc or you want to edit the disc after recording, select a rewritable DVD±RW or DVD-RAM type disc. If you want to save a recording without any changes, choose a non-rewritable DVD±R.

Using a DVD-RAM This type of disc can be formatted in DVD-Video Recording format (VR mode). You can edit recorded images and create a playlist in a specific sequence according to your requirements.

• When an unused DVD±RW/+R disc is first inserted, the message "Uninitialized Disc. Do you want to initialize this disc?" will be displayed. If you select Yes, initializing will be start. DVD-RW discs can be formatted in either DVD-Video format (Video mode) or DVD-Video Recording format (VR mode) • With DVD+RW discs, there is no difference between DVD-Video format (Video mode) and DVD-Video Recording format (VR mode).

Using a DVD-R Initializing disc is unnecessary and only V mode Recording is supported.You can play this type of disc on various DVD components only when they have been finalized. ■

1) Be sure to be familiar with Safety Instructions before using this product. (See pages 2~5) 2) If a problem occurs, check the Troubleshooting. (See pages 95~97)

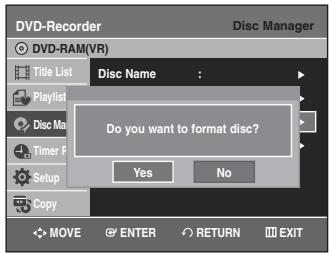

Format the disc to start recording

Unlike a VCR, the recorder automatically starts formatting when an unused disc is inserted. This is required for the preparation of recording on a disc.

A function that can be operated by using ANYKEY button.

About the use of this user’s manual

Select the disc type

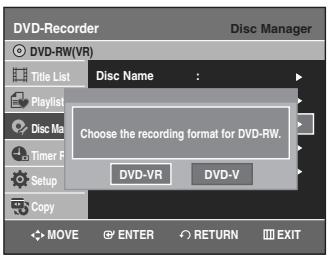

You can only use either the VR or Video mode on a DVD-RW, but not both at the same time. You can format a DVD-RW to V or VR mode using disc manager. It should be noted that the disc's data will be lost when changing formats.

Make sure to check the following terms before reading the user’s manual.

There are two different recording methods: Direct Recording and Timer Recording. Timer recording is classified as a Date : Once, Daily or Weekly. Recording mode : XP (high quality mode), SP (standard quality mode), LP (long recording mode), and EP (extended mode).

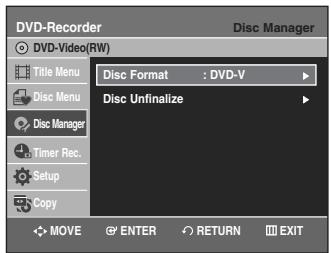

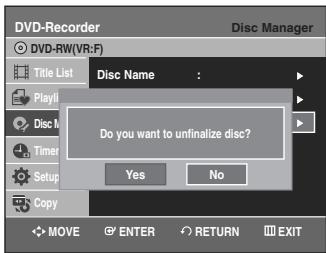

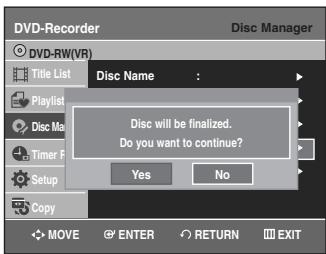

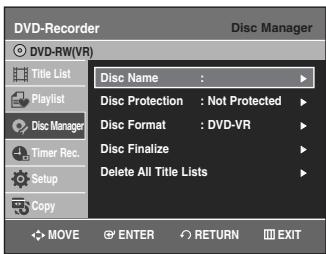

Finalizing & Playing on other DVD components

To play your DVD on other DVD players, finalizing may be necessary. First, finish all editing and recording operations, then finalize the disc.

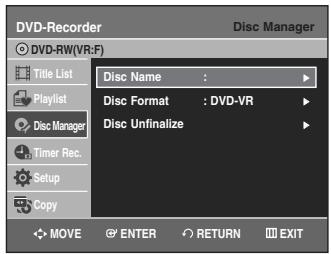

When using a DVD-RW disc in VR Mode Although finalizing is generally unnecessary when playing the disc on a VR Mode compatible component, a finalized disc should be used for playback.

When using a DVD-RW disc in Video Mode

The disc should be finalized first to enable playback on anything other than this recorder. No more editing or recording can be made on the disc once it has been finalized.

When using a DVD±R disc You can select the title you want to play in a displayed menu and then immediately start playback. A DVD consists of sections called titles, and sub sections called chapters. During recording, a title is created between two points where you start and stop recording. Chapters will be created automatically when you finalize recording on DVD-R / DVD-RW discs in Video mode. You can make your own chapters on DVD+RWs and edit them using the Chapter Edit menu. The chapter’s length (interval between chapters) varies according to the recording mode.

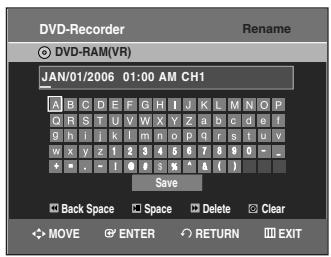

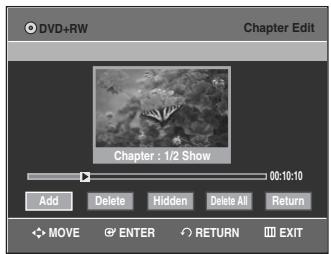

Editing a recorded disc

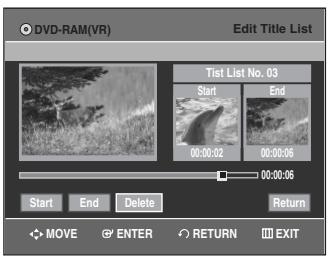

Editing on discs is easier than conventional video tapes. The recorder supports many different edit functions, possible only with DVDs. With a simple and easy edit menu, you can operate various edit functions, such as delete, copy, rename, lock, etc., on a recorded title.

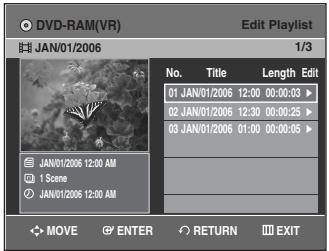

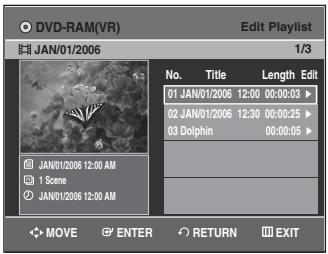

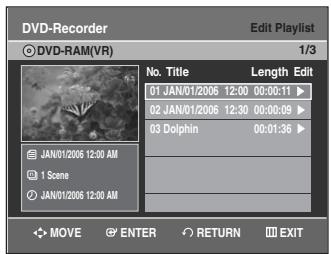

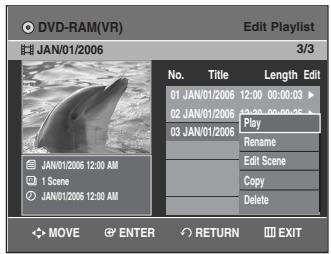

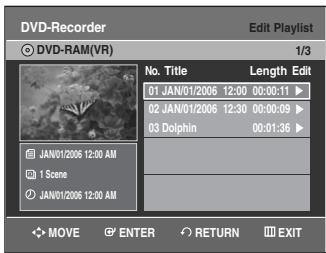

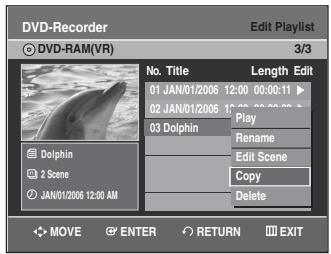

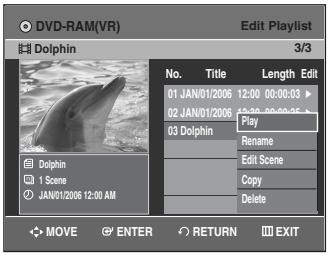

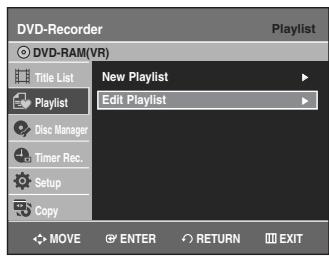

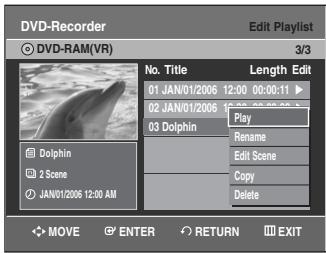

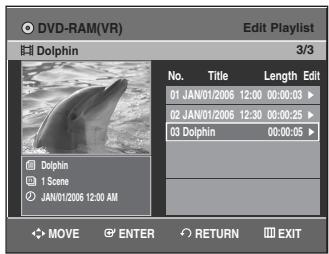

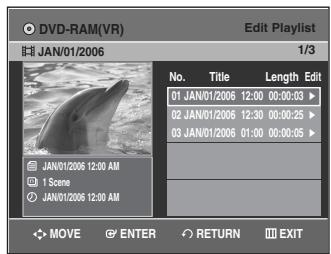

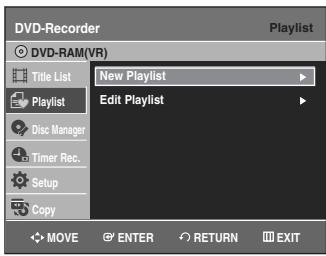

Creating a playlist (DVD-RAM/-RW in VR mode) With this recorder, you can create a new playlist on the same disc and edit it without changing the original recording.

You should finalize the disc to play it on a component other than this recorder. You cannot edit or record on the disc once it has been finalized.

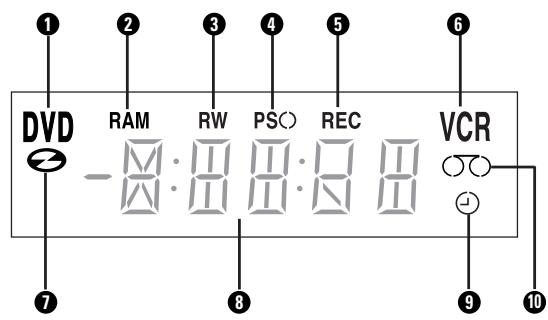

Description Getting Started

DVD is activated. DVD-RAM is activated. DVD(±)R or DVD(±)RW is actived. Progressive Scan mode is activated. Record function is activated. VCR is activated.

7. DVD or CD media is loaded. 8. The time, counter position or current deck status is indicated. 9. When you set a Timer recording, this indicator appears. 10. VHS videotape is loaded.

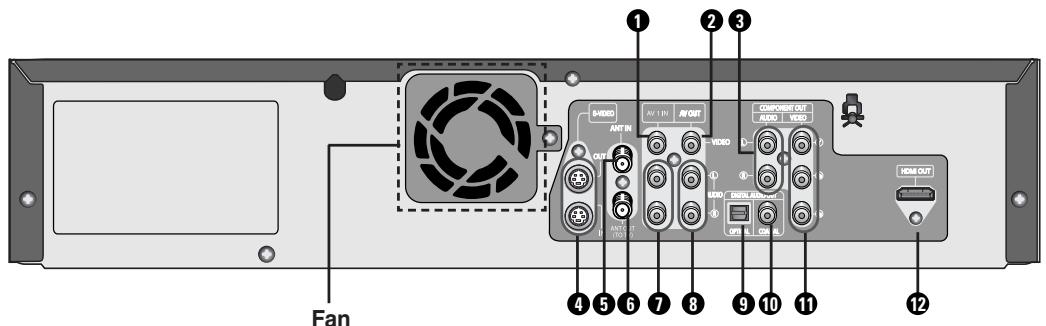

Fan The fan always revolves when the power is on. Ensure a minimum of 4” clear space on all sides of the fan when installing the product.

Accessories Check for the supplied accessories below.

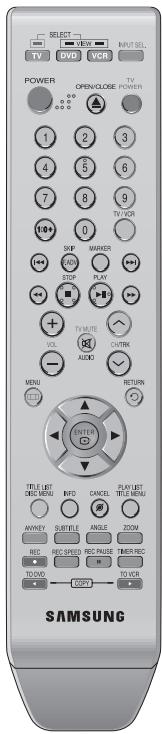

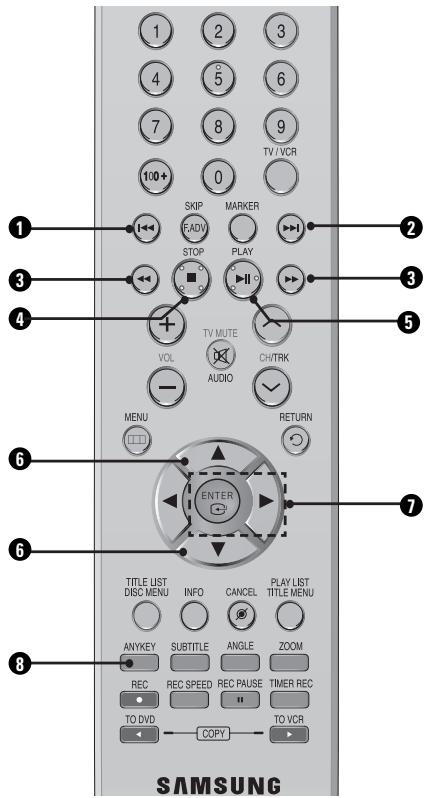

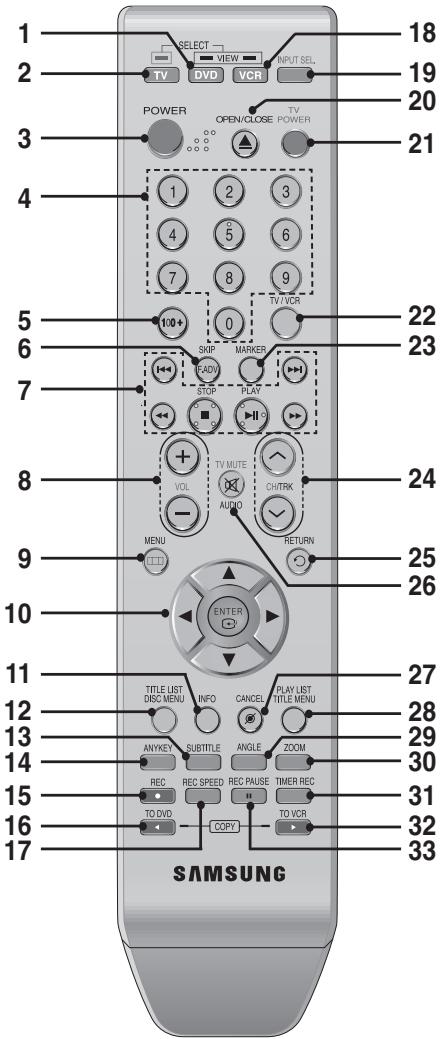

Tour of the Remote Control 18 19 20

1. DVD Button Press this when you use a DVD. 2. TV Button Press this to operate your TV. 3. POWER Button 4. NUMBER Button 5. 100+ Button Press this to select channel 100 or higher. 6. F.ADV/SKIP Button 7. Playback-related Buttons Forward/Rewind, Search, Skip, Stop, Play/Pause 8. VOL (Volume) Button TV volume adjustment 9. MENU Button Press this to bring up the DVD Recorder & VCR’s setup menu. 10. ENTER/DIRECTION Buttons (UP/DOWN or LEFT/RIGHT Buttons) This button functions as a toggle switch. 11. INFO Button Press this to display current setting or disc status. 12. TITLE LIST/DISC MENU Button Press this to enter the TITLE LIST/Disc menu.

❚ Key Lock Function If you do not want others to operate the DVD Recorder & VCR (for example if you have programmed a timer recording) you can set the equipment to lock out all button controls. • Press and hold the INFO button on the remote control for 5 seconds. The display will show “SAFE” when the feature is activated. • To resume normal mode, press and hold the INFO button again for 5 seconds. “SAFE” will disappear and the DVD Recorder & VCR will operate normally.

❋ This is a special remote control for the visually impaired, and has Braille points on the POWER( ), STOP( ) and PLAY( ) buttons.

13. SUBTITLE Button Press this to switch the DVD’s subtitle language. 14. ANYKEY Button Press this to set the status of the disc that is being played. 15. REC Button Press this to make a recording on VCR, DVD-RAM/ ±RW/±R discs. 16. TO DVD COPY Button Press this when you copy from the VCR to the DVD. 17. REC SPEED Button Press this to set the desired recording time and picture quality. 18. VCR Button Press this when you use a VCR. 19. INPUT SEL. Button Press this to select AV input signal in external input mode. (Tuner, AV input, DV input) 20. OPEN/CLOSE Button Press this to open and close the disc tray. 21. TV POWER Button 22. TV/VCR Button 23. MARKER Button Press this to bookmark or mark a position while playing a disc. 24. CH/TRK Button Press this to select a TV channel/Adjust tape tracking. 25. RETURN Button Returns to a previous menu. 26. AUDIO/TV MUTE Button Press this to access various audio functions. This also operates as sound mute. (TV mode) 27. CANCEL Button 28. PLAY LIST/TITLE MENU Button Press this to enter the Edit playlist/Title menu. 29. ANGLE Button Press this to access various camera angles on a disc (if the disc contains multiple camera angles). 30. ZOOM Button Zooms in on screen. 31. TIMER REC Button Press this when you use Timer Recording. 32. TO VCR COPY Button Press this when you copy from the DVD to the VCR. 33. REC PAUSE Button Press this to pause during recording.

Connecting & Setting Up

Quick Overview A Quick overview presented in this guide will give you enough information to start using the recorder.

Step 1 : Connecting the Antenna Cable

• Note to CATV system installer : This reminder is to call CATV system installer’s attention to Article 820-40 of the National Electrical Code (Section 54 of Canadian Electrical Code, Part I), that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding

Step 6 : Connecting the Power Cord . . . . . . . . . . . . . . . . . . .29

system of the building as close to the point of cable title

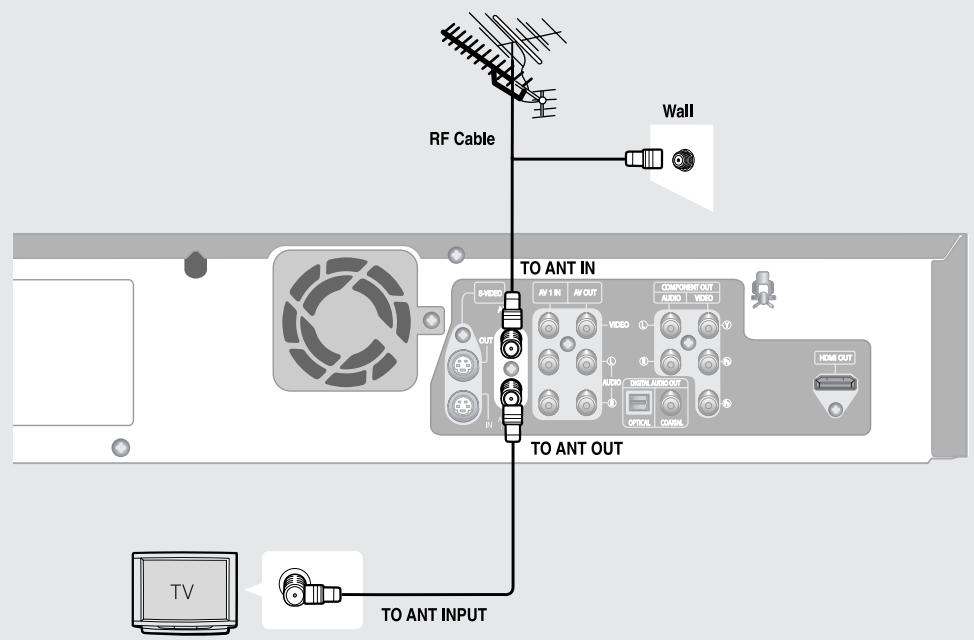

Step 1: Connecting the Antenna Cable There are several ways to connect your DVD Recorder & VCR. Select the antenna connection that best suits you below.

If you are using an off-air antenna that has 300ohm twin flat leads, use an external antenna connector (300-75 ohm adaptor : not supplied) to connect the antenna to the DVD Recorder & VCR.

If you have two separate antennas (one VHF and the other UHF), use a UHF/VHF combineradaptor (available at most electronics shops) to connect the antenna to the DVD Recorder & VCR.

You can record non-scrambled channels by selecting the channel on the DVD Recorder & VCR. Also use this method if you watch channels without a cable box.

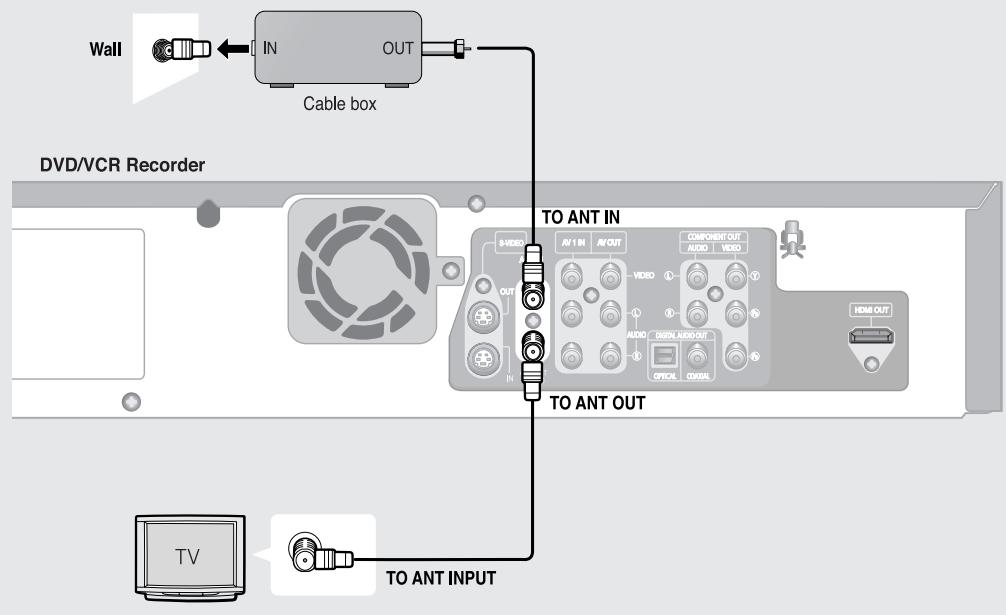

Antenna + Cable box + DVD Recorder & VCR + TV : Cable box with many scrambled channels You can record channels by selecting the channel on the cable box. You cannot record one channel while watching another channel. Be sure that the cable box is turned on.

You can record non-scrambled channels by selecting the channel on the cable box. You cannot record scrambled channels that require a cable box.

Antenna + DVD Recorder & VCR + Cable box + TV : Cable box with a few scrambled channels

Step 2 : Connecting the Video Cable There are several ways to connect your DVD Recorder & VCR. Select one of the video connections on the following pages. You must use one of the following audio/video connections on this unit.

Connecting to a Video input jack Connect a video(yellow) cable between the VIDEO(yellow) OUT jack on DVD Recorder & VCR and VIDEO(yellow) IN jack on the TV.

• You will enjoy regular quality images. • Connect audio cables(white and red) between the AUDIO OUT jacks on the DVD Recorder & VCR and AUDIO IN jacks on TV(or AV amplifier). (See pages 21 ~ 23)

• You will enjoy high quality images. S-Video separates the picture element into black and white (Y) and color (C) signals to present clearer images than regular video input mode. • Connect audio cables(white and red) between the AUDIO OUT jacks on the DVD Recorder & VCR and AUDIO IN jacks on TV(or AV amplifier). (See pages 21 ~ 23)

S-Video and Component video output are available only if your TV supports S-Video input or Component video input, respectively. If S-Video or Component video output does not work, check the TV connections and the TV input selection settings.

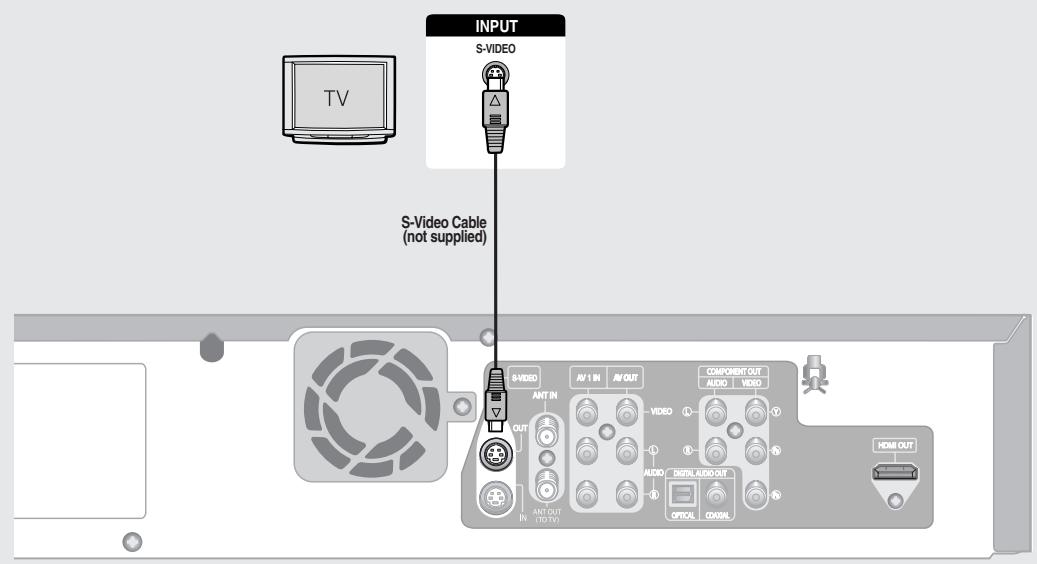

Connect an S-Video cable(not supplied) between the S-VIDEO OUT jack on DVD Recorder & VCR and S-VIDEO IN jack on your TV.

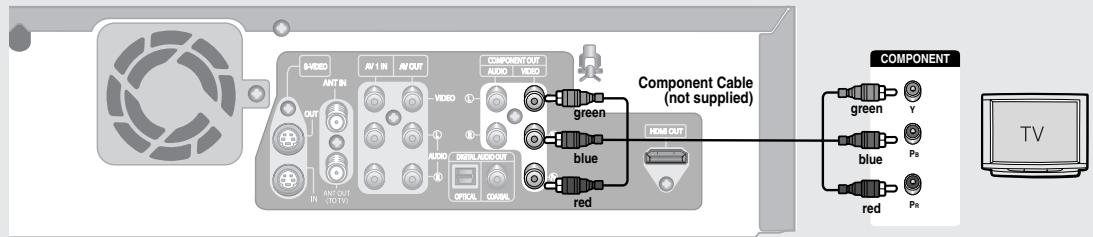

Connecting to Component video input jacks (Y,PB,PR) Connect Component video cables (not supplied) between the COMPONENT OUT (Y,PB,PR) jacks on DVD Recorder & VCR and COMPONENT IN (Y,PB,PR) jacks on your TV.

COMPONENT Component Cable (not supplied)

• You will enjoy high quality accurate color reproduction images. Component video separates the picture element into black and White(Y), blue(PB), red(PR) signals to present clear and clean images. • Connect audio cables(white and red) between the Component AUDIO OUT jacks on the DVD Recorder & VCR and Component AUDIO IN jacks on TV(or AV amplifier). (See pages 21 ~ 23) • Progressive scan - If the your TV supports Progressive Scan, you can enjoy higher quality video by pressing the P.SCAN button. (The component cable has to be connected.) 1. With the unit in stop mode, press the P.SCAN button on the front of the DVD Recorder & VCR. 2. The message ‘Press “Yes” to confirm Progressive scan mode. Otherwise press “No”’ will appear. Press the œ √ buttons to select Yes, and then press the ENTER button.

Y Compared to standard interlaced video, progressive scan doubles the amount of video lines fed to your Note TV, resulting in a more stable, flicker-free, and clear image than interlaced video. The progressive scan video output jack is used in progressive output mode. This is only available with TVs that support progressive scan. ■ Progressive Scan Output (480p) Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. If you experience 480p progressive scan picture problems, it is recommended that you switch the connection to the ‘standard definition’ output. If there are questions regarding TV set compatibility with this model, please contact our customer service center at 1-800-SAMSUNG. ■ The Component jacks will not output video resolutions above 480p. To view 720p and 1080i, connect the DVD-VR 335 to your TV with an HDMI-HDMI cable. With HDMI connected, press the P.SCAN button to alternate between all available resolutions. (See page 39)

Step 3 : Connecting the Audio Cable Select one of the Audio connections on the following pages.

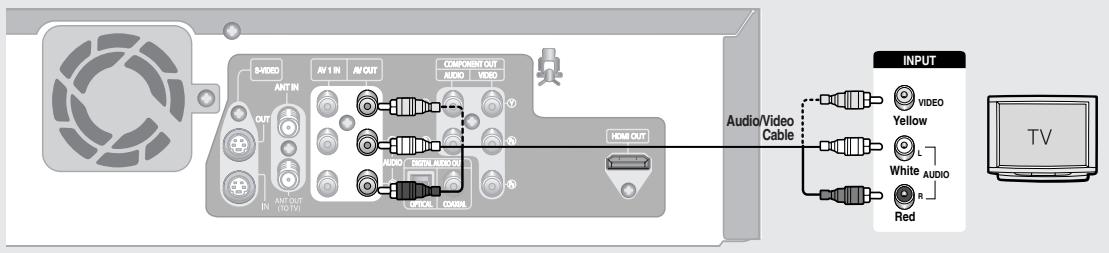

Connecting to your TV Connections

This connection will use your TV’s speakers.

INPUT VIDEO Audio/Video Cable

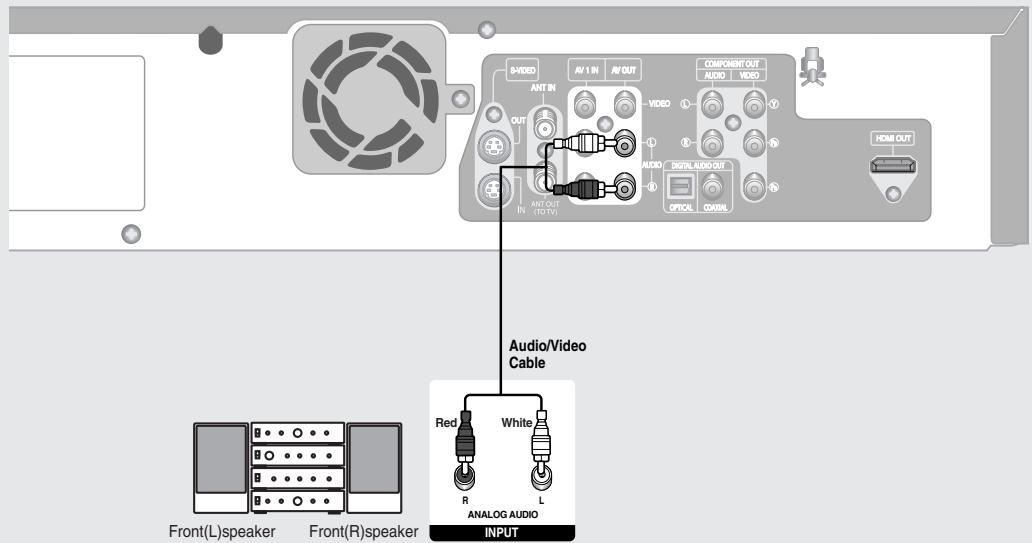

Connecting to a stereo amplifier with analog input jacks If your stereo amplifier only has AUDIO INPUT jacks(L and R), use the AUDIO OUT jacks.

R L ANALOG AUDIO Front(L)speaker

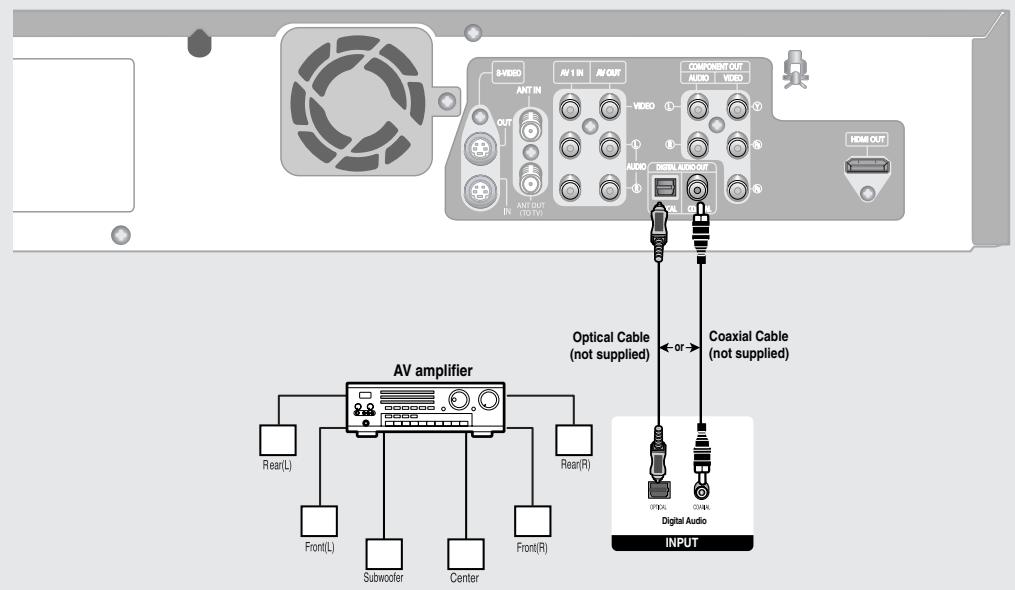

Connecting to an AV amplifier with a digital input jack

If your AV amplifier has a Dolby Digital or DTS decoder and a digital input jack, use this connection. To enjoy Dolby Digital or DTS sound, you will need to set up the audio settings. (See page 37)

Optical Cable (not supplied)

Coaxial Cable (not supplied)

INPUT Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

“DTS” and “DTS Digital Out” are trademarks of DTS, Inc.

Connecting to a TV with HDMI Jack Using an HDMI- HDMI cable(not included) connect the HDMI OUT jack on the rear of the DVD Recorder to the HDMI IN jack of your TV. Press the input selector on your TV remote control until the HDMI signal from the DVD Recorder appears on your TV screen.

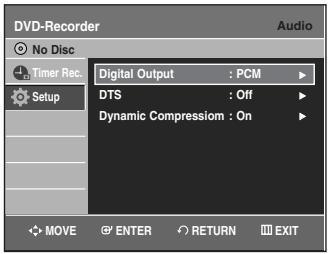

To hear audio on your TV when using HDMI, set the digital audio output to PCM (2 channel).(See page 37) Depending on the HDMI device(TV/HDMI Receiver) you use, audio may not be supported. If TV does not support Dolby digital/DTS, Audio output is not available when you set Digital output as Bitstream or select DTS On in Audio setup menu. In this case, set the digital audio output to PCM or DTS Off.

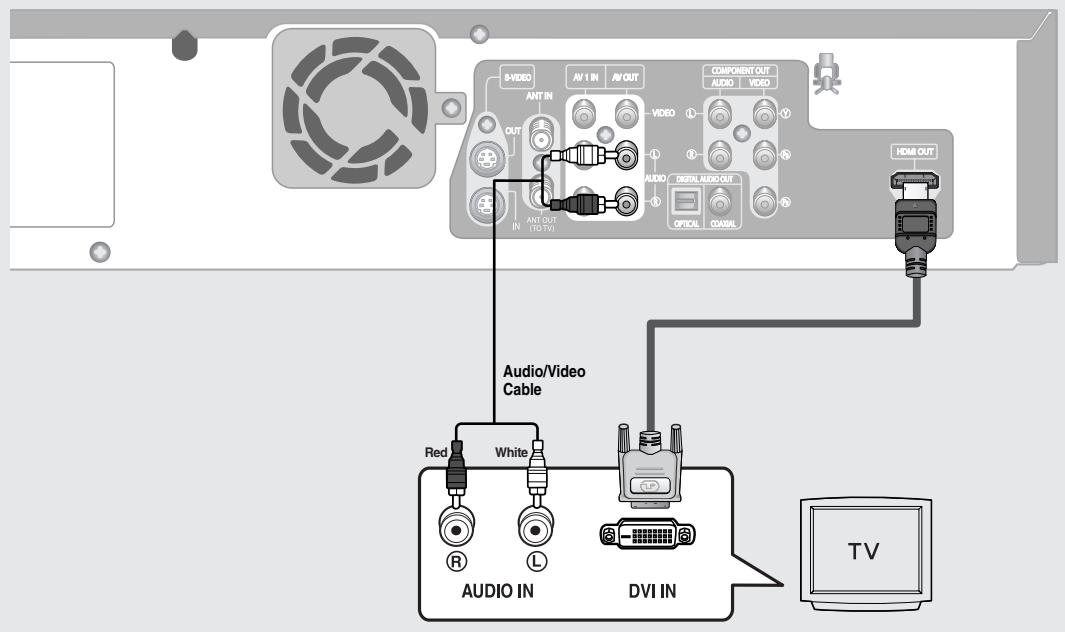

Connecting to a TV with DVI Jack Using an HDMI-DVI cable (not included), connect the HDMI OUT terminal on the rear of the DVD Recorder to the DVI IN terminal of your TV. Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD Recorder to the AUDIO (red and white) IN terminals of your TV. Turn on the DVD Recorder and TV. Press the input selector on your TV remote control until the DVI signal from the DVD Recorder appears on your TV screen.

To change HDMI output resolution, see page 39. HDMI (High Definition Multimedia Interface) HDMI is an interface to enable the digital transmission of video and audio data with just a single connector. Since HDMI is based on DVI, it is completely compatible with DVI. The only difference between HDMI and DVI is that HDMI supports multi-channel audio. Using HDMI, the DVD recorder transmits a digital video and audio signal and displays a vivid picture on a TV having anHDMI input jack. HDMI connection description HDMI connector - Both uncompressed video data and digital audio data (LPCM or Bit Stream data). - Even though the DVD recorder records analog audio and video, with HDMI the analog signal is converted to digital, and a pure digital signal is sent to the TV . - If TV does not support HDCP (High-bandwidth Digital Content Protection), snow noise appears on the screen.

Why does Samsung use HDMI? Analog TVs require an analog video/audio signal. However, when playing a DVD, the data transmitted to a TV is digital. Therefore either a digital-to-analog converter (in the DVD Recorder) or an analog-to-digital converter (in the TV) is required. During this conversion, the picture quality is degraded due to noise and signal loss. HDMI technology is superior because it requires no D/A conversion and is a pure digital signal from the DVD recorder to your TV. What is the HDCP? HDCP (High-bandwidth Digital Content Protection) is a system for protecting DVD content outputted via HDMI from being copied. It provides a secure digital link between a video source (PC, DVD. etc) and a display device (TV, projector. etc). Content is encrypted at the source device to prevent unauthorized copies from being made.

Step 5 : Connecting External Devices This allows you to connect your DVD Recorder & VCR to other external devices and view or record their outputs.

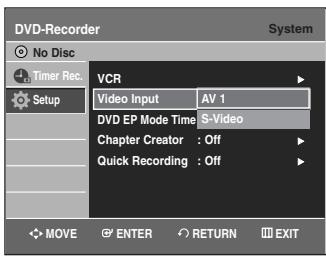

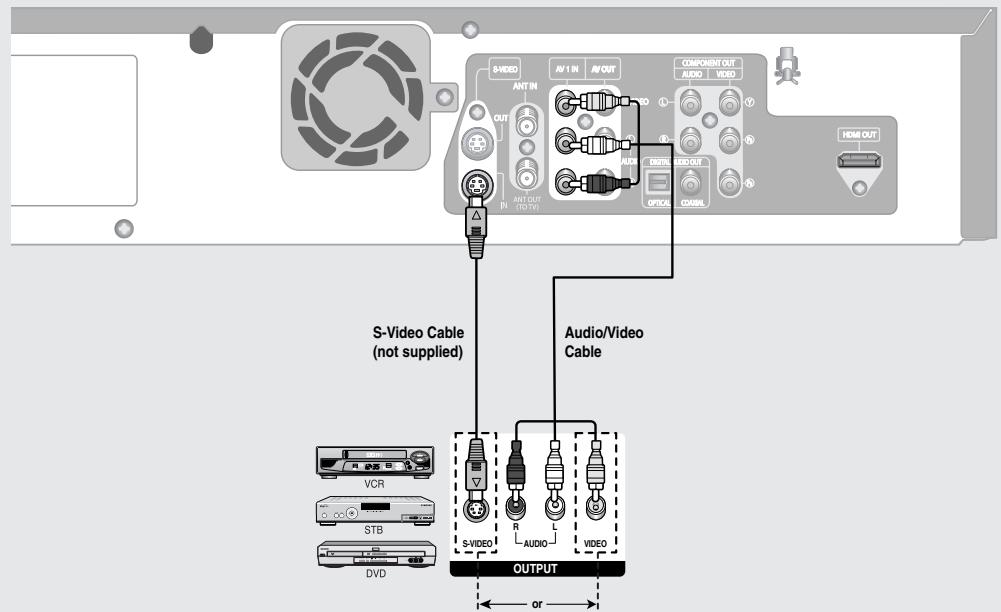

Connecting a VCR, Set-Top Box(STB) or DVD player to the AV 1 IN or S-VIDEO IN jacks Connect a VCR or external device to AV 1 IN jacks of the DVD Recorder & VCR. If desired, you can connect an SVideo cable to the S-Video In jack instead of connecting the Video (yellow) cable. You can record from connected equipment (VCR, STB or DVD).

S-Video Cable (not supplied)

You can also use the AV 2 IN jacks on the front panel of the DVD Recorder & VCR. ■ Press the INPUT SEL. button to select the AV1 or S-Video input. ■ Copy protected content cannot be recorded. ■ Depending on your input connection, you must choose AV 1 (Composite) or S-video. (See page 42)

Connecting a Camcorder to the AV 2 IN jacks

You can also use the AV 2 IN jacks on the front panel of the DVD Recorder & VCR. You can record from connected equipment, such as a camcorder. When an input source is inserted into AV 2 IN while viewing TV, the input will be switched to AV 2 IN automatically.

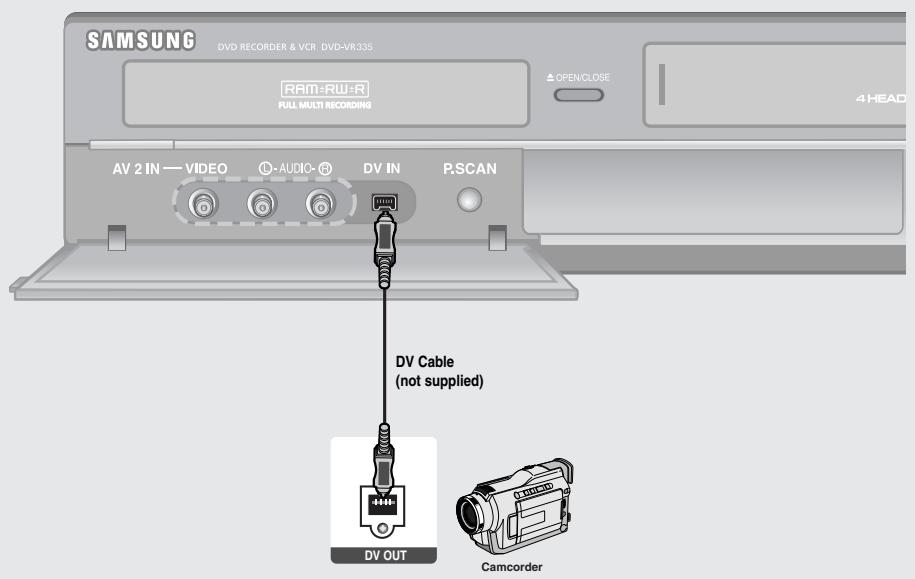

Connecting a Camcorder to the DV IN jack If your camcorder has a DV output jack, connect it to the DV input jack of your DVD Recorder & VCR.

DV Cable (not supplied)

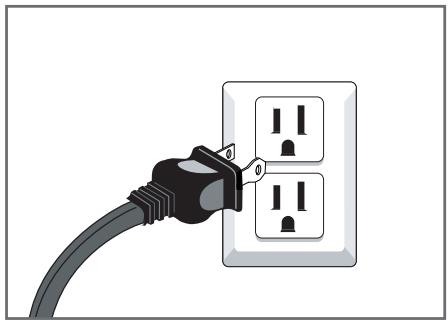

Step 6 : Connecting the Power Cord After all connections are complete, plug the power cord in the wall outlet.

When the DVD Recorder & VCR operates normally, the current time is automatically set and displayed in the front panel display.

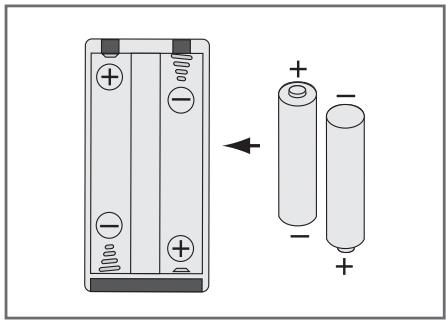

Install Batteries in the Remote Control • Open the battery cover on the back of the remote control. • Insert two AAA batteries. Make sure that the polarities (+ and -) are aligned correctly. • Replace the battery cover.

If the remote control does not operate properly: • Check the polarity + - of the batteries (Dry-Cell) • Check if the batteries are drained. • Check if the remote sensor is blocked by obstacles. • Check if there is any fluorescent lighting nearby.

Dispose of batteries according to local environmental regulations. Do not put them in the household trash.

“Auto” appears in the front panel display. This means that the current time is being set automatically through the antenna under connection(Auto Program). The setup may take several minutes.

Setting the Remote Control You can control part of another manufacturer’s TV functions with this remote control. • Buttons that can be controlled on your TV : TV POWER, INPUT SEL., VOL +/-, CH/TRK ( / ), TV MUTE, 0~9, 100+.

To determine whether your television is compatible, follow the instructions below. 1. Switch your television on. 2. Point the remote control towards the television. 3. Press and hold the TV button and enter the two-figure code simultaneously corresponding to the brand of your television by pressing the appropriate number buttons.

Result: If your television is compatible with the remote control, it will switch off. It is now programmed to operate with the remote control. ■ If several codes are indicated for your Note

television brand, try each one in turn until you find one that works. If you replace the remote control’s batteries, you must set the brand code again.

You can then control the television using the following buttons. Button TV POWER INPUT SEL. VOL +/-

Function Used to switch the television on and off. Used to select an external source. Used to adjust the volume of the television.

CH/TRK ( / ) Used to select the desired channel. TV MUTE Used to toggle the sound on and off. 0~9 Used to input number directly. 100+ Used to select channels over 100.

The various functions may not be able to be Note

controlled on all televisions. If you encounter problems, operate the television directly.

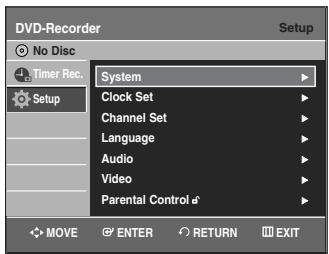

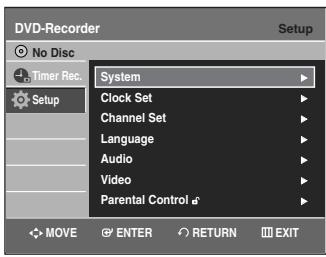

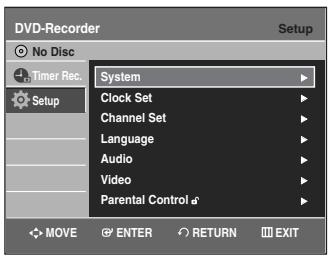

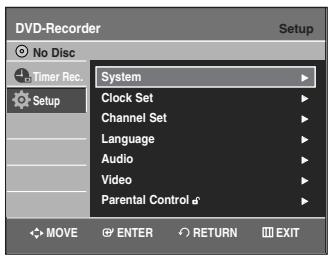

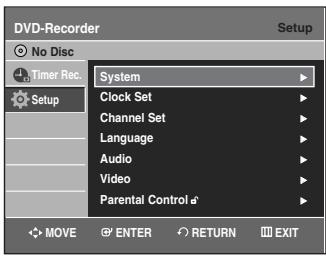

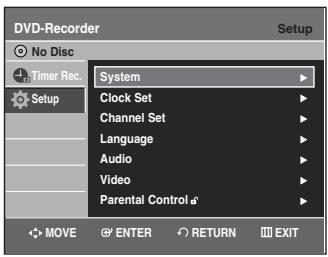

On-Screen Menu Navigation The on-screen menus allow you to enable or disable various functions on your DVD Recorder & VCR. Use the following buttons to open and navigate through the on-screen menus. DVD-Recorder

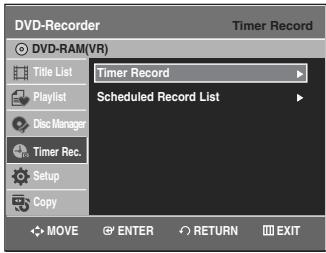

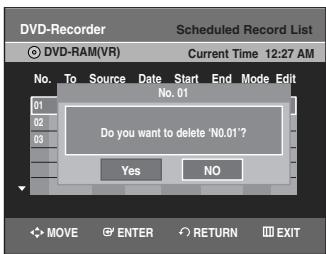

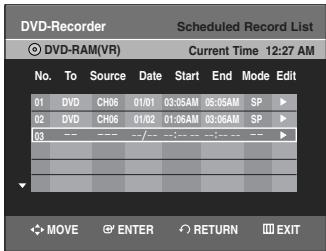

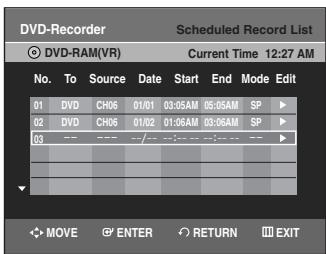

Scheduled Record List

RETURN EXIT Press this button on the remote control to open the on-screen MENU. Press again to exit the on-screen MENU.

Press these buttons on the remote control to move the selection bar …/†,œ /√ to cycle through the menu options.

Press this button on the remote control to confirm any new settings.

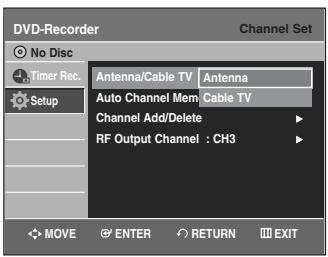

On-Screen Menu Navigation31 Auto Clock Set 32 Manual Clock Set 33 Channel Set 34 Auto Channel Memory34

Press this button on the remote control to return to the previous MENU screen displayed or to exit the on-screen MENU.

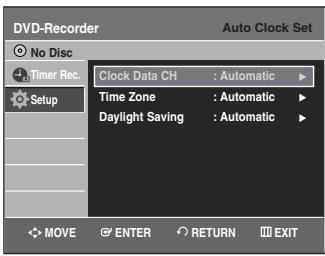

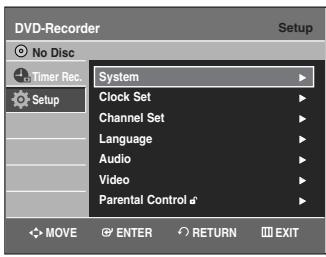

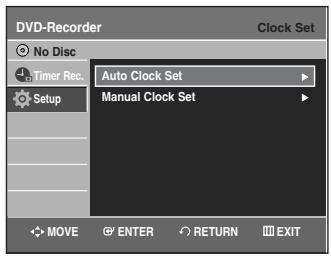

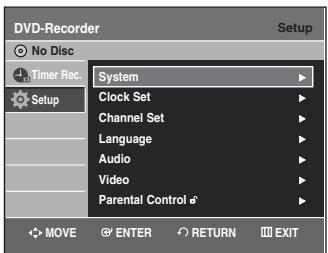

This menu is used to set the current time. You need to set the time to use timer recording.

MOVE You must have the antenna connected to set

the Auto Clock. See pages 15~17 for Antenna Connections. The Clock will be automatically set when you turn off the recorder.

With the unit in Stop mode/No Disc mode, press the MENU button. DVD-Recorder

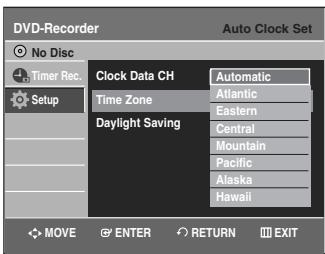

■ If your clock is set to the wrong time zone or Note

daylight saving, you can adjust these settings without turning off the Auto Clock Set function.

Scheduled Record List

ENTER RETURN Press the …† buttons to select a channel that carries a time signal, then press the ENTER button. Select Auto to set the channel automatically.

EXIT Press the …† buttons to select the time zone of your area, then press the ENTER or √ button. Select Automatic to set the time zone automatically.

MOVE ENTER RETURN EXIT If Auto Setup fails to set the DVD Recorder & VCR’s internal clock by locating a local TV station, follow these steps to set the date and time manually.

For accurate Timer Recording, your DVD Recorder & VCR's internal clock must be set correctly. With the unit in Stop mode/No Disc mode, press the MENU button. DVD-Recorder

Press the …†œ √ buttons to select the Current Date and Time, then press the ENTER button. When the current time is stored in memory and then the set is powered off, the current time will appear in the front panel display.

Scheduled Record List

This feature allows you to manually set the DVD Recorder & VCR’s tuner band to Antenna or Cable, whichever you connected to the Antenna In jack during initial setup. • Use this setting only if Auto Setup detected the incorrect tuner band, i.e. channels are coming in on the wrong channel numbers.

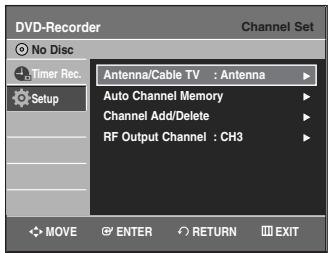

Scheduled Record List

RF Output Channel : CH3

• Cable TV - Select this if the DVD Recorder & VCR is connected to a cable TV. (See page 16)

• Antenna - Select this if the DVD Recorder & VCR is connected to an indoor or outdoor VHF/UHF antenna. (See pages 15, 17)

Cable TV Select the Antenna or Cable TV(Signal Source) that matches the antenna connection you selected on pages 15~17.

Antenna/Cable TV Antenna

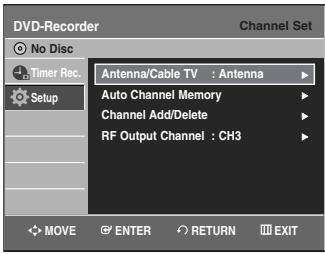

Auto Channel Memory will automatically seek and store all active channels in your area.

Antenna/Cable TV Setup

Antenna/Cable TV RF Output Channel : CH3

RF Output Channel : CH3

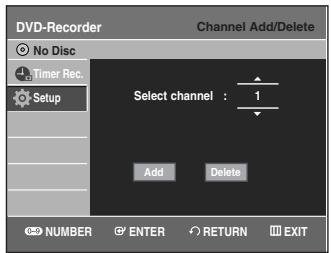

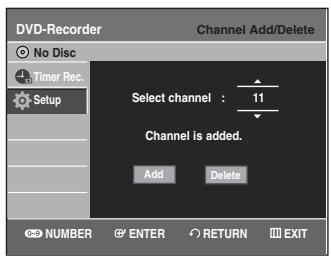

NUMBER Channel Add/Delete

RETURN EXIT Press the …† or number buttons to select the channels you want to add or delete on the Select channel screen. Then, press the ENTER button. • Using CH/TRK ( / ) buttons for channel selection allows the user to add/delete one channel at a time. • Using …† buttons for channel selection jumps to the next channel memorized in Auto Channel Memory.

Channel is added. Add

Use this feature if Auto Channel Memory missed a channel that you would like to add or if you wish to remove a channel.

RETURN EXIT RF Output Channel When you connect the DVD Recorder & VCR to your TV with the RF Antenna Cable, follow the steps below to set the RF Output Channel.

Antenna/Cable TV Setup

RF Output Channel : CH3

• The DVD Recorder & VCR will automatically search for all available channels in the selected tuner band. This procedure may take a few minutes to complete. • When finished, the lowest channel will be displayed. • If you want to stop or cancel scanning, press the ENTER button. Then select ‘YES’.

RF Output Channel : CH3

Antenna/Cable TV Setup

Press the …† buttons to select CH3 or CH4, then press the ENTER or √ button. The message "Please tune your TV to channel 3 (4)" will appear on the screen. Change your TV channel to CH3 or CH4 to match the RF Output Channel of the DVD Recorder & VCR.

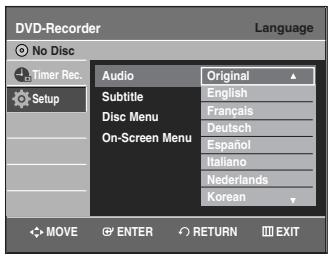

If you set audio, subtitle, disc menu and on-screen menu language in advance, they will come up automatically every time you watch a movie. If the selected language is not recorded on the disc, the original pre-recorded language is selected.

previous menu. Press the MENU button to exit the menu. ■ The selected language will only appear if it is supported on the disc.

Setting Up the Audio Options Allows you to setup the audio device and sound status settings depending on the audio system in use.

1. Off : Doesn’t output digital signal. 2. On : Outputs DTS Bitstream via digital output only. Select DTS when connecting to a DTS Decoder. When DTS soundtrack is played, sound is not Note

Dynamic Compression This is only active when a Dolby Digital signal is detected. 1. On : When the Movie soundtracks are played at low volume or from small speakers, the system can apply appropriate compression to make low-level content more intelligible and prevent dramatic passages from getting too loud. 2. Off : You can enjoy the movie with the standard Dynamic Range.

no audio will be heard.

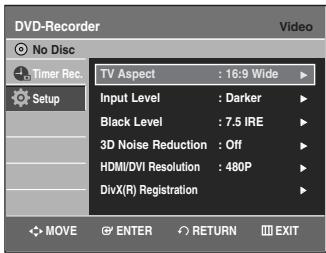

TV Aspect Depending on the type of television you have, you may want to adjust the screen setting. (aspect ratio) • 4:3 Letter Box : Select when you want to see the total 16:9 ratio screen DVD supplies, even though you have a TV with a 4:3 ratio screen. Black bars will appear at the top and bottom of the screen. • 4:3 Pan & Scan : Select this for a conventional size TV when you want to see the central portion of the 16:9 screen. (Extreme left and right side of movie picture will be cut off.) • 16:9 Wide : You can view the full 16:9 picture on your wide-screen TV.

Press the …† buttons to select the desired item, then press the ENTER or √ button.

Input Level Adjusts the level of the input signal. • Darker : If you feel the screen is too light

and you want to make the screen darker. • Lighter : If you feel the screen is too dark and you want to make the screen lighter.

Black Level Adjusts the black level of the screen. • 7.5 IRE : This will enhance the black level for increased brightness/contrast when viewing DVDs. Select this when you want to make the screen lighter. • 0 IRE : This is the standard NTSC reference black level for consistent brightness/contrast across all sources. Select this when you want to make the screen darker.

3D Noise Reduction • Off : Normal • On : Select to remove noise from the screen.

This function depends on disc type. It may not Note

work for some disc types. IRE: Short for the Institute of Radio Engineers.

An IRE unit is a relative unit of measure equaling 1/140th of the peak-to peak (p-p) video amplitude.

HDMI/DVI Resolution This setting is used when the unit is connected by HDMI or DVI to Display devices (TV, Monitor, etc). DVD-Recorder

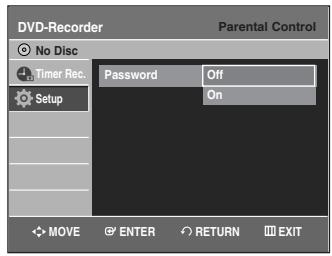

MOVE ENTER RETURN The Parental Control function works in conjunction with DVDs that have been assigned a rating - which helps you control the types of DVDs that your family watches. There are up to 8 rating levels on a disc.

• Press the P.SCAN button while the unit is in stop mode to select the output resolution. - If your TV is connected the HDMI or DVI cable, the output resolution mode changes in the following sequence each time you press the P.SCAN button:

➞ 480p ➞ 720p ➞ 1080i - If your TV is connected via AV or component cables(without HDMI/DVI cable), the output resolution mode toggles between 480p/480i.

Even if HDMI/DVI cable is connected to your TV, the AV connection outputs only 480i and the Component connection outputs only 480p irrespective of the on-screen display.

NUMBER DivX(R) Registration

No Disc Timer Rec. Setup

Confirm the password

Please use the Registration code to register your DVD Recorder with the DivX(R) Video On Demand format. To learn more, visit www.divx.com/vod

NUMBER ENTER RETURN EXIT English - 39

Connect the DVD-R335 to your TV via HDMI or DVI. Set your TV's input to HDMI or DVI.

The Re-enter Password screen appears to confirm the password. Enter your password again, and then press the ENTER or √ button. DVD-Recorder

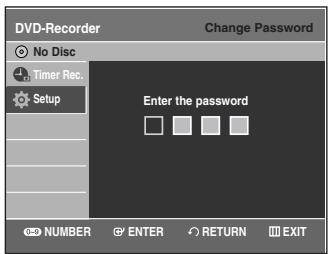

About the Change Password

NUMBER Enter the password

RETURN Confirm the password

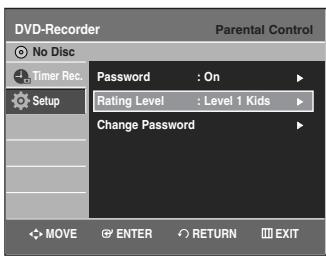

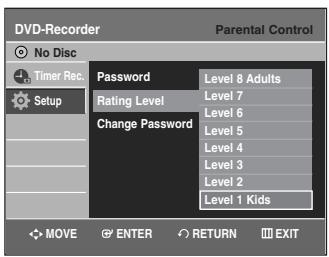

EXIT Press the …† buttons to select the rating level you want, then press the ENTER or √ button. For example, if you select up to Level 6, discs that contain Level 7, 8 will not play. A larger number indicates that the program is intended for adult use only.

Enter your password again.

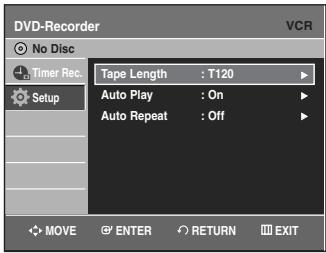

This function allows you to set up the VCR.

Tape Length This information is usually printed on the tape box. The menu cycles through: T-120, T-160 or T-180. Once the type of cassette is set, the VCR can display the amount of time remaining on the tape when you press the INFO button. DVD-Recorder

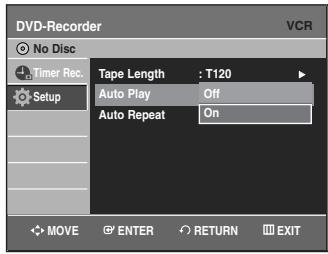

• Off : Auto play is disabled. • On : The VCR will automatically begin playing a video tape when it is inserted, as long as the safety tab of the cassette has been removed.

DVD EP Mode Time : 6 Hours

ENTER If you want your videotapes to play automatically when you insert them, turn on Auto Play.

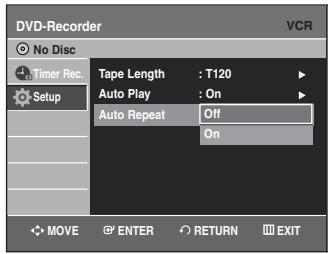

It sets the VCR to play a tape repeatedly (unless a tape control is activated :Stop, Fast Forward or Rewind). DVD-Recorder

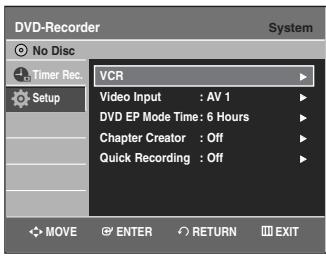

You can watch video from an external component through the AV 1(Composite) or S-video input jacks.

You can set the EP(Extended Play)mode’s time setting to 6 or 8 hours.

Automatic Chapter Creator

Press the REC button to start recording. The message "Do you want to create the chapter menu after this recording?" is displayed.

Do you want to create the chapter menu after this recording?

A DVD-Video consists of ‘Titles’ and ‘Chapters’. When you record one program, it makes one Title. If you use this function, the Title will be divided into Chapters.

Press the œ √ buttons to select Yes and press the ENTER button and recording begins. In XP and SP mode, you must record at least 5 minutes to create a chapter. In LP and EP mode, 15 minutes. Press the STOP button to stop recording.

RETURN EXIT Previous

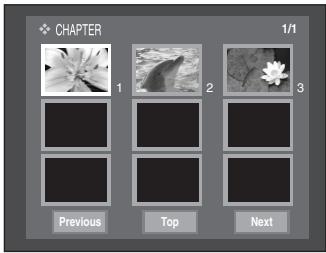

To display the created chapters, select the desired Title and then press the DISC MENU button. The chapter menu for the selected Title will be displayed. 1/1

EXIT On DVD-RW discs, additional chapters and

Press the …† buttons to select On, then press the ENTER or √ button. Press the MENU button to exit the menu.

Set the recording speed by pressing the REC SPEED button on the remote (see page 63 for more information on recording speeds).

titles can be added to a finalized disc by unfinalizing and recording again.On DVD-R discs, once finalized, no additional chapters or titles can be recorded. The Automatic Chapter Creator function does

not work during Timer Recording or when you turn the power off. DVD-R discs cannot be unfinalized.

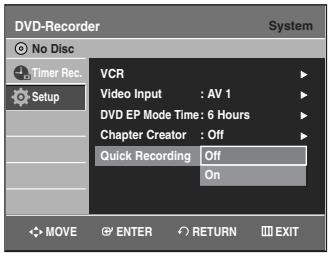

Quick Recording It takes about 10 seconds for a disc to load (initialize) every time you turn on the unit. To bypass this initialization process, you can set the Quick Recording feature to On. This enables you to record immediately without having to wait for the disc to load.

ENTER RETURN EXIT Press the …† buttons to select On, then press the ENTER or √ button.

The Quick Recording is set to Off as default. If this function is set to on, power consumption

will be increased when the unit is powered off.

Read the following information before playing a disc.

Region code (DVD-Video only)

This section introduces basic functions of playback by disc type.

DTS Both the DVD Recorder & VCR and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play. The Region Number for this DVD Recorder & VCR is described on the rear panel of the DVD Recorder & VCR.

Disc types that can be played Stereo

NTSC broadcast system in U.S.A, Canada, Korea, Japan,etc.

Max. Playing Time or minute. 240 480 80 160 74 20 1 hr (XP: Excellent Quality) 2 hrs (SP: Standard Quality) 4 hrs (LP: Long Playback) 6 hrs or 8 hrs (EP:Extended) 2 hrs (XP: Excellent Quality) 4 hrs (SP: Standard Quality) 8 hrs (LP: Long Playback) 12 or 16 hrs (EP:Extended) 1 hr (XP: Excellent Quality) 2 hrs (SP: Standard Quality) 4 hrs (LP: Long Playback) 6 or 8 hrs (EP:Extended) 1 hr (XP: Excellent Quality) 2 hrs (SP: Standard Quality) 4 hrs (LP: Long Playback) 6 or 8 hrs (EP:Extended) 2 hrs (XP: Excellent Quality) 4 hrs (SP: Standard Quality) 8 hrs (LP: Long Playback) 11 or 15 hrs (EP:Extended) 1 hr (XP: Excellent Quality) 2 hrs (SP: Standard Quality) 4 hrs (LP: Long Playback) 6 or 8 hrs (EP:Extended) 1 hrs (XP: Excellent Quality) 2 hrs (SP: Standard Quality) 4 hrs (LP: Long Playback) 6 or 8 hrs (EP:Extended) 2 hrs (XP: Excellent Quality) 4 hrs (SP: Standard Quality) 8 hrs (LP: Long Playback) 11 or 15 hrs (EP:Extended)

Discs that cannot be played • DVD-Video with a region number other than “1” or “ALL” • 3.9 GB DVD-R Disc for Authoring. • A DVD±R/DVD-RW(V) disc which has been recorded and not finalized in a different manufacturer's recorder. • PAL discs • DVD-ROM/PD/MV-Disc, etc. • Video CD/CVD/SVCD/CD-ROM/CDV/CD-G/CD-I

Press the OPEN/CLOSE button.

Place a disc gently into the tray with the disc’s label facing up.

Press OPEN/CLOSE button to close the disc tray. • Your DVD Recorder & VCR closes the disc tray and plays the disc automatically. • The recorder does not play discs automatically after being powered on initially. • When the recorder is powered on and a disc is in the tray, the unit will be activated and wait in stop status. Press the PLAY button to start playback.

Press the STOP button to stop playback.

This DVD Recorder & VCR can only operate with

discs that are compatible with DVD-RAM Standard Version 2.0. Playback and/or recording may not work for some types of discs or when specific operations, such as angle change and aspect ratio adjustment, are being performed. Information about the disc is written in detail on the box. Please refer to this if necessary. Do not allow the disc to become dirty or scratched. Fingerprints, dirt, dust, scratches and deposits of cigarette smoke on the recording surface may make it impossible to use the disc for recording. DVD-RAM/±RW/±R discs may not be able to play on some DVD players, depending on the player, disc and the condition of the recording. Discs with PAL programs recorded on them cannot be played using this product.

When you stop playing the disc, the DVD Recorder & VCR remembers where you stopped. When you press PLAY button again, it will pick up where you left off. (unless the disc is removed or the DVD Recorder & VCR is unplugged, or if you press the STOP button twice.) This function is only applicable to DVD-VIDEO, DVD-RAM, DVD±RW, DVD±R or Audio CDs (CD-DA).

Do not move your DVD Recorder & VCR while

playing, as this may cause damage to the disc.

CAUTION Make sure to press the OPEN/CLOSE button

to open or close the disc tray. Do not push the disc tray while it is being

opened or closed, as this may cause a product malfunction. Do not place foreign materials on or in the disc tray. Some functions may perform differently or be disabled depending on the disc type. If this occurs, refer to the instructions written on the disc case. Be especially careful that children's fingers are not caught between the disc tray and the tray chassis when it closes. After turning power on, it will take a few seconds until the DVD Recorder & VCR operates.

Using the Disc Menu and Title Menu Some discs contain a dedicated menu system that allows you to select special functions for title, chapters, audio track, subtitles, film previews, information on characters, etc.

For DVD-VIDEO disc Press the DISC MENU button to enter the disc menu of the disc.

Using the Search & Skip Functions Searching through a Chapter or Track

During playback, press the SEARCH œœ or √√ button on the remote control. Each time you press the SEARCH button, the playback speed will change as follows. DVD-VIDEO/ DVD-RAM/DVD±RW DVD±R MPEG4

• Move to the setup menu related to playback operation. • You can select audio language and subtitle etc., provided by the disc.

• You can scan the program in reverse order. To return to normal speed playback, press the √ll button. No sound is heard during Scan(Search) mode, Note

For DVD-RAM/DVD±RW/DVD±R disc

except on CDs (CD-DA). (You can hear the sound during forward search (Fast 1).) No sound is heard during scanning in all MPEG4 modes. Depending on the disc type, the sound quality may lower during Fast 1 mode.

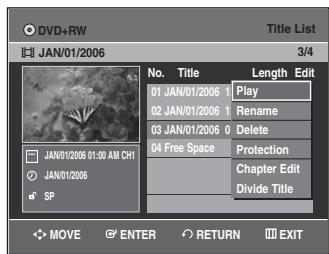

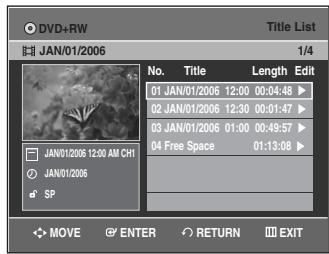

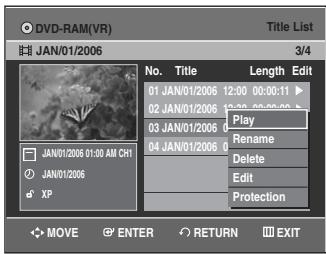

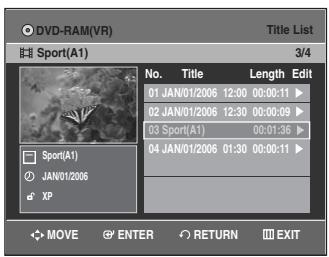

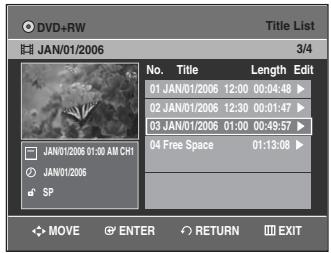

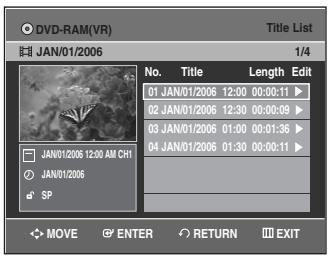

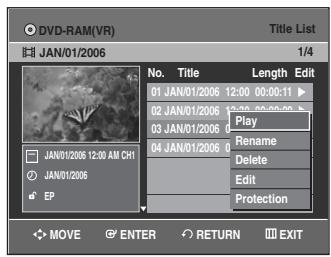

Press the TITLE LIST button to display title list.

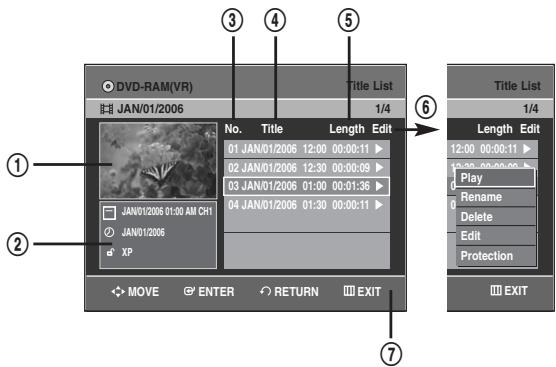

Skipping Chapters or Tracks Title List : The Title List is simply a list of

titles on a disc. If a title is deleted, that title cannot be played again. Playlist (DVD-RAM/-RW(VR)) :

A playlist is a custom-made list of titles. When one playlist is played, only the titles within the playlist will play and then stop. Even if that playlist is deleted, the original recording will not be deleted.

During playback, press the lœœ or √√l button on the remote control.

• If you press the lœœ button If you press the lœœ button, it moves to the beginning of the chapter, track or marker(DVD-RAM, DVD-RW(VR mode) ). Pressing the button once again within 3 seconds returns to the beginning of the previous chapter, track or marker(DVD-RAM, DVD-RW(VR mode) ).

• If you press the √√l button If you press the √√l button, it moves to the next chapter, track or marker(DVD-RAM,DVD-RW (VR mode) )

Skipping ahead 30 seconds During the playback, press F.ADV/SKIP button to skip ahead exactly 30 seconds.

Press the TITLE MENU button to move to the title menu of the disc. • Use this button if the disc contains more than one title. Some discs may not support the title menu functionality.

About ANYKEY Slow Motion Play (DVD-VIDEO / DVD-RAM / DVD±RW / DVD±R)

The ANYKEY functions allows you to easily search for a desired scene by accessing title, chapter or time. You can also change the subtitle and audio settings and set some features including Repeat, Angle and Zoom.

During pause mode, press the SEARCH œœ or √√ button on the remote control for more than 1 second.

Moving to a scene directly using the ANYKEY

• Each time you press the √√ button : l √ Slow 1 ➝ l √ Slow 2 ➝ l √ Slow 3

• If you want to move to a title or a chapter to find a desired scene.

• Each time you press the œœ button : œl Slow 1 ➝ œl Slow 2 ➝ œl Slow 3 To return to normal speed playback, press the √ll button.

Press the ANYKEY button during playback.

Press the …† buttons to select Title, Chapter.

Slow motion operates only in the forward

MOVE During pause mode, press the F.ADV button on the remote control. • Each time the button is pressed, a new frame will appear. To return to normal speed playback, press the √ll button.

No sound is heard during Step or Slow mode. Step motion operates only in the forward

• If you want to move to a desired time to help you find a scene.

Press the ANYKEY button during playback.

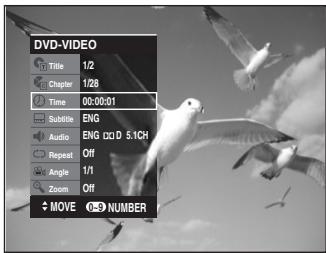

Press the …† buttons to select Time.

0~9 NUMBER Enter the time in the sequence of hours, minutes, and seconds using the number buttons, then press the ENTER button.

This may not work for some discs. When an Note

Playing a Certain section Repeatedly (A-B Repeat Playback)

Press the ANYKEY button during playback.

Audio CD(CD-DA) or an MP3 disc is inserted, depending on the disc type, the information display may not be appear. The Time Search function does not operate in some discs. To make the screen disappear, press the ANYKEY button again.

Press the ENTER button at the point where you want repeat play to start (A) and press it again at the point where you want the repeat play to stop (B). Repeat playback of the A-B section starts.

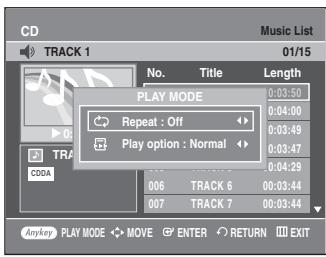

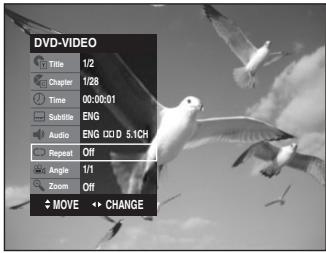

Playing Repeatedly(Repeat Playback) Repeat A-B

Press the ANYKEY button during playback.

Press the CANCEL button to return to normal playback.

D 5.1CH If you set point (B) before five seconds has

lapsed, the prohibition mark (

CDs do not support the Repeat A-B function.

Selecting the Audio language Audio languages may not work depending on the disc type. This is only available during playback.

Using the AUDIO button

Selecting the SUBTITLE language Subtitle languages may not work depending on the disc type. This is only available during playback.

Press the AUDIO button during playback.

ENG Dolby Digital 5.1CH Using the SUBTITLE button

Press the SUBTITLE button during playback. Subtitle

Press the AUDIO or …† buttons to select the desired audio language.

Using the ANYKEY button

Press the ANYKEY button during playback.

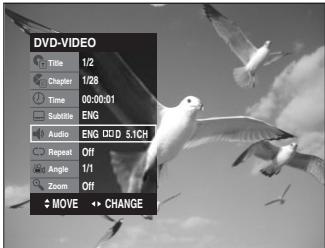

Press the …† buttons to select Audio, then press the œ √ buttons to select the desired audio language.

Press the ANYKEY button during playback.

they are disc-specific. Some discs allow you to select the audio

language for the disc menu only. The subtitle display may be different dependNote

ing on the disc type. If the subtitles overlap, disable the caption

function on your TV. Some discs allow you to select the language

for the disc menu only.

Changing the Camera Angle

If a DVD-VIDEO contains multiple angles of a particular scene, you can use the Angle function. If the disc contains multiple angles, ANGLE appears on the screen.

DVD-VIDEO Using the ANGLE button

Press the ANYKEY button during playback.

Press the ANGLE button, during playback.

Press …†, œ √ buttons to move to the area you want to enlarge.

Press the ENTER button. Each time the ENTER button is pressed, the picture is enlarged up to 4X (four times the normal size).

Press the ANYKEY button during playback.

MOVE D 5.1CH CHANGE This function is disc-dependent, and may not Note

work all DVDs. This function does not work when a DVD has not been recorded with a multi-camera angle system.

DVD-VIDEO/ DVD-RAM/DVD±RW/ DVD±R

normal size ➝ 2X ➝ 4X ➝ 2X ➝ normal size

You can also select Zoom function directly Note

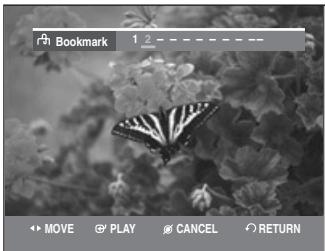

Playing back a Bookmark

Press the MARKER button.

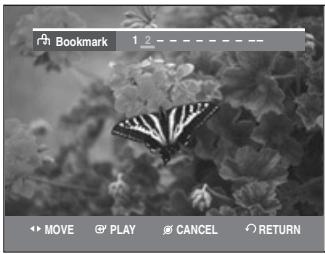

Press the œ √ buttons to select a bookmarked scene.

Set marks at scenes you want to see again so that you can start playback from the marked position.

Press the MARKER button during playback. MOVE Bookmark

Press the œ √ buttons to select a bookmarked scene.

Press the œ √ button to move to the next position.

Press the ENTER button again when the desired scene appears. • The number 2 is displayed and the scene is memorized. Repeat above to bookmark other positions. You can bookmark up to 10 scenes.

RETURN Press the ENTER or √ll button to start playing from the selected scene.

MOVE CANCEL Clearing a Bookmark

RETURN Press the ENTER button when the desired scene appears. • The number 1 is displayed and the scene is memorized. Bookmark

- - - - - - - - - --

PLAY CANCEL RETURN Press the CANCEL button to delete the selected bookmark. Bookmark

1 - - - - - - - - --

1 2 - - - - - - - --

MOVE SELECT RETURN When the disc tray is opened and then MOVE

PLAY CANCEL RETURN Note

closed, bookmarks will disappear.

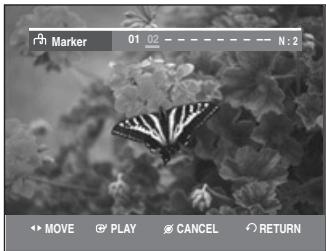

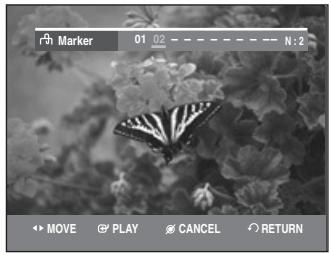

Playing back a Marker

Press the MARKER button during playback.

Press the œ √ buttons to select a marked scene.

Press the MARKER button during playback. Marker

Press the ENTER button when the desired scene appears. Marker

01 - - - - - - - - -- N : 1

PLAY CANCEL RETURN Press the ENTER or √ll button to start playing from the selected scene. • If you press the NEXT SKIP (√√l )button or the PREVIOUS SKIP(lœœ)button in marker mode, and the next or current marked point plays for shorter than three seconds, playback starts from the previous marked point.

MOVE PLAY CANCEL RETURN

• The number 01 is displayed and the scene is memorized.

Press the œ √ button to move to the next position.

Press the ENTER button again when the desired scene appears. Marker

Press the MARKER button during playback.

Press the œ √ buttons to select a marked scene. Press the CANCEL button to delete the selected mark. Marker

• The number 02 is displayed and the scene is memorized. • DVD-RAM or DVD-RW (VR Mode) discs have the Marker function instead of the Bookmark function. The Marker function allows you to mark up to 99 scenes. Since the scenes may be displayed as many different pages, numbering is necessary. If a disc in use is encoded with Disc Protect, Markers cannot be set or deleted. Only playback is available.

MOVE PLAY CANCEL RETURN

• When a marker is cleared while DVD-RAM/ DVD-RW(VR mode) is playing, marker numbers will change. For example, if the 7th marker is cleared after ten markers are registered, the marker numbers after the eighth will automatically move ahead by one and the 8th marker becomes the 7th.

Playing back an Audio CD (CD-DA)

Buttons on the Remote Control used for CD playback

Each disc has a variety of menu functions available.

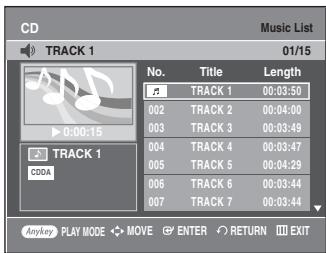

Playing an Audio CD (CD-DA) Insert an Audio CD (CD-DA) into the disc tray. • The Audio CD menu appears and the tracks (songs) are played automatically.

00:04:00 00:03:49 00:03:47 00:04:29 00:03:44 00:03:44

Press the …† buttons to select the track (song) to start playback from, and then press the ENTER button.

00:04:00 00:03:49 00:03:47 00:04:29 00:03:44 00:03:44

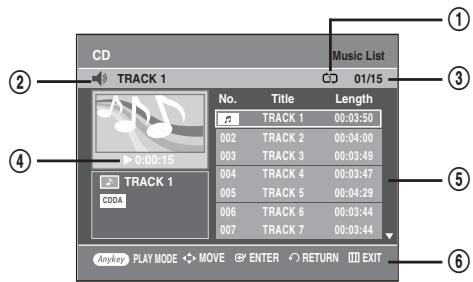

1. Play mode icon. 2. Current track (song): Displays the number of the track currently being played. 3. Displays the current play index and total track number. 4. This shows the operating state of a disc and a playback time corresponding to a portion that is currently played. 5. Displays the track list (song list) and the playing time of each track. 6. Button display

1. lœœ button: Returns to the beginning of the current track when pressed during playback. If pressed again, your DVD Recorder & VCR moves to and plays the previous track. If you press this button within three seconds after playback starts, the previous track will be played. If you press this button after three seconds, the current track will be replayed from the beginning. 2. √√l button: Plays the next track. œœ /√ √√) button: Fast Play (X2, X4, X8) 3. Press the (œ 4. ■ : Stops a track(song). 5. √ll : Plays a track(song) or pauses playback. 6. …†: Selects a track (song). 7. √, ENTER button: Plays the selected track (song). 8. ANYKEY : To display the play mode window. (Repeat or Play Option).

Playing back an MP3 Disc

Buttons on the Remote Control used for MP3 disc playback

Playing an MP3 Disc Insert an MP3 disc into the disc tray.

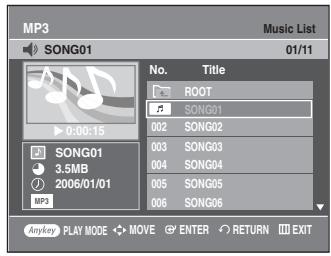

Press the …† buttons to select the track (song) you want to hear, and then press the ENTER button.

1. lœœ button: Returns to the beginning of the current track when pressed during playback. If pressed again, your DVD Recorder & VCR moves to and plays the previous track. If you press this button within three seconds after playback starts, the previous track will be played. If you press this button after three seconds, the current track will be replayed from the beginning. 2. √√l button: Plays the next track. 3. ■ : Stops a track(song). 4. √ll : Plays a track(song) or pauses playback. 5. RETURN button: Moves to the folder to which the current song belongs. 6. …† : Selects a track (song). 7. √, ENTER button: Plays the selected track (song) or displays the files in the selected folder. 8. ANYKEY : To display the play mode window. (Repeat or Play Option).

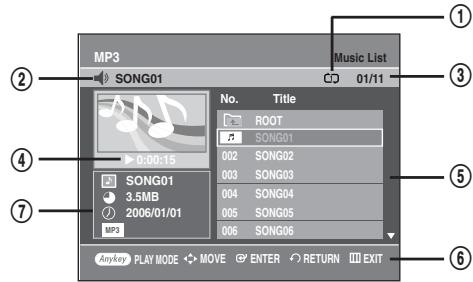

1. Play mode icon. 2. Current track (song): Displays the name of the track being played. 3. Displays the current play index and total file number. 4. This shows the operating state of a disc and a playback time corresponding to a portion that is currently played. 5. Displays the mp3 file and folder list (song list). 6. Button display. 7. MP3 file information

00:03:49 00:03:47 00:04:29 00:03:44 00:03:44

00:03:50 00:04:00 00:03:49

Repeat Track (CD (CD-DA)/MP3) Repeat Folder (MP3) Repeat Disc (CD (CD-DA)/MP3)

Press the CANCEL button to return to normal playback.

00:03:49 00:03:47 00:04:29 00:03:44 00:03:44

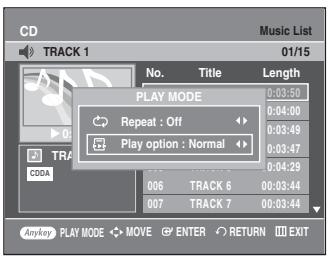

EXIT Press the œ √ buttons to select the desired repeat mode you want to play repeatedly, then press the ENTER button.

001 MODE TRACK 1 PLAY 002 TRACK 2 Repeat : Off 003 TRACK 3 Play option : Normal 004 TRACK 4 005 TRACK 5

Length 00:03:50 00:04:00 00:03:49 00:03:47 00:04:29

• Normal: Tracks on a disc are played in the order in which they were recorded on the disc. • Playlist: The Playlist playback option allows you to select the order in which you want tracks to play. • Intro[ I ]: The first 10 seconds of each track will be played. If you want to listen to the music that you have selected, press the ENTER button or √ll button. The play option will be changed to Normal Play. When Intro Play is completed, Normal Play is performed. • Random[ R ]: The Random option plays a disc’s tracks in random order. After a random list is generated and played completely, another random list is generated and played. Random Play is continued until the play option is changed.

00995F-VR335_XAC-Eng2

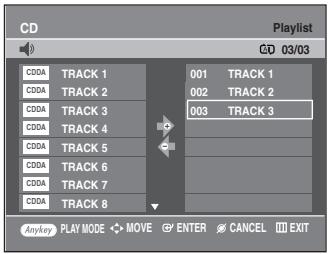

You can register a maximum 30 tracks in the playlist.

In still mode, press the ANYKEY button. The Play option will be highlighted.

Press the œ √ buttons to select Playlist, then press the ENTER button. Playlist screen is displayed. CD

Insert a JPEG into the disc tray.

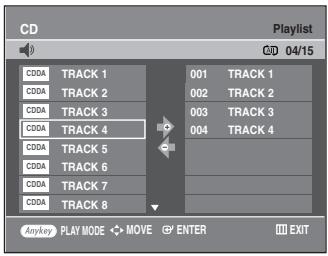

PLAY MODE MOVE ENTER EXIT Press the …† buttons to select tracks in the order in which you want them to play, then press the ENTER button. CD

CDDA ENTER MOVE ENTER EXIT If you selected a wrong track, press the √ button, then press the …† buttons to select the wrong track. Press the CANCEL button. The wrong track will be removed.

MOVE ENTER CANCEL EXIT Press the PLAY button to play the playlist.

MPEG4 File is used to contain the audio and video data. MPEG4 File with following extensions can be played. - .AVI, .DIVX, .avi, .divx

Insert a MPEG4 Disc into the disc tray. DVD-Recorder

: Returns to the Album screen. : The unit enters slide show mode. Before the slide show can begin, the picture interval (Slide show speed) must be set. : Each time the ENTER button is pressed, the picture rotates 90 degrees clockwise. : Each time the ENTER button is pressed, the picture is enlarged up to 4X(four times the normal size).

Title ROOT DIVX01 DIVX02

When MPEG4 file is played, you can use following functions (see next page). Pressing the STOP button once during playback will display the file list, pressing the button again will exit the menu screen.

During playback, press the SKIP ( or ) button, it moves forward or backward 5 minutes.

During playback, press the SEARCH ( or ) button and press again to search at a faster speed. ➝Fast 1 ➝ Fast 2 ➝ Fast 3

Insert a standard VHS tape into the VCR deck. • When a tape is inserted, power will turn on automatically.

Press the √II(PLAY/PAUSE) button on the remote control or on the front panel of the unit. The videotape will begin to play automatically if the Record Safety Tab is removed and Auto Play is turned on.

Step Motion In the still or play mode, press the Play F.ADV/SKIP button on the remote control.

■ This DVD Recorder can play the following video compression formats. - MPEG4 Codec format : DivX 3.11 DivX 4.x DivX 5.x - Audio format : .MP3, .MPEG, .PCM, . AC3, .DTS ■ Supported subtitle file formats: .smi, .srt, .sub, .psb, .txt (The subtitle file should have exactly the same name to corresponding MPEG4 file name) ■ Some MPEG4 files created on a personal comput-

Press the (STOP) button on the remote control or on the front panel of the unit.

Tracking The Tracking adjustment removes the white lines that sometimes appear during playback because of slight differences in recording decks. The CH/TRK ( / ) button will automatically align the recorded tracks with the playback heads to solve this problem. You may also set tracking manually.

Adjust Tracking Manually During playback, press the CH/TRK ( / ) buttons to remove white lines from the picture.

er may not be play back. That is why Codec Type, Version and Higher resolution over specification is not supported.

Special VCR Playback Features While a videotape is playing, you can enjoy a variety of special playback features, including Still, Frame Advance, Skip, Slow motion, and more.

Pause In Play mode, press √II(PLAY/PAUSE)button to still a single frame.

Variable Search System Each time you record a cassette on this DVD Recorder & VCR, an “index” is automatically marked on the tape when recording is started. The Search function allows you to fast-forward or rewind to a specific index and start playback from that point. Depending on the direction selected, the indexes are numbered as follows • This DVD Recorder & VCR uses a standard indexing system (VISS). As a result, it will recognize any indexes marked by other VCRs using the same system and vice versa.

In Pause mode, press F.ADV/SKIP button to advance to the next frame.

Go To Zero Use this feature when you want to search for the 0:00:00 counter position on a cassette.

In Play mode, press Forward (√√)button or Rewind (œœ)button to Fps/review at two speeds: • Picture Search - Press and release repeatedly to advance the tape forward or backward at 2,3,5,7 times normal speed. • Jet Search - Press and hold to advance the tape forward or backward at 7 times normal speed.

Press the CANCEL button at the point on the tape where you want to set the counter to 0:00:00.

In Play mode, press F.ADV/SKIP button to cue ahead exactly 30 seconds. Press F.ADV/SKIP button repeatedly up to 4 times to cue ahead 2 minutes.

Forward Intro Scan Reverse Intro Scan

MOVE SELECT Slow motion In Pause mode, press √√ button for slow motion. Press the √√ button repeatedly to vary slow motion speed from 1/5 to 1/30 of normal playback. Press the PLAY button twice to resume normal viewing.

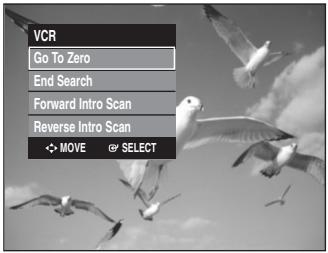

Press the …† buttons to select Go To Zero, then press the ENTER button. The VCR will rewind or fast forward, searching for the 0:00:00 counter position, and then automatically stop at that position.

The DVD Recorder & VCR allows you to playback high quality S-VHS tapes.

Insert an S-VHS tape into the VCR deck.

Press √II (PLAY/PAUSE) button on the remote control or on the front panel to play an S-VHS tape.

End Search Use this feature when you want to search for a blank position to record a program on a cassette.

Press the …† buttons to select Forward Intro Scan or Reverse Intro Scan, then press the ENTER button. When an Index mark is found, the DVD Recorder & VCR will playback the tape for 5 seconds, after which it will continue searching for the next Index mark.

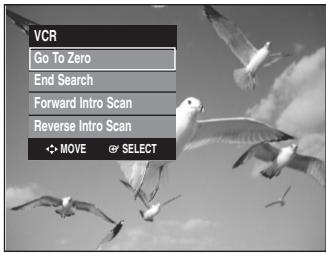

While a cassette is stopped, press the ANYKEY button.

SELECT Press the …† buttons to select End Search, then press the ENTER button. The VCR will fast forward, searching for a blank position, and then automatically stop at that position. If the VCR reaches the end of the tape during end search, the tape will be ejected.

End Search ❿❿ 00:00:13

Forward / Reverse Intro Scan Use scan and play when you don’t know exactly where a program is located on a cassette tape.

Before Recording This unit can record on various types of discs. Before recording, read the following instructions and select the disc type according to your preference.

Recordable discs This section explains various DVD recording methods.

This recorder can record on the following discs.

DVD-RAM DVD-RW DVD-R DVD+RW DVD+R

• DVD±RWs and DVD-RAMs are rewritable. • DVD±Rs are non-rewritable. Compatibility between Samsung and other manufacturer's Recorders. Disc Types

Unrecordable video 63 Recording the Current Channel you are watching 64 Recording from External Devices 65 Recording through a DV Input jack65 Making a One Touch Recording(OTR) 66 Making a Timer Recording 66

Recording Device Finalizing Additional Recording in Samsung Recorder Samsung X Recordable Recordable Other Company X Not recordable finalized Samsung Recordable not finalized finalized Not recordable Other Company not finalized Recordable finalized Not recordable Samsung not finalized Recordable Not recordable finalized Other Company not finalized Not recordable finalized Not recordable Samsung not finalized Recordable finalized Not recordable Other Company not finalized Not recordable Samsung Recordable X Not recordable in some cases Other Company X finalized Not recordable Samsung not finalized Recordable finalized Not recordable Other Company not finalized Not recordable in some cases

Editing the Scheduled Record List 68 ■

Deleting a the Scheduled Record List68 Note

VCR Recording Basic VCR Recording69 Check Remaining Time 70 Special Recording Features 70 Copy to DVD or VCR71

Finalize - This closes the DVD-RW/±R so no additional recording can be done. Unfinalize - This allows additional recording on a DVD-RW disc originally recorded on the DVD-VR335. - A DVD-RW disc that has been recorded by DAO(Disc At Once) in a PC cannot be unfinalized. - A DVD-RW disc that has been recorded in Video Mode of a different maker’s recorder cannot be unfinalized. - A DVD±R disc cannot be unfinalized.

DVD+RW/+R When you insert an unused disc, the following message appears. Since available functions differ depending on the disc type, select a disc that best fits your preferences. DVD-RAM: Use after formatting the disc.

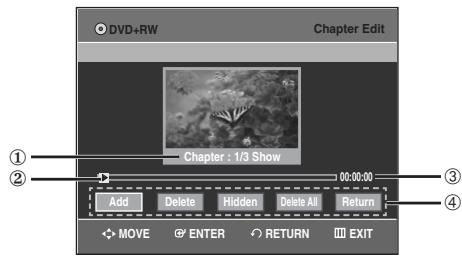

• You can also make your own chapters on DVD+RWs and edit them using the Chapter Edit menu. (see pages 79 to 81)

Recording Mode Unformatted Disc Do you want to format this disc?

NO DVD±RW/+R: When an unused DVD±RW/+R disc is first inserted, the message “Uninitial Do you want to initialize this disc?” will be displayed. If you select Yes, initializing will be start.

With the unit in Stop mode, select one of four recording modes by pressing the REC SPEED button repeatedly for the desired recording time and picture quality. In general, picture quality improves as the recording time decreases. In AUTO mode, the most suitable record mode is adjusted automatically, according to remaining time on the disc and length of the timer recording. You can select only one mode from XP, SP, LP and EP for timer recording. Mode

Approx. 2 hours about 4 Mbps

LP (long recording mode)

Select when the video quality is important. Select to record in standard quality. Select when a long recording time is required.

Select when a long recording time is required.

Approx. 6 hours/ about 1.2 Mbps Approx. 8 hours/ about 0.8 Mbps

for timer recording only see page 66.

Approx 60 to 480 Min approx 0.8 to 8 Mbps

XP (high quality mode) Uninitial

SP (standard quality mode)

Do you want to initialize this disc?

NO When using a DVD-RW disc, you can change the mode. Refer to Formatting a Disc on page 90. Disc Manager

Approx. 1 hour about 8 Mbps

Approx. 4 hours about 2 Mbps

DVD-RW(VR) Title List

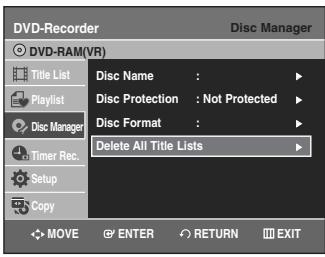

Delete All Title Lists

MOVE EXIT DVD-R: Initializing disc is unnecessary.

DVD-RW(Video mode)/-R

- The dual layer DVD±Rs have approximately double the capacity of single layer DVD±Rs. (See page 45.)

Unrecordable video Pictures with copy protection cannot be recorded on this DVD Recorder & VCR. When the DVD Recorder & VCR receives a copy guard signal while recording, recording stops and the following message appears on the screen.

• Chapters will be created automatically when you finalize recording on DVD-R/DVD-RW discs in Video mode. • Simple editing (erasing titles/changing title name).

DVD-RAM/-RW(VR mode)

You cannot record copy protected movie.

• This mode involves multiple editing functions (such as deletion of the whole title, partial deletion of a title, etc.). • Various editing options using a created Playlist.

Concerning Copy Control Signals TV broadcasts that contain copy control signals may have one of the following three signal types, Copy-Free, CopyOnce and Copy-Never. If you want to record a copy-once type program, use DVD-RW with CPRM in VR Mode or DVD-RAM discs.

Press the CH/TRK ( / ) buttons or number buttons to select the channel you want to record.

Press the REC SPEED button repeatedly, to select the recording speed (quality). • XP(High, approx. 1 hour) ➝ SP(Standard, approx. 2 hours) ➝ LP(Low, approx. 4 hours) ➝ EP(Extended Play, approx. 6 hours/8hours)

Recordable Time 00:26

Once “Copy Once” has been recorded, additional recording cannot be performed. * compatible with CPRM. - Content Protection for Recordable Media (CPRM)

CPRM is a mechanism that ties a recording to the media on which it is recorded. It is supported by some DVD recorders, but not by many DVD players. Each blank recordable DVD has a unique 64-bit media ID etched in the BCA(Burst Cutting Area). When protected content is recorded onto the disc, it can be encrypted with a 56-bit C2 (Cryptomeria) cipher derived from the media ID. During playback, the ID is read from the BCA and used to generate a key to decrypt the contents of the disc. If the contents of the disc are copied to other media, the ID will be absent or wrong and the data will not be decryptable.

Recording the Current Channel you are watching 1. Check to make sure the antenna cable is connected. 2. Check the remaining time on the disc. DVD-RAM/DVD±RW/+R discs should be formatted or initialized in advance before beginning recording. (See page 63.)

Press the OPEN/CLOSE button and place a recordable disc on the disc tray. Press the OPEN/CLOSE button to close the disc tray. Wait until “LOAD” disappears from the front panel display.

Press the REC button. • “” is displayed on the screen and recording begins.

Press the STOP button to stop or finish a recording in progress. • The message “Updating the information of disc. Please wait for a moment” is displayed.

Pausing / Resuming • Press the REC PAUSE button to pause a recording in progress. • Press the REC PAUSE button again during pause to resume recording. • You can switch channels by pressing the CH/TRK ( / ) buttons while recording pauses.

Recording will stop automatically if there is Note

no free space left for recording. Up to 99 titles can be recorded onto a DVD-

RAM/-RW/-R disc, and up to 48 titles onto a DVD+RW/+R disc. If the power is interrupted due to power fail-

ure or other reasons, the title being recorded will not be saved onto the disc. Recording will stop automatically if a copy

protected image is selected. Do not use DVD-R authoring discs with this

Recording from External Devices Follow these directions to record onto a disc or a tape from External Devices such as a Camcorder.

Connect the AV out jack of your External Device to the AV IN jack on the front or rear of your DVD Recorder & VCR using the Audio/Video Cable.

Power on your DVD Recorder & VCR and switch to AV In mode by pressing the INPUT SEL. button on the remote control. The front panel display changes in the following sequence depending on the Video input setting in the menu. AV1: ➝ Channel Number ➝ AV 1 ➝ AV 2➝ DV S-Video: ➝ Channel Number ➝ SUPER ➝ AV 2➝ DV

Recording through the DV Input jack You may control your Camcorder using the IEEE1394 (DV) interface. Follow these directions to record onto a disc or tape from a camcorder that has a DV output jack.

Connect the DV output jack of your camcorder to the DV input jack on the front of your DVD Recorder & VCR using a DV cable.

Power on your DVD Recorder & VCR and switch to DV mode by pressing the INPUT SEL. on the remote control.

Press the DVD or VCR button on the remote, or DVD/VCR on the front panel to select the DVD or VCR mode.

Press the REC SPEED button repeatedly to select the recording speed(quality).

Press the DVD or VCR button on the remote, or DVD/VCR on the front panel to select the DVD or VCR mode. Press the REC SPEED button repeatedly to select the recording speed(quality).

➝ SP ➝ LP ➝ EP ➝ XP VCR:

When your DVD Recorder & VCR is in the Stop mode, start playback on your external device.

Press the REC button on your DVD Recorder & VCR to start recording when the desired video is displayed from the external device.

Press the STOP button on your DVD Recorder & VCR when the recording is finished.

➝ SP ➝ SLP If the input is set to DV, a playback/record menu that enables camcorder control appears on the top of the screen.

DV The DV device is connected.

MOVE Devices when recording through AV In jacks on the DVD/VCR using Audio/Video cable. You can also record an external source through S-Video cable. (see page 26). For more information on changing the Video Input from AV1 to S-Video, see page 39(Video Input).

Select the Play icon on the upper part of the screen to playback the camcorder and find the starting position to copy.

To start recording, Press the œ √ button to select rec(●) icon in the top side of the screen, then press the ENTER button. You can press the REC button on the remote control to start recording. To display playback related icons on the screen, press either direction button on the remote control.

Press the STOP button on your DVD Recorder & VCR when the recording is finished.

Also refer to the user manual for your External Note

➝ SP ➝ LP ➝ EP ➝ XP Some camcorders may not work with your Note

DVD Recorder & VCR even if they have a DV output jack. Also refer to the user manual for your camcorder when recording through the DV jack.

Making a One Touch Recording (OTR) One-Touch Recording (OTR) allows you to add recording time in preset increments up to 4 hours by pressing the REC button repeatedly.

Press the CH/TRK ( / ) buttons or number buttons to select the channel to record. If you want to record through a connected external component, press the INPUT SEL. button to select an appropriate external input(AV1, AV2 or DV). • CATV channel: 1 to 125

Making a Timer Recording The clock (Setup – Clock Set) must be set before proceeding with a timer recording. (See page 33)

Press the OPEN/CLOSE button,and place a recordable disc on the disc tray(or load a tape into the VCR).

Press the OPEN/CLOSE button to close the disc tray. Wait until “LOAD” disappears from the front panel display.

• TV channel: 2 to 69

Press the DVD or VCR button on the remote, or DVD/VCR on the front panel to select the DVD or VCR mode.

Press the REC button to start recording.

While in Record mode, press the REC button again to activate the One-Touch Recording (OTR). • Record length 0:30 appears on the On-Screen Display and the DVD Recorder & VCR will record for exactly 30 minutes.

DVD-RAM(VR) Title List

Scheduled Record List

Disc Manager Timer Rec. Setup

Continue pressing REC button to add recording time in preset increments up to 4hours.

MOVE ENTER RETURN EXIT

➝ 0:30 ➝ 1:00 ➝ 1:30 ➝ 2:00 ➝ 3:00 ➝ 4:00 ➝ Off • The DVD Recorder & VCR stops recording automatically when the time has elapsed.

To stop recording Press the STOP () button. The message “Press STOP button once more to cancel Timer Record.” is displayed. Press the STOP () button again. The message “Updating the Information of disc. Please wait for a moment.” is displayed.

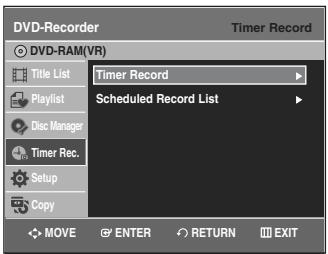

Press the …† buttons to select Timer Record, then press the ENTER or √ button. You can go to the Timer recording screen directly by pressing the TIMER REC button. The Timer Recording screen is displayed. Scheduled Record List

from 4:00 to 0:00, then the DVD Recorder & VCR stops recording.

The timer counter decreases by the minute

Current Time 1:05 AM Date

01:05 AM 03:05 AM SP

Fill in the items using the …†œ √ buttons. œ √ : Moves to the previous/next item, …† or 0~9 : To set or change items in the Scheduled Record List Menu. • To : Select the media to record (DVD or VCR). • Source : The video input source (AV 1, AV 2), or the broadcasting channel you want to make a timer recording from. • Date: Date that the timer recording starts - There are three options when setting the date. see below: ! To make a recording on a specific date, press the

…† or number buttons until the date you want appears. No. 01 To

03:05 AM 05:05 AM SP

00:45 SP When you are recording at EP mode on a Note

DVD-RW(V)/-R disc, it may not record for the full 6 or 8 hours because the unit uses the VBR(Variable Bit Rate) ENCODING system. For example, if you record a program with a lot of action, it uses a higher bit rate which in turn consumes more disc memory.

• Recording mode (VCR) AUTO : Select when you want to set video quality automatically. The auto quality depends on remaining time of VCR tape. SP : Standard Play, for best picture quality. SLP : Super Long Play, for maximum recording time (3 times SP).

@ To make a recording at the same time every day

(Mon-Fri), press the …† buttons until Mon-Fri appears: No. 01 To

Mon~Fri 03:05 AM 05:05 AM SP

00:45 SP If the timer settings overlap

week(Sun’s-Sat’s), press the …† buttons until Sun’s….Sat’s appears: No. 01 To

03:05 AM 05:05 AM SP

• Start/End Time : Start and end time of the timer recording.

To exit without saving the current setting

• Recording mode (DVD)

Press the MENU or TIMER REC button.

AUTO : Select when you want to set video quality automatically. In AUTO mode, the most suitable record mode is adjusted automatically, according to remaining time on the disc and length of the timer recording. You can selected only one mode from XP, SP, LP and EP for timer recording.

To return to the previous menu

XP (high quality) : Select when audio and video qualities are important. (Approx. 1 hour)

Press the RETURN button if you don’t want to set a timer recording.

SP (standard quality) : Select to record in standard quality. (Approx. 2 hours) LP (low quality) : Select when a long recording time is required.(Approx. 4 hours) EP (extended mode) : Select when a longer recording time is required. (Approx.6 hours at 1.2 Mbps or Approx.8 hours at 0.8 Mbps )

Turn the power off to finish the timer recording. • will blink if disc or tape is not inserted.

The timer recording time may differ from the set Note

time depending on disc status and overall timer recording status (for example, recording times overlapping, or when the previous recording ends within 3 minutes before the start time of the next recording.)

The programs are recorded in order of priority. If timer recording is set for the first program and then again for the second program and both programs overlap, the following message will appear on the screen: “This setting is identical with 1,2.” The message shows that the first program has priority. After recording of the first program is complete, the second program starts being recorded.

# To make a recording on a specific day of the

Press the ENTER button. • will appear on the front panel. It means that a timer recording is registered.

Editing the Scheduled Record List

Press the …† button to select Edit, then press the ENTER button. • The Timer Recording screen is displayed. Edit the items you want to modify. See the Timer Recording section for more information on Timer Recording Input items. (See page 67) Scheduled Record List

Current Time 1:07 AM Date

Follow these directions to edit the timer record list.

DVD-RAM(VR) Title List

Scheduled Record List

03:05 AM 05:05 AM SP

00:45 SP ENTER RETURN EXIT

Press the ENTER button to confirm the edited setting.

Press the MENU button after finishing the operation. The menu screen will disappear.

MOVE Deleting the Scheduled Record List

Scheduled Record List

RETURN Current Time 12:27 AM Date

EXIT Press the …† button to select the number of the scheduled record list you want to edit, then press the ENTER or √ button. • The Edit and Delete items are displayed.

Follow these directions to delete a title from the timer record list.

Scheduled Record List

Current Time 12:27 AM Date

√ SP Edit √ SP Delete √ ––

Scheduled Record List

Current Time 12:27 AM No.

MOVE Basic VCR Recording

Scheduled Record List

EXIT Press the …† button to select the number of the scheduled record list you want to delete, and then press the ENTER button. • The Edit and Delete items are displayed.

Before starting 1. Check TV channel and Antenna connections. 2. Check the remaining time on the tape. You can record a TV show in progress by inserting a blank tape and pressing the (REC) button. You can even add time in preset increments up to 4 hours by pressing the (REC) button repeatedly. Be sure your videotape has a Record Safety

Tab. If the tab is missing, you can cover the opening with a small piece of tape.

Scheduled Record List

Current Time 12:27 AM No.

ENTER RETURN EXIT Press the …† button to select Delete, then press the ENTER or √ button. • You will be prompted with a delete confirm message such as “Do you want to delete ‘No.01’?”.

Current Current Time Time 12:27

12:27 AM AM Source Source

Date Date Start Start No. 01

End End Mode Mode Edit Edit

Insert a blank VHS tape into the VCR deck. • Make sure the tape is long enough to record the entire program.

Press the Number buttons or the CH/TRK ( / ) buttons to select the desired channel. Press the INPUT SEL. button to select AV 1, AV 2 or DV if recording from an external device connected to the input jacks of the recorder.

Press the REC SPEED button on the remote control to set the Record Speed to one of the following options: • SP – Standard Play, for best picture quality.

• SLP – Super Long Play, for maximum recording time (3 times SP).

EXIT The selected Record Speed will appear on the

Press the œ √ buttons to select Yes, then press the ENTER button. • The selected title will be deleted from the list.

front panel and on-screen displays.

Maximum Recording Time - SP vs. SLP Tape Length

Press the MENU button after finishing the operation. The menu screen will disappear.

SLP (Super Long Play)

Approx. 2hrs 40 mins

You can not delete programs that are curNote

rently being recorded.

When you watch or record on the VCR during Note

DVD Recording, some function buttons may not operate. The message “This function is not available.” will be displayed.

DVD-RAM(VR) DVD-RAM(VR) To To

are sure you want to record over the tape.

CAUTION Scheduled Record List

DVD-Recorder DVD-Recorder No. No.

Warning: Do not cover this opening unless you

00995F-VR335_XAC-Eng2

Press the (REC) button on the remote control or front panel. For options while recording is in progress, see “Special Recording Features”.

To Watch a Different Channel from the One being Recorded

Watch a different media during recording

To Add Recording Time

Recording on the DVD and VCR at the same time

Press the STOP button to stop or finish a recording in progress.

Pausing / Resuming • Press the REC PAUSE button to pause a recording in progress. • Press the REC PAUSE button again during pause to resume recording. • You can switch channels by pressing the CH/TRK ( / ) buttons while recording pauses.

Check Remaining Time

Press INFO button on the remote control. Following information will be displayed. (Current deck status, recording speed, remaining time, input channel, current time.)

STOP 00:01:32 SP Rem 01:41 CH6

When you watching through the Antenna input during recording, Press the TV/VCR button on the remote control. Change the channel you want to watch with the TV's remote.

You can watch a DVD during VCR recording or watch a Video tape during DVD recording. • During VCR recording, insert a DVD in the DVD deck. The output will automatically change to the DVD and start playback. • During DVD recording, insert a Video tape in the VCR deck. The output will automatically change to the VCR and start playback. (Only if tape is missing the safety tab)

Refer to the One-Touch Recording (OTR). (See page 66)

You can record on the DVD and VCR at the same time, but both modes must be set up to record separately. • Press the DVD/VCR button to set the unit to DVD or VCR mode. • Choose AV input mode (CH, AV1, AV2 or DV). for DVD or VCR. • Choose REC mode for DVD or VCR. • Press REC button for DVD or VCR.

01:08 AM When the DVD Recorder & VCR is connected Note

Special Recording Features While a recording is in progress, you can watch a different media, or add recording time in preset increments. (for example, you can watch VCR playback while recording from a DVD and vice-versa)

to your TV using an S-Video or component video cable, the video tape's playback screen will not be displayed during DVD recording. You cannot record different channels at the same time. The DVD and VCR cannot start recording at the exact same time. You must set one mode to start recording, then the other.

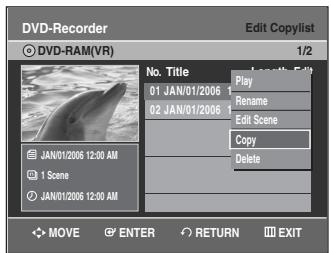

To copy from "Edit Copylist", you need to make a copylist in advance. Select "New Copylist" and create the new playlist. (See pages 82) If you want to copy directly, choose "Direct Copy". On DVD-RW(V)/DVD+RW/±R disc, you can only use Direct copy function.

Copy to DVD or VCR You can copy from the DVD to VCR or VCR to DVD. Check the remaining time on the tape and Disc.

Press the …† buttons to select desired copylist, then press the ENTER or √ button.

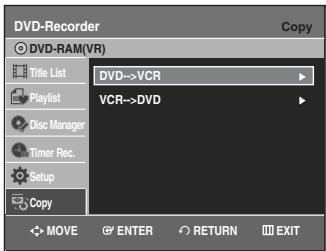

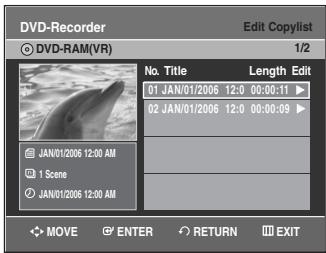

To copy from DVD to VCR

ENTER RETURN EXIT Direct copy DVD to VCR • Insert a DVD disc you want to copy. • Insert a VHS tape. • Press the VCR copy button on front panel or remote control (TO VCR). • To stop recording, press the STOP button.

MOVE ENTER RETURN EXIT Copy function is not allowed in progressive

DVD-RAM(VR) No. Title

01 JAN/01/2006 12:0 00:00:11 √ 02 JAN/01/2006 12:0 00:00:09 √

JAN/01/2006 12:00 AM 1 Scene

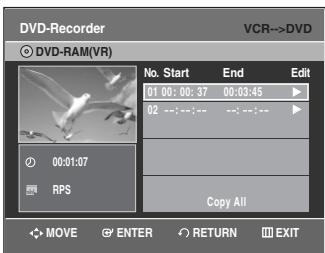

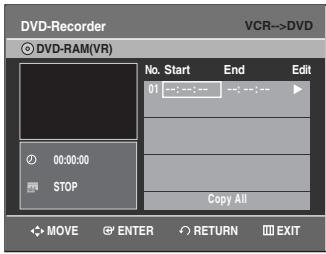

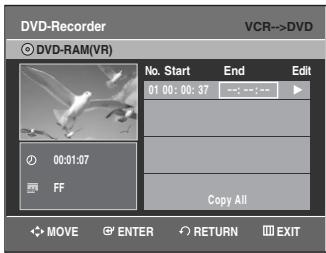

To copy from VCR to DVD

You can use the √II, Iœœ or √√I, œœ or √√ buttons to search for the end position. Press the ENTER button at the end point. • A copylist will be generated. Repeat the above steps to create the copylist. • In VCR mode, the copylist cannot be saved. DVD-Recorder

MOVE ENTER RETURN EXIT MOVE ENTER RETURN EXIT

• The VCR will fast forward, searching for a start position and then automatically start a copy. • The Start and End points may not match up exactly. • If you want to copy all content, select Copy All.

Direct copy VCR to DVD • Insert the VHS tape you want to copy. • Insert a recordable DVD disc. • Press DVD copy button on front panel or remote control(TO DVD). • To stop recording press the STOP button. • You can also copy from DivX to VCR when the desired DivX is played back or highlighted in the file list. If the DivX disc has various files, only the selected file will be played back

Playing the Title List

Editing This section introduces basic functions of DVD editing and explains both edit functions for the recording on a disc and edit functions for the entire disc.

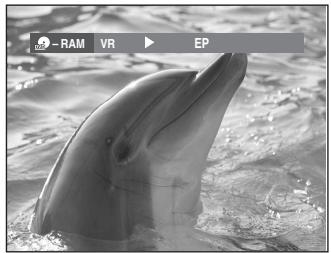

Follow these instructions to play back a scene from the Title List.

Using the TITLE LIST button Press the TITLE LIST button. The Title List screen is displayed.

00:00:11 00:00:09 00:01:36 00:00:11

SP MOVE Playing the Title List 73

EXIT Press the …† buttons to select a title you want to play from Title List, and then press the PLAY button. The selected title will be played back.

To stop title play, press the STOP button. To return the title list screen, press the TITLE LIST button.

Renaming(Labeling) a Title 75 Deleting a Title 77

Basic Editing (Title List) 75 Locking(Protecting) a Title 76

ENTER Deleting a Section of a Title 77 Editing a Chapter79

Using the MENU button

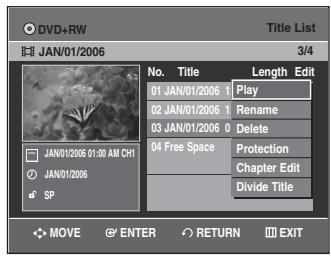

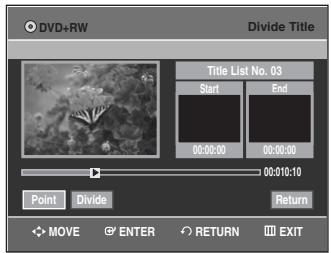

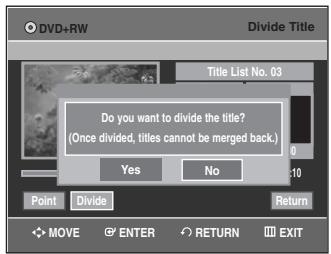

Dividing a Title 81 Advanced Editing (Playlist)82 Creating a playlist 82 Renaming a Playlist Title83

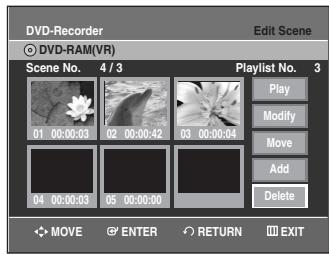

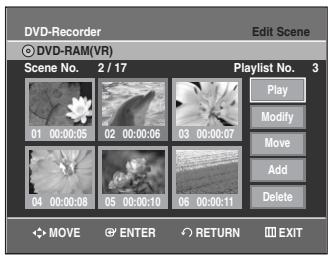

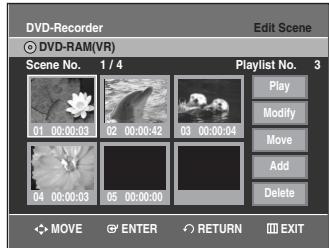

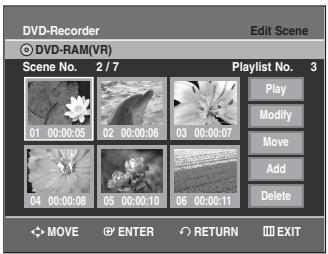

Editing a Scene for the Playlist84 Copying a Playlist Title to the VCR 87

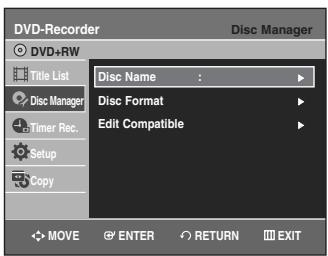

Playlist Disc Manager

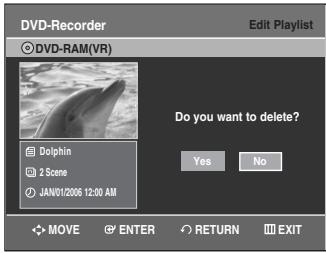

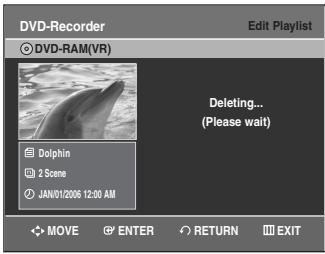

Deleting a Playlist Title from the Playlist 88 Disc Manager 88

Timer Rec. Setup Copy

Playing Titles in the Playlist83

The Title List screen is displayed. Title List

00:00:11 00:00:09 00:01:36 00:00:11

Length Edit 12:00 00:00:11 12:30 00:00:09 Play 01:00 00:01:36 Rename 01:30 00:00:11 Delete

EXIT Press the …† buttons to select Play to play the title list, then press the ENTER button. The selected title will be played back. √

01 JAN/01/2006 02 JAN/01/2006 03 JAN/01/2006 04 JAN/01/2006

Length Edit No. Title 12:00 12:30 01:00 01:30

00:00:11 00:00:09 00:01:36 00:00:11

JAN/01/2006 12:00 AM CH1

Delete Edit Protection

& ! Playback screen for recorded titles. @ Information window for the selected title: Title name, recording date, lock status, recording mode # Recorded title No. $ Recorded title name % Recording Length (i.e., the playing time) ^ Edit menu Play: Plays the selected title. Rename: Changes the name of a selected title. Delete: Deletes the selected title from the list. Edit: Deletes a section of title. Protection: Locks or unlocks the selected title. & Button display This may depend on the disc type. Note

XP DVD-RW(V)/DVD+RW/±R has limited editing

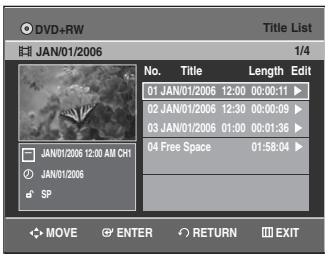

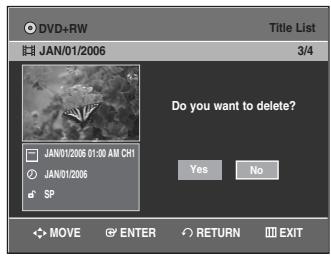

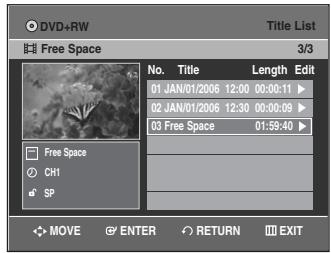

Free Space Function This function is only available with DVD+RW discs. If existing titles are deleted, new free space will be created. When you operate free space function, on-air TV images will appear on the left side of the title list.

Press the STOP button to stop playing. To return the title list screen, press the TITLE LIST button. You can also play a recorded program by

Press the …† buttons to select Title. Press the œ √ buttons to select to play the

Press the …† buttons to select a Title you want to delete, then press the ENTER or √ button. Title List

DVD+RW Basic Editing (Title List)

Title Length Edit Play00:00:11 √ 01 JAN/01/2006 12:00 Rename 02 JAN/01/2006 12:30 00:00:09 √ 03 JAN/01/2006 01:00 00:01:36 √ Delete 04 Free Space 01:58:04 √ Protection Chapter Edit

Renaming(Labeling) a Title

SP ENTER RETURN EXIT Follow these instructions to rename a title list name, i.e., to edit the title of a recorded program.

Press the TITLE LIST button. The Title List screen is displayed.

Do you want to delete?

Or use the MENU button. • Press the MENU button. • Press the …† buttons to select Title List, then press the ENTER or √ button twice.

• You will be prompted with the confirmation message 'Do you want to delete?'.

Press the œ √ buttons to select Yes, then press the ENTER button. The selected title has been deleted and Free Space is displayed.

00:00:11 00:00:09 00:01:36 00:00:11

Press the …† buttons to select a title you want to rename from the Title List, then press the ENTER or √ button.

• New free Space will be created equal to the length of the deleted title. JAN/01/2006 01:00 AM CH1

12:00 00:00:11 12:30 00:00:09 Play 01:00 00:01:36 Rename 01:30 00:00:11 Delete

01 JAN/01/2006 12:00 00:00:11 √ 02 JAN/01/2006 12:30 00:00:09 √ 03 Free Space 01:59:40 √ Recording

Locking(Protecting) a Title Follow these instructions to lock a title to protect it from accidental deletion.

RETURN Press the TITLE LIST button. The Title List screen is displayed.

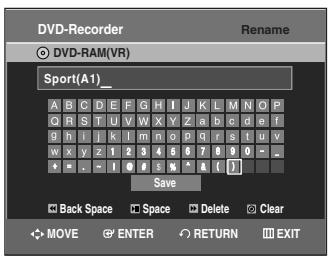

• Back Space: Moves the cursor one position backwards. • Space: Enters a blank and moves the cursor one forward (to the right). • Delete: Deletes the character at the cursor position. • Clear: Deletes all the character inputs. • Save: Registers the character inputs.

Press the …† œ √ buttons to select Save, and then press the ENTER button. The changed title name is displayed in the title field of the selected title.

00:00:11 00:00:09 00:01:36 00:00:11

ENTER RETURN EXIT Press the …† buttons to select a title you want to protect in the Title List, then press the ENTER or √ button. Title List

12:00 00:00:11 12:30 00:00:09 Play 01:00 00:01:36 Rename 01:30 00:00:11 Delete

00:00:11 00:00:09 00:01:36 00:00:11

DVD-RW(Video mode),DVD+RW, DVD±R : Since Playlist is not present, the message ‘Do you want to delete?’ is displayed.

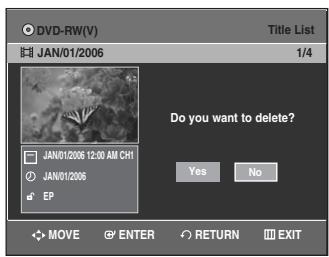

Deleting a Title Follow these instructions to delete a title from the Title List.

DVD-RW(V) JAN/01/2006

Press the TITLE LIST button. The Title List screen is displayed.

Do you want to delete? JAN/01/2006 12:00 AM CH1 Yes

00:00:11 00:00:09 00:01:36 00:00:11

You cannot delete a protected title.

EP ENTER RETURN EXIT Note

If you want to delete a protected title, select Off in the Title Protection menu. Once a title is deleted from the Title List it

cannot be recovered.

Press the …† buttons to select a title you want to delete in the Title List, then press the ENTER or √ button.

be deleted. With DVD±R, titles are only deleted from the

menu, however, the Title remains physically on the disc.

Length Edit 12:00 00:00:11 12:30 00:00:09 Play 01:00 00:01:36 Rename 01:30 00:00:11 Delete

MOVE Once DVD±R, DVD-RW is finalized, it cannot

EXIT Deleting a Section of a Title Follow these instructions to delete a section of a Title List title. (VR mode)

Do you want to delete? (Related playlists may be deleted.)

00:00:11 00:00:09 00:01:36 00:00:11

Press the …† buttons to select Delete, then press the ENTER or √ button. You will be prompted with a confirmation message. DVD-RAM(VR), DVD-RW(VR mode) : Since Playlist is present, the message ‘Do you want to delete? (Related playlists may be deleted.)’ is displayed.

5:15 PM Press the …† buttons to select a title you want to delete from the Title List, then press the ENTER or √ button.

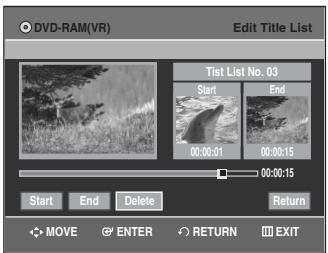

Press the ENTER button at the end point. The image and end point time are displayed in the Section deletion ending point window. Edit Title List

Length Edit 12:00 00:00:11 12:30 00:00:09 Play 01:00 00:01:36 Rename 01:30 00:00:11 Delete

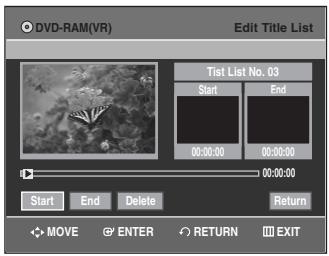

MOVE Press the …† buttons to select Edit, then press the ENTER or √ button. The Edit Title List screen is displayed.

DVD-RAM(VR) Edit Title List

Tist List No. 03 Start End

Tist List No. 03 Start End

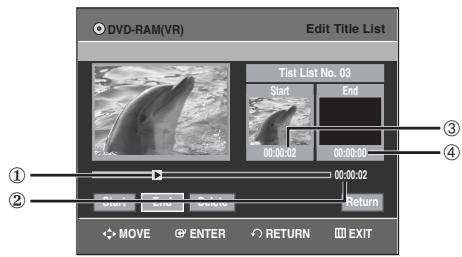

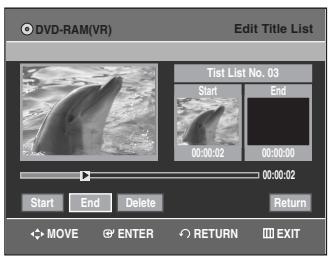

EXIT Press the ENTER button at the starting point. The image and starting point time are displayed in the section deletion starting point window. Edit Title List Screen Elements

Title List No. 03 Start End Do you want to delete? (Deleted part will not be restored.) 00:00:10 Yes Start

RETURN EXIT The length of the section to be deleted must

Tist List No. 03 Start End

1 Playback bar 2 Playtime 3 Section deletion starting point window and time 4 Section deletion end point window and time • Select the start and end points of the section you want to delete using the playback related buttons. • Playback related buttons: (√II,Iœœ,œœ,√√).

Press the œ √ buttons to select Yes, then press the ENTER button. The selected section has been deleted. To return to the Title List screen, press the œ √ buttons to select Return.

be at least 5 seconds long. If the length of the section to be deleted is

less than 5 seconds, you will be prompted with the message 'The range is too short.'. If the end time precedes the starting time,

you will be prompted with the message ‘End point cannot be marked earlier than start point.’. The section cannot be deleted when it

includes a still picture. Press the MENU button after the operation

has finished. The Title List screen will disappear.

00995F-VR335_XAC-Eng2

Chapter Edit Screen Elements

You can make your own chapters on DVD+RWs and edit them using the Chapter Edit menu.

Press the TITLE LIST button. The Title List screen is displayed.

Press the …† buttons to select a title containing a chapter you want to edit, then press the ENTER or √ button.

Select the point where you want to add a chapter using the playback related buttons, then press the ENTER button at that point. Each time you press the ENTER button, a new chapter will be added. Chapter Edit

Title Length Edit Play00:04:48 √ 01 JAN/01/2006 12:00 Rename 02 JAN/01/2006 12:30 00:01:47 √ 03 JAN/01/2006 01:00 00:49:57 √ Delete 04 Free Space 01:13:08 √ Protection

EXIT Press the …† buttons to select Chapter Edit, then press the ENTER or √ button. The Chapter Edit screen is displayed.

Press the œ √ buttons to select Return, and then press the ENTER button. The edited title will now have the chapter you added. Title List

RETURN MOVE ENTER RETURN EXIT Return

EXIT You can make up to 99 chapters in a title and Note

254 chapters in a disc. The edited chapters are shown on existing

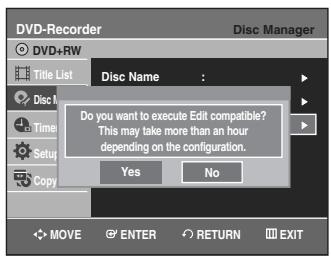

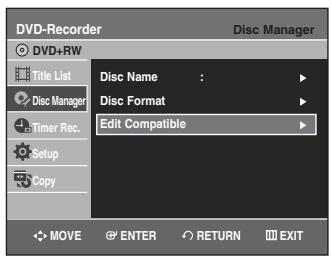

DVD players only after performing the Edit Compatible function. (See page 93) If you add a chapter, the title is divided at that point; If you add a chapter onto a title that has only one chapter, it creates another chapter.

Follow steps 1 to 3 in page 79 Chapter Edit

Select a chapter you want to delete using the playback related buttons. Chapter Edit

Press the œ √ buttons to select Delete, and then press the ENTER button. The selected chapter will be deleted.

only one chapter in the selected title. The hidden chapters are not shown on the

existing DVD players. Hidden chapters will be played when playing

DVD+RW If there is only one chapter, it can’t be hidden. Hidden/Show menu is not available if there is

back the entire title. You can make the hidden chapter appear by pressing the ENTER button in the Show menu. Chapter : 2/3 Show 00:15:00

First chapter can’t be deleted. Delete menu is not available if there is one

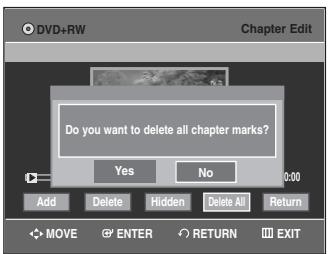

Deleting all chapters Follow steps 1 to 3 in page 79

Press the œ √ buttons to select Delete All, and then press the ENTER button.

Do you want to delete all chapter marks? Yes

chapter in the selected title. When deleting a chapter, only the chapter marker is actually deleted, not the recorded video. Deleting a chapter can't be canceled.

ENTER Delete All RETURN

EXIT Follow steps 1 to 3 in page 79

Select a chapter you want to hide using the playback related buttons.

marker is actually deleted, not the recorded video. Delete All menu is not available if there is one chapter in the selected title.

Dividing a Title Follow these instructions to divide a long title into several titles.

Select the point you want to divide using the playback related buttons, then press the ENTER button. Divide Title

DVD+RW Title List No. 03 Start End

Press the TITLE LIST button. The Title List screen is displayed.

SP Title List No. 03 Start End

MOVE ENTER RETURN EXIT Do you want to divide the title?

(Once divided, titles cannot be merged back.) 00:00:00 Yes No 00:010:10

Press the …† buttons to select a title you want to divide from the Title List, then press the ENTER or √ button.

Title Length Edit Play00:04:48 √ 01 JAN/01/2006 12:00 Rename 02 JAN/01/2006 12:30 00:01:47 √ 03 JAN/01/2006 01:00 00:49:57 √ Delete 04 Free Space 01:13:08 √ Protection

ENTER Press the œ √ buttons to select Yes, then press the ENTER button. The selected title has been divided into two titles. Title List 1/5 No.

ENTER RETURN EXIT JAN/01/2006 12:00 AM CH1

Press the …† buttons to select Divide Title, then press the ENTER or √ button. The Divide Title List screen is displayed.

01 JAN/01/2006 02 JAN/01/2006 03 JAN/01/2006 04 JAN/01/2006 05 Free Space

00:04:48 00:01:47 00:19:25 00:30:32 01:13:08

seconds, you will be prompted with the message 'The range is too short.'. Press the MENU button after the operation

has finished. The Title List screen will disappear.

If the point length to be divided is less than 5

Title List No. 03 Start End

Advanced Editing (Playlist)

DVD-RAM(VR) Title List

• The yellow-colored selection bar moves to the Make icon.

With the unit in Stop mode, press the MENU button. Press the …† buttons to select Playlist, then press the ENTER or √ button.

• The image and end point time are displayed in the End window.

Follow these instructions to create a new playlist title from a recorded title.

- To make a new playlist -

Press the œ √ buttons to select Make, then press the ENTER button. A new Scene will be added to the current Playlist. A new Make Scene screen is displayed.

You can check and see all the scenes on

Press the …† buttons to select New Playlist, then press the ENTER or √ button. The Make Scene screen is displayed. DVD-Recorder

MOVE Repeat steps 4~6 if you want to add scenes

Edit Playlist screen. Repeat steps 1~6 if you want to make a new

- To return to Edit Playlist menu -

Press the …† buttons to select Return, then press the ENTER button. The Edit Playlist screen is displayed.

Press the ENTER button at the start point.

Make Scene JAN/01/2006 12:00 AM 1 Scene

Press the MENU or PLAY LIST button after the operation has finished. The Edit Playlist screen will disappear.

• The image and time at the start point are displayed on the Start window. • The yellow-colored selection bar moves to the End item. • Select the starting point of the section from which you want to create a new scene using the playback related buttons (√II,Iœœ,√√I,œœ,√√).

You can create up to 99 playlist titles. Note

Depending on the kind of disc, the displayed

screen may have a slight difference.

Playing Titles in the Playlist – RAM

VR EP Follow these instructions to play the playlist titles.

DVD-RAM(VR) Title List

Press the STOP button to stop playing. The screen returns to the Edit Playlist screen.

Renaming a Playlist Title Follow these instructions to rename a playlist title, i.e. to edit the title of a playlist title.

Disc Manager Timer Rec.

JAN/01/2006 12:00 AM MOVE ENTER RETURN Press the PLAY LIST button with the disc stopped. The Edit Playlist screen is displayed.

01 JAN/01/2006 12:00 00:00:03 √

Press the …† buttons to select the title you want to play from the Playlist, then press the ENTER or √ button. The Edit Playlist menu is displayed : Play, Rename, Edit Scene, Copy, Delete.

Press the …† buttons to select Play, then press the ENTER or √ button. The playlist titles will be played back. Edit Playlist

RETURN EXIT Press the …† buttons to select the title you want to rename from the Playlist, then press the ENTER or √ button. The Edit menu is displayed : Play, Rename, Edit Scene, Copy, Delete

ENTER RETURN Length Edit

01 JAN/01/2006 12:00 00:00:03 √

JAN/01/2006 12:00 AM 1 Scene

JAN/01/2006 12:00 AM Length Edit

JAN/01/2006 12:00 AM 1 Scene

JAN/01/2006 12:00 AM MOVE Copy Delete

ENTER RETURN EXIT English - 83

Press the …† buttons to select Rename, then press the ENTER or √ button. The Rename screen is displayed. DVD-Recorder

Editing a Scene for the Playlist Follow these instructions to edit scenes for a playlist.

Press the PLAY LIST button with the disc stopped. The Edit Playlist screen is displayed.

• This function is the same as the Rename function in renaming the title list. (See page 75.) • The maximum number of characters that can be entered is 31.

Press the …† œ √ buttons to select Save, then press the ENTER button. The changed title is displayed in the title field of the selected title.

EXIT Press the …† buttons to select the title you want to edit from the Playlist, and then press the ENTER or √ button. The Edit Playlist menu is displayed: Play, Rename, Edit Scene, Copy, Delete Edit Playlist

01 JAN/01/2006 12:00 00:00:03 √ 02 JAN/01/2006 12:30 00:00:25 √ Play 03 Dolphin 00:00:05 √ Rename Edit Scene

Dolphin 1 Scene JAN/01/2006 12:00 AM

Press the …† buttons to select Edit Scene, then press the ENTER or √ button. The Edit Scene screen is displayed. DVD-Recorder

DVD-RAM(VR) Scene No. 2/7

Playlist No. Play Modify

ENTER RETURN Delete EXIT

Playing a Selected Scene

Press the …†œ √ buttons to select the scene you want to play, then press the ENTER button. The playlist title to be played is selected. DVD-Recorder

Press the ENTER button at the start point of the scene. DVD-Recorder

DVD-RAM(VR) Scene No. 001 Start End

Edit Scene Title List : 1/31

DVD-RAM(VR) Scene No. 2 / 17

• The image and starting point time are displayed on the Start window. • Select the starting or ending point of the section you want to modify using the playback related buttons (√II,Iœœ,√√I,œœ,√√).

EXIT Press the ENTER button. The selected scene will be played back. – RAM

LP Press the ENTER button at the end point of the scene. DVD-Recorder

MOVE Modifying a Scene (Replacing a Scene)

• The image and ending point time are displayed in the End window.

To setup, follow steps 1 to 3 in page 84.

DVD-RAM(VR) Scene No. 2/7

DVD-Recorder DVD-RAM(VR) Scene No. 2/7

Edit Scene Playlist No.

ENTER RETURN Delete EXIT

• The scene you want to modify is changed with the selected section.

Moving a Scene (Changing the Position of a Scene)

To setup, follow steps 1 to 3 in page 84.

To setup, follow steps 1 to 3 in page 84.

DVD-RAM(VR) Scene No. 1/7

Press the …† œ √ buttons to select the scene that will have a new scene inserted before it, then press the ENTER button. A yellow selection window is displayed on the scene to be added as the new scene.

DVD-RAM(VR) Scene No. 3/3

DVD-RAM(VR) Scene No. 1/7

Scene No. 001 Start End

Delete EXIT Title List : 1/31

• A yellow selection window is displayed on the scene to be moved.

DVD-Recorder DVD-RAM(VR) Scene No. 2/7

EXIT Depending on the kind of disc, the displayed screen may have a slight difference.

• The selected scene is moved to the selected position.

MOVE EXIT DVD-RAM(VR)

DVD-Recorder DVD-RAM(VR) Scene No. 2/7

RETURN Edit Scene Playlist No.

Press the ENTER button at the starting point of the scene.

MOVE Press the …† œ √ buttons to select the position to which you want to move the selected scene, then select the ENTER button.

• The image and starting point time are displayed in the Start window. • Select the end point of the section where you want to add the new scene using the playback related buttons (√II,Iœœ,√√I,œœ,√√).

Press the ENTER button at the end point of the scene. DVD-Recorder

Copying a Playlist Title to the VCR Add Scene

• The image and time of the end point are displayed in the End window. • To cancel, press the œ √ buttons to select cancel and then press the ENTER button.

Press the PLAY LIST button with the disc stopped. The Edit Playlist screen is displayed.

DVD-RAM(VR) No. Title

01 JAN/01/2006 12:00 00:00:11 √ 02 JAN/01/2006 12:30 00:00:09 √ 03 Dolphin 00:01:36 √

JAN/01/2006 12:00 AM 1 Scene

JAN/01/2006 12:00 AM DVD-Recorder DVD-RAM(VR) Scene No. 1/4

Edit Scene MOVE Playlist No.

• The section you want to add is inserted prior to the scene selected in step 4.

Press the …† buttons to select the title you want to copy to the VCR, and then press the ENTER or √ button. The Edit Playlist menu is displayed: Play, Rename, Edit Scene, Copy, Delete. DVD-Recorder

DVD-RAM(VR) No. Title

Deleting a Scene To setup, follow steps 1 to 3 in page 80.

Press the …† œ √ buttons to select the scene you want to delete, and then press the ENTER button. DVD-Recorder

DVD-RAM(VR) Scene No. 4/4

ENTER RETURN EXIT Press the …† buttons to select Copy, then press the ENTER button. • The title you choose is played and copied to VCR tape.

No. Title 04 00:00:03 MOVE

JAN/01/2006 12:00 AM Delete

MOVE ENTER RETURN EXIT Edit Scene

DVD-RAM(VR) Scene No. 4/3

Playlist No. Play Modify

ENTER The playlist can contain up to 99 playlist

RETURN Press the MENU button after the operation has finished. The menu screen will disappear.

Deleting a Playlist Title from the Playlist

Press the PLAY LIST button with the disc stopped. The Edit Playlist screen is displayed.

Deleting... (Please wait) Dolphin 2 Scene

JAN/01/2006 12:00 AM 3 Scene

JAN/01/2006 12:00 AM JAN/01/2006 12:00 AM ENTER RETURN DVD-Recorder

MOVE EXIT Press the …† buttons to select the title you want to delete from the Playlist, then press the ENTER or √ button. The Edit Playlist menu is displayed: Play, Rename, Edit Scene, Copy, Delete

JAN/01/2006 12:00 AM Delete

Or use the MENU button. • Press the MENU button with the disc stopped. • Press the …† buttons to select Playlist, then press the ENTER or √ button. • Press the …† buttons to select Edit Playlist, then press the ENTER or √ button. DVD-Recorder

Press the œ √ buttons to select Yes, then press the ENTER button. It automatically returned to the Edit Playlist screen after the delete operation has finished.

ENTER RETURN Editing the Disc Name Follow these instructions to give a name to a disc.

EXIT Press the …† buttons to select Delete, then press the ENTER button. • You will be prompted with the delete confirmation message ‘Do you want to delete?’.

DVD-RAM(VR) Title List

Playlist Disc Manager

Timer Rec. Setup Do you want to delete?

Disc Protection Disc Protect allows you to protect your discs from being formatted or deleted due to unintended operations.

DVD-RAM(VR) Title List

Delete All Title Lists

Playlist Disc Manager Timer Rec.

Delete All Title Lists

Protected :Not Protected :Protected

Delete All Title Lists

Delete All Title Lists

Delete All Title Lists

You may need to clear disc protection before Note

beginning editing. (see page 89)

MOVE ENTER RETURN EXIT Depending on the kind of disc, the displayed

screen may be different.

• This function is the same as the Rename function in renaming the title list. (See page 75.) • The maximum number of characters that can be entered is 31.

Formatting a Disc Use these instructions to format a disc. Clear disc protection before formatting.

DVD-RAM(VR) Title List

DVD-VR and DVD-V modes are compatible with the following disc types.

Press the œ √ buttons to select Yes, then press the ENTER button. The disc is formatted.

DVD-RAM(VR) Title List

Delete All Title Lists

Finalizing a disc After you record titles onto a DVD-RW/DVD±R disc with your DVD Recorder & VCR, it needs to be finalized before it can be played back on external devices.

DVD-RAM(VR) Title List

Delete All Title Lists

DVD-RAM/+RW • You will be prompted with the confirmation message 'Do you want to format disc?'.

DVD-RAM(VR) Title List

Format : Disc Manager Disc Do you want to format disc? Delete All Title Lists Timer Rec. Setup

• You will be prompted with the confirmation message 'All data will be deleted. Do you want to continue?'.

Press the œ √ buttons to select Yes, then press the ENTER button. The disc is finalized.

Delete All Title Lists

Once a disc is finalized, you cannot delete Note

is finalized, it is playable in a standard DVD player.

titles from the record list. Once a DVD±R/DVD-RW (video mode)disc

EXIT Depending on the disc type, the displayed

screen may be different.

Press the …† button to select Disc Finalize, then press the ENTER or √ button.

Finalizing time may be different depending

on the amount of data recorded on the disc. Data on the disc will be damaged if the

recorder is powered off during finalize process.

Delete All Title Lists

Delete All Title Lists

Playlist Disc Manager

MOVE ENTER RETURN EXIT Timer Rec. Setup

You will be prompted with the message 'Do you want to finalize disc?'. DVD-Recorder

: DVD-VR Disc Manager Disc Format Do you want to finalize disc? Disc Finalize Timer Rec. Delete Yes All Title Lists No Setup

If you select Yes, you will be prompted again with the message 'Disc will be finalized. Do you want to continue?' DVD-Recorder

: DVD-VR Disc will be finalized. Disc Manager Disc Format you want to continue? DiscDo Finalize Timer Rec. Delete Yes All Title Lists No Setup

Disc Manager Disc Unfinalize Do you want to unfinalize disc? Timer Rec. Setup

Delete All Title Lists

With the unit in Stop mode, press the MENU button. DVD-Recorder

If you select Yes, you will be prompted again with the message 'Disc will be unfinalized. Do you want to continue?'

Unfinalize will be unfinalized. Disc Manager DiscDisc Do you want to continue? Timer Rec. Setup

EXIT Delete All Title Lists

Press the œ √ buttons to select Yes, then press the ENTER button. The disc is unfinalized.

A DVD-RW can be finalized or unfinalized in Video mode.

Finalize DVD-Video(RW)

Operation Same as DVD-Video

Unfinalize DVD-RW(V) Additional recording, protection and deletion are possible.

DVD-RAM(VR) Title List

Delete All Title Lists

• You will be prompted with the confirmation message 'Do you want to delete all title lists?'.

DVD-RW(VR:F) Additional recording, deletion, editing, and protection are impossible.

DVD-RW(VR) Additional recording, deletion, editing, and protection are possible.

Format : Disc Manager Disc Do you want to delete all title lists? Delete All Title Lists Timer Rec. Yes No Setup

• When Protected Title exists: The Delete All Title List function will not operate. If there is a title containing a still picture, however, that function will not operate. If you want to delete a protected title, disable Protect for it on the Lock item.

Press the œ √ buttons to select Yes, then press the ENTER button. All title lists are deleted.

Edit Compatible For DVD+RW discs, this function needs to be performed in order to view edited chapters or titles on a standard DVD player.

• You will be prompted with the confirmation message 'Do you want to execute Edit compatible? This may take more than an hour depending on the configuration.'.

Press the œ √ buttons to select Yes, then press the ENTER button to execute the edit compatible. After performing this function, you can go to TITLE MENU screen directly by pressing the TITLE MENU button.

Disc Manager Disc Format Do you want to execute Edit compatible? Edit Compatible Timer Rec. This may take more than an hour depending on the configuration. Setup Yes No Copy

Troubleshooting (DVD-VIDEO/DVD-RAM/DVD±RW/DVD±R) If your product malfunctions, go through the check points below before contacting a Samsung authorized service center,

Explanation/Solution • Check whether the power cord is securely plugged into the power outlet. • Did you press the power button of your DVD Recorder & VCR.

The input is displayed for a while when the power turns on.

• The DVD Recorder & VCR requires some time to initialize after it is turned on. If Quick recording function is set to on, the DVD Recorder & VCR will power on quickly, which enables you to immediately record a desired channel. (See page 44.)

Cannot record TV programs.

• Check whether the power cord is securely plugged into the power outlet. • Did you set the DVD Recorder & VCR channel settings correctly? • Check the free space on your DVD-RAM/DVD±RW/DVD±R disc. • Check the antenna cable is connected.

Timer recording does not work properly.

• Check the recording time, end time and current time settings again. • Recording will be cancelled if the power is interrupted due to a power failure or other reason during recording.

• Check whether the disc is formatted. This product can record on formatted discs only. (See page 86.) • Check whether your DVD-RAM/DVD±RW/DVD±R disc has a sufficient free space.

I pressed the REC button but there is no response.

• Recording is available on DVD-RAM/DVD±RW/DVD±R discs only. • If a program is copy protected, you cannot record it.

I forget the password for parental lock.

• Press and hold the CH ( / ) button on the front panel of your unit for more than 5 seconds with no disc, and then press the POWER OFF/ON button. All settings including password will revert to factory settings. Do not use it if not absolutely required. (Note that this function is available only when there is no disc inserted.)

Cannot play the disc.

• Check whether the disc is inserted correctly with the label facing up. • Check the regional code of your DVD disc. • This DVD Recorder & VCR cannot playback some types of disc. (See page 5.)

• Are you watching a program in slow or skip mode? If you are playing a program at a speed other than normal speed, sound is not output. (Except for forward search Playback (Fast1)) • No sound will be heard when scanning an MPEG4 disc. • Check the connections and initial settings. • Check whether the disc is damaged. Clean up the disc, if necessary. • Check whether the disc is inserted correctly with the label facing up.

icon appears on the screen.

Explanation/Solution You cannot use the operation or function due to one of the following reasons: (1) Your DVD disc does not support the feature (for example, angles) (2) You've requested a title, chapter, or scan time that is out of the correct range.

Play mode settings are different from the settings configured with the Setting menu.

The disc does not support all the selected functions. In this case, some settings you configure on the Setting menu may not work properly.

Cannot change the aspect ratio.

Aspect ratio is fixed on DVD disc.

Check whether you selected correct digital output options in the Audio Output Options menu.

No video or audio output. The disc tray is ejected after 2 to 5 seconds.

Did you move your DVD Recorder & VCR suddenly from a cold place to a warm place? In this case, do not connect the plug to the power outlet and wait for two hours. Then insert the disc and try to play back again. It will work properly when condensation has evaporated.

Angle operation does not work during playback of a DVD disc.

Angle operation is available only when the disc contains images captured at different angles.

The disc revolves, but no image or bad quality images are output.

• Check whether there is damage or foreign materials on your disc. • Some discs with bad manufacturing quality may not be played back. • If the scene changes from dark to bright suddenly, the screen may jitter temporarily, but it is not a defect.

Desired sound language and subtitle language are not played.

Sound languages and subtitle languages are disc-specific. Only the sound and subtitle languages contained on a DVD disc are available and displayed on the disc menu.

No progressive output.

• Check whether PS is displayed on front panel. • Make sure to change the component video output using the Progressive button when the disc is stopped.

The remote control doesn't work.

• Point the remote control at the remote control sensor on your DVD Recorder & VCR. Operate within distance. (15ft) Remove obstacles between your DVD Recorder & VCR and remote control. • Check whether the batteries are depleted.

• Read the table of contents and then find and read the sections describing your problem, and follow the directions given. • Turn the unit off and on. • If your problem still persists, contact your nearest Samsung service center.

• Check the Video output is HDMI enabled. • Check the connection between the TV and the HDMI jack of the DVD Recorder &VCR. • See if your TV supports this 480p/720p/1080i DVD Recorder &VCR.

Abnormal HDMI output screen.

• If snow noise appears on the screen,it means that TV does not support HDCP (High-bandwidth Digital Content Protection).

• Check your TV system setup correctly. • Screen Jitter may occur when the frame rate is converted from 50Hz to 60Hz for 720p/1080i HDMI (High Definition Multimedia Interface)Output. • Please refer to the user ’s manual of your TV.

Troubleshooting (VCR) Before contacting a Samsung authorized service center, perform the following simple checks.

Explanation/Solution

• Check that the power plug is connected to a wall outlet. • Have you pressed the POWER button?

You cannot insert a video cassette

• A video cassette can only be inserted with the window side up and the safety tab facing you.

The television program was not recorded

• Check the DVD Recorder & VCR antenna connections. • Is the DVD Recorder & VCR tuner properly set? • Check if the safety tab is intact on the cassette.

Timer recording was unsuccessful

• Re-check the recording start/stop time settings and the current time • Check whether you insert a tape which has enough time record

No playback picture or the picture is distorted

• Check to see if you are using a prerecorded tape.

You cannot see normal broadcasts Noise bars or streaks on playback

• Check the tuner/external setting. It should be on tuner. • Check the TV antenna connections. • Press the CH/TRK ( / ) buttons to minimize this effect.

When the √II button is pressed during playback, the still picture has severe “noise bar” streaks

• A still picture may have “noise bars”, depending on the condition of the tape. Press the CH/TRK ( / ) buttons during slow motion to minimize this effect.

• If poor pictures appear on a variety of cassettes, the video heads may need cleaning. This is not a common problem and unless it appears, the heads should not be cleaned. When cleaning the video heads, read all instructions provided with the head cleaning cassette. Incorrect head cleaning can permanently damage the video heads.

If you are unable to solve the problem after reading the above instructions, note:

• The model and serial number on the rear of your DVD Recorder & VCR • The warranty information • A clear description of the problem Then contact your nearest SAMSUNG authorized service center.

Problems and Solutions (Display error Message) Before contacting a Samsung authorized service center, perform the following simple checks. Problem You cannot record a copy protected movie.

Explanation / Solution • You can’t record the video since it is protected by copyright.

You cannot record. This disc is protected. This disc cannot be formatted (the disc is protected). This disc cannot be renamed (the disc is protected). This disc cannot be finalized (the disc is protected).

• Disc you are using is protected. To record on this disc or use this function, cancel the disc protection function. Refer to page 89.

This [Menu] is not available (the disc is protected). The disc cannot be played, Please check the regional code of the disc.

• The disc does not match the regional code for your area and cannot be played on this device.

This disc cannot be formatted. Please check the disc. You could not format the disc because of error detection. You could not finalize the disc because of error detection.

• Make sure there are no scratches or dirt on the disc.

You could not unfinalize the disc because of error detection. The disc cannot be played, Please check the TV system.

• The disc is PAL format and cannot be played on this unit.

The disc can be neither played nor recorded.

• Make sure there are no scratches or dirt on the disc. The disc cannot be played, Please check the disc.

If the disc has invalid information, no more titles can be recorded. Please format the disc beforehand.

• You can’t use the disc because it contains errors from previous recordings. Use the disc after formatting.

Explanation / Solution

Error is detected on the disc.

• You can’t use the disc because it contains errors from previous recordings. Use the disc after formatting.

System error is found. Please try it again after turning off the power.

• When operating, errors happen. Turn off the device. (To turn off, press and hold the power button on the front of the device for 10 seconds.) After turning off, press the Open button and remove the disc from the device.

The DV device is not connected.

• Make sure the DV device is connected properly to the DV connection Jack. If it is connected properly, turn it off and on once again.

If you are unable to solve the problem after reading the above instructions, note: • The model and serial number on the rear of your DVD Recorder & VCR • The warranty information • A clear description of the problem Then contact your nearest SAMSUNG authorized service center. Call 1-800-SAMSUNG for a center near you.

Reference English - 99

+41°F to +95°F Other conditions

Keep level when operating. Less than 75% operating humidity

1.0 V p-p at 75Ω load, sync negative S-Video input (Y: 1.0Vp-p, C: 0.286Vp-p at 75Ω load)

Regular TV broadcasting: VHF (2~13), UHF (14~69) Cable TV broadcasting: 1~125

Audio output jacks 1, 2 Optical/Coaxial digital audio output support Min. 100 dB signal-to-noise ratio Max. 0.005% total harmonic distortion (T.H.D)

at average 1 KHz Video

XP (about 8 Mbps), SP (about 4 Mbps), LP (about 2 Mbps),

MPEG-II EP (about 1.2 Mbps) Video S/N Ratio

Min. 50dB at standard recording

Min. 75dB Audio frequency characteristics

Audio Output For DVD discs, audio signals recorded at 96kHz sampling frequency are converted into and output at 48kHz. Disc Type

LIMITED WARRANTY TO ORIGINAL PURCHASER Samsung Electronics Canada Inc.(SECA), warrants that this product is free from defective material and workmanship. SECA further warrants that if this product falls to operate properly within the specified warranty period and the failure is due to improper workmanship or defective materials, SECA will repair or replace the product at its option. All warranty repairs must be performed by a SECA Authorized Service Center. (The name and address of the location nearest you can be obtained by calling toll free: 1- 800- SAMSUNG)

LABOR PARTS One year (Carry- in)

On carry-in models, transportation to and from the service center is the customer’s responsibility. The original dated sales receipt must be retained by the customer and is the only acceptable proof of purchase. It must be presented to the authorized service center at the time service is requested.

EXCLUSIONS (WHAT IS NOT COVERED)

This warranty does not cover damage due to accident, fire, flood and/ or other acts of God; misuse, incorrect line voltage, improper installation, improper or unauthorized repairs, commercial use or damage that occurs in shipping. Exterior and interior finish, lamps, glass are not covered under this warranty. Customer adjustments which are explained in the instruction manual are not covered under the terms of this warranty. This warranty will automatically be voided for any unit found with a missing or altered serial number. This warranty is valid only on products purchased and used in Canada.

Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

Contactez SAMSUNG WORLD WIDE Si vous avez des commentaires our des questions concernant les produits Samsung, contactez le centre de service à la clientèle SAMSUNG.

Region North America

Câble Coaxial (non fourni)

Automatic Chaper Creator

00:04:00 00:03:49 00:03:47 00:04:29 00:03:44 00:03:44

00:04:00 00:03:49 00:03:47 00:04:29 00:03:44 00:03:44

00:04:00 00:03:49 00:03:47 00:04:29 00:03:44 00:03:44 REVENIR

ENTERZ Longu 00:03:50 00:04:00 00:03:49 00:03:47 00:04:29 00:03:44 00:03:44

Longu 00:03:50 00:04:00

Longu 00:03:50 00:04:00 00:03:49 00:03:47 00:04:29

ROOT 2006/01/01 70.8MB DÉPLA.

01:05 AM 03:05 AM SP

03:05 AM 05:05 AM SP

01:05 AM 03:05 AM SP

00:00:11 00:00:09 00:01:36 00:00:11

00:00:11 00:00:09 00:01:36 00:00:11

1/4 00:00:11 00:00:09 00:01:36 00:00:11

00:00:11 00:00:09 00:01:36 00:00:11

00:00:11 00:00:09 00:01:36 00:00:11

00:00:11 00:00:09 00:01:36 00:00:11

00:00:11 00:00:09 00:01:36 00:00:11

00:00:11 00:00:09 00:01:36 00:00:11

SP EP DÉPLAC. DÉPLAC.

00:04:48 00:01:47 00:19:25 00:30:32 01:13:08

Editing a Scene for the Liste de Lecture Follow these instructions to edit scenes for a playlist.

JAN/01/2006 12:00 AM Lect. DÉPLAC.

Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

Contactez SAMSUNG WORLD WIDE Si vous avez des commentaires our des questions concernant les produits Samsung, contactez le centre de service à la clientèle SAMSUNG.

Region North America
