USER MANUAL DVD-R130 SAMSUNG

00:03:50 00:04:00 00:03:49 00:03:47 00:04:29 00:03:44 00:03:44 SORTIE

00:00:21 00:00:03 00:00:15 00:00:16 00:06:32 00:08:16 ENTERZ

03 Sports 04 Movie 05 Sports(A1) 00:00:15 00:00:16 00:06:32

Drama Music 00:00:21 00:00:03

Sports Movie 05 Sports(A1) 00:00:15 00:00:16 00:06:32

Drama Music 00:00:21 00:00:03 Lecture

03 Sports 04 Movie 05 Sports(A1) 00:00:15 00:00:16 00:06:32

Drama Music 00:00:21 00:00:03 Lecture

00:08:16 Protection Edu 1

Drama Music 00:00:21 00:00:03 Lecture

03 Sports 04 Movie 05 Sports(A1) 00:00:15 00:00:16 00:06:32

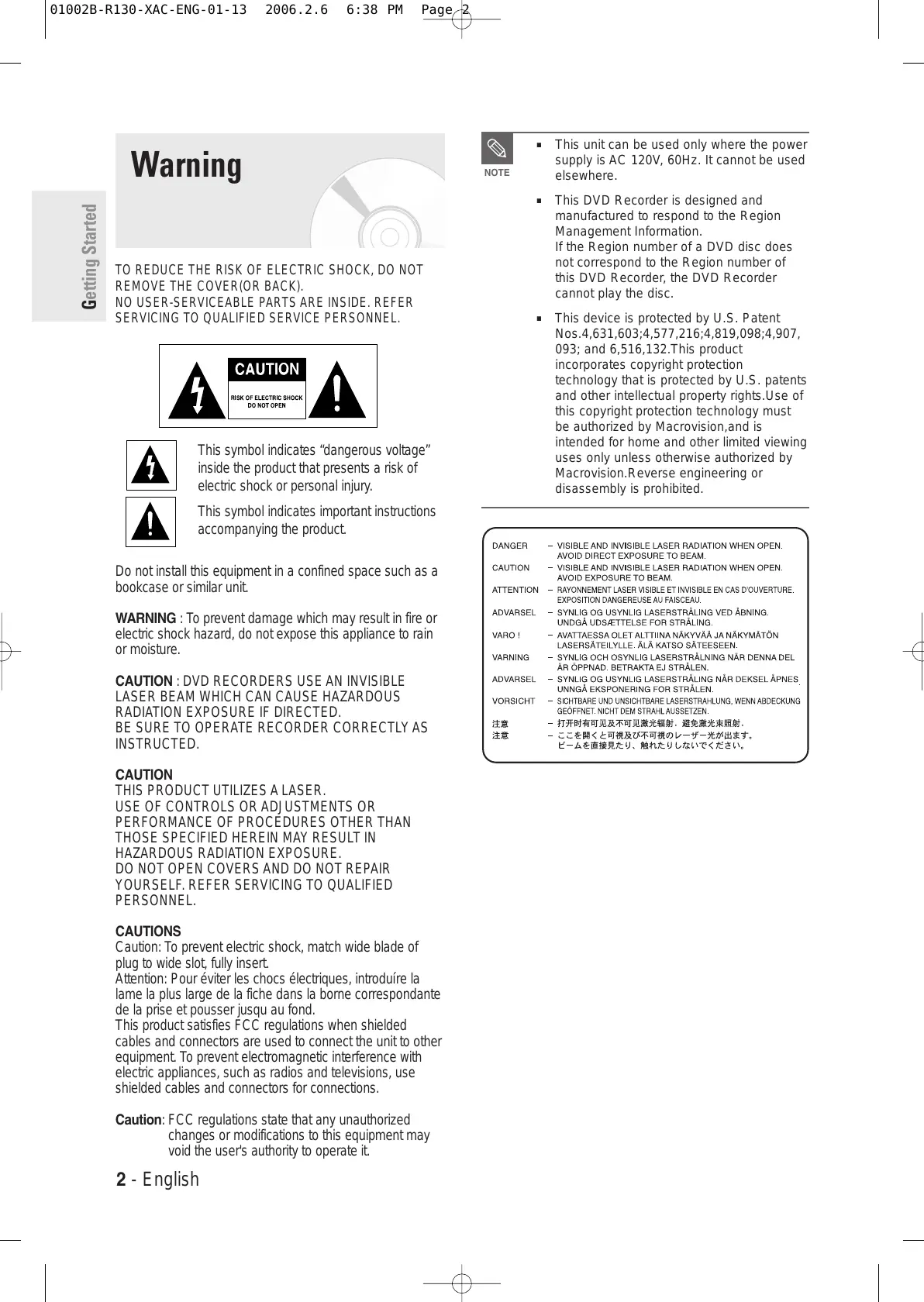

NO USER-SERVICEABLE PARTS ARE INSIDE. REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury. This symbol indicates important instructions accompanying the product. Do not install this equipment in a confined space such as a bookcase or similar unit.

WARNING : To prevent damage which may result in fire or

electric shock hazard, do not expose this appliance to rain or moisture.

CAUTION : DVD RECORDERS USE AN INVISIBLE

LASER BEAM WHICH CAN CAUSE HAZARDOUS

USE OF CONTROLS OR ADJUSTMENTS OR

PERFORMANCE OF PROCEDURES OTHER THAN

THOSE SPECIFIED HEREIN MAY RESULT IN

HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR

YOURSELF. REFER SERVICING TO QUALIFIED

PERSONNEL. CAUTIONS Caution: To prevent electric shock, match wide blade of plug to wide slot, fully insert. Attention: Pour éviter les chocs électriques, introduíre la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu au fond. This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances, such as radios and televisions, use shielded cables and connectors for connections. Caution: FCC regulations state that any unauthorized changes or modifications to this equipment may void the user's authority to operate it.

This unit can be used only where the power supply is AC 120V, 60Hz. It cannot be used elsewhere.

This DVD Recorder is designed and manufactured to respond to the Region Management Information. If the Region number of a DVD disc does not correspond to the Region number of this DVD Recorder, the DVD Recorder cannot play the disc.

This device is protected by U.S. Patent Nos.4,631,603;4,577,216;4,819,098;4,907, 093; and 6,516,132.This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights.Use of this copyright protection technology must be authorized by Macrovision,and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision.Reverse engineering or disassembly is prohibited. NOTE

6:38 PM Page 3 Precaution Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings, Install in

accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as

radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or

grounding- type plug. A polarized plug has two blades with one wider than the other. A groundingtype plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. if the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or

pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the

12) Use only with the cart, stand, tripod, bracket, or

table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or

when unused for long periods of time.

14) Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, such as a power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Handling Cautions

• Before connecting other components to this recorder, be sure to turn them all off.
• Do not move the recorder while a disc is being played, or the disc may be scratched or broken, and the recorder’s internal parts may be damaged.
• Do not put a flower vase filled with water or any small metal objects on the recorder. Maintenance of Cabinet For safety reasons, be sure to disconnect the AC power cord from the AC outlet.
• Do not use benzene, thinner, or other solvents for cleaning.
• Wipe the cabinet with a soft cloth. Disc Handling
• Use discs with regular shapes. If an irregular disc (a disc with a special shape) is used, this DVD Recorder may be damaged. Holding discs
• Avoid touching the surface of a disc where recording is performed. DVD-RAM, DVD-RW and DVD-R
• Clean with an optional DVD-RAM/PD disc cleaner (LF-K200DCA1 where available). Do not use cleaners or cloths for CDs to clean DVD-RAM/DVDRW/DVD-R discs. DVD-Video, CD
• Wipe off dirt or contamination on the disc with a soft cloth. Cautions on handling discs
• Do not write on the printed side with a ball-point pen or pencil. English - 3 Getting Started Important Safety Instructions

• Be careful not to put your hand into the disc tray.
• Do not place anything other than the disc in the disc tray.
• Exterior interference such as lightning and static electricity can affect normal operation of this recorder. If this occurs, turn the recorder off and on again with the POWER button, or disconnect and then reconnect the AC power cord to the AC power outlet. The recorder will operate normally.
• Be sure to remove the disc and turn off the recorder after use.
• Disconnect the AC power cord from the AC outlet when you don’t intend to use the recorder for long periods of time.
• Clean the disc by wiping in a straight line from the inside to the outside of the disc. Getting Started

• Do not use record cleaning sprays or antistatic. Also, do not use volatile chemicals, such as benzene or thinner.
• Do not apply labels or stickers to discs. (Do not use discs fixed with exposed tape adhesive or leftover peeled-off stickers.)
• Do not use scratch-proof protectors or covers.
• Do not use discs printed with label printers available on the market.
• Do not load warped or cracked discs. Disc Storage Be careful not to harm the disc because the data on these discs is highly vulnerable to the environment.
• Do not keep under direct sunlight.
• Keep in a cool ventilated area.
• Keep in a clean protection jacket.
• If you move your DVD Recorder suddenly from a cold place to a warm place, condensation may generate on the operating parts and lens and cause abnormal disc playback. When this occurs, do not connect the plug to the power outlet. Wait for two hours, then insert the disc and try to playback again. It will work properly when condensation has evaporated. Disc Specifications DVD-Video
• A digital versatile disc (DVD) can contain up to 135minutes of images, 8-language audio and 32 subtitle languages. It is equipped with MPEG-2 picture compression and Dolby 3D surround sound, allowing you to enjoy vivid and clear theater quality images in the comfort of your own home.
• When switching from the first layer to the second layer of a double-layered DVD Video disc, there may be momentary distortion in the image and sound. This is not a malfunction of the unit.
• Once a DVD-R/-RW recorded in Video Mode is finalized, it becomes DVD-Video. Audio CD
• An audio disc on which 44.1kHz PCM Audio is recorded
• Plays CD-DA format audio CD-R and CD-RW discs. The unit may not be able to play some CD-R or CDRW discs due to the condition of the recording. CD-R/-RW MP3 CD-R/-RW
• Only CD-R discs with MP3 files recorded with ISO9660 or JOLIET format can be played back

• Only MP3 files with the ".mp3", ".MP3" extension can be used.
• For MP3 files recorded with a VBR(Variable Bit Rates), from 32 Kbps to 320 Kbps, the sound may cut in out.
• Playable bitrate range is from 56Kbps to 320Kbps.
• The unit can handle a maximum of 1000 files and folders.

• Only JPEG files with the ".jpg", ".JPG" extension can be used.
• The unit can handle a maximum of 1000 files and folders.
• Maximum size of progressive JPEG is 3M pixels.
• MOTION JPEG is not supported. Using CD-R/-RW
• Use a 700MB(80 minutes) CD-R/-RW disc. If possible, do not use a 800MB(90 minutes) or above disc, as the disc may not play back.
• If the CD-R/-RW disc was not recorded as a closed session, you may experience a delay in the early playback time, and all recorded files may not play.
• Some CD-R/-RW discs may not be playable with this unit, depending on the device which was used to burn them. For contents recorded on CD-R/-RW media from CDs for your personal use, playability may vary depending on contents and discs. DVD-R Disc Playback and Recording
• Once a DVD-R recorded in Video Mode is finalized, it becomes DVD-Video.
• You can record onto the available space on the disc and perform editing functions such as giving titles to discs and programs and erasing programs before finalizing.
• When programming is erased from a DVD-R, that space does not become available. Once an area on a DVD-R is recorded on, that area is no longer available for recording, whether the recording is erased or not.
• It takes about 30 seconds for the unit to complete recording management information after recording finishes.
• This product optimizes the DVD-R for each recording. Optimizing is carried out when you start recording after inserting the disc or turning on the unit. Recording onto the disc may become impossible if optimizing is carried out too many times.
• Playback may be impossible in some cases due to the condition of recording.
• This unit can play back DVD-R discs recorded and finalized with a Samsung DVD video recorder. It may not be able to play some DVD-R discs depending on the disc and the condition of the recording.

6:38 PM Page 5 DVD-RW Disc Playback and Recording DVD-RAM Disc Playback

• DVD-RAM discs come with or without a cartridge. For this product, we recommend DVD-RAM discs that come without cartridges.
• You cannot play a DVD-RAM in most DVD players due to compatibility issues.
• Only DVD-RAM standard Version 2.0. discs can be played in this unit.
• For cartridge type DVD-RAM discs, remove the cartridge and use the disc only. Protection COPY PROTECTION

• Program-protected: See page 73 “Locking a Title”
• Disc-protected: See page 85 “Disc Protection” ✻ DVD-RAM/DVD-RW/DVD-R discs that are incompatible with the DVD-VIDEO format cannot be played with this product. ✻ For more information on DVD recording compatibility, consult your DVD-RW/DVD-R manufacturer. ✻ If poor quality DVD-RW/DVD-R discs are used, your recordings may fail. Do not use the following discs!
• LD, CD-G, CD-I, CD-ROM and DVD-ROM discs should not be used in this product. [Note] Disc types that can be played : CD/CD-R/CD-RW/MP3/JPEG/DVD-Video/DVDRAM/DVD-RW/ DVD-R. DVD+R/+RW cannot record, but the finalized +R/+RW can be played. For a DVD-R/DVD-RW disc, which has been recorded in Video Mode on another component, it can play only when finalized.
• Some commercial discs and DVD discs purchased outside your region may not be playable with this product. When these discs are played, either “No disc." or "Please check the regional code." will be displayed.
• If your DVD-RW disc is an illegal copy or is not in DVD video format, it may also not be playable. Disc compatibility High Speed Recording discs can be used in this unit.
• Not all brands of discs will be compatible with this unit.
• The latest firmware upgrade to improve recording & playback quality can be downloaded from our web site. (Download Center at www.samsung.com/ca)
• If disc compatibility problems continue, or there is an issue upgrading your recorder, contact the Call Center at 1-800-SAMSUNG.

• Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD Recorder directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs.
• This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. English - 5 Getting Started

• Recording and playback can be performed on DVDRW discs in both the Video and VR Modes.
• Once a DVD-RW recorded in VR Mode or Video mode is finalized, you cannot perform addtional recording.
• Once a DVD-RW recorded in Video Mode is finalized, it becomes DVD-Video.
• In both modes, playback can be performed before and after finalization, but additional recording, deleting and editing can not be performed after finalization.
• If you want to record the disc in VR Mode and then record in V Mode, be sure to execute Format. Be careful when executing Format because all the recorded data may be lost.
• A DVD-RW blank disc is initialized to VR Mode when first initialized.
• DVD-RW (VR mode) - This is a format that is used for recording data on a DVD-RW disc. You can record multiple titles, edit, delete, partial delete, create a playlist, etc. - A disc that is recorded in this mode will not play in standard DVD players.
• DVD-RW (Video mode) - This is a format that is used for recording data on a DVD-RW or DVD-R disc. The disc can be played by an existing DVD player once it has been finalized. - If a disc that has been recorded in Video Mode by a different maker’s recorder but has not been finalized, it cannot be played or additionally be recorded by this recorder. This DVD Recorder can allow you to protect the contents of your discs, as described below.

6:38 PM Page 8 High quality progressive scan Getting Started General Features The DVD-R130 allows you to record and play high quality digital video on DVD-RW/DVD-R discs. You can record and edit digital video on DVD-RW/DVD-R discs as if they were VCR tapes. High quality digital audio and video recording and playback Record up to 8-hours of video or images with a 4.7 GB DVD-RW/DVD-R disc, depending on the recording mode. Selectable Record Mode You can set your recorder to one of five different recording speeds, each varying in recording quality and length. EP mode yields the most recording time, LP & SP modes provide less recording time with higher quality recording, and XP mode gives you the highest quality recording. There's also the FR (Flexible Recording) mode that lets you record with the best picture quality possible for the recording time and remaining space on the disc in timer recording. Automated Quality Adjustment for Timer Recording If FR mode is selected, the video quality is adjusted automatically so that all video for the scheduled time can be recorded onto the free disc space. (See page 51.) Create a DVD video title using a DVD-RW/DVD-R disc With the DVD-R130, you can create your own DVD video title on 4.7 GB DVD-RW/DVD-R discs. Copying data from a digital camcorder using a DV input jack Record digital camcorder video onto DVD-RW, DVD-R discs using the DV input jack (IEEE 1394-4pin). (See page 48.)

Progressive scanning provides high resolution and flicker free video. The 10-bit 54-MHz DAC and 2D Y/C Separating Circuitry provides the highest video playback and recording quality. (See page 20.) A variety of functions with an easy-to-use user interface The integrated menu system and the messaging function allow you to perform desired operations both easily and conveniently. With a DVD-RW disc, you can edit recorded images, create a playlist, and edit video in a specific sequence according to your requirements.

6:39 PM Page 9 Make sure to check the following before reading the user’s manual. Icons that will be used in manual Icon Term Definition DVD This involves a function available in DVD or DVD-R/DVD-RW discs that have been recorded and finalized in Video Mode. RAM This involves a function available in DVD-RAM.

This involves a function available in DVD-RW.

This involves a function available in DVD-R.

This involves a function available in a data CD (CD-R or CD-RW). JPEG This involves a function available in a data picture CD(CD-R or CD-RW). MP3 This involves a function available in a data CD(CD-R or CD-RW on which MP3 is recorded). Caution NOTE This involves a case where a function does not operate or settings may be cancelled. This involves tips or instructions on the page that help each function operate. One-Touch A function that can be operated button by using only one button. ANYKEY A function that can be operated button by using ANYKEY button. How to use the DVD Recorder Step 1 This unit can record on the following types of discs. If you want to repeatedly record on the same disc or you want to edit the disc after recording, select a rewritable DVD-RW type disc. If you want to save recording without any change, choose a non-rewritable DVD-R. Step 2 Copyright Format the disc to start recording Unlike a VCR, the recorder automatically starts formatting when an unused disc is inserted. This is required for the preparation of disc recording. Using a DVD-RW This type of disc can be formatted in either DVDVideo format (Video mode) or DVD-Video Recording format (VR mode). For an unused disc, a message that asks whether to initialize or not is displayed. You can play a Video mode disc in standard DVD players. A VR mode disc allows more varied editing. Using a DVD-R This type of disc can be formatted in DVD Video format. After formatting is complete, you can record on the disc. You can play this type of disc on various DVD components only when they have been finalized. About the use of this Instruction Manual

1) Be sure to be familiar with Safety Instructions before

using this product. (See pages 2~3)

2) If a problem occurs, check the Troubleshooting.

(See pages 89~92) Select the disc type

You can only use either the VR or Video mode on a DVD-RW, but not both at the same time. You can change the DVD-RW format to another format by reinitializing. It should be noted that the disc's data will be lost when changing formats. © 2006 Samsung Electronics Co. All rights reserved; No part or whole of this user’s manual may be reproduced or copied without the prior written permission of Samsung Electronics Co. English - 9 Getting Started Before Reading the Instruction Manual Getting Started

6:39 PM Page 10 Recording There are two different recording methods, Direct Recording and Timer Recording. Timer recording is classified as a Date : Once(mm/dd), MON-FRI, Every SAT, etc. as a record mode : XP (high quality mode), SP (standard quality mode), LP (long recording mode), and EP (extended mode) according to the record mode. When recording is set in the FR mode, the best quality picture is recorded with regards to the remaining time on the disc. Step 6 Finalizing & Playing on other DVD components To play your DVD on other DVD components, finalizing may be necessary. First, finish all editing and recording operations, then finalize the disc. When using a DVD-RW disc in VR Mode Although finalizing is generally unnecessary when playing the disc on a VR Mode compatible component, a finalized disc should be used for playback. When using a DVD-RW disc in Video Mode The disc should be finalized first to enable playback on anything other than this recorder. No more editing or recording can be made on the disc once it has been finalized. Step 4 Playing You can select the title you want to play in a displayed menu and then immediately start playback. A DVD consists of sections called titles, and sub sections called chapters. During recording, a title is created between two points where you start and stop recording. Chapters will be created automatically when you finalize recording on DVD-R / DVD-RW discs in Video mode. The chapter’s length (interval between chapters) varies according to the record mode. Step 5 Editing a recorded disc Editing on discs is easier than editing on conventional video tapes. The recorder supports many different edit functions, possible only with DVDs. With a simple and easy edit menu, you can operate various edit functions, such as delete, copy, rename, lock, etc., on a recorded title. Creating a playlist (DVD-RW in VR mode) With this recorder, you can create a new playlist on the same disc and edit it without changing the original recording.

When using a DVD-R disc You should finalize the disc to play it on a component other than this recorder. You cannot edit or record on the disc once it has been finalized.

6:39 PM Page 11 Description Getting Started Front panel

Turns the recorder on and off.

Connect external equipment.

Connects external digital equipment with a DV jack. (such as a camcorder)

Opens to accept a disc.

Opens and closes the disc tray.

Displays the playing status, time, etc.

Go to the next title/chapter/track, or goes back to the previous title/chapter/track.

Stops disc playback.

Plays a disc or pauses playback.

Selects the progressive scan mode.

Select TV channels. Front Panel Display

1. Lights when a disc is loaded.

2. Lights in the record mode.

3. Lights to indicate the timer record mode.

6. Lights in the progressive scan mode.

7:46 PM Page 12 Getting Started Rear Panel

1. DIGITAL AUDIO OUT(OPTICAL)

Connects to an amplifier having a digital optical audio input jack.

2. DIGITAL AUDIO OUT(COAXIAL)

Connects to an amplifier having a digital coaxial audio input jack.

Connect to the audio input of external equipment using audio cables.

4. AV VIDEO OUT(good video quality)

Connects the input of external equipment using a Video cable.

5. AV S-VIDEO OUT(better video quality)

Connects the input of external equipment using an S-Video cable.

6. COMPONENT VIDEO OUT(best video quality)

Connect to equipment having Component video input jacks.

Connect the output of external equipment using audio cables

Connects the output of external equipment using a video cable.

Connects the output of external equipment using an S-Video cable.

Connect antenna cables.

NOTE The Antenna connection does not pass audio/video signals. To watch a DVD on your TV, you must connect audio/video cables. Unpacking Accessories Check for the supplied accessories below. Video/Audio Cable (AC39-00073A)

Use this to view the status of the disc that is being played.

Use to make a recording on DVD-RW/-R discs.

Use this to set the desired Recording time and picture quality. (XP/SP/LP/EP)

To open and close the disc tray.

Press to play/pause a disc or pause the recording.

Use this to select a TV channel.

Use this to access various audio functions on a disc.

Use this to return to the Title menu, or to view the recorded Playlist.

Allows you to repeat a title, chapter, track or disc.

Press this to select channel 100 or higher.

4. REVERSE/FORWARD SKIP Buttons

Press to skip a disc backwards or forwards.

28. REPEAT A-B Button

Allows you to repeat a certain section.

Press to play frame by frame.

6. REVERSE/FORWARD SEARCH Buttons

Press to search a disc backwards or forwards.

Press to stop a disc or to stop the recording.

The unit can be set to automatically skip a portion of the program during playback of a DVD disc.

Use this to bookmark or mark a position while playing a disc.

(UP/DOWN and LEFT/RIGHT Buttons) This button functions as a toggle switch. English - 13 Getting Started

6:40 PM Connecting & Setting Up Connecting & Setting Up Page 14 Quick Overview A Quick Overview presented in this guide will give you enough information to start using the recorder. This section involves various methods of connecting the DVD Recorder to other external components and setting required initial modes. Step 1 : Connecting the Antenna Cable

• Note to CATV system installer: : This reminder is provided to call CATV system installer’s attention to Article 820-40 of the National Electrical Code (Section 54 of Canadian Electrical Code, Part I), that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

6:40 PM Page 15 Step 1: Connecting the Antenna Cable There are several ways to connect your DVD Recorder. Select one of the Antenna connections on the following pages. You can record non-scrambled channels by selecting the channel on the DVD Recorder. Also use this method if you watch channels without cable box.

NOTE The VHF/UHF ANT (RF) OUT jack of this product sends only signals received through the antenna. It does not output Audio/Video signals. You must connect Audio/Video cables to view Video from the unit. (i.e. DVD playback) English - 15 Connecting & Setting Up Antenna + DVD Recorder + TV : No Cable box Connecting & Setting Up

6:40 PM Page 16 Antenna + Cable box + DVD Recorder + TV : Cable box with many scrambled channels You can record channels by selecting the channel on the cable box. You cannot record one channel while watching another channel. Be sure that the cable box is turned on.

The VHF/UHF ANT (RF) OUT jack of this product sends only signals received through the antenna. It does not output Audio/Video signals. You must connect Audio/Video cables to view Video from the unit. (i.e. DVD playback)

6:40 PM Page 17 You can record non-scrambled channels by selecting the channel on the DVD Recorder. You cannot record scrambled channels that require a cable box.

NOTE The VHF/UHF ANT (RF) OUT jack of this product sends only signals received through the antenna. It does not output Audio/Video signals. You must connect Audio/Video cables to view Video from the unit. (i.e. DVD playback) English - 17 Connecting & Setting Up Antenna + DVD Recorder + Cable box + TV : Cable box with a few scrambled channels

6:40 PM Page 18 Step 2 : Connecting the Video Cable Connecting & Setting Up There are several ways to connect your DVD Recorder. Select one of the video connections on the following pages. The VHF/UHF RF OUT jack of this product sends only signals received through the antenna. It does not output audio/video signals. You must use one of the following audio/video connections on this unit. Connecting to a Video input jack Connect a video(yellow) cable between the VIDEO(yellow) OUT jack on DVD Recorder and VIDEO(yellow) IN jack on the TV (or AV amplifier).

• You will enjoy normal quality images.
• Connect audio cables(white and red) between the AUDIO OUT jacks on the DVD Recorder and AUDIO IN jacks on your TV(or AV amplifier). (See pages 21 ~ 23)

6:40 PM Page 19 Connect an S-Video cable(not supplied) between the S-VIDEO OUT jack on DVD Recorder and S-VIDEO IN jack on your TV (or AV amplifier).

• You will enjoy high quality images. S-Video separates the picture element into black and white (Y) and color (C) signals to present clearer images than regular video input mode.
• Connect audio cables(white and red) between the AUDIO OUT jacks on the DVD Recorder and AUDIO IN jacks on TV(or AV amplifier). (See pages 21 ~ 23)

NOTE S-Video or Component video outputs are available only if your TV supports S-Video input or Component video input, respectively. If S-Video or Component video output does not work, check the TV connections and the TV input selection settings. English - 19 Connecting & Setting Up Connecting to an S-Video input jack Connecting & Setting Up

6:40 PM Page 20 Connecting to Component video input jacks (Y,PB,PR)

1. Connect Component video cables(not supplied)

between the COMPONENT OUT(Y,PB,PR) jacks on DVD Recorder and COMPONENT IN(Y,PB,PR) jacks on your TV (or AV amplifier).

2. If the connected TV supports Progressive Scan,

press the P.SCAN button on the front of the DVD Recorder to enjoy best quality video. Pressing the P.SCAN button switches Progressive (480p) / Interlace (480i) scan mode in turn.

• You will enjoy best quality accurate color reproduction images. Component video separates the picture element into black and white(Y), blue(PB), red(PR) signals to present clear and clean images.
• Connect audio cables(white and red) between the AUDIO OUT jacks on the DVD Recorder and AUDIO IN jacks on TV(or AV amplifier). (See pages 21 ~ 23)

Compared to standard interlaced video, progressive scan doubles the amount of video lines fed to your TV, resulting in a more stable, flicker-free, and clear image than interlaced video. The progressive scan video output jack is used in progressive output mode. This is only available with TVs that support progressive scan. Progressive Scan Output (480p). Not all high definition television sets are fully compatible with this product. If the 480p progressive scan picture is not satisfactory, press the P.SCAN button on the unit to switch to the Interlace mode. If there are questions regarding TV set compatibility with this model, please contact our customer service center at 1-800-SAMSUNG.

6:40 PM Page 21 Step 3 : Connecting the Audio Cable There are several ways to connect your DVD Recorder. Select one of the audio connections on the following pages. Connecting & Setting Up Connecting to your TV This connection will use your TV’s speakers. English - 21 Connecting & Setting Up

6:40 PM Page 22 Connecting to a stereo amplifier with analog input jacks If your stereo amplifier only has AUDIO INPUT jacks(L and R), use the AUDIO OUT jacks.

6:40 PM Page 23 If your AV amplifier has a Dolby Digital or DTS decoder and a digital input jack, use this connection. To enjoy Dolby Digital or DTS sound, you will need to set up the audio settings. (See pages 32~33) Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. “DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc. English - 23 Connecting & Setting Up Connecting to an AV amplifier with a digital input jack

6:40 PM Page 24 Step 4 : Connecting External Devices Connecting & Setting Up This allows you to connect your DVD Recorder to other external devices and view or record their outputs. Connecting a VCR, Set-Top Box(STB) or DVD Player to the AV 1 IN jacks Connecting a VCR or external device to the AV 1 IN jacks of the DVD Recorder. You can record from connected equipment (VCR, STB or DVD Player).

6:40 PM Page 25 You can also use the AV 2 IN jacks on the front panel of the DVD Recorder. You can record from connected equipment, such as a camcorder. When an input source is inserted into AV 2 while watching TV, the input will be switched to AV 2 automatically. English - 25 Connecting & Setting Up Connecting a Camcorder to the AV 2 IN jacks Connecting & Setting Up

6:40 PM Page 26 Connecting a Camcorder to the DV IN jack If your camcorder has a DV output jack, connect it to the DV input jack of your DVD Recorder. (See page 48)

If the input is not selected automatically, press the INPUT SEL. button on the remote control to select the DV input. Check your camcorder's owner's manual to see how to use the camcorder in this mode.

6:40 PM Page 27 Step 5 : Connecting the Power Cord After all connections are complete, plug the power cord in the wall outlet. Connecting & Setting Up “Auto” appears in the panel display. This means that the current time is being set automatically (Auto Program) through the antenna under connection and also the channel is being set. The setup may take a few minutes. When the DVD Recorder operates normally, the current time is automatically set and displayed in the front panel display.

NOTE After the current time is set automatically, the recorder will perform Auto Channel Memory for about 3 minutes. If power is on before finishing the Auto Channel Memory process, Auto Channel Memory will stop. In this case, do Auto Channel Memory from MENU(see page 31). Step 6 : Preparing the Remote Control Install Batteries in the Remote Control

• Open the battery cover on the back of the remote.
• Insert two AAA batteries. Make sure that the polarities (+ and -) are aligned correctly.

• Replace the battery cover. If the remote control does not operate properly:
• Check the polarity + - of the batteries (Dry-Cell)
• Check if the batteries are drained.
• Check if remote sensor is blocked by obstacles.
• Check if there is any fluorescent lighting nearby. Dispose of batteries according to local environmental regulations. Do not put them in the household trash. English - 27

6:42 PM Page 28 System Setup Using the Setup Menu For ease of use, we recommend that you perform the initial setup before using the product.

Setup Scheduled Record List

• System Setup of the General Options. - CM Skip Time, EP Mode Time, Chapter Creator, Quick Recording
• Clock Set - Auto Clock Set, Manual Clock Set
• Channel Set - Antenna/ Cable TV, Auto Channel Memory, Chanel Add/ Delete
• Language Setup of the Language Options. - Audio, Subtitle, Disc Menu, On-Screen Menu
• Audio Setup of the Audio Options - Digital Output , DTS, Dynamic Compression
• Video Setup of the Display Options. Use to select which type of screen you want to watch and several display options. - TV Aspect, Input Level, Black Level, 3D Noise Reduction
• Parental Control Setup of the Parental Level Allows users to set the level necessary to prevent children from viewing unsuitable movies such as those with violence, adult subject matter, etc. - Password, Rating Level,Change Password

With the unit in Stop mode/No Disc mode, press the MENU button. If you connected an external Audio System, turn on your Audio System and select AUX, CD or DVD. The OSD (On-Screen Display) displayed on the screen may vary depending on conditions such as the disc type and whether the disc has been inserted or not. DVD-Recorder Timer Record No Disc Timer Rec. Timer Record

Scheduled Record List

RETURN Clock Set No Disc If the language for the startup screen is not set, the settings may change whenever you turn the power on or off. Therefore, make sure that you select the language you want to use. Timer Rec. Auto Clock Set

MOVE This menu is used to set the current time. You need to set the time first to use timer recording. You must have the antenna/cable connected to set the Auto Clock. See pages 15~17 for Antenna connections(Method 1, 2 and 3). Method 1 or 3 If you have the antenna connected via Method 1 or 3 on pages 15,17, the DVD Recorder automatically sets the clock by searching for a channel that carries a time signal and sets your time zone and daylight saving(if applicable).

The Menus are slightly different depending on whether a disc is inserted or not. The menus described on the next few pages are with no disc in the unit.

The menus are not available during playback or recording. NOTE Method 2 If you have the antenna connected via Method 2 on page 16, you have to set the clock manually. See “Manual Clock set” on pages 30. English - 29 System Setup

To setup, follow steps 1 to 3 in page 29.

• Select Auto to set the clock data channel automatically. DVD-Recorder Clock Data CH No Disc MOVE ENTER RETURN EXIT

• Select Automatic to set the time zone automatically. Select the current date and current time (Month, Day, Year, Hour, Minute and AM/PM) using the …†œ √ or number buttons and then press the ENTER button. When the current time is stored in memory and then the set is powered off, the current time will appear in the front panel display. DVD-Recorder Manual Clock Set No Disc Timer Rec. DVD-Recorder Auto Clock Set Setup No Disc Clock Data CH Setup Time Zone Daylight Saving MOVE ENTER

Automatic Atlantic Eastern Central Mountain Pacific Alaska Hawaii Year Hour

Auto Channel Memory Select Antenna or Cable TV(depending on the hookup you’ve selected) using the …† buttons, then press the ENTER or √ button. If you have the antenna connected via Method 1 or 3 on pages 15, 17, select Antenna. Otherwise, select Cable TV. You can set the Antenna/Cable TV settings automatically. DVD-Recorder Channel Set No Disc

With the unit in Stop mode/No Disc mode, press the MENU button. DVD-Recorder Timer Rec. Antenna/Cable TV Setup Auto Channel Memory Antenna Cable TV Channel Add/Delete

Setup Scheduled Record List

Manual Channel Set Manual Channel Set can be used after you have performed Auto Channel Memory. Use the Manual Channel Setting to delete unnecessary channels after finishing the Auto Channel Memory process. To setup, follow steps 1 to 3 in page 31.

You can connect the DVD-R130 to an external audio amplifier or a Home Theater system. Allows you to setup the audio device and sound status settings depending on the audio system in use.

Setup Scheduled Record List

ENTER RETURN ENTER RETURN EXIT EXIT Select the channels you want to add or delete on the “Select channel” screen using the …† or number buttons. Then, press the ENTER button.

• Using CH buttons for channel selection allows the user to add/delete one channel at a time.
• Using …† buttons for channel selection jumps to the next channel memorized in Auto Channel Memory.

Select Add or Delete using the œ √ buttons,then press the ENTER button.

• The message 'Channel is added.' or 'Channel is deleted.' will be displayed in the center of the screen.
• Continue to add or delete as many channels as you want to memorize or delete. This can be used to add channels not stored automatically due to weak signal strength.
• Press the RETURN button to return to the previous menu. Press the MENU button to exit the menu.

• On : When movie soundtracks are played at low volume or from small speakers, the system can apply appropriate compression to make low-level content more intelligible and prevent dramatic passages from getting too loud.

• Bitstream : Outputs bitstream (original format) such as Dolby or DTS. Select bitstream if your amplifier system has multi channel digital audio surround decoding (Dolby Digital and/or DTS).

• On : Outputs DTS bitstream. (via Digital Audio Output) Select DTS when connecting to a digital amp with DTS decoder.

• Off : Doesn’t output DTS bitstream (original format).
• When DTS soundtrack is played, sound is not output from Analog Audio Output. DVD-Recorder Audio No Disc Timer Rec. Digital Output Setup MOVE : PCM

Dynamic Compression: OnOn

5. Setting Up the TV Aspect

This allows you to set up the TV screen settings.

Scheduled Record List System Setup MOVE

• 4:3 Letter Box : Select when you want to see the total 16:9 ratio screen DVD supplies, even though you have a TV with a 4:3 ratio screen. Black bars will appear at the top and bottom of the screen. Select Setup using the …† buttons, then press the ENTER or √ button. DVD-Recorder Setup No Disc Timer Rec. System

• 4:3 Pan-Scan : Select this for a conventional size TV when you want to see the central portion of the 16:9 screen. (Extreme left and right side of movie picture will be cut off.) Setup No Disc Timer Rec. System

EXIT If you have a wide screen TV or 4:3 standard TV with a wide-screen mode

• 16:9 Wide : You can view the full 16:9 picture on your widescreen TV.

Disc Manager Timer Rec. Setup CM Skip Time Setting When a program recorded on a DVD-RAM, a DVD-RW, or a DVD-R is played, the unit can be set to automatically skip a portion of the program corresponding to a CM(commercial) Skip Time set by the user. MOVE

Setup MOVE ENTER RETURN EXIT If you press the CM SKIP button during playback, the section corresponding to the set time is skipped, and then the next section is played. CM SKIP

CM Skip can be performed only during normal playback. When the time set is less than a remaining time of a current title: The next title is played from the beginning. When the time set is less than a remaining time of a playlist, the next scene is played. CM Skip does not work in a still picture mode. When a set time is less than a remaining time of a scene, a last title, or a last track that is displayed currently, a prohibition mark appears. CM Skip releases Repeat (including Repeat A-B, Chapter, and Title). CM Skip may not operate with some DVDVideo discs. English - 35 System Setup

With a disc inserted and the unit in Stop mode, press the MENU button on the remote control.

EP Mode Time Setting You can set the EP (Extended Play) mode’s time to 6 or 8 hours.

Playlist Disc Manager Timer Rec. Automatic Chapter Creation Setup System Setup MOVE

ENTER RETURN EXIT Select Setup using the …† buttons, then press the ENTER or √ button. You can't use the Setup functions while playing a disc. This function works for DVD-RW (Video) and DVD-R discs only.

Disc Manager EP Mode Time Timer Rec. Setup MOVE ENTER RETURN Quick Recording Setting It takes about 10 seconds for a disc to load (initialize) every time you turn on the unit. To bypass this initialization process, you can set the Quick Recording feature to On. This enables you to record immediately without having to wait for the disc to load.

With a disc inserted and the unit in Stop mode, press the MENU button on the remote control. DVD-Recorder EXIT Title List DVD-RW(VR) Title List Title List

Playlist Disc Manager

Set the chapter creator to on and then start recording. Stopping the recording will automatically create a chapter menu. This function only works for normal recording.

RETURN EXIT Select System using the …† buttons, then press the ENTER or √ button. System menu will be displayed. - After the recording has begun, the “Do you want to create the chapter menu after this recording?” message appears for 10 seconds. Select Yes or No. - Selecting Yes will create a new chapter menu while selecting No will not. - A new chapter is created according to the selected recording mode. A chapter will be about 5 minutes long in XP and SP, and about 15 minutes long in LP and EP mode.

CAUTION The Automatic Chapter Creation function does not work during Timer Recording or when you turn the power off. DVD-Recorder System DVD-RW(VR) Title List CM Skip Time : 15 Sec

Disc Manager Timer Rec. Setup MOVE ENTER RETURN EXIT English - 37 System Setup Select On using the …† buttons, then press the ENTER button.

• Off : Select this option when you do not want to create chapters.
• On : Select this option when you want to create chapters.

System Setup NOTE ENTER RETURN EXIT MOVE The Quick Recording is set to Off as default. With the unit in Stop mode/No Disc mode, press the MENU button on the remote control. Language Timer Rec. Audio : Original

Setup Scheduled Record List

EXIT EXIT Select Setup using the …† buttons, then press the ENTER or √ button DVD-Recorder Language No Disc No Disc Timer Rec. EXIT Select the sub menu(Audio, Subtitle, Disc Menu, On-Screen Menu) and press the ENTER or √ button DVD-Recorder DVD-Recorder EXIT No Disc MOVE If you set the On-Screen menu, Disc menu, Audio and Subtitle language in advance, they will come up automatically every time you watch a movie. If the selected language is not recorded on the disc, the original pre-recorded language is selected.

Scheduled Record List EXIT MOVE

• Lighter : If you feel the screen is too dark and you want to make the screen lighter. Black Level: Adjusts the black level of the screen. DVD-Recorder DVD-Recorder No Disc Timer Rec. System

• 0 IRE : Select this when you want a darker screen.

• Darker : If you feel the screen is too light and you want to make the screen darker.

3D Noise Reduction MOVE ENTER Off: Off

EXIT The Parental Control function works in conjunction with DVDs that have been assigned a rating - which helps you control the types of DVDs that your family watches. There are up to 8 rating levels on a disc.

• On : Provides a cleaner picture through noise reduction (for recording). System Setup

Press the RETURN or œ button to return to the previous menu. Press the MENU button to exit the menu. IRE: Short for the Institute of Radio Engineers. An IRE unit is a relative unit of measure equaling 1/140th of the peak-topeak (p-p) video amplitude. With the unit in Stop mode/No Disc mode, press the MENU button on the remote control. DVD-Recorder Timer Record No Disc Timer Rec. Timer Record

Setup Scheduled Record List

6:42 PM Page 41 The first time the Parental Control is accessed, the ‘Create the Password’ message will be displayed. Create a 4-digit password using the 0 to 9 buttons on the remote control. DVD-Recorder Parental Control Setting the Rating Level

The Re-enter Password screen appears to confirm the password. Enter your password again.

Confirm the password ENTER RETURN The Parental Control screen appears. DVD-Recorder Parental Control No Disc Password Password

ENTER RETURN EXIT Select the desired Level you want using the …† buttons, then press the ENTER or √ button. For example, if you select up to Level 6, discs that contain Level 7, 8 will not play. A higher number indicates that the program is intended for adult use only.

6:42 PM Page 42 Changing the Password

ENTER RETURN EXIT The “Confirm the password” message will be displayed. Enter your password again using the 0 to 9 buttons on the remote control. DVD-Recorder Change Password No Disc Timer Rec. Setup Confirm the password

6:44 PM Recording This section shows various DVD recording methods. Page 43 Before Recording This unit can record on various types of discs. Before recording, read the following instructions and select the disc type according to your preference. Recordable discs This recorder can record on the following discs. DVD-RW DVD-R

• DVD-RWs are rewritable.
• DVD-Rs are non-rewritable Disc Types Recording Recording Device Finalizing Additional Recording format in Samsung Recorder Samsung VR Mode Other Company DVD-RW Samsung V Mode Other Company Samsung V Mode DVD-R Other Company Before Recording . . . . . . . . . . . . . . . . . . . . . . . . .43 finalized not finalized finalized not finalized finalized not finalized finalized not finalized finalized not finalized finalized not finalized Not recordable Recordable Not recordable Recordable Not recordable Recordable Not recordable Not recordable Not recordable Recordable Not recordable Not recordable Recording the current TV program

you are watching . . . . . . . . . . . . . . . . . . . . . . . . . .45 NOTE Recording from External Equipment . . . . . . . . . . .47

• Copying from a Camcorder p. 48
• Making a One Touch Recording (OTR) p. 49
• Setting a Timer Recording p. 50
• Flexible Recording (for Timer Recording only) p. 51
• Editing the Scheduled Record List p. 51
• Deleting the Scheduled Record List p. 52
• Finalize - This closes the DVD-R/-RW and no additional recording can be done. Unfinalize - This allows additional recording on a DVD-RW disc originally recorded on the DVD-R130. - A DVD-RW disc that has been recorded by DAO(Disc At once) in a PC cannot be unfinalized. - A DVD-RW disc that has been recorded in Video Mode of another manufacturer's recorder cannot be unfinalized. - A DVD-R disc cannot be unfinalized. Recording the Scheduled Record List English - 43 Recording Compatibility between Samsung and Other Companies' Recorders p. 53

6:44 PM Page 44 Record Mode Recording Formats Since available functions differ depending on the disc type, select a disc that best fits your preference; When you insert an unused disc, the following message appears. DVD-RW: When a blank disc is first inserted, the message “Uninitialized Disc Do you want to initialize this disc?” will appear. When “Yes” is selected, the disc will be formatted in VR Mode. Uninitialized Disc Do you want to initialize this disc? Yes

If you want to format in either VR Mode or Video Mode, refer to Formatting a Disc on pages 85-86. DVD-Recorder Recording Mode Characteristic Recording Times Data Rates Select when the video (high quality mode) quality is important. Approx. 1 hour about 8 Mbps Select to record in (standard quality mode) standard quality. Approx. 2 hours about 4 Mbps Approx. 4 hours Select when a long (long recording mode) recording time is required. about 2 Mbps Select when a longer Approx. 6 hours/ about 1.2 Mbps recording time is (extended mode) Approx. 8 hours/ required. about 0.8 Mbps for timer recording only Approx 60 to 480 Min (Flexible Recording) see page 51. Approx 0.8 to 8Mbps Disc Manager DVD-RW(VR) Title List Disc Name :

MOVE Select one of four record modes by pressing the REC MODE button repeatedly for the desired recording time and picture quality while the unit is in Stop mode. In general, picture quality improves as the recording time decreases. In FR mode, the most suitable record mode is selected automatically according to the remaining time on the disc and length of the timer recording set. ENTER RETURN

Unrecordable video Video with copy protection cannot be recorded on this DVD Recorder. When the DVD Recorder receives a copy guard signal while recording, recording stops and the following message appears on the screen. EXIT DVD-R : Formatting the DVD is unnecessary and only Video Mode Recording is supported You cannot record copy protected movie. DVD-RW(Video mode)/-R

• Chapters will be created automatically when you finalize recording on DVD-R / DVD-RW discs in Video mode. The chapter’s length (interval between chapters) varies according to the recording mode.
• Simple editing (erasing titles/changing title name) Concerning Copy Control Signals TV broadcasts that contain copy control signals may have one of the following three signal types, COPY-Free, CopyOnce and Copy-Never. If you want to record a copy-once type program, use DVD-RW with CPRM in VR Mode. DVD-RW(VR mode) Signal type

• This mode allows multiple editing functions (such as deletion of the whole title, partial deletion of a title, etc.)

When a “Copy Once” recording has been made, recording cannot be done anymore.

6:44 PM Page 45 Content Protection for Recordable Media (CPRM) CPRM is a mechanism that ties a recording to the media on which it is recorded. It is supported by some DVD recorders, but not by many DVD players. Each blank recordable DVD has a unique 64-bit media ID etched in the BCA. When protected content is recorded onto the disc, it can be encrypted with a 56-bit C2 (Cryptomeria) cipher derived from the media ID. During playback, the ID is read from the BCA and used to generate a key to decrypt the contents of the disc. If the contents of the disc are copied to other media, the ID will be absent or wrong and the data will not be decryptable. Recording the current TV program you are watching Before you start Check that the disc has enough available space for the recording. Adjust the recording mode. About the INFO button Checking the available disc space (Disc Information) Press the OPEN/CLOSE button and place a recordable disc on the disc tray.

Press the OPEN/CLOSE button to close the disc tray. Wait until “LOAD” disappears from the front panel display. DVD-RW If an unused DVD-RW disc is inserted, you will be prompted to initialize first. Make your selection using the œ √ buttons, then press ENTER.(See page 44) Recording The INFO function allows you to view the current status and progress of playback and recording. Depending on the disc type and status, the displayed screen may be different.

Uninitialized Disc Do you want to initialize this disc? Yes

When recording on a used disc, make sure that there is enough disc space for recording. With DVD-RWs, you can free up disc space by erasing titles.

• Press the INFO button. The disc information display window appears. Items in the display differ depending on the disc type or the recording format.

Disc None 01: 12 XP Not Protected CH 11 [Mono] ! Disc Type @ Current information display status # Disc Name $ Total Title : Total number of titles % Total Playlist : Total number of Playlists ^ Recordable Time : The longest continuous recording time in each of the record modes(approximate) & Date : Current date

• Time : Current time English - 45

Press the CH ( / ) or number ( ~ ) buttons to select the current program you want to record.

Press the REC MODE button repeatedly, (or press the REC MODE button and then press the …† button) to select the recording speed(quality). ➞ SP ➞ LP ➞ EP ➞ XP Record Mode XP (01:11) To stop recording Press the STOP ( ) button to stop or finish a recording in progress.

• When using DVD-RW/DVD-R discs, the message ‘Updating the information of disc. Please wait for a moment.’ is displayed. To pause recording Press the PLAY/PAUSE ( recording in progress. ) button to pause Press the PLAY/PAUSE ( recording. ) button again to resume

You can not change the record mode and the channel during recording.

Recording will stop automatically if there is no free space left for recording.

Up to 99 titles can be recorded onto a disc.

Recording will stop automatically if a copy protected image is selected.

If you are using a Cable Box(no antenna), you cannot watch a different cable TV program from the one you're recording.

DVD-RW discs must be formatted before starting to record. Most new discs are sold unformatted.

Do not use DVD-R authoring discs with this unit. NOTE

Press the REC button. Information concerning the channel is displayed on the screen and then recording begins. Icon( ) is displayed on the front panel. Recording Recording : CH10 [Mono] To view the current status of the disc and progress of recording : Press the INFO button, and the information about the disc will appear. DVD-RW(VR) Disc Name Disc Disc Info Total Title Total Playlist Recordable Time Protection Screen JAN 01 2006 SUN

None 01: 11 XP Not Protected Recording : CH 10 [Mono] 12:00 AM Press the INFO button once again to view information about the recording. DVD-RW(VR) Name Recording Info JAN/01/2006 12:00 AM CH 10 Recording Title 7 Created Time JAN/01/2006 12:00 AM Recording Time 00:00:41 JAN 01 2006 SUN 12:00 AM

6:44 PM Page 47 Recording from External Equipment

Press the REC button. To stop recording Press the STOP ( ) button to stop or finish recording in progress.

• When using DVD-RW/DVD-R discs, the message ‘Updating the information of disc. Please wait for a moment.’ is displayed. Before you start Check that the disc has enough available space for the recording. Adjust the record mode. You can not change the record mode and input source during recording.

Recording will stop automatically if there is no free space left for recording.

Up to 99 titles can be recorded onto a disc.

Recording will stop automatically if a copy protected image is selected.

DVD-RW discs must be formatted before starting to record. Most new discs are sold unformatted.

Do not use DVD-R authoring discs with this unit. NOTE

Press the OPEN/CLOSE button, and place a recordable disc on the disc tray.

Press the OPEN/CLOSE button to close the disc tray.

Wait until “LOAD” disappears from the front panel display. If an unused DVD-RW disc is inserted, the message “Uninitialized Disc Do you want to initialize this disc?” will appear (See page 44) Press the INPUT SEL. button to select the input source according to the connection you made. The front panel display changes in the following sequence: ➞ Channel Number ➞ AV1 ➞ AV2 ➞ DV If you’ve connected a digital camcorder, press the INPUT SEL. button to select DV. (See page 48)

Press the REC MODE button repeatedly, (or press the REC MODE button and then press the …† button) to select the recording speed(quality). ➞ SP ➞ LP ➞ EP ➞ XP Record Mode XP (01:11) English - 47 Recording

6:44 PM Page 48 Copying from a Camcorder

Select the PLAY ( √ ) icon on the upper part of the screen to playback the camcorder and find the starting position to copy.

To start recording, select REC( ● ) icon in the top side of the screen using the œ √ buttons, then press the ENTER button. You may control a Digital Camcorder using the IEEE1394 (DV) interface. To stop recording Press the STOP ( ) button to stop or finish recording in progress. Before you start Check that the disc has enough available space for the recording. Adjust the record mode. See pages 25~26 to see how to connect the camcorder to your DVD recorder.

Press the OPEN/CLOSE button, and place a recordable disc on the disc tray. Press the OPEN/CLOSE button to close the disc tray. Wait until “LOAD” disappears from the front panel display. If an unused DVD-RW disc is inserted, whether to initialize or not will be asked first. (See page 44) Press the REC MODE button repeatedly (or press the REC MODE button and then press the …† button) to select the recording speed(quality). ➞ SP ➞ LP ➞ EP ➞ XP Record Mode

XP (01:11) Press the INPUT SEL. button to select DV. If the input is set to DV, a playback/record menu that enables Digital camcorder control appears on the top of the screen.

The DV device is connected MOVE

• When using DVD-RW/DVD-R discs, the message ‘Updating the information of disc. Please wait for a moment’ is displayed.

You can not change the record mode and input source while recording.

Recording will stop automatically if there is no free space left for recording.

Up to 99 titles can be recorded onto a disc.

DVD-RW discs must be formatted before starting to record. Most new discs are sold unformatted.

Do not use DVD-R authoring discs with this unit.

To access on-screen controls during recording, press the œ or √ buttons.

When copying from a camcorder and the end of the tape is reached (no Video), the screen may turn blue or purple. NOTE

6:44 PM Page 49 Making a One Touch Recording (OTR) To view the current status of the disc and the progress of recording : Press the INFO button, and information about the disc will appear. DVD-RW(VR) Disc Name Disc Disc Info Total Title Total Playlist Recordable Time Protection Screen JAN 01 2006 SUN

None 01: 11 XP Not Protected Recording : CH 10 [Mono] 12:00 AM You can set the DVD Recorder to record in preset increments by pressing the REC button repeatedly. Press the INFO button once again. Then you can check the information about the title being recorded

If you want to record a TV channel, use the CH( / ) buttons or number buttons to select a desired channel. If you want to record from a connected external component, press the INPUT SEL. button to select an appropriate external input(AV1, AV 2 or DV).

• CATV channels: 1 to 125
• TV channels: 2 to 69 DVD-RW(VR) Name Recording Info JAN/01/2006 12:00 AM CH 10 Recording Title 7 Created Time JAN/01/2006 12:00 AM Recording Time 00:00:41 12:00 AM JAN 01 2006 SUN Example 1) Selecting Channel 120

Example 2) Selecting Channel 9

Press the REC button to adjust the recording time. Press STOP button once more ➞ 0:30 ➞ 1:00 ➞ 1:30 ➞ 2:00 ➞ 3:00 ➞ 4:00➞ off

NOTE Press the STOP ( ) button. The message “Press STOP button once more to cancel Timer Record.” is displayed. The timer counter decreases to 0:00, then the DVD Recorder stops recording. After finishing recording, the DVD Recorder will be turned off automatically. to cancel Timer Record. Press the STOP ( ) button again to stop recording. English - 49 Recording

Press the REC button to start recording. To stop recording

• Source: Select the video input source (AV 1, AV 2) or the broadcasting channel you want to make a timer recording of. When selecting channels to be recorded, the …† buttons on the remote control can let you select only the channels that have been memorized during Auto Channel Memory. For the selection of other channels, use the number buttons.
• Date: Date that the timer recording starts Recording You need to set the Clock (Setup – Clock Set) before proceeding with a timer recording. (See page 29)

Press the OPEN/CLOSE button, and place a recordable disc on the disc tray.

Press the OPEN/CLOSE button to close the disc tray.

Wait until “LOAD” disappears from the front panel display. If an unused DVD-RW disc is inserted, whether to initialize or not will be asked first. (See page 44.) MON-FRI Every SAT 01/30 01/31 Every SUN

• Start/End Time: Start and end time of the timer recording

When you are recording at EP mode on a DVD-RW(V)/-R disc, it may not record the full 6 or 8 hours because the unit uses the VBR(Variable Bit Rate) ENCODING system. For example, if you record a Program with a lot of action, it uses a higher bit rate which in turn consumes more disc memory. Press the ENTER button. Scheduled Record List DVD-Recorder DVD-RW (RW) Current Time 12:03 AM No. Source Date DVD-Recorder Start End Mode Edit Timer Record

Playlist Scheduled Record List

NOTE Current Time 12:03 AM No. Source Date Start End Mode Edit No. 01 Source Date Start End Mode CH 11 01/01 12:03 AM 02:03 AM

• ( ) and Timer Set will appear on the front panel display. This means that a timer recording is set.
• Recording is automatically performed when the set time is reached. The Timer Record Input items are displayed. DVD-Recorder ENTER

If the timer settings overlap The programs are recorded in order of priority. If timer recording is set for the first program and then again for the second program and both programs overlap, the following message will appear on the screen: ‘This setting is identical with 1.’ The message shows that the first program has priority. After recording of the first program is complete, the second program starts being recorded. To exit without saving the current setting Press the MENU or TIMER button. To return to the previous menu Press the RETURN button if you don't want to set a timer recording.

6:44 PM Page 51 The timer recording time may differ from the set time depending on the disc and the overall timer recording status (for example, recording times overlapping, or when the previous recording ends within 3 minutes of the start of the next recording.) will start blinking if Timer Recording is not ready to start.

Press the …† buttons to select Scheduled Record List, and then press the ENTER or √ button. Scheduled Record List DVD-Recorder DVD-RW (RW) Current Time 12:03 AM No. Source Date

Start 05:00 AM 12:06 AM

Recordable Time : 01:59 SP Flexible Recording (for Timer Recording only) MOVE

ENTER RETURN EXIT Press the …† buttons to select the number of the Scheduled Record List you want to edit, and then press the ENTER or √ button. The Edit and Delete items are displayed. Scheduled Record List DVD-Recorder In FR mode, the most suitable record mode is selected automatically, according to remaining time on the disc and length of the timer recording set. DVD-RW (RW) Current Time 12:03 AM No. Source Date

The FR mode recording setup is the same as Timer Recording setup. When setting the mode in step 6, select FR Mode.(See page 50.) CH 11 CH 7 01/ 01 01/03

Start 05:00 AM 12:06 AM

Playlist Scheduled Record List

ENTER RETURN EXIT Edit the items you want to modify. See the Timer Record section for more information on Timer Record Input items. (See page 50.)

Move through the items with the œ √ buttons and change the settings with …† or number buttons and press the ENTER button.

Press the MENU button after the operation is finished. Disc Manager Timer Rec. Setup MOVE ENTER RETURN The menu screen will disappear. EXIT English - 51 Recording Editing the Scheduled Record List ENTER

6:44 PM Page 52 Deleting the Scheduled Record List

Press the …† buttons to select the number of the timer recording you want to delete, and then press the ENTER or √ button. The Edit and Delete items are displayed. Scheduled Record List DVD-Recorder DVD-RW (RW) Current Time 12:03 AM No. Source Date

Start 05:00 AM 12:06 AM

You can delete timer record list using the scheduled record list menu. Recordable Time : 01:59 SP MOVE

Press the …† buttons to select Delete, and then press the ENTER or √ button. You will be prompted with the delete confirmation message, For example : “Do you want to delete ‘No.01’?”. Timer Record DVD-RW(VR) Title List Timer Record

Playlist Scheduled Record List

Scheduled Record List DVD-Recorder DVD-RW(VR) Disc Manager Current Time 12:08 AM No. Source Date Timer Rec. Source Recording Setup Date Start No.01 No. Start End Mode Edit End Mode Do you want to delete ‘No.01’? CH 11 01/01 05:00 AM Yes MOVE ENTER RETURN Recordable Time: 01:59 SP EXIT 07:00 AM

Playlist Scheduled Record list

Press the MENU button after the operation is finished. The menu screen will disappear. The selected entry will be deleted from the list. EXIT

NOTE Scheduled Record List DVD-Recorder DVD-RW (RW) Current Time 12:03 AM No. Source Date

Start 05:00 AM 12:06 AM

ENTER RETURN EXIT You can not delete programs that are currently being recorded.

6:44 PM Page 53 Recording the Scheduled Record List When the start time in the Scheduled Record List is reached while the unit is powered off, the unit will automatically power on and start recording.

When the scheduled recording is operating, the program being recorded will not display on TV.

• Power on TV using the TV remote control.
• Power off TV using the TV remote control if you don’t want to see the program being recorded. To stop recording Press the STOP ( ) button. The message “Press STOP button once more to cancel Timer Record.” is displayed. Recording Press STOP button once more to cancel Timer Record. Press the STOP (

NOTE ) button again to stop recording. If a copy protection signal is received during recording, recording will stop. You cannot record copy protected movie.

If there is no free disc space or the disc is not recordable, recording will not operate. (You can record after replacing the disc.) English - 53

6:46 PM Page 54 Before Playing Playback Read the following information before playing a disc. This section introduces basic playback functions and playback by disc type. Region code (DVD-Video only) Both the DVD recorder and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play. The Region Number for this recorder is described on the rear panel of the recorder. Disc types that can be played Disc Types Disc Logo Recorded content DVD-VIDEO AUDIO-CD

Stereo NTSC broadcast system in U.S.A, Canada, Korea, Japan,etc. MP3 Before Playing.....................................................................54 Playing a Disc......................................................................55 NOTE Depending on the disc type, it may take up to 20 seconds to load. Discs that cannot be played

3.9 GB DVD-R Disc for Authoring.

6:46 PM Page 55 This DVD recorder can only operate with discs that are compatible with DVD-RAM Standard Version 2.0. Playback and/or recording may not work for some types of discs, or when specific operations, such as angle change and aspect ratio adjustment, are being performed. Information about the discs is written in detail on the box. Please refer to this if necessary. Do not allow the disc to become dirty or scratched. Fingerprints, dirt,dust,scratches or deposits of cigarette smoke on the recording surface may make it impossible to use the disc for recording. DVD-RAM/-RW/-R discs may not be able to play on some DVD players, depending on the player, disc and the condition of the recording. Discs with PAL programs recorded on them can not be recorded on using this product. Playing a Disc

Place a disc gently into the tray with the disc’s label facing up. The tray opens. For DVD-RAM discs, insert the printed side facing up.

Press the OPEN/CLOSE button to close the disc tray.

• Your DVD Recorder closes the disc tray and loads the disc automatically.
• When the recorder is powered on and a disc is in the tray, the unit will be activated and wait in Stop mode.
• Press PLAY( ) button to start playback.
• If you want the unit to play automatically when it is powered off with a disc in the unit, power on with the PLAY( ) button.

When you stop playing the disc, the recorder remembers where you stopped. When you press PLAY button again, it will pick up where you left off. (unless the disc is removed or the recorder is unplugged, or if you do not press the STOP button twice.) This function is only applicable to DVD-VIDEO, DVD-RAM, DVDRW, DVD-R or audio CDs (CD-DA). Do not move your DVD recorder while playing, as this may cause damage to the disc. Make sure to press the OPEN/CLOSE button to open or close the disc tray. Do not push the disc tray while it is being opened or closed, as this may cause a product malfunction. Do not place foreign materials on or in the disc tray. Some functions may perform differently or be disabled depending on the disc type. If this occurs, refer to the instructions written on the disc case. Be especially careful that children's fingers are not caught between the disc tray and the tray chassis when it closes. You must only insert one DVD disc at a time. Inserting two or more discs will not allow playback and may cause damage to the DVD player. English - 55 Playback Caution ) button to stop playback.

6:46 PM Page 56 Using the Search Functions Using the Disc Menu & Title Menu Some discs contain a dedicated menu system that allow you to select special functions for the title, such as chapters, audio track, subtitles, film previews, information on characters, etc. For DVD-VIDEO discs

Press the DISC MENU button to enter the disc's menu. Searching through a Chapter or Track

• Move to the setup menu related to the playback operation.
• You can select the audio language and the subtitles provided by the disc.

Press the TITLE MENU button to move to the title menu of the disc.

• Use this button if the disc contains more than one title. Some

Press the TITLE LIST button to move to the Title List.

Title List : Title List shows a list to help you select a title. Since the title list consists of the information on video that is actually recorded, if one title is deleted, that title cannot be played again. Play List : This refers to a unit of playback, which is made by selecting a desired scene in the entire Title List. When one playlist is played, only the scene selected will play and then stop. Since only the information necessary for playing a desired scene is included in a playlist, even if that playlist is deleted, the original material will not be deleted. (VR mode only.)

• You can scan the program in reverse. To return to normal speed playback, press the PLAY( ) button.
• When you press and hold the SEARCH( button, playback is done at the default speed of fast 2. If you release the SEARCH( ) button, playback is performed at a normal speed.(Except CD-DA)
• The speed marked in this function may be different from the actual playback speed.

No sound is heard during Scan(Search) mode except fast playback (1.7X speed) mode. For CD(CD-DA), You can hear sound during Scan mode.

• During playback, you can search quickly through a chapter or track. During playback, press the SKIP( ) button on the remote control.

The ANYKEY function allows you to easily search for a desired scene by accessing title, chapter, track, and time. You can also change the subtitle and audio settings and set some features including Repeat, Angle, and Zoom. Moving to a scene directly using the ANYKEY Slow Motion Play

• If you want to move to a title or chapter to find a desired scene.

) button, Slow 2(1/4) ➞ Press the ANYKEY button during playback. DVD-VIDEO Slow 3(1/8) Title 1/2 Chapter 1/20 Time 00:00:00 Subtitle Off ENG

• To return to normal speed playback, press the PLAY( ) button. NOTE Zoom Off MOVE Press and hold the SEARCH( ) button during pause, and the disc will play slowly at a 1/2 speed. If the button is released, the pause operation will resume.

Angle Off 1/3 Repeat The speed marked in this function may be different from the actual playback speed.

D 2CH Playback Audio D 2CH CHANGE Press the STEP( ) button on the remote control in the still mode.

• Each time the button is pressed, a new frame will appear. When STEP( ) is pressed, the previous frame will be activated. When STEP( ) is pressed, the next frame will be activated.

• If you want to move to a desired time to help you find a scene.

Press the ANYKEY button during playback. Using the Repeat Function Playing Repeatedly(Repeat Playback) DVD-VIDEO Title 1/2 Chapter 1/20 Time 00:00:33 Subtitle Off ENG Audio Angle Off 1/3 Zoom Off Repeat MOVE Using the REPEAT button D 2CH CHANGE

Press the REPEAT button during playback. Repeat

Enter the time in the sequence of hours, minutes, and seconds using the number buttons and then press the ENTER button.

Press the REPEAT button or press the …† buttons to select the Title or Chapter you want to play repeatedly. Press the ENTER button. Repeat Title The Time Search function does not operate in some discs. To make the screen disappear, press the ANYKEY again. Chapter : Repeats the chapter that is playing. Title : Repeats the title that is playing. To return to normal playback

Press the REPEAT button and select Off by using …† or REPEAT button. Press the ENTER or CANCEL button to return to normal playback.

Playing a Certain section Repeatedly(A-B Repeat Playback) Press the ANYKEY button during playback. Using the ANYKEY button DVD-VIDEO Title 1/2 Chapter 1/20 Time 00:00:33 Subtitle Off ENG Audio Angle Off 1/3 Zoom Off Repeat MOVE D 2CH

Press the …† buttons to select Repeat and press the œ √ buttons to select the Title or Chapter you want to play repeatedly.

Press the ENTER button at the point where you want the repeat play to start (A) and press it again at the point where you want the repeat play to stop (B). Repeat playback of the A-B section starts.

If you set point (B) before five seconds has lapsed, the prohibition mark ( ) will appear. You can also activate Normal Playback by pressing the CANCEL button. Audio CDs(CD-DA) and MP3 discs do not support the Repeat A-B function. English - 59 Playback NOTE CHANGE Press the …† buttons to select Repeat and press the √ button to select A-B. Audio

6:46 PM Page 60 Selecting the Audio language Selecting the Subtitle Subtitle languages may not work depending on the disc type. This is only available during playback. Audio languages may not work depending on the disc type. This is only available during playback. (VR mode) Using the SUBTITLE button (VR mode) Using the AUDIO button

Press the SUBTITLE button during playback. Subtitle Off

Press the AUDIO button during playback. Audio

CHANGE Press the …† buttons to select Audio and press the œ √ buttons to select the desired audio language. D 2CH CHANGE The subtitle display may be different depending on the disc type. If the subtitles overlap, disable the caption function on your TV. Some discs allow you to select the language for the disc menu only.

6:46 PM Page 61 Audio languages may be different because they are disc-specific. Some discs allow you to select the audio language for the disc menu only.

This function is disc-dependent, and may not work all DVDs. This function does not work when a DVD has not been recorded with a multicamera angle system. Changing the Camera Angle Zooming-In When a DVD-VIDEO contains multiple angles of a particular scene, you can select the Angle function. This is only available during playback. If the disc contains multiple angles, the ANGLE mark appears on the screen.

Press the ANYKEY button during playback or pause. Press the ANGLE button during playback. Title 1/2 Chapter 1/20 Time 00:00:33 Subtitle Off Audio ENG Repeat Angle Off 1/3 Zoom Off D 2CH MOVE 0~9 NUMBER ANGLE

Press the …† œ √ buttons to move to the area you want to enlarge.

Press the ENTER button. The screen will be enlarged to twice the normal size. Using the ANYKEY button Playback

Press the ANYKEY button during playback. DVD-VIDEO Title 1/2 Chapter 1/20 Time 00:00:33 Subtitle Off ENG Audio Angle Off 1/3 Zoom Off Repeat MOVE

Press the MARKER button during playback.

Press the œ √ buttons to select a bookmarked scene. Press the MARKER button during playback. - - - - - - - - - -- Bookmark MOVE MOVE

1 2 - - - - - - - -- Bookmark SELECT PLAY CANCEL RETURN RETURN Press the MARKER button during playback.Press the ENTER button when the desired scene appears.

Press the ENTER or PLAY( ) button to start playing from the selected scene. The number 1 is displayed and the scene is memorized.

Press the MARKER button during playback

Press the œ √ buttons to select a bookmarked scene. RETURN

Press the œ √ button to move to the next position.

Press the ENTER button when the desired scene appears. Bookmark 1 2 3 4 5 6 - - - -- The number 2 is displayed and the scene is memorized. Bookmark 1 2 - - - - - - - -- MOVE

MOVE PLAY CANCEL NOTE

When the disc tray is opened and then closed, bookmarks will disappear. The button display may differ depending on the disc type.

CANCEL RETURN Press the CANCEL button to delete the selected bookmark. RETURN

• Repeat above to bookmark other positions.
• You can bookmark up to 10 scenes.

Press the MARKER button during playback.

Press the œ √ buttons to select a bookmarked scene. (VR mode)

• If you press the SKIP( )button, it moves to the beginning of the marker. Pressing the button once again within 3 seconds returns to the beginning of the previous marker.

Press the ENTER button when the desired scene appears. The number 02 is displayed and the scene is memorized. Marker MOVE 01 02 -- -- -- -- -- -- -- -- PLAY CANCEL Press the MARKER button during playback.

• DVD-RW (VR Mode) discs have the Marker function instead of the Bookmark function. The Marker function allows you to mark up to 99 scenes. Since the scenes may be displayed as many different pages, numbering is necessary. If a disc in use is encoded with Disc Protect, Markers cannot be set or deleted. Only playback is available. PLAY CANCEL RETURN

• When a marker is cleared while DVD-RW (VR mode) is playing, marker numbers will change. For example, if the 7th marker is cleared after ten markers are registered, the marker numbers after the eighth will automatically move ahead by one and the 8th marker becomes the 7th. English - 63 Playback

Each disc has a variety of menu functions available. Playing an Audio CD(CD-DA)

Insert an audio CD (CD-DA) into the disc tray.

1. …† : Selects a track (song).

2. √ : Plays the selected track (song).

) button : Plays the selected track (song). EXIT

) button : Returns to the beginning of the current track when pressed during playback. If pressed again, your DVD recorder moves to and plays the previous track. If you press this button within three seconds after playback starts, the previous track will be played. If you press this button after three seconds, the current track will be replayed from the beginning. Press the …† buttons to select the track you want to hear, and then press the ENTER button or √ button. Audio CD(CD-DA) Screen Elements

2. Current track (song) : Displays the number of the track

currently being played.

3. Displays the current play index and total track number.

4. Shows the operating state of a disc and the current

5. Displays the track list (song list) and the playing time of

The audio CD menu appears and the tracks (songs) are played automatically.

7:52 PM Page 65 Buttons on the Remote Control used for MP3 playback Playing an MP3 Disc

Press the …† buttons to select Music, and then press the ENTER or √ button. The MP3 menu appears and the tracks(songs) are played automatically. MP3 √ 0:00:15 SONGO1 3.5MB 2004/08/26 MP3 PLAY MODE

1. …† : Selects a track (song).

2. √ : Plays the selected track (song).

3. ENTER( ) button : Plays back the selected track

(song) or displays the files in the selected folder. EXIT Press the …† buttons to select the track (song) you want to hear, and then press the ENTER button or √ button.

) button : Moves to the folder to which the current song belongs. ) button : Plays the next track.

) button : Returns to the beginning of the current track when pressed while playing. If pressed again, your DVD recorder moves to and plays the previous track. If you press this button within three seconds, the previous track will be played. If you press this button after three seconds, the current track will be replayed from the beginning.

) : Stops a track(song).

2. Current track (song) : Displays the name of the track

3. MP3 file information.

4. Shows the operating state of a disc and the current

5. Displays the information for the folder and its tracks.

Press the REPEAT button during playback. The TRACK repeat mode icon ( ) appears and the selected track is played repeatedly.

Music List TRACK 1 Title Length

01/15 No. √ 0:00:15 PLAY MODE To return to normal playback MOVE ENTER RETURN EXIT Press the REPEAT button once more to play the entire disc repeatedly. The DISC repeat mode icon ( ) appears and the inserted disc is played repeatedly. Play Option Mode The Play Option can be used with an audio CD in the Play or Stop mode. Press the ANYKEY button in the Stop mode. Play Option will be highlighted.

Music List TRACK 1 01/15 No.

Music List TRACK 1 01/15 No. Title Length

Press the REPEAT button repeatedly until the repeat mode icon disappears, or press the CANCEL button. Press the ANYKEY button during playback. The play mode window appears.

• Normal : Tracks on a disc are played in the order in which they were recorded on the disc. Using the ANYKEY button

• Random : The Random option plays the disc’s tracks in random order. After a random list is generated and played completely, another random list is generated and played. Random Play is continued until the play option is changed.
• Intro : The first 10 seconds of each track will be played. If you want to listen to the music that you have selected, press the ENTER button or PLAY( ) button. The play option will be changed to Normal Play. When Intro Play is completed, Normal Play is performed.
• Playlist : The Playlist playback option allows you to select the order in which you want tracks to play.

6:47 PM Page 67 To Program Tracks Playing a Picture CD You can register a maximum of 30 tracks in the playlist.

Press the ANYKEY button during playback, then select Play option using …† buttons.

DVD-Recorder 00:03:49 00:03:47 00:04:29 00:03:44 00:03:44 RETURN Select tracks in the order in which you want them to play using the …† buttons. Press the ENTER button.

Insert an JPEG disc into the disc tray.

Playing the Title List The picture interval (Slide show speed) must be set. DVD-RW(VR) Slide Show Speed Slow Normal Fast Follow these instructions to play back a scene from the Title List. JPEG01 MOVE PHOTO ENTER RETURN -2 Press the ENTER button with a picture selected in the Album screen. Select a display mode (Album screen ( ), Slide show ( ), Rotation ( or Zoom ( )) using the œ √ buttons, then press the ENTER button. Using the TITLE LIST button

EXIT RETURN : Returns to the Album screen. : The unit enters slide show mode. Before the slide show can begin, the picture interval (Slide show speed) must be set. : Each time the ENTER button is pressed, the picture rotates 90 degrees clockwise. : Each time the ENTER button is pressed, the picture is enlarged up to 4X. (Normal ➞ 2X ➞ 4X ➞ 2X ➞ Normal)

Press the …† buttons to select an entry you want to play from Title List, and then press the PLAY( ) button. The selected entry (title) will be played back.

6:47 PM Page 69 To view the current status of the disc and the progress of playback : Press the INFO button, and the information about the disc will appear. Using the MENU button

√ Play Title 10/19 Time 00: 00: 08 Subtitle Off Audio ENG Repeat Off Zoom Off MOVE Press the …† buttons to select Play to play the title list and then press the ENTER button. The selected entry (title) will be played back. You can also play a recorded program by pressing the ANYKEY button during playback. DVD-RW(VR) (Rename, Delete, Edit, Protection : See pages 72~75)

Press the INFO button once again. Then you can check the information about the title under playback. Press the …† buttons to select Title List, and then press the ENTER or √ button twice. The Title List screen is displayed.

APR/20/2006 12:3 00:00:16 APR/20/2006

! Playback screen for recorded entries @ Information window for the selected entry : Title name, recording date, lock status, record mode # Recorded entry No. $ Recorded entry title % Recording length (i.e., the playing time) ^ Title list edit items Play : Plays the selected entry. Rename : Renames the title of a selected entry. Delete : Deletes the selected entry from the list. Edit : Deletes a section. Protection : Locks or unlocks the selected entry. & Button display

This may depend on the the disc type. DVD-R/DVD-RW(Video) has limited editing function.

6:49 PM Page 71 Editing This section introduces basic functions of DVD editing. Basic Editing (Title List) . . . . . . . . . . . . . . . . . . . . .72 Advance Editing (Playlist) . . . . . . . . . . . . . . . . . . .76 Disc Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . .84 Recording or editing might not be completed if an error such as a sudden power failure occurs. Please be aware that material that has been damaged cannot be retrieved. English - 71 Editing

• Title List A title is a section of recorded video and audio. Title List shows a list to help you select a title. Since the title list consists of the information on stream that is actually recorded, if one title is deleted, that title cannot be played again.
• Playlist This refers to a unit of playback, which is made by selecting a desired scene in the entire Title List. When one playlist is played, only the scene selected by the user will play and then stop. Since only the information necessary for playing a desired scene is included in a playlist, even if that playlist is deleted, the original recorded title will not be deleted.

Save Back Space MOVE Renaming (Labeling) a Title Follow these instructions to rename a title list entry, i.e., to edit the title of a recorded program.

The Rename screen is displayed.

RETURN Title List No. MOVE Delete EXIT Press the …† buttons to select an entry you want to rename from the Title List, and then press the ENTER or √ button. APR/21/2006 Editing 00:00:21 00:00:03 00:00:15 00:00:16 00:06:32 00:08:16 ENTER

• Back Space : Deletes the character before the cursor.
• Space : Enters a blank and moves the cursor one forward (to the right).
• Delete : Deletes the character at the cursor position.
• Clear : Deletes all the character inputs.
• Save : Registers the character inputs. Title List APR/19/2006 Space EXIT

6:49 PM Page 73 Locking (Protecting) a Title Follow these instructions to lock an entry to protect it from accidental deletion.

Press the œ √ buttons to select On, and then press the ENTER button. The key icon on the information window for the selected entry changes to the locked status. ( ➝ ) If you want to unlock the title entry, select the protected title and set the Protection function to Off. Using the TITLE LIST button Title List DVD-RW(VR) Sports(A1)

Drama Music The Title List screen is displayed

• Press the …† buttons to select Title List, and then press the ENTER or √ button twice. Drama APR/19/2006 MOVE Edu 1 ENTER Edit 00:00:21 00:00:03

00:00:15 00:00:16 00:06:32

Length 1/6 No. Title

Drama Music Length Edit 00:00:21 00:00:03

Sports Movie 05 Sports(A1) 00:00:15 00:00:16 00:06:32

Edu 1 Deleting a Title Follow these instructions to delete an entry from the Title List.

ENTER RETURN EXIT Press the …† buttons to select an entry you want to protect from the Title List, and then press the ENTER or √ button. DVD-RW(VR) Title List Sports(A1) Sports(A1) APR/21/2006 MOVE

• Press the …† buttons to select Title List, and then press the ENTER or √ button twice.

00:00:15 Rename 00:00:16 Delete 00:06:32 Edit 00:08:16 Protection RETURN The Title List screen is displayed Using the MENU button Length Edit 00:00:21 00:00:03 Play Press the TITLE LIST button. Press the …† buttons to select Protection, and then press the ENTER or √ button. Drama APR/19/2006

Drama Music Length Edit 00:00:21 00:00:03

Sports Movie 05 Sports(A1) 00:00:15 00:00:16 00:06:32

Edu 1 MOVE 5/6 No. Title

ENTER Edu 1 Length Edit 00:00:21 00:00:03 Play

00:00:15 Rename 00:00:16 Delete 00:06:32 Edit 00:08:16 Protection RETURN EXIT

ENTER RETURN EXIT Press the …† buttons to select an entry you want to delete from the Title List, and then press the ENTER or √ button. DVD-RW(VR) Title List 5/6 Sports(A1) DVD-RW(VR) Title List Sports(A1) 5/6 Sports(A1) Title Protection: APR/21/2006

Edu 1 Length Edit 00:00:21 00:00:03 Play

00:00:15 Rename 00:00:16 Delete 00:06:32 Edit 00:08:16 Protection Off MOVE APR/21/2006 ENTER RETURN EXIT

6:49 PM Page 74 Press the …† buttons to select Delete, and then press the ENTER or √button. DVD-RW(VR) Title List APR/21/2006 MOVE Follow these instructions to delete a section of a Title List entry. 5/6 Sports(A1) Sports(A1) Deleting a Section of a Title No. Title

ENTER Edu 1 Length Edit 00:00:21 00:00:03 Play

00:00:15 Rename 00:00:16 Delete 00:06:32 Edit 00:08:16 Protection RETURN Using the TITLE LIST button EXIT You will be prompted with the confirmation message. DVD-RW(VR mode): Since Playlist is present, the message “Do you want to delete?(Related playlists may be deleted.)” is displayed. DVD-RW(VR) (VR mode)

• Press the …† buttons to select Title List, and then press the ENTER or √ button twice. Title List Sports(A1) Press the TITLE LIST button. The Title List screen is displayed 5/6 Do you want to delete? (Related playlists may be deleted.) Sports(A1) Yes 1/6

DVD-RW(Video mode), DVD-R: Since Playlist is not present, the message “Do you want to delete?” is displayed.

Drama Music Length Edit 00:00:21 00:00:03

Sports Movie 05 Sports(A1) 00:00:15 00:00:16 00:06:32

ENTER Edu 1 RETURN Press the …† buttons to select an entry you want to edit from the Title List, and then press the ENTER or √ button. DVD-RW(VR)

You cannot delete a protected entry. If you want to delete a protected entry, select “Off” in the Title Protection menu.

Once an entry is deleted from the Title List, it cannot be recovered.

Once a DVD-R or DVD-RW is finalized, it cannot be deleted.

With DVD-R, titles are only deleted from the menu, however, the Title remains physically on the disc. Title List 5/6 Sports(A1) Press the œ √ buttons to select Yes, and then press the ENTER button

ENTER Edu 1 Length Edit 00:00:21 00:00:03 Play

00:00:15 Rename 00:00:16 Delete 00:06:32 Edit 00:08:16 Protection RETURN EXIT Press the …† buttons to select Edit, and then press the ENTER or √ button. Edit Title List DVD-RW(VR) Title List No. 05 Start End 00:00:00 00:00:00 00:00:00

6:49 PM Page 75 Press the ENTER button at the starting point.

The image and starting point time are displayed on the section deletion starting point window. Press the œ √ buttons to select Delete, and then press the ENTER button. The message “Do you want to delete?(Deleted part will not be restored)” is displayed. Edit Title List DVD-RW(VR) Edit Title List DVD-RW(VR) Title List No. 05 Start End Title List No. 05 Start End 00:00:05 00:00:00 00:00:05

Start End MOVE Delete ENTER 00:00:05 Return RETURN 00:10:15 Start EXIT End Delete MOVE Edit Title List Screen Elements

Title List No. 05 Start End Do you want to delete? Edit Title List DVD-RW(VR) (Deleted part will not be restored.) 00:00:20

Title List No. 05 Start End Yes Start MOVE 00:00:05

Delete ENTER 00:00:20 Return RETURN EXIT 00:00:00 00:00:05

1 Playback bar 2 Title List No. 3 Section deletion starting point window and time 4 Section deletion end point window and time

• Select the start and end points of the section you want to delete using the playback related buttons.
• Playback related buttons (

Press the ENTER button at the end point.

Press œ √ buttons to select Yes, and then press the ENTER button. The selected section is deleted. To return to the Title List screen, press the œ √ buttons to select Return. The length of the section to be deleted must be at least 5 seconds long.

If the length of the section to be deleted is less than 5 seconds, you will be prompted with the message “The range is too short.”.

If the end time precedes the starting point, you will be prompted with the message “End point cannot be marked earlier than start point”.

The section cannot be deleted when it includes a still picture.

Press the MENU button after the operation has finished. The Edit Title List screen will disappear. The image and end point time are displayed in the Section deletion ending point window. Edit Title List DVD-RW(VR) Title List No. 05 Start End 00:00:05 Start MOVE 00:10:15 00:10:15

• The yellow-colored selection bar moves to the End item. Advanced Editing (Playlist)

• Select the starting point of the section from which you want to create a new scene using the playback

Creating a Playlist Follow these instructions to create a new playlist entry from a recorded title.

With the unit in Stop mode, press the MENU button on the remote control.

Playlist Edit Playlist

Start Timer Rec. ENTER RETURN A new Scene will be added to the current Playlist. A new Make Scene screen is displayed. Repeat the above steps to create further scenes.

• The yellow-colored selection bar moves to the Make item. Setup MOVE Make ENTER

• The image and end point time are displayed on the End window.

Disc Manager End MOVE 00:10:00 If you want to make a new playlist, go to MENU ➞ new playlist. You can check and see all the scenes on Edit Playlist screen. Make Scene DVD-RW(VR) Scene No. 001 Start End Title List 1/6 00:00:00 00:00:00

DVD-RW(VR) MOVE Scene No. 001 Start End Title List 1/6 00:00:10 00:00:00 00:00:10

You can create up to 99 playlist entries.

Depending on the disc type, the displayed screen may look slightly different.

Press the MENU or PLAY LIST button after the operation has finished. The Edit Playlist screen will disappear. Return

• The image and starting point time are displayed on the Start window.

Playing Entries in the Playlist Press the …† buttons to select Play, and then select the ENTER button. The playlist entries will be played. Follow these instructions to play the playlist entries. DVD-RW(VR) Edit Playlist 3/5 APR/24/2006 (VR mode)

No. With the unit in stop mode, press the PLAY LIST button. APR/24/2006 12:00 AM 1 Scene APR/24/2006 12:00 AM The Edit Playlist screen is displayed. MOVE DVD-RW(VR) 01 APR/23/2006 02 APR/23/2006 03 APR/24/2006 04 APR/24/2006 05 APR/25/2006 Length Edit 12:0 00:00:21 12:3Play 00:00:03 12:0Rename 00:00:15 12:3Edit 00:00:16 Scene 12:0Copy 00:06:32

• To view the current status of the disc and the progress of playback : Press the INFO button, and the information about the disc will appear. DVD-RW(VR) Disc Name DVD-Recorder Disc Info Playlist Total Title Total Playlist Recordable Time Protection Screen DVD-RW(VR) Title List New Playlist

Playlist Edit Playlist

• Press the INFO button once again. Then you can check the information about the playlist currently being played back. Press the …† buttons to select the title you want to edit from the Playlist, and then press the ENTER or √ button. DVD-RW(VR) Name Playlist Created Time Length Playing Time Total scene JAN 01 2006 SUN Playing Info APR 24 2006 12:00 AM CH11 3/5 APR 24 2006 12:00 AM 00: 01: 36 XP 00: 00: 15 12:00 AM

• The screen returns to the Edit Playlist screen when the playback has finished.

Press the STOP( ) button to stop playing. The screen returns to the Edit Playlist screen. English - 77 Editing The Edit Playlist menu is displayed : Play, Rename, Edit Scene, Copy, Delete.

Renaming a Playlist Entry Follow these instructions to rename a playlist entry, i.e. to edit the title of a playlist entry. Enter the desired characters using the …† œ √ buttons. DVD-Recorder Rename DVD-RW(VR) Dolphin (VR mode)

• Press the …† buttons to select Edit Playlist, and then press the ENTER or √ button. Press the …† buttons to select the title you want to edit from the Playlist, and then press the ENTER or √ button. The Edit Playlist menu is displayed : Play, Rename, Edit Scene, Copy, Delete. DVD-RW(VR) Edit Playlist APR/24/2006 12:00 AM 3/5 No. APR/24/2006 12:00 AM 1 Scene APR/24/2006 12:00 AM Editing MOVE

• This function is the same as the Rename function in renaming the title list. (See page 72.)
• The maximum number of characters that can be entered is 31. All 31 characters can be displayed by pressing the INFO button. Edit Playlist APR/23/2006 Back Space Press the …† œ √ buttons to select Save, and then press the ENTER button. The changed title name is displayed on the title item of the selected playlist entry. DVD-RW(VR) Edit Playlist Dolphin 3/5 No. Dolphin 1 Scene APR/24/2006 12:00 AM MOVE ENTER Title 01 APR/23/2006 02 APR/23/2006 03 Dolphin 04 APR/24/2006 05 APR/25/2006 Length Edit 12:0 00:00:21 √ 12:3 00:00:03 √ 00:00:15 √ 12:3 00:00:16 √ 12:0 00:00:32 √ RETURN EXIT

6:50 PM Page 79 Editing a Scene for the Playlist DVD-Recorder DVD-RW(VR) Scene No. 1/7 Edit Scene Playlist No. Follow these instructions to edit scenes for a playlist

Play Modify 01 00:00:26 02 00:00:07 03 00:00:04 04 00:00:03 05 00:00:11 06 00:00:04 Move Add (VR mode) MOVE

ENTER Delete RETURN EXIT With the unit in stop mode, press the PLAY LIST button. The Edit Playlist screen is displayed. DVD-RW(VR) Edit Playlist Science 1/4 No. Title

Science Sky Dolphin Natural Length Edit 00:00:17 00:00:06 00:00:06 00:00:37

Science 7 Scene APR/24/2006 10:43 AM MOVE Playing a Selected Scene

ENTER RETURN Press the …† œ √ buttons to select the scene you want to play, and then press the ENTER button. The playlist entry to be played is selected. EXIT Using the MENU button DVD-Recorder DVD-RW(VR) Scene No. 2/7

• Press the MENU button in the stop mode.
• Press the …† buttons to select Playlist, and then press the ENTER or √ button. The Edit Playlist menu is displayed:Play, Rename, Edit Scene, Copy, Delete.

Modify 01 00:00:26 02 00:00:07 03 00:00:04 04 00:00:03 05 00:00:11 06 00:00:04 Move Add MOVE Press the …† buttons to select the title you want to edit from the Playlist, and then press the ENTER or √ button. Playlist No. Play

ENTER Delete RETURN EXIT Press the ENTER button. The selected scene is played. √ Play DVD-RW(VR) Edit Playlist Dolphin 3/4 No. Title

Science Sky Dolphin Natural Length Edit Play 00:00:17 √ Rename 00:00:06 √ Edit Scene 00:00:06 √ Copy 00:00:37 √ Delete Dolphin 7 Scene APR/24/2006 10:43 AM ENTER RETURN EXIT

• To stop scene play, press the STOP(

) button. Press the …† buttons to select Edit Scene, and then press the ENTER button. The Edit Scene screen is displayed. DVD-RW(VR) Edit Playlist Dolphin 3/4 No. Title

Science Sky Dolphin Natural Dolphin 7 Scene Length Edit Play 00:00:17 √ Rename 00:00:06 √ Edit00:00:06 Scene √ Copy 00:00:37 √ Delete APR/24/2006 10:43 AM MOVE ENTER RETURN EXIT English - 79 Editing MOVE

6:50 PM Page 80 Modifying a Scene (Replacing a Scene)

Press the ENTER button at the end point of the scene. DVD-Recorder To setup, follow steps 1 to 3 in page 79. Modify Scene DVD-RW(VR) Scene No. 002 Start End

Press the …† œ √ buttons to select the scene you want to modify, and then press the ENTER button. Title List : 5/6 Start DVD-Recorder DVD-RW(VR) Scene No. 2/7 Edit Scene Playlist No. 00:00:25 00:00:30 00:00:30

• The image and ending point time are displayed on the End window. Modify 01 00:00:26 02 00:00:07 03 00:00:04 04 00:00:03 05 00:00:11 06 00:00:04 Move Add MOVE

• The image and starting point time are displayed on the Start window.
• Select the starting or ending point of the section you want to modify using the playback related buttons ( , , ,

ENTER RETURN Delete EXIT 00:00:00

• The scene you want to modify is changed with the selected section.

6:50 PM Page 81 Moving a Scene (Changing the Position of a Scene)

NOTE Depending disc type, the displayed screen may look slightly different. To setup, follow steps 1 to 3 in page 79.

Press the …† œ √ buttons to select the scene you want to move (change the position), and then press the ENTER button. Adding a Scene To setup, follow steps 1 to 3 in page 79. DVD-Recorder DVD-RW(VR) Scene No. 3/7 Edit Scene Playlist No.

Modify 01 00:00:26 02 00:00:07 03 00:00:04 A yellow selection window is displayed on the scene to be added as the new scene. Move Add 04 00:00:03 05 00:00:11 MOVE ENTER Press the …† œ √ buttons to select the scene that will have a new scene inserted before it, and then press the ENTER button. Delete 06 00:00:04 RETURN DVD-Recorder DVD-RW(VR) Scene No. 4/7 EXIT Edit Scene Playlist No.

Press the …† buttons to select Move, then press the ENTER button. Modify 01 00:00:26 02 00:00:07 03 00:00:04 04 00:00:03 05 00:00:11 06 00:00:04 Move Add DVD-Recorder Edit Scene Delete DVD-RW(VR) Scene No. 3/7 Playlist No. MOVE

• A yellow selection window is displayed on the scene to be moved. Title List : 4/6

Press the …† œ √ buttons to select the position to which you want to move the selected scene, and then select the ENTER button. DVD-Recorder 00:00:00 00:00:00 Start End MOVE Add ENTER Cancel RETURN EXIT Edit Scene DVD-RW(VR) Scene No. 00:00:00

• The selected scene is moved to the selected position. 00:00:00 00:00:15 Start MOVE DVD-Recorder 00:00:15

End Add ENTER Cancel RETURN EXIT Edit Scene DVD-RW(VR) Scene No. 5/7 Playlist No. Play Modify 01 00:00:26 02 00:00:04 03 00:00:03 Move Add 04 00:00:11 MOVE 05 00:00:04 ENTER 06 00:00:04 RETURN Delete

• The image and starting point time are displayed on the Start window.
• Select the end point of the section where you want to add the new scene using the playback related buttons ( , ,

EXIT English - 81 Editing 04 00:00:03 02 00:00:07

• The image and end point time are displayed in the End window. Press the PLAY LIST button. The Edit Playlist screen is displayed. DVD-RW(VR) Edit Playlist 1/4 Science

• The section you want to add is inserted prior to the scene selected in step 4. Deleting a Scene

The Edit Playlist menu is displayed : Play, Rename, Edit Scene, Copy, Delete To setup, follow steps 1 to 3 in page 79.

Press the …† œ √ buttons to select the scene you want to delete, and then press the ENTER button. DVD-Recorder Press the …† buttons to select the title you want to copy to the Playlist, and then press the ENTER or √ button. DVD-RW(VR) Edit Playlist 3/4 Dolphin Edit Scene DVD-RW(VR) Scene No. 2/7 Playlist No.

Copy Delete Modify 01 00:00:26 00:00:17 00:00:06 Play 00:00:06 Rename 00:00:37 Edit Scene ENTER RETURN EXIT Editing Add 04 00:00:03 05 00:00:11 MOVE

ENTER Delete 06 00:00:04 RETURN EXIT

Press the …† buttons to select Delete, and then press the ENTER button. DVD-Recorder Edit Scene Playlist that has been selected will be copied. DVD-RW(VR) Edit Playlist Dolphin DVD-RW(VR) Scene No. Press the …† buttons to select Copy, and then press the ENTER button. 2/6 Playlist No. 3/4

06 00:00:04 ENTER 06 00:00:05 RETURN No. Title

Natural Dolphin 7 Scene APR/23/2006 06:43 AM Length Edit Play 00:00:17 √ Rename 00:00:06 √ Edit Scene 00:00:06 √ Copy 00:00:37 √ Delete Delete EXIT MOVE ENTER RETURN EXIT

Title Length Edit Science Sky Dolphin Natural Dolphin ENTER 00:00:17 00:00:06 00:00:06 00:00:37 00:00:06 RETURN

Edit Playlist 5/5 Dolphin

EXIT Dolphin 7 Scene APR/23/2006 06:43 AM MOVE The playlist can contain up to 99 playlist entries (titles). Press the MENU button after the operation has finished. The Edit Playlist screen will disappear. Title Length Edit Science Sky Dolphin Natural Dolphin 00:00:17 Play00:00:06 00:00:06 Rename 00:00:37 Edit Scene 00:00:06 Copy ENTER RETURN EXIT 5/5 MOVE Edit Playlist No. Science 1 Scene APR/23/2006 06:43 AM

RETURN EXIT Press the œ √ buttons to select Yes, and then press the ENTER button. You automatically returned to the Edit Playlist screen after the deletion operation has finished. ENTER DVD-RW(VR) 00:00:17 00:00:06 00:00:06 00:00:37 00:00:06 Dolphin RETURN

Deleting... (Please wait)

Dolphin 7 Scene APR/23/2006 06:43 AM EXIT MOVE The Edit Playlist menu is displayed : Play, Rename, Edit Scene, Copy, Delete. ENTER RETURN EXIT Edit Playlist DVD-RW(VR) Natural 4/4 No.

Title Science Sky Dolphin Natural Length Edit 00:00:17 00:00:06 00:00:06 00:00:37

Title Science Sky Dolphin Natural Dolphin Length Edit 00:00:17 Play00:00:06 00:00:06 Rename 00:00:37 Edit Scene 00:00:06 Copy

Delete RETURN EXIT English - 83 Editing Press the …† buttons to select the title you want to edit from the Playlist, and then press the ENTER or √ button. DVD-RW(VR) Edit Playlist

Do you want to delete? Using the PLAYLIST button DVD-RW(VR)

Edit Playlist DVD-RW(VR) Dolphin 7 Scene APR/23/2006 06:43 AM The Edit Playlist screen is displayed.

• You will be prompted with the delete confirmation message “Do you want to delete?”. Deleting a Playlist Entry from the Playlist With the unit in Stop mode, press the PLAY LIST button.

ENTER Delete Clear RETURN EXIT

• This function is the same as the Rename function in renaming the title list. (See page 72.)
• The maximum number of characters that can be entered is 31. All 31 characters can be displayed by pressing the INFO button. With the unit in Stop mode, press the MENU button on the remote control. DVD-Recorder Space

Delete All Title Lists

Delete All Title Lists

Space ENTER Delete RETURN Clear EXIT

You may need to clear disc protect before beginning editing.(see page 85.)

Depending on the kind of disc, the displayed screen may be different. NOTE

6:50 PM Page 85 Disc Protection DVD-Recorder Disc Manager DVD-RW(VR) Disc Protection allows you to protect your discs from being formatted or deleted due to unintended operations Title List Disc Name :

Delete All Title Lists

Delete All Title Lists

Delete All Title Lists

Delete All Title Lists

Delete All Title Lists

Delete All Title Lists

Title List Playlist DVD-Recorder

• You will be prompted with the confirmation message “Choose the recording format for DVD- RW”

Delete All Title Lists

• You will be prompted again with the message “All data will be deleted. Do you want to continue?” Disc Protection : Not Protected Disc Manager All data will :be deleted. Disc Format DVD-VR Do you want to continue? Disc Finalize Timer Rec. Setup Delete Yes All Title Lists

Delete All Title Lists

EXIT DVD-Recorder RETURN EXIT Disc Manager DVD-RW(VR) DVD-VR and DVD-V are defined according to their recording format. Title List Disc Name :

Disc Format : DVD-VR Do you want to delete all title lists? Disc Manager Disc Finalize Timer Rec. Delete Yes All Title Lists Setup DVD-V DVD-RW DVD-RW ENTER

• You will be prompted with the confirmation message “Do you want to delete all title lists?”. The disc is formatted. DVD-VR Disc Manager Title List Timer Rec. Press the œ √ buttons to select Yes, and then press the ENTER button. DISC Press the …† buttons to select Delete All Title Lists, and then press the ENTER or √ button.

• When Protected Entry exists: The Delete All Title List function will not operate. If you want to delete a protected entry, disable Protection for it on the Lock item. (See page 73) Deleting All Title Lists Editing The disc protection should be cleared first.

Press the œ √ buttons to select Yes, and then press the ENTER button. All title lists are deleted.

6:50 PM Page 87 You will be prompted with the message “Do you want to finalize disc?”. Finalizing a Disc After you record titles onto a DVD-RW/DVD-R disc with your DVD recorder, it needs to be finalized before it can be played back on external devices. DVD-Recorder Disc Manager DVD-RW(VR) Title List Disc Name :

DVD-VRdisc? youFormat want to: finalize Disc Manager DoDisc Disc Finalize Timer Rec. Delete Yes All Title Lists Setup

With the unit in Stop mode, press the MENU button on the remote control. DVD-Recorder MOVE Title List Title List RETURN

EXIT If you select Yes, you will be prompted again with the message “Disc will be finalized. Do you want to continue?”. DVD-RW(VR) Title List ENTER

Disc Manager Disc will be: finalized. Disc Format DVD-VR Do you want to continue? Disc Finalize Timer Rec. Setup

Delete All Title Lists

Press the œ √ buttons to select Yes, and then press the ENTER button. The disc is finalized. EXIT Once a disc is finalized, you cannot delete entries from the record list.

After being finalized, the DVD-R/DVDRW(video mode) operates in the same manner as a regular DVD disc and is playable in standard DVD players. DVD-Recorder Disc Manager DVD-RW(VR) Title List Disc Name :

Depending on disc type, the displayed screen may appear slightly different. Playlist Disc Protection : Not Protected

Finalizing time may be different depending on the amount of data recorded on the disc. Delete All Title Lists

Data on the disc will be damaged if the recorder is powered off during finalizing process. MOVE ENTER RETURN DVD-Recorder EXIT Disc Manager DVD-R(V) Title List Disc Name :

Delete All Title Lists

Press the œ √ buttons to select Yes, and then press the ENTER button. The disc is unfinalized.

NOTE Unfinalize DVD-RW(V) Additional recording, protection Operation Same as DVD-Video and deletion are possible. Title List DVD-RW(VR:F) Title List A DVD-RW can be finalized or unfinalized in Video mode. Mark Title List

you want to unfinalize disc? Unfinalize Disc ManagerDo Disc

ENTER RETURN EXIT If you select Yes, you will be prompted again with the message “Disc will be unfinalized. Do you want to continue?”. Disc Manager DVD-Recorder DVD-RW(VR:F) Title Menu Disc Name :

A DVD-RW can be finalized or unfinalized in VR mode. Do you want to continue? Yes

ENTER RETURN EXIT Finalize Unfinalize DVD-RW(VR:F) DVD-RW(VR) Additional recording, Additional recording, deletion, editing, and deletion, editing, and protection are impossible. protection are possible.

• 6:52 PM Additional Information Page 89 Troubleshooting If your product malfunctions, go through the checkpoints below before contacting a Samsung authorized service center. Power The input is displayed for a while when the power is turned on. Checkpoint 1 The DVD recorder requires some time to initialize and the input will be displayed for approx. 10 seconds after it is turned on. Recording Cannot record TV programs. Checkpoint 1 Check whether the power cord is securely plugged into the power outlet. Checkpoint 2 Did you set the DVD recorder channel settings correctly? Checkpoint 3 Check the free space on your DVDRW/DVD-R discs. I pressed the REC button but there is no response. Troubleshooting p. 89
• Recording is possible for DVD-RW/ DVD-R discs only. If a program is copy protected, it cannot be recorded. Solutions to Error Message p. 93
• Specification p. 95
• Warranty English - 89 Additional Information Checkpoint 1 p. 96

6:52 PM Page 90 Playback Cannot play the disc. Checkpoint 1 Checkpoint 2 Checkpoint 3 Check whether the disc is inserted correctly with the label facing up. You cannot use this operation or function due to one of the following reasons: (1) Your DVD disc restricts it. (2) Your DVD disc does not support this feature (for example: angles) (3) The feature is not available at the moment. (4) You've requested a title, chapter, or scan time that is out of range. Additional Information The disc does not support all selected functions. In this case, some settings configured in the settings menu may not work properly. Cannot change the aspect ratio. Checkpoint 1 The angle operation is available only when the disc contains images captured from different angles. This DVD recorder cannot play some types of discs. (See pages 5, 54.) Play mode settings are different from the settings configured in the Settings menu. Checkpoint 1 Checkpoint 1 Check the regional code of the DVD disc. icon appears on the screen. Checkpoint 1 The angle operation does not work while playing a DVD disc. The aspect ratio is fixed for DVD discs. (See page 34.)

The selected audio and/or subtitle language is not played. Checkpoint 1 Audio and subtitle languages are discspecific. Only the sound and subtitle languages contained on the DVD disc are available and displayed in the disc menu.

6:52 PM Page 91 Video Timer Recording The disc revolves, but no image or bad quality images are displayed. Timer lamp flickers. Checkpoint 1 Check whether there is damage to or any foreign material on your disc. Checkpoint 2 Some low quality discs may not play properly. Checkpoint 3 Checkpoint 1 Check if there is enough space in the disc for recording. Checkpoint 2 Check whether the current disc is recordable or not. Make sure to check before the start time of recording. If scenes change from dark to bright suddenly, the screen may shake vertically temporarily, but this is not a fault. Timer recording does not work properly. Sound Checkpoint 1 Re-check the recording time and the end time settings again. Checkpoint 2 Recording will be cancelled, if the power is disconnected due to a power failure or other similar reason, while recording. No sound. Checkpoint 1 Are you watching a program in scan mode? If you are playing a program at a speed other than normal and fast1 speed, the sound will not be heard. Checkpoint 2 Check the connections and settings. Checkpoint 3 Check whether the disc is damaged. Clean the disc, if necessary. Checkpoint 4 Check whether the disc is inserted correctly with the label facing up. No audio output. Checkpoint 1 Additional Information Check whether you have selected the correct digital output options in the Audio Output Options menu. (See page 32, 33.) English - 91

6:52 PM Page 92 Remote Control Unit Other problems The remote control doesn't work. Checkpoint 1 Checkpoint 2 Point the remote control at the remote control sensor on your DVD recorder. Allow for proper distance. Remove obstacles between your DVD recorder and the remote control. Check whether the batteries are empty. Other I forgot my password for parental supervision. Checkpoint 1 Press the ( ) and ( ) buttons on your DVD recorder simultaneously when the power is on. All settings including the password will revert to the factory settings. Do not use this unless absolutely necessary. (Note that this function is possible only when no disc is inserted.) Is it possible to change a subtitle and an audio signal on a recorded disc? A recorded disc is played with only the subtitle and the audio signal which were selected during recording. Additional Information Checkpoint 1

Checkpoint 1 Read the table of contents and then find and read the section describing your problem, and follow the instructions given. Checkpoint 2 Turn your DVD recorder off and on. Checkpoint 3 If the problem still persists, contact a nearby Samsung service center.

6:52 PM Page 93 Solution to Error Message Before contacting a Samsung authorized service center, perform the following simple checks. Error Message You cannot record a copy protected movie. Solution / Explanation

You can’t record the video since it is protected by copyright.

Disc you are using is protected. To record on this disc or use this function, cancel the disc protection function. Refer to page 85.

The disc does not match the regional code for your area and cannot be played on this device.

Make sure there are no scratches or dirt on the disc.

The disc is PAL format and cannot be played on this unit.

Make sure there are no scratches or dirt on the disc.

You can’t use the disc because it contains errors from previous recordings. Use the disc after formatting. You cannot record. This disc is protected. This disc cannot be formatted (the disc is protected). This disc cannot be renamed (the disc is protected). The disc cannot be finalized (the disc is protected). This [Menu] is not available (the disc is protected). The disc cannot be played, Please check the regional code of the disc. This disc cannot be formatted. Please check the disc. You could not format the disc because of error detection. You could not finalize the disc because of error detection. You could not unfinalize the disc because of error detection. The disc cannot be played, Please check the TV system. The disc can be neither played nor recorded. The disc cannot be played, Please check the disc. English - 93 Additional Information If the disc has invalid information, no more titles can be recorded. Please format the disc beforehand.

You can’t use the disc because it contains errors from previous recordings. Use the disc after formatting.

When operating, errors happen. Turn off the device. (To turn off, press and hold the power button on the front of the device for 10 seconds.) After turning off, press the Open button and remove the disc from the device.

Make sure the DV device is connected properly to the DV connection Jack. If it is connected properly, turn it off and on once again. Error is detected on the disc. System error is found. Please try it again after turning off the power. The DV device is not connected. If you are unable to solve the problem after reading the above instructions, note:

The model and serial number on the rear of your DVD Recorder

The warranty information

A clear description of the problem Additional Information Then contact your nearest SAMSUNG authorized service center. Call 1-800-SAMSUNG for a center near you.

6:52 PM Page 95 Specifications Power requirements 120V AC, 60Hz Power consumption 19 Watts

16.9 in(W) x 8.5 in(D) x 1.9 in(H)

Dimensions Operating temp. +41°F to +95°F Other conditions Keep level when operating. Less than 75% operating humidity

1.0 V p-p at 75Ω load, sync negative

Video (1,2) S-Video input (Y: 1.0Vp-p, C: 0.286Vp-p at 75Ω load) Audio(1,2) Max.Audio Input Level : 2Vrms DV Input IEEE 1394(4p) compatible jack Input Regular TV broadcasting: VHF (2~13), UHF (14~69) Receivable Channels Cable TV broadcasting: 1~125 Analog output jacks 1, 2 Optical/Coaxial digital audio output Audio Full scale Analog output level : 2Vrms Output Video output jack 1 S-Video output 1 (Y:1.0Vp-p, C:0.286Vp-p at 75Ω load) Video Component output 1 (Y: 1.0Vp-p, Pb: 0.70Vp-p, Pr: 0.70Vp-p at 75Ω load) Picture Compression format MPEG-II Audio Compression format Dolby Digital 2ch/256kbps Recording XP (about 8 Mbps), SP (about 4 Mbps), LP (about 2 Mbps), Recording Quality EP (about 1.2 Mbps or about 0.8 Mbps) Audio Frequency Response Audio Output 20 Hz ~ 20 kHz For DVD discs, audio signals recorded at 96kHz sampling frequency are converted and output at 48kHz. DVD AUDIO CD(CDDA) Analog Audio Output 48 / 96kHz 44.1kHz Digital Audio Output 48kHz 44.1kHz Additional Information Disc Type English - 95

6:52 PM Page 96 Warranty

LIMITED WARRANTY TO ORIGINAL PURCHASER

Samsung Electronics Canada Inc.(SECA), warrants that this product is free from defective material and workmanship. SECA further warrants that if this product falls to operate properly within the specified warranty period and the failure is due to improper workmanship or defective materials, SECA will repair or replace the product at its option. All warranty repairs must be performed by a SECA Authorized Service Center. (The name and address of the location nearest you can be obtained by calling toll free: 1- 800- SAMSUNG) LABOR PARTS One year (Carry- in) One year On carry-in models, transportation to and from the service center is the customer’s responsibility. The original dated sales receipt must be retained by the customer and is the only acceptable proof of purchase. It must be presented to the authorized service center at the time service is requested. EXCLUSIONS (WHAT IS NOT COVERED) This warranty does not cover damage due to accident, fire, flood and/ or other acts of God; misuse, incorrect line voltage, improper installation, improper or unauthorized repairs, commercial use or damage that occurs in shipping. Exterior and interior finish, lamps, glass are not covered under this warranty. Customer adjustments which are explained in the instruction manual are not covered under the terms of this warranty. This warranty will automatically be voided for any unit found with a missing or altered serial number. This warranty is valid only on products purchased and used in Canada. HEADQUARTERS SAMSUNG ELECTRONICS CANADA, INC. 55 STANDISH COURT MISSISSAUGA, ONTARIO L5R 4B2 CANADA
