USER MANUAL DVD-P380 SAMSUNG

Refer to the identification label located on the rear of your player for its proper operating voltage.
Install your player in a cabinet with adequate ventilation holes. (7~10cm) Do not block ventilation holes on any of the components for air circulation.
- Do not push the disc tray in by hand.
- Do not stack components.
- Be sure to turn all components off before moving the player.
- Before connecting other components to this player, be sure to turn them off.
- Be sure to remove the disc and turn off the player after use, especially if you are not going to use it for a long time.
- The mains plug is used as a disconnect device and shall stay readily operable at any time.

2. For your safety

• This product utilizes a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
• Do not open covers and do not repair yourself. Refer servicing to qualified personal.

3. Caution

• Your player is not intended for industrial use but for domestic purposes. Use of this product is for personal use only.
• Apparatus shall not be exposed to dripping or splashing ang no objects filled with liquids, such as vases, shall be placed on the apparatus.
• Exterior influences such as lightning and static electricity can affect normal operation of this player. If this occurs, turn the player off and on again with the POWER button, or disconnect and then reconnect the AC power cord to the AC power outlet. The player will operate normally.
• When condensation forms inside the player

due to sharp changes in temperature, the player may not operate correctly. If this occurs, leave the player at room temperature until the inside of the player becomes dry and operational.

4. Disc

• Do not clean disc using record-cleaning sprays, benzene, thinner, or other volatile solvents that may cause damage to the disc surface.
• Do not touch the disc's signal surface. Hold by the edges or by one edge and the hole in the center.
• Wipe the dirt away gently; never wipe a cloth back and forth over the disc.

5. Environmental info

• The battery used in this product contains chemicals that are harmful to the environment.
• So, dispose of batteries in the proper man. ner, according to federal, state, and local regulations.

The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties. This license is limited to private non-commercial use by end-user consumers for licensed contents. No rights are granted for commercial use. The license does not cover any product unit other than this product unit and the license does not extend to any unlicensed product unit or process conforming to ISO/OUR 11172-3 or ISO/OUR 13818-3 used or sold in combination with this product unit. The license only covers the use of this product unit to encode and/or decode audio files conforming to the ISO/OUR 11172-3 or ISO/OUR 13818-3. No rights are granted under this license for product features or functions that do not conform to the ISO/OUR 11172-3 or ISO/OUR 13818-3.

CAUTION: USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER THAN SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

BEFORE YOU START

Accessories

Remote Control

Batteries for Remote Control (AAA Size)

User's Manual

Video/Audio Cable

Install Batteries in the Remote control

1. Open the battery cover on the back of the remote control.
2. Insert two AAA batteries.

Make sure that the

polarities (+ and -) are aligned correctly.

1. Replace the battery cover.

If remote control doesn't operate properly:

• Check the polarity + - of the batteries (Dry-Cell)
• Check if the batteries are drained.
• Check if remote control sensor is blocked by obstacles.
• Check if there is any fluorescent lighting nearby.

TABLE OF CONTENTS

Precautions. 2
Before you start 3

Setup

General Features 4
Disc Type and Characteristics 5
Description 6
Tour of the Remote Control 8

Connections

Choosing a Connection 9

Basic Functions

Playing a Disc 12
Using the Search and Skip Functions 13
Using the Display Function 13
Using the Disc and Title Menu 14
Repeat Play 14
Slow Play 15

Advanced Functions

Adjusting the Aspect Ratio (EZ View) 15
Selecting the Audio Language 16
Selecting the Subtitle Language. 16
Changing the Camera Angle 17
Using theBookmark Function 17
Using the Zoom Function 18
Clips Menu for MP3/WMA/JPEG/MPEG4/
CD Audio 18

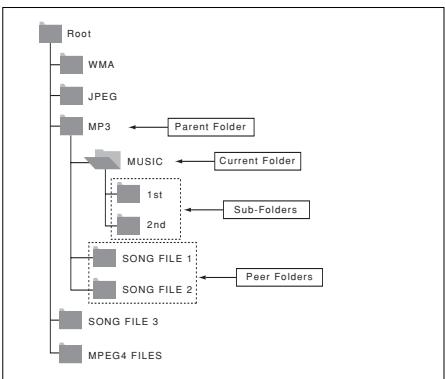

Folder Selection 18
MP3/WMA/CD Audio Playback. 19
MPEG4Playback 19
Playing Media files Using the USB
Host feature 20
CD Ripping 21
Picture CDPlayback. 22

Changing Setup Menu

Using the Setup Menu 23
Setting Up the Language Features 23
Setting Up the Audio Options 24
Setting Up the Display Options 25

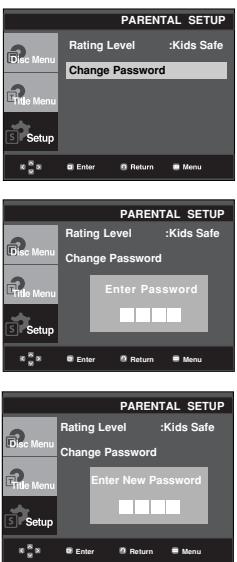

Setting Up the Parental Control 26

Reference

Firmware upgrade 28
Troubleshooting 29
USB Host feature supported products 30
Specifications 31

General Features

Excellent Sound

Dolby Digital, a technology developed by Dolby Laboratories, provides crystal clear sound reproduction.

Screen

Both regular and widenscreen(16:9) pictures can be viewed.

Slow Motion

An important scene can be viewed in slow motion.

Parental Control (DVD)

The parental control allows users to set the level necessary to prohibit children from viewing harmful movies such as those with violence, adult subject matter, etc.

Various On-Screen Menu Functions

You can select various languages (Audio/Subtitle) and screen angles while enjoying movies.

EZ VIEW (DVD)

Easy View enables picture adjustment to match your TV's screen size (16:9 or 4:3).

Digital Photo Viewer (JPEG)

You can view Digital Photos on your TV.

Repeat

You can repeat a song or movie simply by pressing the REPEAT button.

MP3/WMA

This unit can play discs created from MP3/WMA files.

CD Ripping

This feature lets you to copy audio files from discs to USB device into MP3 format. (only audio CD (CD DA)

MPEG4

This unit can play MPEG4 formats within an avi file.

Note

• Discs which cannot be played with this player.
  DVD-ROM DVD-RAM
• CD-ROM CDV
• CDI -CVD
• CDGs play audio only, not graphics.
• Ability to play back may depend on recording conditions.
  DVD-R, +R
  CD-RW
  DVD+RW,-RW (V mode)
• The unit may not play certain CD-R, CD-RW and DVD-R due to the disc type or recording conditions.

COPY PROTECTION

Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs.

This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be a unauthorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

This DVD player is capable of playing the following types of discs with the corresponding logos:

Disc Types (Logos)	Recording Types	Disc Size	Max. Playing Time	Characteristics
DVD DVD VIDEO	Audio + Video	12 Cm	Single-sided 240 min. Double-sided 480 min.	- DVD contains excellent sound and video due to Dolby Digital and MPEG-2 system. - Various screen and audio functions can be easily selected through the on-screen menu.
		8 Cm	Single-sided 80 min. Double-sided 160 min.
AUDIO-CD COMPACT DISC DIGITAL AUDIO	Audio	12 Cm	74 min.	- CD is recorded as a Digital Signal with better audio quality, less distortion and less deterioration of audio quality over time.
		8 Cm	20 min.

Disc Markings

Play Region Number
PAL	PAL broadcast system in U.K, France, Germany, etc.
Dolby Digital disc
Stereo	Stereo disc
Digital Audio disc
DTS disc	DTS disc
MP3 disc

You must only insert one DVD disc at a time. Inserting two or more discs will not allow to play them back and it may cause damage to the DVD player.

Region Number

Both the DVD player and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play.

The Region Number for this player is described on the rear panel of the player.

DivX Certification

DivX, DivX Certified, and associated logos are trademarks of DivXNetworks, Inc and are used under license

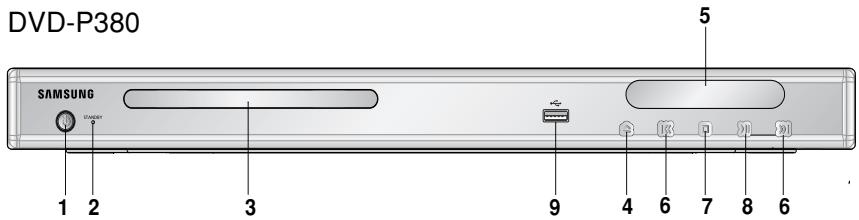

Front Panel Controls

1. STANDBY/ON (Ø)

When STANDBY/ON is pressed on, the indicator goes out and the player is turned on.

2. STANDBY indicator

When the unit is first plugged in, this indicator lights.

3. DISC TRAY

Place the disc here.

4. OPEN/CLOSE (±)

Press to open and close the disc tray.

5. DISPLAY

Operation indicators are displayed here.

6. SKIP (K/II) SEARCH

Allow you to search forward/backward through a disc. Use to skip the title, chapter or track.

7. STOP (□)

Stops disc play.

8. PLAY/PAUSE (II)

Begin or pause disc play.

9. USB Host

Connect digital still camera, MP3 player, memory stick, Card reader, or another removable storage devices.

Front Panel Display

Total playing time/Displays various messages concerning operations such as PLAY, STOP, LOAD ...

nodSC: No disc loaded.

OPEN: The disc tray is open.

LOAd: Player is loading disc information.

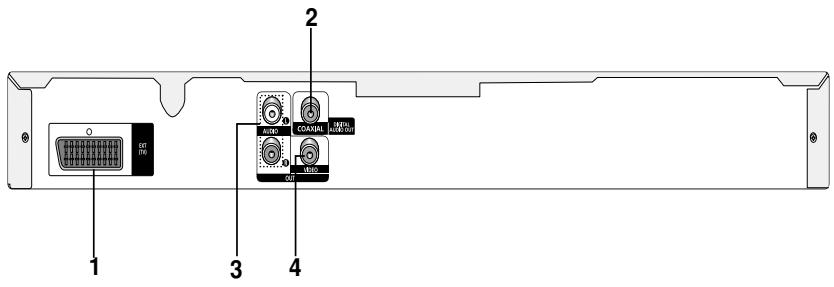

1. SCART JACK

• Connect to a TV scart input jack.

2. DIGITAL AUDIO OUT JACKS

• Use coaxial digital cable to connect to a compatible Dolby Digital receiver.
• Use coaxial digital cable to connect to an A/V Amplifier that contains a Dolby Digital, MPEG2 or DTS decoder.

3. AUDIO OUT JACKS

• Connect to the Audio input jacks of your television or audio/video receiver.

4. VIDEO OUT JACK

• Use a video cable to connect to the Video input jack on your television.

Note

• See pages 24-26 to get more information on how to use the setup menu.

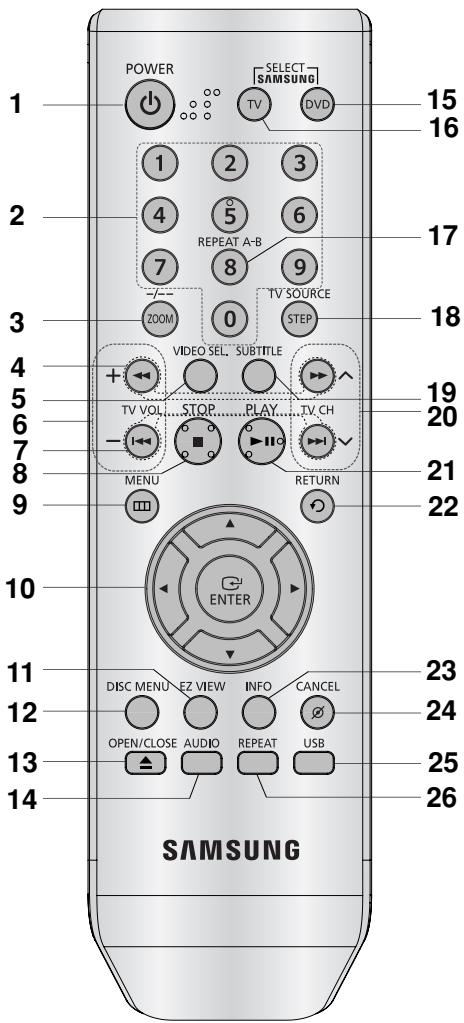

1. DVD POWER Button

Turns the power on or off.

2. NUMBER Buttons

Use to input the value of operating needed.

Example :Find track, chapter, etc)

3. ZOOM Button(/--)

Enlarge DVD Picture / Use this button to select the channel of TV program by inserted the channel number (TV mode).

4. SEARCH Buttos ( /

Allow you to search forward/backward through a disc.

5. VIDEO SEL. Button

Selects video output formats.

6. TV VOL (+, -) Buttons

Control volume.

7. SKIP Buttons (|←/→|)

Use to skip the title, chapter or track.

8. STOP Button ( )

Press to stop a disc.

9. MENU Button

Brings up the DVD player's menu.

10. ENTER/▲/▼,▲/▶ Buttons

This button functions as a toggle switch.

11. EZ VIEW Button

The aspect ratio of a picture can easily be adjusted according to the screen size of your TV (16:9 or 4:3).

12.DISCMENUButton

Brings up the Disc menu.

13. OPEN/CLOSE (▲) Button

To open and close the disc tray.

14. AUDIO Button

Use this button to access various audio functions on a disc.

15. DVD Button

Press this button when you use a DVD player.

16. TV Button

Press this button to operate TV.

17. REPEAT A-B Button

Allows you to repeat A-B disc.

18. STEP Button/TV Source

Advances play one frame at a time / Press this button to select an available TV source (TV mode).

19. SUBTITLE Button

Press this to switch the DVD's subtitle language.

20. TV CH (A, V) Buttons

Channel selection.

21. PLAY/PAUSE Button (▶II)

Begin/Pause disc play.

22. RETURN Button

Returns to a previous menu.

23. INFO Button

Displays the current disc mode.

24. CANCEL Button

Use to remove menus or status displays from the screen.

25. USB Button

26. REPEAT Button

Allows you to repeat play a title, chapter, track, or disc.

Choosing a Connection

The following shows examples of connections commonly used to connect the DVD player with a TV and other components.

Before Connecting the DVD Player

• Always turn off the DVD player, TV, and other components before you connect or disconnect any cables.
• Refer to the user's manual of the additional components you are connecting for more information on those particular components.

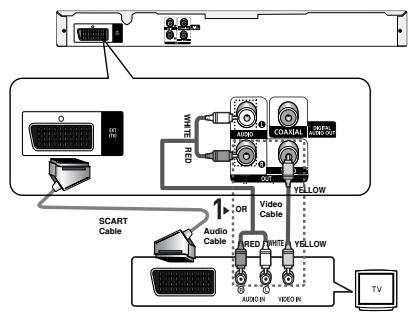

Connecting to a TV (SCART)

• Using the SCART, connect the SCART (EXT) terminal on the rear of the DVD Player to the SCART (IN) terminal of your TV.
• If your TV is not equipped with a SCART you can select one of the following alternative connections:

Connecting to a TV (VIDEO CVBS)

1

Using video/audocables, connect theVIDEO (yellow)/AUDIO (red and white) OUT terminals on the rear of the DVD player to theVIDEO (yellow)/AUDIO (red and white) IN terminals of TV.

2

Turn on the DVD player and TV.

3

Press the input selector on your TV remote control until the Video signal from the DVD player appears on the TV screen.

Note

• Noise may be generated if the audio cable is too close to the power cable.
• If you want to connect to an Amplifier, please refer to the Amplifier connection page. (See pages 10 to 11)
• The number and position of terminals can vary depending on your TV set. Please refer to the user's manual of the TV.
• If there is one audio input terminal on the TV, connect it to the [AUDIO OUT][left] (white) terminal of the DVD player.

1

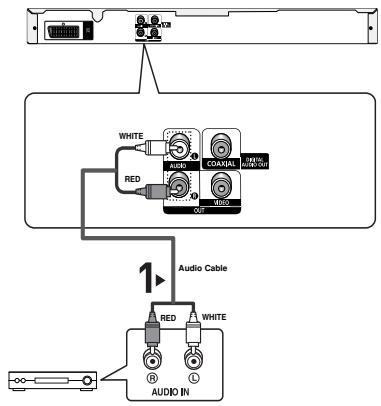

Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of the Amplifier.

2

Using the video signal cable(s), connect the VIDEO terminals on the rear of the DVD player to the VIDEO terminal of your TV as described on pages 9.

3

Turn on the DVD player, TV, and Amplifier.

4

Press the input select button of the Amplifier to select external input in order to hear sound from the DVD player. Refer to your Amplifier's user manual to set the Amplifier's audio input.

Note

• Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the speakers and your ears.
• Please set the audio in the menu screen according to the Amplifier. (See pages 24-25)
• The position of terminals can vary depending on the Amplifier. Please refer to the user's manual of the Amplifier.

1

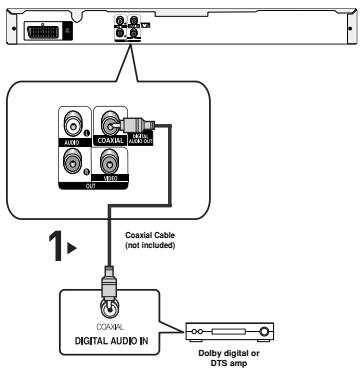

If using a coaxial cable (not included), connect the DIGITAL AUDIO OUT (COAXIAL) terminal on the rear of the DVD player to the DIGITAL AUDIO IN (COAXIAL) terminal of the Amplifier.

2

Using the video signal cable(s), connect the VIDEO terminals on the rear of the DVD player to the VIDEO terminal of your TV as described on pages 9.

3

Turn on the DVD player, TV, and Amplifier.

4

Press the input select button of the Amplifier to select external input in order to hear sound from the DVD player. Refer to your Amplifier's user manual to set the Amplifier's audio input.

Note

• Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the speakers and your ears.
• Please set the audio in the menu screen according to the Amplifier. (See pages 24-25)
• The position of terminals can vary depending on the Amplifier. Please refer to the user's manual of the Amplifier.

Playing a Disc

Before Play

• Turn on your TV and set it to the correct Video Input by pressing TV/VIDEO button on the TV remote control.
• If you connected an external Audio System, turn on your Audio System and set it to the correct Audio Input.

After plugging in the player, the first time you press the DVD POWER button, this screen comes up: If you want to select a language, press a NUMBER button. (This screen will only appear when you plug in the player for the first time.) If the language for the startup screen is not set, the settings may change whenever you turn the power on or off. Therefore, make sure that you select the language you want to use.

Once you select a menu language, you can change it by pressing the button on the front panel of the unit for more than 5 seconds with no disc in the unit. Then the SELECT MENU LANGUAGE window appears again where you can reset your preferred language.

SELECT MENU LANGUAGE

Press 1 for English

1. Press the OPEN/CLOSE (▲) button. The STANDBY indicator light goes out and the tray opens.

2. Place a disc gently into the tray with the disc's label facing up.

3. Press the PLAY/PAUSE (▶II) button or OPEN/ CLOSE (▲) button to close the disc tray.

4. When you stop disc play, the player remembers where you stopped, so when you press PLAY/PAUSE (▶II) button again, it will pick up where you left off.

5. Stopping Play

Press the STOP (■) button during play.

1. Removing Disc

Press the OPEN/CLOSE (▲) button.

1. Pausing Play

Press the PLAY/PAUSE (▶II) or STEP button on the remote control during play.

• Screen stops, no sound.

To resume, press the PLAY/PAUSE (▶II) button once again.

1. Step Motion Play (Except CD)

Press the STEP button on the remote control during play.

Each time the button is pressed, a new frame will appear.
- No sound is heard during STEP mode.
- Press the PLAY/PAUSE (▶II) button to resume normal play.
- You can only perform step motion play in the forward direction.

1. Slow Motion Play

Press the SEARCH (←/→) button to choose the play speed between 1/8, 1/4 and 1/2 of normal during PAUSE or STEP mode.

• No sound is heard during slow mode.
• Press the PLAY/PAUSE (▶II) button to resume normal play.

Note

• If the player is left in the stop mode for more than one minute without any user interaction, a screen saver will be activated. Press the PLAY/PAUSE (▶II) button to resume normal play.
• If the player is left in the stop mode for more than about 30 minutes, the power will automatically shut off. (Automatic Power-Off Function)
• If the player is left for about 5 minutes in pause mode, it will stop.
• This () icon indicates an invalid button press.

Using the Search and Skip Functions

During play, you can search quickly through a chapter or track, and use the skip function to jump to the next selection.

Searching through a Chapter or Track

During play, press the SEARCH (← or →) button on the remote control for more than 1 second.

DVD	2X, 4X, 64X, 128X
CD	2X, 4X, 8X

Note

• The speed marked in this function may be different from the actual playback speed.
• No sound is hearing during search mode (Except CD).

Skipping Tracks

During play, press the SKIP (← or →) button.

• When playing a DVD, if you press the SKIP (▶) button, it moves to the next chapter. If you press the SKIP (←) button, it moves to the beginning of the chapter. One more press makes it move to the beginning of the previous chapter.
• When playing a CD, if you press the SKIP (▶) button, it moves to the next track. If you press the SKIP (▶) button, it moves to the beginning of the track. One more press makes it move to the beginning of the previous track.

Using the Display Function

When Playing a DVD/MPEG4

1. During play, press the INFO button on the remote control.
2. Press the / buttons to select the desired item.

3. Press the buttons to make the desired setup and then press the ENTER button.

4. You may use the number buttons of the remote control to directly access a title, chapter or to start the play back from a desired time.

5. To make the screen disappear, press the CANCEL button.

Note

Title	To access the desired title when there is more than one in the disc. For example, if there is more than one movie on a DVD, each movie will be identified.
Chapter	Most DVD discs are recorded in chapters so that you can quickly find a specific passage.
Track
Time	Allows playback of the film from a desired time. You must enter the starting time as a reference. The time search function does not operate on some disc.
Audio	Refers to the language of the film soundtrack. In the example, the soundtrack is played in English 5.1CH. A DVD disc can have up to eight different soundtracks.
Subtitle	Refers to the subtitle languages available in the disc. You will be able to choose the subtitle languages or, if you prefer, turn them off from the screen. A DVD disc can have up to 32 different subtitles.
Shortcut	To access the desired Bookmark ,Angle or EZ View function. Some DVD discs are have more angle function from any picture. Bookmark function make you easily and quickly to find a track or chapter from DVD. The EZ View funtion is use for changing the aspect ratio in DVD.

Using the Disc and Title Menu

Using the Disc Menu

1. During stop mode of a DVD disc, press the MENU button on the remote control.
2. Press the / buttons to select Disc Menu, then press the or ENTER button.

Note

Depending on a disc, the Disc Menu may not work.
- You can also use the Disc Menu, using the DISC MENU button on the remote control.

Using the Title Menu

1. During the playback of a DVD disc, press the MENU button on the remote control.
2. Press the / buttons to select Title Menu, then press the or ENTER button.

Note

Depending on a disc, the Title Menu may not work.
- Title Menu will only be displayed if there are at least two titles in the disc.

Repeat Play

Repeat the current track, chapter, title, a chosen section (A-B), or all of the disc.

When playing a DVD

1. Press the REPEAT button on the remote control. Repeat screen appears.
2. Press the / buttons to select Chapter, Title or A-B, then press the ENTER button.

DVD repeats play by chapter or title.
- Chapter (O): repeats the chapter that is playing.
- Title (): repeats the title that is playing.
-A-B: repeats a segment of the disc that you select.

DVD

Using the A-B Repeat function

1. Press the REPEAT A-B button at the point where you want repeat play to start (A). B is automatically highlighted.
2. Press the REPEAT A-B button at the point where you want the repeat play to stop (B).
3. To return to normal play, press the CANCEL button.
4. To return to normal play, press REPEAT button again, then press the buttons to select Off and press ENTER button.

DVD

Note

• A-B REPEAT allows you to set point (B) until at least 5 seconds of play back time has elapsed after point(A) has been set.
• Depending on a disc, the Repeat function may not work.

This feature allows you slowly to repeat scenes containing sports, dancing, musical instruments being played etc., so you can study them more closely.

When playing a DVD

1. During play, press the PLAY/PAUSE (▶II) button.
2. Press the SEARCH (←/→) button to choose the play speed between 1/8, 1/4 and 1/2 of normal during PAUSE or STEP mode.

ADVANCED FUNCTIONS

Adjusting the Aspect Ratio (EZ View)

To play back using aspect ratio (DVD)

Press the EZ VIEW button.

• The screen size changes when the button is pressed repeatedly.
• The screen zoom mode operates differently depending on the screen setting in the Display Setup menu.
• To ensure correct operation of the EZ VIEW, you should set the correct aspect ratio in the Display Setup menu. (See pages 25-26).

If you are using a 16:9 TV

For 16:9 aspect ratio discs

- WIDE SCREEN

Displays the content of the DVD title in 16:9 aspect ratio.

- SCREEN FIT

The top and bottom portions of the screen are cut off.

When playing a 2.35:1 aspect ratio disc, the black bars at the top and bottom of the screen will disappear. The picture will look vertically stretched. (Depending on a type of disc, the black bars may not disappear completely.)

- ZOOM FIT

The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarge

For 4:3 aspect ratio discs

- Normal Wide

Displays the content of the DVD title in 16:9 aspect ratio. The picture will look horizontally stretched.

- SCREEN FIT

The top and bottom portions of the screen are cut off and the full screen appears.

The picture will look vertically stretched.

- ZOOM FIT

The top, bottom, left and right portions of the screen are cut off and the central portion of the screen is enlarged.

Vertical Fit

When a 4:3 DVD is viewed on a 16:9 TV, black bars will appear at the left and right of the screen in order to prevent the picture from looking horizontally stretched.

If you are using a 4:3 TV

For 16:9 aspect ratio discs

- 4:3 Letter Box

Displays the content of the DVD title in 16:9 aspect ratio. The black bars will appear at the top and bottom of the screen.

- 4:3 Pan Scan

The left and right portions of the screen are cut off and the central portion of the 16:9 screen is displayed.

- SCREEN FIT

The top and bottom portions of the screen are cut off and a full screen appears. The picture will look vertically stretched.

-ZOOM FIT

The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarged.

For 4:3 aspect ratio discs

- Normal Screen

Displays the content of the DVD title in 4:3 aspect ratio.

- SCREEN FIT

The top and bottom portions of the screen are cut off and the full screen appears. The picture will look vertically stretched.

-ZOOM FIT

The top, bottom, left and right portions of the screen are cut off and the central portion of the screen is enlarged.

Note

This function may behave differently depending on the type of disc.

Selecting the Audio Language

You can select a desired audio language quickly and easily with the AUDIO button.

Using the AUDIO button (DVD/MPEG4)

1. Press the AUDIO button. The Audio changes when the button is pressed repeatedly.

The audio languages are represented by abbreviations.

DVD

Press Audio button at remocon repeatedly to select the desired Audio on MPEG4 then press the ENTER.

MPEG4

1. To remove the AUDIO icon, press the CANCEL or RETURN button.

Note

• This function depends on audio languages are encoded on the disc and may not work.
• A DVD disc can contain up to 8 audio languages.
• To have the same audio language come up whenever you play a DVD; Refer to "Using the Audio Language" on page 24.

Selecting the Subtitle Language

You can select a desired subtitle quickly and easily with the SUBTITLE button.

Using the SUBTITLE button (DVD/MPEG4)

1. Press the SUBTITLE button. The subtitle languages are represented by abbreviations.

The subtitle changes when the button is pressed repeatedly.

DVD
MPEG4

External Subtitle option will appear, depends on the DivX disc.

Press SUBTITLE button at remocon repeatedly to select the desired subtitle language on a MPEG4 then press the ENTER.

MPEG4

1. To remove the SUBTITLE icon, press the CANCEL or RETURN button.

Note

• You have to change the desired subtitle in the Disc Menu, according to discs. Press the DISC MENU button.
• This function depends on what subtitles are encoded on the disc and may not work on all DVDs.
• A DVD disc can contain up to 32 subtitle languages.
• To have the same subtitle language come up whenever you play a DVD; Refer to "Using the Subtitle Language" on page 24.

Changing the Camera Angle

When a DVD contains multiple angles of a particular scene, you can use the ANGLE function.

Using the ANGLE button (DVD)

If the disc contains multiple angles, the ANGLE appears on the screen.

1. During play, press the INFO button on the remote control.
2. Press the / buttons to select Shortcut.
3. Press the / buttons to select Angle, then press the ENTER button.

1. Press the buttons on the remote control to select the desired angle.

Note

• If the disc has only one angle, this feature won't work. Currently, very few discs have this feature.
• Depending on the disc, these functions may not work.

Using theBookmark Function

This feature lets you bookmark sections of a DVD so you can quickly find them at a later time.

Using theBookmark Function (DVD)

1. During play, press the INFO button on the remote control.
2. Press the / buttons to select Shortcut, then press the

ENTER button.

DVD

1. Press the buttons to selectBookmark, then press the ENTER button.
2. When you reach the scene you want to mark, press the ENTER button. Up to three scenes may be marked at a time.

Note

Depending on a disc, theBookmark function may not work.

Recalling a Marked Scene

1~3. The first 1~3 steps are the same as those for "Using theBookmark Function" on page 17.
4. Press the / buttons to select a marked scene.

1. Press the PLAY/PAUSE (▶II) button to skip to the marked scene.

Clearing aBookmark

1~3. The first 1~3 steps are the same as those for "Using theBookmark Function" on page 17.
4. Press the buttons to select the bookmark number you want to delete.
5. Press the CANCEL button to delete a bookmark number.

Using the Zoom Function

Using the Zoom Function (DVD)

1. During play or pause mode, press the ZOOM button on the remote control, Press the ENTER button

2. Press the / or / buttons to select the part of the screen you want to zoom in on.

3. During DVD play, press ENTER to zoom in 2X/4X/2X/Normal in order.

Clips Menu for MP3/WMA/JPEG/MPEG4/CD Audio

CD Audio or discs with MP3/WMA/JPEG contain individual songs and/or pictures that can be organized into folders as shown below. They are similar to how you use your computer to put files into different folders.

Open the disc tray.

Place the disc on the tray.

Close the tray.

The tray closes and this screen displays.

• :Name of currently playing file.
  CurrentPlaybackTime.

• : Current Playback Mode : There are four modes. They can be selected in order by pressing the REPEAT button.

• Off: Normal Playback

• Track: Repeats the current track.
• Folder: Repeats the current folder

• Random: Files in the disc will be played in random order.

• MP3: MP3 file icon. CD Audio file icon.

• :WMA file icon. - :Folder icon.
• JPEG file icon : Current Folder icon.
  AVI:AVIFile icon.

Folder Selection

The folder can be selected in Stop or Play mode.

• To select the Parent Folder

Press the RETURN button to go to parent folder, or press the / buttons to select .. and press ENTER to go to the parent folder.

• To select the Peer Folder

Press the / buttons to select the desired folder, then press ENTER.

• To select the Sub-Folder

Press the / buttons to select the desired folder, then press ENTER.

1. Open the disc tray. Place the disc on the tray. Close the tray.
2. Only one kind of file is played back when a disc or a folder contains both MP3 and WMA files.
3. Press the / or / buttons to select a song file. Press ENTER to begin playback of the song file.

Repeat/Random playback

Press the REPEAT button to change the playback mode. There are four modes, such as Off, Track, Folder and Random.

• Off: Normal Playback
• Track: Repeats the current song file.
• Folder: Repeats the song files which have the same extension in the current folder.
• Random: Song files which have the same extension will be played in random order.

To resume normal play, press the CANCEL button.

CD-R MP3/WMA file

When you record MP3 or WMA files on CD-R, please refer to the following.

• Your MP3 or WMA files should be ISO 9660 or JOLIET format.

ISO 9660 format and Joliet MP3 or WMA files are compatible with Microsoft's DOS and Windows, and with Apple's Mac. This format is the most widely used.

• When naming your MP3 or WMA files, do not exceed 8 characters, and enter ".mp3", .wma" as the file extension.

General name format : Title.mp3. or Title.wma. When composing your title, make sure that you use 8 characters or less, have no spaces in the name, and avoid the use of special characters including: (· , / , , = , + )

• Use a decompression transfer rate of at least 128 Kbps when recording MP3 files.

Sound quality with MP3 files basically depends on the rate of compression/decompression you choose. Getting CD audio sound requires an analog/digital sampling rate, that is conversion to MP3 format, of at least 128 Kbps and up to 160 Kbps. However, choosing higher rates, like 192 Kbps or more, only rarely give better sound quality. Conversely, files with decompression rates below 128 Kbps will not be played properly.

• Use a decompression transfer rate of at least 64Kbps when recording WMA files.

Sound quality with WMA files basically depends on the rate of compression/decompression you choose.

Getting CD audio sound requires an analog/digital sampling rate, that is conversion to WMA format, of at least 64Kbps and up to 192Kbps. Conversely, files with decompression rates below 64Kbps or over 192Kbps will not be played properly.

• Do not try recording copyright protected MP3 files.

Certain "secured" files are encrypted and code protected to prevent illegal copying. These files are of the following types: Windows Media™ (registered trade mark of Microsoft Inc) and SDMI™ (registered trade mark of The SDMI Foundation). You cannot copy such files.

• Important:

The above recommendations cannot be taken as a guarantee that the DVD player will play MP3 recordings, or as an assurance of sound quality. You should note that certain technologies and methods for MP3 file recording on CD-Rs prevent optimal playback of these files on your DVD player (degraded sound quality and in some cases, inability of the player to read the files).

• This unit can play a maximum of 500 files and 500 folders per disc.

MPEG4 Playback

MPEG4 Play Function

AVI files are used to contain the audio and video data. Only

AVI format files with the ".avi" extensions can be played.

1. Open the disc tray. Place the disc on the tray.

Close the tray.

1. Press the / or / buttons to select an avi file (DivX/XviD) and then press ENTER button.

Repeat playback

Press the REPEAT button to change playback mode. There are 4 modes, such as Off, Folder, Title an A-B (a distance between two points appointed by user)

• Folder : repeats the AVI files which have the same extension in the current folder.
• Title : repeats the title that is playing.
  -A-B: repeats a segment of the file that you select.

MPEG4 Function Description

Function	Description	Reference page
Skip (← or →)	During play, press the ↓ or ↑ button, it moves forward or backward 5 minutes.	-
Search (← or →)	During play, press the SEARCH (← or →) button and press again to search at a faster speed. Allows you to search at a faster speed in an AVI file. (2X, 4X, 8X)	-
Slow Motion Play	Allows you to search at a slower speed in an AVI file. (1/8X, 1/4X, 1/2X)	P 12
Step Motion Play	Each time the STEP button is pressed, a new frame will appear.	P 12
ZOOM	2X/4X/2X/Normal in order	P 18

• These functions may not work depending on MPEG4 file.

CD-R AVI file

This unit can play the following video compression formats within the AVI file format:

• DivX 3.11 contents
• DivX 4 contents (Based on MPEG-4 Simple Profile)
• DivX 5 contents (MPEG-4 simple profile plus additional features such as bi-directional frames. Qpel and GMC are also supported.)
  XviD MPEG-4 compliant Contents.

This unit supports all resolutions up to maximum below.

DivX3.11 & DivX4 & XviD	DivX5
Bitrate may fluctuate: Device may skip decoding the high bitrate portions and begin decoding again when Bitrate returns to normal.	720 x 480 @30fps 720 x 576 @25fps : Maximum bitrate : 4Mbps

Note

• Some MPEG-4 files created on a personal computer may not be play back. That is why Codec Type, Version and Higher resolution over specification is not supported.
• This unit supports CD-R/RW written in MPEG4 in accordance with the "ISO9660 format".

Playing Media Files Using the USB Host feature

You can enjoy the media files such as pictures, movies and tunes saved in an MP3 player, USB memory or digital camera in high audio by connecting the storage device to the USB port of the DVD Player.

Using the USB HOST feature

1. Connect the USB device to the USB port on the front of the unit.
2. If there is partition Of USB, Press the / button to select the one of partition from USB, then Press OK.

1. Press the / or / buttons to select a file in USB. Press OK to Open file.

Note

Each time the USB button on the remote control is pressed, a frame of the USB device selection will appear.
"USB" appears on the display screen.
- USB MENU screen appears on the TV screen and the saved file is played.

Safe USB Removal

To prevent damage to the memory stored in the USB device, perform safe removal before disconnecting the USB cable.

• Press the STOP ( ) button
• Remove the USB cable.

Skip Forward/Back

During playback, press the (▶/▶) button.

• When there is more than one file, when you press the button, the next file is selected.
• When there is more than one file, when you press the button, the previous file is selected.

Fast playback

To play back the disc at a faster speed, press

( / ) during playback.

Each time you press either button, the playback speed will change as follows:

$$ 2 x \rightarrow 4 x \rightarrow 8 x. $$

Compatible Devices

1. USB devices that support USB Mass Storage v1.0.

(USB devices that operate as a removable disk in Windows (2000 or later) without additional driver installation.)

1. MP3 Player: HDD and flash type MP3 player.

2. Digital camera: Cameras that support USB Mass Storage v1.0.

3. Cameras that operate as a removable disk in Windows (2000 or later) without additional driver installation.

4. USB HDD and USB Flash Drive: Devices that support USB2.0 or USB1.1.

5. You may experience a difference in playback quality when you connect a USB1.1 device.

6. For a USB HDD, make sure to connect an auxiliary power cord to the USB HDD for proper operation.

7. USB card Reader: One slot USB card reader and Multi slot USB card reader

8. Depending on the manufacturer, the USB card reader may not be supported.

9. If you install multiple memory devices into a multi card reader, you may experience problems.

10. If you use a USB extension cable, the USB device might not be recognized.

11. Supported Formats

	File name	File Extension	Bit rate	Version	Pixel	Sampling Frequency
Still Picture	.JPG	.JPG ,JPEG	-	-	640'480	-
Music	MP3	.MP3	80~384kbps	-	-	44.1kHz
	WMA	.WMA	56~128kbps	V8	-	44.1kHz
Movie	VCD	MPG,MPEG	1.5Mbps	VCD1.1,VCD2.0	320'480	44.1KHz
	DivX	AVL,ASF	4Mbps	DivX3.11-DivX5.1,Xivid	720'480	44.1KHz~48KHz

CBI (Control/Bulk/Interrupt) is not supported.
- Digital Cameras that use PTP protocol or require additional program installation when connected to a PC are not supported.
- A device using NTFS file system is not supported. (Only FAT 16/32 (File Allocation Table 16/32) file system is supported.)
- Some MP3 players, when connected to this product, may not operate depending on the sector size of their file system.

• The USB HOST function is not supported if a product that transfers media files by its manufacturer-specific program is connected.
• Does not operate with Janus enabled MTP(Media Transfer Protocol) devices.
• The USB host function of this product does not support all USB devices.

For information on the supported devices, see page 30.

CD Ripping

This feature lets you to copy audio files from disc to USB device into MP3 format.

Open the disc tray.

Place the Audio CD(CD DA) disc on the tray, and close the tray.

Connect the USB device to the USB port on the front of the unit.

This screen will be displayed.

1. To Select DISC

With the unit in Stop mode, Press the / buttons to select DISC.

To Select DEV (storage media device)

Press the button to select the DEV (storage media device) menu, then press the ENTER button.

Press the / buttons to select USB, then press the

ENTER button.

1. Press the / buttons to select SELECT, then press the ENTER button to mark all the files for copying.

2. To unmark all the files press the ENTER button again.(UNSELECT Menu)

3. If you want to mark several files to be copied, press the button, then press the ENTER button on the selected file.

4. Press the / buttons to select START, then press the ENTER button.

File copy begins.
- To cancel the copying in progress, press the CANCEL but

Note

• When the CD ripping is in process the player will atomatically begin playing.

• Only the Audio CD(CD DA) discs can be ripped.

• Select the desired folder.

• Press the / buttons to select a Picture file in the clips menu and then press the ENTER button.
• Press the INFO button on the remote control to select the menu you want to view and then press the ENTER button.

Note

• Press the STOP button to return to the clips menu.
• When playing a Kodak Picture CD, the unit displays the Photo directly, not the clips menu.

Rotation

Each time the ENTER button is pressed, the picture rotates 90 degrees clockwise.

Zoom

: Press the / buttons to select the part of the screen you want to zoom in on.

Press the ENTER button. Each time the ENTER button is pressed, the picture is enlarged up to 2X.

Slide Show

: The unit enters slide show mode.

• Before beginning the Slide Show, the picture interval must be set.

: When this icon is selected and ENTER is pressed, the pictures change automatically with about a 6 second interval.

The pictures change automatically with about a 12 second interval.

The pictures change automatically with about a 18 second interval.

Note

Depending on a file size, the amount of time between each picture may be different from the manual.
- If you don't press any button, the slide show will start automatically in about 10 seconds by default.

CD-R JPEG Disc

• Only files with the ".jpg" and "JPG" extensions can be played.
• If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.
• Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.
• The name of the JPEG file may not be longer than 8 characters and should contain no blank spaces or special characters (. / = +) .
• Only a consecutively written multi-session disc can be played. If there is a blank segment in the multi-session disc, the disc can be played only up to the blank segment.
• A maximum of 3000 images can be stored on a single CD.
• Kodak Picture CDs are recommended.
• When playing a Kodak Picture CD, only the JPEG files in the pictures folder can be played.
• Kodak Picture CD: The JPEG files in the pictures folder can be played automatically.
• Konica Picture CD: If you want to see the Picture, select the JPEG files in the clips menu.
• Fuji Picture CD: If you want to see the Picture, select the JPEG files in the clips menu.
• QSS Picture CD: The unit may not play QSS Picture CD.
• If the number of files in 1 Disc is over 500, only 500 JPEG files can be played.
• If the number of folders in 1 Disc is over 500, only JPEG files in 500 folders can be played

CHANGING SETUP MENU

Using the Setup Menu

The Setup menu lets you customize your DVD player by allowing you to select various language preferences, set up a parental level, even adjust the player to the type of television screen you have.

1. With the unit in Stop mode, press the MENU button on the remote control. Use the / buttons to select Setup, then press the or ENTER button.

Language Setup: Setup of the Language.
Audio Setup : Setup of the Audio Options.
Display Setup: Setup of the Display Options. Use to select which type of screen you want to watch and several display options.
Parental Setup: Setup of the Parental Level. Allows users to set the level necessary to prevent children from viewing unsuitable movies such as those with violence, adult subject matter, etc.
Divx(R) Registration: Please use the Registration code to register this player with the DivX(R) Video On Demand format. To learn more go to www.divx.com/vod.
2. Press the / buttons to access the different features. Press the or ENTER button to access the sub features.
3. To make the setup screen disappear after setting up, press the MENU button again.

Note

Depending on the disc, some Setup Menu selections may not work.

Setting Up the Language Features

If you set the player menu, disc menu, audio and subtitle language in advance, they will come up automatically every time you watch a movie.

Using the Player Menu Language

1. With the unit in Stop mode, press the MENU button.
2. Press the / buttons to select Setup, then press the or ENTER button.
3. Press the / buttons to select Language Setup, then press the or ENTER button.
4. Press the / buttons to select Player Menu, then press the or ENTER button.

5. Press the / buttons to select the desired language, then press the or ENTER button.

6. The language is selected and the screen returns to Language Setup menu.

7. To make the setup menu disappear, press the MENU button.

Using the Disc Menu Language

This function changes the text language only on the disc menu screens.

1. With the unit in Stop mode, press the MENU button.
2. Press the / buttons to select Setup, then press the or ENTER button.
3. Press the / buttons to select Language Setup, then press the or ENTER button.
4. Press the / buttons to select Disc Menu, then press the or ENTER button.

5. Press the / buttons to select the desired language, then press the or ENTER button.

6. If the selected language is not recorded on the disc, the original pre-recorded language is selected.

7. The language is selected and the screen returns to Language Setup menu.
8. To make the setup menu disappear, press the MENU button.

Using the Audio Language

1. With the unit in Stop mode, press the MENU button.
2. Press the / buttons to select Setup, then press the or ENTER button.
3. Press the / buttons to select Language Setup, then press the or ENTER button.
4. Press the / buttons to select Audio, then press the or ENTER button.

5. Press the / buttons to select the desired language, then press the or ENTER button.

6. Select "Original" if you want the default soundtrack language to be the original language the disc is recorded in.

7. If the selected language is not recorded on the disc, the original pre-recorded language is selected.
8. The language is selected and the screen returns to Language Setup menu.
9. To make the setup menu disappear, press the MENU button.

Using the Subtitle Language

1. With the unit in Stop mode, press the MENU button.
2. Press the / buttons to select Setup, then press the or ENTER button.
3. Press the / buttons to select Language Setup, then press the or ENTER button.
4. Press the / buttons to select Subtitle, then press the or ENTER button.

5. Press the / buttons to select the desired language, then press the or ENTER button.

6. Select "Automatic" if you want the subtitle language to be the same as the language selected as the audio language.

7. Some discs may not contain the language you select as your initial language; in that case the disc will use its original language setting.
8. The language is selected and the screen returns to setup menu.
9. To make the setup menu disappear, press the MENU button.

Using the DivX Subtitle Language

1. With the unit in Stop mode, press the MENU button.
2. Press the / buttons to select Setup, then press the or ENTER button.
3. Press the / buttons to select Language Setup, then press the or ENTER button.
4. Press the / buttons to select DivX Subtitle, then press the or ENTER button.

5. Press the / buttons to select the desired language, then press the or ENTER button.

6. The language is selected and the screen returns to Language Setup menu.

7. To make the setup menu disappear, press the MENU button.

Setting Up the Audio Options

Audio Options allows you to setup the audio device and sound status settings depending on the audio system in use.

1. With the unit in Stop mode, press the MENU button.
2. Press the / buttons to select Setup, then press the or ENTER button.
3. Press the / buttons to select Audio Setup, then press the or ENTER button.
4. Press the / buttons to select the desired item, then press the or ENTER button.

Dolby Digital Out

• PCM: Converts to PCM(2CH) audio.
• Bitstream : Outputs Dolby Digital or DTS via the digital output. Select Bitstream when connecting to a Dolby Digital or DTS Decoder.

Note

• There is no analog audio output when you play a DTS sound disc.

MPEG-2 Digital Out

• PCM: Converts to PCM(2CH) audio.
• Bitstream: Converts to MPEG-2 Digital Bitstream (5.1CH or 8CH). Select Bitstream when using the Digital Audio Output.

3 Dynamic Compression
- On: To select dynamic compression.
- Off: To select the standard range.
PCM Down Sampling
- On: Select this when the Amplifier connected to the player is not 96KHz compatible. In this case, the 96KHz signals will be down converted to 48KHZ.
- Off: Select this when the Amplifier connected to the player is 96KHz compatible. In this case, all signals will be output without any changes.

Note :

Even when PCM Down sampling is Off

• Some discs will only output down sampled audio through the digital outputs.
• To make the Setup menu disappear, press the MENU button.

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

Display options enable you to set various video functions of the player.

1. With the unit in Stop mode, press the MENU button.
2. Press the / buttons to select Setup, then press the or ENTER button.
3. Press the / buttons to select Display Setup, then press the or ENTER button.
4. Press the / buttons to select the desired item, then press the or ENTER button.

TV Aspect

Depending on a type of television you have, you may want to adjust the screen setting (aspect ratio).

• 4:3 Letter Box : Select when you want to see the total 16:9 ratio screen DVD supplies, even though you have a TV with a 4:3 ratio screen. Black bars will appear at the top and bottom of the screen.
• 4:3 Pan&Scan : Select this for conventional size TVs when you want to see the central portion of the 16:9 screen. (Extreme left and right side of movie picture will be cut off.)
• 16:9 Wide : You can view the full 16:9 picture on your wide screen TV.

2 Still Mode

These options will help prevent picture shake in still mode and display small text clearer.

• Auto: When selecting Auto, Field/Frame mode will be automatically converted.
• Field : Select this feature when the screen shakes in the Auto mode.
• Frame : Select this feature when you want to see small letters more clearly in the Auto mode.

Screen Messages

Use to turn on-screen messages On or Off.

4 Black Level

Adjusts the brightness of the screen.

⑤ TV System

• NTSC : In case of using NTSC disc
• If your TV system only has PAL-Video input, you must choose "PAL". When you choose "PAL", Interlace output format is PAL 60 Hz output.
• If your TV system only has NTSC, input you must choose "NTSC".
• PAL : In case of using PAL disc
• If your TV system only has NTSC-Video input, you must choose "NTSC".
• If your TV system only has PAL input, you must choose "PAL".

Video Output

Select Video Output.

• SCART-CVBS : Select when you want CVBS output form Scart connector.
• SCART-RGB Output: Select when you want to use Scart Out.
• If the Yes/No selection in the Display Setup sub Menu is not made within 10 seconds, the screen returns to the previous menu.

• If Video Output is set incorrectly, the screen may be blocked.

Setting Up the Parental Control

The Parental Control function works in conjunction with DVDs that have been assigned a rating, which helps you control the types of DVDs that your family watches. There are up to 8 rating levels on a disc.

Setting Up the Rating Level

1. With the unit in Stop mode (in condition no DVD or CD on the set), press the MENU button.
2. Press the / buttons to select Setup, then press the or ENTER button.

1. Press the / buttons to select Parental Setup, then press the or ENTER button.

1. Press the / buttons to select Rating Level, then press the or ENTER button.

1. Enter your password.

2. By default, password is set to 0000.

3. Please Change password to other than 0000 to parental control function activated.

1. Press the / buttons to select the Rating Level you want, then press the or ENTER button.

e.g) Setting up in Kids Safe.

To make the setup menu disappear, press the MENU button. For example, if you select up to Level 6, discs that contain Level 7,8 will not play.

Changing the Password

1. With the unit in Stop mode (in condition no DVD or CD on the set), press the MENU button.
2. Press the / buttons to select Setup, then press the

or ENTER button.

1. Press the / buttons to select Parental Setup, then press the or ENTER button. The Enter Password screen appears. Enter your password.

1. Press the / button to select Change Password, then press the or ENTER button. Enter your new password again.

Note

If you have forgotten your password, see "Forgot Password" in the Troubleshooting Guide.

Firmware upgrade

Introduction

Samsung will often support the software upgrade to improve the performance of this unit to the latest status, through Samsung Internet Site (www.samsung.com).

Because the specially newmpeg4 codec continues and it is appearing. What improvements are made depends on the upgrade software you are using as well as the software that your DVD-player contained before the upgrade.

How to make an upgrade disc

Write the downloaded file onto a blank CD-R or CDRW disc, using the following settings:

1. You have to download a new file through Download Center of Samsung Internet Site (www.samsung.com).
2. Write the file to Disc using CD-RW of your computer.

Note

• File System CD-ROM ISO Level
• Character set ISO 9660
• Finalized, single session
• Write speed low

Upgrade procedure

1. Open the disc tray. Place the disc on the tray. Close the tray. The Firmware upgrade screen appears.

Firmware upgrade appears on the display

1. Press the buttons to select Total, then press the ENTER button.

Firmware upgrade starts

• In the middle of the writing, the tray will open automatically. After taking out the disc, please wait for about 2 minutes.
• If the unit was successfully updated, the unit will turn off and on after closing the tray automatically. When the unit turns on, this screen will display.
• Press the number buttons to select the desired language

Note

• If the "Select Menu Language" doesn't appear, please contact to "Samsung Service Center".
• Do not press any button and unplug the power cord during upgrade.
• The upgrade procedure may change, refer to the web site (www.samsung.com).

Before requesting service (troubleshooting), please check the following.

Problem	Action	Page
No operations can be performed with the remote control.	·Check the batteries in the remote control. They may need replacing. ·Operate the remote control at a distance of no more than 20 feet. ·Remove batteries and hold down one or more buttons for several minutes to drain the microprocessor inside the remote control to reset it. Reinstall batteries and try to operate the remote control again.	P3
Disc does not play.	·Ensure that the disc is installed with the label side facing up. ·Check the region number of the DVD.	P5
5.1 channel sound is not being reproduced.	·51 channel sound is reproduced only when the following conditions are met.: 1) The DVD player is connected with the proper Amplifier 2) The disc is recorded with 5.1 channel sound. ·Check whether the disc being played has the "5.1 ch" mark on the outside. ·Check if your audio system is connected and working properly. ·In a SETUP Menu, is the Audio Output set to Bitstream?	P10-11 P24-25
The ⓧ icon appears on screen.	·The features or action cannot be completed at this time because: 1. The DVD's software restricts it. 2. The DVD's software doesn't support the feature (e.g., angles). 3. The feature is not available at the moment. 4. You've requested a title or chapter number or search time that is out of range.
Disc Menu doesn't appear.	·Check if the disc has a Menu.
Play mode differs from the Setup Menu selection.	·Some of the functions selected in the Setup Menu may not work properly if the disc is not encoded with the corresponding function.	P23~27
The screen ratio cannot be changed.	·The Screen Ratio is fixed on your DVDs.	P25-26
No audio.	·Make sure you have selected the correct Digital Output in the Audio Options Menu.	P24-25
The screen is blocked	·Press the ➔ button (in front panel) for more than 5 seconds under no disc inside. All settings will revert to the factory settings.	P12
Forgot password	·Press the ➔ button (in front panel) for more than 5 seconds under no disc inside. All settings including the password will revert to the factory settings. Don't use this unless absolutely necessary.	P26
If you experience other problems.	·Go to the contents and find the section of the instruction book that contains the explanations regarding the current problem, and follow the procedure once again. ·If the problem still cannot be solved, please contact your nearest authorized service center.
The picture is noisy or distorted	·Make sure that the disc is not dirty or scratched. ·Clean the disc.	P2

Digital Camera

Product	Company	Type
Finepix-A340	Fuji	Digital Camera
Finepix-F810	Fuji	Digital Camera
Finepix-F610	Fuji	Digital Camera
Finepix-I450	Fuji	Digital Camera
Finepix S7000	Fuji	Digital Camera
Finepix A310	Fuji	Digital Camera
KD-310Z	Konica	Digital Camera
Finecam SL300R	Kyocera	Digital Camera
Finecam SL400R	Kyocera	Digital Camera
Finecam S5R	Kyocera	Digital Camera
Finecam Xt	Kyocera	Digital Camera
Damage-Z1	Minolta	Digital Camera
Damage Z1	Minolta	Digital Camera
Damage X21	Minolta	Digital Camera
Coolpix4200	Nikon	Digital Camera
Coolpix4300	Nikon	Digital Camera
Coolpix 2200	Nikon	Digital Camera
Coolpix 3500	Nikon	Digital Camera
Coolpix 3700	Nikon	Digital Camera
Coolpix 4100	Nikon	Digital Camera
Coolpix 5200	Nikon	Digital Camera
Stylus 410 digital	Olympus	Digital Camera
300-digital	Olympus	Digital Camera
U300	Olympus	Digital Camera
X-350	Olympus	Digital Camera
C-760	Olympus	Digital Camera
C-5060	Olympus	Digital Camera
X1	Olympus	Digital Camera
U-mini	Olympus	Digital Camera
Lumix-EFZ20	Panasonic	Digital Camera
DMC-FX7GD	Panasonic	Digital Camera
Lumix LC33	Panasonic	Digital Camera
LUMIX DMC-F1	Panasonic	Digital Camera
Optio-S40	Pentax	Digital Camera
Optio-S50	Pentax	Digital Camera
Optio 33LF	Pentax	Digital Camera
Optio MX	Pentax	Digital Camera
Digimax-420	Samsung	Digital Camera
Digimax-400	Samsung	Digital Camera
Sora PDR-T30	Toshiba	Digital Camera
Coolpix 5900	Nikon	Digital Camera
Coolpix S1	Nikon	Digital Camera
Coolpix 7600	Nikon	Digital Camera
DMC-FX7	Panasonic	Digital Camera
Damage Xt	Minolta	Digital Camera
AZ-1	Olympus	Digital Camera

USB Flash Disk

Product	Company	Type
Cruzer Micro	Sandisk	USB 2.0 USB Flash Drive 128M
Cruzer Mini	Sandisk	USB 2.0 128M
Cruzer Mini	Sandisk	USB 2.0 256M
SONY Micro Vault	Sony	USB 2.0 64MB
FLEX DRIVE	Serotech	USB 2.0 32MB
AnyDrive	A.L tech	USB 2.0 128MB
XTICK	LG	USB 2.0 128M
Micro Mini	Iomega	USB 2.0 128M
iFlash	Imation	USB 2.0 64M
LG	XTICK(M)	USB 2.0 64M
RiDATA	EZDrive	USB 2.0 64M

MP3 Player

Product	Company	Type
Creative MuVo NX128M	Creative	128 MB MP3 Player
Iriver H320	Iriver	20G HDD MP3 Player
YH-920	Samsung	20G HDD MP3 Player
YP-T7	Samsung	MP3 Player
YP-MT6	Samsung	MP3 Player
YP-T6	Samsung	MP3 Player
YP-53	Samsung	MP3 Player
YP-ST5	Samsung	MP3 Player
YP-T5	Samsung	MP3 Player
YP-60	Samsung	MP3 Player
YP-780	Samsung	MP3 Player
YP-35	Samsung	MP3 Player
YP-55	Samsung	MP3 Player
iAUDIO U2	Cowon	MP3 Player
iAUDIO G3	Cowon	MP3 Player
iAudio M3	Cowon	HDD MP3 Player
SI-M500L	Sharp	256MB MP3 Player
H10	Iriver	MP3 Player
YP-T5 VB	Samsung	MP3 Player
YP-53	Samsung	256MB MP3 Player

Multi Card Reader

Product	Company	Type
UNICORN	Unicorn	USB 2.0 7 IN 1 CARD READER UC-601R
USB 2.0 Card Reader	Billionton(Taiwan)	USB 2.0 Card Reader for SD/MMC/RS-MMC(3-in-1)

USB External HDD

Product	Company	Type
CUTIE	Serotech	POCKET HARD DISK DRIVE
MOMOBAY UX-2	Dvico	USB 2.0

General	Power Requirements	AC 110-240 V ~ 50/60 Hz
	Power Consumption	9 W
	Weight	1.5 Kg
	Dimensions	430mm (W) X 207mm (D) X 37mm (H)
	Operating Temperature Range	+5°C to +35°C
	Operating Humidity Range	10 % to 75 %
Disc	DVD (DIGITAL VERSATILE DISC)	Reading Speed: 3.49 ~ 4.06 m/sec. Approx. Play Time (Single Sided, Single Layer Disc): 135 min.
	CD: 12Cm (COMPACT DISC)	Reading Speed: 4.8 ~ 5.6 m/sec. Maximum Play Time: 74 min.
	CD: 8Cm (COMPACT DISC)	Reading Speed: 4.8 ~ 5.6 m/sec. Maximum Play Time: 20 min.
Video Output	Composite Video	1 channel: 1.0 Vp-p (75 Ω load)
	SCART Jack	R(Red): 0.7 Vp-p (75 Ω load) G(Green): 0.7 Vp-p (75 Ω load) B(Blue): 0.7 Vp-p (75 Ω load) Composite Video: 1.0 Vp-p (75 Ω load) Luminance Signal: 1.0 Vp-p (75 Ω load) Color Signal: 0.3 Vp-p (75 Ω load)
Audio Output	SCART Jack	2 Channel: L(1/L), R(2/R)
	2 Channel	L(1/L), R(2/R)
	*Frequency Response	48 kHz Sampling: 4 Hz to 22 kHz 96 kHz Sampling: 4 Hz to 44 kHz
	*S/N Ratio	110 dB
	*Dynamic Range	100 dB
	*Total Harmonic Distortion	0.004 %

*: Nominal specification
Samsung Electronics Co., Ltd reserves the right to change the specifications with out notice.
- Weight and dimensions are approximate.

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

Region	Country	Customer Care Center	Web Site
North America	CANADA	1-800-SAMSUNG(726-7864)	www.samsung.com/ca
	MEXICO	01-800-SAMSUNG(726-7864)	www.samsung.com
	U.S.A	1-800-SAMSUNG(726-7864)	www.samsung.com
Latin America	ARGENTINE	0800-333-3733	www.samsung.com/ar
	BRAZIL	0800-124-421, 4004-0000	www.samsung.com
	CHILE	800-SAMSUNG(726-7864)	www.samsung.com/cl
	NICARAGUA	00-1800-5077267
	HONDURAS	800-7919267
	COSTA RICA	0-800-507-7267	www.samsung.com/latin
	ECUADOR	1-800-10-7267	www.samsung.com/latin
	EL SALVADOR	800-6225	www.samsung.com/latin
	GUATEMALA	1-800-299-0013	www.samsung.com/latin
	JAMAICA	1-800-234-7267	www.samsung.com/latin
	PANAMA	800-7267	www.samsung.com/latin
	PUERTO RICO	1-800-682-3180	www.samsung.com/latin
	REP. DOMINICA	1-800-751-2676	www.samsung.com/latin
	TRINIDAD & TOBAGO	1-800-SAMSUNG(726-7864)	www.samsung.com/latin
	VENEZUELA	0-800-100-5303	www.samsung.com/latin
	COLOMBIA	01-8000112112	www.samsung.com.co
Europe	BELGIUM	0032 (0)2 201 24 18	www.samsung.com/be
	CZECH REPUBLIC	844 000 844 Distributör pro Českou republik: Samsung Zrt., Česka organizačni složka Vyskočilova 4, 14000 Praha 4	www.samsung.com/cz
	DENMARK	70 70 19 70	www.samsung.com/dk
	FINLAND	030-6227 515	www.samsung.com/fi
	FRANCE	3260 SAMSUNG (€ 0,15/Min), 08 25 08 65 65 (€ 0,15/Min)	www.samsung.com
	GERMANY	01805 - SAMSUNG(726-7864) (€ 0,14/Min)	www.samsung.com
	HUNGARY	06-80-SAMSUNG(726-7864)	www.samsung.com
	ITALIA	800-SAMSUNG(726-7864)	www.samsung.com
	LUXEMBURG	0035 (0)2 261 03 710	www.samsung.com/be
	NETHERLANDS	0900-SAMSUNG(726-7864) (€ 0,10/Min)	www.samsung.com/nl
	NORWAY	815-56 480	www.samsung.com/no
	POLAND	0 801 801 881 , 022-607-93-33	www.samsung.com/pl
	PORTUGAL	80820-SAMSUNG(726-7864)	www.samsung.com/pt
	SLOVAKIA	0800-SAMSUNG(726-7864)	www.samsung.com/sk
	SPAIN	902 10 11 30	www.samsung.com
	SWEDEN	0771-400 200	www.samsung.com/se
	U.K.	0845 SAMSUNG (7267864)	www.samsung.com
	EIRE	0818 717 100	www.samsung.com/fe
	AUSTRIA	0800-SAMSUNG(726-7864)	www.samsung.com/at
	SWITZERLAND	0800-SAMSUNG(726-7864)	www.samsung.com/ch
CIS	RUSSIA	8-800-555-55-55	www.samsung.com
	KAZAHSTAN	8-10-800-500-55-500	www.samsung.kz
	UZBEKISTAN	8-10-800-500-55-500	www.samsung.uz
	KYRGYZSTAN	00-800-500-55-500
	TADJIKISTAN	8-10-800-500-55-500
	UKRAINE	8-800-502-0000	www.samsung.com
	LITHUANIA	8-800-77777	www.samsung.it
	LATvia	800-7267	www.samsung.com/lv
	ESTONIA	800-7267	www.samsung.ee
Asia Pacific	AUSTRALIA	1300 362 603	www.samsung.com
	NEW ZEALAND	0800SAMSUNG(726-7864)	www.samsung.com/nz
	CHINA	800-810-5858, 010-6475 1880	www.samsung.com
	HONG KONG	3698-4698	www.samsung.com/hk
	INDIA	3030 8282, 1800 110011	www.samsung.com
	INDONESIA	0800-112-8888	www.samsung.com
	JAPAN	0120-327-527	www.samsung.com/jp
	MALAYSIA	1800-88-9999	www.samsung.com/my
	PHILIPPINES	1800-10-SAMSUNG(726-7864)	www.samsung.com/ph
	SINGAPORE	1800-SAMSUNG(726-7864)	www.samsung.com
	THAILAND	1800-29-3232, 02-689-3232	www.samsung.com
	TAIWAN	0800-329-999	www.samsung.com/tw
	VIETNAM	1 800 588 889	www.samsung.com
Middle East & Africa	TURKEY	444 77 11	www.samsung.com
	SOUTH AFRICA	0860-SAMSUNG(726-7864)	www.samsung.com
	U.A.E	800-SAMSUNG (726-7864), 8000-4726	www.samsung.com

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Memo

Memo

1. Installation

9. USB Host (USB-host)

Diashow (Slide Show)

Zwarting (Black Level)

CONDITIONS DE GARANTIE

P.O.Box 681,2600 AR Delft

The Netherlands

1. Taste STEP / TV Source

• Normal Wide (Normale Breite)

Repeat/Random playback

produkt	Hersteller	Typ
Finepix-A340	Fuji	Digitalk cameras
Finepix-F810	Fuji	Digitalk cameras
Finepix-F610	Fuji	Digitalk cameras
Finepix-f450	Fuji	Digitalk cameras
Finepix S7000	Fuji	Digitalk cameras
Finepix A310	Fuji	Digitalk cameras
KD-310Z	Konica	Digitalk cameras
Finecam SL300R	Kyocera	Digitalk cameras
Finecam SL400R	Kyocera	Digitalk cameras
Finecam S5R	Kyocera	Digitalk cameras
Finecam Xt	Kyocera	Digitalk cameras
Damage-Z1	Minolta	Digitalk cameras
Damage Z1	Minolta	Digitalk cameras
Damage X21	Minolta	Digitalk cameras
Coolpix4200	Nikon	Digitalk cameras
Coolpix4300	Nikon	Digitalk cameras
Coolpix 2200	Nikon	Digitalk cameras
Coolpix 3500	Nikon	Digitalk cameras
Coolpix 3700	Nikon	Digitalk cameras
Coolpix 4100	Nikon	Digitalk cameras
Coolpix 5200	Nikon	Digitalk cameras
Stylus 410 digital	Olympus	Digitalk cameras
300-digital	Olympus	Digitalk cameras
U300	Olympus	Digitalk cameras
X-350	Olympus	Digitalk cameras
C-760	Olympus	Digitalk cameras
C-5060	Olympus	Digitalk cameras
X1	Olympus	Digitalk cameras
U-mini	Olympus	Digitalk cameras
Lumix-FZ20	Panasonic	Digitalk cameras
DMC-FX7GD	Panasonic	Digitalk cameras
Lumix LC33	Panasonic	Digitalk cameras
LUMIX DMC-F1	Panasonic	Digitalk cameras
Optio-S40	Pentax	Digitalk cameras
Optio-S50	Pentax	Digitalk cameras
Optio 33LF	Pentax	Digitalk cameras
Optio MX	Pentax	Digitalk cameras
Digimax-420	Samsung	Digitalk cameras
Digimax-400	Samsung	Digitalk cameras
Sora PDR-T30	Toshiba	Digitalk cameras
Coolpix 5900	Nikon	Digitalk cameras
Coolpix S1	Nikon	Digitalk cameras
Coolpix 7600	Nikon	Digitalk cameras
DMC-FX7	Panasonic	Digitalk cameras
Damage Xt	Minolta	Digitalk cameras
AZ-1	Olympus	Digitalk cameras

USB-Flash-Laufwerke

produkt	Hersteller	Typ
Cruzer Micro	Sandisk	USB 2.0 USB Flash Drive 128M
Cruzer Mini	Sandisk	USB 2.0 128M
Cruzer Mini	Sandisk	USB 2.0 256M
SONY Micro Vault	Sony	USB 2.0 64MB
FLEX DRIVE	Serotech	USB 2.0 32MB
AnyDrive	A.L tech	USB 2.0 128MB
XTICK	LG	USB 2.0 128M
Micro Mini	Iomega	USB 2.0 128M
iFlash	Imation	USB 2.0 64M
LG	XTICK(M)	USB 2.0 64M
RiDATA	EZDrive	USB 2.0 64M

MP3-Player

produkt	Hersteller	Typ
Creative MuVo NX128M	Creative	128 MB MP3-Player
Iriver H320	Iriver	20G HDD MP3-Player
YH-920	Samsung	20G HDD MP3-Player
YP-T7	Samsung	MP3-Player
YP-MT6	Samsung	MP3-Player
YP-T6	Samsung	MP3-Player
YP-53	Samsung	MP3-Player
YP-ST5	Samsung	MP3-Player
YP-T5	Samsung	MP3-Player
YP-60	Samsung	MP3-Player
YP-780	Samsung	MP3-Player
YP-35	Samsung	MP3-Player
YP-55	Samsung	MP3-Player
iAUDIO U2	Cowon	MP3-Player
iAUDIO G3	Cowon	MP3-Player
iAudio M3	Cowon	HDD MP3-Player
SI-M500L	Sharp	256MB MP3-Player
H10	Iriver	MP3-Player
YP-T5 VB	Samsung	MP3-Player
YP-53	Samsung	256MB MP3-Player

Multi-Kartenleser

produkt	Hersteller	Typ
UNICORN	Unicorn	USB 2.0 7 IN 1 CARD READER UC-601R
USB 2.0 Card Reader	Billionton(Taiwan)	USB 2.0 Card Reader for SD/MMC/RS-MMC(3-in-1)

External USB-Festplatten

produkt	Hersteller	Typ
CUTIE	Serotech	POCKET HARD DISK DRIVE
MOMOBAY UX-2	Dvico	USB 2.0
