PS64E8000 - TV SAMSUNG - Free user manual and instructions

Product type	3D Plasma TV
Screen size	64 inches (163 cm)
Resolution	1920 x 1080 (Full HD)
Refresh rate	600 Hz (CMR)
Dimensions (without stand)	1456 x 847 x 30.8 mm (W x H x D)
Dimensions (with stand)	1456 x 900 x 305 mm (W x H x D)
Weight (without stand)	30.5 kg
Weight (with stand)	33.2 kg
Power supply	AC 220-240 V, 50/60 Hz
Power consumption (max)	370 W
Standby power consumption	Less than 0.5 W
3D features	Yes (active, glasses sold separately)
Smart TV	Smart Hub, Samsung Apps, AllShare Play, Web Browser
Network connectivity	Built-in Wi-Fi (802.11a/b/g/n), Ethernet LAN
HDMI inputs	4 (including 1 with ARC, 1 with MHL)
USB inputs	3 (including 1 for recording)
Other connections	SCART, Component (YUV), Optical audio, Headphone, Common Interface CI+
Supported video formats	AVI, MKV, MP4, WMV, DivX, H.264, MPEG2, and more
Supported audio formats	MP3, AAC, WMA, FLAC, OGG
Cleaning and maintenance	Soft dry cloth; no abrasive cleaners
Security	Kensington lock, Parental channel lock
Spare parts and repairability	Samsung authorized service; parts available according to availability

Frequently Asked Questions - PS64E8000 SAMSUNG

How to connect an HDMI device?

Use a certified HDMI cable. Plug it into one of the HDMI IN ports (1, 2, 3). The HDMI IN 2 (ARC) port allows audio return to a compatible receiver. The HDMI IN 3 (MHL) port allows displaying the screen of a compatible smartphone.

How to use the 3D function?

Put on compatible active 3D glasses. Press the 3D button on the remote, then select the appropriate 3D mode (Automatic, Side by side, Top and bottom, etc.). Set 'Auto 3D display' in the Picture menu for automatic detection.

Where to find the picture settings?

Press the MENU button on the remote, then select Picture. You can adjust Picture Mode (Dynamic, Standard, Natural, Cinema), Backlight, Contrast, Brightness, Sharpness, Color, and Tint.

How to connect the TV to the Internet?

Go to Menu > Network > Network Settings. Choose 'Start' for automatic configuration. For Wi-Fi, select your network from the list and enter the security key. You can also use WPS (button on the router) or 'Plug & Access' (USB key on Samsung router).

How to schedule a recording on USB?

Connect a USB hard drive (minimum 5400 rpm) to a USB port. Go to Menu > Channel > Program Manager. Press the A (Add) button and select 'Schedule recording'. Set the antenna, channel, repetition, date, and start/end times.

How to use the universal remote (Smart Touch Control)?

After connecting the TV, follow the on-screen instructions to set up the IR Blaster. In the menu, select 'Universal remote setup'. Choose the device (set-top box, BD player), brand, and model to download the codes. You can then control that device with the TV remote.

What to do if the picture is blurry or pixelated?

Check the signal quality. Use the 'Manual search' function in the Channel menu to fine-tune the frequency. Enable 'Digital Noise Filter' and 'MPEG Noise Filter' in the Picture Options. If the problem persists, check the antenna or cable connections.

How to connect headphones?

Plug your headphones (3.5 mm TRS plug with 3 conductors) into the headphone jack on the back of the TV. The internal speakers are then muted. Headphone volume is adjusted separately from speaker volume via the Sound menu.

How to clean the screen?

Turn off the TV and let it cool down. Use a soft dry cloth (microfiber) to wipe the screen. Never use liquid cleaners, abrasives, or rough cloths that could scratch the surface.

Why do some channels show 'Scrambled signal'?

This means the channel is encrypted and requires a CI or CI+ (Common Interface) card. Insert the CI card adapter into the COMMON INTERFACE port on the back of the TV, then insert the card provided by your operator. Premium channels will then be unlocked.

USER MANUAL PS64E8000 SAMSUNG

DIGITAL AUDIO OUT (OPTICAL)

International Solutions.

1080i/1080p (1920 x 1080), 720p (1280

x 720)

Conditions contrast de service.

Samsung Apps

Samsung Apps

reconnaissance vocale.

- Action : serrez vos poings.

stockage Web (SugarSync).

→ AllShare Play → Ma List

DIGITAL AUDIO OUT (OPTICAL)

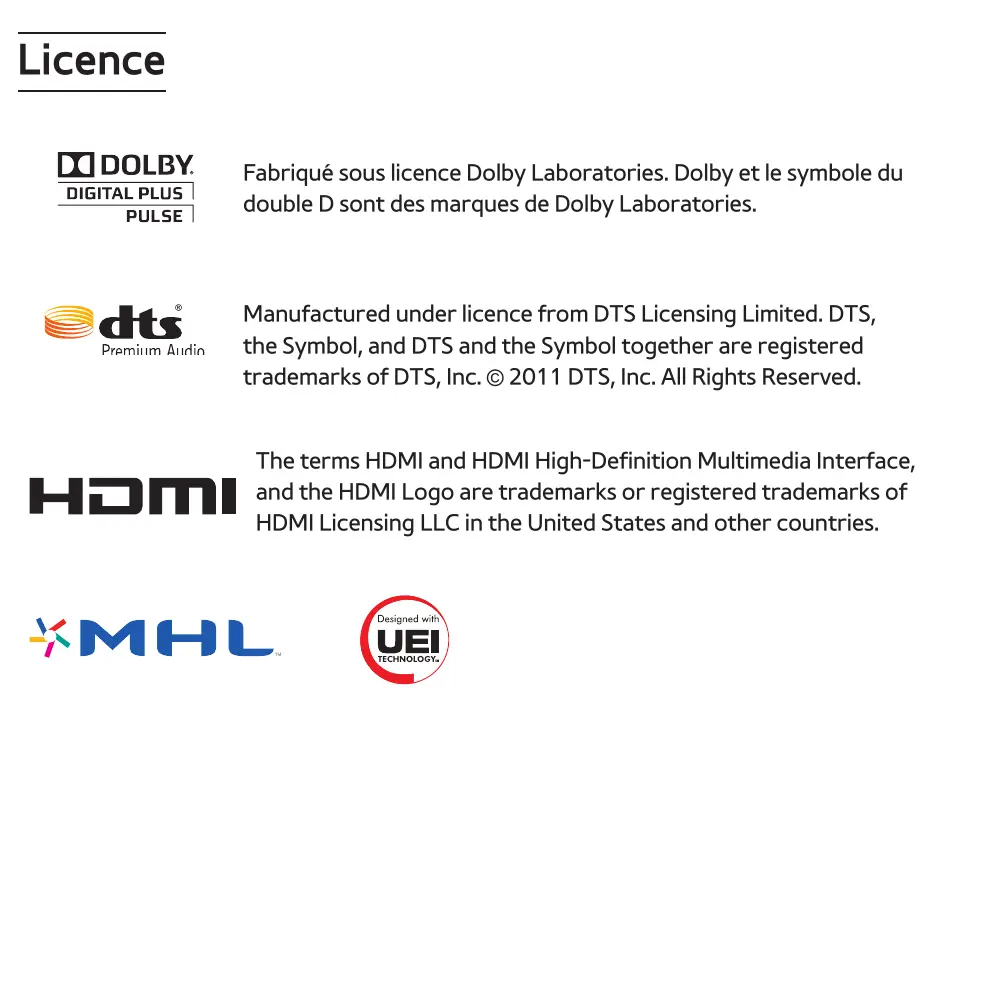

Manufactured under licence from DTS Licensing Limited. DTS, the Symbol, and DTS and the Symbol together are registered trademarks of DTS, Inc. © 2011 DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

DivX Certified® to play DivX® video up to HD 1080p, including premium content.

DivX®, DivX Certified® and associated logos are trademarks of DivX, Inc. and are used under licence.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified® device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.
